| CMS-SUS-23-005 ; CERN-EP-2026-200 | ||
| Search for a light pseudoscalar Higgs boson in final states with boosted muon pairs and tau lepton pairs in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | ||
| CMS Collaboration | ||
| 11 September 2026 | ||
| Submitted to the Journal of High Energy Physics | ||
| Abstract: A search is presented for a light pseudoscalar Higgs boson, $ a $, using LHC proton-proton data at $ \sqrt{s} = $ 13 TeV collected by the CMS experiment from 2016 to 2018, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. The analysis targets the process $ \mathrm{H} \to a a \to \mu\mu\tau\tau $, where the scalar H can be either the 125 GeV Higgs boson or a heavier state. Because of the large mass difference between H and $ a $, the two tau leptons are highly Lorentz boosted and collimated, often failing standard CMS tau lepton reconstruction. To address this, dedicated ditau reconstruction techniques, including a deep neural network, are developed to improve the efficiency for events in which at least one tau lepton decays to hadrons. No significant excess over the standard model (SM) background is observed. Model-independent upper limits at the 95% confidence level are set on the product of the Higgs boson production cross section and branching fraction, divided by the SM cross section. For a Higgs boson mass ($ m_{\mathrm{H}} $) equal to 125 GeV, these limits range from 5 $ \times 10^{-5} $ to 2.7 $ \times 10^{-4} $ for pseudoscalar masses between 3.6 and 21 GeV. For the first time using LHC data, upper limits are also obtained in final states with tau leptons for a hypothetical scalar boson with a mass up to 1 TeV. For $ m_{\mathrm{H}} = $ 1 TeV, the limits range from 3.5 $ \times 10^{-4} $ to 1.5 $ \times 10^{-3} $ for pseudoscalar masses between 3.6 and 50 GeV. In addition, limits are set for SM extensions involving two-Higgs-doublet plus singlet models for $ m_{\mathrm{H}} = $ 125 GeV, extending previous LHC results. | ||
| Links: e-print arXiv:2609.12683 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

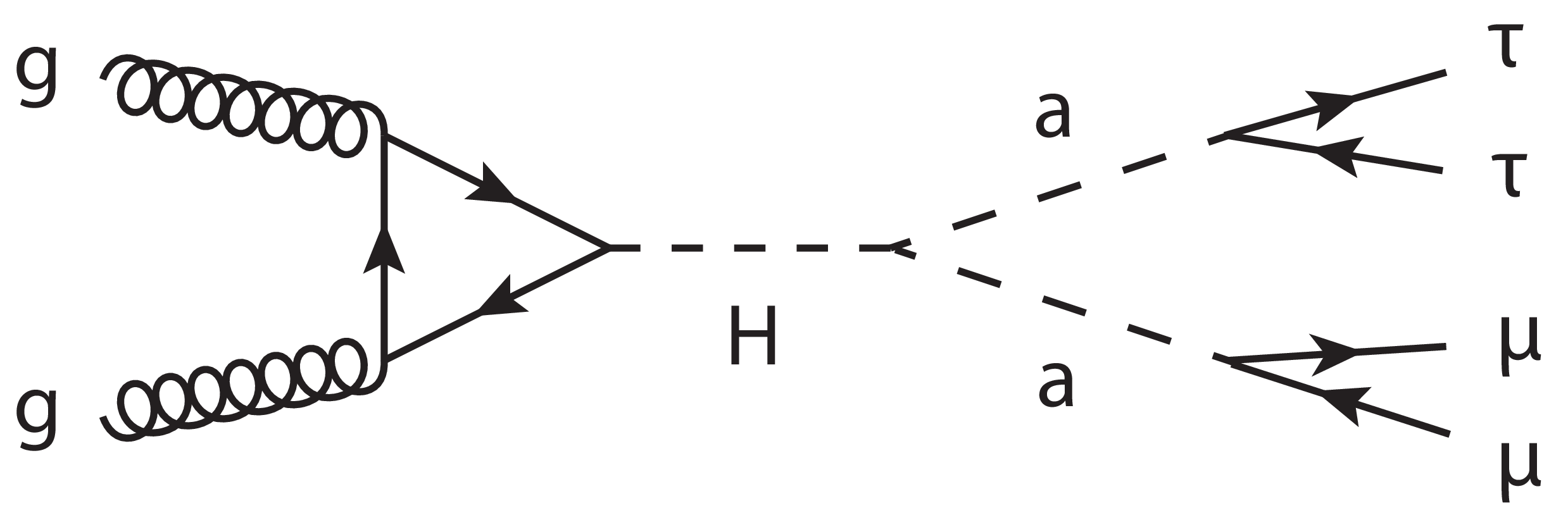

Figure 1:
Feynman diagram of a Higgs boson produced via gluon fusion and decaying into two pseudoscalar bosons, one of which subsequently decays into two muons and the other decays into two tau leptons. |
png pdf |

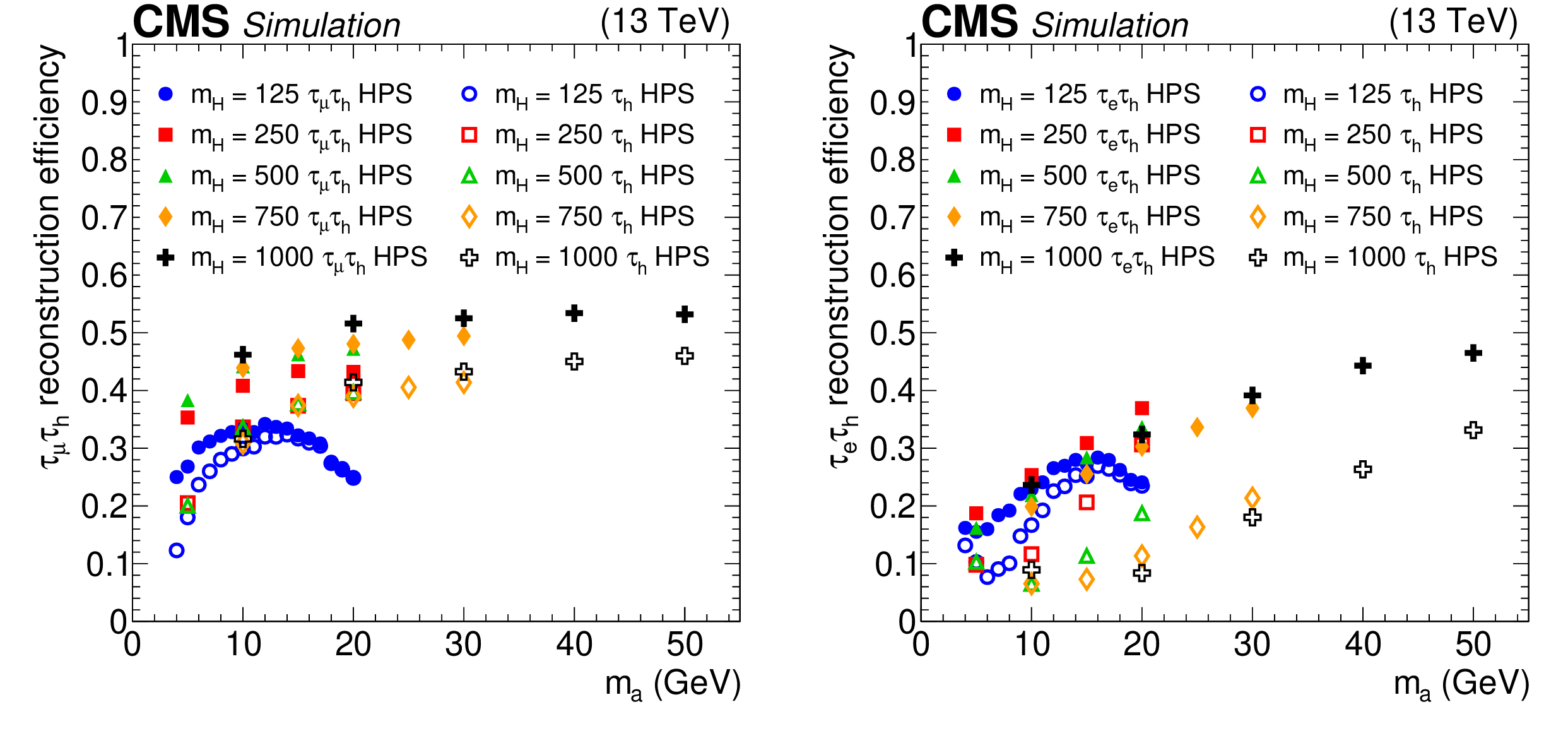

Figure 2:
The $ \tau\tau $ reconstruction efficiency of the standard $ \tau $ HPS algorithm (open markers) and the modified $ \tau_{\mu}\tau_\mathrm{h} $ (left) or $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ (right) HPS algorithm (solid markers) as a function of $ m_{a } $ for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. Because of the requirement $ \Delta R(\tau_{\ell}, \tau_\mathrm{h}) < $ 0.8, the efficiency for $ m_{\mathrm{H}} = $ 125 GeV decreases above $ m_{a } = $ 12 GeV in the $ \tau_{\mu}\tau_\mathrm{h} $ channel and above $ m_{a } = $ 14 GeV in the $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ channel, corresponding to the region in which the $ \tau\tau $ topology becomes increasingly resolved. In the right plot, the dip in the standard HPS efficiency for the low $ m_{a } $ region is due to two competing effects: the requirement of $ p_{\mathrm{T}}^{\mathrm{e}} > $ 10 GeV, which loses efficiency with increasing $ m_{a } $, and the requirement of passing an anti-electron discriminant, which increases in efficiency as $ m_{a } $ increases. This analysis deploys the modified HPS reconstruction which shows a significantly higher efficiency than the standard $ \tau $ HPS scenario. |
png pdf |

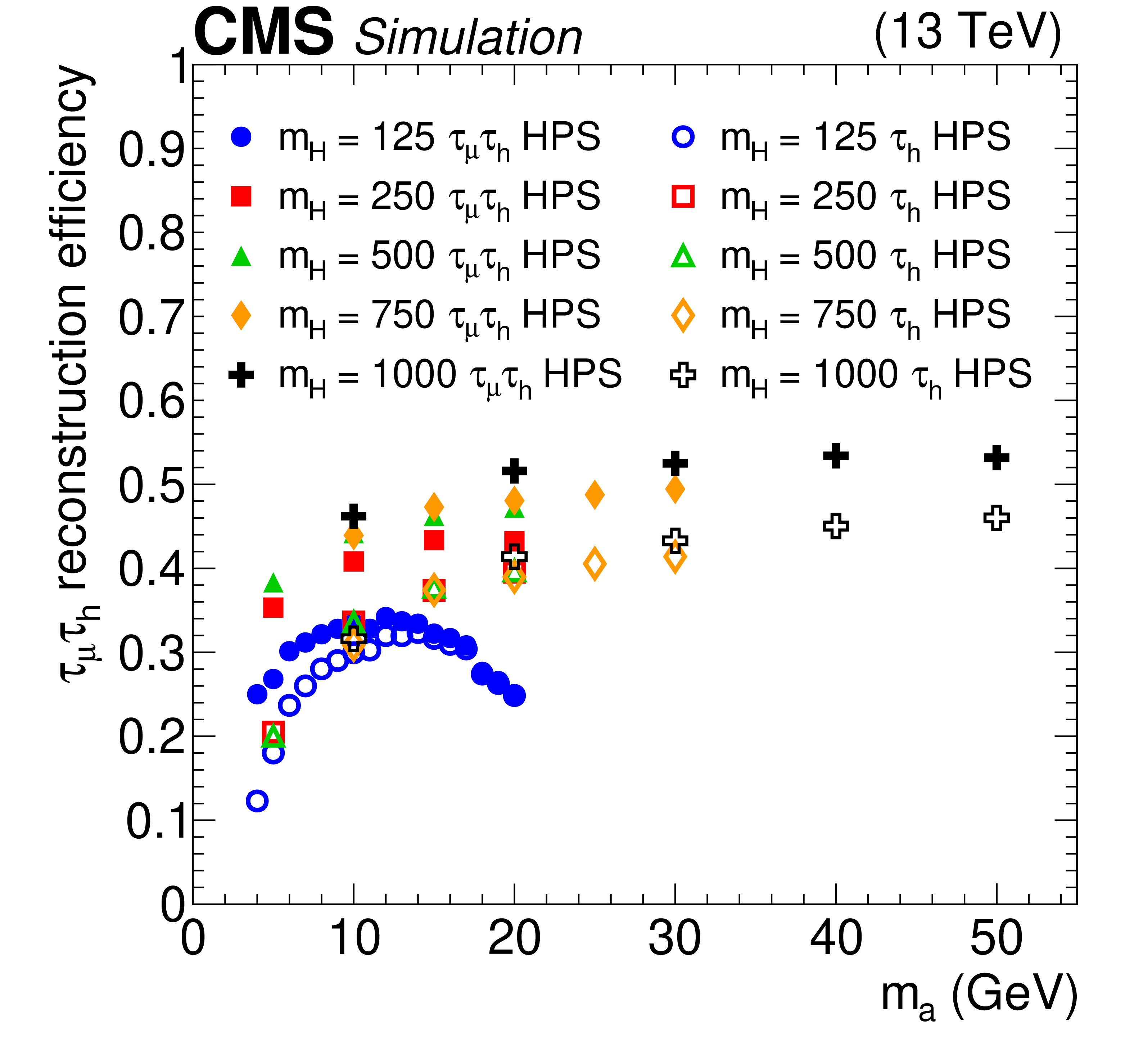

Figure 2-a:
The $ \tau\tau $ reconstruction efficiency of the standard $ \tau $ HPS algorithm (open markers) and the modified $ \tau_{\mu}\tau_\mathrm{h} $ (left) or $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ (right) HPS algorithm (solid markers) as a function of $ m_{a } $ for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. Because of the requirement $ \Delta R(\tau_{\ell}, \tau_\mathrm{h}) < $ 0.8, the efficiency for $ m_{\mathrm{H}} = $ 125 GeV decreases above $ m_{a } = $ 12 GeV in the $ \tau_{\mu}\tau_\mathrm{h} $ channel and above $ m_{a } = $ 14 GeV in the $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ channel, corresponding to the region in which the $ \tau\tau $ topology becomes increasingly resolved. In the right plot, the dip in the standard HPS efficiency for the low $ m_{a } $ region is due to two competing effects: the requirement of $ p_{\mathrm{T}}^{\mathrm{e}} > $ 10 GeV, which loses efficiency with increasing $ m_{a } $, and the requirement of passing an anti-electron discriminant, which increases in efficiency as $ m_{a } $ increases. This analysis deploys the modified HPS reconstruction which shows a significantly higher efficiency than the standard $ \tau $ HPS scenario. |
png pdf |

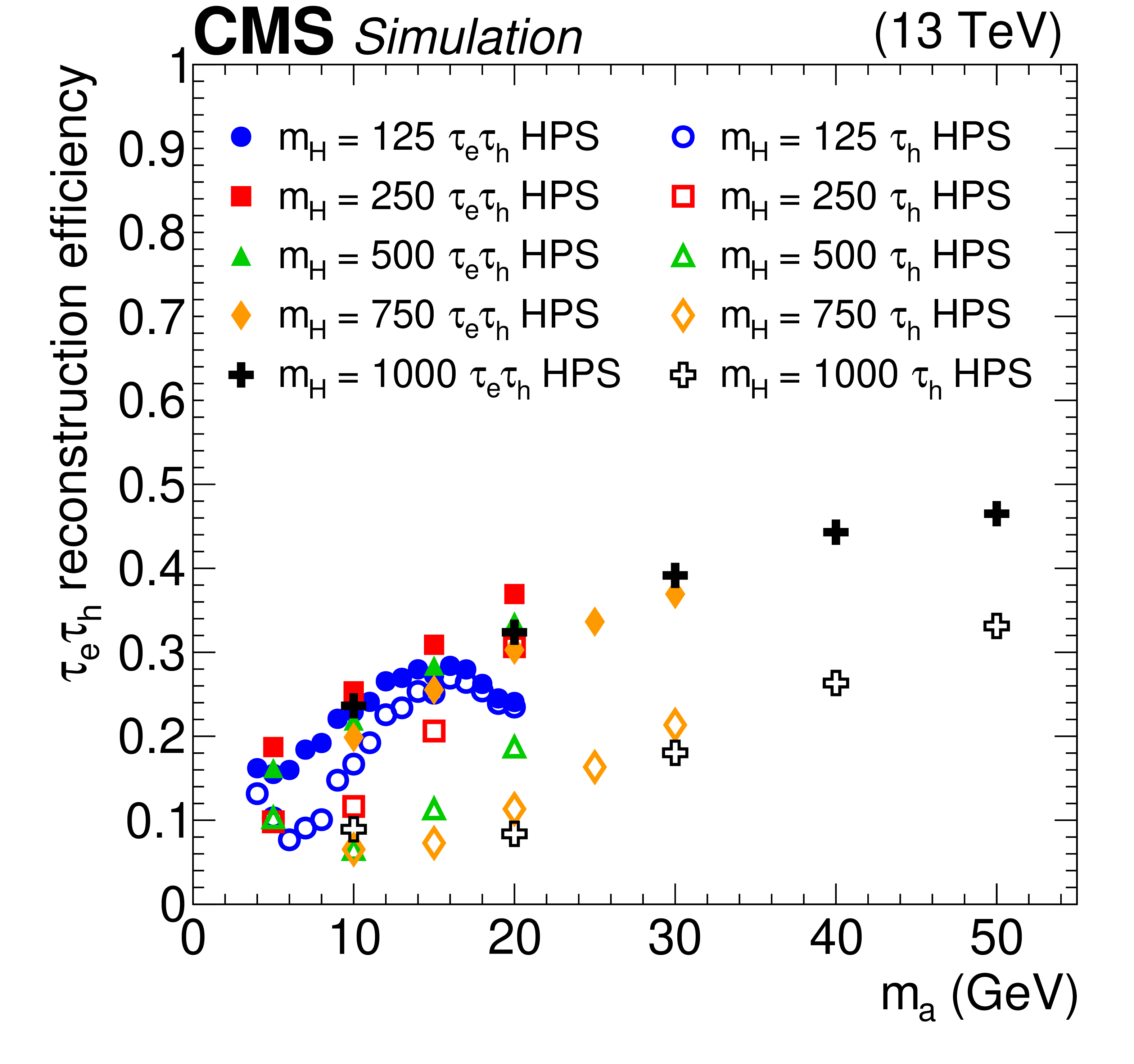

Figure 2-b:
The $ \tau\tau $ reconstruction efficiency of the standard $ \tau $ HPS algorithm (open markers) and the modified $ \tau_{\mu}\tau_\mathrm{h} $ (left) or $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ (right) HPS algorithm (solid markers) as a function of $ m_{a } $ for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. Because of the requirement $ \Delta R(\tau_{\ell}, \tau_\mathrm{h}) < $ 0.8, the efficiency for $ m_{\mathrm{H}} = $ 125 GeV decreases above $ m_{a } = $ 12 GeV in the $ \tau_{\mu}\tau_\mathrm{h} $ channel and above $ m_{a } = $ 14 GeV in the $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ channel, corresponding to the region in which the $ \tau\tau $ topology becomes increasingly resolved. In the right plot, the dip in the standard HPS efficiency for the low $ m_{a } $ region is due to two competing effects: the requirement of $ p_{\mathrm{T}}^{\mathrm{e}} > $ 10 GeV, which loses efficiency with increasing $ m_{a } $, and the requirement of passing an anti-electron discriminant, which increases in efficiency as $ m_{a } $ increases. This analysis deploys the modified HPS reconstruction which shows a significantly higher efficiency than the standard $ \tau $ HPS scenario. |
png pdf |

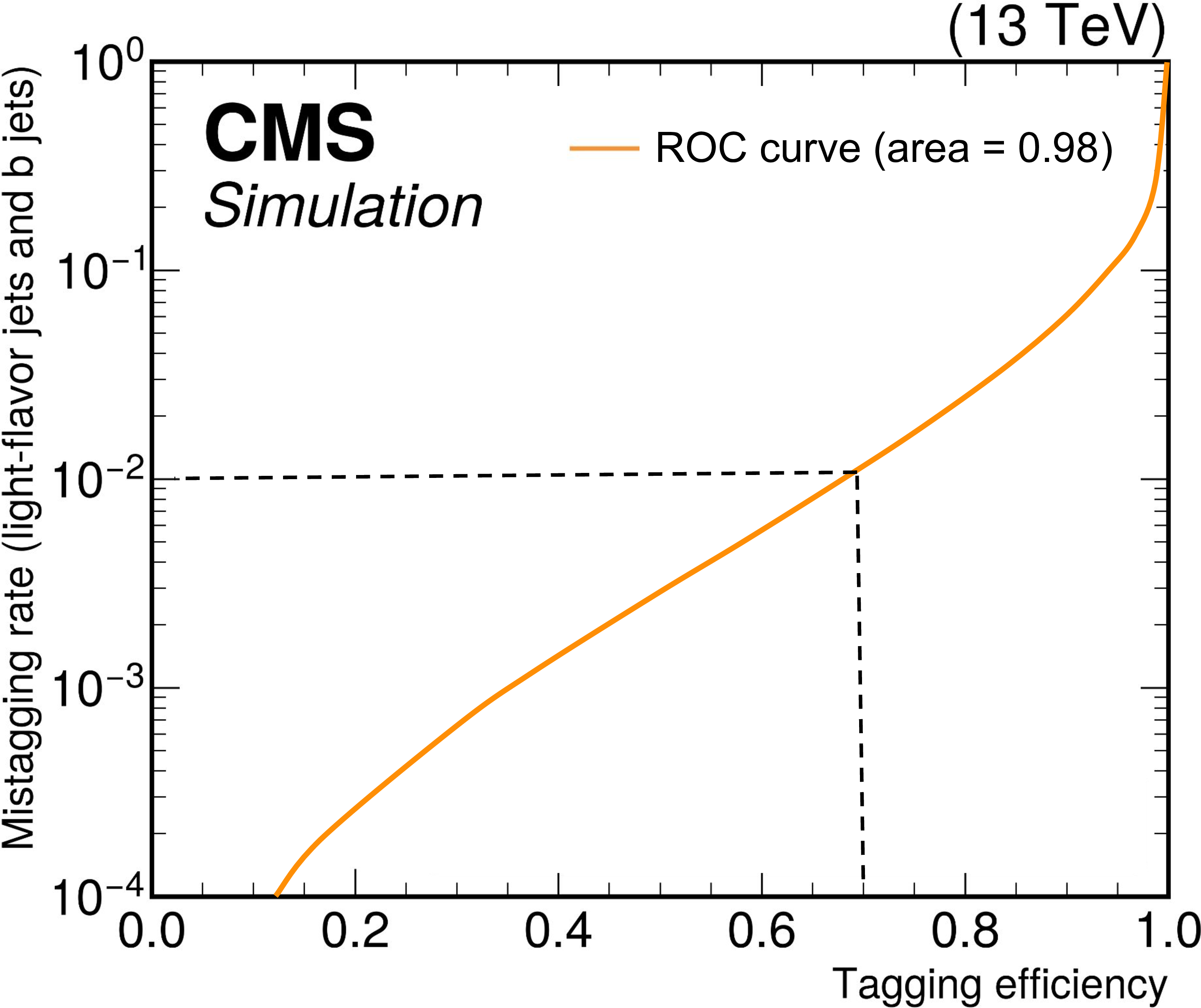

Figure 3:
Receiver operating characteristic curve for the DEEPDITAU classifier. The tagging efficiency corresponds to the fraction of $ \tau_\mathrm{h}\tau_\mathrm{h} $ jets correctly identified as $ \tau_\mathrm{h}\tau_\mathrm{h} $ jets, while the mistagging rate corresponds to the fraction of light jets and b jets misidentified as $ \tau_\mathrm{h}\tau_\mathrm{h} $ jets. The dashed lines show that the medium working point used in this analysis corresponds to a tagging efficiency of 70% and a mistagging rate of approximately 1%. |
png pdf |
Figure 4:
Schematic of the analysis strategy. In the Z boson mass range, the tight-to-loose ratio is derived from the $ \mathrm{Z}\to\mu\mu $+jet control region and sideband. In the analysis mass range, events with two isolated muons and no loosely selected $ \tau\tau $ candidates enter the control region. Events that additionally contain a loosely selected $ \tau\tau $ candidate are further categorized into the signal region or sideband, as described in the text. The sideband data, weighted by the tight-to-loose ratio, are used to estimate the background in the signal region. In addition, by inverting the isolation requirement on the muon that did not trigger the event, two analogous regions are defined for validating the tight-to-loose method. |
png pdf |

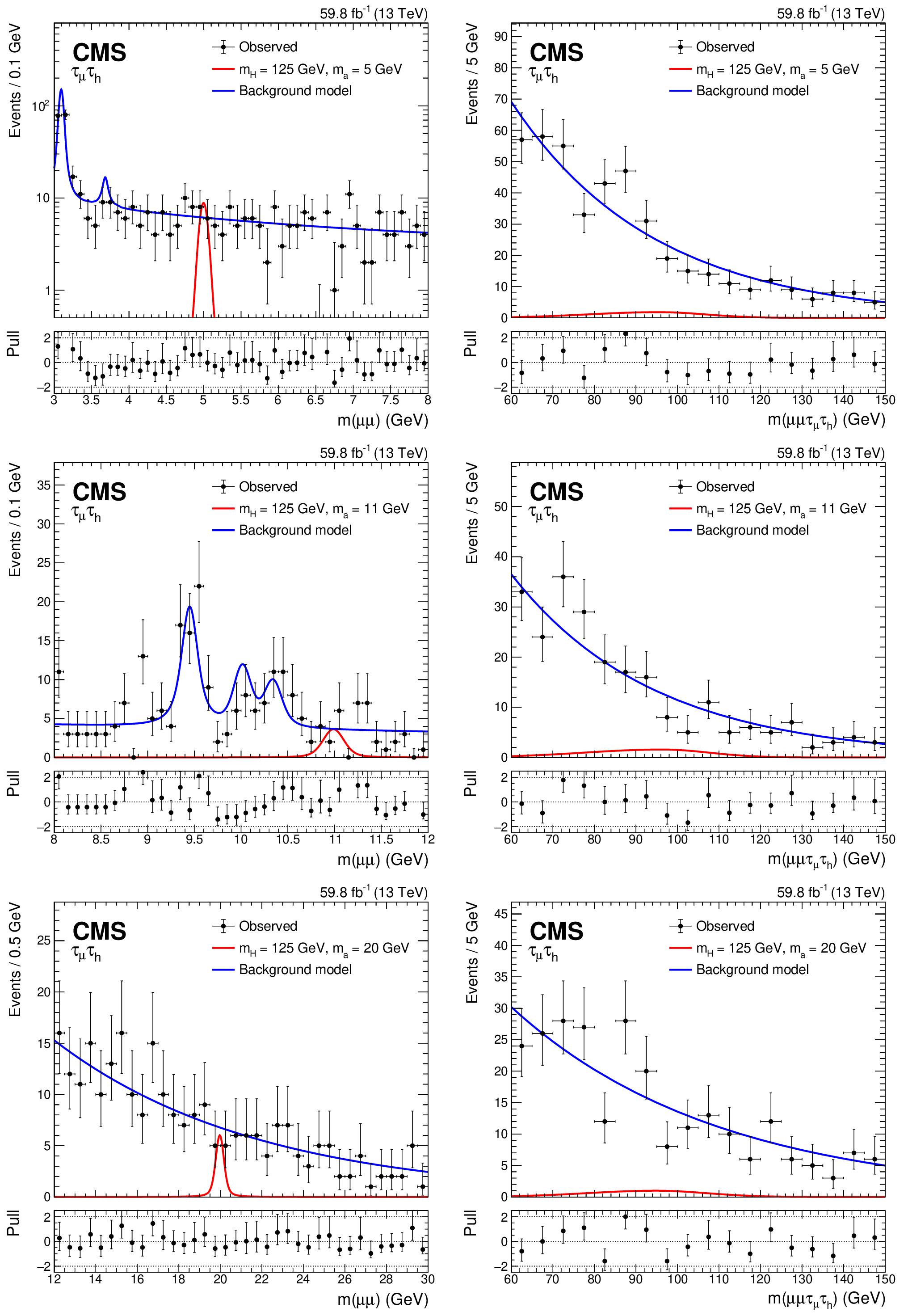

Figure 5:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

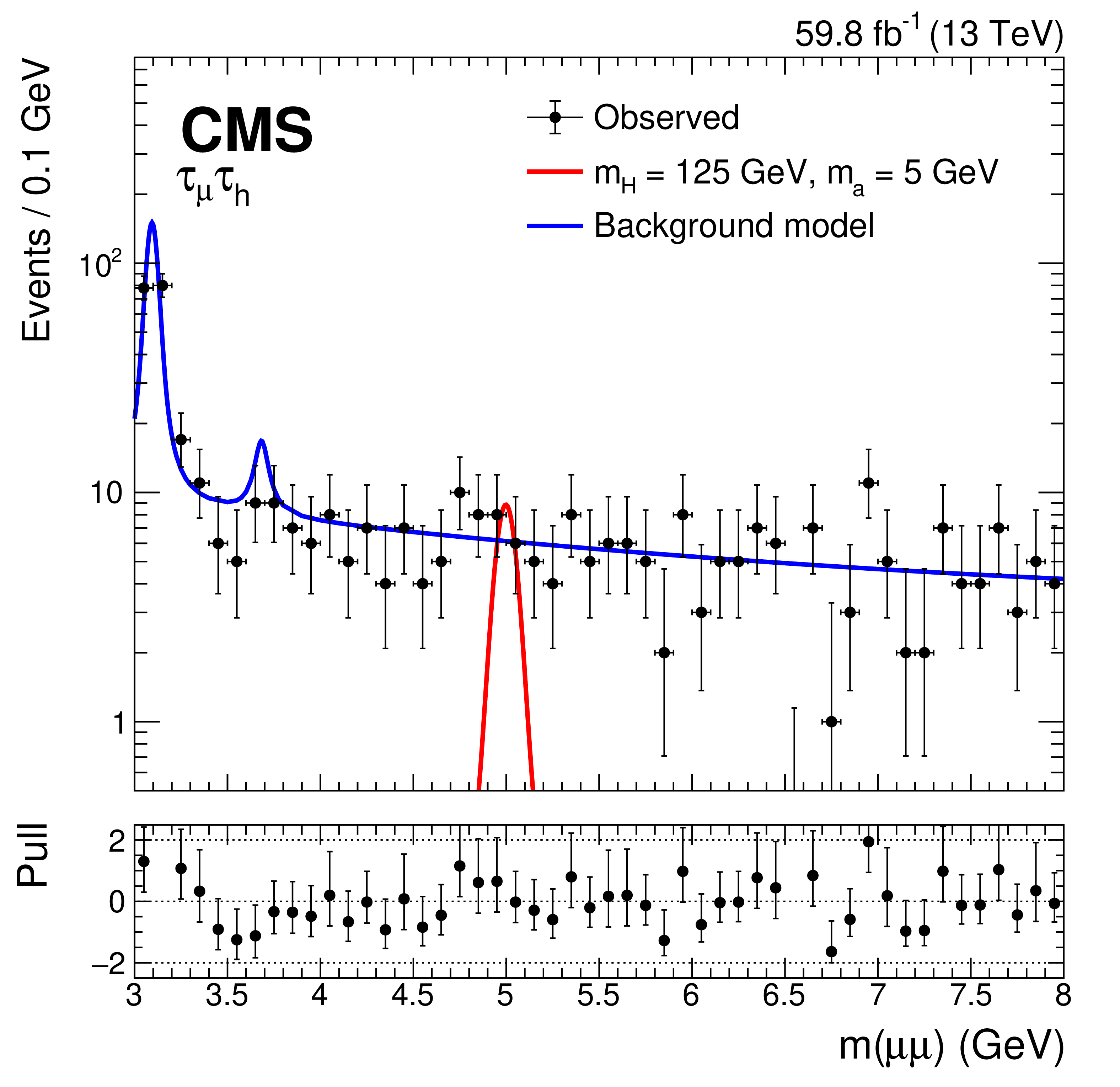

Figure 5-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

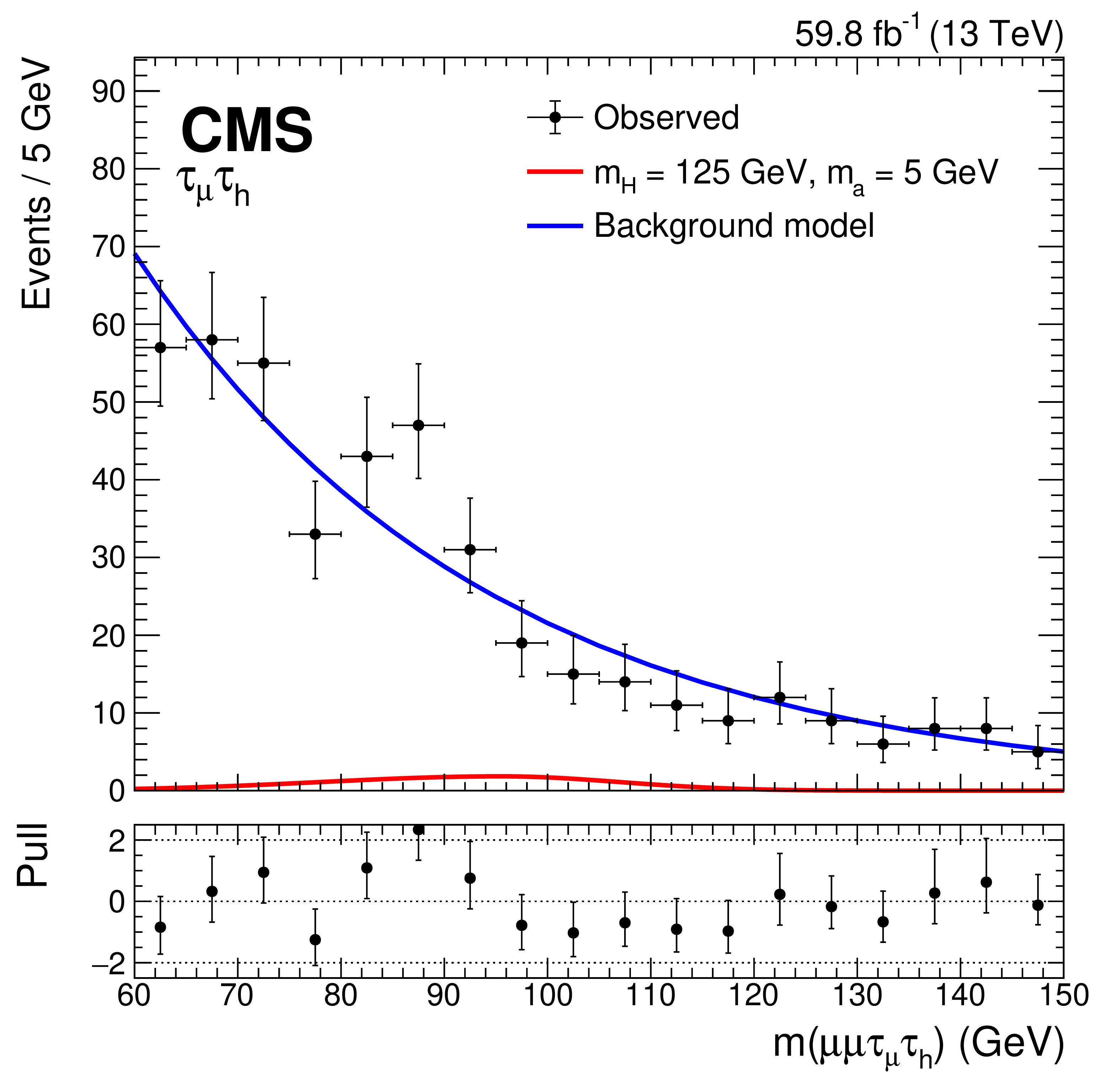

Figure 5-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

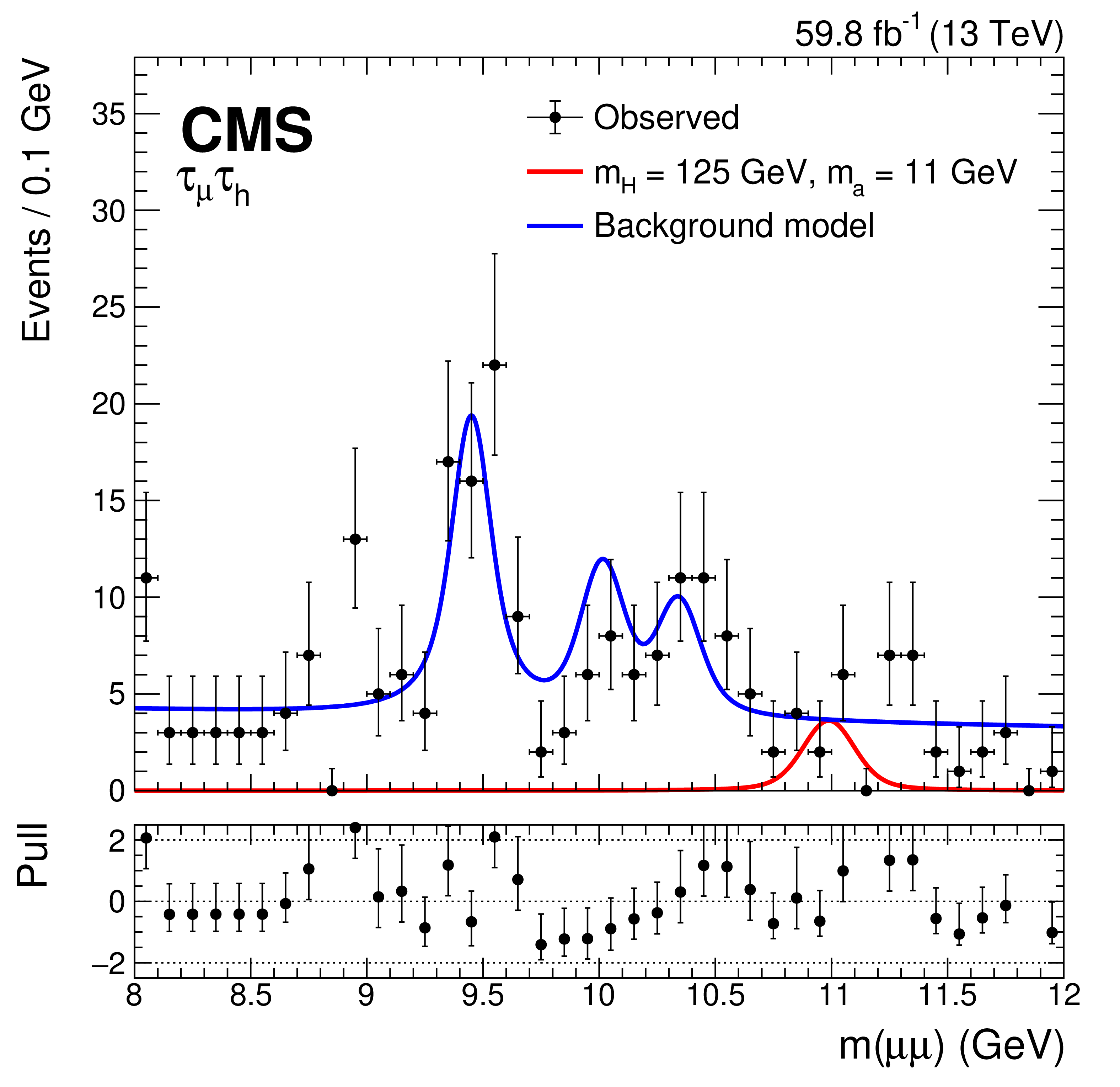

Figure 5-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

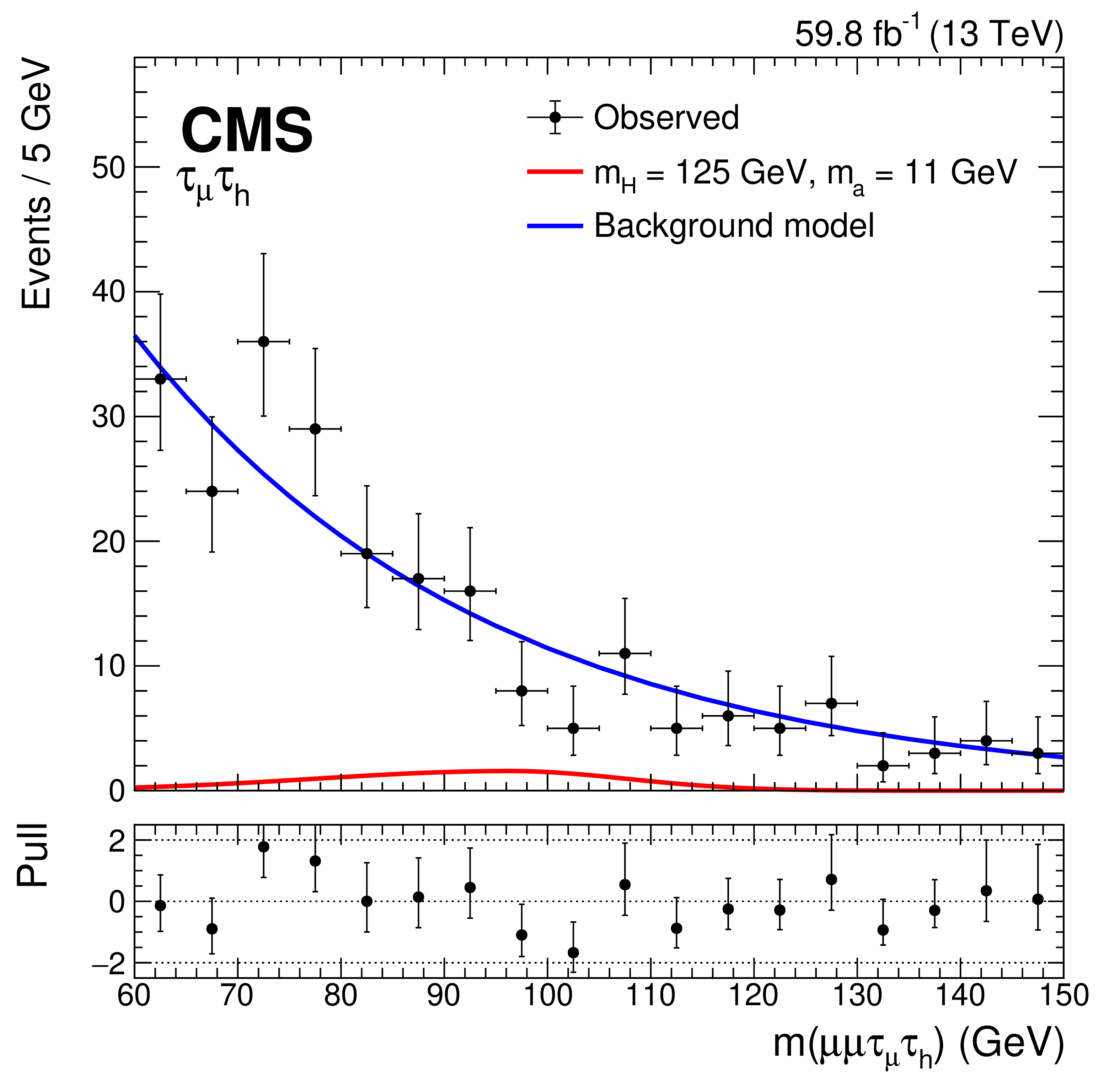

Figure 5-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

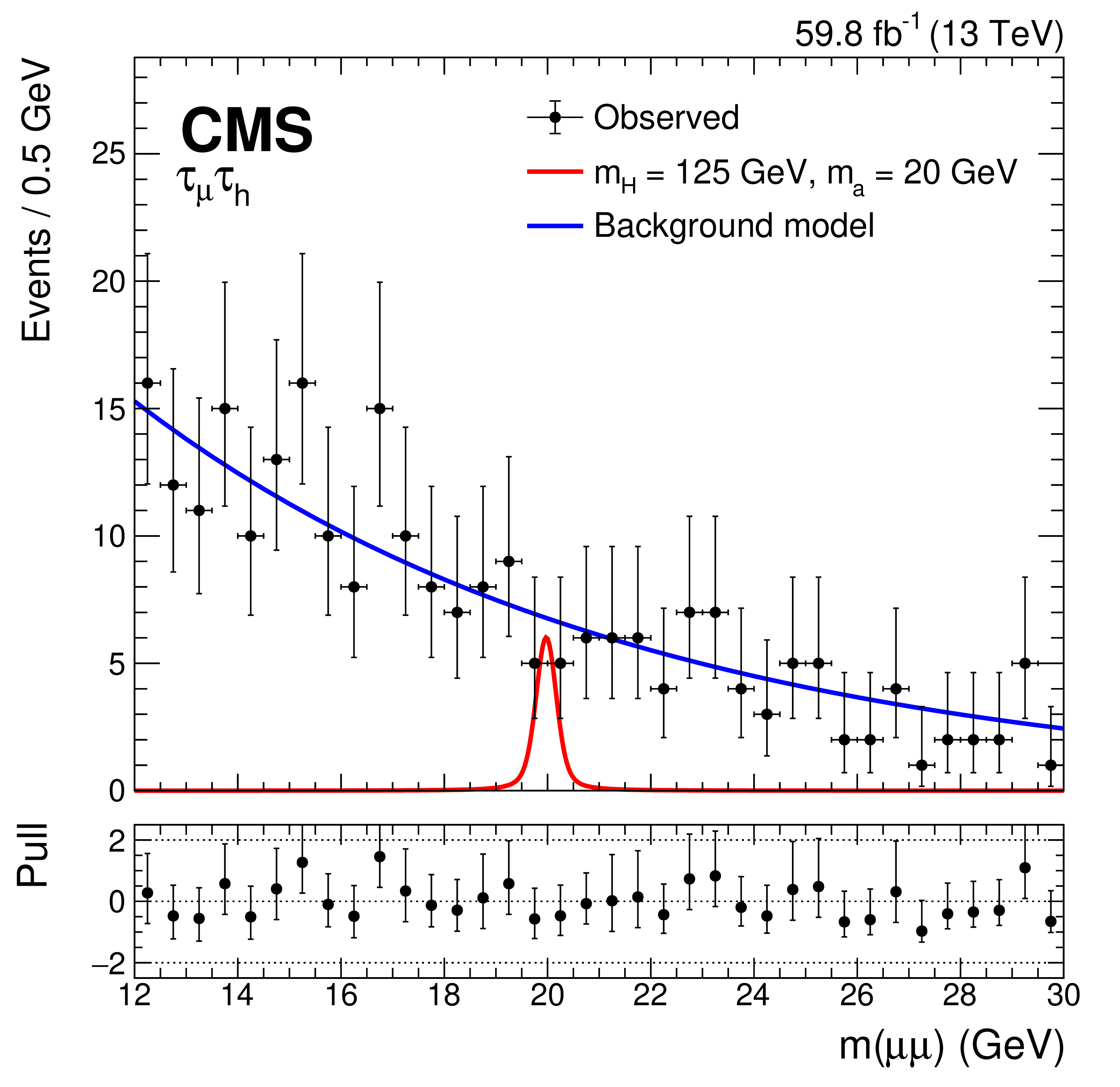

Figure 5-e:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

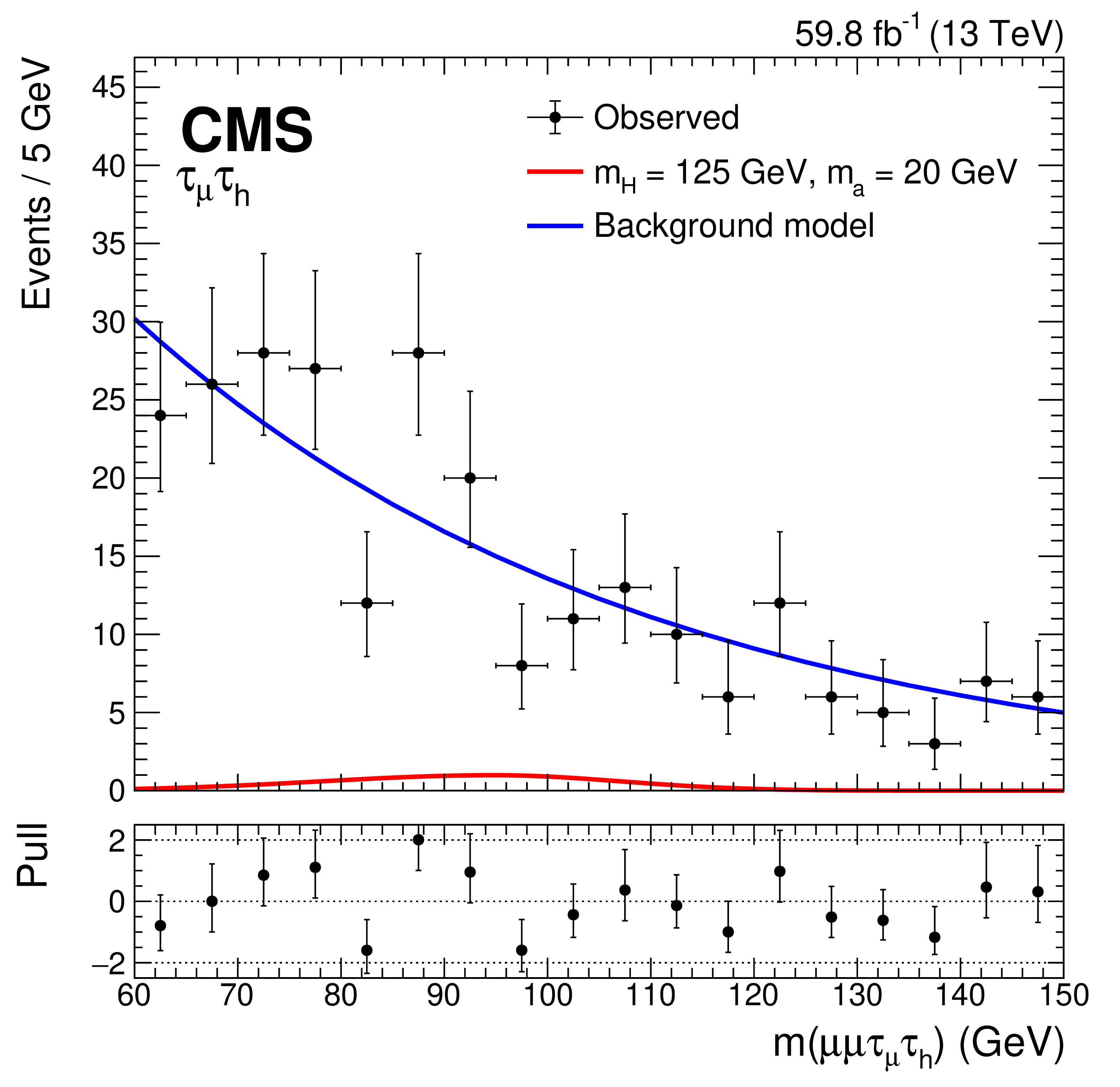

Figure 5-f:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_{\mu}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

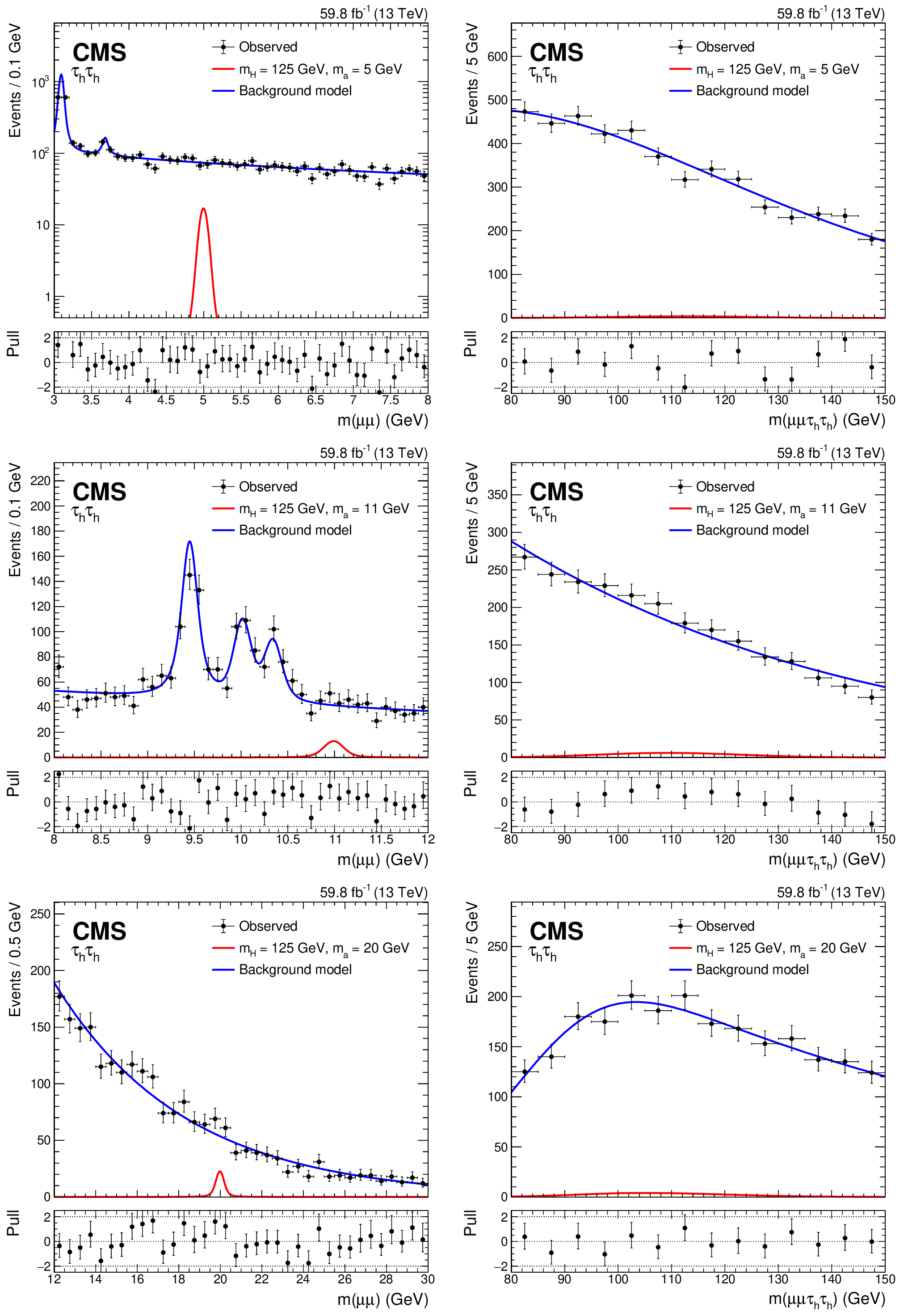

Figure 6:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

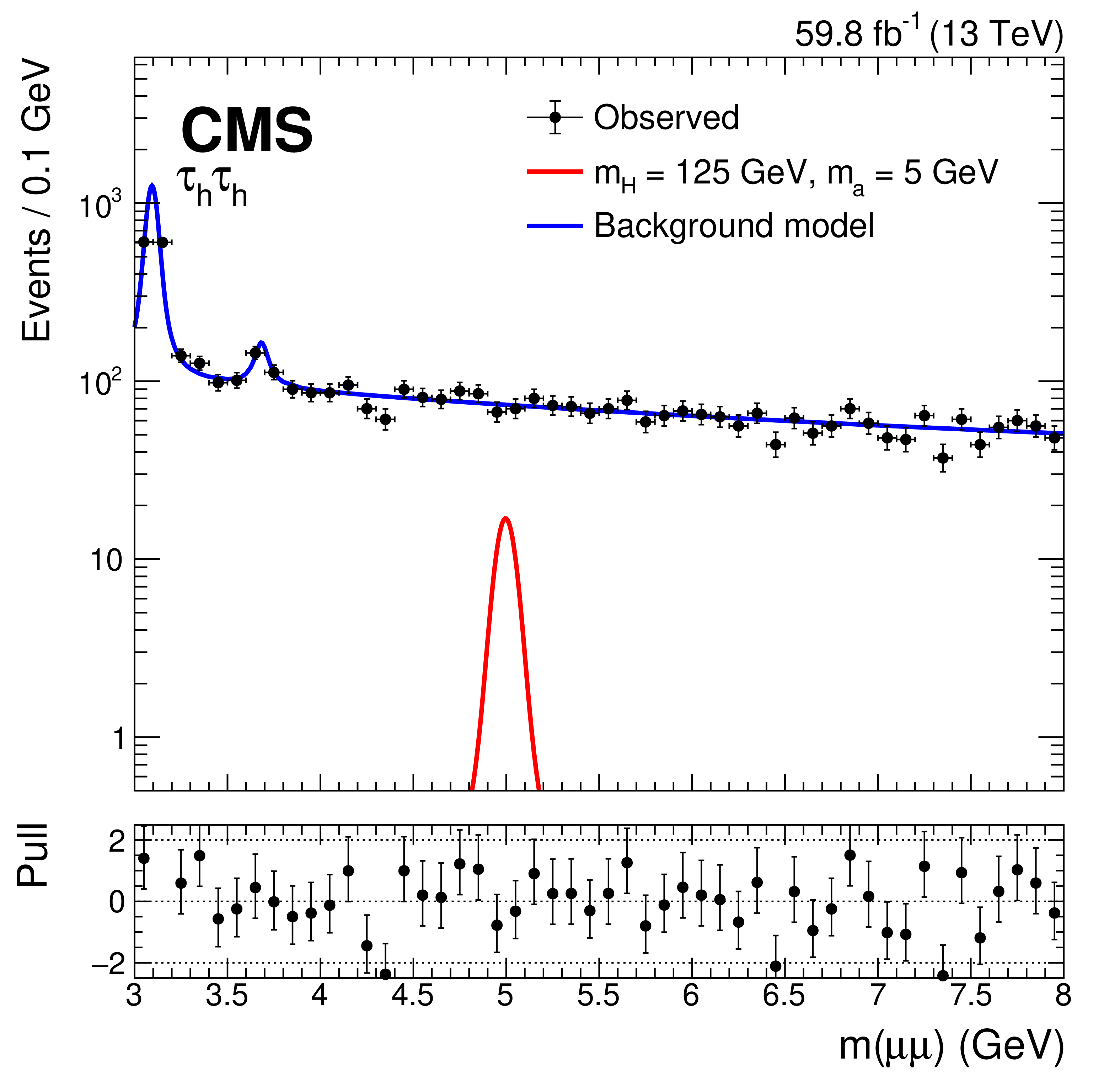

Figure 6-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

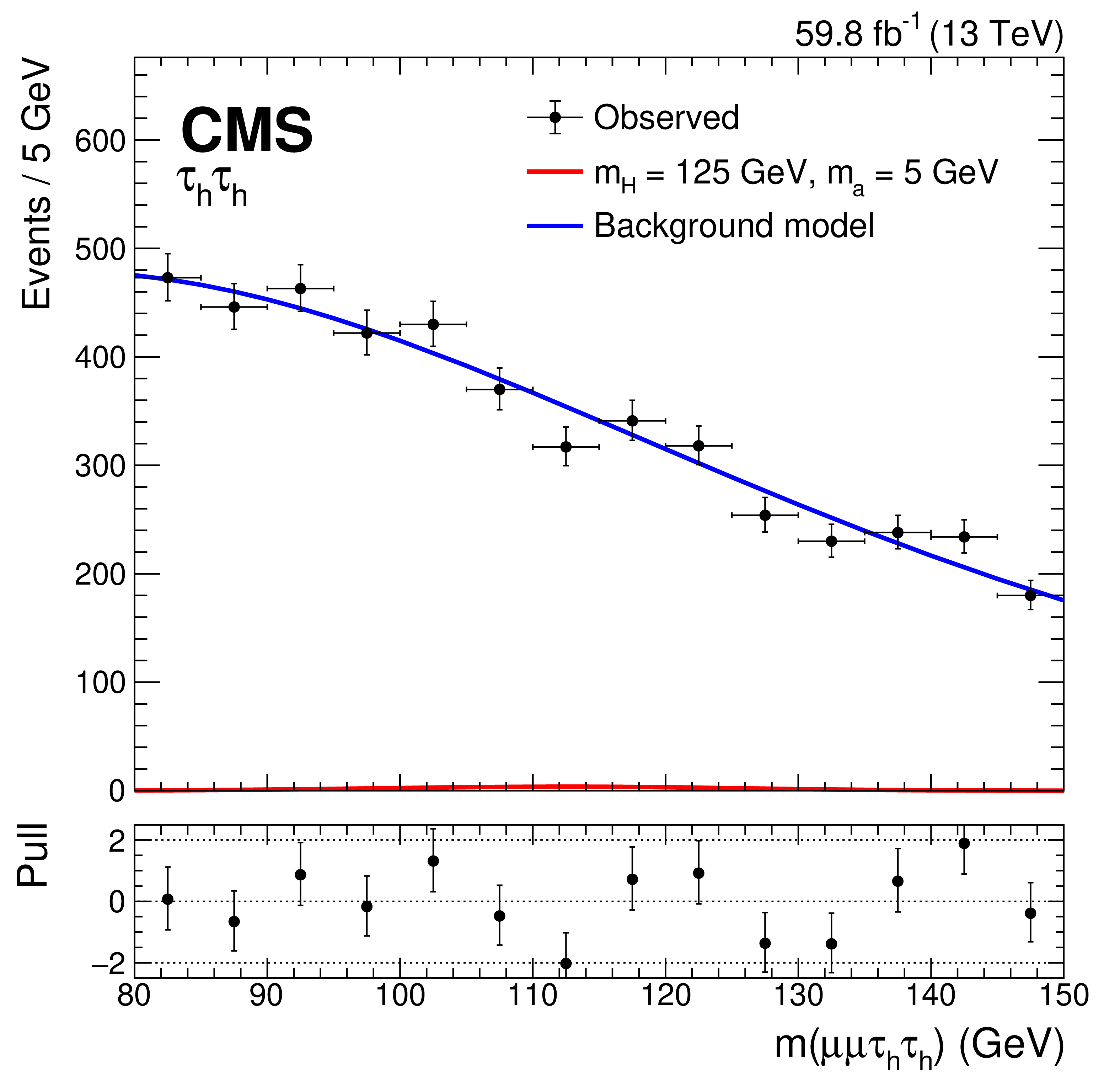

Figure 6-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

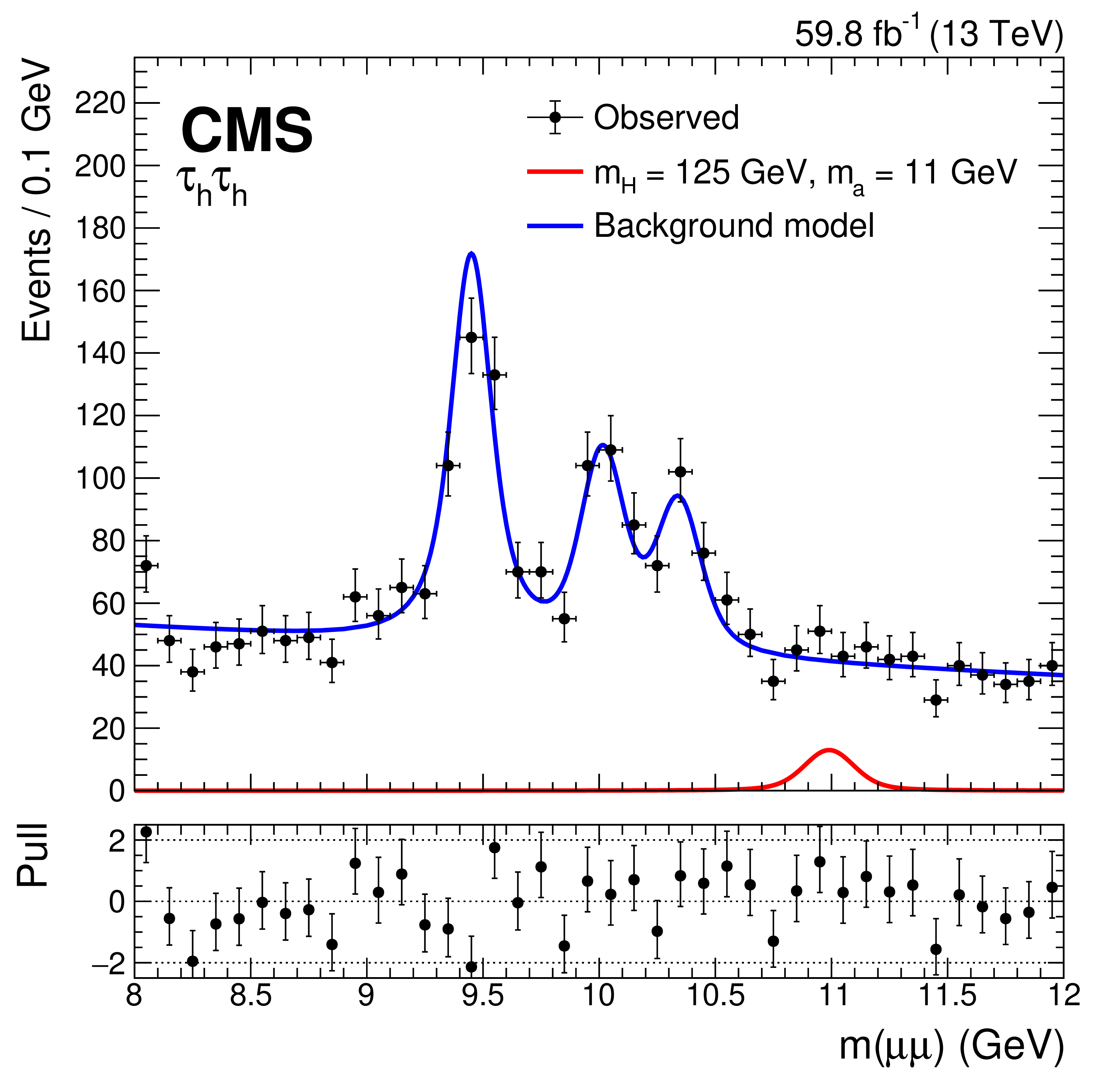

Figure 6-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

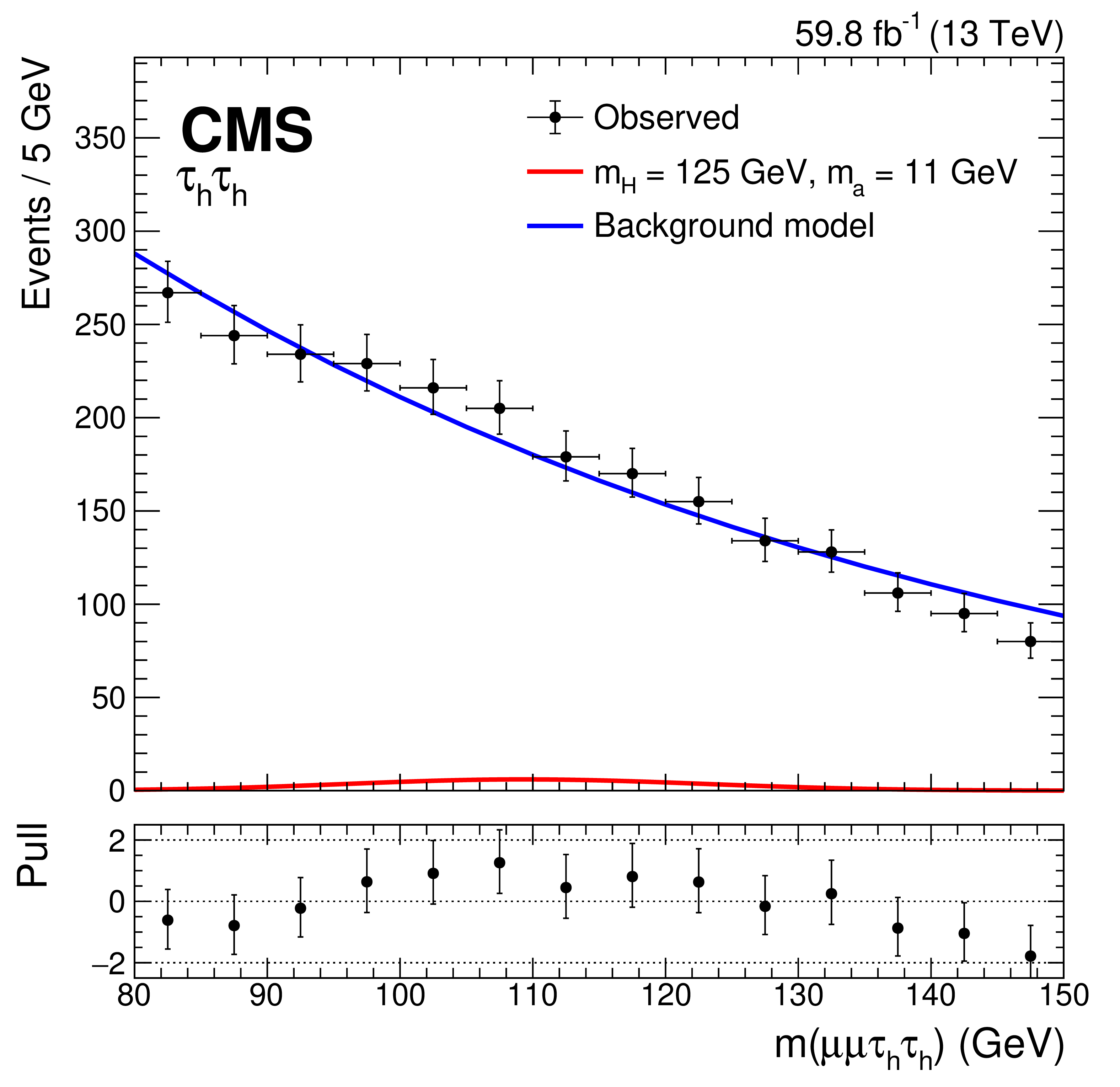

Figure 6-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

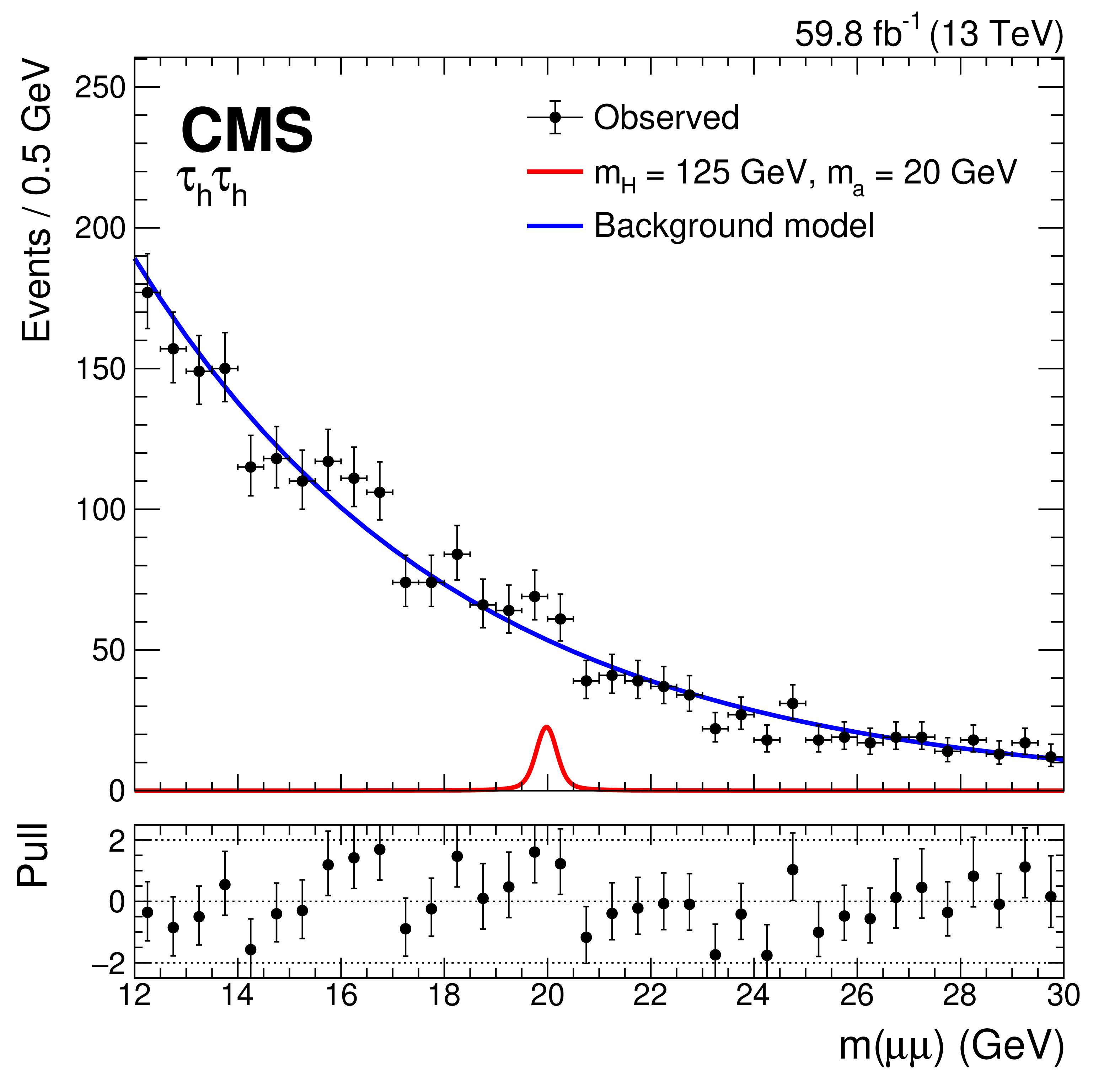

Figure 6-e:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

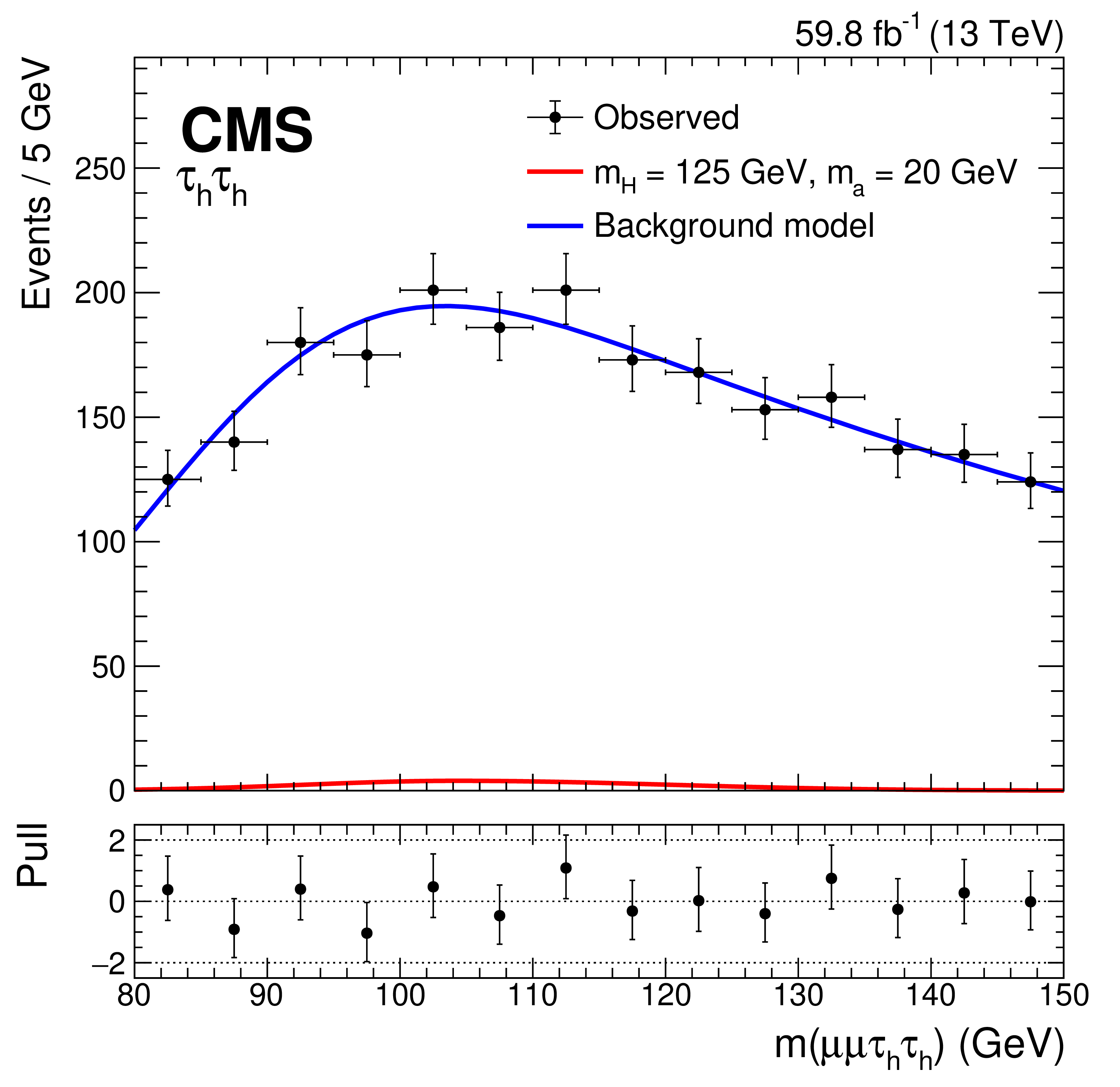

Figure 6-f:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 125 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

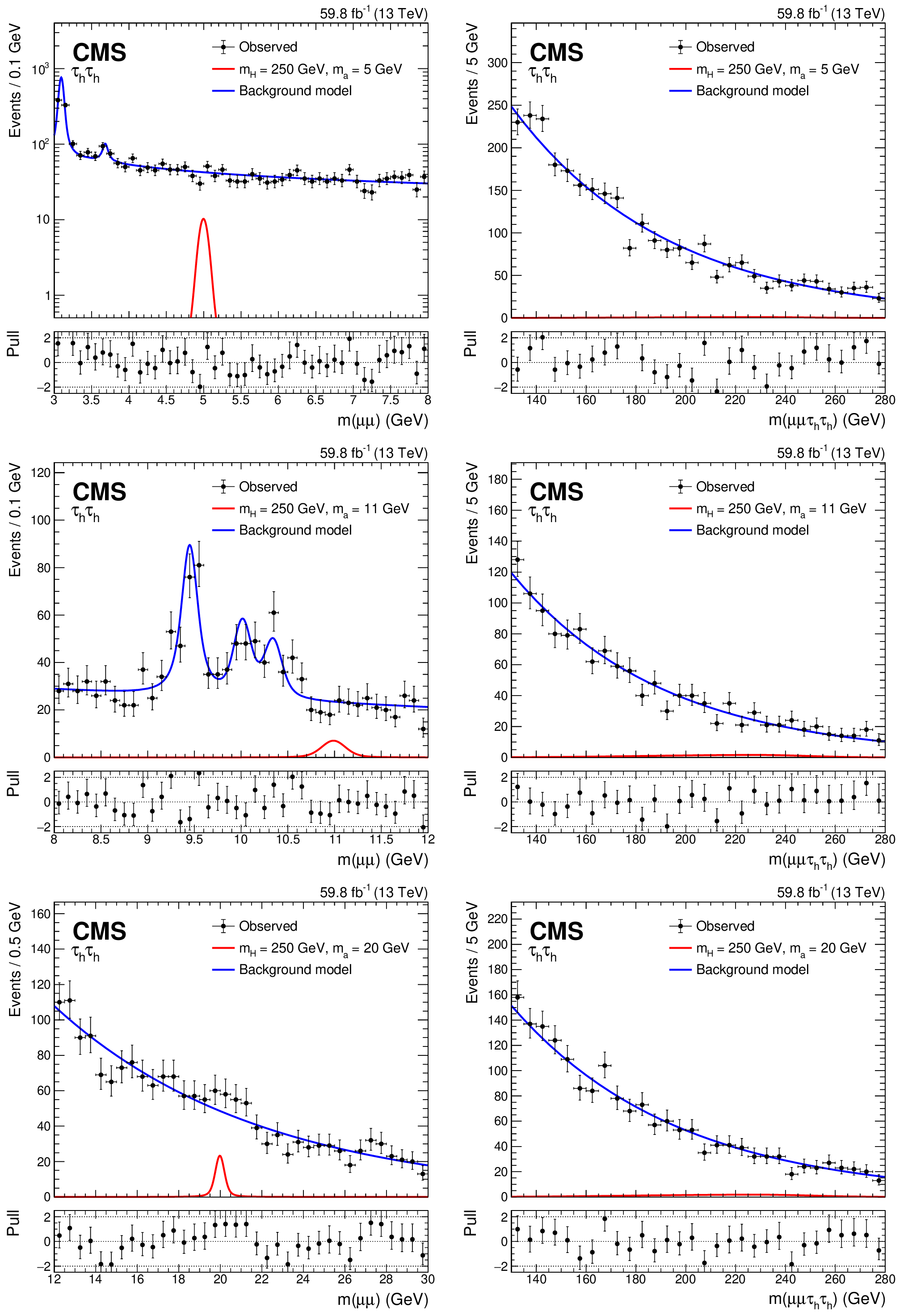

Figure 7:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

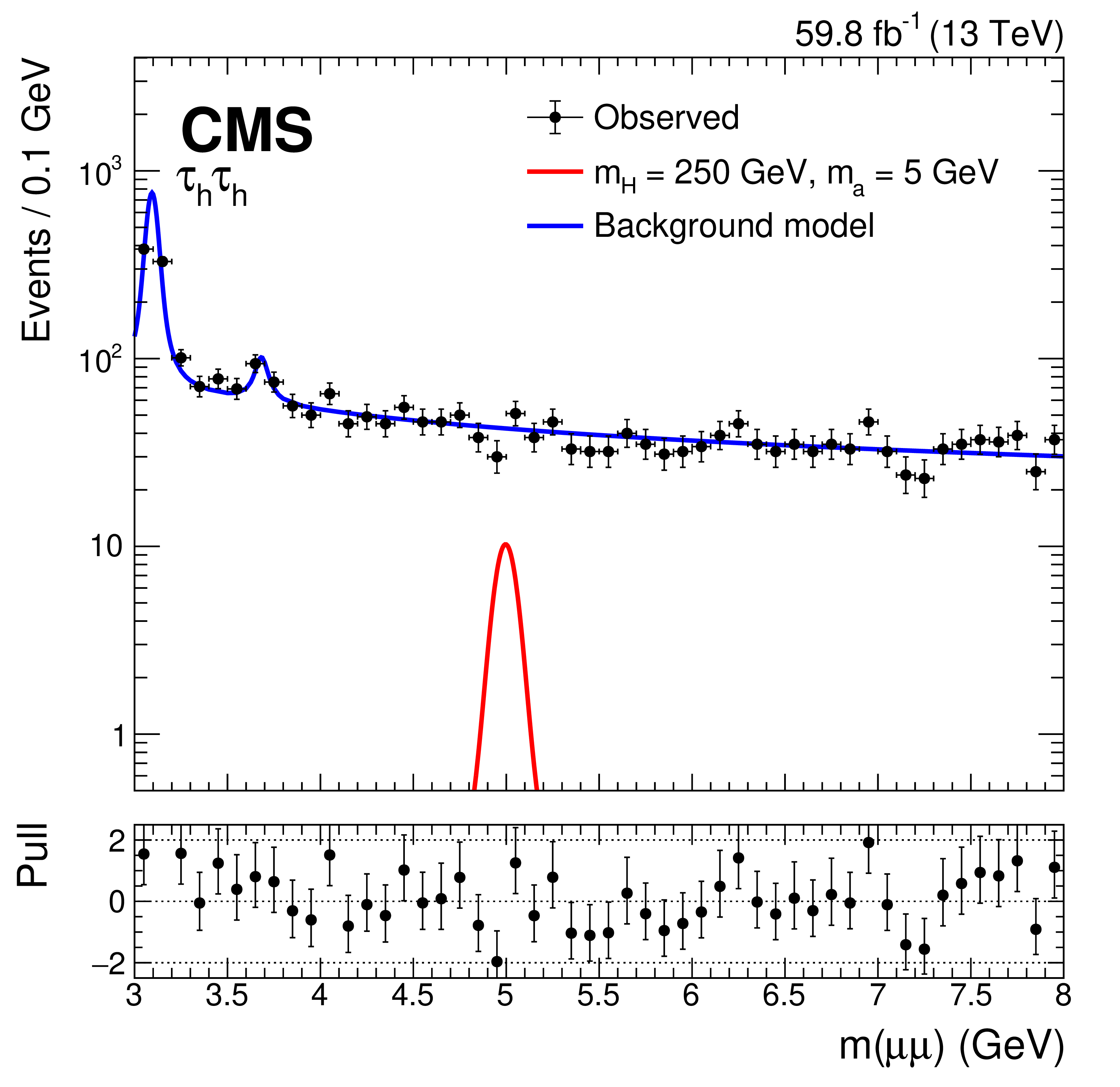

Figure 7-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

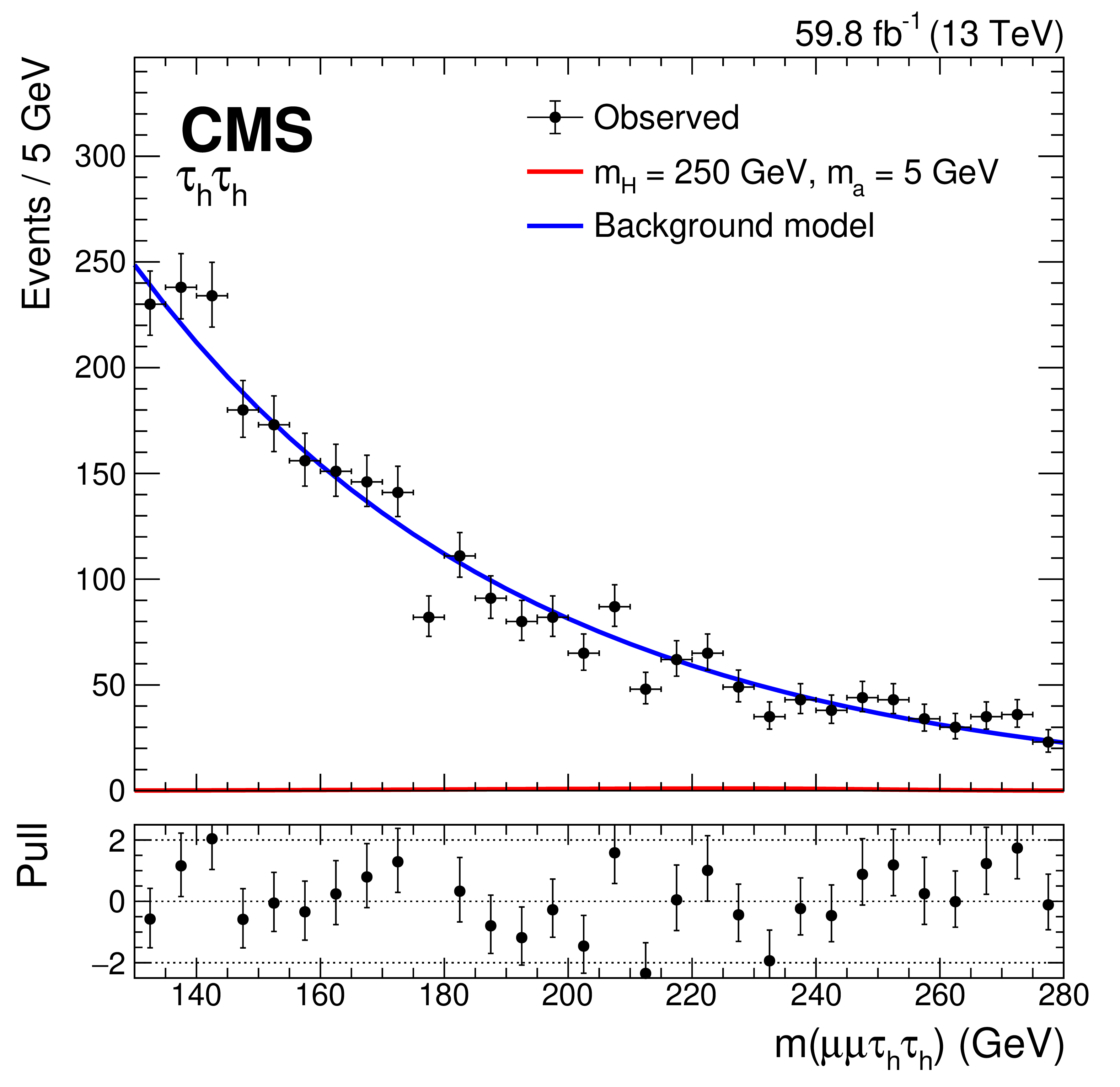

Figure 7-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

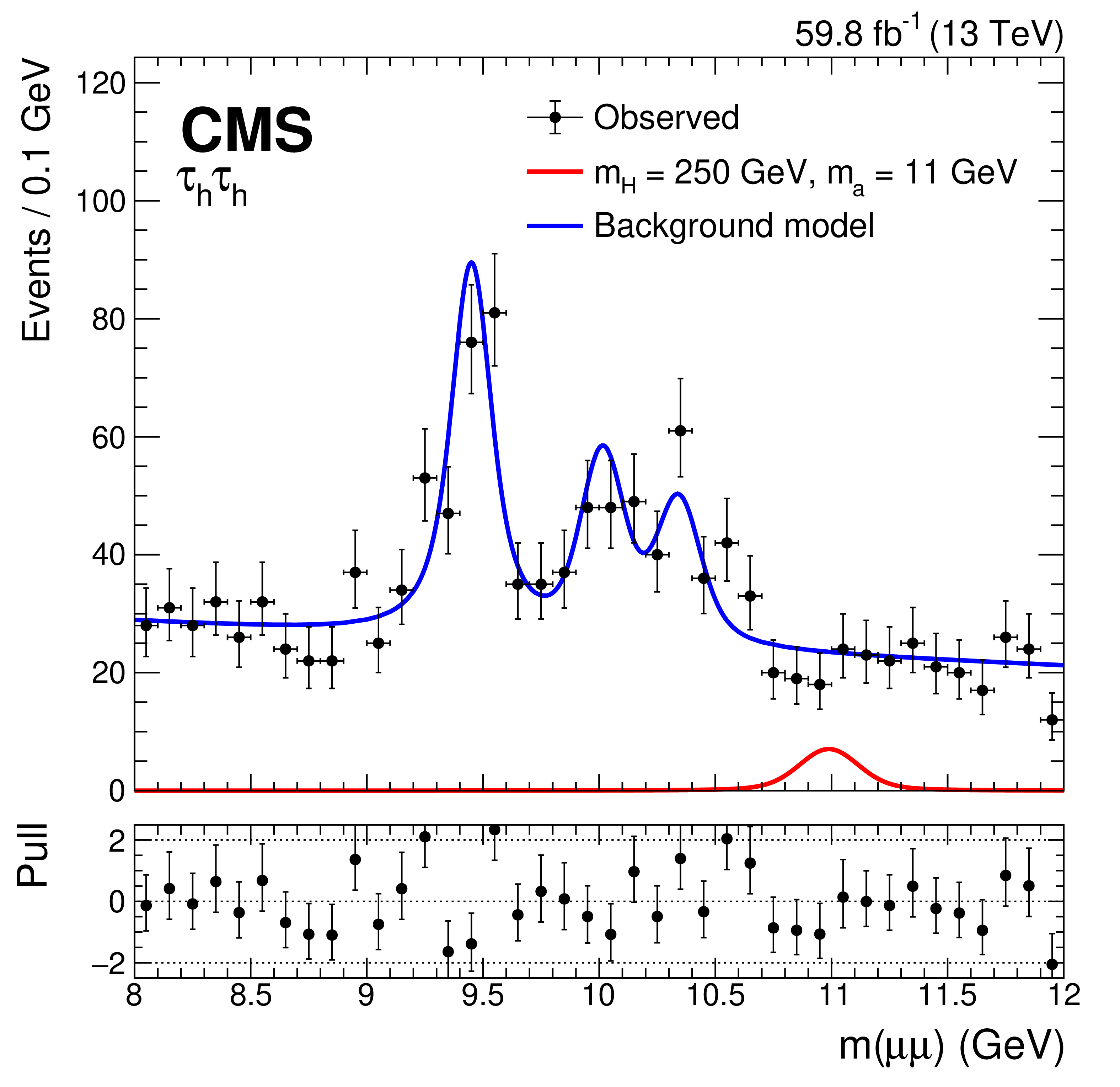

Figure 7-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

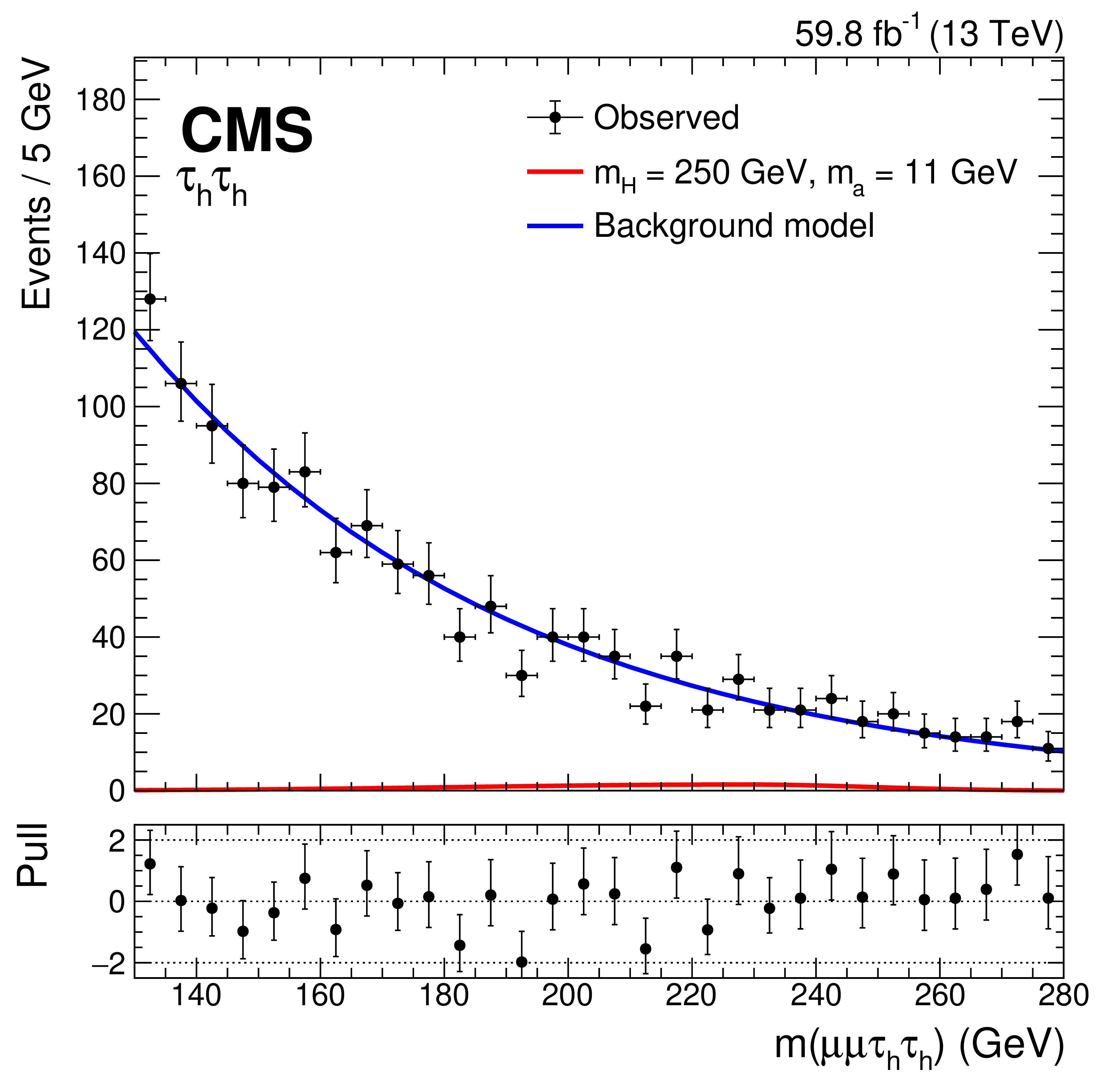

Figure 7-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

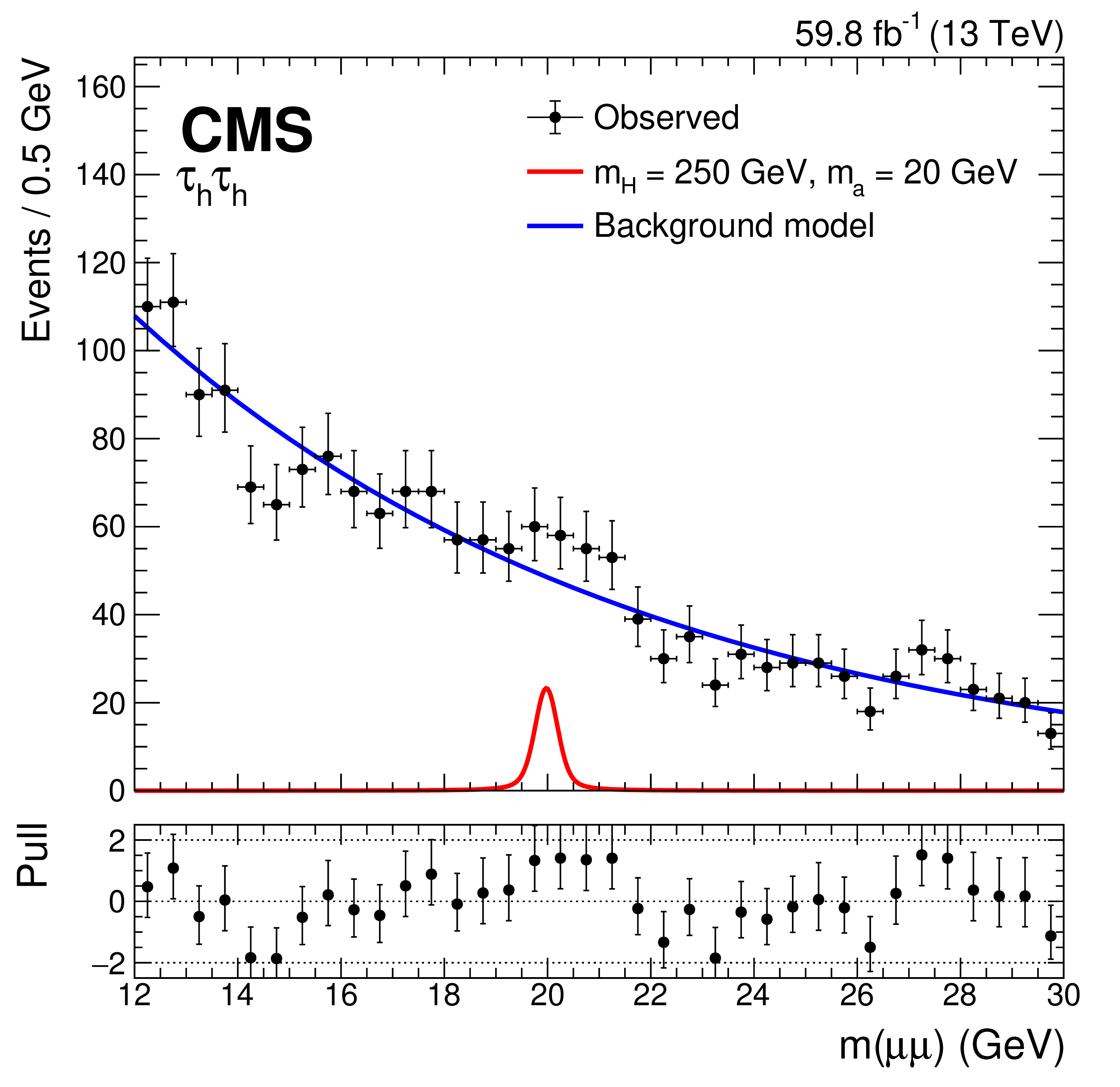

Figure 7-e:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

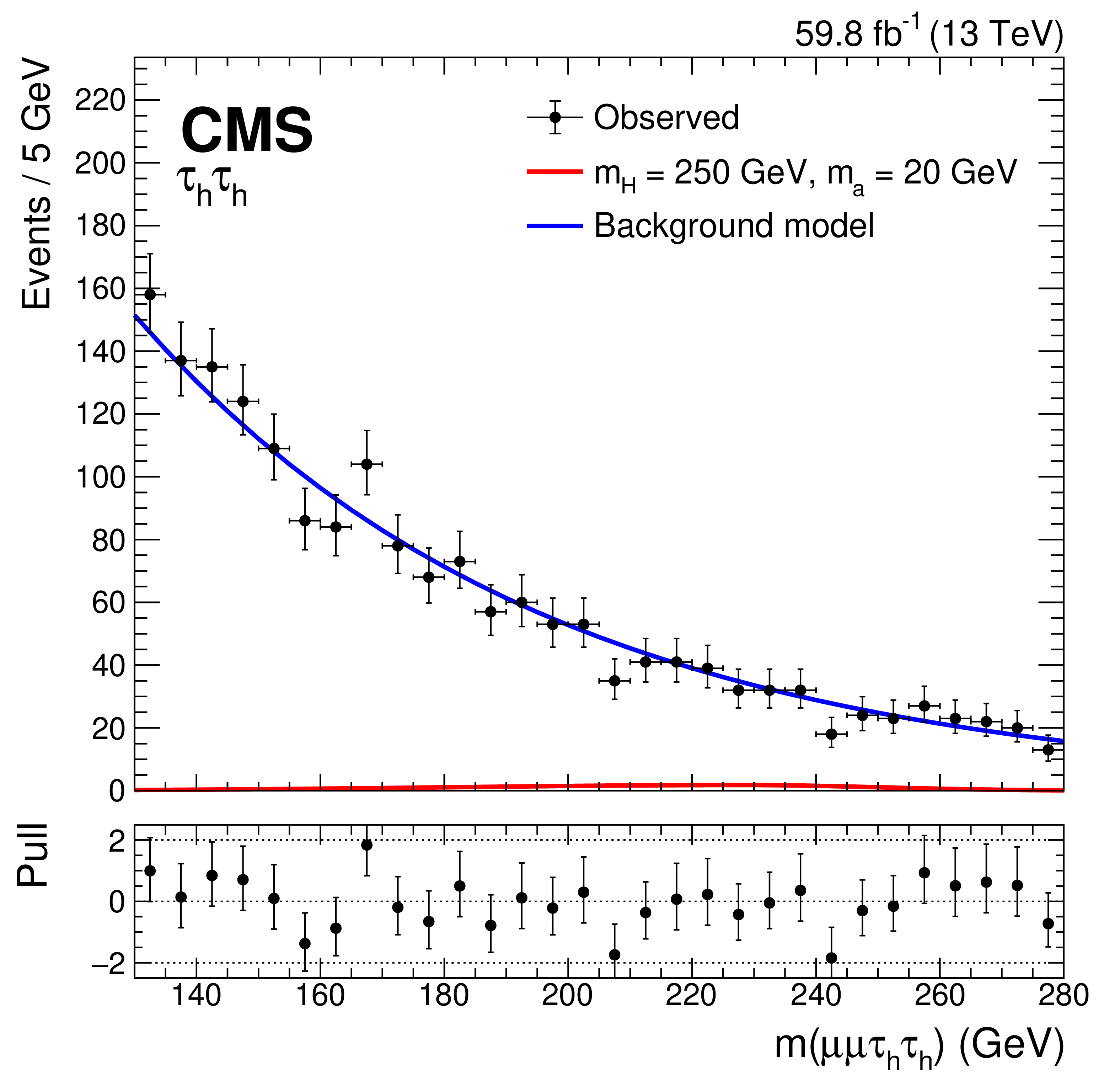

Figure 7-f:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 250 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

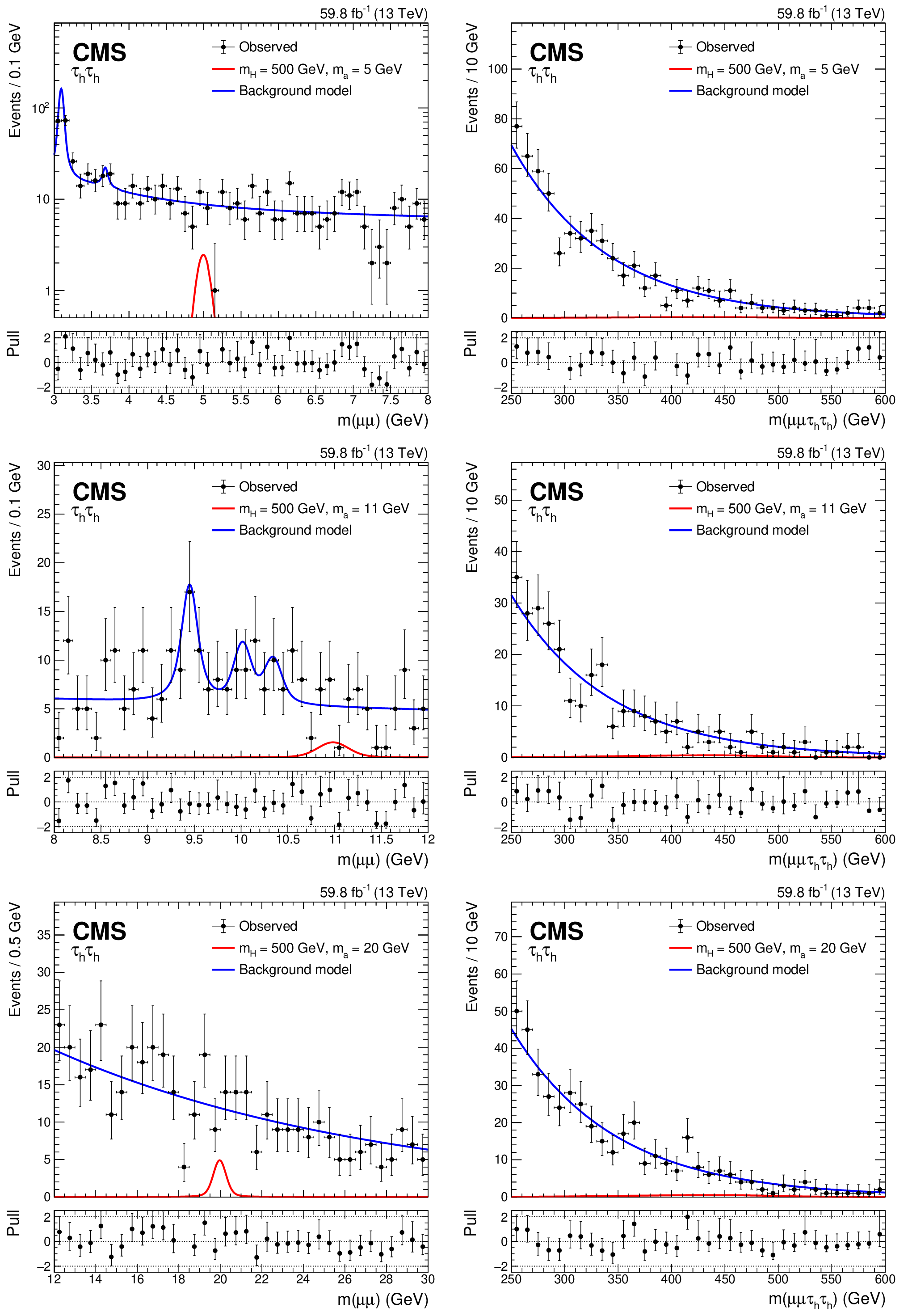

Figure 8:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

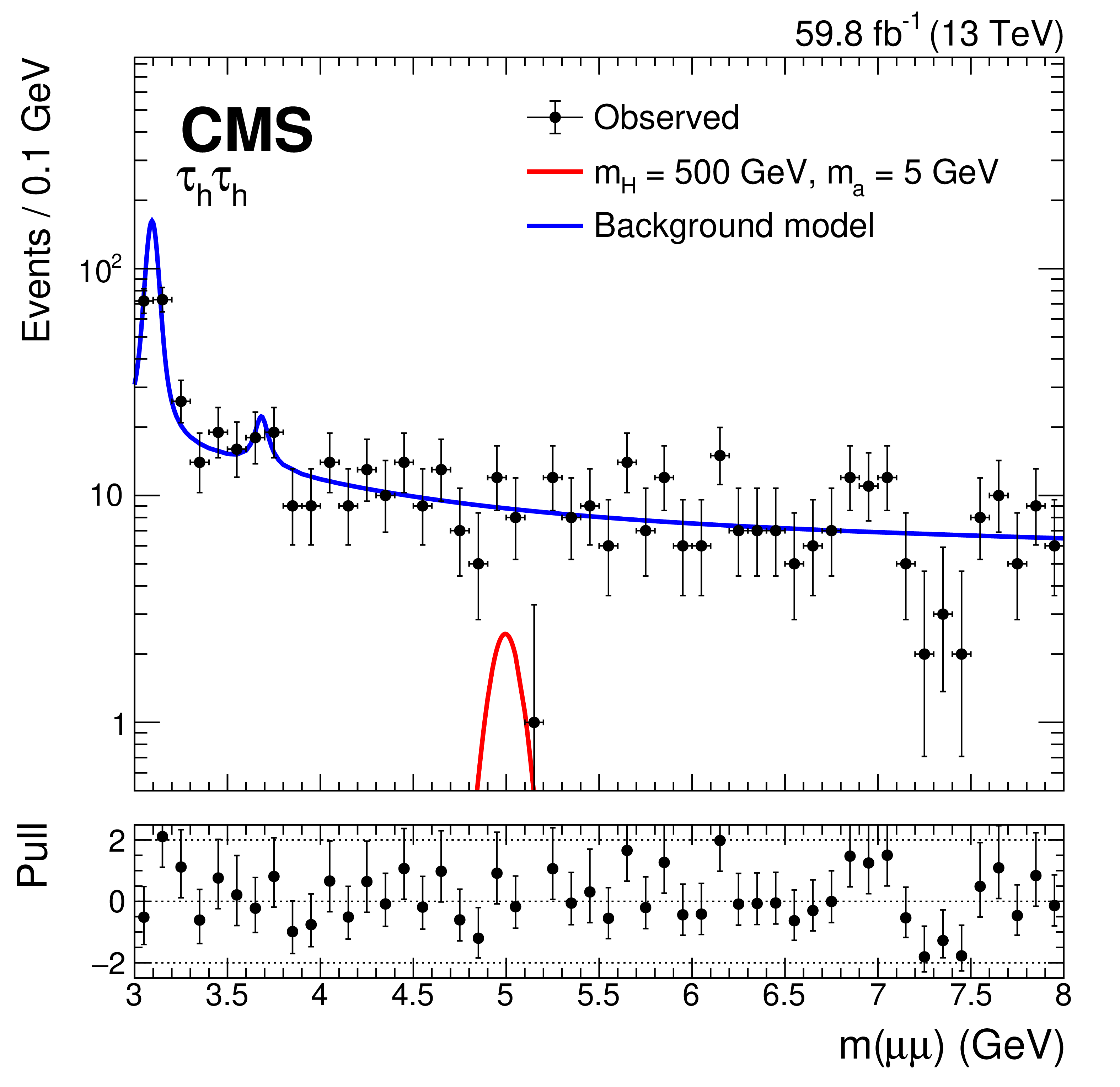

Figure 8-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

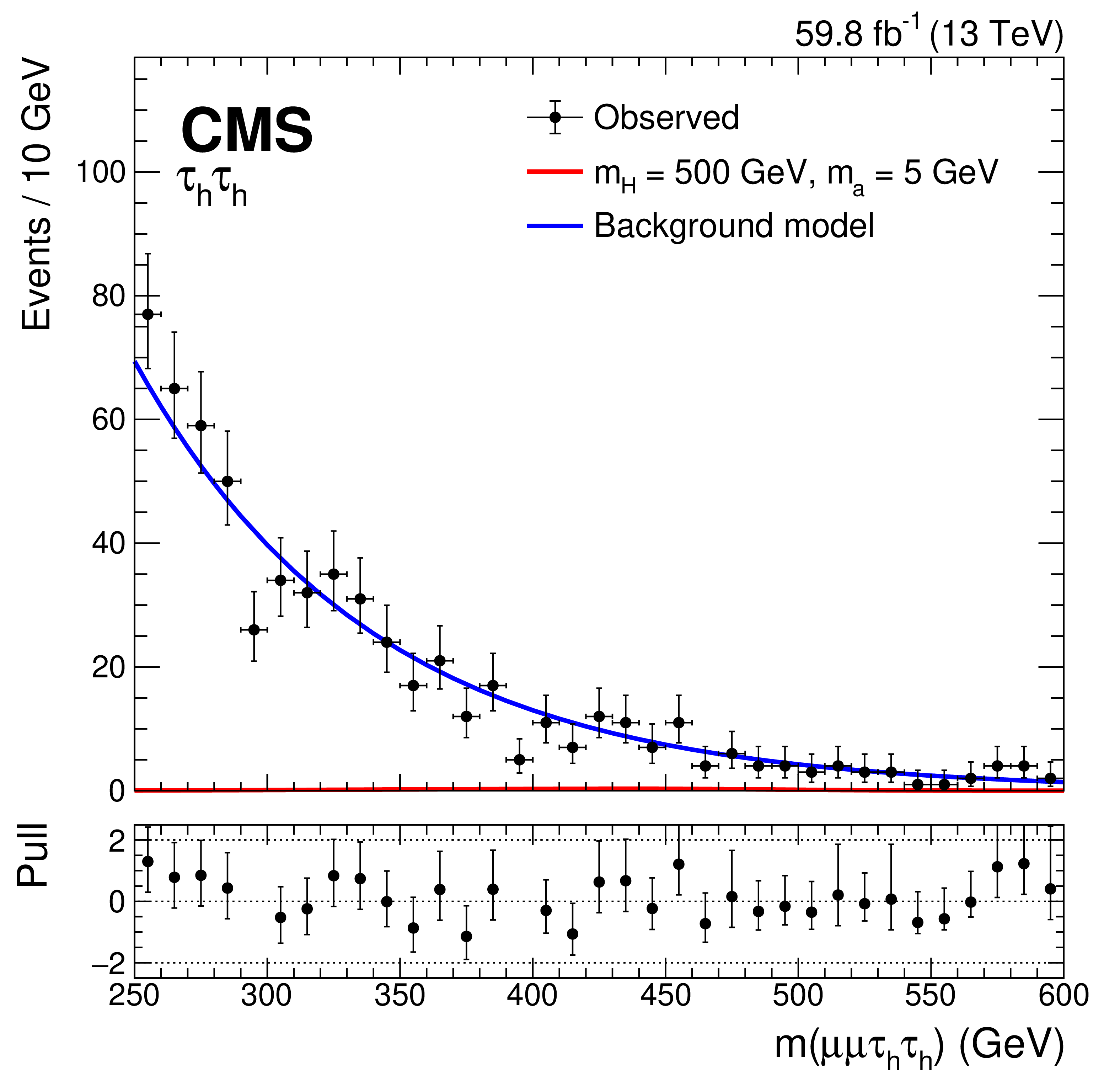

Figure 8-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

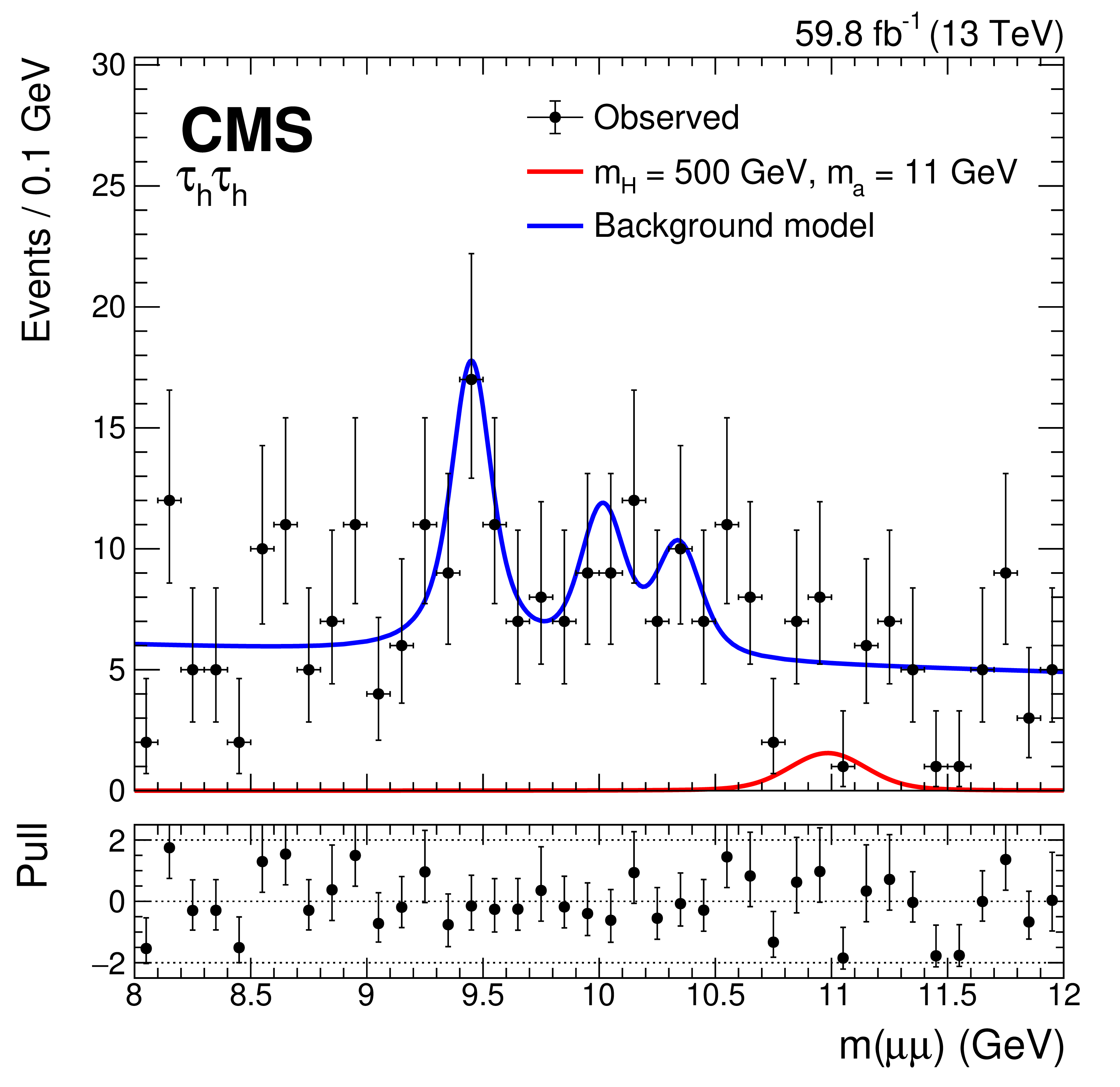

Figure 8-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

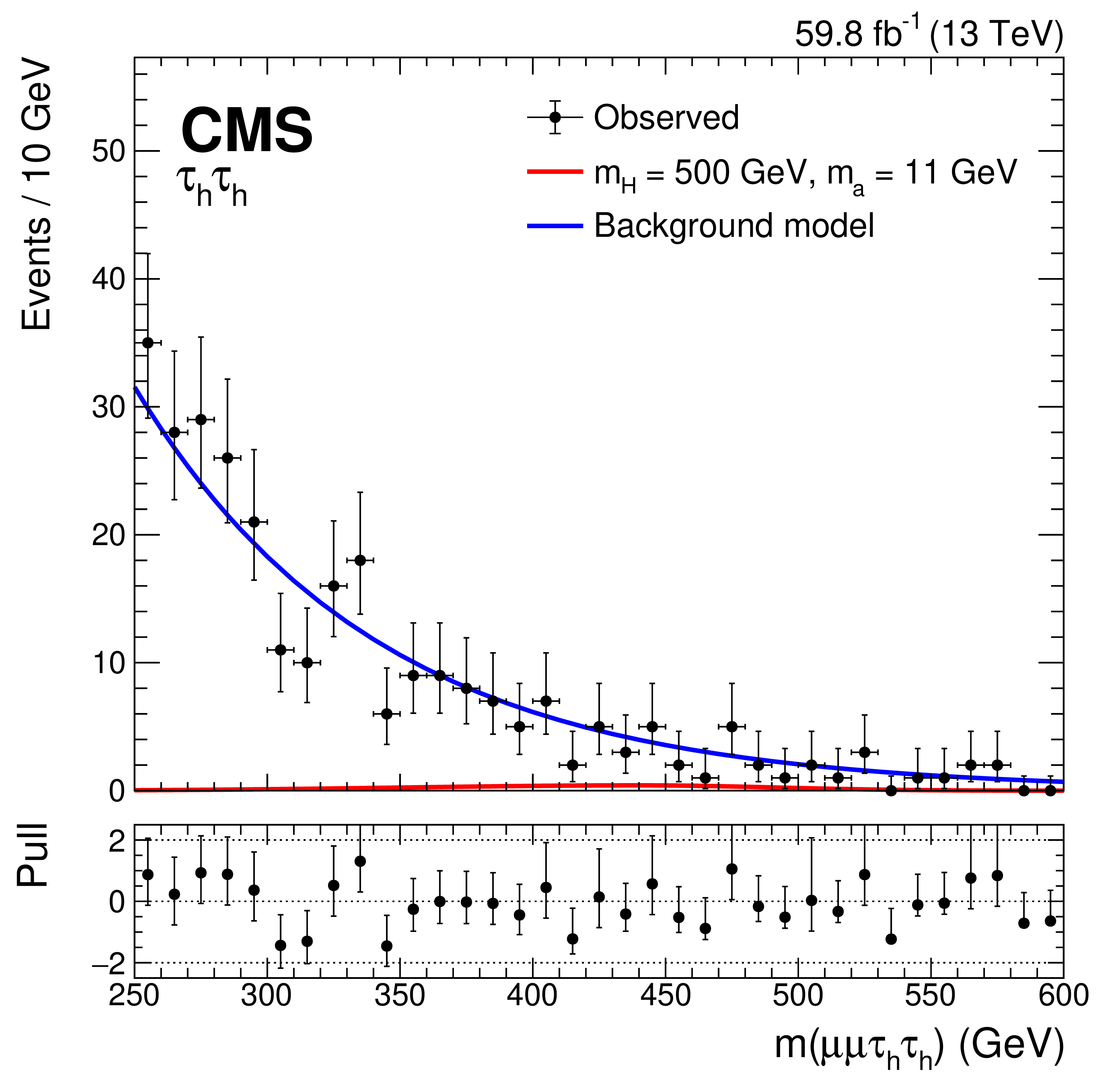

Figure 8-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

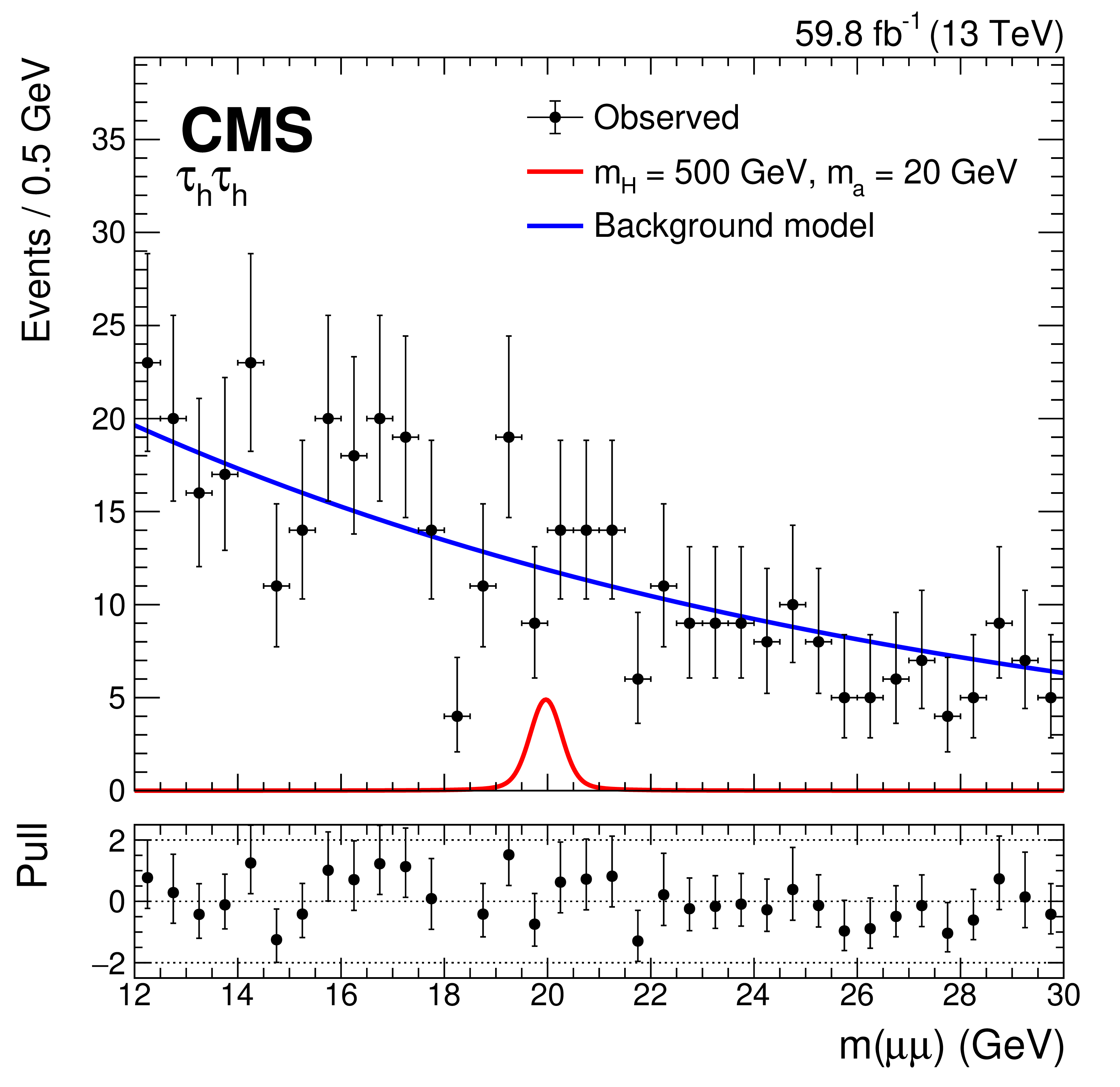

Figure 8-e:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

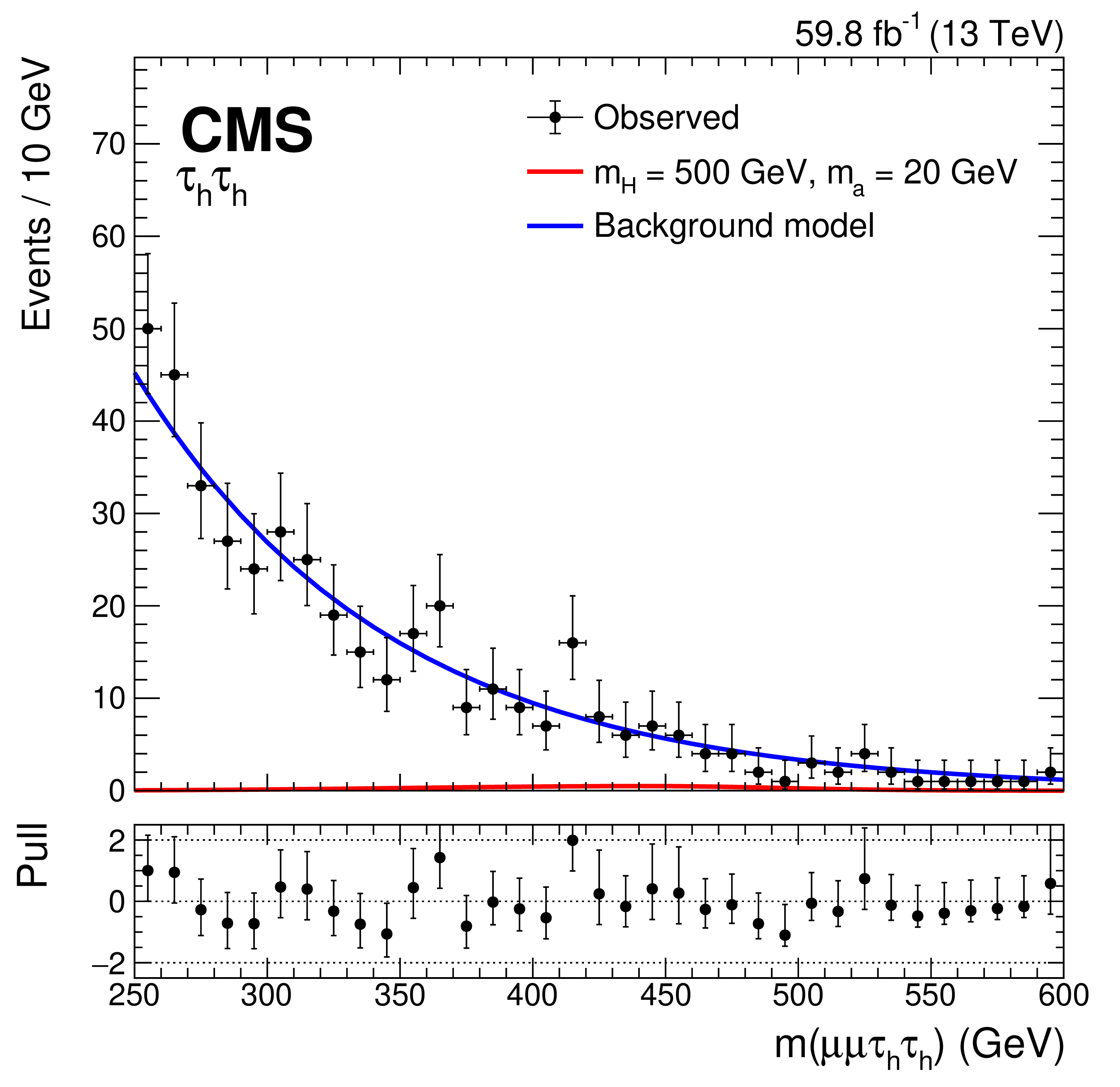

Figure 8-f:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 500 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

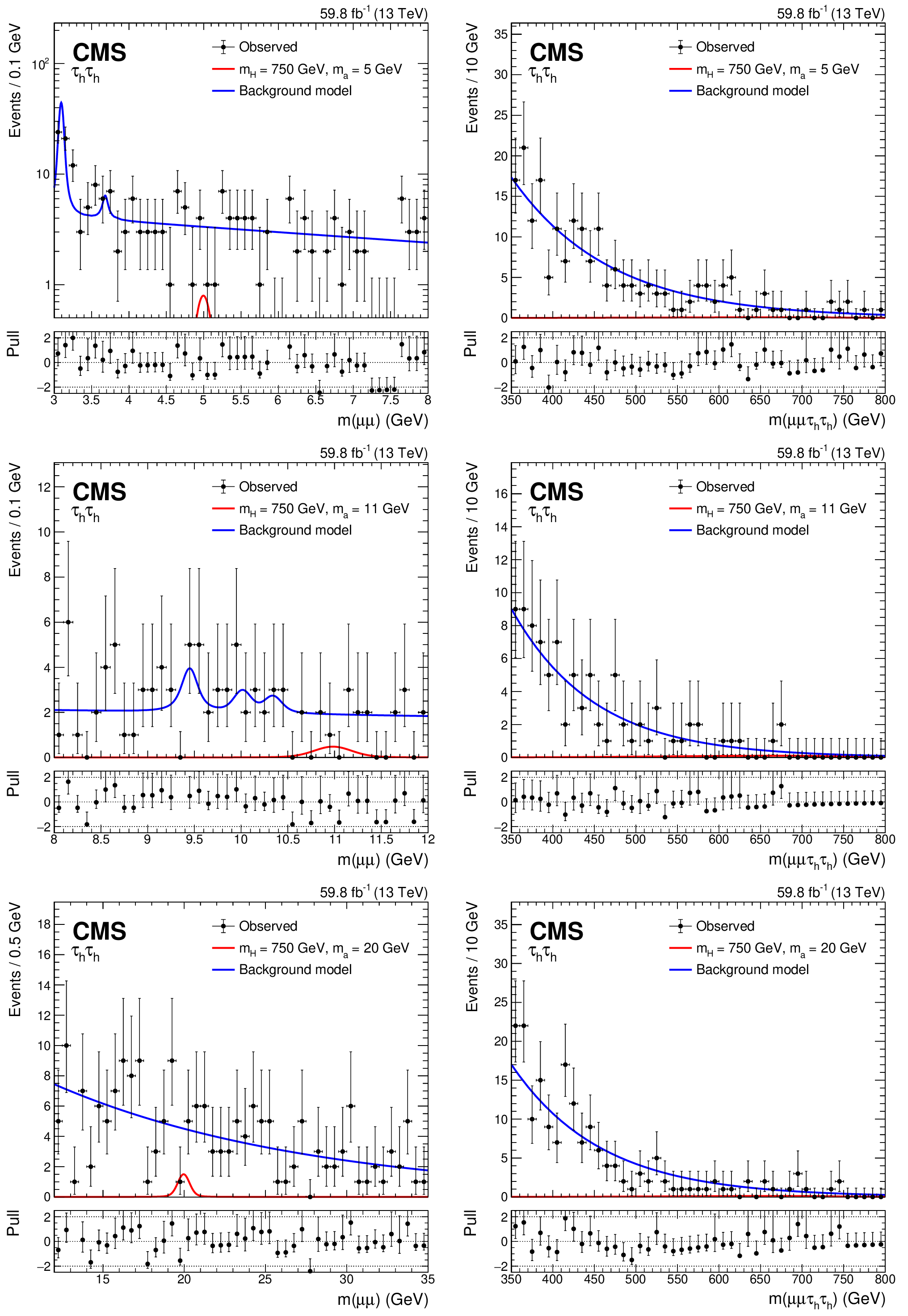

Figure 9:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

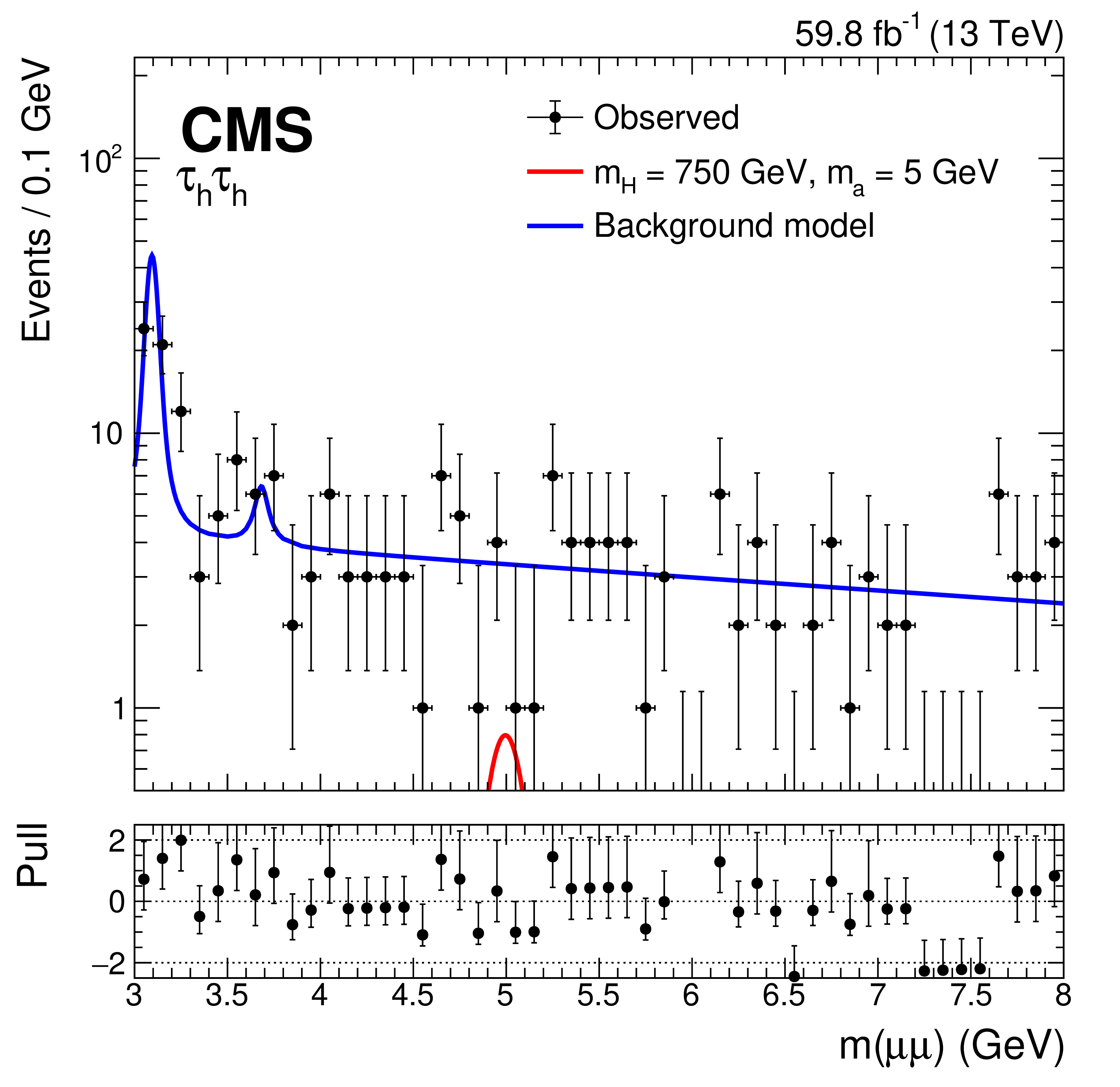

Figure 9-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

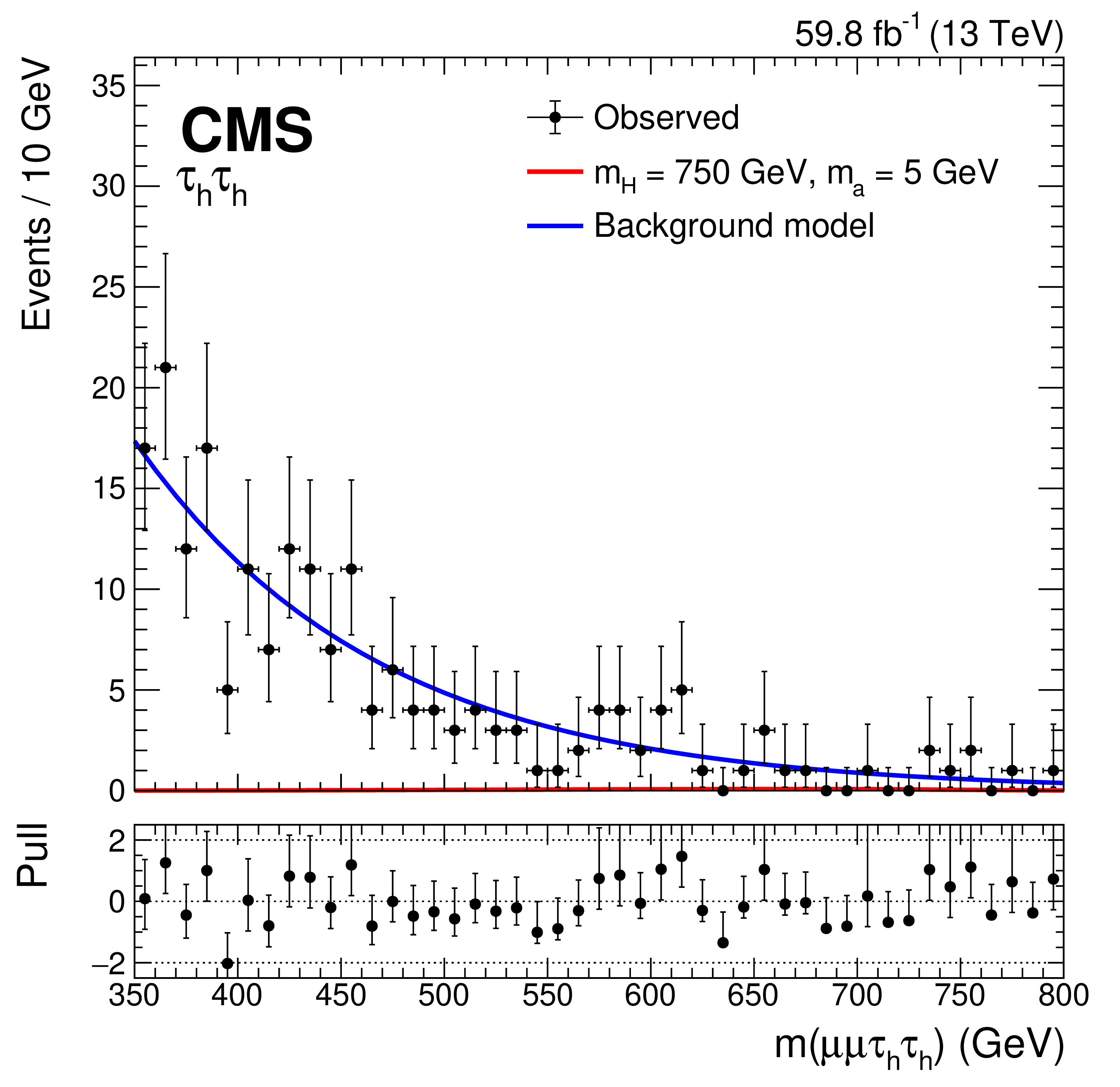

Figure 9-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

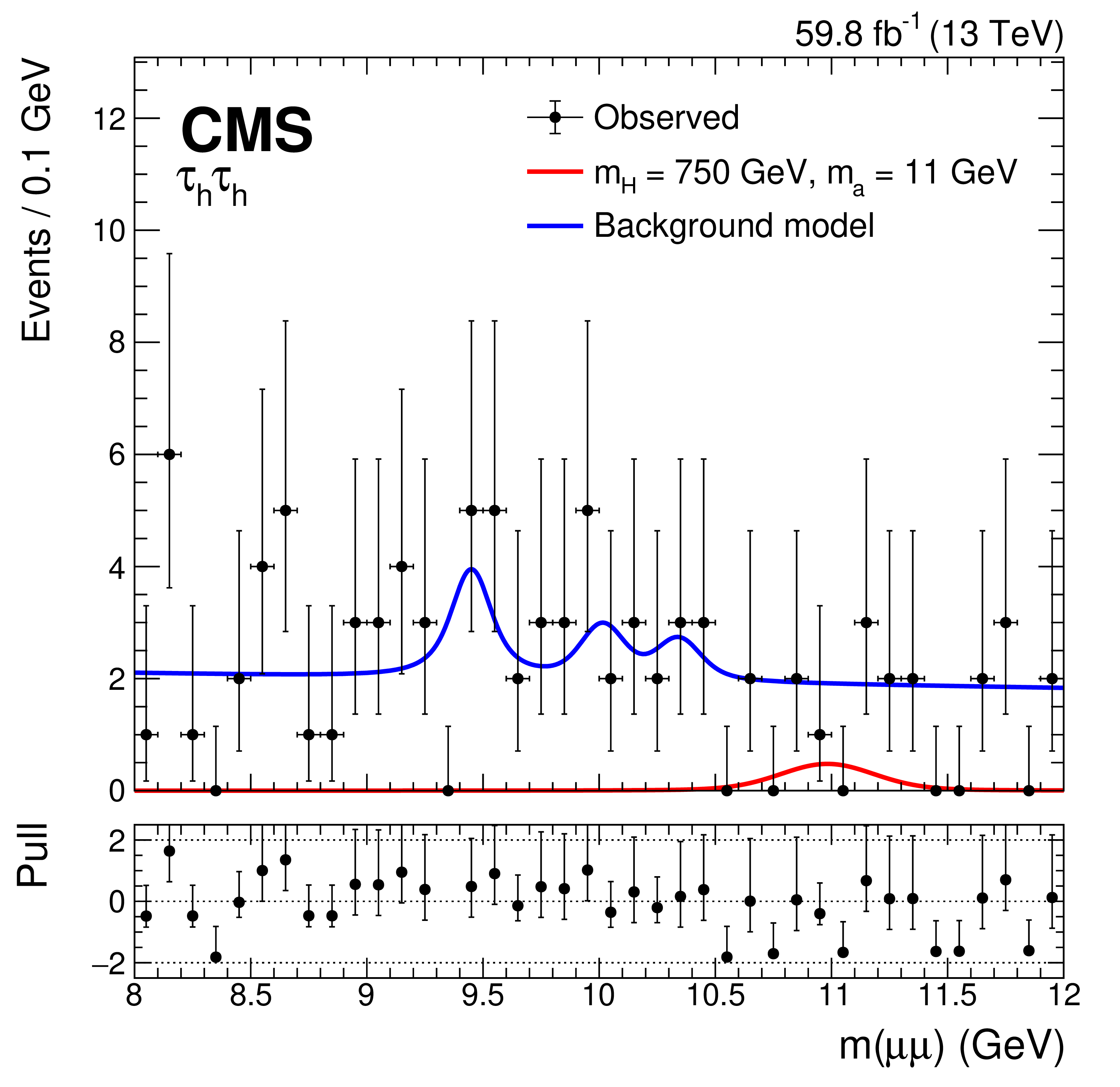

Figure 9-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

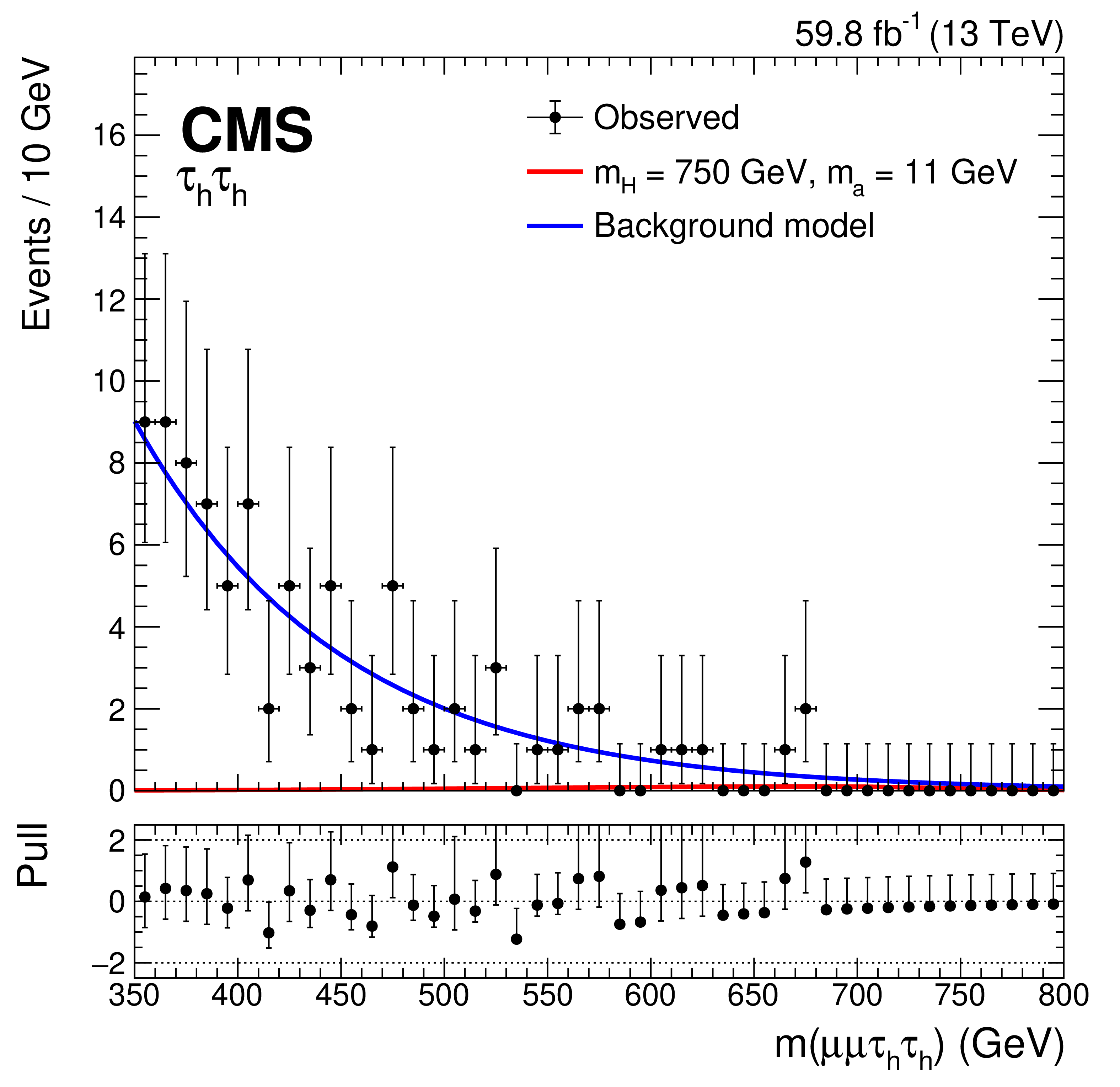

Figure 9-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

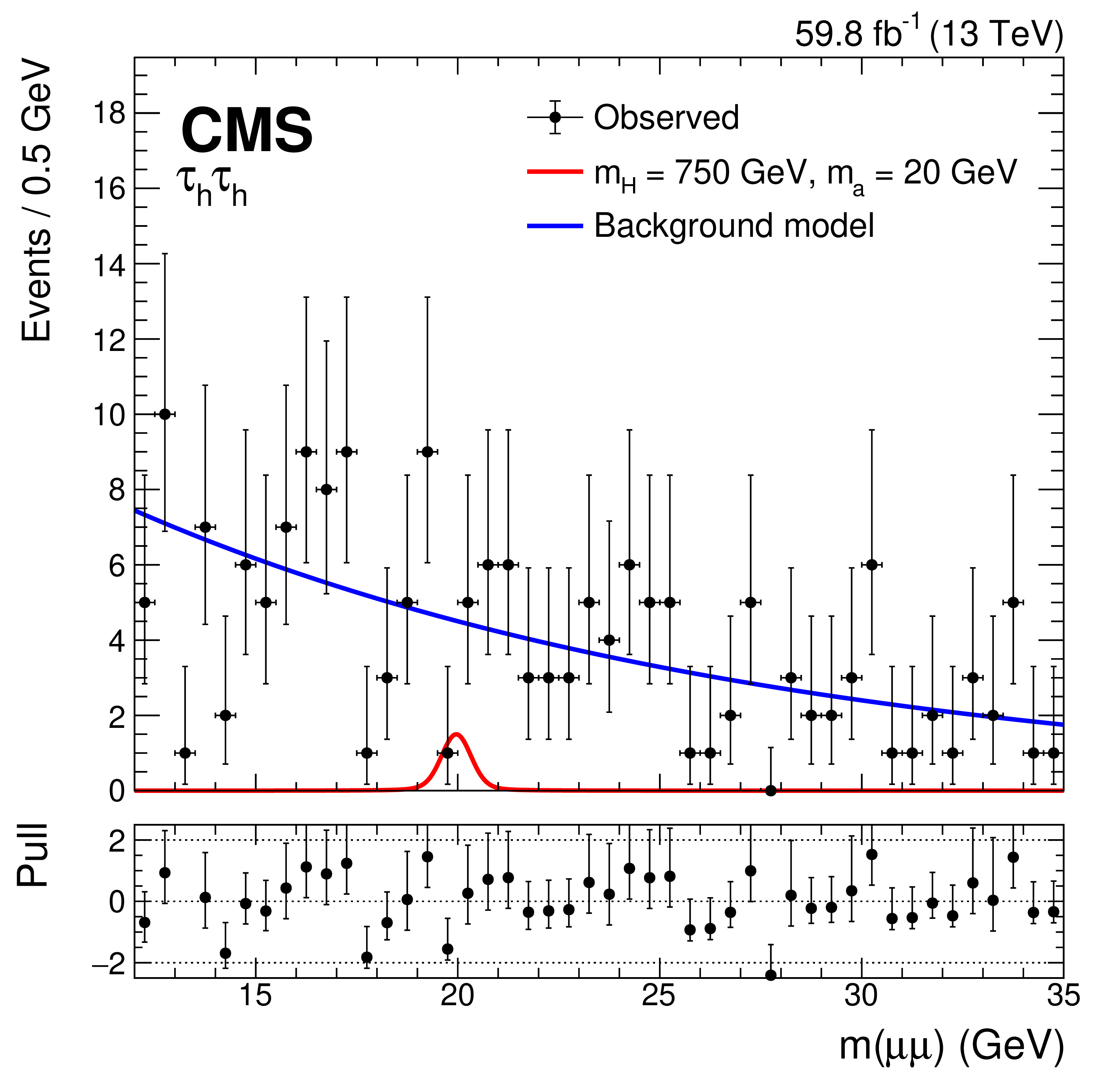

Figure 9-e:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

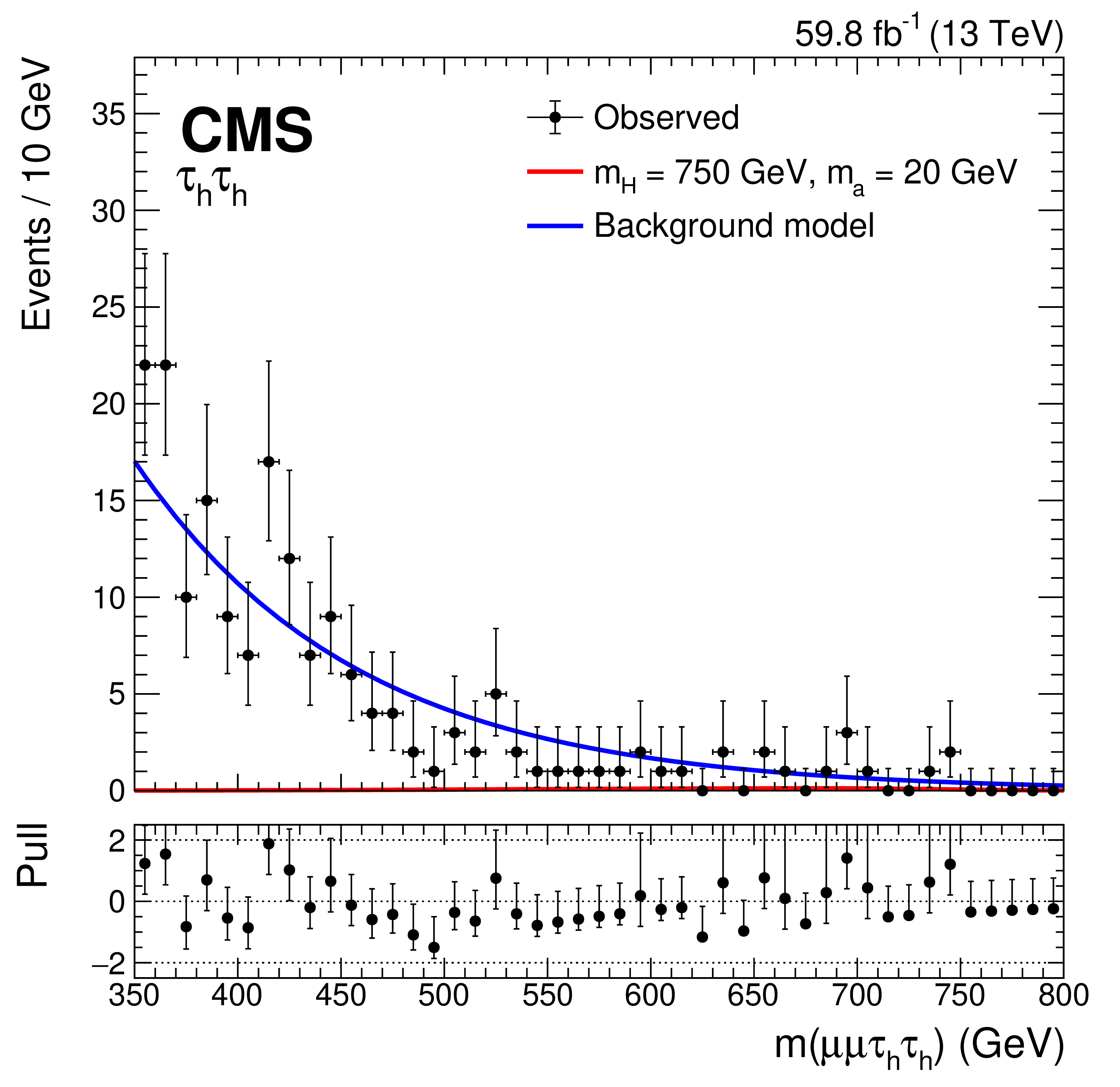

Figure 9-f:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 750 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5, 11, and 20 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

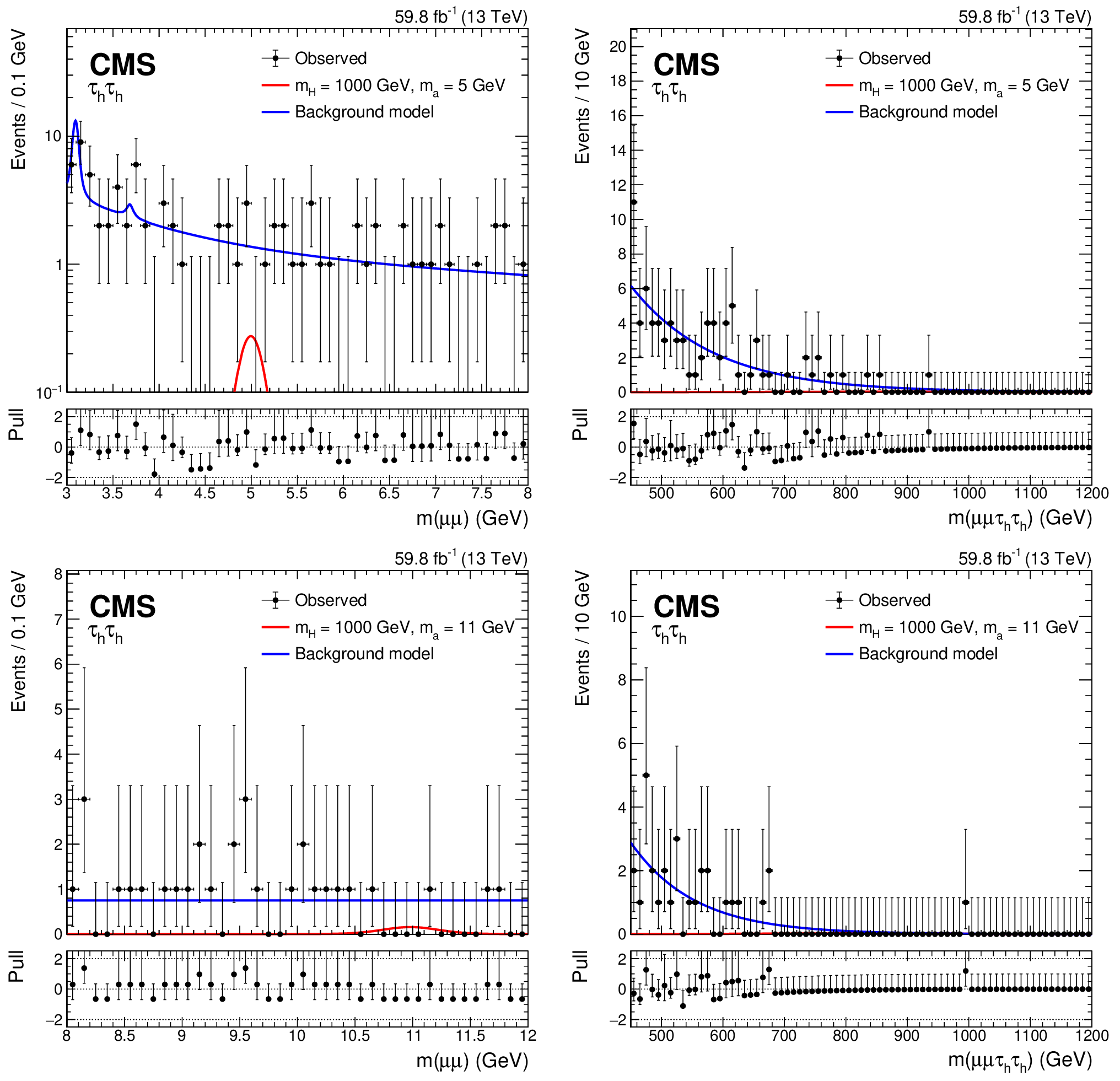

Figure 10:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two lower $ m_{\mu\mu} $ ranges (3 $ < m_{\mu\mu} < $ 8 GeV and 8 $ < m_{\mu\mu} < $ 12 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5 and 11 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

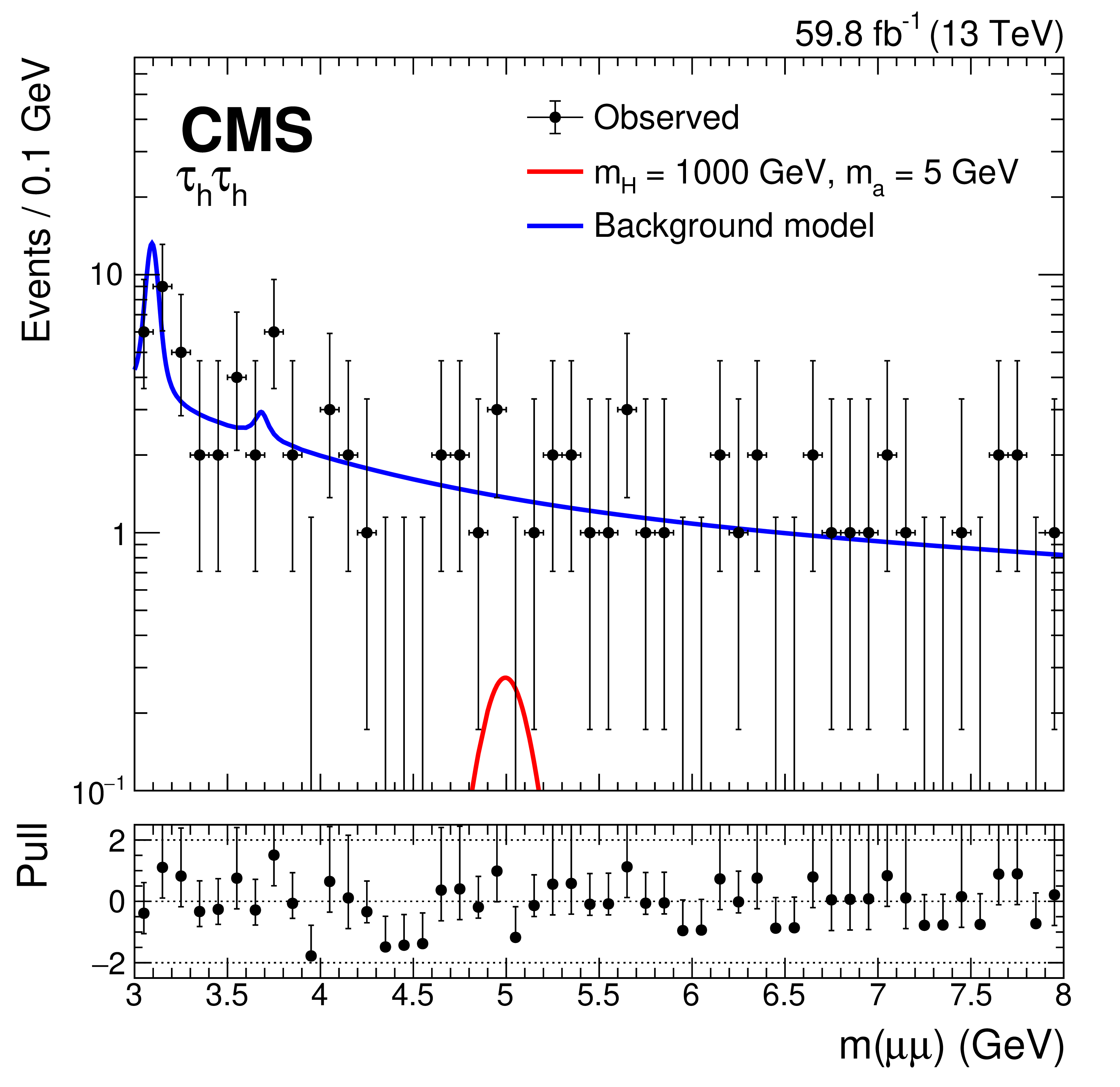

Figure 10-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two lower $ m_{\mu\mu} $ ranges (3 $ < m_{\mu\mu} < $ 8 GeV and 8 $ < m_{\mu\mu} < $ 12 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5 and 11 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

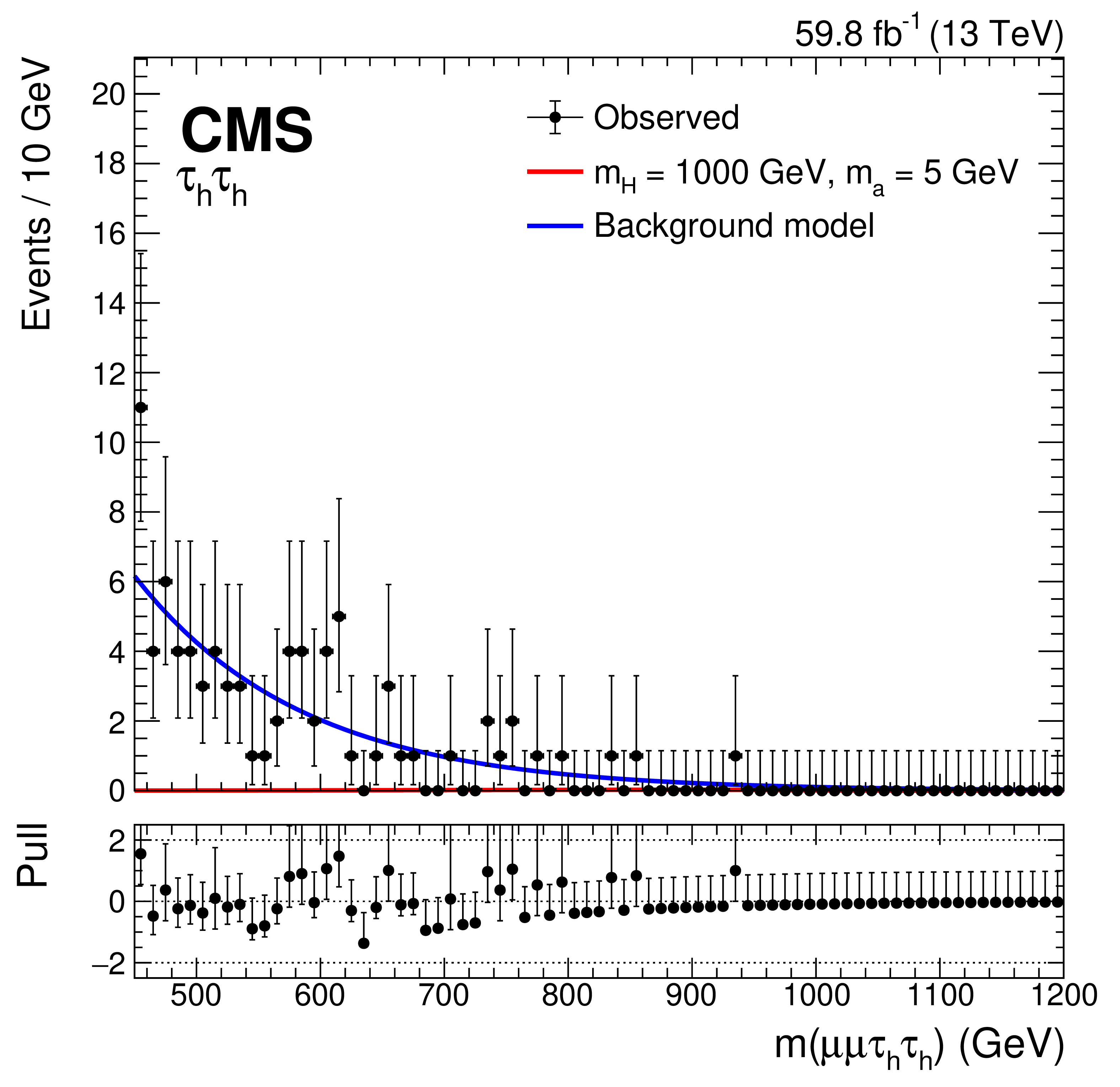

Figure 10-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two lower $ m_{\mu\mu} $ ranges (3 $ < m_{\mu\mu} < $ 8 GeV and 8 $ < m_{\mu\mu} < $ 12 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5 and 11 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

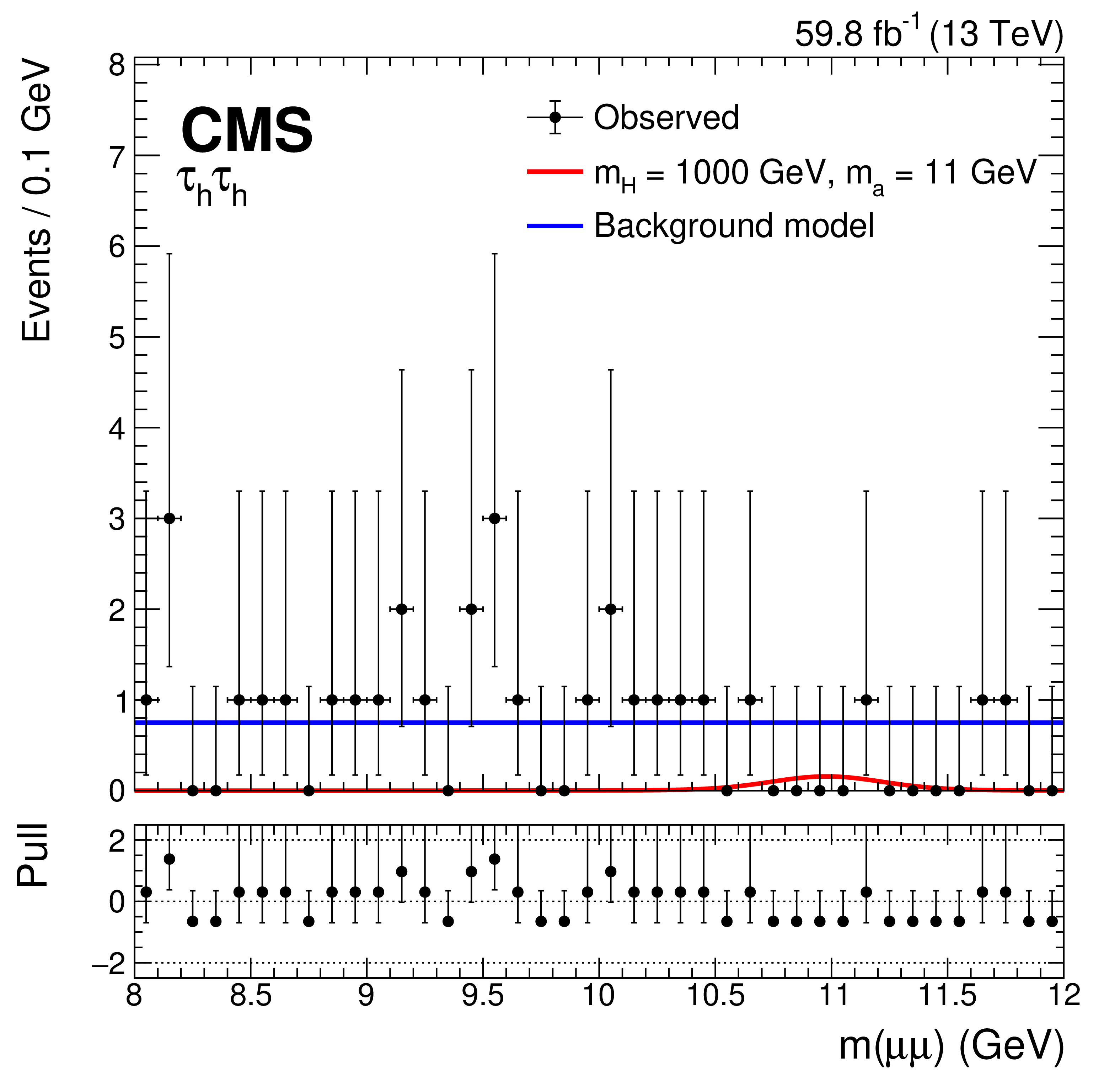

Figure 10-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two lower $ m_{\mu\mu} $ ranges (3 $ < m_{\mu\mu} < $ 8 GeV and 8 $ < m_{\mu\mu} < $ 12 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5 and 11 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

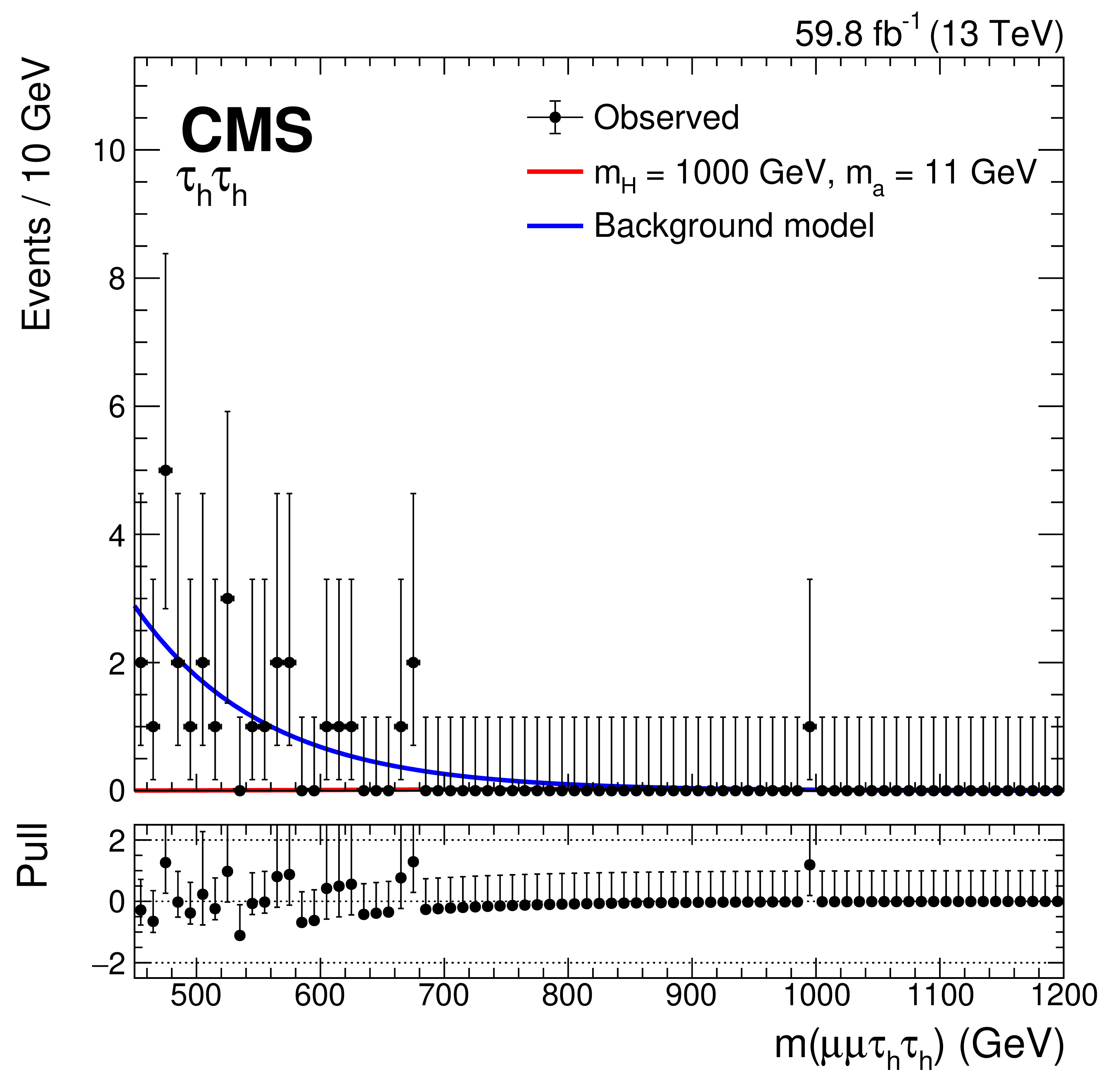

Figure 10-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two lower $ m_{\mu\mu} $ ranges (3 $ < m_{\mu\mu} < $ 8 GeV and 8 $ < m_{\mu\mu} < $ 12 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 5 and 11 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

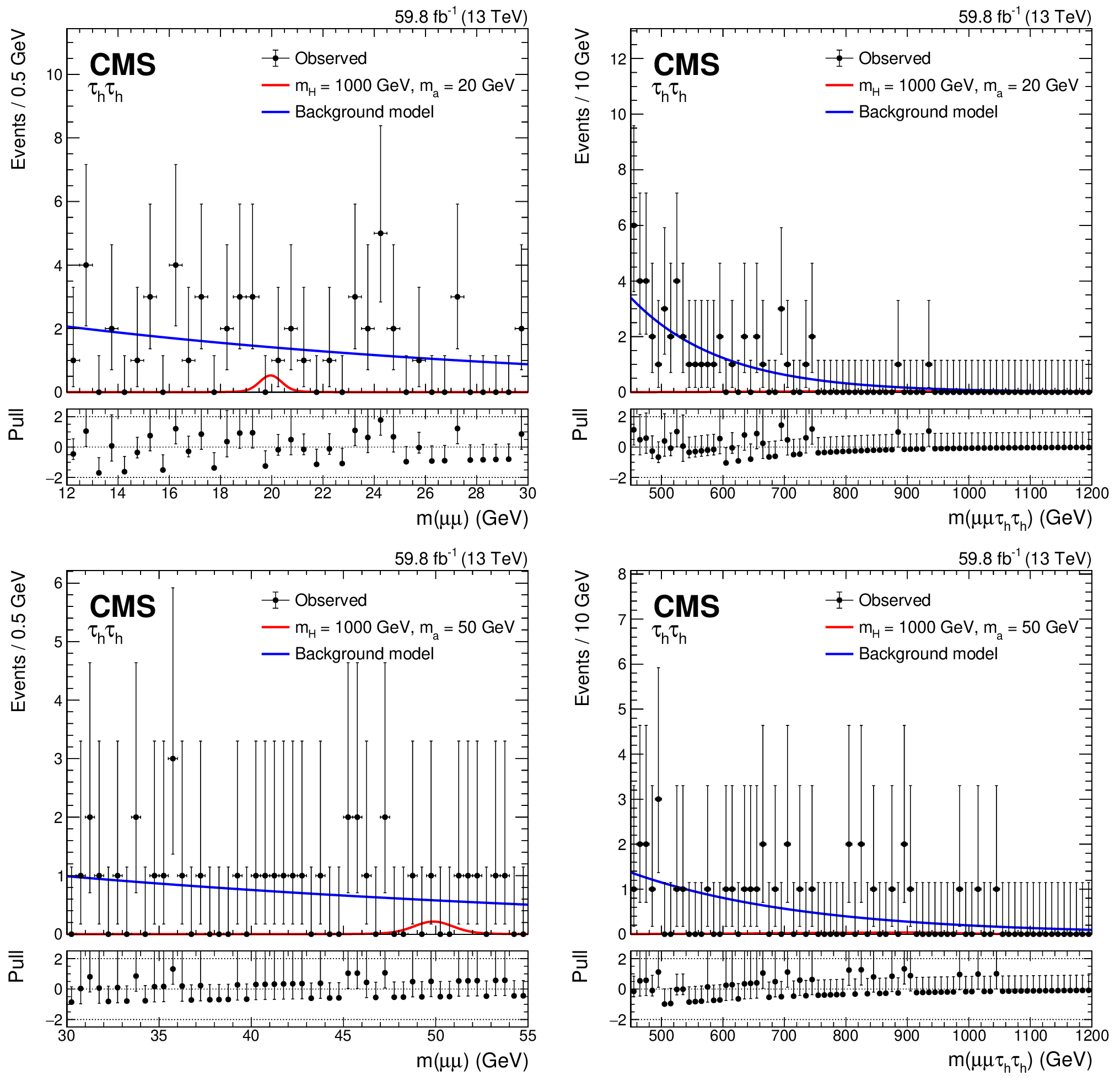

Figure 11:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two higher $ m_{\mu\mu} $ ranges (12 $ < m_{\mu\mu} < $ 30 GeV and 30 $ < m_{\mu\mu} < $ 55 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 20 and 50 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

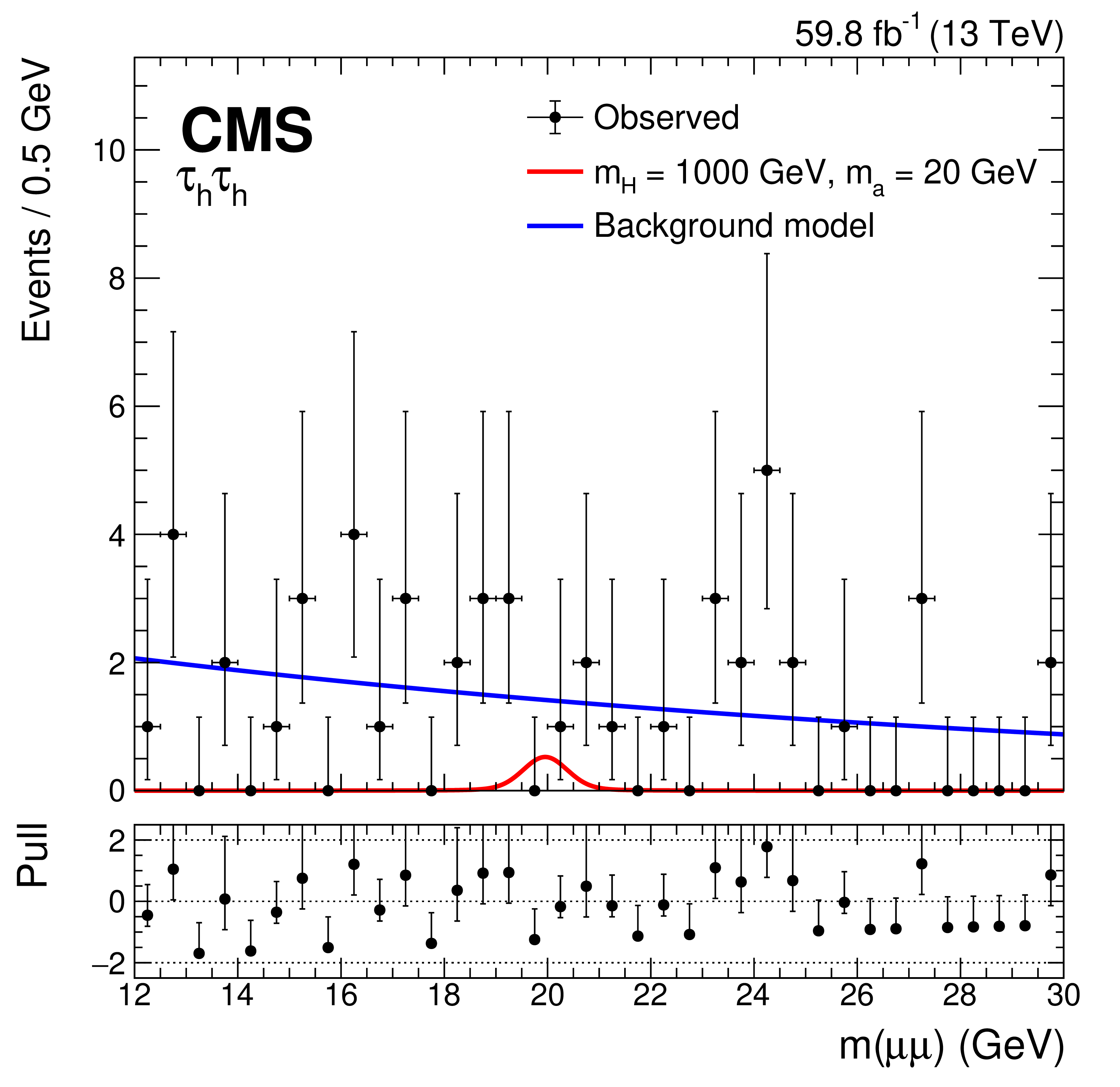

Figure 11-a:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two higher $ m_{\mu\mu} $ ranges (12 $ < m_{\mu\mu} < $ 30 GeV and 30 $ < m_{\mu\mu} < $ 55 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 20 and 50 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

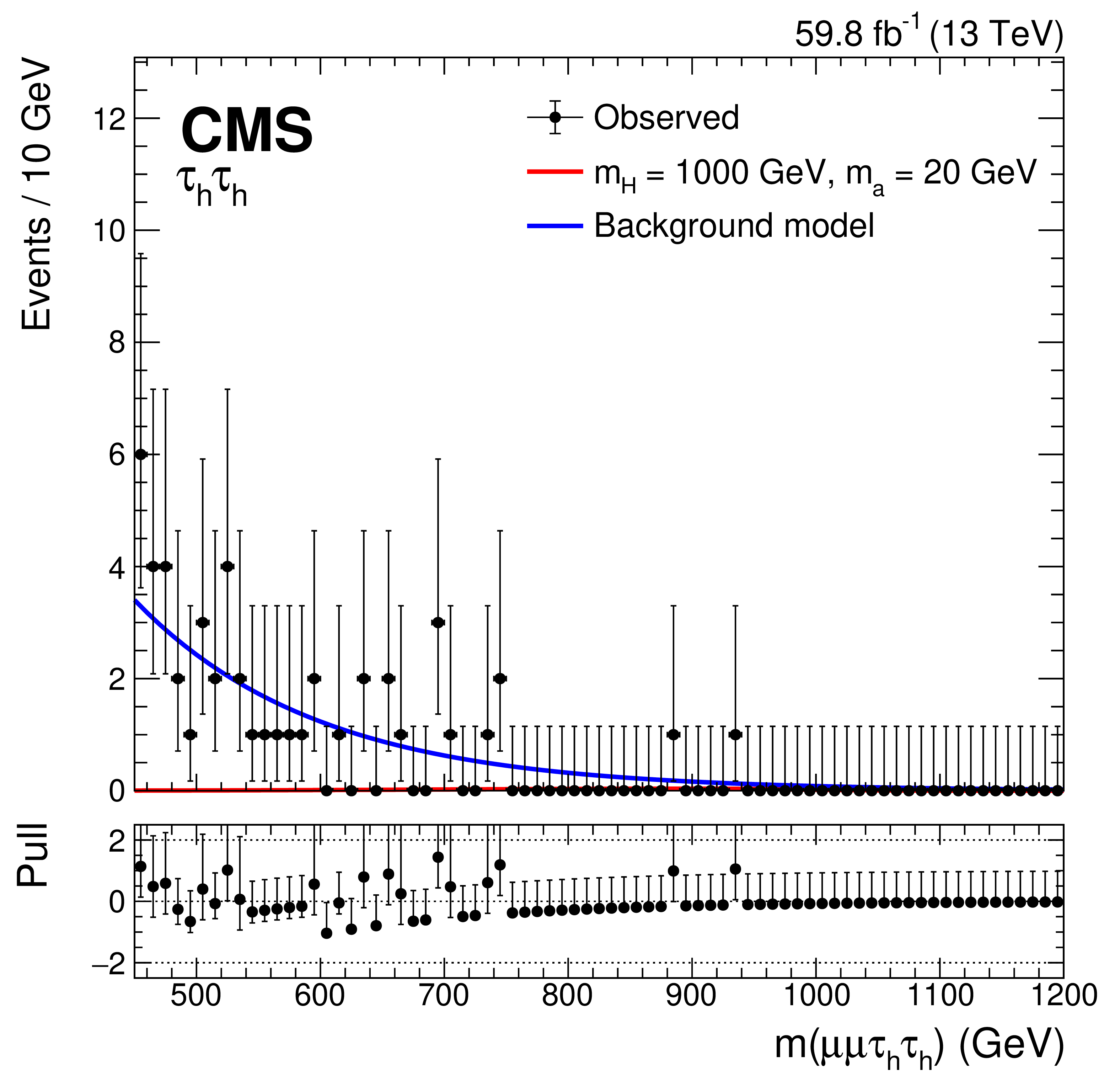

Figure 11-b:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two higher $ m_{\mu\mu} $ ranges (12 $ < m_{\mu\mu} < $ 30 GeV and 30 $ < m_{\mu\mu} < $ 55 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 20 and 50 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

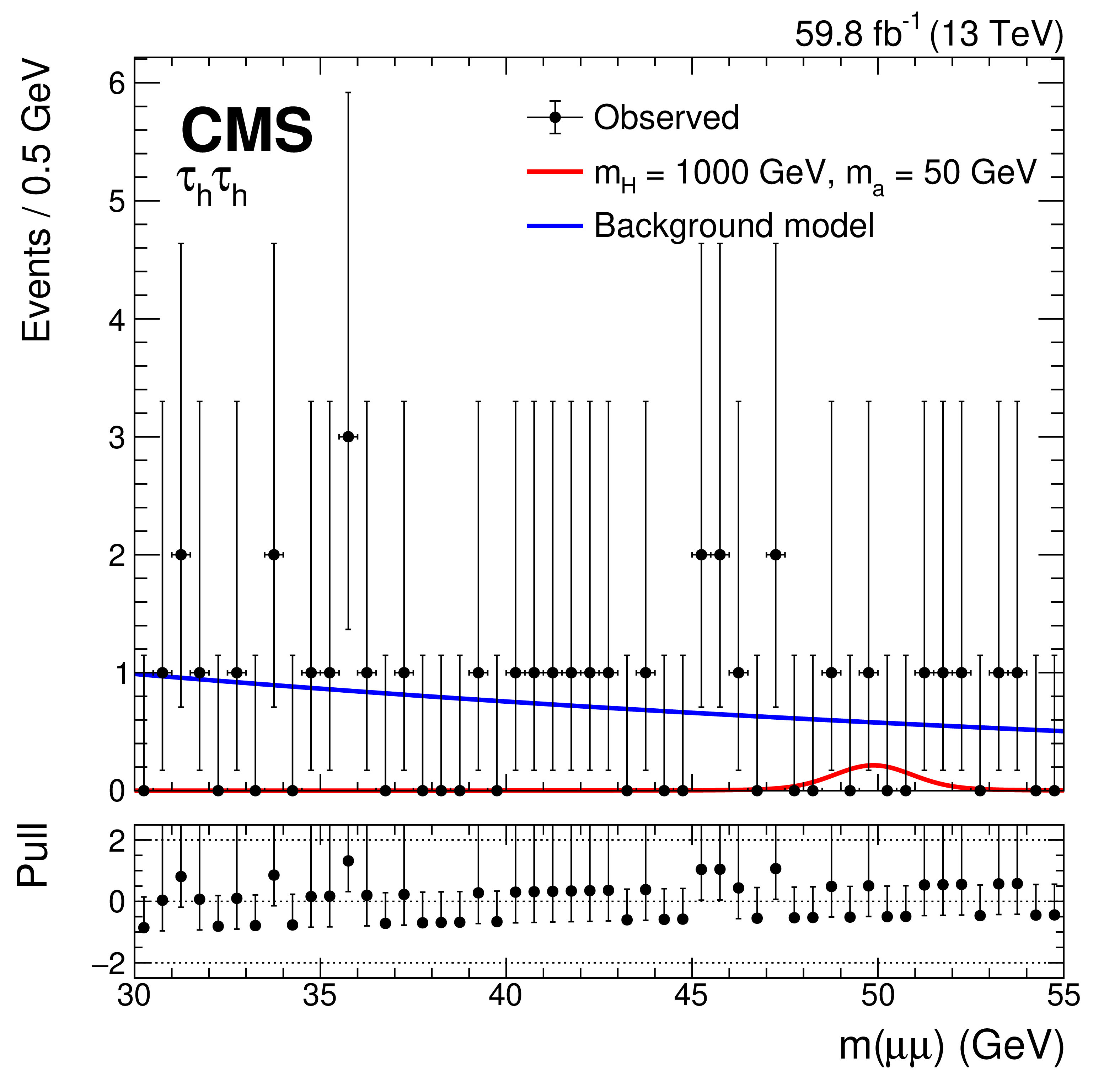

Figure 11-c:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two higher $ m_{\mu\mu} $ ranges (12 $ < m_{\mu\mu} < $ 30 GeV and 30 $ < m_{\mu\mu} < $ 55 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 20 and 50 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

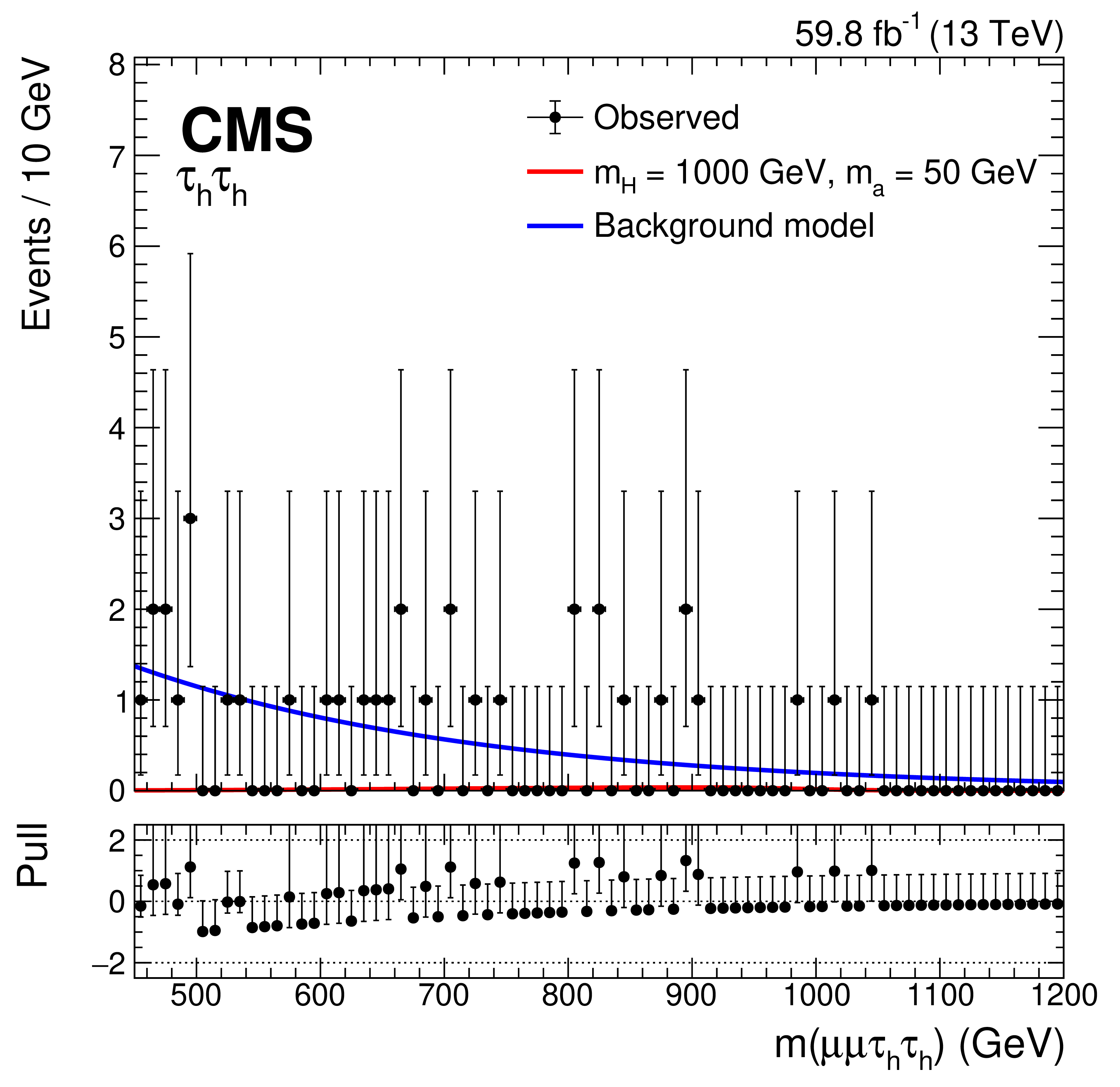

Figure 11-d:
Projections of the post-fit two-dimensional background pdfs (blue) and the observed data onto the $ m_{\mu\mu} $ (left) and four-body visible mass (right) axes for the two higher $ m_{\mu\mu} $ ranges (12 $ < m_{\mu\mu} < $ 30 GeV and 30 $ < m_{\mu\mu} < $ 55 GeV) in the $ \tau_\mathrm{h}\tau_\mathrm{h} $ channel for $ m_{\mathrm{H}} = $ 1000 GeV using the 2018 data set. The rows correspond to pseudoscalar masses of $ m_{a } = $ 20 and 50 GeV, from top to bottom. Example signal distributions (red) are overlaid assuming $ \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau) = 5 \times 10^{-4} $. |
png pdf |

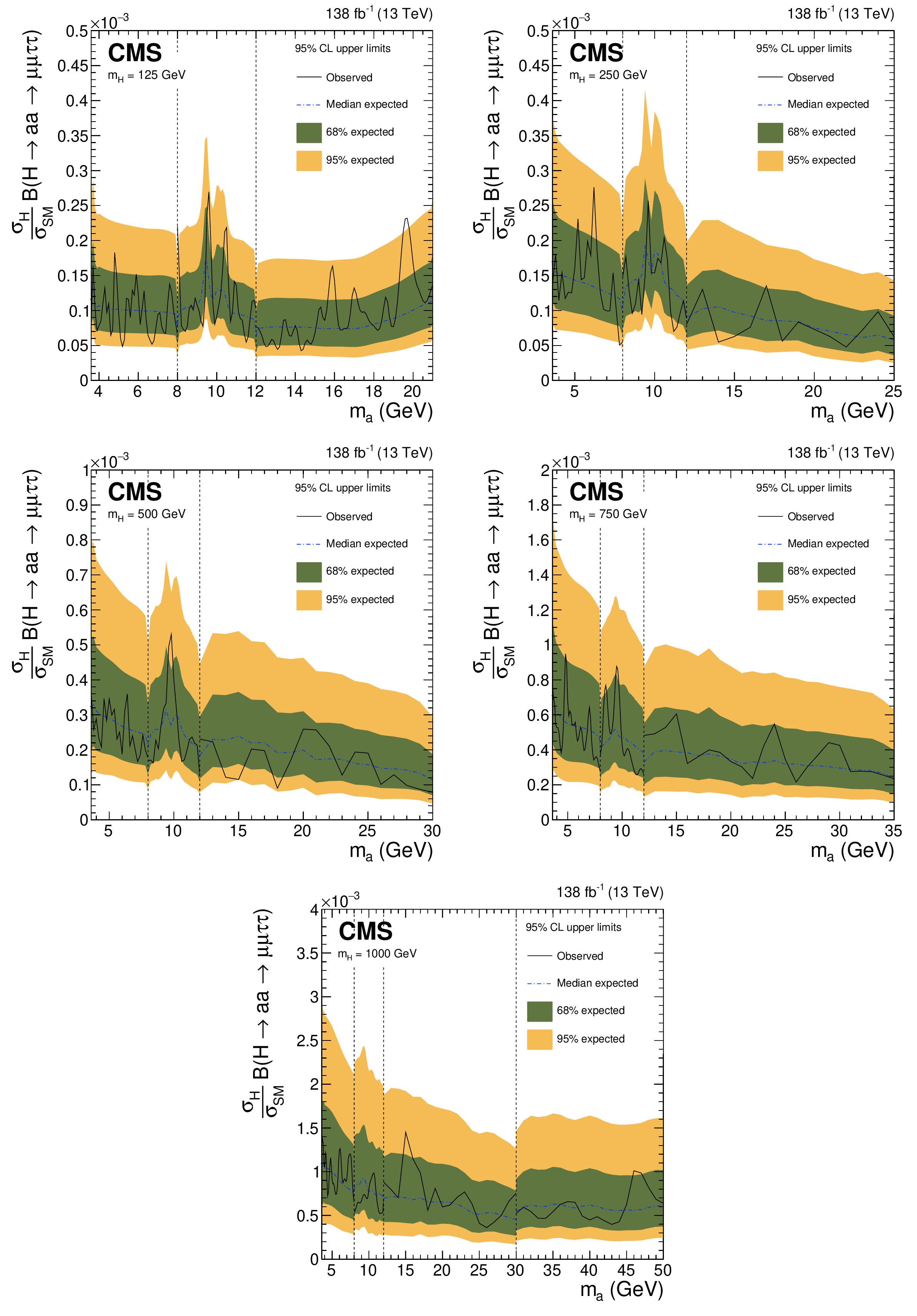

Figure 12:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the $ \tau_{\mu}\tau_{\mathrm{e}} $, $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ final states, for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. The vertical dotted lines indicate the boundaries of the $ m_{\mu\mu} $ regions used in the background fit, as described in Section 7. |
png pdf |

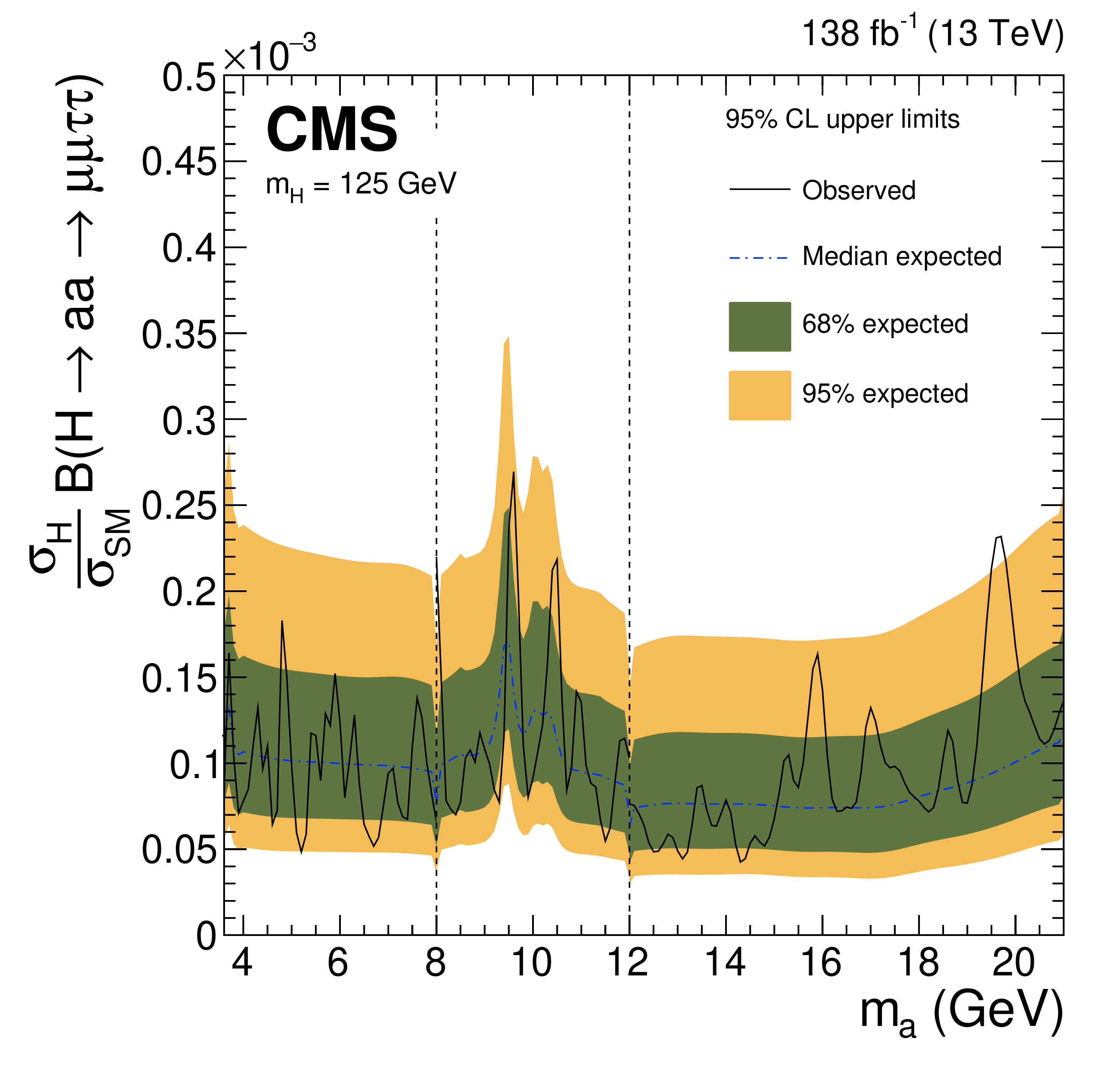

Figure 12-a:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the $ \tau_{\mu}\tau_{\mathrm{e}} $, $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ final states, for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. The vertical dotted lines indicate the boundaries of the $ m_{\mu\mu} $ regions used in the background fit, as described in Section 7. |
png pdf |

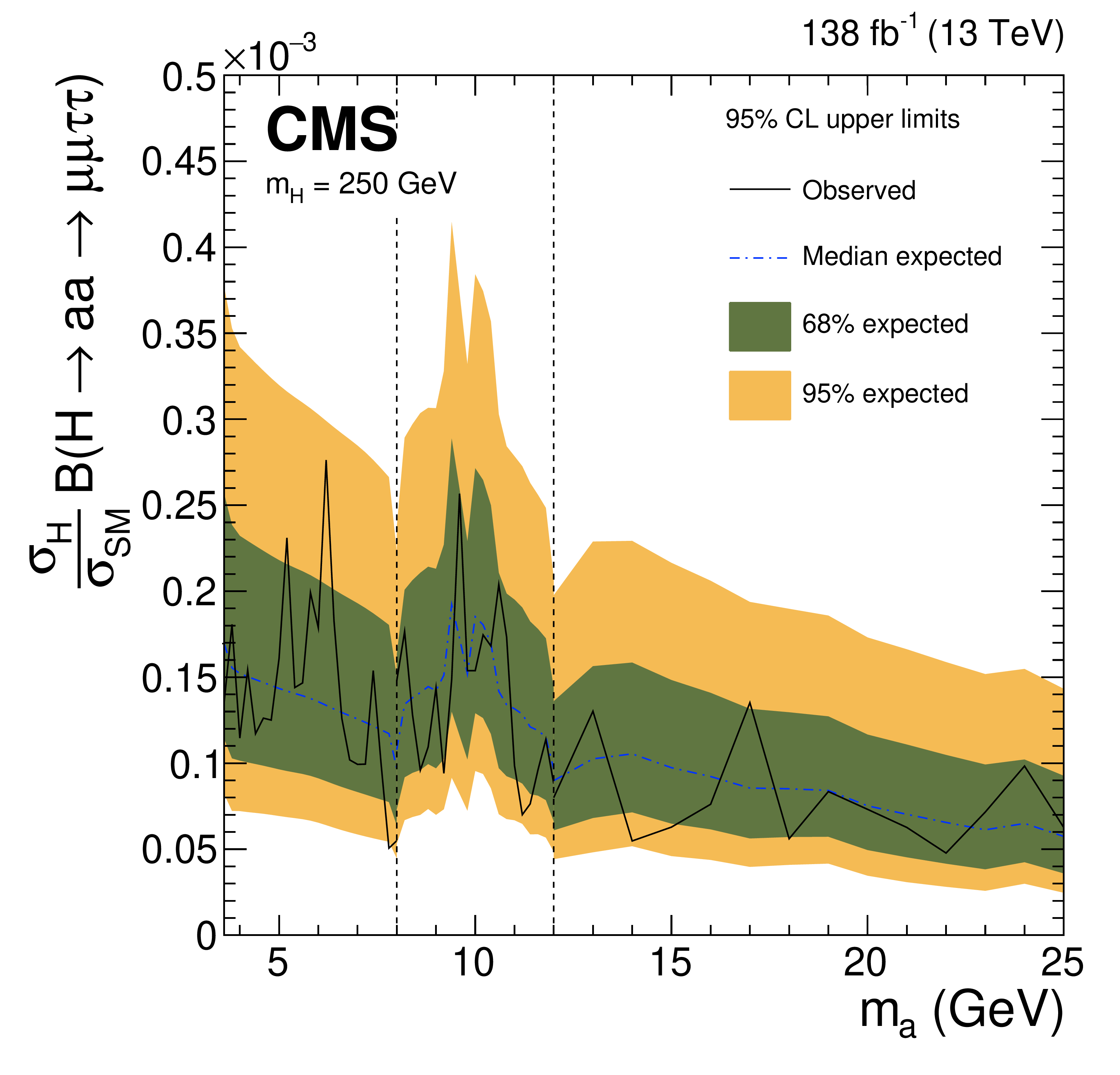

Figure 12-b:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the $ \tau_{\mu}\tau_{\mathrm{e}} $, $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ final states, for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. The vertical dotted lines indicate the boundaries of the $ m_{\mu\mu} $ regions used in the background fit, as described in Section 7. |
png pdf |
Figure 12-c:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the $ \tau_{\mu}\tau_{\mathrm{e}} $, $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ final states, for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. The vertical dotted lines indicate the boundaries of the $ m_{\mu\mu} $ regions used in the background fit, as described in Section 7. |
png pdf |
Figure 12-d:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the $ \tau_{\mu}\tau_{\mathrm{e}} $, $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ final states, for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. The vertical dotted lines indicate the boundaries of the $ m_{\mu\mu} $ regions used in the background fit, as described in Section 7. |
png pdf |

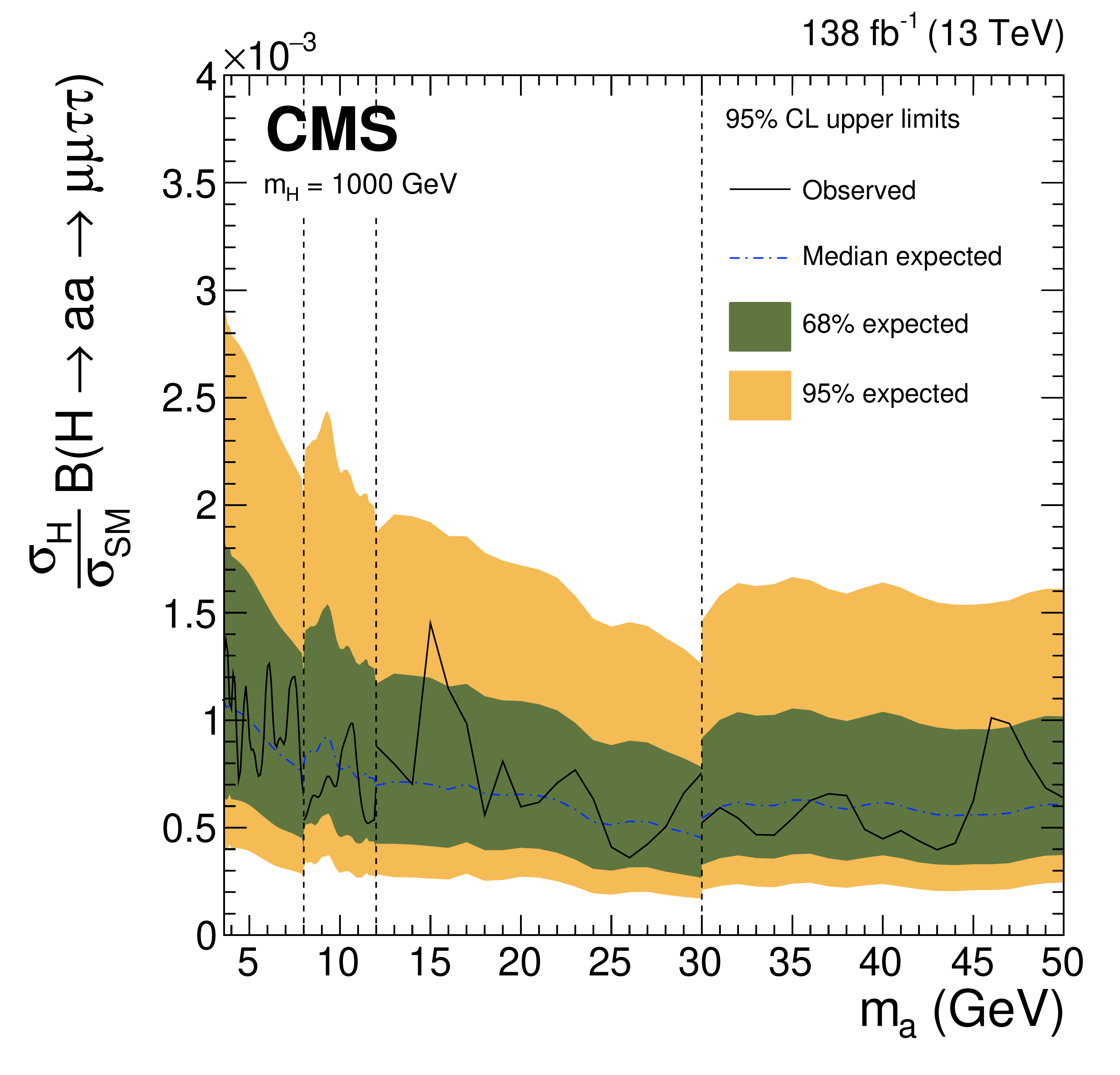

Figure 12-e:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the $ \tau_{\mu}\tau_{\mathrm{e}} $, $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ final states, for $ m_{\mathrm{H}} = $ 125, 250, 500, 750, and 1000 GeV. The vertical dotted lines indicate the boundaries of the $ m_{\mu\mu} $ regions used in the background fit, as described in Section 7. |
png pdf |

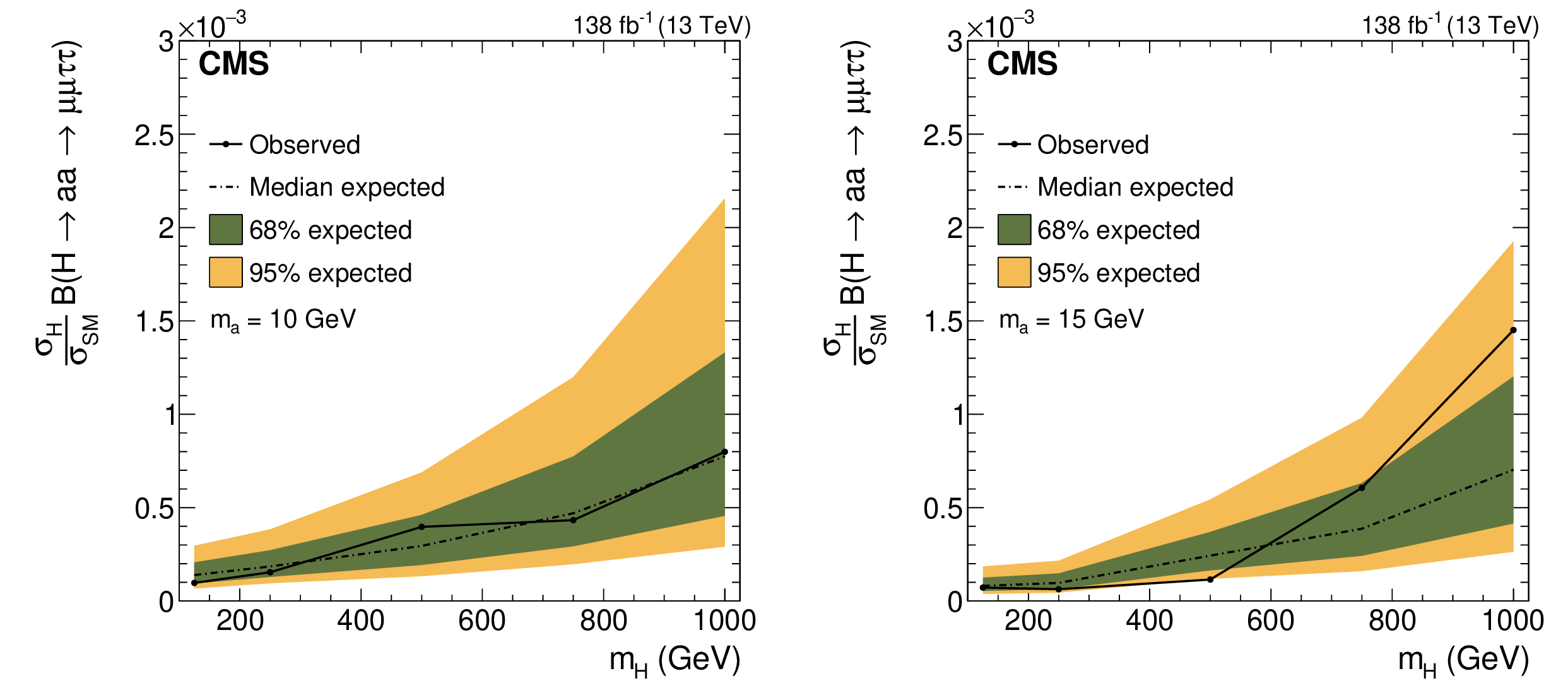

Figure 13:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the final states for different Higgs boson mass hypotheses, for the pseudoscalar masses of 10 GeV (left) and 15 GeV (right). The straight lines between points are there to guide the eye. |
png pdf |

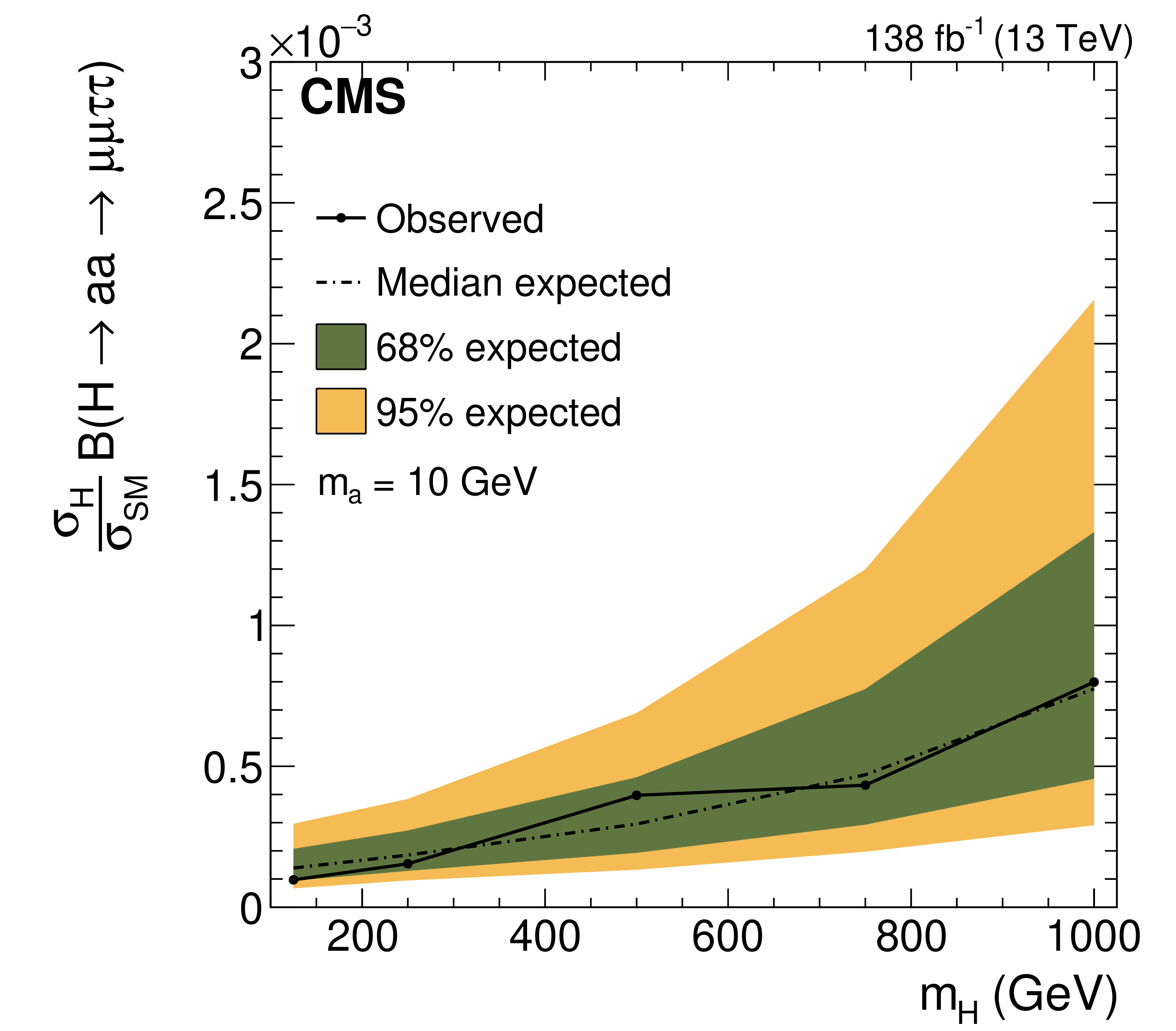

Figure 13-a:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the final states for different Higgs boson mass hypotheses, for the pseudoscalar masses of 10 GeV (left) and 15 GeV (right). The straight lines between points are there to guide the eye. |
png pdf |

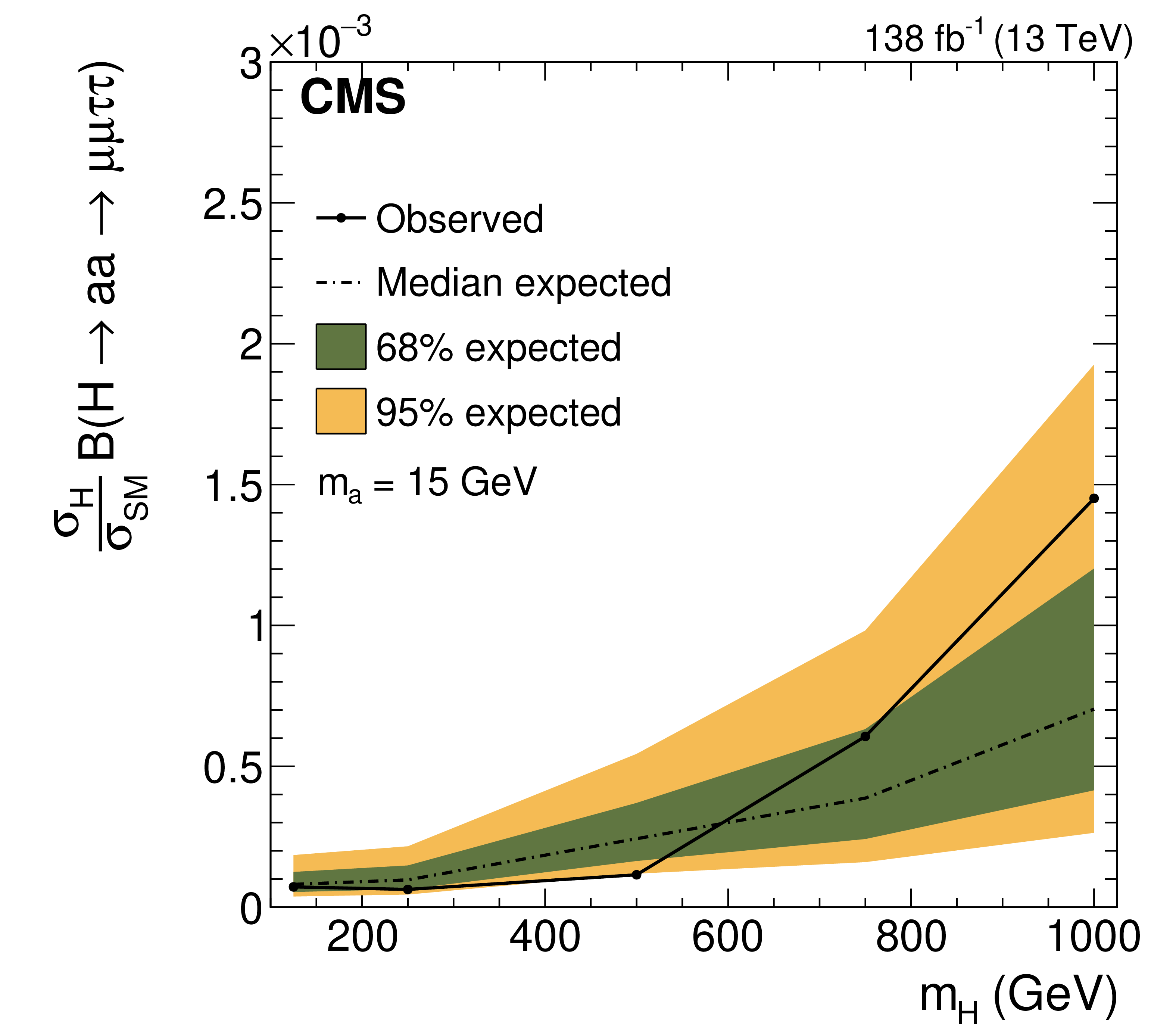

Figure 13-b:
Expected and observed limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, combining the final states for different Higgs boson mass hypotheses, for the pseudoscalar masses of 10 GeV (left) and 15 GeV (right). The straight lines between points are there to guide the eye. |
png pdf |

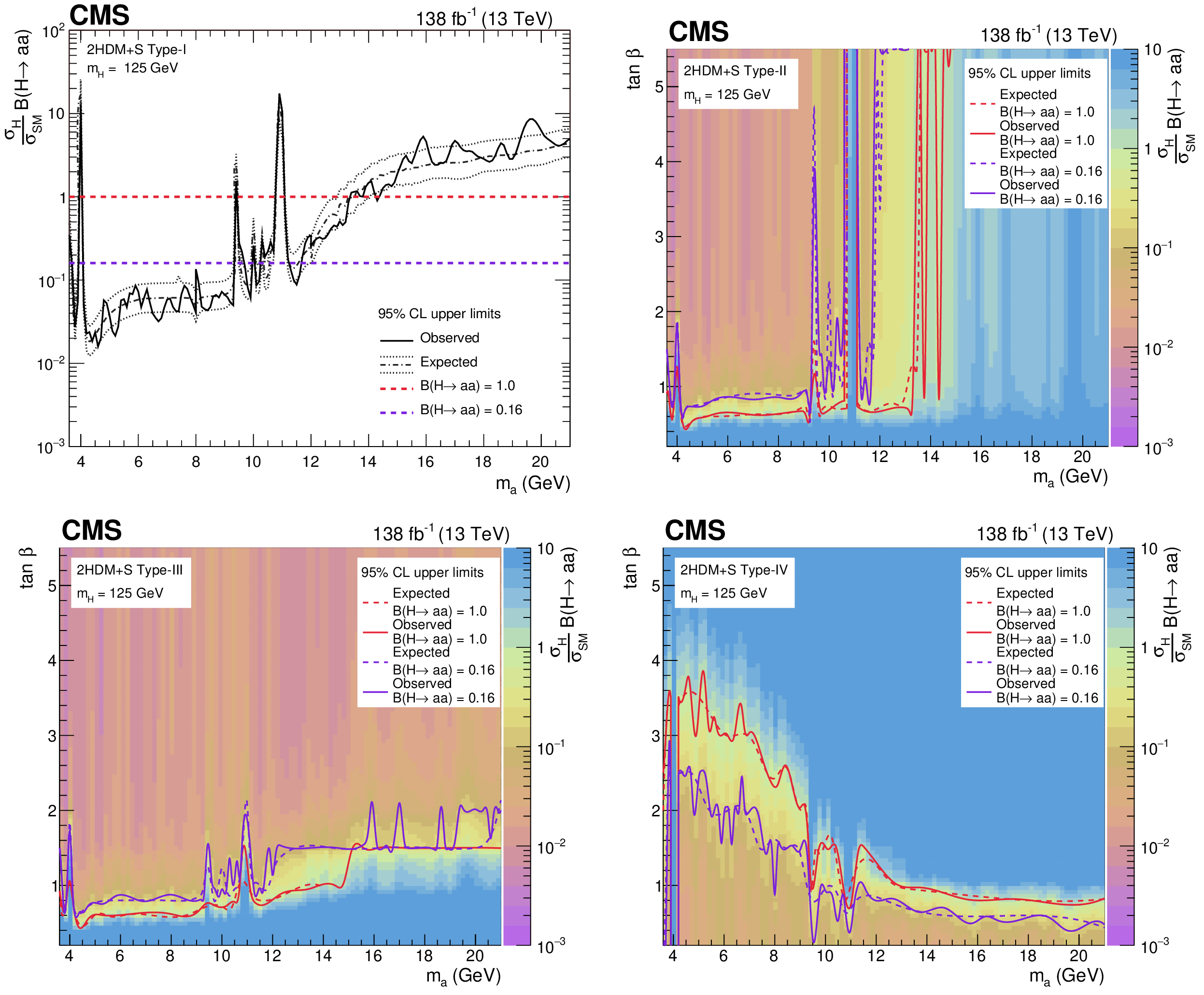

Figure 14:
Observed and expected limits in 2HDM+S models of Types I through IV. The contours at a branching fraction of 0.16 are motivated by a CMS combination that sets limits on Higgs boson decays to undetected modes, including modes not covered by the standard channels, such as the boosted topologies considered in this analysis [18]. In the Type-I model, $ \mathcal{B}(\mathrm{H}\rightarrow a a ) $ is independent of $ \tan\beta $. |
png pdf |

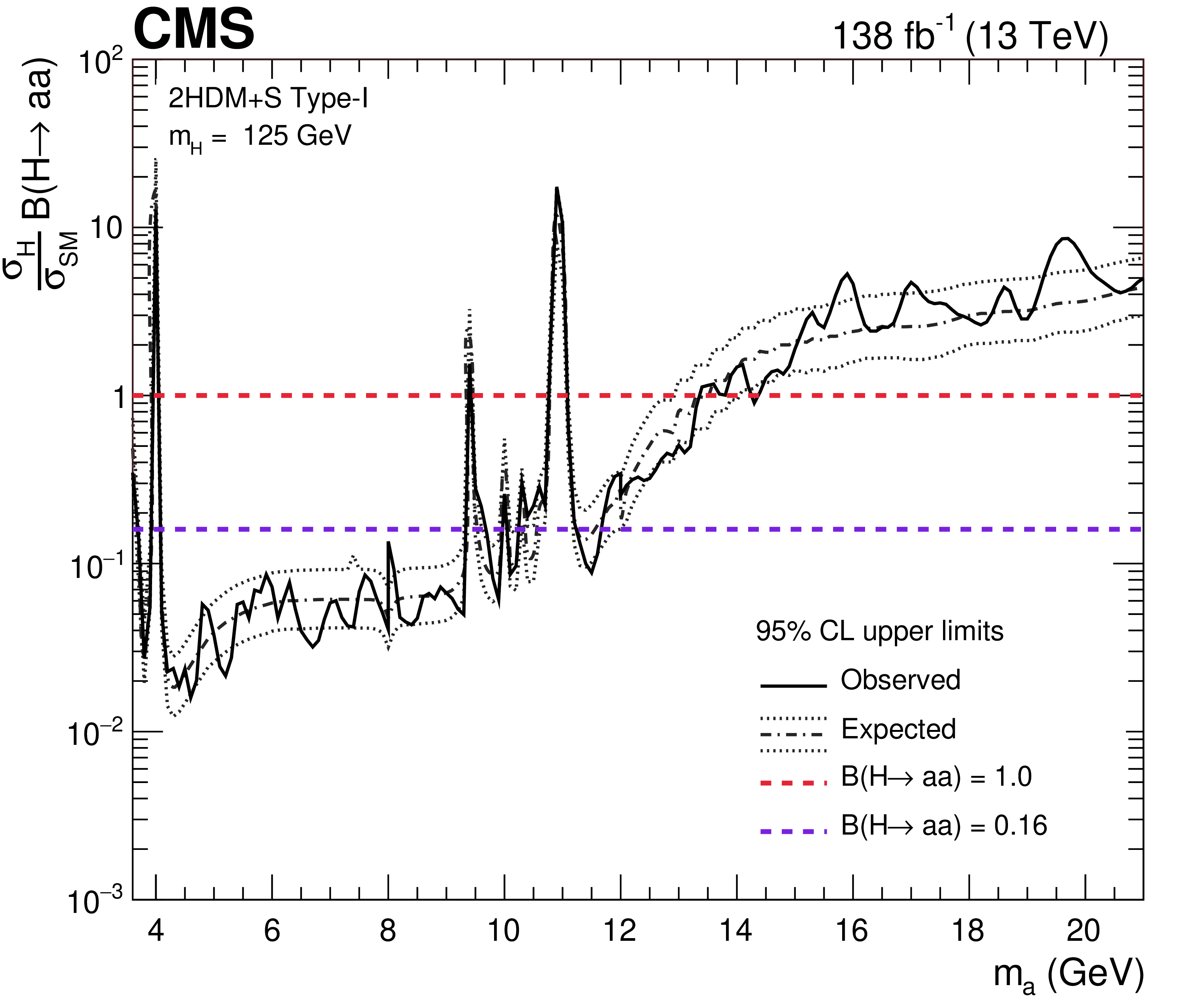

Figure 14-a:
Observed and expected limits in 2HDM+S models of Types I through IV. The contours at a branching fraction of 0.16 are motivated by a CMS combination that sets limits on Higgs boson decays to undetected modes, including modes not covered by the standard channels, such as the boosted topologies considered in this analysis [18]. In the Type-I model, $ \mathcal{B}(\mathrm{H}\rightarrow a a ) $ is independent of $ \tan\beta $. |
png pdf |

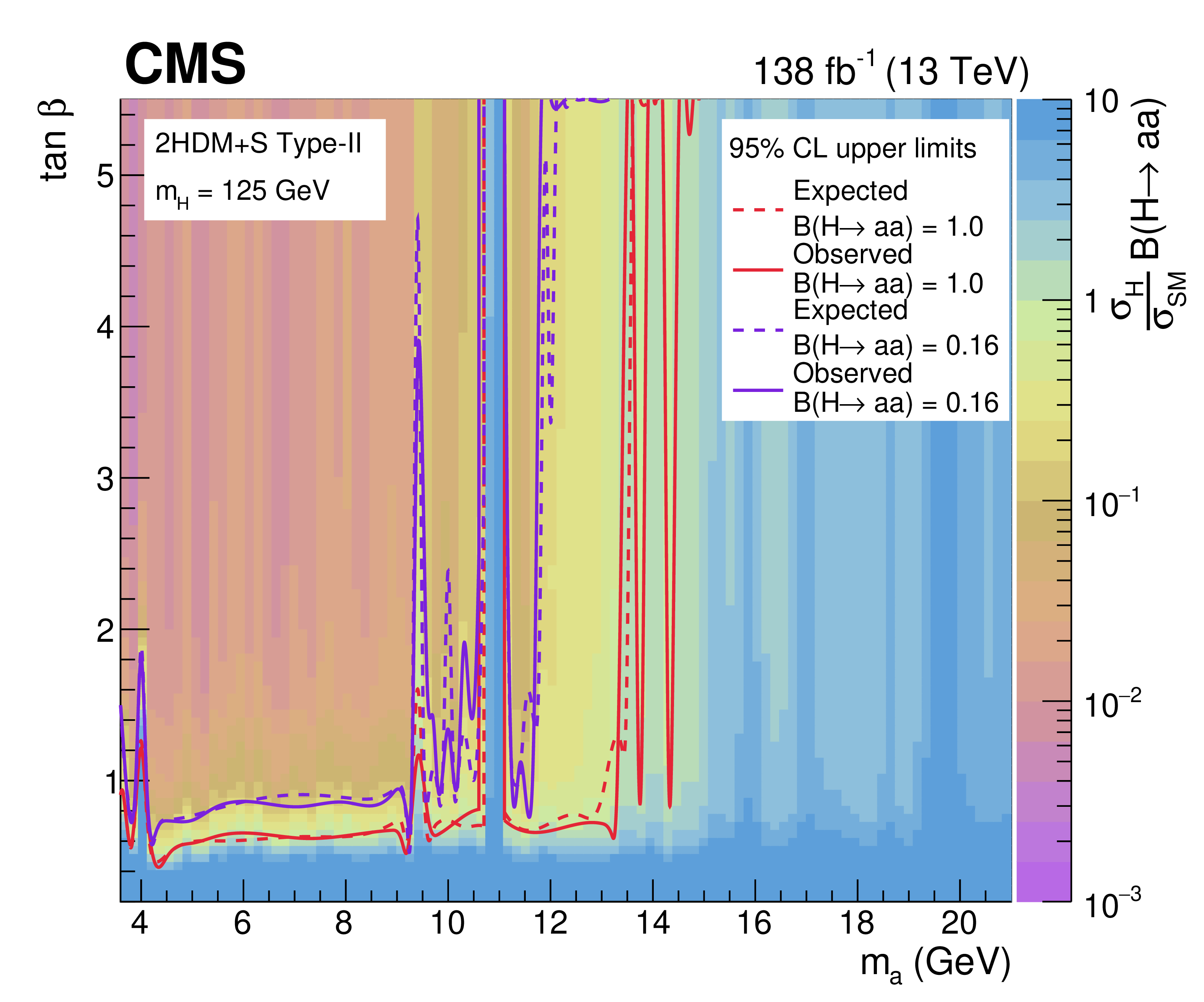

Figure 14-b:
Observed and expected limits in 2HDM+S models of Types I through IV. The contours at a branching fraction of 0.16 are motivated by a CMS combination that sets limits on Higgs boson decays to undetected modes, including modes not covered by the standard channels, such as the boosted topologies considered in this analysis [18]. In the Type-I model, $ \mathcal{B}(\mathrm{H}\rightarrow a a ) $ is independent of $ \tan\beta $. |
png pdf |

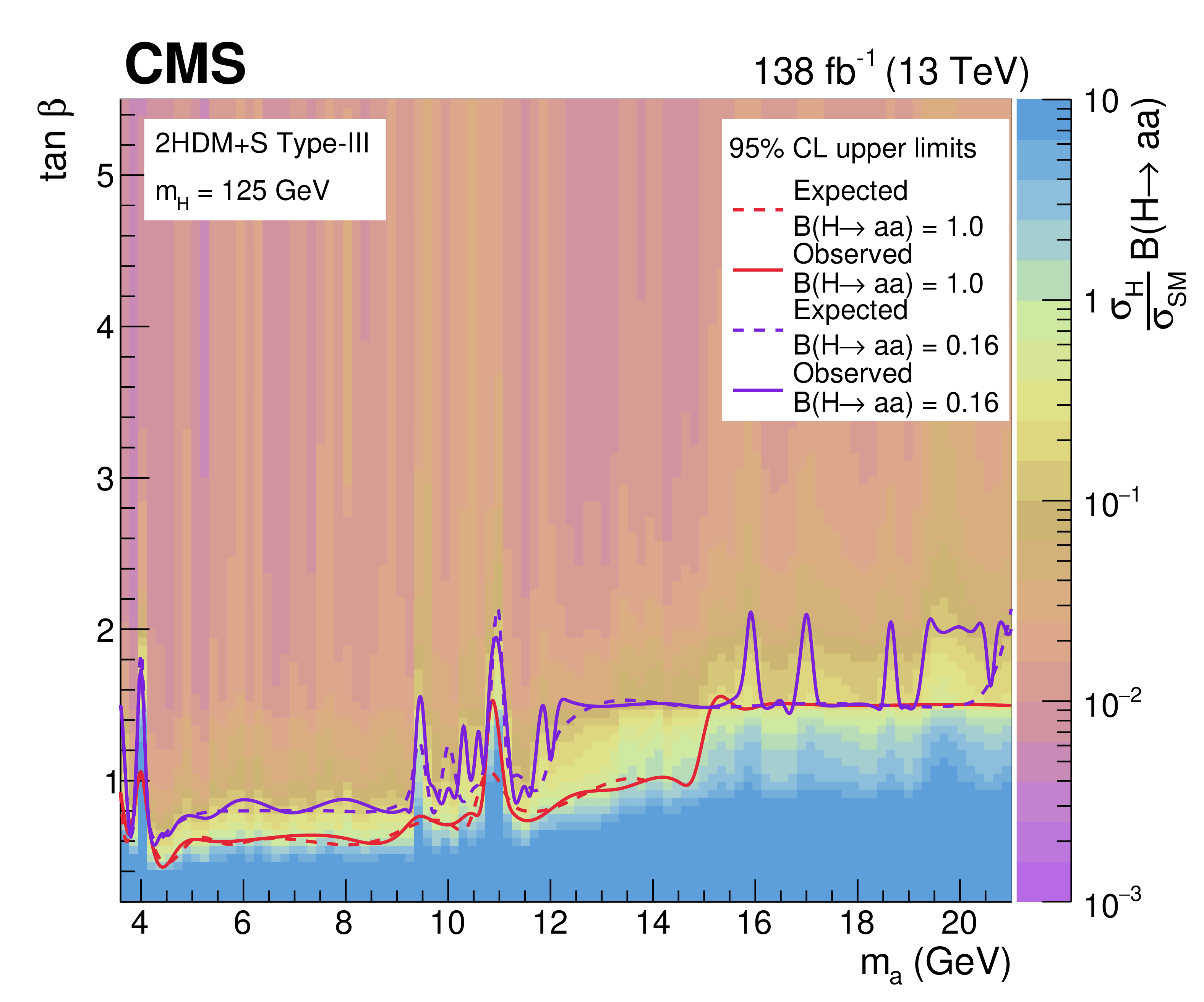

Figure 14-c:
Observed and expected limits in 2HDM+S models of Types I through IV. The contours at a branching fraction of 0.16 are motivated by a CMS combination that sets limits on Higgs boson decays to undetected modes, including modes not covered by the standard channels, such as the boosted topologies considered in this analysis [18]. In the Type-I model, $ \mathcal{B}(\mathrm{H}\rightarrow a a ) $ is independent of $ \tan\beta $. |
png pdf |

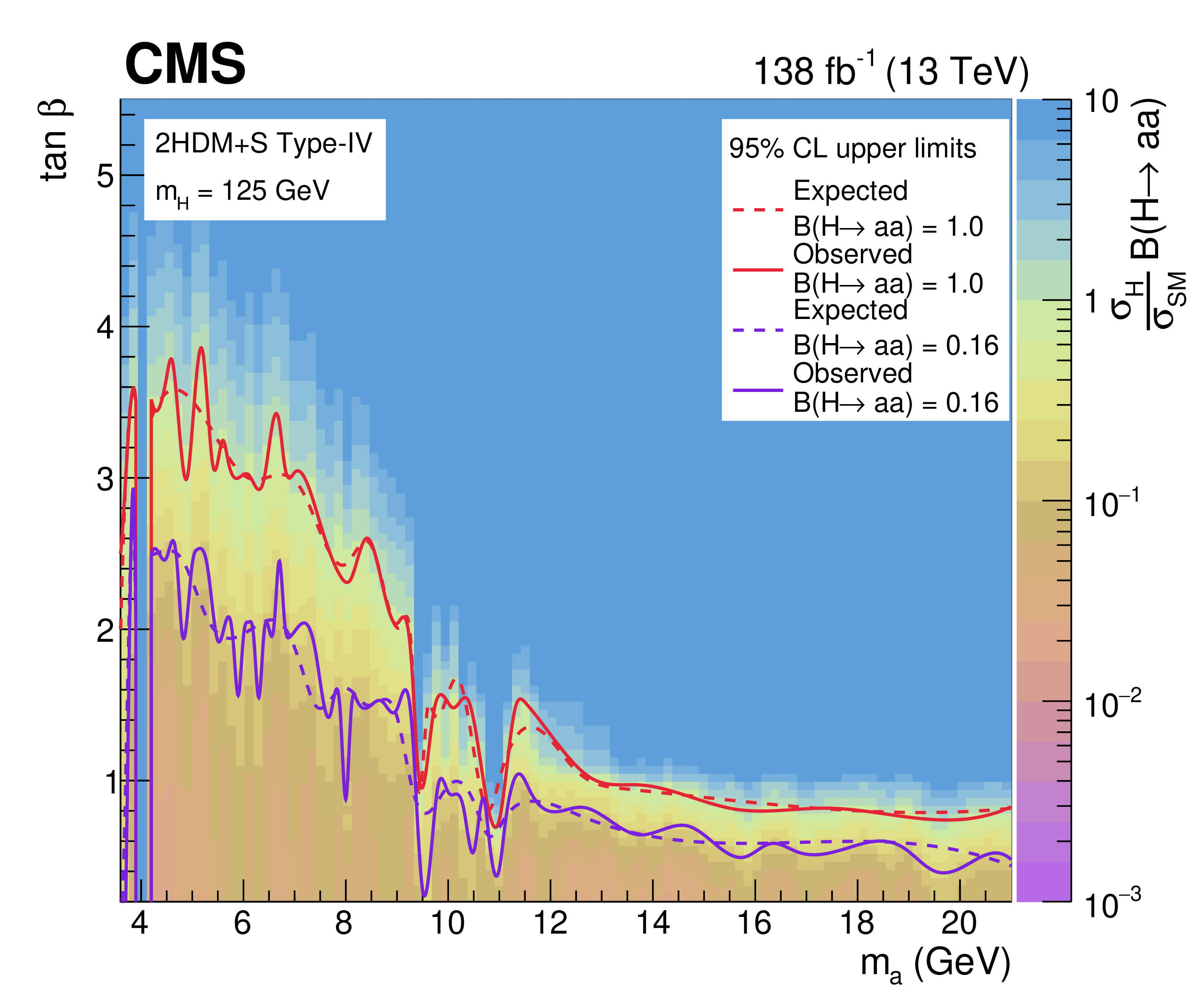

Figure 14-d:
Observed and expected limits in 2HDM+S models of Types I through IV. The contours at a branching fraction of 0.16 are motivated by a CMS combination that sets limits on Higgs boson decays to undetected modes, including modes not covered by the standard channels, such as the boosted topologies considered in this analysis [18]. In the Type-I model, $ \mathcal{B}(\mathrm{H}\rightarrow a a ) $ is independent of $ \tan\beta $. |
| Tables | |
png pdf |

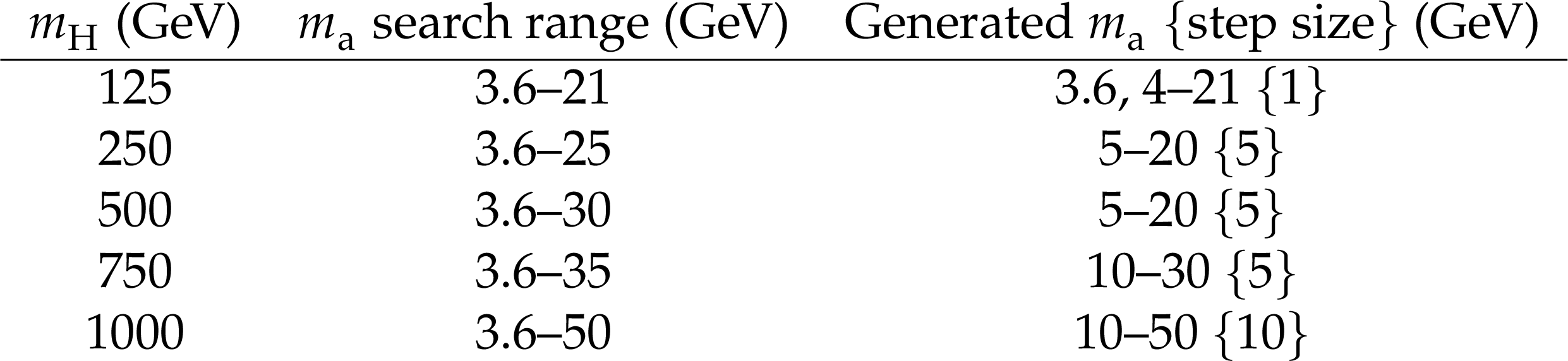

Table 1:
Values of the scalar mass $ m_{\mathrm{H}} $ and pseudoscalar mass $ m_{a } $ considered in the search for $ \mathrm{H}\to a a \to\mu\mu\tau\tau $. The third column lists the generated pseudoscalar mass points or ranges; ranges are given together with the step size in braces. For $ m_{\mathrm{H}} = $ 125 GeV, the lightest neutral scalar corresponds to the SM Higgs boson. |
png pdf |

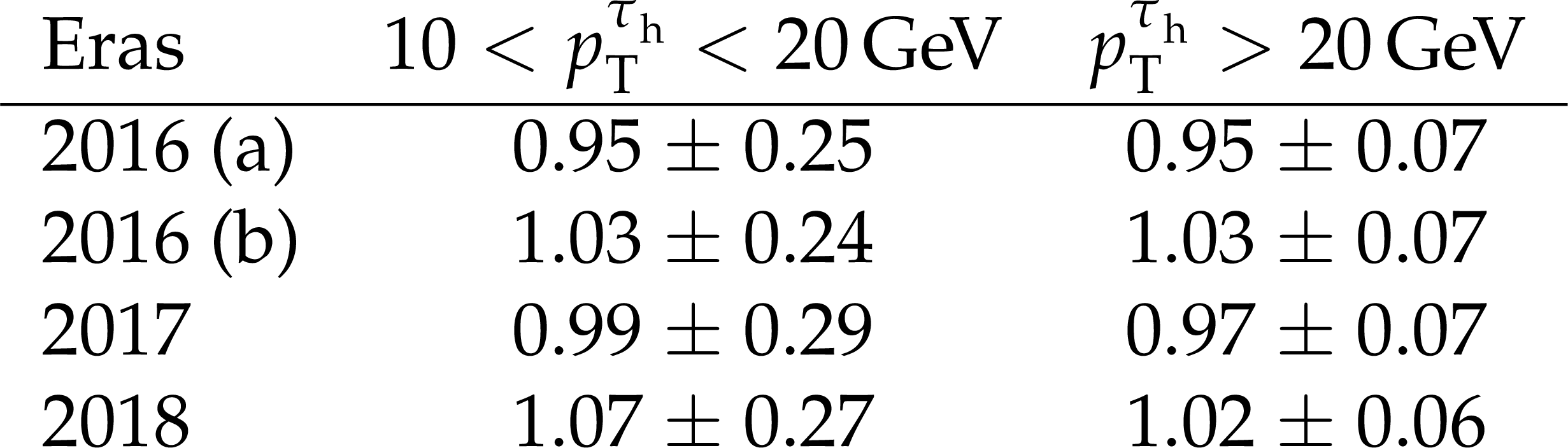

Table 2:
Measured scale factors and their uncertainties for $ \tau_\mathrm{h} $ candidates. The 2016 data comprise two eras with different strip tracker running conditions [71]. |
png pdf |

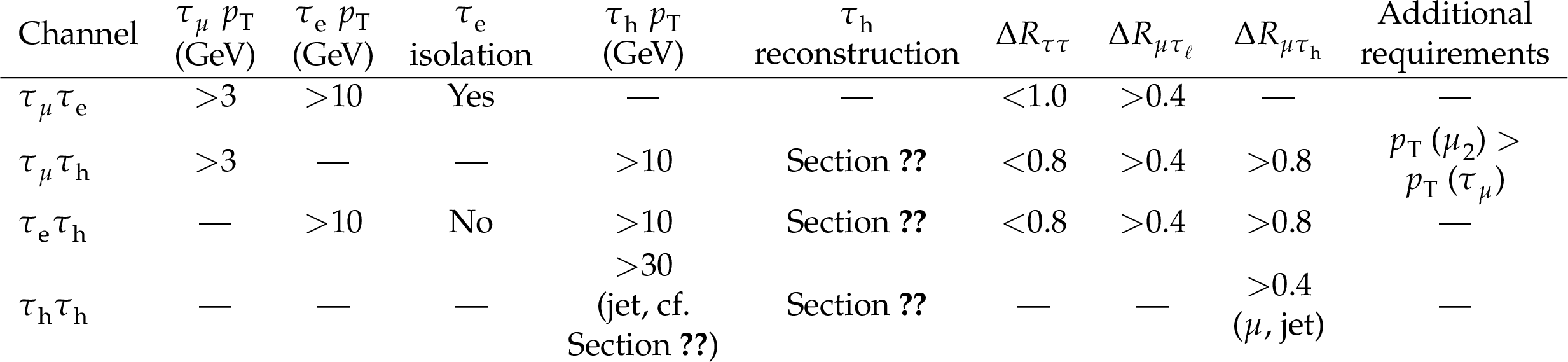

Table 3:
Tau lepton selection criteria in the four different channels. In the columns labeled $ \Delta R_{\mu\tau_{\ell}} $ and $ \Delta R_{\mu\tau_\mathrm{h}} $, $ \mu $ refers to either of the two muons reconstructed as the $ a \to\mu\mu $ candidate. In the column labeled $ \Delta R_{\mu\tau_{\ell}} $, $ \tau_{\ell} $ refers to either the $ \tau_{\mu} $ or $ \tau_{\mathrm{e}} $ candidate. In the final column, $ \mu_{2} $ refers to the nontriggering muon in the $ a \to\mu\mu $ pair. A dash ($ \text{---} $) means that the selection in the column header does not apply to the channel in that row. |
png pdf |

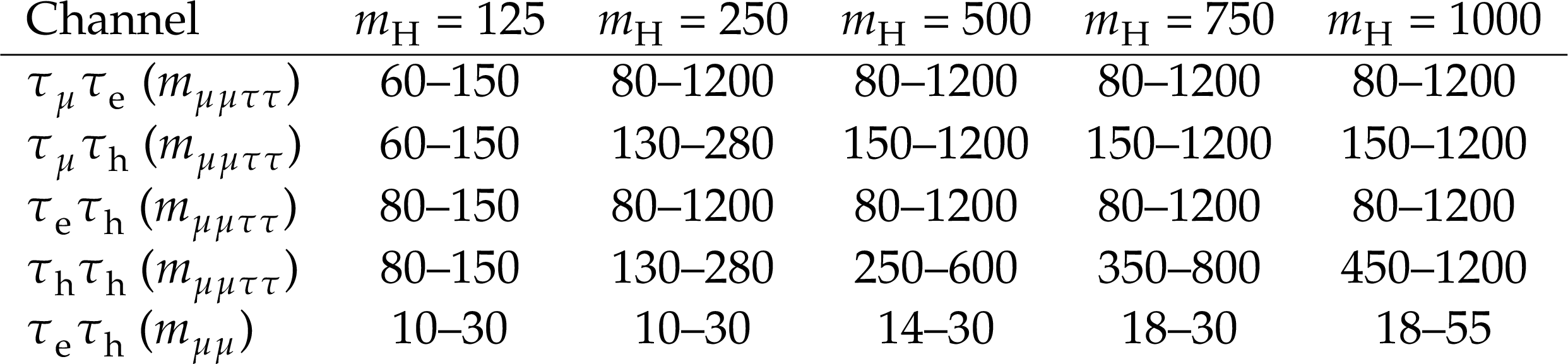

Table 4:
Four-body mass ranges used in the two-dimensional fit. For the $ \tau_{\mathrm{e}}\tau_\mathrm{h} $ channel, an additional requirement is imposed on $ m_{\mu\mu} $, as shown in the last row. All entries are given in GeV. |
png pdf |

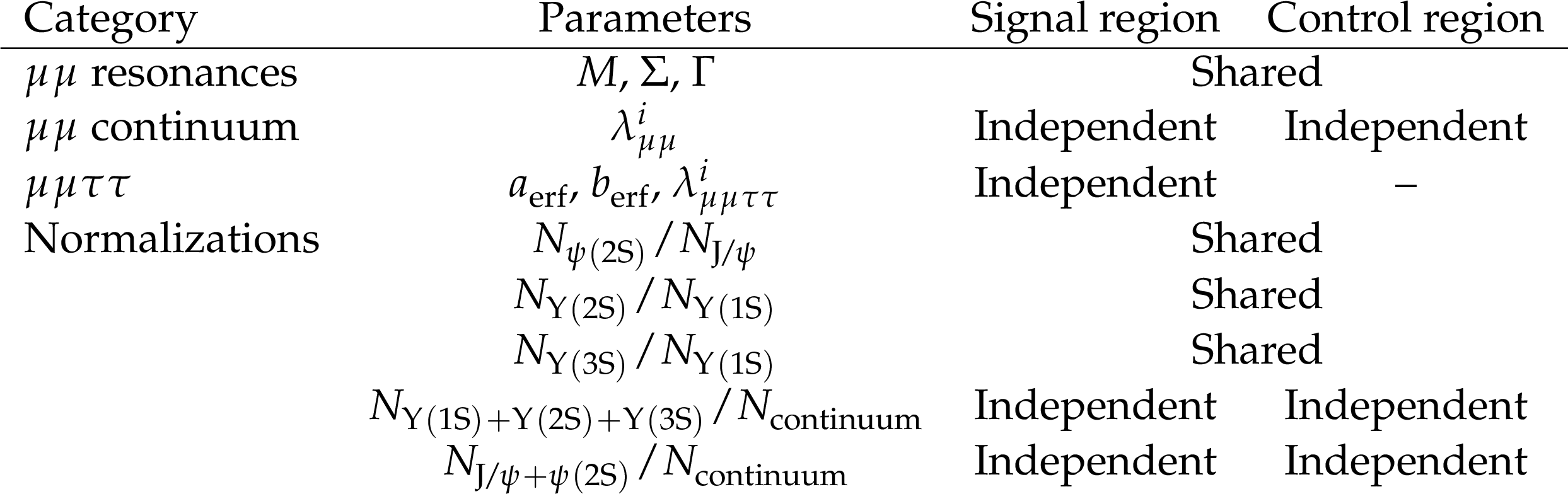

Table 5:
The background model parameters and their relationships between the signal region and control region: shared, in which the parameters are identical in the indicated regions, and independent, in which the parameters vary freely and are not constrained by any other region. |
| Summary |
| A search for decays of the Higgs boson, H, to a pair of light pseudoscalar bosons, $ a $, is presented for both the standard model (SM) Higgs boson at 125 GeV and an SM-like scalar with masses in the range 250--1000 GeV. The light pseudoscalars decay to $ \mu\mu $ and $ \tau\tau $ with substantial overlap within each pair because of the large Lorentz boosts. This nonstandard topology motivates the development of dedicated $ \tau_{\mu}\tau_\mathrm{h} $, $ \tau_{\mathrm{e}}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h} $ reconstruction and tagging methods to increase the acceptance. A dedicated neural network enables, for the first time, the inclusion of the high-rate but high-background $ \tau_\mathrm{h}\tau_\mathrm{h} $ final state. Data collected by the CMS experiment at $ \sqrt{s} = $ 13 TeV, corresponding to an integrated luminosity of 138 fb$ ^{-1} $, are examined. No significant excess over SM processes is observed. Model-independent upper limits at the 95% confidence level are set on the product of the Higgs boson production cross section and branching fraction, divided by the standard model cross section, $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $, with the most stringent limits reaching approximately 5 $ \times 10^{-5} $ for $ m_{\mathrm{H}} = $ 125 GeV and 3.5 $ \times 10^{-4} $ for $ m_{\mathrm{H}} = $ 1000 GeV. Model-specific upper limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a )/\sigma_{\mathrm{SM}} $ are also extracted for $ m_{\mathrm{H}} = $ 125 GeV in Type-I, -II, -III, and -IV two-Higgs-doublet plus singlet models. These results significantly extend the upper limits obtained in earlier searches by the CMS and ATLAS Collaborations and are complementary to existing searches, $ \mbox{e.g.} $, Ref. [85], at higher $ m_{a } $, where the $ \mu\mu $ and $ \tau\tau $ final states are resolved. Considering only the previous CMS search using boosted $ \tau_{\mu}\tau_\mathrm{h} $ reconstruction and a partial 13 TeV data set [47], the median expected upper limits on $ \sigma_{\mathrm{H}} \times \mathcal{B}(\mathrm{H}\to a a \to\mu\mu\tau\tau)/\sigma_{\mathrm{SM}} $ for $ m_{\mathrm{H}} = $ 125 GeV are stronger than those obtained in Ref. [47] by factors of 2--5, depending on $ m_{a } $, owing to the larger dataset and inclusion of more tau lepton decay channels in the analysis. In the Type-I and Type-II models, this result places the most stringent limits to date on $ \mathcal{B}(\mathrm{H}\to a a ) $ in the range 3.6 $ < m_{a } < $ 4.2 GeV when $ m_{\mathrm{H}} = $ 125 GeV. In the range 4.0 $ < m_{a } < $ 8.0 GeV, the upper limits in this work are stronger than those of Ref. [87] based on the same final state and dataset. Above 4.2 GeV, they are a bit weaker than those of Ref. [88], which reconstructs the predicted decay of the pseudoscalar to a pair of charm quarks as well as its dimuon decay. In the Type-III model, in which decays to leptons are enhanced over quarks, the results of this work in the range 13 $ < m_{a } < $ 15 GeV improve upon those of Ref. [43], which reconstructs the predicted decay of the pseudoscalar to a pair of bottom quarks as well as its dimuon decay, and those of Ref. [87]. Finally, this analysis is the first to search for the decay of a heavy neutral scalar to two promptly decaying pseudoscalars in the full Run 2 dataset of the LHC. |
