| CMS-PAS-NPS-25-005 | ||
| Search for Lorentz-boosted Higgs boson decays to a pair of new spin-0 particles in the $ \mathrm{b \overline{b} b \overline{b}} $ final state at $ \sqrt{s} = $ 13 TeV | ||
| CMS Collaboration | ||
| 2026-07-31 | ||
| Abstract: A search is presented for exotic decays of the 125 GeV Higgs boson (H) to a pair of identical neutral scalar or pseudoscalar particles ($ a_{1} a_{1} $), where each decays promptly to a $ \mathrm{b \overline{b}} $ pair, resulting in a $ \mathrm{b \overline{b} b \overline{b}} $ final state. The search uses proton-proton collision data collected by the CMS detector at $ \sqrt{s} = $ 13 TeV, corresponding to an integrated luminosity of 138 $ \mathrm{fb^{-1}} $. Events with Lorentz-boosted Higgs bosons from five different production modes are targeted to measure the branching fraction $ \mathcal{B}(\mathrm{H \to} a_{1}a_{1} \mathrm{\to b \overline{b} b \overline{b}}) $ for $ a_{1} $ masses from 11-62.5 GeV. The largest deviation from the background expectation occurs near an $ a_{1} $ mass of 45 GeV, with a local (global) significance of 3.0 (1.7) standard deviations. Upper limits at the 95% confidence level are set on $ \mathcal{B}(\mathrm{H \to} a_{1}a_{1} \mathrm{\to b \overline{b} b \overline{b}}) $ ranging from 0.13% to 9.4% (0.22% to 3.1% expected), depending on the $ a_{1} $ mass. The results improve on previous constraints by up to an order of magnitude, and provide the most stringent limits to date on extended Higgs sector scenarios, including two-Higgs-doublet plus singlet models, for new light bosons in the probed mass range. | ||
| Links: CDS record (PDF) ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

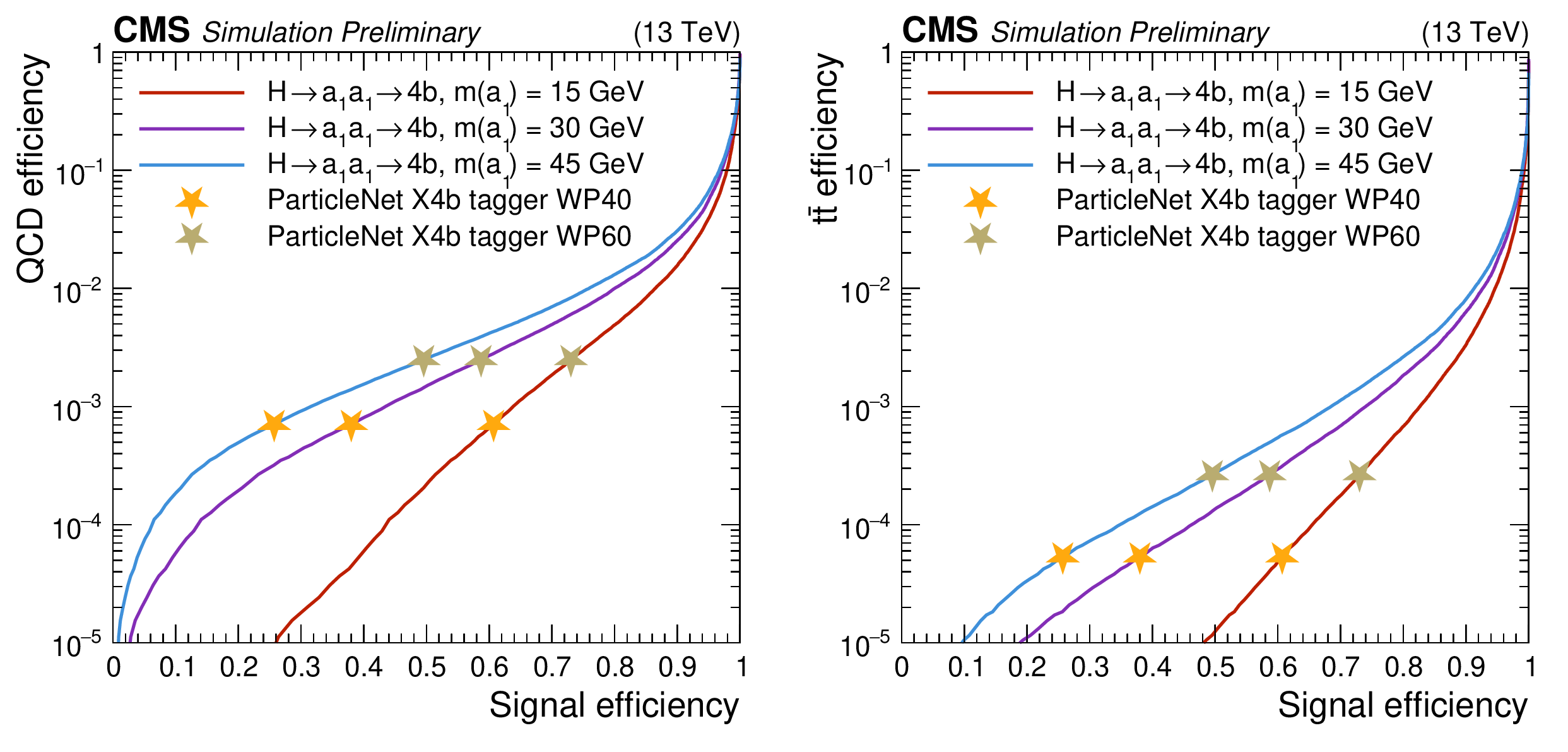

Figure 1:
Simulated QCD multijet (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) background efficiency vs.\ $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ signal efficiency of the PARTICLENET} \MATHRM{X4B classifier, for three signal $ m(a_1) $ values. Two tight selection thresholds used in the analysis (WP40 and WP60) are indicated by stars. |
png pdf |

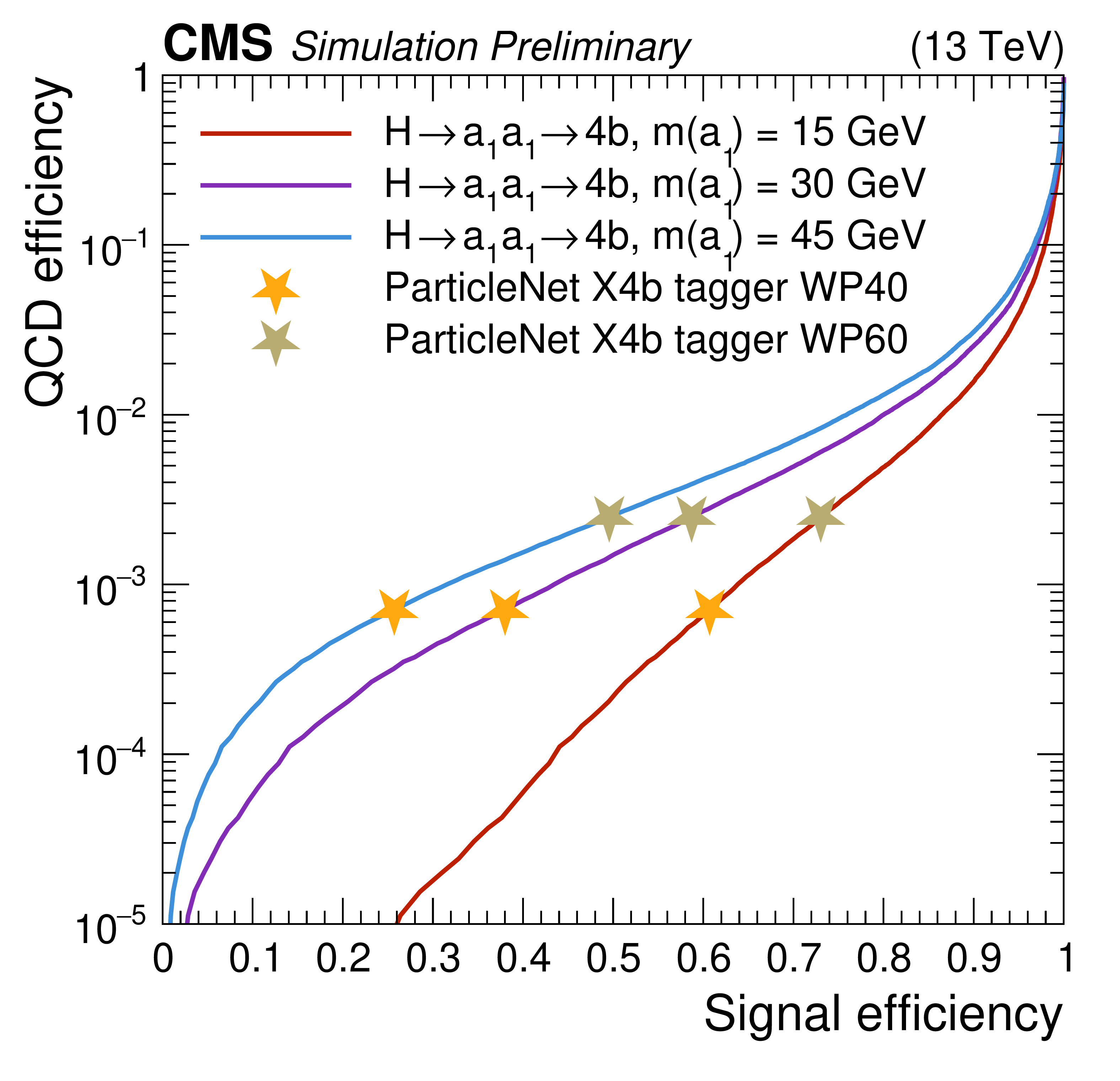

Figure 1-a:
Simulated QCD multijet (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) background efficiency vs.\ $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ signal efficiency of the PARTICLENET} \MATHRM{X4B classifier, for three signal $ m(a_1) $ values. Two tight selection thresholds used in the analysis (WP40 and WP60) are indicated by stars. |
png pdf |

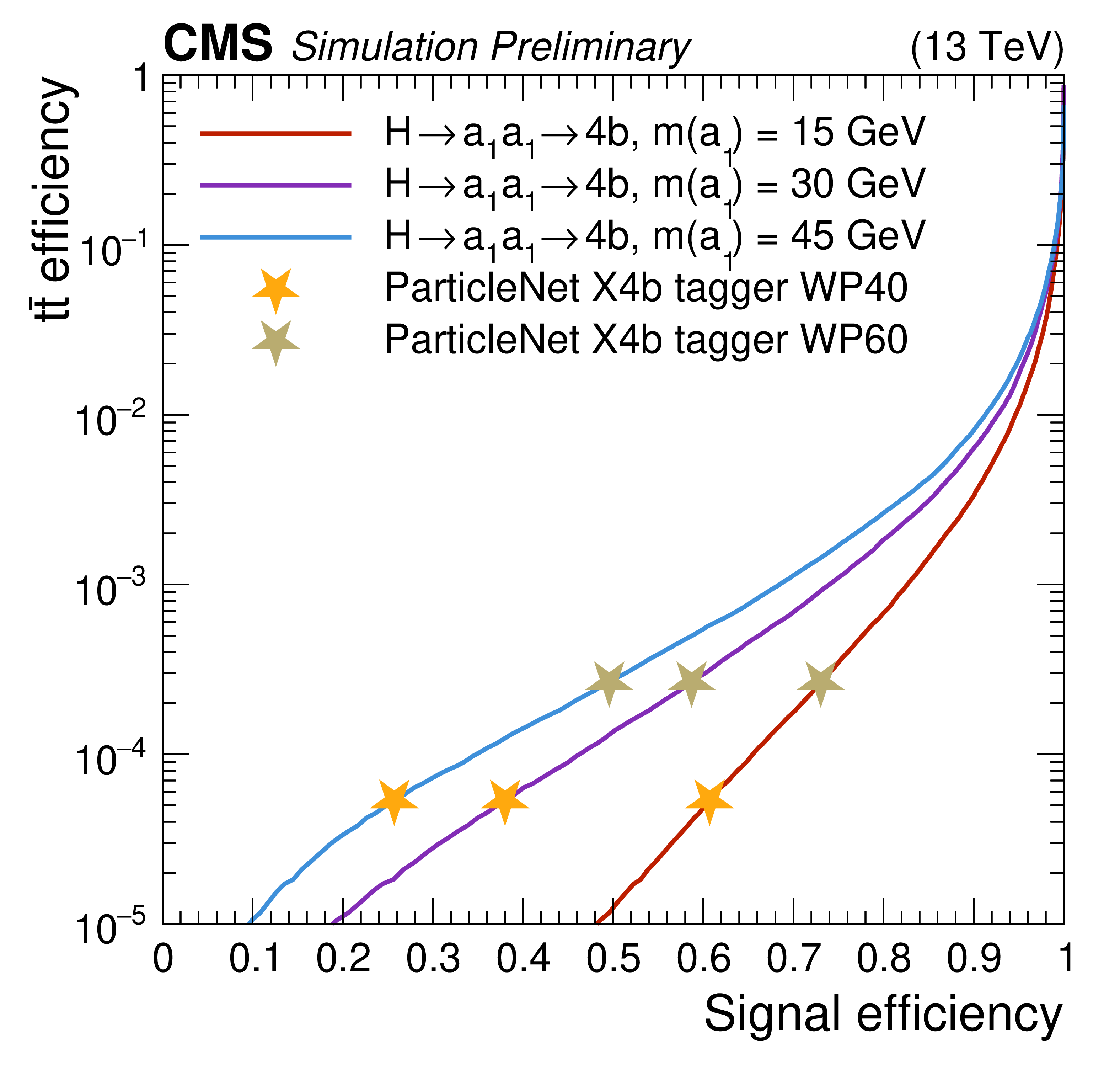

Figure 1-b:
Simulated QCD multijet (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) background efficiency vs.\ $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ signal efficiency of the PARTICLENET} \MATHRM{X4B classifier, for three signal $ m(a_1) $ values. Two tight selection thresholds used in the analysis (WP40 and WP60) are indicated by stars. |
png pdf |

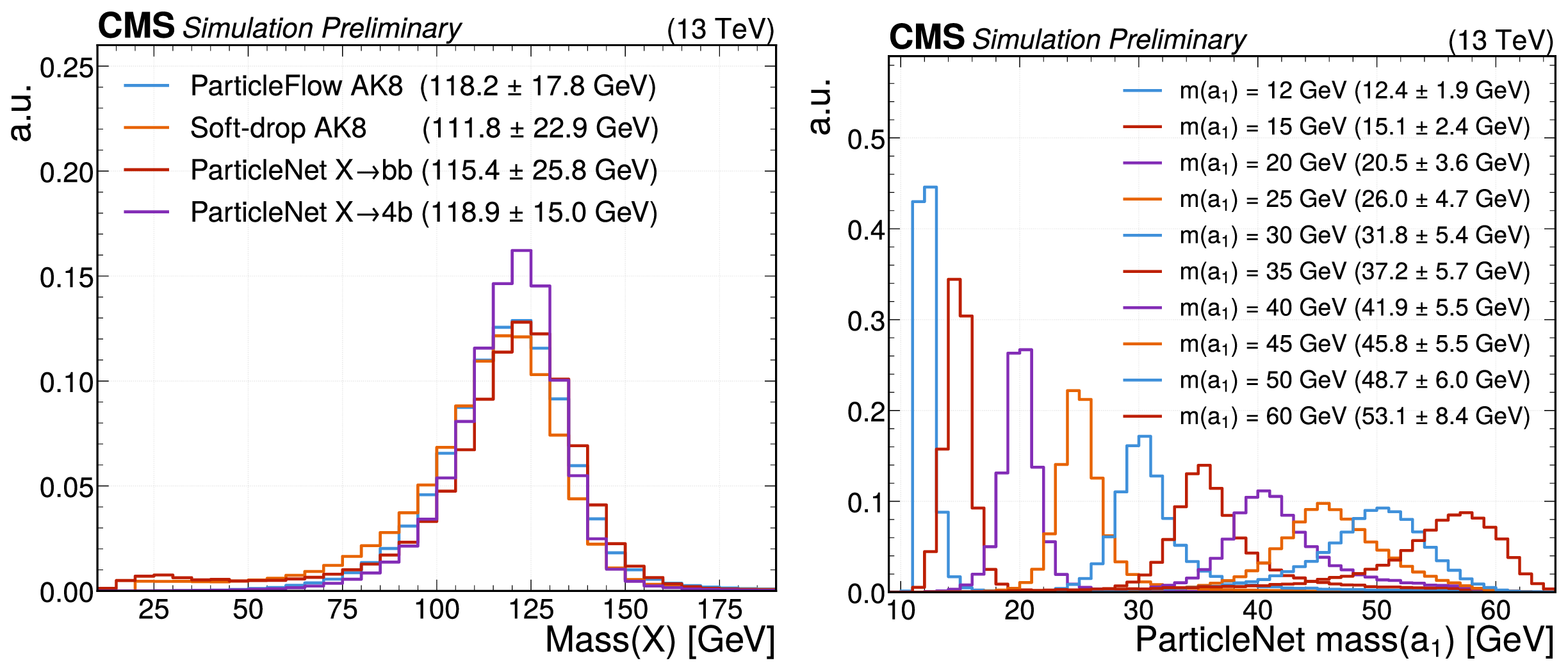

Figure 2:
Distributions of the PARTICLENET regressed masses of the full AK8 jet ($ m(\mathrm{X}) $, left) and the $ a_1 $ boson ($ m(a_1) $, right) for simulated $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ events with all four b hadrons clustered into the AK8 jet. The four-prong $ {ParticleNet} m(\mathrm{X}) $ regressor shows improved resolution compared to PF mass and soft-drop mass, and the two-prong PARTICLENET regressor. |
png pdf |

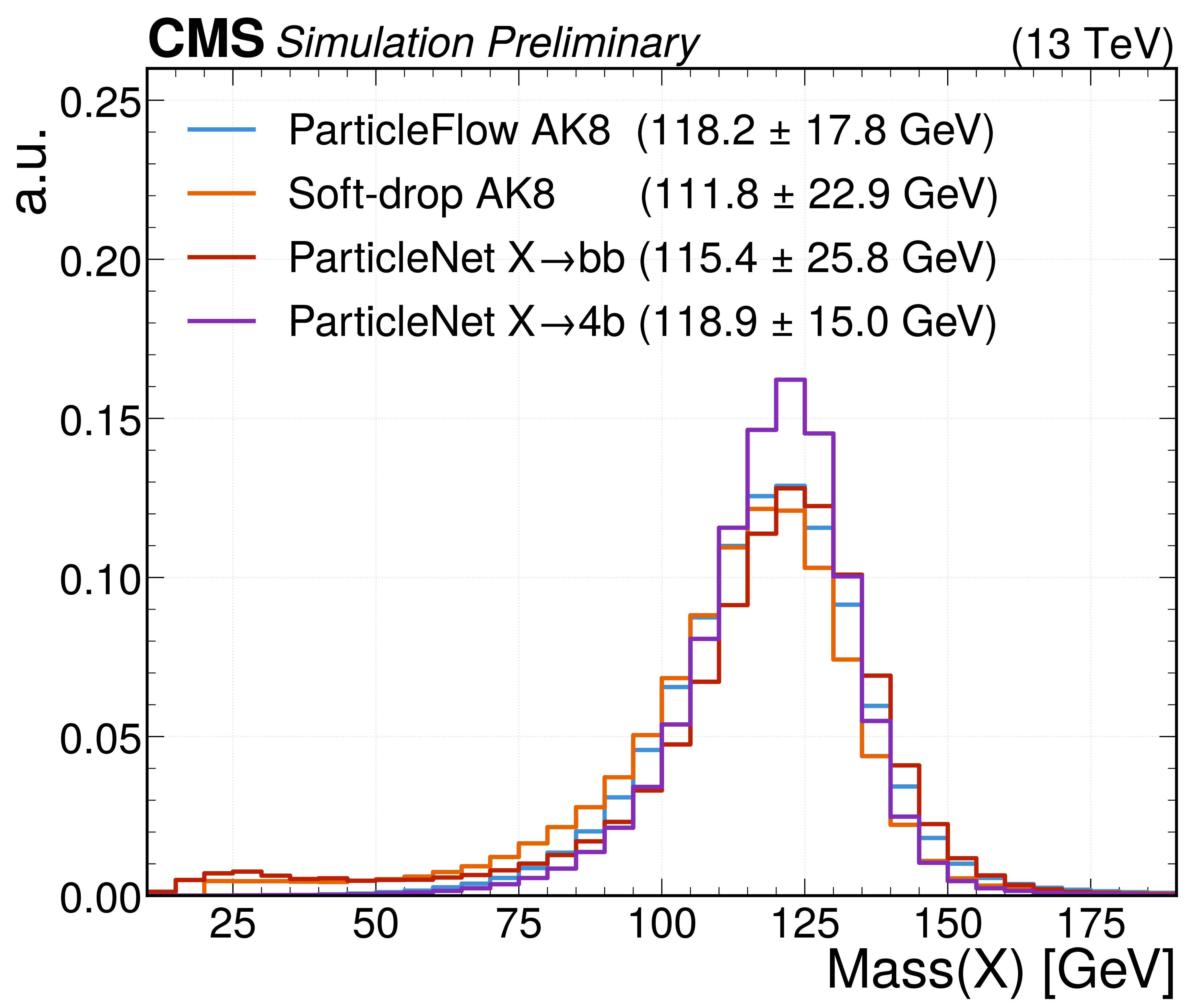

Figure 2-a:
Distributions of the PARTICLENET regressed masses of the full AK8 jet ($ m(\mathrm{X}) $, left) and the $ a_1 $ boson ($ m(a_1) $, right) for simulated $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ events with all four b hadrons clustered into the AK8 jet. The four-prong $ {ParticleNet} m(\mathrm{X}) $ regressor shows improved resolution compared to PF mass and soft-drop mass, and the two-prong PARTICLENET regressor. |
png pdf |

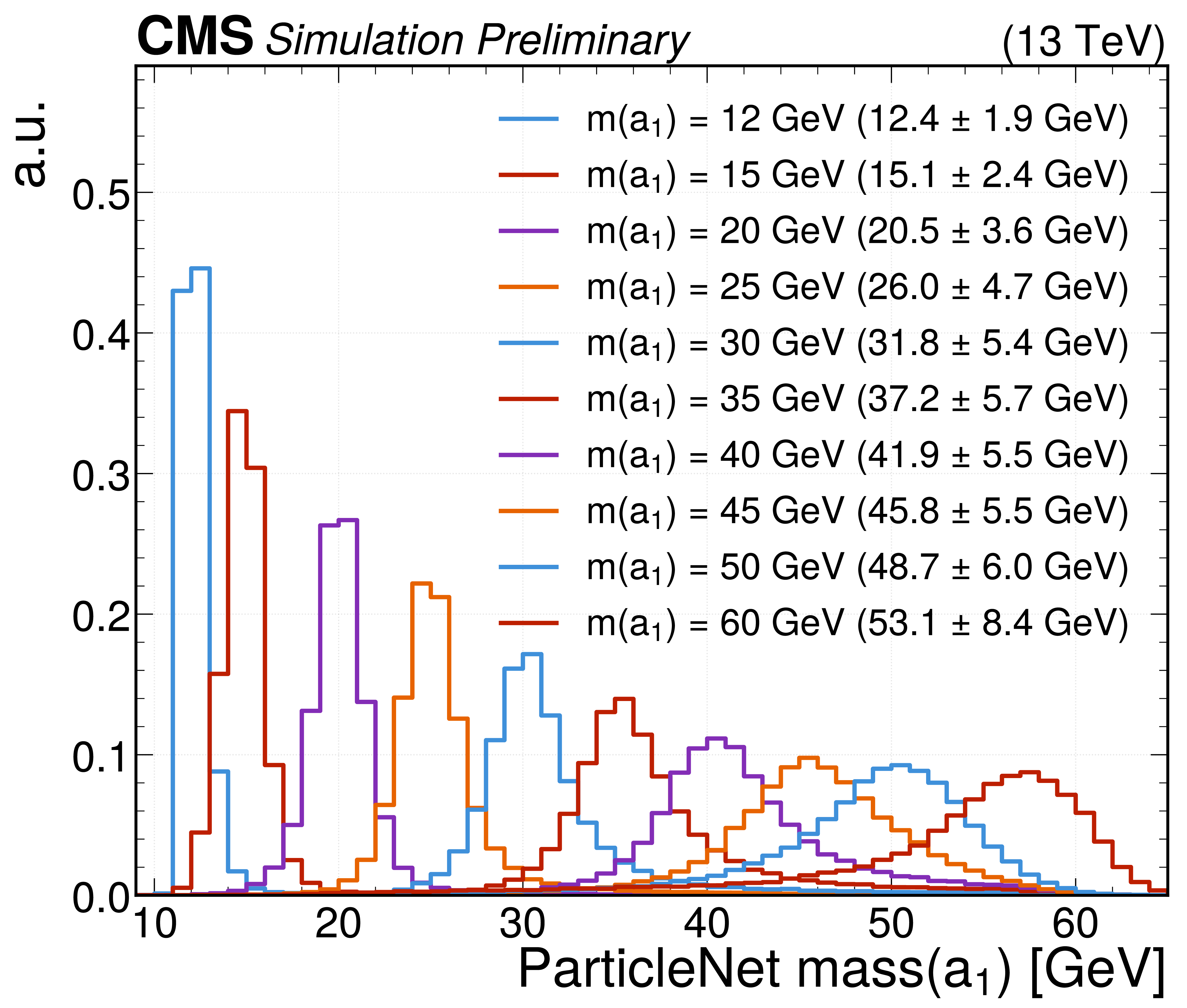

Figure 2-b:
Distributions of the PARTICLENET regressed masses of the full AK8 jet ($ m(\mathrm{X}) $, left) and the $ a_1 $ boson ($ m(a_1) $, right) for simulated $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ events with all four b hadrons clustered into the AK8 jet. The four-prong $ {ParticleNet} m(\mathrm{X}) $ regressor shows improved resolution compared to PF mass and soft-drop mass, and the two-prong PARTICLENET regressor. |
png pdf |

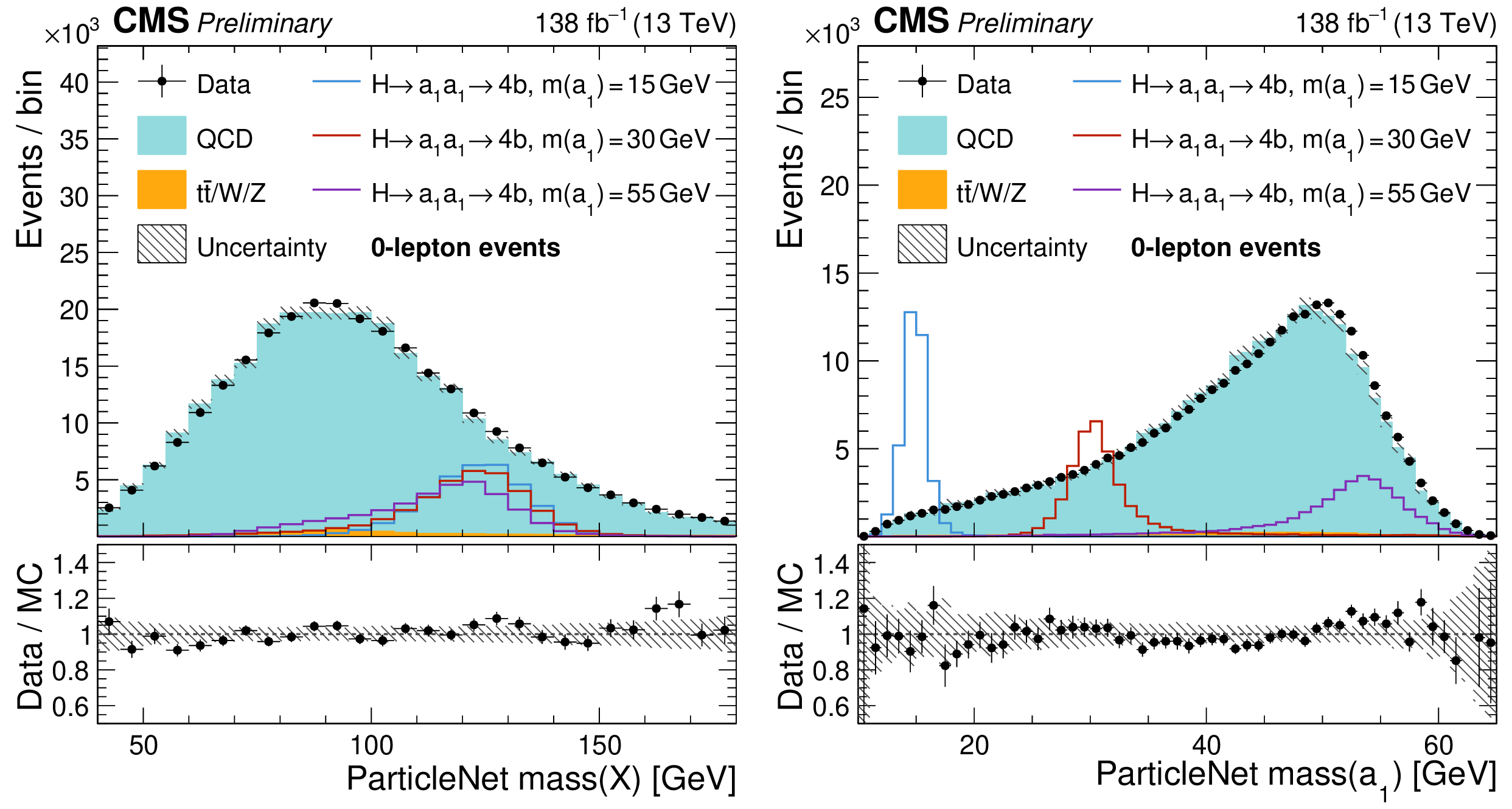

Figure 3:
Distributions of the PARTICLENET regressed masses of the full AK8 jet (left) and the $ a_1 $ boson (right) for jets passing a loose selection requirement on the PARTICLENET} \MATHRM{X4B tagger (sideband plus signal region), in data and simulated $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ signal and background events containing no reconstructed leptons, collected with jet triggers during Run 2. Corrections are applied to the background models to better match the data yields and AK8 jet $ p_{\mathrm{T}} $ spectra. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

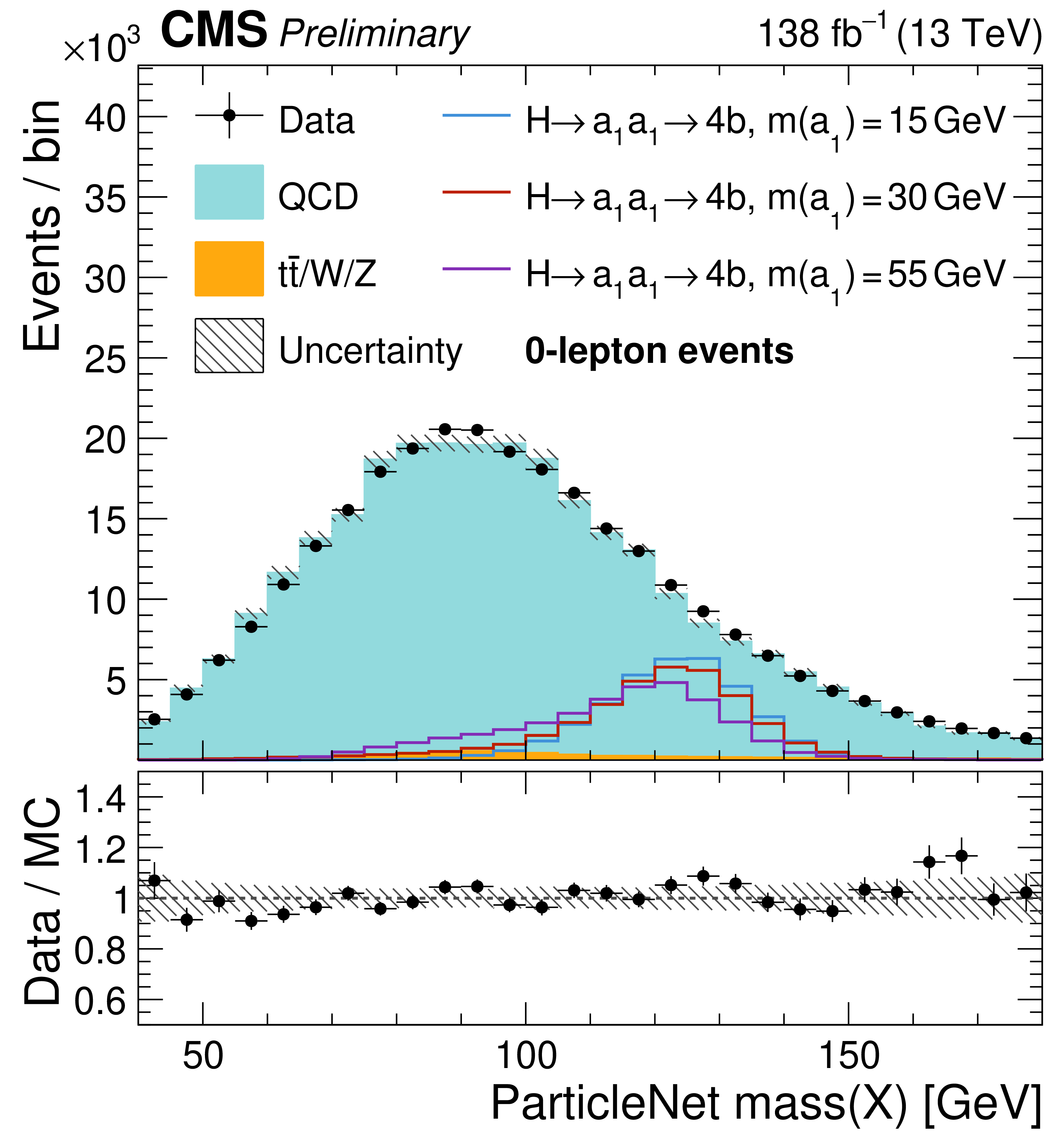

Figure 3-a:
Distributions of the PARTICLENET regressed masses of the full AK8 jet (left) and the $ a_1 $ boson (right) for jets passing a loose selection requirement on the PARTICLENET} \MATHRM{X4B tagger (sideband plus signal region), in data and simulated $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ signal and background events containing no reconstructed leptons, collected with jet triggers during Run 2. Corrections are applied to the background models to better match the data yields and AK8 jet $ p_{\mathrm{T}} $ spectra. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

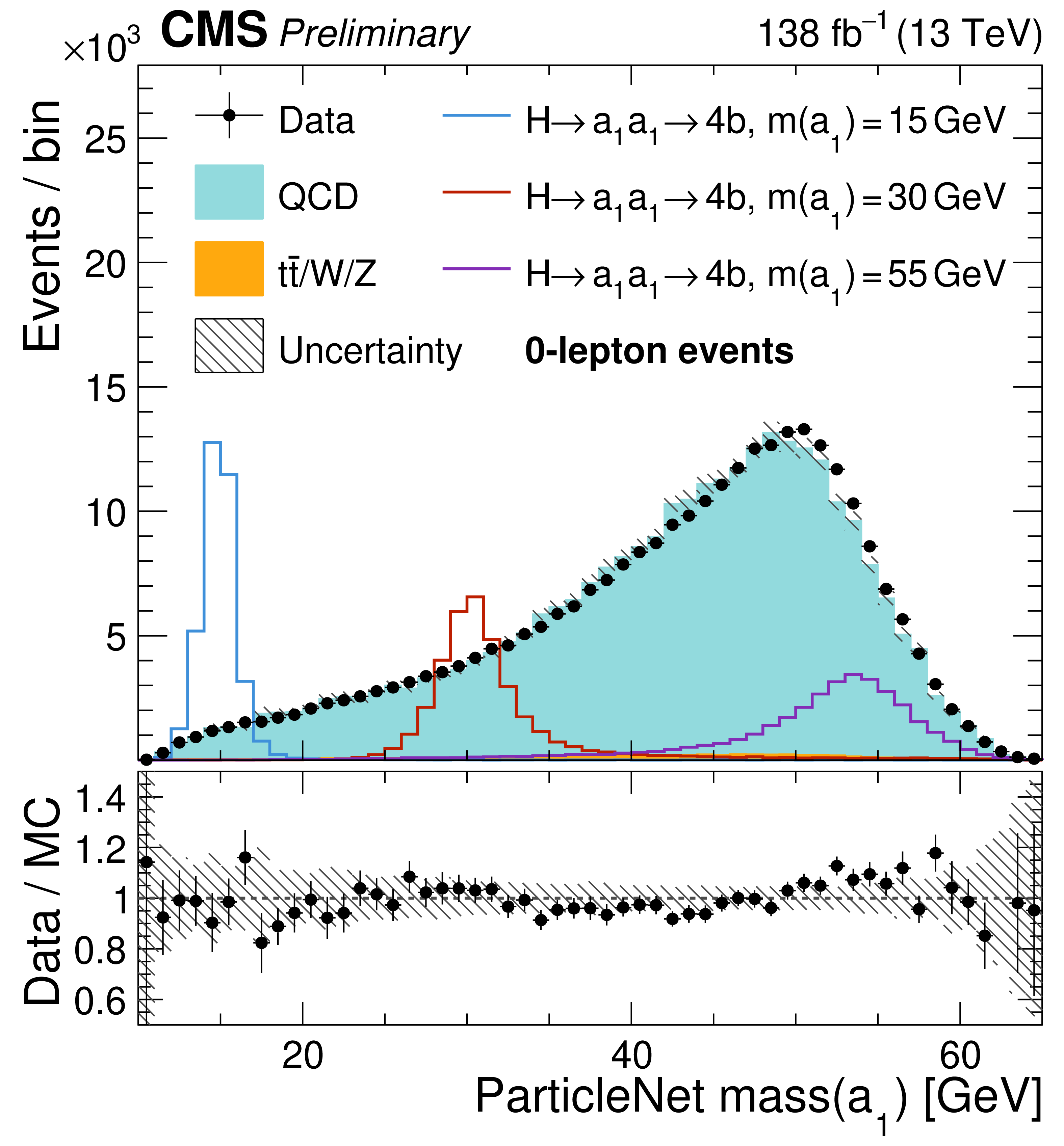

Figure 3-b:
Distributions of the PARTICLENET regressed masses of the full AK8 jet (left) and the $ a_1 $ boson (right) for jets passing a loose selection requirement on the PARTICLENET} \MATHRM{X4B tagger (sideband plus signal region), in data and simulated $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ signal and background events containing no reconstructed leptons, collected with jet triggers during Run 2. Corrections are applied to the background models to better match the data yields and AK8 jet $ p_{\mathrm{T}} $ spectra. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

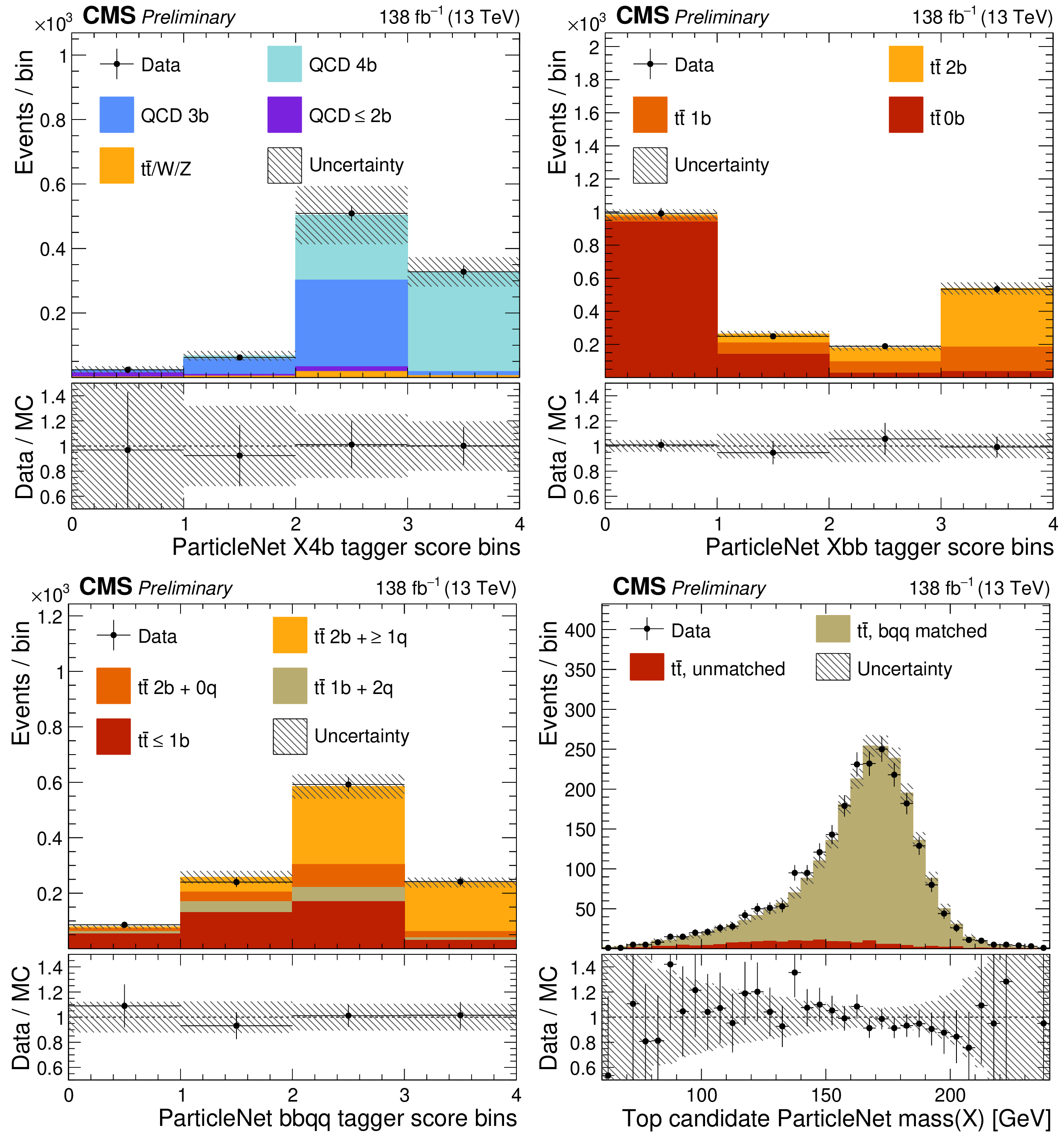

Figure 4:
Distributions used to calibrate the AK8 jet PARTICLENET taggers and $ \mathrm{X}\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ mass regressor: the $ \mathrm{X4b} $ score in AK8 jets overlapping four b-tagged AK4 jets in the QCD CR (top left), the $ \mathrm{Xbb} $ (top right) and $ \mathrm{bbqq} $ (bottom left) scores in semileptonic $ \mathrm{t} \overline{\mathrm{t}} $ CR events with AK8 jets containing hadrons from both the top quark and antiquark decays, and the regressed $ m(\mathrm{X}) $ in AK8 jets from single hadronic top quark decays selected with a mass-decorrelated top quark tagger (bottom right). The last bins in the tagger distributions correspond to the 60% signal efficiency WP for $ \mathrm{X4b} $, the signal candidate selection for $ \mathrm{Xbb} $, and the 40% signal efficiency WP for $ \mathrm{bbqq} $. The MC model is fit to the data with separate rate and shape uncertainties in each MC sample. |
png pdf |

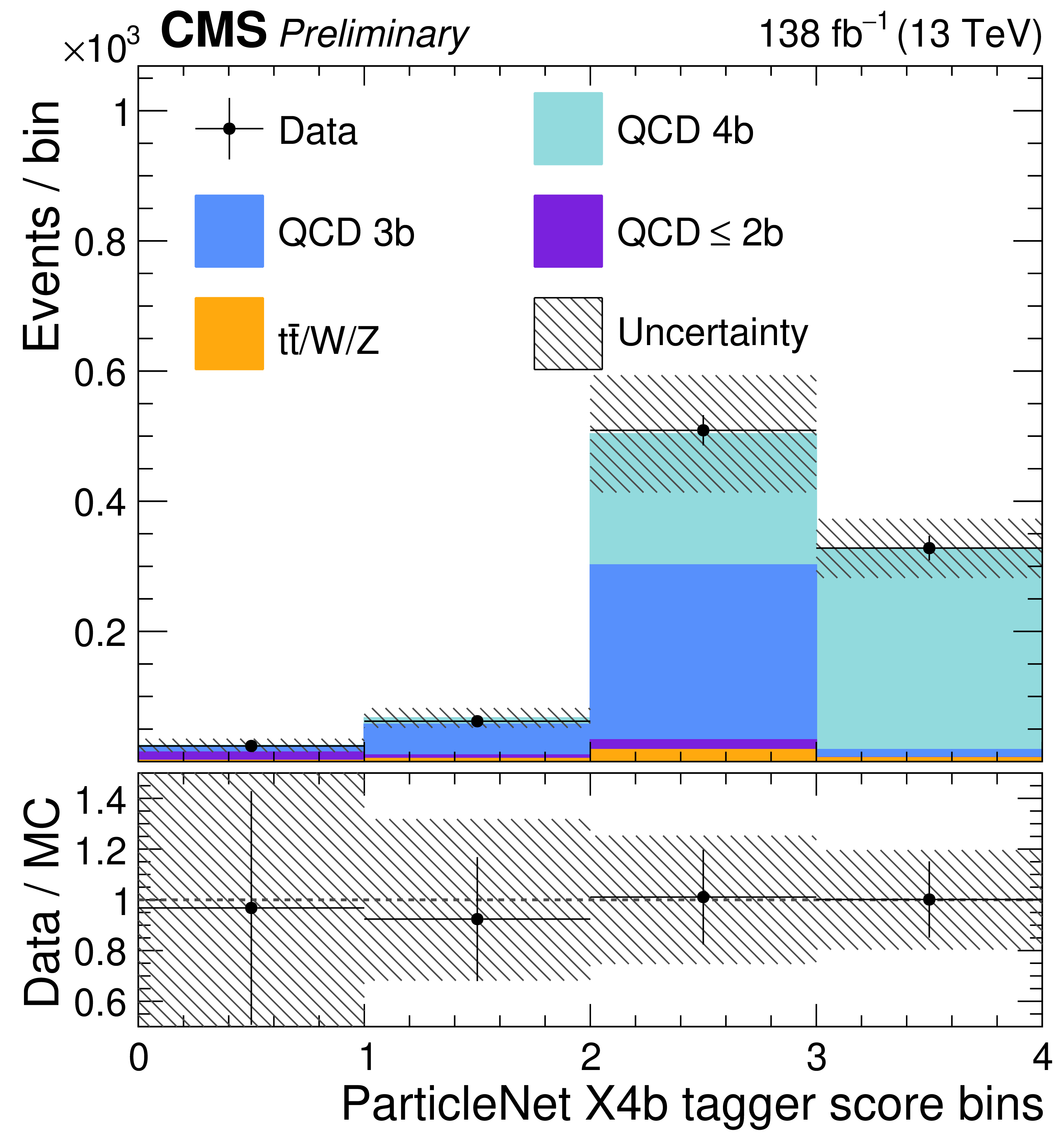

Figure 4-a:
Distributions used to calibrate the AK8 jet PARTICLENET taggers and $ \mathrm{X}\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ mass regressor: the $ \mathrm{X4b} $ score in AK8 jets overlapping four b-tagged AK4 jets in the QCD CR (top left), the $ \mathrm{Xbb} $ (top right) and $ \mathrm{bbqq} $ (bottom left) scores in semileptonic $ \mathrm{t} \overline{\mathrm{t}} $ CR events with AK8 jets containing hadrons from both the top quark and antiquark decays, and the regressed $ m(\mathrm{X}) $ in AK8 jets from single hadronic top quark decays selected with a mass-decorrelated top quark tagger (bottom right). The last bins in the tagger distributions correspond to the 60% signal efficiency WP for $ \mathrm{X4b} $, the signal candidate selection for $ \mathrm{Xbb} $, and the 40% signal efficiency WP for $ \mathrm{bbqq} $. The MC model is fit to the data with separate rate and shape uncertainties in each MC sample. |
png pdf |

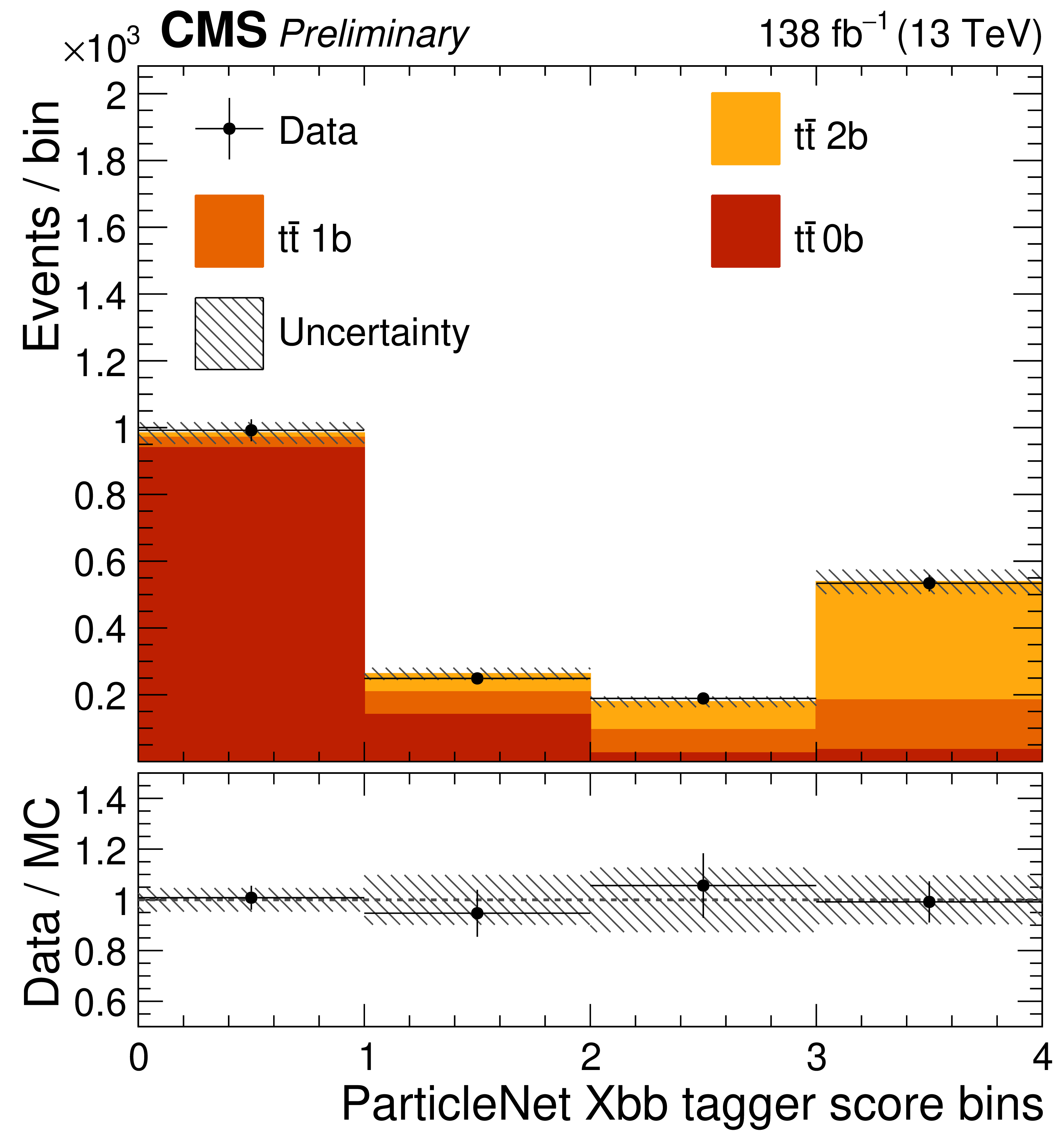

Figure 4-b:
Distributions used to calibrate the AK8 jet PARTICLENET taggers and $ \mathrm{X}\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ mass regressor: the $ \mathrm{X4b} $ score in AK8 jets overlapping four b-tagged AK4 jets in the QCD CR (top left), the $ \mathrm{Xbb} $ (top right) and $ \mathrm{bbqq} $ (bottom left) scores in semileptonic $ \mathrm{t} \overline{\mathrm{t}} $ CR events with AK8 jets containing hadrons from both the top quark and antiquark decays, and the regressed $ m(\mathrm{X}) $ in AK8 jets from single hadronic top quark decays selected with a mass-decorrelated top quark tagger (bottom right). The last bins in the tagger distributions correspond to the 60% signal efficiency WP for $ \mathrm{X4b} $, the signal candidate selection for $ \mathrm{Xbb} $, and the 40% signal efficiency WP for $ \mathrm{bbqq} $. The MC model is fit to the data with separate rate and shape uncertainties in each MC sample. |
png pdf |

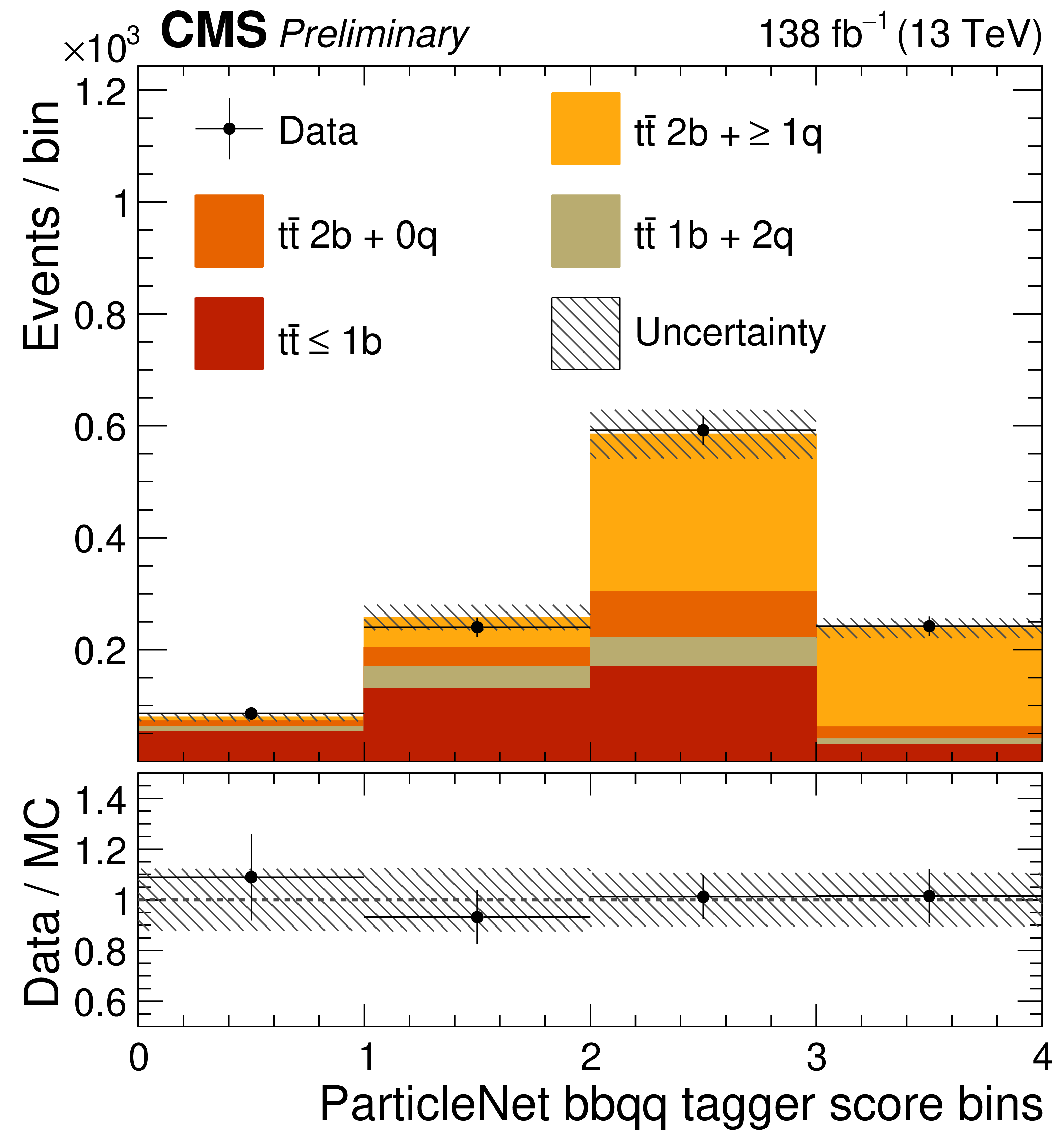

Figure 4-c:
Distributions used to calibrate the AK8 jet PARTICLENET taggers and $ \mathrm{X}\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ mass regressor: the $ \mathrm{X4b} $ score in AK8 jets overlapping four b-tagged AK4 jets in the QCD CR (top left), the $ \mathrm{Xbb} $ (top right) and $ \mathrm{bbqq} $ (bottom left) scores in semileptonic $ \mathrm{t} \overline{\mathrm{t}} $ CR events with AK8 jets containing hadrons from both the top quark and antiquark decays, and the regressed $ m(\mathrm{X}) $ in AK8 jets from single hadronic top quark decays selected with a mass-decorrelated top quark tagger (bottom right). The last bins in the tagger distributions correspond to the 60% signal efficiency WP for $ \mathrm{X4b} $, the signal candidate selection for $ \mathrm{Xbb} $, and the 40% signal efficiency WP for $ \mathrm{bbqq} $. The MC model is fit to the data with separate rate and shape uncertainties in each MC sample. |
png pdf |

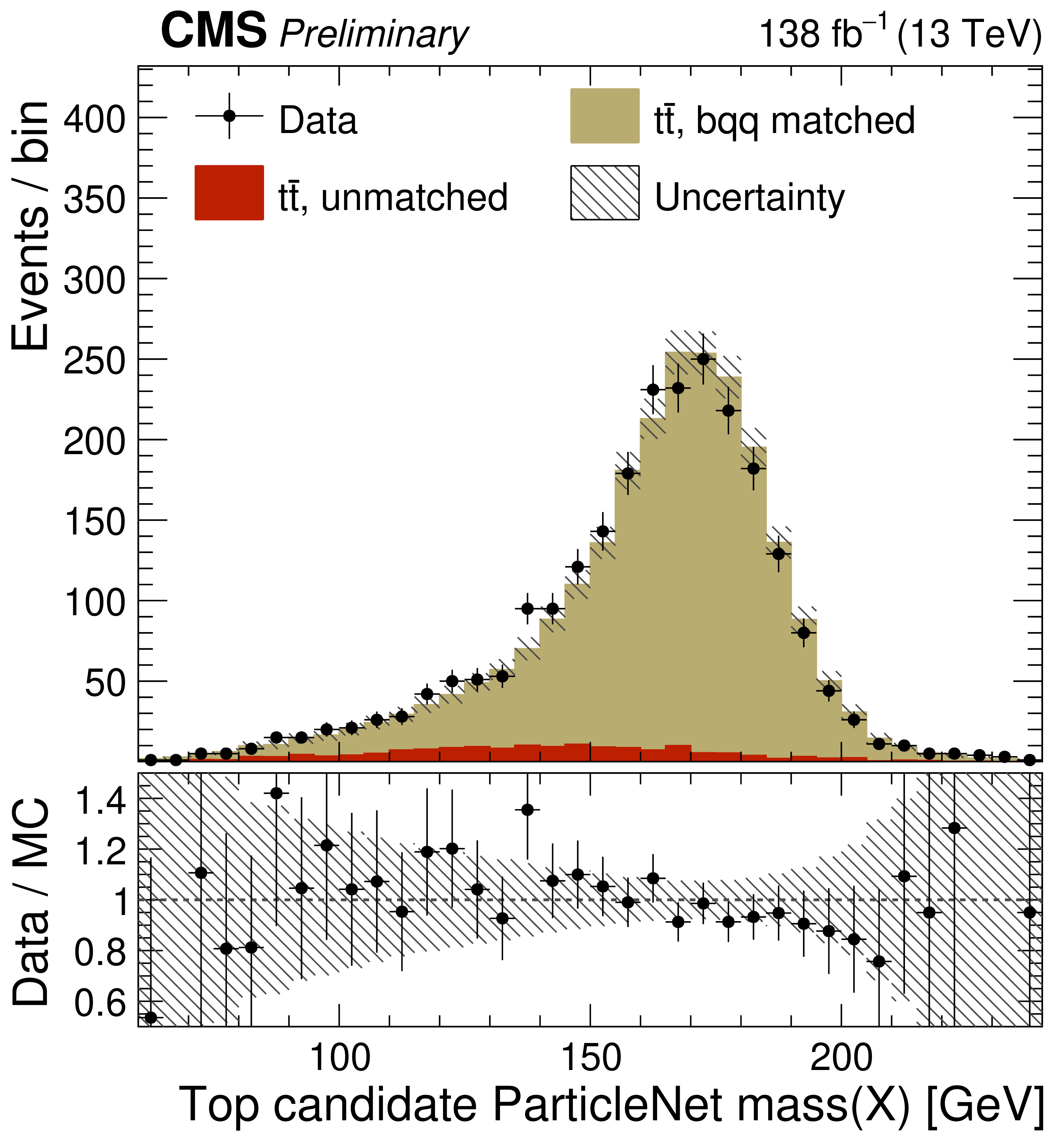

Figure 4-d:
Distributions used to calibrate the AK8 jet PARTICLENET taggers and $ \mathrm{X}\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ mass regressor: the $ \mathrm{X4b} $ score in AK8 jets overlapping four b-tagged AK4 jets in the QCD CR (top left), the $ \mathrm{Xbb} $ (top right) and $ \mathrm{bbqq} $ (bottom left) scores in semileptonic $ \mathrm{t} \overline{\mathrm{t}} $ CR events with AK8 jets containing hadrons from both the top quark and antiquark decays, and the regressed $ m(\mathrm{X}) $ in AK8 jets from single hadronic top quark decays selected with a mass-decorrelated top quark tagger (bottom right). The last bins in the tagger distributions correspond to the 60% signal efficiency WP for $ \mathrm{X4b} $, the signal candidate selection for $ \mathrm{Xbb} $, and the 40% signal efficiency WP for $ \mathrm{bbqq} $. The MC model is fit to the data with separate rate and shape uncertainties in each MC sample. |
png pdf |

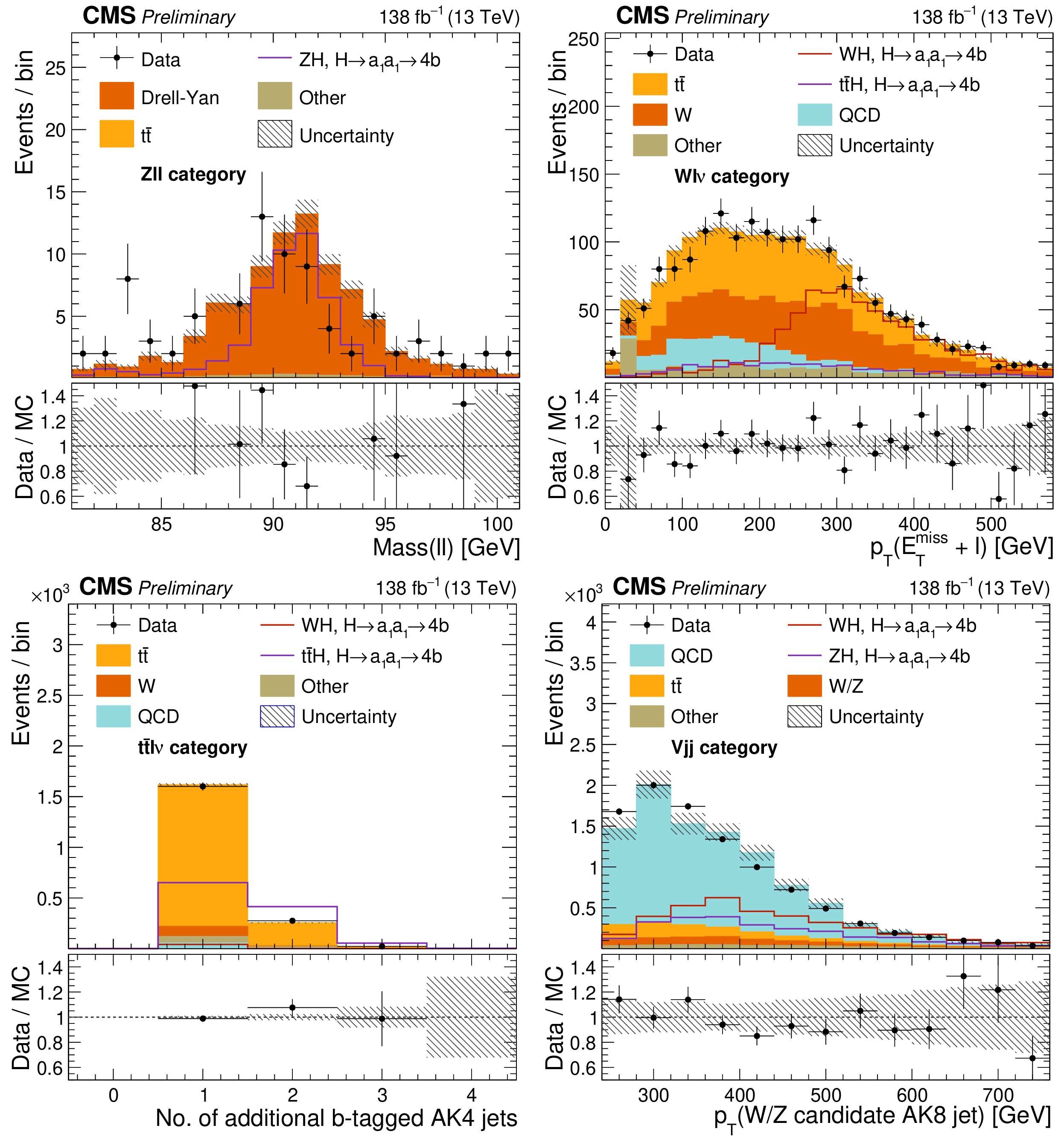

Figure 5:
Distributions of the $ \mathrm{e}\mathrm{e} $ or $ \mu\mu $ invariant mass in the $ \mathrm{Z}\ell\ell $ category (top left), the $ p_{\mathrm{T}} $ of the vector sum of the lepton and $ E_{\mathrm{T}}^{\text{miss}} $ in the $ \mathrm{W}\ell\nu $ category (top right), the number of b-tagged AK4 jets outside the Higgs boson candidate AK8 jet in the $ {\mathrm{t}\overline{\mathrm{t}}} \ell\nu $ category (bottom left), and the $ p_{\mathrm{T}} $ of the W/Z boson candidate AK8 jet in the $ \mathrm{V}jj $ category (bottom right). Corrections are applied to the background models to better match the data yields. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

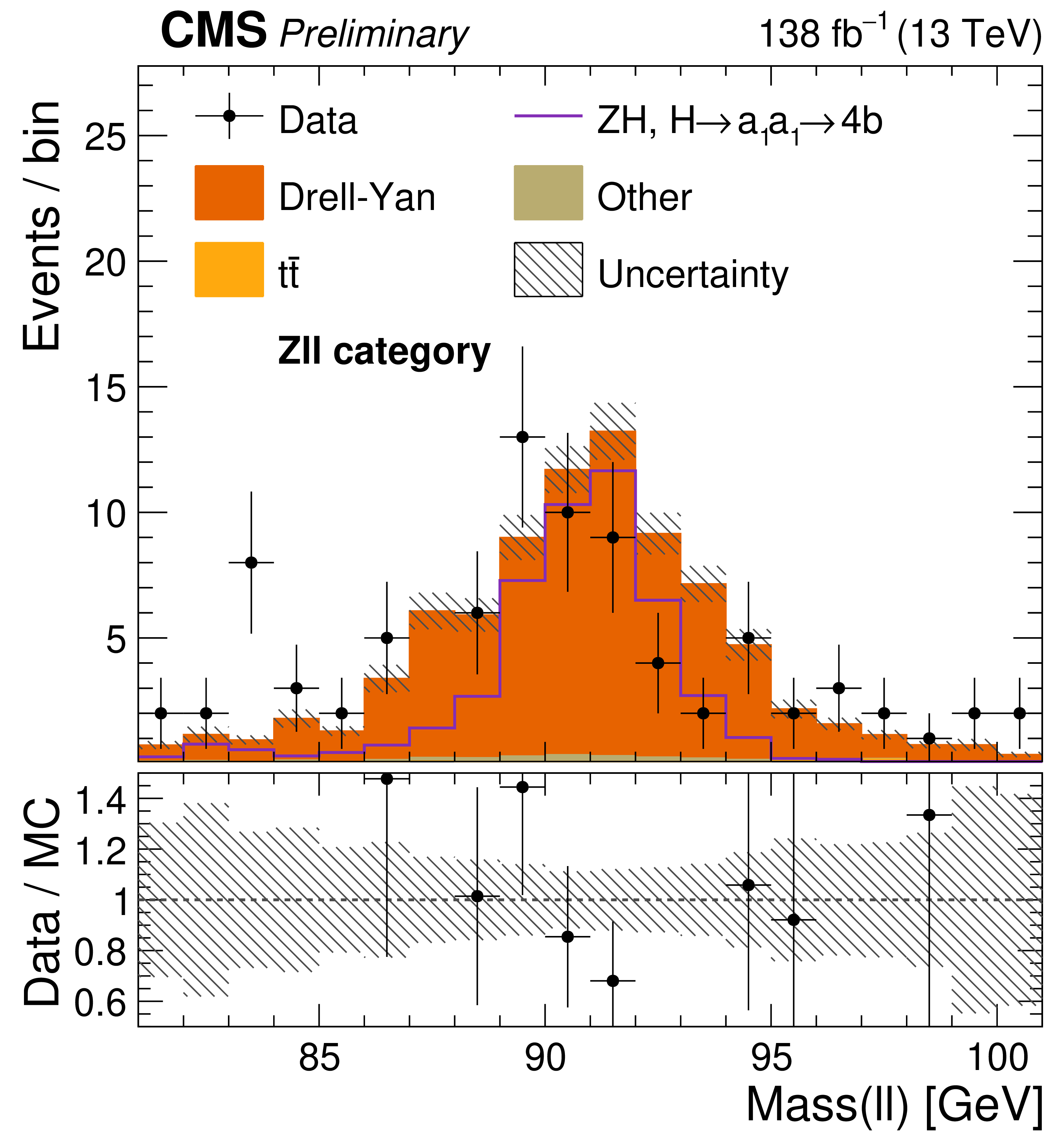

Figure 5-a:
Distributions of the $ \mathrm{e}\mathrm{e} $ or $ \mu\mu $ invariant mass in the $ \mathrm{Z}\ell\ell $ category (top left), the $ p_{\mathrm{T}} $ of the vector sum of the lepton and $ E_{\mathrm{T}}^{\text{miss}} $ in the $ \mathrm{W}\ell\nu $ category (top right), the number of b-tagged AK4 jets outside the Higgs boson candidate AK8 jet in the $ {\mathrm{t}\overline{\mathrm{t}}} \ell\nu $ category (bottom left), and the $ p_{\mathrm{T}} $ of the W/Z boson candidate AK8 jet in the $ \mathrm{V}jj $ category (bottom right). Corrections are applied to the background models to better match the data yields. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

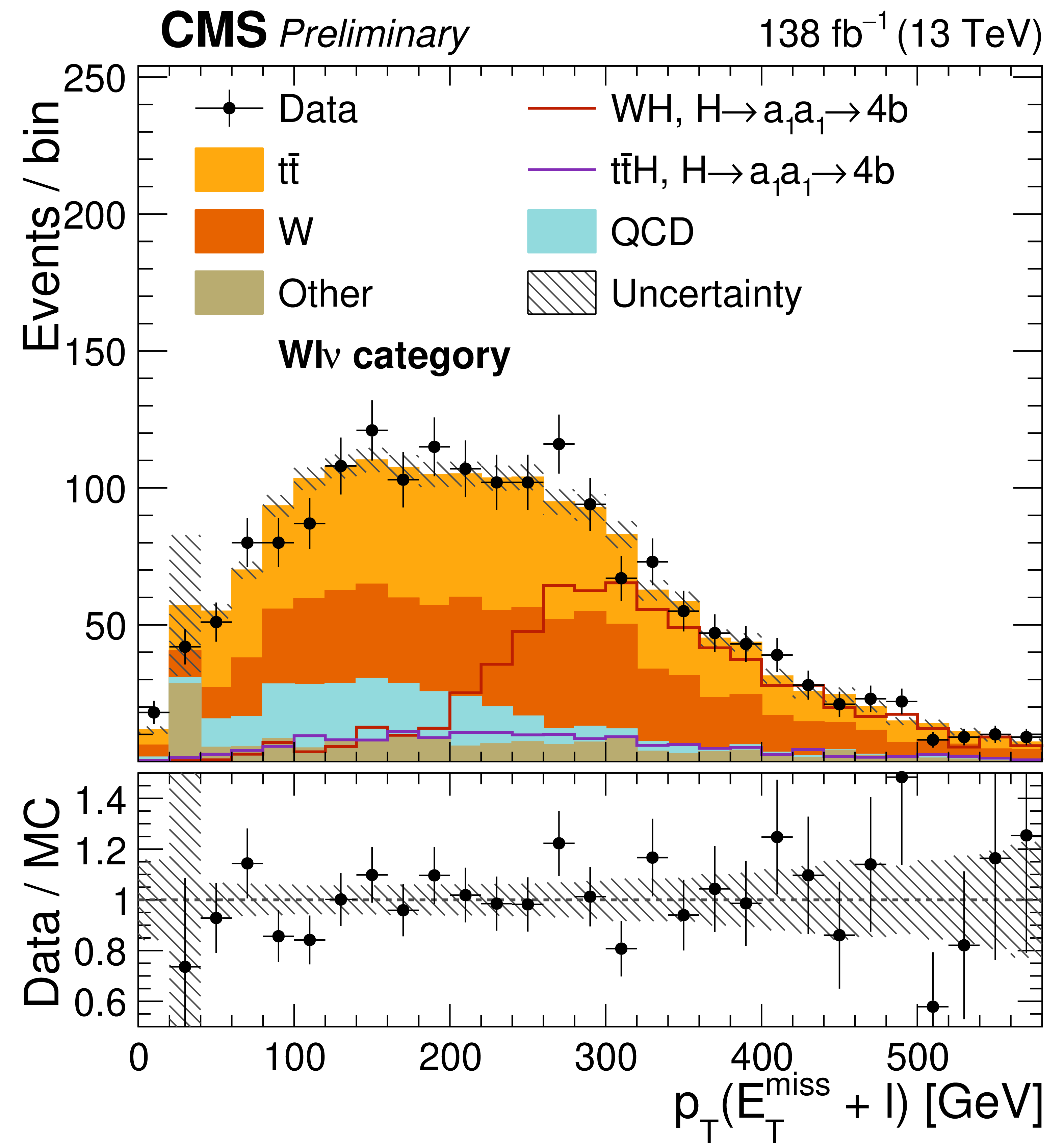

Figure 5-b:
Distributions of the $ \mathrm{e}\mathrm{e} $ or $ \mu\mu $ invariant mass in the $ \mathrm{Z}\ell\ell $ category (top left), the $ p_{\mathrm{T}} $ of the vector sum of the lepton and $ E_{\mathrm{T}}^{\text{miss}} $ in the $ \mathrm{W}\ell\nu $ category (top right), the number of b-tagged AK4 jets outside the Higgs boson candidate AK8 jet in the $ {\mathrm{t}\overline{\mathrm{t}}} \ell\nu $ category (bottom left), and the $ p_{\mathrm{T}} $ of the W/Z boson candidate AK8 jet in the $ \mathrm{V}jj $ category (bottom right). Corrections are applied to the background models to better match the data yields. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

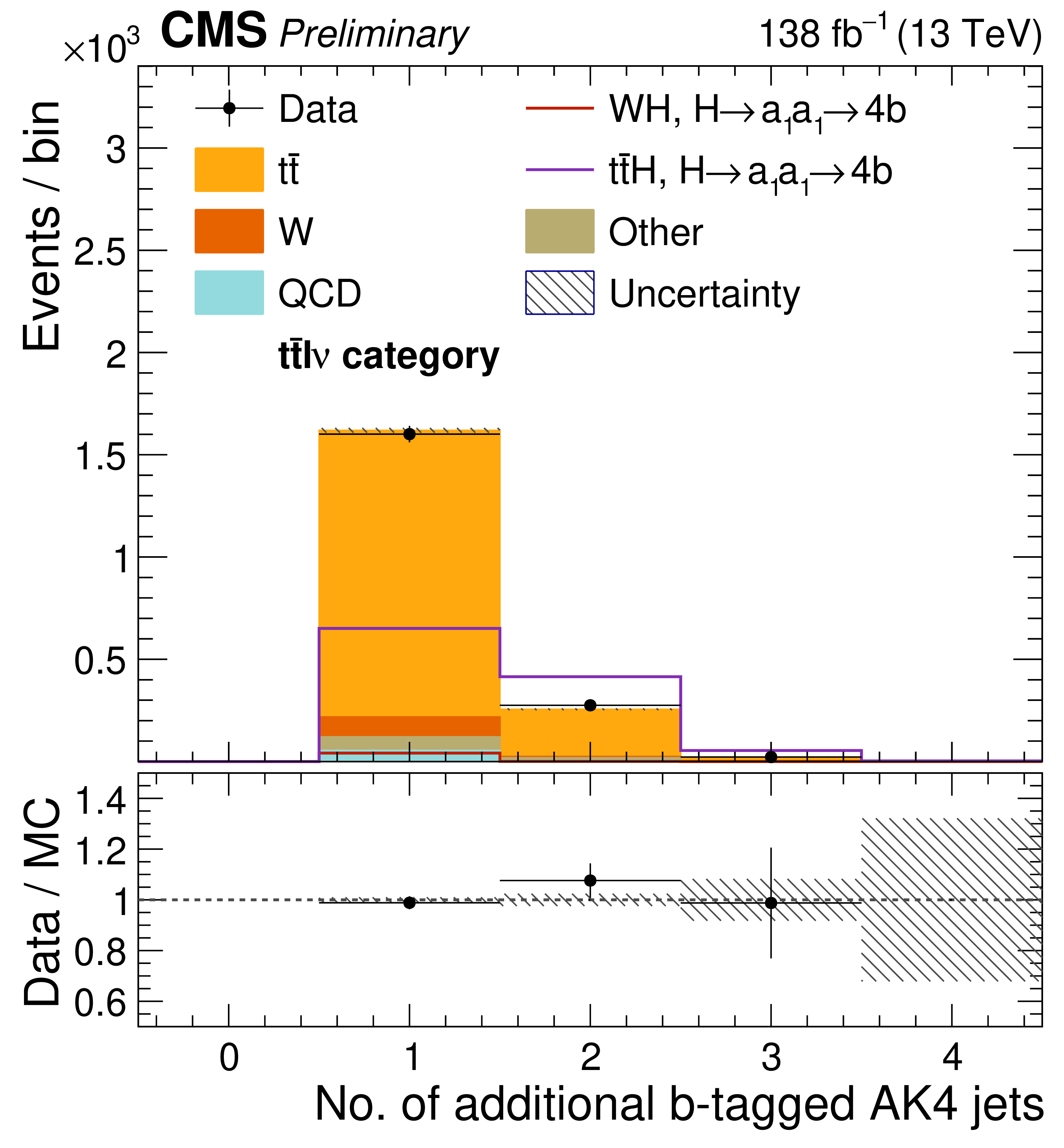

Figure 5-c:
Distributions of the $ \mathrm{e}\mathrm{e} $ or $ \mu\mu $ invariant mass in the $ \mathrm{Z}\ell\ell $ category (top left), the $ p_{\mathrm{T}} $ of the vector sum of the lepton and $ E_{\mathrm{T}}^{\text{miss}} $ in the $ \mathrm{W}\ell\nu $ category (top right), the number of b-tagged AK4 jets outside the Higgs boson candidate AK8 jet in the $ {\mathrm{t}\overline{\mathrm{t}}} \ell\nu $ category (bottom left), and the $ p_{\mathrm{T}} $ of the W/Z boson candidate AK8 jet in the $ \mathrm{V}jj $ category (bottom right). Corrections are applied to the background models to better match the data yields. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

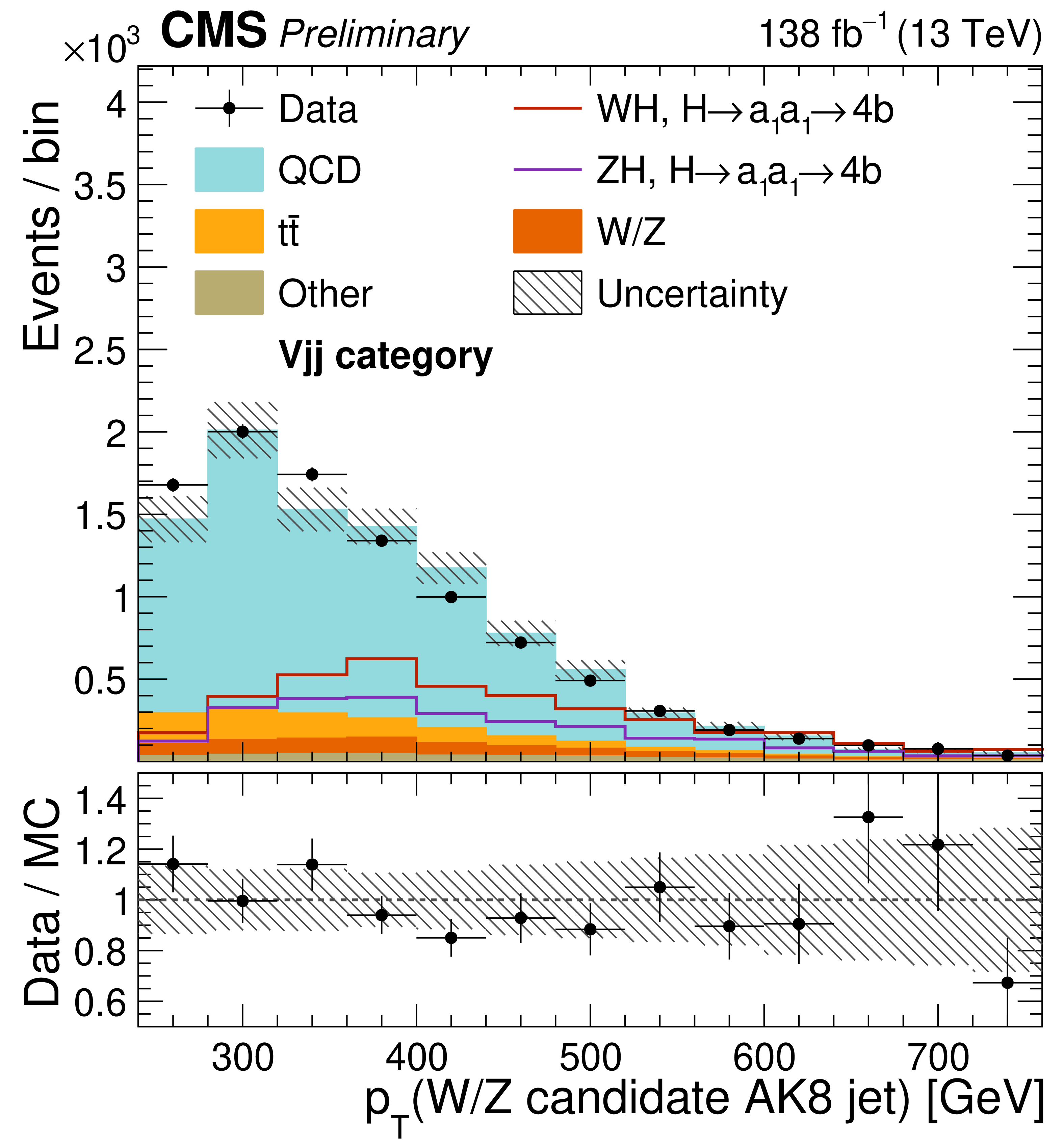

Figure 5-d:
Distributions of the $ \mathrm{e}\mathrm{e} $ or $ \mu\mu $ invariant mass in the $ \mathrm{Z}\ell\ell $ category (top left), the $ p_{\mathrm{T}} $ of the vector sum of the lepton and $ E_{\mathrm{T}}^{\text{miss}} $ in the $ \mathrm{W}\ell\nu $ category (top right), the number of b-tagged AK4 jets outside the Higgs boson candidate AK8 jet in the $ {\mathrm{t}\overline{\mathrm{t}}} \ell\nu $ category (bottom left), and the $ p_{\mathrm{T}} $ of the W/Z boson candidate AK8 jet in the $ \mathrm{V}jj $ category (bottom right). Corrections are applied to the background models to better match the data yields. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

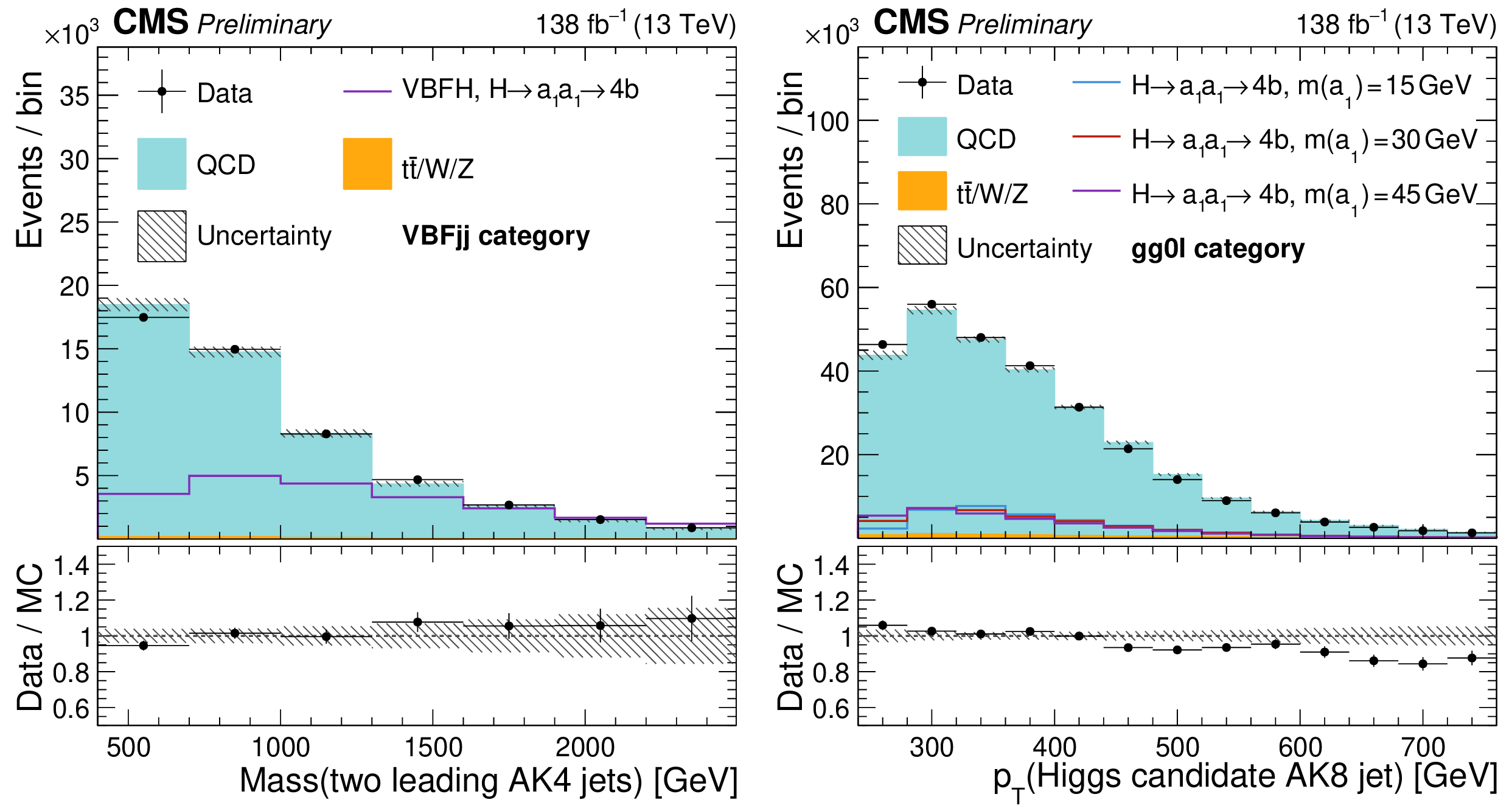

Figure 6:
Distributions of the invariant mass of the two highest-$ p_{\mathrm{T}} $ AK4 jets outside the Higgs boson candidate AK8 jet in the $ \mathrm{VBF}jj $ category (left), and the Higgs boson candidate AK8 jet $ p_{\mathrm{T}} $ in the $ \mathrm{gg0}\ell $ category (right). Corrections are applied to the background models to better match the data yields and AK8 jet $ p_{\mathrm{T}} $ spectra. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

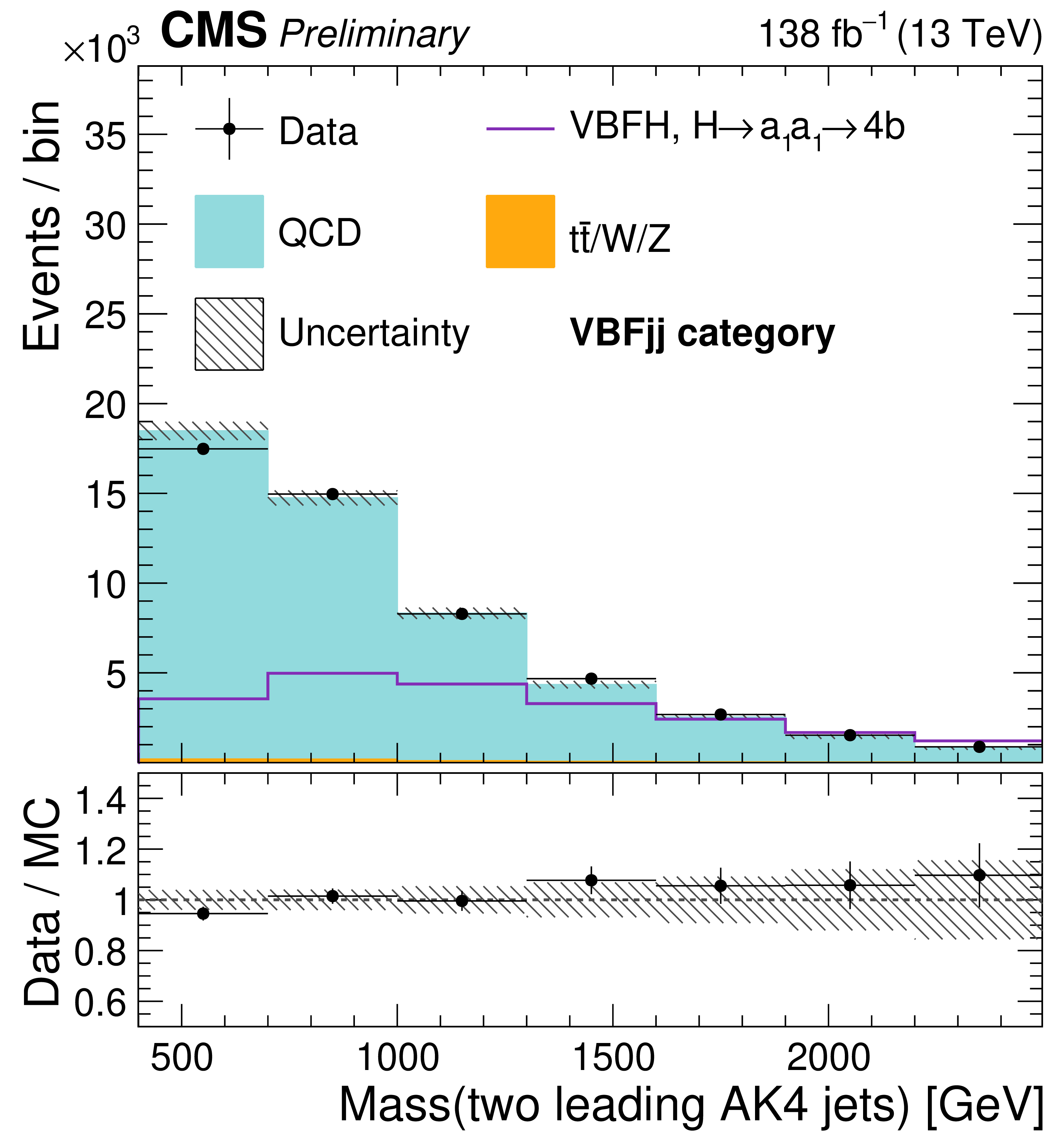

Figure 6-a:
Distributions of the invariant mass of the two highest-$ p_{\mathrm{T}} $ AK4 jets outside the Higgs boson candidate AK8 jet in the $ \mathrm{VBF}jj $ category (left), and the Higgs boson candidate AK8 jet $ p_{\mathrm{T}} $ in the $ \mathrm{gg0}\ell $ category (right). Corrections are applied to the background models to better match the data yields and AK8 jet $ p_{\mathrm{T}} $ spectra. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

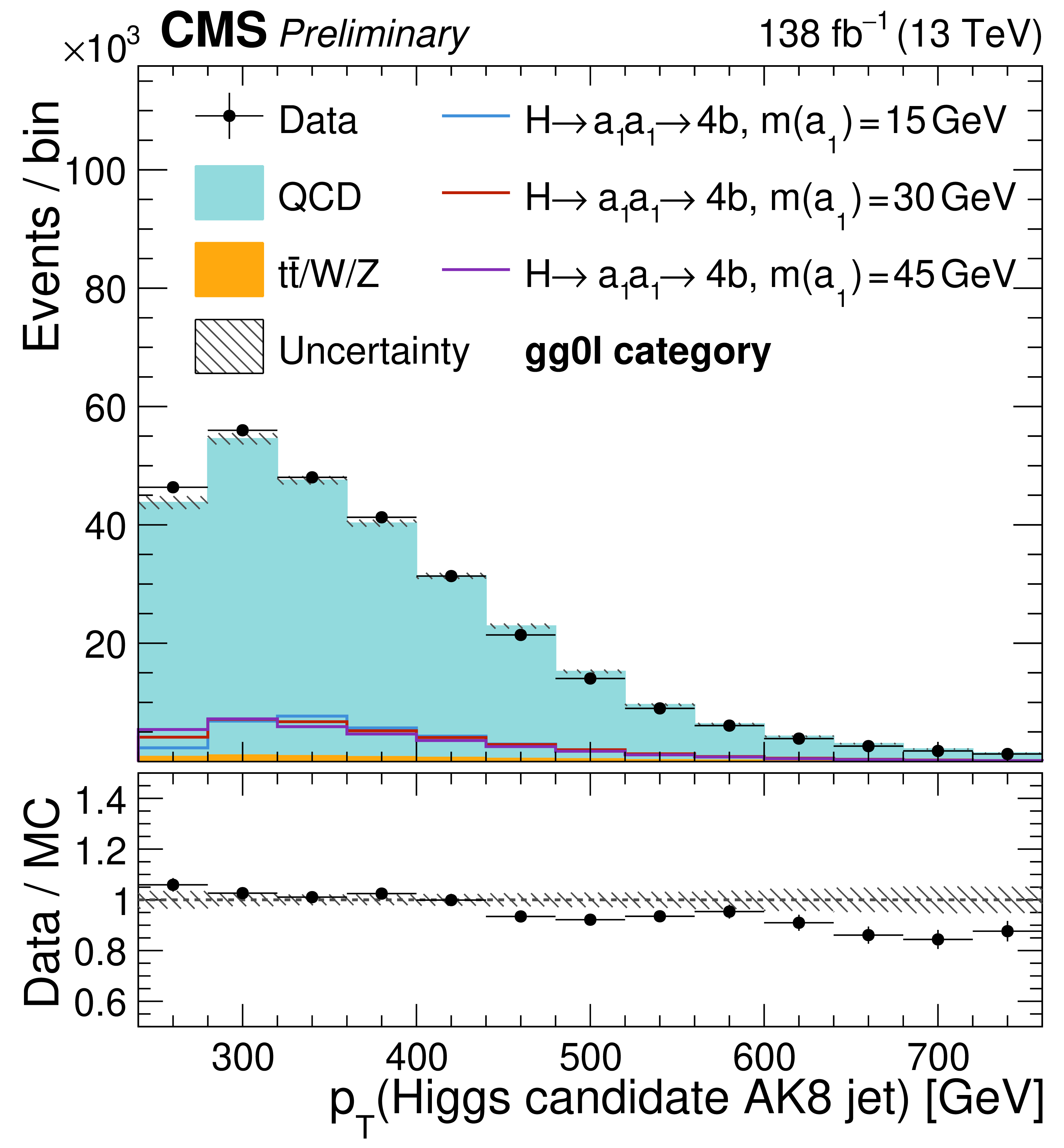

Figure 6-b:
Distributions of the invariant mass of the two highest-$ p_{\mathrm{T}} $ AK4 jets outside the Higgs boson candidate AK8 jet in the $ \mathrm{VBF}jj $ category (left), and the Higgs boson candidate AK8 jet $ p_{\mathrm{T}} $ in the $ \mathrm{gg0}\ell $ category (right). Corrections are applied to the background models to better match the data yields and AK8 jet $ p_{\mathrm{T}} $ spectra. Only statistical uncertainties on the background model are shown, and the signal distributions assume a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

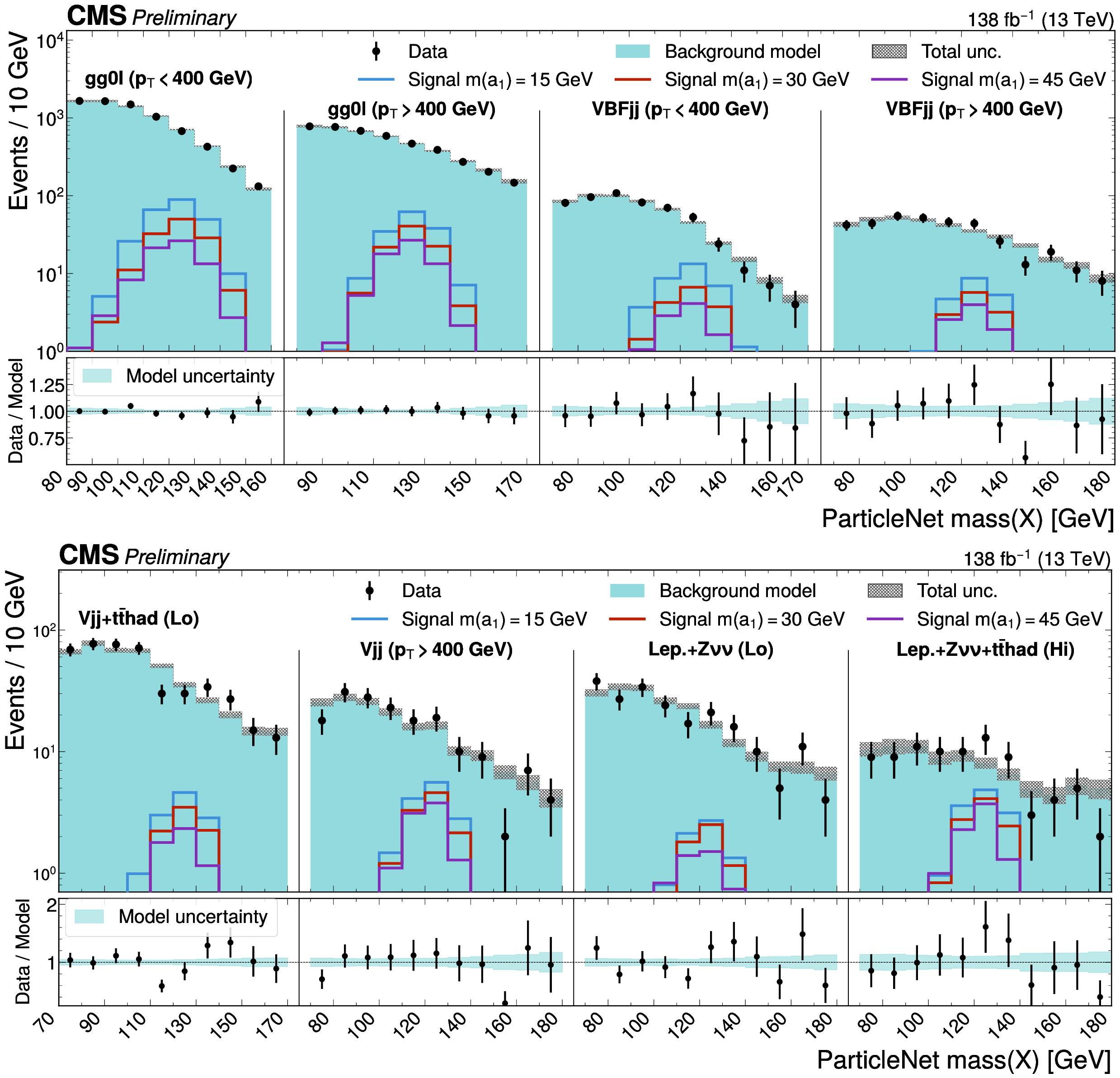

Figure 7:
Regressed $ m(\mathrm{X}) $ distributions for SR data, simulated signal, and the background model from the 2DAlphabet background-only fit, in the $ \mathrm{gg0}\ell $ and $ \mathrm{VBF}jj $ categories (top), and the $ \mathrm{V}jj $ and leptonic categories (bottom). Signal distributions are shown assuming a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |
Figure 7-a:
Regressed $ m(\mathrm{X}) $ distributions for SR data, simulated signal, and the background model from the 2DAlphabet background-only fit, in the $ \mathrm{gg0}\ell $ and $ \mathrm{VBF}jj $ categories (top), and the $ \mathrm{V}jj $ and leptonic categories (bottom). Signal distributions are shown assuming a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |
Figure 7-b:
Regressed $ m(\mathrm{X}) $ distributions for SR data, simulated signal, and the background model from the 2DAlphabet background-only fit, in the $ \mathrm{gg0}\ell $ and $ \mathrm{VBF}jj $ categories (top), and the $ \mathrm{V}jj $ and leptonic categories (bottom). Signal distributions are shown assuming a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

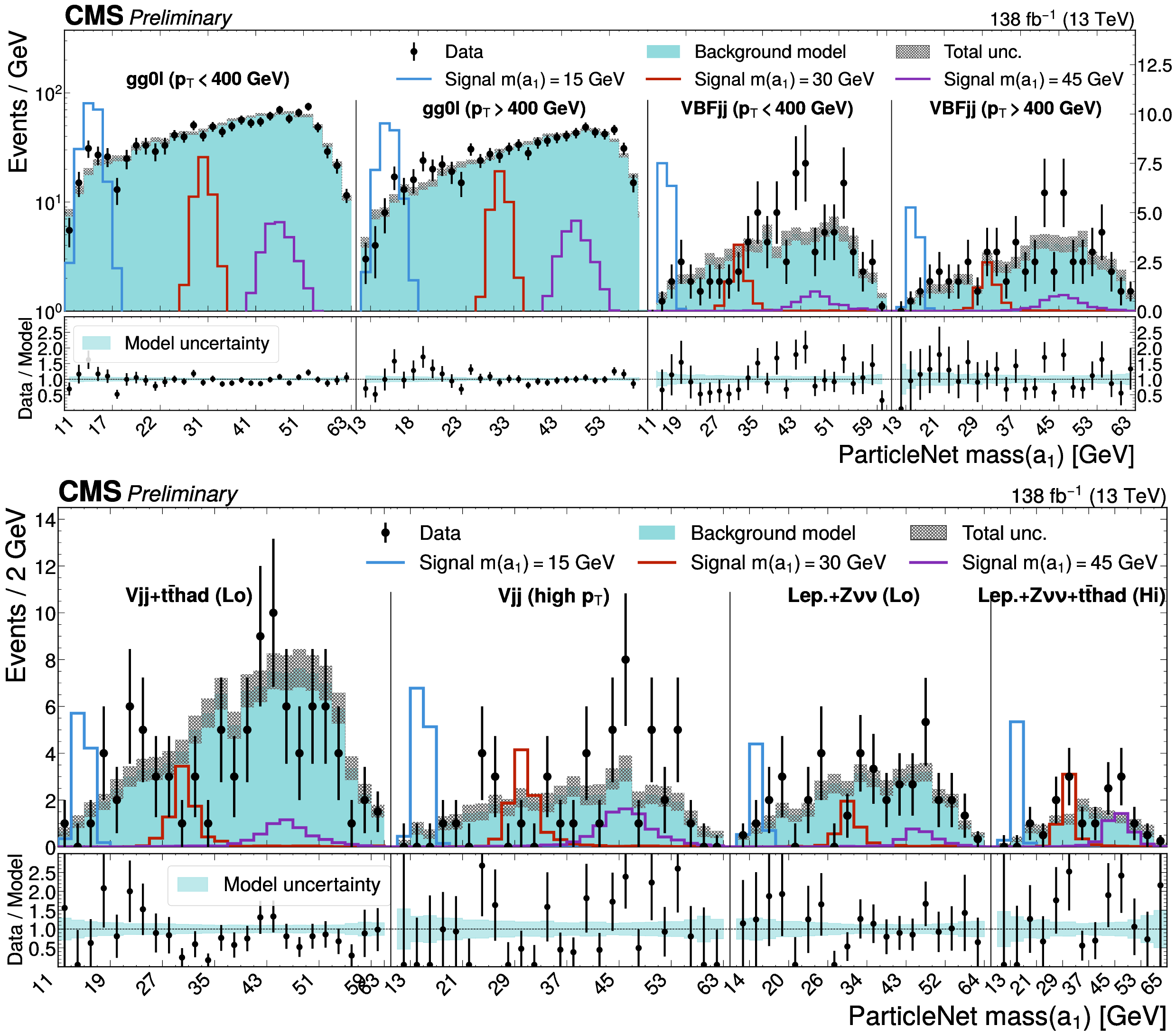

Figure 8:
Regressed $ m(a_1) $ distributions for SR data, simulated signal, and the background model from the 2DAlphabet background-only fit in events with 110 $ < m(\mathrm{X}) < 140 \text{Ge\hspace{-.08em}V} $, in the $ \mathrm{gg0}\ell $ and $ \mathrm{VBF}jj $ categories (top), and the $ \mathrm{V}jj $ and leptonic categories (bottom). Signal distributions are shown assuming a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |
Figure 8-a:
Regressed $ m(a_1) $ distributions for SR data, simulated signal, and the background model from the 2DAlphabet background-only fit in events with 110 $ < m(\mathrm{X}) < 140 \text{Ge\hspace{-.08em}V} $, in the $ \mathrm{gg0}\ell $ and $ \mathrm{VBF}jj $ categories (top), and the $ \mathrm{V}jj $ and leptonic categories (bottom). Signal distributions are shown assuming a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |
Figure 8-b:
Regressed $ m(a_1) $ distributions for SR data, simulated signal, and the background model from the 2DAlphabet background-only fit in events with 110 $ < m(\mathrm{X}) < 140 \text{Ge\hspace{-.08em}V} $, in the $ \mathrm{gg0}\ell $ and $ \mathrm{VBF}jj $ categories (top), and the $ \mathrm{V}jj $ and leptonic categories (bottom). Signal distributions are shown assuming a 100% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction. |
png pdf |

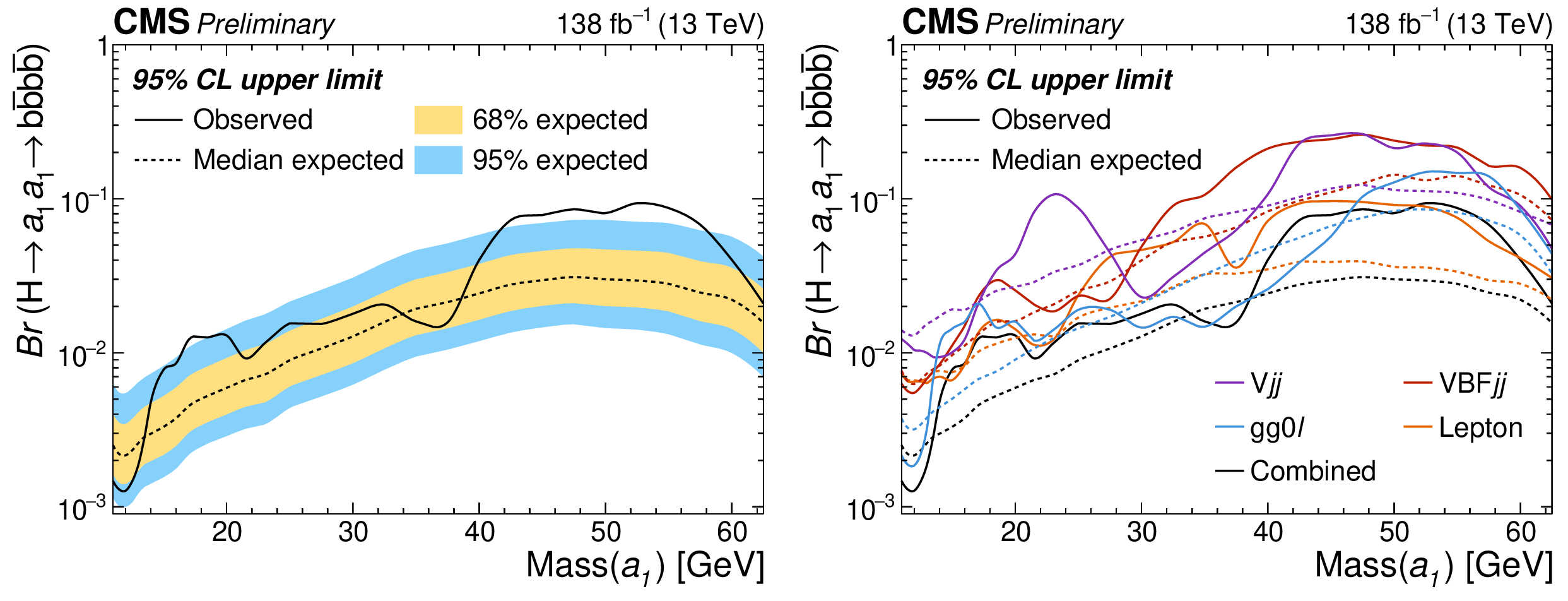

Figure 9:
Expected and observed 95% CL upper limits on the $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction for $ m(a_1) $ hypotheses from 11 to 62.5 GeV, assuming SM cross sections for 125 GeV Higgs boson production, from the full combined measurement (left), and in fit categories targeting specific Higgs boson production modes (right). |
png pdf |

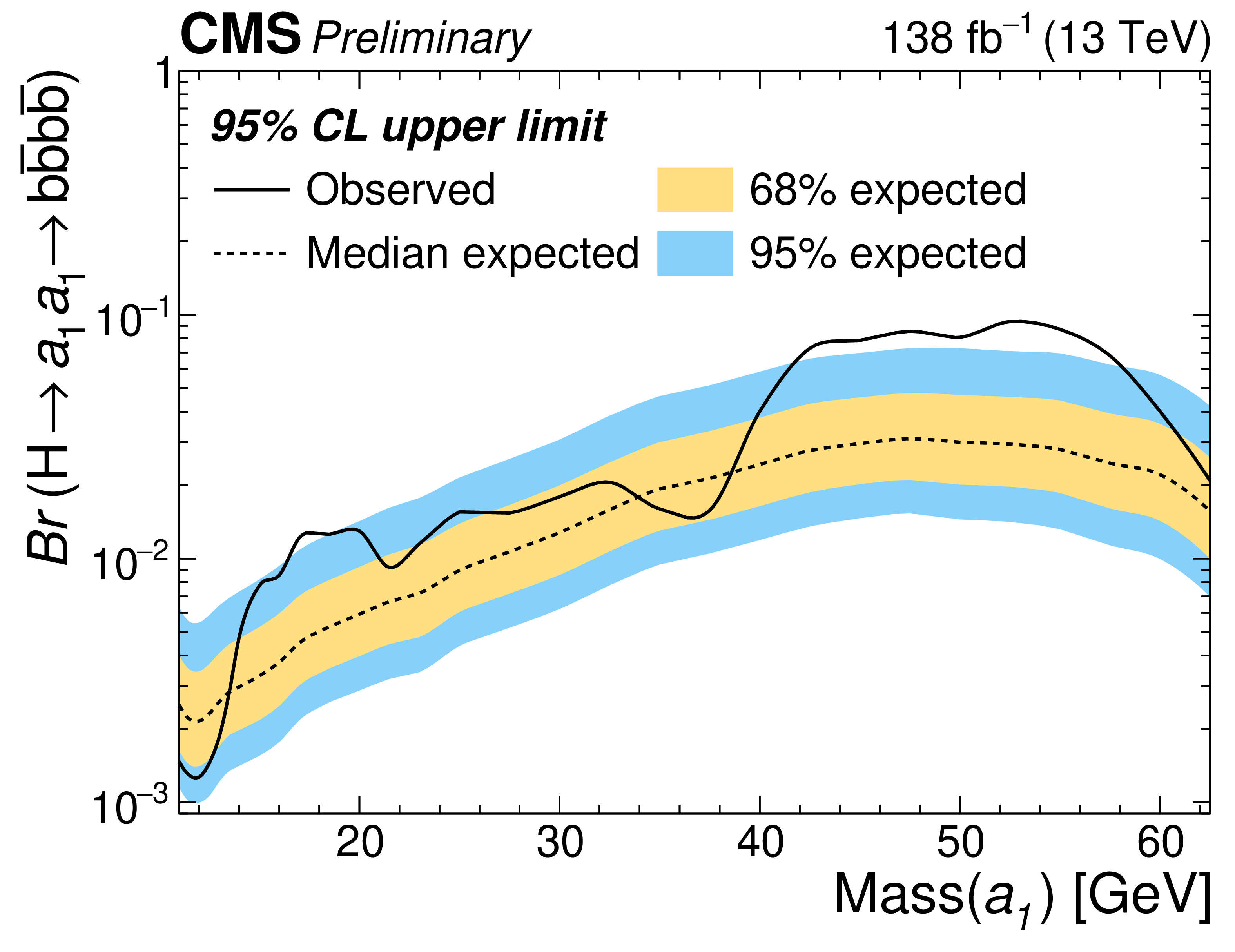

Figure 9-a:
Expected and observed 95% CL upper limits on the $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction for $ m(a_1) $ hypotheses from 11 to 62.5 GeV, assuming SM cross sections for 125 GeV Higgs boson production, from the full combined measurement (left), and in fit categories targeting specific Higgs boson production modes (right). |
png pdf |

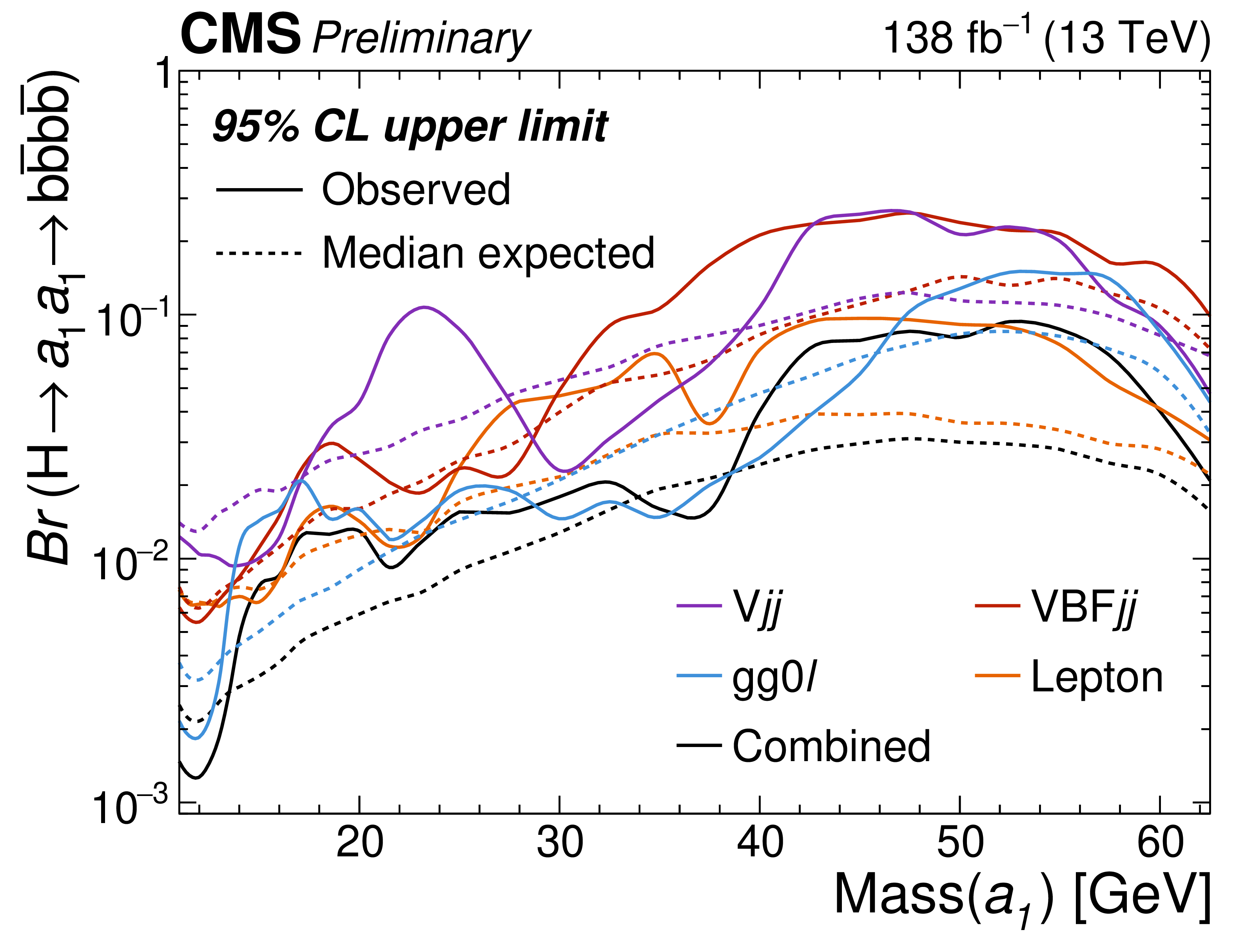

Figure 9-b:
Expected and observed 95% CL upper limits on the $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching fraction for $ m(a_1) $ hypotheses from 11 to 62.5 GeV, assuming SM cross sections for 125 GeV Higgs boson production, from the full combined measurement (left), and in fit categories targeting specific Higgs boson production modes (right). |
png pdf |

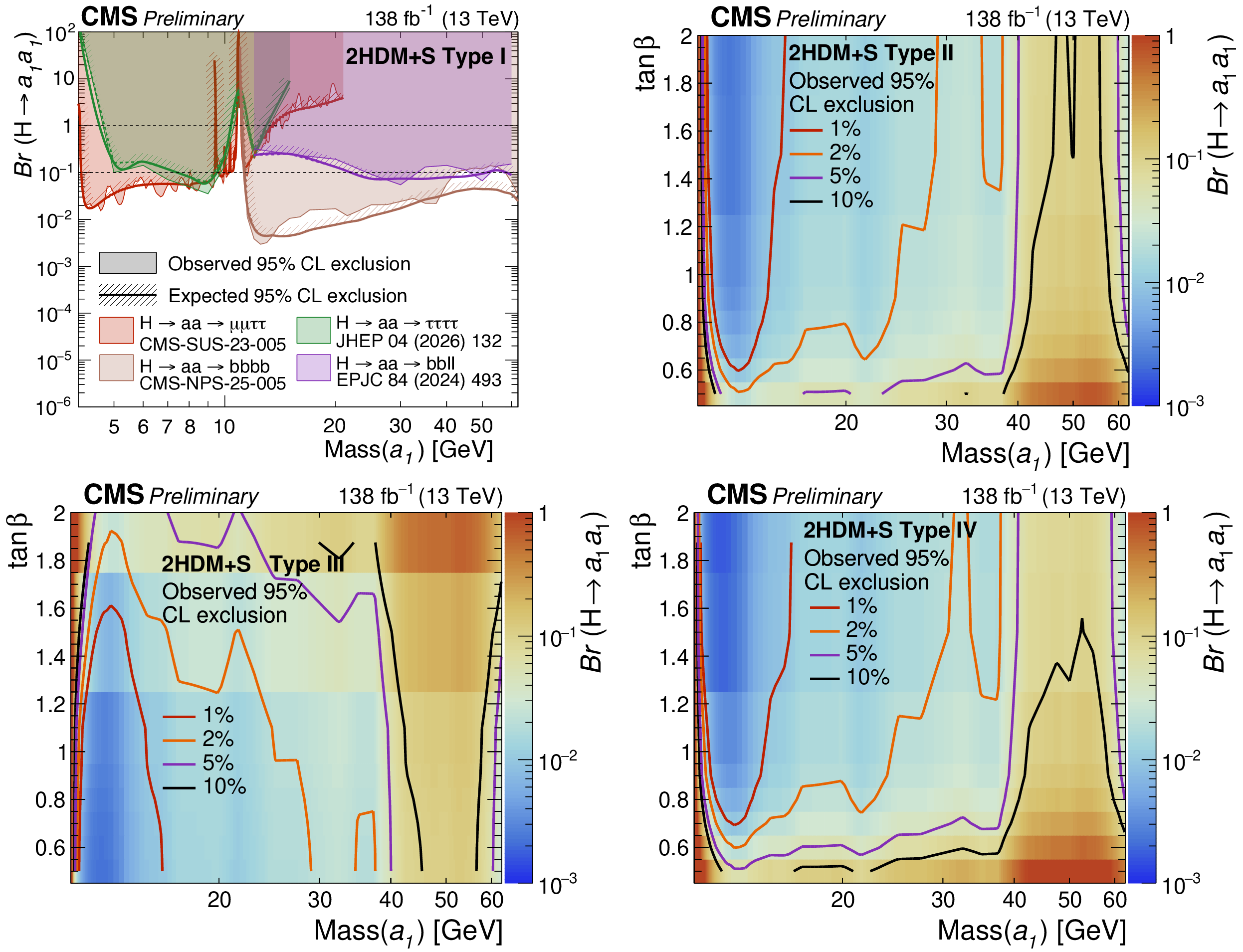

Figure 10:
95% CL upper limits on the Higgs boson branching fraction to a pair of new scalar or pseudoscalar particles $ \mathcal{B}(\mathrm{H}\to a_1a_1) $ as a function of $ m(a_1) $ in 2HDM+S scenarios, derived from the measured limits on $ \mathcal{B}(\mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}}) $. The top left panel shows expected and observed limits for Type I, with a comparison to previous CMS searches in other $ a_1 $ decay modes. The top right, bottom left, and bottom right panels correspond to Types II, III, and IV, respectively. For Types II--IV, the observed limits are shown in the $ \tan\beta $ vs.\ $ m(a_1) $ plane, where $ \tan\beta = v_2/v_1 $. The results are presented in terms of $ \mathcal{B}(\mathrm{H}\to a_1a_1) $, accounting for the $ \mathcal{B}(a_1 \to \mathrm{b}\overline{\mathrm{b}}) $ value predicted by the given 2HDM+S model parameters. |
png pdf |

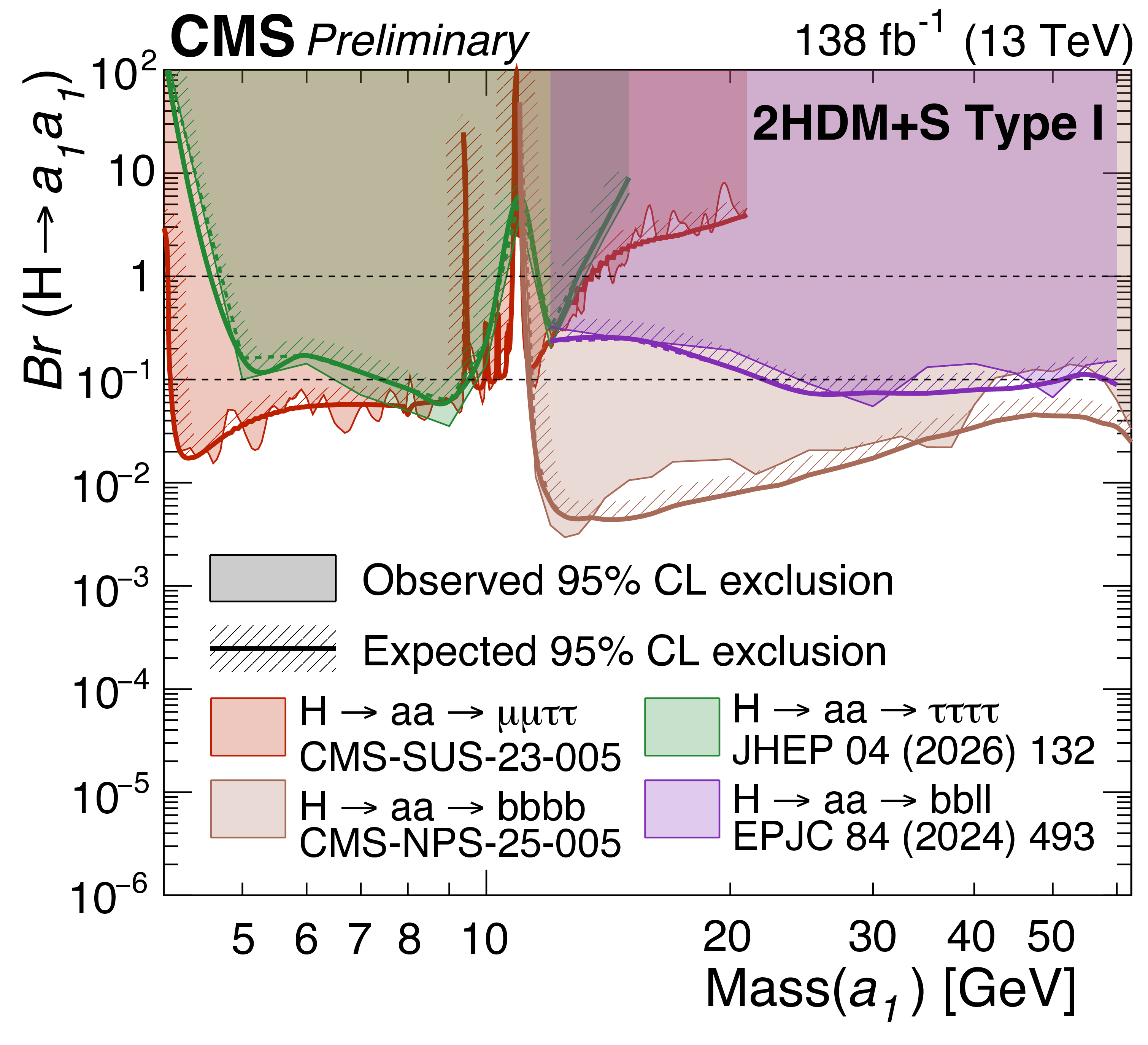

Figure 10-a:
95% CL upper limits on the Higgs boson branching fraction to a pair of new scalar or pseudoscalar particles $ \mathcal{B}(\mathrm{H}\to a_1a_1) $ as a function of $ m(a_1) $ in 2HDM+S scenarios, derived from the measured limits on $ \mathcal{B}(\mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}}) $. The top left panel shows expected and observed limits for Type I, with a comparison to previous CMS searches in other $ a_1 $ decay modes. The top right, bottom left, and bottom right panels correspond to Types II, III, and IV, respectively. For Types II--IV, the observed limits are shown in the $ \tan\beta $ vs.\ $ m(a_1) $ plane, where $ \tan\beta = v_2/v_1 $. The results are presented in terms of $ \mathcal{B}(\mathrm{H}\to a_1a_1) $, accounting for the $ \mathcal{B}(a_1 \to \mathrm{b}\overline{\mathrm{b}}) $ value predicted by the given 2HDM+S model parameters. |
png pdf |

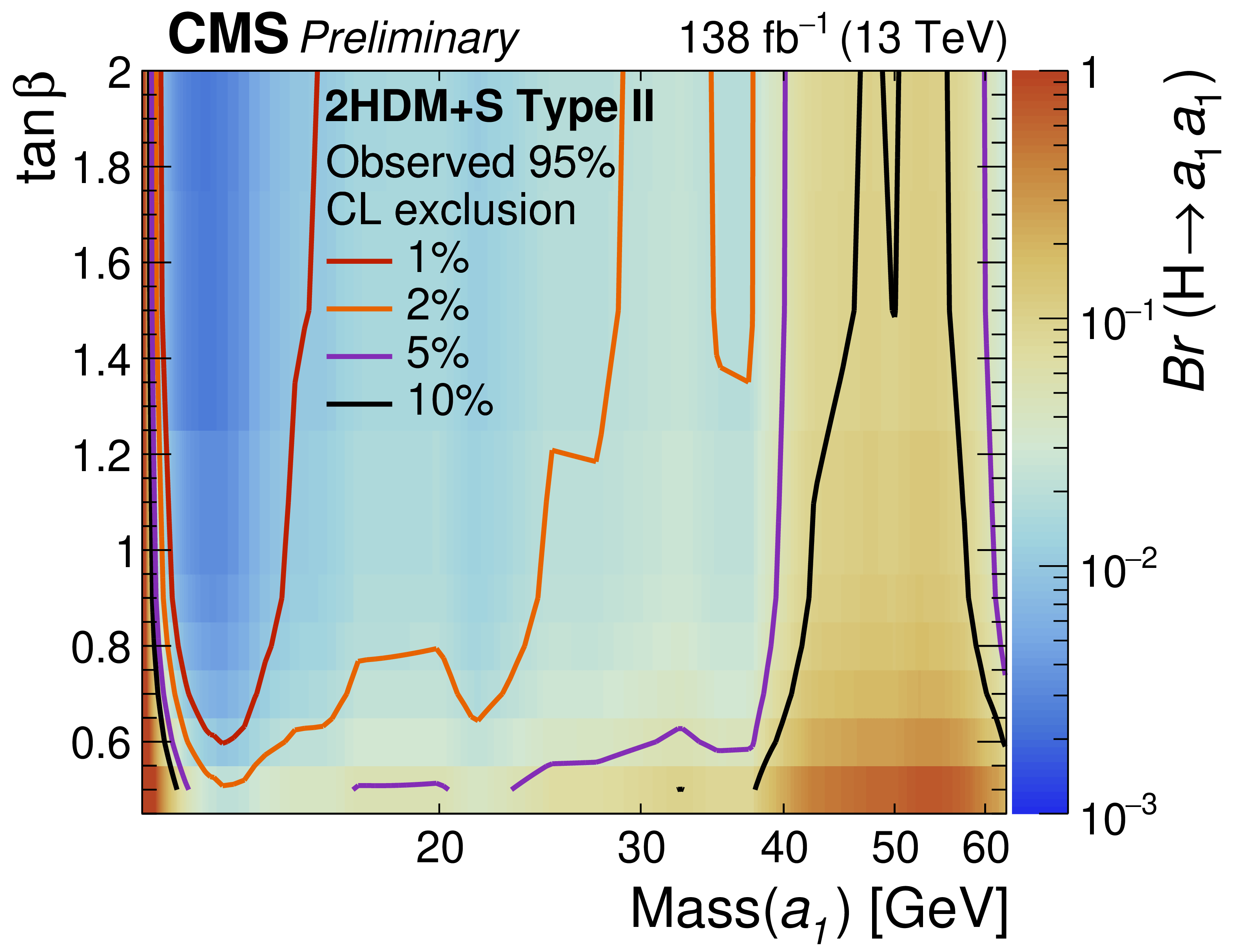

Figure 10-b:
95% CL upper limits on the Higgs boson branching fraction to a pair of new scalar or pseudoscalar particles $ \mathcal{B}(\mathrm{H}\to a_1a_1) $ as a function of $ m(a_1) $ in 2HDM+S scenarios, derived from the measured limits on $ \mathcal{B}(\mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}}) $. The top left panel shows expected and observed limits for Type I, with a comparison to previous CMS searches in other $ a_1 $ decay modes. The top right, bottom left, and bottom right panels correspond to Types II, III, and IV, respectively. For Types II--IV, the observed limits are shown in the $ \tan\beta $ vs.\ $ m(a_1) $ plane, where $ \tan\beta = v_2/v_1 $. The results are presented in terms of $ \mathcal{B}(\mathrm{H}\to a_1a_1) $, accounting for the $ \mathcal{B}(a_1 \to \mathrm{b}\overline{\mathrm{b}}) $ value predicted by the given 2HDM+S model parameters. |
png pdf |

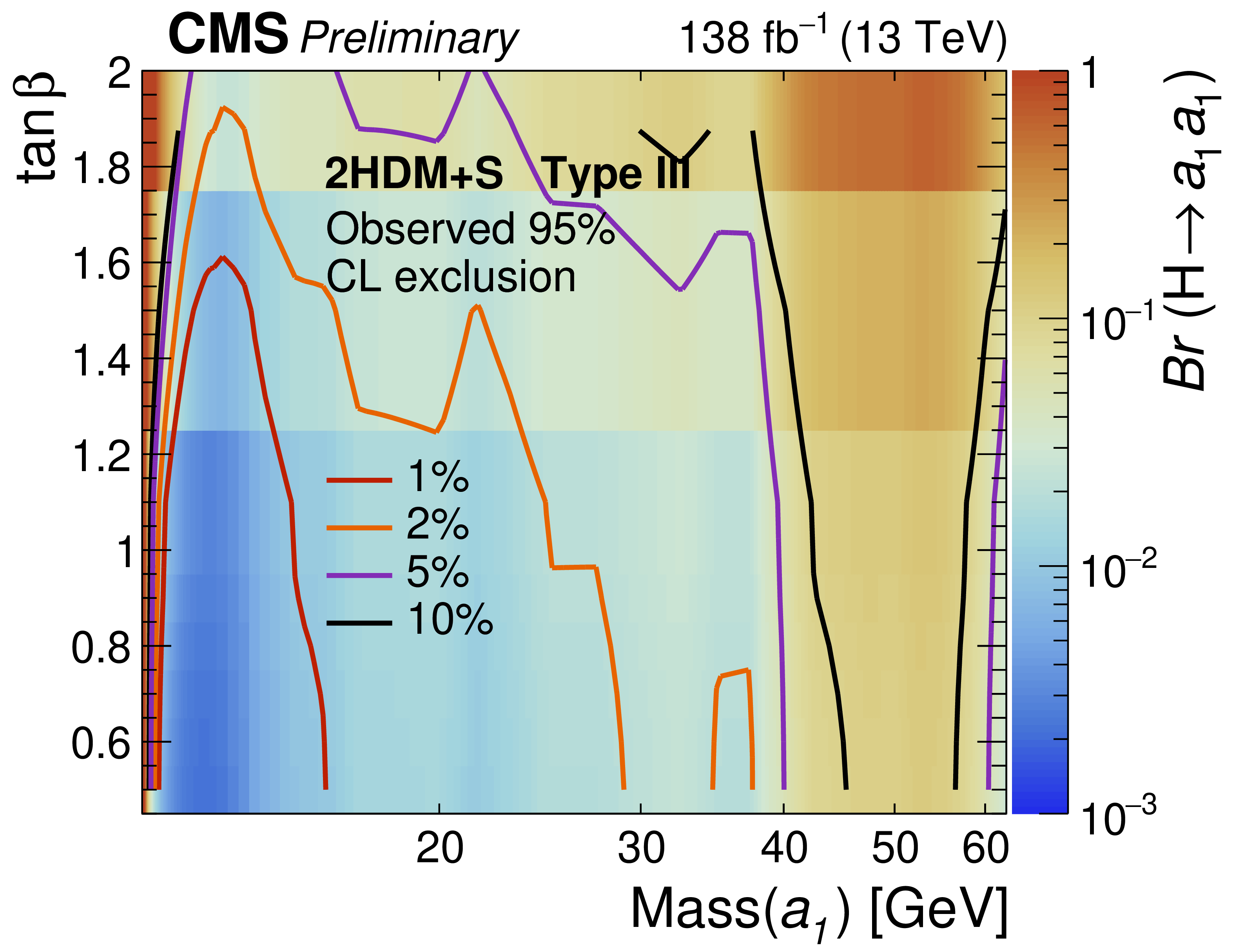

Figure 10-c:
95% CL upper limits on the Higgs boson branching fraction to a pair of new scalar or pseudoscalar particles $ \mathcal{B}(\mathrm{H}\to a_1a_1) $ as a function of $ m(a_1) $ in 2HDM+S scenarios, derived from the measured limits on $ \mathcal{B}(\mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}}) $. The top left panel shows expected and observed limits for Type I, with a comparison to previous CMS searches in other $ a_1 $ decay modes. The top right, bottom left, and bottom right panels correspond to Types II, III, and IV, respectively. For Types II--IV, the observed limits are shown in the $ \tan\beta $ vs.\ $ m(a_1) $ plane, where $ \tan\beta = v_2/v_1 $. The results are presented in terms of $ \mathcal{B}(\mathrm{H}\to a_1a_1) $, accounting for the $ \mathcal{B}(a_1 \to \mathrm{b}\overline{\mathrm{b}}) $ value predicted by the given 2HDM+S model parameters. |
png pdf |

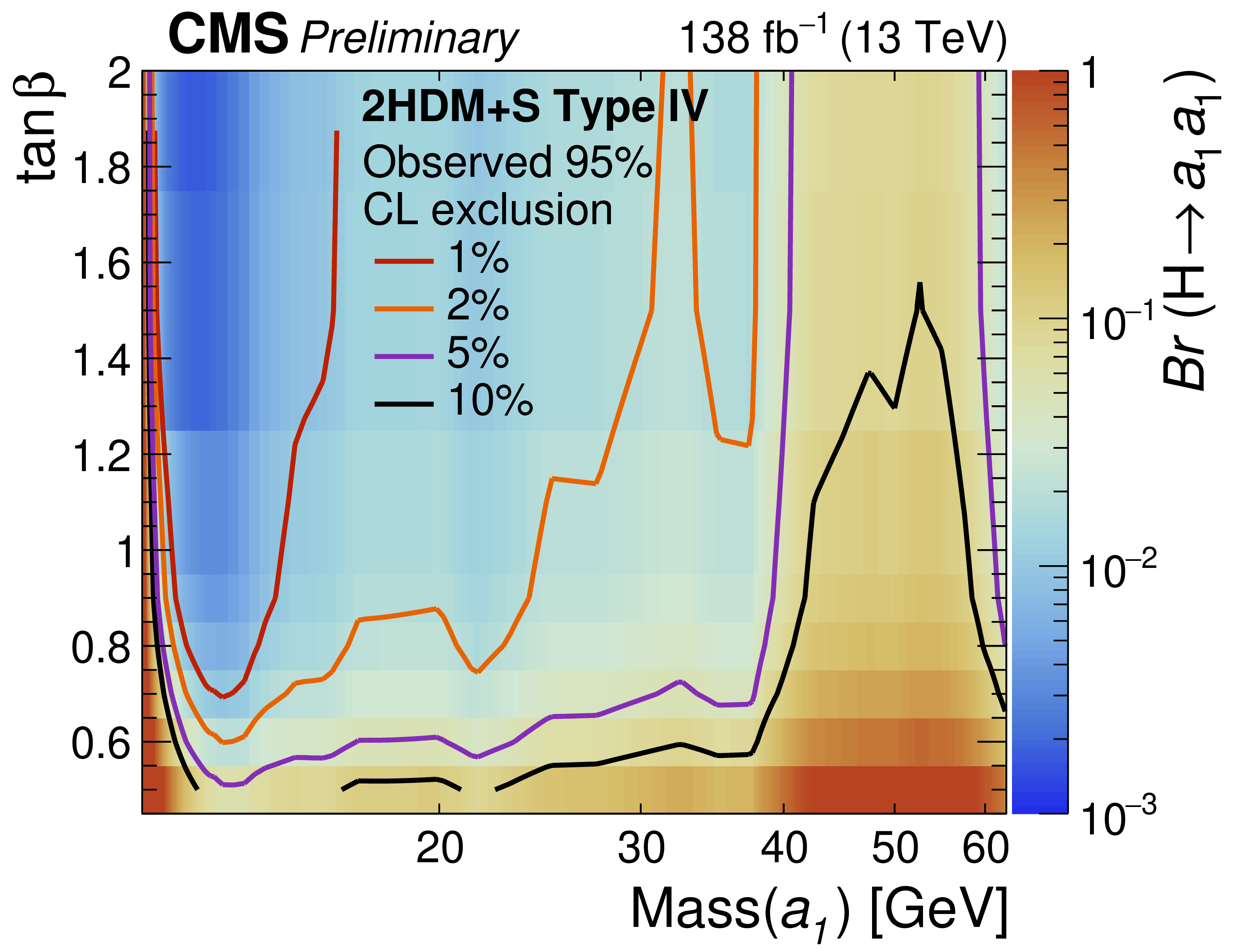

Figure 10-d:
95% CL upper limits on the Higgs boson branching fraction to a pair of new scalar or pseudoscalar particles $ \mathcal{B}(\mathrm{H}\to a_1a_1) $ as a function of $ m(a_1) $ in 2HDM+S scenarios, derived from the measured limits on $ \mathcal{B}(\mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}}) $. The top left panel shows expected and observed limits for Type I, with a comparison to previous CMS searches in other $ a_1 $ decay modes. The top right, bottom left, and bottom right panels correspond to Types II, III, and IV, respectively. For Types II--IV, the observed limits are shown in the $ \tan\beta $ vs.\ $ m(a_1) $ plane, where $ \tan\beta = v_2/v_1 $. The results are presented in terms of $ \mathcal{B}(\mathrm{H}\to a_1a_1) $, accounting for the $ \mathcal{B}(a_1 \to \mathrm{b}\overline{\mathrm{b}}) $ value predicted by the given 2HDM+S model parameters. |
| Tables | |
png pdf |

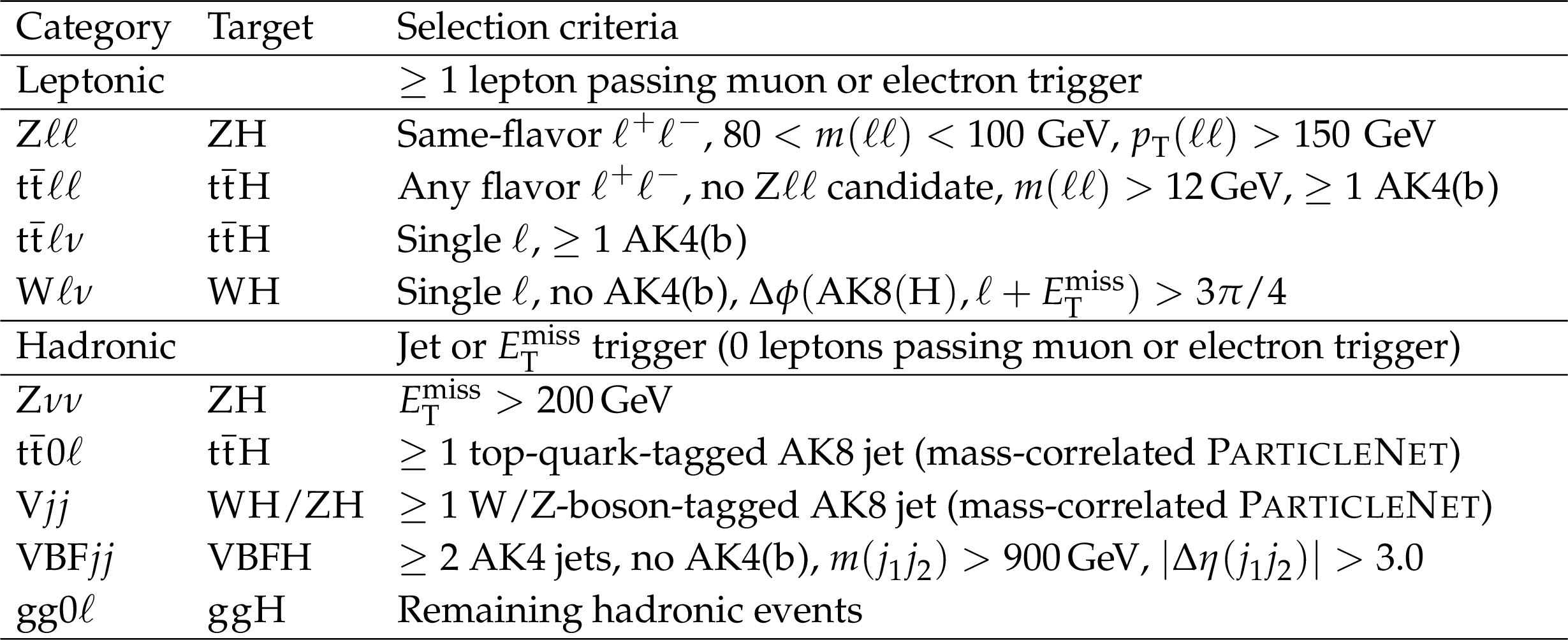

Table 1:
Summary of event categories used to enhance sensitivity to different Higgs boson production modes. Each category excludes all events from categories above it in the list. Here $ \ell $ denotes an electron or muon, AK8(H) denotes the $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ candidate AK8 jet, AK4(b) denotes a b-tagged AK4 jet, and $ j_1 $ and $ j_2 $ denote the two highest-$ p_{\mathrm{T}} $ AK4 jets. |
png pdf |

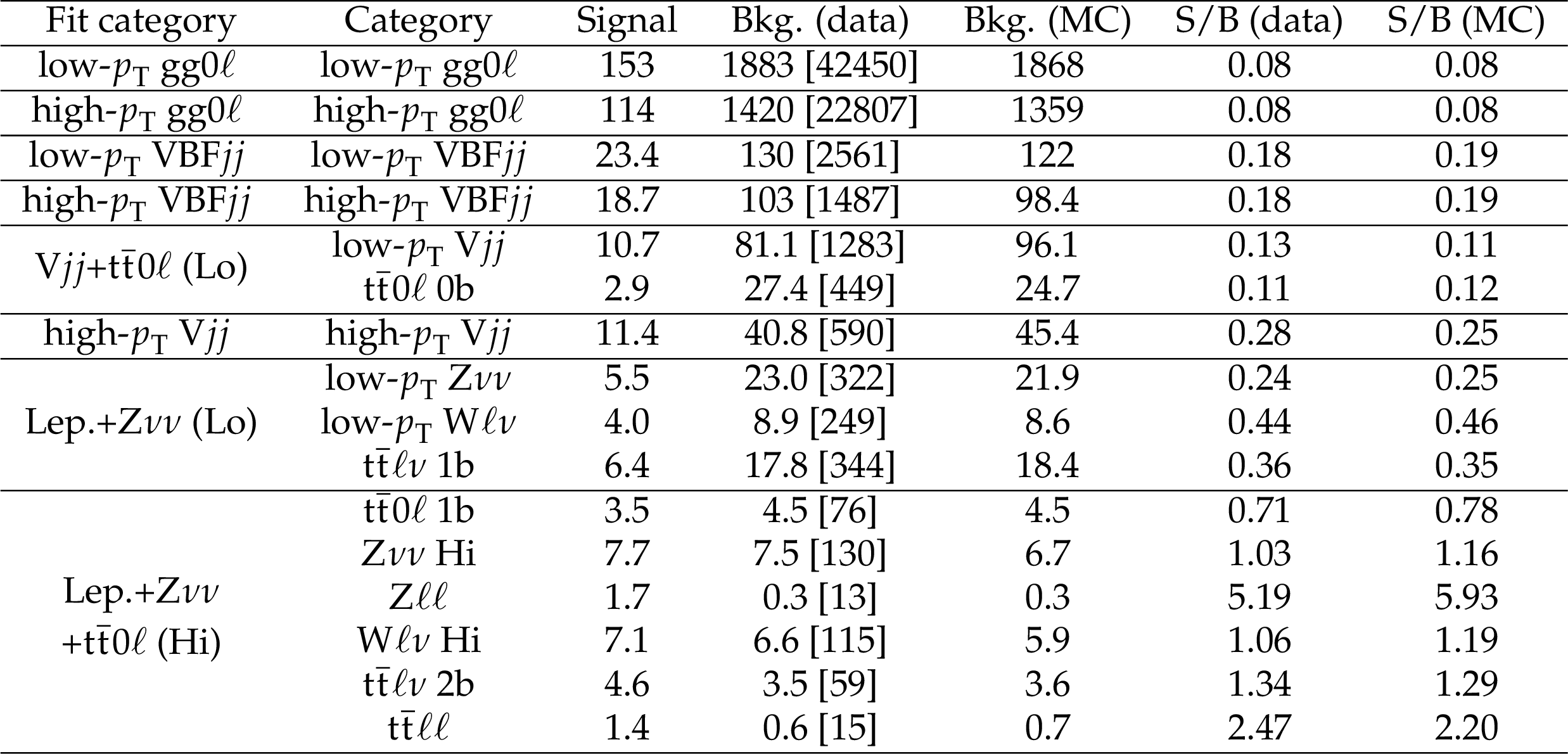

Table 2:
Estimated signal and background yields for the full Run 2 dataset in all event selection categories. The ``Fit category'' column shows how event selection categories are merged for the 2DAlphabet signal extraction fit. The ``Signal'' column gives the expected signal yields (averaged over all $ m(a_1) $, with 10% $ \mathrm{H}\to a_1a_1\to\mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ branching) passing the tight PARTICLENET} \MATHRM{X4B WP with regressed $ m(\mathrm{X}) $ from 110--140 GeV. ``Bkg. (data)'' and ``Bkg. (MC)'' give the corresponding expected background, estimated from events passing a lower $ \mathrm{X4b} $ WP, which are shown in brackets for data. ``S/B'' is the expected signal-to-background ratio. |
| Summary |
