| CMS-TOP-24-012 ; CERN-EP-2025-113 | ||
| Search for CP violation in events with top quarks and Z bosons at $ \sqrt{s}= $ 13 and 13.6 TeV | ||
| CMS Collaboration | ||
| 27 May 2025 | ||
| Submitted to Phys. Lett. B | ||
| Abstract: A search for the violation of the charge-parity (CP) symmetry in the production of top quarks in association with Z bosons is presented, using events with at least three charged leptons and additional jets. The search is performed in a sample of proton-proton collision data collected by the CMS experiment at the CERN LHC in 2016-2018 at a center-of-mass energy of 13 TeV and in 2022 at 13.6 TeV, corresponding to a total integrated luminosity of 173 fb$ ^{-1} $. For the first time in this final state, observables that are odd under the CP transformation are employed. Also for the first time, physics-informed machine-learning techniques are used to construct these observables. While for standard model (SM) processes the distributions of these observables are predicted to be symmetric around zero, CP-violating modifications of the SM would introduce asymmetries. Two CP-odd operators $ \mathcal{O}_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ \mathcal{O}_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ in the SM effective field theory are considered that may modify the interactions between top quarks and electroweak bosons. The obtained results are consistent with the SM prediction within two standard deviations, and exclusion limits on the associated Wilson coefficients of $ -$2.7 $ < c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} < $ 2.5 and $ -$0.2 $ < c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} < $ 2.0 are set at 95% confidence level. The largest discrepancy is observed in $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ where data is consistent with positive values, with an observed local significance with respect to the SM hypothesis of 2.5 standard deviations, when only linear terms are considered. | ||
| Links: e-print arXiv:2505.21206 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

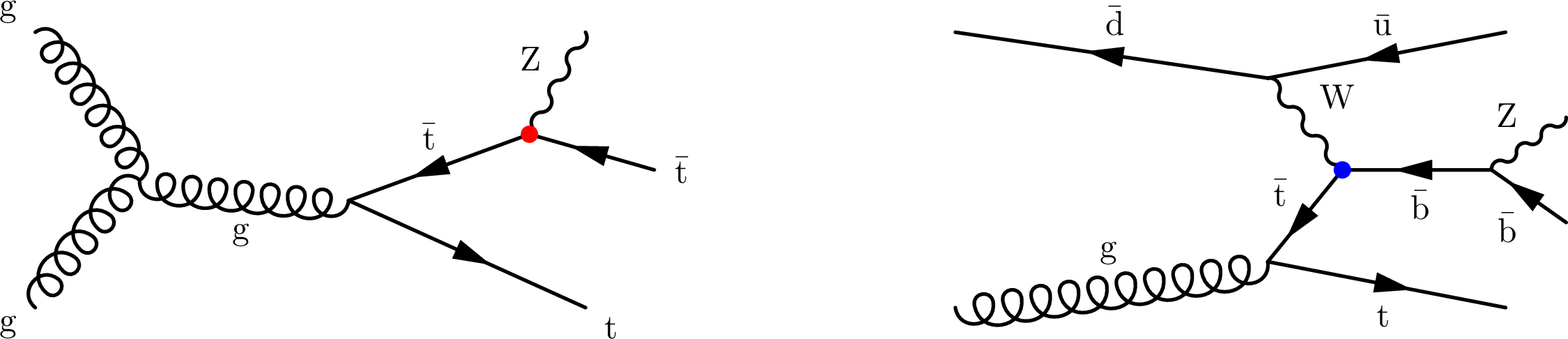

Figure 1:
Example Feynman diagrams for $ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $ (left ) and $ \mathrm{t}\mathrm{Z}\mathrm{q} $ (right ) production with vertices that can be modified by $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $) highlighted in red (blue) circle. |
png pdf |

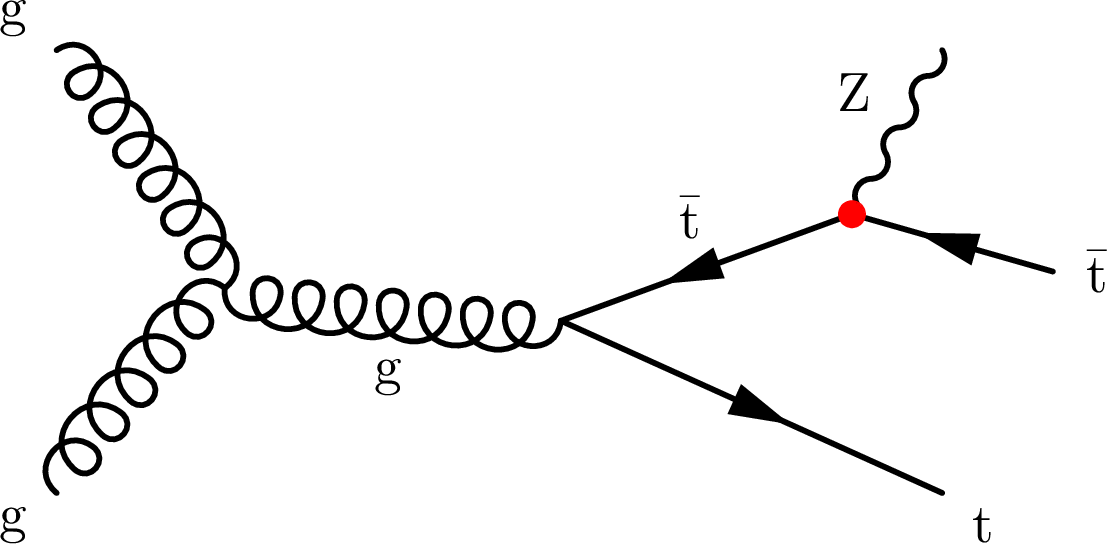

Figure 1-a:
Example Feynman diagrams for $ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $ (left ) and $ \mathrm{t}\mathrm{Z}\mathrm{q} $ (right ) production with vertices that can be modified by $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $) highlighted in red (blue) circle. |
png pdf |

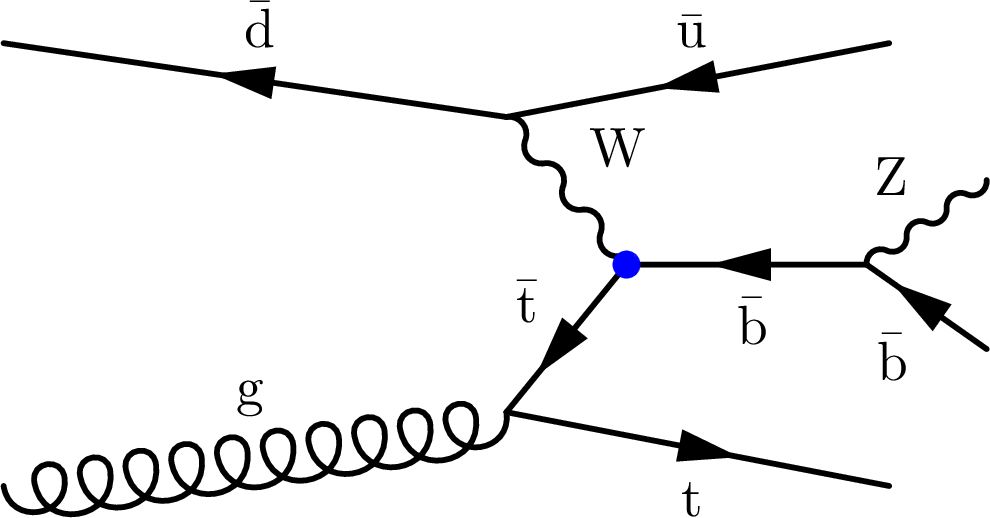

Figure 1-b:
Example Feynman diagrams for $ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $ (left ) and $ \mathrm{t}\mathrm{Z}\mathrm{q} $ (right ) production with vertices that can be modified by $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $) highlighted in red (blue) circle. |
png pdf |

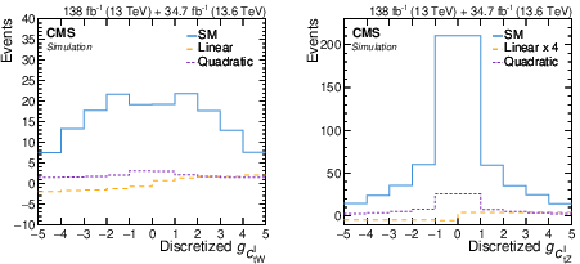

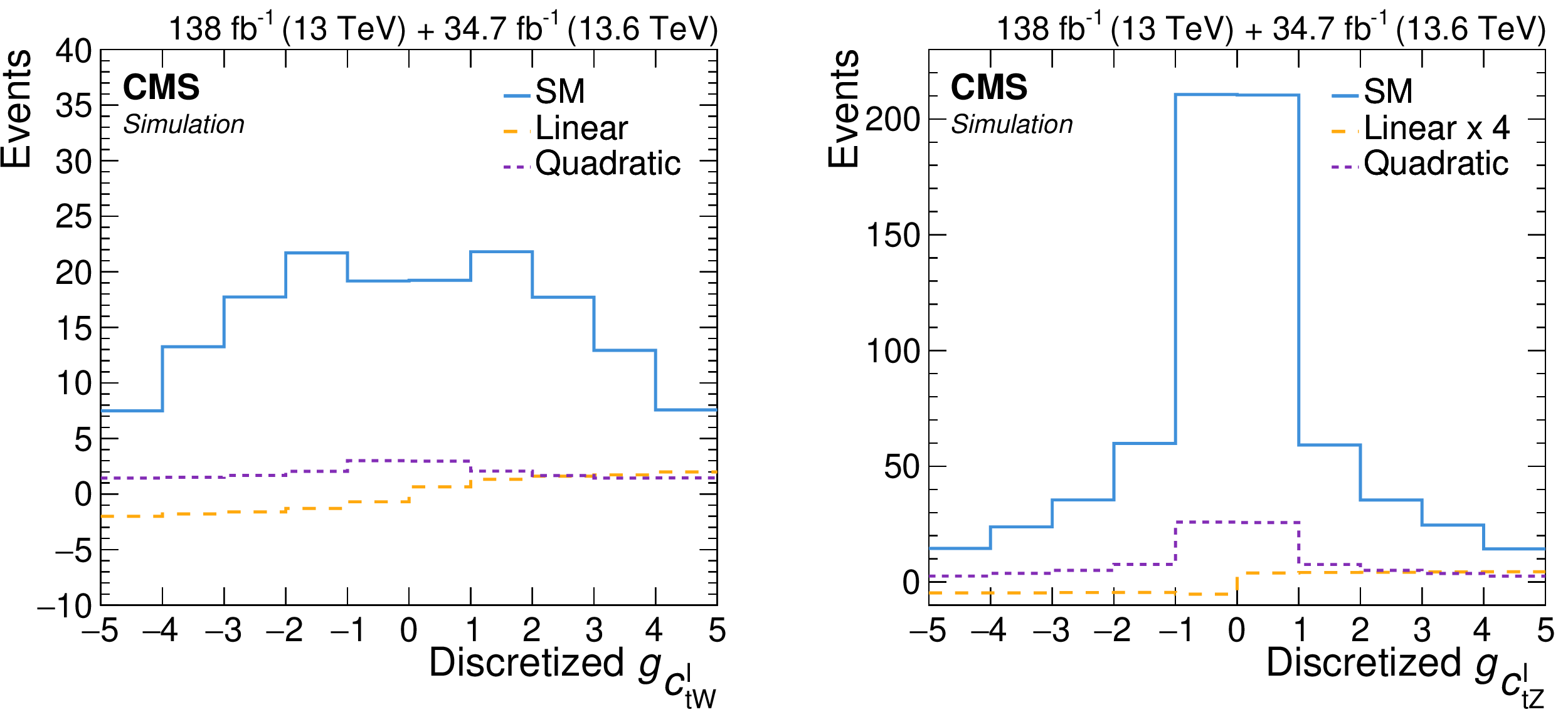

Figure 2:
left (right ): Distribution of the discretized $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $) score for events in the $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $-like ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like) category in $ \mathrm{t}\mathrm{Z}\mathrm{q} $ ($ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $) events. The contributions from the SM, linear, and quadratic terms when each Wilson coefficient is set to unity are plotted separately. For better visibility the interference contribution in the $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like category has been scaled by a factor of 4. |
png pdf |

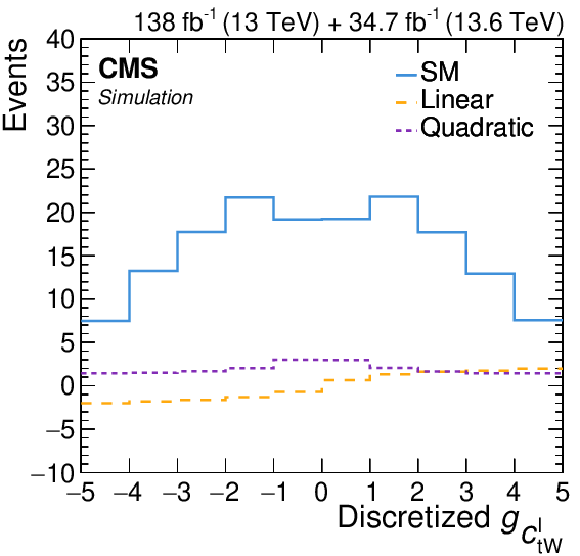

Figure 2-a:
left (right ): Distribution of the discretized $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $) score for events in the $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $-like ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like) category in $ \mathrm{t}\mathrm{Z}\mathrm{q} $ ($ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $) events. The contributions from the SM, linear, and quadratic terms when each Wilson coefficient is set to unity are plotted separately. For better visibility the interference contribution in the $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like category has been scaled by a factor of 4. |
png pdf |

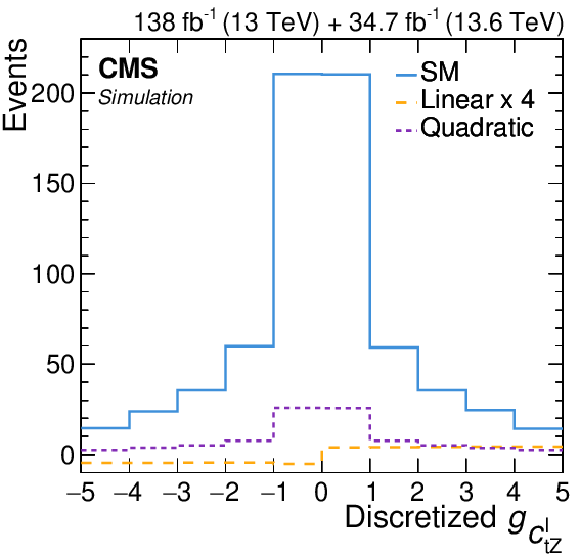

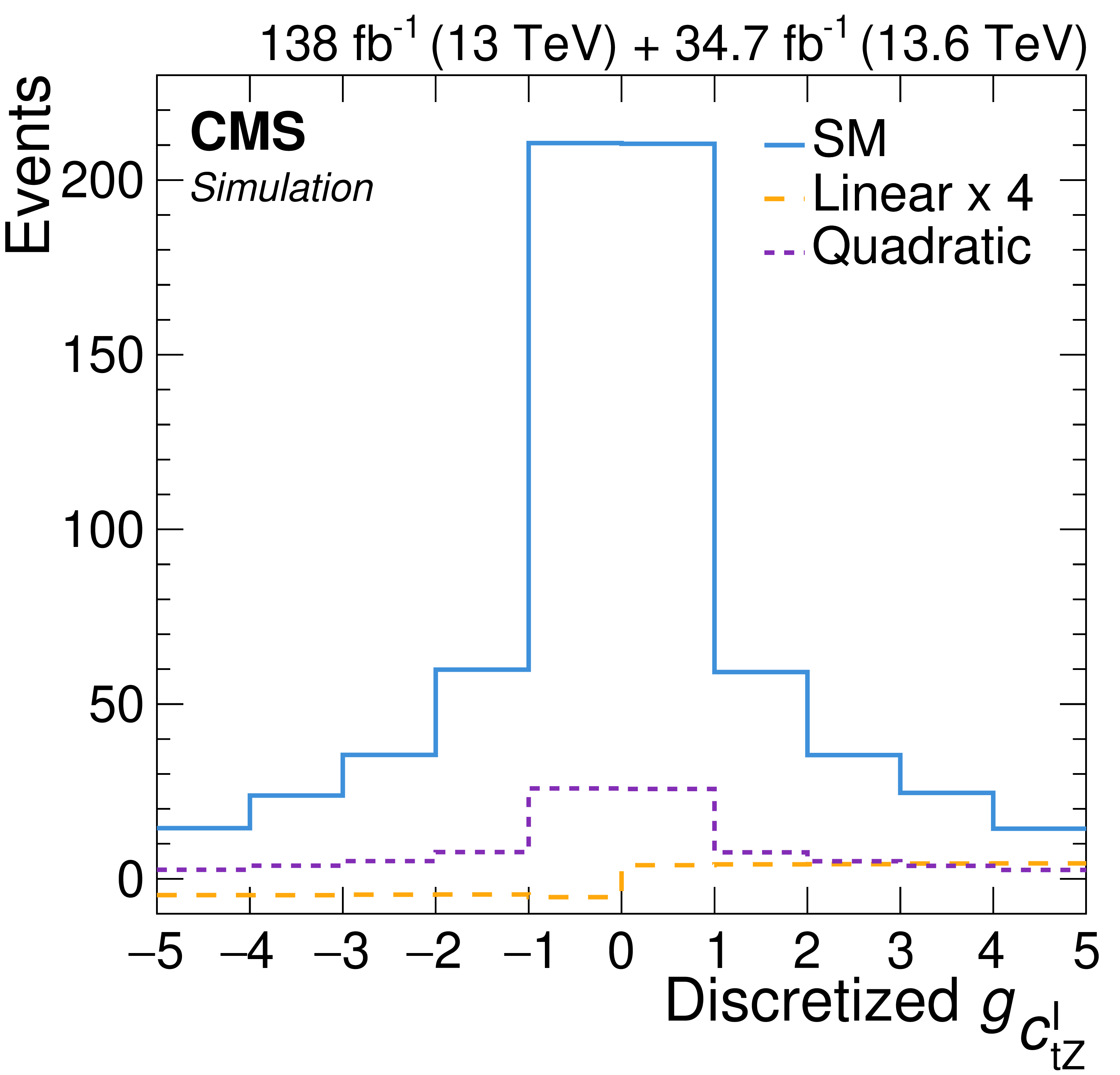

Figure 2-b:
left (right ): Distribution of the discretized $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $) score for events in the $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $-like ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like) category in $ \mathrm{t}\mathrm{Z}\mathrm{q} $ ($ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $) events. The contributions from the SM, linear, and quadratic terms when each Wilson coefficient is set to unity are plotted separately. For better visibility the interference contribution in the $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like category has been scaled by a factor of 4. |
png pdf |

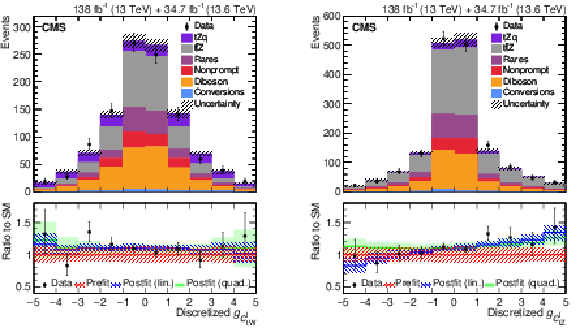

Figure 3:
left (right ): Distribution of the discretized $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $) score for events in the $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $-like ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like) category, compared with the predictions obtained when all fit parameters are set to their maximum likelihood value in the linear fit, where $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ are determined simultaneously. The lower panels show the ratio between data (black dots), the prediction of the linear (blue line), and quadratic (green line) fits, over the prefit value. The red, blue, and green bands show the prefit uncertainty and the postfit uncertainties of the linear and quadratic fits, respectively. |
png pdf |

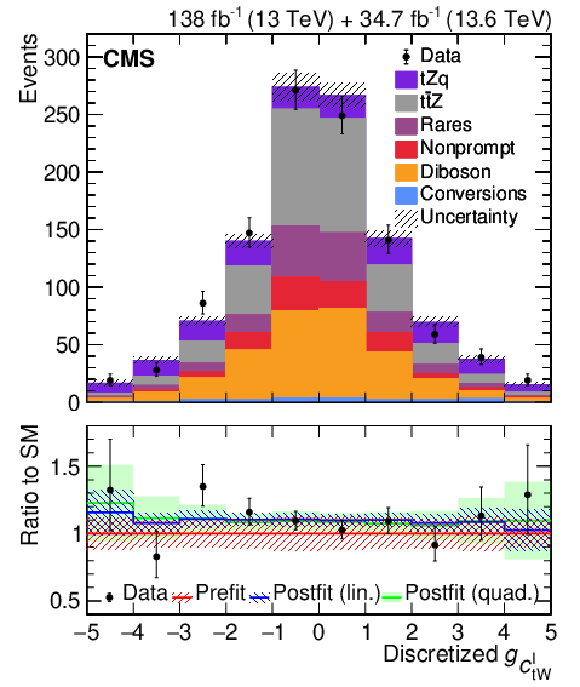

Figure 3-a:
left (right ): Distribution of the discretized $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $) score for events in the $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $-like ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like) category, compared with the predictions obtained when all fit parameters are set to their maximum likelihood value in the linear fit, where $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ are determined simultaneously. The lower panels show the ratio between data (black dots), the prediction of the linear (blue line), and quadratic (green line) fits, over the prefit value. The red, blue, and green bands show the prefit uncertainty and the postfit uncertainties of the linear and quadratic fits, respectively. |
png pdf |

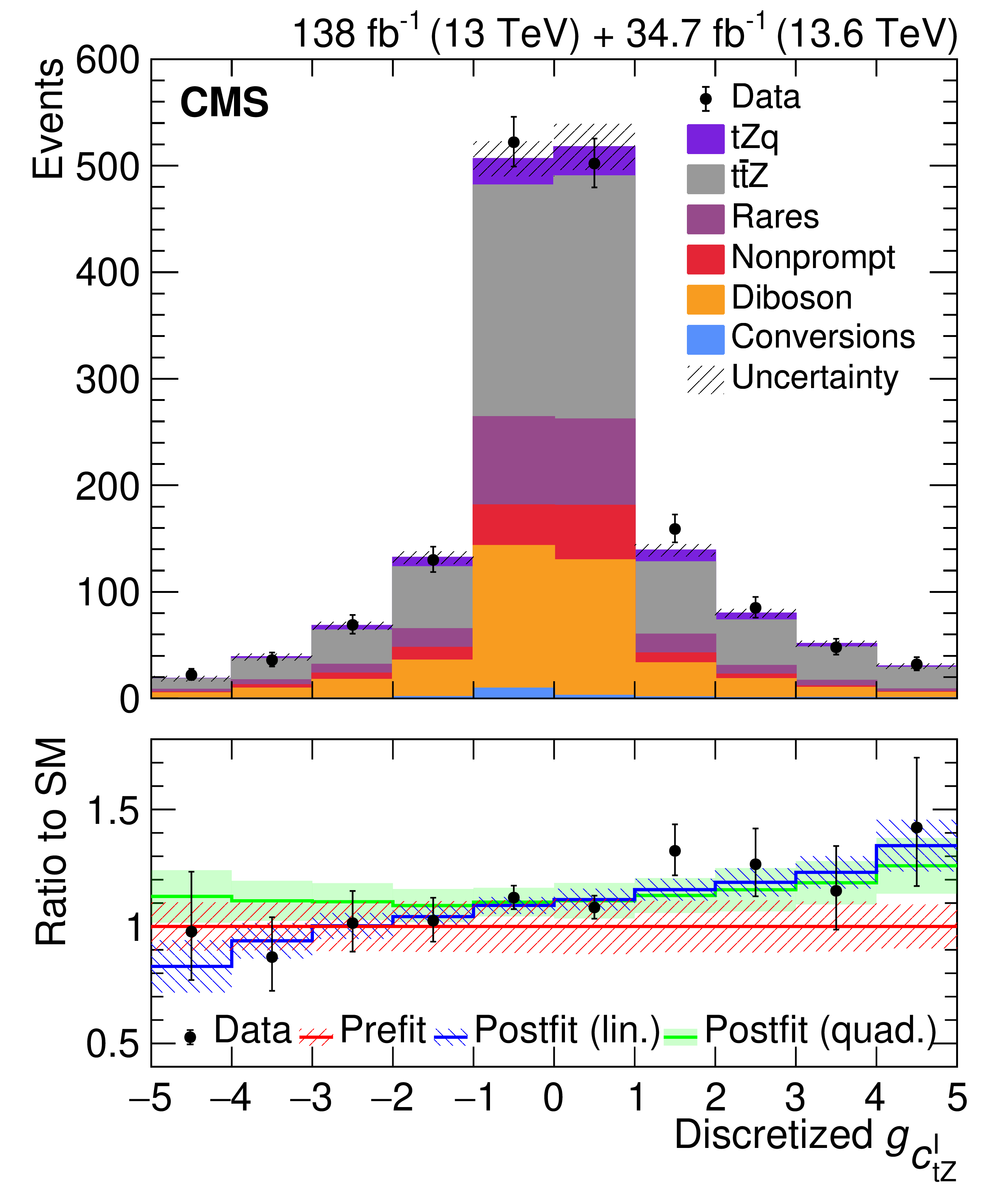

Figure 3-b:
left (right ): Distribution of the discretized $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $) score for events in the $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $-like ($ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $-like) category, compared with the predictions obtained when all fit parameters are set to their maximum likelihood value in the linear fit, where $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ are determined simultaneously. The lower panels show the ratio between data (black dots), the prediction of the linear (blue line), and quadratic (green line) fits, over the prefit value. The red, blue, and green bands show the prefit uncertainty and the postfit uncertainties of the linear and quadratic fits, respectively. |
png pdf |

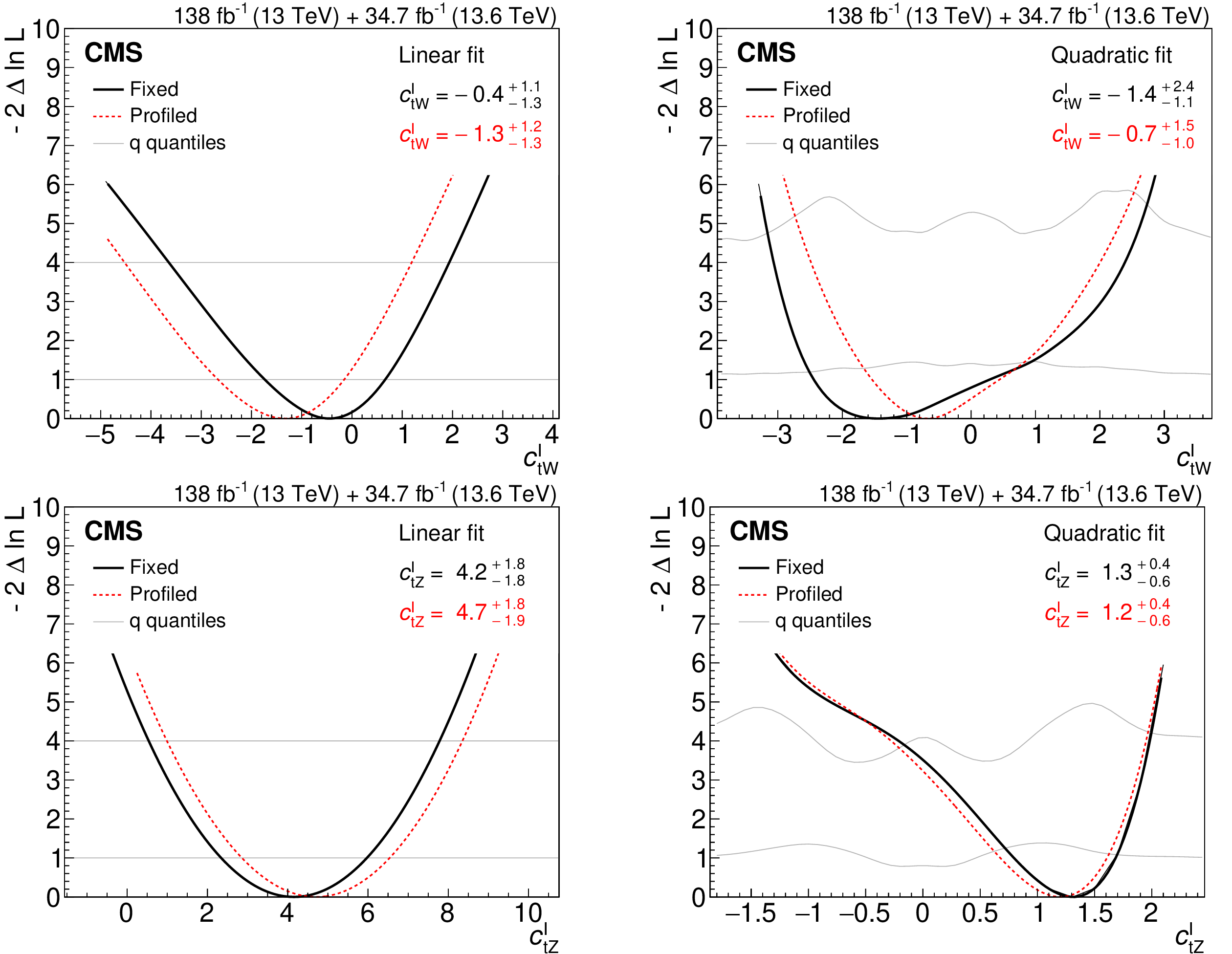

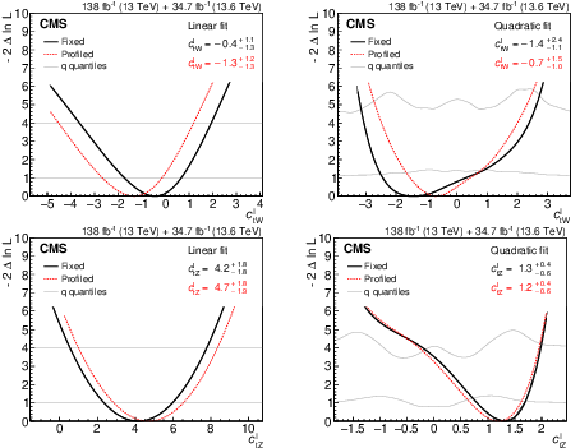

Figure 4:
Likelihood scans as a function of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ (upper row) and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ (lower row), separately for cases in which the other coefficient is set to zero (dark black solid line) or profiled (red dashed line). Plots in the left (right) column represent the linear (quadratic) fit. Light gray lines represent the quantiles of the test statistics. |
png pdf |

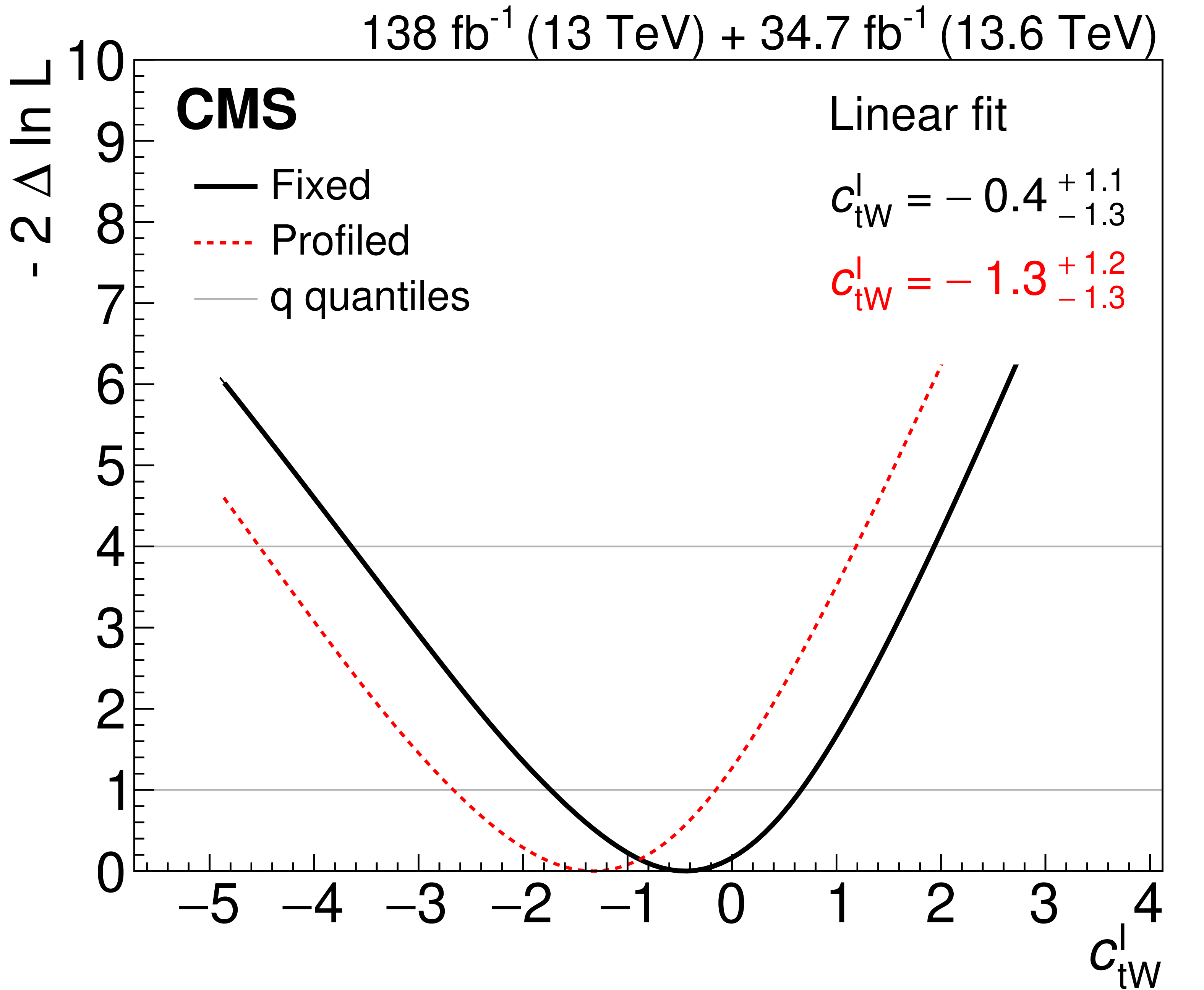

Figure 4-a:
Likelihood scans as a function of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ (upper row) and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ (lower row), separately for cases in which the other coefficient is set to zero (dark black solid line) or profiled (red dashed line). Plots in the left (right) column represent the linear (quadratic) fit. Light gray lines represent the quantiles of the test statistics. |
png pdf |

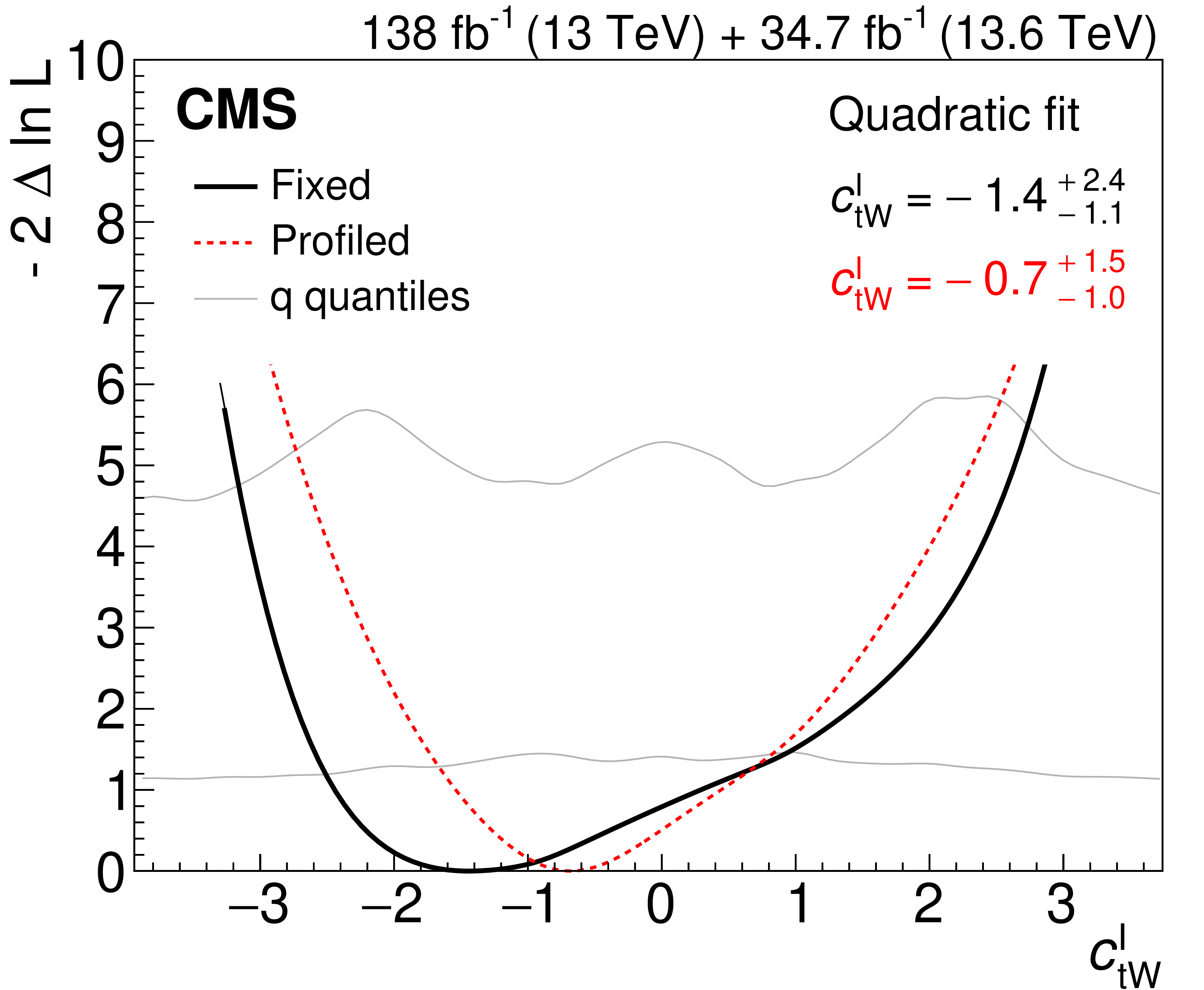

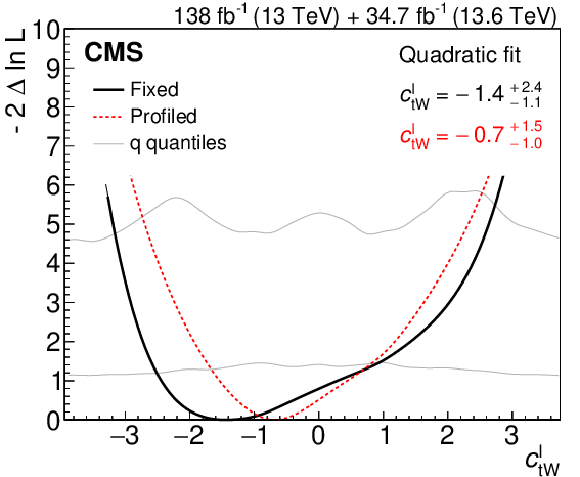

Figure 4-b:
Likelihood scans as a function of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ (upper row) and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ (lower row), separately for cases in which the other coefficient is set to zero (dark black solid line) or profiled (red dashed line). Plots in the left (right) column represent the linear (quadratic) fit. Light gray lines represent the quantiles of the test statistics. |
png pdf |

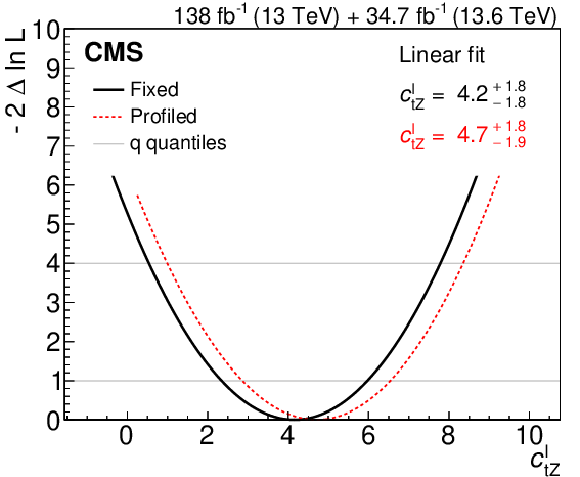

Figure 4-c:
Likelihood scans as a function of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ (upper row) and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ (lower row), separately for cases in which the other coefficient is set to zero (dark black solid line) or profiled (red dashed line). Plots in the left (right) column represent the linear (quadratic) fit. Light gray lines represent the quantiles of the test statistics. |
png pdf |

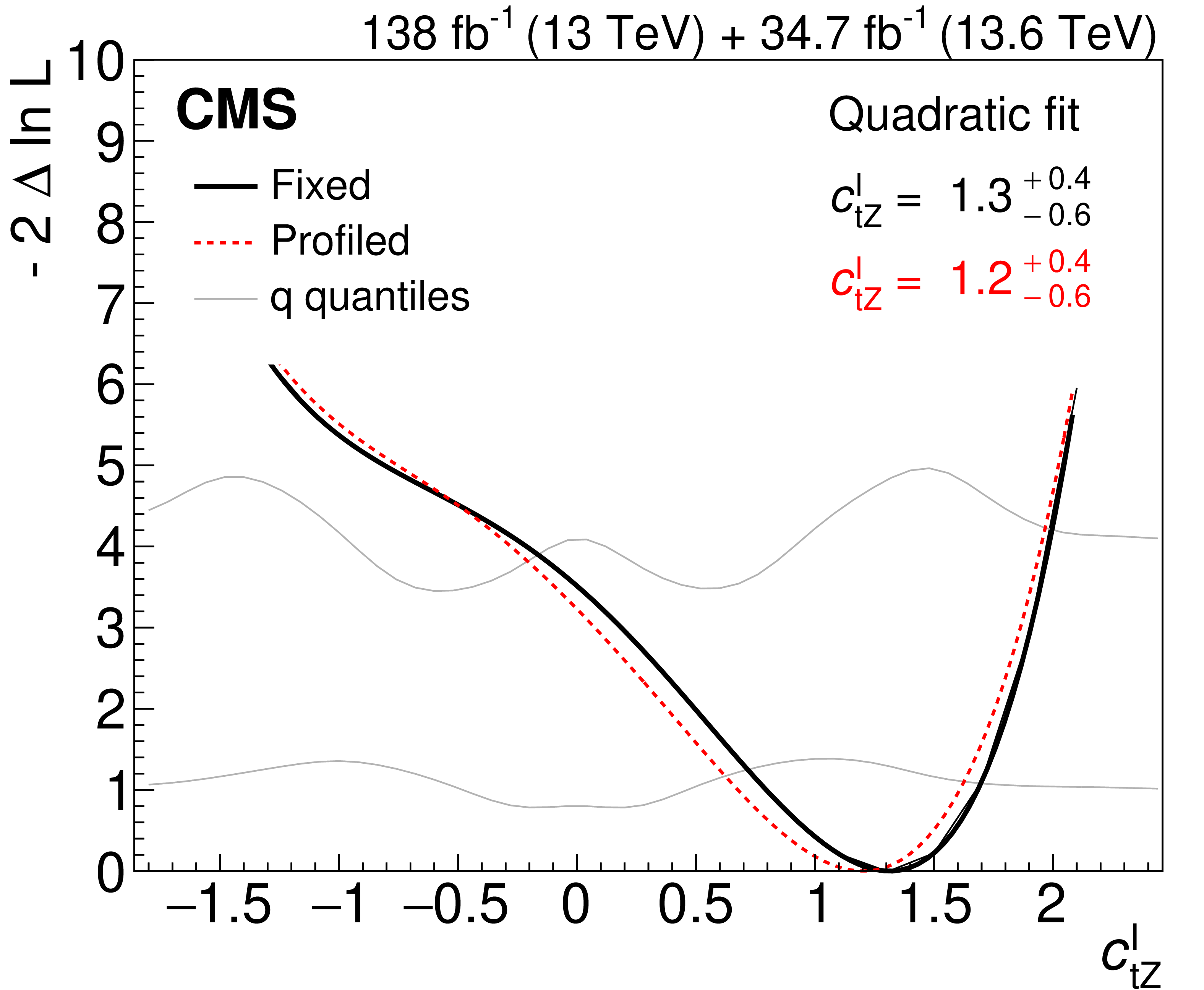

Figure 4-d:
Likelihood scans as a function of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ (upper row) and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ (lower row), separately for cases in which the other coefficient is set to zero (dark black solid line) or profiled (red dashed line). Plots in the left (right) column represent the linear (quadratic) fit. Light gray lines represent the quantiles of the test statistics. |
png pdf |

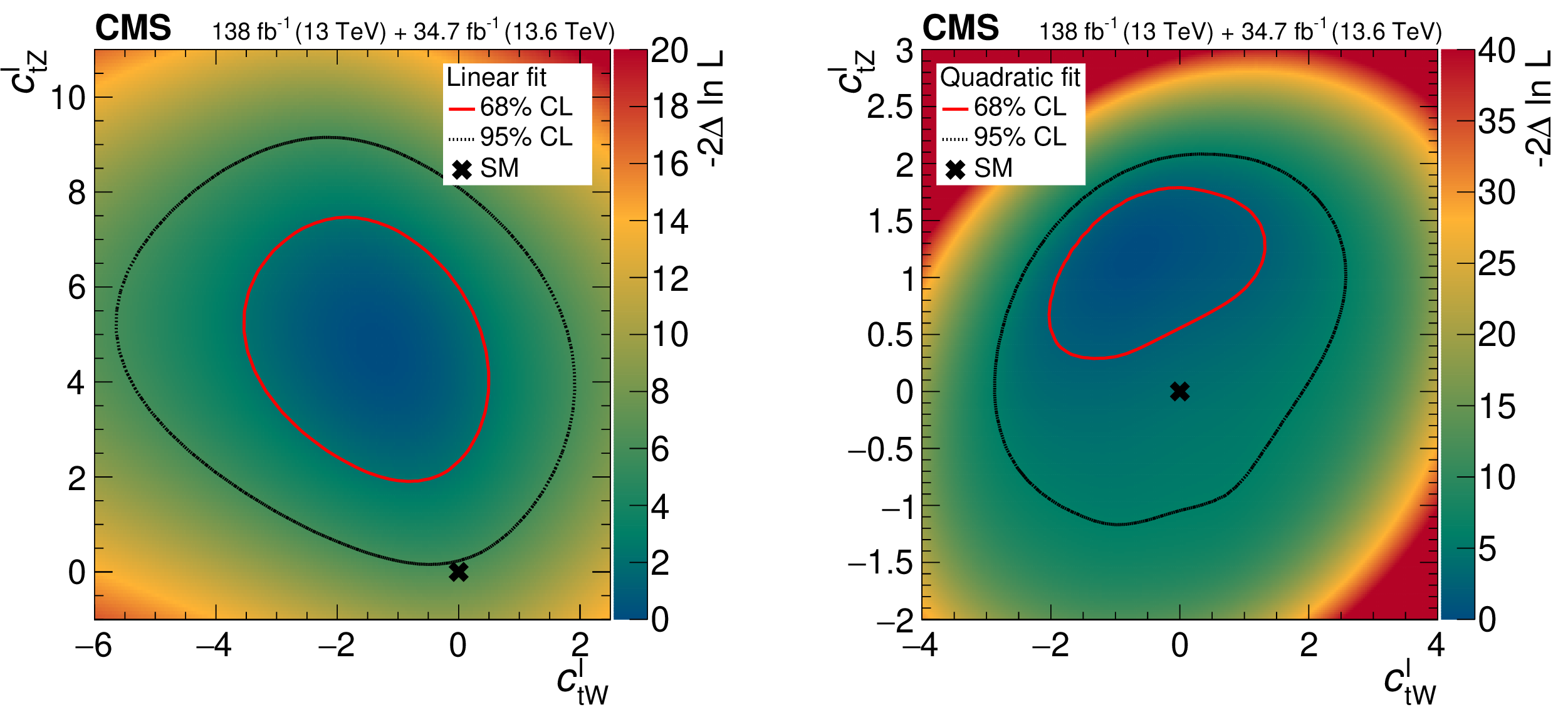

Figure 5:
Likelihood scans as functions of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $, including linear contributions only (left ) and both linear and quadratic contributions (right ). |
png pdf |

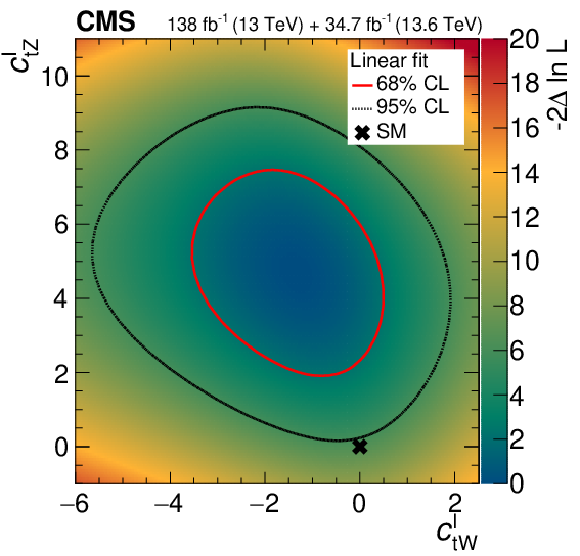

Figure 5-a:
Likelihood scans as functions of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $, including linear contributions only (left ) and both linear and quadratic contributions (right ). |
png pdf |

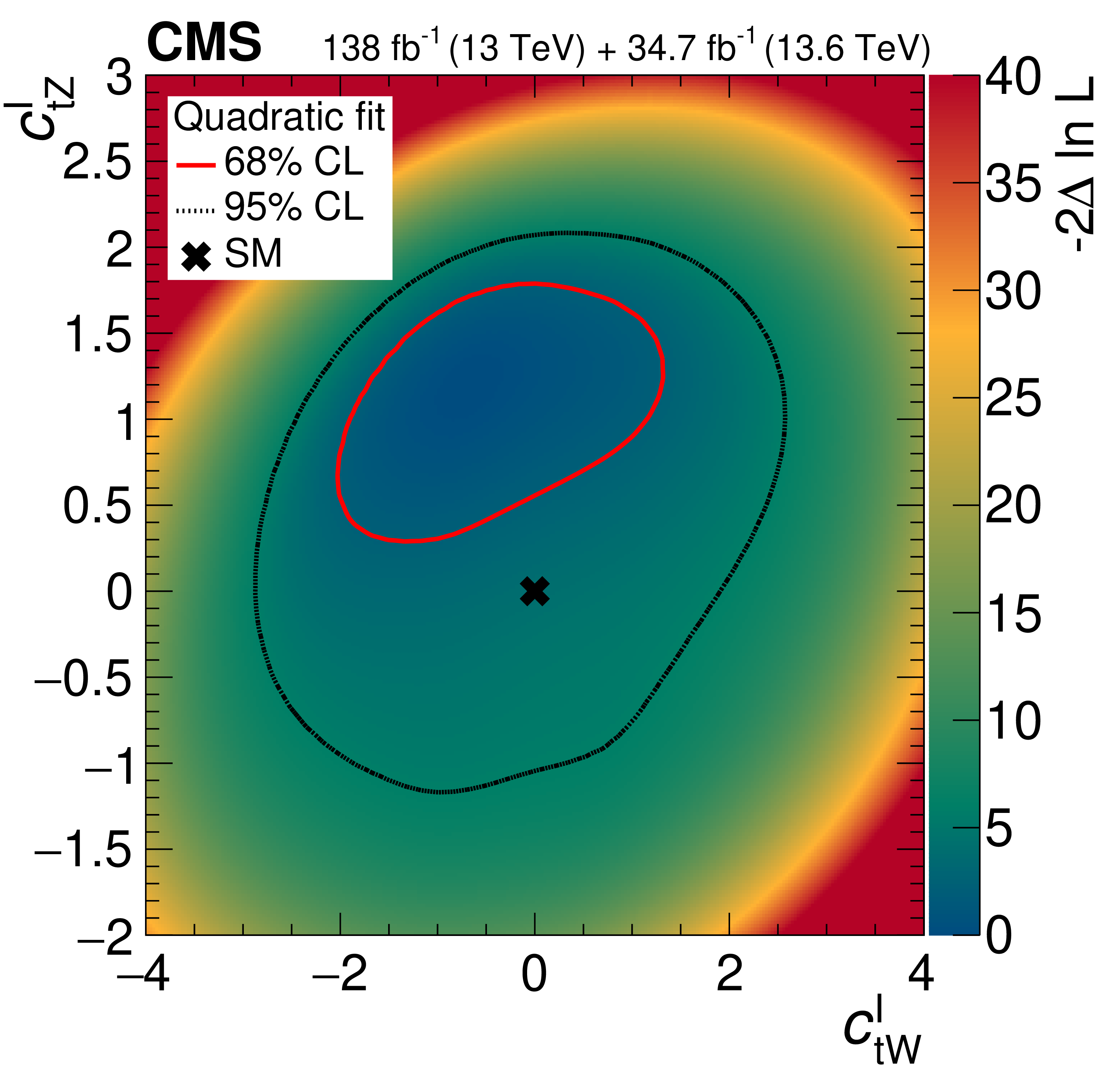

Figure 5-b:
Likelihood scans as functions of $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $, including linear contributions only (left ) and both linear and quadratic contributions (right ). |
| Summary |
| We have presented a search for additional sources of the charge-parity (CP) symmetry violation in the associated production of top quarks and a Z boson, in particular, for $ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z} $ and $ \mathrm{t}\mathrm{Z}\mathrm{q} $ production in final states with at least three leptons. The search is performed in a sample of proton-proton collision data at center-of-mass energies of 13 and 13.6 TeV corresponding to a total integrated luminosity of 173 fb$ ^{-1} $. The measurement uses, for the first time in this topology, CP-odd observables which are constructed using physics-informed machine-learning techniques. These observables are predicted by the standard model (SM) to be symmetrically distributed whereas asymmetries could arise from CP-violating effects. The results are generally consistent with the SM prediction. We set limits on the Wilson coefficients $ c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} $ and $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $ of $ -2.7 < c_{\mathrm{t}\mathrm{W}}^{\mathrm{I}} < $ 2.5 and $ -0.2 < c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} < $ 2.0, respectively, at 95% confidence level, considering the effect of both linear and quadratic terms, and profiling the other coefficient. The largest discrepancy is observed in $ c_{\mathrm{t}\mathrm{Z}}^{\mathrm{I}} $, for which data is consistent with positive values. When considering only linear terms, the observed local significance with respect to the SM hypothesis corresponds to 2.5 standard deviations. |
| References | ||||
| 1 | A. D. Sakharov | Violation of $ {CP} $ invariance, $ {C} $ asymmetry, and baryon asymmetry of the universe | Pisma Zh. Eksp. Teor. Fiz. 5 (1967) 32 | |
| 2 | C. Degrande et al. | Effective field theory: A modern approach to anomalous couplings | Annals Phys. 335 (2013) 21 | 1205.4231 |
| 3 | J. A. Aguilar-Saavedra et al. | Interpreting top-quark LHC measurements in the standard-model effective field theory | LHC TOP Working Group Public Note CERN-LPCC-2018-01, 2018 | 1802.07237 |
| 4 | ATLAS Collaboration | Inclusive and differential cross-section measurements of $ {{\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z}} $ production in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector, including EFT and spin-correlation interpretations | JHEP 07 (2024) 163 | 2312.04450 |
| 5 | ATLAS Collaboration | Observation of the associated production of a top quark and a Z boson in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | JHEP 07 (2020) 124 | 2002.07546 |
| 6 | CMS Collaboration | Measurement of top quark pair production in association with a Z boson in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 03 (2020) 056 | CMS-TOP-18-009 1907.11270 |
| 7 | CMS Collaboration | Inclusive and differential cross section measurements of single top quark production in association with a Z boson in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 02 (2022) 107 | CMS-TOP-20-010 2111.02860 |
| 8 | CMS Collaboration | Measurements of inclusive and differential cross sections for top quark production in association with a Z boson in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 02 (2025) 177 | CMS-TOP-23-004 2410.23475 |
| 9 | CMS Collaboration | Search for CP violation using $ \mathrm{t} \overline{\mathrm{t}} $ events in the lepton+jets channel in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 13 TeV | JHEP 06 (2023) 81 | CMS-TOP-20-005 2205.02314 |
| 10 | M. Raissi, P. Perdikaris, and G. E. Karniadakis | Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations | J. Comput. Phys. 378 (2019) 686 | 1711.10561 |
| 11 | ATLAS Collaboration | Measurements of inclusive and differential cross-sections of $ {{\mathrm{t}\overline{\mathrm{t}}} \gamma} $ production in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | JHEP 10 (2024) 191 | 2403.09452 |
| 12 | CMS Collaboration | Measurement of the inclusive and differential $ {{\mathrm{t}\overline{\mathrm{t}}} \gamma} $ cross sections in the single-lepton channel and EFT interpretation at $ \sqrt{s}= $ 13 TeV | JHEP 12 (2021) 180 | CMS-TOP-18-010 2107.01508 |
| 13 | CMS Collaboration | Measurement of the inclusive and differential $ {{\mathrm{t}\overline{\mathrm{t}}} \gamma} $ cross sections in the dilepton channel and effective field theory interpretation in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 05 (2022) 091 | CMS-TOP-21-004 2201.07301 |
| 14 | ATLAS Collaboration | Measurement of the polarisation of single top quarks and antiquarks produced in the $ t $-channel at $ \sqrt{s}= $ 13 TeV and bounds on the $ {\mathrm{t}\mathrm{W}\mathrm{b}} $ dipole operator from the ATLAS experiment | JHEP 11 (2022) 040 | 2202.11382 |
| 15 | CMS Collaboration | HEPData record for this analysis | link | |
| 16 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 17 | CMS Collaboration | Development of the CMS detector for the CERN LHC \mboxRun 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 18 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 19 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 20 | CMS Collaboration | Performance of the CMS high-level trigger during LHC \mboxRun 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 21 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 22 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 23 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 24 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 25 | CMS Collaboration | Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_{\!\tau} $ in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P10005 | CMS-TAU-16-003 1809.02816 |
| 26 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in $ {\mathrm{p}\mathrm{p}} $ collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 27 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s}= $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 28 | CMS Collaboration | Measurement of the Higgs boson production rate in association with top quarks in final states with electrons, muons, and hadronically decaying tau leptons at $ \sqrt{s}= $ 13 TeV | EPJC 81 (2021) 378 | CMS-HIG-19-008 2011.03652 |
| 29 | CMS Collaboration | Muon identification using multivariate techniques in the CMS experiment in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 19 (2024) P02031 | CMS-MUO-22-001 2310.03844 |
| 30 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 31 | M. Cacciari, G. P. Salam, and G. Soyez | FASTJET user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 32 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 33 | D. Bertolini, P. Harris, M. Low, and N. Tran | Pileup per particle identification | JHEP 10 (2014) 059 | 1407.6013 |
| 34 | E. Bols et al. | Jet flavour classification using DeepJet | JINST 15 (2020) P12012 | 2008.10519 |
| 35 | CMS Collaboration | A first look at early 2022 proton-proton collisions at $ \sqrt{s}= $ 13.6 TeV for heavy-flavor jet tagging | CMS Detector Performance Note CMS-DP-2023-012, 2023 CDS |
|
| 36 | CMS Collaboration | Performance summary of AK4 jet b tagging with data from proton-proton collisions at 13 TeV with the CMS detector | CMS Detector Performance Note CMS-DP-2023-005, 2023 CDS |
|
| 37 | J. Alwall et al. | The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations | JHEP 07 (2014) 079 | 1405.0301 |
| 38 | J. Alwall et al. | Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions | EPJC 53 (2008) 473 | 0706.2569 |
| 39 | P. Artoisenet, R. Frederix, O. Mattelaer, and R. Rietkerk | Automatic spin-entangled decays of heavy resonances in Monte Carlo simulations | JHEP 03 (2013) 015 | 1212.3460 |
| 40 | R. Frederix and S. Frixione | Merging meets matching in MC@NLO | JHEP 12 (2012) 061 | 1209.6215 |
| 41 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 42 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: the POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 43 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG \textscbox | JHEP 06 (2010) 043 | 1002.2581 |
| 44 | N. Kidonakis and C. Foster | Higher-order soft-gluon corrections for $ {{\mathrm{t}\overline{\mathrm{t}}} \mathrm{Z}} $ cross sections | PLB 860 (2025) 139146 | 2410.01214 |
| 45 | O. Mattelaer | On the maximal use of Monte Carlo samples: re-weighting events at NLO accuracy | EPJC 76 (2016) 674 | 1607.00763 |
| 46 | CMS Collaboration | Search for physics beyond the standard model in top quark production with additional leptons in the context of effective field theory | JHEP 12 (2023) 068 | CMS-TOP-22-006 2307.15761 |
| 47 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 48 | T. Sjöstrand et al. | An introduction to PYTHIA8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 49 | C. Bierlich et al. | A comprehensive guide to the physics and usage of PYTHIA8.3 | SciPost Phys. Codeb. 8 (2022) | 2203.11601 |
| 50 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 51 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 52 | Particle Data Group , S. Navas et al. | Review of particle physics | PRD 110 (2024) 030001 | |
| 53 | CMS Collaboration | Performance of electron reconstruction and selection with the CMS detector in proton-proton collisions at $ \sqrt{s}= $ 8 TeV | JINST 10 (2015) P06005 | CMS-EGM-13-001 1502.02701 |
| 54 | CMS Collaboration | Identification of heavy-flavour jets with the CMS detector in $ {\mathrm{p}\mathrm{p}} $ collisions at 13 TeV | JINST 13 (2018) P05011 | CMS-BTV-16-002 1712.07158 |
| 55 | CMS Collaboration | Measurements of inclusive W and Z cross sections in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 7 TeV | JHEP 01 (2011) 080 | CMS-EWK-10-002 1012.2466 |
| 56 | G. Panico, F. Riva, and A. Wulzer | Diboson interference resurrection | PLB 776 (2018) 473 | 1708.07823 |
| 57 | S. Bar-Shalom, A. Soni, and J. Wudka | Theoretical underpinnings of $ {CP} $-violation at the high-energy frontier | PLB 860 (2025) 139135 | 2407.19021 |
| 58 | Y. Afik et al. | Generic tests of $ {CP} $ violation in high-$ p_{\mathrm{T}} $ multilepton signals at the LHC and beyond | PRL 131 (2023) 171801 | 2212.09433 |
| 59 | S. S \'a nchez Cruz et al. | Equivariant neural networks for robust $ {CP} $ observables | PRD 110 (2024) 096023 | 2405.13524 |
| 60 | A. Paszke et al. | \textscPyTorch: An imperative style, high-performance deep learning library | in rd Conference on Neural Information Processing Systems (NeurIPS ): Vancouver, Canada, December 08--14,, 2019 Proc. 3 (2019) 3 |
1912.01703 |
| 61 | J. Brehmer, K. Cranmer, G. Louppe, and J. Pavez | Constraining effective field theories with machine learning | PRL 121 (2018) 111801 | 1805.00013 |
| 62 | et al. | LHC EFT WG report: Experimental measurements and observables | N.~Castro LHC EFT Working Group Public Note CERN-LHCEFTWG-2022-001, 2022 | 2211.08353 |
| 63 | M. Diehl and O. Nachtmann | Optimal observables for measuring three-gauge-boson couplings in $ {\mathrm{e}^+\mathrm{e}^-\to\mathrm{W^+}\mathrm{W^-}} $ | in Proc. Workshop \EE Collisions at \TeVns Energies: The Physics Potential (Part D): Annecy-le-Vieux, France, , ; Assergi, Italy, June 02--03, ; and Hamburg, Germany, August 30--September 01, , . . . [DESY-96-123D], 1995 February 0 (1995) 301 |
hep-ph/9603207 |
| 64 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s}= $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 65 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s}= $ 13 TeV | CMS Physics Analysis Summary, 2018 CMS-PAS-LUM-17-004 |
CMS-PAS-LUM-17-004 |
| 66 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s}= $ 13 TeV | CMS Physics Analysis Summary, 2019 CMS-PAS-LUM-18-002 |
CMS-PAS-LUM-18-002 |
| 67 | CMS Collaboration | Luminosity measurement in proton-proton collisions at 13.6 TeV in 2022 at CMS | CMS Physics Analysis Summary, 2024 CMS-PAS-LUM-22-001 |
CMS-PAS-LUM-22-001 |
| 68 | CMS Collaboration | Performance of the CMS muon trigger system in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 16 (2021) P07001 | CMS-MUO-19-001 2102.04790 |
| 69 | LHC Higgs Cross Section Working Group , D. de Florian et al. | Handbook of LHC Higgs cross sections: 4. Deciphering the nature of the Higgs sector | CERN Report CERN-2017-002-M, 2016 link |
1610.07922 |
| 70 | CMS Collaboration | Measurement of the inclusive and differential $ {\mathrm{W}\mathrm{Z}} $ production cross sections, polarization angles, and triple gauge couplings in $ {\mathrm{p}\mathrm{p}} $ collisions at $ \sqrt{s}= $ 13 TeV | JHEP 07 (2022) 032 | CMS-SMP-20-014 2110.11231 |
| 71 | CMS Collaboration | Measurements of $ {\mathrm{p}\mathrm{p}\to\mathrm{Z}\mathrm{Z}} $ production cross sections and constraints on anomalous triple gauge couplings at $ \sqrt{s}= $ 13 TeV | EPJC 81 (2021) 200 | CMS-SMP-19-001 2009.01186 |
| 72 | R. Barlow and C. Beeston | Fitting using finite Monte Carlo samples | Comput. Phys. Commun. 77 (1993) 219 | |
| 73 | CMS Collaboration | The CMS statistical analysis and combination tool: \textsccombine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 74 | G. Cowan, K. Cranmer, E. Gross, and O. Vitells | Asymptotic formulae for likelihood-based tests of new physics | EPJC 71 (2011) 1554 | 1007.1727 |
| 75 | F. U. Bernlochner, D. C. Fry, S. B. Menary, and E. Persson | Cover your bases: asymptotic distributions of the profile likelihood ratio when constraining effective field theories in high-energy physics | SciPost Phys. Core 6 (2023) 013 | 2207.01350 |
|
|
