| CMS-PAS-SMP-25-008 | ||
| Evidence of the dead-cone effect in bottom quark initiated jets | ||
| CMS Collaboration | ||
| 2026-03-27 | ||
| Abstract: The suppression of collinear gluon emissions from a massive quark, or the ``dead-cone effect,'' is the primary manifestation of quark mass effects in parton showers. A differential measurement is presented of the emission density of bottom quarks, studied as a function of the angular separation between the emissions from the same emitter. The measurement is performed in bottom quark initiated jets originating from top quark and antiquark production with transverse momenta between 40 and 200 GeV. A proton-proton collision dataset recorded by the CMS experiment at $ \sqrt{s}= $ 13 TeV with an integrated luminosity of $ {59.8 \text{fb}^{-1}} $ is analyzed. The measurement, corrected for detector effects, is compared to several simulation programs revealing that a parton shower model without the dead-cone effect is strongly disfavored by the data. | ||
| Links: CDS record (PDF) ; CADI line (restricted) ; | ||
| Figures | |
png pdf |
Figure 1:
An illustration of the iterative declustering of a b quark jet to construct the Lund Jet Plane (LJP). The upper diagram shows the showering of a b quark (pointing arrow) ordered in descending angular separation between the b quark and the gluon radiation (curly line). The pink cones along the direction of the emitters represent the dead cone, where collinear radiation is suppressed. The lower diagram shows the corresponding LJP, where each colored point corresponds to a declustering step in the upper diagram and the pink block indicates the region where emissions are suppressed by the dead-cone effect. |
png pdf |

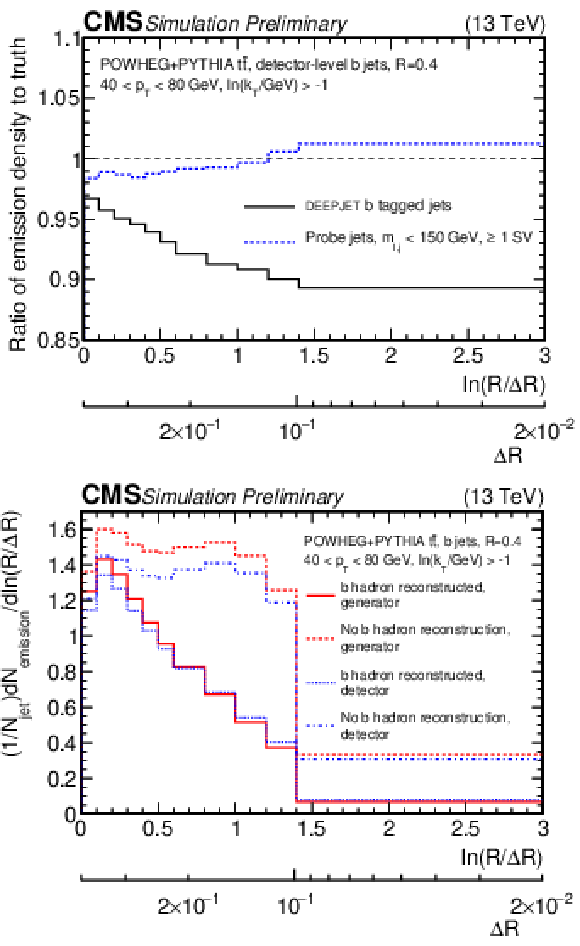

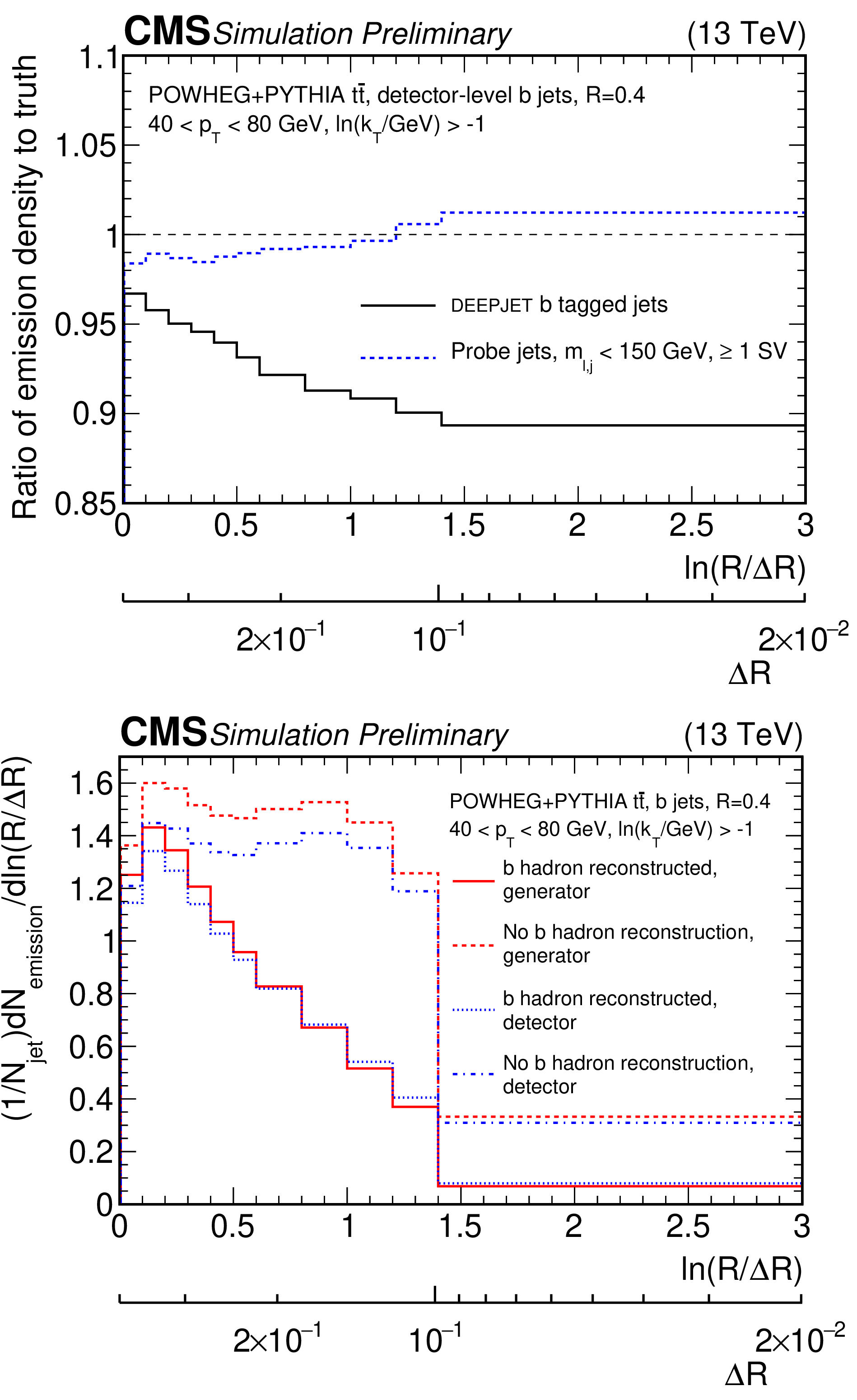

Figure 2:
(Upper) Ratio of the emission density distribution between the b quark jets selected using either the DEEPJET b tagger or the T&P method to the b quark jets selected using generator-level information. (Lower) The detector-level and generator-level emission density distribution for b quark jets with 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV in the POWHEG +PYTHIA\ $ \mathrm{t} \overline{\mathrm{t}} $ sample is shown with and without the partial b hadron reconstruction, either with generator-level information or with the transformer encoder. The statistical uncertainties are too small to be visible in either panel. |
png pdf |

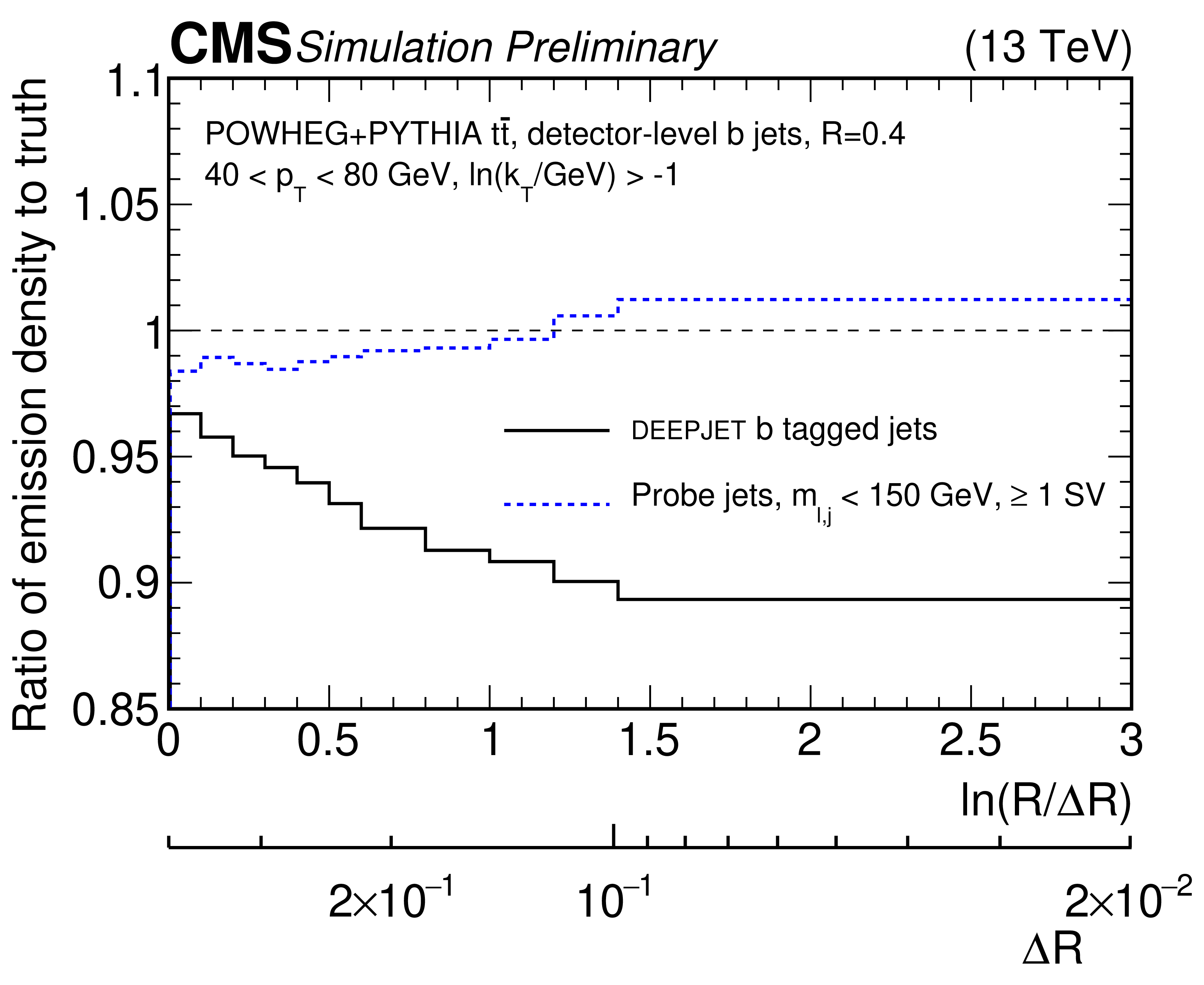

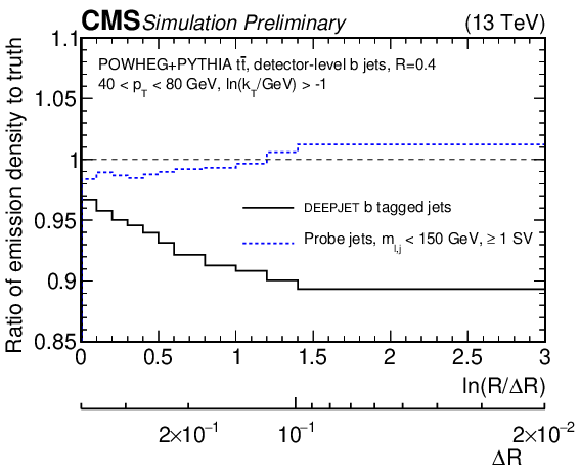

Figure 2-a:
(Upper) Ratio of the emission density distribution between the b quark jets selected using either the DEEPJET b tagger or the T&P method to the b quark jets selected using generator-level information. (Lower) The detector-level and generator-level emission density distribution for b quark jets with 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV in the POWHEG +PYTHIA\ $ \mathrm{t} \overline{\mathrm{t}} $ sample is shown with and without the partial b hadron reconstruction, either with generator-level information or with the transformer encoder. The statistical uncertainties are too small to be visible in either panel. |
png pdf |

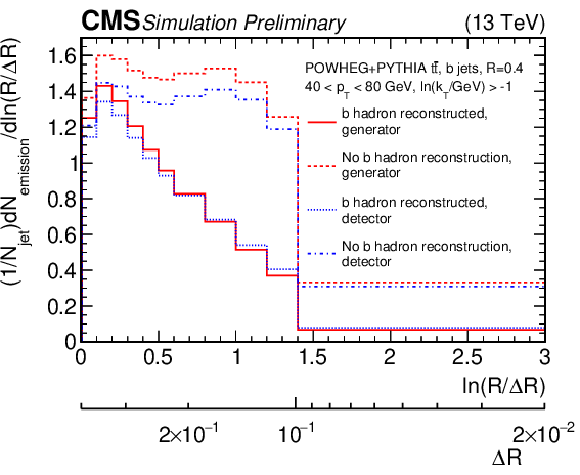

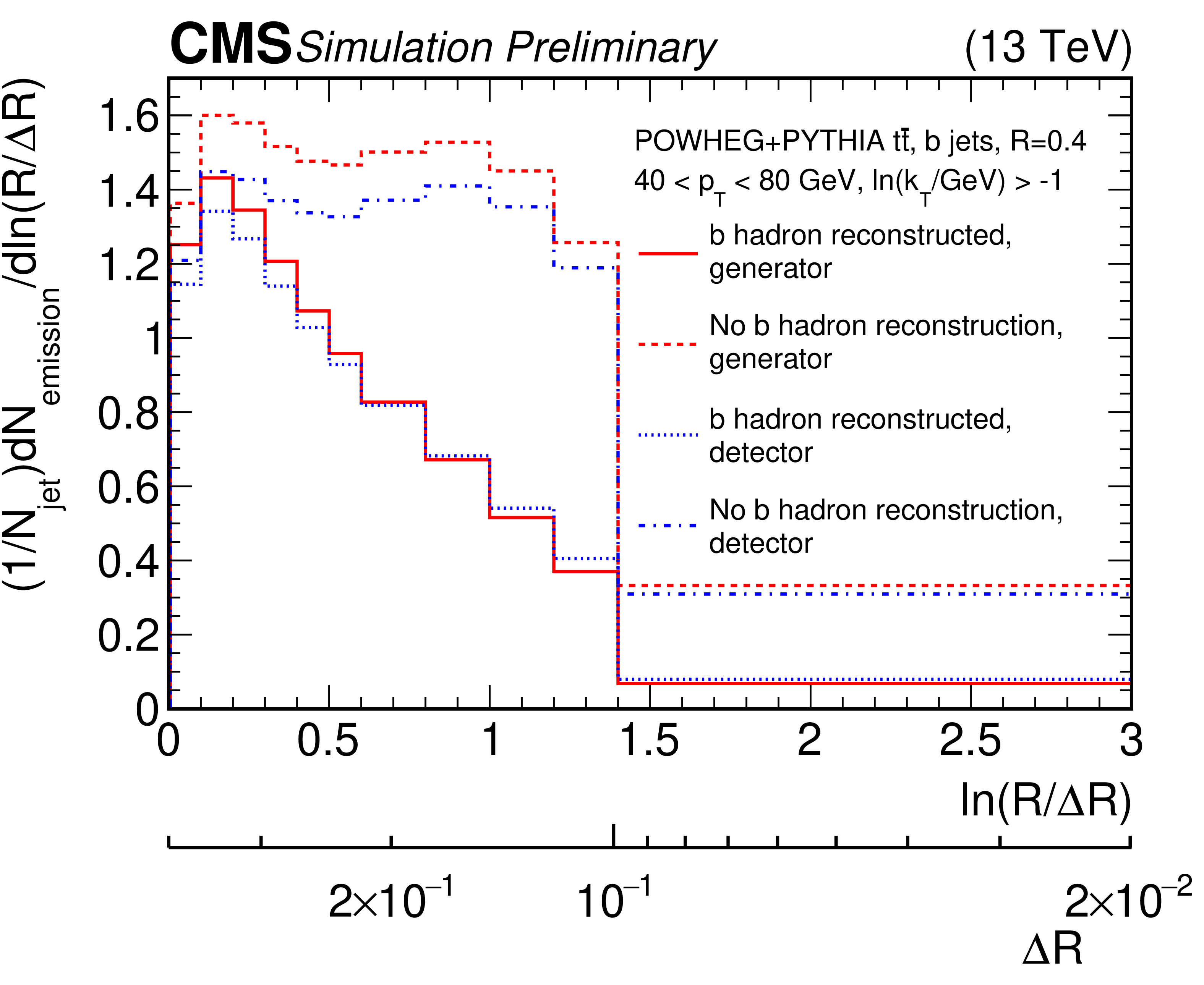

Figure 2-b:
(Upper) Ratio of the emission density distribution between the b quark jets selected using either the DEEPJET b tagger or the T&P method to the b quark jets selected using generator-level information. (Lower) The detector-level and generator-level emission density distribution for b quark jets with 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV in the POWHEG +PYTHIA\ $ \mathrm{t} \overline{\mathrm{t}} $ sample is shown with and without the partial b hadron reconstruction, either with generator-level information or with the transformer encoder. The statistical uncertainties are too small to be visible in either panel. |
png pdf |

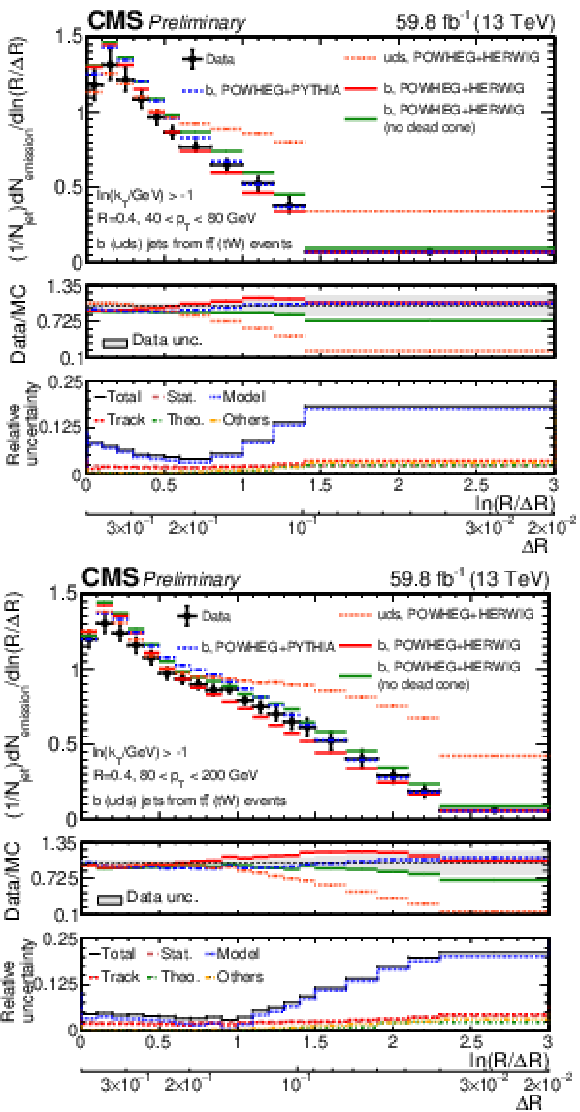

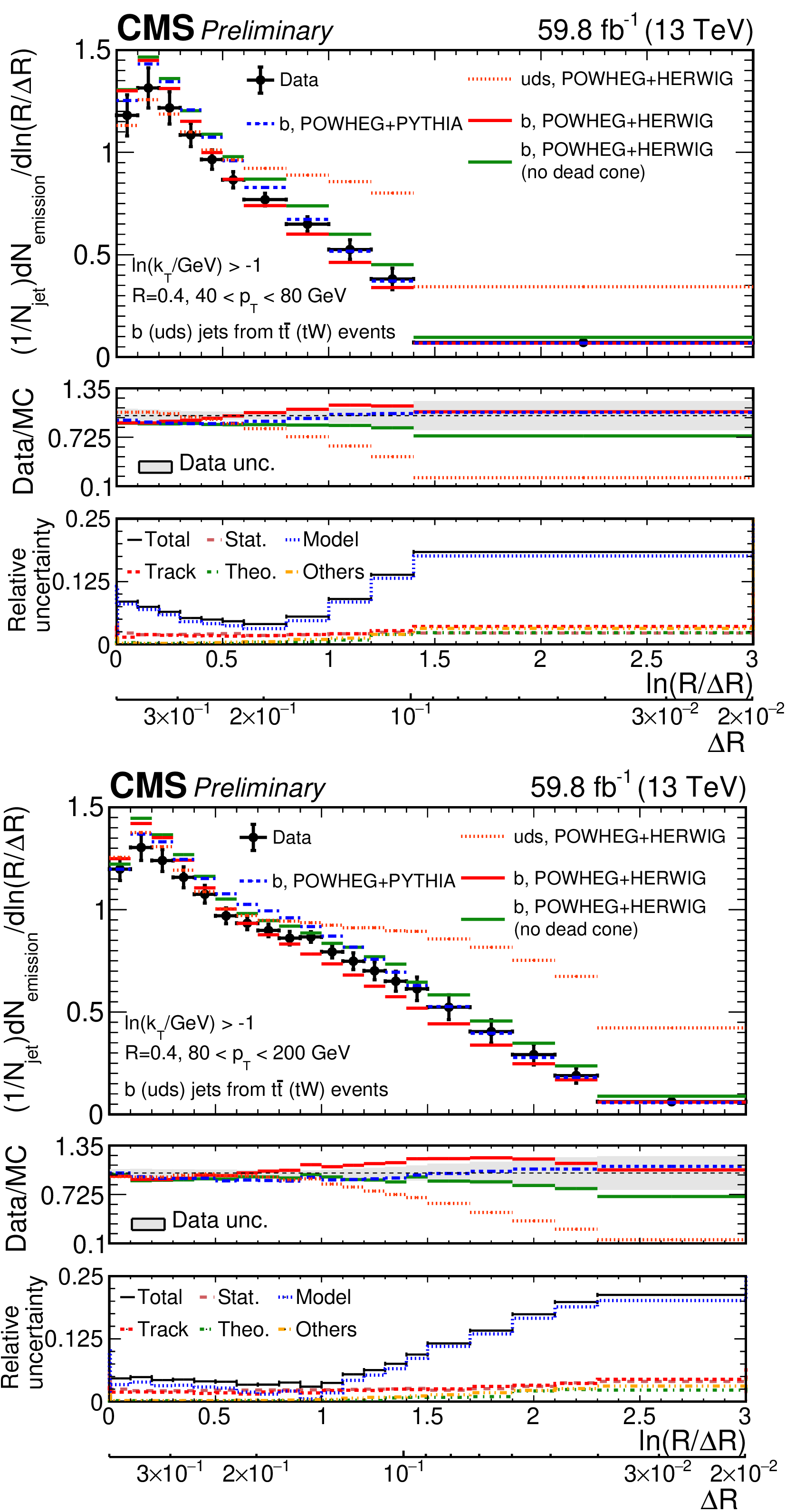

Figure 3:
The measured emission density is shown differentially in $ {\ln(R/{\Delta R})} $ bins for b quark jets with (upper) 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV and (lower) 80 $ {<}p_{\mathrm{T}}{<} $ 200 GeV. The vertical error bars represents the statistical and systematics uncertainties summed in quadrature. The generator-level distributions from b quark jets selected in the dileptonic $ \mathrm{t} \overline{\mathrm{t}} $ samples generated with POWHEG +PYTHIA, and HERWIG with nominal or massless splitting kernels are shown. The generator-level distributions from light quark jets selected in the POWHEG + HERWIG $ \mathrm{t}\mathrm{W} $ sample are also shown. The middle panels show the ratio of the data to the MC predictions with a dashed line at one for reference. The total uncertainties of the data are shown as the gray band. The lower panels show the breakdown of the data uncertainties into various sources. |
png pdf |

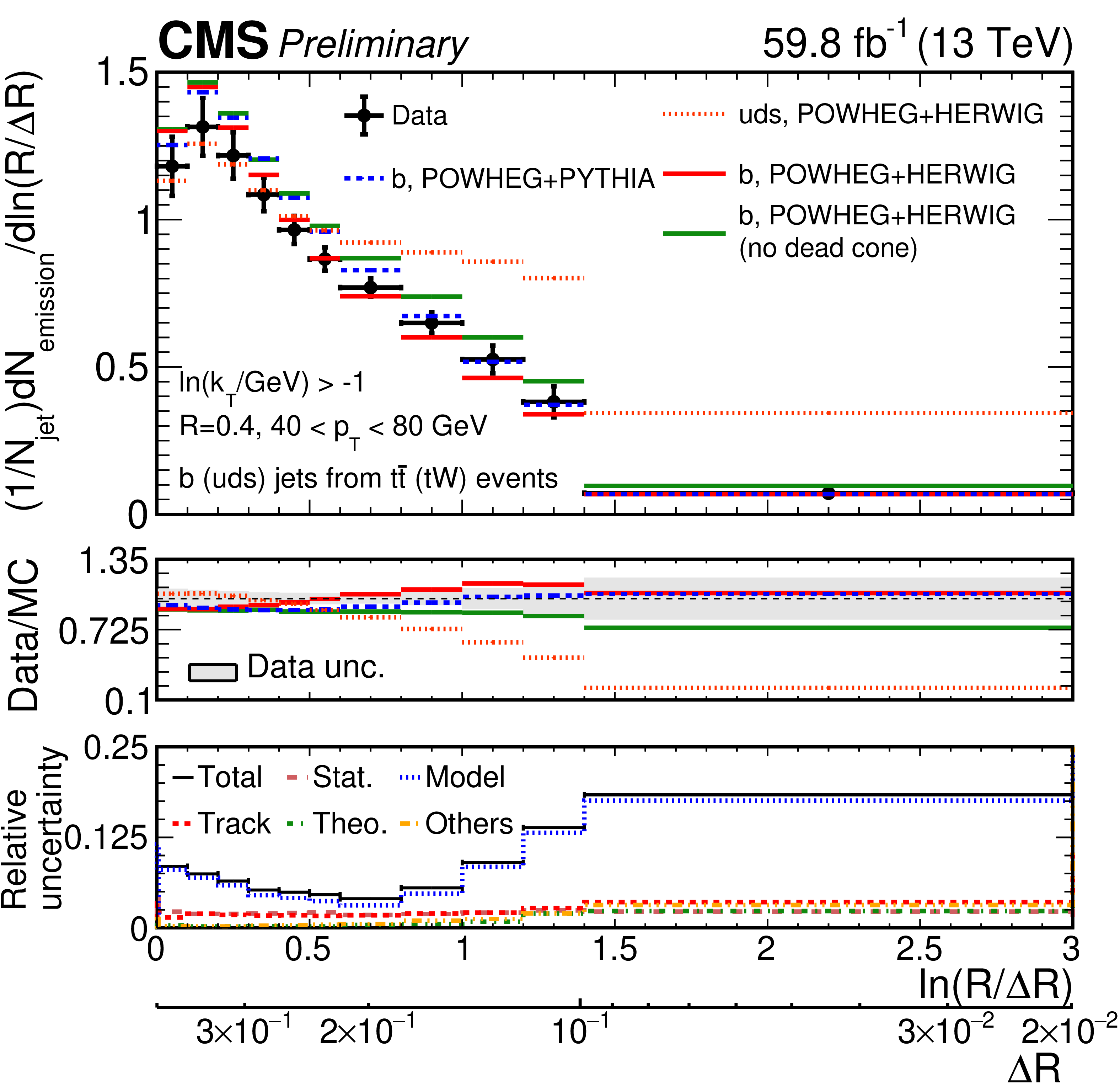

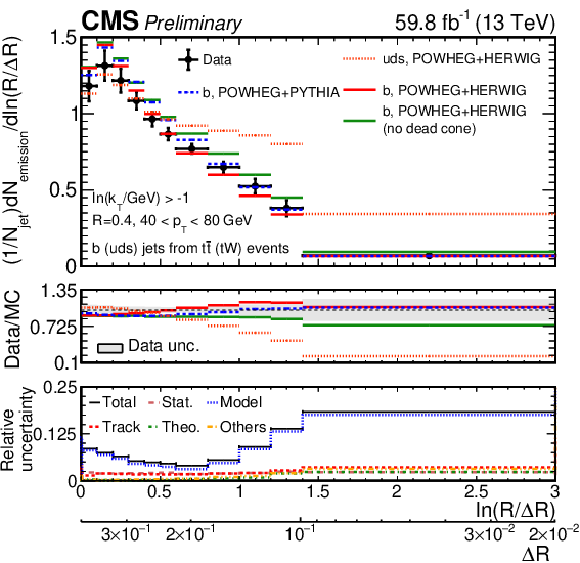

Figure 3-a:
The measured emission density is shown differentially in $ {\ln(R/{\Delta R})} $ bins for b quark jets with (upper) 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV and (lower) 80 $ {<}p_{\mathrm{T}}{<} $ 200 GeV. The vertical error bars represents the statistical and systematics uncertainties summed in quadrature. The generator-level distributions from b quark jets selected in the dileptonic $ \mathrm{t} \overline{\mathrm{t}} $ samples generated with POWHEG +PYTHIA, and HERWIG with nominal or massless splitting kernels are shown. The generator-level distributions from light quark jets selected in the POWHEG + HERWIG $ \mathrm{t}\mathrm{W} $ sample are also shown. The middle panels show the ratio of the data to the MC predictions with a dashed line at one for reference. The total uncertainties of the data are shown as the gray band. The lower panels show the breakdown of the data uncertainties into various sources. |
png pdf |

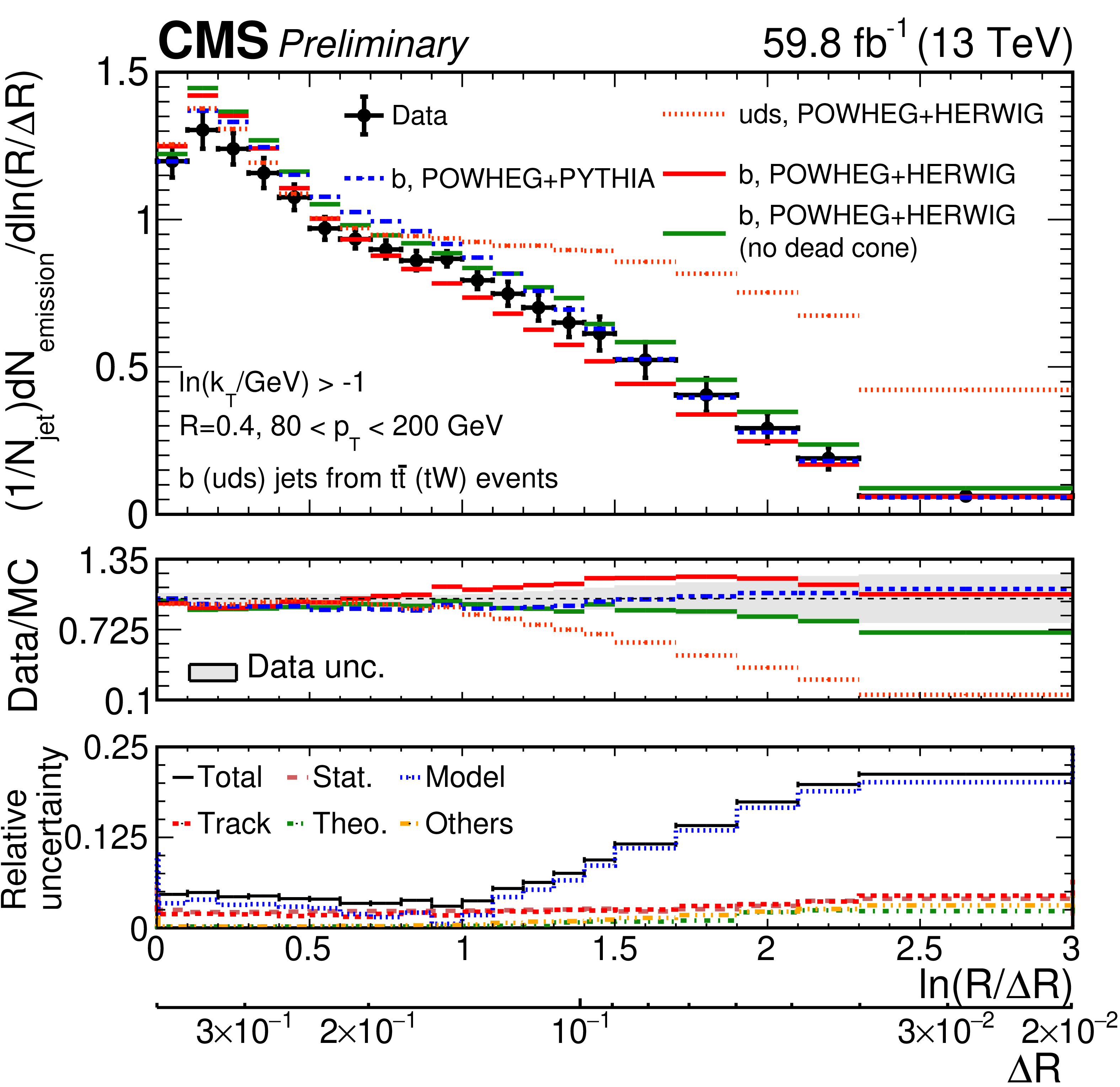

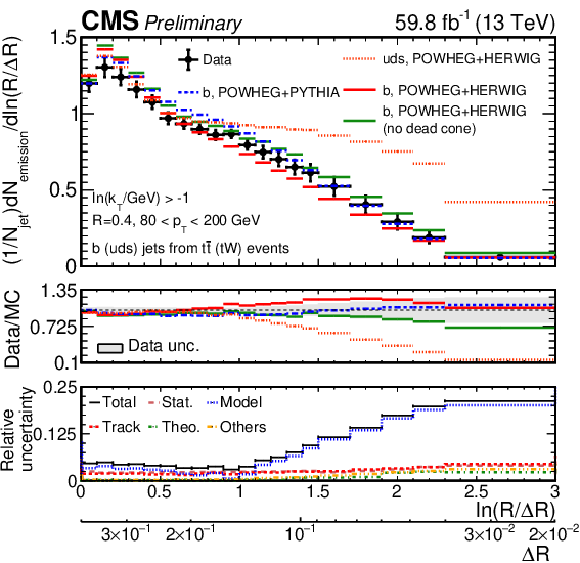

Figure 3-b:
The measured emission density is shown differentially in $ {\ln(R/{\Delta R})} $ bins for b quark jets with (upper) 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV and (lower) 80 $ {<}p_{\mathrm{T}}{<} $ 200 GeV. The vertical error bars represents the statistical and systematics uncertainties summed in quadrature. The generator-level distributions from b quark jets selected in the dileptonic $ \mathrm{t} \overline{\mathrm{t}} $ samples generated with POWHEG +PYTHIA, and HERWIG with nominal or massless splitting kernels are shown. The generator-level distributions from light quark jets selected in the POWHEG + HERWIG $ \mathrm{t}\mathrm{W} $ sample are also shown. The middle panels show the ratio of the data to the MC predictions with a dashed line at one for reference. The total uncertainties of the data are shown as the gray band. The lower panels show the breakdown of the data uncertainties into various sources. |
png pdf |

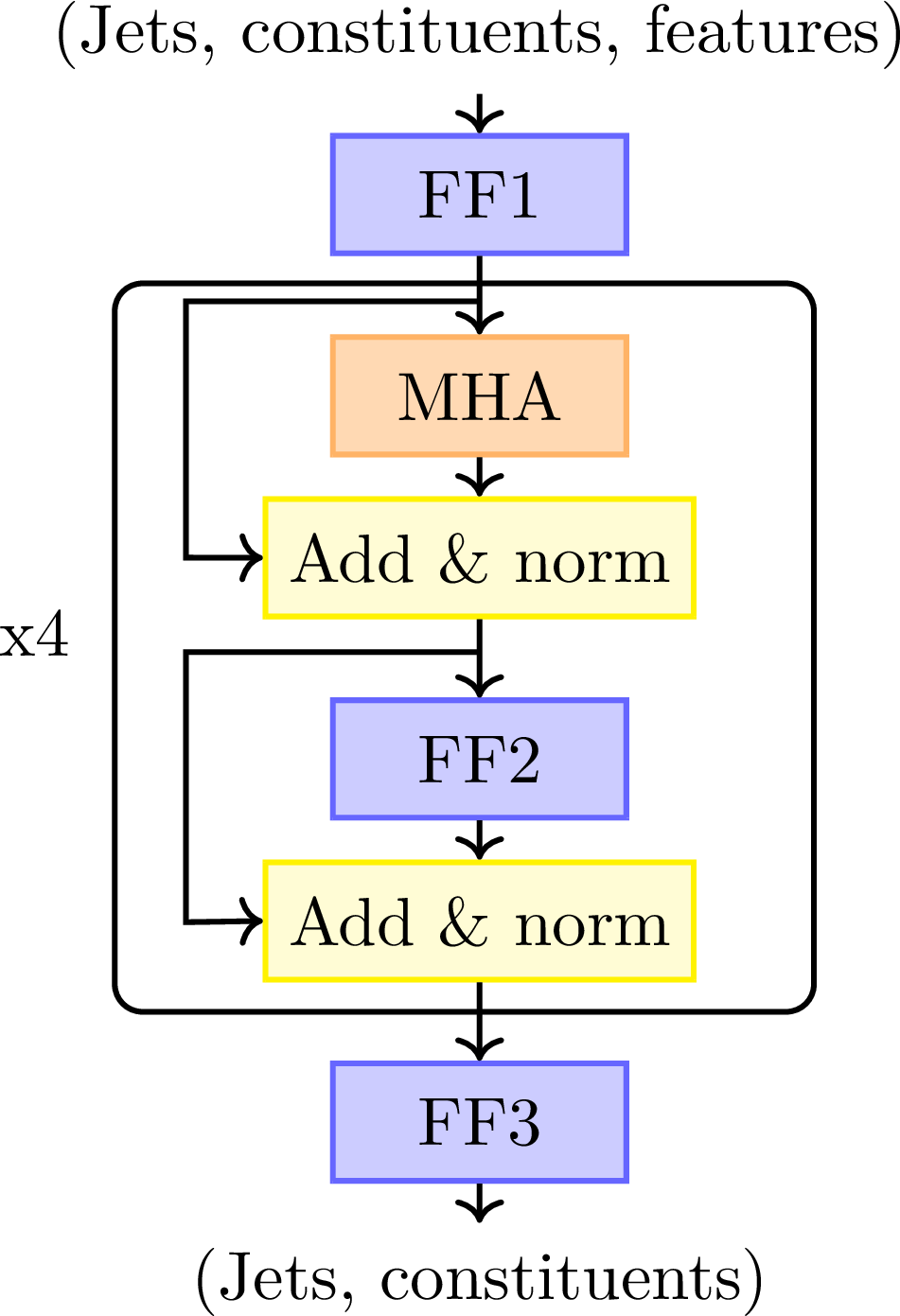

Figure A1:
Architecture of the transformer encoder (TFE) trained to identify b hadron decay products in jets. Input to the network are three-dimensional arrays that represent the number of jets, the number of constituents in a jet, and the number of features. The first feed forward (FF1) block is a single-layered dense network that expands the feature dimension to 128. This is followed by the multihead attention (MHA) block with four heads, and another FF block (FF2) with two layers. Both keeps 128 hidden dimensions. Skip connections and layer normalizations (Add & norm) are added in between the MHA and FF1, and after FF2. The MHA, FF2, and Add & norm blocks are repeated together for four times. The final block is a single-layered FF (FF3) that contracts the final output to two-dimensional arrays representing a sequence of probabilities for each constituent in a jet to be a b hadron decay product or not. |
| Tables | |
png pdf |

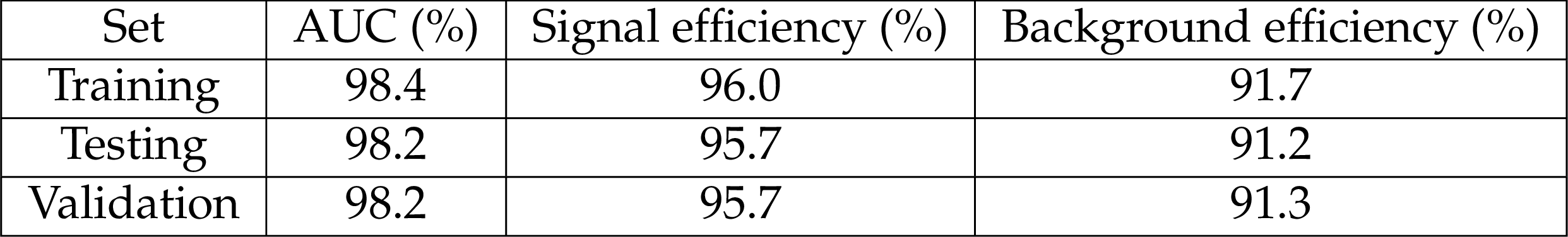

Table A1:
Performance of the TFE to identify b hadron decay products in jets in the training, testing, and validation sets of the POWHEG +PYTHIA dileptonic $ \mathrm{t} \overline{\mathrm{t}} $ sample. |
| Summary |
| In summary, a measurement of the emission density distribution in bottom quark initiated jets (b jets) from $\text{t}\bar{\text{t}}$ events in proton-proton collisions at $ \sqrt{s}= $ 13 TeV with the CMS detector is presented. A sample of b jets with minimized biases is selected with a tag-and-probe method. A transformer encoder is trained to partially reconstruct b hadrons in jets and preserve the angle-ordered emission history. The measured emission density distribution, corrected for detector effects, shows a suppression of collinear emissions relative to a {POWHEG v2.0} + {HERWIG v7.2.2} massless parton shower prediction for b jets with 40 $ {<}p_{\mathrm{T}}{<} $ 80 GeV. The measurement strongly disfavors the parton shower model without the dead-cone effect, and is in better agreement with the nominal massive parton shower. The distributions also show a strong suppression relative to a light quark baseline. This analysis provides a new benchmark for analytical quantum chromodynamics predictions including massive quark effects for parton shower model development, and for other studies of hadronic final states at high energies. |
| References | ||||
| 1 | G. P. Salam | Towards jetography | EPJC 67 (2010) 637 | 0906.1833 |
| 2 | A. J. Larkoski, I. Moult, and B. Nachman | Jet substructure at the large hadron collider: a review of recent advances in theory and machine learning | Phys. Rept. 841 (2020) 1 | 1709.04464 |
| 3 | S. Marzani, G. Soyez, and M. Spannowsky | Looking inside jets: an introduction to jet substructure and boosted-object phenomenology | volume 958. Springer, 2019 link |
|
| 4 | CMS Collaboration | Observation of Higgs boson decay to bottom quarks | PRL 121 (2018) 121801 | CMS-HIG-18-016 1808.08242 |
| 5 | CMS Collaboration | Search for nonresonant Higgs boson pair production in final states with two bottom quarks and two photons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 03 (2021) 257 | CMS-HIG-19-018 2011.12373 |
| 6 | CMS Collaboration | Search for Higgs boson pair production in the four b quark final state in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | PRL 129 (2022) 081802 | CMS-HIG-20-005 2202.09617 |
| 7 | CMS Collaboration | Search for nonresonant Higgs boson pair production in the four leptons plus two b jets final state in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 06 (2023) 130 | CMS-HIG-20-004 2206.10657 |
| 8 | CMS Collaboration | Measurement of the Higgs boson production rate in association with top quarks in final states with electrons, muons, and hadronically decaying tau leptons at $ \sqrt{s} = $ 13 TeV | EPJC 81 (2021) 378 | CMS-HIG-19-008 2011.03652 |
| 9 | CMS Collaboration | Measurement of the $ \textrm{t}\overline{\textrm{t}}\textrm{H} $ and tH production rates in the H $ \rightarrow \textrm{b}\overline{\textrm{b}} $ decay channel using proton-proton collision data at $ \sqrt{s} = $ 13 TeV | JHEP 02 (2025) 097 | CMS-HIG-19-011 2407.10896 |
| 10 | CMS Collaboration | Measurements of $ \mathrm{t\bar{t}}H $ production and the CP structure of the Yukawa interaction between the Higgs boson and top quark in the diphoton decay channel | PRL 125 (2020) 061801 | CMS-HIG-19-013 2003.10866 |
| 11 | CMS Collaboration | Simultaneous probe of the charm and bottom quark Yukawa couplings using ttH events | PRL 136 (2026) 011801 | CMS-HIG-24-018 2509.22535 |
| 12 | ATLAS and CMS Collaborations | Combination of measurements of the top quark mass from data collected by the ATLAS and CMS experiments at $ \sqrt{s} = $ 7 and 8 TeV | PRL 132 (2024) 261902 | 2402.08713 |
| 13 | CMS Collaboration | Review of top quark mass measurements in CMS | Phys. Rept. 1115 (2025) 116 | CMS-TOP-23-003 2403.01313 |
| 14 | CMS Collaboration | Measurement of differential $ t \bar t $ production cross sections in the full kinematic range using lepton+jets events from proton-proton collisions at $ \sqrt {s} = $ 13 TeV | PRD 104 (2021) 092013 | CMS-TOP-20-001 2108.02803 |
| 15 | ATLAS and CMS Collaborations | Combination of inclusive top-quark pair production cross-section measurements using ATLAS and CMS data at $ \sqrt{s} = $ 7 and 8 TeV | JHEP 07 (2023) 213 | 2205.13830 |
| 16 | CMS Collaboration | Measurement of differential $ \mathrm{t\bar{t}} $ production cross sections using top quarks at large transverse momenta in pp collisions at $ \sqrt{s} = $ 13 TeV | PRD 103 (2021) 052008 | CMS-TOP-18-013 2008.07860 |
| 17 | CMS Collaboration | Measurement of $ \mathrm{t\bar t} $ normalized multi-differential cross sections in pp collisions at $ \sqrt s= $ 13 TeV, and simultaneous determination of the strong coupling strength, top quark pole mass, and parton distribution functions | EPJC 80 (2020) 658 | CMS-TOP-18-004 1904.05237 |
| 18 | CMS Collaboration | First measurement of the top quark pair production cross section in proton-proton collisions at $ \sqrt{s} = $ 13.6 TeV | JHEP 08 (2023) 204 | CMS-TOP-22-012 2303.10680 |
| 19 | ATLAS Collaboration | Search for resonances in the mass distribution of jet pairs with one or two jets identified as b-jets in proton-proton collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PRD 98 (2018) 032016 | 1805.09299 |
| 20 | CMS Collaboration | Search for supersymmetry in proton-proton collisions at 13 TeV in final states with jets and missing transverse momentum | JHEP 10 (2019) 244 | CMS-SUS-19-006 1908.04722 |
| 21 | ATLAS Collaboration | Search for supersymmetry in final states with missing transverse momentum and three or more b-jets in 139 fb$ ^{-1} $ of proton-proton collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector | EPJC 83 (2023) 561 | 2211.08028 |
| 22 | Y. L. Dokshitzer, V. A. Khoze, and S. I. Troian | On specific QCD properties of heavy quark fragmentation ('dead cone') | JPG 17 (1991) 1602 | |
| 23 | Particle Data Group Collaboration | Review of particle physics | PRD 110 (2024) 030001 | |
| 24 | DELPHI Collaboration | Hadronization properties of b quarks compared to light quarks in e$ ^+ $ e$ ^- \to \mathrm{q} \overline{\mathrm{q}} $ from 183 to 200 GeV | PLB 479 (2000) 118 | hep-ex/0103022 |
| 25 | ATLAS Collaboration | Measurement of jet shapes in top-quark pair events at $ \sqrt{s} = $ 7 TeV using the ATLAS detector | EPJC 73 (2013) 2676 | 1307.5749 |
| 26 | ALICE Collaboration | Direct observation of the dead-cone effect in quantum chromodynamics | [Erratum: Nature 607, E22 ()], 2022 Nature 605 (2022) 440 |
2106.05713 |
| 27 | LHCb Collaboration | Measurement of the Lund plane for light- and beauty-quark jets | PRD 112 (2025) 072015 | 2505.23530 |
| 28 | CMS Collaboration | Jet fragmentation function and groomed substructure of bottom quark jets in proton-proton collisions at 5.02 TeV | Accepted by JHEP, 2025 | CMS-HIN-24-005 2511.10666 |
| 29 | CMS Collaboration | Exploring small-angle emissions in charm quark jets in proton-proton collisions at $ \sqrt{s} = $ 5.02 TeV | CMS-HIN-24-007 2507.13469 |
|
| 30 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at 13 tev with the CMS detector | CMS Physics Analysis Summary, 2025 CMS-PAS-LUM-20-001 |
CMS-PAS-LUM-20-001 |
| 31 | F. A. Dreyer, G. P. Salam, and G. Soyez | The Lund jet plane | JHEP 12 (2018) 064 | 1807.04758 |
| 32 | CMS Collaboration | Measurements of inclusive W and Z cross sections in pp collisions at $ \sqrt{s}= $ 7 TeV | JHEP 01 (2011) 080 | CMS-EWK-10-002 1012.2466 |
| 33 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 34 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 35 | ATLAS Collaboration | Explaining the ATLAS GN2 flavor tagging algorithm with integrated gradients | link | |
| 36 | CMS Collaboration | Identification of heavy-flavor jets with the CMS detector in pp collisions at 13 TeV | JINST 13 (2018) P05011 | CMS-BTV-16-002 1712.07158 |
| 37 | M. Dasgupta et al. | Parton showers beyond leading logarithmic accuracy | PRL 125 (2020) 052002 | 2002.11114 |
| 38 | A. Lifson, G. P. Salam, and G. Soyez | Calculating the primary Lund jet plane density | JHEP 10 (2020) 170 | 2007.06578 |
| 39 | A. Ghira, S. Marzani, and G. Soyez | The Lund b-jet plane | 2512.17408 | |
| 40 | B. Andersson, G. Gustafson, L. L ö nnblad, and U. Pettersson | Coherence effects in deep inelastic scattering | Z. Phys. C 43 (1989) 625 | |
| 41 | ATLAS Collaboration | Measurement of the Lund jet plane using charged particles in 13 TeV proton-proton collisions with the ATLAS detector | PRL 124 (2020) 222002 | 2004.03540 |
| 42 | ALICE Collaboration | Measurement of the primary Lund jet plane density in pp collisions at $ \sqrt{s} = \rm{13} $ TeV with ALICE | PoS EPS-HEP 364, 2022 link |
2111.00020 |
| 43 | CMS Collaboration | Measurement of the primary Lund jet plane density in proton-proton collisions at $ \sqrt{\textrm{s}} = $ 13 TeV | JHEP 05 (2024) 116 | CMS-SMP-22-007 2312.16343 |
| 44 | ATLAS Collaboration | Measurements of Lund subjet multiplicities in 13 TeV proton-proton collisions with the ATLAS detector | PLB 859 (2024) 139090 | 2402.13052 |
| 45 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_t $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 46 | Y. L. Dokshitzer, G. D. Leder, S. Moretti, and B. R. Webber | Better jet clustering algorithms | JHEP 08 (1997) 001 | hep-ph/9707323 |
| 47 | L. Cunqueiro and M. P\l osko \'n | Searching for the dead cone effects with iterative declustering of heavy-flavor jets | PRD 99 (2019) 074027 | 1812.00102 |
| 48 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 49 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 50 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 51 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 52 | CMS Collaboration | Performance of the CMS high-level trigger during LHC Run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 53 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 54 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 55 | CMS Collaboration | Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid | CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS |
|
| 56 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 57 | CMS Collaboration | Measurement of $ \mathrm{B}\bar{\mathrm{B}} $ angular correlations based on secondary vertex reconstruction at $ \sqrt{s}= $ 7 TeV | JHEP 03 (2011) 136 | CMS-BPH-10-010 1102.3194 |
| 58 | M. Cacciari, G. P. Salam, and G. Soyez | Fastjet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 59 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 60 | M. Cacciari and G. P. Salam | Pileup subtraction using jet areas | PLB 659 (2008) 119 | 0707.1378 |
| 61 | ATLAS Collaboration | Measurement of jet track functions in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PLB 868 (2025) 139680 | 2502.02062 |
| 62 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 63 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: The POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 64 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX | JHEP 06 (2010) 043 | 1002.2581 |
| 65 | S. Alioli et al. | Jet pair production in POWHEG | JHEP 04 (2011) 081 | 1012.3380 |
| 66 | S. Alioli, P. Nason, C. Oleari, and E. Re | NLO Higgs boson production via gluon fusion matched with shower in POWHEG | JHEP 04 (2009) 002 | 0812.0578 |
| 67 | E. Bagnaschi, G. Degrassi, P. Slavich, and A. Vicini | Higgs production via gluon fusion in the POWHEG approach in the SM and in the MSSM | JHEP 02 (2012) 088 | 1111.2854 |
| 68 | G. Heinrich et al. | NLO predictions for Higgs boson pair production with full top quark mass dependence matched to parton shower | JHEP 08 (2017) 088 | 1703.09252 |
| 69 | G. Buchalla et al. | Higgs boson pair production in non-linear effective field theory with full $ m_t $-dependence at NLO QCD | JHEP 09 (2018) 057 | 1806.05162 |
| 70 | R. Frederix and S. Frixione | Merging meets matching in MC@NLO | JHEP 12 (2012) 061 | 1209.6215 |
| 71 | T. Sj ö strand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 72 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 73 | NNPDF Collaboration Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 74 | J. Bellm et al. | herwig 7.0/herwig++ 3.0 release note | EPJC 76 (2016) 196 | 1512.01178 |
| 75 | CMS Collaboration | Development and validation of HERWIG 7 tunes from CMS underlying-event measurements | EPJC 81 (2021) 312 | CMS-GEN-19-001 2011.03422 |
| 76 | J. Bellm et al. | The physics of herwig 7 | 2512.16645 | |
| 77 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 78 | E. Bols et al. | Jet flavor classification using DeepJet | JINST 15 (2020) P12012 | 2008.10519 |
| 79 | A. Vaswani et al. | Attention is all you need | in the 31st International Conference on Neural Information Processing Systems. 201 (1900) 7 | 1706.03762 |
| 80 | G. D'Agostini | A multidimensional unfolding method based on Bayes' theorem | NIM A 362 (1995) 487 | |
| 81 | L. Brenner et al. | Comparison of unfolding methods using roofitunfold | Int. J. Mod. Phys. A 35 (2020) 2050145 | 1910.14654 |
| 82 | L. Demortier | P values and nuisance parameters | in Statistical issues for LHC physics. Proceedings, Workshop, PHYSTAT-LHC, Geneva, Switzerland, June 27-29,, 2007 link |
|
| 83 | CMS Collaboration | Tracking performances for charged pions with Run2 Legacy data | CDS | |
| 84 | J. Butterworth et al. | PDF4LHC recommendations for LHC Run II | JPG 43 (2016) 023001 | 1510.03865 |
| 85 | PDF4LHC Working Group Collaboration | The PDF4LHC21 combination of global PDF fits for the LHC Run III | JPG 49 (2022) 080501 | 2203.05506 |
| 86 | CMS Collaboration | Measurements of $ \mathrm{t\overline{t}} $ differential cross sections in proton-proton collisions at $ \sqrt{s}= $ 13 TeV using events containing two leptons | JHEP 02 (2019) 149 | CMS-TOP-17-014 1811.06625 |
| 87 | CMS Collaboration | Measurement of differential cross sections for top quark pair production using the lepton+jets final state in proton-proton collisions at 13 TeV | PRD 95 (2017) 092001 | CMS-TOP-16-008 1610.04191 |
| 88 | CMS Collaboration | Performance of b tagging algorithms in proton-proton collisions at 13 TeV with Phase 1 CMS detector | CMS Detector Performance Note, 2018 CDS |
|
| 89 | CMS Collaboration | Measurement of the inelastic proton-proton cross section at $ \sqrt{s}= $ 13 TeV | JHEP 07 (2018) 161 | CMS-FSQ-15-005 1802.02613 |
| 90 | A. Paszke et al. | PyTorch: an imperative style, high-performance deep learning library | 1912.01703 | |
| 91 | J. Ansel et al. | PyTorch 2: faster machine learning through dynamic python bytecode transformation and graph compilation | in the ACM International Conference on Architectural Support for Programming Languages and Operating Systems, ASPLOS '24, Association for Computing Machinery, 2024 Proceedings of the 2 (2024) 929 |
|
| 92 | I. Loshchilov and F. Hutter | Decoupled weight decay regularization | International Conference on Learning Representations. 201 (1900) 7 | 1711.05101 |
|
|
