| CMS-HIN-25-012 ; CERN-EP-2026-017 | ||
| Observation of the jet diffusion wake using dijets in heavy ion collisions | ||
| CMS Collaboration | ||
| 23 February 2026 | ||
| Submitted to Phys. Rev. Lett. | ||
| Abstract: Energetic quarks and gluons traversing a hot and dense quark-gluon plasma deposit energy and momentum into the medium before hadronizing to collimated sprays of particles, known as jets. This energy-momentum deposition is expected to produce medium responses, collectively known as jet wakes, with ``diffusion wake'' denoting a depletion of particles in the direction opposite to the propagating jet. These phenomena are studied by comparing dijet-hadron correlations measured in lead-lead (PbPb) and proton-proton ($ \text{pp} $) collisions to assess jet-induced modifications of bulk particle production. The analysis uses PbPb and $ \text{pp} $ data recorded at a nucleon-nucleon center-of-mass energy $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV with the CMS detector at the CERN LHC. By exploring how the dijet-hadron correlation distributions differ for various pseudorapidity separations of the two jets in the dijet, the presence of a jet diffusion wake is firmly established. The wake has a significance greater than 5 standard deviations for charged particles in the transverse momentum range 1 $ < p_{\mathrm{T}} < $ 2 GeV. The measurements are compared with various model predictions with and without jet wake effects, providing new insights into quark-gluon plasma properties and the formation of jet-induced wakes. | ||
| Links: e-print arXiv:2602.19431 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |
Figure 1:
The difference of the near-side charged-particle yields $ \text{R}^{\text{asym}}-\text{R}^{\text{sym}} $ as a function of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ in $ \text{pp} $ (blue squares) and different centrality PbPb collisions (red circles), with the most central (0--30%) shown in the right panels. Results are shown for two $ p_{\mathrm{T}}^{\text{ch}} $ ranges: 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV (upper) and 2 $ < p_{\mathrm{T}}^{\text{ch}} < $ 4 GeV (lower). Solid vertical lines (shaded areas) show statistical (systematic) uncertainties. |
png pdf |
Figure 2:
The difference of the near-side charged-particle yields $ \text{R}^{\text{asym}}-\text{R}^{\text{sym}} $ as a function of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ in $ \text{pp} $ (blue squares) and different centrality PbPb collisions (red circles), with the most central (0--30%) shown in the right panels. Results are shown for two $ p_{\mathrm{T}}^{\text{ch}} $\ ranges: 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV (upper) and 2 $ < p_{\mathrm{T}}^{\text{ch}} < $ 4 GeV (lower). Solid vertical lines (shaded areas) show statistical (systematic) uncertainties. |
png pdf |
Figure 3:
The difference between PbPb and $ \text{pp} $ collisions for the particle yield difference observable ($ \text{R}^{\text{asym}}-\text{R}^{\text{sym}} $) as a function of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ for central (0--30%) collisions. Results for 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV are shown for $ \text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (0.5, 1.0) $ (upper panel), $ |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0, 1.5) $ (upper middle panel), and $ |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.5, 2.0) $ (lower middle panel). The result for 2 $ < p_{\mathrm{T}}^{\text{ch}} < $ 4 GeV with $ \text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0, 1.5) $ is shown in the lower panel. Predictions from the PYTHIA [56,57,58,59], HYBRID [64,65], and CoLBT-hydro [66] models are shown as colored bands. Solid vertical lines (shaded areas) show statistical (systematic) uncertainties. For the models, only statistical uncertainties are shown. |
png pdf |

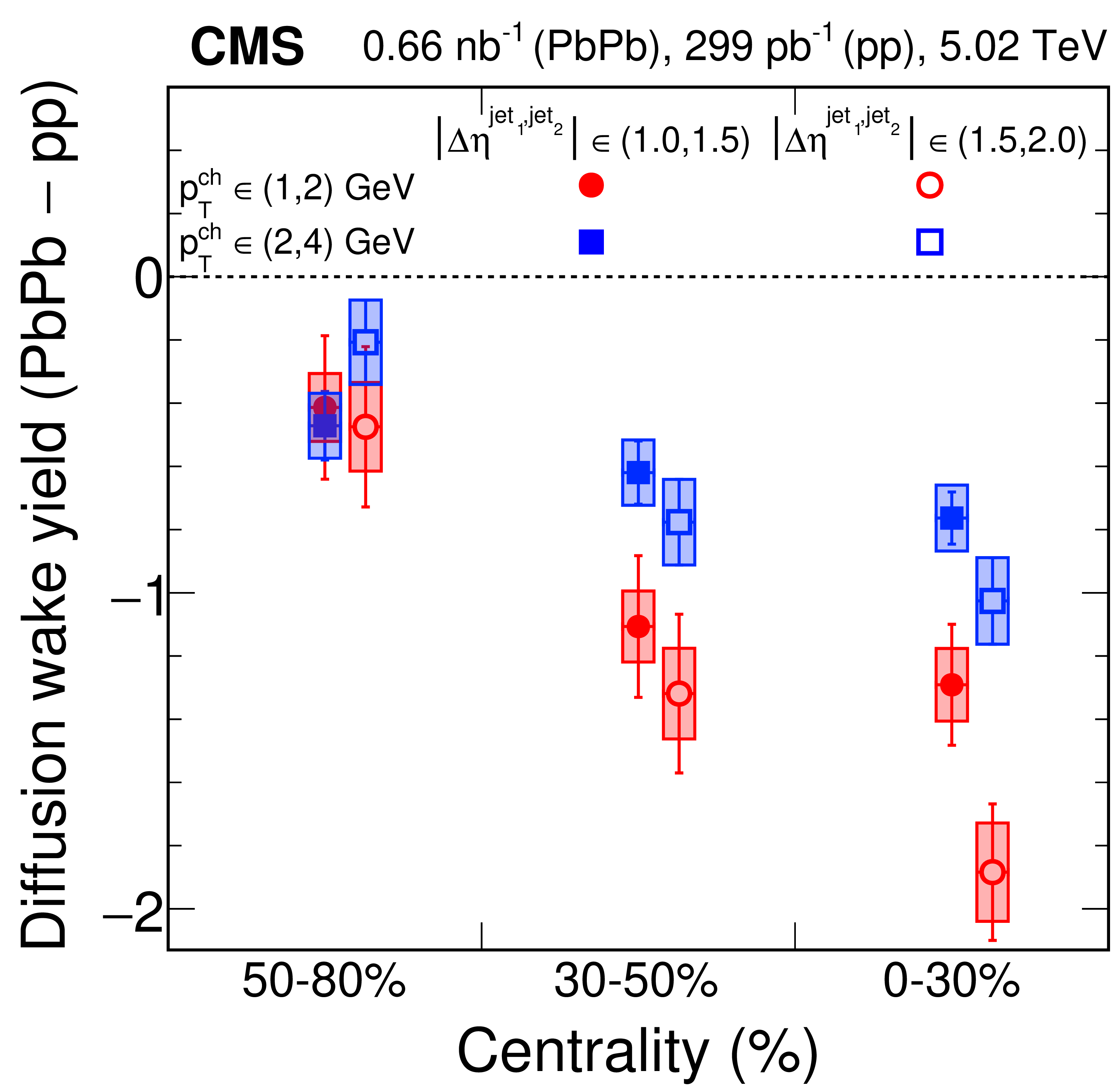

Figure 4:
Charged-particle yield difference integrated over $ -2.4 < \Delta\eta^{\text{ch}, \; \text{jet}_{1}} < - $ 0.6 as a function of PbPb collision centrality for $ |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0, 1.5) $ (closed markers) and $ |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.5, 2.0) $ (open markers). Red markers indicate 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV, and blue markers indicate 2 $ < p_{\mathrm{T}}^{\text{ch}} < $ 4 GeV. Solid vertical lines (shaded areas) show statistical (systematic) uncertainties. |
png pdf |

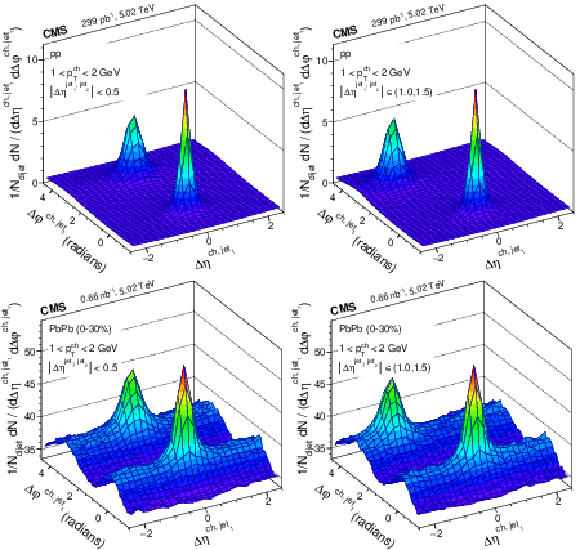

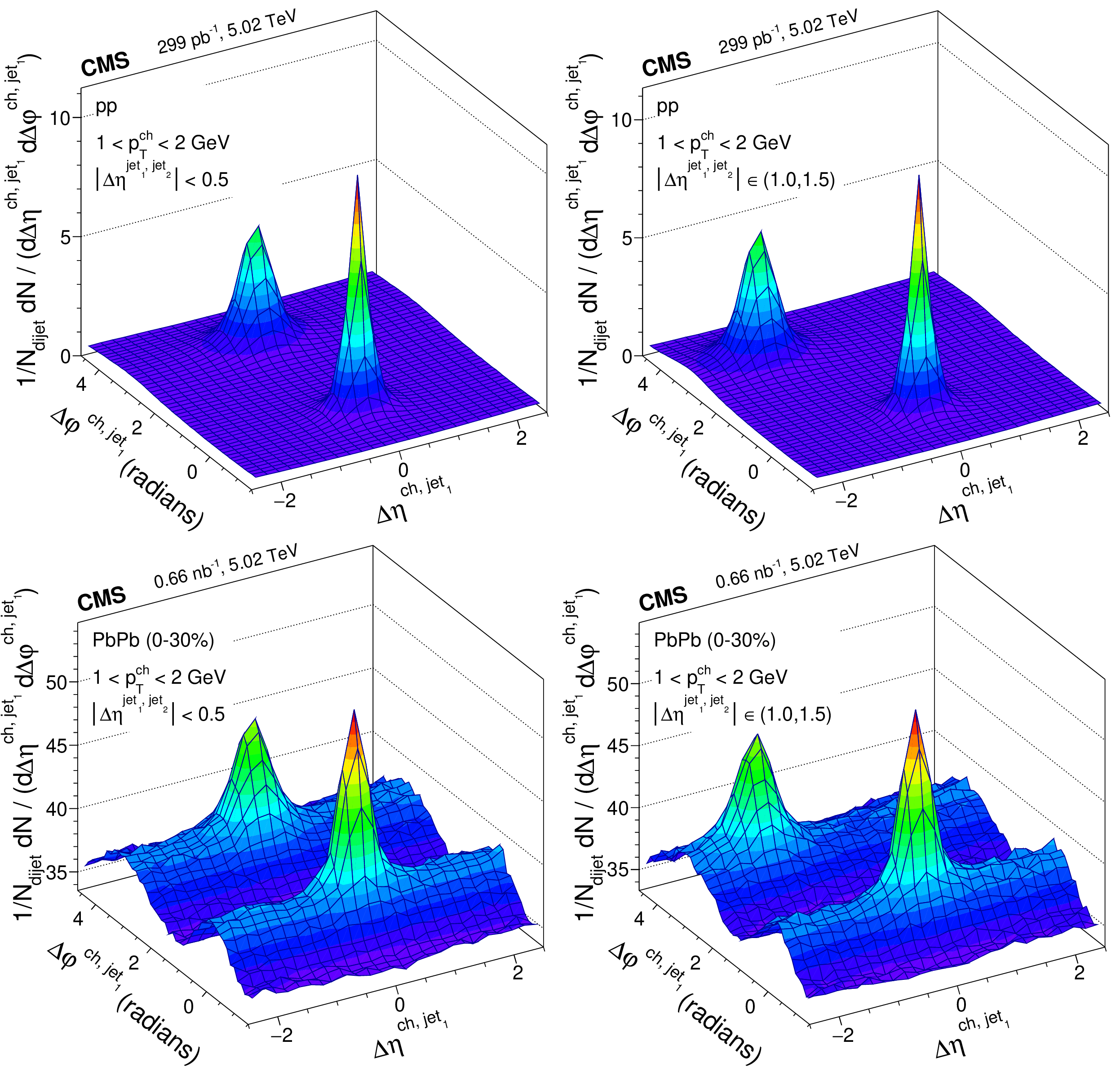

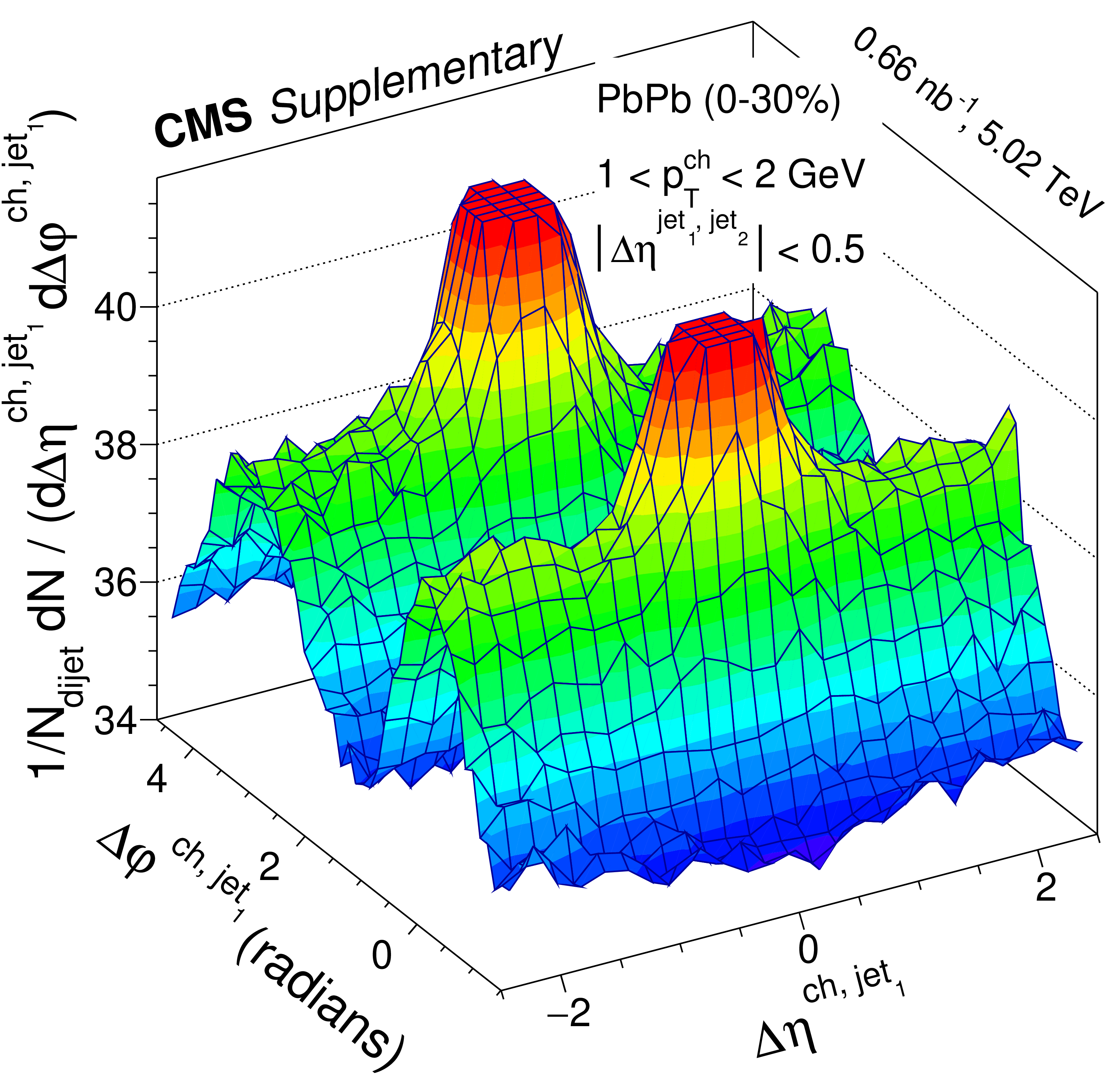

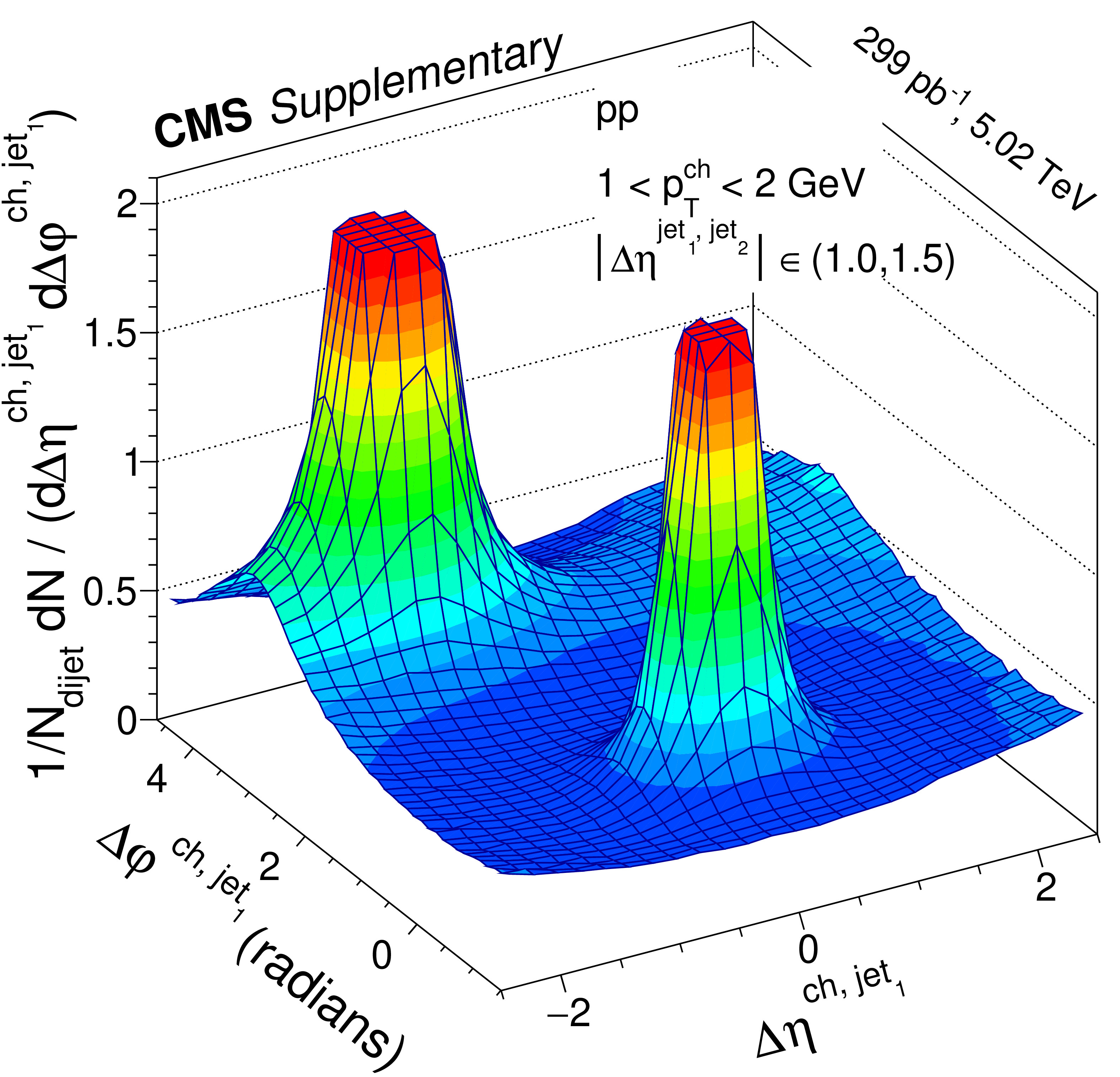

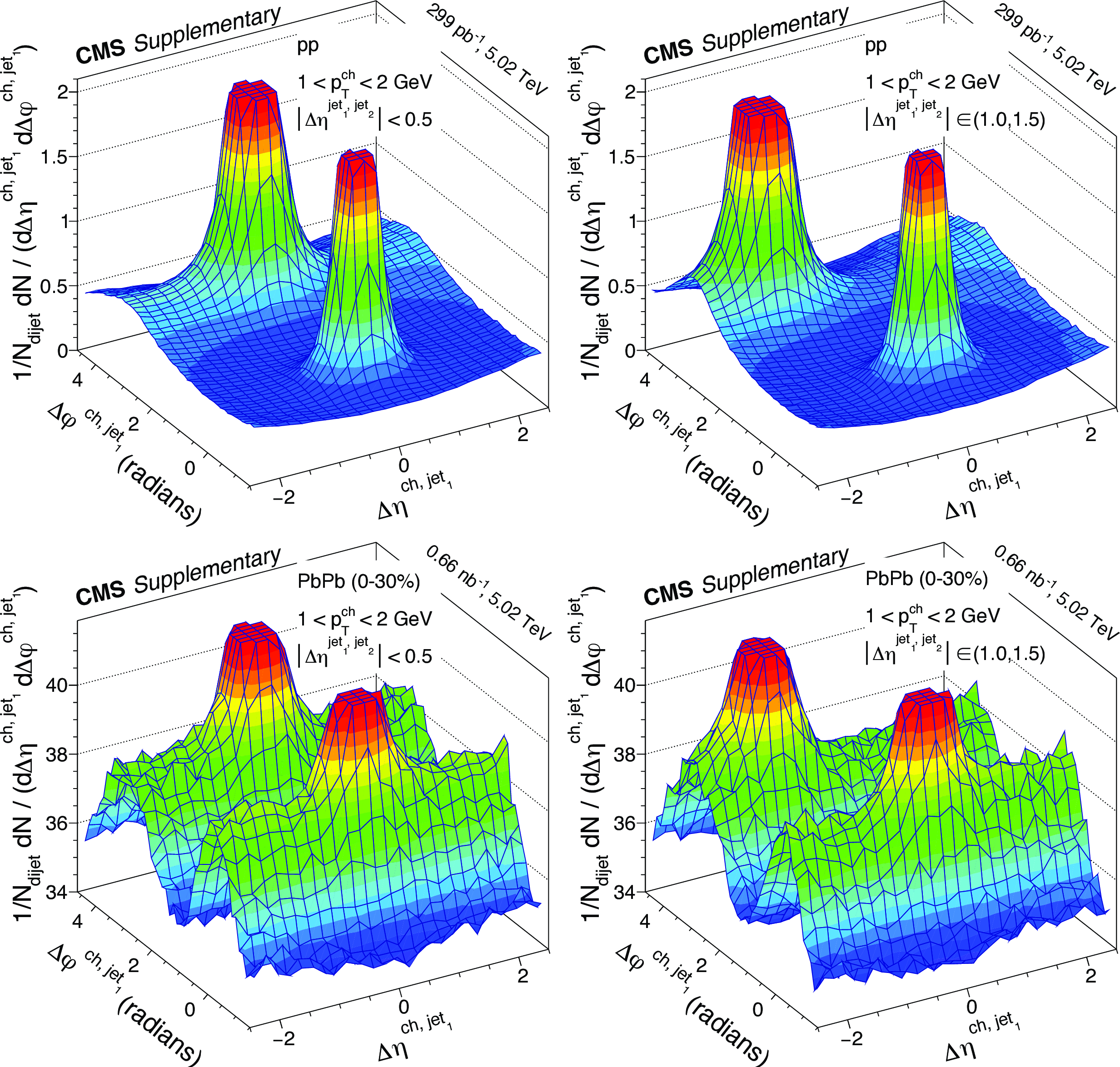

Figure B1:

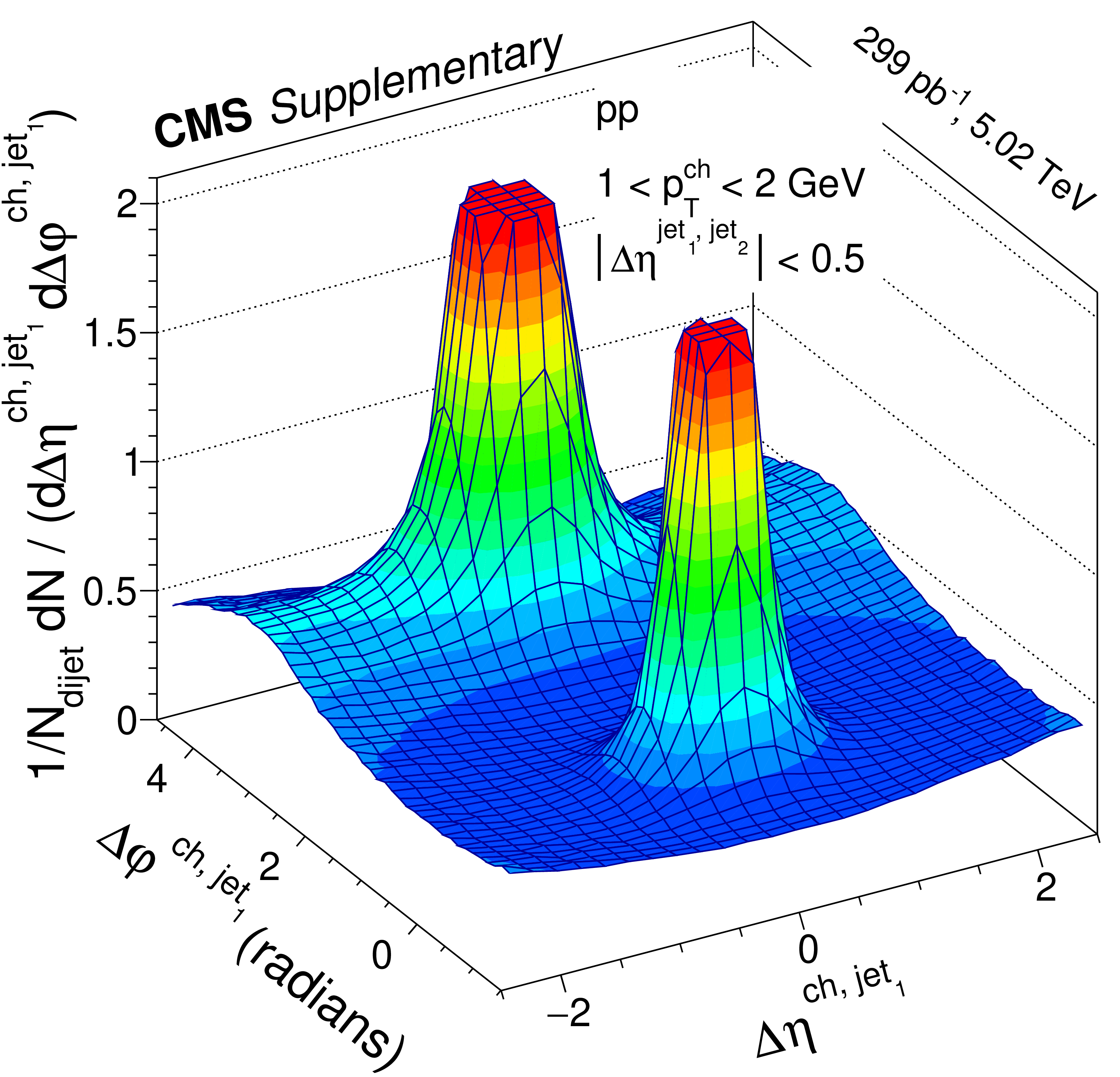

Distributions of charged-particle yields with 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV as functions of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ and $ \Delta\varphi^{\text{ch}, \; \text{jet}_{1}} $, measured relative to the leading jet direction in $ \text{pp} $ (upper panels) and 0--30% PbPb (lower panels) collisions. The left (right) column shows the results for small $ (\text{R}^{\text{sym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| < 0.5) $ and large $ (\text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0,1.5)) $ dijet configurations. |
png pdf |

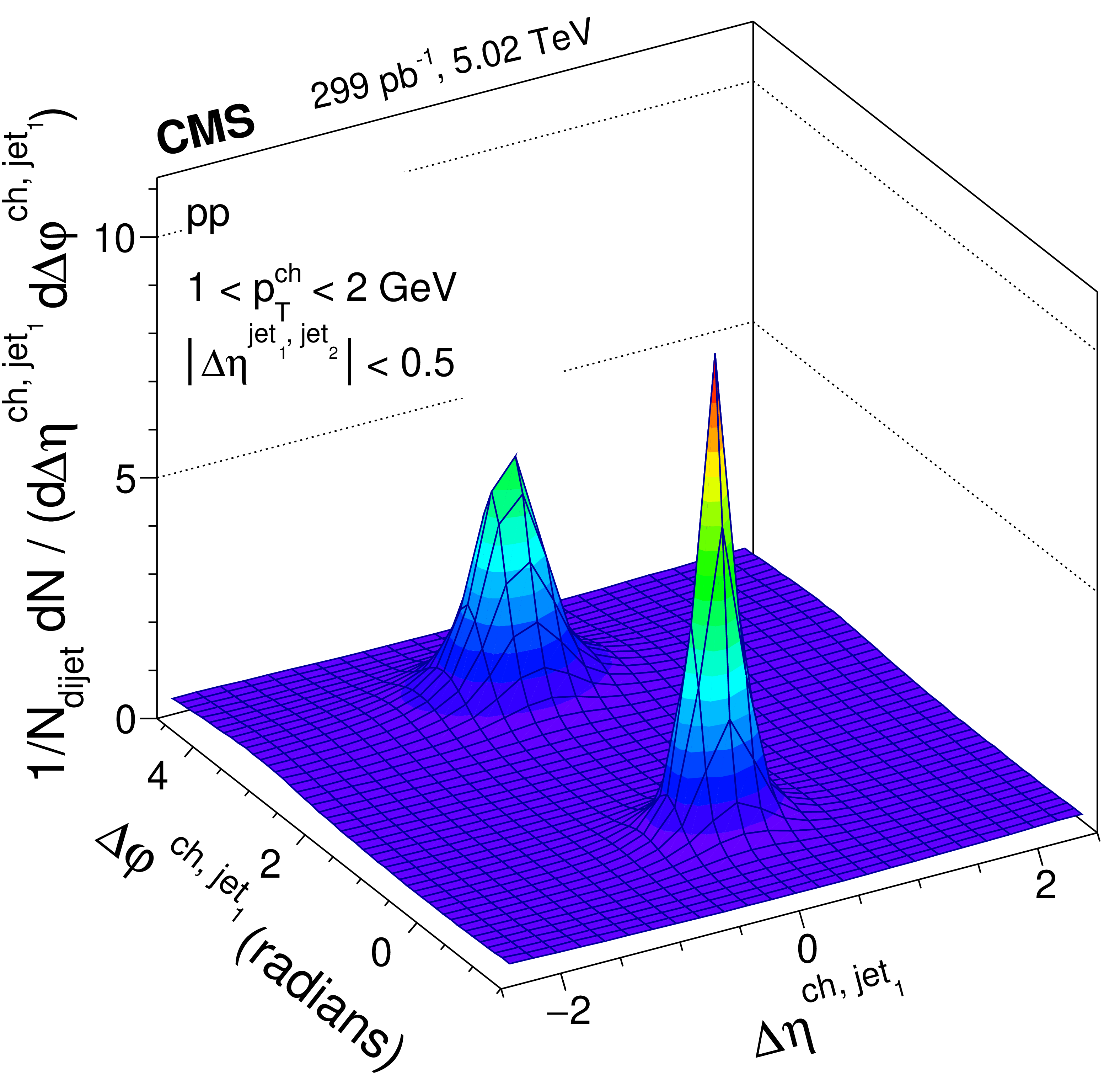

Figure B1-a:
Distributions of charged-particle yields with 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV as functions of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ and $ \Delta\varphi^{\text{ch}, \; \text{jet}_{1}} $, measured relative to the leading jet direction in $ \text{pp} $ (upper panels) and 0--30% PbPb (lower panels) collisions. The left (right) column shows the results for small $ (\text{R}^{\text{sym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| < 0.5) $ and large $ (\text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0,1.5)) $ dijet configurations. |
png pdf |

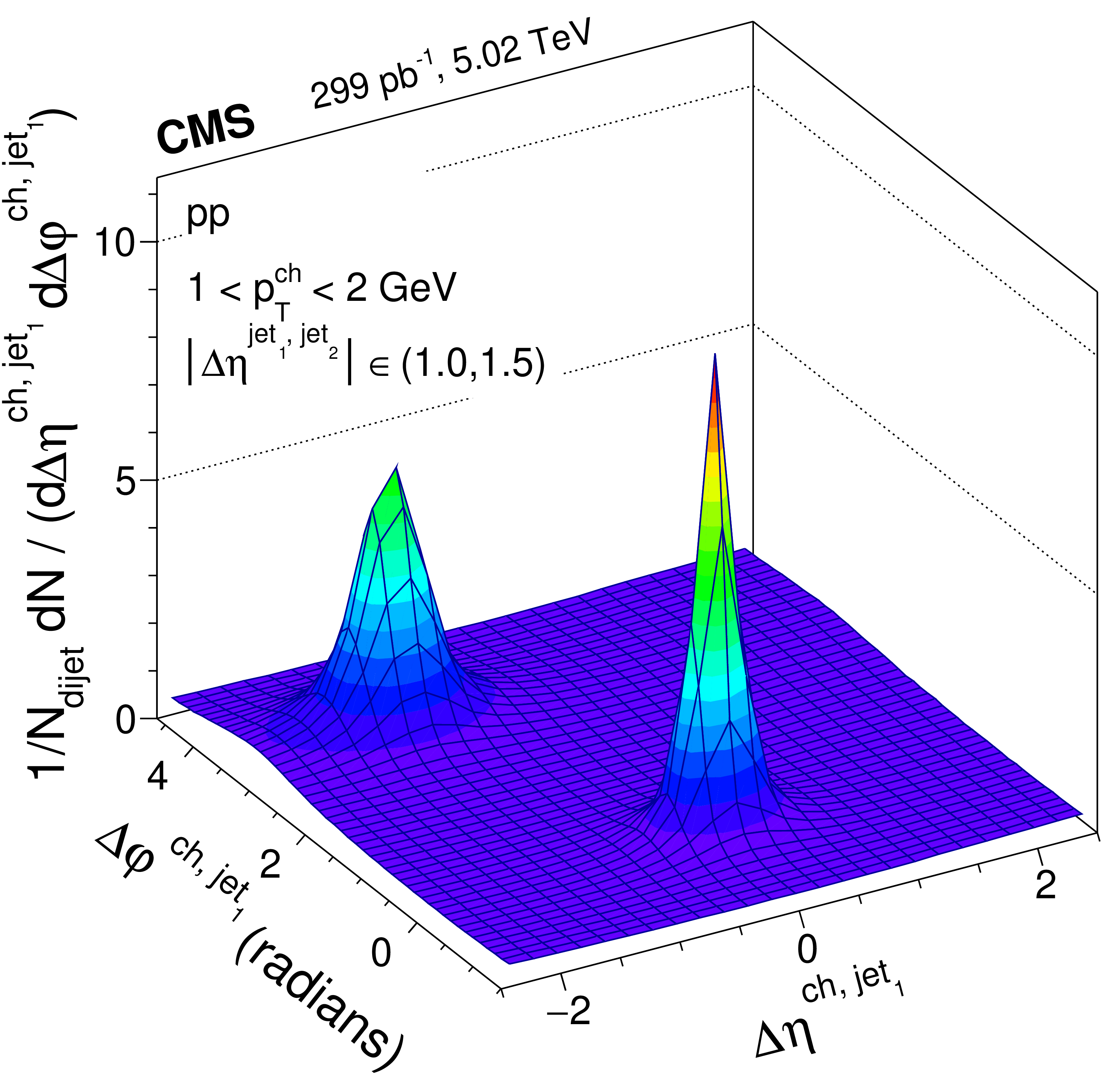

Figure B1-b:
Distributions of charged-particle yields with 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV as functions of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ and $ \Delta\varphi^{\text{ch}, \; \text{jet}_{1}} $, measured relative to the leading jet direction in $ \text{pp} $ (upper panels) and 0--30% PbPb (lower panels) collisions. The left (right) column shows the results for small $ (\text{R}^{\text{sym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| < 0.5) $ and large $ (\text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0,1.5)) $ dijet configurations. |
png pdf |

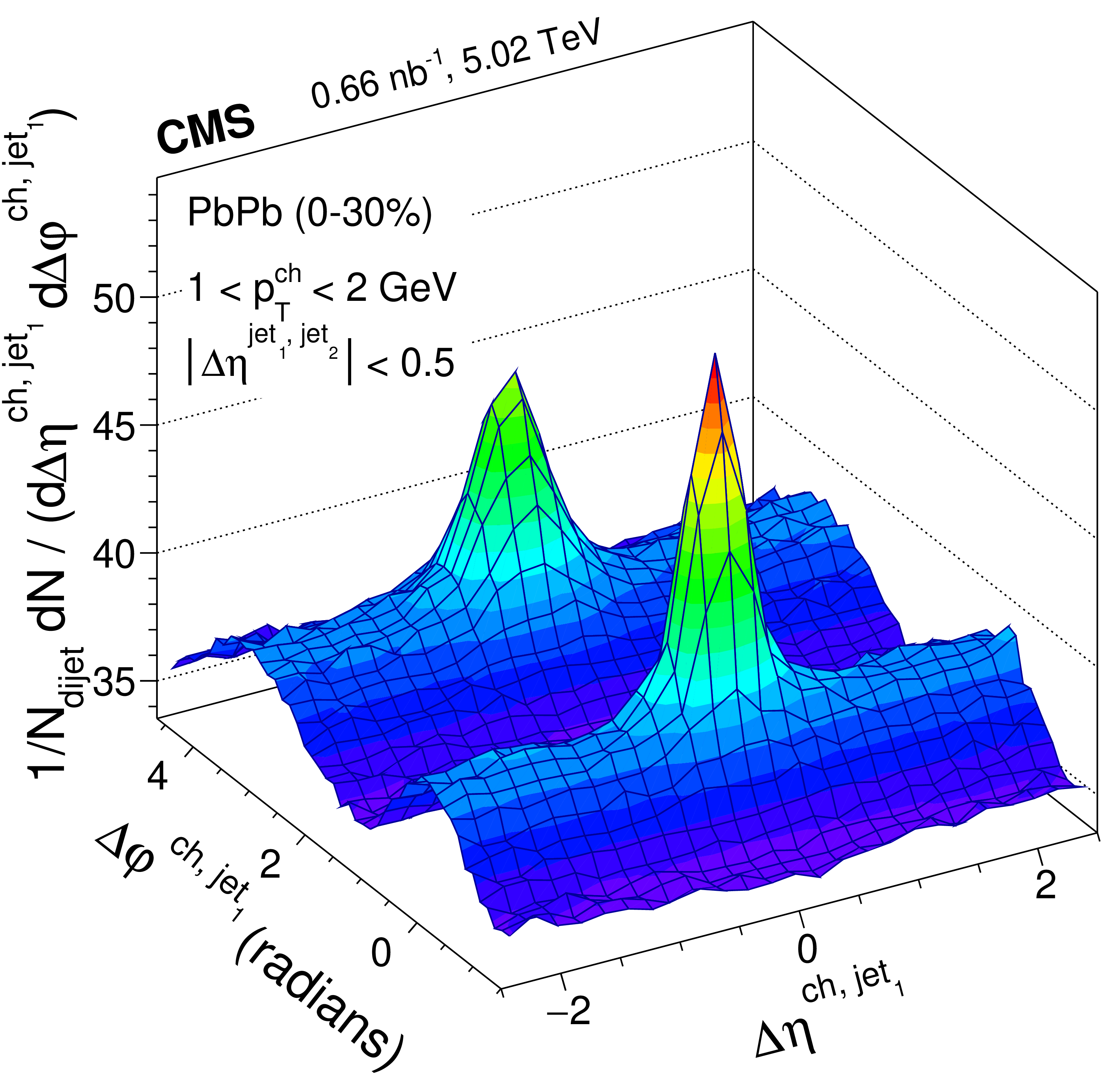

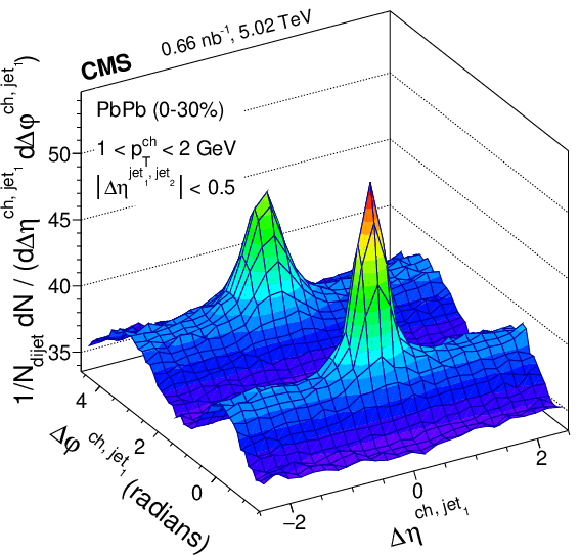

Figure B1-c:
Distributions of charged-particle yields with 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV as functions of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ and $ \Delta\varphi^{\text{ch}, \; \text{jet}_{1}} $, measured relative to the leading jet direction in $ \text{pp} $ (upper panels) and 0--30% PbPb (lower panels) collisions. The left (right) column shows the results for small $ (\text{R}^{\text{sym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| < 0.5) $ and large $ (\text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0,1.5)) $ dijet configurations. |
png pdf |

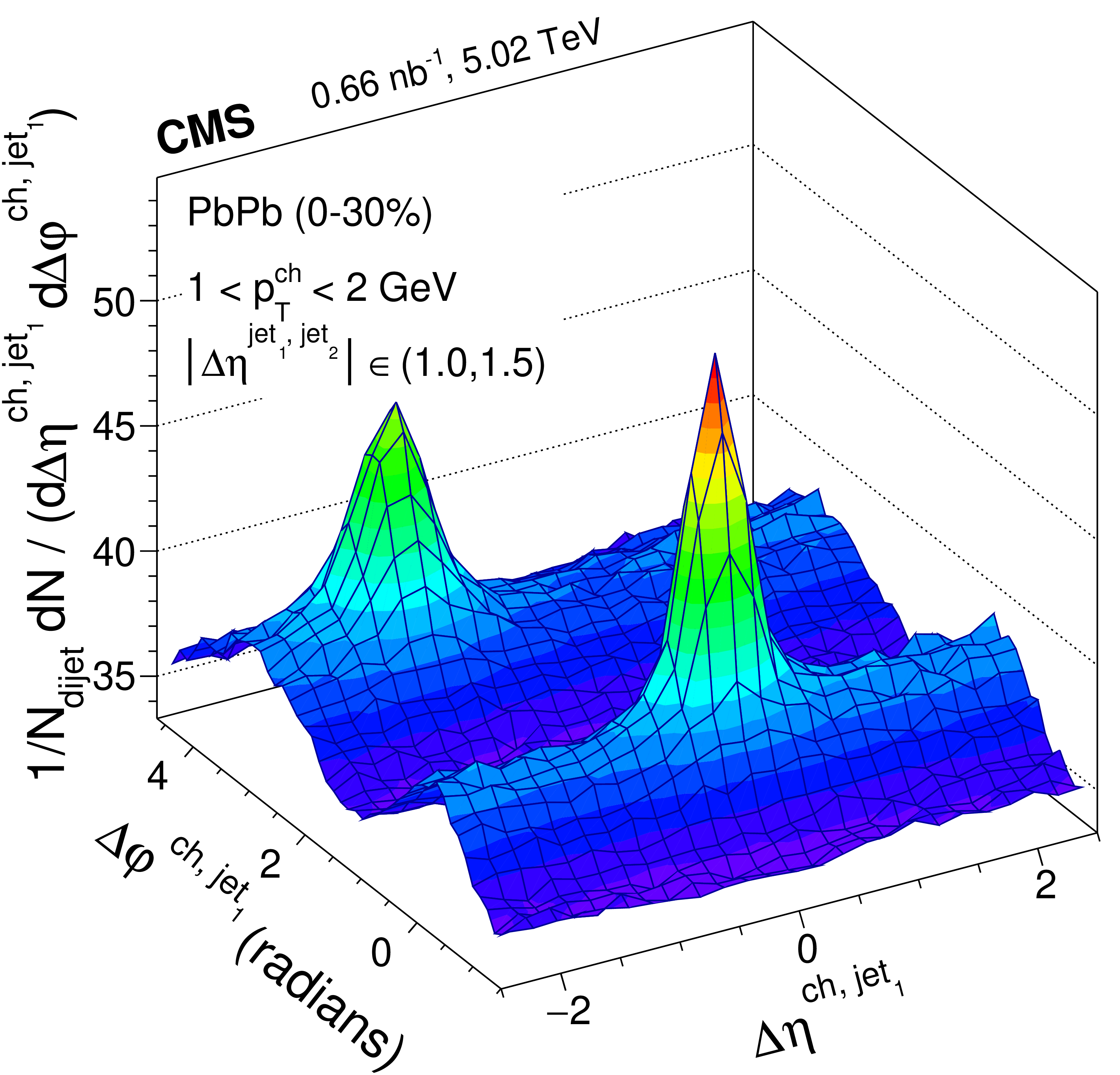

Figure B1-d:
Distributions of charged-particle yields with 1 $ < p_{\mathrm{T}}^{\text{ch}} < $ 2 GeV as functions of $ \Delta\eta^{\text{ch}, \; \text{jet}_{1}} $ and $ \Delta\varphi^{\text{ch}, \; \text{jet}_{1}} $, measured relative to the leading jet direction in $ \text{pp} $ (upper panels) and 0--30% PbPb (lower panels) collisions. The left (right) column shows the results for small $ (\text{R}^{\text{sym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| < 0.5) $ and large $ (\text{R}^{\text{asym}} |\Delta\eta^{\text{jet}_{1},\text{jet}_{2}}| \in (1.0,1.5)) $ dijet configurations. |
| Summary |
| In summary, we report the first observation of the diffusion wake using dijets in heavy ion collisions. The measurements use pseudorapidity-separated dijets in lead-lead (PbPb) and proton-proton (pp) collisions at a center-of-mass energy per nucleon pair of 5.02 TeV. Charged-particle correlations were studied relative to the highest transverse momentum ($p_{\mathrm{T}}$) jet of each dijet. Correlations are measured for dijets with different pseudorapidity separations, and the difference between correlations from large and small separation samples is used for the jet diffusion wake extraction. When isolating medium modifications by examining the difference between PbPb and pp collisions, a pronounced depletion of charged-particle yields is observed in the region where a wake signal is expected. The integrated signal for low-$p_{\mathrm{T}}$ charged particles ($1 < p_{\mathrm{T}}^{ch} < 2$ GeV) in central collisions deviates from zero with a significance exceeding 5 standard deviations. The depletion is less pronounced in more peripheral collisions and when examining a higher $ p_{\mathrm{T}}^{ch}$ selection. Theoretical models incorporating jet energy loss and medium response show qualitatively similar trends with magnitudes that are larger than what is seen in the data, whereas models without jet-medium interactions do not show any depletion. This observation of the diffusion wake offers new insights into quark-gluon plasma properties and jet-induced medium response. |
| References | ||||
| 1 | W. Busza, K. Rajagopal, and W. van der Schee | Heavy ion collisions: The big picture, and the big questions | Ann. Rev. Nucl. Part. Sci. 68 (2018) 339 | 1802.04801 |
| 2 | PHENIX Collaboration | Suppression of hadrons with large transverse momentum in central Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 130 GeV | PRL 88 (2002) 022301 | nucl-ex/0109003 |
| 3 | STAR Collaboration | Centrality dependence of high $ p_{\mathrm{T}} $ hadron suppression in Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 130 GeV | PRL 89 (2002) 202301 | nucl-ex/0206011 |
| 4 | CMS Collaboration | Observation and studies of jet quenching in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | Phys. Rev. C 84 (2011) 024906 | CMS-HIN-10-004 1102.1957 |
| 5 | ATLAS Collaboration | Observation of a centrality-dependent dijet asymmetry in lead-lead collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV with the ATLAS detector at the LHC | PRL 105 (2010) 252303 | 1011.6182 |
| 6 | ALICE Collaboration | Measurement of jet quenching with semi-inclusive hadron-jet distributions in central Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | JHEP 09 (2015) 170 | 1506.03984 |
| 7 | CMS Collaboration | Overview of high-density QCD studies with the CMS experiment at the LHC | Phys. Rept. 1115 (2025) 219 | CMS-HIN-23-011 2405.10785 |
| 8 | L. Cunqueiro and A. M. Sickles | Studying the QGP with jets at the LHC and RHIC | Prog. Part. Nucl. Phys. 124 (2022) 103940 | 2110.14490 |
| 9 | L. Apolin \'a rio, Y.-J. Lee, and M. Winn | Heavy quarks and jets as probes of the QGP | Prog. Part. Nucl. Phys. 127 (2022) 103990 | 2203.16352 |
| 10 | J. Casalderrey-Solana, E. V. Shuryak, and D. Teaney | Conical flow induced by quenched QCD jets | J. Phys. Conf. Ser. 27 (2005) 22 | hep-ph/0411315 |
| 11 | H. Stoecker | Collective flow signals the quark gluon plasma | Nucl. Phys. A 750 (2005) 121 | nucl-th/0406018 |
| 12 | J. Ruppert and B. Muller | Waking the colored plasma | PLB 618 (2005) 123 | hep-ph/0503158 |
| 13 | S. S. Gubser, S. S. Pufu, and A. Yarom | Sonic booms and diffusion wakes generated by a heavy quark in thermal AdS/CFT | PRL 100 (2008) 012301 | 0706.4307 |
| 14 | R. B. Neufeld, B. Muller, and J. Ruppert | Sonic mach cones induced by fast partons in a perturbative quark-gluon plasma | Phys. Rev. C 78 (2008) 041901 | 0802.2254 |
| 15 | G. Y. Qin, A. Majumder, H. Song, and U. Heinz | Energy and momentum deposited into a QCD medium by a jet shower | PRL 103 (2009) 152303 | 0903.2255 |
| 16 | H. Li et al. | Mach cone induced by $ \gamma $-triggered jets in high-energy heavy-ion collisions | PRL 106 (2011) 012301 | 1006.2893 |
| 17 | I. Bouras et al. | Transition from ideal to viscous Mach cones in a kinetic transport approach | [Erratum: Phys. Lett. B 728 () 156, \urldoi:/10./j.physletb..11.059], 2012 PLB 710 (2012) 641 |
1201.5005 |
| 18 | A. Ayala, I. Dominguez, J. Jalilian-Marian, and M. E. Tejeda-Yeomans | Relating $ \hat{q} $, $ \eta/s $ and $ \Delta E $ in an expanding quark-gluon plasma | Phys. Rev. C 94 (2016) 024913 | 1603.09296 |
| 19 | L. Yan, S. Jeon, and C. Gale | Jet-medium interaction and conformal relativistic fluid dynamics | Phys. Rev. C 97 (2018) 034914 | 1707.09519 |
| 20 | J. Casalderrey-Solana et al. | Jet wake from linearized hydrodynamics | JHEP 05 (2021) 230 | 2010.01140 |
| 21 | S. S. Gubser and A. Yarom | Universality of the diffusion wake in the gauge-string duality | PRD 77 (2008) 066007 | 0709.1089 |
| 22 | B. Betz et al. | Universality of the diffusion wake from stopped and punch-through jets in heavy-ion collisions | Phys. Rev. C 79 (2009) 034902 | 0812.4401 |
| 23 | Z. Yang et al. | Search for the elusive jet-induced diffusion wake in $ Z/\gamma $-jets with 2D jet tomography in high-energy heavy-ion collisions | PRL 127 (2021) 082301 | 2101.05422 |
| 24 | Z. Yang et al. | 3D structure of jet-induced diffusion wake in an expanding quark-gluon plasma | PRL 130 (2023) 052301 | 2203.03683 |
| 25 | ATLAS Collaboration | Search for the jet-induced diffusion wake in the quark-gluon plasma via measurements of jet-track correlations in photon-jet events in Pb+Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV with the ATLAS detector | Phys. Rev. C 111 (2025) 044909 | 2408.08599 |
| 26 | CMS Collaboration | Evidence of medium response to hard probes using correlations of Z bosons with hadrons in heavy ion collisions | Submitted to Phys. Lett. B, 2025 | CMS-HIN-23-006 2507.09307 |
| 27 | D. Pablos | Jet suppression from a small to intermediate to large radius | PRL 124 (2020) 052301 | 1907.12301 |
| 28 | Z. Yang and X.-N. Wang | Rapidity asymmetry of jet-hadron correlation as a robust signal of diffusion wake induced by dijets in high-energy heavy-ion collisions | PRL 135 (2025) 072302 | 2501.03419 |
| 29 | CMS Collaboration | Luminosity measurement in proton-proton collisions at 5.02 TeV in 2017 at CMS | CMS Physics Analysis Summary, CERN, Geneva, 2021 CMS-PAS-LUM-19-001 |
CMS-PAS-LUM-19-001 |
| 30 | CMS Collaboration | CMS luminosity measurement for nucleus-nucleus collisions at 5.02 TeV in Run 2 | CMS Physics Analysis Summary, CERN, Geneva, 2024 CMS-PAS-LUM-20-002 |
CMS-PAS-LUM-20-002 |
| 31 | CMS Collaboration | HEPData record for this analysis | link | |
| 32 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 33 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 34 | CMS Collaboration | Performance of the CMS level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 35 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 36 | CMS Collaboration | Performance of the CMS high-level trigger during LHC Run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 37 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 38 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 39 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 40 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 41 | CMS Collaboration | Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P10005 | CMS-TAU-16-003 1809.02816 |
| 42 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 43 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 44 | CMS Tracker Group Collaboration | The CMS phase-1 pixel detector upgrade | JINST 16 (2021) P02027 | 2012.14304 |
| 45 | CMS Collaboration | Track impact parameter resolution for the full pseudo rapidity coverage in the 2017 dataset with the CMS phase-1 pixel detector | CMS Detector Performance Summary CMS-DP-2020-049, 2020 CDS |
|
| 46 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 47 | CMS Collaboration | Multiplicity and transverse momentum dependence of two- and four-particle correlations in pPb and PbPb collisions | PLB 724 (2013) 213 | CMS-HIN-13-002 1305.0609 |
| 48 | CMS Collaboration | Correlations between jets and charged particles in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | JHEP 02 (2016) 156 | CMS-HIN-14-016 1601.00079 |
| 49 | CMS Collaboration | Decomposing transverse momentum balance contributions for quenched jets in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | JHEP 11 (2016) 055 | CMS-HIN-15-011 1609.02466 |
| 50 | CMS Collaboration | Jet properties in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV | JHEP 05 (2018) 006 | CMS-HIN-16-020 1803.00042 |
| 51 | CMS Collaboration | Measurement of b jet shapes in proton-proton collisions at $ \sqrt{s} = $ 5.02 TeV | JHEP 05 (2021) 054 | CMS-HIN-18-020 2005.14219 |
| 52 | CMS Collaboration | In-medium modification of dijets in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 05 (2021) 116 | CMS-HIN-19-013 2101.04720 |
| 53 | A. J. Baltz et al. | The physics of ultraperipheral collisions at the LHC | Phys. Rept. 458 (2008) 1 | 0706.3356 |
| 54 | CMS Collaboration | Transverse-momentum and pseudorapidity distributions of charged hadrons in pp collisions at $ \sqrt{s} = $ 0.9 and 2.36 TeV | JHEP 02 (2010) 041 | CMS-QCD-09-010 1002.0621 |
| 55 | CMS Collaboration | Charged-particle nuclear modification factors in PbPb and pPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 04 (2017) 039 | CMS-HIN-15-015 1611.01664 |
| 56 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 57 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 58 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 59 | I. P. Lokhtin and A. M. Snigirev | A model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_{\mathrm{T}} $ hadron spectra at RHIC | EPJC 45 (2006) 211 | hep-ph/0506189 |
| 60 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 61 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 62 | P. Berta, M. Spousta, D. W. Miller, and R. Leitner | Particle-level pileup subtraction for jets and jet shapes | JHEP 06 (2014) 092 | 1403.3108 |
| 63 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 64 | J. Casalderrey-Solana et al. | A hybrid strong/weak coupling approach to jet quenching | [Erratum: JHEP 09 () 175, \urldoi:10./JHEP09()175], 2014 JHEP 10 (2014) 019 |
1405.3864 |
| 65 | Z. Hulcher, D. Pablos, and K. Rajagopal | Resolution effects in the hybrid strong/weak coupling model | JHEP 03 (2018) 010 | 1707.05245 |
| 66 | W. Chen et al. | Effects of jet-induced medium excitation in $ \gamma $-hadron correlation in A+A collisions | PLB 777 (2018) 86 | 1704.03648 |
|
|
