| CMS-HIN-24-008 ; CERN-EP-2025-112 | ||
| Jet peak shapes based on two-particle angular correlations in lead-lead collisions at $ \sqrt{{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | ||
| CMS Collaboration | ||
| 15 March 2026 | ||
| Submitted to Physics Letters B | ||
| Abstract: The longitudinal invariance of jet-induced peaks in two-particle correlation functions from relativistic lead-lead collisions is experimentally explored. The data were collected at a center-of-mass energy per nucleon pair of 5.02 TeV in 2018 using the CMS detector. The dataset corresponds to an integrated luminosity of 0.607$ \text{nb}^{-1}$. Long- and short-range correlations are studied through two-dimensional distributions of the separations in pseudorapidity and azimuth between particles in an event. Jets manifest as a well-defined peak at small angular separations, and the shape of this peak provides insight into jet medium interactions. This Letter examines the evolution of the jet peak shape, focusing on the dependence of its width and longitudinal asymmetry on the transverse momentum, collision centrality, and pseudorapidity of the associated charged particles. The jet-peak distributions of lower transverse momentum particles broaden in both pseudorapidity and azimuth with increasing collision overlap, with the broadening in pseudorapidity being more pronounced. The longitudinal asymmetry of the peaks is also found to increase as the average pseudorapidity increases. These results are compared to proton-proton collision data that were obtained at the same nucleon-nucleon collision center-of-mass energy with an integrated luminosity of 252$ \text{nb}^{-1}$. | ||
| Links: e-print arXiv:2603.14385 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |
Figure 1:
Average signal (left), mixed-event (middle), and pair-acceptance corrected per-trigger associated yield (right) distributions for 0--10% centrality events, with 4 $ < p_\text{T,trig} < $ 8 GeV and 2 $ < p_\text{T,asso} < $ 3 GeV, in PbPb collision data at 5.02 TeV. |
png pdf |

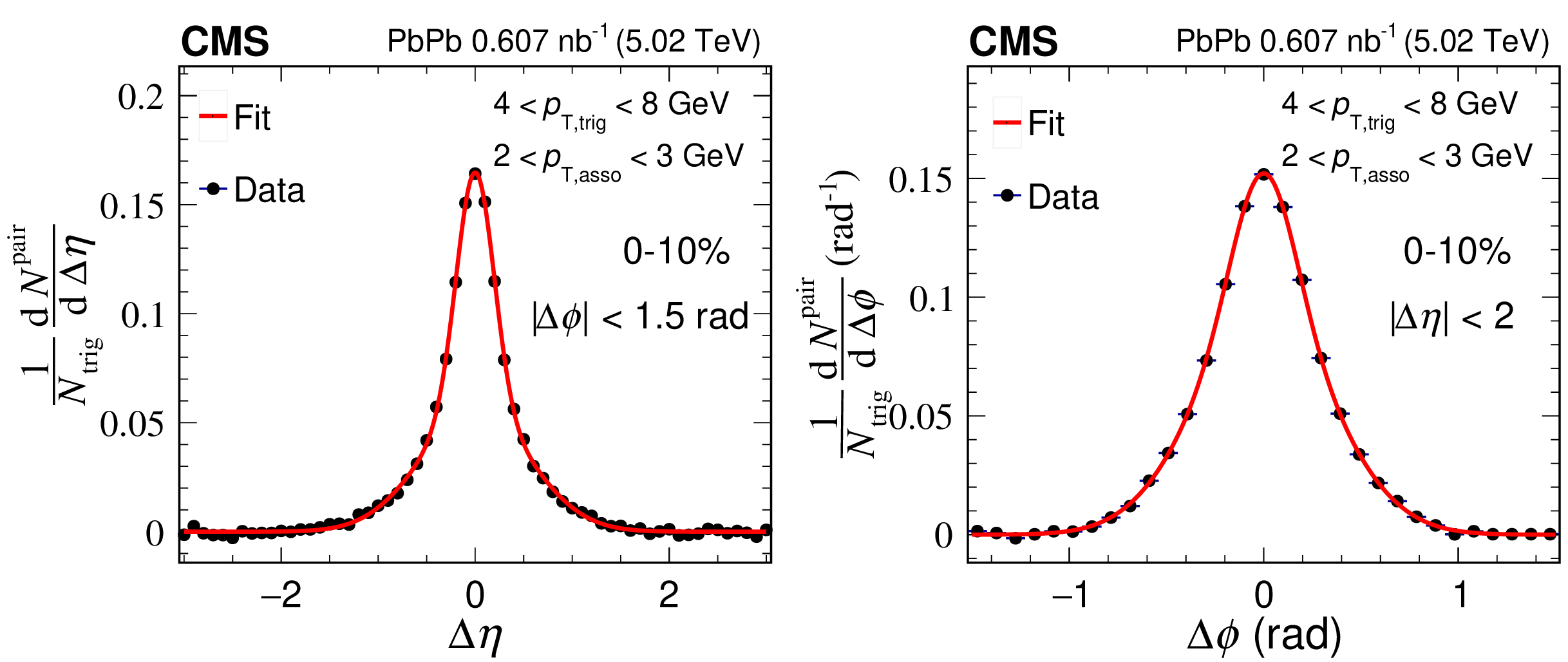

Figure 2:
(Left) One-dimensional $ \Delta\eta $ projection and (right) One-dimensional $ \Delta\phi $ projection. |
png pdf |

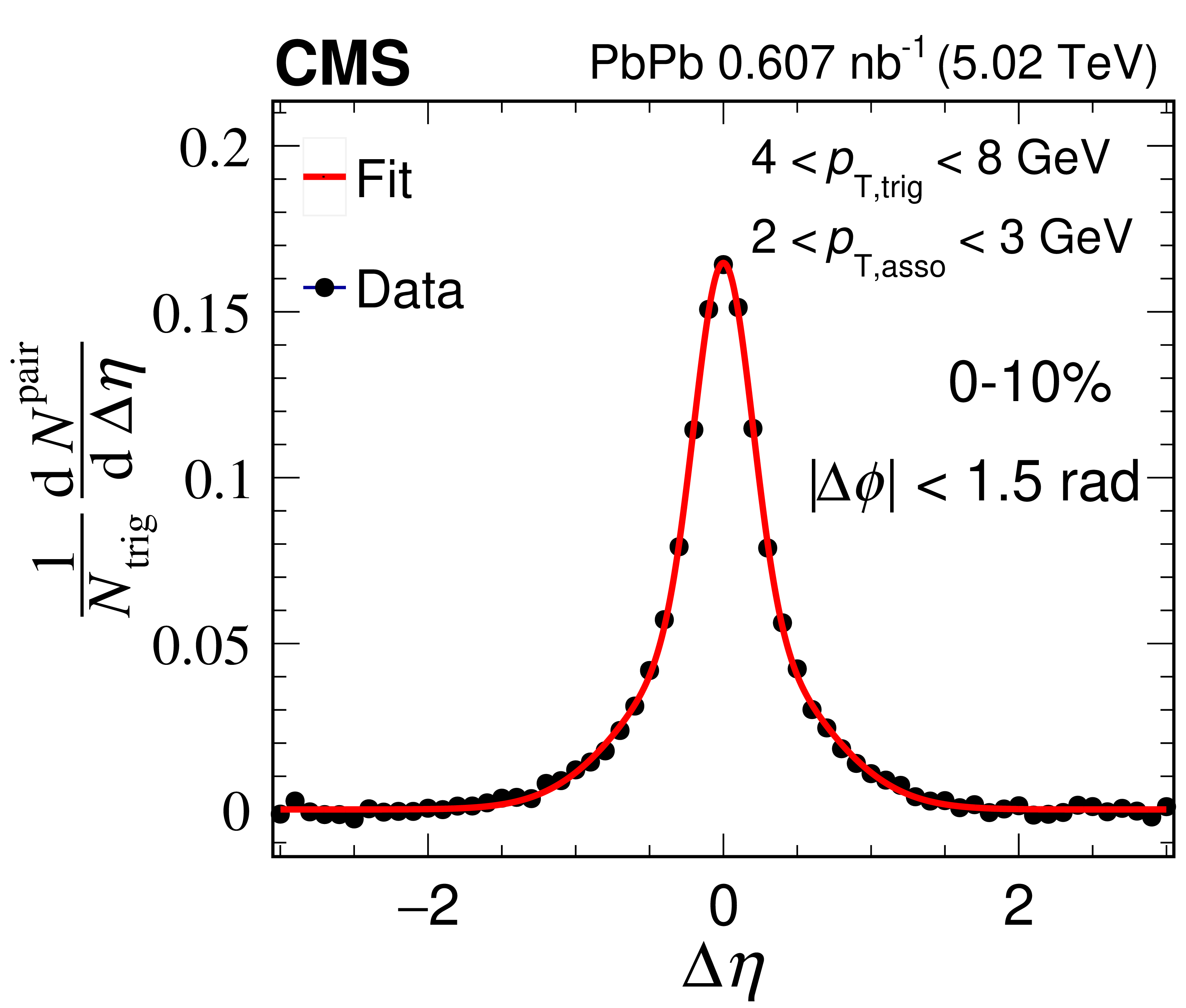

Figure 2-a:
(Left) One-dimensional $ \Delta\eta $ projection and (right) One-dimensional $ \Delta\phi $ projection. |
png pdf |

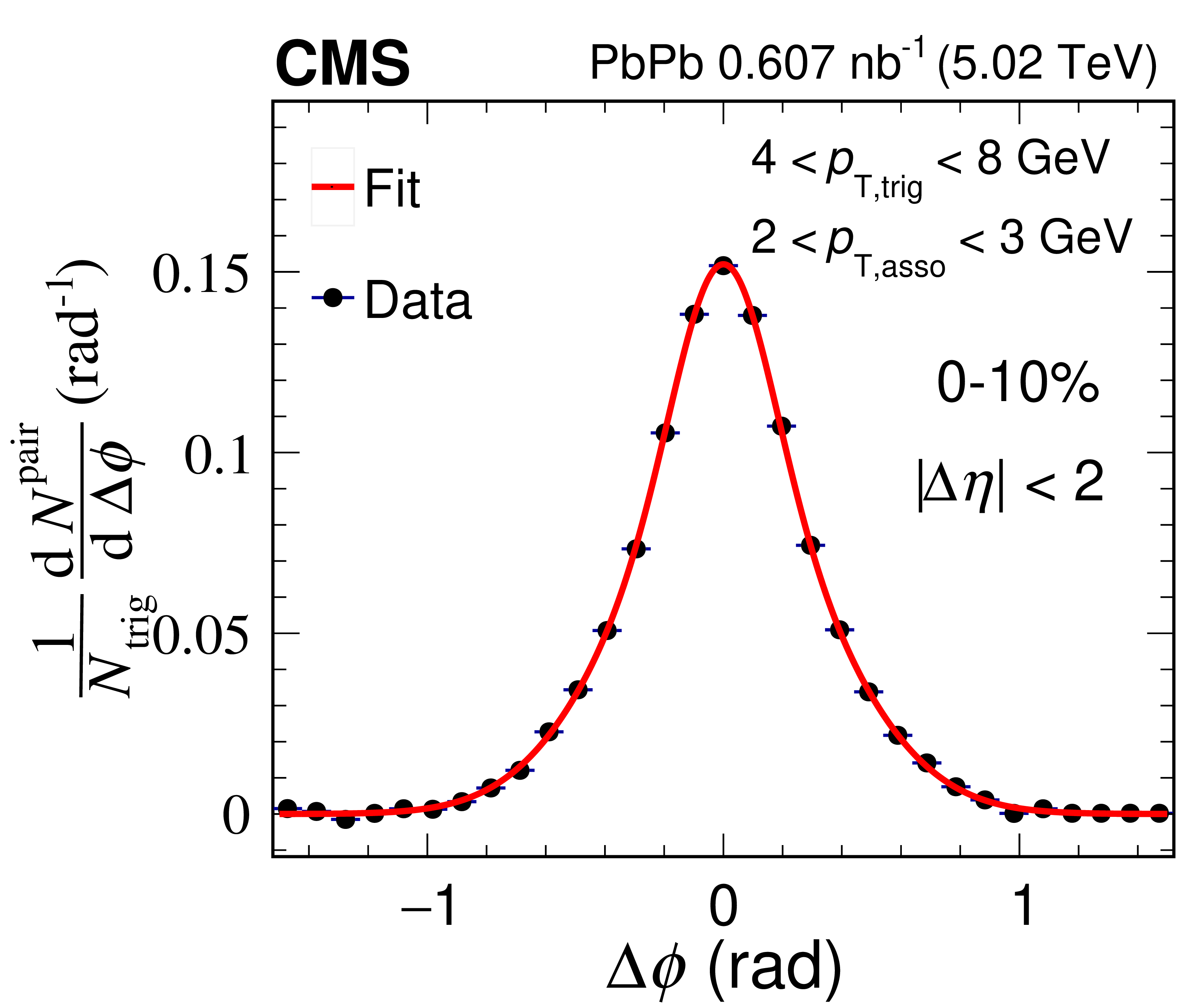

Figure 2-b:
(Left) One-dimensional $ \Delta\eta $ projection and (right) One-dimensional $ \Delta\phi $ projection. |
png pdf |

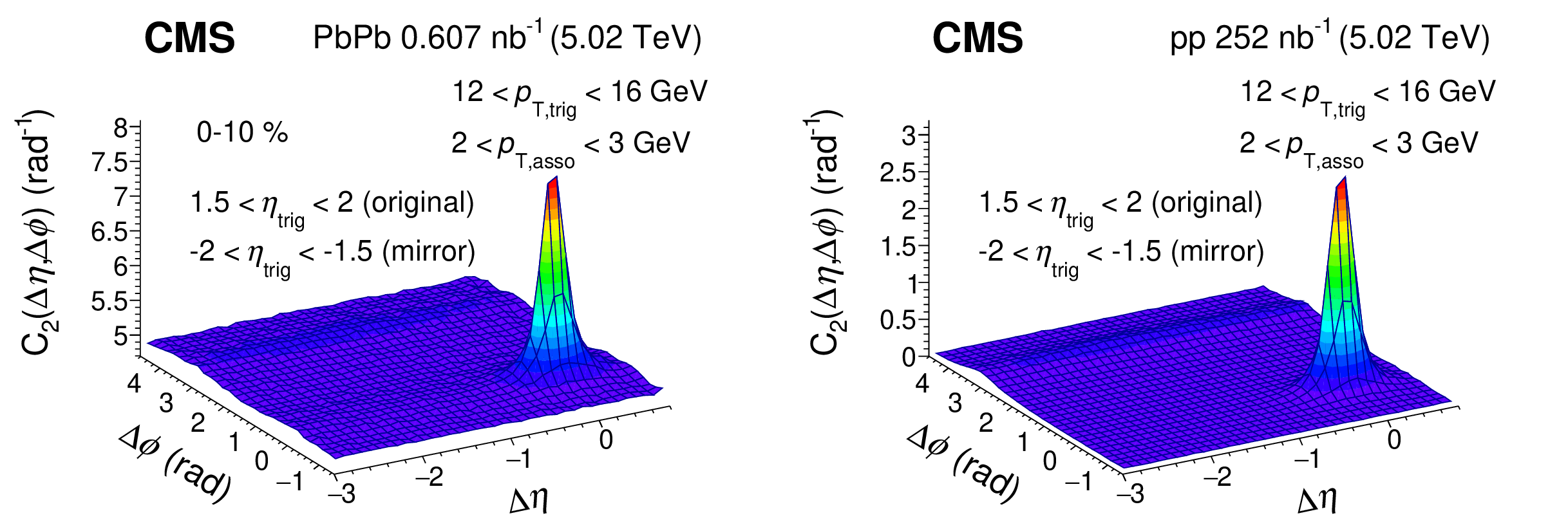

Figure 3:
Two-dimensional correlation distributions in the 0--10% centrality interval for PbPb (left) and pp (right) collisions are shown, with 1.5 $ < |\eta_\text{trig}| < $ 2, 12 $ < p_\text{T,trig} < $ 16 GeV, and 2 $ < p_\text{T,asso} < $ 3 GeV. |
png pdf |

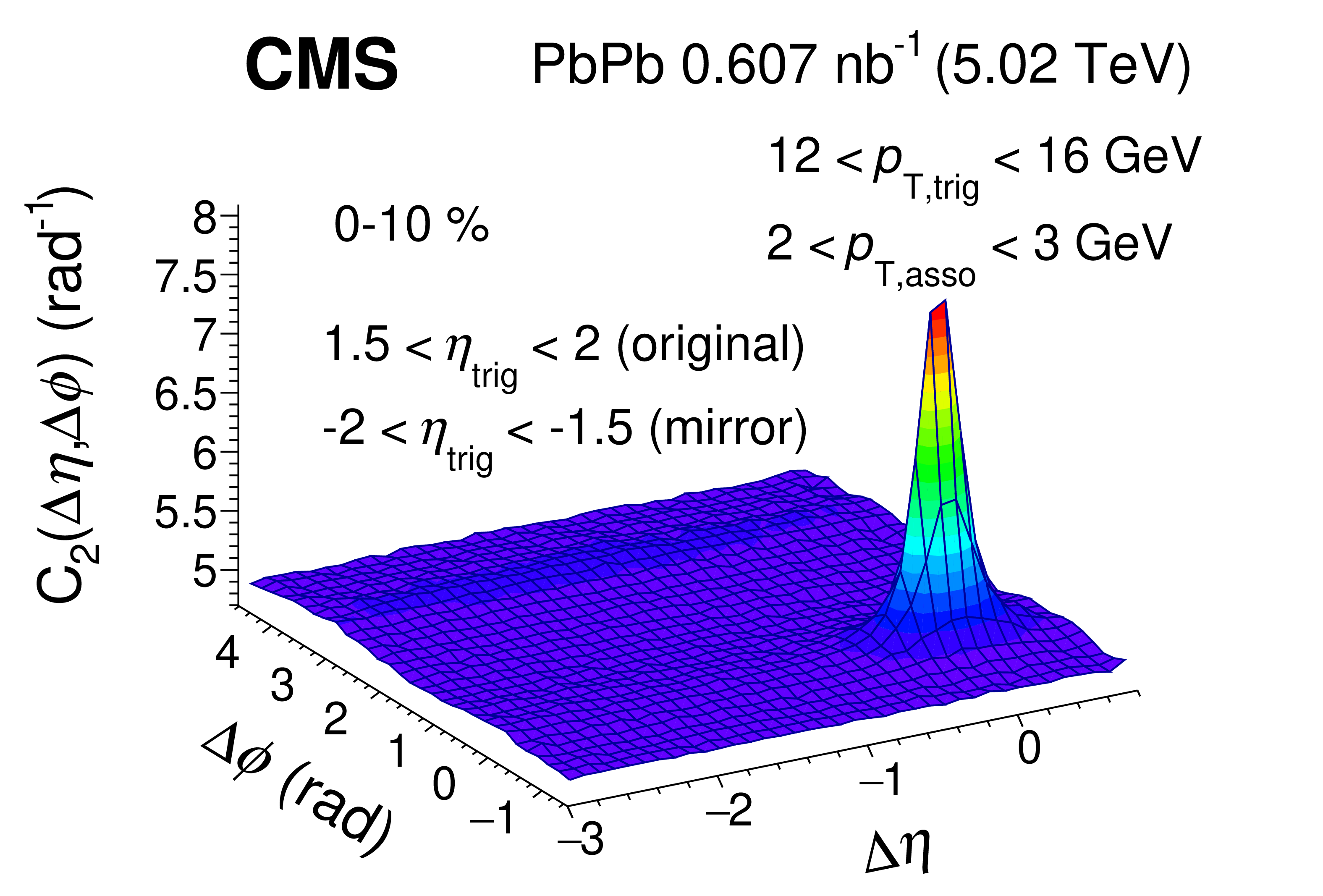

Figure 3-a:
Two-dimensional correlation distributions in the 0--10% centrality interval for PbPb (left) and pp (right) collisions are shown, with 1.5 $ < |\eta_\text{trig}| < $ 2, 12 $ < p_\text{T,trig} < $ 16 GeV, and 2 $ < p_\text{T,asso} < $ 3 GeV. |
png pdf |

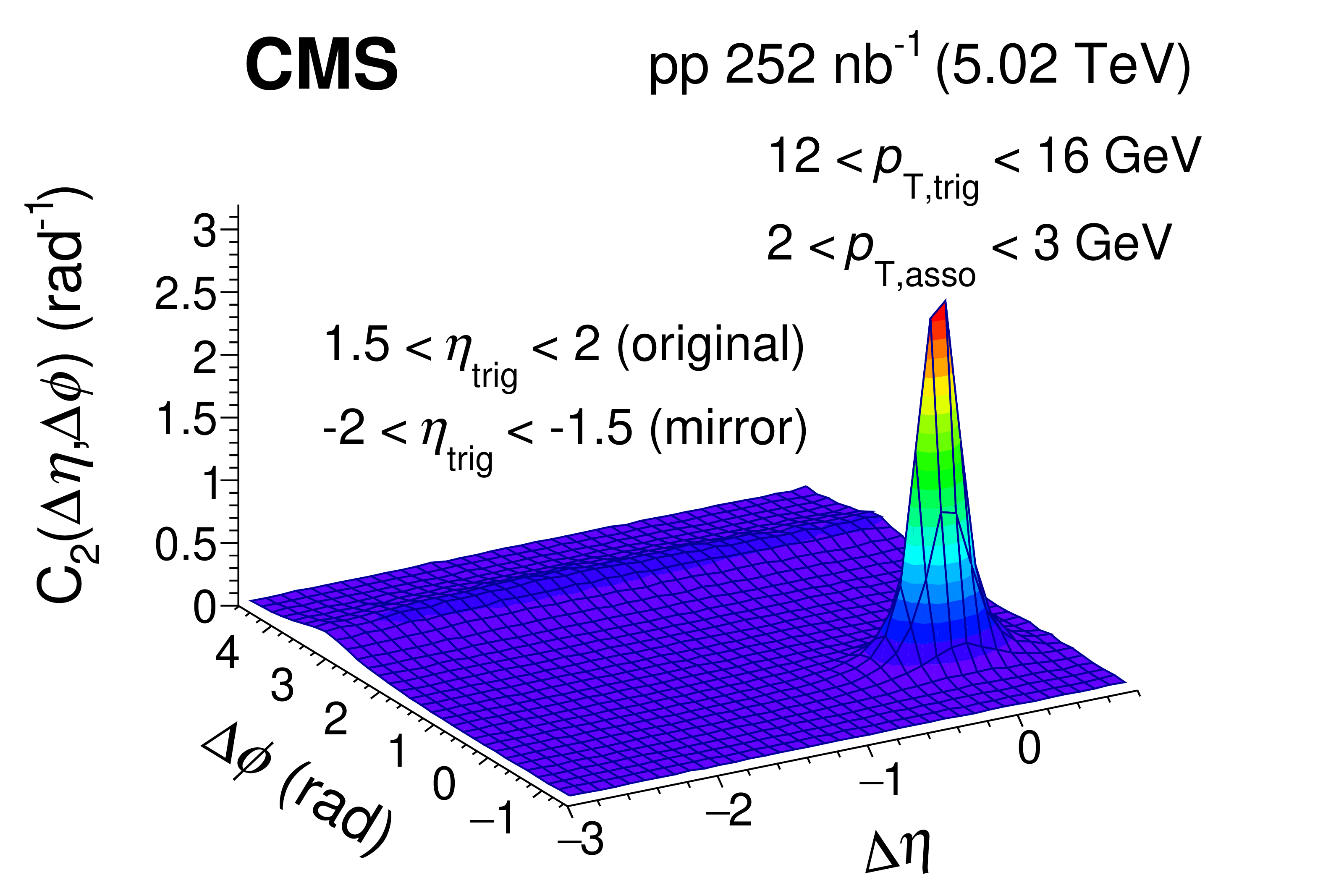

Figure 3-b:
Two-dimensional correlation distributions in the 0--10% centrality interval for PbPb (left) and pp (right) collisions are shown, with 1.5 $ < |\eta_\text{trig}| < $ 2, 12 $ < p_\text{T,trig} < $ 16 GeV, and 2 $ < p_\text{T,asso} < $ 3 GeV. |
png pdf |

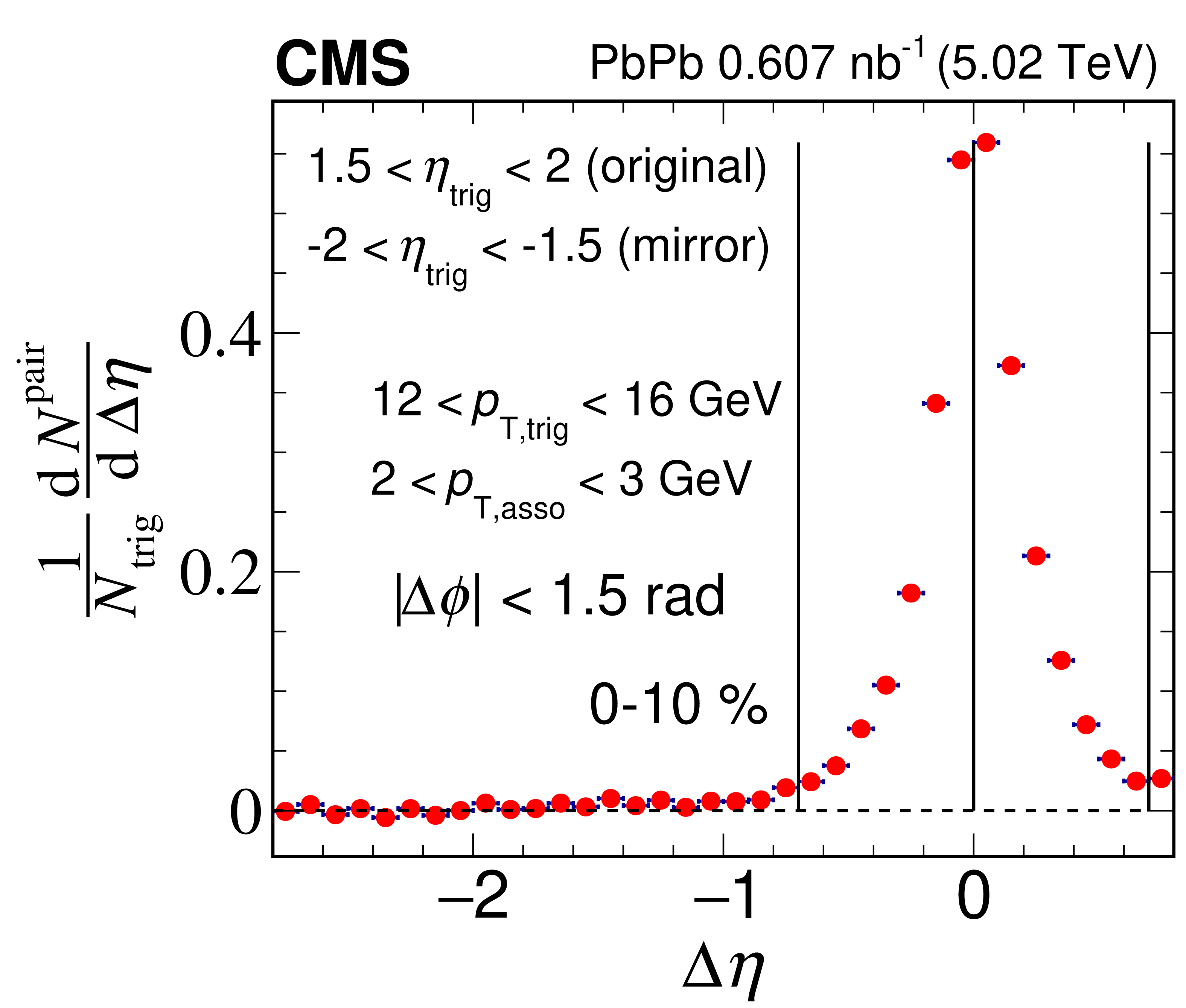

Figure 4:
One-dimensional $ \Delta\eta $ projection from the long-range background-subtracted averaged 2D correlation, combining 1.5 $ < \eta_\text{trig} < $ 2 (original) and $ -2 < \eta_\text{trig} < - $ 1.5 (mirror). Three vertical lines correspond to a $ \Delta\eta $ value of --0.7, 0 and 0.7 from left to right. The dashed line indicates the zero level on the y-axis. |
png pdf |

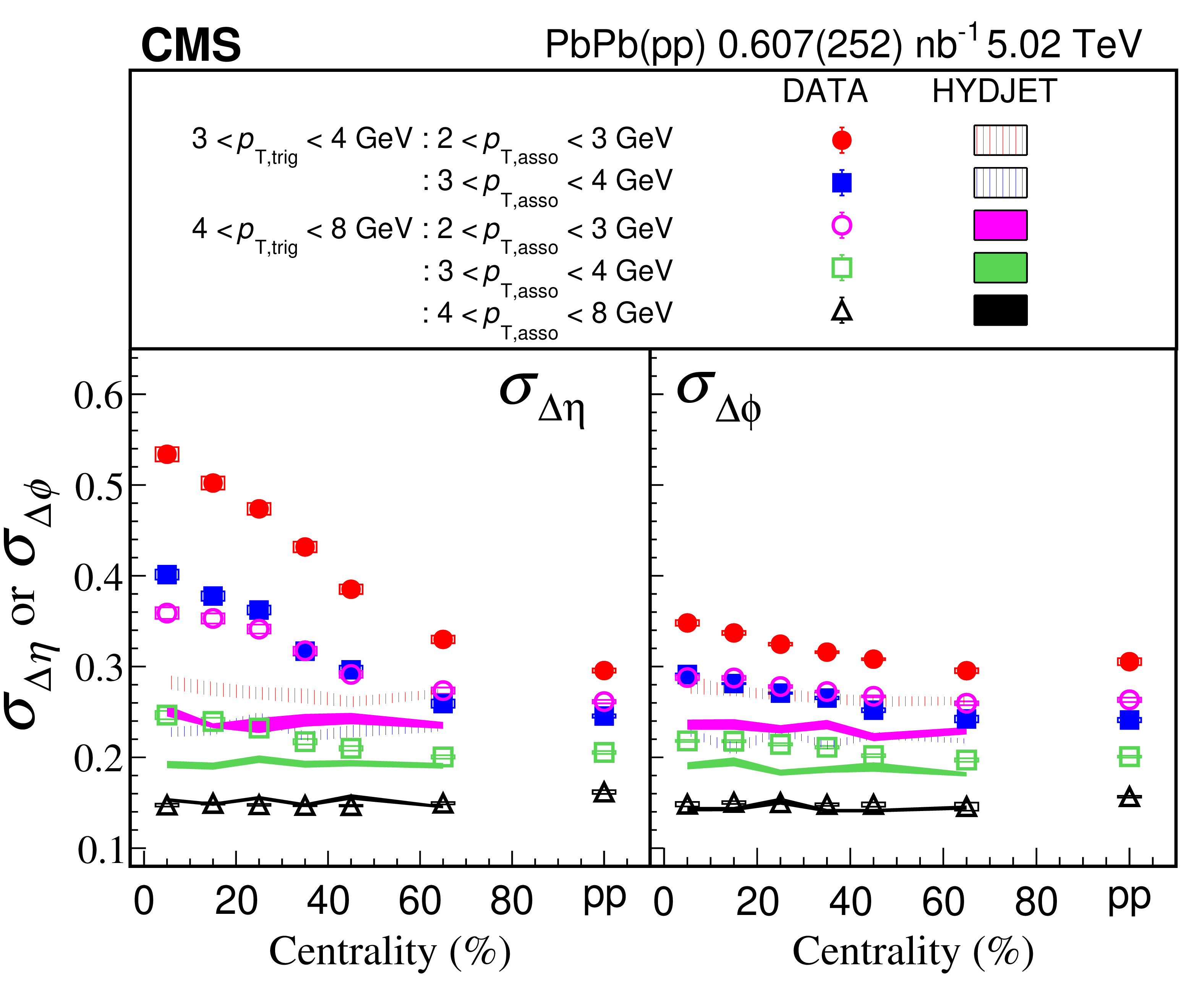

Figure 5:
Centrality dependence of the longitudinal $ \sigma_{\Delta\eta} $ (left panel) and transverse $ \sigma_{\Delta\phi} $ (right panel) values are presented in different $ p_{\mathrm{T}} $ ranges for PbPb collisions and pp collisions (rightmost points in each panel). The same symbols are used for the same $ p_{\text{T,asso}} $ selections, with open markers representing high $ p_{\text{T,trig}} $ and closed markers for low $ p_{\text{T,trig}} $. The statistical uncertainties of the data points are smaller than the marker size, and rectangular boxes indicate the systematic uncertainties. Expected values from HYDJET 1.9 are represented by bands: hatched for low $ p_{\text{T,trig}} $ and solid-filled for high $ p_{\text{T,trig}} $. |
png pdf |

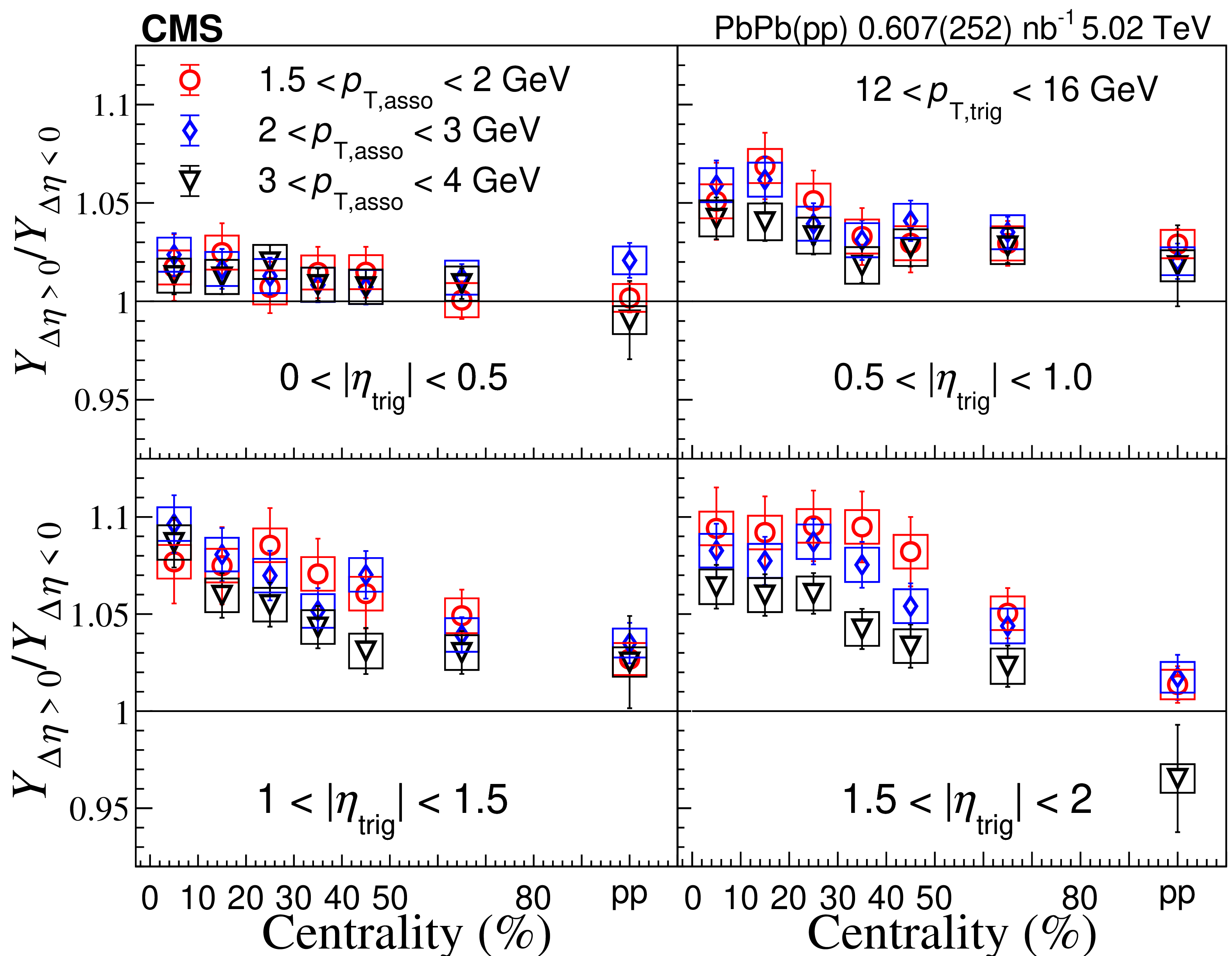

Figure 6:
Associated yield ratios between $ \Delta\eta > $ 0 and $ \Delta\eta < $ 0 within the range of 0 $ < |\Delta\eta| < $ 0.7 as a function of centrality in different $ p_\text{T,asso} $ and $ \eta_\text{trig} $ ranges for PbPb and pp collisions (rightmost bin) are presented in the above panel. The above panel consists of four plots, each corresponding to a different value of $ \eta_\text{trig} $. Each plot consists of three colored markers representing different $ p_\text{T,asso} $ values (1.5 $ < p_\text{T,asso} < $ 2 GeV, 2 $ < p_\text{T,asso} < $ 3 GeV, 3 $ < p_\text{T,asso} < $ 4 GeV), while $ p_\text{T,trig} $ is fixed (12 $ < p_\text{T,trig} < $ 16 GeV). The vertical bars indicate statistical uncertainties, while the rectangular open boxes represent systematic uncertainties. |
| Tables | |
png pdf |

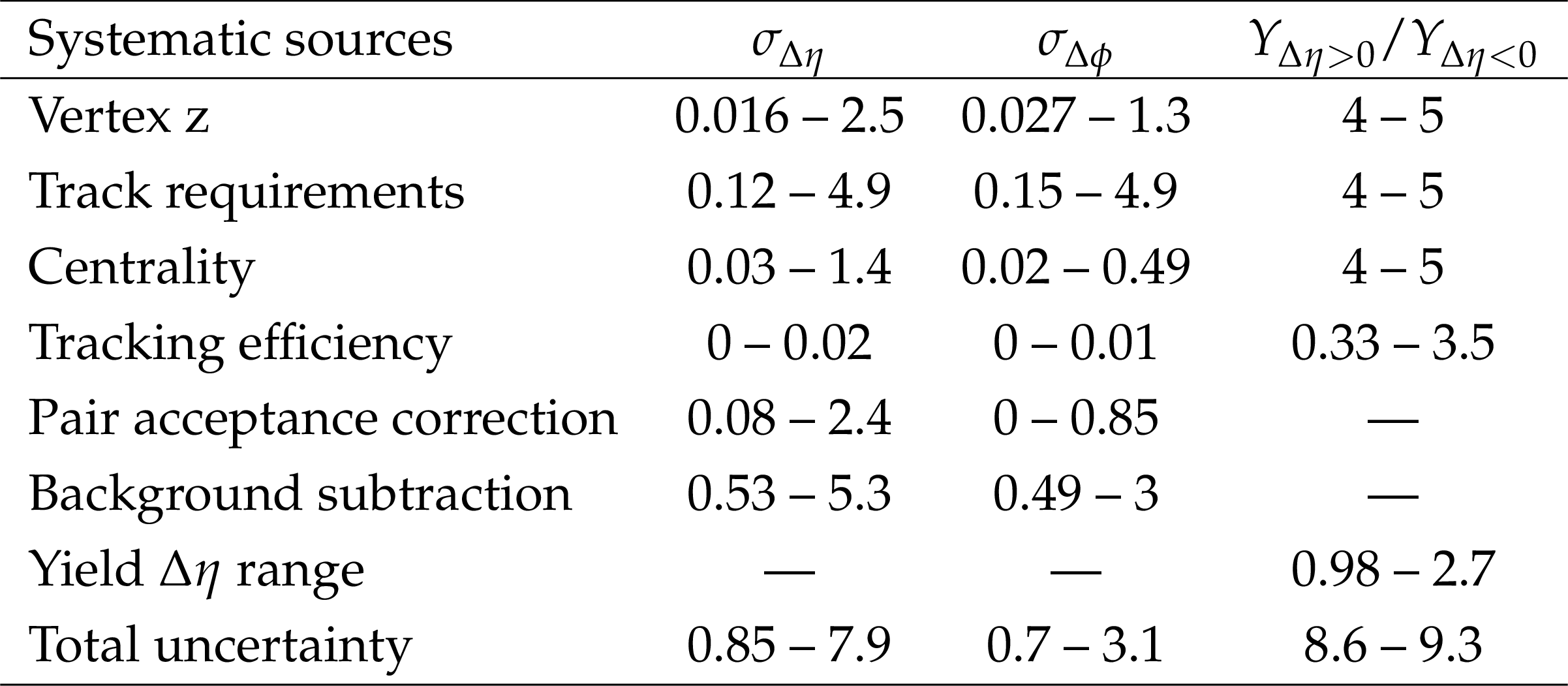

Table 1:
Summary of the absolute systematic uncertainties for $ \sigma_{\Delta\eta} $, $ \sigma_{\Delta\phi} $, and the associated yield ratio. The leftmost column lists all systematic sources, while the other columns show the range of systematic uncertainties across all $ p_{\mathrm{T}} $, $ \eta $ and centrality ranges in minimum-bias PbPb collisions. All values are scaled by a factor of $ 10^{3} $. |
png pdf |

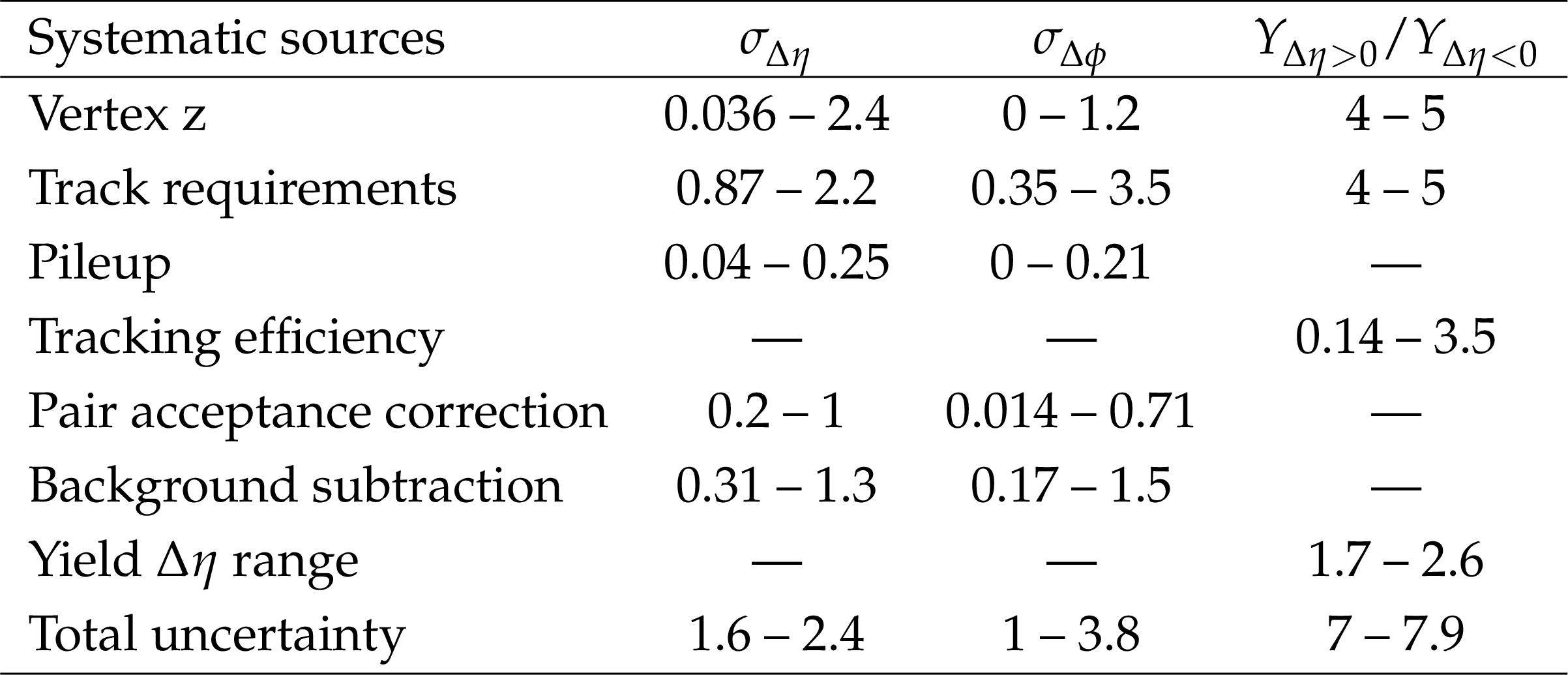

Table 2:
Summary of the absolute systematic uncertainties for $ \sigma_{\Delta\eta} $, $ \sigma_{\Delta\phi} $, and the associated yield ratio. The leftmost column lists all systematic sources, while the other columns show the range of systematic uncertainties across all $ p_{\mathrm{T}} $ and $ \eta $ ranges in minimum-bias pp collisions. All values are scaled by a factor of $ 10^{3} $. |
| Summary |
| The centrality and pseudorapidity ($ \eta $) dependencies of jet peak shapes have been explored using two-particle correlations. Lead-lead (PbPb) collision data at a center-of-mass energy per nucleon pair of 5.02 TeV were recorded using the CMS detector at the CERN LHC. These minimum-bias data correspond to an integrated luminosity of 0.607$ \text{nb}^{-1}$. Proton-proton (pp) collision data at the same nucleon-nucleon collision energy and with an integrated luminosity of 252$ \text{nb}^{-1}$ are also analyzed to provide a reference. The separations in pseudorapidity ($ \Delta\eta $) and azimuth ($ \Delta\phi $) of all particles within specific transverse momentum ($ p_{\mathrm{T}} $) ranges are used to form two-dimensional correlation distributions that are averaged over all events. Jets result in a peak shaped structure corresponding to particle pairs with small angular separation. Jet peak shapes, characterized by associated widths in $ \Delta\eta $ and $ \Delta\phi $, are presented as functions of centrality. The jet peak asymmetry as a function of $ \eta $ is also studied. For PbPb collisions, both the longitudinal ($ \sigma_{\Delta\eta} $) and transverse ($ \sigma_{\Delta\phi} $) widths of the near-side jet peak exhibit a centrality-dependent broadening compared to the pp reference. The effect is more pronounced in $ \Delta\eta $, indicating a stronger modification of the correlation structure along the longitudinal direction. At higher particle transverse momenta, the centrality dependence of both widths becomes weaker, approaching the pp baseline within uncertainties. Overall, the stronger longitudinal than transverse broadening may reflect the influence of longitudinal expansion or partonic energy loss mechanisms in the medium. The asymmetry of the jet peak distribution in $ \Delta\eta $ is studied through the ratio of yields on the positive and negative sides of the jet peak. This ratio is evaluated in distinct $ |\eta_\text{trig}| $ ranges and for various energy thresholds of the higher-$ p_{\mathrm{T}} $ particle in each pair. The ratio is found to increase with the average $ |\eta_\text{trig}| $ value. For a given $ |\eta_\text{trig}| $ range, the ratio measured in peripheral events is found similar to that in pp collisions, but increases significantly towards more central collisions. These results suggest that the jet properties are modified through in medium interactions in a longitudinally expanding QGP medium. |
| References | ||||
| 1 | R. Pasechnik and M. Sumbera | Phenomenological review on quark-gluon plasma: Concepts vs. observations | Universe 3 (2017) 7 | 1611.01533 |
| 2 | W. Busza, K. Rajagopal, and W. van der Schee | Heavy ion collisions: The big picture and the big questions | Ann. Rev. of Nucl. Par. Sci. 68 (2018) 339 | 1802.04801 |
| 3 | J. Casalderrey-Solana and C. A. Salgado | Introductory lectures on jet quenching in heavy ion collisions | Acta Phys. Polon. B 38 (2007) 3731 | 0712.3443 |
| 4 | PHENIX Collaboration | Suppressed $ \pi^0 $ production at large transverse momentum in central Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 200 GeV | PRL 91 (2003) 072301 | nucl-ex/0304022 |
| 5 | STAR Collaboration | Direct observation of dijets in central Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 200 GeV | PRL 97 (2006) 162301 | nucl-ex/0604018 |
| 6 | CMS Collaboration | Overview of high-density QCD studies with the CMS experiment at the LHC | Phys. Rept. 1115 (2025) 219 | CMS-HIN-23-011 2405.10785 |
| 7 | ATLAS Collaboration | Observation of a centrality-dependent dijet asymmetry in lead-lead collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV with the ATLAS detector at the LHC | PRL 105 (2010) 252303 | 1011.6182 |
| 8 | CMS Collaboration | Observation and studies of jet quenching in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | Phys. Rev. C 84 (2011) 024906 | CMS-HIN-10-004 1102.1957 |
| 9 | ALICE Collaboration | Measurement of jet suppression in central PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | PLB 746 (2015) 1 | 1502.01689 |
| 10 | CMS Collaboration | In-medium modification of dijets in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV | JHEP 05 (2021) 116 | CMS-HIN-19-013 2101.04720 |
| 11 | CMS Collaboration | Centrality dependence of dihadron correlations and azimuthal anisotropy harmonics in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | EPJC 72 (2012) 10052 | CMS-HIN-11-006 1201.3158 |
| 12 | CMS Collaboration | Jet properties in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV | JHEP 05 (2018) 006 | CMS-HIN-16-020 1803.00042 |
| 13 | CMS Collaboration | Search for medium effects using jets from bottom quarks in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV | PLB 844 (2023) 137849 | CMS-HIN-20-003 2210.08547 |
| 14 | CMS Collaboration | Correlations between jets and charged particles in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | JHEP 02 (2016) 156 | CMS-HIN-14-016 1601.00079 |
| 15 | ALICE Collaboration | Particle-yield modification in jetlike azimuthal dihadron correlations in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | PRL 108 (2012) 092301 | 1110.0121 |
| 16 | D. K. Srivastava et al. | Hydrodynamics of ultra-relativistic heavy ion collisions. considerations of boost non-invariance and stopping | Annals Phys. 228 (1993) 104 | |
| 17 | D. Kharzeev, E. Levin, and L. McLerran | Jet azimuthal correlations and parton saturation in the color glass condensate | Nucl. Phys. A 748 (2005) 627 | hep-ph/0403271 |
| 18 | CMS Collaboration | HEPData record for this analysis | link | |
| 19 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 20 | CMS Collaboration | Track impact parameter resolution for the full pseudo rapidity coverage in the 2017 dataset with the CMS phase-1 pixel detector | CMS Detector Performance Note CMS-DP-2020-049, 2020 CDS |
|
| 21 | CMS Tracker Group Collaboration | The CMS Phase-1 pixel detector upgrade | JINST 16 (2021) P02027 | 2012.14304 |
| 22 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 23 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 24 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 25 | CMS Collaboration | CMS luminosity measurement using nucleus-nucleus collisions at $ {\sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}}= $ 5.02 TeV in 2018 | CMS Physics Analysis Summary, 2022 CMS-PAS-LUM-18-001 |
CMS-PAS-LUM-18-001 |
| 26 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s}= $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 27 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2018 link |
CMS-PAS-LUM-17-004 |
| 28 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2019 CMS-PAS-LUM-18-002 |
CMS-PAS-LUM-18-002 |
| 29 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 30 | CMS Collaboration | Strange hadron collectivity in pPb and PbPb collisions | JHEP 05 (2023) 007 | CMS-HIN-19-004 2205.00080 |
| 31 | CMS Collaboration | Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid | CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS |
|
| 32 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 33 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 34 | I. P. Lokhtin and A. M. Snigirev | A model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_{\mathrm{T}} $ hadron spectra at RHIC | EPJC 45 (2006) 211 | hep-ph/0506189 |
| 35 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 36 | CMS Collaboration | Two-particle azimuthal correlations in $\gamma$p interactions using pPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 8.16 TeV | PLB 844 (2023) 137905 | CMS-HIN-18-008 2204.13486 |
| 37 | CMS Collaboration | Observation of long-range, near-side angular correlations in pPb collisions at the LHC | PLB 718 (2013) 795 | CMS-HIN-12-015 1210.5482 |
| 38 | CMS Collaboration | Measurement of long-range near-side two-particle angular correlations in pp collisions at $ \sqrt{s}= $ 13 TeV | PRL 116 (2016) 172302 | CMS-FSQ-15-002 1510.03068 |
| 39 | ALICE Collaboration | Evolution of the longitudinal and azimuthal structure of the near-side jet peak in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | Phys. Rev. C 96 (2017) 034904 | 1609.06667 |
| 40 | STAR Collaboration | System size and energy dependence of near-side dihadron correlations | Phys. Rev. C 85 (2012) 014903 | 1110.5800 |
| 41 | N. Armesto, C. A. Salgado, and U. A. Wiedemann | Measuring the collective flow with jets | PRL 93 (2004) 242301 | hep-ph/0405301 |
| 42 | A. Majumder, B. Muller, and S. A. Bass | Longitudinal broadening of quenched jets in turbulent color fields | PRL 99 (2007) 042301 | |
|
|
