CMS-PAS-SMP-26-008

CMS-PAS-SMP-26-008
Observation of lepton-lepton scattering in proton-proton collisions at $ \sqrt{s} = $ 13 and 13.6 TeV
CMS Collaboration
2026-07-25

Abstract: The scattering through a photon exchange of same-sign charge electrons and muons originating from protons is observed for the first time using a data sample of proton-proton collisions at $ \sqrt{s}= $ 13 and 13.6 TeV collected with the CMS detector between 2016 and 2026, corresponding to an integrated luminosity of 446 fb$ ^{-1} $. The $ e^\pm\mu^\pm $ and $ \mu^\pm\mu^\pm $ scatterings are searched for in the $ e^\pm\mu^\pm $, $ \mu^\pm\mu^\pm $, and $ \mu^\pm\mu^\pm\mu^\mp $ final states. The signal is separated from backgrounds on the basis of the track multiplicity at the multilepton vertex and of the ratio between the vectorial and scalar transverse momentum sums of the leptons. The lepton-lepton scattering is observed with a significance of 5.4 standard deviations with respect to the background-only hypothesis. A strong evidence for the existence of muon-muon scattering is obtained with a significance of 4.0 standard deviations. The fiducial cross sections for $ e^\pm\mu^\pm $ and $ \mu^\pm\mu^\pm $ are measured at $ \sqrt{s}= $ 13 and 13.6 TeV and agree with the theoretical predictions.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

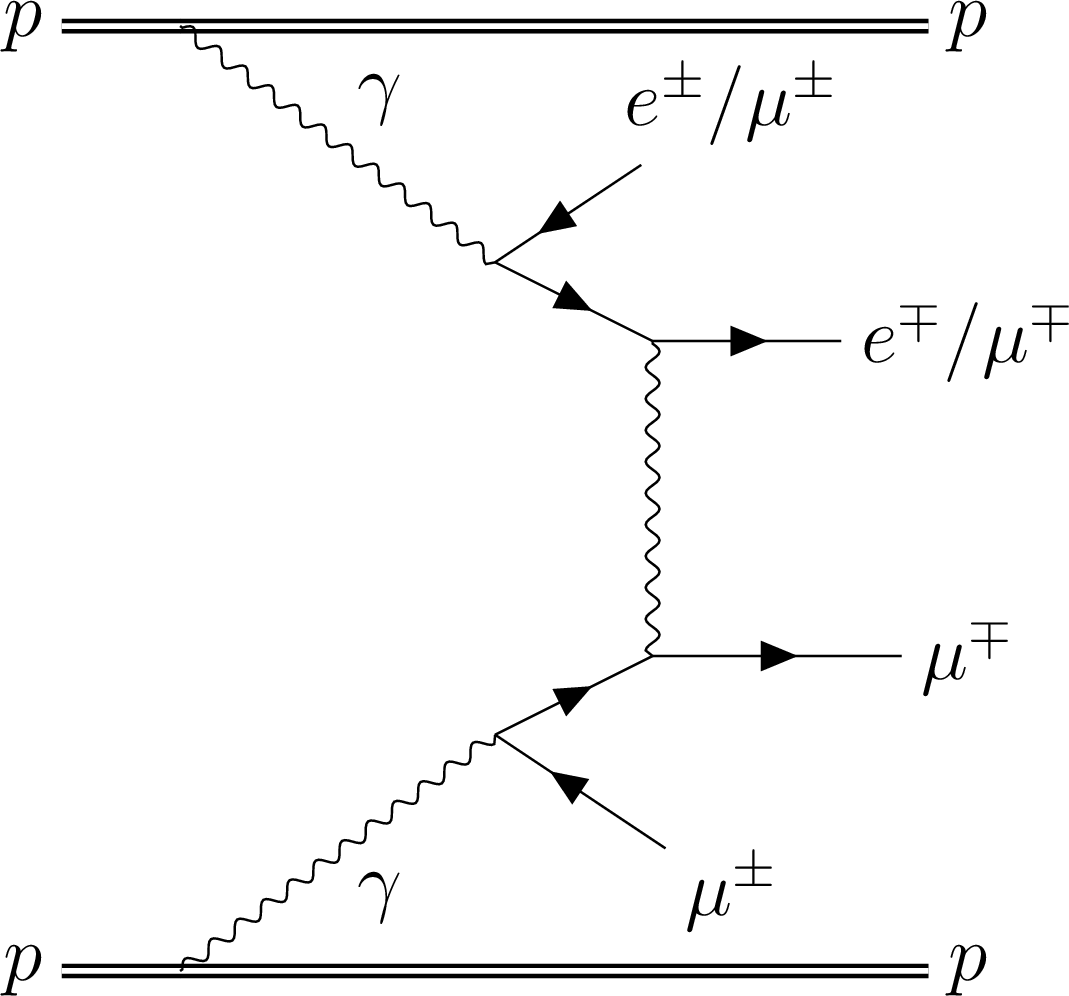

png pdf	Figure 1: Tree-level Feynman diagram for the $ \ell\ell $ scattering at the LHC. The $ \mathrm{e}^\pm\mu^\pm $ and $ \mu^\pm\mu^\pm $ scatterings targeted in this analysis are shown. The protons may or may not fragment.

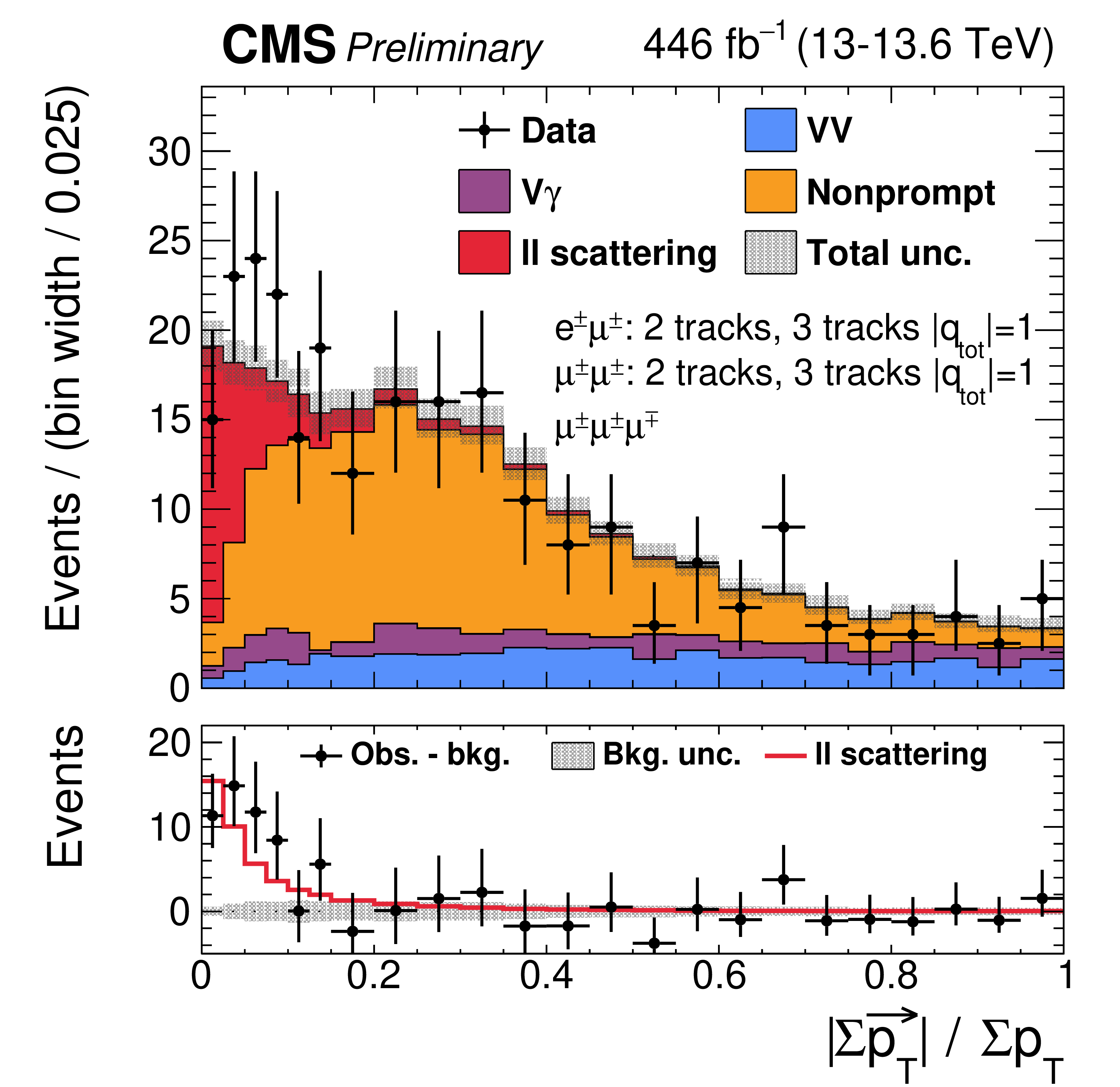

png pdf	Figure 2: Observed and expected distributions of the $ p_{\mathrm{T}} $ balance for events passing the SR selection in the $ \mu^\pm\mu^\pm\mu^\mp $ final state and in the "2 tracks" and "3 tracks $ \|q_\text{tot}\|= $ 1" categories of the $ \mathrm{e}^\pm\mu^\pm $ and $ \mu^\pm\mu^\pm $ final states. The predicted distributions are adjusted to the result of the global fit, and the signal distribution is normalized to its best fit signal strength. The lower panel shows the difference between the observed events and the backgrounds, as well as the signal contribution.

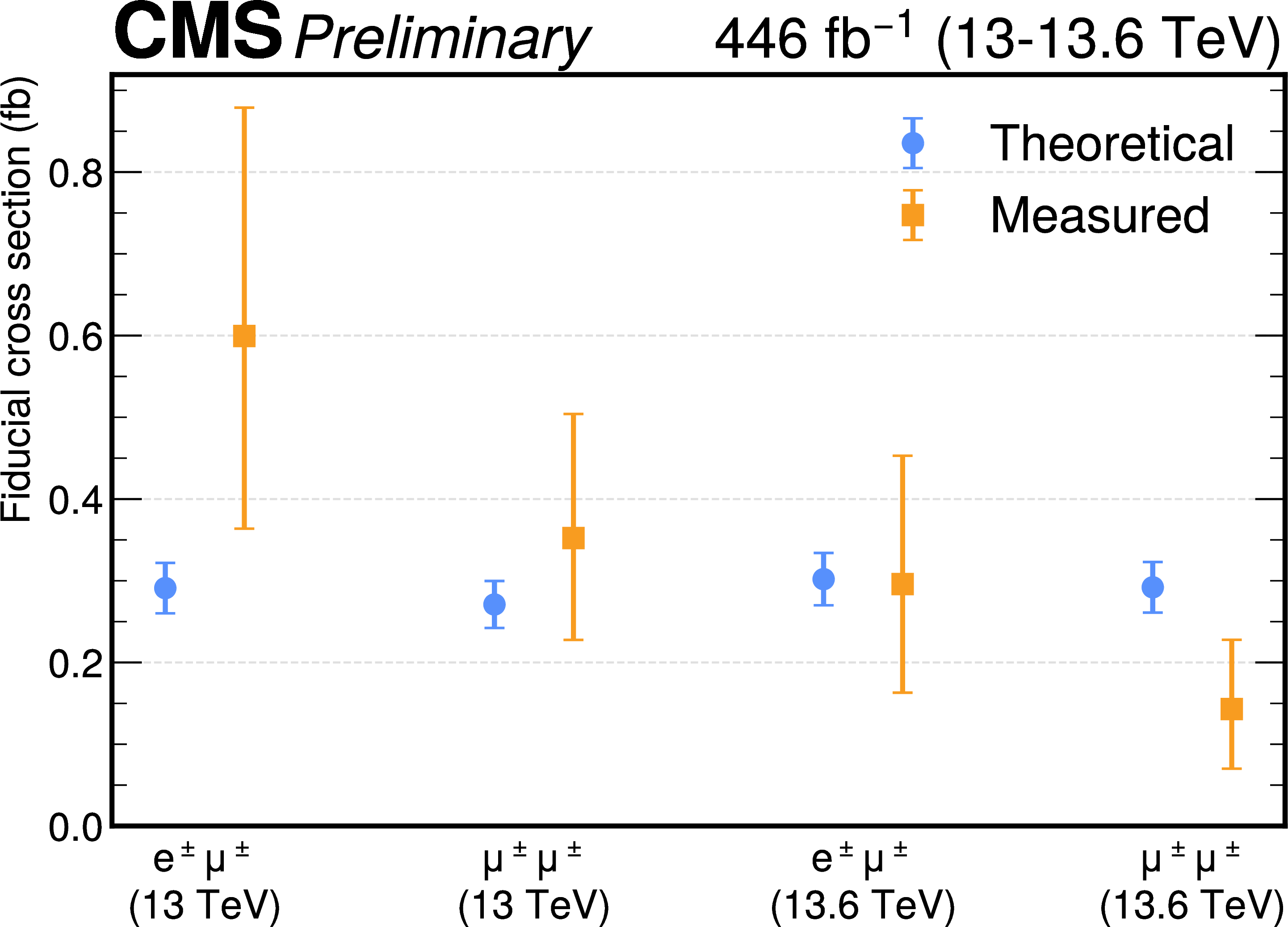

png pdf	Figure 3: Predicted and measured fiducial cross sections for the $ \mathrm{e}^\pm\mu^\pm $ and $ \mu^\pm\mu^\pm $ scatterings at $ \sqrt{s}= $ 13 and 13.6 TeV. The theoretical predictions are taken from the SFGEN generator [34,35] and shown with their theoretical uncertainties, where the leading source is the survival factor. The measured uncertainty includes all systematic and statistical uncertainties, and is largely statistically driven.

Tables

png pdf

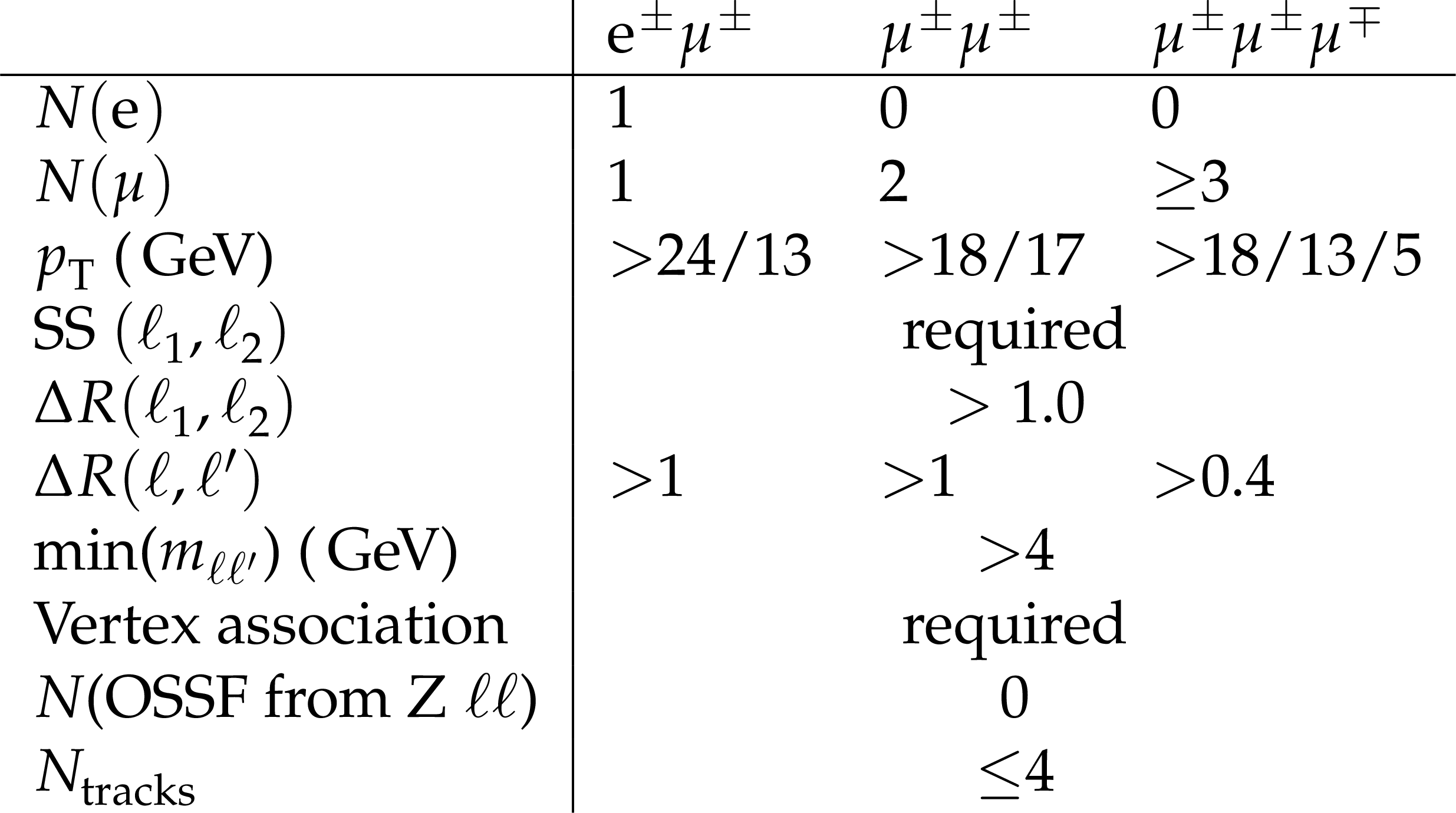

Table 1:
Summary of the selection criteria in the SRs. The symbols $ \ell_1 $ and $ \ell_2 $ denote the leading and subleading leptons, respectively. The track multiplicity $ N_\text{tracks} $ includes tracks matched or not to the selected leptons. The expression "OSSF from $ \mathrm{Z} \ell\ell $" denotes an OS same-flavor lepton pair with invariant mass compatible with $ m_{\mathrm{Z}} $, and the symbol $ N $ denotes a multiplicity.

Summary

In summary, the scattering of leptons originating from the protons has been observed for the first time in proton-proton collisions with a significance of 5.4 standard deviations with respect to the background-only hypothesis. A strong evidence for the existence of muon-muon scattering, which had never been investigated in any previous experiment, is obtained with a significance of 4.0 standard deviations. These results rely on 446 fb$ ^{-1} $ of data collected with the CMS detector in 2016--2026 at $\sqrt{s}=13$ and 13.6 TeV. The fiducial $ e^\pm\mu^\pm $ and $ \mu^\pm\mu^\pm $ scattering cross sections have been measured at $\sqrt{s}=13$ and 13.6 TeV and show good agreement with the predictions of the standard model. This result supports the concept of lepton content of the proton and lays the foundations for future beyond-the-standard-model searches for lepton-induced processes at LHC.

References
1	CMS Collaboration	Exclusive photon-photon production of muon pairs in proton-proton collisions at $ \sqrt{s}= $ 7 TeV	JHEP 01 (2012) 052	CMS-FWD-10-005 1111.5536
2	ATLAS Collaboration	Measurement of exclusive $ \gamma\gamma\rightarrow \ell^+\ell^- $ production in proton-proton collisions at $ \sqrt{s} = $ 7 TeV with the ATLAS detector	PLB 749 (2015) 242	1506.07098
3	ATLAS Collaboration	Measurement of the exclusive $ \gamma \gamma \rightarrow \mu^+ \mu^- $ process in proton-proton collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector	PLB 777 (2018) 303	1708.04053
4	CMS and TOTEM Collaborations	Observation of proton-tagged, central (semi)exclusive production of high-mass lepton pairs in pp collisions at 13 TeV with the CMS-TOTEM precision proton spectrometer	JHEP 07 (2018) 153	1803.04496
5	ATLAS Collaboration	Observation and measurement of forward proton scattering in association with lepton pairs produced via the photon fusion mechanism at ATLAS	PRL 125 (2020) 261801	2009.14537
6	ATLAS Collaboration	Observation of photon-induced $ W^+W^- $ production in $ pp $ collisions at $ \sqrt{s}= $ 13 TeV using the ATLAS detector	PLB 816 (2021) 136190	2010.04019
7	CMS Collaboration	Observation of $ \gamma\gamma\to\tau\tau $ in proton-proton collisions and limits on the anomalous electromagnetic moments of the $ \tau $ lepton	Rept. Prog. Phys. 87 (2024) 107801	CMS-SMP-23-005 2406.03975
8	CMS Collaboration	Measurement and effective field theory interpretation of the photon-fusion production cross section of a pair of W bosons in proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JHEP 06 (2026) 187	CMS-SMP-24-019 2601.21574
9	L. Buonocore, P. Nason, F. Tramontano, and G. Zanderighi	Leptons in the proton	JHEP 08 (2020) 019	2005.06477
10	L. Buonocore, P. Nason, F. Tramontano, and G. Zanderighi	Photon and leptons induced processes at the LHC	JHEP 12 (2021) 073	2109.10924
11	V. P. Goncalves and D. E. Martins	Illuminating the charged leptons in the proton	PRD 107 (2023) 073007	2210.02827
12	L. Buonocore et al.	Lepton-quark collisions at the Large Hadron Collider	PRL 125 (2020) 231804	2005.06475
13	U. Haisch and G. Polesello	Resonant third-generation leptoquark signatures at the Large Hadron Collider	JHEP 05 (2021) 057	2012.11474
14	A. Greljo and N. Selimovic	Lepton-Quark Fusion at Hadron Colliders, precisely	JHEP 03 (2021) 279	2012.02092
15	L. Buonocore et al.	Resonant leptoquark at NLO with POWHEG	JHEP 11 (2022) 129	2209.02599
16	CMS Collaboration	Search for scalar leptoquarks produced via $ \tau $ lepton-quark scattering in pp collisions at $ \sqrt{s}= $ 13 TeV	PRL 132 (2024) 061801	CMS-EXO-22-018 2308.06143
17	ATLAS Collaboration	Search for resonant leptoquark production via lepton-jet signatures in pp collisions at $ \sqrt{s}= $ 13 TeV and $ \sqrt{s}= $ 13.6 TeV with the ATLAS detector	JHEP 12 (2025) 180	2507.03650
18	SLAC E158 Collaboration	Observation of parity nonconservation in Moller scattering	PRL 92 (2004) 181602	hep-ex/0312035
19	SLAC E158 Collaboration	Precision measurement of the weak mixing angle in Moller scattering	PRL 95 (2005) 081601	hep-ex/0504049
20	MOLLER Collaboration	The MOLLER experiment: An ultra-precise measurement of the weak mixing angle using Moller scattering		1411.4088
21	ALEPH, DELPHI, L3, OPAL and LEP Electroweak Working Group	A combination of preliminary electroweak measurements and constraints on the standard model		hep-ex/0511027
22	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
23	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
24	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
25	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
26	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
27	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
28	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
29	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
30	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
31	CMS Collaboration	Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P10005	CMS-TAU-16-003 1809.02816
32	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
33	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
34	L. A. Harland-Lang	The proton in high definition: Revisiting photon-initiated production in high energy collisions	JHEP 03 (2020) 128	1910.10178
35	L. A. Harland-Lang	Physics with leptons and photons at the LHC	PRD 104 (2021) no. 7	2101.04127
36	A. Buckley et al.	LHAPDF6: parton density access in the LHC precision era	EPJC 75 (2015) 132	1412.7420
37	V. Bertone, S. Carrazza, and J. Rojo	APFEL: A PDF evolution library with QED corrections	Comput. Phys. Commun. 185 (2014) 1647	1310.1394
38	T. Cridge, L. A. Harland-Lang, A. D. Martin, and R. S. Thorne	QED parton distribution functions in the MSHT20 fit	EPJC 82 (2022) 90	2111.05357
39	L. A. Harland-Lang, M. Tasevsky, V. A. Khoze, and M. G. Ryskin	A new approach to modelling elastic and inelastic photon-initiated production at the LHC: SuperChic 4	EPJC 80 (2020) 925	2007.12704
40	P. Nason	A new method for combining NLO QCD with shower Monte Carlo algorithms	JHEP 11 (2004) 040	hep-ph/0409146
41	S. Frixione, P. Nason, and C. Oleari	Matching NLO QCD computations with parton shower simulations: the POWHEG method	JHEP 11 (2007) 070	0709.2092
42	S. Alioli, P. Nason, C. Oleari, and E. Re	A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX	JHEP 06 (2010) 043	1002.2581
43	S. Alioli et al.	Jet pair production in POWHEG	JHEP 04 (2011) 081	1012.3380
44	S. Alioli, P. Nason, C. Oleari, and E. Re	NLO Higgs boson production via gluon fusion matched with shower in POWHEG	JHEP 04 (2009) 002	0812.0578
45	S. Frixione, G. Ridolfi, and P. Nason	A positive-weight next-to-leading-order Monte Carlo for heavy flavour hadroproduction	JHEP 09 (2007) 126	0707.3088
46	T. Sj \"ostrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
47	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
48	NNPDF Collaboration	Parton distributions from high-precision collider data	EPJC 77 (2017) 663	1706.00428
49	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
50	CMS Collaboration	Measurements of inclusive W and Z cross sections in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV	JHEP 01 (2011) 080	CMS-EWK-10-002 1012.2466
51	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s}= $ 13 TeV with the CMS detector	CMS Physics Analysis Summary link	CMS-PAS-LUM-20-001
52	R. Barlow and C. Beeston	Fitting using finite Monte Carlo samples	Comput. Phys. Commun 77 (1993) 219
53	J. S. Conway	Incorporating nuisance parameters in likelihoods for multisource spectra	PHYSTAT 201 (2011) 115	1103.0354
54	CMS Collaboration	The CMS statistical analysis and combination tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
