CMS-PAS-EXO-24-001

CMS-PAS-EXO-24-001
Search for dark matter produced in association with a boosted large-radius jet in proton-proton collisions at $ \sqrt{s}= $ 13 TeV
CMS Collaboration
2026-03-18

Abstract: A search for a displaced dark matter candidate produced in association with a 4-prong boosted large-radius jet is presented. The analysis is based on data collected in the years 2016--2018 with the CMS detector at the LHC in proton-proton collisions at $ \sqrt{s}= $ 13 TeV, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. Signal candidates are reconstructed as large-radius jets and identified using a graph-neural-network-based jet substructure tagger. The standard model background contributions are estimated from the data using dedicated control regions. The missing transverse momentum spectrum is probed for a potential signal over the expected background. No significant excess over the standard model expectation is observed and upper limits at the 95% confidence level are set on the signal strength as a function of the mediator mass and the coupling between the dark matter particles and the scalar mediator.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

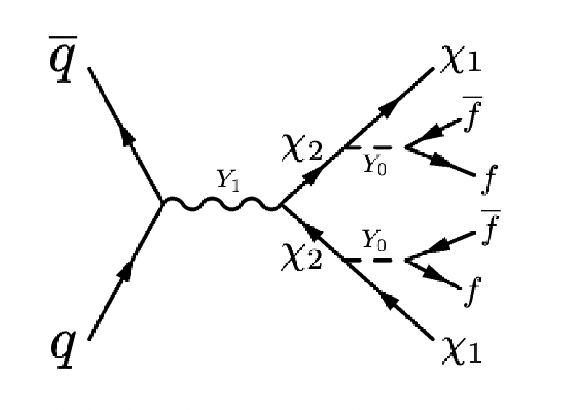

png pdf	Figure 1: A representative Feynman diagram of the process under study producing displaced vertices and missing transverse energy, as outlined in Ref. [2].

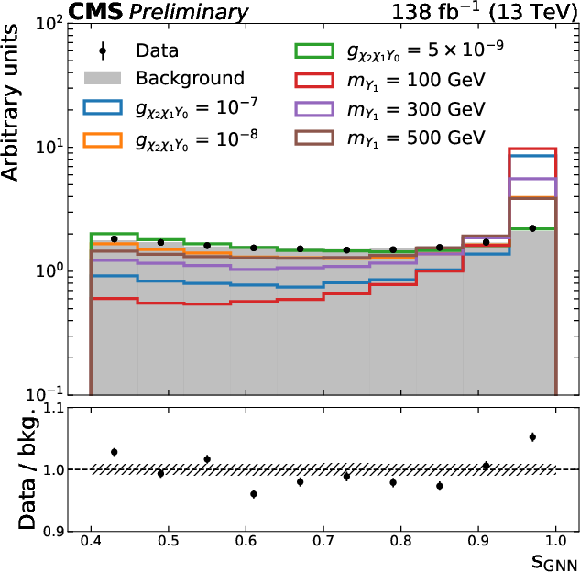

png pdf	Figure 2: Distribution of $ s_{\mathrm{GNN}} $ in the SR before imposing any requirement on $ s_{\mathrm{GNN}} $ for the range of values considered in this analysis. The data are shown as black markers with vertical bars indicating the statistical uncertainty. Signal processes are shown as solid lines, while the total background, corresponding to the sum of all considered background contributions, is represented by the filled histogram. The lower panel shows the ratio of the data and the total background, and the hatched area represents the total uncertainty in the background.

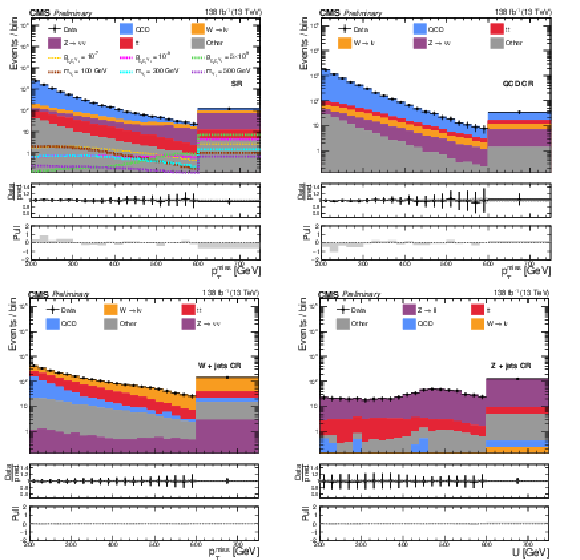

png pdf	Figure 3: Postfit $ p_{\mathrm{T}}^\text{miss} $ distributions in the SR (upper left), QCD CR (upper right), $ \mathrm{W}+\text{jets} $ CR (lower left), and postfit distribution of the magnitude of the hadronic recoil in the $ \mathrm{Z}+\text{jets} $ CR (lower right). The data are shown as black markers with vertical bars indicating the statistical uncertainty. The SM expectation is shown as stacked histograms. In the SR, the prefit expected signal contributions are displayed as dashed lines for different signal parameter settings (different colors). In the middle panels, the ratio of the data to the postfit SM prediction is shown, with the total uncertainty in the latter represented as a hatched area. In the lower panels, the difference between data and SM expectation divided by the error of that difference is reported.

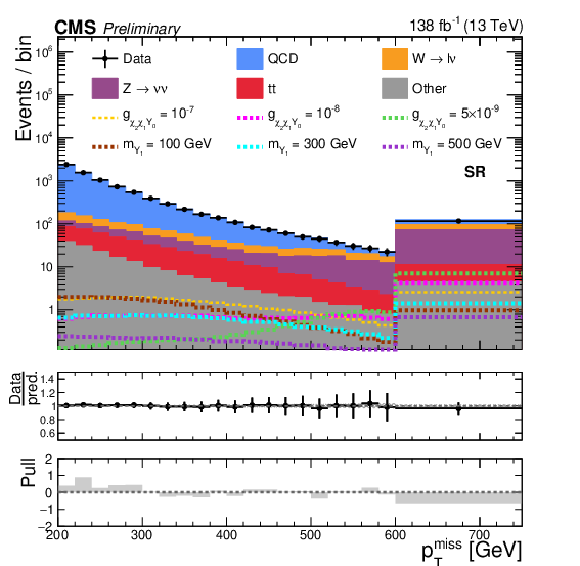

png pdf	Figure 3-a: Postfit $ p_{\mathrm{T}}^\text{miss} $ distributions in the SR (upper left), QCD CR (upper right), $ \mathrm{W}+\text{jets} $ CR (lower left), and postfit distribution of the magnitude of the hadronic recoil in the $ \mathrm{Z}+\text{jets} $ CR (lower right). The data are shown as black markers with vertical bars indicating the statistical uncertainty. The SM expectation is shown as stacked histograms. In the SR, the prefit expected signal contributions are displayed as dashed lines for different signal parameter settings (different colors). In the middle panels, the ratio of the data to the postfit SM prediction is shown, with the total uncertainty in the latter represented as a hatched area. In the lower panels, the difference between data and SM expectation divided by the error of that difference is reported.

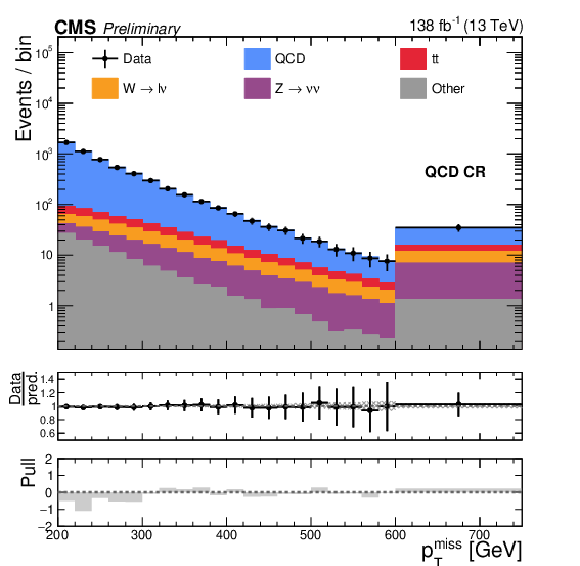

png pdf	Figure 3-b: Postfit $ p_{\mathrm{T}}^\text{miss} $ distributions in the SR (upper left), QCD CR (upper right), $ \mathrm{W}+\text{jets} $ CR (lower left), and postfit distribution of the magnitude of the hadronic recoil in the $ \mathrm{Z}+\text{jets} $ CR (lower right). The data are shown as black markers with vertical bars indicating the statistical uncertainty. The SM expectation is shown as stacked histograms. In the SR, the prefit expected signal contributions are displayed as dashed lines for different signal parameter settings (different colors). In the middle panels, the ratio of the data to the postfit SM prediction is shown, with the total uncertainty in the latter represented as a hatched area. In the lower panels, the difference between data and SM expectation divided by the error of that difference is reported.

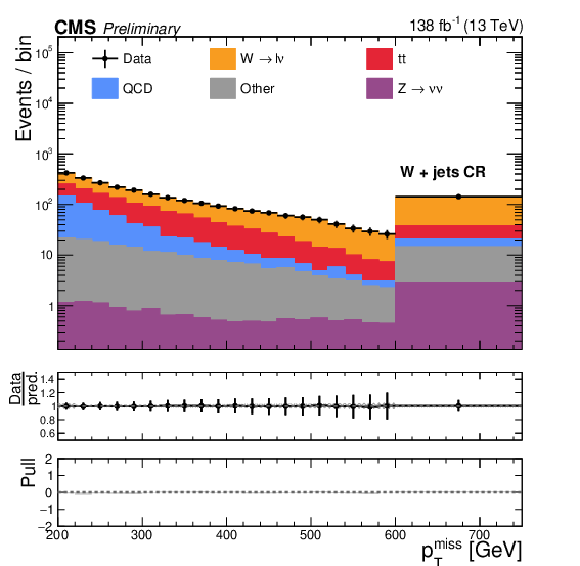

png pdf	Figure 3-c: Postfit $ p_{\mathrm{T}}^\text{miss} $ distributions in the SR (upper left), QCD CR (upper right), $ \mathrm{W}+\text{jets} $ CR (lower left), and postfit distribution of the magnitude of the hadronic recoil in the $ \mathrm{Z}+\text{jets} $ CR (lower right). The data are shown as black markers with vertical bars indicating the statistical uncertainty. The SM expectation is shown as stacked histograms. In the SR, the prefit expected signal contributions are displayed as dashed lines for different signal parameter settings (different colors). In the middle panels, the ratio of the data to the postfit SM prediction is shown, with the total uncertainty in the latter represented as a hatched area. In the lower panels, the difference between data and SM expectation divided by the error of that difference is reported.

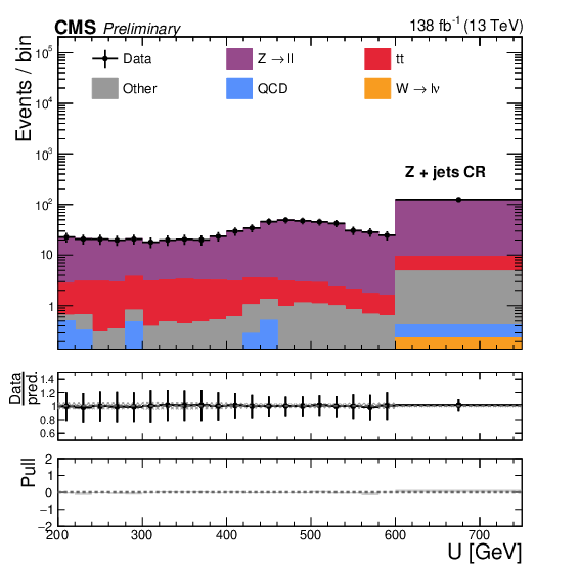

png pdf	Figure 3-d: Postfit $ p_{\mathrm{T}}^\text{miss} $ distributions in the SR (upper left), QCD CR (upper right), $ \mathrm{W}+\text{jets} $ CR (lower left), and postfit distribution of the magnitude of the hadronic recoil in the $ \mathrm{Z}+\text{jets} $ CR (lower right). The data are shown as black markers with vertical bars indicating the statistical uncertainty. The SM expectation is shown as stacked histograms. In the SR, the prefit expected signal contributions are displayed as dashed lines for different signal parameter settings (different colors). In the middle panels, the ratio of the data to the postfit SM prediction is shown, with the total uncertainty in the latter represented as a hatched area. In the lower panels, the difference between data and SM expectation divided by the error of that difference is reported.

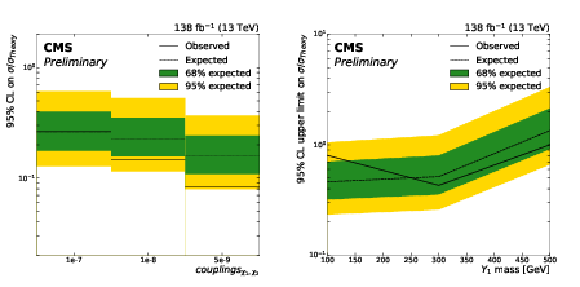

png pdf	Figure 4: Upper limits at the 95% CL on the signal strength for different scenarios of the coupling $ g_{\chi_2\chi_1\mathrm{Y}_0} $ (left) and varying $ \mathrm{Y}_1 $ masses (right). The observed (expected) limits are shown as a solid (dashed) black line and the inner (green) band and the outer (yellow) band indicate the regions containing 68% and 95%, respectively, of the distribution of limits expected under the background-only hypothesis.
png pdf	Figure 4-a: Upper limits at the 95% CL on the signal strength for different scenarios of the coupling $ g_{\chi_2\chi_1\mathrm{Y}_0} $ (left) and varying $ \mathrm{Y}_1 $ masses (right). The observed (expected) limits are shown as a solid (dashed) black line and the inner (green) band and the outer (yellow) band indicate the regions containing 68% and 95%, respectively, of the distribution of limits expected under the background-only hypothesis.

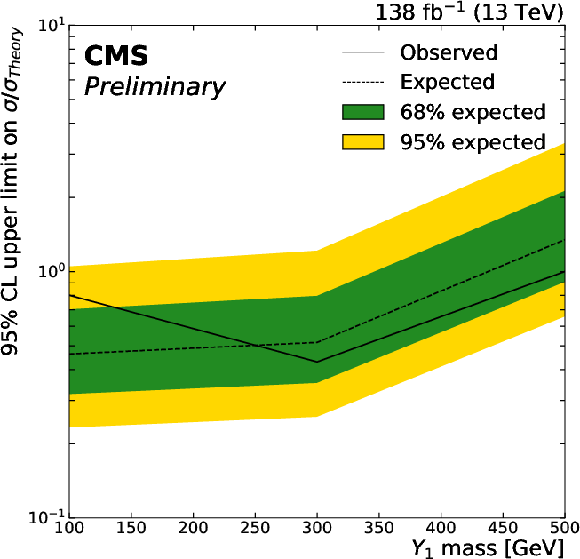

png pdf	Figure 4-b: Upper limits at the 95% CL on the signal strength for different scenarios of the coupling $ g_{\chi_2\chi_1\mathrm{Y}_0} $ (left) and varying $ \mathrm{Y}_1 $ masses (right). The observed (expected) limits are shown as a solid (dashed) black line and the inner (green) band and the outer (yellow) band indicate the regions containing 68% and 95%, respectively, of the distribution of limits expected under the background-only hypothesis.

Tables
png pdf	Table 1: Combinations of particle masses and couplings probed in this search. The configurations in the upper block vary the coupling $ g_{\chi_2\chi_1\mathrm{Y}_0} $ for fixed masses of the new particles, whereas the configuration in the lower block vary the $ \mathrm{Y}_1 $ boson mass for otherwise constant parameters.
png pdf	Table 2: Tagger efficiency scale factors derived for representative signal parameter configurations.
png pdf	Table 3: Summary of the systematic uncertainties considered in this analysis. The second column details whether the uncertainty affects the shape or the normalization (norm.) of the fitted distribution. The third column reports the effect of a given uncertainty on the normalization of the affected processes.

Summary

The first search for a displaced dark matter candidate in the boosted topology, characterized by a large-radius jet and large missing transverse momentum, has been presented. The analysis uses data collected in proton--proton collisions at $ \sqrt{s}= $ 13 TeV, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. Candidate signal events were selected by requiring the presence of large-radius jets and identified using a graph-neural-network-based tagger that exploits jet substructure and secondary-vertex information. The dominant standard model backgrounds arise from quantum chromodymanics multijet production, $ \mathrm{Z}(\to\nu\nu)+\text{jets} $, and $ \mathrm{W}+\text{jets} $ processes, which were estimated from the data using dedicated control regions. The missing transverse momentum spectrum was analyzed to search for a potential signal above the expected background. Upper limits at the 95% confidence level were set on the signal strength as a function of the mediator mass and the coupling strength of the $ \chi_2\chi_1\mathrm{Y}_0 $ vertex. No significant excess over the SM expectation was observed.

References
1	D. Abercrombie et al.	Dark matter benchmark models for early LHC Run-2 searches: Report of the ATLAS/CMS dark matter forum	Phys. Dark Univ. 27 (2020) 100371	1507.00966
2	O. Buchmueller et al.	Simplified models for displaced dark matter signatures	JHEP 09 (2017) 076	1704.06515
3	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
4	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
5	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
6	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
7	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
8	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
9	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
10	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
11	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
12	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
13	P. Nason	A new method for combining NLO QCD with shower Monte Carlo algorithms	JHEP 11 (2004) 040	hep-ph/0409146
14	S. Frixione, P. Nason, and C. Oleari	Matching NLO QCD computations with parton shower simulations: the POWHEG method	JHEP 11 (2007) 070	0709.2092
15	S. Alioli, P. Nason, C. Oleari, and E. Re	A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX	JHEP 06 (2010) 043	1002.2581
16	S. Frixione, P. Nason, and G. Ridolfi	A positive-weight next-to-leading-order Monte Carlo for heavy flavour hadroproduction	JHEP 09 (2007) 126	0707.3088
17	S. Alioli, P. Nason, C. Oleari, and E. Re	NLO single-top production matched with shower in POWHEG: s- and t-channel contributions	[Erratum: JHEP 02, 011 ()], 2009 JHEP 09 (2009) 111	0907.4076
18	J. M. Campbell, R. K. Ellis, P. Nason, and E. Re	Top-pair production and decay at NLO matched with parton showers	JHEP 04 (2015) 114	1412.1828
19	P. Artoisenet, R. Frederix, O. Mattelaer, and R. Rietkerk	Automatic spin-entangled decays of heavy resonances in Monte Carlo simulations	JHEP 03 (2013) 015	1212.3460
20	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
21	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
22	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
23	M. Cacciari, G. P. Salam, and G. Soyez	The anti-$ k_{\mathrm{T}} $ jet clustering algorithm	JHEP 04 (2008) 063	0802.1189
24	M. Cacciari, G. P. Salam, and G. Soyez	FastJet user manual	EPJC 72 (2012) 1896	1111.6097
25	D. Bertolini, P. Harris, M. Low, and N. Tran	Pileup per particle identification	JHEP 10 (2014) 059	1407.6013
26	CMS Collaboration	Pileup mitigation at CMS in 13 TeV data	JINST 15 (2020) P09018	CMS-JME-18-001 2003.00503
27	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
28	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
29	CMS Collaboration	Jet algorithms performance in 13 TeV data	CMS Physics Analysis Summary, 2017 CMS-PAS-JME-16-003	CMS-PAS-JME-16-003
30	E. A. Moreno et al.	Interaction networks for the identification of boosted $ h \rightarrow b\overline{b} $ decays	PRD 102 (2020) 012010
31	CMS Collaboration	Identification of hadronic tau lepton decays using a deep neural network	JINST 17 (2022) P07023	CMS-TAU-20-001 2201.08458
32	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS	EPJC 81 (2021) 800	CMS-LUM-17-003 2104.01927
33	CMS Collaboration	CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV	CMS Physics Analysis Summary, 2018 link	CMS-PAS-LUM-17-004
34	CMS Collaboration	CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV	CMS Physics Analysis Summary, 2019 link	CMS-PAS-LUM-18-002
35	CMS Collaboration	A method for correcting the substructure of multiprong jets using the Lund jet plane	JHEP 11 (2025) 038	CMS-JME-23-001 2507.07775
