CMS-SMP-24-002

CMS-SMP-24-002 ; CERN-EP-2025-232
Measurement of Z$ \gamma $ production in proton-proton collisions at $ \sqrt{s}= $ 13.6 TeV and constraints on neutral triple gauge couplings
CMS Collaboration
9 December 2025
Submitted to Phys. Rev. Lett.
Abstract: A measurement of the Z$ \gamma $ production cross section in proton-proton collisions at a center-of-mass energy of 13.6 TeV is presented. Data corresponding to an integrated luminosity of 34.8 fb$^{-1}$, collected by the CMS experiment at the LHC in 2022 are used. Events with an oppositely charged pair of muons or electrons, with an invariant mass corresponding to a Z boson, together with an isolated photon are selected. The measured fiducial cross section for the combined electron and muon channels is 1.896 $ \pm $ 0.033 (stat) $ \pm $ 0.054 (syst) $ \pm $ 0.006 (theo) pb, in agreement with the standard model prediction of 1.922 $ \pm $ 0.094 pb. Constraints on neutral triple gauge couplings generated by dimension-8 operators in a recently proposed effective field theory framework are determined for the first time.
Links: e-print arXiv:2512.08582 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

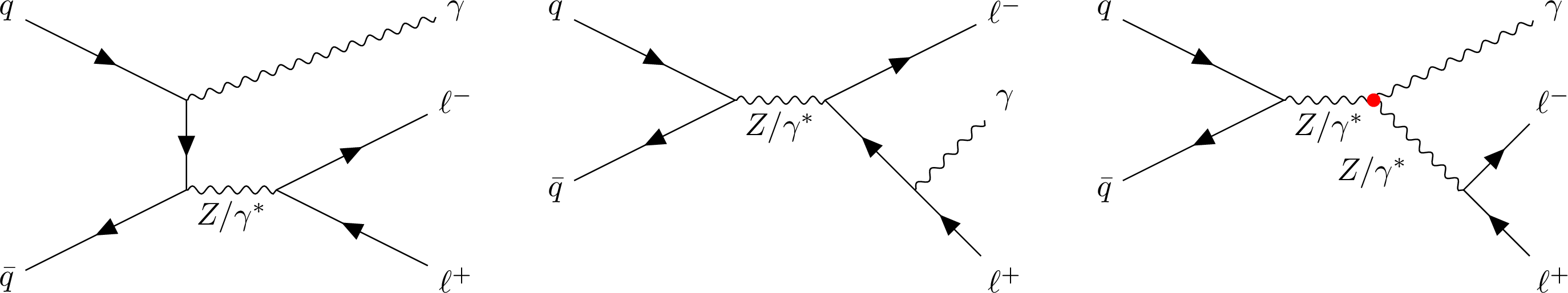

png pdf	Figure 1: Leading order Feynman diagrams for Z$ \gamma $ production in proton-proton collisions and an example anomalous gauge coupling diagram. Left: initial-state radiation. Center: final-state radiation. Right: diagram involving anomalous gauge couplings that are forbidden in the SM at tree level. The red point indicates the anomalous Z$ \gamma$Z* or Z$ \gamma\gamma^{\ast} $ gauge coupling vertices.

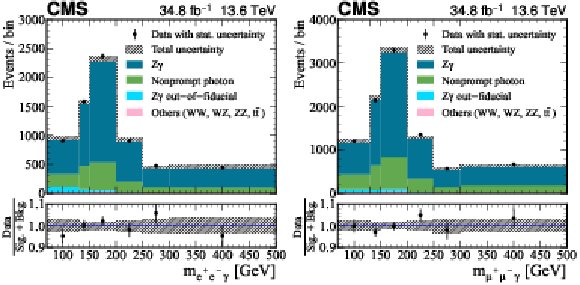

png pdf	Figure 2: Post-fit distributions of $ m_{\ell\ell\gamma} $ in the electron (left) and muon channel (right). The experimental data are shown as points with associated statistical uncertainties, while the hatched bands represent the total uncertainties. Uneven bin sizes GeV are used to ensure sufficient statistical precision in each bin. The last bins include overflow events.

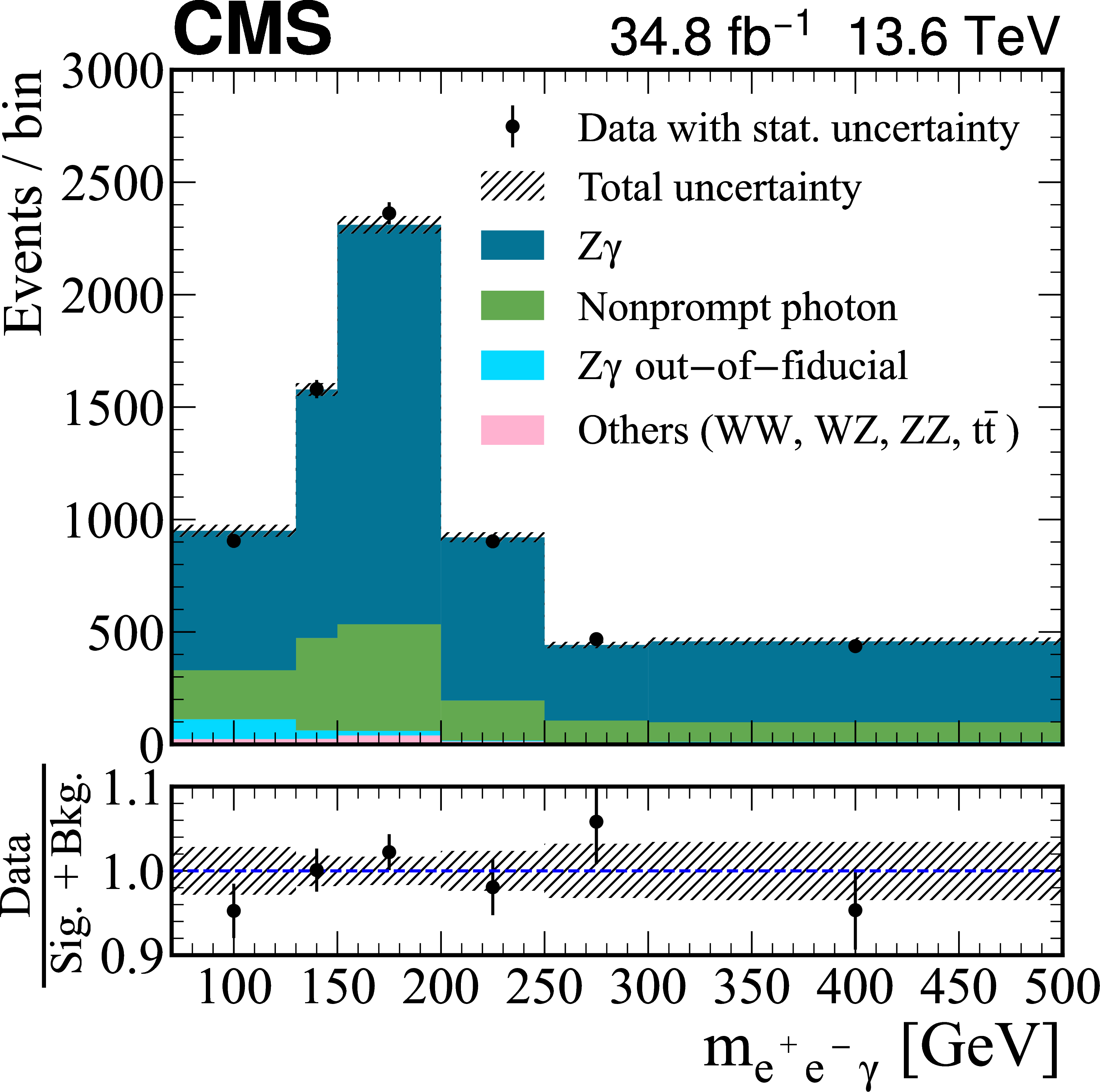

png pdf	Figure 2-a: Post-fit distributions of $ m_{\ell\ell\gamma} $ in the electron (left) and muon channel (right). The experimental data are shown as points with associated statistical uncertainties, while the hatched bands represent the total uncertainties. Uneven bin sizes GeV are used to ensure sufficient statistical precision in each bin. The last bins include overflow events.

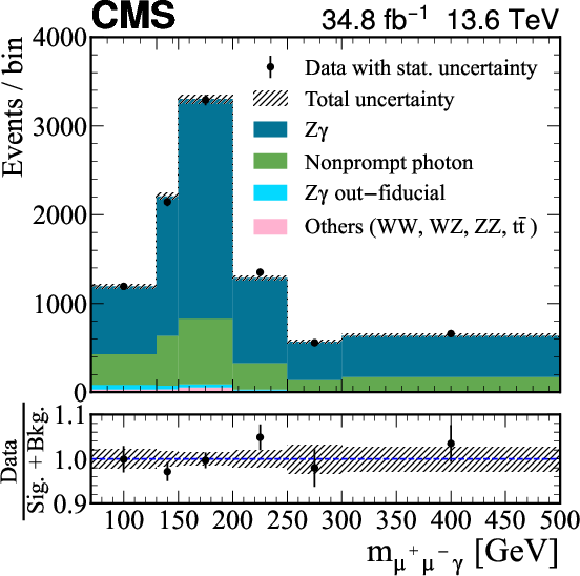

png pdf	Figure 2-b: Post-fit distributions of $ m_{\ell\ell\gamma} $ in the electron (left) and muon channel (right). The experimental data are shown as points with associated statistical uncertainties, while the hatched bands represent the total uncertainties. Uneven bin sizes GeV are used to ensure sufficient statistical precision in each bin. The last bins include overflow events.

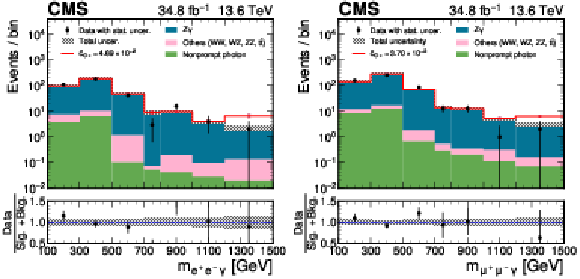

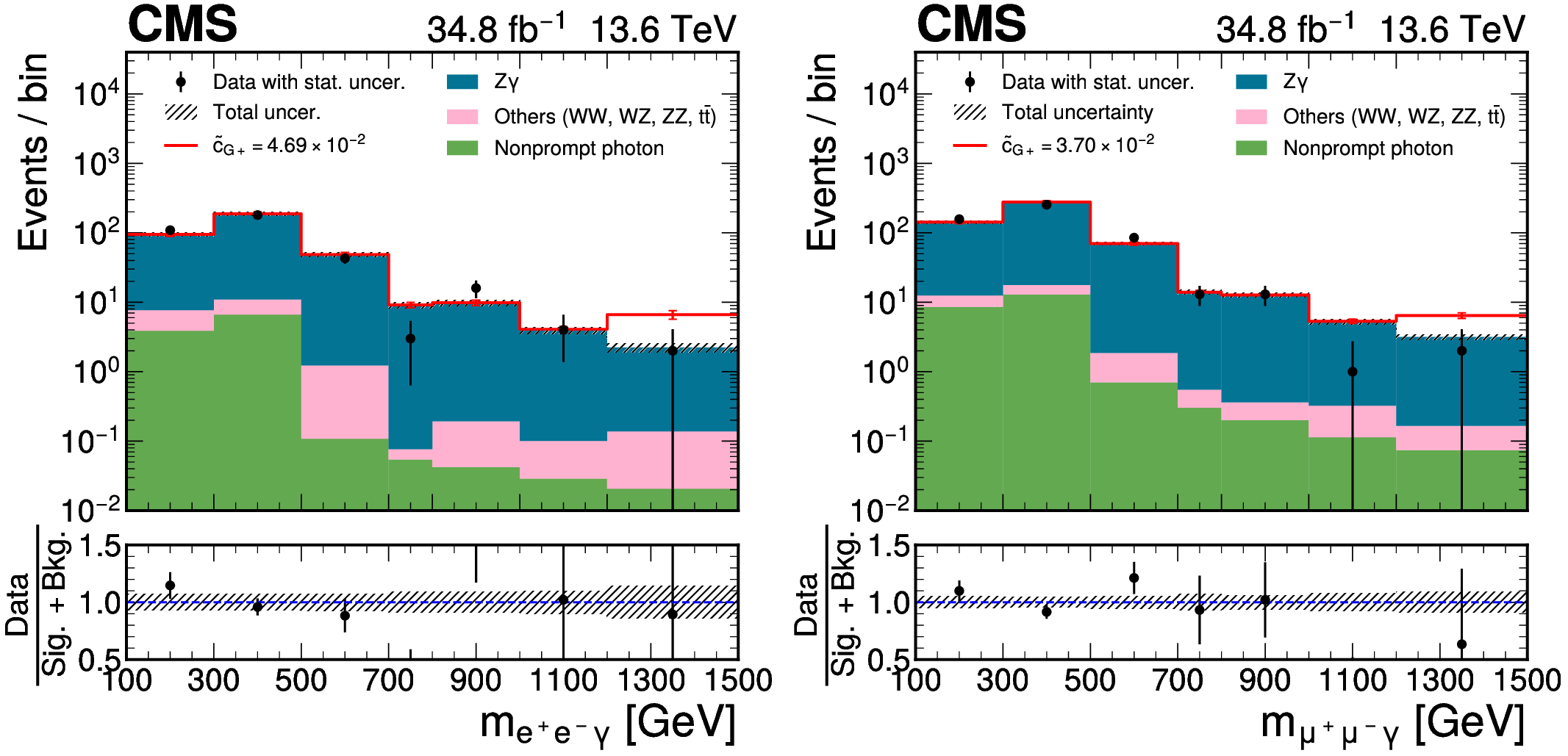

png pdf	Figure 3: Post-fit distributions of $ m_{\ell\ell\gamma} $ for the electron channel (left) and the muon channel (right) with the stricter photon $ p_{\mathrm{T}} $ requirement. The experimental data are shown as points with associated statistical uncertainties, while the hatched bands represent the total uncertainties. Uneven bin sizes are used to ensure sufficient statistical precision in each bin. A representative nTGC signal $ \tilde{c}_{G+} $ and its statistical uncertainty is shown as the red curve. The nTGC sensitivity mainly comes from the last bin which includes overflow events.
png pdf	Figure 3-a: Post-fit distributions of $ m_{\ell\ell\gamma} $ for the electron channel (left) and the muon channel (right) with the stricter photon $ p_{\mathrm{T}} $ requirement. The experimental data are shown as points with associated statistical uncertainties, while the hatched bands represent the total uncertainties. Uneven bin sizes are used to ensure sufficient statistical precision in each bin. A representative nTGC signal $ \tilde{c}_{G+} $ and its statistical uncertainty is shown as the red curve. The nTGC sensitivity mainly comes from the last bin which includes overflow events.

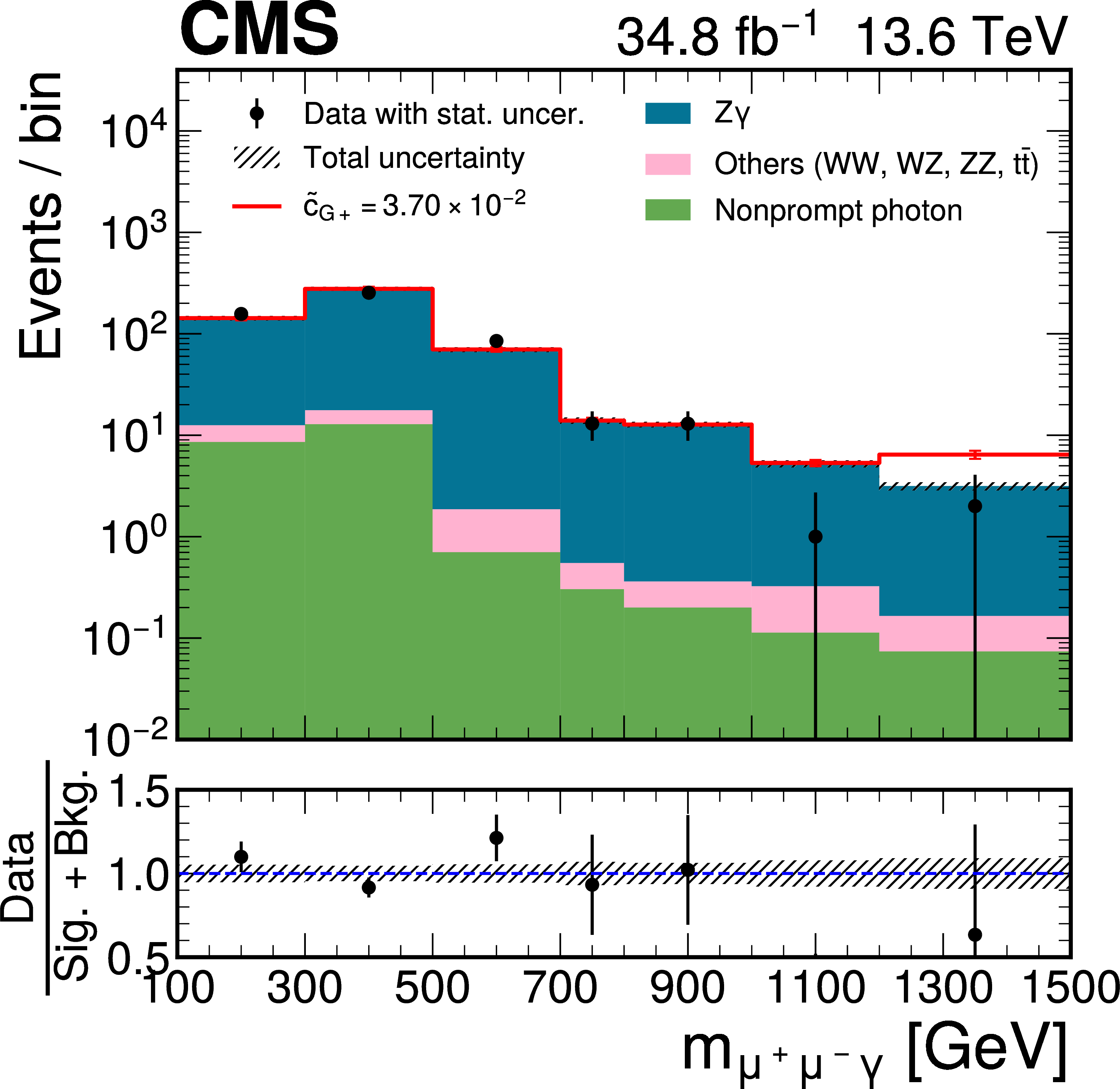

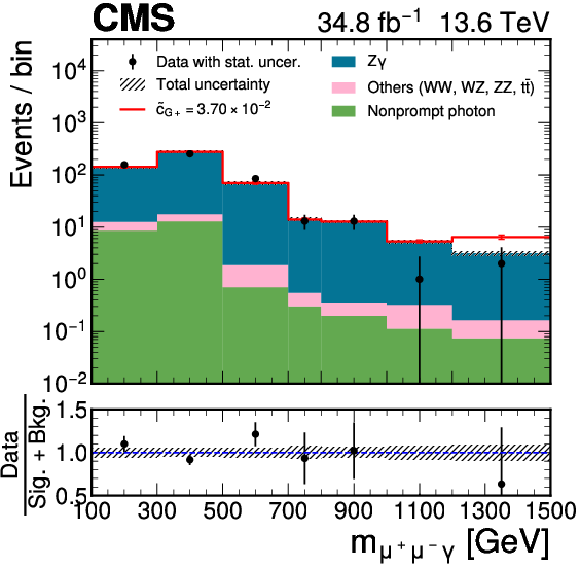

png pdf	Figure 3-b: Post-fit distributions of $ m_{\ell\ell\gamma} $ for the electron channel (left) and the muon channel (right) with the stricter photon $ p_{\mathrm{T}} $ requirement. The experimental data are shown as points with associated statistical uncertainties, while the hatched bands represent the total uncertainties. Uneven bin sizes are used to ensure sufficient statistical precision in each bin. A representative nTGC signal $ \tilde{c}_{G+} $ and its statistical uncertainty is shown as the red curve. The nTGC sensitivity mainly comes from the last bin which includes overflow events.

Tables
png pdf	Table 1: The observed fiducial $ \ell^{+}\ell^{-}\gamma $ cross section of the process in each channel. The quoted uncertainties include statistical, systematical and theoretical components. Branching ratio $ \mathcal{B} $ is for the $ \mathrm{Z} \to \ell^{+}\ell^{-}\gamma $ process.

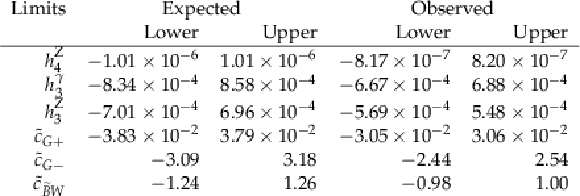

png pdf	Table 2: Expected and observed 95% CL limits on nTGC parameters for the combination of the measurements in the electron and muon channels. The first three rows show the results using VPM that preserves only the $ \mathrm{U}(1)_{\mathrm{EM}} $ symmetry, while the last three rows show the results from GSPM that preserves the $ \mathrm{SU}(2)_\mathrm{L}\otimes\mathrm{U}(1)_{\mathrm{Y}} $ symmetry.

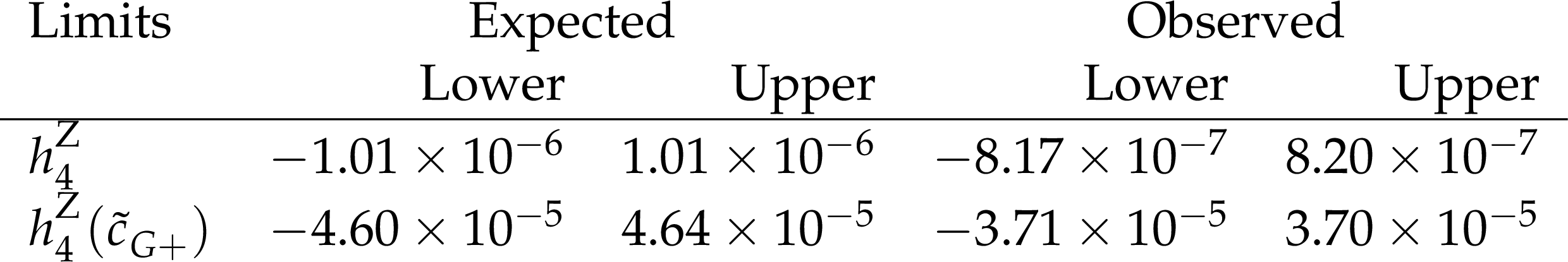

png pdf	Table 3: Expected and observed 95% CL limits for VPM parameter $ h_4^\mathrm{Z} $ and for GSPM parameter $ \tilde{c}_{G+} $ converted into $ h_4^\mathrm{Z} $ via Eq. (1).

Summary

In summary, a measurement of Z$ \gamma $ production using leptonic final states in proton-proton collisions at a center-of-mass energy of 13.6 TeV has been presented. The data set used corresponds to an integrated luminosity of 34.8 fb$ ^{-1} $, collected by the CMS experiment at the LHC during 2022. Events with a pair of oppositely charged muons or electrons together with an isolated photon are selected. The measured fiducial cross section for the combined electron and muon channels is 1.896 $ \pm $ 0.033 (stat) $ \pm $ 0.054 (syst) $ \pm $ 0.006 (theo) pb, in agreement with the standard model prediction of 1.922 $ \pm $ 0.094 pb. The $ m_{\ell\ell\gamma} $ distribution is used to set 95% confidence level limits on neutral triple gauge couplings. These limits are derived, for the first time, in the context of a recently proposed framework of the effective field theory based on dimension-8 operators, which maintains $ \mathrm{SU}(2)_\mathrm{L}\otimes\mathrm{U}(1)_{\mathrm{Y}} $ gauge symmetry [16].

References
1	W. Buchmuller and D. Wyler	Effective Lagrangian analysis of new interactions and flavour conservation	NPB 268 (1986) 621
2	B. Grzadkowski, M. Iskrzynski, M. Misiak, and J. Rosiek	Dimension-six terms in the standard model Lagrangian	JHEP 10 (2010) 085	1008.4884
3	J. Ellis, V. Sanz, and T. You	Complete Higgs sector constraints on dimension-6 operators	JHEP 07 (2014) 036	1404.3667
4	G. J. Gounaris, J. Layssac, and F. M. Renard	Signatures of the anomalous $ Z{\gamma} $ and $ ZZ $ production at the lepton and hadron colliders	PRD 61 (2000) 073013	hep-ph/9910395
5	G. J. Gounaris, J. Layssac, and F. M. Renard	Off-shell structure of the anomalous Z and $ \gamma $ selfcouplings	PRD 62 (2000) 073012	hep-ph/0005269
6	C. Degrande	A basis of dimension-eight operators for anomalous neutral triple gauge boson interactions	JHEP 02 (2014) 101	1308.6323
7	J. Ellis, H.-J. He, and R.-Q. Xiao	Probing new physics in dimension-8 neutral gauge couplings at $ \mathrm{e}^+\mathrm{e}^- $ colliders	Sci. China Phys. Mech. Astron. 64 (2021) 221062	2008.04298
8	L3 Collaboration	Study of the $ e^{+} e^{-} \to \mathrm{Z}\gamma $ process at LEP and limits on triple neutral-gauge-boson couplings	PLB 597 (2004) 119	hep-ex/0407012
9	OPAL Collaboration	Search for trilinear neutral gauge boson couplings in $ \mathrm{Z}\gamma $ production at $ \sqrt{s}= $ 189 GeV at LEP	EPJC 17 (2000) 553	hep-ex/0007016
10	ATLAS Collaboration	Measurement of the $ \mathrm{Z}\gamma \to \nu \overline{\nu}\gamma $ production cross section in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector and limits on anomalous triple gauge-boson couplings	JHEP 12 (2018) 010	1810.04995
11	ATLAS Collaboration	Measurement of the $ \mathrm{Z}(\rightarrow\ell^+\ell^-)\gamma $ production cross-section in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector	JHEP 03 (2020) 054	1911.04813
12	ATLAS Collaboration	Measurements of $ \mathrm{Z}\gamma $ and $ \mathrm{Z}\gamma\gamma $ production in pp collisions at $ \sqrt{s}= $ 8 TeV with the ATLAS detector	PRD 93 (2016) 112002	1604.05232
13	CMS Collaboration	Measurement of the $ \mathrm{Z}\gamma\to\nu\bar{\nu}\gamma $ production cross section in pp collisions at $ \sqrt{s}= $ 8 TeV and limits on anomalous $ \mathrm{Z}\mathrm{Z}\gamma $ and $ \mathrm{Z}\gamma\gamma $ trilinear gauge boson couplings	PLB 760 (2016) 448	CMS-SMP-14-019 1602.07152
14	ATLAS Collaboration	Measurements of $ \mathrm{Z}\gamma+ $jets differential cross sections in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector	JHEP 07 (2023) 072	2212.07184
15	G. J. Gounaris, J. Layssac, and F. M. Renard	New and standard physics contributions to anomalous Z and $ \gamma $ self-couplings	PRD 62 (2000) 073013	hep-ph/0003143
16	J. Ellis, H.-J. He, and R.-Q. Xiao	Probing neutral triple gauge couplings at the LHC and future hadron colliders	PRD 107 (2023) 035005	2206.11676
17	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
18	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
19	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
20	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
21	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
22	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
23	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
24	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
25	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
26	CMS Collaboration	Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P10005	CMS-TAU-16-003 1809.02816
27	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
28	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
29	CMS Collaboration	Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid	CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS
30	CMS Collaboration	Performance of the CMS electromagnetic calorimeter in pp collisions at $ \sqrt{s} = $ 13 TeV	JINST 19 (2024) P09004	CMS-EGM-18-002 2403.15518
31	CMS Collaboration	Performance of photon reconstruction and identification with the CMS detector in proton-proton collisions at $ \sqrt{s} = $ 8 TeV	JINST 10 (2015) P08010	CMS-EGM-14-001 1502.02702
32	CMS Collaboration	Reconstruction of signal amplitudes in the CMS electromagnetic calorimeter in the presence of overlapping proton-proton interactions	JINST 15 (2020) P10002	CMS-EGM-18-001 2006.14359
33	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
34	R. Frederix and S. Frixione	Merging meets matching in MC@NLO	JHEP 12 (2012) 061	1209.6215
35	T. Sjostrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
36	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
37	NNPDF Collaboration	Parton distributions from high-precision collider data	EPJC 77 (2017) 663	1706.00428
38	CMS Collaboration	First measurement of the top quark pair production cross section in proton-proton collisions at $ \sqrt{s} = $ 13.6 TeV	JHEP 08 (2023) 204	CMS-TOP-22-012 2303.10680
39	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
40	CMS Collaboration	Measurements of differential Z boson production cross sections in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JHEP 12 (2019) 061	CMS-SMP-17-010 1909.04133
41	CMS Collaboration	The CMS statistical analysis and combination tool: COMBINE	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
42	W. Verkerke and D. P. Kirkby	The RooFit toolkit for data modeling	in Proceedings of the 13th International Conference for Computing in High-Energy and Nuclear Physics (CHEP03), 2003 [eConf C0303241, MOLT007] link	physics/0306116
43	L. Moneta et al.	The RooStats project	in 13th International Workshop on Advanced Computing and Analysis Techniques in Physics Research (ACAT). SISSA, 2010 link	1009.1003
44	J. Butterworth et al.	PDF4LHC recommendations for LHC Run II	JPG 43 (2016) 023001	1510.03865
45	L. A. Harland-Lang, A. D. Martin, P. Motylinski, and R. S. Thorne	Parton distributions in the LHC era: MMHT 2014 PDFs	EPJC 75 (2015) 204	1412.3989
46	NNPDF Collaboration	Parton distributions for the LHC Run II	JHEP 04 (2015) 040	1410.8849
47	S. Dulat et al.	New parton distribution functions from a global analysis of quantum chromodynamics	PRD 93 (2016) 033006	1506.07443
48	CMS Collaboration	Luminosity measurement in proton-proton collisions at 13.6 TeV in 2022 at CMS	CMS Physics Analysis Summary, 2024 CMS-PAS-LUM-22-001	CMS-PAS-LUM-22-001
49	R. J. Barlow and C. Beeston	Fitting using finite Monte Carlo samples	Comput. Phys. Commun. 77 (1993) 219
50	C. Degrande et al.	UFO --- The universal FeynRules output	Comput. Phys. Commun. 183 (2012) 1201	1108.2040
51	CMS Collaboration	HEPData record for this analysis	link
