Measurement of the $\mathrm{t}\bar{\mathrm{t}}\mathrm{W}$ differential cross section and charge asymmetry at $\sqrt{s}=$ 13 TeV
CMS Collaboration
22 March 2025

Abstract: Measurements of top quark-antiquark pair production properties in association with a W boson in proton-proton collisions at a center-of-mass energy of 13 TeV are presented, using a data sample corresponding to an integrated luminosity of 138 fb $^{-1}$ , recorded by the CMS experiment at the CERN LHC. Events are selected based on the presence of either two leptons with the same electric charge or three leptons, and multiple jets and b-tagged jets. Firstly, we present a measurement of the differential production cross section as a function of kinematic variables sensitive to different aspects of this process' modeling, using a multivariate discriminator in the two-lepton selection region and a cut-based method in the three-lepton region. The normalized cross section measurements are generally consistent with the SM expectations, while we observe larger values compared to the expectations in the absolute cross section measurements, consistent with previous inclusive cross section measurements. The measurements in the two-lepton region using the cut-based method are also shown and are found to be consistent with the multivariate discriminator method. In addition, we measure the leptonic charge asymmetry of this process, obtaining an observed value of $A_c^{\ell}=$ $-$ 0.19 $^{+0.16}_{-0.18}$ , consistent with the expectation of $-$ 0.09 $^{+0.12}_{-0.14}$ predicted by next-to-leading order simulations.
Links: CDS record (PDF) ; Physics Briefing ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

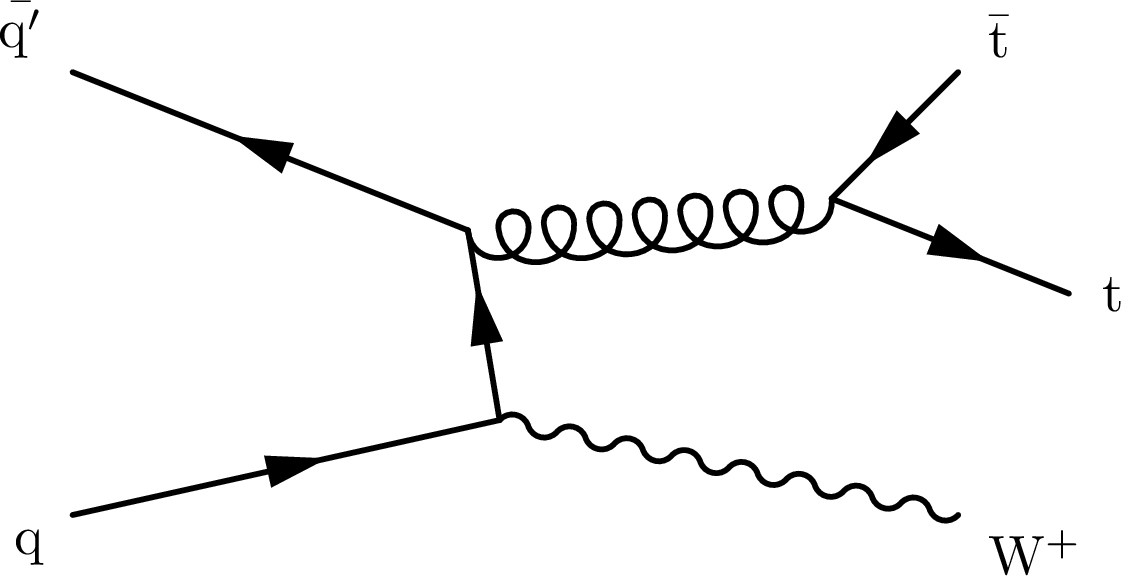

png pdf	Figure 1: Examples of Feynman diagrams for $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ production: at LO (left) and one of the NLO diagrams introducing sizeable electroweak corrections (right).
png pdf	Figure 1-a: Examples of Feynman diagrams for $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ production: at LO (left) and one of the NLO diagrams introducing sizeable electroweak corrections (right).
png pdf	Figure 1-b: Examples of Feynman diagrams for $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ production: at LO (left) and one of the NLO diagrams introducing sizeable electroweak corrections (right).
png pdf	Figure 2: $p_{\mathrm{T}}$ of the sub-leading lepton (left) and $\|\eta\|$ of the subleading lepton (right), in a VR enriched with nonprompt leptons by applying requirements on the number of (b-tagged) jets orthogonal to the SR, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the tight lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the data to the prefit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 2-a: $p_{\mathrm{T}}$ of the sub-leading lepton (left) and $\|\eta\|$ of the subleading lepton (right), in a VR enriched with nonprompt leptons by applying requirements on the number of (b-tagged) jets orthogonal to the SR, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the tight lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the data to the prefit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 2-b: $p_{\mathrm{T}}$ of the sub-leading lepton (left) and $\|\eta\|$ of the subleading lepton (right), in a VR enriched with nonprompt leptons by applying requirements on the number of (b-tagged) jets orthogonal to the SR, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the tight lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the data to the prefit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.

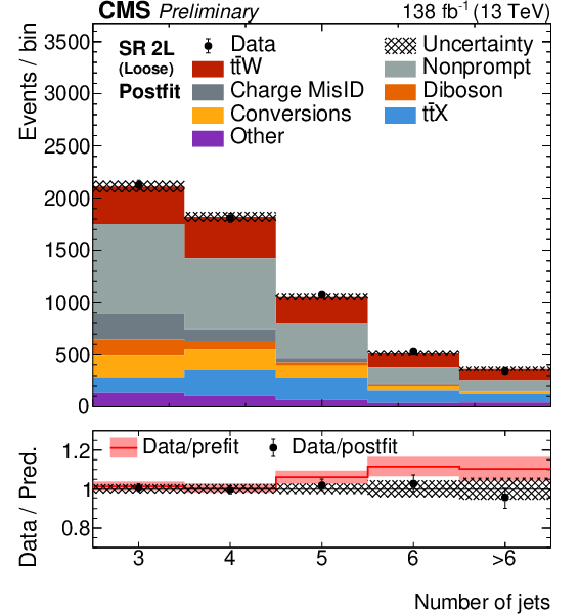

png pdf	Figure 3: Number of selected b-tagged jets in the event (upper left), number of selected jets in the event (upper right), $p_{\mathrm{T}}$ of the sub-leading lepton (lower left) and $\|\eta\|$ of the sub-leading lepton (lower right), in a CR enriched with nonprompt leptons by inverting the $p_{\mathrm{T}}^\text{miss}$ requirement, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 3-a: Number of selected b-tagged jets in the event (upper left), number of selected jets in the event (upper right), $p_{\mathrm{T}}$ of the sub-leading lepton (lower left) and $\|\eta\|$ of the sub-leading lepton (lower right), in a CR enriched with nonprompt leptons by inverting the $p_{\mathrm{T}}^\text{miss}$ requirement, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 3-b: Number of selected b-tagged jets in the event (upper left), number of selected jets in the event (upper right), $p_{\mathrm{T}}$ of the sub-leading lepton (lower left) and $\|\eta\|$ of the sub-leading lepton (lower right), in a CR enriched with nonprompt leptons by inverting the $p_{\mathrm{T}}^\text{miss}$ requirement, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 3-c: Number of selected b-tagged jets in the event (upper left), number of selected jets in the event (upper right), $p_{\mathrm{T}}$ of the sub-leading lepton (lower left) and $\|\eta\|$ of the sub-leading lepton (lower right), in a CR enriched with nonprompt leptons by inverting the $p_{\mathrm{T}}^\text{miss}$ requirement, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.

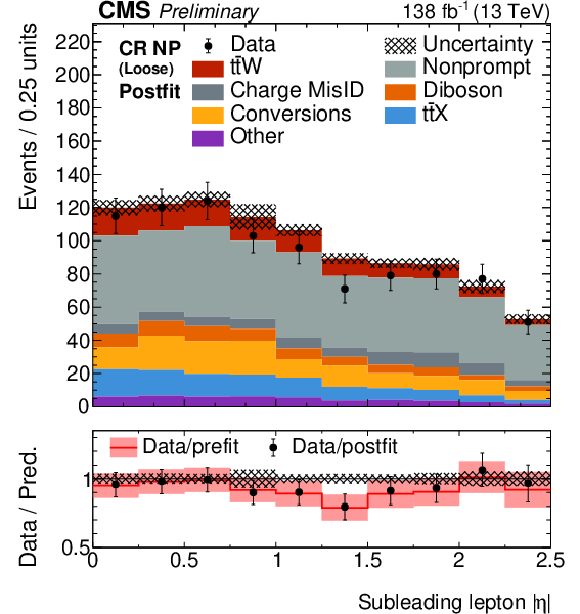

png pdf	Figure 3-d: Number of selected b-tagged jets in the event (upper left), number of selected jets in the event (upper right), $p_{\mathrm{T}}$ of the sub-leading lepton (lower left) and $\|\eta\|$ of the sub-leading lepton (lower right), in a CR enriched with nonprompt leptons by inverting the $p_{\mathrm{T}}^\text{miss}$ requirement, for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.

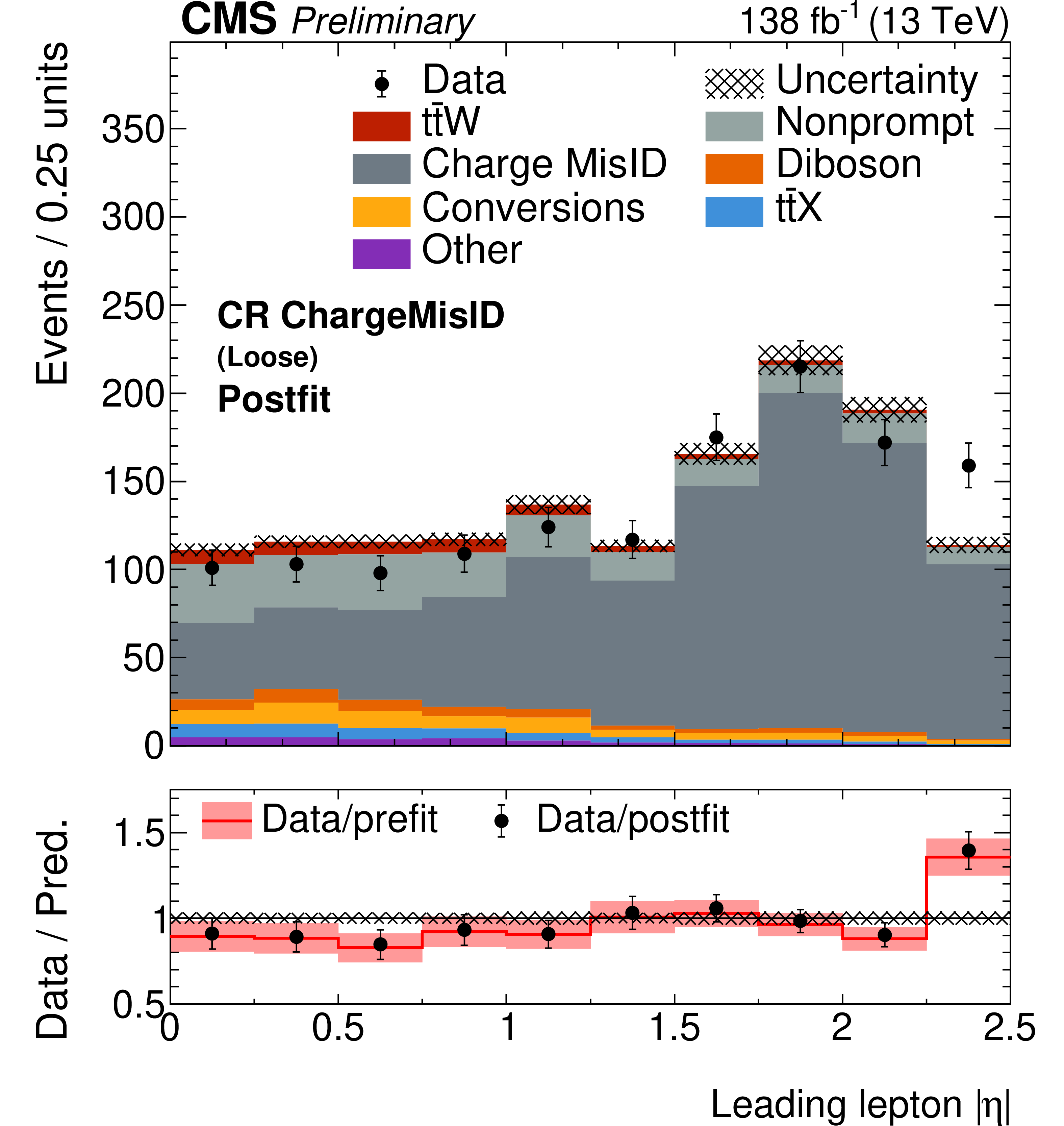

png pdf	Figure 4: $p_{\mathrm{T}}$ of the leading lepton (left), $\|\eta\|$ of the leading lepton (right), in a CR enriched with charge-misidentified leptons and additional jets for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 4-a: $p_{\mathrm{T}}$ of the leading lepton (left), $\|\eta\|$ of the leading lepton (right), in a CR enriched with charge-misidentified leptons and additional jets for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 4-b: $p_{\mathrm{T}}$ of the leading lepton (left), $\|\eta\|$ of the leading lepton (right), in a CR enriched with charge-misidentified leptons and additional jets for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR as described in Section 7 for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 5: Number of selected (b-tagged) jets in the event for events with three leptons passing the loose (left) and tight (right) selection after the fit to the data in the SR and CR as described in Section 7. Events with no b-tagged jets are classified in bins 1 to 4, events with one b-tagged jet are classified in bins 5 to 9 (8) and events with more than one b tag are classified in bins 10 (9) to 13 (12) for the loose (tight) lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction.
png pdf	Figure 5-a: Number of selected (b-tagged) jets in the event for events with three leptons passing the loose (left) and tight (right) selection after the fit to the data in the SR and CR as described in Section 7. Events with no b-tagged jets are classified in bins 1 to 4, events with one b-tagged jet are classified in bins 5 to 9 (8) and events with more than one b tag are classified in bins 10 (9) to 13 (12) for the loose (tight) lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction.
png pdf	Figure 5-b: Number of selected (b-tagged) jets in the event for events with three leptons passing the loose (left) and tight (right) selection after the fit to the data in the SR and CR as described in Section 7. Events with no b-tagged jets are classified in bins 1 to 4, events with one b-tagged jet are classified in bins 5 to 9 (8) and events with more than one b tag are classified in bins 10 (9) to 13 (12) for the loose (tight) lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction.

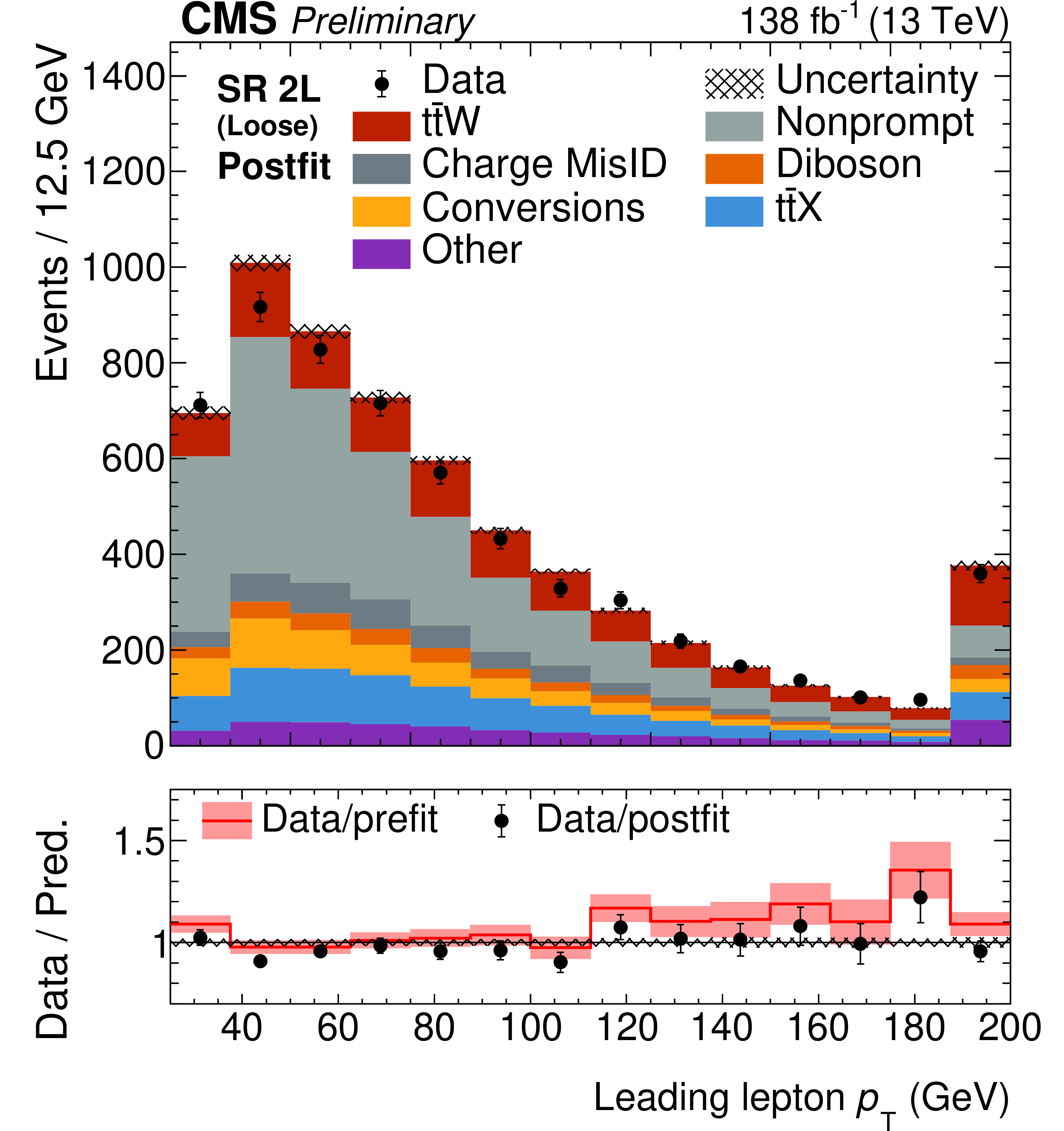

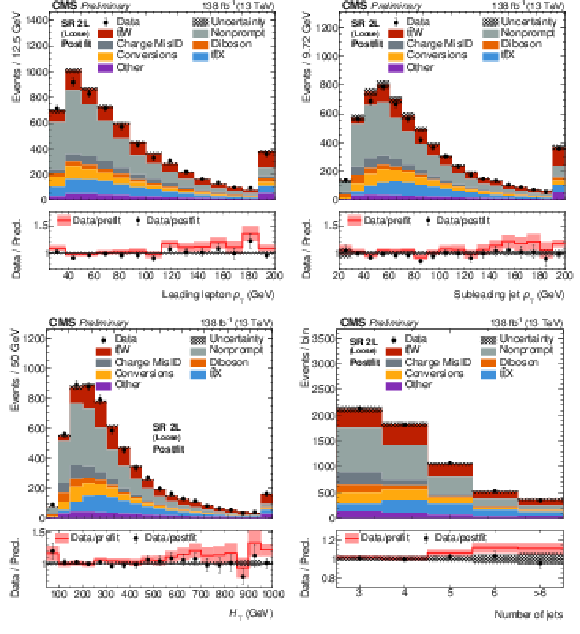

png pdf	Figure 6: $p_{\mathrm{T}}$ of the leading lepton (upper left), $p_{\mathrm{T}}$ of the subleading jet (upper right), scalar $p_{\mathrm{T}}$ sum of selected jets in the event (lower left) and the number of selected jets in the event (lower right), in the two-lepton signal selection for the loose lepton selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.

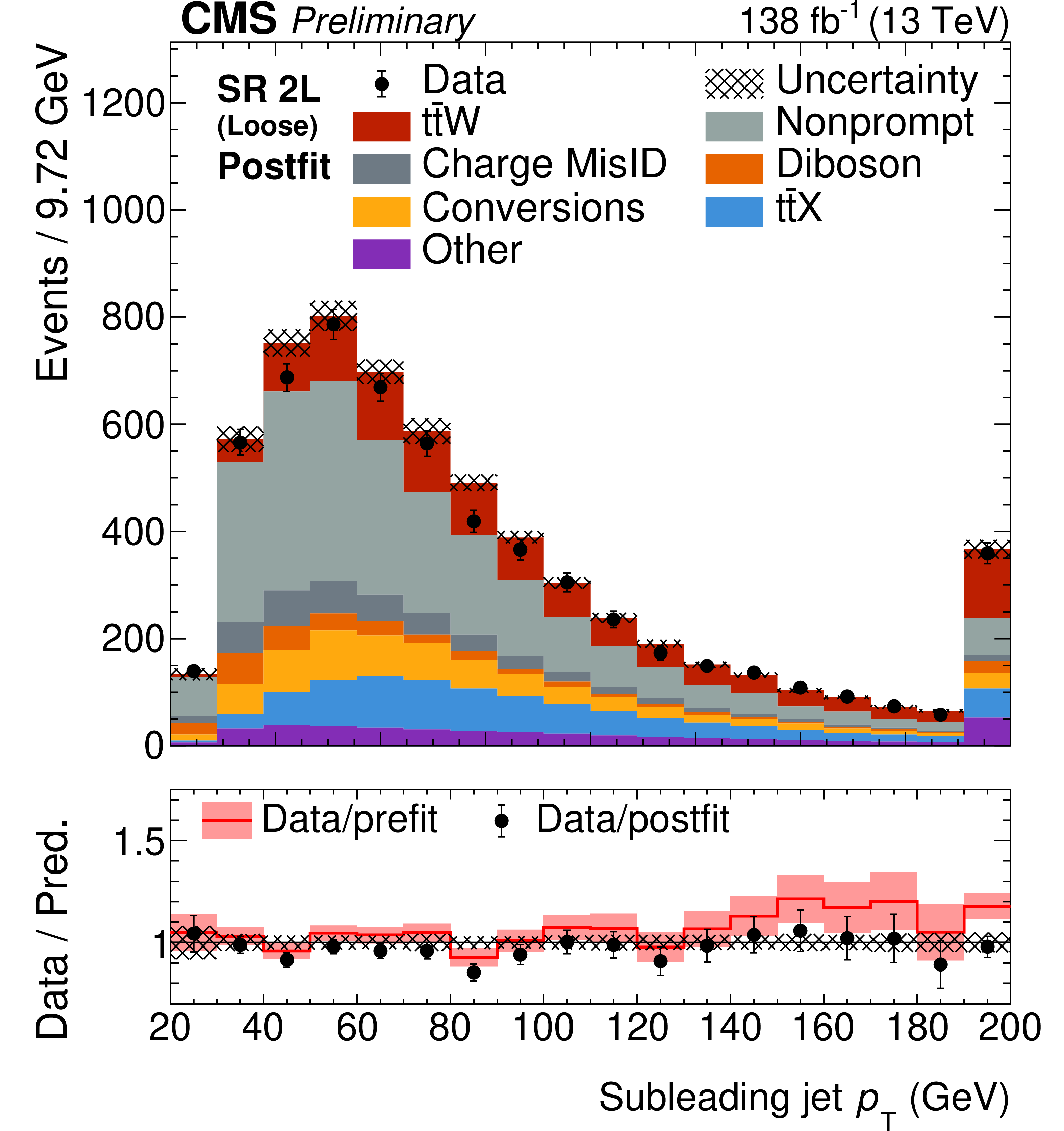

png pdf	Figure 6-a: $p_{\mathrm{T}}$ of the leading lepton (upper left), $p_{\mathrm{T}}$ of the subleading jet (upper right), scalar $p_{\mathrm{T}}$ sum of selected jets in the event (lower left) and the number of selected jets in the event (lower right), in the two-lepton signal selection for the loose lepton selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 6-b: $p_{\mathrm{T}}$ of the leading lepton (upper left), $p_{\mathrm{T}}$ of the subleading jet (upper right), scalar $p_{\mathrm{T}}$ sum of selected jets in the event (lower left) and the number of selected jets in the event (lower right), in the two-lepton signal selection for the loose lepton selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 6-c: $p_{\mathrm{T}}$ of the leading lepton (upper left), $p_{\mathrm{T}}$ of the subleading jet (upper right), scalar $p_{\mathrm{T}}$ sum of selected jets in the event (lower left) and the number of selected jets in the event (lower right), in the two-lepton signal selection for the loose lepton selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 6-d: $p_{\mathrm{T}}$ of the leading lepton (upper left), $p_{\mathrm{T}}$ of the subleading jet (upper right), scalar $p_{\mathrm{T}}$ sum of selected jets in the event (lower left) and the number of selected jets in the event (lower right), in the two-lepton signal selection for the loose lepton selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.

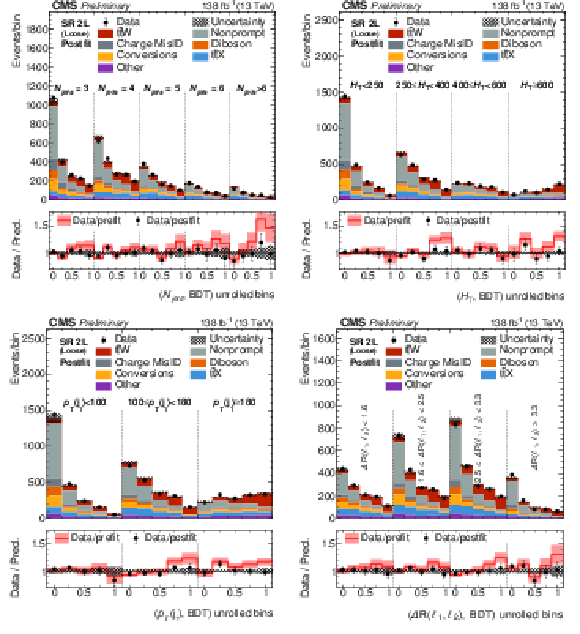

png pdf	Figure 7: Distribution of the BDT output node in the two-lepton signal selection for the loose lepton selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction.
png pdf	Figure 8: Distributions defined in a two-dimensional grid between the MVA score and the variable of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data).
png pdf	Figure 8-a: Distributions defined in a two-dimensional grid between the MVA score and the variable of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data).
png pdf	Figure 8-b: Distributions defined in a two-dimensional grid between the MVA score and the variable of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data).
png pdf	Figure 8-c: Distributions defined in a two-dimensional grid between the MVA score and the variable of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data).
png pdf	Figure 8-d: Distributions defined in a two-dimensional grid between the MVA score and the variable of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data in the SR and CR for the loose lepton selection. The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data).
png pdf	Figure 9: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

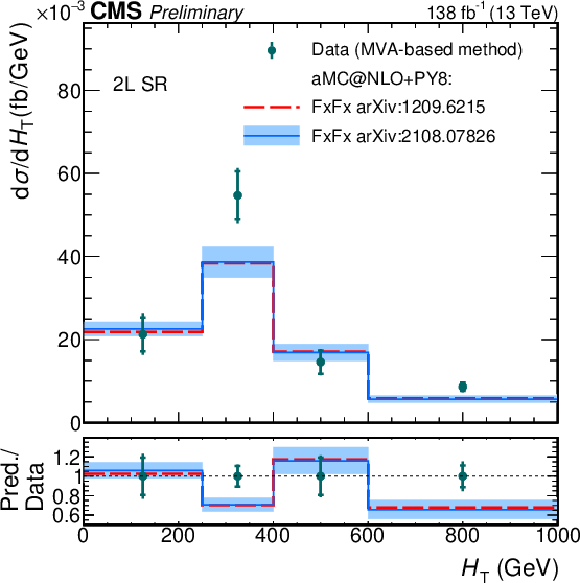

png pdf	Figure 9-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 9-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 9-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 9-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

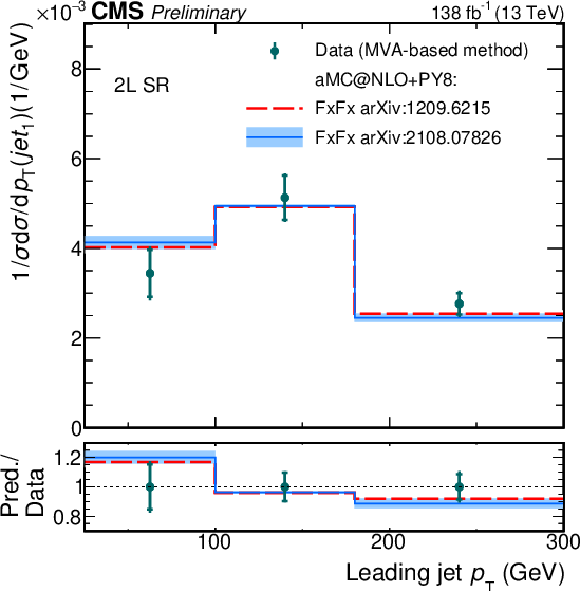

png pdf	Figure 10: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 10-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 10-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 10-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 10-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 11: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 11-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 11-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 11-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 11-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 12: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 12-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 12-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 12-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 12-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

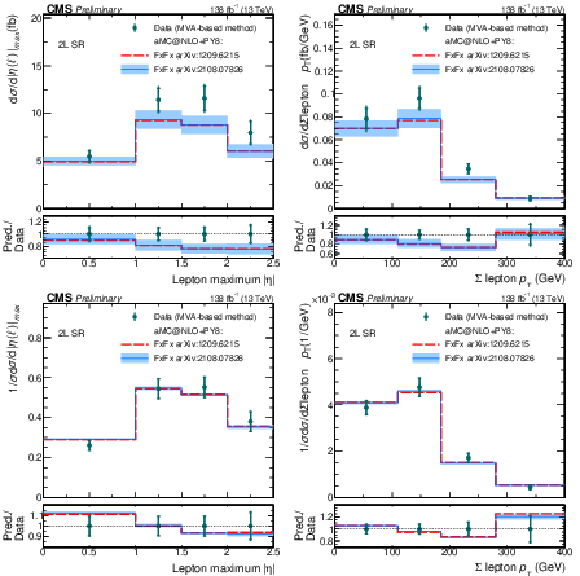

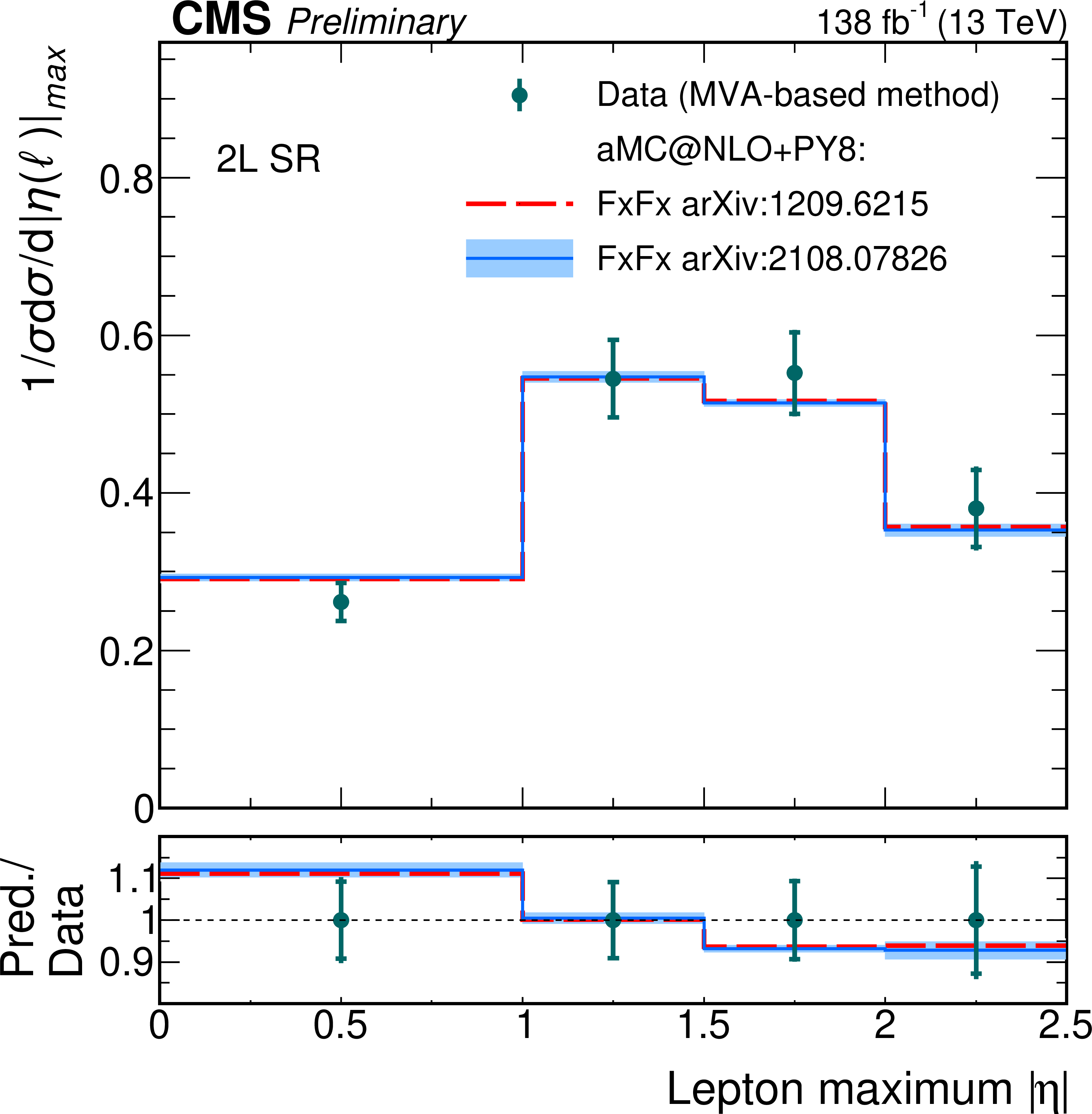

png pdf	Figure 13: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 13-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 13-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 13-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 13-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

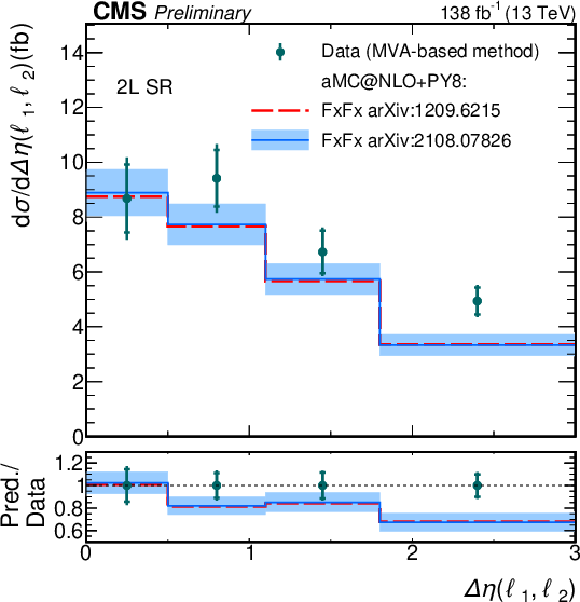

png pdf	Figure 14: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the invariant mass of the leptons (left) and the $\|\Delta \eta(\ell_1,\ell_2)\|$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 14-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the invariant mass of the leptons (left) and the $\|\Delta \eta(\ell_1,\ell_2)\|$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 14-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the invariant mass of the leptons (left) and the $\|\Delta \eta(\ell_1,\ell_2)\|$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 14-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the invariant mass of the leptons (left) and the $\|\Delta \eta(\ell_1,\ell_2)\|$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 14-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the invariant mass of the leptons (left) and the $\|\Delta \eta(\ell_1,\ell_2)\|$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 15: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 15-a: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 15-b: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 15-c: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 15-d: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based method. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 16: Scalar $p_{\mathrm{T}}$ sum of the jets in the event (left) and scalar $p_{\mathrm{T}}$ sum of the leptons in the event (right); in the trilepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data). Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 16-a: Scalar $p_{\mathrm{T}}$ sum of the jets in the event (left) and scalar $p_{\mathrm{T}}$ sum of the leptons in the event (right); in the trilepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data). Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 16-b: Scalar $p_{\mathrm{T}}$ sum of the jets in the event (left) and scalar $p_{\mathrm{T}}$ sum of the leptons in the event (right); in the trilepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit prediction (data). Events that exceed the range of the plot are included in the last bin.

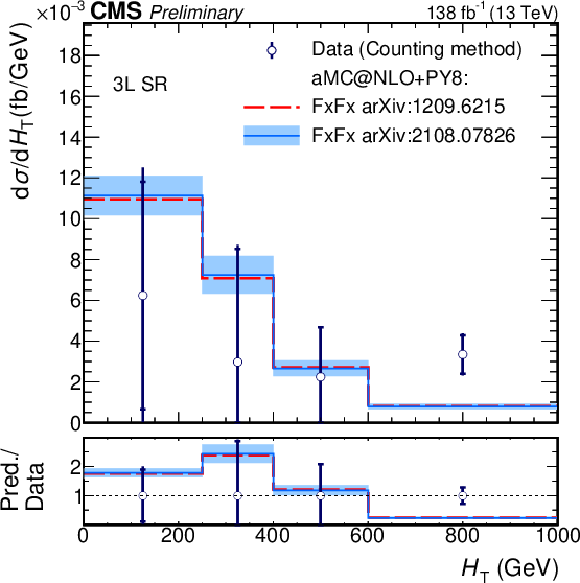

png pdf	Figure 17: Absolute differential cross section measured as a function of the $H_{\mathrm{T}}$ (left) and the scalar sum of the lepton $p_{\mathrm{T}}$ 's, using the counting method in the 3l SR. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 17-a: Absolute differential cross section measured as a function of the $H_{\mathrm{T}}$ (left) and the scalar sum of the lepton $p_{\mathrm{T}}$ 's, using the counting method in the 3l SR. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 17-b: Absolute differential cross section measured as a function of the $H_{\mathrm{T}}$ (left) and the scalar sum of the lepton $p_{\mathrm{T}}$ 's, using the counting method in the 3l SR. The upper panels show the results of the measurement together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. The lower panels show the ratio between the predictions and the measurement. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

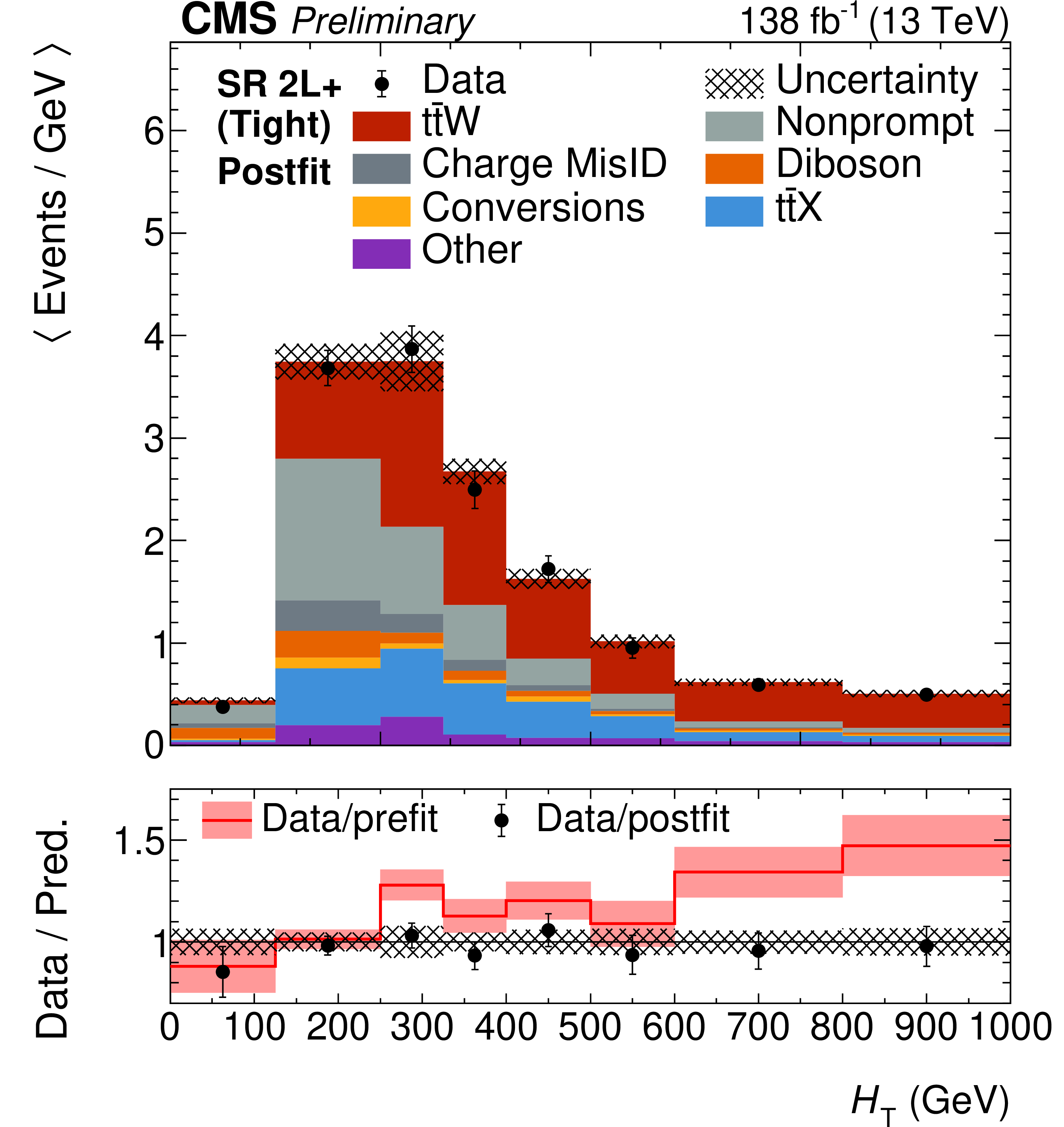

png pdf	Figure 18: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 18-a: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 18-b: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 18-c: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 18-d: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 18-e: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.
png pdf	Figure 18-f: Distributions of some variables of interest in the two-lepton signal selection for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. Left: number of selected jets in the event (negative, positive signed leptons SR). Middle: scalar $p_{\mathrm{T}}$ sum of selected jets in the event (negative, positive signed leptons SR). Right: scalar $p_{\mathrm{T}}$ sum of the leptons in the event (negative, positive signed leptons SR). The lower panels show the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Events that exceed the range of the plot are included in the last bin.

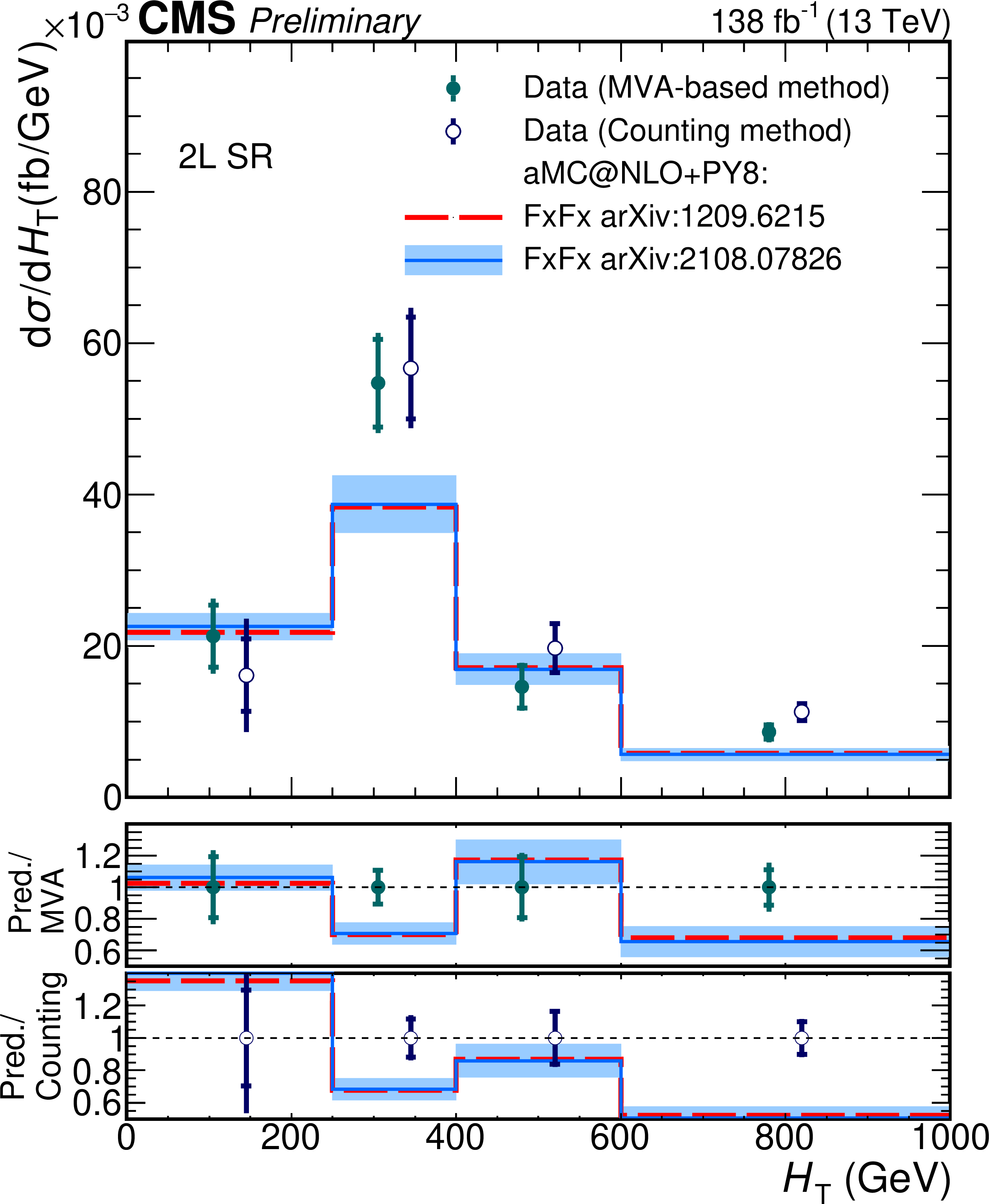

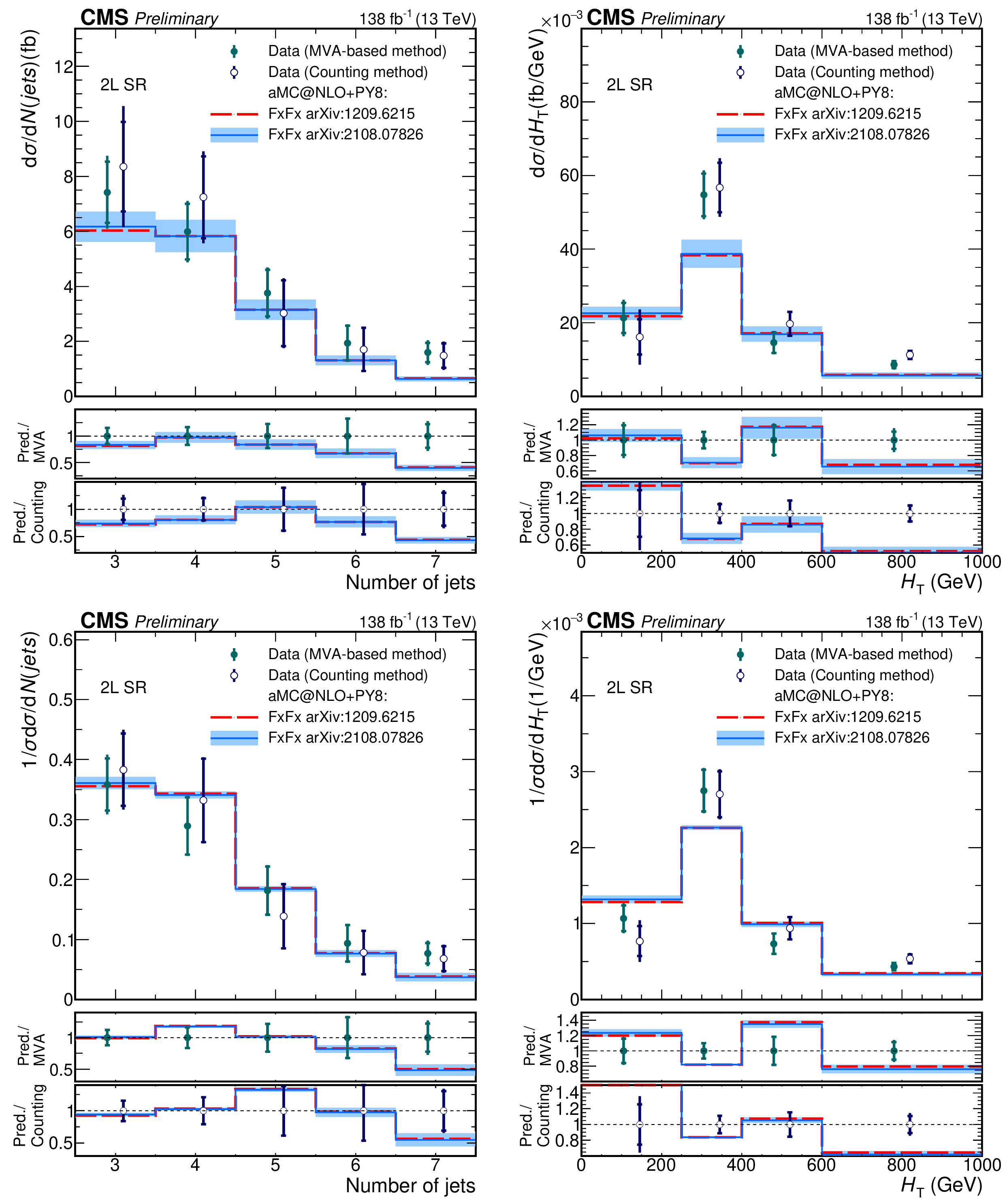

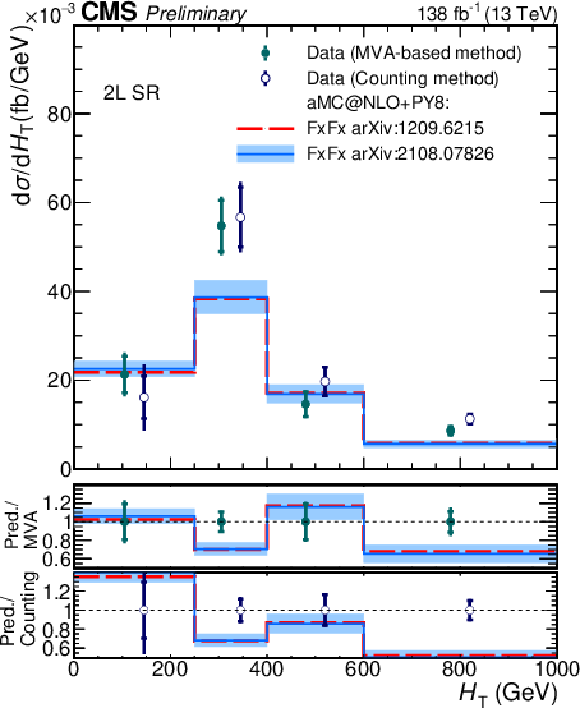

png pdf	Figure 19: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 19-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 19-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 19-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 19-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the jet multiplicity (left) and $H_{\mathrm{T}}$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

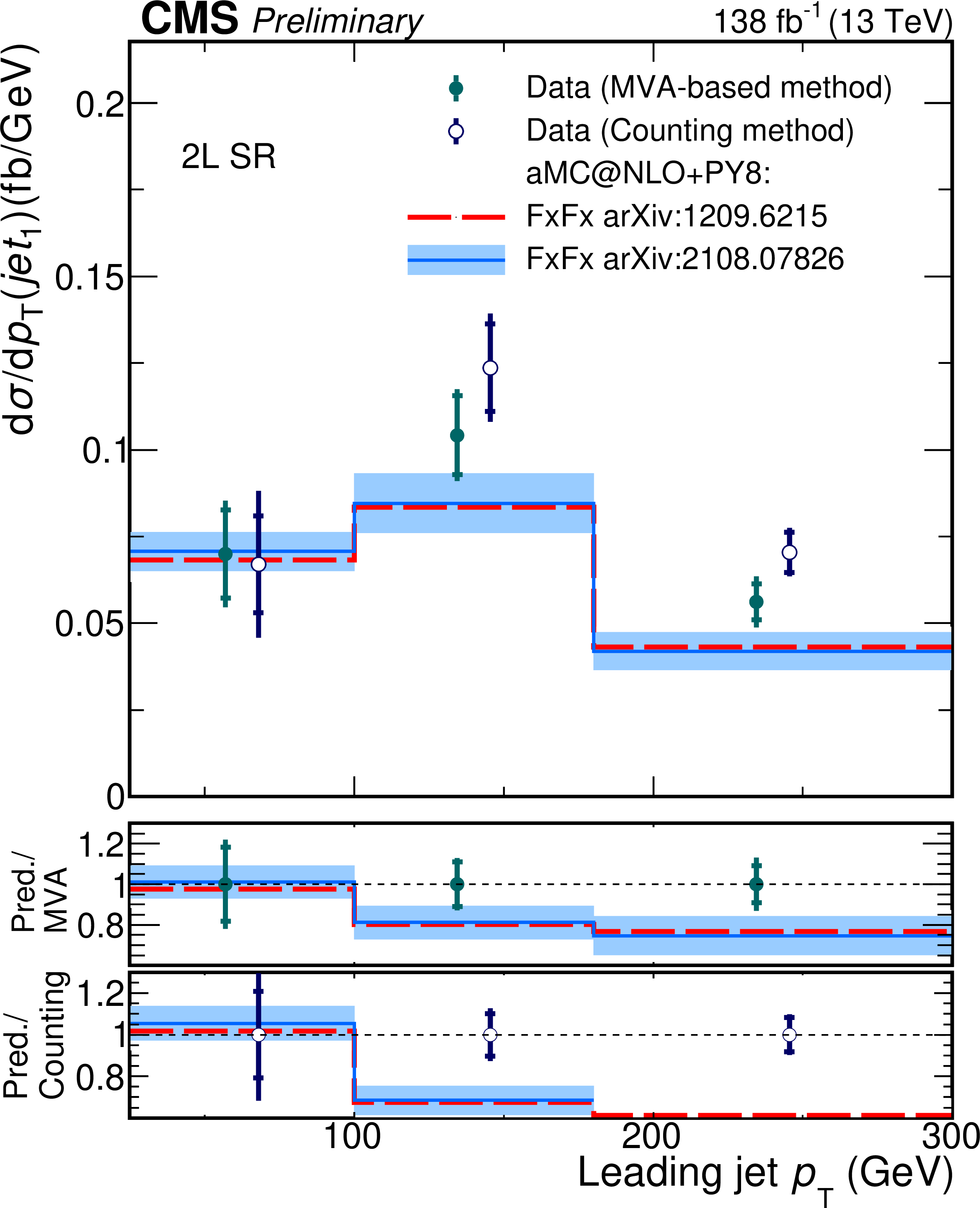

png pdf	Figure 20: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

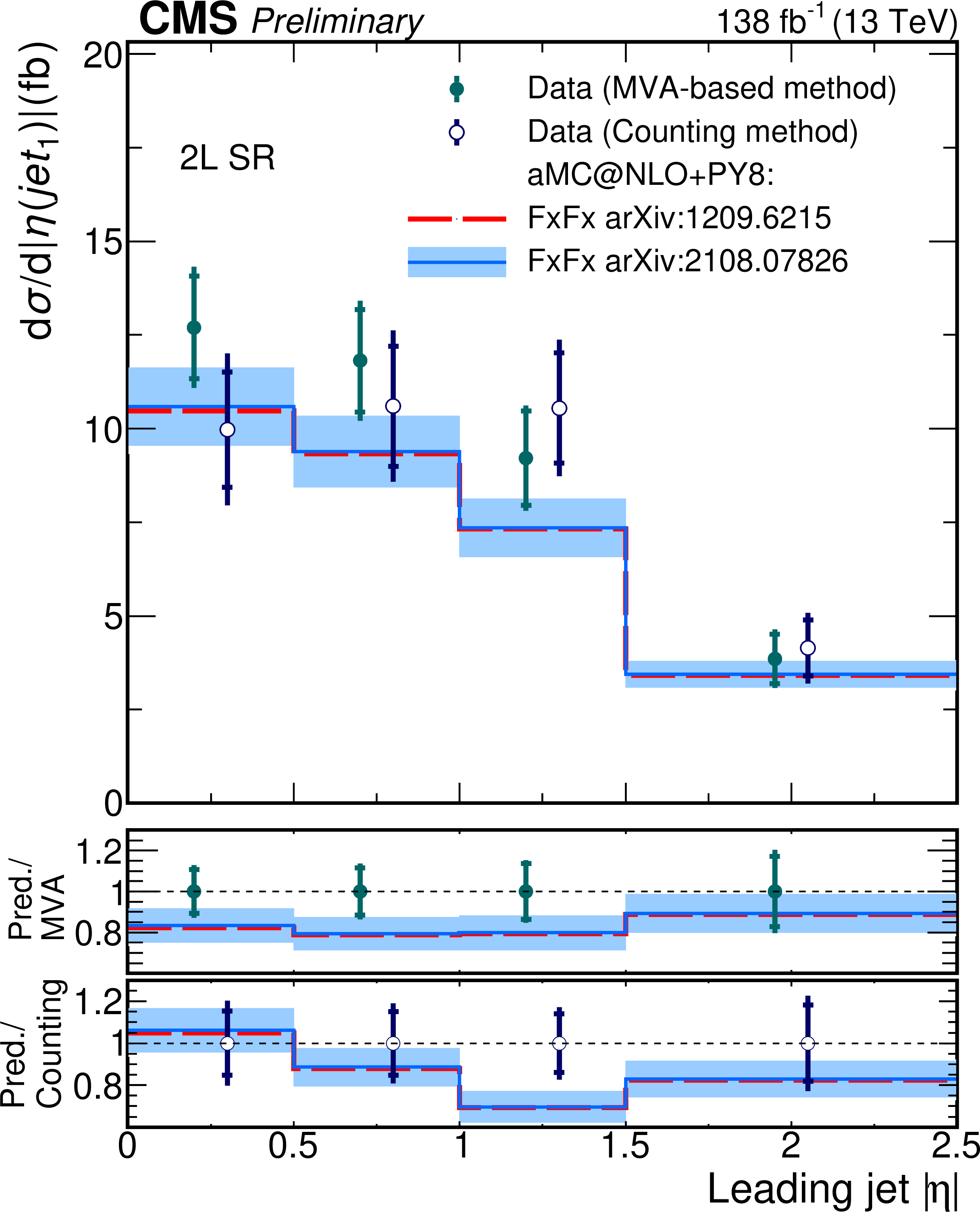

png pdf	Figure 20-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 20-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 20-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 20-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading jet $p_{\mathrm{T}}$ (left) and leading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

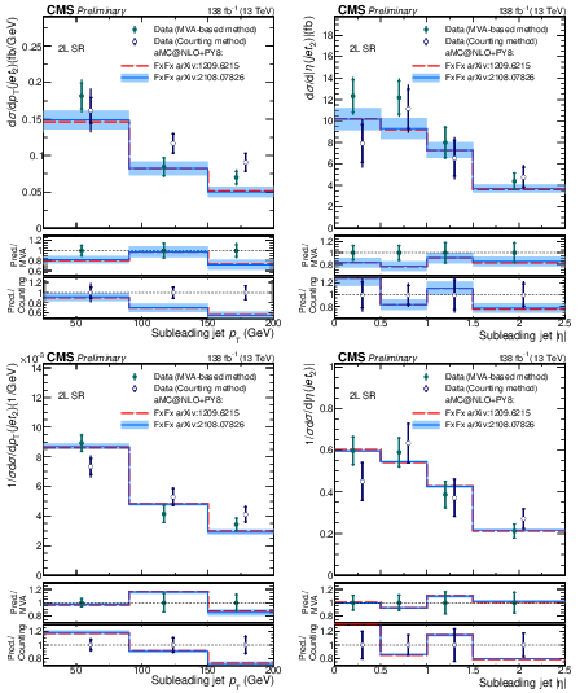

png pdf	Figure 21: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 21-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 21-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 21-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 21-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the subleading jet $p_{\mathrm{T}}$ (left), and subleading jet $\|\eta\|$ (right), using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

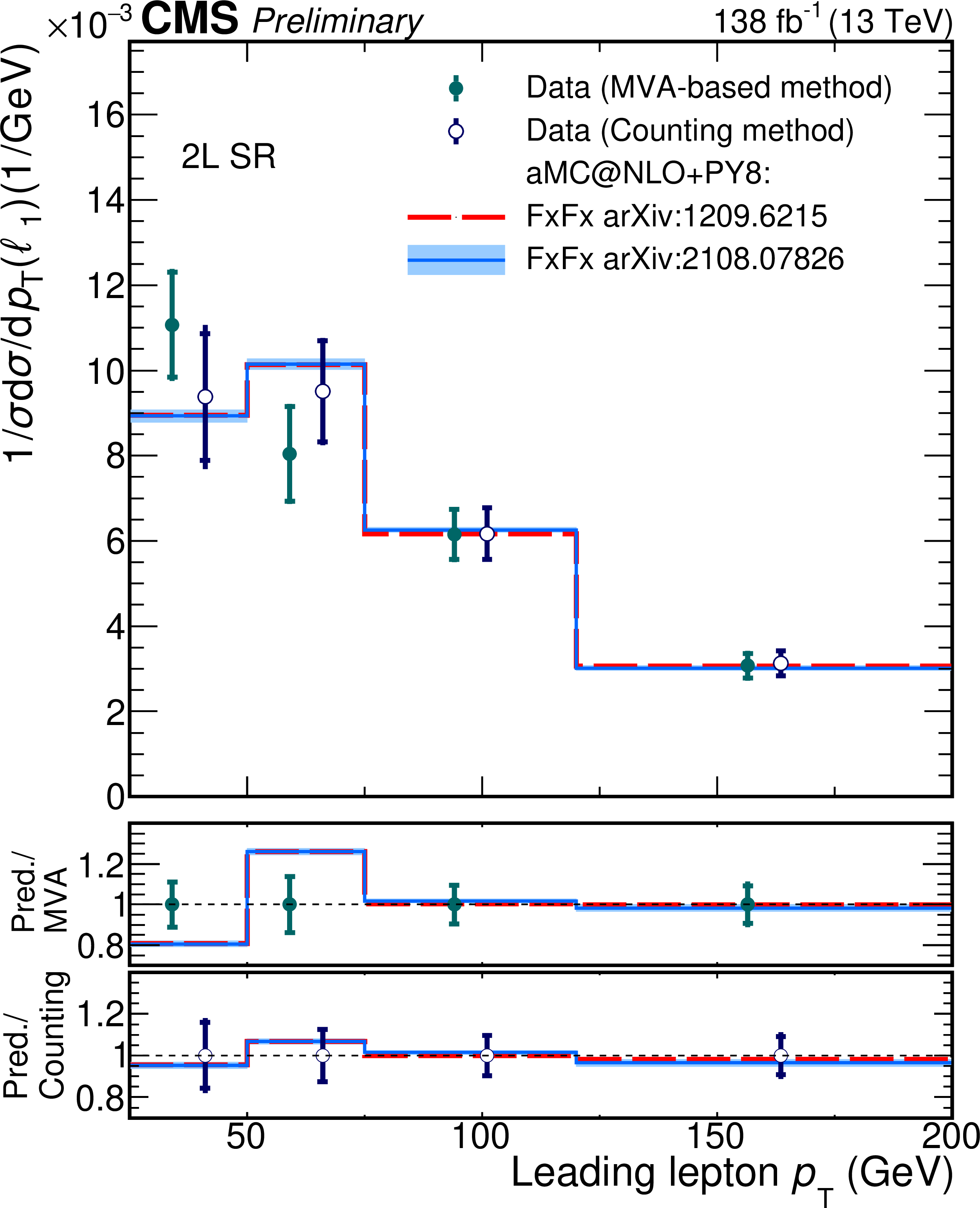

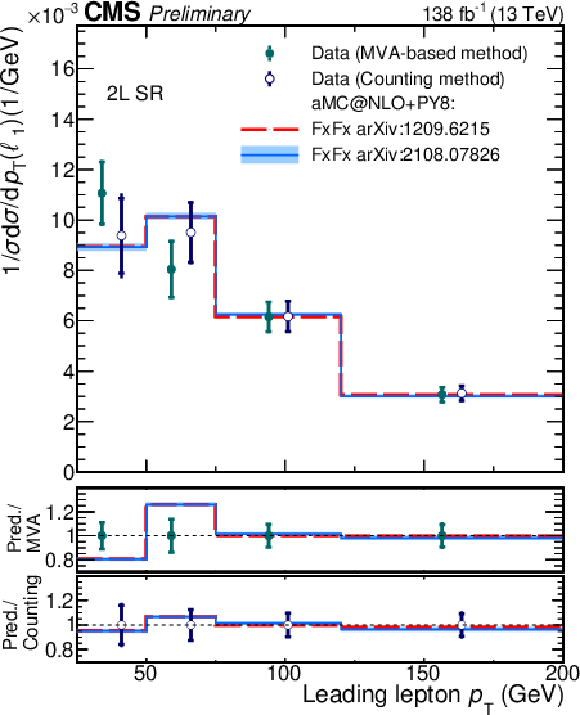

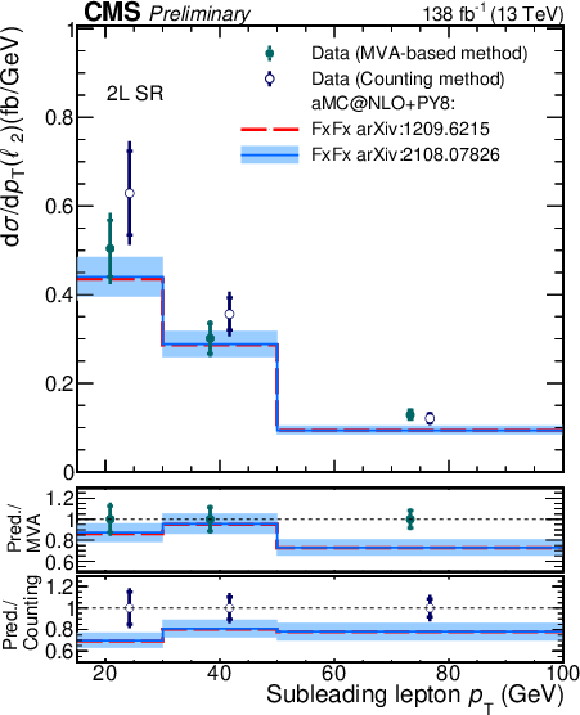

png pdf	Figure 22: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 22-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 22-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 22-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 22-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the leading (left) and subleading (right) lepton $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 23: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 23-a: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

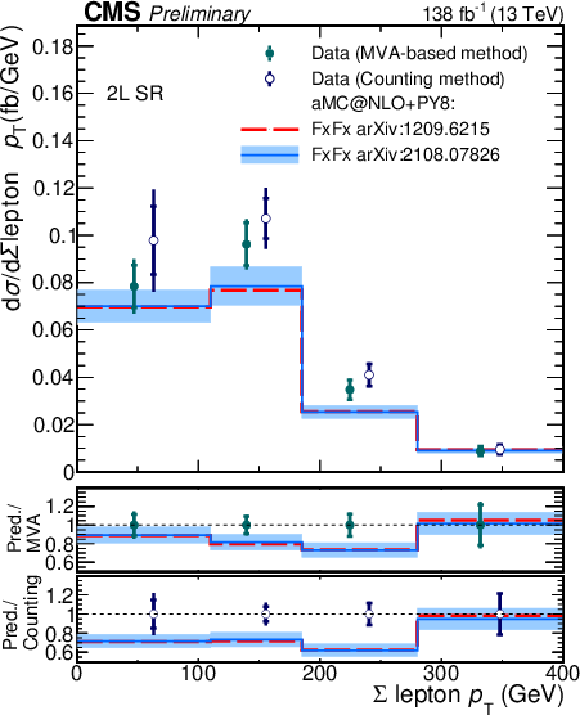

png pdf	Figure 23-b: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 23-c: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 23-d: Absolute (upper row) and normalized (lower row) differential cross section measured as a function of the maximum $\|\eta\|$ of the selected leptons (left) and the sum of their $p_{\mathrm{T}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 24: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 24-a: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 24-b: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 24-c: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 24-d: Absolute (upper row) and normalized (lower row) differential cross section differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ and the $\Delta R (\ell_1, jet)_{\text{min}}$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 25: Absolute (left) and normalized (right) differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.

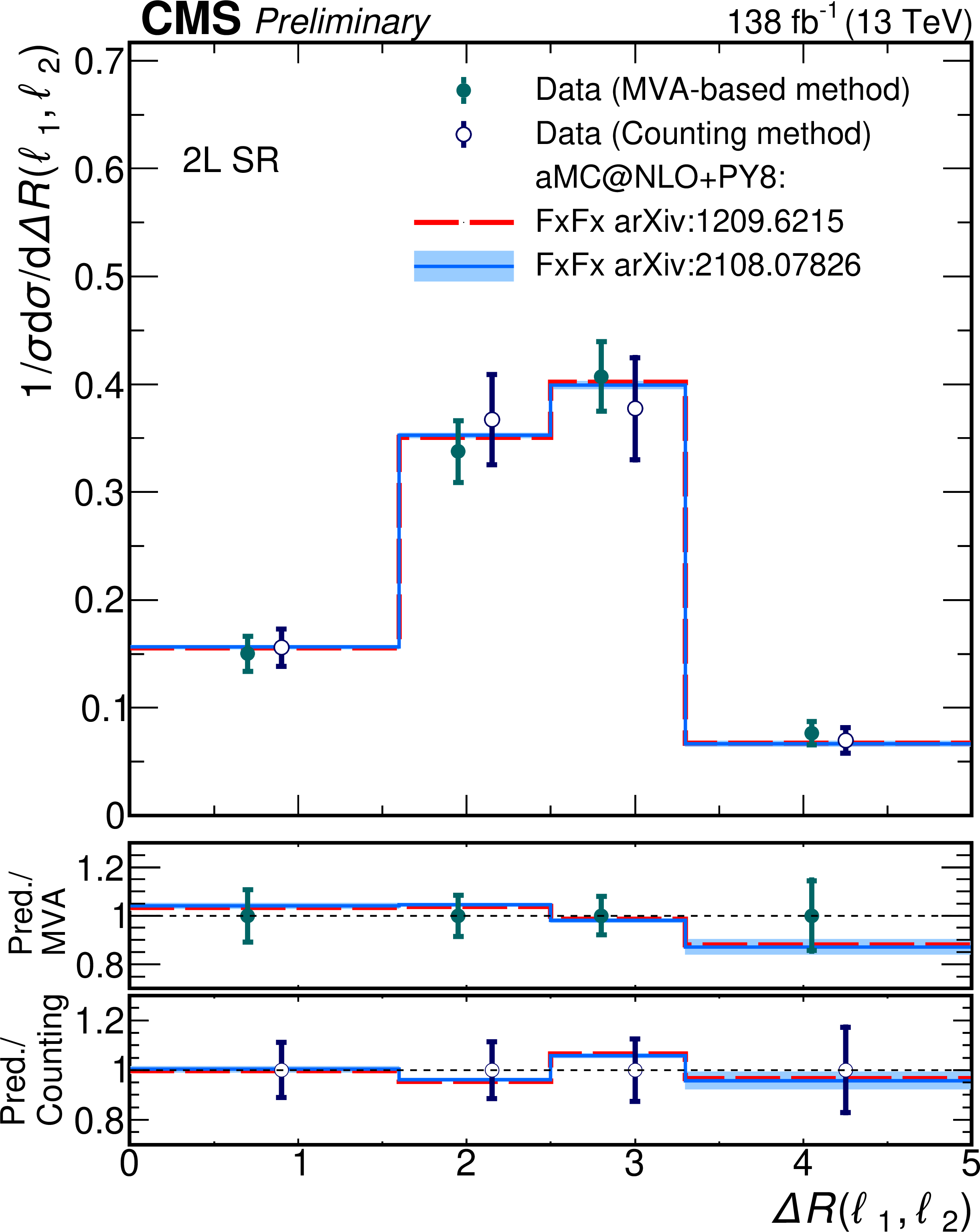

png pdf	Figure 25-a: Absolute (left) and normalized (right) differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 25-b: Absolute (left) and normalized (right) differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 25-c: Absolute (left) and normalized (right) differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 25-d: Absolute (left) and normalized (right) differential cross section measured as a function of the $\Delta R (\ell_1, \ell_2)$ , using the MVA-based and the counting method. The upper panels show the results of the two measurements together with the theoretical predictions. The blue band shows the uncertainty of the prediction from Ref. [15]. Each two lower panels shows the ratio between the predictions and each of the measurements. The vertical lines on the unfolded data points represent the total experimental uncertainty of the unfolded cross section, while the horizontal bars show the statistical component of the uncertainty.
png pdf	Figure 26: Categorization of three-lepton events for the measurement of the leptonic charge asymmetry.
png pdf	Figure 27: Left: Observed yields in the 32 bins used in the analysis for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Right: the observed (black) and expected (red) Likelihood scan as a function of $A_c^{\ell}$ . The shaded areas correspond to the 68 and 95% CL intervals around the best-fit value, respectively.
png pdf	Figure 27-a: Left: Observed yields in the 32 bins used in the analysis for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Right: the observed (black) and expected (red) Likelihood scan as a function of $A_c^{\ell}$ . The shaded areas correspond to the 68 and 95% CL intervals around the best-fit value, respectively.
png pdf	Figure 27-b: Left: Observed yields in the 32 bins used in the analysis for data (points) and predictions (filled histograms) after the fit to the data for the tight lepton selection. The lower panel shows the ratio of the data to the sum of the postfit predictions (points) and the ratio of the prefit to the postfit predictions (red line). The vertical lines on the data points represent the statistical uncertainty in the data and the hatched (filled) band corresponds to the total uncertainty in the postfit (prefit) prediction. Right: the observed (black) and expected (red) Likelihood scan as a function of $A_c^{\ell}$ . The shaded areas correspond to the 68 and 95% CL intervals around the best-fit value, respectively.

Tables
png pdf	Table 1: Variables as a function of which the signal cross section is measured.

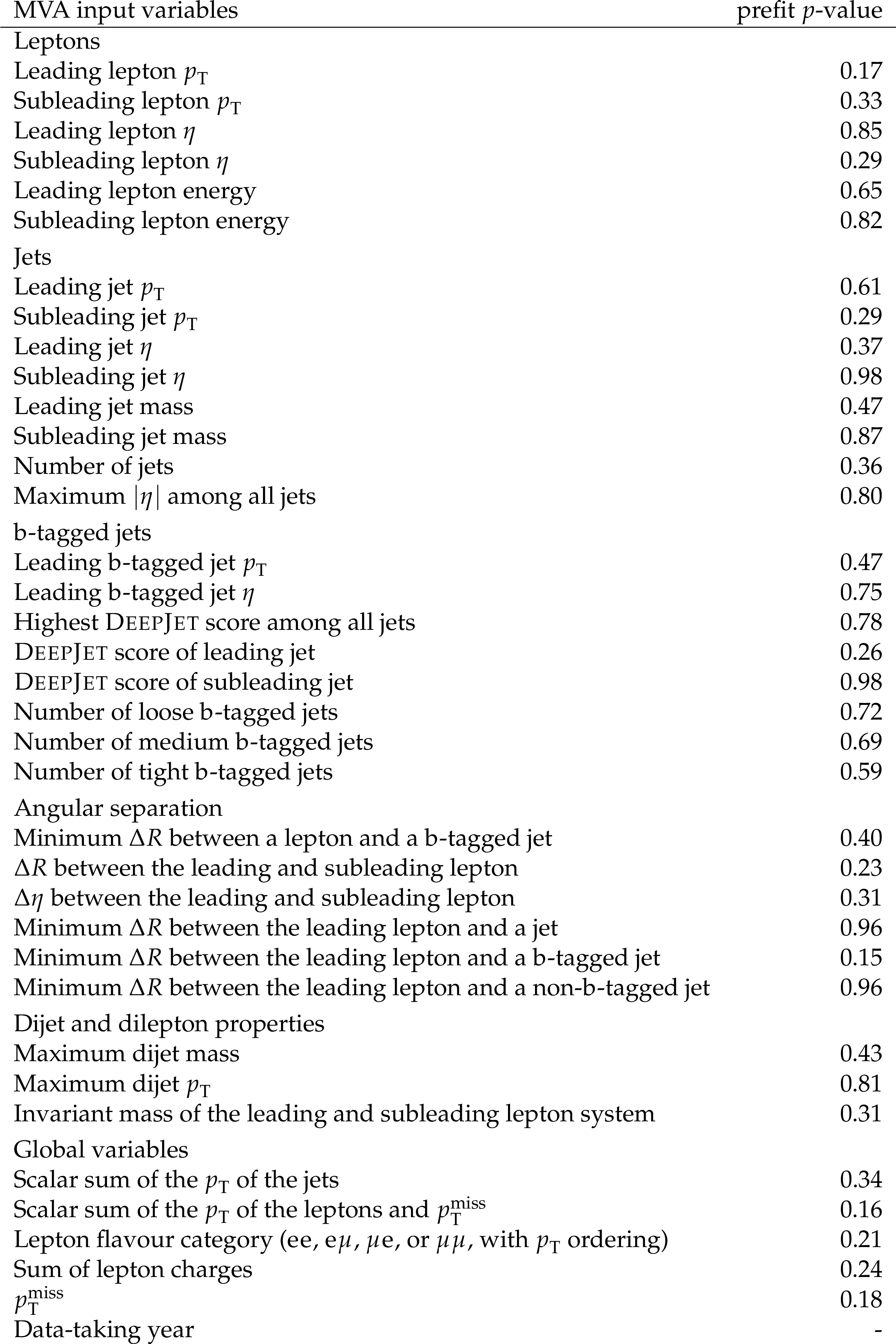

png pdf	Table 2: Overview of input variables to the BDT and their prefit $p$ -values, for the MVA-based differential measurement.
png pdf	Table 3: The absolute (column 1 and 2) and normalized (column 3 and 4) $p$ -values from the $\chi^2$ goodness-of-fit tests comparing the differential cross sections predicted by the new FxFx model with the two measurements performed.

Summary

Measurements are presented of the associated production of a top quark-antiquark pair and a W boson (

$\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ ) in proton-proton collisions at a center-of-mass energy of 13 TeV, using a data sample corresponding to an integrated luminosity of 138 fb

$^{-1}$ , recorded by the CMS experiment. Events with either two leptons with the same electric charge or three leptons, and multiple jets and b-tagged jets are used. The differential cross sections as a function of kinematic variables sensitive to the modeling of the

$\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ process are measured, using a multivariate discriminator for events in the two-lepton region and a cut-based method for events in the three-lepton region. Overall, the normalized differential cross section measurements are generally consistent with the standard model expectations, while the absolute cross sections are above the theoretical predictions by roughly one standard deviation. The measurements in the two-lepton region using the cut-based method are also shown and are found to be consistent with the multivariate analysis based method. In addition to the differential cross sections, the leptonic charge asymmetry of this process is measured to be

$A_c^{\ell}=$

$-$ 0.19

$^{+0.16}_{-0.18}$ , consistent with the expectation of

$-$ 0.09

$^{+0.12}_{-0.14}$ predicted by the reference model. \pagebreak

References
1	D. de Florian et al.	Handbook of LHC Higgs cross sections: 4. Deciphering the nature of the Higgs sector	CERN Report CERN-2017-002-M, 2016 link	1610.07922
2	L. Buonocore et al.	Precise Predictions for the Associated Production of a W Boson with a Top-Antitop Quark Pair at the LHC	PRL 131 (2023) 231901	2306.16311
3	J. A. Dror, M. Farina, E. Salvioni, and J. Serra	Strong tW Scattering at the LHC	JHEP 01 (2016) 071	1511.03674
4	R. Frederix, D. Pagani, and M. Zaro	Large NLO corrections in $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}^{\pm}$ and $\mathrm{t}\overline{\mathrm{t}}\mathrm{t}\overline{\mathrm{t}}$ hadroproduction from supposedly subleading EW contributions	JHEP 02 (2018) 031	1711.02116
5	F. Maltoni, M. L. Mangano, I. Tsinikos, and M. Zaro	Top-quark charge asymmetry and polarization in $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ production at the LHC	PLB 736 (2014) 252	1406.3262
6	CMS Collaboration	Search for physics beyond the standard model in top quark production with additional leptons in the context of effective field theory	JHEP 12 (2023) 068	CMS-TOP-22-006 2307.15761
7	CMS Collaboration	Observation of four top quark production in proton-proton collisions at $\sqrt{s} =$ 13 TeV	PLB 847 (2023) 138290	CMS-TOP-22-013 2305.13439
8	ATLAS Collaboration	Observation of four-top-quark production in the multilepton final state with the ATLAS detector	EPJC 83 (2023) 496	2303.15061
9	CMS Collaboration	Measurement of the Higgs boson production rate in association with top quarks in final states with electrons, muons, and hadronically decaying tau leptons at $\sqrt{s} =$ 13 TeV	EPJC 81 (2021) 378	CMS-HIG-19-008 2011.03652
10	A. Kulesza et al.	Associated production of a top quark pair with a heavy electroweak gauge boson at NLO $+$ NNLL accuracy	EPJC 79 (2019) 249	1812.08622
11	A. Broggio et al.	Top-quark pair hadroproduction in association with a heavy boson at NLO+NNLL including EW corrections	JHEP 08 (2019) 039	1907.04343
12	A. Kulesza et al.	Associated top quark pair production with a heavy boson: differential cross sections at NLO+NNLL accuracy	EPJC 80 (2020) 428	2001.03031
13	G. Bevilacqua et al.	The simplest of them all: $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}^\pm$ at NLO accuracy in QCD	JHEP 08 (2020) 043	2005.09427
14	G. Bevilacqua et al.	NLO QCD corrections to off-shell $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}^\pm$ production at the LHC: correlations and asymmetries	EPJC 81 (2021) 675	2012.01363
15	R. Frederix and I. Tsinikos	On improving NLO merging for $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ production	JHEP 11 (2021) 029	2108.07826
16	F. Febres Cordero, M. Kraus, and L. Reina	Top-quark pair production in association with a $W^\pm$ gauge boson in the POWHEG-BOX	PRD 103 (2021) 094014	2101.11808
17	L. Ferencz et al.	Study of $\mathrm{t}\overline{\mathrm{t}}\mathrm{b}\overline{\mathrm{b}}$ and $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ background modelling for $\mathrm{t}\overline{\mathrm{t}}\mathrm{H}$ analyses	LHC Higgs WG note LHCHWG-2022-003, 1, 2023 link	2301.11670
18	ATLAS Collaboration	Measurement of the total and differential cross-sections of $t\overline{t}W$ production in pp collisions at $\sqrt{s} =$ 13 TeV with the ATLAS detector	JHEP 05 (2024) 131	2401.05299
19	CMS Collaboration	Measurement of the cross section of top quark-antiquark pair production in association with a W boson in proton-proton collisions at $\sqrt{s} =$ 13 TeV	JHEP 07 (2023) 219	CMS-TOP-21-011 2208.06485
20	ATLAS Collaboration	Search for leptonic charge asymmetry in $\mathrm{t}\overline{\mathrm{t}}\mathrm{W}$ production in final states with three leptons at $\sqrt{s} =$ 13 TeV	JHEP 07 (2023) 033	2301.04245
21	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
22	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $\sqrt{s} =$ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
23	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
24	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
25	CMS Collaboration	Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid	CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS
26	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
27	CMS Collaboration	ECAL 2016 refined calibration and Run2 summary plots	CMS Detector Performance Summary CMS-DP-2020-021, 2020 CDS
28	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $\sqrt{s}=$ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
29	M. Cacciari, G. P. Salam, and G. Soyez	The anti- $k_{\mathrm{T}}$ jet clustering algorithm	JHEP 04 (2008) 063	0802.1189
30	M. Cacciari, G. P. Salam, and G. Soyez	FastJet user manual	EPJC 72 (2012) 1896	1111.6097
31	CMS Collaboration	Pileup mitigation at CMS in 13 TeV data	JINST 15 (2020) P09018	CMS-JME-18-001 2003.00503
32	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
33	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $\sqrt{s} =$ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
34	CMS Collaboration	Identification of heavy-flavour jets with the CMS detector in pp collisions at 13 TeV	JINST 13 (2018) P05011	CMS-BTV-16-002 1712.07158
35	E. Bols et al.	Jet flavour classification using DeepJet	JINST 15 (2020) P12012	2008.10519
36	CMS Collaboration	Performance of the DeepJet b tagging algorithm using 41.9 fb $^{-1}$ of data from proton-proton collisions at 13 TeV with Phase 1 CMS detector	CMS Detector Performance Note CMS-DP-2018-058, 2018 CDS
37	NNPDF Collaboration	Parton distributions from high-precision collider data	EPJC 77 (2017) 663	1706.00428
38	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
39	CMS Collaboration	CMS pythia 8 colour reconnection tunes based on underlying-event data	EPJC 83 (2023) 587	CMS-GEN-17-002 2205.02905
40	J. Alwall et al.	Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions	EPJC 53 (2008) 473	0706.2569
41	R. Frederix and S. Frixione	Merging meets matching in MC@NLO	JHEP 12 (2012) 061	1209.6215
42	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
43	GEANT4 Collaboration	GEANT4--a simulation toolkit	NIM A 506 (2003) 250
44	J. A. Aguilar-Saavedra et al.	Interpreting top-quark LHC measurements in the standard-model effective field theory	LHC TOP WG note CERN-LPCC-2018-01, 2018	1802.07237
45	O. Mattelaer	On the maximal use of Monte Carlo samples: re-weighting events at NLO accuracy	EPJC 76 (2016) 674	1607.00763
46	S. Frixione et al.	Automated simulations beyond the Standard Model: supersymmetry	JHEP 12 (2019) 008	1907.04898
47	P. Nason	A new method for combining NLO QCD with shower Monte Carlo algorithms	JHEP 11 (2004) 040	hep-ph/0409146
48	S. Frixione, P. Nason, and C. Oleari	Matching NLO QCD computations with parton shower simulations: the POWHEG method	JHEP 11 (2007) 070	0709.2092
49	S. Alioli, P. Nason, C. Oleari, and E. Re	A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG box	JHEP 06 (2010) 043	1002.2581
50	S. Alioli, P. Nason, C. Oleari, and E. Re	NLO single-top production matched with shower in POWHEG: $s$ - and $t$ -channel contributions	JHEP 09 (2009) 111	0907.4076
51	S. Frixione, G. Ridolfi, and P. Nason	A positive-weight next-to-leading-order Monte Carlo for heavy flavour hadroproduction	JHEP 09 (2007) 126	0707.3088
52	CMS Collaboration	First measurement of the top quark pair production cross section in proton-proton collisions at $\sqrt{s} =$ 13.6 TeV	JHEP 08 (2023) 204	CMS-TOP-22-012 2303.10680
53	CMS Collaboration	Measurements of inclusive W and Z cross sections in pp collisions at $\sqrt{s} =$ 7 TeV	JHEP 01 (2011) 080	CMS-EWK-10-002 1012.2466
54	K. Rehermann and B. Tweedie	Efficient identification of boosted semileptonic top quarks at the LHC	JHEP 03 (2011) 059	1007.2221
55	CMS Collaboration	Performance of electron reconstruction and selection with the CMS detector in proton-proton collisions at $\sqrt{s} =$ 8 TeV	JINST 10 (2015) P06005	CMS-EGM-13-001 1502.02701
56	CMS Collaboration	Muon identification using multivariate techniques in the CMS experiment in proton-proton collisions at $\sqrt{s} =$ 13 TeV	JINST 19 (2024) P02031	CMS-MUO-22-001 2310.03844
57	Particle Data Group , S. Navas et al.	Review of particle physics	PRD 110 (2024) 030001
58	CMS Collaboration	Inclusive and differential cross section measurements of single top quark production in association with a Z boson in proton-proton collisions at $\sqrt{s} =$ 13 TeV	JHEP 02 (2022) 107	CMS-TOP-20-010 2111.02860
59	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $\sqrt{s} =$ 13 TeV in 2015 and 2016 at CMS	EPJC 81 (2021) 800	CMS-LUM-17-003 2104.01927
60	CMS Collaboration	CMS luminosity measurement for the 2017 data-taking period at $\sqrt{s} =$ 13 TeV	CMS Physics Analysis Summary, 2018 CMS-PAS-LUM-17-004	CMS-PAS-LUM-17-004
61	CMS Collaboration	CMS luminosity measurement for the 2018 data-taking period at $\sqrt{s} =$ 13 TeV	CMS Physics Analysis Summary, 2019 CMS-PAS-LUM-18-002	CMS-PAS-LUM-18-002
62	CMS Collaboration	Measurement of top quark pair production in association with a Z boson in proton-proton collisions at $\sqrt{s}=$ 13 TeV	JHEP 03 (2020) 056	CMS-TOP-18-009 1907.11270
63	CMS Collaboration	Measurements of the pp $\to$ WZ inclusive and differential production cross section and constraints on charged anomalous triple gauge couplings at $\sqrt{s} =$ 13 TeV	JHEP 04 (2019) 122	CMS-SMP-18-002 1901.03428
64	CMS Collaboration	Measurements of the $\mathrm {p}\mathrm {p}\rightarrow \mathrm{Z}\mathrm{Z}$ production cross section and the $\mathrm{Z}\rightarrow 4\ell$ branching fraction, and constraints on anomalous triple gauge couplings at $\sqrt{s} =$ 13 TeV	EPJC 78 (2018) 165	CMS-SMP-16-017 1709.08601
65	S. Catani et al.	Higgs Boson Production in Association with a Top-Antitop Quark Pair in Next-to-Next-to-Leading Order QCD	PRL 130 (2023) 111902	2210.07846
66	J. Butterworth et al.	PDF4LHC recommendations for LHC Run II	Journal of Physics G: Nuclear and Particle Physics 43 (2016) 023001	1510.03865
67	CMS Collaboration	Object definitions for top quark analyses at the particle level	CMS Note CERN-CMS-NOTE-2017-004, 2017 CDS
68	CMS Collaboration	The CMS Statistical Analysis and Combination Tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
69	T. Chen and C. Guestrin	Xgboost: A scalable tree boosting system	in Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD '16, New York, 2016 link
70	A. Paszke et al.	Automatic differentiation in pytorch	in NIPS 2017 Workshop on Autodiff, 2017 link
