CMS-PAS-SMP-25-011

CMS-PAS-SMP-25-011
Search for W boson decays to three charged hadrons
CMS Collaboration
2026-07-08

Abstract: A search is presented for the rare decay of the W boson into the hadronic final state of three charged hadrons. This search is based on proton-proton collision data collected by the CMS experiment at the CERN LHC at center-of-mass energies of 13 and 13.6 TeV, corresponding to integrated luminosities of 138 and 308 fb$ ^{-1} $, respectively. No evidence for the existence of a signal is observed. An upper limit of 2.4 $ \times 10^{-7} $ is set at 95% confidence level on the branching fraction of the W boson to three charged hadrons, improving previous results by about a factor of four.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures	Summary	References	CMS Publications

Figures

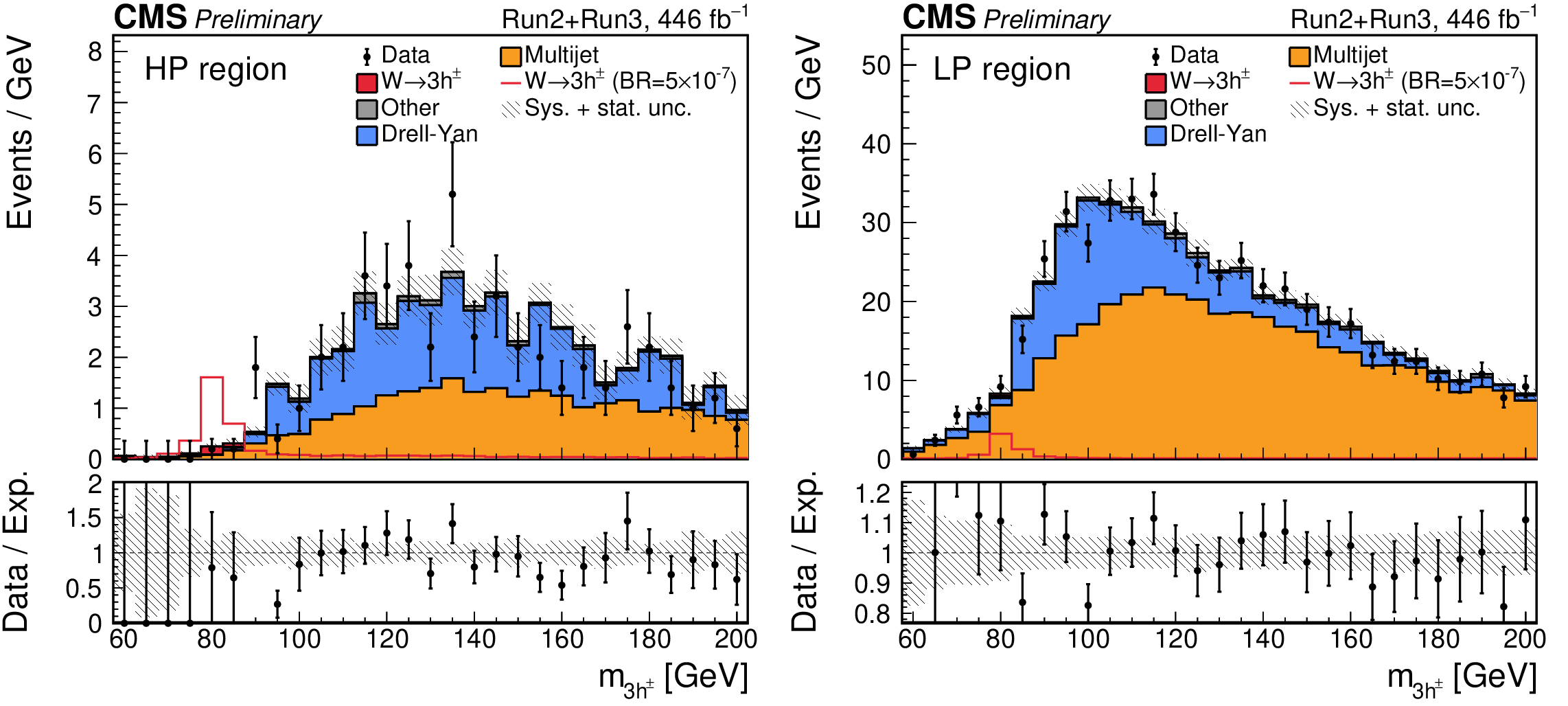

png pdf	Figure 1: Observed and expected triplet invariant mass distributions for the combination of all data-taking periods, for the HP (left) and LP (right) categories. The bin contents are normalized by the bin width. The signal is shown on top of the expected backgrounds with its fitted braching fraction $ \mathcal{B}(\mathrm{W}^{\pm}\to 3\mathrm{h}^{\pm})= $ 0.5 $ ^{+1.0}_{-0.5} $ \times 10^-7, as well as overlayed, displayed as a line, and enhanced by a factor of 10 for better visibility of the shape. The ``Other'' background includes processes with top quarks and processes with two or three vector bosons.

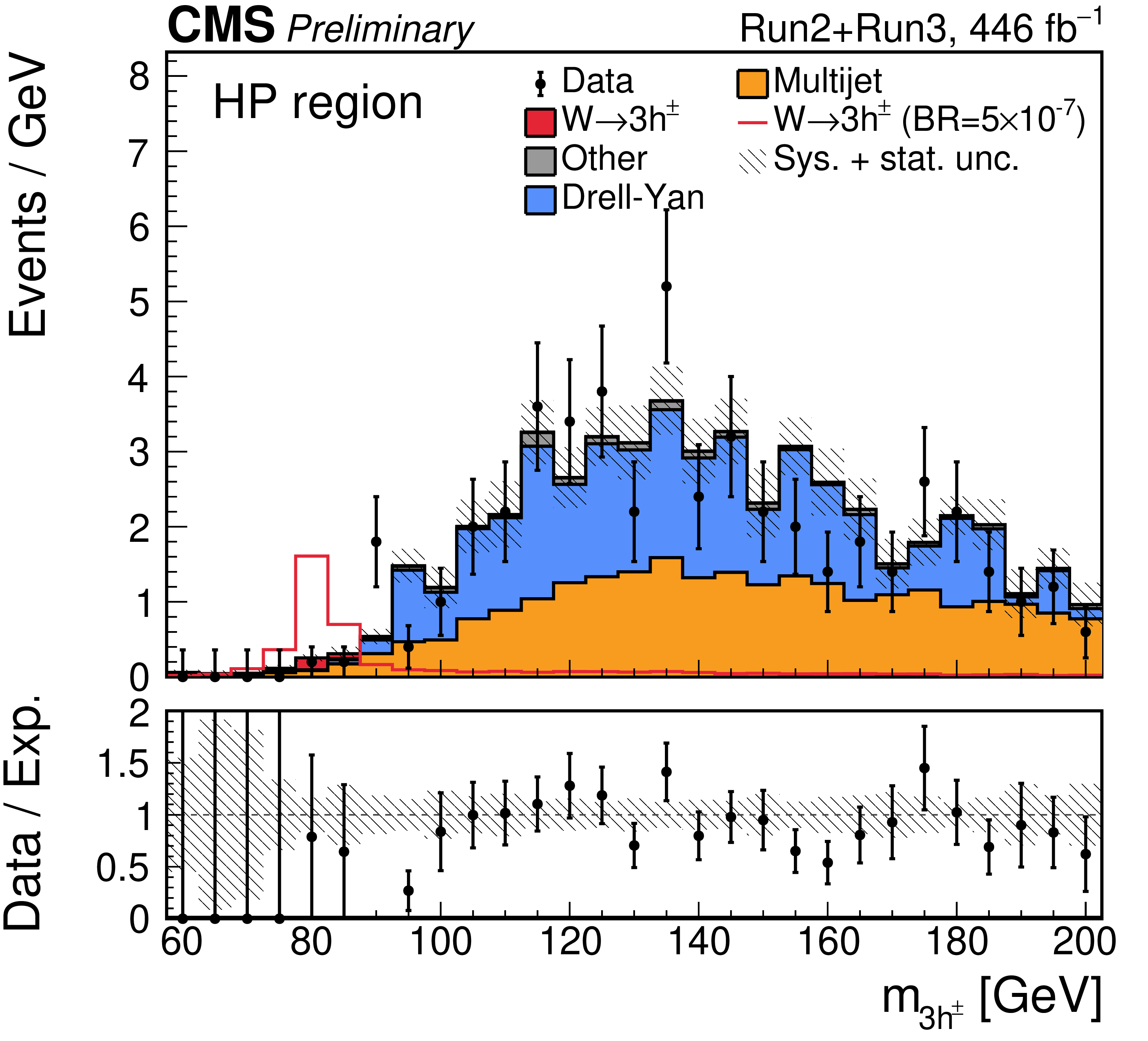

png pdf	Figure 1-a: Observed and expected triplet invariant mass distributions for the combination of all data-taking periods, for the HP (left) and LP (right) categories. The bin contents are normalized by the bin width. The signal is shown on top of the expected backgrounds with its fitted braching fraction $ \mathcal{B}(\mathrm{W}^{\pm}\to 3\mathrm{h}^{\pm})= $ 0.5 $ ^{+1.0}_{-0.5} $ \times 10^-7, as well as overlayed, displayed as a line, and enhanced by a factor of 10 for better visibility of the shape. The ``Other'' background includes processes with top quarks and processes with two or three vector bosons.

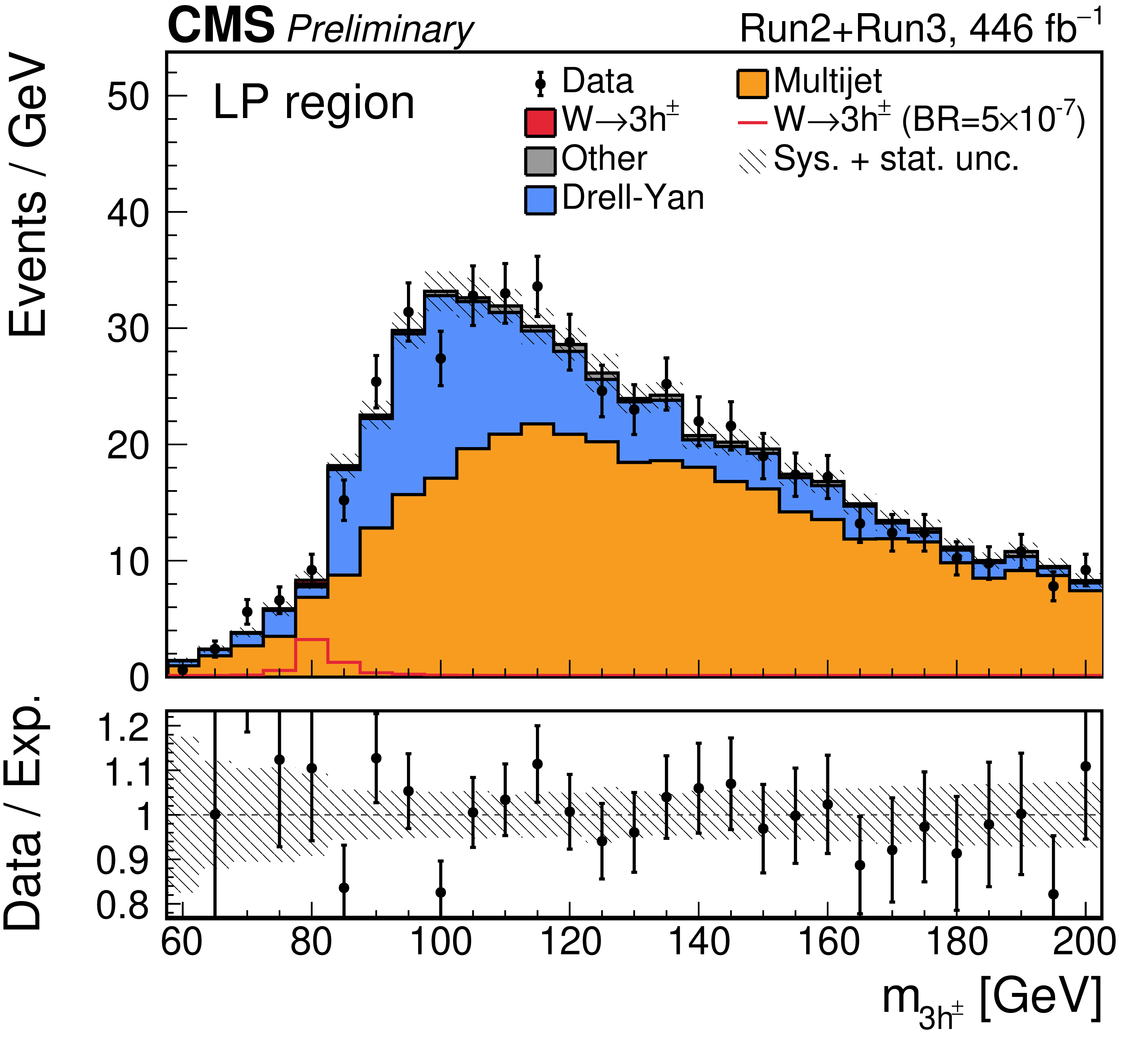

png pdf	Figure 1-b: Observed and expected triplet invariant mass distributions for the combination of all data-taking periods, for the HP (left) and LP (right) categories. The bin contents are normalized by the bin width. The signal is shown on top of the expected backgrounds with its fitted braching fraction $ \mathcal{B}(\mathrm{W}^{\pm}\to 3\mathrm{h}^{\pm})= $ 0.5 $ ^{+1.0}_{-0.5} $ \times 10^-7, as well as overlayed, displayed as a line, and enhanced by a factor of 10 for better visibility of the shape. The ``Other'' background includes processes with top quarks and processes with two or three vector bosons.

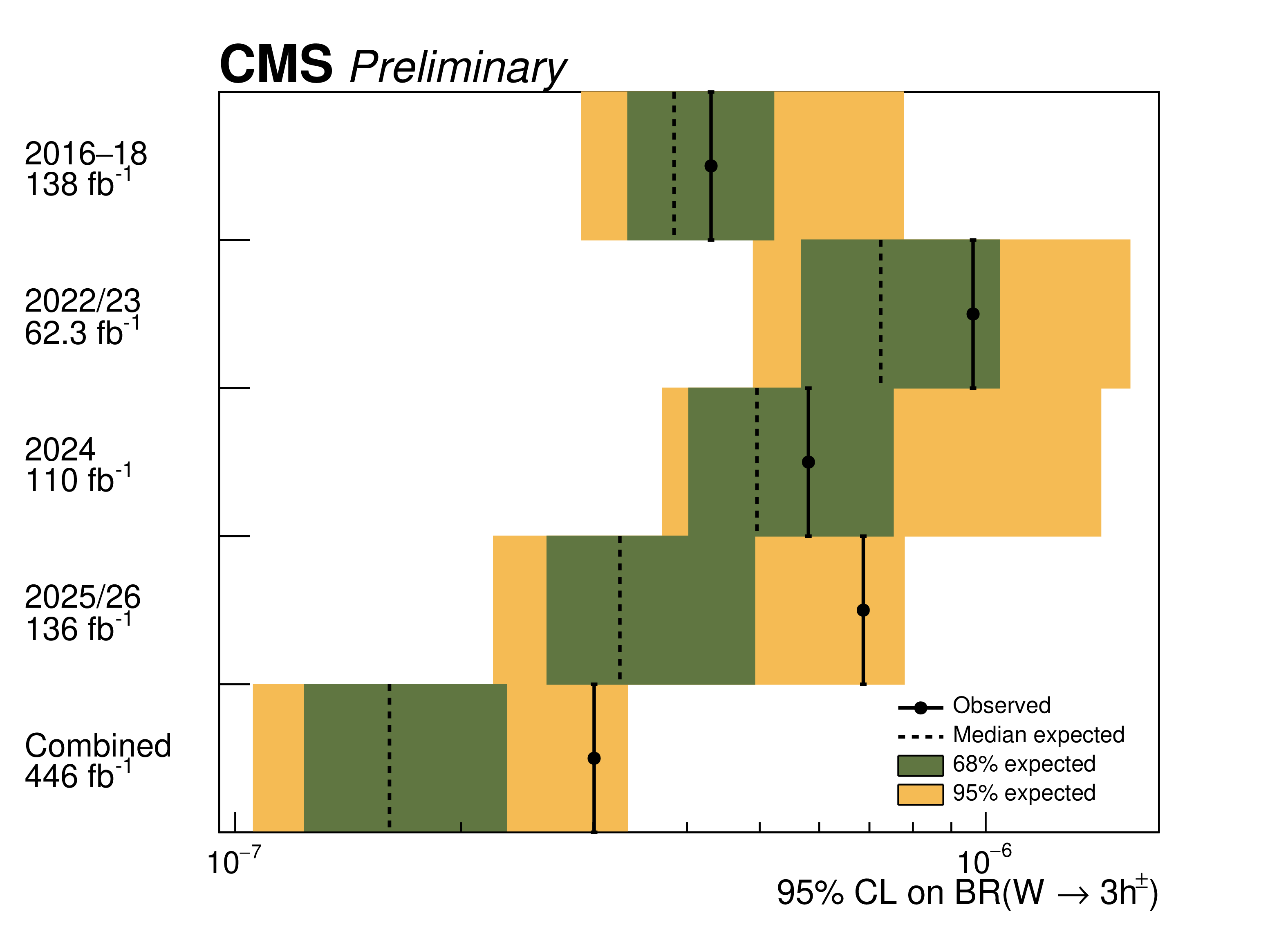

png pdf	Figure 2: Observed and expected 95% CL limit on $ \mathcal{B}(\mathrm{W}^{\pm}\to 3\mathrm{h}^{\pm}) $.

Summary

In summary, a search for the rare decay of a W boson into three charged hadrons has been presented using the data collected at $\sqrt{s}=13$ and 13.6 TeV by the CMS experiment. No evidence for the $\mathrm{W}^{\pm}\to 3\mathrm{h}^{\pm}$ signal is observed. The most stringent upper limit on the $\mathrm{W}^{\pm}\to 3\mathrm{h}^{\pm}$ branching fraction is set at $ 2.4 \times 10^{-7} $ at 95% confidence level.

References
1	UA1 Collaboration	Experimental Observation of Isolated Large Transverse Energy Electrons with Associated Missing Energy at $ \sqrt{s}= $ 540 GeV	PLB 122 (1983) 103
2	UA2 Collaboration	Observation of Single Isolated Electrons of High Transverse Momentum in Events with Missing Transverse Energy at the CERN anti-p p Collider	PLB 122 (1983) 476
3	Particle Data Group Collaboration	Review of particle physics	PRD 110 (2024) 030001
4	T. Sjostrand, S. Mrenna, and P. Z. Skands	A Brief Introduction to PYTHIA 8.1	Comput. Phys. Commun. 178 (2008) 852	0710.3820
5	Y. Grossman, M. König, and M. Neubert	Exclusive Radiative Decays of W and Z Bosons in QCD Factorization	JHEP 04 (2015) 101	1501.06569
6	T. Melia	Exclusive hadronic $ W $ decay: $ W \to \pi \gamma $ and $ W \to \pi^+ \pi^+ \pi^- $	Nucl. Part. Phys. Proc. 27 (2016) 3
7	G. Perez, Y. Soreq, E. Stamou, and K. Tobioka	Prospects for measuring the Higgs boson coupling to light quarks	PRD 93 (2016) 013001	1505.06689
8	M. Mangano and T. Melia	Rare exclusive hadronic W decays in a $ t\bar{t} $ environment	EPJC 75 (2015) 258	1410.7475
9	CMS Collaboration	Search for $ W $ boson decays to three charged pions	PRL 122 (2019) 151802	CMS-SMP-18-009 1901.11201
10	ATLAS Collaboration	Search for the Exclusive W Boson Hadronic Decays W$ ^\pm\rightarrow\pi^\pm\gamma $, W$ ^\pm\rightarrow $K$ ^\pm\gamma $ and W$ ^\pm\rightarrow\rho^\pm\gamma $ with the ATLAS Detector	PRL 133 (2024) 161804	2309.15887
11	CMS Collaboration	Search for the rare decay of the W boson into a pion and a photon in proton-proton collisions at s=13TeV	PLB 819 (2021) 136409	CMS-SMP-20-008 2011.06028
12	CMS Collaboration	Luminosity measurement in proton-proton collisions at 13.6 TeV in 2022 at CMS	technical report, CERN, Geneva, 2024 CDS
13	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV with the CMS detector	technical report, CERN, Geneva, 2025 CDS
14	CMS Collaboration	The CMS Experiment at the CERN LHC	JINST 3 (2008) S08004
15	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
16	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
17	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
18	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
19	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
20	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
21	CMS Collaboration	Description and Performance of Track and Primary-Vertex Reconstruction with the CMS Tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
22	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
23	CMS Collaboration	Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P10005	CMS-TAU-16-003 1809.02816
24	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
25	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
26	P. F. Monni et al.	MiNNLO$ _{PS} $: a new method to match NNLO QCD to parton showers	[Erratum: JHEP 02, 031 ()], 2020 JHEP 05 (2020) 143	1908.06987
27	P. F. Monni, E. Re, and M. Wiesemann	MiNNLO$ _{\text {PS}} $: optimizing 2 $ \rightarrow $ 1 hadronic processes	EPJC 80 (2020) 1075	2006.04133
28	P. Nason	A New method for combining NLO QCD with shower Monte Carlo algorithms	JHEP 11 (2004) 040	hep-ph/0409146
29	S. Frixione, P. Nason, and C. Oleari	Matching NLO QCD computations with Parton Shower simulations: the POWHEG method	JHEP 11 (2007) 070	0709.2092
30	S. Alioli, P. Nason, C. Oleari, and E. Re	A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX	JHEP 06 (2010) 043	1002.2581
31	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
32	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
33	GEANT4 Collaboration	GEANT4 - A Simulation Toolkit	NIM A 506 (2003) 250
34	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
35	CMS Collaboration	Identification of hadronic tau lepton decays using a deep neural network	JINST 17 (2022) P07023	CMS-TAU-20-001 2201.08458
36	H. Qu and L. Gouskos	ParticleNet: Jet Tagging via Particle Clouds	PRD 101 (2020) 056019	1902.08570
37	CMS Collaboration	The CMS Statistical Analysis and Combination Tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
38	W. Verkerke and D. Kirkby	The RooFit toolkit for data modeling	in the International Conference on Computing in High Energy and Nuclear Physics (CHEP ): La Jolla CA, United States, March 24--28,.. [eConf C0303241 MOLT007], 2003 Proc. 1 (2003) 3	physics/0306116
39	L. Moneta et al.	The RooStats project	in the International Workshop on Advanced Computing and Analysis Techniques in Physics Research (ACAT ): Jaipur, India, February 22--27,.. [PoS (ACAT) 057], 2010 Proc. 1 (2010) 3	1009.1003
40	J. Butterworth et al.	PDF4LHC recommendations for LHC Run II	JPG 43 (2016) 023001	1510.03865
41	PDF4LHC Working Group Collaboration	The PDF4LHC21 combination of global PDF fits for the LHC Run III	JPG 49 (2022) 080501	2203.05506
42	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS	EPJC 81 (2021) 800	CMS-LUM-17-003 2104.01927
43	R. J. Barlow and C. Beeston	Fitting using finite Monte Carlo samples	Comput. Phys. Commun. 77 (1993) 219
