A measurement of the Higgs boson mass in the diphoton decay channel with the CMS detector
CMS Collaboration
2026-03-19

Abstract: A measurement of the Higgs boson mass in the diphoton decay channel is performed using proton-proton collision data at a centre-of-mass energy of 13 TeV. The dataset recorded with the CMS detector between 2016 and 2018 is used, corresponding to an integrated luminosity of 138 $ \textrm{fb}^{-1} $. A refined detector calibration and new analysis techniques have been used to improve the precision of these results over earlier measurements. The Higgs boson mass is measured to be $ m_{\textrm{H}} = $ 125.14 $ \pm $ 0.10 $ \textrm{(stat)} \pm 0.11 \textrm{(syst)} \textrm{GeV} $. In addition, a combination with the Run 1 mass measurement at 7 and 8 $ \textrm{TeV} $ in the diphoton final state is performed resulting in $ m_{\textrm{H}} = $ 125.07 $ \pm $ 0.09 $ \textrm{(stat)} \pm 0.10 \textrm{(syst)} \textrm{GeV} $.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

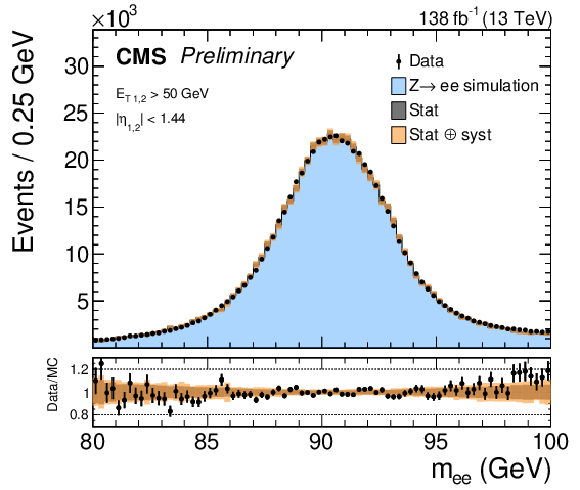

png pdf	Figure 1: Comparison of the dielectron invariant mass distribution in data and simulation for $ \mathrm{Z}\rightarrow\mathrm{e}\mathrm{e} $ events after applying only the electron energy corrections. Both electrons are required to have $ E_\mathrm{T} > $ 50 GeV and to be reconstructed in the ECAL barrel region. The error bands account for the statistical uncertainty and the systematic uncertainty associated with the energy scale corrections.

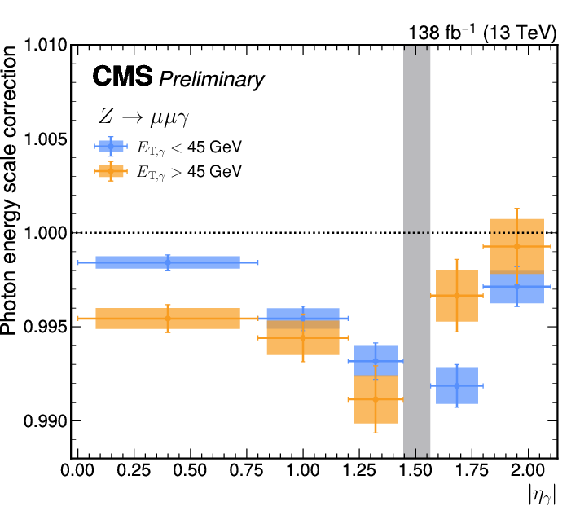

png pdf	Figure 2: Photon energy scale corrections as a function of $ \|\eta_\gamma\| $ in two $ E_{\mathrm{T}} $ bins, using $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events, after applying the electron energy scale and uniformity corrections. The shaded bands indicate the statistical uncertainties from the simulation, while the error bars show the total statistical uncertainties.

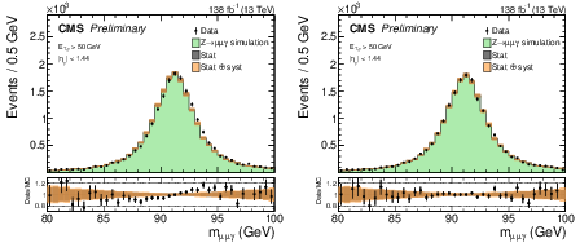

png pdf	Figure 3: Comparison of the three-body invariant mass distribution in data and simulation for $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events in the ECAL barrel region ($ \|\eta_\gamma\| < $ 1.44) with $ E_{\mathrm{T},\gamma} > $ 50 GeV. The left panel shows the distribution after the first two calibration stages, without the final photon energy scale correction derived from FSR photons. The right panel shows the same distribution after applying the final photon energy scale corrections.

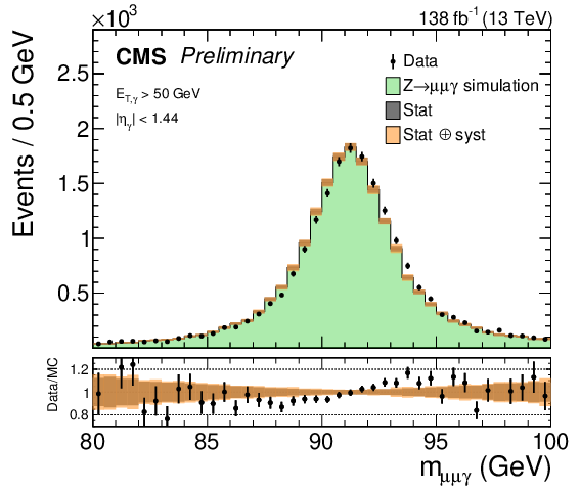

png pdf	Figure 3-a: Comparison of the three-body invariant mass distribution in data and simulation for $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events in the ECAL barrel region ($ \|\eta_\gamma\| < $ 1.44) with $ E_{\mathrm{T},\gamma} > $ 50 GeV. The left panel shows the distribution after the first two calibration stages, without the final photon energy scale correction derived from FSR photons. The right panel shows the same distribution after applying the final photon energy scale corrections.

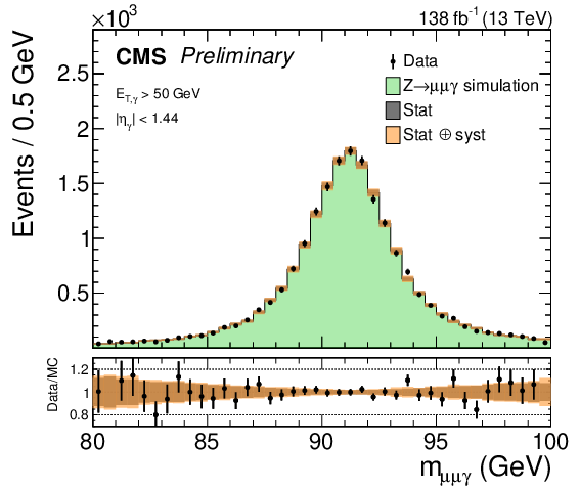

png pdf	Figure 3-b: Comparison of the three-body invariant mass distribution in data and simulation for $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events in the ECAL barrel region ($ \|\eta_\gamma\| < $ 1.44) with $ E_{\mathrm{T},\gamma} > $ 50 GeV. The left panel shows the distribution after the first two calibration stages, without the final photon energy scale correction derived from FSR photons. The right panel shows the same distribution after applying the final photon energy scale corrections.

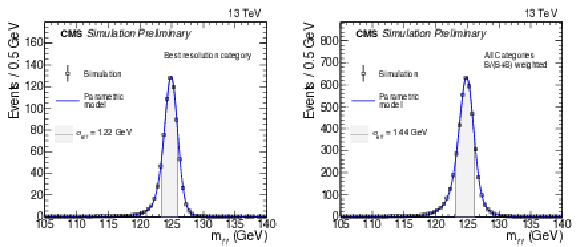

png pdf	Figure 4: Signal model for the analysis category with the best mass resolution (left), and for all categories combined after scaling by their corresponding $ \textrm{S/(S+B)} $ ratios (right), for a simulated $ \mathrm{H}\rightarrow\gamma\gamma $ signal sample with $ m_{\textrm{H}} = $ 125 GeV. All Higgs boson production modes are summed.

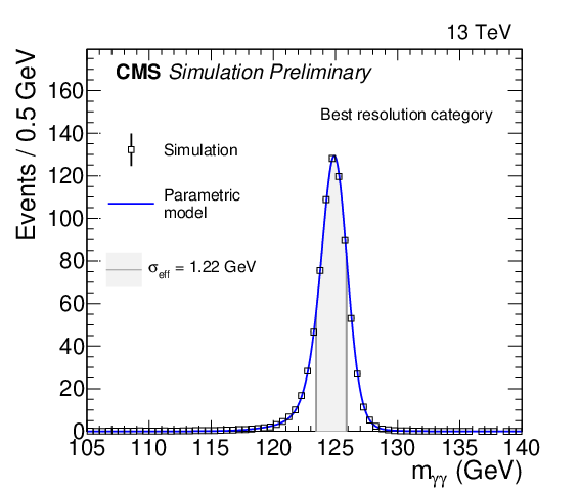

png pdf	Figure 4-a: Signal model for the analysis category with the best mass resolution (left), and for all categories combined after scaling by their corresponding $ \textrm{S/(S+B)} $ ratios (right), for a simulated $ \mathrm{H}\rightarrow\gamma\gamma $ signal sample with $ m_{\textrm{H}} = $ 125 GeV. All Higgs boson production modes are summed.

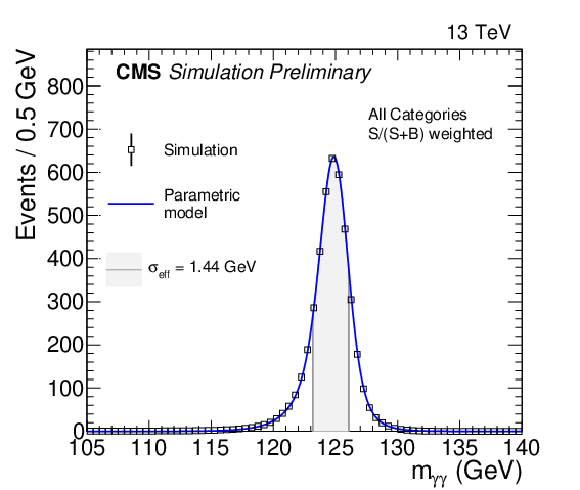

png pdf	Figure 4-b: Signal model for the analysis category with the best mass resolution (left), and for all categories combined after scaling by their corresponding $ \textrm{S/(S+B)} $ ratios (right), for a simulated $ \mathrm{H}\rightarrow\gamma\gamma $ signal sample with $ m_{\textrm{H}} = $ 125 GeV. All Higgs boson production modes are summed.

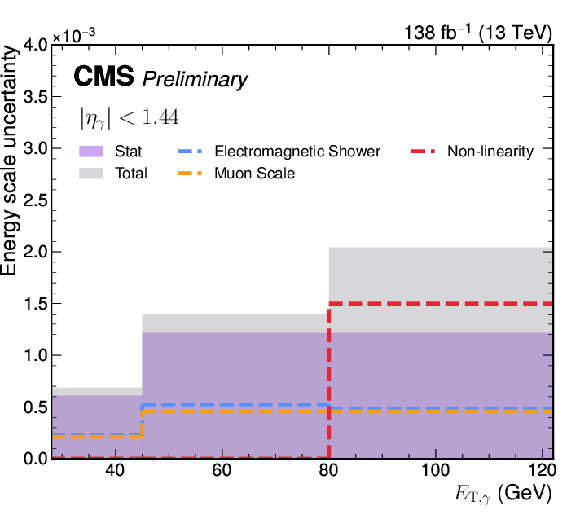

png pdf	Figure 5: Uncertainties in the energy scale as a function of $ E_\mathrm{T} $ in the barrel region, derived from $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events. The shaded bands indicate the statistical and total uncertainties, while the dashed lines show the individual contributions from the electromagnetic shower modelling, muon momentum scale and non-linearity.

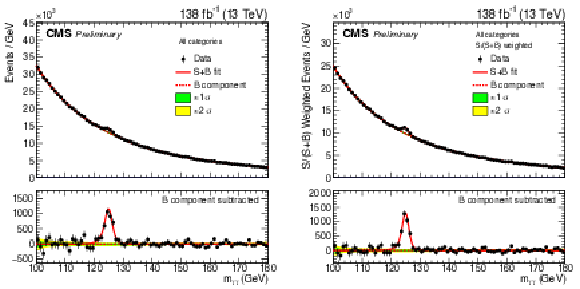

png pdf	Figure 6: Data and combined signal and background model fit for all analysis categories, unweighted (left) and weighted by their sensitivity (right). The one (green) and two (yellow) standard deviation bands include the uncertainties in the background component of the fit. The lower panel shows the residuals after the background is subtracted.

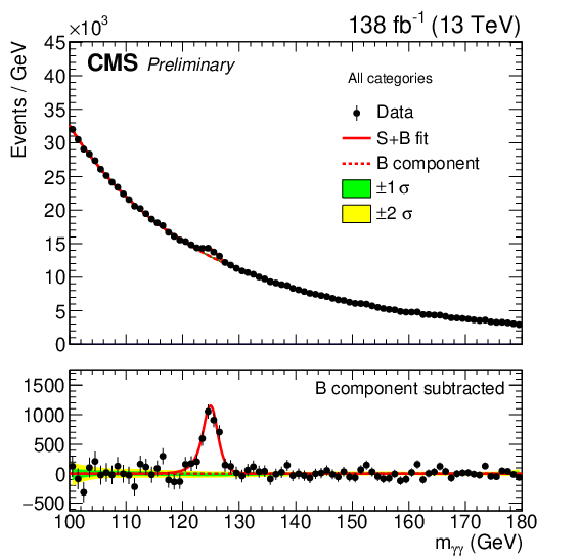

png pdf	Figure 6-a: Data and combined signal and background model fit for all analysis categories, unweighted (left) and weighted by their sensitivity (right). The one (green) and two (yellow) standard deviation bands include the uncertainties in the background component of the fit. The lower panel shows the residuals after the background is subtracted.

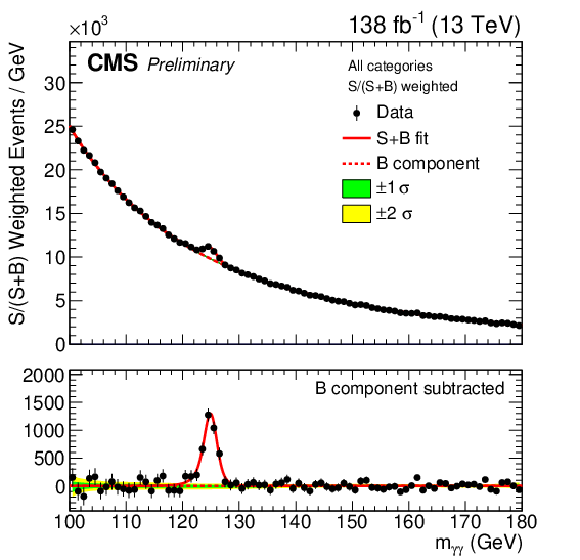

png pdf	Figure 6-b: Data and combined signal and background model fit for all analysis categories, unweighted (left) and weighted by their sensitivity (right). The one (green) and two (yellow) standard deviation bands include the uncertainties in the background component of the fit. The lower panel shows the residuals after the background is subtracted.

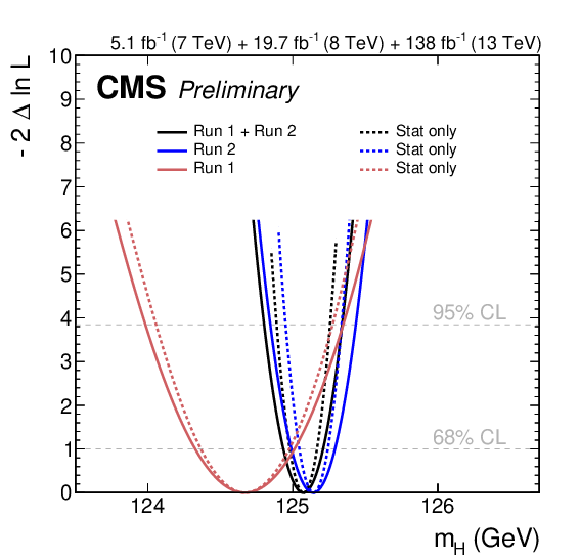

png pdf	Figure 7: Likelihood scans of the Higgs boson mass measured in the $ \mathrm{H}\rightarrow\gamma\gamma $ decay channel for the Run 1 and Run 2 datasets, and their combination. Solid lines show the full likelihood scan including systematic uncertainties, while dashed lines correspond to the statistical-only case.

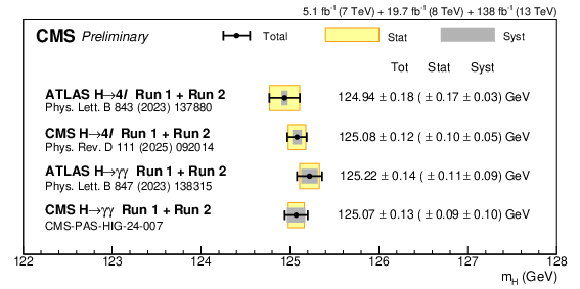

png pdf	Figure 8: Summary of the ATLAS and CMS Higgs boson mass measurements using the diphoton and the four-lepton final states, combing Run 1 and Run 2 results. The black point represents the best fit value of each measurement. The yellow and grey bands show the statistical and systematic uncertainties in each measurement, respectively. The horizontal black bars show the total uncertainties. The value of each measurement is given, along with the total uncertainties, splitting statistical only and systematic only uncertainties in parentheses.

Tables
png pdf	Table 1: Observed impact of the different sources of systematic uncertainty in the measurement of $ m_{\textrm{H}} $

Summary

A new measurement of the Higgs boson mass has been conducted in the diphoton decay channel, utilising the complete dataset collected by CMS between 2016 and 2018 during Run 2 at $ \sqrt{s} = $ 13 TeV at the CERN LHC. New analysis techniques, enabled by the increased integrated luminosity, were used to improve the measurement precision, refine the detector calibration, and derive corrections accounting for differences between photons and electrons. The main improvements with respect to the previous analysis [8] include the derivation of granular $ E_\mathrm{T} $-dependent energy smearing corrections, a new simulation-based method to correct for differences between the photon and electron energy scales due to radiation damage in the ECAL crystals, and a calibration procedure using $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events to correct residual energy scale differences between electrons and photons. In addition, a signal-to-background classifier based on gradient boosting was employed, with backgrounds containing at least one jet misidentified as a photon estimated using a data-driven technique. To further enhance the measurement sensitivity, multiple analysis categories were defined according to the classifier output, using a figure of merit that accounts for both the signal-to-background ratio and the relative diphoton mass resolution. The Higgs boson mass is measured to be $ m_{\textrm{H}} = $ 125.14 $ \pm $ 0.10 (stat) $ \pm $ 0.11 (syst) GeV. When combined with the corresponding measurement from CMS Run 1 data, the mass is determined to be $ m_{\textrm{H}} = $ 125.07 $ \pm $ 0.09 (stat) $ \pm $ 0.10 (syst) GeV. \newpage

References
1	ATLAS Collaboration	Observation of a new particle in the search for the standard model higgs boson with the ATLAS detector at the LHC	Physics Letters B 716 (2012) 1	1207.7214
2	CMS Collaboration	Observation of a new boson at a mass of 125 GeV with the CMS experiment at the LHC	Physics Letters B 716 (2012) 30	CMS-HIG-12-028 1207.7235
3	T. Markkanen, A. Rajantie, and S. Stopyra	Cosmological Aspects of Higgs Vacuum Metastability	Front. Astron. Space Sci. 5 (2018) 40	1809.06923
4	A. Sirlin	Radiative Corrections in the SU(2)-L x U(1) Theory: A Simple Renormalization Framework	PRD 22 (1980) 971
5	LHC Higgs Cross Section Working Group Collaboration	Handbook of LHC Higgs Cross Sections: 4. Deciphering the Nature of the Higgs Sector	link	1610.07922
6	ATLAS Collaboration	Combined measurement of the Higgs boson mass from the $ {H}\rightarrow\gamma\gamma $ and $ {H}\rightarrow{Z}{Z}^{*}\rightarrow4\ell $ decay channels with the ATLAS detector using $ \sqrt{s}= $ 7, 8, and 13 TeV $ pp $ collision data	PRL 13 (2023) 1, 251802	2308.04775
7	CMS Collaboration	Observation of the diphoton decay of the Higgs boson and measurement of its properties	EPJC 74 (2014) 3076	CMS-HIG-13-001 1407.0558
8	CMS Collaboration	A measurement of the Higgs boson mass in the diphoton decay channel	Physics Letters B 805 (2020) 135425	CMS-HIG-19-004 2002.06398
9	CMS Collaboration	Measurement of the Higgs boson mass and width using the four-lepton final state in proton-proton collisions at $ \sqrt{s} = $ 13TeV	PRD 11 (2025) 1, 09	CMS-HIG-21-019 2409.13663
10	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
11	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
12	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
13	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
14	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
15	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
16	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
17	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
18	Z. Bern, L. Dixon, and C. Schmidt	Isolating a light Higgs boson from the diphoton background at the CERN LHC	PRD 6 (2002) 6, 074018
19	L. J. Dixon and Y. Li	Bounding the higgs boson width through interferometry	PRL 11 (2013) 1, 111802	1305.3854
20	CMS Collaboration	Performance of the CMS electromagnetic calorimeter in pp collisions at $ \sqrt{s} = $ 13 TeV	JINST 19 (2024) P09004	CMS-EGM-18-002 2403.15518
21	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
22	F. Couderc, P. Gaigne, and M. \"O . Sahin	Lepton energy scale and resolution corrections based on the minimization of an analytical likelihood: Ijazz2.0	\url https://arxiv.org/abs/2602.17300, 2026 link
23	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS	EPJC 81 (2021) 800	CMS-LUM-17-003 2104.01927
24	CMS Collaboration	CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV	technical report, CERN, Geneva, 2018 CDS
25	CMS Collaboration	CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV	technical report, CERN, Geneva, 2019 CDS
26	CMS Collaboration	Measurements of Higgs boson production cross sections and couplings in the diphoton decay channel at $ \sqrt{\mathrm{s}} = $ 13 TeV	JHEP 07 (2021) 027	CMS-HIG-19-015 2103.06956
27	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
28	T. Sjöstrand, S. Mrenna, and P. Skands	A Brief Introduction to PYTHIA 8.1	Comput. Phys. Commun. 178 (2007) 852	0710.3820
29	R. Frederix and S. Frixione	Merging meets matching in MC@NLO	JHEP 12 (2012) 061	1209.6215
30	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
31	T. Gleisberg et al.	Event generation with SHERPA 1.1	JHEP 02 (2009) 007	0811.4622
32	CMS Collaboration	Measurements of Higgs boson properties in the diphoton decay channel in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JHEP 11 (2018) 185	CMS-HIG-16-040 1804.02716
33	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
34	G. Battistoni et al.	Overview of the FLUKA code	Annals of Nuclear Energy 82 (2015)
35	F. Gentit	Litrani: a general purpose Monte-Carlo program simulating light propagation in isotropic or anisotropic media	Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, 2002 Detectors and Associated Equipment 485 (2002)
36	T. Chen and C. Guestrin	XGBoost: A Scalable Tree Boosting System	3, 2016 link	1603.02754
37	CMS Collaboration	Measurements of $ t\overline{t}H $ production and the CP structure of the Yukawa interaction between the Higgs boson and top quark in the diphoton decay channel	(Aug, ) 061801, 2020 PRL 12 (2020) 5	CMS-HIG-19-013 2003.10866
38	W. Voigt	\"Uber das gesetz der intensitätsverteilung innerhalb der linien eines gasspektrums	Sitzungsberichte der Bayerischen Akademie der Wissenschaften, Mathematisch-, 1912 Physikalische Klasse 60 (1912) 3
39	P. D. Dauncey, M. Kenzie, N. Wardle, and G. J. Davies	Handling uncertainties in background shapes: the discrete profiling method	JINST 10 (2015) P04015	1408.6865
40	R. A. Fisher	On the interpretation of $ \chi^2 $ from contingency tables, and the calculation of P	Journal of the Royal Statistical Society 85 (1922) 87
41	A. Bodek et al.	Extracting muon momentum scale corrections for hadron collider experiments	EPJC 72 (2012) 2194	1208.3710
42	G. Cowan, K. Cranmer, E. Gross, and O. Vitells	Asymptotic formulae for likelihood-based tests of new physics	EPJC 71 (2011) 1554	1007.1727
43	T. Junk	Confidence level computation for combining searches with small statistics	NIM A 434 (1999) 435	hep-ex/9902006
44	A. L. Read	Presentation of search results: the CLs technique	Journal of Physics G:, 2002 Nuclear and Particle Physics 28 (2002) 2693
