| CMS-HIN-25-006 ; CERN-EP-2026-241 | ||
| Spin-dependent azimuthal asymmetry of coherent $ \mathrm{J}/\psi $ photoproduction in hadronic PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.36 TeV | ||
| CMS Collaboration | ||
| 3 September 2026 | ||
| Submitted to Physical Review Letters | ||
| Abstract: We report a measurement of the azimuthal asymmetry of muons from the decay of coherently photoproduced $ \mathrm{J}/\psi $ mesons with respect to the second-order event plane in hadronic lead-lead (PbPb) collisions. The analysis is based on data collected by the CMS experiment at the LHC at a nucleon-nucleon center-of-mass energy of 5.36 TeV, corresponding to an integrated luminosity of 1.26$ \text{nb}^{-1}$. The asymmetry is quantified using the amplitude $ A_{2} $ of the second-order harmonic modulation of the decay-muon azimuthal distribution. A negative $ A_{2} = - $ 0.194 $ \pm $ 0.022 (stat) $ \pm $ 0.018 (syst) is observed with a significance greater than five standard deviations for the first time. The $ A_{2} $ values show no significant dependence on the $ \mathrm{J}/\psi $ meson rapidity or the degree of overlap of the colliding ions. A theoretical model in which the coherently photoproduced $ \mathrm{J}/\psi $ meson inherits the linear polarization of the incident photon is consistent with the data. When considered together with recent measurements of coherent ${\rho}{0} \to \pi^{+}\pi^{-} $ photoproduction in ultraperipheral collisions, these results provide a direct observation of spin dependence in the azimuthal asymmetry of decay products from coherently photoproduced vector mesons. In addition, the observed correlation with the event plane may enable a novel approach to reaction plane determination in the future. | ||
| Links: e-print arXiv:2609.04376 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

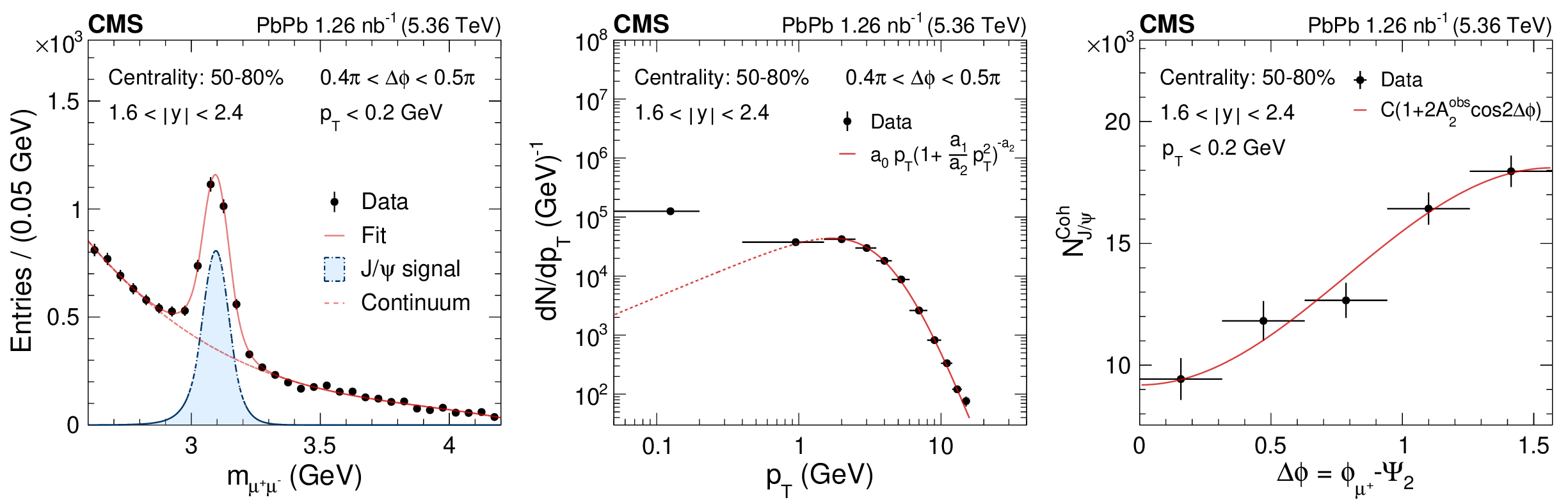

Figure 1:
The invariant mass distribution of muon pairs (left) and the acceptance- and efficiency-corrected $ \mathrm{J}/\psi $ meson $ p_{\mathrm{T}} $ spectrum (middle), both for 0.4 $ \pi < \Delta\phi < 0.5\pi $, and the coherently photoproduced $ \mathrm{J}/\psi $ meson yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50--80% centrality and in the $ \mathrm{J}/\psi $ rapidity range 1.6 $ < |y| < $ 2.4. Vertical bars represent statistical uncertainties in all three panels, while horizontal bars in the middle and right panels indicate the bin widths. |
png pdf |

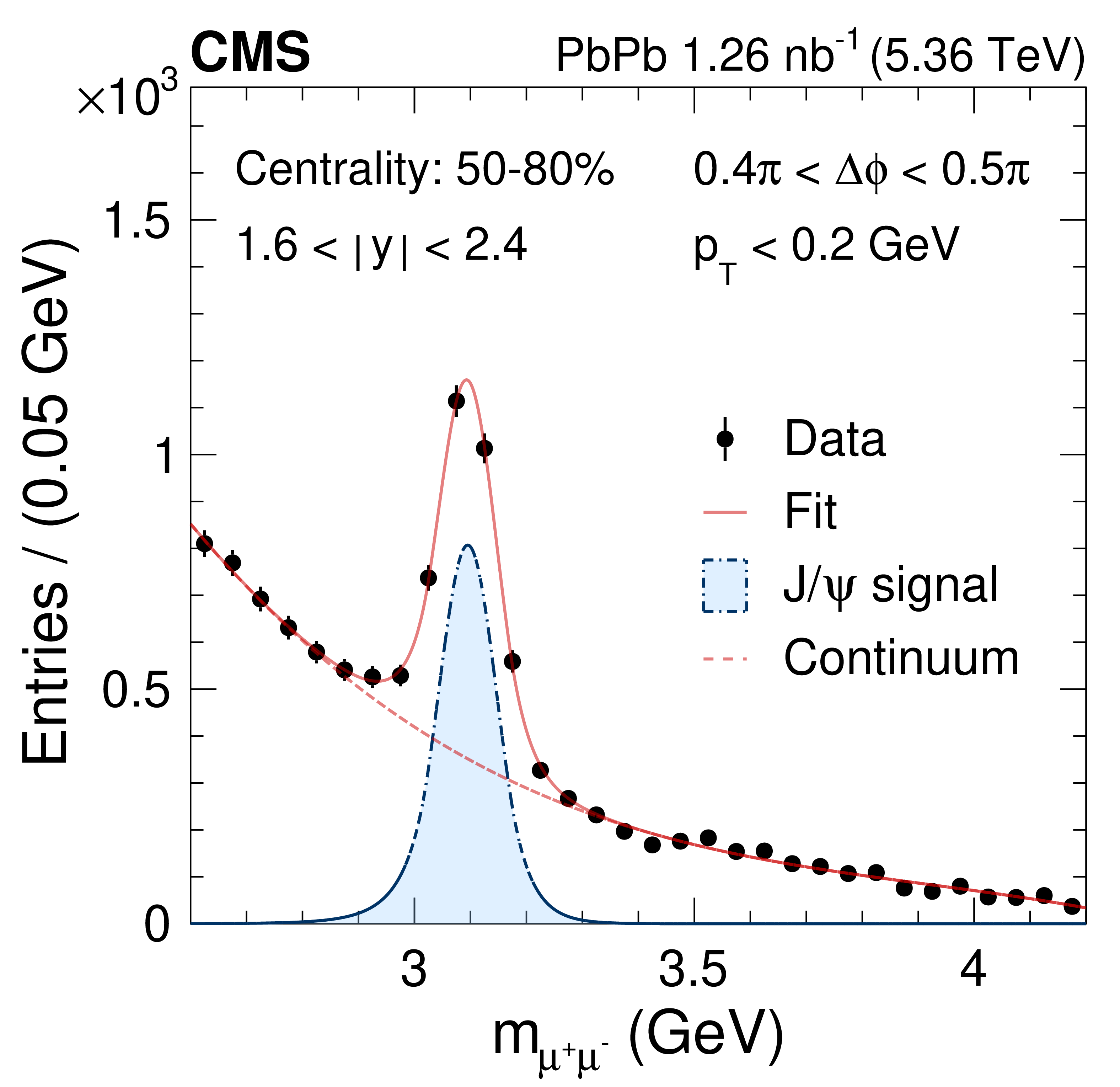

Figure 1-a:
The invariant mass distribution of muon pairs (left) and the acceptance- and efficiency-corrected $ \mathrm{J}/\psi $ meson $ p_{\mathrm{T}} $ spectrum (middle), both for 0.4 $ \pi < \Delta\phi < 0.5\pi $, and the coherently photoproduced $ \mathrm{J}/\psi $ meson yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50--80% centrality and in the $ \mathrm{J}/\psi $ rapidity range 1.6 $ < |y| < $ 2.4. Vertical bars represent statistical uncertainties in all three panels, while horizontal bars in the middle and right panels indicate the bin widths. |
png pdf |

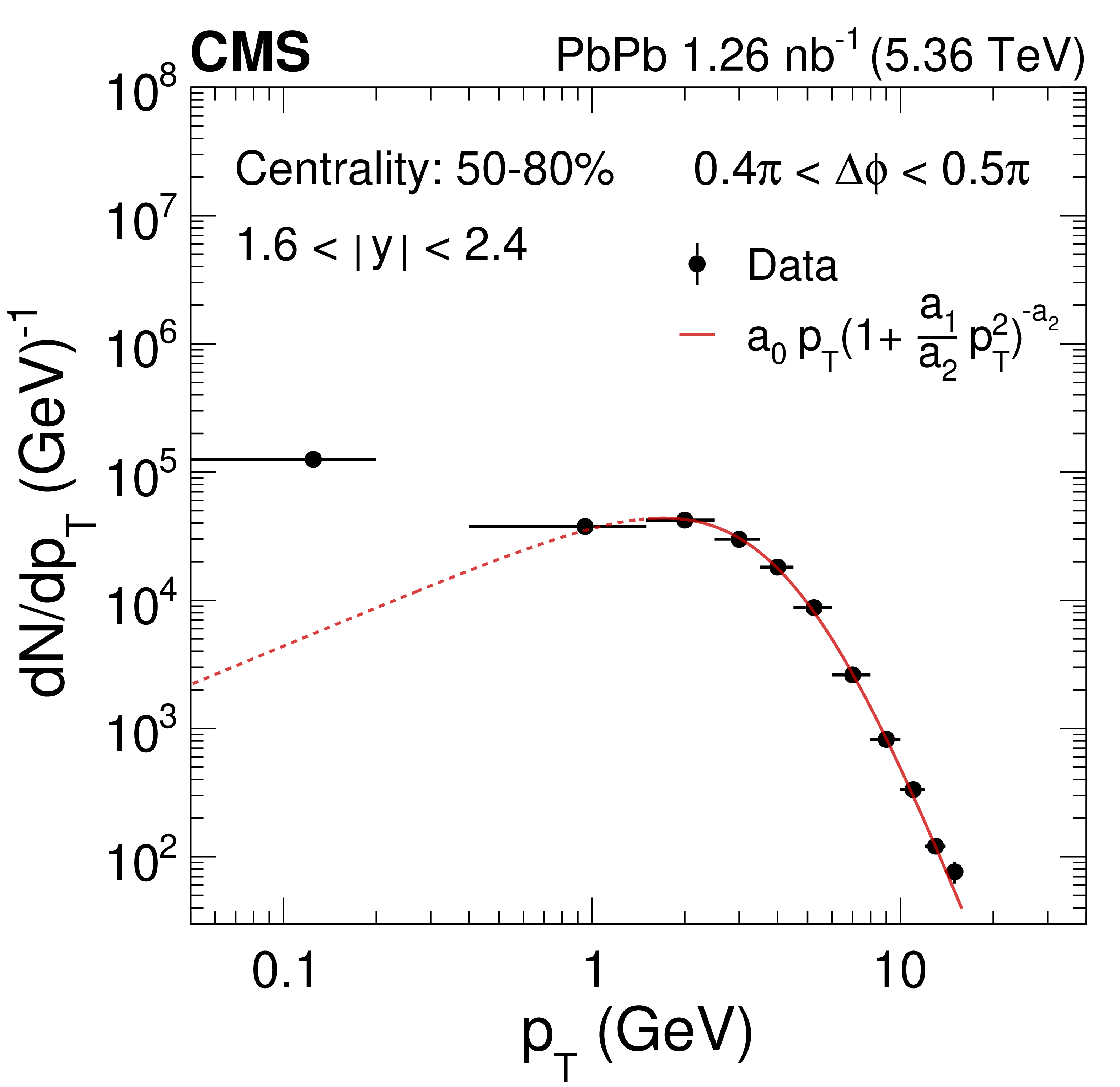

Figure 1-b:
The invariant mass distribution of muon pairs (left) and the acceptance- and efficiency-corrected $ \mathrm{J}/\psi $ meson $ p_{\mathrm{T}} $ spectrum (middle), both for 0.4 $ \pi < \Delta\phi < 0.5\pi $, and the coherently photoproduced $ \mathrm{J}/\psi $ meson yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50--80% centrality and in the $ \mathrm{J}/\psi $ rapidity range 1.6 $ < |y| < $ 2.4. Vertical bars represent statistical uncertainties in all three panels, while horizontal bars in the middle and right panels indicate the bin widths. |
png pdf |

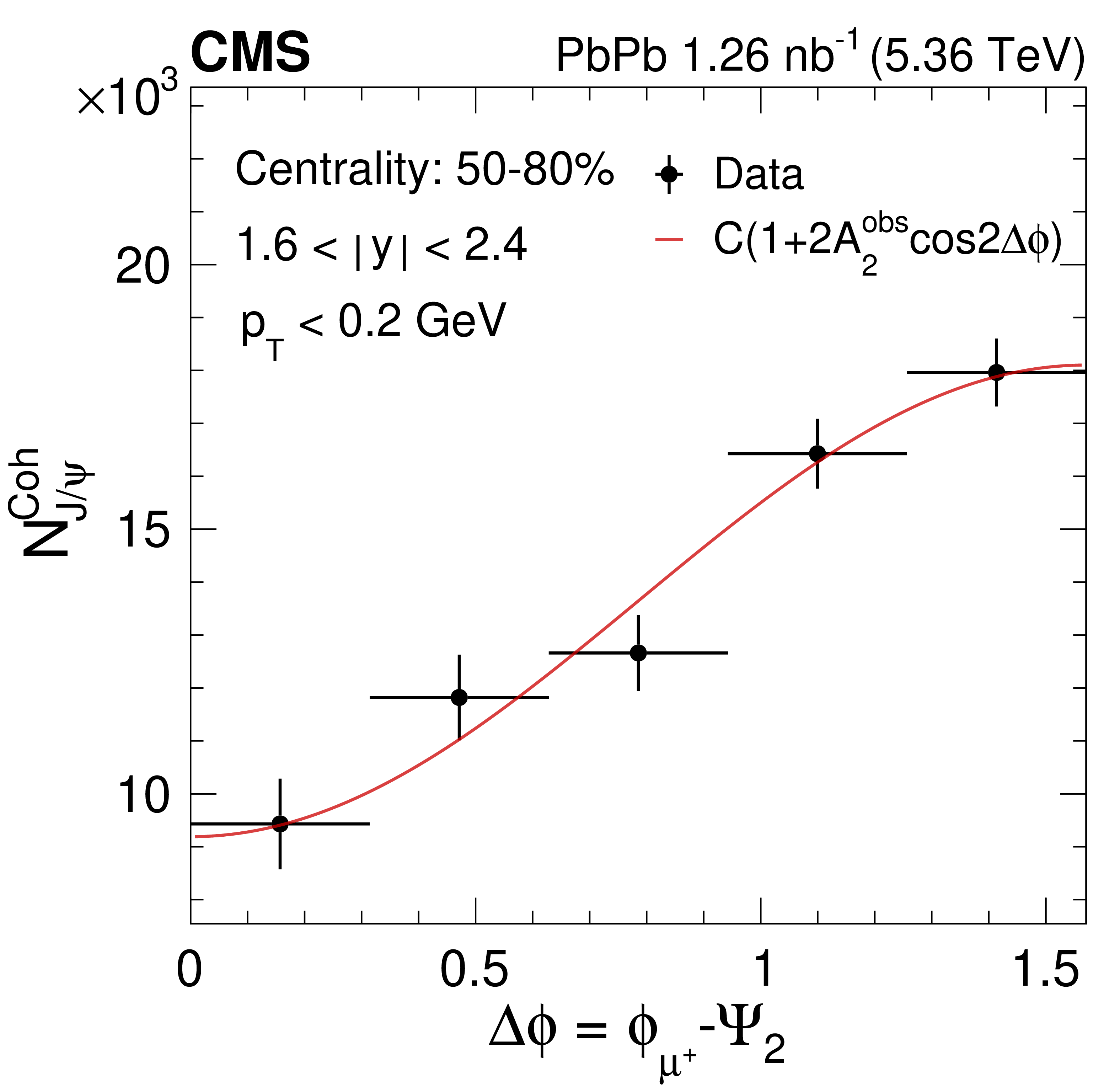

Figure 1-c:
The invariant mass distribution of muon pairs (left) and the acceptance- and efficiency-corrected $ \mathrm{J}/\psi $ meson $ p_{\mathrm{T}} $ spectrum (middle), both for 0.4 $ \pi < \Delta\phi < 0.5\pi $, and the coherently photoproduced $ \mathrm{J}/\psi $ meson yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50--80% centrality and in the $ \mathrm{J}/\psi $ rapidity range 1.6 $ < |y| < $ 2.4. Vertical bars represent statistical uncertainties in all three panels, while horizontal bars in the middle and right panels indicate the bin widths. |
png pdf |

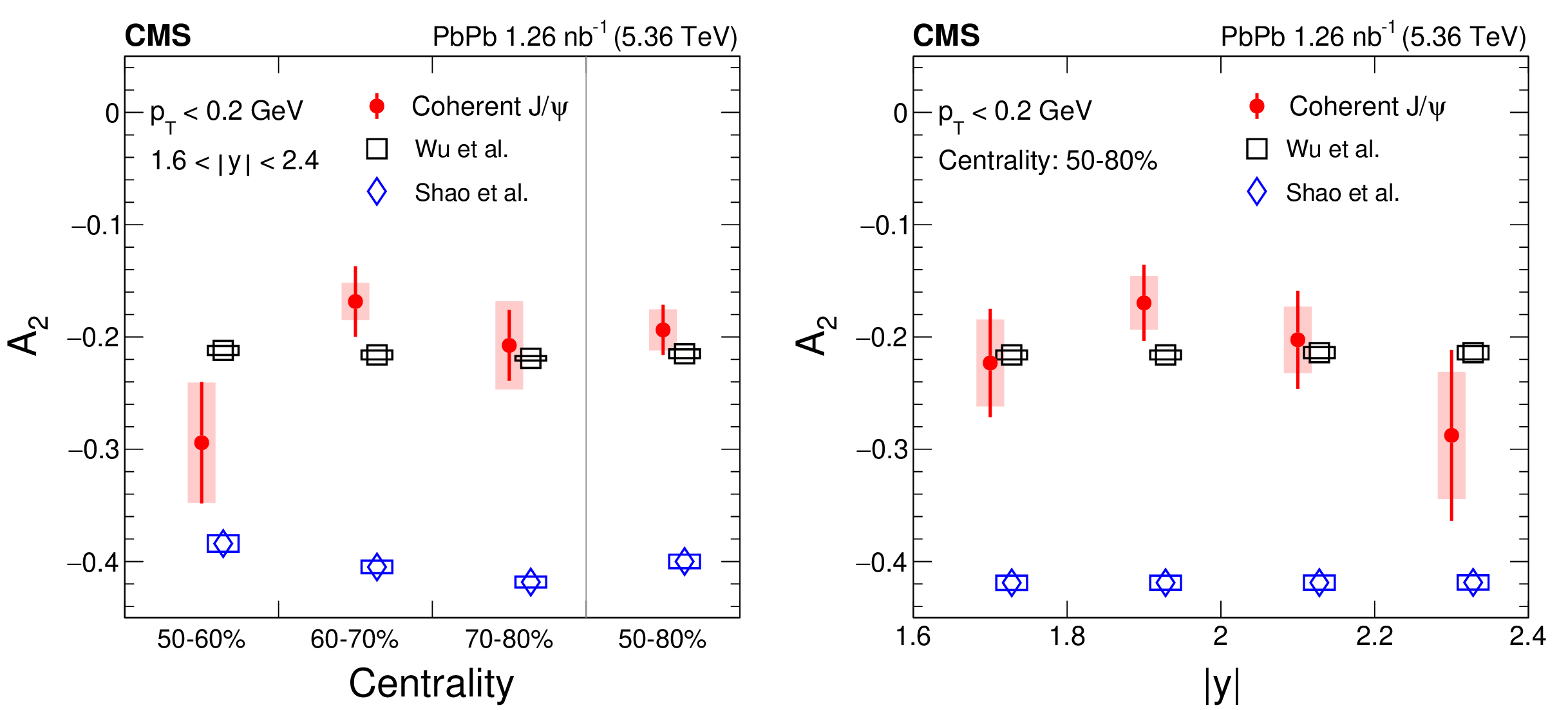

Figure 2:
The amplitude of the $ \cos(2\Delta\phi) $ modulation, $ A_2 $, of muons from the decays of coherently photoproduced $ \mathrm{J}/\psi $ mesons as a function of collision centrality (left) and $ \mathrm{J}/\psi $ rapidity (right) in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.36 TeV. The error bars represent the statistical uncertainties, and the shaded boxes represent the systematic uncertainties. The black open squares [34] and blue open diamonds [70] represent theoretical predictions that account for the correlation between the vector meson polarization and the event plane. The open boxes around the theoretical predictions indicate their uncertainties. |
png pdf |

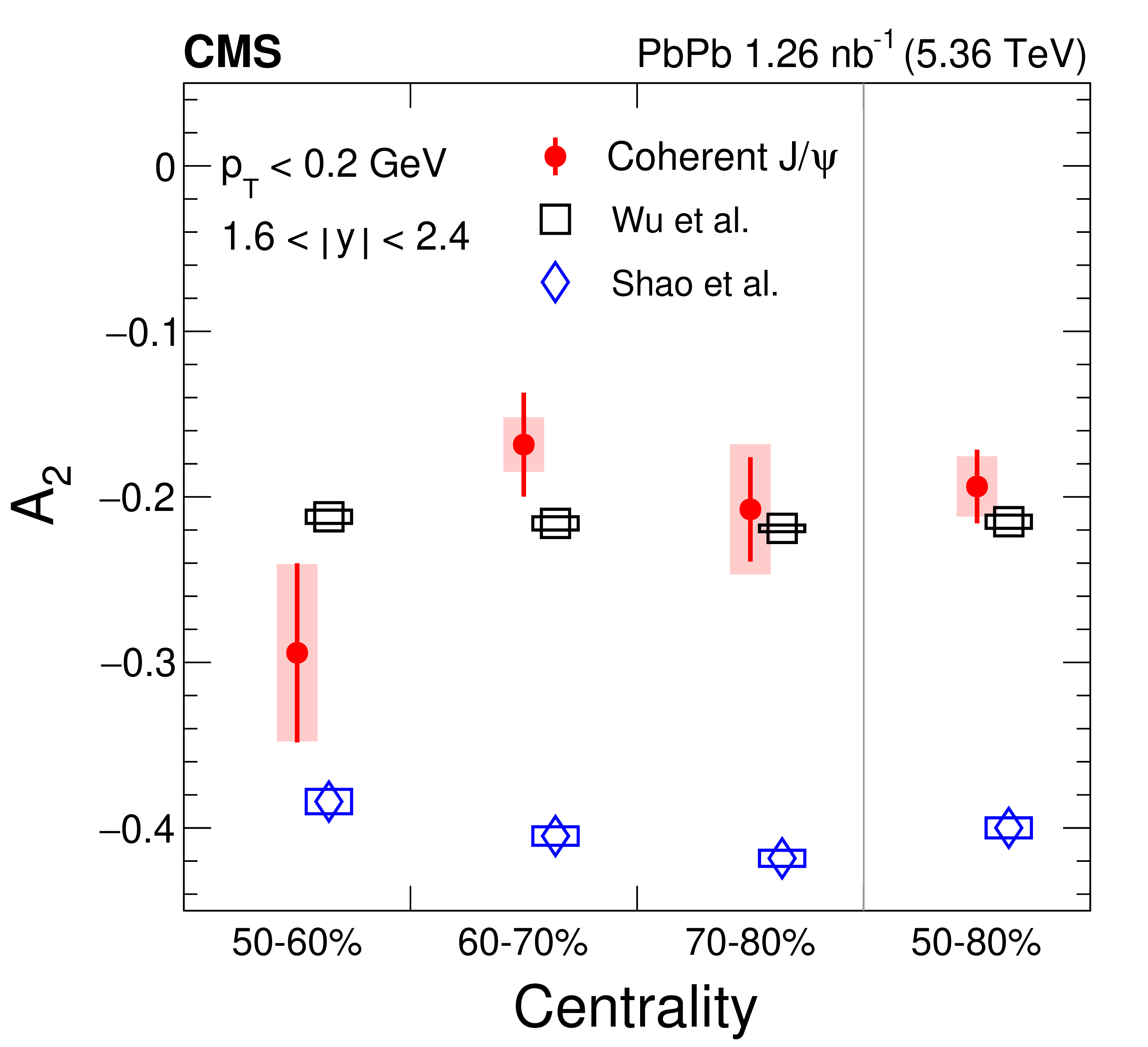

Figure 2-a:
The amplitude of the $ \cos(2\Delta\phi) $ modulation, $ A_2 $, of muons from the decays of coherently photoproduced $ \mathrm{J}/\psi $ mesons as a function of collision centrality (left) and $ \mathrm{J}/\psi $ rapidity (right) in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.36 TeV. The error bars represent the statistical uncertainties, and the shaded boxes represent the systematic uncertainties. The black open squares [34] and blue open diamonds [70] represent theoretical predictions that account for the correlation between the vector meson polarization and the event plane. The open boxes around the theoretical predictions indicate their uncertainties. |
png pdf |

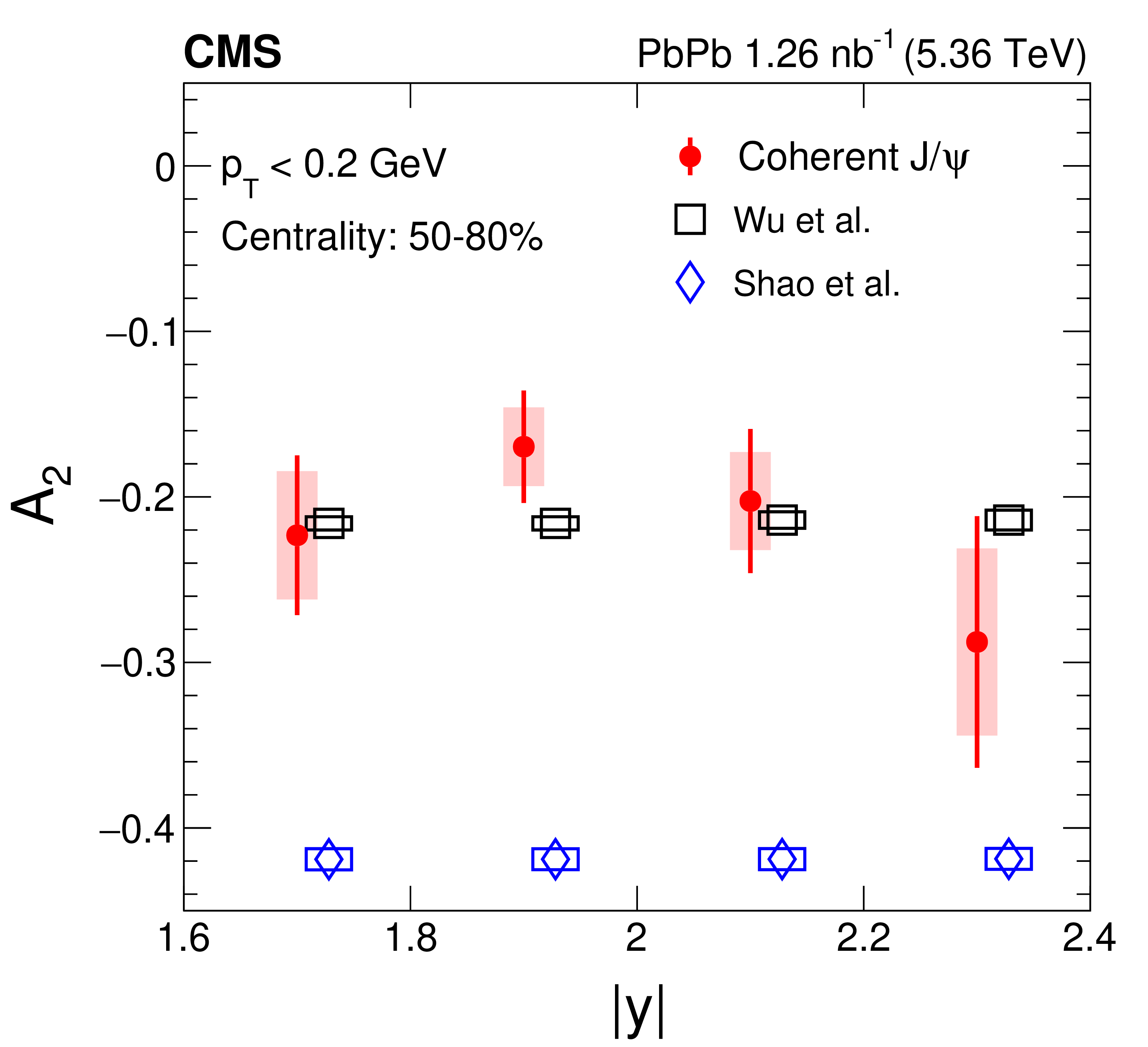

Figure 2-b:
The amplitude of the $ \cos(2\Delta\phi) $ modulation, $ A_2 $, of muons from the decays of coherently photoproduced $ \mathrm{J}/\psi $ mesons as a function of collision centrality (left) and $ \mathrm{J}/\psi $ rapidity (right) in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.36 TeV. The error bars represent the statistical uncertainties, and the shaded boxes represent the systematic uncertainties. The black open squares [34] and blue open diamonds [70] represent theoretical predictions that account for the correlation between the vector meson polarization and the event plane. The open boxes around the theoretical predictions indicate their uncertainties. |
| Summary |
| In summary, we present a measurement of the azimuthal asymmetry of muons from the decay of coherently photoproduced$ \mathrm{J}/\psi $ vector mesons with respect to the second-order event plane in hadronic lead-lead collisions at a nucleon-nucleon center-of-mass energy of 5.36 TeV. The asymmetry amplitude $A_{2}$ is found to be negative and shows no significant dependence on$ \mathrm{J}/\psi $ rapidity or collision centrality. These observations are consistent with theoretical expectations linking the linear polarization of the$ \mathrm{J}/\psi $ to the reaction plane. Therefore, it may be feasible to use the intrinsic polarization of coherently photoproduced vector mesons as a complementary reaction-plane estimator in heavy ion collisions. Such an approach could be particularly advantageous in small systems, such as proton-nucleus collisions. Together with previously measured positive amplitudes for spin-0 pion final states from coherently photoproduced ${\rho}{0} $ mesons, these results provide the first observation of spin-state dependence in azimuthal asymmetries. |
| References | ||||
| 1 | F. Krauss, M. Greiner, and G. Soff | Photon and gluon induced processes in relativistic heavy ion collisions | Prog. Part. Nucl. Phys. 39 (1997) 503 | |
| 2 | G. Baur et al. | Coherent $ \gamma \gamma $ and $ \gamma $A interactions in very peripheral collisions at relativistic ion colliders | Phys. Rep. 364 (2002) 359 | hep-ph/0112211 |
| 3 | C. A. Bertulani, S. R. Klein, and J. Nystrand | Physics of ultra-peripheral nuclear collisions | Annu. Rev. Nucl. Part. Sci. 55 (2005) 271 | nucl-ex/0502005 |
| 4 | A. J. Baltz et al. | The physics of ultraperipheral collisions at the LHC | Phys. Rep. 458 (2008) 1 | 0706.3356 |
| 5 | CMS Collaboration | Overview of high-density QCD studies with the CMS experiment at the LHC | Phys. Rept. 1115 (2025) 219 | CMS-HIN-23-011 2405.10785 |
| 6 | ALICE Collaboration | Coherent $\rho$ ^{0} $ photoproduction in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | JHEP 09 (2015) 095 | 1503.09177 |
| 7 | ALICE Collaboration | First measurement of coherent \ensuremath\rho$ ^0 $ photoproduction in ultra-peripheral Xe-Xe collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.44 TeV | PLB 820 (2021) 136481 | 2101.02581 |
| 8 | ALICE Collaboration | Measurement of the impact-parameter dependent azimuthal anisotropy in coherent \ensuremath\rho$ ^0 $ photoproduction in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 858 (2024) 139017 | 2405.14525 |
| 9 | CMS Collaboration | Coherent $ \mathrm{J}/\psi $ photoproduction in ultra-peripheral PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV with the CMS experiment | PLB 772 (2017) 489 | CMS-HIN-12-009 1605.06966 |
| 10 | CMS Collaboration | Probing small Bjorken-x nuclear gluonic structure via coherent $ \mathrm{J}/\psi $ photoproduction in ultraperipheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PRL 131 (2023) 262301 | CMS-HIN-22-002 2303.16984 |
| 11 | ALICE Collaboration | Coherent $ \mathrm{J}/\psi $ photoproduction at forward rapidity in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 798 (2019) 134926 | 1904.06272 |
| 12 | ALICE Collaboration | Coherent $ \mathrm{J}/\psi $ and $ \psi' $ photoproduction at midrapidity in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | EPJC 81 (2021) 712 | 2101.04577 |
| 13 | LHCb Collaboration | Study of exclusive photoproduction of charmonium in ultra-peripheral lead-lead collisions | JHEP 06 (2023) 146 | 2206.08221 |
| 14 | ALICE Collaboration | Energy dependence of coherent photonuclear production of $ \mathrm{J}/\psi $ mesons in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 10 (2023) 119 | 2305.19060 |
| 15 | CMS Collaboration | Observation of coherent \ensuremath\phi(1020) meson photoproduction in ultraperipheral PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.36 TeV | PRL 135 (2025) 262301 | CMS-HIN-24-009 2504.05193 |
| 16 | ALICE Collaboration | First measurement of the $ \lvert t \rvert $ dependence of incoherent $ \mathrm{J}/\psi $ photonuclear production | PRL 132 (2024) 162302 | 2305.06169 |
| 17 | CMS Collaboration | Probing gluon fluctuations in nuclei with the first energy-dependent measurement of incoherent $ \mathrm{J}/\psi $ photoproduction in ultraperipheral PbPb collisions | PRL 135 (2025) 112301 | CMS-HIN-23-009 2503.08903 |
| 18 | STAR Collaboration | Coherent $ \rho^0 $ production in ultraperipheral heavy ion collisions | PRL 89 (2002) 272302 | nucl-ex/0206004 |
| 19 | STAR Collaboration | Coherent diffractive photoproduction of $ \rho^0 $ mesons on gold nuclei at 200 GeV/nucleon-pair at the Relativistic Heavy Ion Collider | Phys. Rev. C 96 (2017) 054904 | 1702.07705 |
| 20 | STAR Collaboration | Tomography of ultrarelativistic nuclei with polarized photon-gluon collisions | Sci. Adv. 9 (2023) | 2204.01625 |
| 21 | STAR Collaboration | Observation of strong nuclear suppression in exclusive $ \mathrm{J}/\psi $ photoproduction in Au+Au ultraperipheral collisions at RHIC | PRL 133 (2024) 052301 | 2311.13637 |
| 22 | STAR Collaboration | Exclusive $ \mathrm{J}/\psi $, \PGyP2S, and $ \mathrm{e}^+\mathrm{e}^- $ pair production in Au+Au ultraperipheral collisions at the BNL Relativistic Heavy Ion Collider | Phys. Rev. C 110 (2024) 014911 | 2311.13632 |
| 23 | C. Li, J. Zhou, and Y.-J. Zhou | Probing the linear polarization of photons in ultraperipheral heavy ion collisions | PLB 795 (2019) 576 | 1903.10084 |
| 24 | C. Li, J. Zhou, and Y.-J. Zhou | Impact parameter dependence of the azimuthal asymmetry in lepton pair production in heavy ion collisions | PRD 101 (2020) 034015 | 1911.00237 |
| 25 | STAR Collaboration | Measurement of $ \mathrm{e}^+\mathrm{e}^- $ momentum and angular distributions from linearly polarized photon collisions | PRL 127 (2021) 052302 | 1910.12400 |
| 26 | STAR Collaboration | $ \rho^0 $ photoproduction in ultraperipheral relativistic heavy ion collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 200 GeV | Phys. Rev. C 77 (2008) 034910 | 0712.3320 |
| 27 | ALICE Collaboration | First polarisation measurement of coherently photoproduced $ \mathrm{J}/\psi $ in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 865 (2025) 139466 | 2304.10928 |
| 28 | H. Xing, C. Zhang, J. Zhou, and Y.-J. Zhou | The cos 2$ \phi $ azimuthal asymmetry in $ \rho^{0} $ meson production in ultraperipheral heavy ion collisions | JHEP 10 (2020) 064 | 2006.06206 |
| 29 | W. Zha et al. | Exploring the double-slit interference with linearly polarized photons | PRD 103 (2021) 033007 | 2006.12099 |
| 30 | J. D. Brandenburg et al. | Exploring gluon tomography with polarization dependent diffractive $ \mathrm{J}/\psi $ production | PRD 106 (2022) 074008 | 2207.02478 |
| 31 | STAR Collaboration | Evidence of spin-interference effects in exclusive $ \mathrm{J}/\psi \to e^{+}e^{-} $ photoproduction in ultraperipheral heavy-ion collisions | PRL 136 (2026) 242302 | 2512.02865 |
| 32 | W. Zha et al. | Double-slit experiment at fermi scale: coherent photoproduction in heavy-ion collisions | Phys. Rev. C 99 (2019) 061901 | 1810.10694 |
| 33 | J. G. Contreras and J. D. Tapia Takaki | Ultra-peripheral heavy-ion collisions at the LHC | Int. J. Mod. Phys. A 30 (2015) 1542012 | |
| 34 | X. Wu et al. | Reaction plane alignment with linearly polarized photon in heavy-ion collisions | Phys. Rev. Res. 4 (2022) L042048 | 2302.10458 |
| 35 | X. Wu et al. | Impact parameter manipulation in exclusive photoproduction in Electron-Ion Collisions | Nucl. Sci. Tech. 36 (2025) 157 | 2410.06676 |
| 36 | W. Zha et al. | Coherent $ \mathrm{J}/\psi $ photoproduction in hadronic heavy-ion collisions | Phys. Rev. C 97 (2018) 044910 | 1705.01460 |
| 37 | A. M. Poskanzer and S. A. Voloshin | Methods for analyzing anisotropic flow in relativistic nuclear collisions | Phys. Rev. C 58 (1998) 1671 | nucl-ex/9805001 |
| 38 | ALICE Collaboration | Measurement of an excess in the yield of $ \mathrm{J}/\psi $ at very low $ p_{\rm T} $ in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | PRL 116 (2016) 222301 | 1509.08802 |
| 39 | STAR Collaboration | Observation of excess $ \mathrm{J}/\psi $ yield at very low transverse momenta in Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 200 GeV and U+U collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 193 GeV | PRL 123 (2019) 132302 | 1904.11658 |
| 40 | LHCb Collaboration | $ \mathrm{J}/\psi $ photoproduction in Pb-Pb peripheral collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5 TeV | Phys. Rev. C 105 (2022) L032201 | 2108.02681 |
| 41 | J.-Y. Ollitrault, A. M. Poskanzer, and S. A. Voloshin | Effect of flow fluctuations and nonflow on elliptic flow methods | Phys. Rev. C 80 (2009) 014904 | 0904.2315 |
| 42 | J. Luo et al. | Probing the collision geometry via two-photon processes in heavy-ion collisions | Nucl. Sci. Tech. 37 (2026) 102 | 2505.05133 |
| 43 | D. d'Enterria and C. Loizides | Progress in the glauber model at collider energies | Ann. Rev. Nucl. Part. Sci. 71 (2021) 315 | 2011.14909 |
| 44 | CMS Collaboration | HEPData record for this analysis | link | |
| 45 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 46 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 47 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 48 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 49 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 50 | CMS Collaboration | Performance of CMS muon reconstruction from proton-proton to heavy ion collisions | JINST 19 (2024) P09012 | CMS-MUO-21-001 2404.17377 |
| 51 | CMS Collaboration | Observation and studies of jet quenching in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | Phys. Rev. C 84 (2011) 024906 | CMS-HIN-10-004 1102.1957 |
| 52 | O. Sur\'anyi et al. | Performance of the CMS Zero Degree Calorimeters in pPb collisions at the LHC | JINST 16 (2021) P05008 | 2102.06640 |
| 53 | CMS Collaboration | Performance of CMS muon reconstruction in pp collision events at $ \sqrt{s}= $ 7 TeV | JINST 7 (2012) P10002 | CMS-MUO-10-004 1206.4071 |
| 54 | STAR Collaboration | Global $ \Lambda $ hyperon polarization in nuclear collisions | Nature 548 (2017) 62 | 1701.06657 |
| 55 | STAR Collaboration | Pattern of global spin alignment of \ensuremath\phi and K$ ^{*0} $ mesons in heavy-ion collisions | Nature 614 (2023) 244 | 2204.02302 |
| 56 | ALICE Collaboration | Measurement of the $ \mathrm{J}/\psi $ polarization with respect to the event plane in Pb-Pb Collisions at the LHC | PRL 131 (2023) 042303 | 2204.10171 |
| 57 | M. Oreglia | A study of the reactions $ \psi' \to \gamma\gamma \mathrm{J}/\psi $ | PhD thesis, Stanford University, December, SLAC-R-236, 1980 | |
| 58 | J. E. Gaiser | Charmonium spectroscopy from radiative decays of the $ \mathrm{J}/\psi $ and $ \psi' $ | PhD thesis, Stanford University, August, SLAC-R-255, 1982 | |
| 59 | CMS Collaboration | Observation of the charged-particle multiplicity dependence of $ \sigma_{\Psi(P{2S}}/\sigma_{\mathrm{J}/\psi} $ in $ p $-Pb collisions at 8.16 TeV | PRL 135 (2025) 092301 | CMS-HIN-24-001 2503.02139 |
| 60 | W. Zha, J. D. Brandenburg, Z. Tang, and Z. Xu | Initial transverse-momentum broadening of Breit-Wheeler process in relativistic heavy-ion collisions | PLB 800 (2020) 135089 | 1812.02820 |
| 61 | S. R. Klein et al. | STARlight: A Monte Carlo simulation program for ultra-peripheral collisions of relativistic ions | Comput. Phys. Commun. 212 (2017) 258 | 1607.03838 |
| 62 | I. P. Lokhtin and A. M. Snigirev | A model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_\mathrm{T} $ hadron spectra at RHIC | EPJC 45 (2006) 211 | hep-ph/0506189 |
| 63 | CMS Collaboration | Charged-particle nuclear modification factors in PbPb and pPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 04 (2017) 039 | CMS-HIN-15-015 1611.01664 |
| 64 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | Nucl. Instrum. Meth. Phys. Res. Sect. A 506 (2003) 250 | |
| 65 | C. Bierlich et al. | A comprehensive guide to the physics and usage of PYTHIA 8.3 | SciPost Phys. Codeb. 8, 2022 link |
2203.11601 |
| 66 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 67 | CMS Collaboration | Measurements of inclusive $ W $ and $ Z $ cross sections in $ \mathrm{pp} $ collisions at $ \sqrt{s}= $ 7 TeV | JHEP 01 (2011) 080 | CMS-EWK-10-002 1012.2466 |
| 68 | ALICE Collaboration | Measurements of inclusive $ \mathrm{J}/\psi $ production at midrapidity and forward rapidity in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 849 (2024) 138451 | 2303.13361 |
| 69 | STAR Collaboration | Strange particle production in p+p collisions at $ \sqrt{s} = $ 200 GeV | Phys. Rev. C 75 (2007) 064901 | nucl-ex/0607033 |
| 70 | D. Y. Shao, H.-Q. Yu, C. Zhang, and J. Zhou | Geometry-induced azimuthal anisotropy in coherent $ \mathrm{J}/\psi $ photoproduction | PRD 113 (2026) 094022 | 2511.17670 |
| 71 | T. Lappi and H. Mantysaari | Incoherent diffractive $ \mathrm{J}/\psi $-production in high energy nuclear DIS | Phys. Rev. C 83 (2011) 065202 | 1011.1988 |
| 72 | T. Lappi and H. Mantysaari | $ \mathrm{J}/\psi $ production in ultraperipheral Pb+Pb and $ p $+Pb collisions at energies available at the CERN Large Hadron Collider | Phys. Rev. C 87 (2013) 032201 | 1301.4095 |
|
|
