CMS-PAS-HIN-24-019

CMS-PAS-HIN-24-019
Energy-energy correlation in Z boson tagged PbPb and pp collisions at $ \sqrt{s_{_\mathrm{NN}}} = $ 5.02 TeV
CMS Collaboration
7 April 2025

Abstract: The first measurement of a Z boson tagged energy-energy correlator (EEC) using charged particle tracks in PbPb collisions at $ \sqrt{s_{_\mathrm{NN}}} = $ 5.02 TeV is presented. This study utilizes PbPb collision data recorded in 2018 with an integrated luminosity of 1.67 $ \pm $ 0.03 nb$ ^{-1} $, as well as pp collision data acquired in 2017 with an integrated luminosity of 301 $ \pm $ 6 pb$ ^{-1} $. The energy-energy correlator of charged hadrons associated with the Z boson, which is predicted to be sensitive to modifications of in-medium parton showers and medium recoils, is measured in bins of event centrality for the first time in PbPb collisions. Significant modification of the EEC is observed in central PbPb collisions compared to pp reference data. The effect disappears in the more peripheral events. The results provide new insight into the jet quenching mechanism and the inner workings of the quark-gluon plasma.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures	Summary	References	CMS Publications

Figures

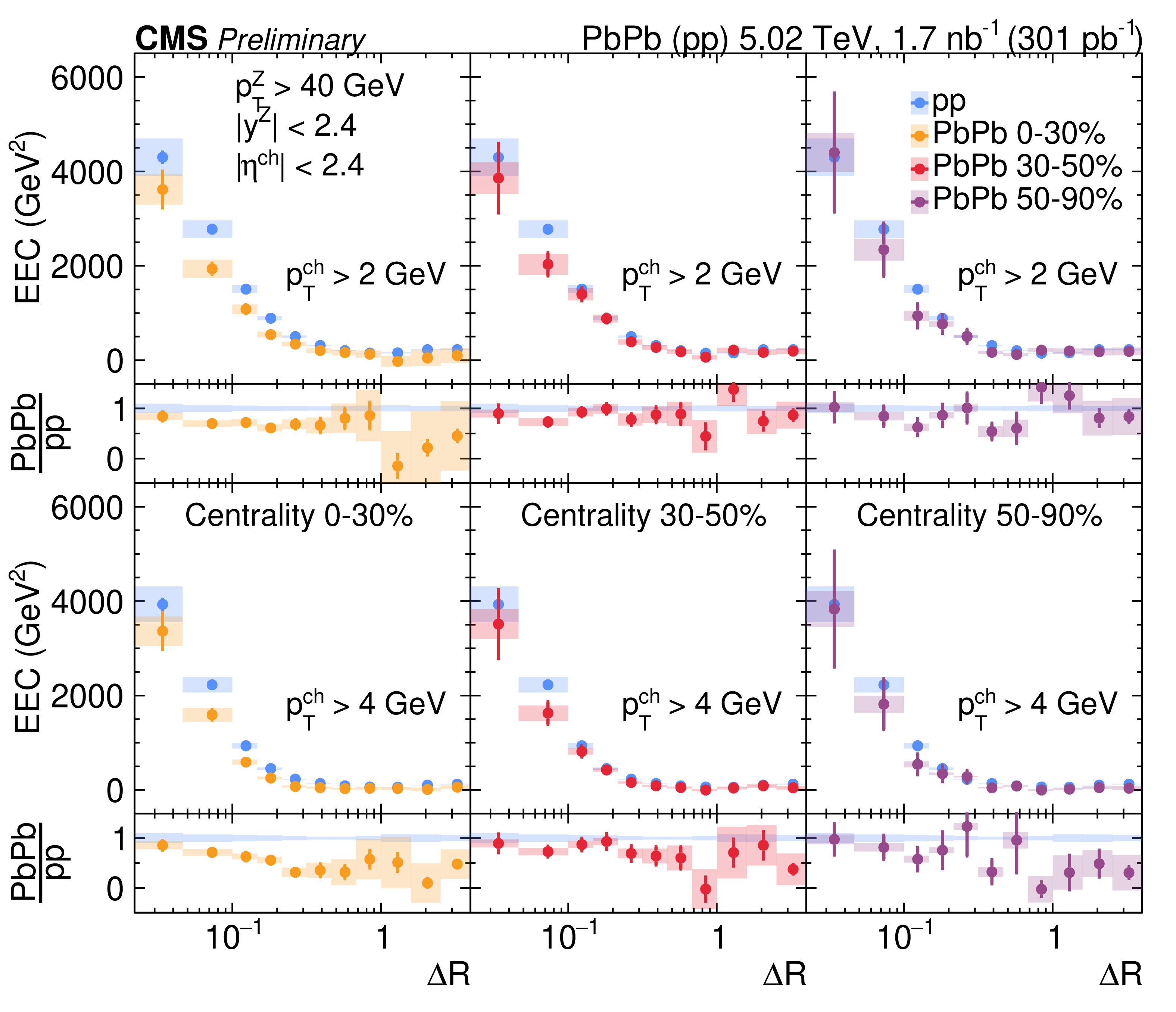

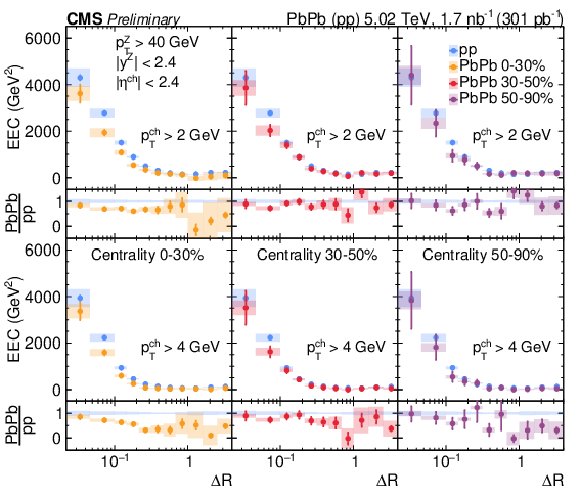

png pdf	Figure 1: Measured EEC for $pp$ (blue) and $PbPb$ collisions in centrality class 0-30% (orange), 30-50% (red) and 50-90% (purple). The result is shown for two $ p_T $ selections: $ p_{\mathrm{T}}^\text{ch} > $ 2 GeV (top row) and $ p_{\mathrm{T}}^\text{ch} > $ 4 GeV (bottom row). The statistical uncertainties are shown as the error bars, while the total systematic uncertainties, which are partially correlated across $ \Delta R $ bins, are shown as the shaded areas.

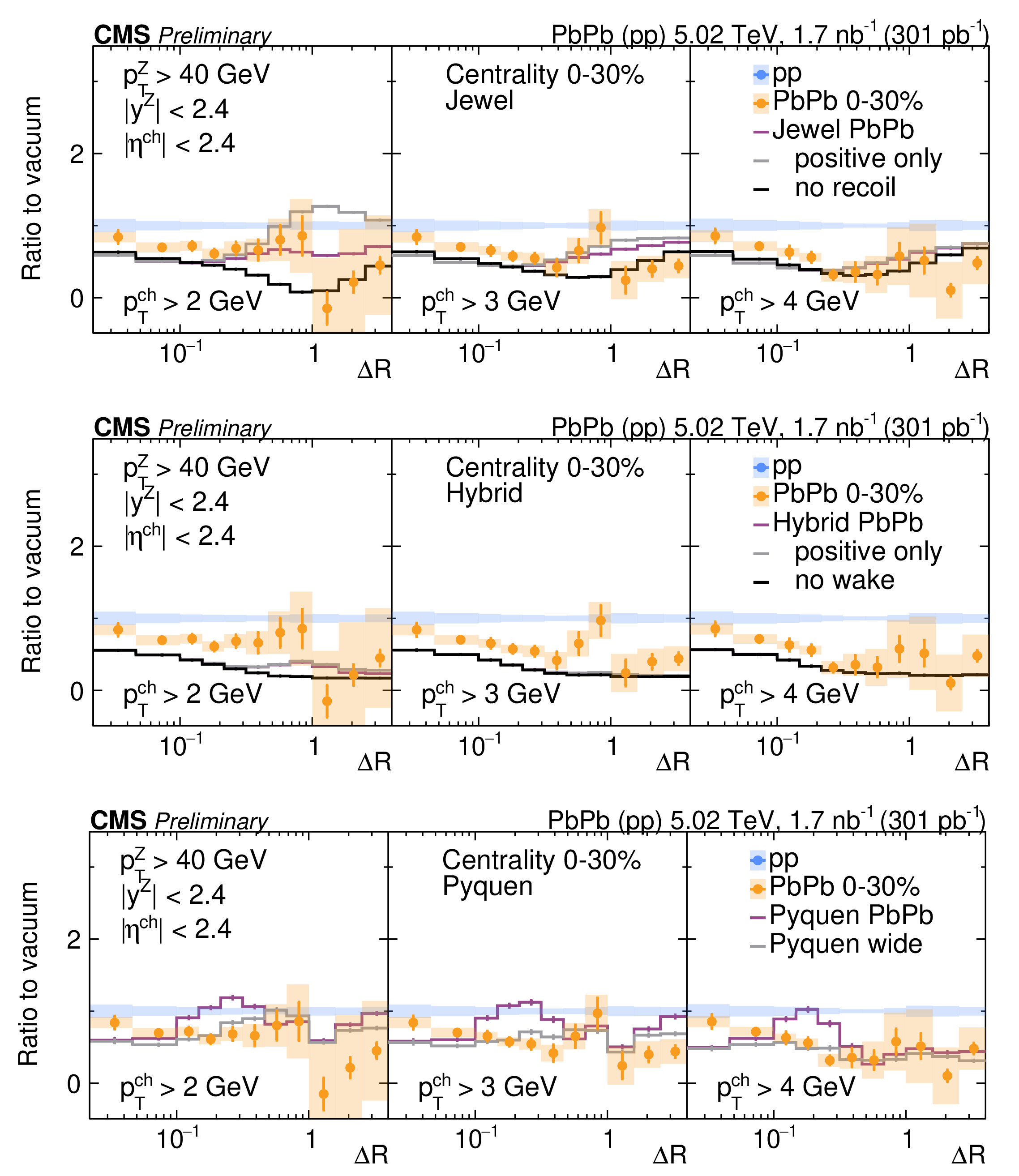

png pdf	Figure 2: Comparison of results in the 0-30% centrality class with the JEWEL model (upper row), HYBRID model (middle row), and PYQUEN model (bottom row). The different columns correspond to results obtained with different $ p_{\mathrm{T}}^\text{ch} $ selection on tracks. Markers represent the results for $pp$ and $PbPb$ data, while lines correspond to different settings of the three models. Partial contributions are also shown separately for the JEWEL and HYBRID models, as described in the text. The statistical uncertainties are shown as error bars, while the total systematic uncertainties are shown as the shaded areas.

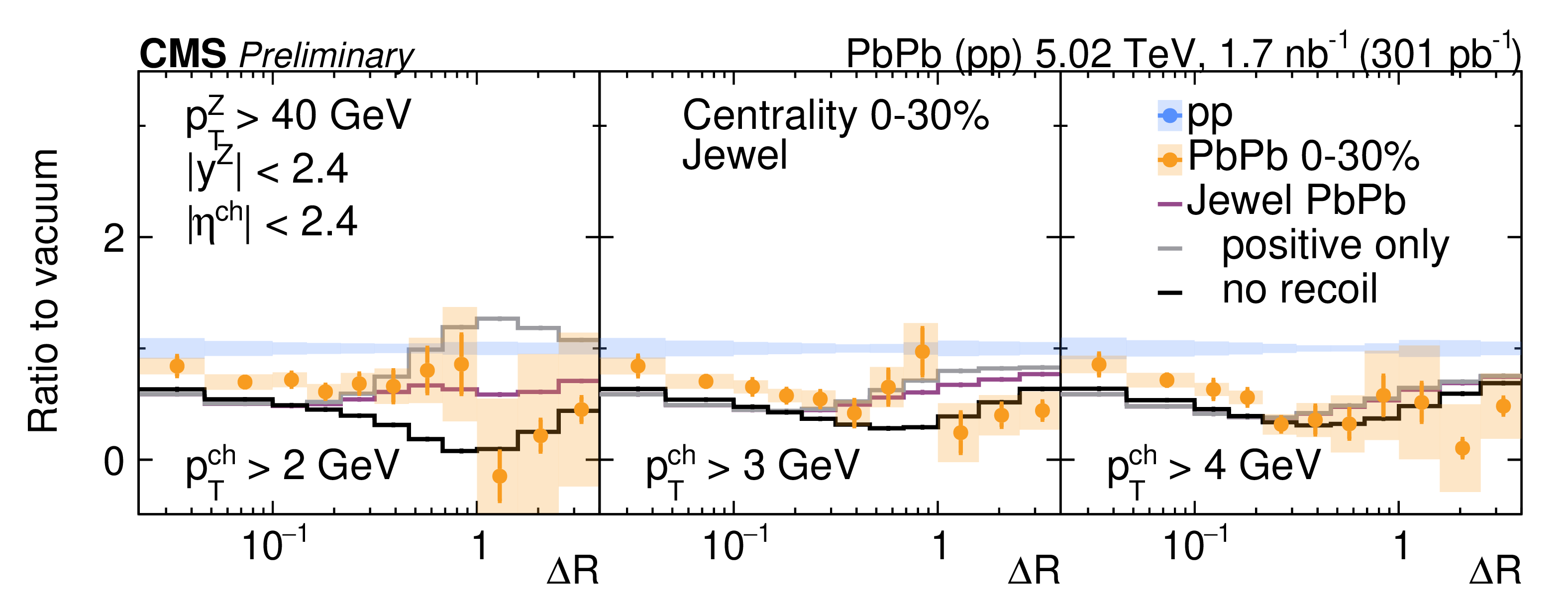

png pdf	Figure 2-a: Comparison of results in the 0-30% centrality class with the JEWEL model (upper row), HYBRID model (middle row), and PYQUEN model (bottom row). The different columns correspond to results obtained with different $ p_{\mathrm{T}}^\text{ch} $ selection on tracks. Markers represent the results for $pp$ and $PbPb$ data, while lines correspond to different settings of the three models. Partial contributions are also shown separately for the JEWEL and HYBRID models, as described in the text. The statistical uncertainties are shown as error bars, while the total systematic uncertainties are shown as the shaded areas.

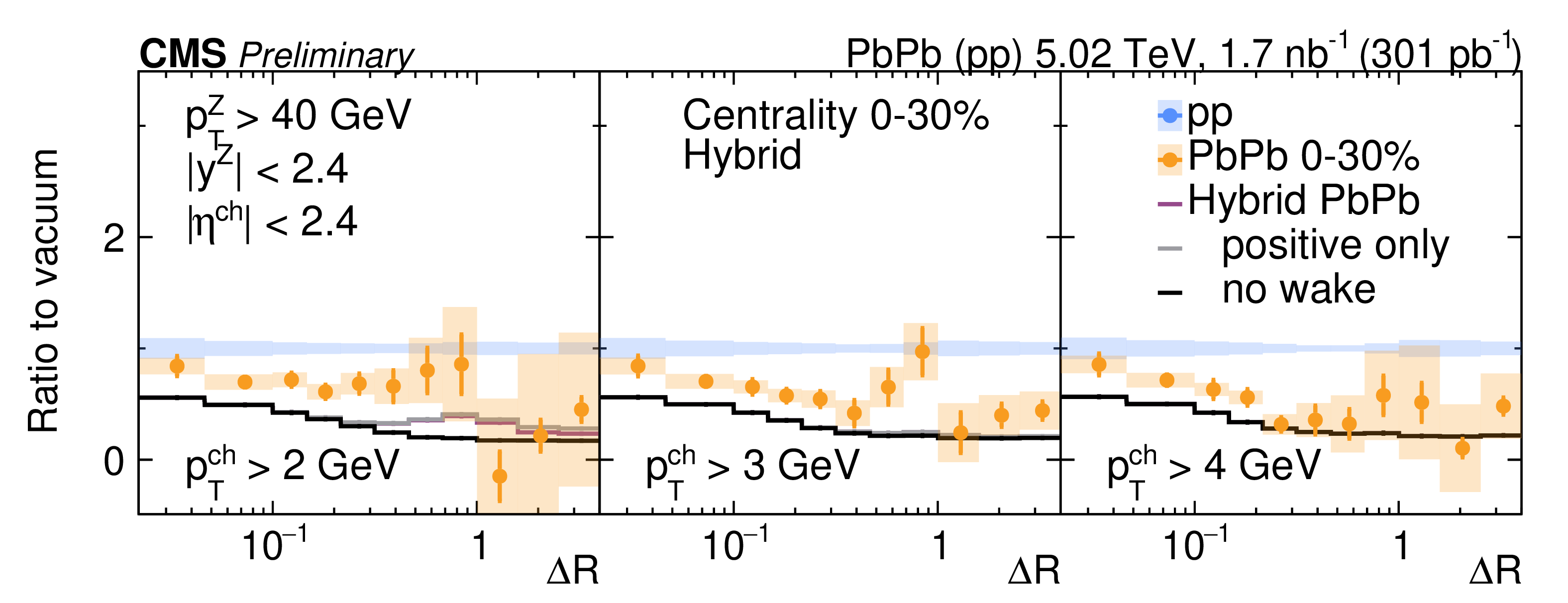

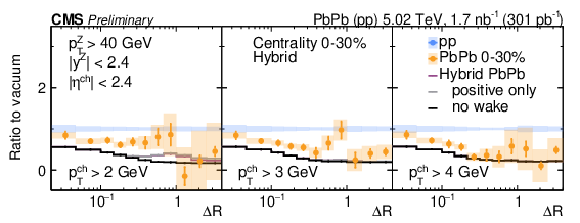

png pdf	Figure 2-b: Comparison of results in the 0-30% centrality class with the JEWEL model (upper row), HYBRID model (middle row), and PYQUEN model (bottom row). The different columns correspond to results obtained with different $ p_{\mathrm{T}}^\text{ch} $ selection on tracks. Markers represent the results for $pp$ and $PbPb$ data, while lines correspond to different settings of the three models. Partial contributions are also shown separately for the JEWEL and HYBRID models, as described in the text. The statistical uncertainties are shown as error bars, while the total systematic uncertainties are shown as the shaded areas.
png pdf	Figure 2-c: Comparison of results in the 0-30% centrality class with the JEWEL model (upper row), HYBRID model (middle row), and PYQUEN model (bottom row). The different columns correspond to results obtained with different $ p_{\mathrm{T}}^\text{ch} $ selection on tracks. Markers represent the results for $pp$ and $PbPb$ data, while lines correspond to different settings of the three models. Partial contributions are also shown separately for the JEWEL and HYBRID models, as described in the text. The statistical uncertainties are shown as error bars, while the total systematic uncertainties are shown as the shaded areas.

Summary

In summary, the study presents the first measurement of the energy-energy correlator of charged particles associated with Z bosons in $PbPb$ collisions at a center-of-mass energy of 5.02 TeV. The EEC, which is expected to be sensitive to modifications of in-medium parton showers and medium recoils, is measured as a function of event centrality. Significant differences in the EEC are observed between central PbPb collisions and the pp reference data, while the effect is diminished in more peripheral PbPb events. The results for $ p_{\mathrm{T}}^\text{ch} > $ 4 GeV are dominated by the parton energy loss effect and a reduction in the EEC is observed in central PbPb collisions. Conversely, the results for $ p_{\mathrm{T}}^\text{ch} > $ 2 GeV are more sensitive to low-$ p_{\mathrm{T}} $ hadron production from the QGP, showing a partial recovery of the EEC. By comparing the results with different $ p_{\mathrm{T}}^\text{ch} $ thresholds, the angular scale of the medium response can be mapped out, revealing that the effect extends to large $ \Delta R $. These results provide new insights into the jet quenching mechanism and the properties of the quark-gluon plasma.

References
1	W. Busza, K. Rajagopal, and W. van der Schee	Heavy ion collisions: the big picture, and the big questions	Ann. Rev. Nucl. Part. Sci. 68 (2018) 339	1802.04801
2	STAR Collaboration	Experimental and theoretical challenges in the search for the quark gluon plasma: The STAR Collaboration's critical assessment of the evidence from RHIC collisions	Nucl. Phys. A 757 (2005) 102	nucl-ex/0501009
3	PHENIX Collaboration	Formation of dense partonic matter in relativistic nucleus-nucleus collisions at RHIC: Experimental evaluation by the PHENIX collaboration	Nucl. Phys. A 757 (2005) 184	nucl-ex/0410003
4	PHOBOS Collaboration	The PHOBOS perspective on discoveries at RHIC	Nucl. Phys. A 757 (2005) 28	nucl-ex/0410022
5	BRAHMS Collaboration	Quark gluon plasma and color glass condensate at RHIC? The perspective from the BRAHMS experiment	Nucl. Phys. A 757 (2005) 1	nucl-ex/0410020
6	ALICE Collaboration	The ALICE experiment: a journey through QCD	EPJC 84 (2024) 813	2211.04384
7	CMS Collaboration	Overview of high-density QCD studies with the CMS experiment at the LHC	Accepted for publication in Physics Reports, 2024 link	CMS-HIN-23-011 2405.10785
8	J. D. Bjorken	Highly relativistic nucleus-nucleus collisions: The central rapidity region	PRD 27 (1983) 140
9	STAR Collaboration	Transverse-momentum and collision-energy dependence of high-$ p_{\mathrm{t}} $ hadron suppression in Au+Au collisions at ultrarelativistic energies	PRL 91 (2003) 172302	nucl-ex/0305015
10	PHENIX Collaboration	Suppression pattern of neutral pions at high transverse momentum in Au+Au collisions at $ \sqrt{s_{\rm{NN}}} = $ 200 GeV and constraints on medium transport coefficients	PRL 101 (2008) 232301	0801.4020
11	ALICE Collaboration	Centrality dependence of charged particle production at large transverse momentum in Pb--Pb collisions at $ \sqrt{s_{\rm{NN}}} = $ 2.76 TeV	PLB 720 (2013) 52	1208.2711
12	ATLAS Collaboration	Measurement of charged-particle spectra in Pb+Pb collisions at $ \sqrt{s_{_{\mathrm{NN}}}} = $ 2.76 TeV with the ATLAS detector at the LHC	JHEP 09 (2015) 050	1504.04337
13	CMS Collaboration	Study of high-$ p_{\rm{T}} $ charged particle suppression in PbPb compared to pp collisions at $ \sqrt {\smash [b]{s_{_{\mathrm {NN}}}}}= $ 2.76 TeV	EPJC 72 (2012) 1945	CMS-HIN-10-005 1202.2554
14	CMS Collaboration	Charged-particle nuclear modification factors in PbPb and pPb collisions at $ \sqrt{s_{_{\mathrm{NN}}}}= $ 5.02 TeV	JHEP 04 (2017) 039	CMS-HIN-15-015 1611.01664
15	CMS Collaboration	Observation and studies of jet quenching in PbPb collisions at $ \sqrt{s_{_{\mathrm{NN}}}} = $ 2.76 TeV	Phys. Rev. C 84 (2011) 024906	CMS-HIN-10-004 1102.1957
16	ATLAS Collaboration	Observation of a centrality-dependent dijet asymmetry in lead-lead collisions at $ \sqrt{s_{_{\mathrm{NN}}}}= $ 2.76 TeV with the ATLAS detector at the LHC	PRL 105 (2010) 252303	1011.6182
17	ATLAS Collaboration	Centrality and rapidity dependence of inclusive jet production in $ \sqrt {\smash [b]{s_{_{\mathrm {NN}}}}} = $ 5.02 TeV proton--lead collisions with the ATLAS detector	PLB 748 (2015) 392	1412.4092
18	ALICE Collaboration	Measurement of jet quenching with semi-inclusive hadron-jet distributions in central Pb-Pb collisions at $ \sqrt{s_{_{\mathrm{NN}}}}= $ 2.76 TeV	JHEP 09 (2015) 170	1506.03984
19	CMS Collaboration	Measurement of inclusive jet cross sections in pp and PbPb collisions at $ \sqrt{s_{_{\mathrm{NN}}}}= $ 2.76 TeV	Phys. Rev. C 96 (2017) 015202	CMS-HIN-13-005 1609.05383
20	ALICE Collaboration	Measurement of jet suppression in central Pb-Pb collisions at $ \sqrt{s_{_{\mathrm{NN}}}} = $ 2.76 TeV	PLB 746 (2015) 1	1502.01689
21	STAR Collaboration	Dijet imbalance measurements in Au+Au and pp collisions at $ \sqrt{s_{_{\mathrm{NN}}}} = $ 200 GeV at STAR	PRL 119 (2017) 062301	1609.03878
22	J. M. Maldacena	The Large N limit of superconformal field theories and supergravity	Adv. Theor. Math. Phys. 2 (1998) 231	hep-th/9711200
23	J. Casalderrey-Solana et al.	A hybrid strong/weak coupling approach to jet quenching	JHEP 10 (2014) 019	1405.3864
24	L. Apolin \'a rio, Y.-J. Lee, and M. Winn	Heavy quarks and jets as probes of the QGP	Prog. Part. Nucl. Phys. 127 (2022) 103990	2203.16352
25	S. Cao and G.-Y. Qin	Medium response and jet-hadron correlations in relativistic heavy-ion collisions	Ann. Rev. Nucl. Part. Sci. 73 (2023) 205	2211.16821
26	J. Barata, P. Caucal, A. Soto-Ontoso, and R. Szafron	Advancing the understanding of energy-energy correlators in heavy-ion collisions	JHEP 11 (2024) 060	2312.12527
27	C. Andres et al.	Towards an interpretation of the first measurements of energy correlators in the quark-gluon plasma	JHEP 03 (2025) 166	2407.07936
28	C. Andres et al.	Resolving the scales of the quark-gluon plasma with energy correlators	PRL 130 (2023) 262301	2209.11236
29	C. Andres et al.	Seeing beauty in the quark-gluon plasma with energy correlators	PRD 110 (2024) 031503	2307.15110
30	Z. Yang, Y. He, I. Moult, and X.-N. Wang	Probing the short-distance structure of the quark-gluon plasma with energy correlators	PRL 132 (2024)	2310.01500
31	J. Barata, J. G. Milhano, and A. V. Sadofyev	Picturing QCD jets in anisotropic matter: from jet shapes to energy energy correlators	EPJC 84 (2024)	2308.01294
32	H. Bossi et al.	Imaging the wakes of jets with energy-energy-energy correlators	JHEP 12 (2024) 073	2407.13818
33	CMS Collaboration	Observation of nuclear modification of energy-energy correlators inside jets in heavy ion collisions	Submitted to PLB, 2025	CMS-HIN-23-004 2503.19993
34	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
35	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
36	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
37	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
38	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
39	I. P. Lokhtin and A. M. Snigirev	A model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_{\mathrm{T}} $ hadron spectra at RHIC	EPJC 45 (2006) 211	hep-ph/0506189
40	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
41	CMS Collaboration	Performance of CMS muon reconstruction in pp collision events at $ \sqrt{s}= $ 7 TeV	JINST 7 (2012) P10002	CMS-MUO-10-004 1206.4071
42	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
43	CMS Collaboration	Constraints on the initial state of Pb-Pb collisions via measurements of $ Z $-boson yields and azimuthal anisotropy at $ \sqrt {s_{NN}}= $ 5.02\,\,TeV	PRL 127 (2021) 102002	CMS-HIN-19-003 2103.14089
44	CMS Collaboration	Using Z boson events to study parton-medium interactions in Pb-Pb collisions	PRL 128 (2022)	CMS-HIN-19-006 2103.04377
45	CMS Collaboration	Measurements of inclusive W and Z cross sections in pp collisions at $ \sqrt{s}= $ 7 TeV	JHEP 10 (2011) 132	CMS-EWK-10-005 1107.4789
46	K. Zapp et al.	A Monte Carlo Model for 'Jet Quenching'	EPJC 60 (2009) 617	0804.3568
47	K. C. Zapp, F. Krauss, and U. A. Wiedemann	A perturbative framework for jet quenching	JHEP 03 (2013) 080	1212.1599
48	K. C. Zapp	JEWEL 2.0.0: directions for use	EPJC 74 (2014)	1311.0048
49	I. Lokhtin, A. Belyaev, and A. Snigirev	Jet quenching pattern at LHC in PYQUEN model	EPJC 71 (2011) 1650	1103.1853
