| CMS-PAS-EGM-24-002 | ||
| Highly boosted dielectron identification in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | ||
| CMS Collaboration | ||
| 2025-07-08 | ||
| Abstract: Searches for highly boosted new particles that decay to dielectron pairs can be challenging, as the relatively coarse granularity of many calorimeters and the size of their effective Molière radius can lead to their misidentification as single electrons. A new technique is developed to identify electron pairs in the range of Lorentz boost $ \gamma > $ 20 which produce one single merged cluster in the electromagnetic calorimeter of the CMS detector. The identification uses a multivariate technique based on compatibility between the calorimeter and tracking system information. The efficiency is determined using proton-proton collision data collected at a center-of-mass energy of 13 TeV containing boosted $ \mathrm{J}/\psi\rightarrow\mathrm{e^+e^-} $ decays or $ \mathrm{Z}\rightarrow\mu^+\mu^-\gamma $ events where the photon converts into a pair of collimated electrons. A dedicated energy correction for di-electron candidates is also developed using $ \mathrm{B^{\pm}}\rightarrow\mathrm{J}/\psi\mathrm{K^\pm}\rightarrow\mathrm{e^+e^-K^\pm} $ data. | ||
| Links: CDS record (PDF) ; CADI line (restricted) ; | ||
| Figures | |
png pdf |
Figure 1:

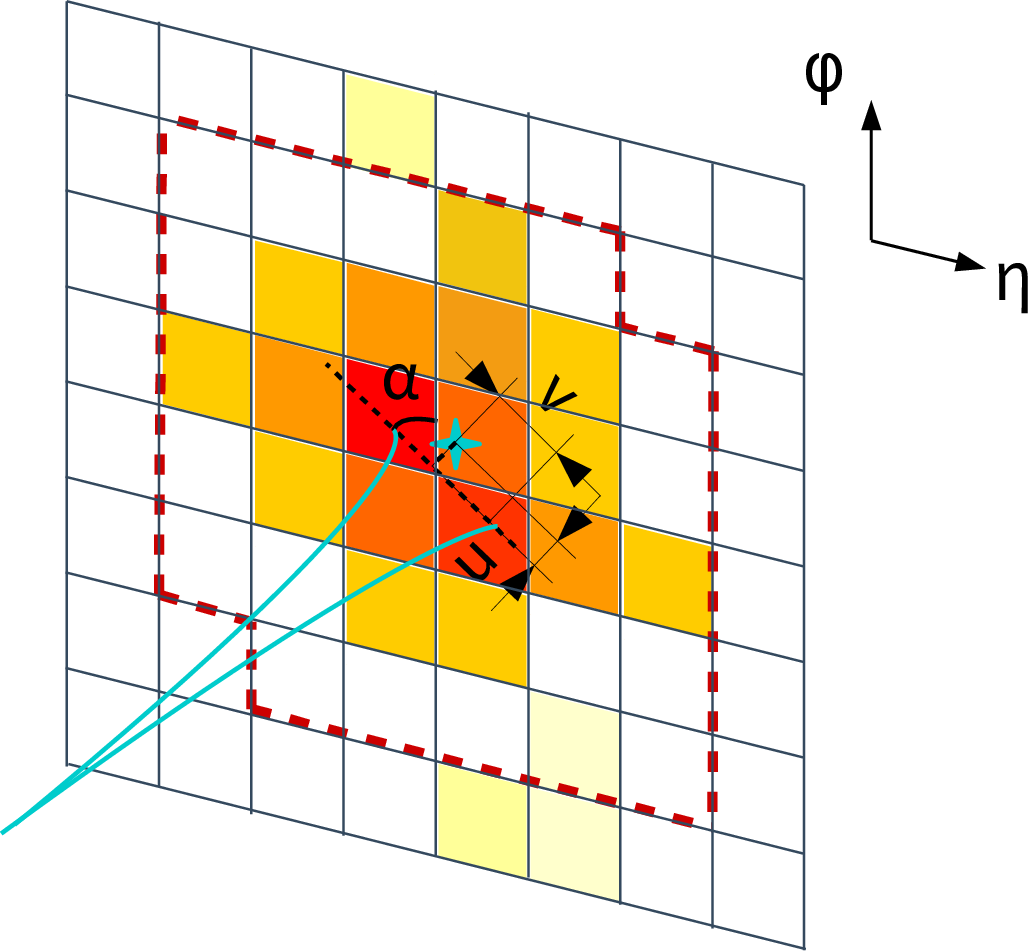

Visual representations of the variable $ \alpha_{track} $, $ \Delta u_{in}^{5\times5} $ and $ \Delta v_{in}^{5\times5} $. Cyan-colored lines depict the incoming tracks of an electron pair. The Red dashed line represents the $ \textrm{U}_{5\times5} $ cluster around the closest crystal from the tracks. The cyan-colored star is the log-weighted CoG of the $ \textrm{U}_{5\times5} $ cluster. |
png pdf |
Figure 2:

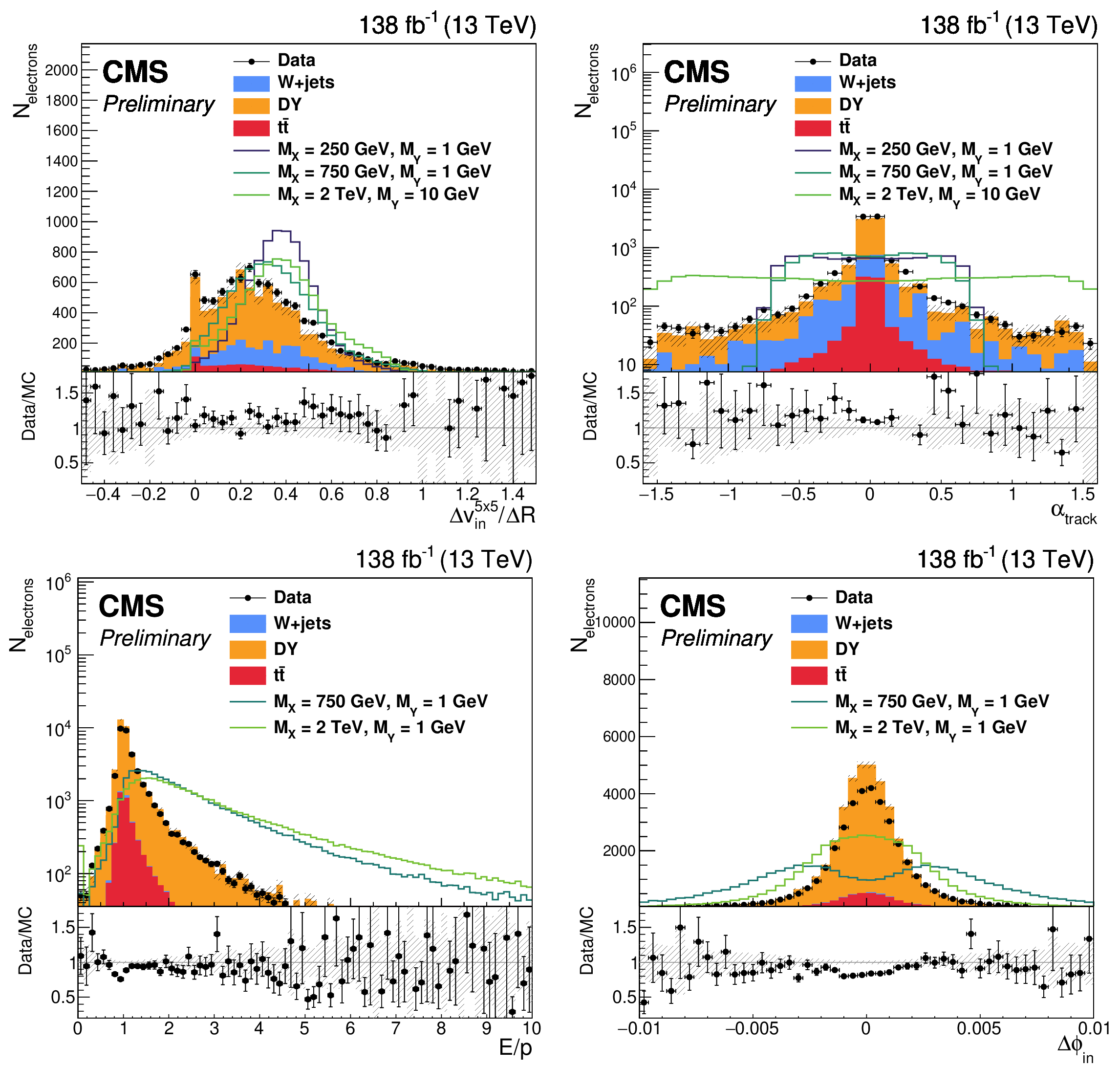

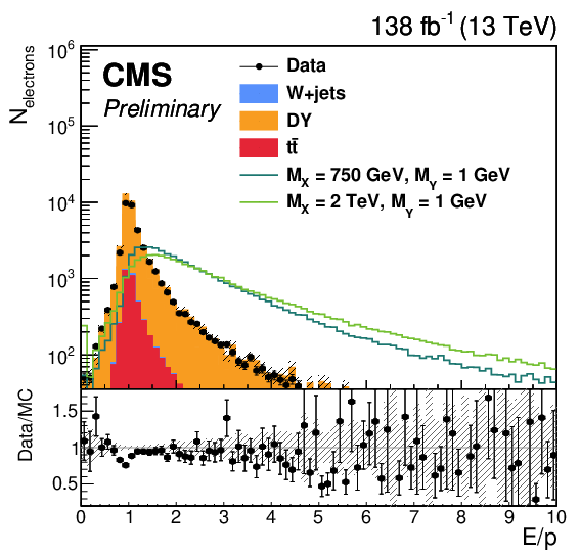

The distribution of (upper left) $ \Delta v_{in}^{5\times5}/\Delta R $, (upper right) $ \alpha_{track} $, (lower left) $ E/p $, and (lower right) $ \Delta\phi_{in} $. The upper (lower) row shows distributions for the electrons with (without) an additional track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |

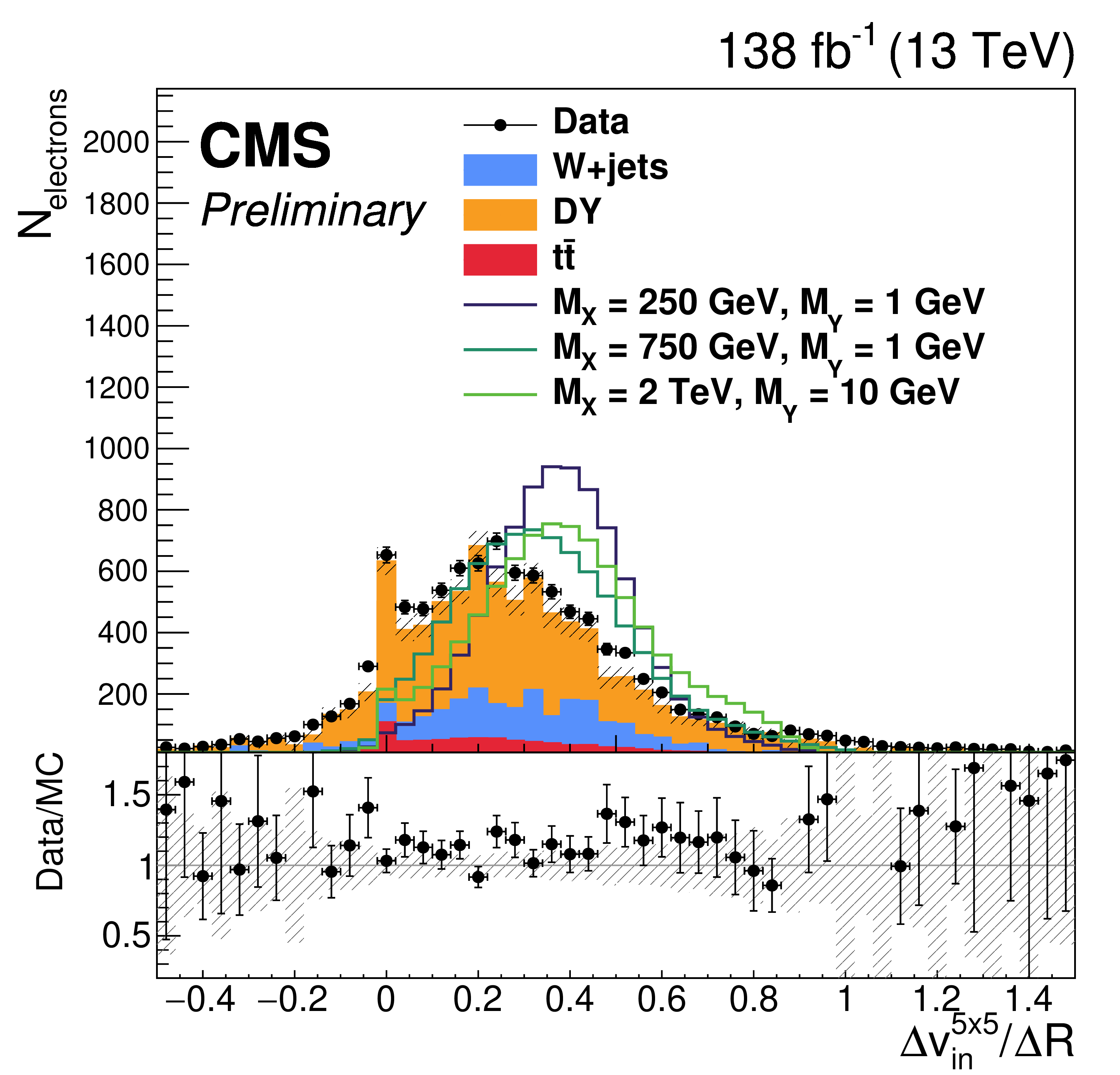

Figure 2-a:
The distribution of (upper left) $ \Delta v_{in}^{5\times5}/\Delta R $, (upper right) $ \alpha_{track} $, (lower left) $ E/p $, and (lower right) $ \Delta\phi_{in} $. The upper (lower) row shows distributions for the electrons with (without) an additional track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |

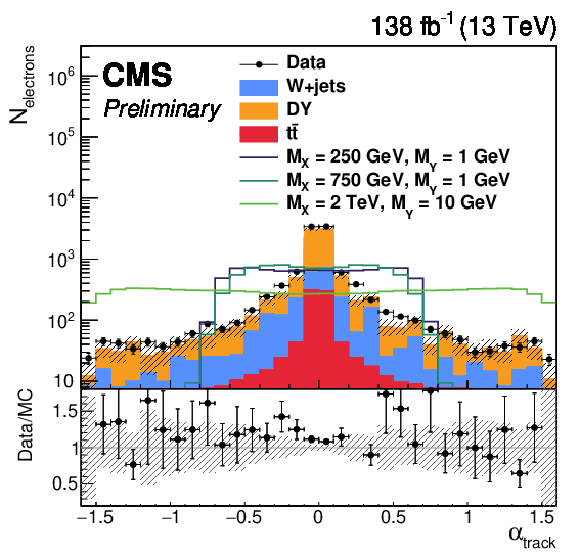

Figure 2-b:
The distribution of (upper left) $ \Delta v_{in}^{5\times5}/\Delta R $, (upper right) $ \alpha_{track} $, (lower left) $ E/p $, and (lower right) $ \Delta\phi_{in} $. The upper (lower) row shows distributions for the electrons with (without) an additional track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |
Figure 2-c:
The distribution of (upper left) $ \Delta v_{in}^{5\times5}/\Delta R $, (upper right) $ \alpha_{track} $, (lower left) $ E/p $, and (lower right) $ \Delta\phi_{in} $. The upper (lower) row shows distributions for the electrons with (without) an additional track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |

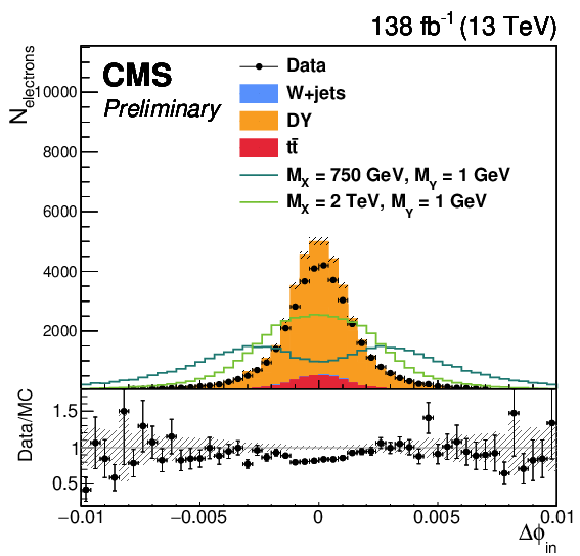

Figure 2-d:

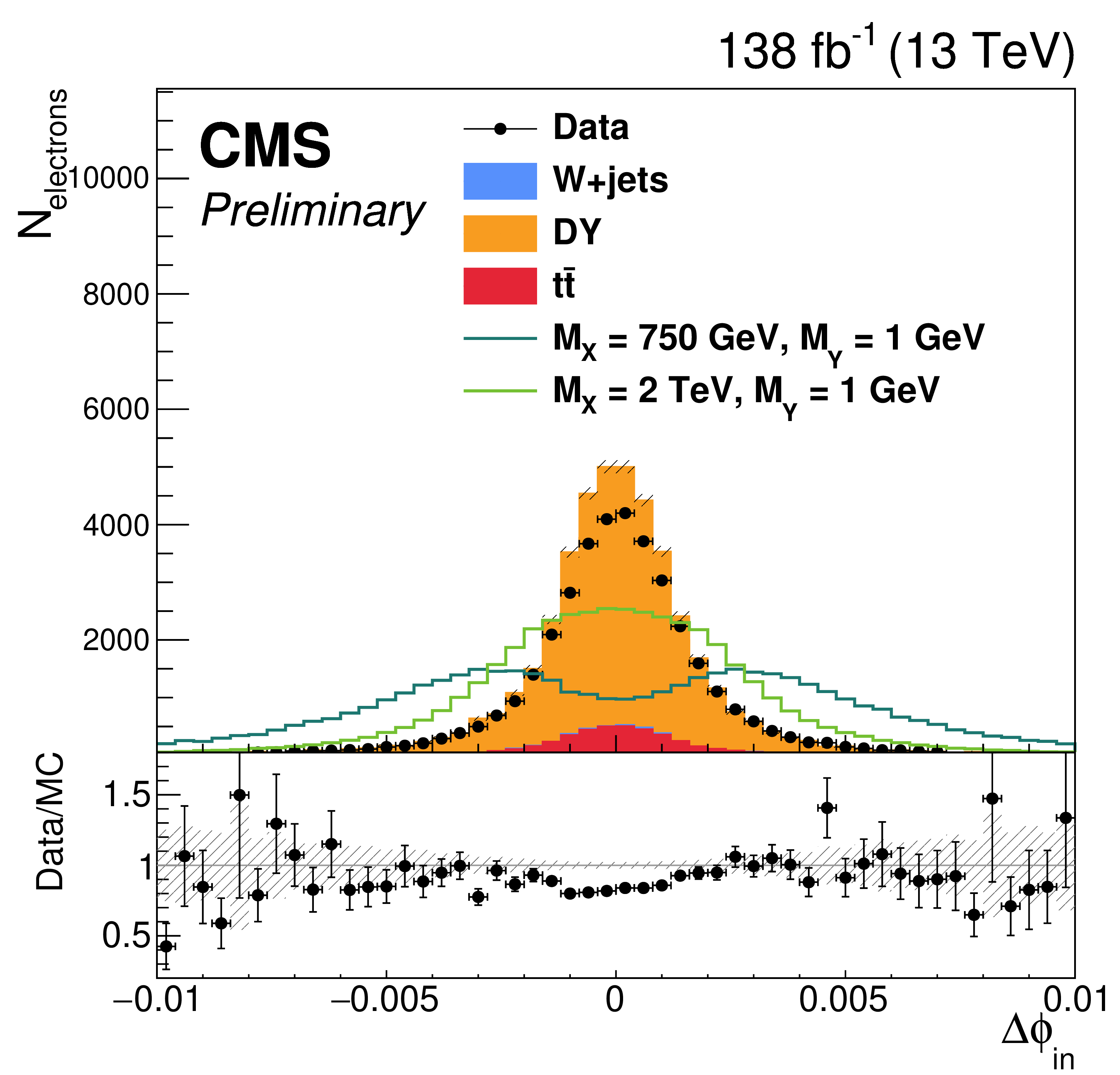

The distribution of (upper left) $ \Delta v_{in}^{5\times5}/\Delta R $, (upper right) $ \alpha_{track} $, (lower left) $ E/p $, and (lower right) $ \Delta\phi_{in} $. The upper (lower) row shows distributions for the electrons with (without) an additional track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |
Figure 3:

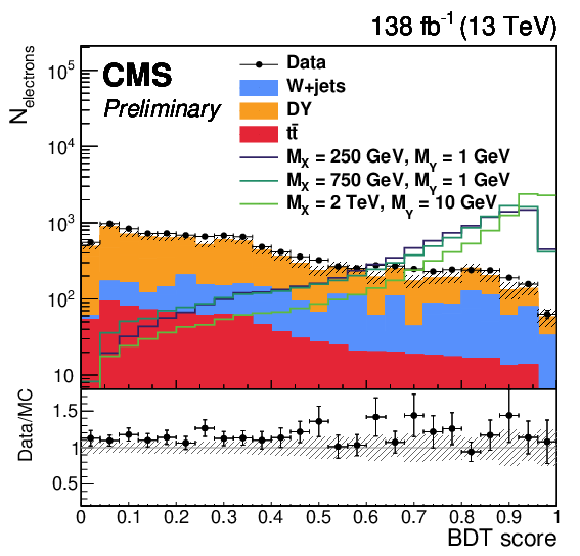

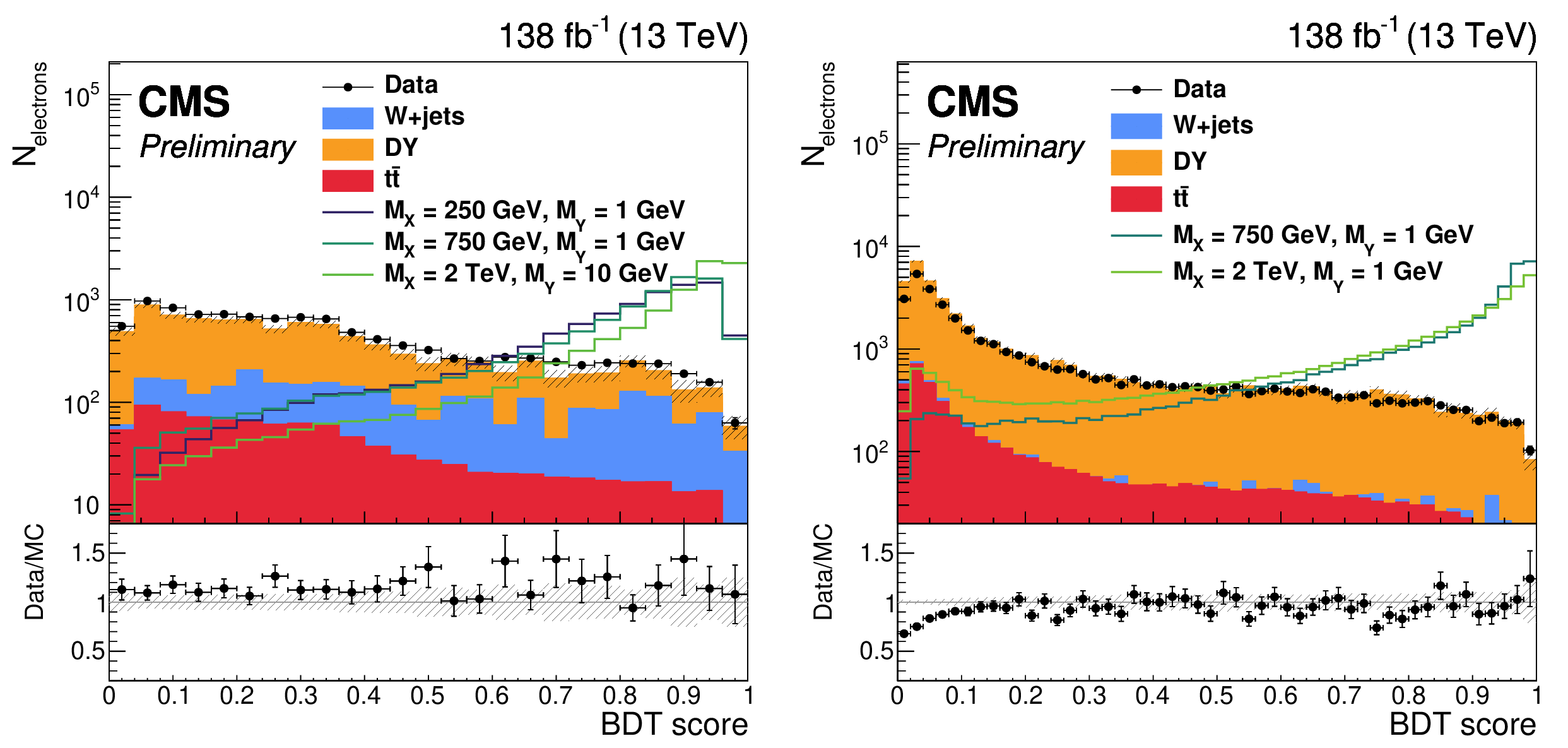

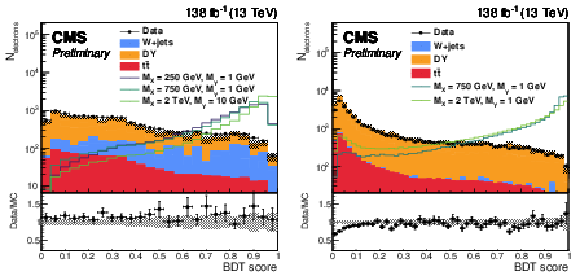

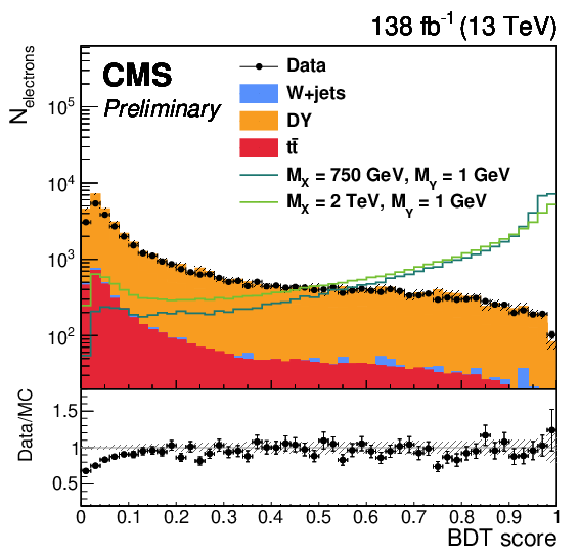

The BDT score distributions of the model (left) with secondary tracks and (right) without any secondary track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |

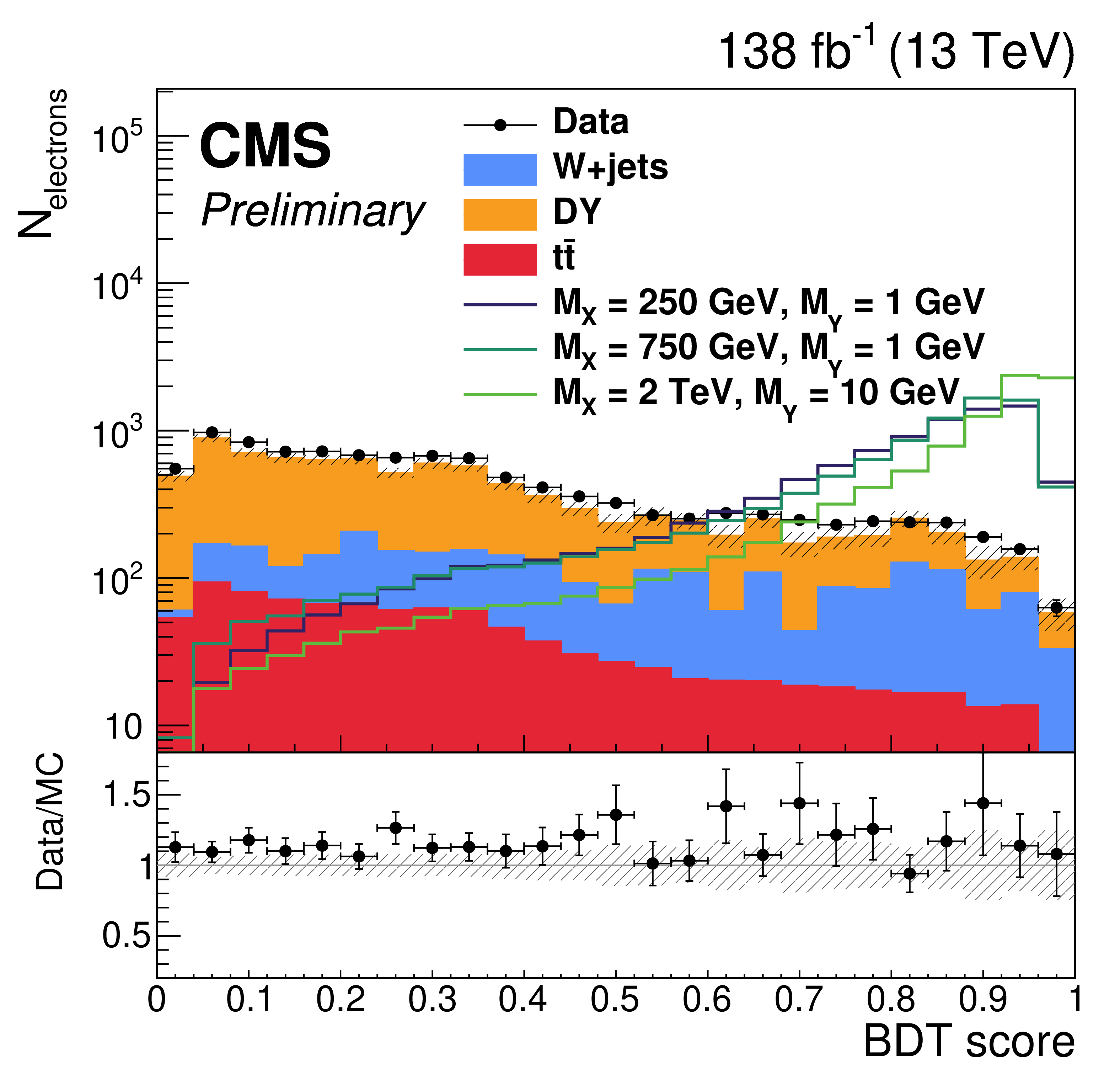

Figure 3-a:
The BDT score distributions of the model (left) with secondary tracks and (right) without any secondary track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |
Figure 3-b:
The BDT score distributions of the model (left) with secondary tracks and (right) without any secondary track. The shaded band represents statistical uncertainty of the MC. Each lined signal histogram is normalized to have an equal number of events to the total background yield. |
png pdf |
Figure 4:

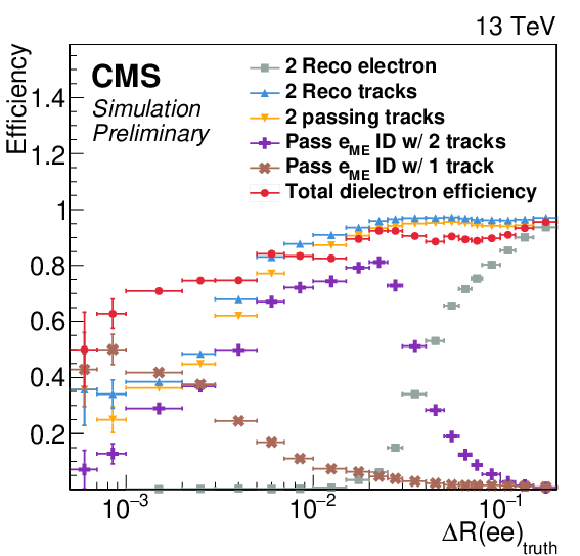

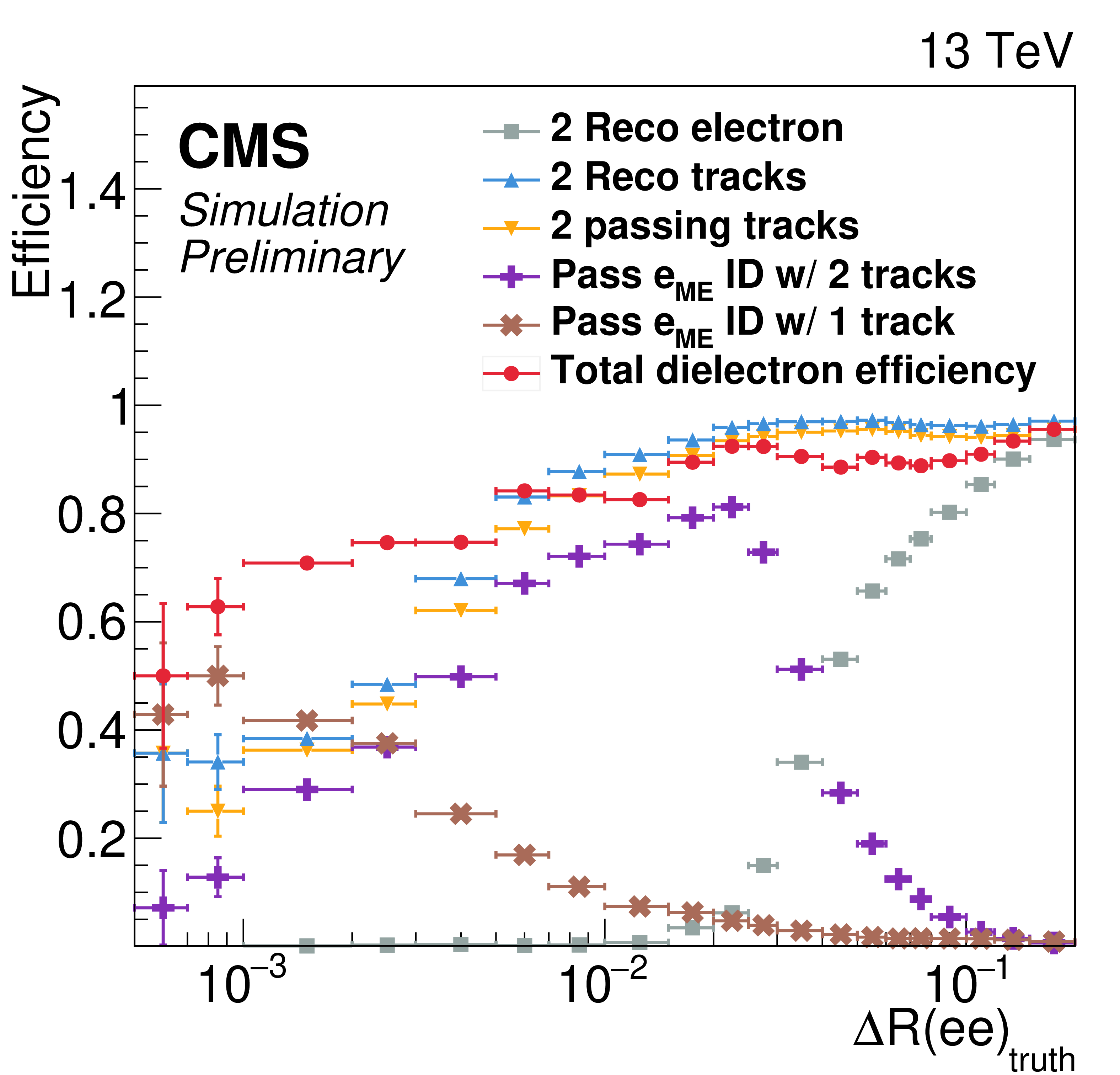

The signal dielectron selection efficiency as a function of $ \Delta R $. The ID efficiencies incorporate the effects of all prerequisite selections. For instance, the $ \mathrm{e}_{\textrm{ME}} $ ID efficiency with two tracks (purple) includes the efficiency of the track selection described in Table 1 (yellow). The total dielectron efficiency is a sum of the $ \mathrm{e}_{\textrm{ME}} $ ID efficiency with two tracks (purple), one track (brown), and the standard reconstruction efficiency of two electrons (gray). |
png pdf |
Figure 5:

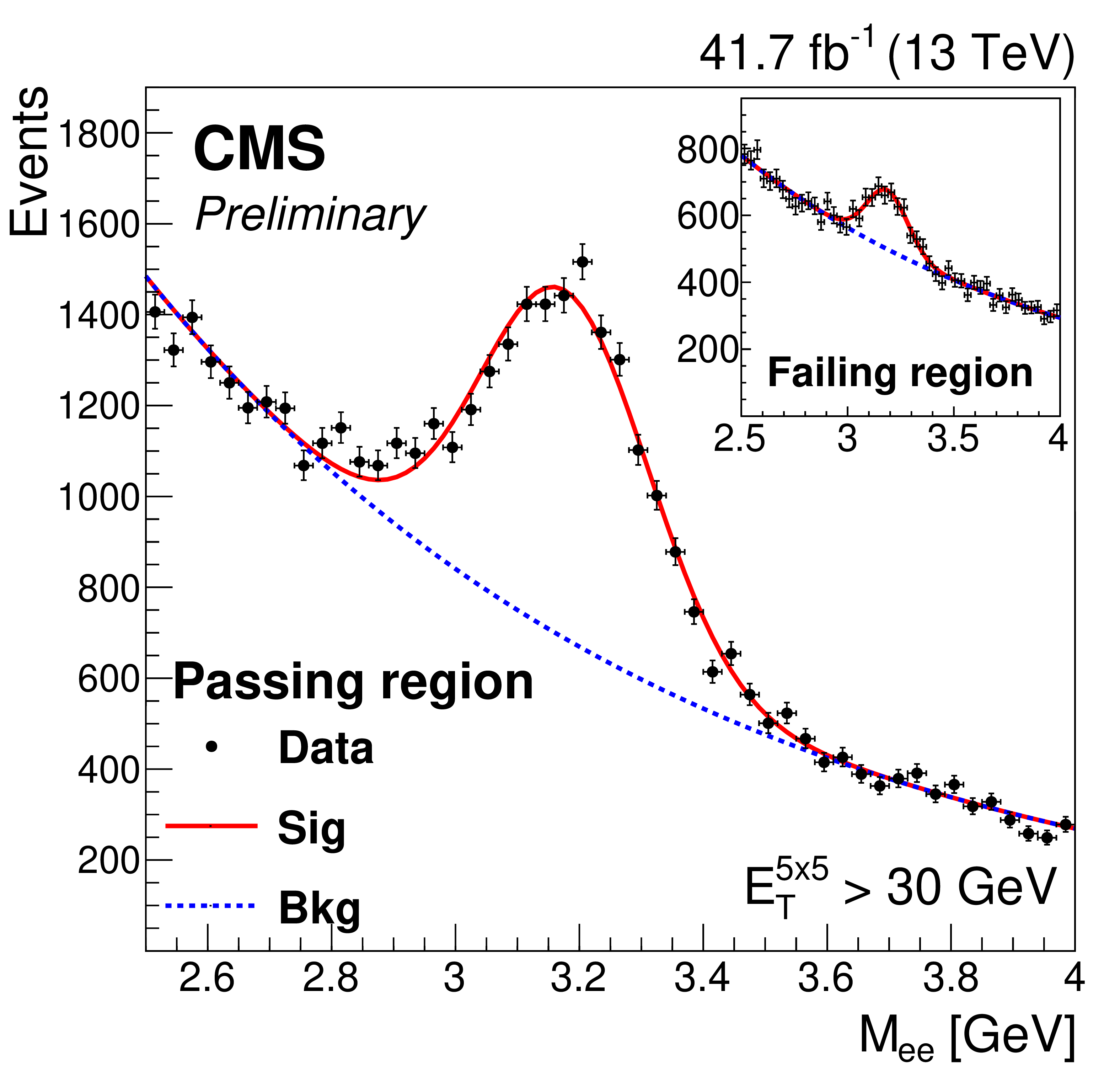

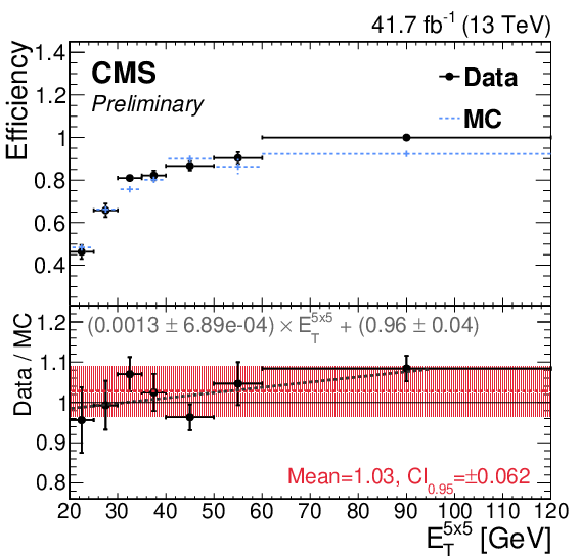

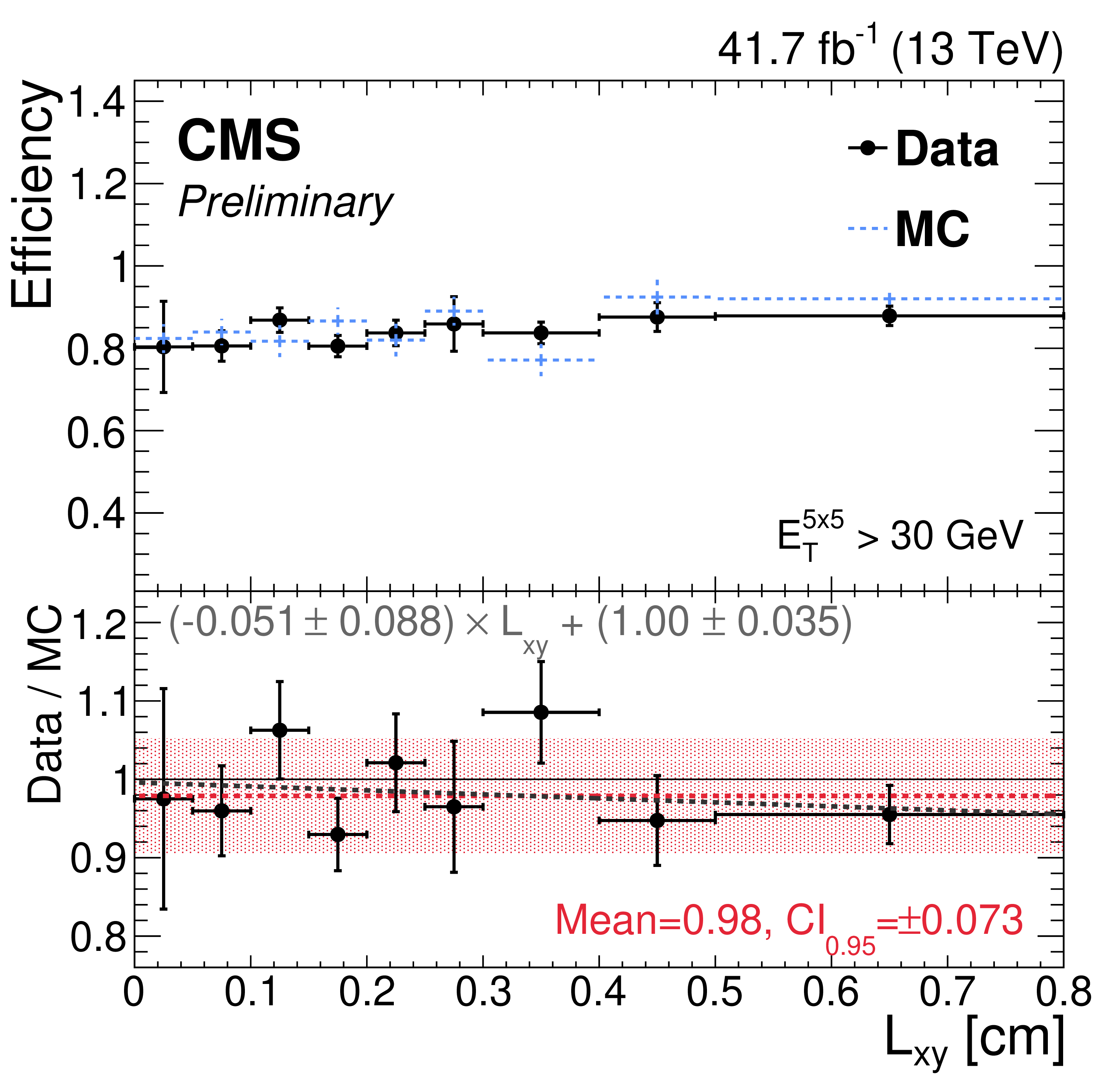

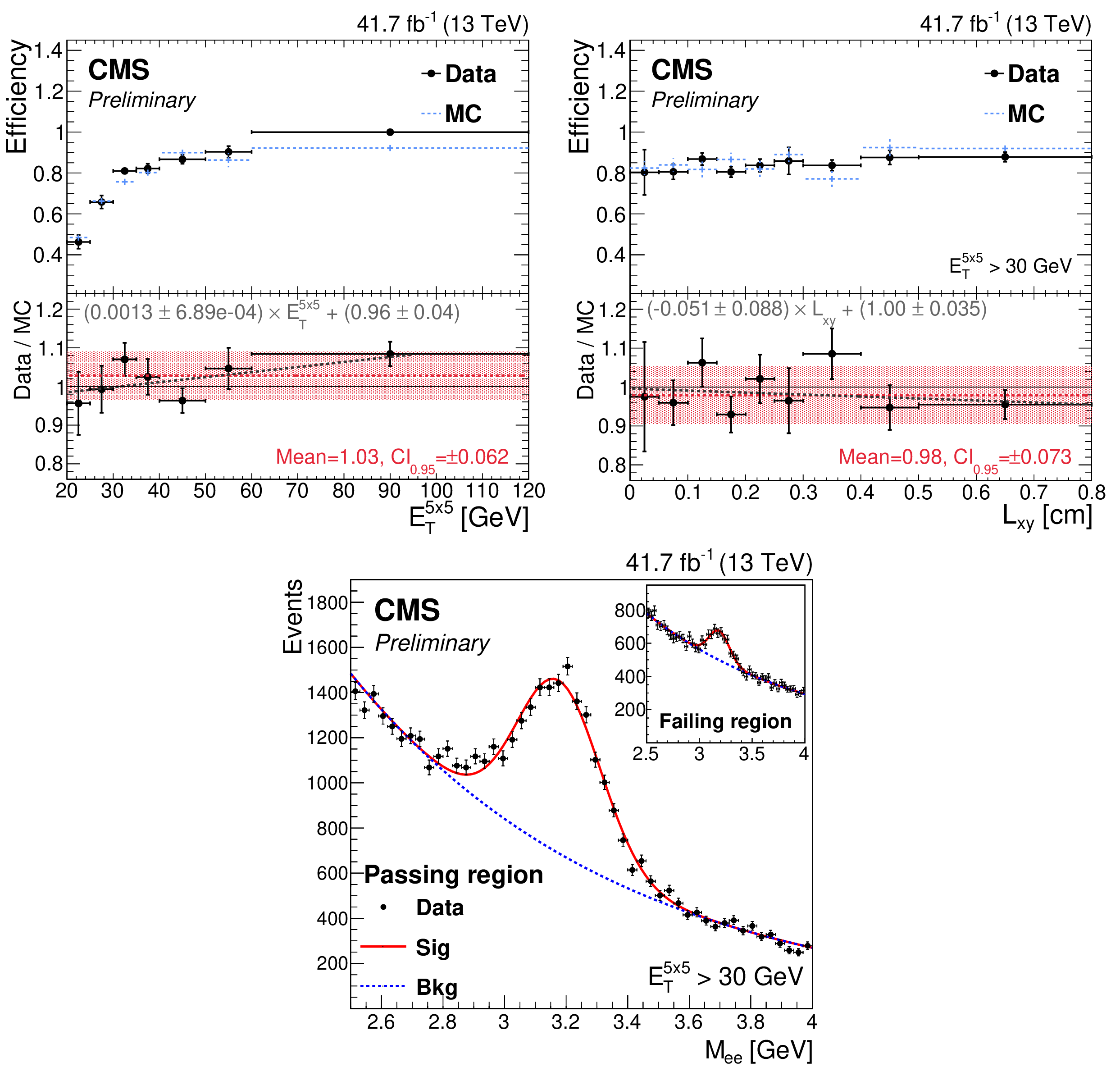

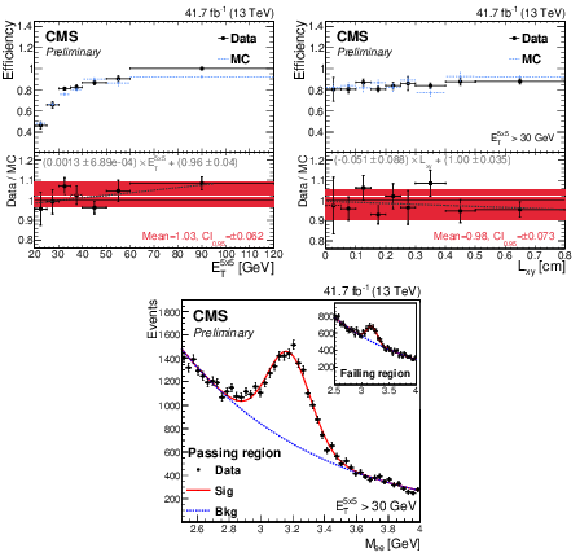

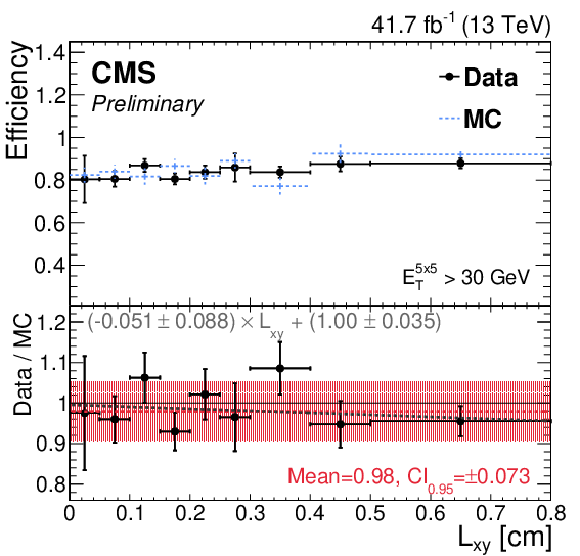

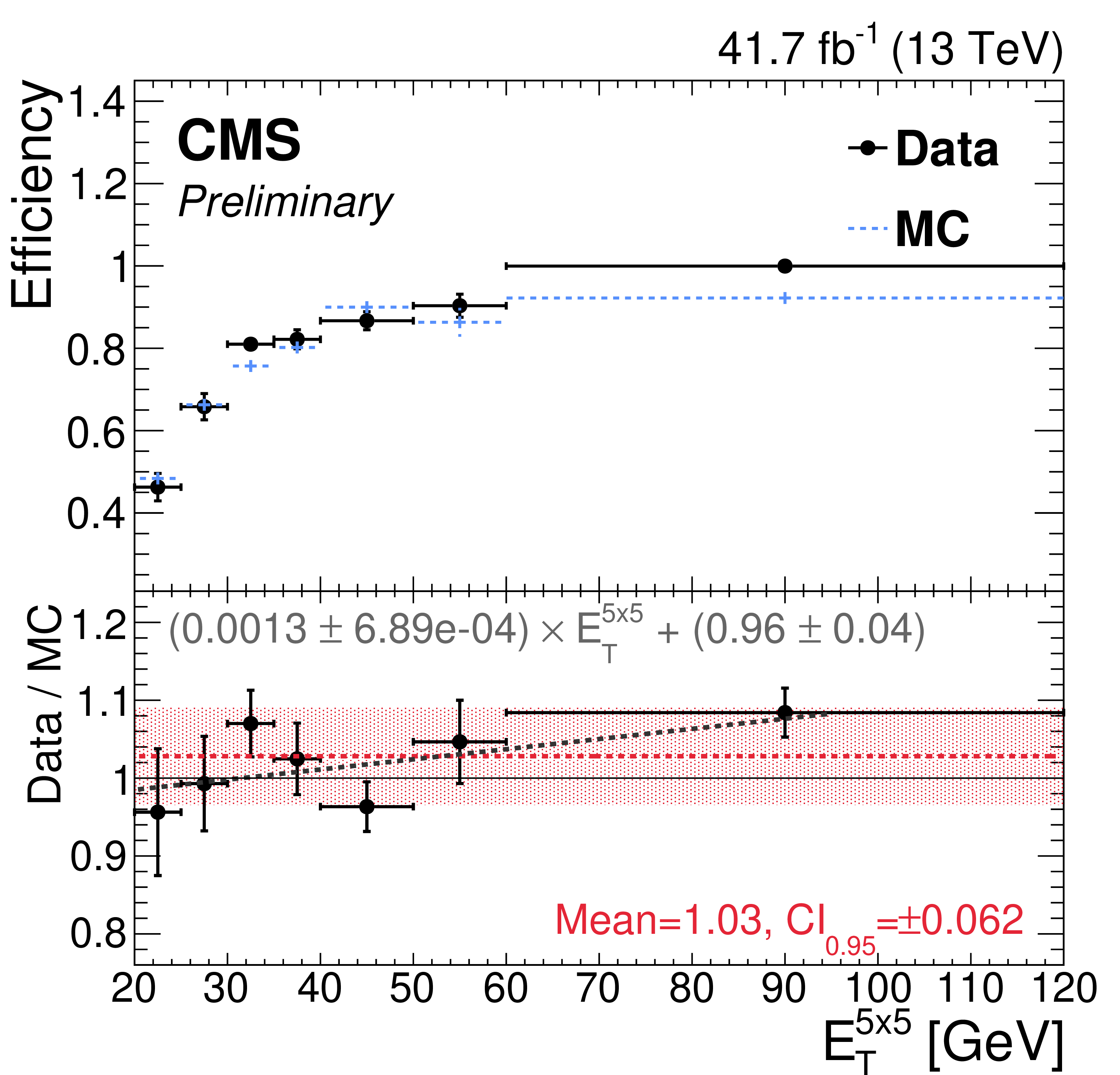

Efficiency and SF for the model with secondary tracks as a function of (upper left) $ E_{T}^{5\times5} $ and (upper right) $ L_{xy} $ with $ E_{\mathrm{T}}^{5\times5} > $ 30 GeV. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal dielectron mass distribution of $ \mathrm{J}/\psi $ candidates in data with $ {E_{\mathrm{T}}}^{5\times5} > $ 30 GeV that pass or fail the merged electron ID. The dielectron mass is reconstructed using tracks of electron candidates. |
png pdf |
Figure 5-a:
Efficiency and SF for the model with secondary tracks as a function of (upper left) $ E_{T}^{5\times5} $ and (upper right) $ L_{xy} $ with $ E_{\mathrm{T}}^{5\times5} > $ 30 GeV. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal dielectron mass distribution of $ \mathrm{J}/\psi $ candidates in data with $ {E_{\mathrm{T}}}^{5\times5} > $ 30 GeV that pass or fail the merged electron ID. The dielectron mass is reconstructed using tracks of electron candidates. |
png pdf |
Figure 5-b:
Efficiency and SF for the model with secondary tracks as a function of (upper left) $ E_{T}^{5\times5} $ and (upper right) $ L_{xy} $ with $ E_{\mathrm{T}}^{5\times5} > $ 30 GeV. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal dielectron mass distribution of $ \mathrm{J}/\psi $ candidates in data with $ {E_{\mathrm{T}}}^{5\times5} > $ 30 GeV that pass or fail the merged electron ID. The dielectron mass is reconstructed using tracks of electron candidates. |
png pdf |
Figure 5-c:
Efficiency and SF for the model with secondary tracks as a function of (upper left) $ E_{T}^{5\times5} $ and (upper right) $ L_{xy} $ with $ E_{\mathrm{T}}^{5\times5} > $ 30 GeV. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal dielectron mass distribution of $ \mathrm{J}/\psi $ candidates in data with $ {E_{\mathrm{T}}}^{5\times5} > $ 30 GeV that pass or fail the merged electron ID. The dielectron mass is reconstructed using tracks of electron candidates. |
png pdf |

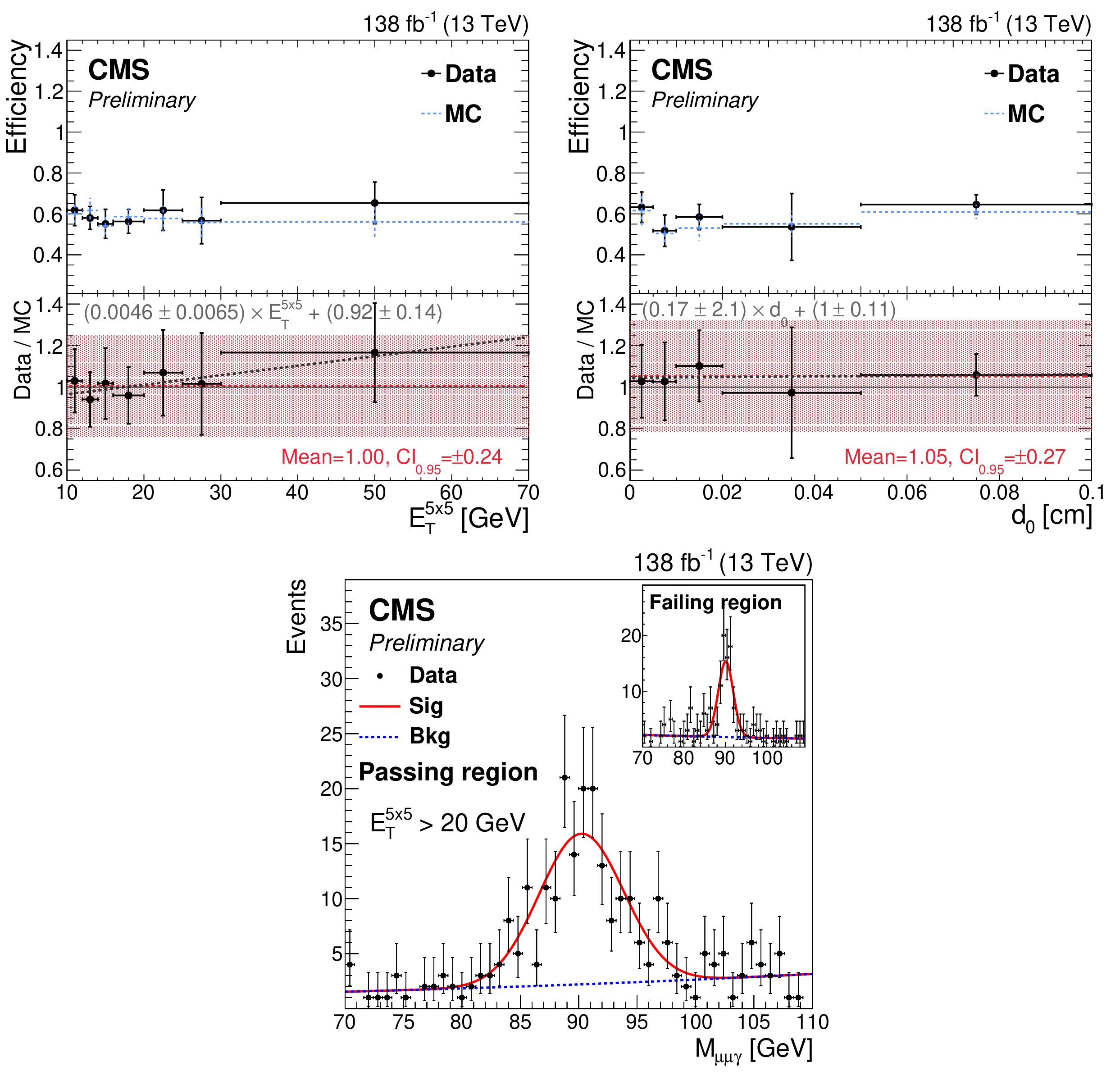

Figure 6:

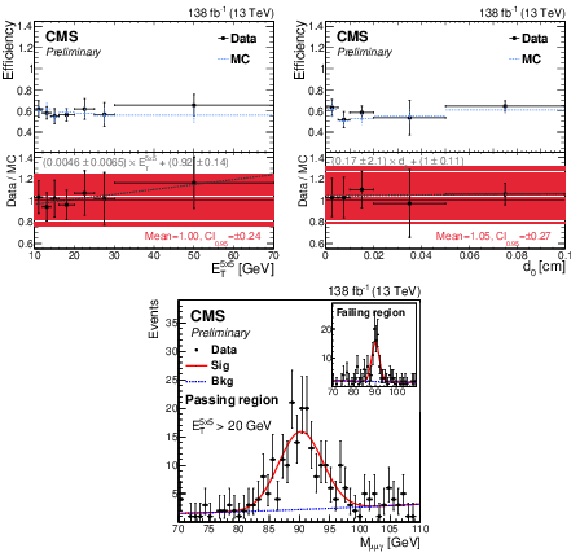

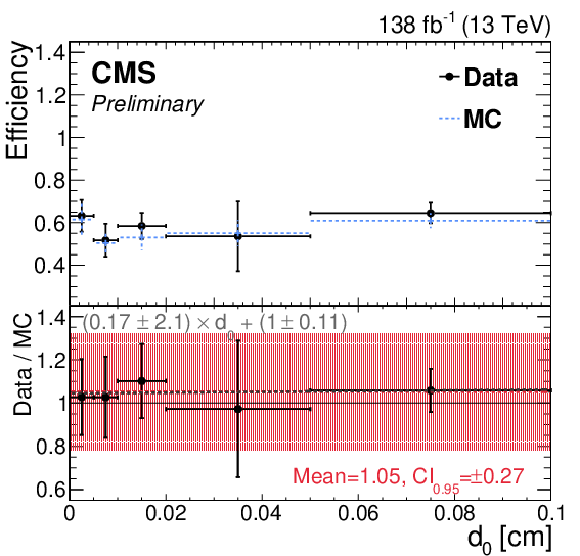

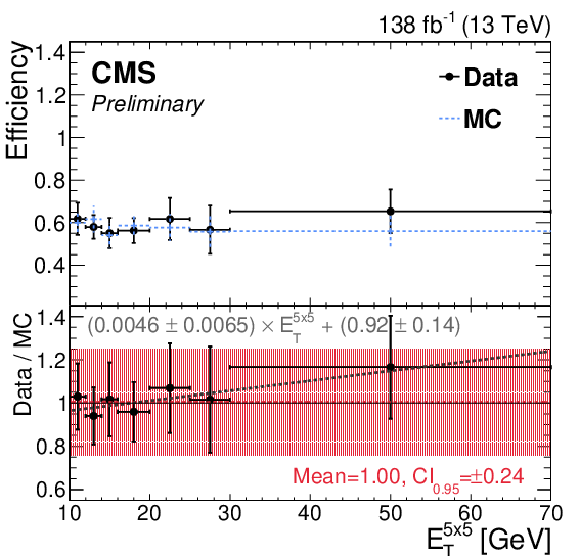

Efficiency and SF as a function of (upper left) $ {E_{\mathrm{T}}}^{5\times5} $ and (upper right) $ d_{0} $ for the model without secondary tracks. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal Z boson candidate mass distribution in data using $ \mu\mu\gamma $ events with $ {E_{\mathrm{T}}}^{5\times 5} > $ 20 GeV. The passing and failing regions represent the Z boson candidate mass distributions with $ \mathrm{e}_{\mathrm{ME}} $ candidates that pass or fail the $ \mathrm{e}_{\mathrm{ME}} $ ID. |
png pdf |
Figure 6-a:
Efficiency and SF as a function of (upper left) $ {E_{\mathrm{T}}}^{5\times5} $ and (upper right) $ d_{0} $ for the model without secondary tracks. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal Z boson candidate mass distribution in data using $ \mu\mu\gamma $ events with $ {E_{\mathrm{T}}}^{5\times 5} > $ 20 GeV. The passing and failing regions represent the Z boson candidate mass distributions with $ \mathrm{e}_{\mathrm{ME}} $ candidates that pass or fail the $ \mathrm{e}_{\mathrm{ME}} $ ID. |
png pdf |

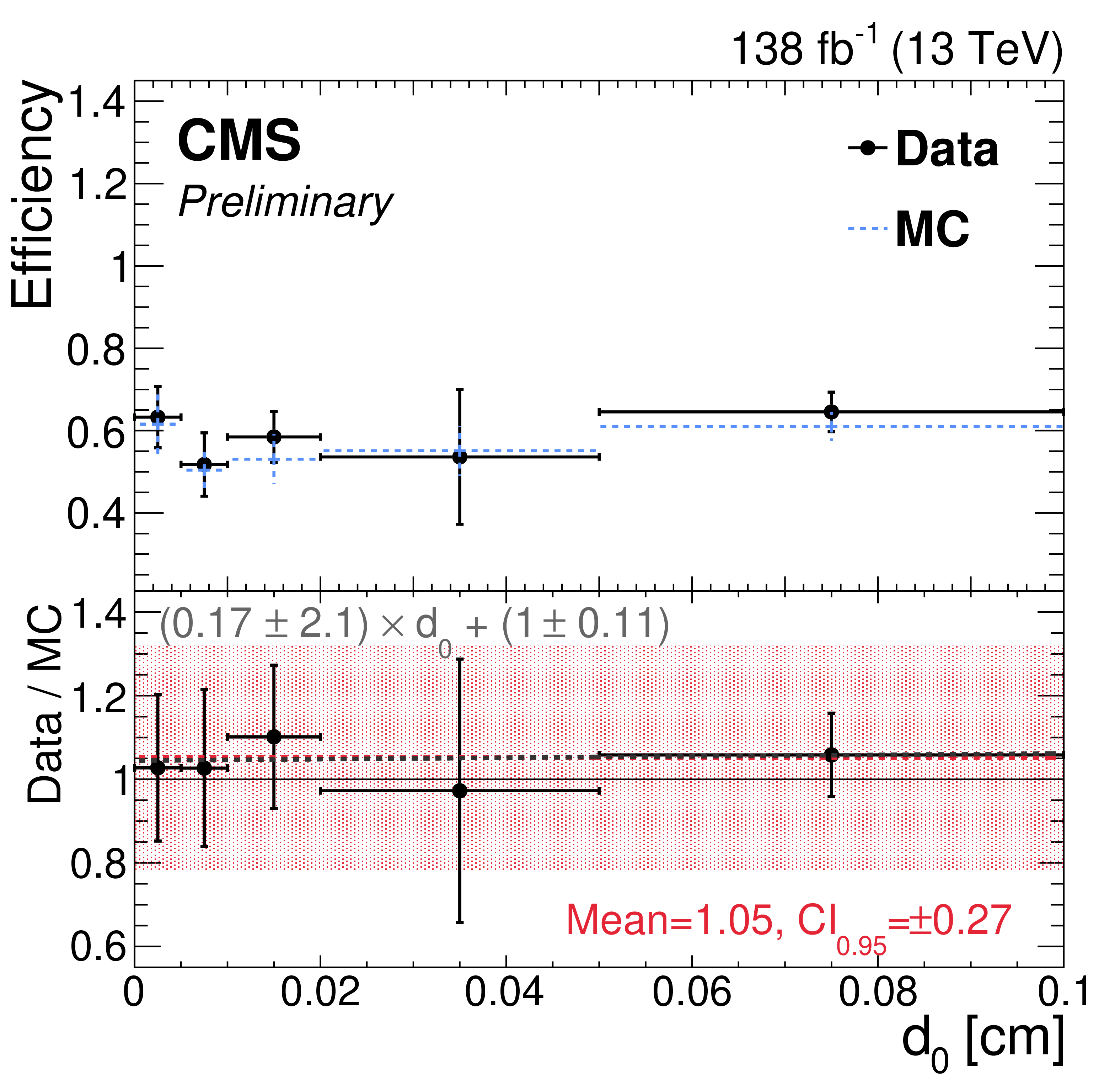

Figure 6-b:
Efficiency and SF as a function of (upper left) $ {E_{\mathrm{T}}}^{5\times5} $ and (upper right) $ d_{0} $ for the model without secondary tracks. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal Z boson candidate mass distribution in data using $ \mu\mu\gamma $ events with $ {E_{\mathrm{T}}}^{5\times 5} > $ 20 GeV. The passing and failing regions represent the Z boson candidate mass distributions with $ \mathrm{e}_{\mathrm{ME}} $ candidates that pass or fail the $ \mathrm{e}_{\mathrm{ME}} $ ID. |
png pdf |

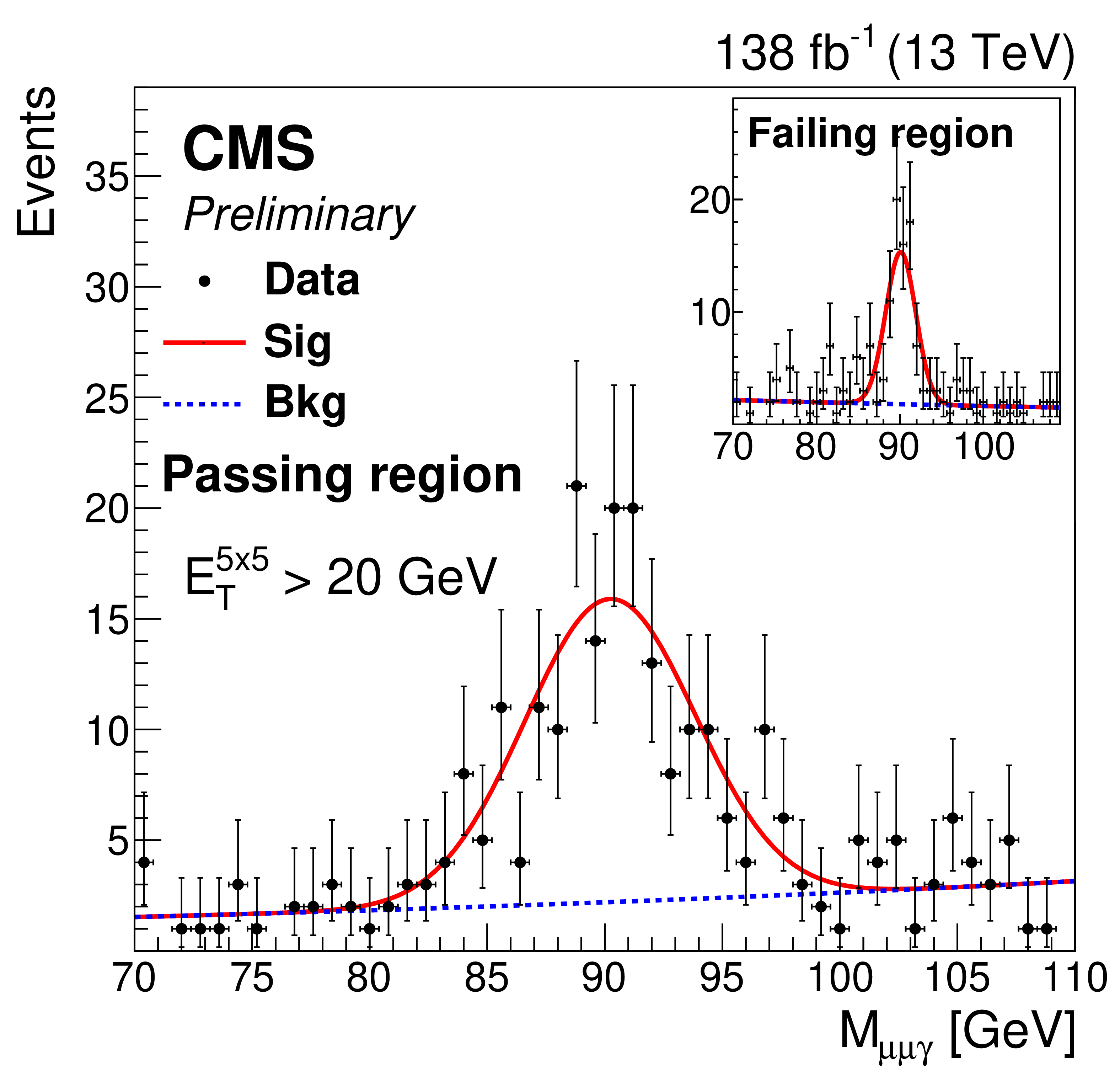

Figure 6-c:
Efficiency and SF as a function of (upper left) $ {E_{\mathrm{T}}}^{5\times5} $ and (upper right) $ d_{0} $ for the model without secondary tracks. The red and gray dashed lines depict the constant and first-order polynomial fit, respectively. (lower) The nominal Z boson candidate mass distribution in data using $ \mu\mu\gamma $ events with $ {E_{\mathrm{T}}}^{5\times 5} > $ 20 GeV. The passing and failing regions represent the Z boson candidate mass distributions with $ \mathrm{e}_{\mathrm{ME}} $ candidates that pass or fail the $ \mathrm{e}_{\mathrm{ME}} $ ID. |
png pdf |
Figure 7:

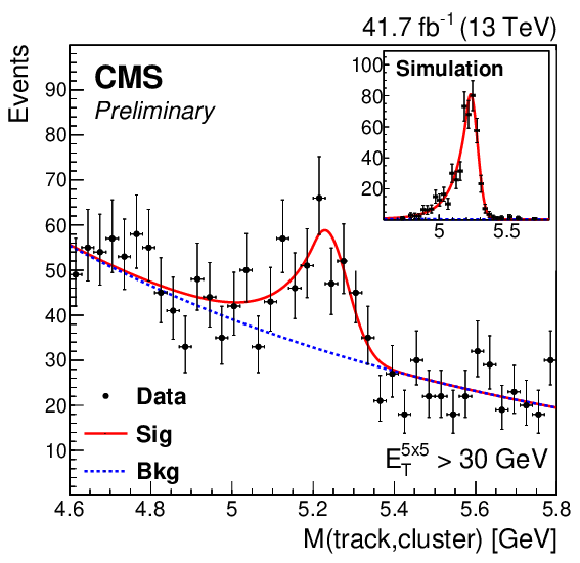

The invariant mass distribution between the $ \textrm{U}_{5\times5} $ cluster and the kaon candidate with $ {E_{\mathrm{T}}}^{5\times5} > $ 30 GeV. The signal (background) contribution is modeled with a Crystal ball (exponential) function, represented with a red (blue) line. The subfigure on top right illustrates the distribution with a $ {\mathrm{B}^{\pm}}\rightarrow\mathrm{J}/\psi\mathrm{K^{\pm}}\rightarrow\mathrm{e}^+\mathrm{e}^-\mathrm{K^{\pm}} $ MC sample. |
| Tables | |
png pdf |
Table 1:

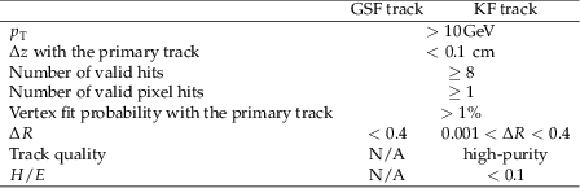

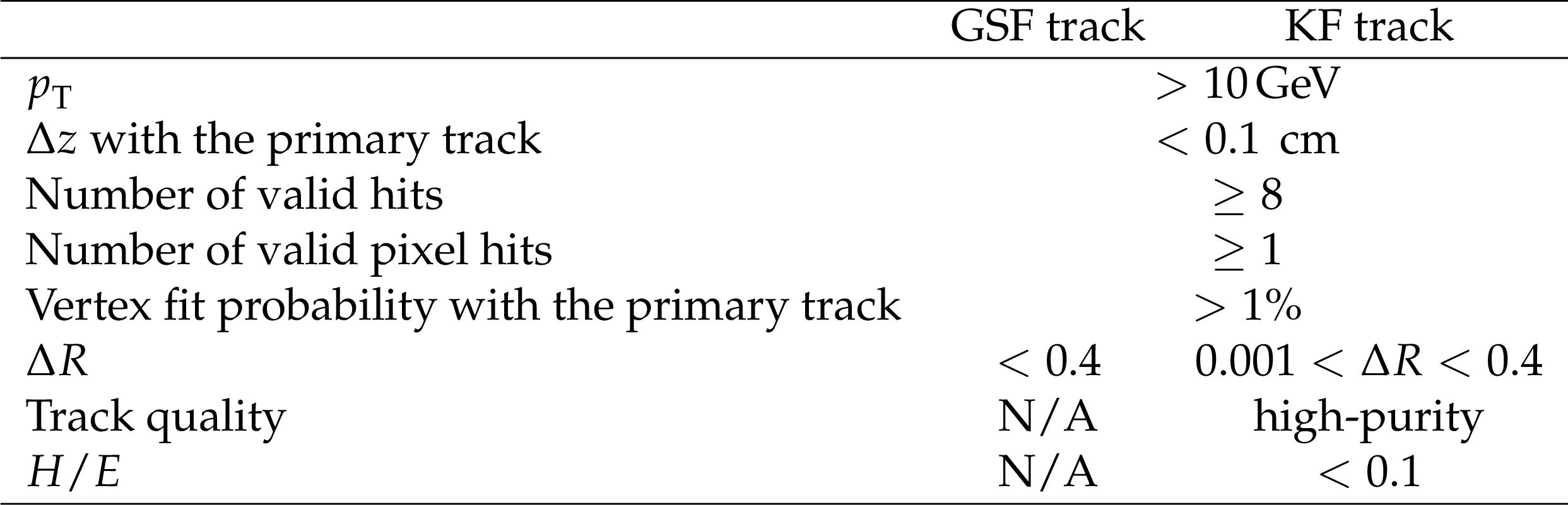

Secondary track selection criteria |
png pdf |
Table 2:

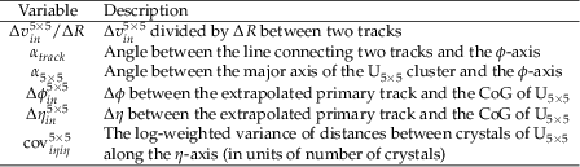

List of variables used to train the model with secondary tracks |
png pdf |
Table 3:

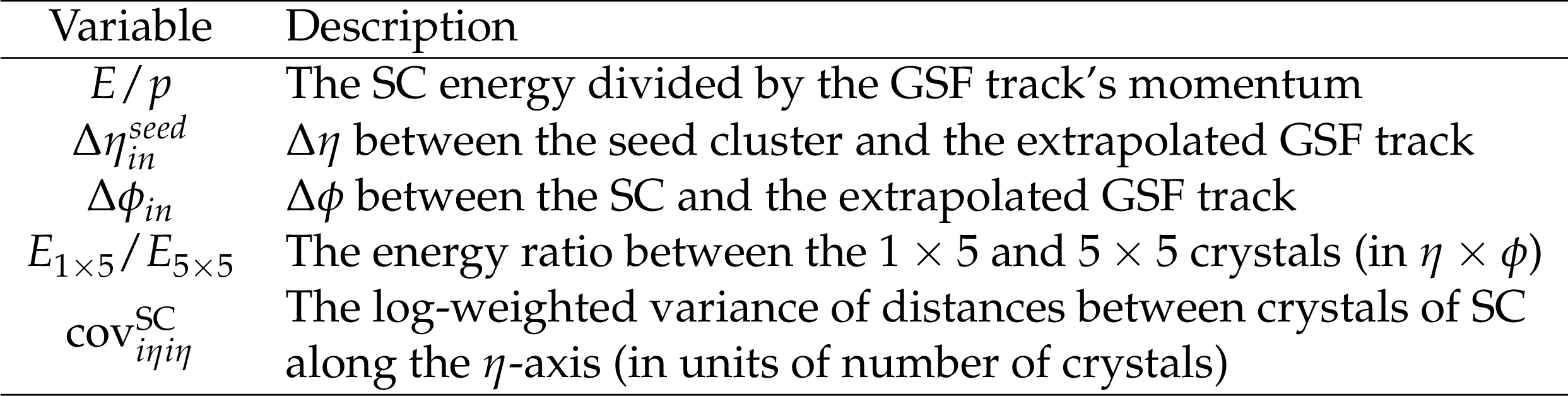

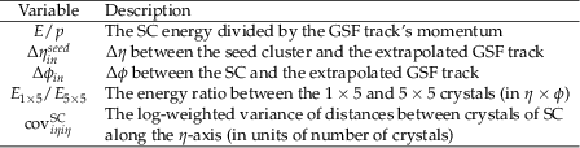

List of variables used to train the model without secondary tracks |
png pdf |
Table 4:

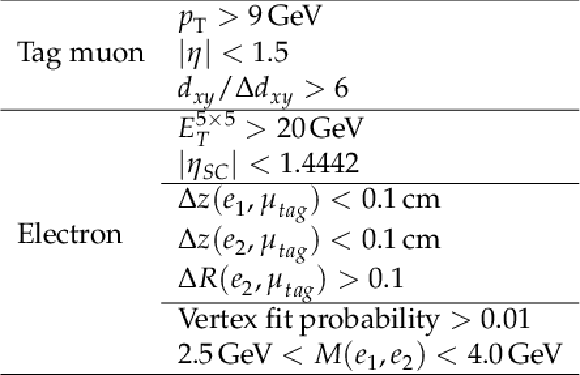

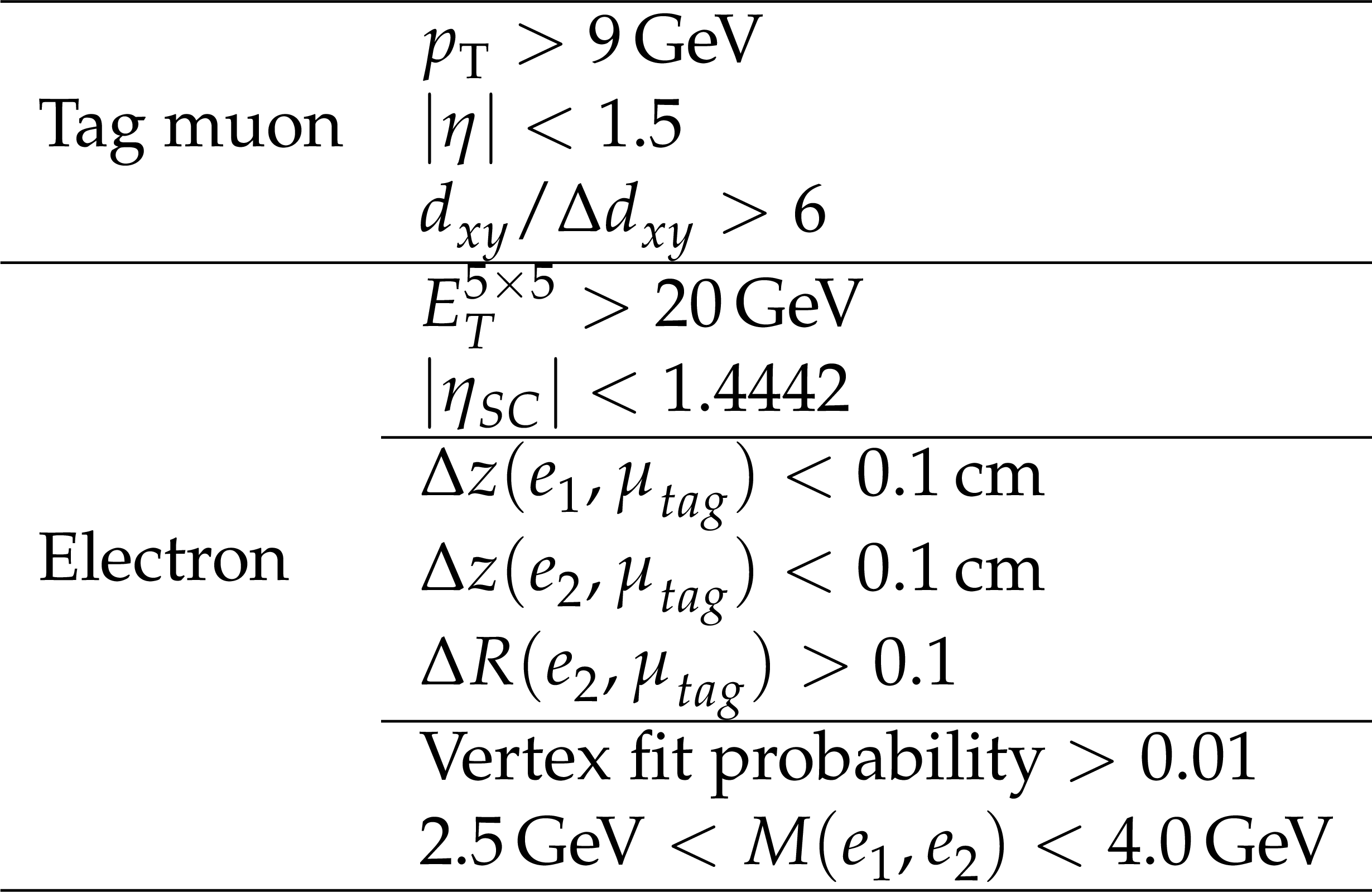

Selection criteria for $ \mathrm{J}/\psi\rightarrow\mathrm{e}^+\mathrm{e}^- $ control region. |
png pdf |
Table 5:

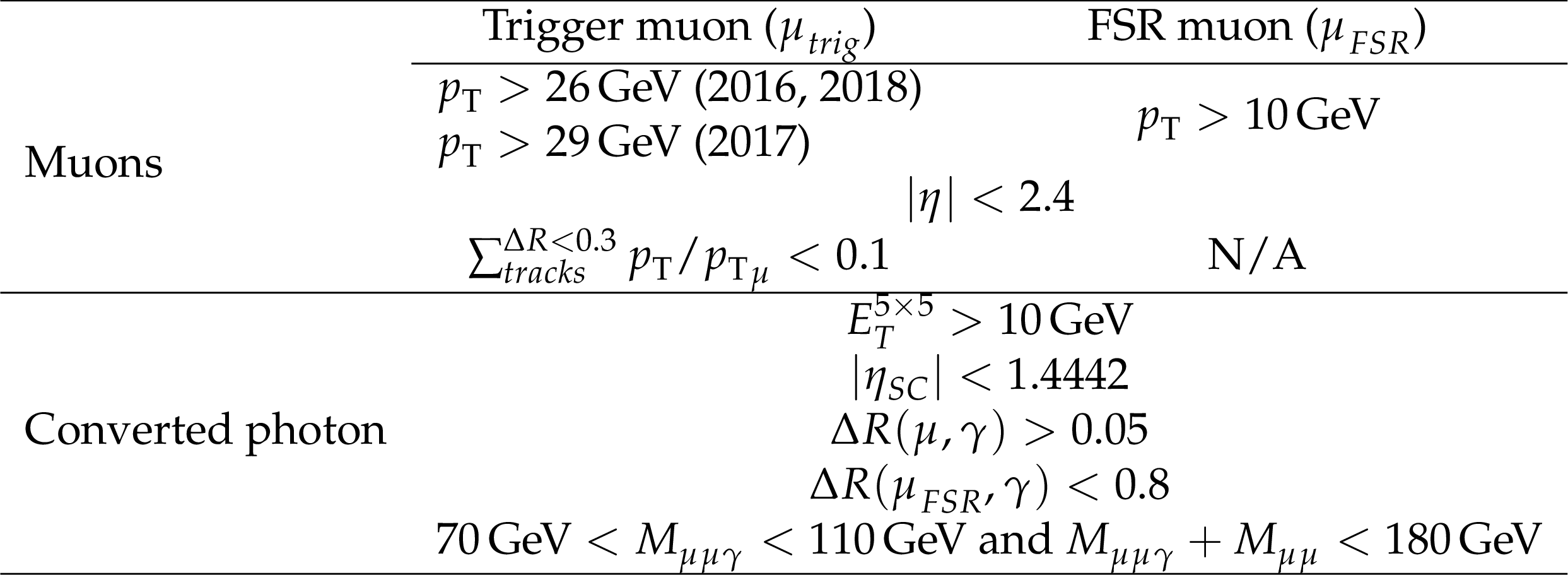

Selection criteria for the $ \mathrm{Z}\rightarrow\mu\mu\gamma $ control region. |
png pdf |
Table 6:

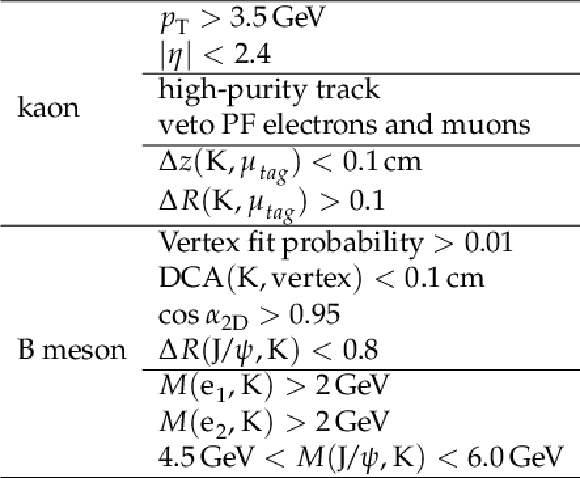

Selection criteria (in addition to Table 4) for the $ {\mathrm{B}^{\pm}}\rightarrow\mathrm{J}/\psi\mathrm{K^{\pm}}\rightarrow\mathrm{e}^+\mathrm{e}^-\mathrm{K^{\pm}} $ control region. |
| Summary |
| A number of BSM models predict light bosons that subsequently decay into a pair of leptons. In such models, the light boson can be significantly boosted, and the standard clustering and reconstruction algorithm may fail to resolve the electron pair. Moreover, a further Lorentz boost can lead to the absence of either of the electron tracks due to shared hits in the inner tracker. Therefore, a novel algorithm is developed to identify highly boosted electron pairs under the hypothesis of extreme Lorentz boosts with a merged cluster or cleaned inner track. The algorithm is trained using a BDT based on the compatibility between the merged cluster and electron tracks. The ID efficiency is validated using boosted $ \mathrm{J}/\psi\rightarrow\mathrm{e}^+\mathrm{e}^- $ decays in data for the model with secondary tracks. The overall efficiency is about 90% for $ {E_{\mathrm{T}}}^{5\times5} > $ 50 GeV. For the model without secondary tracks, $ \mathrm{Z}\rightarrow\mu\mu\gamma $ events with converted photons are used to validate the efficiency in data, which is approximately 60%. Due to the incapability of capturing all energy deposits from $ \mathrm{e}_{\mathrm{ME}} $ candidates, the $ \textrm{U}_{5\times5} $ cluster is used to estimate the energy of the $ \mathrm{e}_{\mathrm{ME}} $ instead of the SC. The $ \mathrm{U}_{5\times5} $ cluster's energy scale and resolution in data are measured with $ {\mathrm{B}^{\pm}}\rightarrow\mathrm{J}/\psi\mathrm{K^{\pm}}\rightarrow\mathrm{e}^+\mathrm{e}^-\mathrm{K^{\pm}} $ decays by reconstructing invariant mass between the $ \mathrm{U}_{5\times5} $ cluster and a track. A dedicated energy correction for the $ \mathrm{U}_{5\times5} $ cluster is also derived to match the energy description of the simulation to that of the data. |
