Observation of the rare decay $ \eta \to \mu^+\mu^-\mathrm{e^+e^-} $
CMS Collaboration
18 December 2025

Abstract: A first observation of the rare decay $ \eta \to \mu^+\mu^-\mathrm{e^+e^-} $ with significance well in excess of 5 standard deviations is reported by the CMS Collaboration at the CERN LHC. The result is based on a data sample corresponding to an integrated luminosity of 38.0 $ \mathrm{fb^{-1}} $, acquired in 2022 using a special high-rate dimuon trigger. A measurement of the branching fraction of this decay mode, using the decay mode $ \eta \to \mu^+\mu^-\gamma $ as normalization, yields a value $ \mathcal{B}(\eta\to\mu^+\mu^-\mathrm{e^+e^-}) = ( $ 2.1 $ \pm $ 0.7 $) \times 10^{-6} $, including statistical and systematic sources of uncertainty, along with the uncertainty in the branching fraction of the reference mode. This observed branching fraction is close to two orders of magnitude smaller than the existing limit, and is consistent with the latest standard model prediction.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

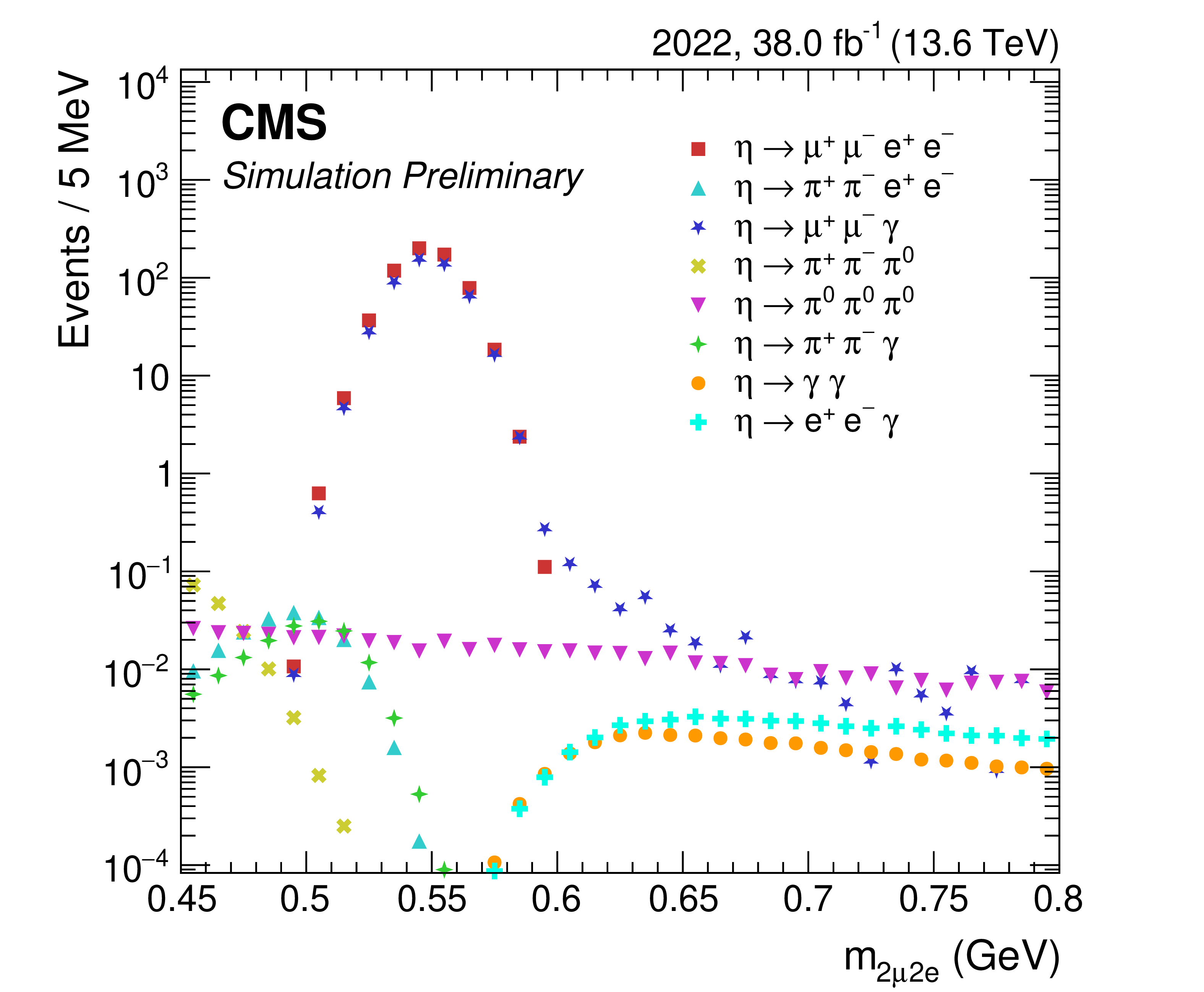

png pdf	Figure 1: Summary of expected background contributions to the yield measured in the signal channel based on a simplified MC simulation. Uncertainties are not shown. The equivalent luminosity for the simulation is shown in the top right.

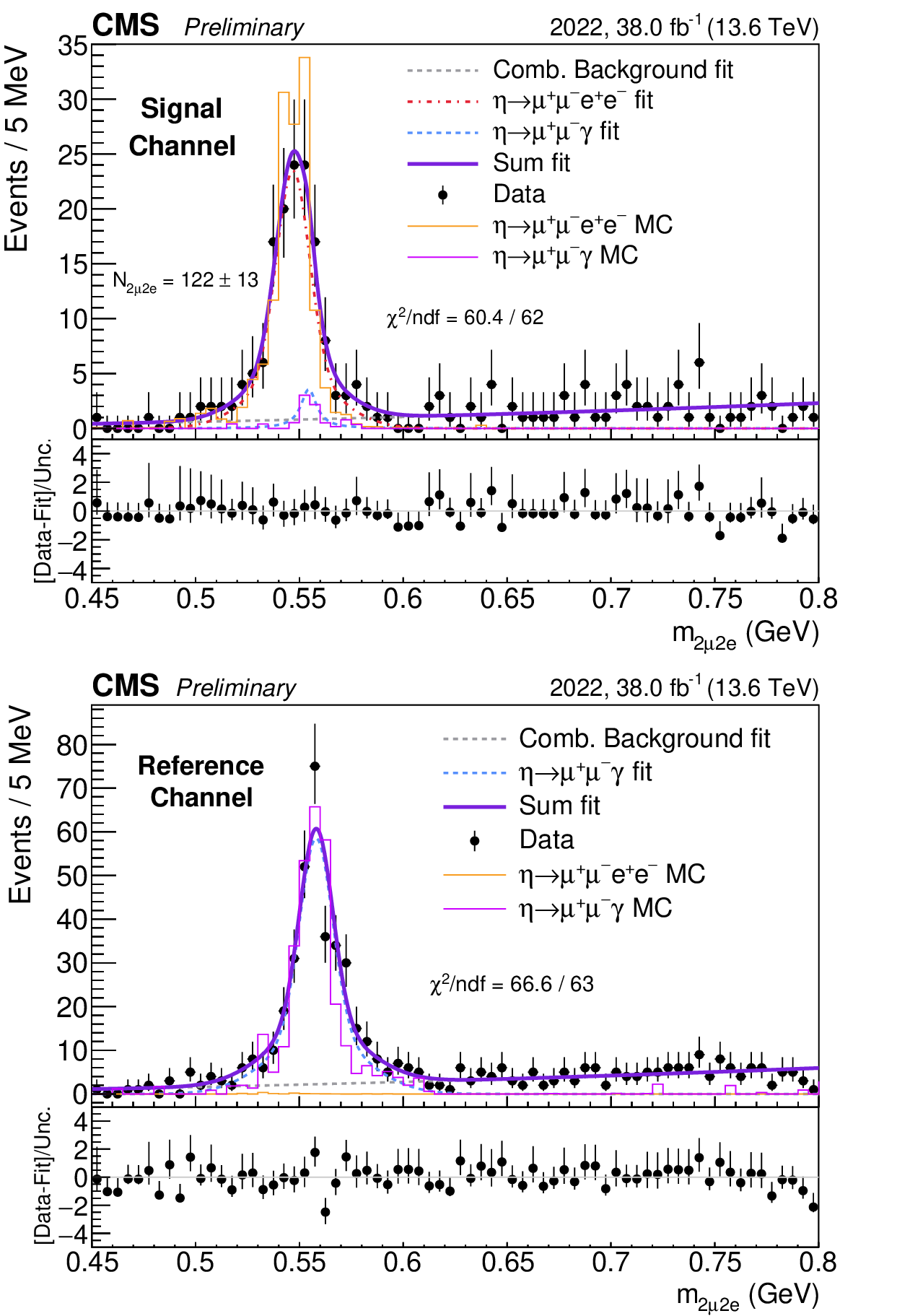

png pdf	Figure 2: Fit of the four-lepton invariant mass spectra in data for the signal (upper) and reference (lower) channels. Black points denote the data, the dashed grey curve is the combinatorial background fit to a threshold function, the cyan dashed curve is the $\eta\to\mu^+\mu^-\gamma$ component of the fit, the red dot-dashed curve (signal channel only) is the $\eta\to\mu^+\mu^-\mathrm{e^+e^-}$ component of the fit, and the solid blue-violet curve is the overall fit including signal and background contributions. The orange distribution is the signal MC simulation (normalized to the BF prediction of $2.4\times10^{-6}$ by Ref.[11]), and the magenta distribution is the $\eta\to\mu^+\mu^-\gamma$ resonant background MC simulation, both normalized using the approximate cross section derived from the $\eta\to\mu^+\mu^-$ channel. Numbers $N$ shown in the legend are the total numbers of events in the signal peak (0.52--0.58 GeV for the signal channel and 0.50--0.62 GeV for the reference channel). Points in the lower panel are pulls relative to the full fit model, (data $-$ fit)/$\sqrt{\smash[b]{\sigma_{\textrm{data}}^2 + \sigma_{\textrm{fit}}^2}}$.

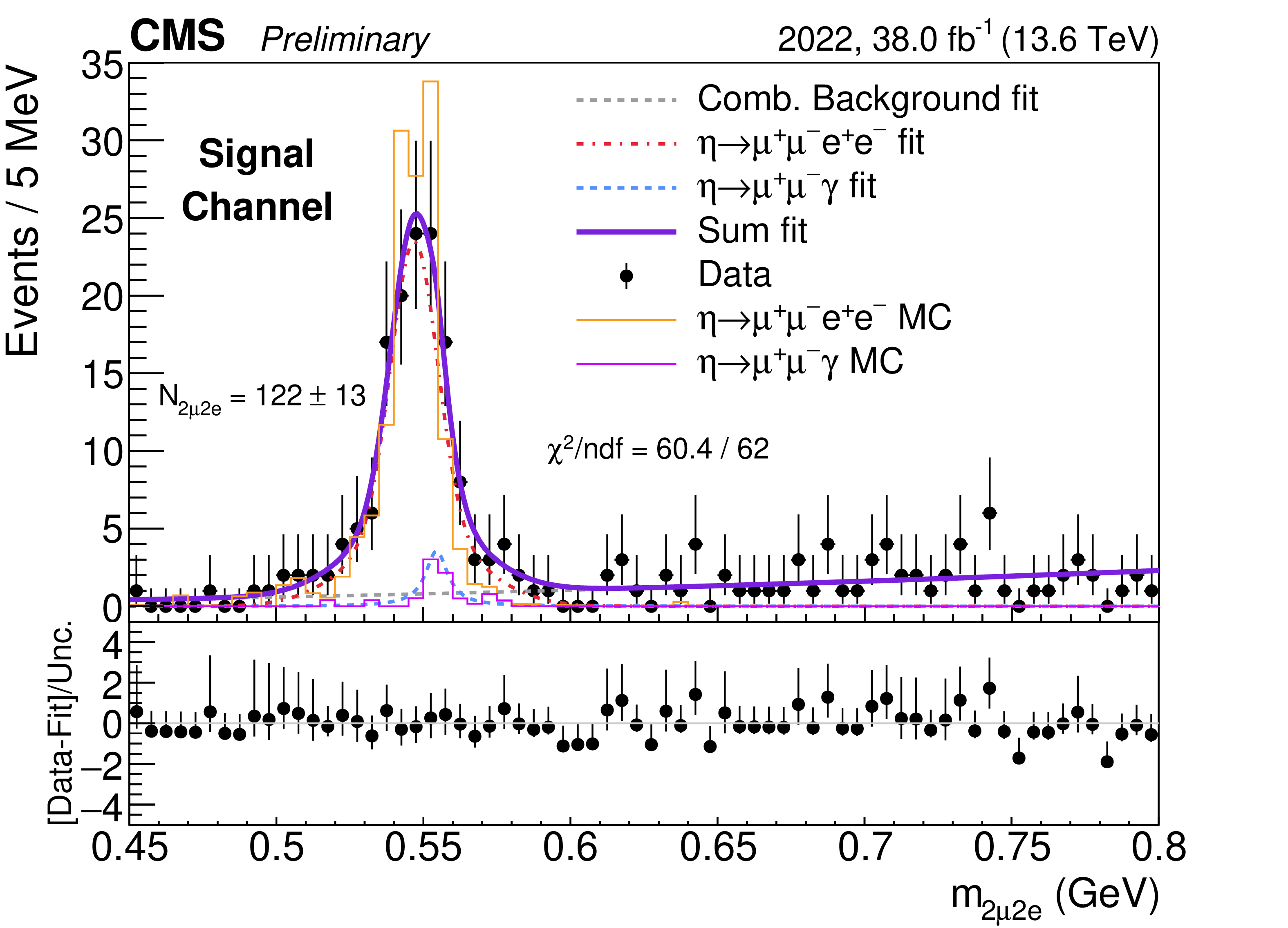

png pdf	Figure 2-a: Fit of the four-lepton invariant mass spectra in data for the signal (upper) and reference (lower) channels. Black points denote the data, the dashed grey curve is the combinatorial background fit to a threshold function, the cyan dashed curve is the $\eta\to\mu^+\mu^-\gamma$ component of the fit, the red dot-dashed curve (signal channel only) is the $\eta\to\mu^+\mu^-\mathrm{e^+e^-}$ component of the fit, and the solid blue-violet curve is the overall fit including signal and background contributions. The orange distribution is the signal MC simulation (normalized to the BF prediction of $2.4\times10^{-6}$ by Ref.[11]), and the magenta distribution is the $\eta\to\mu^+\mu^-\gamma$ resonant background MC simulation, both normalized using the approximate cross section derived from the $\eta\to\mu^+\mu^-$ channel. Numbers $N$ shown in the legend are the total numbers of events in the signal peak (0.52--0.58 GeV for the signal channel and 0.50--0.62 GeV for the reference channel). Points in the lower panel are pulls relative to the full fit model, (data $-$ fit)/$\sqrt{\smash[b]{\sigma_{\textrm{data}}^2 + \sigma_{\textrm{fit}}^2}}$.

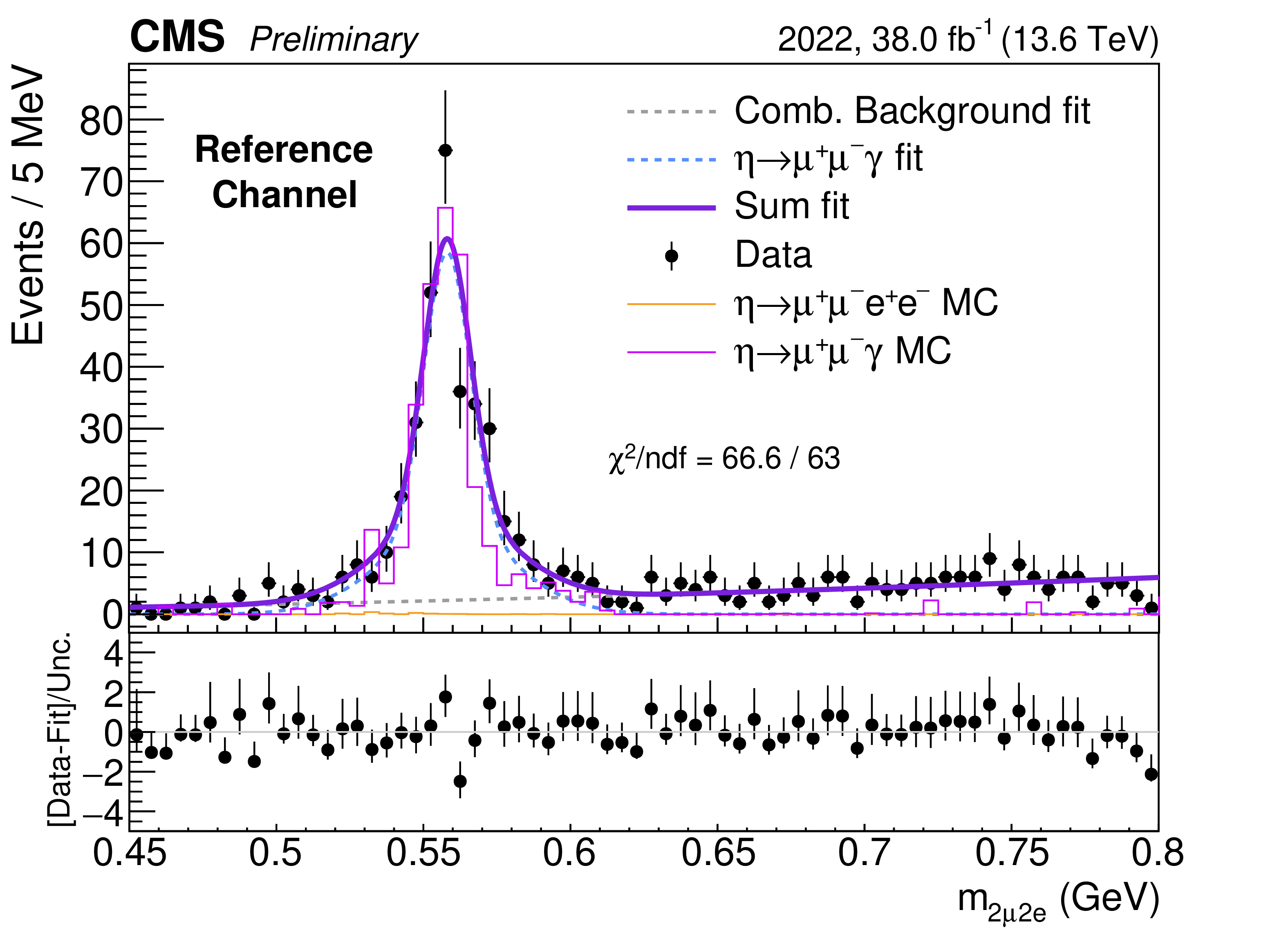

png pdf	Figure 2-b: Fit of the four-lepton invariant mass spectra in data for the signal (upper) and reference (lower) channels. Black points denote the data, the dashed grey curve is the combinatorial background fit to a threshold function, the cyan dashed curve is the $\eta\to\mu^+\mu^-\gamma$ component of the fit, the red dot-dashed curve (signal channel only) is the $\eta\to\mu^+\mu^-\mathrm{e^+e^-}$ component of the fit, and the solid blue-violet curve is the overall fit including signal and background contributions. The orange distribution is the signal MC simulation (normalized to the BF prediction of $2.4\times10^{-6}$ by Ref.[11]), and the magenta distribution is the $\eta\to\mu^+\mu^-\gamma$ resonant background MC simulation, both normalized using the approximate cross section derived from the $\eta\to\mu^+\mu^-$ channel. Numbers $N$ shown in the legend are the total numbers of events in the signal peak (0.52--0.58 GeV for the signal channel and 0.50--0.62 GeV for the reference channel). Points in the lower panel are pulls relative to the full fit model, (data $-$ fit)/$\sqrt{\smash[b]{\sigma_{\textrm{data}}^2 + \sigma_{\textrm{fit}}^2}}$.

Tables

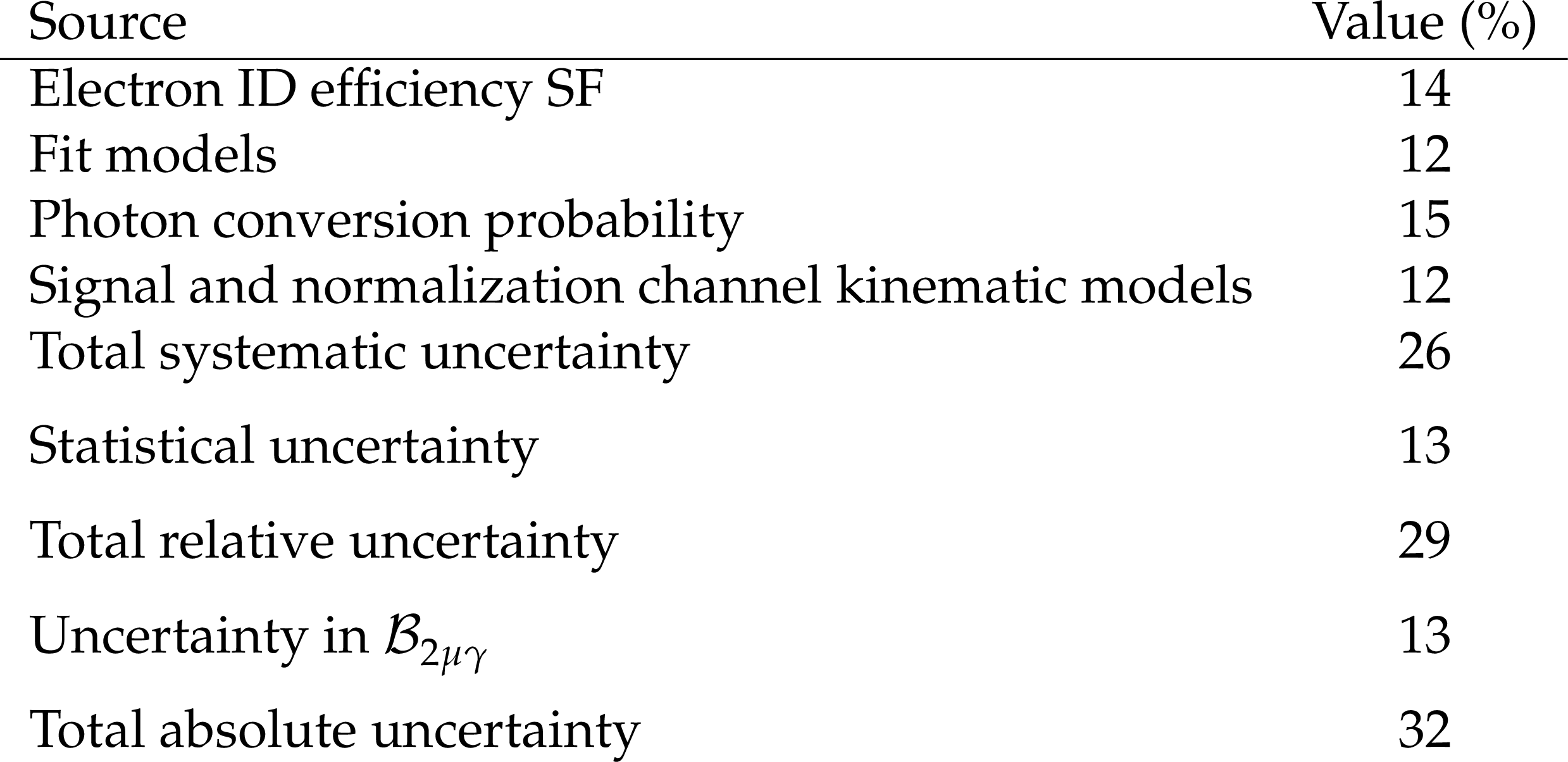

png pdf	Table 1: Contributions to the uncertainty in the measurement. Details are provided in the text.

Summary

In summary, the decay $\eta\to\mu^+\mu^-\mathrm{e^+e^-}$ has been observed for the first time, with a significance much greater than $5 \sigma$, with data collected by the CMS experiment at the CERN LHC in 2022. The branching fraction of this decay is measured using a ratio with the $\eta\to\mu^+\mu^-\gamma$ decay mode as normalization: $\mathcal{B}_{2\mu\mathrm{2e}}/\mathcal{B}_{2\mu\gamma} = (6.9 \pm 2.0)\times10^{-3}$. Incorporating the world-average value of $B(\eta\to\mu^+\mu^-\gamma)$ results in an $\eta\to\mu^+\mu^-\mathrm{e^+e^-}$ branching fraction of $(2.1 \pm 0.7) \times 10^{-6}$, which is close to two orders of magnitude below the previous upper limit and is consistent with the latest standard model prediction. This measurement will provide useful information for the determination of transition form factors that are used for theoretical calculations, such as the muon anomalous magnetic moment.

References
1	Particle Data Group Collaboration	Review of particle physics	PRD 110 (2024) 030001
2	M. Knecht, S. Narison, A. Rabemananjara, and D. Rabetiarivony	Scalar meson contributions to $ a_\mu $ from hadronic light-by-light scattering	PLB 787 (2018) 111	1808.03848
3	CMS Collaboration	Observation of the rare decay of the $ \eta $ meson to four muons	PRL 131 (2023) 31	CMS-BPH-22-003 2305.04904
4	L. Gan, B. Kubis, E. Passemar, and S. Tulin	Precision tests of fundamental physics with $ \eta $ and $ \eta^\prime $ mesons	Phys. Rept. 945 (2022) 1	2007.00664
5	E. Goudzovski et al.	New physics searches at kaon and hyperon factories	Rept. Prog. Phys. 86 (2023) 016201	2201.07805
6	J. Bijnens and J. Gasser	Eta decays at and beyond $ p^4 $ in chiral perturbation theory	Phys. Scripta T 99 (2002) 34	hep-ph/0202242
7	T. Fujiwara et al.	Non-Abelian anomaly and vector mesons as dynamical gauge bosons of hidden local symmetries	Prog. Theor. Phys. 73 (1985) 926
8	M. Bando, T. Kugo, and K. Yamawaki	On the vector mesons as dynamical gauge bosons of hidden local symmetries	NPB 259 (1985) 493
9	T. Petri	Anomalous decays of pseudoscalar mesons	Masters thesis, University of Bonn, Germany, https://arxiv.org/abs/.2378, 2010 link
10	C.-C. Lih	Study of $ \pi^0 $ and $ \eta $ decays containing dilepton	JPG 38 (2011) 065001	0912.2147
11	R. Escribano and S. Gonzalez-Solis	A data-driven approach to $ \pi^0 $, $ \eta $ and $ \eta^\prime $ single and double Dalitz decays	Chin. Phys. C 42 (2018) 023109	1511.04916
12	K. Kampf, J. c. v. Novotny, and P. Sanchez-Puertas	Radiative corrections to double-Dalitz decays revisited	(Mar, ) 056010, 2018 PRD 9 (2018) 7
13	T. Aoyama et al.	The anomalous magnetic moment of the muon in the standard model	The anomalous magnetic moment of the muon in the Standard Model, 2020 Phys. Rept. 887 (2020) 1
14	CELSIUS/WASA Collaboration	Measurement of $ \eta $ meson decays into lepton-antilepton pairs	PRD 77 (2008) 032004	0711.3531
15	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
16	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
17	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
18	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
19	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
20	CMS Collaboration	Enriching the physics program of the CMS experiment via data scouting and data parking	Phys. Rept. 67 (2024) 8	CMS-EXO-23-007 2403.16134
21	R. Fruhwirth	Application of Kalman filtering to track and vertex fitting	NIM A 262 (1987) 444
22	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
23	C. Bierlich et al	A comprehensive guide to the physics and usage of PYTHIA 8.3	SciPost Phys. Codebases 8-r8.3, 2022 link	2203.11601
24	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
25	R. Djhelyadin et al.	Investigation of the electromagnetic structure of the $ \eta $ meson in the decay $ \eta \rightarrow \mu^+\mu^-\gamma $	PLB 94 (1980) 548
26	R. Dalitz	On higher Born approximations in potential scattering	Proc. R. Soc. A 206 (1951) 509
27	N. M. Kroll and W. Wada	Internal pair production associated with the emission of high-energy gamma rays	PR 98 (1955) 1355
28	GEANT4 Collaboration	$ GEANT $ 4\textemdash a simulation toolkit	NIM A 506 (2003) 250
29	I. Fröhlich et al.	Pluto: A Monte Carlo simulation tool for hadronic physics	PoS ACAT 07 (2007) 6	0708.2382
30	CMS Collaboration	Search for long-lived heavy neutral leptons with displaced vertices in proton-proton collisions at $ \sqrt{s}=13 $TeV	JHEP 2022 (2022) 81	CMS-EXO-20-009 2201.05578
