Constraining low-$ x $ gluon densities with low-$ p_{\mathrm{T}} \rm D^{0} $ meson production in ultraperipheral lead-lead collisions at 5.36 TeV
CMS Collaboration
28 April 2025

Abstract: This analysis presents a rapidity-differential measurement of low transverse momentum ($ p_{\mathrm{T}} $) $ \rm D^{0} $ meson production in ultraperipheral lead-lead collisions at $ \sqrt{s_{_{NN}}} = $ 5.36 TeV. The study is performed in the $ \rm D^{0} $ meson $ p_{\mathrm{T}} $ range of 2 $ < p_{\mathrm{T}} < $ 5 GeV and in intervals of $ \rm D^{0} $ meson rapidity $ -$2 $ < y < $ 2. The results are compared to new predictions based on perturbative quantum chromodynamics, which are obtained using the most recent parametrization of the lead nuclear parton distribution functions, and to predictions based on the color glass condensate formalism, where nuclear suppression effects are dynamically generated. The extension of the kinematic range with respect to the previous measurement of photonuclear $ \rm D^{0} $ production, particularly in the low-$ p_{\mathrm{T}} $ regime, provides stronger constraints on nuclear shadowing effects and the possible emergence of gluon saturation at low $ p_{\mathrm{T}} $.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

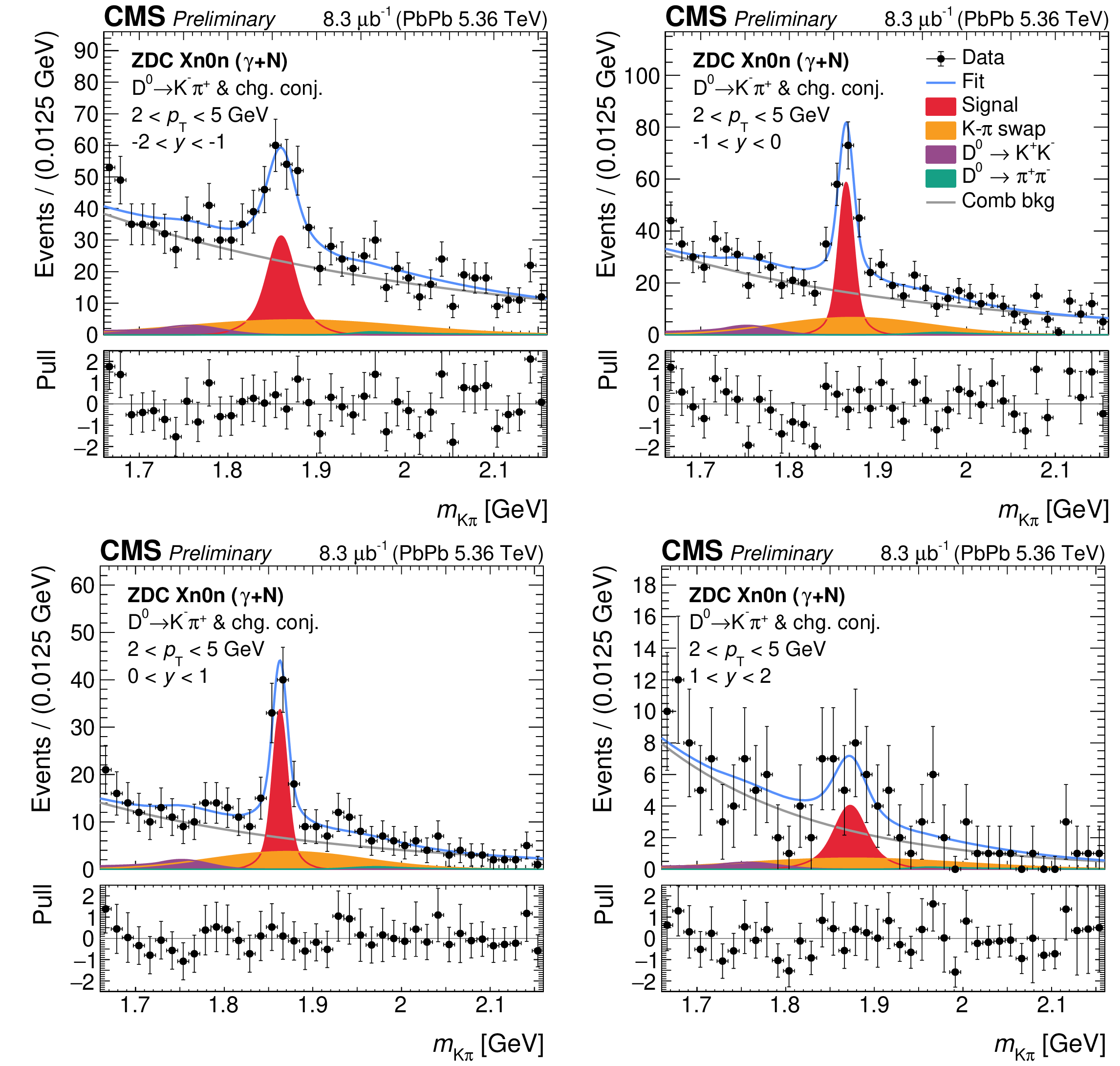

png pdf	Figure 1: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \gamma+\textrm{N} $ events. A description of the fitting procedure for the yield extraction is included in the text.

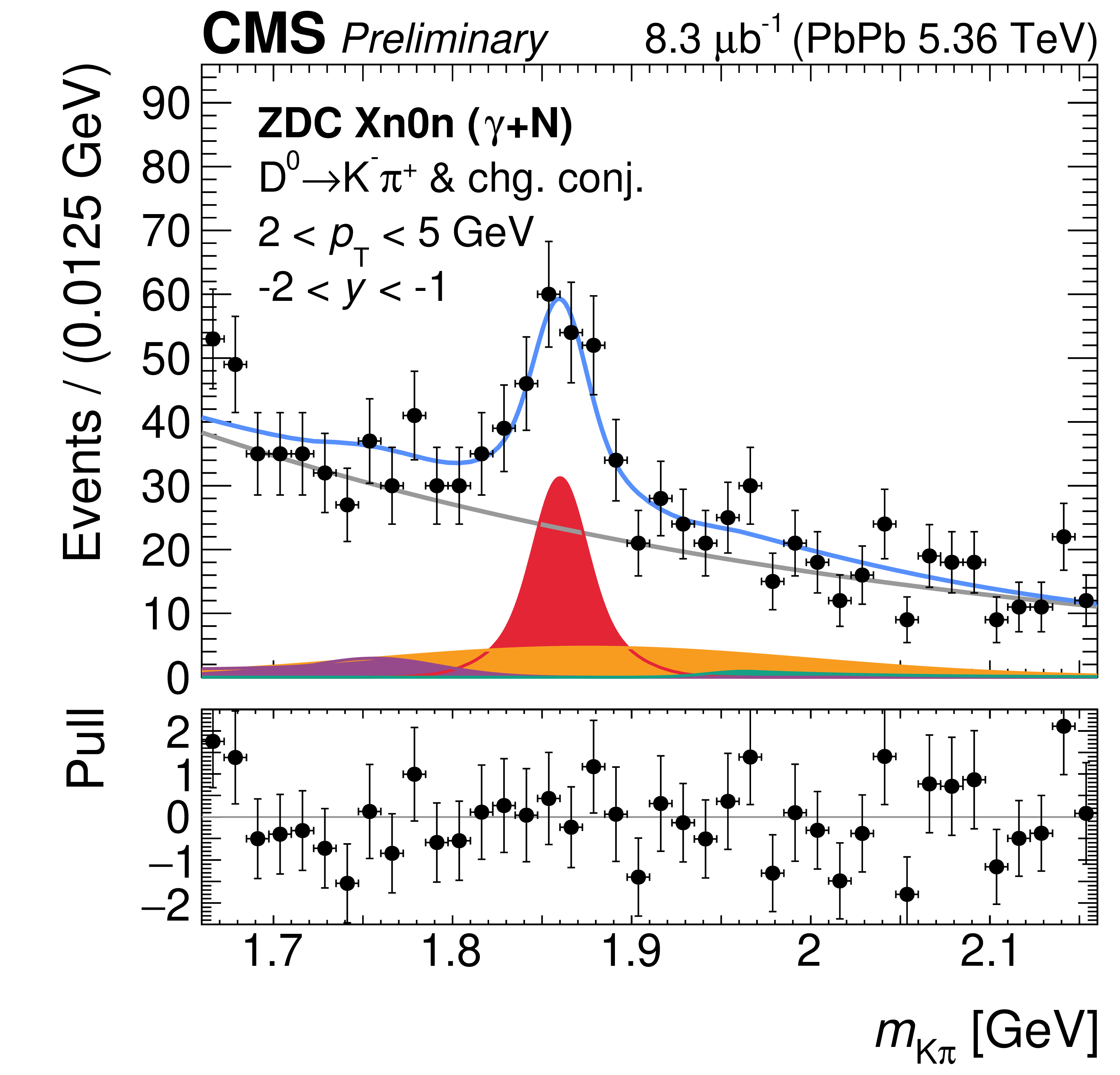

png pdf	Figure 1-a: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \gamma+\textrm{N} $ events. A description of the fitting procedure for the yield extraction is included in the text.

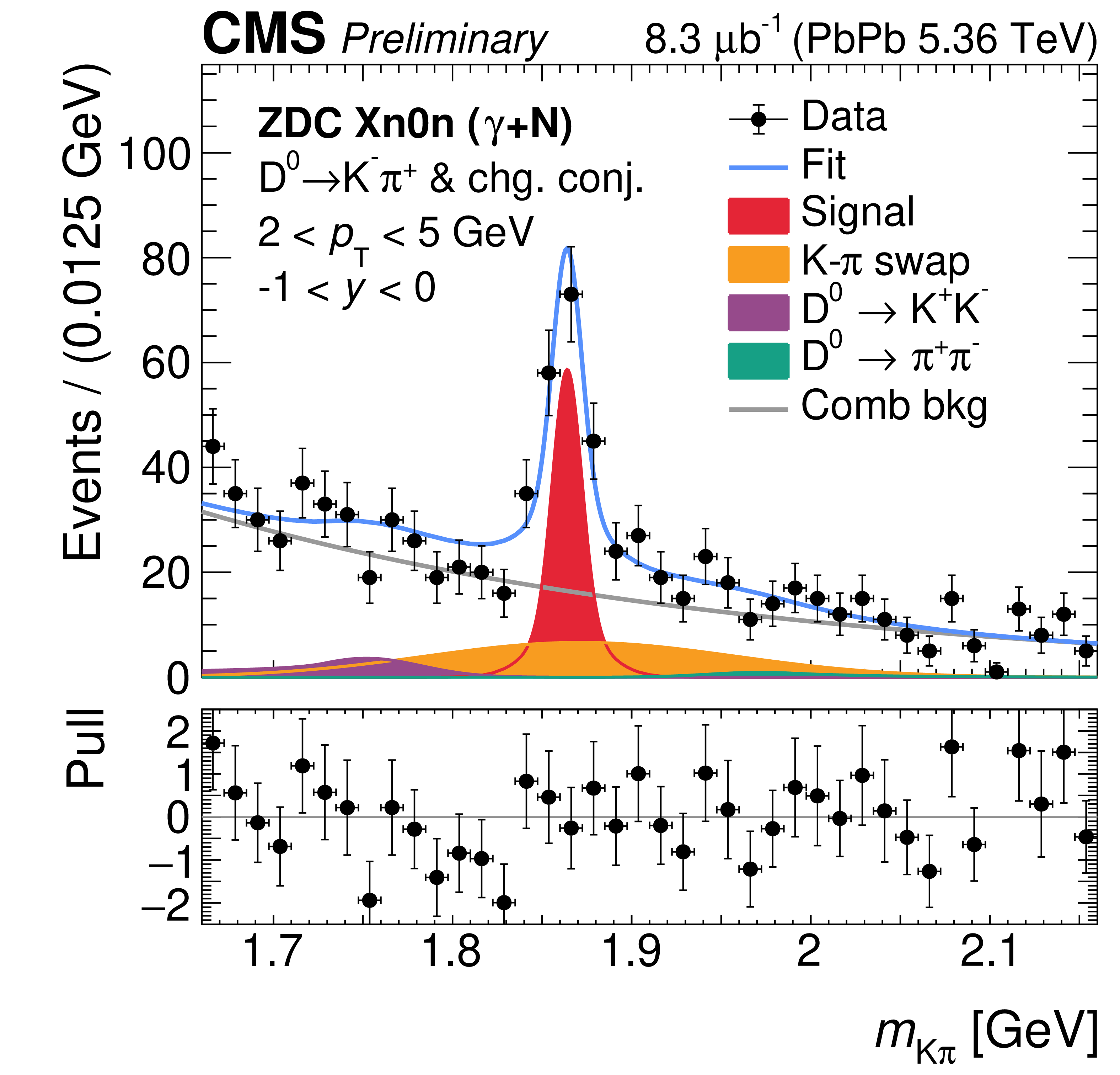

png pdf	Figure 1-b: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \gamma+\textrm{N} $ events. A description of the fitting procedure for the yield extraction is included in the text.

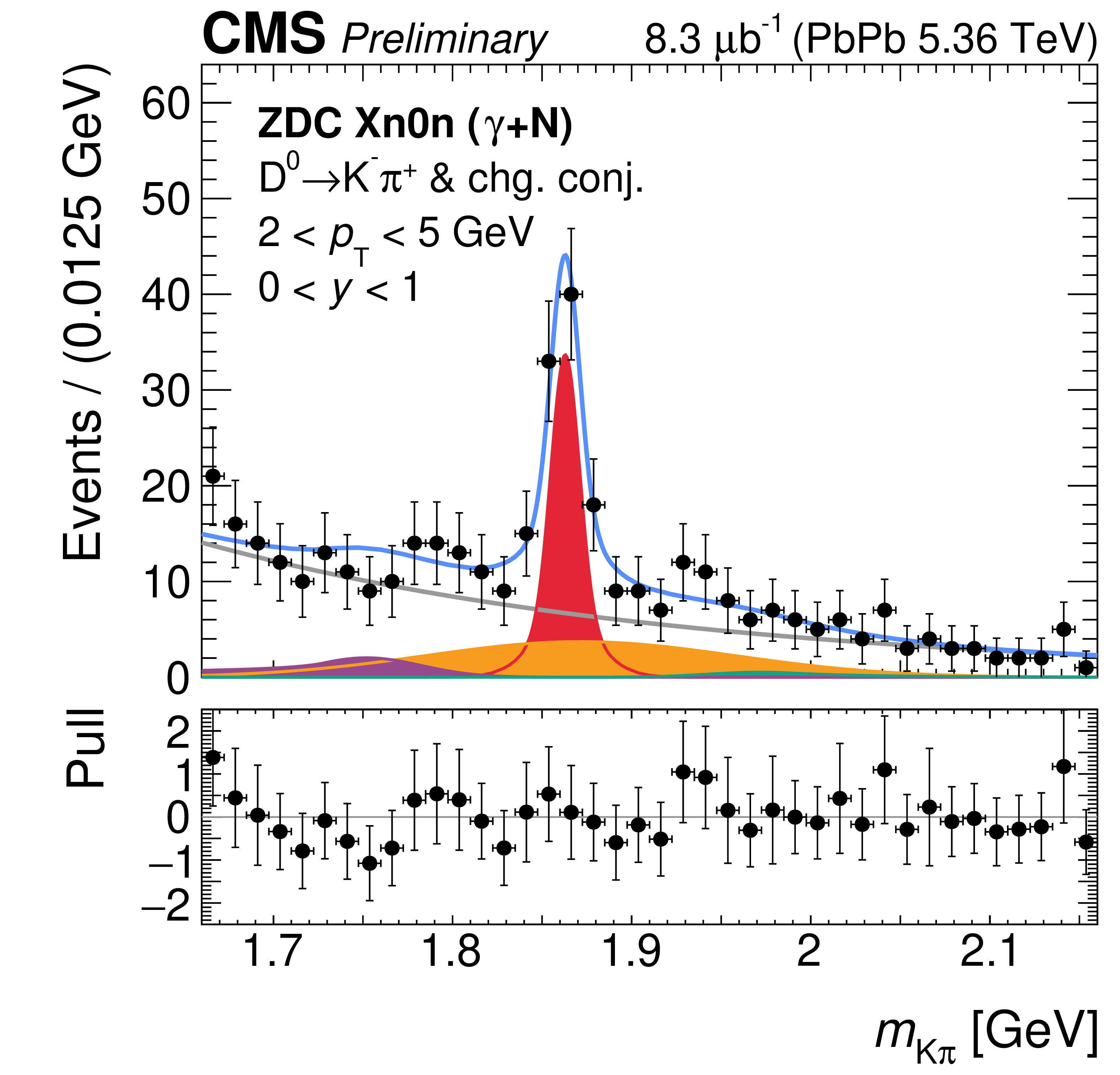

png pdf	Figure 1-c: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \gamma+\textrm{N} $ events. A description of the fitting procedure for the yield extraction is included in the text.

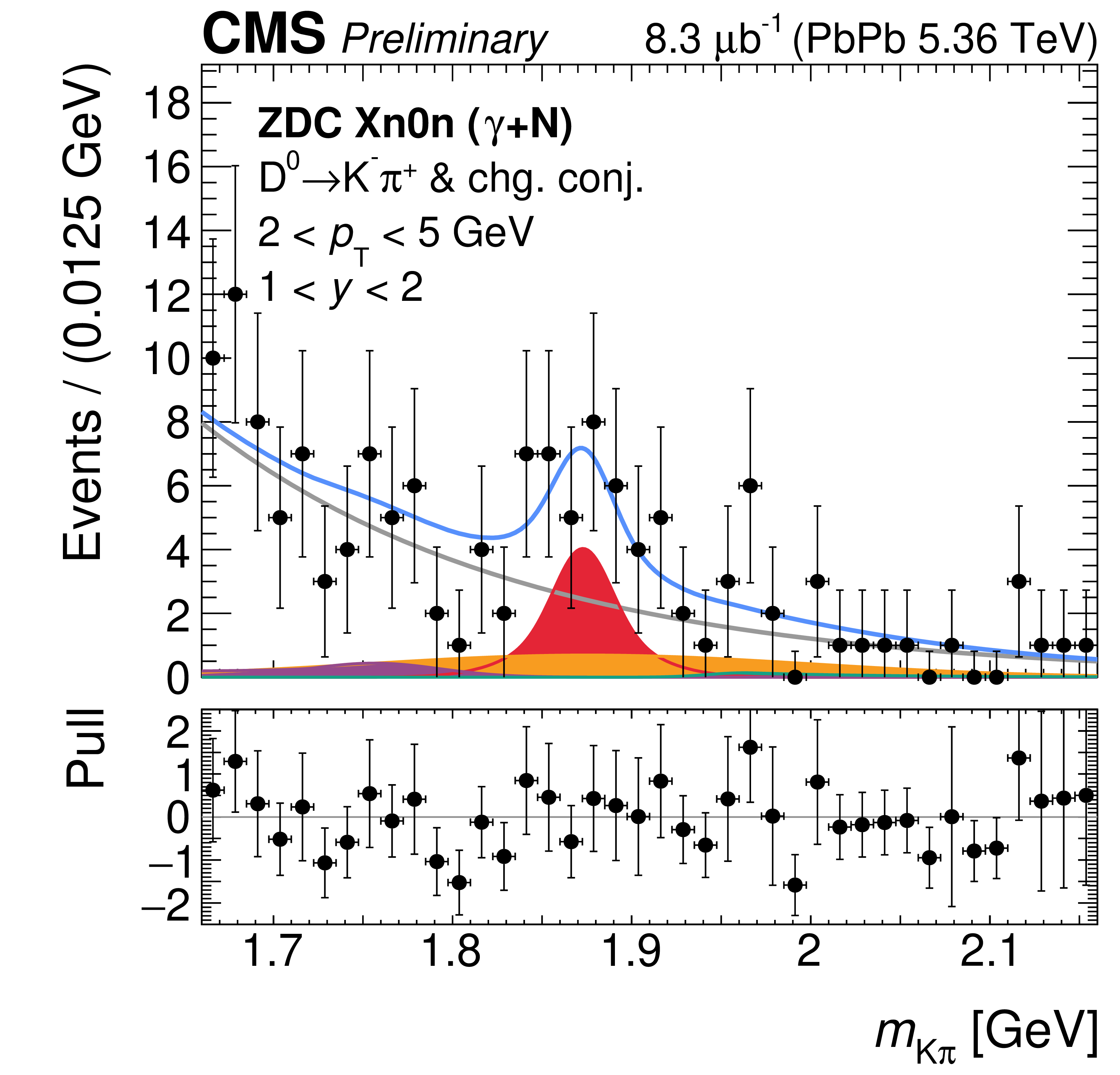

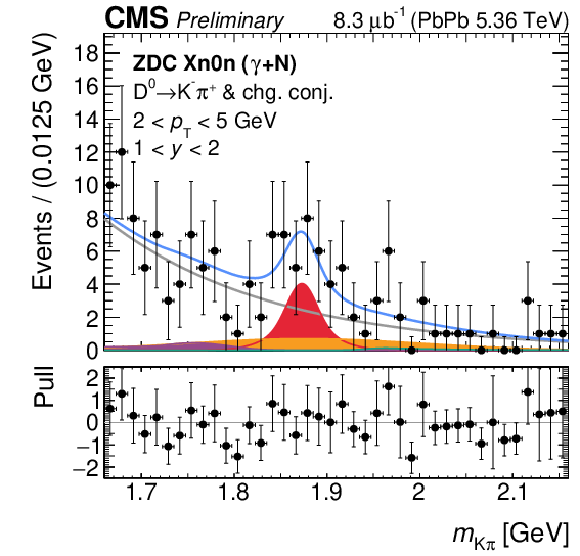

png pdf	Figure 1-d: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \gamma+\textrm{N} $ events. A description of the fitting procedure for the yield extraction is included in the text.

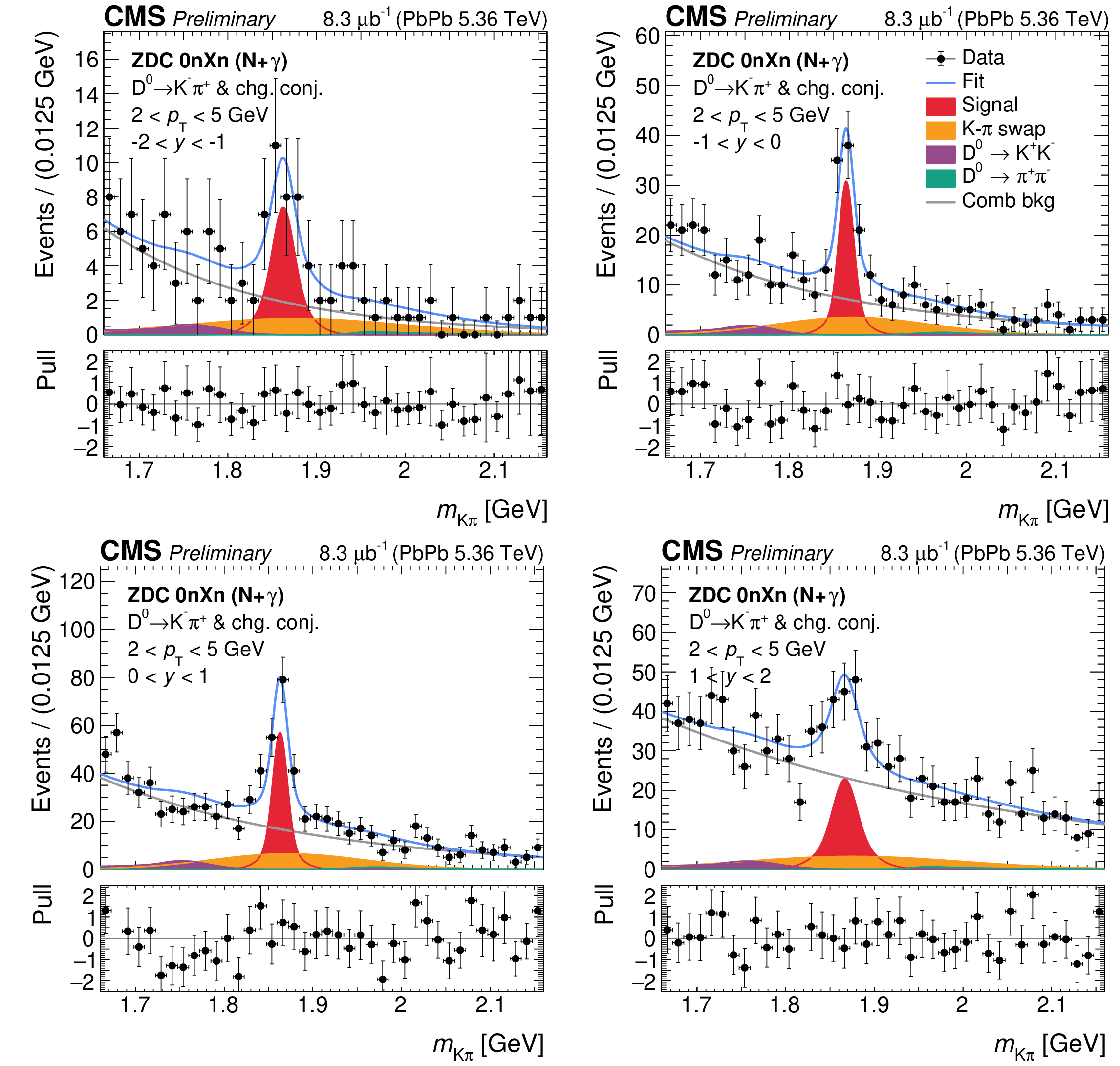

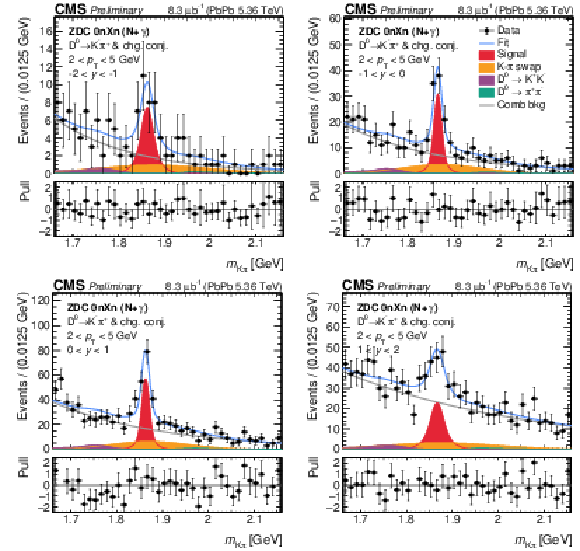

png pdf	Figure 2: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \textrm{N}+\gamma $ events. A description of the fitting procedure for the yield extraction is included in the text.

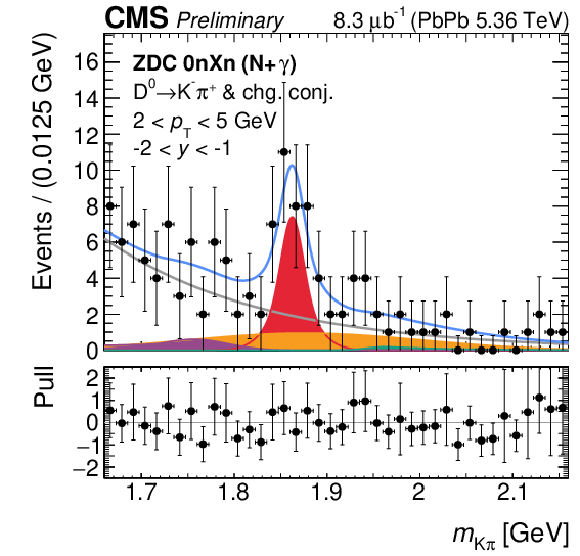

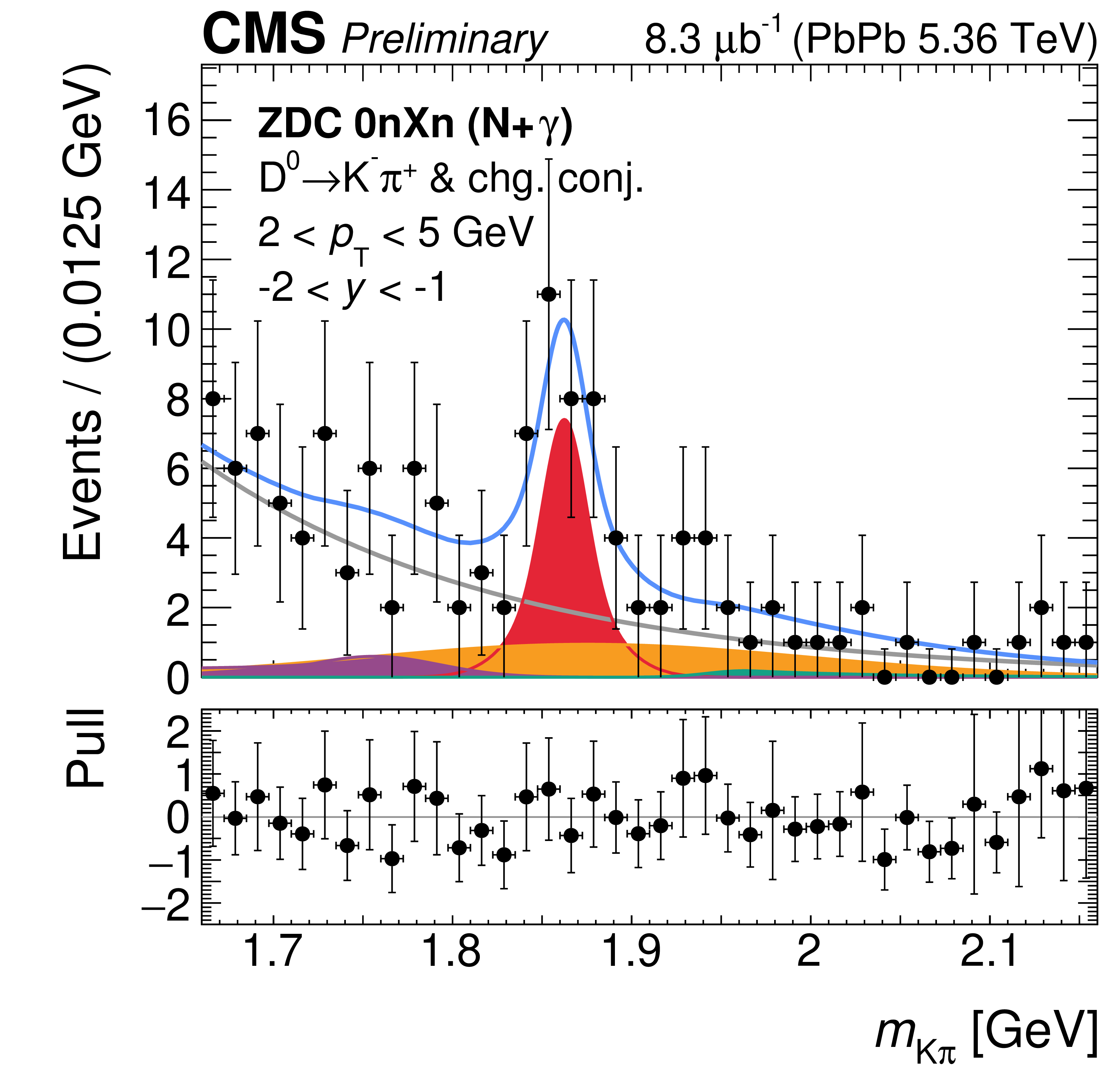

png pdf	Figure 2-a: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \textrm{N}+\gamma $ events. A description of the fitting procedure for the yield extraction is included in the text.

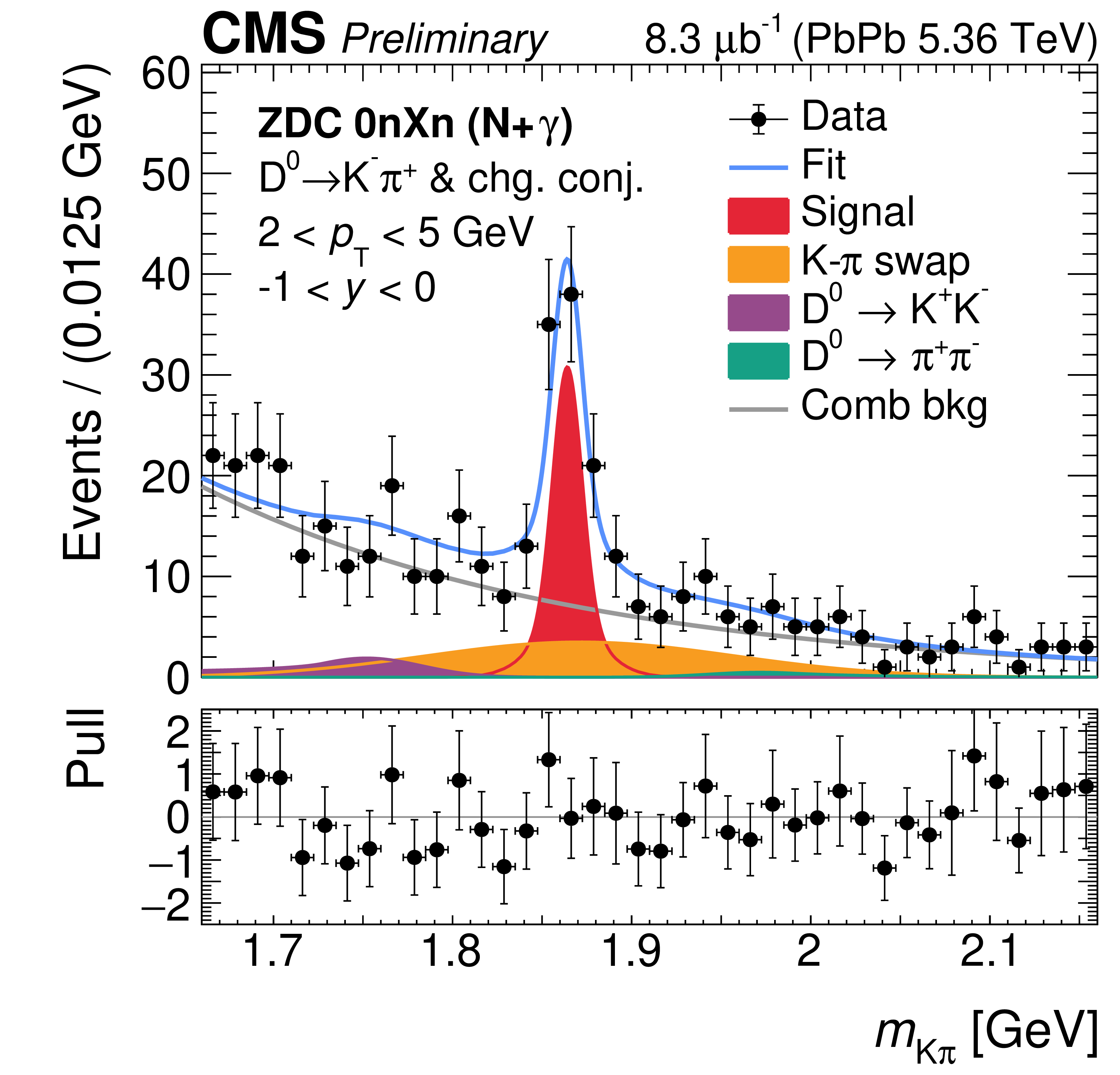

png pdf	Figure 2-b: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \textrm{N}+\gamma $ events. A description of the fitting procedure for the yield extraction is included in the text.

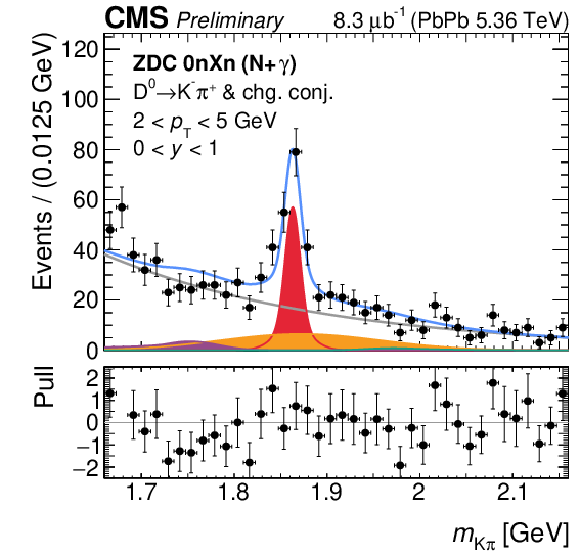

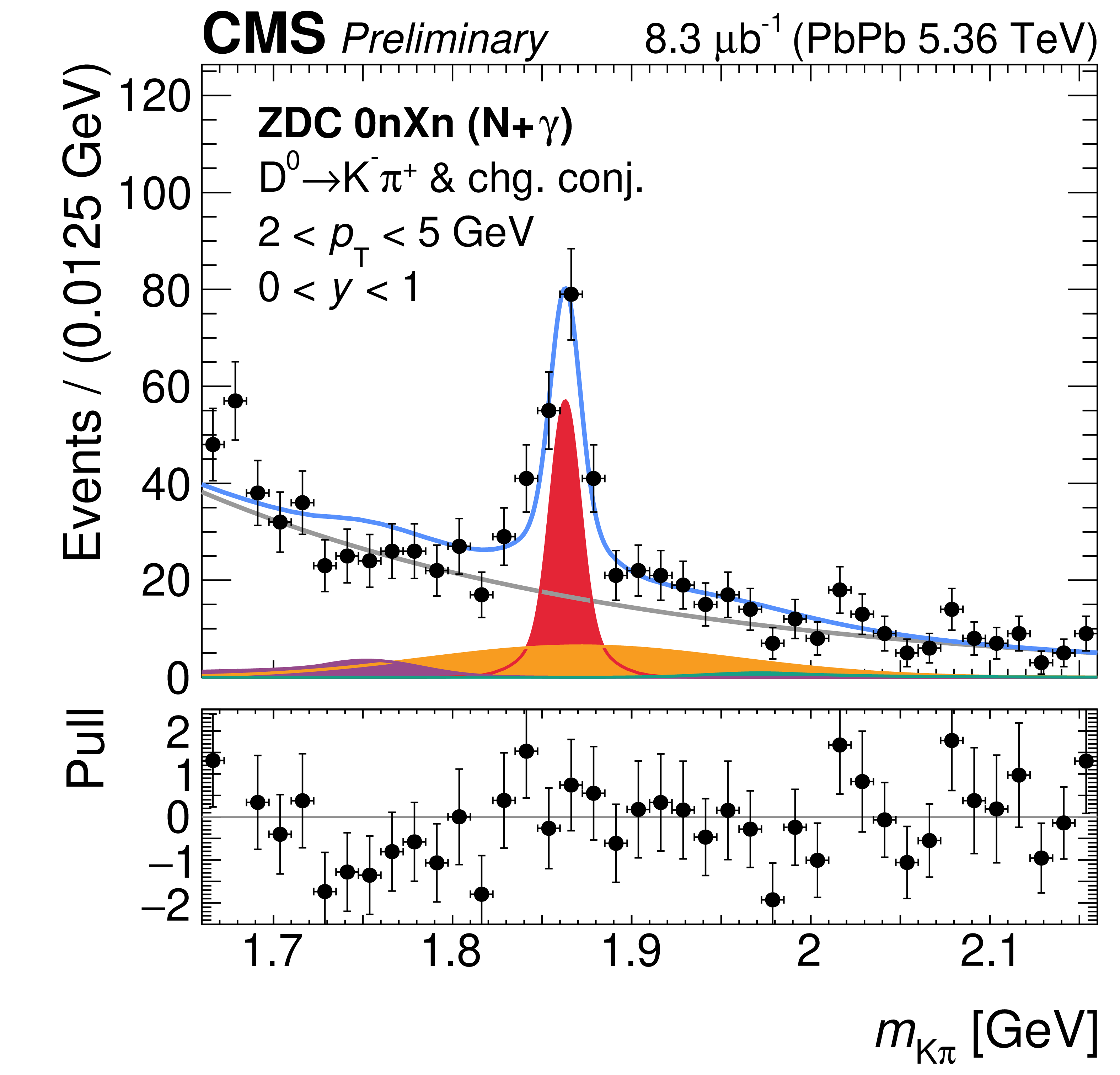

png pdf	Figure 2-c: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \textrm{N}+\gamma $ events. A description of the fitting procedure for the yield extraction is included in the text.
png pdf	Figure 2-d: Mass fit for the $ \mathrm{D^0} $ yield extraction in the $ p_{\mathrm{T}} $-interval 2-5 GeV for $ \textrm{N}+\gamma $ events. A description of the fitting procedure for the yield extraction is included in the text.
png pdf	Figure 3: Double-differential $ \rm D^{0} $ photoproduction cross section ($ {\rm{d}}^2\sigma/{\rm{d}}y{\rm{d}}p_T $) for $ \gamma+\textrm{N} $ (left) and $ \textrm{N}+\gamma $ (right) events. Statistical uncertainties are shown in the vertical lines and the shaded regions represent the systematic uncertainties. The results are compared to the previous analysis [1].

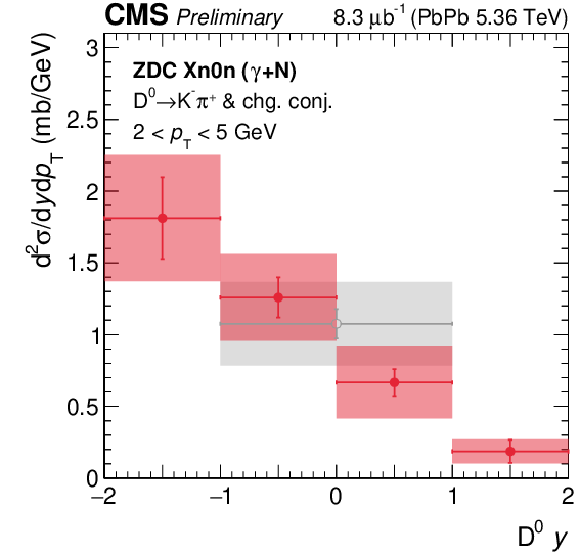

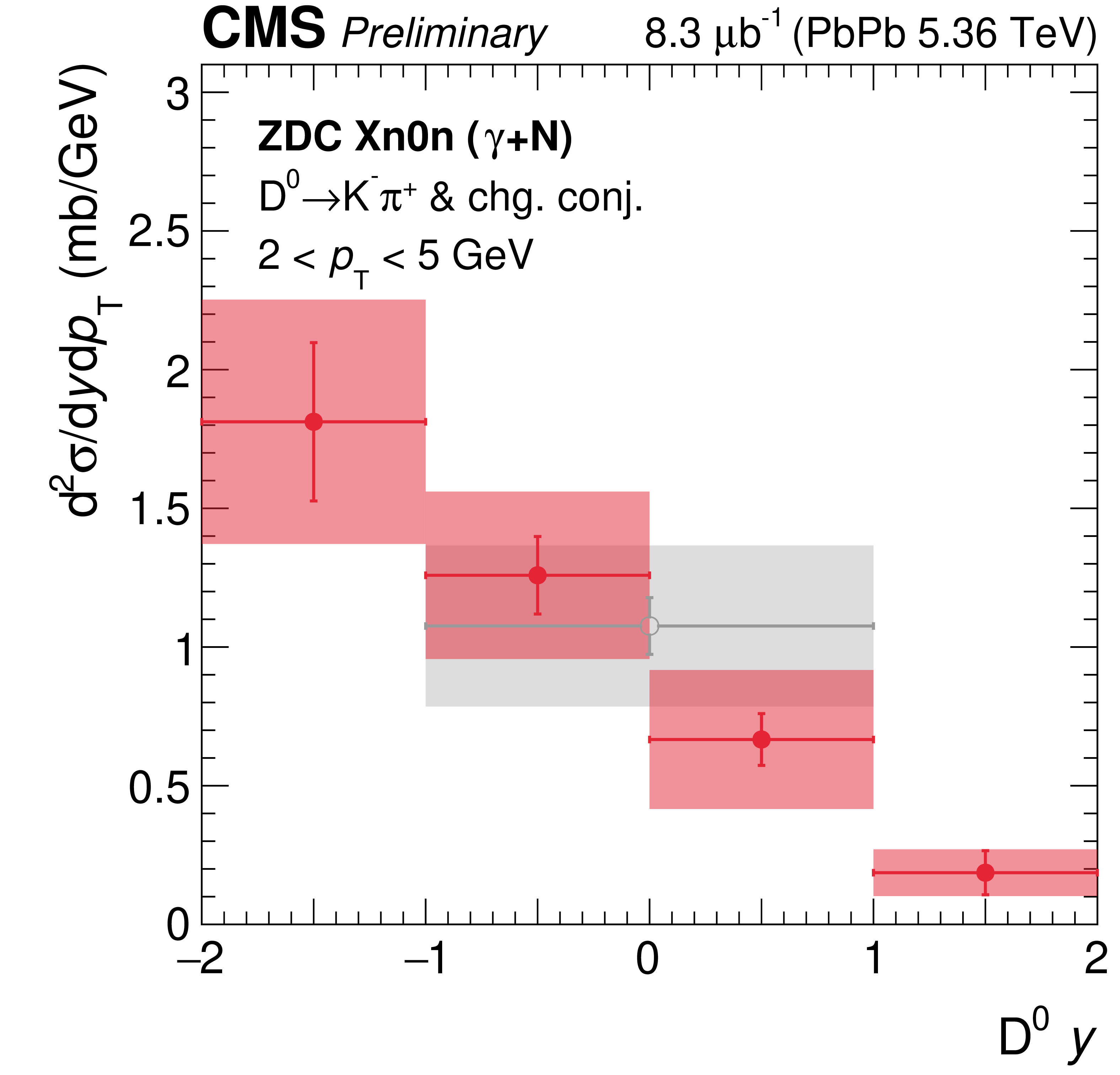

png pdf	Figure 3-a: Double-differential $ \rm D^{0} $ photoproduction cross section ($ {\rm{d}}^2\sigma/{\rm{d}}y{\rm{d}}p_T $) for $ \gamma+\textrm{N} $ (left) and $ \textrm{N}+\gamma $ (right) events. Statistical uncertainties are shown in the vertical lines and the shaded regions represent the systematic uncertainties. The results are compared to the previous analysis [1].

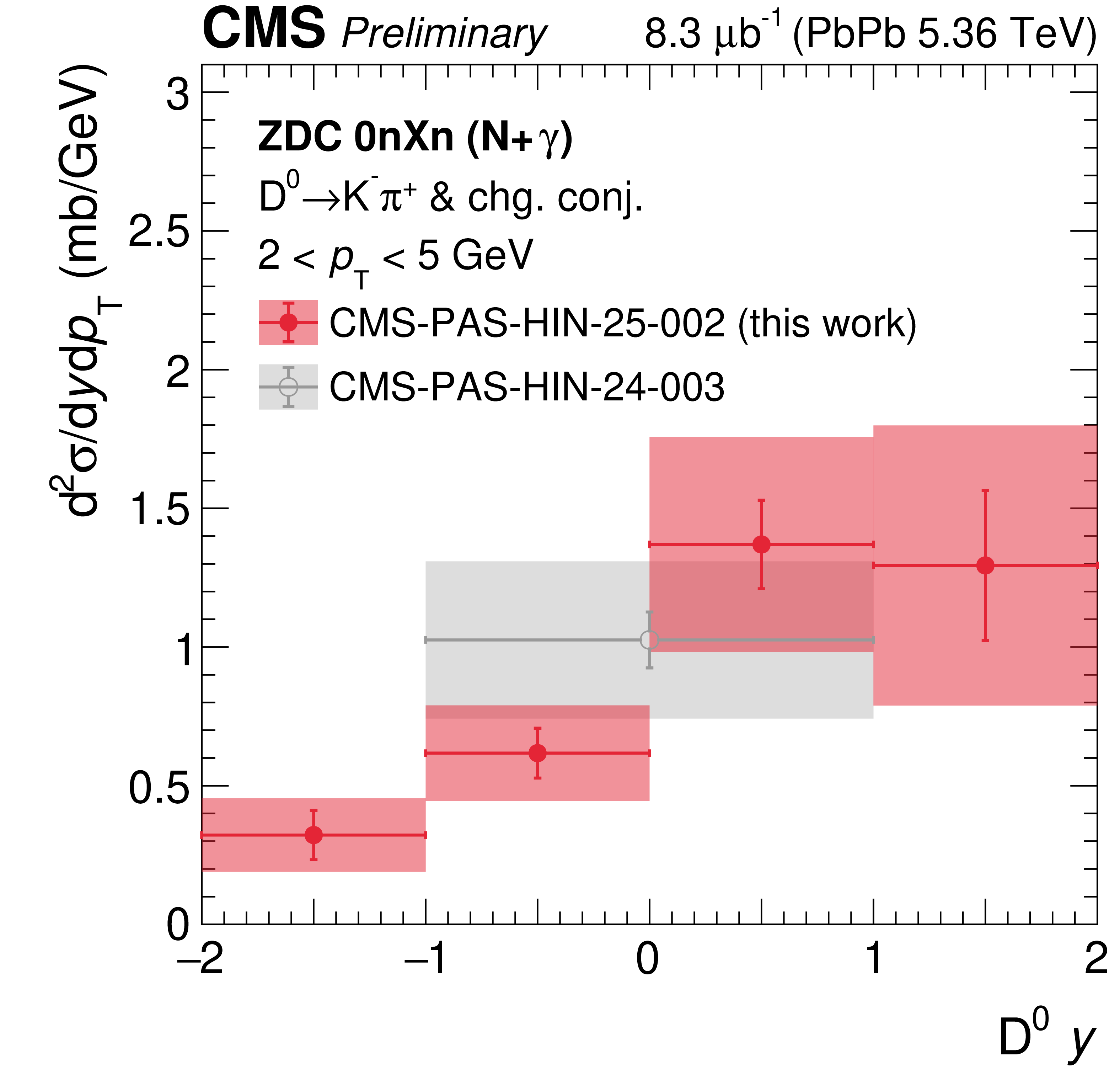

png pdf	Figure 3-b: Double-differential $ \rm D^{0} $ photoproduction cross section ($ {\rm{d}}^2\sigma/{\rm{d}}y{\rm{d}}p_T $) for $ \gamma+\textrm{N} $ (left) and $ \textrm{N}+\gamma $ (right) events. Statistical uncertainties are shown in the vertical lines and the shaded regions represent the systematic uncertainties. The results are compared to the previous analysis [1].

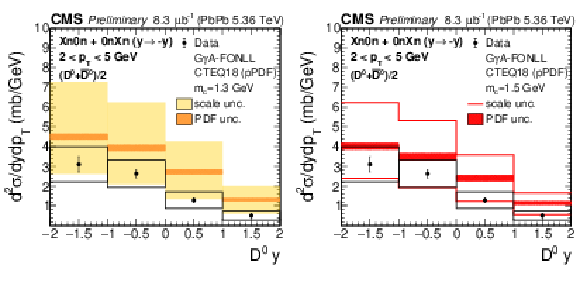

png pdf	Figure 4: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical predictions calculated in the FONLL framework using the CTEQ18 proton PDF parametrization. The prediction with a charm quark mass of $ m_c = $ 1.3 GeV is shown in the left plot, and that with $ m_c = $ 1.5 GeV is shown on the right. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade (solid lines) represents the uncertainty from scale variations on the FONLL calculation for $ m_c = $ 1.3 GeV ($ m_c = $ 1.5 GeV).

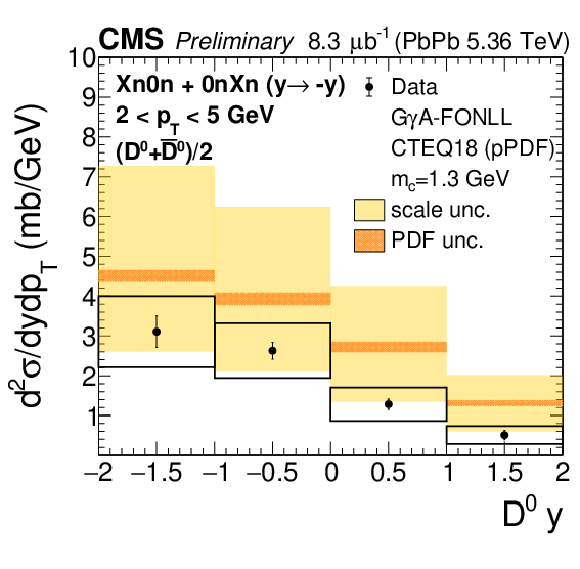

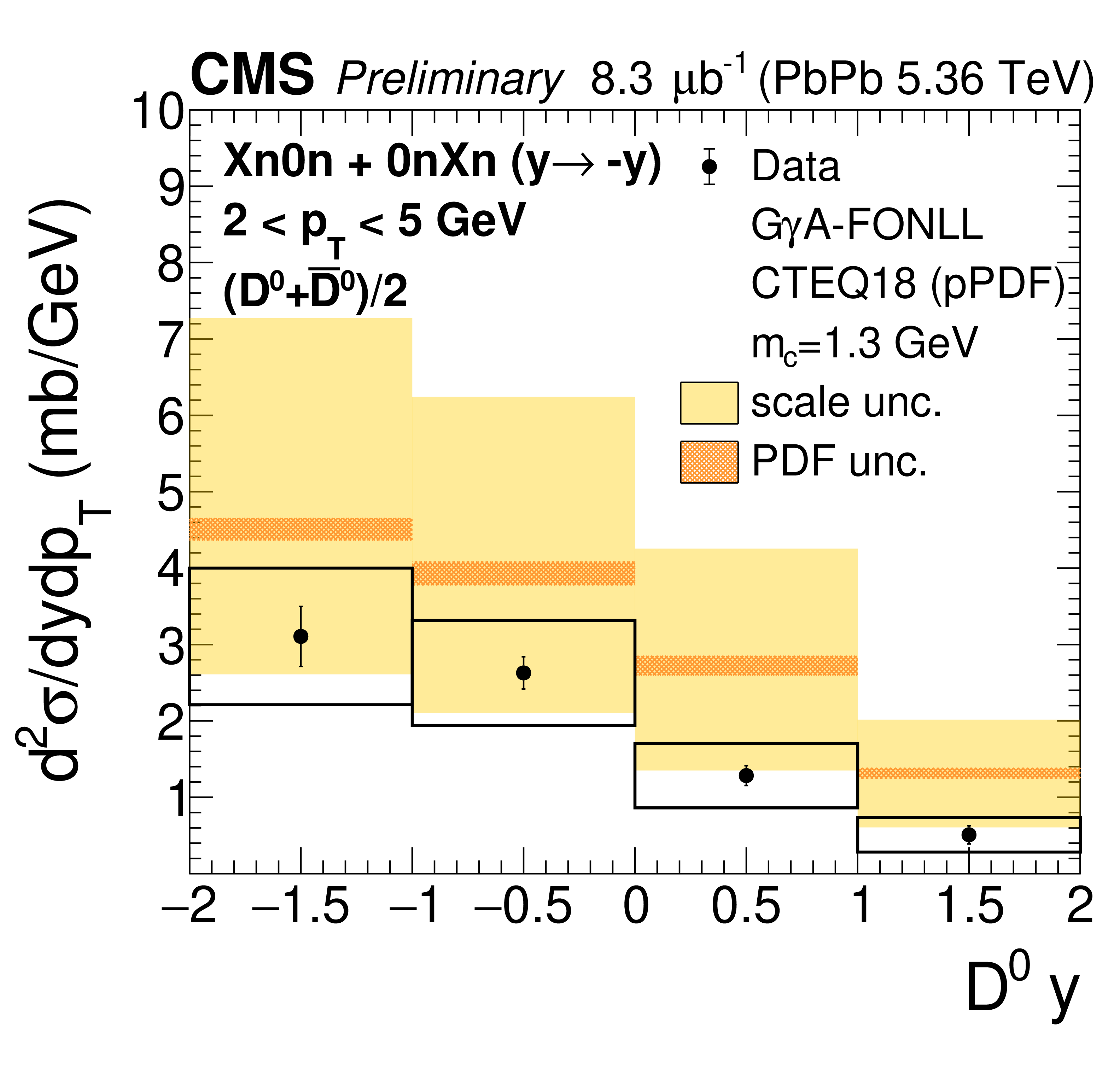

png pdf	Figure 4-a: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical predictions calculated in the FONLL framework using the CTEQ18 proton PDF parametrization. The prediction with a charm quark mass of $ m_c = $ 1.3 GeV is shown in the left plot, and that with $ m_c = $ 1.5 GeV is shown on the right. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade (solid lines) represents the uncertainty from scale variations on the FONLL calculation for $ m_c = $ 1.3 GeV ($ m_c = $ 1.5 GeV).

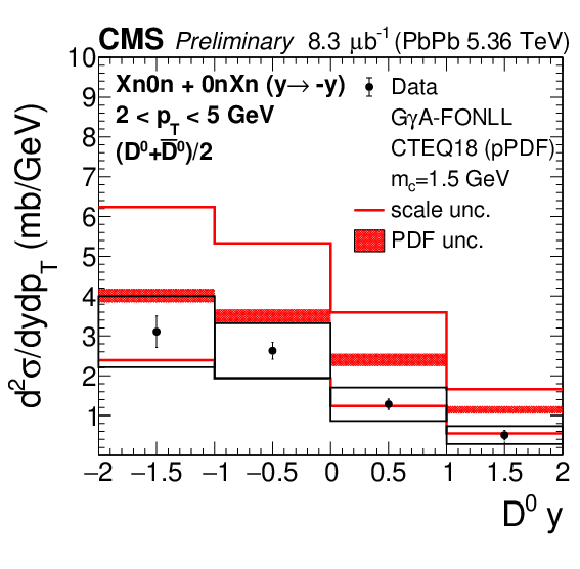

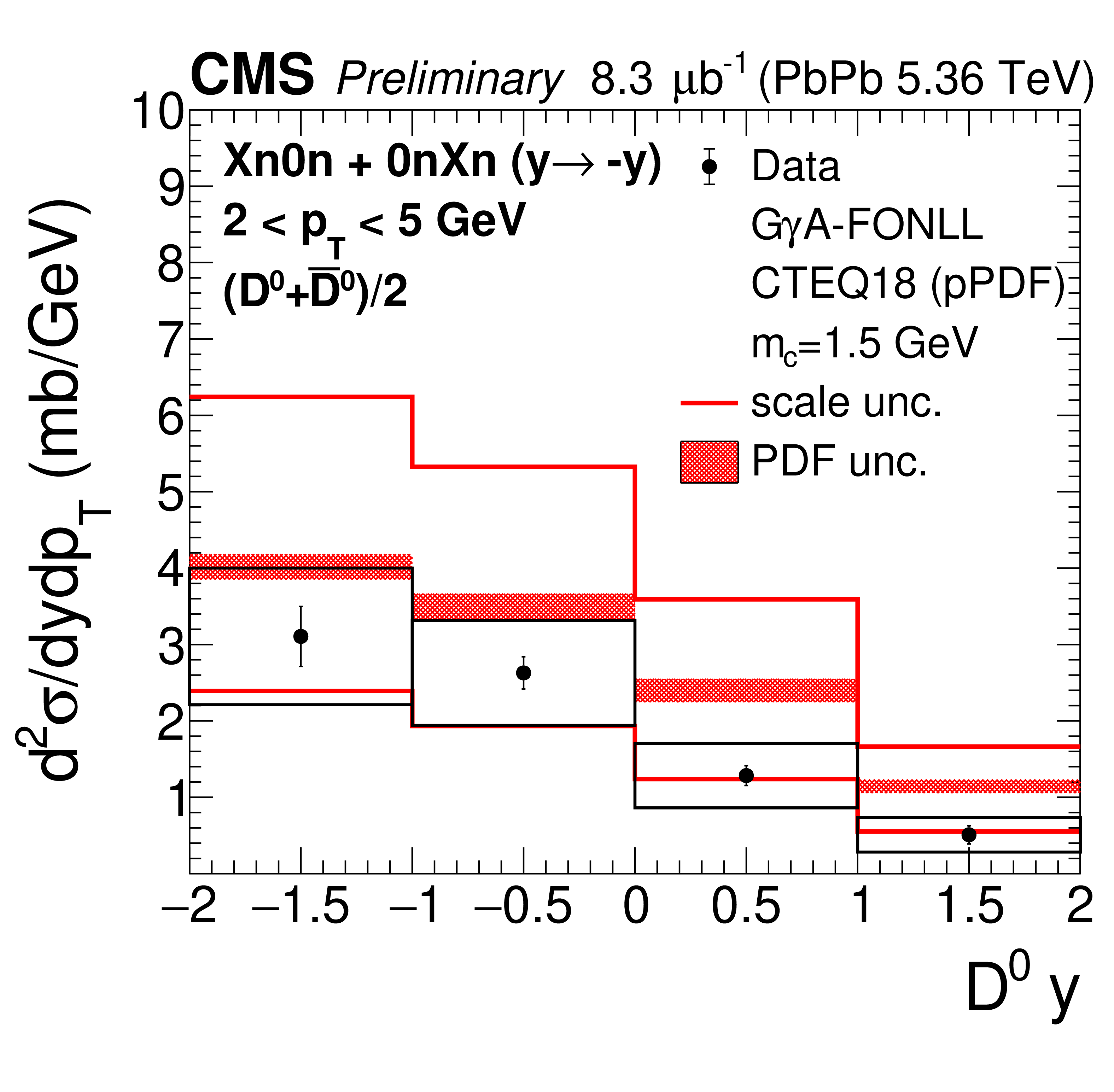

png pdf	Figure 4-b: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical predictions calculated in the FONLL framework using the CTEQ18 proton PDF parametrization. The prediction with a charm quark mass of $ m_c = $ 1.3 GeV is shown in the left plot, and that with $ m_c = $ 1.5 GeV is shown on the right. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade (solid lines) represents the uncertainty from scale variations on the FONLL calculation for $ m_c = $ 1.3 GeV ($ m_c = $ 1.5 GeV).

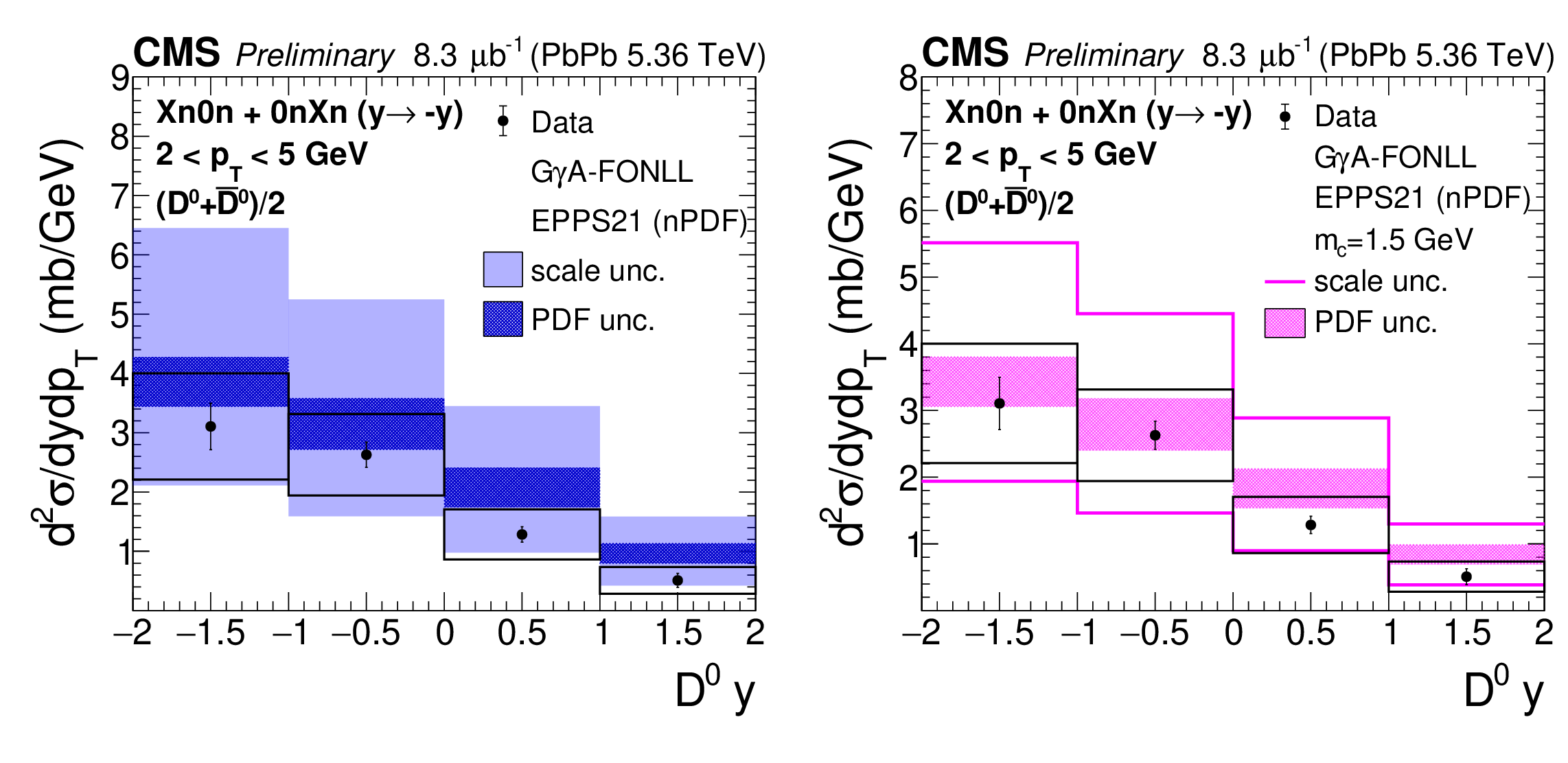

png pdf	Figure 5: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical predictions calculated in the FONLL framework using the EPPS21 nuclear PDF parametrization. The prediction with a charm quark mass of $ m_c = $ 1.3 GeV is shown in the left plot, and that with $ m_c = $ 1.5 GeV is shown on the right. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade represents the uncertainty from scale variations on the FONLL calculation.

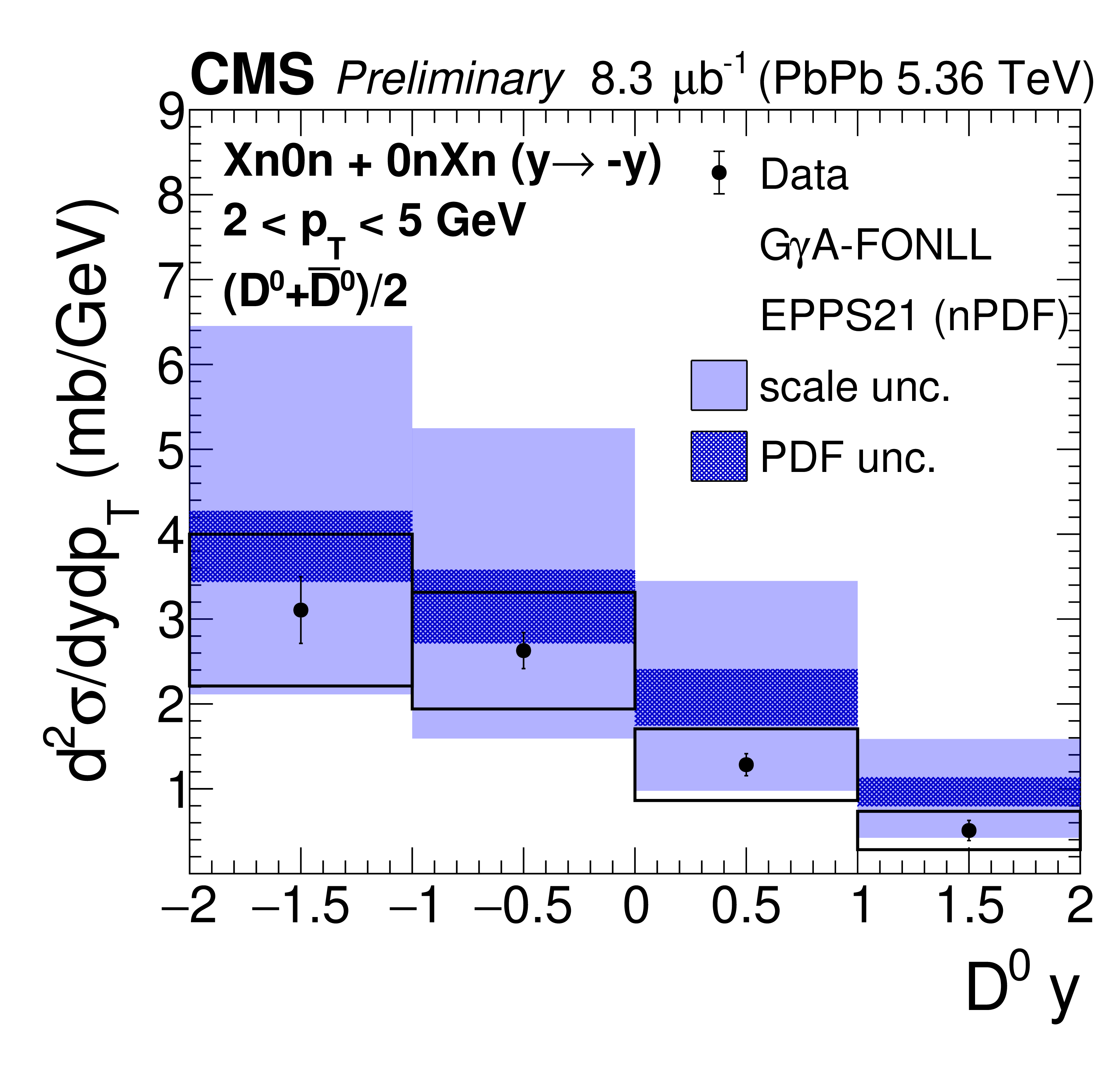

png pdf	Figure 5-a: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical predictions calculated in the FONLL framework using the EPPS21 nuclear PDF parametrization. The prediction with a charm quark mass of $ m_c = $ 1.3 GeV is shown in the left plot, and that with $ m_c = $ 1.5 GeV is shown on the right. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade represents the uncertainty from scale variations on the FONLL calculation.

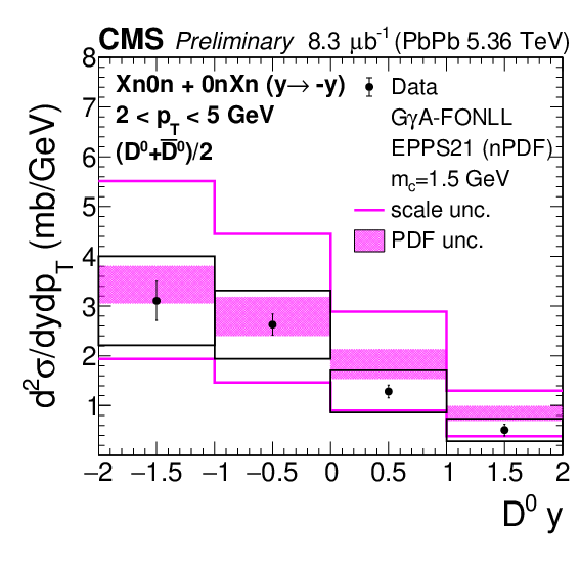

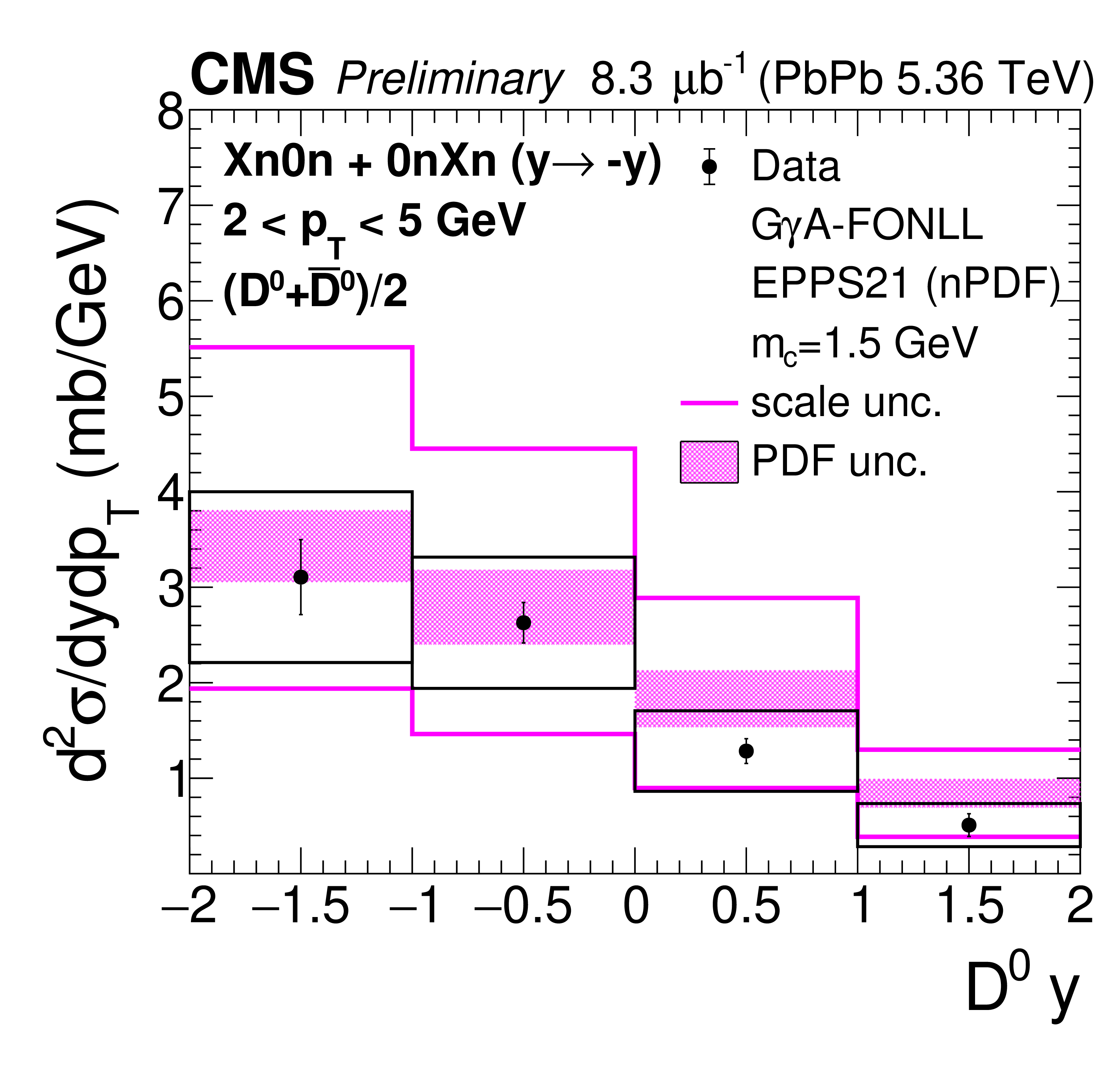

png pdf	Figure 5-b: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical predictions calculated in the FONLL framework using the EPPS21 nuclear PDF parametrization. The prediction with a charm quark mass of $ m_c = $ 1.3 GeV is shown in the left plot, and that with $ m_c = $ 1.5 GeV is shown on the right. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade represents the uncertainty from scale variations on the FONLL calculation.

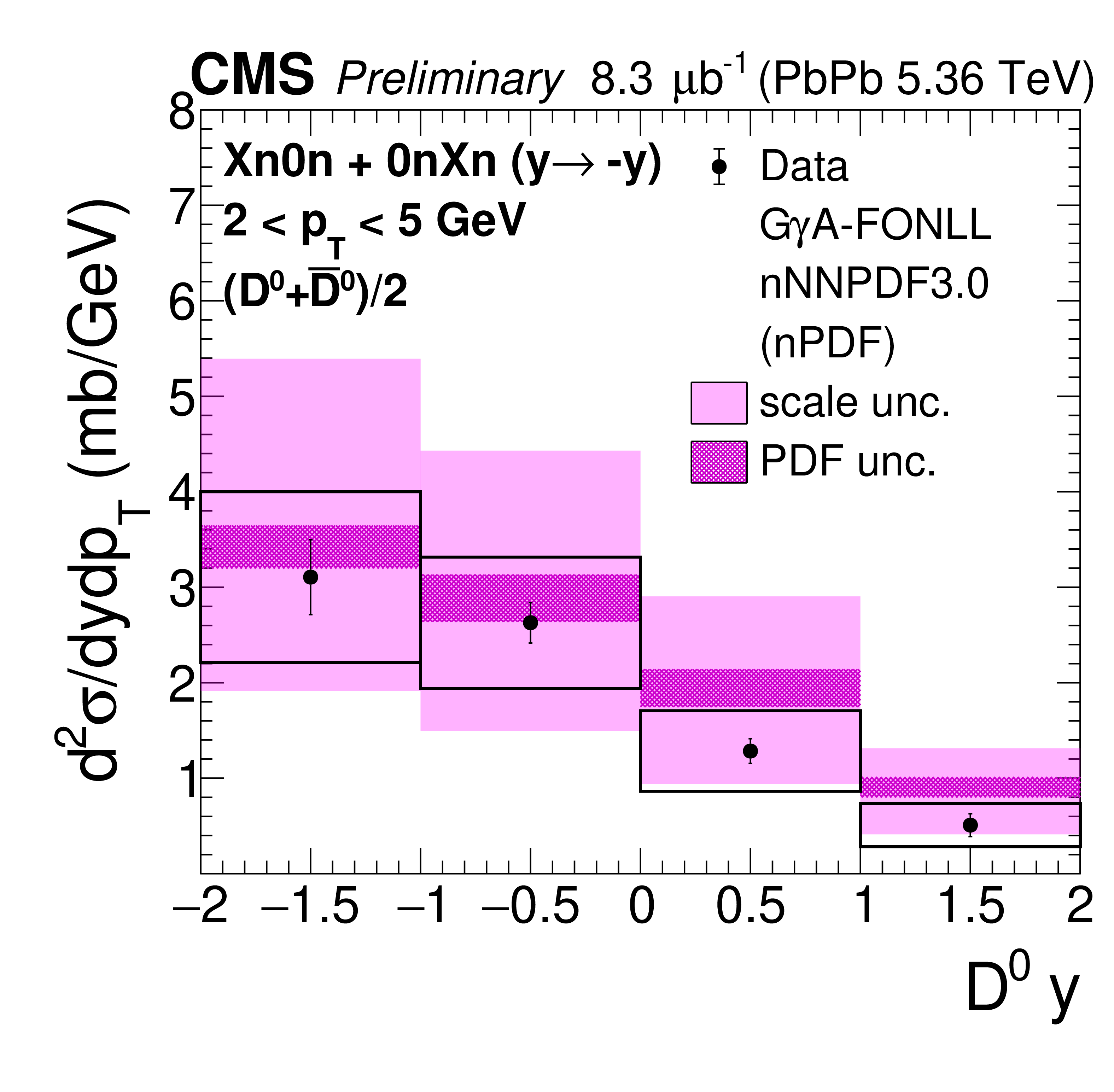

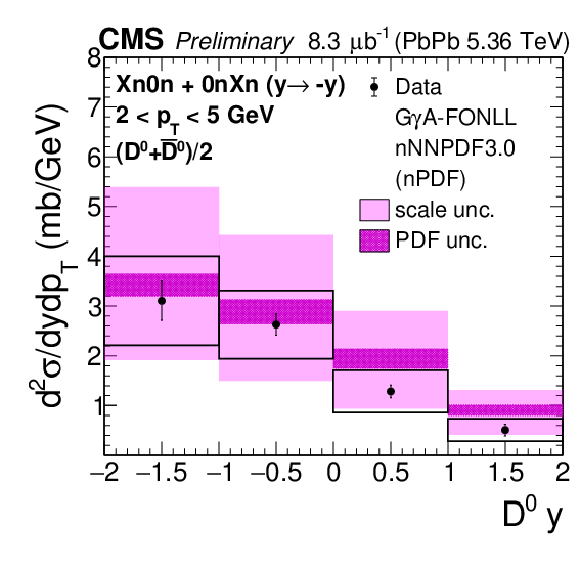

png pdf	Figure 6: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with the theoretical prediction provided by FONLL with nNNPDF3.0 nuclear PDF parametrization. The dark shade represents the uncertainty from the nPDF parametrization, whereas the lighter shade represents the uncertainty from scale variations on the FONLL calculation.

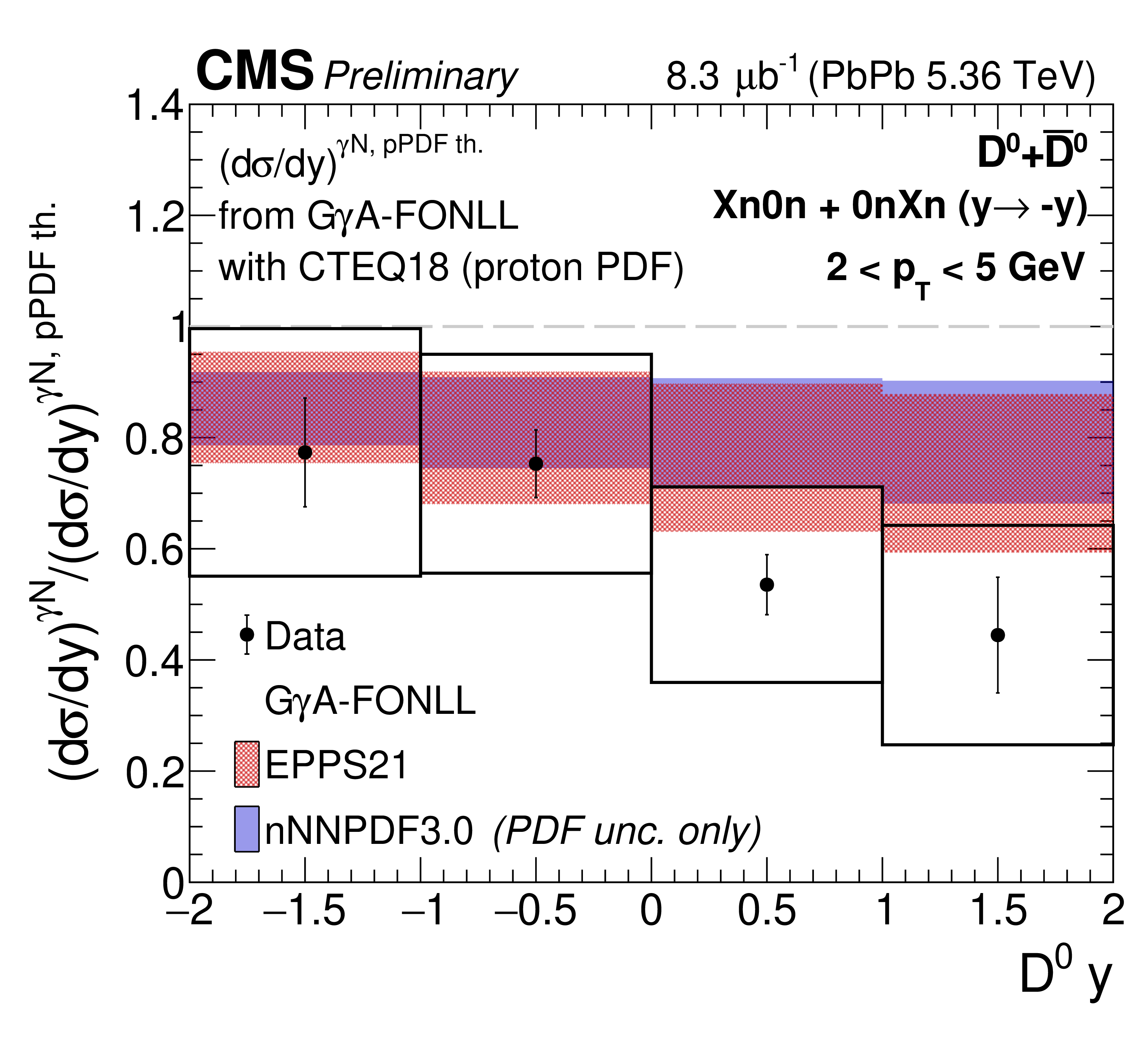

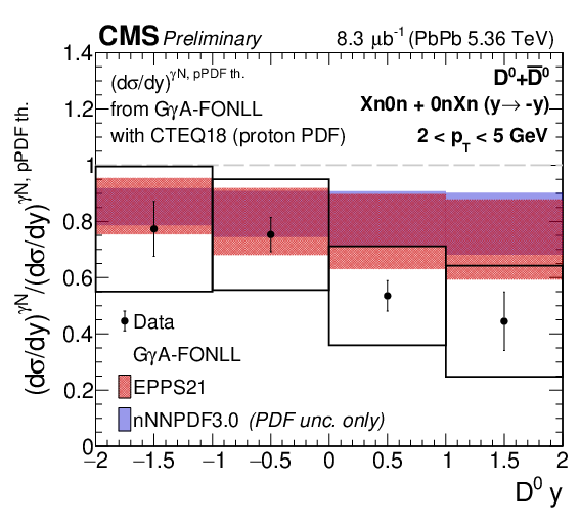

png pdf	Figure 7: Ratio of $ \rm D^{0} $ meson production cross sections relative to FONLL predictions using the CTEQ18 proton PDF parametrization, which serves as the theoretical baseline for the absence of nuclear modification effects. The data (black boxes) are compared with FONLL predictions using EPPS21 (red band) and nNNPDF3.0 (purple band) for nuclear PDFs. Only the uncertainties on the nuclear PDFs are shown.

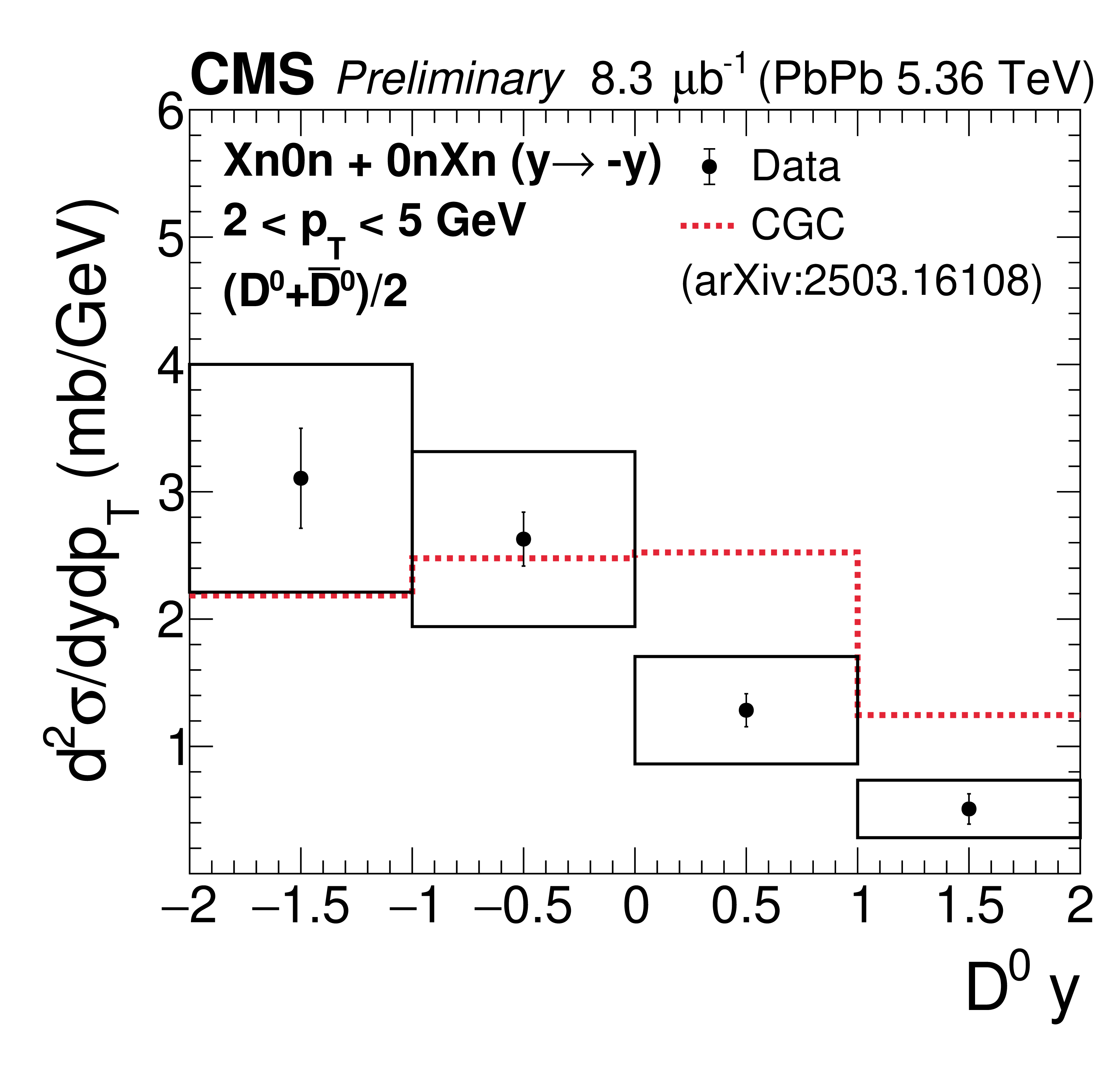

png pdf	Figure 8: Cross section of $ \rm D^{0} $ meson production in data (black boxes) compared with predictions based on the color glass condensate (CGC) formalism (red dotted line). The framework used for the predictions is presented in Ref. [22].

Tables

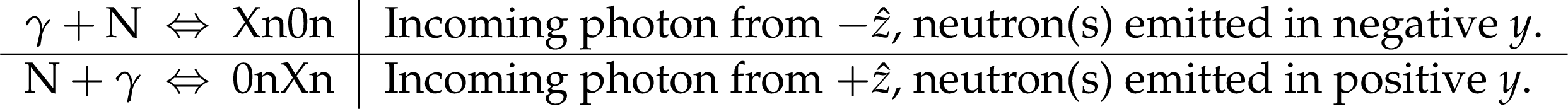

png pdf	Table 1: Summary of directional terminology used in this note.

Summary

This note presents a measurement of the cross section for inclusive (prompt and nonprompt) photonuclear production of $ \rm D^{0} $ mesons as a function of rapidity $ y $ in the $ \rm D^{0} $ $ p_{\mathrm{T}} $ range of 2 $ < p_{\rm T} < $ 5 GeV in ultraperipheral heavy-ion collisions (UPCs). This is the first measurement focusing on the low $ p_{\mathrm{T}} $ region, so far unexplored by previous analyses. The presented $ \rm D^{0} $ meson yields are corrected for detector acceptance and efficiency. The measured cross sections are compared to predictions computed in perturbative quantum chromodynamics (pQCD) using the fixed-order-next-to-leading-logarithm (FONLL) formalism with different parametrizations of parton distribution functions (PDFs). A rapidity-dependent suppression is observed as compared to predictions using proton PDFs, which is consistent with a suppression of low-$ x $ gluons. When compared to predictions that rely on the EPPS21 and nNNPDF3.0 nuclear PDF sets, the measured cross sections are slightly lower than the predicted ones, but still compatible within the uncertainties. Additionally, the data is compared with predictions calculated in the color-glass condensate formalism, which overestimates the measured cross section at low-$ x $. The measured data can be used to constrain the description of cold nuclear matter structure on the low $ x $ and low $ Q^2 $ values in the clean environment provided by photonuclear collisions.

References
1	CMS Collaboration	Constraining nuclear parton dynamics with the first measurement of D0 photoproduction in ultraperipheral heavy-ion collisions at the LHC	CMS Physics Analysis Summary, 2024	CMS-PAS-HIN-24-003
2	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
3	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
4	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
5	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
6	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
7	C. Bierlich et al.	A comprehensive guide to the physics and usage of PYTHIA 8.3	SciPost Phys. Codeb. 2022 (2022) 8	2203.11601
8	F. Cornet, P. Jankowski, M. Krawczyk, and A. Lorca	New 5-flavor LO analysis and parametrization of parton distributions in the real photon	PRD 68 (2003) 014010
9	K. J. Eskola, P. Paakkinen, H. Paukkunen, and C. A. Salgado	EPPS21: a global QCD analysis of nuclear PDFs	EPJC 82 (2022) 413	2112.12462
10	GEANT4 Collaboration	GEANT4 --- a simulation toolkit	NIM A 506 (2003) 250
11	D. J. Lange	The EVTGEN particle decay simulation package	NIM A 462 (2001) 152
12	E. Barberio, B. van Eijk, and Z. Was	PHOTOS: A universal Monte Carlo for QED radiative corrections in decays	Comput. Phys. Commun. 66 (1991) 115
13	CMS Collaboration	Nuclear modification factor of D$ ^0 $ mesons in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV	PLB 782 (2018) 474	CMS-HIN-16-001 1708.04962
14	Particle Data Group Collaboration	Review of particle physics	PRD 110 (2024) 030001
15	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
16	CMS Collaboration	Search for rare charm decays into two muons	CMS Physics Analysis Summary, 2024 CMS-PAS-BPH-23-008	CMS-PAS-BPH-23-008
17	S. Frixione and P. Nason	Phenomenological study of charm photoproduction at HERA	JHEP 03 (2002) 053	hep-ph/0201281
18	A. Stasto and G. Innocenti	Paper in preparation
19	K. J. Eskola et al.	Spatial resolution of dijet photoproduction in near-encounter ultraperipheral nuclear collisions	Phys. Rev. C 110 (2024) 054906	2404.09731
20	T.-J. Hou et al.	New CTEQ global analysis of quantum chromodynamics with high-precision data from the LHC	PRD 103 (2021) 014013	1912.10053
21	R. Abdul Khalek et al.	nNNPDF3.0: evidence for a modified partonic structure in heavy nuclei	EPJC 82 (2022) 507	2201.12363
22	P. Gimeno-Estivill, T. Lappi, and H. Mäntysaari	Inclusive $ \mathrm{D}^0 $ photoproduction in ultraperipheral collisions		2503.16108
23	I. Balitsky	Operator expansion for high-energy scattering	NPB 463 (1996) 99	hep-ph/9509348
24	Y. V. Kovchegov	Small x F(2) structure function of a nucleus including multiple pomeron exchanges	PRD 60 (1999) 034008	hep-ph/9901281
