Search for soft unclustered energy patterns in pp collisions at 13 TeV using CMS data scouting
CMS Collaboration
2026-03-14

Abstract: A search for soft unclustered energy patterns (SUEPs) is conducted using proton-proton collision data corresponding to an integrated luminosity of 127 fb$ ^{-1} $ at a center-of-mass energy of 13 TeV, collected via the data scouting stream of the CMS experiment at the LHC. The scouting strategy records only the results of the trigger-level reconstruction in order to enable a lower threshold on the hadronic activity, increasing the acceptance for SUEP signatures, which are predicted by hidden valley models with a large 't Hooft coupling. The observed results are consistent with the standard model background prediction, and the most stringent limits to date are set on the gluon fusion production of heavy scalar mediators resulting in SUEP-like signals.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures	Summary	References	CMS Publications

Figures

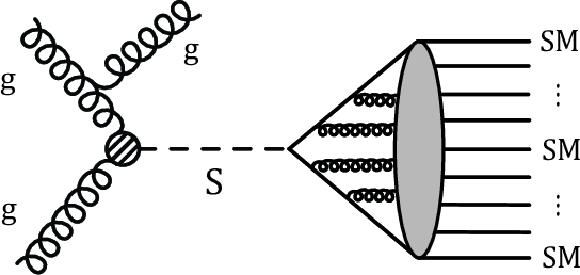

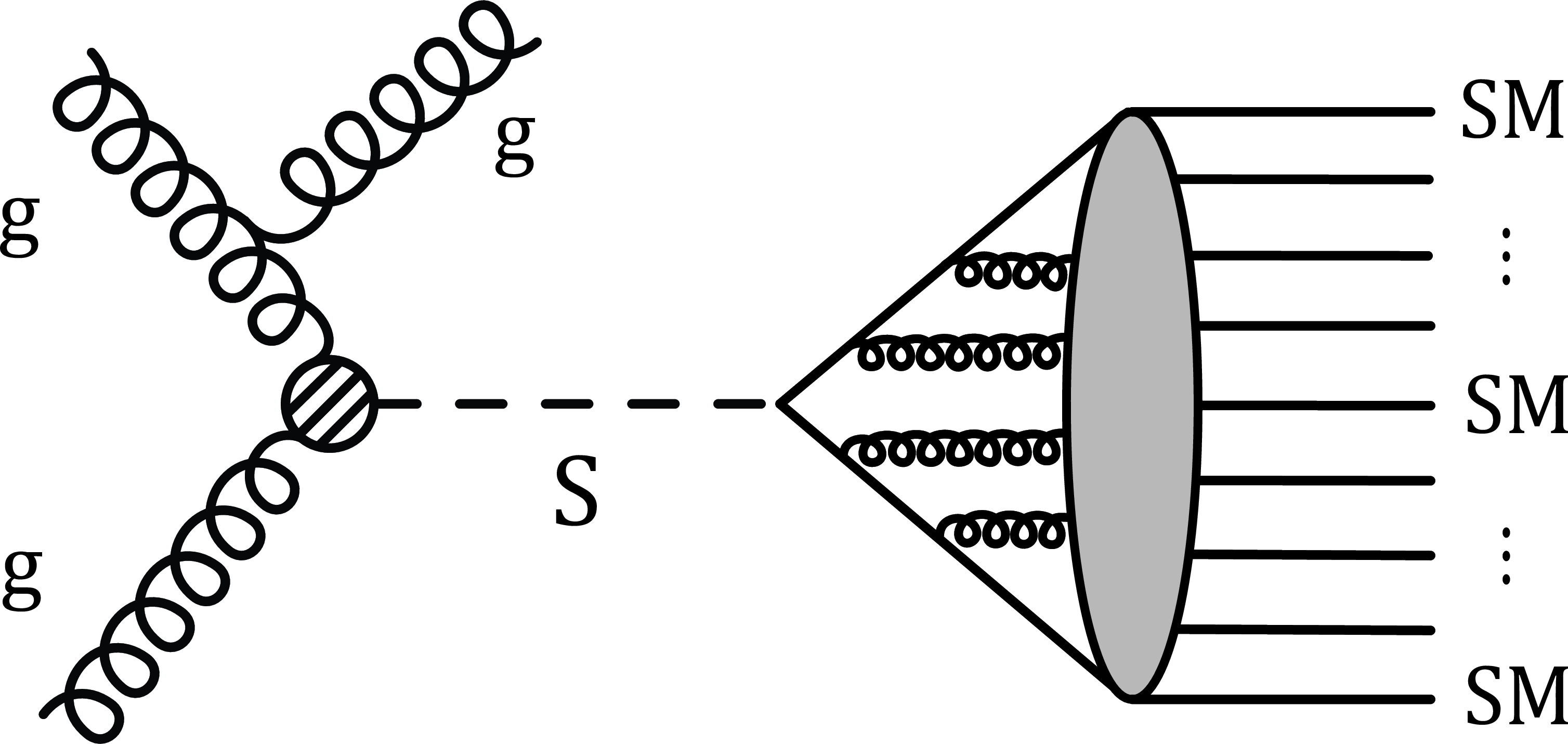

png pdf	Figure 1: A schematic Feynman diagram of the signal model with the SUEP signature.

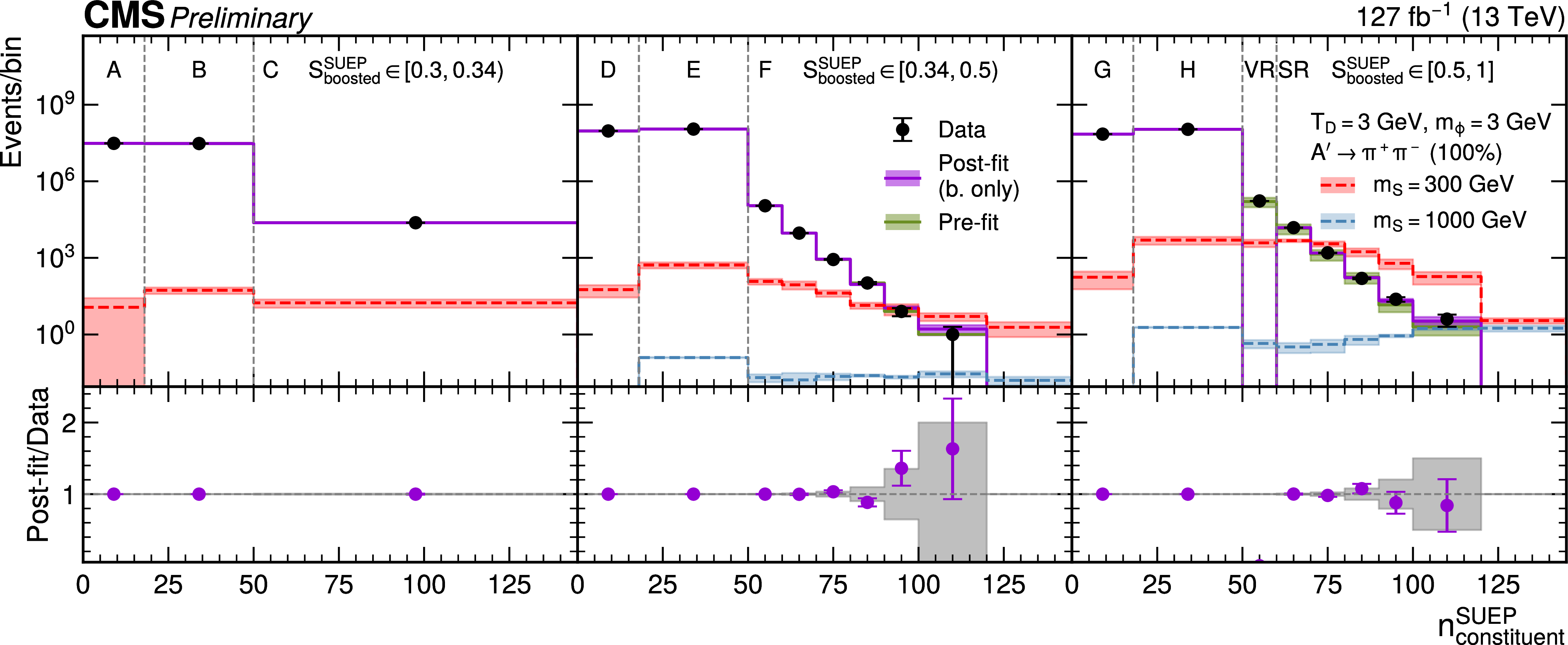

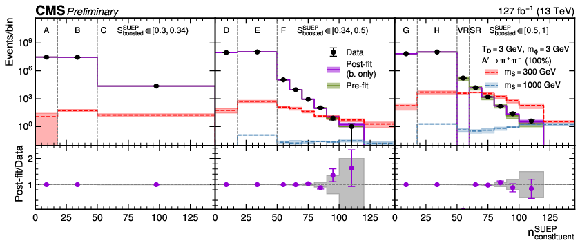

png pdf	Figure 2: The observed $ n_{\text{constituent}}^{\text{SUEP}} $ distributions for various ranges of $ S^{\text{SUEP}}_{\text{boosted}} $ (left: 0.30 $ \leq S^{\text{SUEP}}_{\text{boosted}} < $ 0.34, middle: 0.34 $ \leq S^{\text{SUEP}}_{\text{boosted}} < $ 0.5, right: $ S^{\text{SUEP}}_{\text{boosted}} \geq $ 0.5), compared to the background prediction in the SR. The pre-fit expected background, the background-only fit result, and two signal models with $ m_{\text{S}} = $ 300 and 1000 GeV are shown. Both signal models have $ m_{\phi} = T_{\text{D}} = $ 3 GeV and $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays). The vertical dashed lines mark the boundaries that separate the CRs and the SR.

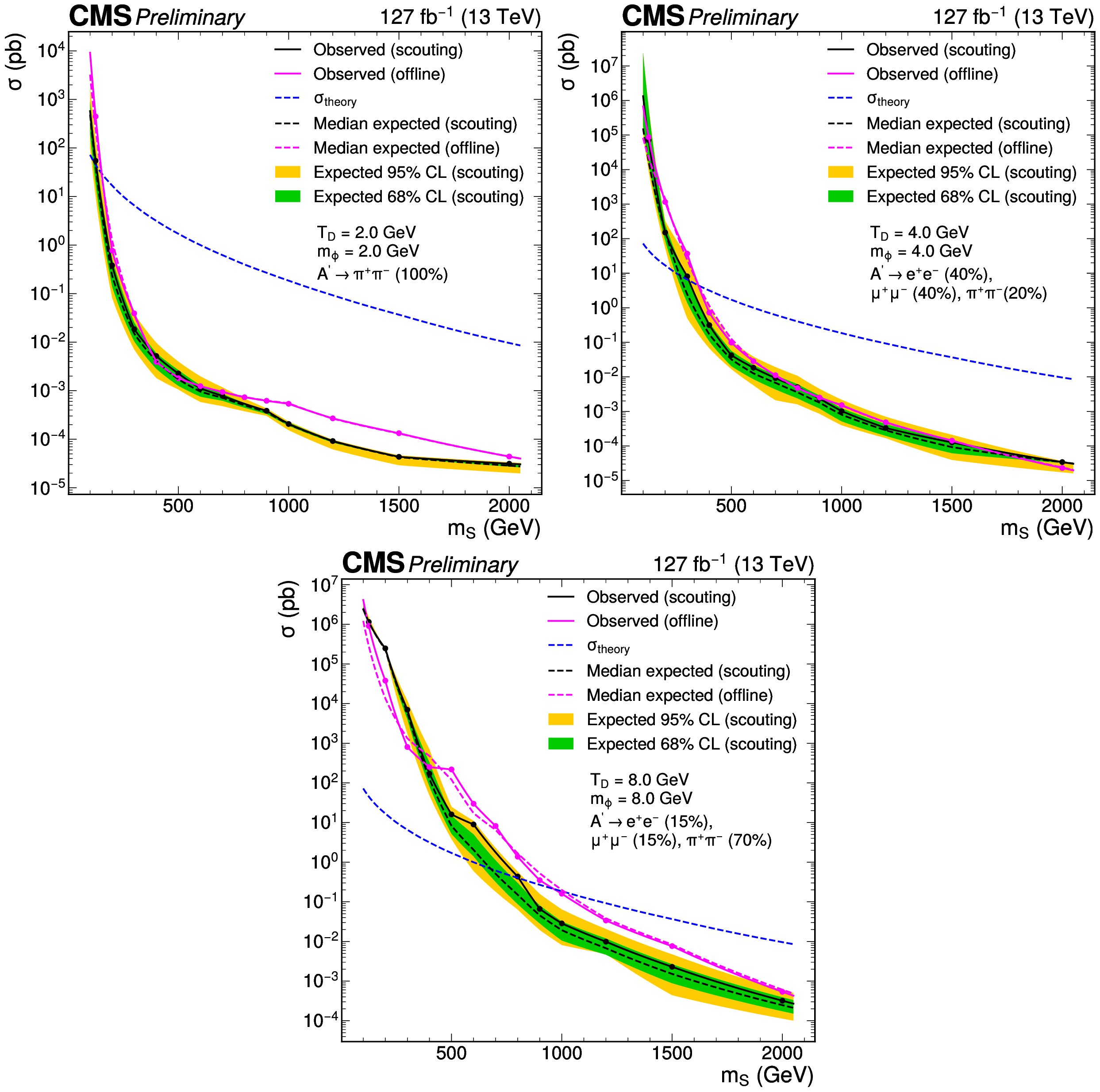

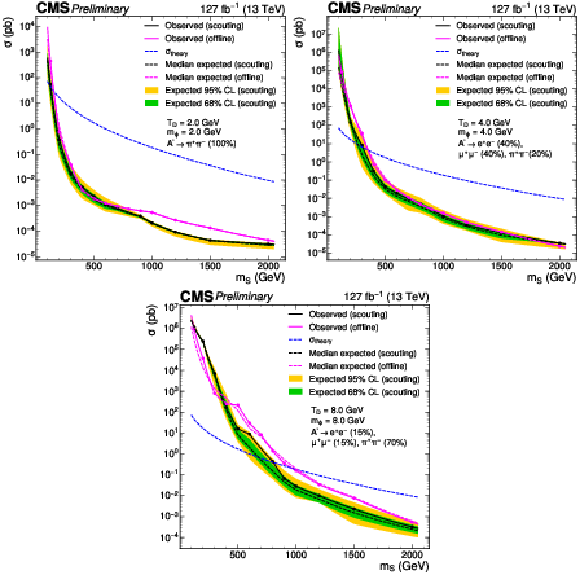

png pdf	Figure 3: Expected and observed upper limits on the signal cross sections with respect to the mediator masses $ m_{\text{S}} $, comparing this data scouting analysis to the previous offline analysis [29]. Signal models with different values of the temperature, dark hadron mass, and dark photon mass are shown (upper left: $ T_{\text{D}} = $ 2 GeV, $ m_{\phi} = $ 2.0 GeV, $ m_{\text{A}^{\prime}} = $ 1 GeV; upper right: $ T_{\text{D}} = $ 4.0 GeV, $ m_{\phi} = $ 4.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.5 GeV; lower: $ T_{\text{D}} = $ 8.0 GeV, $ m_{\phi} = $ 8.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.7 GeV).

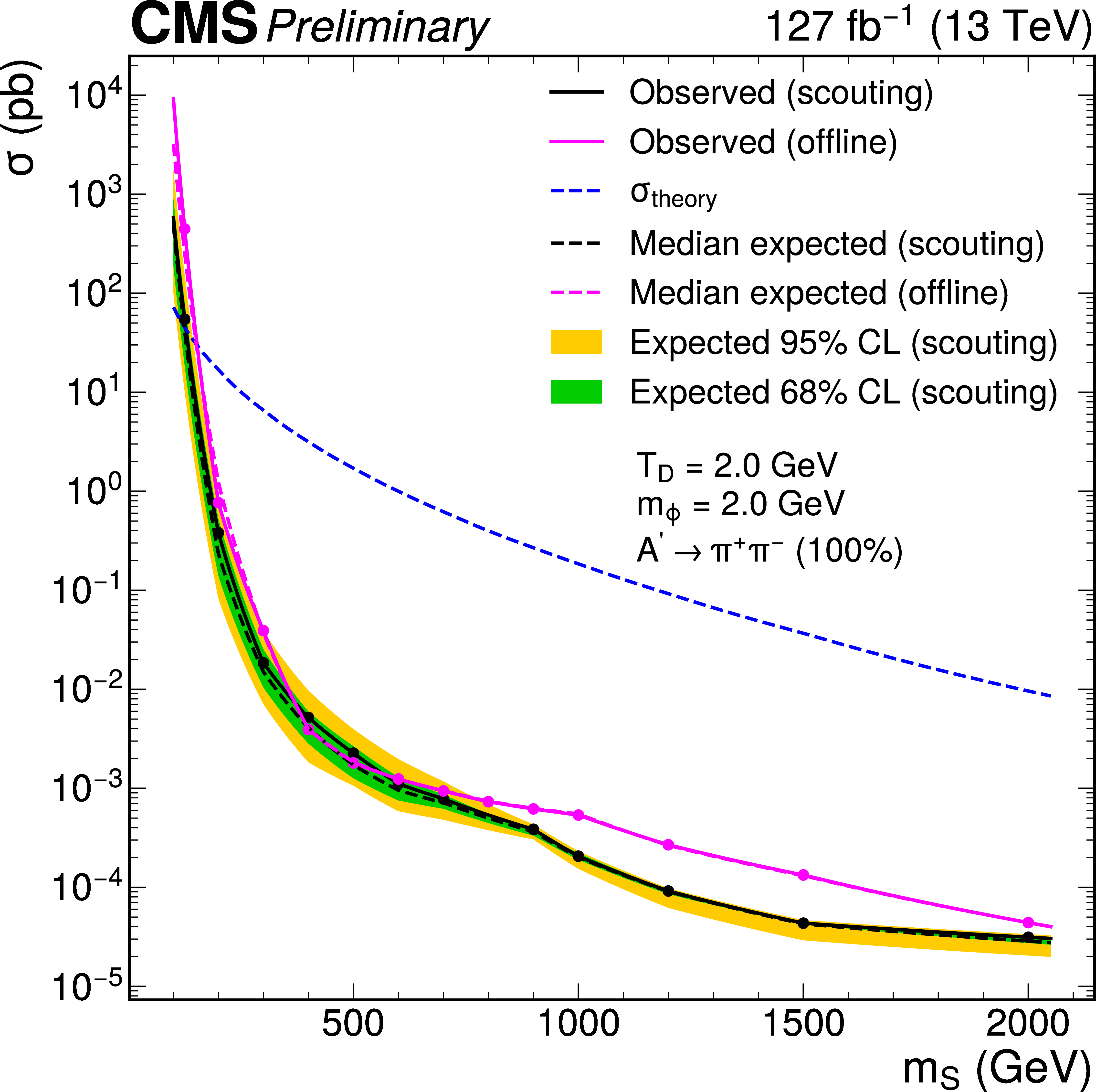

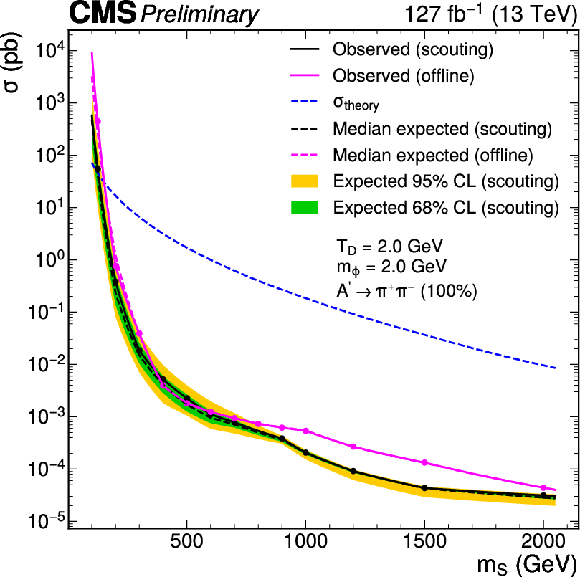

png pdf	Figure 3-a: Expected and observed upper limits on the signal cross sections with respect to the mediator masses $ m_{\text{S}} $, comparing this data scouting analysis to the previous offline analysis [29]. Signal models with different values of the temperature, dark hadron mass, and dark photon mass are shown (upper left: $ T_{\text{D}} = $ 2 GeV, $ m_{\phi} = $ 2.0 GeV, $ m_{\text{A}^{\prime}} = $ 1 GeV; upper right: $ T_{\text{D}} = $ 4.0 GeV, $ m_{\phi} = $ 4.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.5 GeV; lower: $ T_{\text{D}} = $ 8.0 GeV, $ m_{\phi} = $ 8.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.7 GeV).

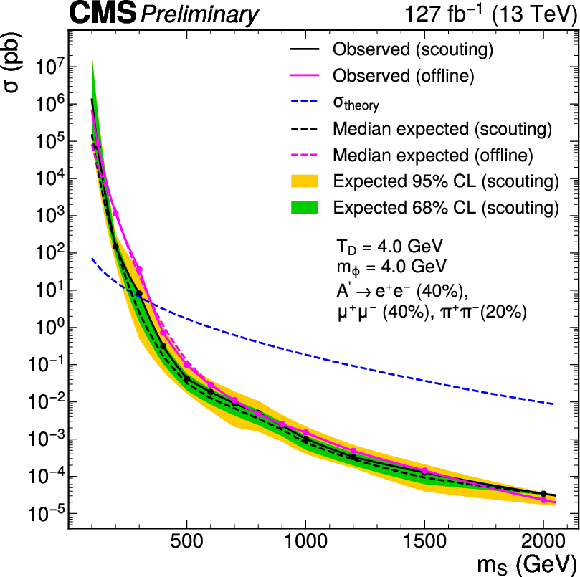

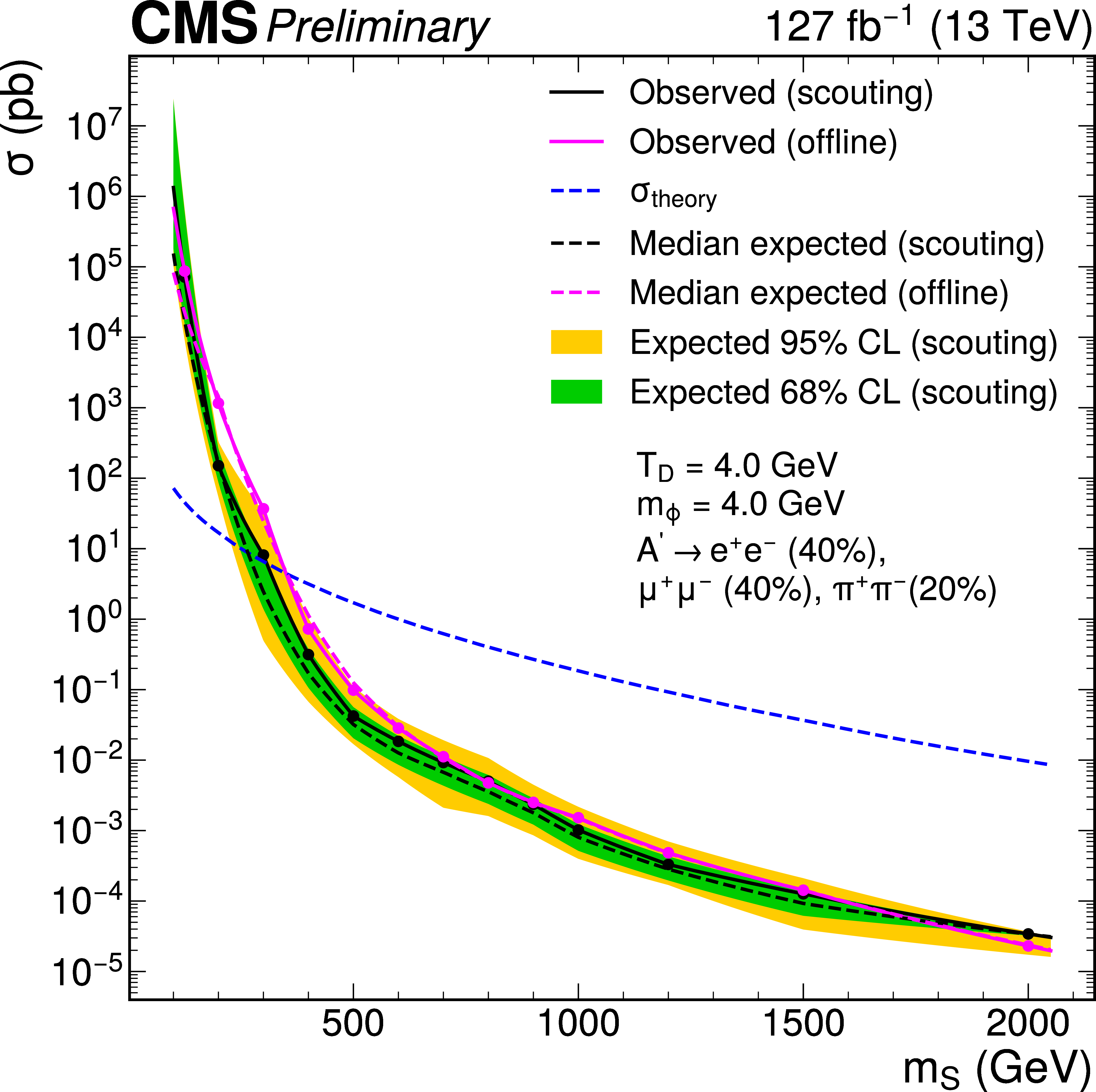

png pdf	Figure 3-b: Expected and observed upper limits on the signal cross sections with respect to the mediator masses $ m_{\text{S}} $, comparing this data scouting analysis to the previous offline analysis [29]. Signal models with different values of the temperature, dark hadron mass, and dark photon mass are shown (upper left: $ T_{\text{D}} = $ 2 GeV, $ m_{\phi} = $ 2.0 GeV, $ m_{\text{A}^{\prime}} = $ 1 GeV; upper right: $ T_{\text{D}} = $ 4.0 GeV, $ m_{\phi} = $ 4.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.5 GeV; lower: $ T_{\text{D}} = $ 8.0 GeV, $ m_{\phi} = $ 8.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.7 GeV).

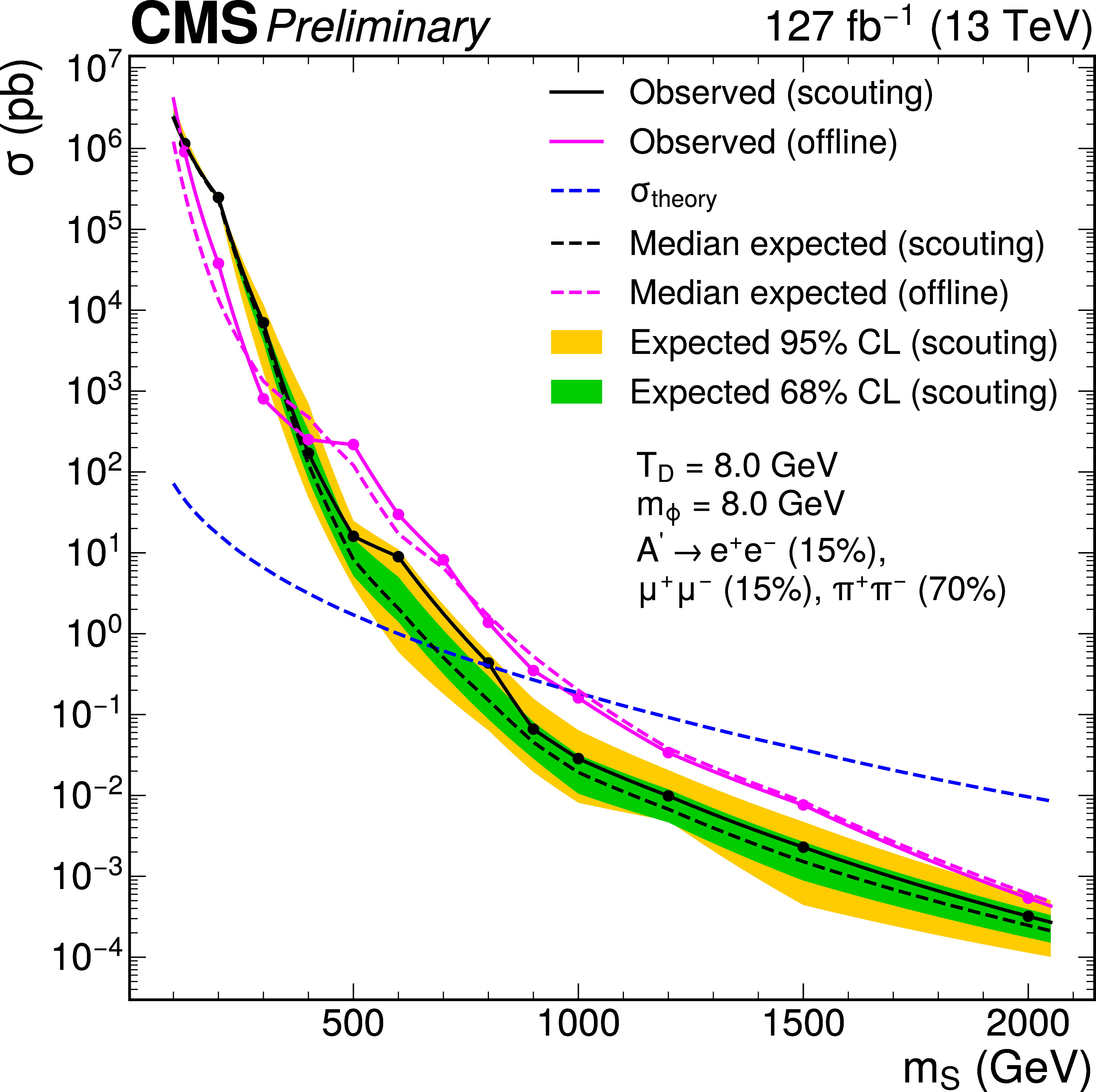

png pdf	Figure 3-c: Expected and observed upper limits on the signal cross sections with respect to the mediator masses $ m_{\text{S}} $, comparing this data scouting analysis to the previous offline analysis [29]. Signal models with different values of the temperature, dark hadron mass, and dark photon mass are shown (upper left: $ T_{\text{D}} = $ 2 GeV, $ m_{\phi} = $ 2.0 GeV, $ m_{\text{A}^{\prime}} = $ 1 GeV; upper right: $ T_{\text{D}} = $ 4.0 GeV, $ m_{\phi} = $ 4.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.5 GeV; lower: $ T_{\text{D}} = $ 8.0 GeV, $ m_{\phi} = $ 8.0 GeV, $ m_{\text{A}^{\prime}} = $ 0.7 GeV).

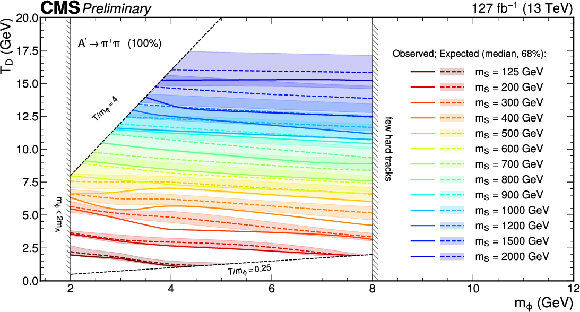

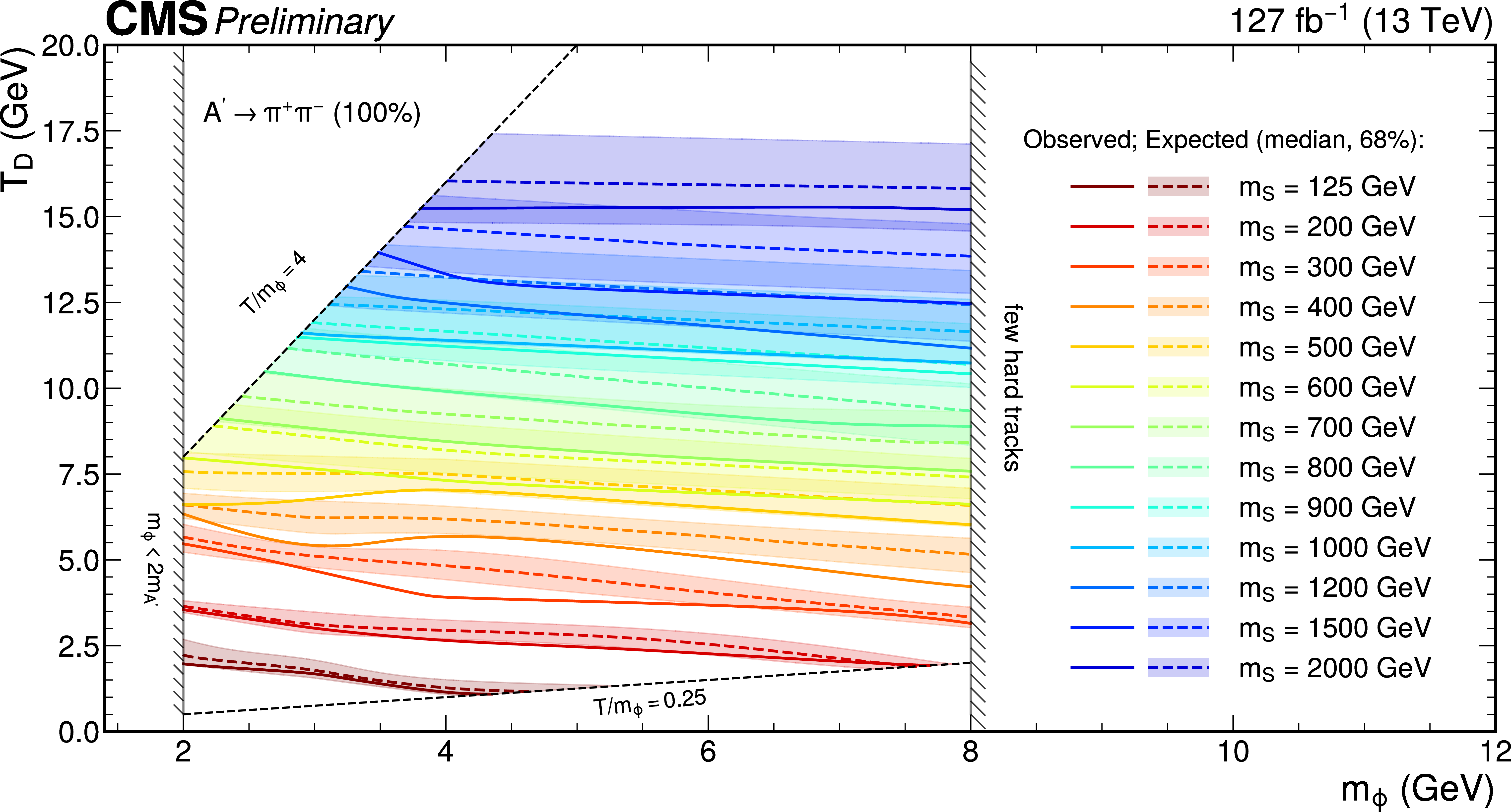

png pdf	Figure 4: Expected and observed exclusions of signal parameters assuming the nominal $ \text{S} $ cross sections for signal models with $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays) as a function of $ T_{\text{D}} $ and $ m_{\phi} $ for different $ m_{\text{S}} $ values. The parameter space below the lines is excluded.

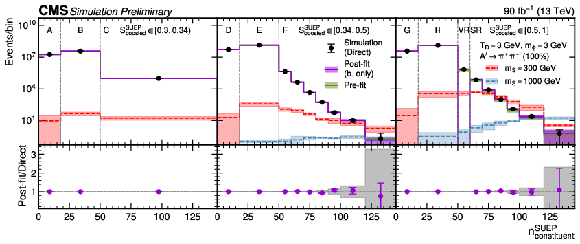

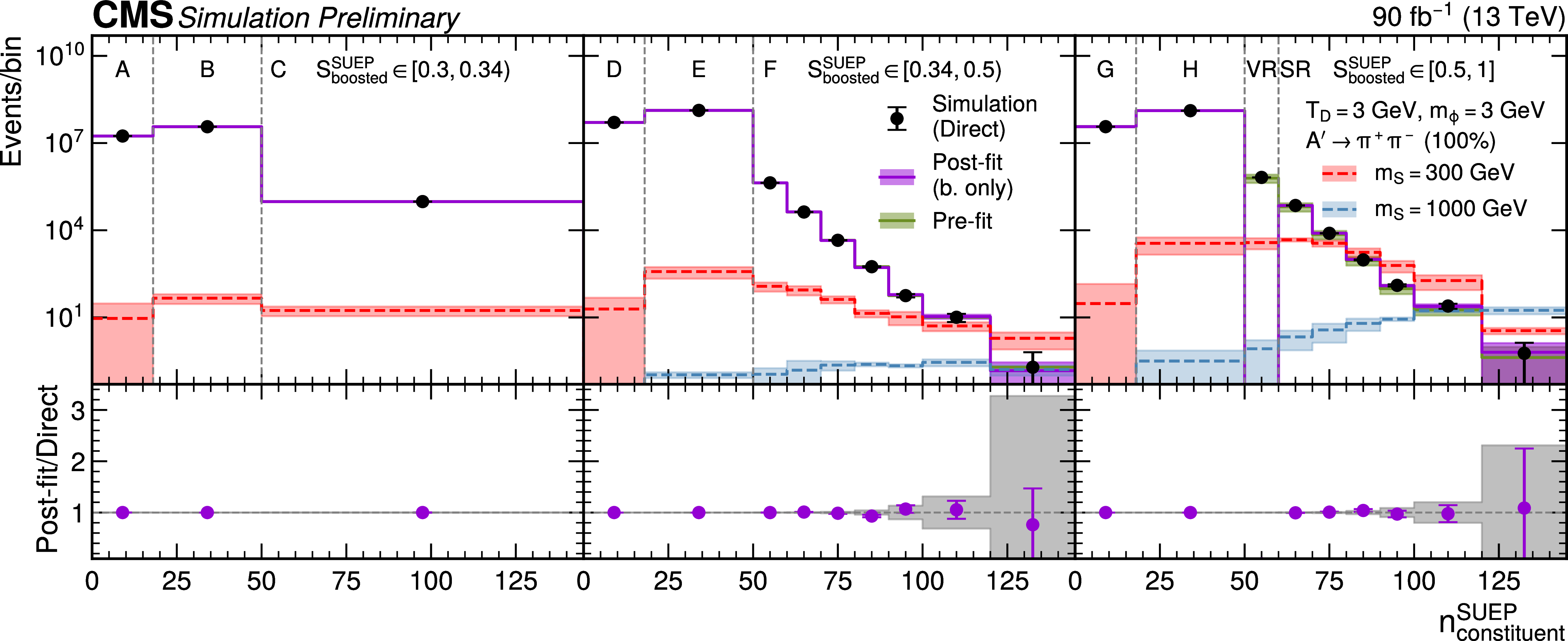

png pdf	Figure 5: The $ n_{\text{constituent}}^{\text{SUEP}} $ distributions for various ranges of $ S^{\text{SUEP}}_{\text{boosted}} $ (left: 0.30 $ \leq S^{\text{SUEP}}_{\text{boosted}} < $ 0.34, middle: 0.34 $ \leq S^{\text{SUEP}}_{\text{boosted}} < $ 0.5, right: $ S^{\text{SUEP}}_{\text{boosted}} \geq $ 0.5) in QCD multijet simulation, comparing the extended ABCD prediction to the yield directly from the simulation in the SR. The pre-fit expected background, the background-only fit results, and two signal models with $ m_{\text{S}} = $ 300 and 1000 GeV are shown. Both signal models have $ m_{\phi} = T_{\text{D}} = $ 3 GeV and $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays). The vertical dashed lines mark the boundaries that separate the CRs and the SR.

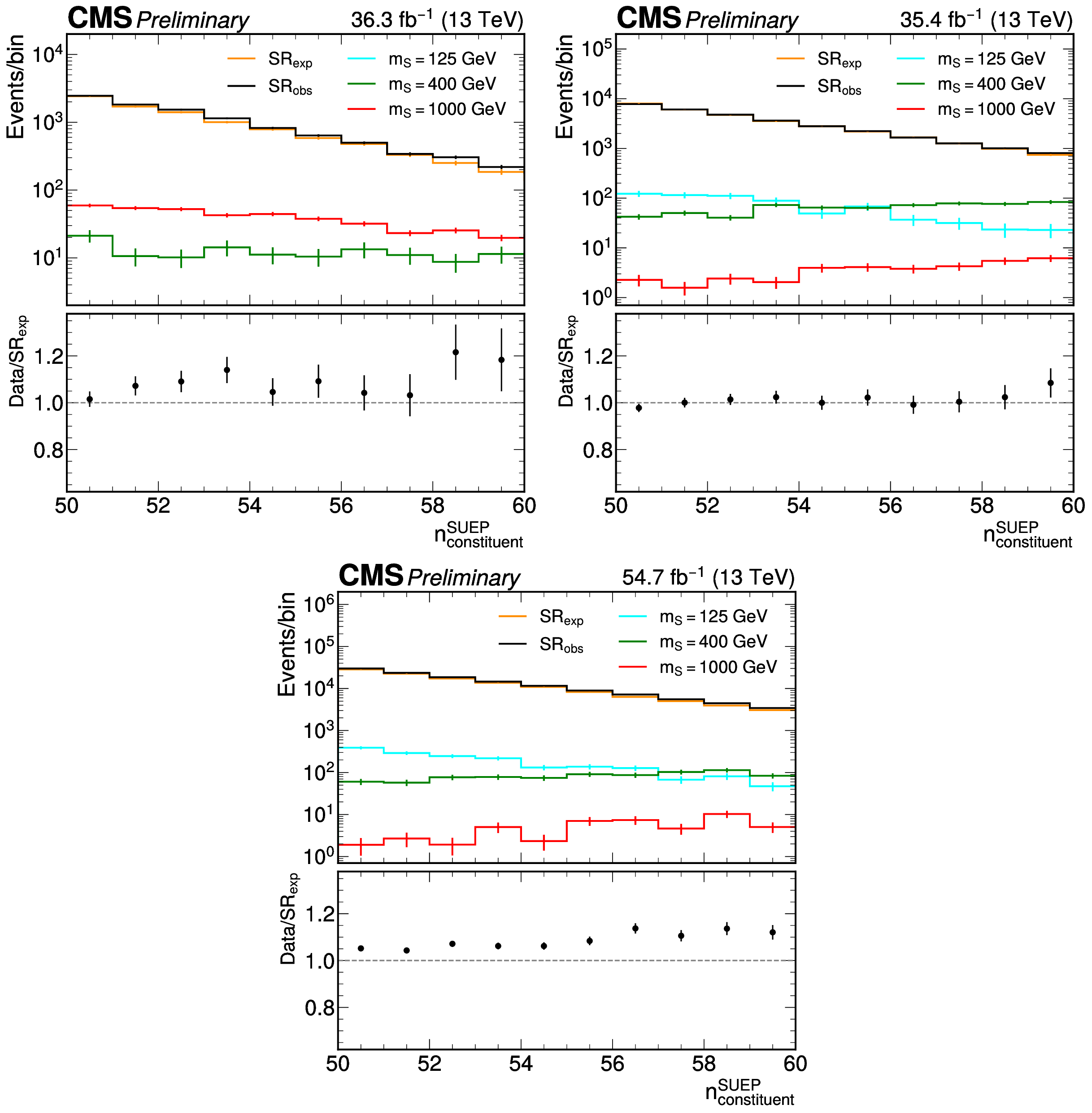

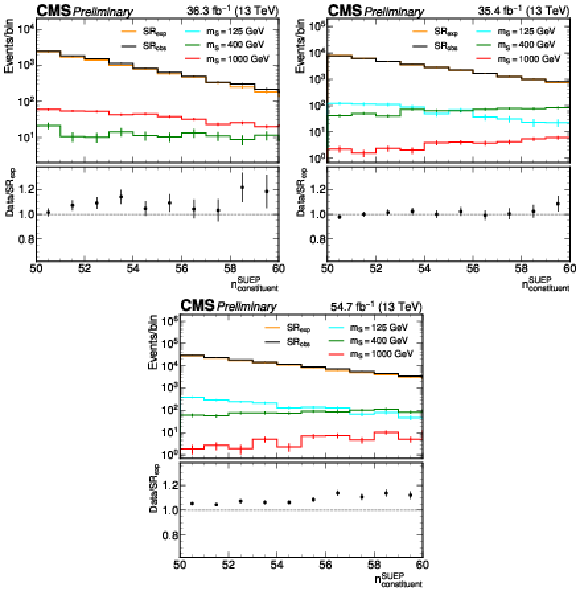

png pdf	Figure 6: Validation of the extended ABCD method (upper left: 2016, upper right: 2017, lower: 2018) in the VR, where signal is negligible compared to background, as shown for signal models with $ m_{\text{S}} = 125, 400 \text{and} $ 1000 GeV, $ m_{\phi} = T_{\text{D}} = $ 3 GeV and $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays).

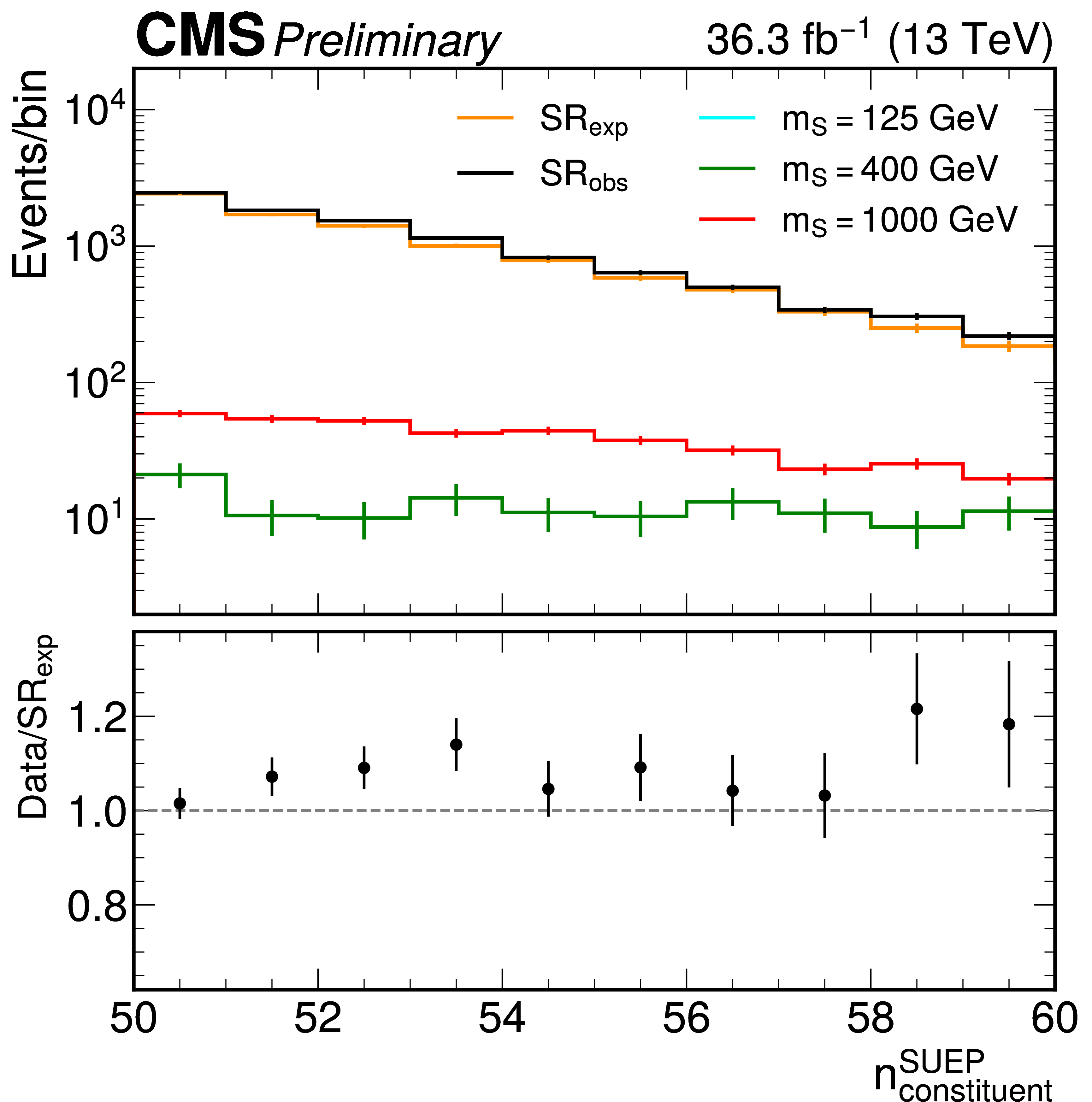

png pdf	Figure 6-a: Validation of the extended ABCD method (upper left: 2016, upper right: 2017, lower: 2018) in the VR, where signal is negligible compared to background, as shown for signal models with $ m_{\text{S}} = 125, 400 \text{and} $ 1000 GeV, $ m_{\phi} = T_{\text{D}} = $ 3 GeV and $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays).

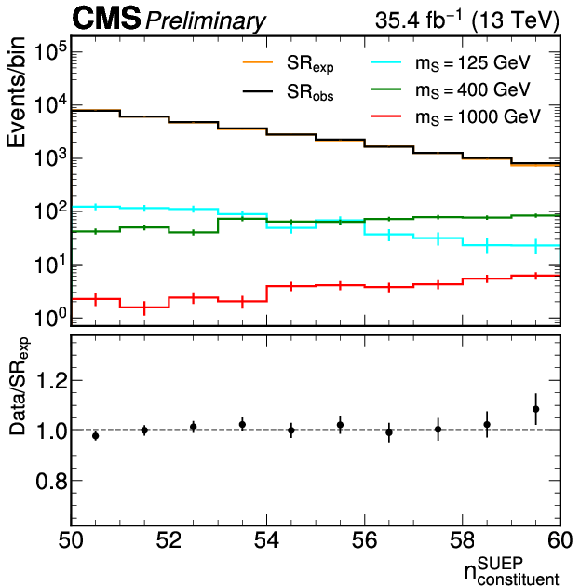

png pdf	Figure 6-b: Validation of the extended ABCD method (upper left: 2016, upper right: 2017, lower: 2018) in the VR, where signal is negligible compared to background, as shown for signal models with $ m_{\text{S}} = 125, 400 \text{and} $ 1000 GeV, $ m_{\phi} = T_{\text{D}} = $ 3 GeV and $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays).

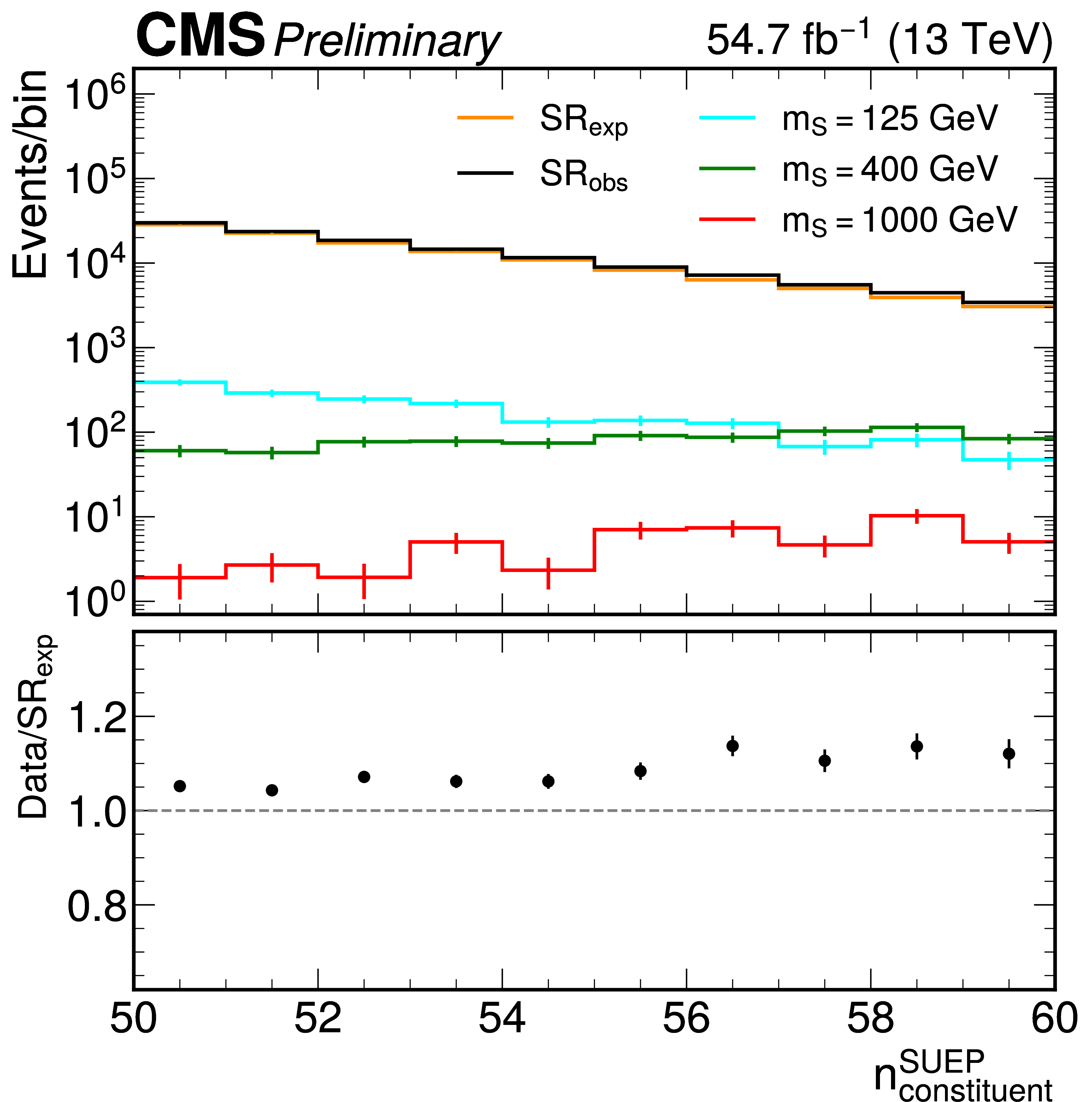

png pdf	Figure 6-c: Validation of the extended ABCD method (upper left: 2016, upper right: 2017, lower: 2018) in the VR, where signal is negligible compared to background, as shown for signal models with $ m_{\text{S}} = 125, 400 \text{and} $ 1000 GeV, $ m_{\phi} = T_{\text{D}} = $ 3 GeV and $ m_{\text{A}^{\prime}} = $ 1 GeV (fully hadronic decays).

Summary

In summary, this note reports the search for soft unclustered energy patterns (SUEPs) at the LHC using particle-flow scouting data corresponding to an integrated luminosity of 127 fb$ ^{-1}$. This data set is recorded with a lower threshold on the scalar sum of jet transverse momenta, $H_T$, compared to the standard $H_T$ triggers, offsetting the increase in rate by saving limited event content. The characteristic isotropic event shape of SUEP signals is recovered by boosting into the mediator rest frame and selecting particles from only the SUEP candidate, which is chosen as the jet with the highest constituent multiplicity out of the two highest $p_T$ wide jets. The standard model background from quantum chromodynamics multijet processes is estimated from data control regions. The search sets the most stringent limits on a large range of SUEP models with a temperature and dark hadron mass around a few GeV and scalar mediator masses above 125 GeV.

References
1	M. J. Strassler and K. M. Zurek	Echoes of a hidden valley at hadron colliders	PLB 651 (2007) 374	hep-ph/0604261
2	B. Batell, M. Low, E. T. Neil, and C. B. Verhaaren	Review of neutral naturalness	Phys. Rept. 1165 (2026) 1	2203.05531
3	N. Arkani-Hamed, S. Dimopoulos, and G. Dvali	The hierarchy problem and new dimensions at a millimeter	PLB 429 (1998) 263
4	T. Cohen, M. Lisanti, and H. K. Lou	Semivisible jets: Dark matter undercover at the LHC	PRL 115 (2015) 171804	1503.00009
5	P. Schwaller, D. Stolarski, and A. Weiler	Emerging jets	JHEP 05 (2015) 059	1502.05409
6	S. Knapen, S. Pagan Griso, M. Papucci, and D. J. Robinson	Triggering soft bombs at the LHC	JHEP 08 (2017) 076	1612.00850
7	CMS Collaboration	Enriching the physics program of the CMS experiment via data scouting and data parking	Phys. Rept. 1115 (2025) 678	CMS-EXO-23-007 2403.16134
8	E. V. Shuryak	What RHIC experiments and theory tell us about properties of quark-gluon plasma?	Nucl. Phys. A 750 (2005) 64	hep-ph/0405066
9	T. Schäfer and E. V. Shuryak	Instantons in QCD	Rev. Mod. Phys. 70 (1998) 323	hep-ph/9610451
10	P. Kovtun, D. T. Son, and A. O. Starinets	Viscosity in strongly interacting quantum field theories from black hole physics	PRL 94 (2005) 111601	hep-th/0405231
11	J. Casalderrey-Solana et al.	Gauge/string duality, hot QCD and heavy ion collisions	link
12	J. Barron et al.	Unsupervised hadronic SUEP at the LHC	JHEP 12 (2021) 129	2107.12379
13	S. C. Park	Black holes and the LHC: A review	Prog. Part. Nucl. Phys. 67 (2012) 617	1203.4683
14	LHC Higgs Cross Section Working Group	Handbook of LHC Higgs cross sections: 4. Deciphering the nature of the Higgs sector	link
15	S. Carrazza et al.	An unbiased Hessian representation for Monte Carlo PDFs	EPJC 75 (2015) 369	1505.06736
16	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
17	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
18	GEANT4 Collaboration	GEANT 4--a simulation toolkit	NIM A 506 (2003) 250
19	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
20	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
21	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
22	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
23	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
24	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
25	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
26	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
27	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
28	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
29	CMS Collaboration	Search for soft unclustered energy patterns in proton-proton collisions at 13 TeV	PRL 133 (2024) 191902	CMS-EXO-23-002 2403.05311
30	CMS Collaboration	Search for soft unclustered energy patterns in association with a W or Z boson in proton-proton collisions at 13 TeV	CMS Physics Analysis Summary, CERN, Geneva, 2025 CDS
31	M. Cacciari, G. P. Salam, and G. Soyez	The anti-$ k_{\mathrm{T}} $ jet clustering algorithm	JHEP 04 (2008) 063	0802.1189
32	M. Cacciari, G. P. Salam, and G. Soyez	FastJet user manual	EPJC 72 (2012) 1896	1111.6097
33	C. Cesarotti, M. Reece, and M. J. Strassler	The efficacy of event isotropy as an event shape observable	JHEP 07 (2021) 215	2011.06599
34	S. Choi and H. Oh	Improved extrapolation methods of data-driven background estimations in high energy physics	EPJC 81 (2021) 643	1906.10831
35	K. Becker et al.	Precise predictions for boosted Higgs production	SciPost Phys. Core 7 (2024) 001	2005.07762
36	CMS Collaboration	Tracking performance for charged pions with Run2 Legacy data	CMS Detector Performance Note CMS-DP-2022-012, 2022 link
37	CMS Collaboration	Muon tracking efficiency for 2018 dataset using tag and probe method	CMS Detector Performance Note CMS-DP-2020-013, 2019 CDS
38	CMS Collaboration	The CMS statistical analysis and combination tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
39	A. L. Read	Presentation of search results: The $ \text{CL}_\text{s} $ technique	JPG 28 (2002) 2693
40	T. Junk	Confidence level computation for combining searches with small statistics	NIM A 434 (1999) 435	hep-ex/9902006
41	G. Cowan, K. Cranmer, E. Gross, and O. Vitells	Asymptotic formulae for likelihood-based tests of new physics	EPJC 71 (2011) 1554	1007.1727
