CMS-PAS-SMP-24-002

CMS-PAS-SMP-24-002
Measurement of the Z$ \gamma $ production in proton-proton collisions at $ \sqrt{s}= $ 13.6 TeV
CMS Collaboration
29 March 2025

Abstract: A measurement of the $ Z\gamma $ production cross section in proton-proton collisions at a center-of-mass energy of 13.6 TeV using the leptonic final states is presented. A data set corresponding to an integrated luminosity of 34.8 fb$ ^{-1} $, collected by the CMS experiment at the LHC in 2022 is used. Events with an oppositely charged pair of muons or electrons together with an isolated photon are selected. The measured fiducial cross section for the combined muon and electron channels is 1.896 $ \pm $ 0.006 (th) $\pm$ 0.054 (syst) $\pm$ 0.033 (stat) pb.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

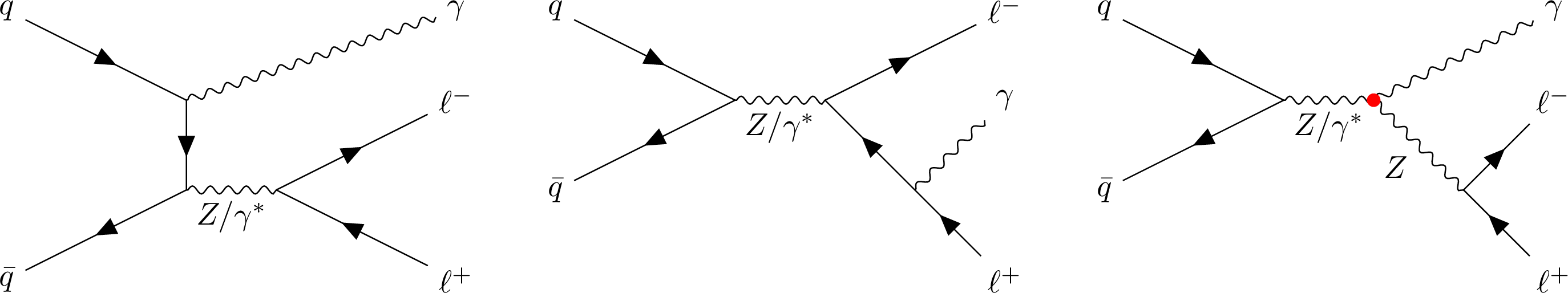

png pdf	Figure 1: Leading-order Feynman diagrams for $ \mathrm{Z}\gamma $ production in pp collisions. Left: initial-state radiation. Center: final-state radiation. Right: diagram involving anomalous gauge couplings that are forbidden in the SM at tree level.
png pdf	Figure 2: Post-fit distribution of $ m_{\ell\ell\gamma} $ in the muon channel (left) and electron channel (right).The gray bands represent the total uncertainty, and the lower panels show the data/MC ratio.
png pdf	Figure 2-a: Post-fit distribution of $ m_{\ell\ell\gamma} $ in the muon channel (left) and electron channel (right).The gray bands represent the total uncertainty, and the lower panels show the data/MC ratio.
png pdf	Figure 2-b: Post-fit distribution of $ m_{\ell\ell\gamma} $ in the muon channel (left) and electron channel (right).The gray bands represent the total uncertainty, and the lower panels show the data/MC ratio.

Tables

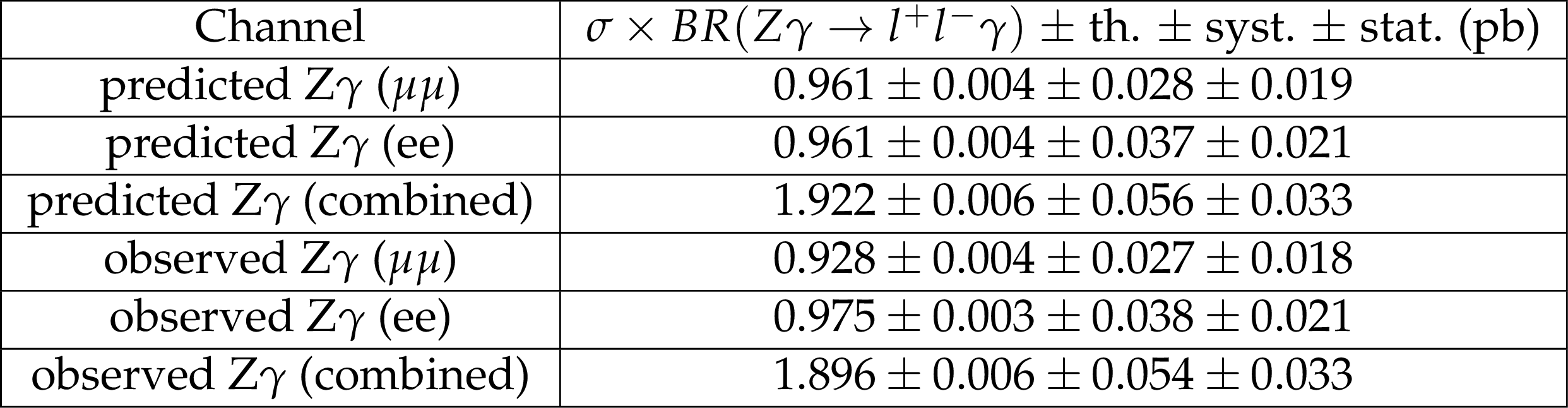

png pdf	Table 1: Fiducial cross sections for predicted and observed results in each channel. The quoted uncertainties include theoretical, systematic, and statistical components.

Summary

In summary, a measurement of the $ Z\gamma $ production using leptonic final states in proton-proton collisions at a center-of-mass energy of 13.6 TeV is presented. A data set corresponding to an integrated luminosity of 34.8 fb$ ^{-1} $, collected by the CMS experiment at the LHC during 2022 is used. Events with a pair of oppositely charged muons or electrons together with an isolated photon are selected. The measured (predicted) fiducial cross section for the combined muon channel and electron channels is 1.896 $ \pm $ 0.006 (th) $\pm$ 0.054 (syst) $\pm$ 0.033 (stat) (1.922 $ \pm $ 0.006 (th) $\pm$ 0.056 (syst) $\pm$ 0.033 (stat)) pb.

References
1	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
2	CMS Collaboration	Performance of the CMS level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
3	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
4	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
5	CMS Collaboration	ECAL 2016 refined calibration and Run2 summary plots	CMS Detector Performance Summary CMS-DP-2020-021, 2020 CDS
6	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
7	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
8	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
9	CMS Collaboration	Performance of the CMS high-level trigger during LHC run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
10	CMS Collaboration	Measurement of electroweak WZ boson production and search for new physics in WZ + two jets events in pp collisions at $ \sqrt{s} = $ 13 TeV	PLB 795 (2019) 281	CMS-SMP-18-001 1901.04060
11	CMS Collaboration	Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid	CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS
12	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
13	R. Frederix and S. Frixione	Merging meets matching in MC@NLO	JHEP 12 (2012) 061	1209.6215
14	T. Sj$\text ö $strand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
15	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
16	NNPDF Collaboration	Parton distributions from high-precision collider data	EPJC 77 (2017) 663	1706.00428
17	J. Butterworth et al.	PDF4LHC recommendations for LHC Run II	JPG 43 (2016) 023001	1510.03865
18	L. A. Harland-Lang, A. D. Martin, P. Motylinski, and R. S. Thorne	Parton distributions in the LHC era: MMHT 2014 PDFs	EPJC 75 (2015) 204	1412.3989
19	NNPDF Collaboration	Parton distributions for the LHC Run II	JHEP 04 (2015) 040	1410.8849
20	S. Dulat et al.	New parton distribution functions from a global analysis of quantum chromodynamics	PRD 93 (2016) 033006	1506.07443
21	CMS Collaboration	Luminosity measurement in proton-proton collisions at 13.6 TeV in 2022 at CMS	technical report, CERN, Geneva, 2024 CDS
22	CMS Collaboration	The CMS statistical analysis and combination tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
23	W. Verkerke and D. Kirkby	The \textscRooFit toolkit for data modeling	in Proc. 13th International Conference on Computing in High Energy and Nuclear Physics (CHEP ): La Jolla CA, United States, 2003 eConf C0303241 MOLT007	physics/0306116
24	L. Moneta et al.	The \textscRooStats project	in Proc. 13th International Workshop on Advanced Computing and Analysis Techniques in Physics Research (ACAT ): Jaipur, India, 2010 PoS (ACAT) 057	1009.1003
