| CMS-PAS-HIN-25-006 | ||
| Spin-dependent azimuthal asymmetry of coherent $ \mathrm{J}/\psi $ photoproduction in peripheral PbPb collisions at $ \sqrt{s_{_{NN}}} = $ 5.36 TeV | ||
| CMS Collaboration | ||
| 2026-03-19 | ||
| Abstract: We report on the measurement of azimuthal asymmetry in muons from the decay of coherently photoproduced $ \mathrm{J}/\psi $ vector mesons in peripheral PbPb collisions. The analysis is based on data collected by the CMS experiment at the LHC at a nucleon-nucleon center-of-mass energy of 5.36 TeV, corresponding to an integrated luminosity of 1.26 $ \mathrm{nb}^{-1} $. The asymmetry is quantified from the coherent $ \mathrm{J}/\psi $ yield as a function of the azimuthal angle difference between the decay muons and the second-order event plane. The amplitude of the $ \cos 2\Delta\phi $ modulation, $ A_{2} $, is measured as a function of collision centrality in the rapidity range 1.6 $ < |y| < $ 2.4, and as a function of rapidity in the 50-80% centrality class. For 50-80% centrality and 1.6 $ < |y| < $ 2.4, $ A_{2} = - $ 0.194 $ \pm $ 0.022 (stat) $ \pm $ 0.018 (syst), observed to be negative for the first time. The $ A_{2} $ values show no clear dependence on rapidity or centrality and are consistent with theoretical expectations, which attribute the modulation to the linear polarization of photons transferred to the coherently produced $ \mathrm{J}/\psi $. These results provide the first direct test of the spin-state dependence of azimuthal asymmetry in coherent vector meson photoproduction and demonstrate a strong correlation between the decay products and the event plane, suggesting a novel method for reaction-plane determination. | ||
| Links: CDS record (PDF) ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

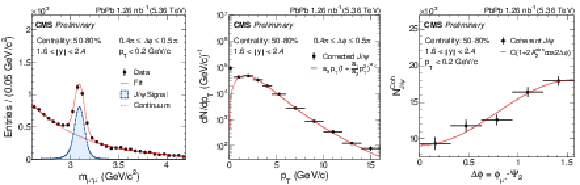

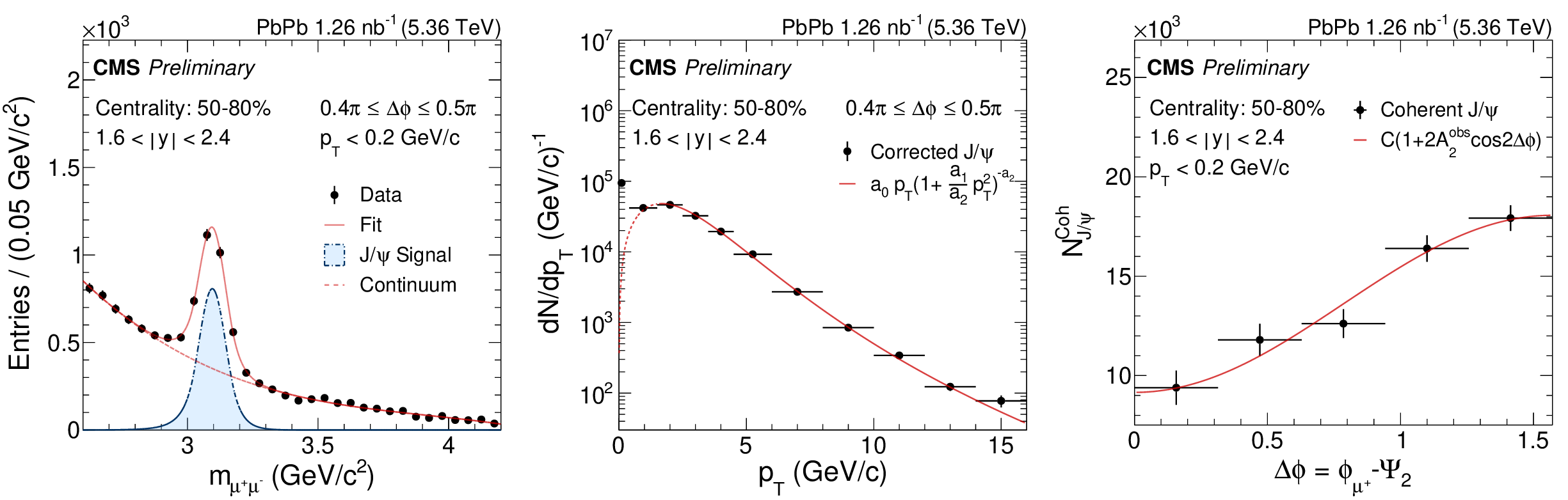

Figure 1:
The invariant mass distribution of muon pairs (left), the efficiency-corrected $ \mathrm{J}/\psi p_{\mathrm{T}} $ spectrum for 0.4 $ \pi < \Delta\phi < 0.5\pi $ (middle), and the coherent $ \mathrm{J}/\psi $ yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50-80% centrality and 1.6 $ < |y| < $ 2.4. The invariant mass distribution is fitted with a double-sided Crystal Ball function plus a third-order Chebyshev polynomial. The $ p_{\mathrm{T}} $ spectrum is fitted with Eq. 4 for $ p_{\mathrm{T}} > $ 1.5 GeV to estimate the hadronic and partial incoherent contaminations for $ p_{\mathrm{T}} < $ 0.2 GeV. The region $ p_{\mathrm{T}} < $ 0.2 GeV is chosen where coherent $ \mathrm{J}/\psi $ production is known to dominate, following the same selection used in previous CMS analyses [12,20]; the pronounced low-$ p_{\mathrm{T}} $ excess observed in the data is consistent with this expectation. The right panel shows the efficiency-corrected coherent $ \mathrm{J}/\psi $ yields as a function of $ \Delta\phi $, prior to correcting for event-plane resolution. Vertical bars represent statistical uncertainties in all three panels. |
png pdf |

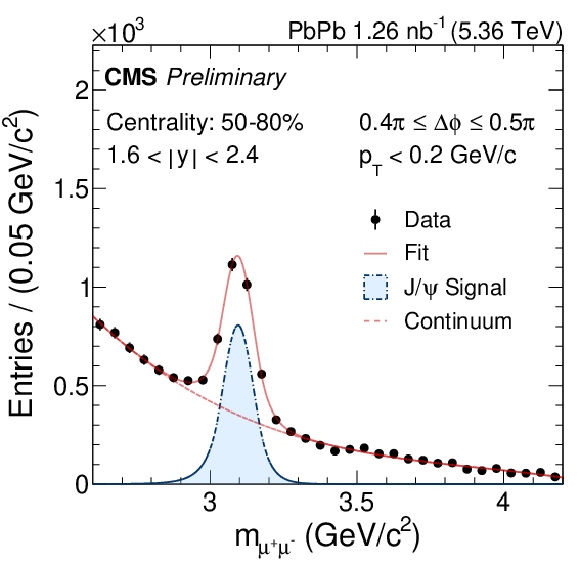

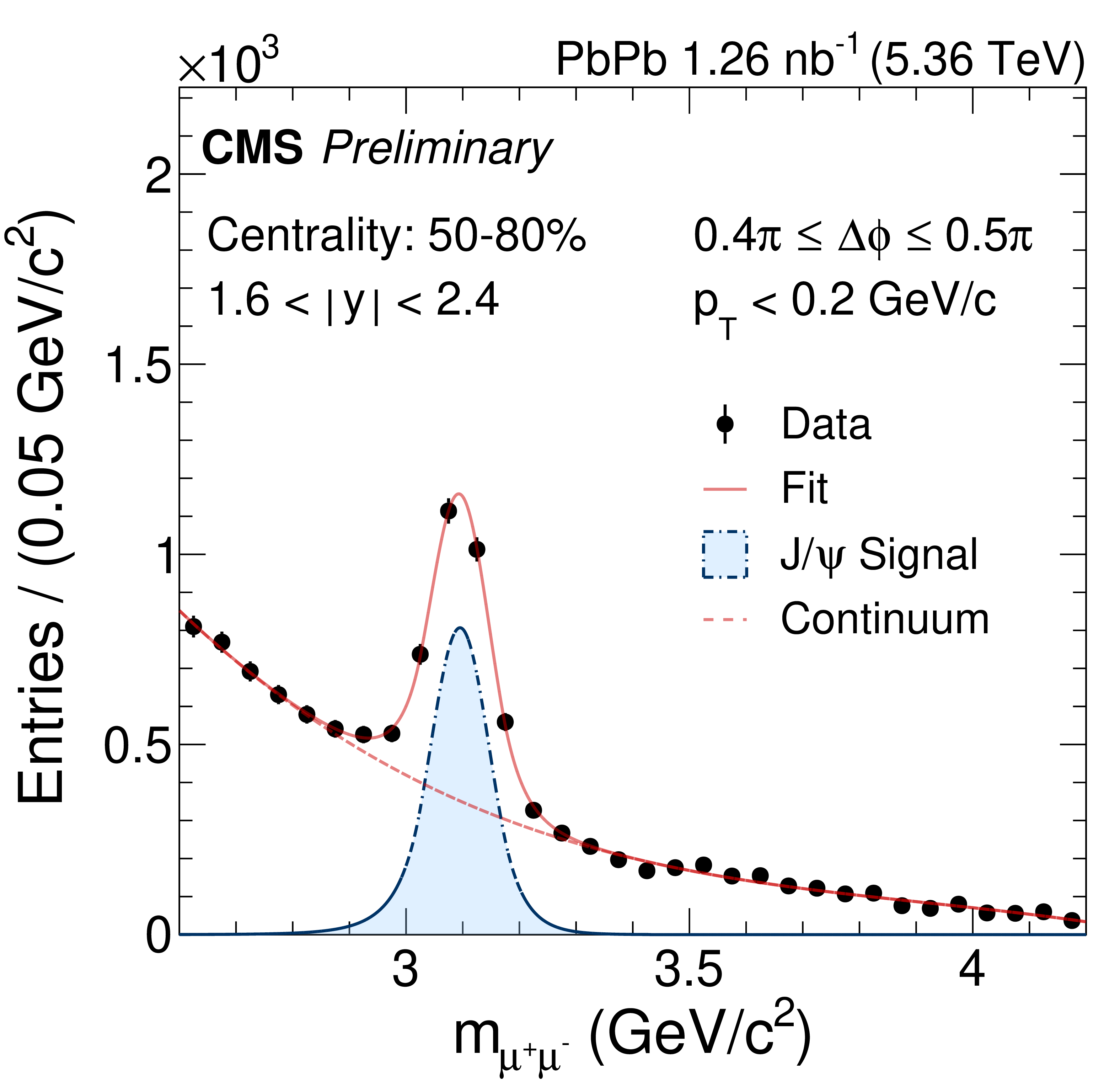

Figure 1-a:
The invariant mass distribution of muon pairs (left), the efficiency-corrected $ \mathrm{J}/\psi p_{\mathrm{T}} $ spectrum for 0.4 $ \pi < \Delta\phi < 0.5\pi $ (middle), and the coherent $ \mathrm{J}/\psi $ yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50-80% centrality and 1.6 $ < |y| < $ 2.4. The invariant mass distribution is fitted with a double-sided Crystal Ball function plus a third-order Chebyshev polynomial. The $ p_{\mathrm{T}} $ spectrum is fitted with Eq. 4 for $ p_{\mathrm{T}} > $ 1.5 GeV to estimate the hadronic and partial incoherent contaminations for $ p_{\mathrm{T}} < $ 0.2 GeV. The region $ p_{\mathrm{T}} < $ 0.2 GeV is chosen where coherent $ \mathrm{J}/\psi $ production is known to dominate, following the same selection used in previous CMS analyses [12,20]; the pronounced low-$ p_{\mathrm{T}} $ excess observed in the data is consistent with this expectation. The right panel shows the efficiency-corrected coherent $ \mathrm{J}/\psi $ yields as a function of $ \Delta\phi $, prior to correcting for event-plane resolution. Vertical bars represent statistical uncertainties in all three panels. |
png pdf |

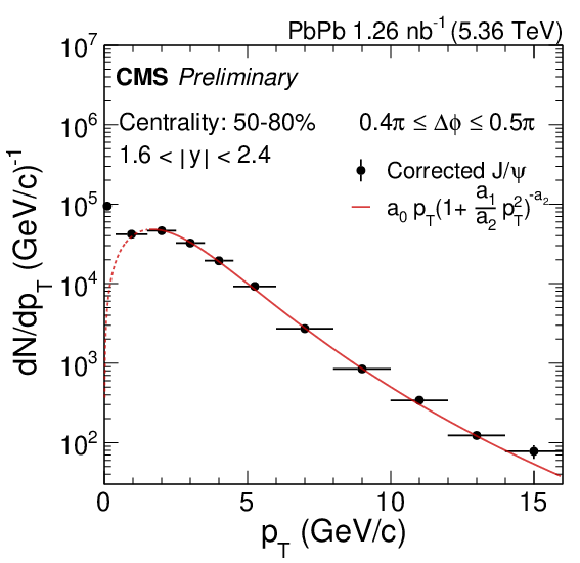

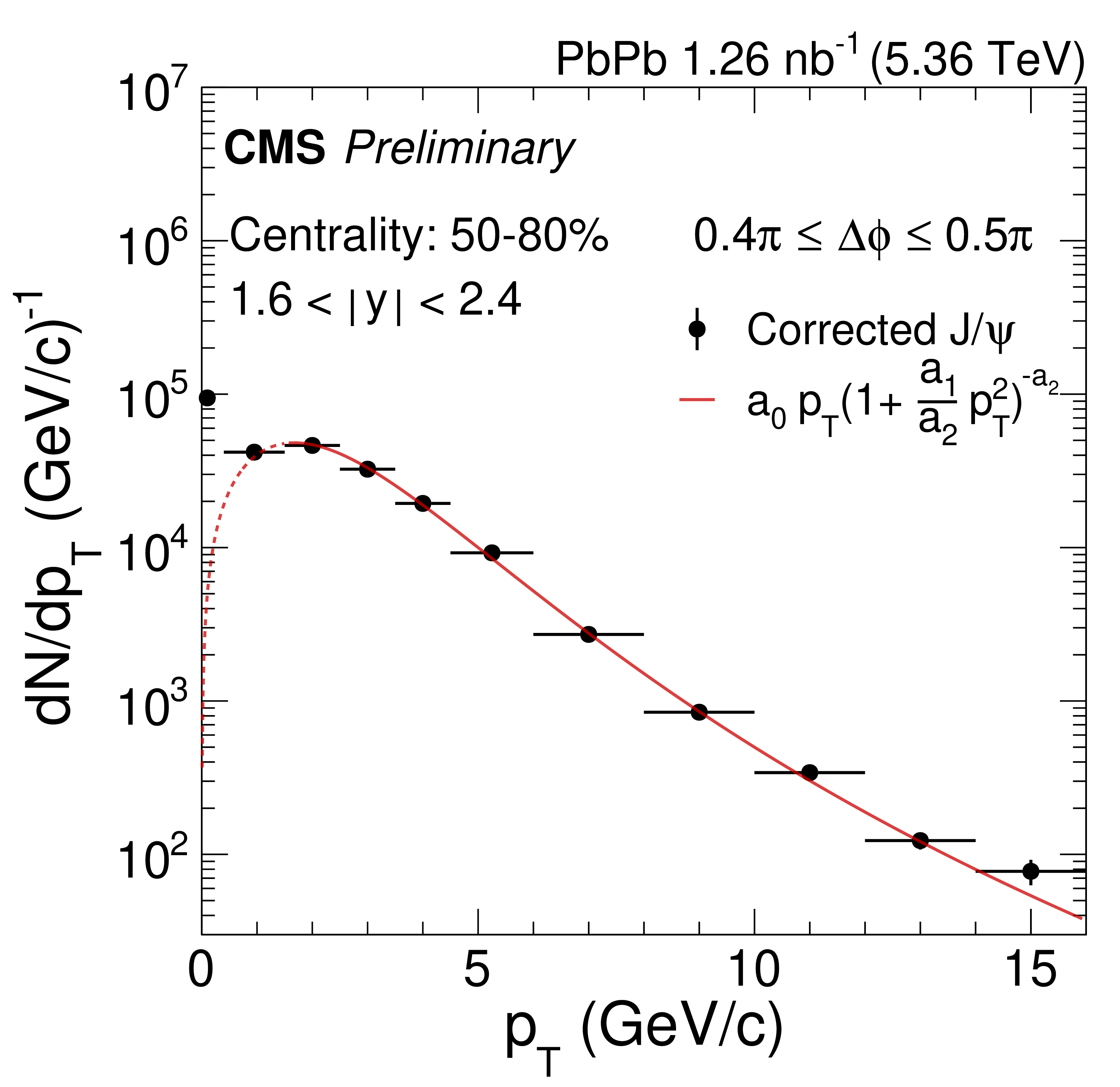

Figure 1-b:
The invariant mass distribution of muon pairs (left), the efficiency-corrected $ \mathrm{J}/\psi p_{\mathrm{T}} $ spectrum for 0.4 $ \pi < \Delta\phi < 0.5\pi $ (middle), and the coherent $ \mathrm{J}/\psi $ yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50-80% centrality and 1.6 $ < |y| < $ 2.4. The invariant mass distribution is fitted with a double-sided Crystal Ball function plus a third-order Chebyshev polynomial. The $ p_{\mathrm{T}} $ spectrum is fitted with Eq. 4 for $ p_{\mathrm{T}} > $ 1.5 GeV to estimate the hadronic and partial incoherent contaminations for $ p_{\mathrm{T}} < $ 0.2 GeV. The region $ p_{\mathrm{T}} < $ 0.2 GeV is chosen where coherent $ \mathrm{J}/\psi $ production is known to dominate, following the same selection used in previous CMS analyses [12,20]; the pronounced low-$ p_{\mathrm{T}} $ excess observed in the data is consistent with this expectation. The right panel shows the efficiency-corrected coherent $ \mathrm{J}/\psi $ yields as a function of $ \Delta\phi $, prior to correcting for event-plane resolution. Vertical bars represent statistical uncertainties in all three panels. |
png pdf |

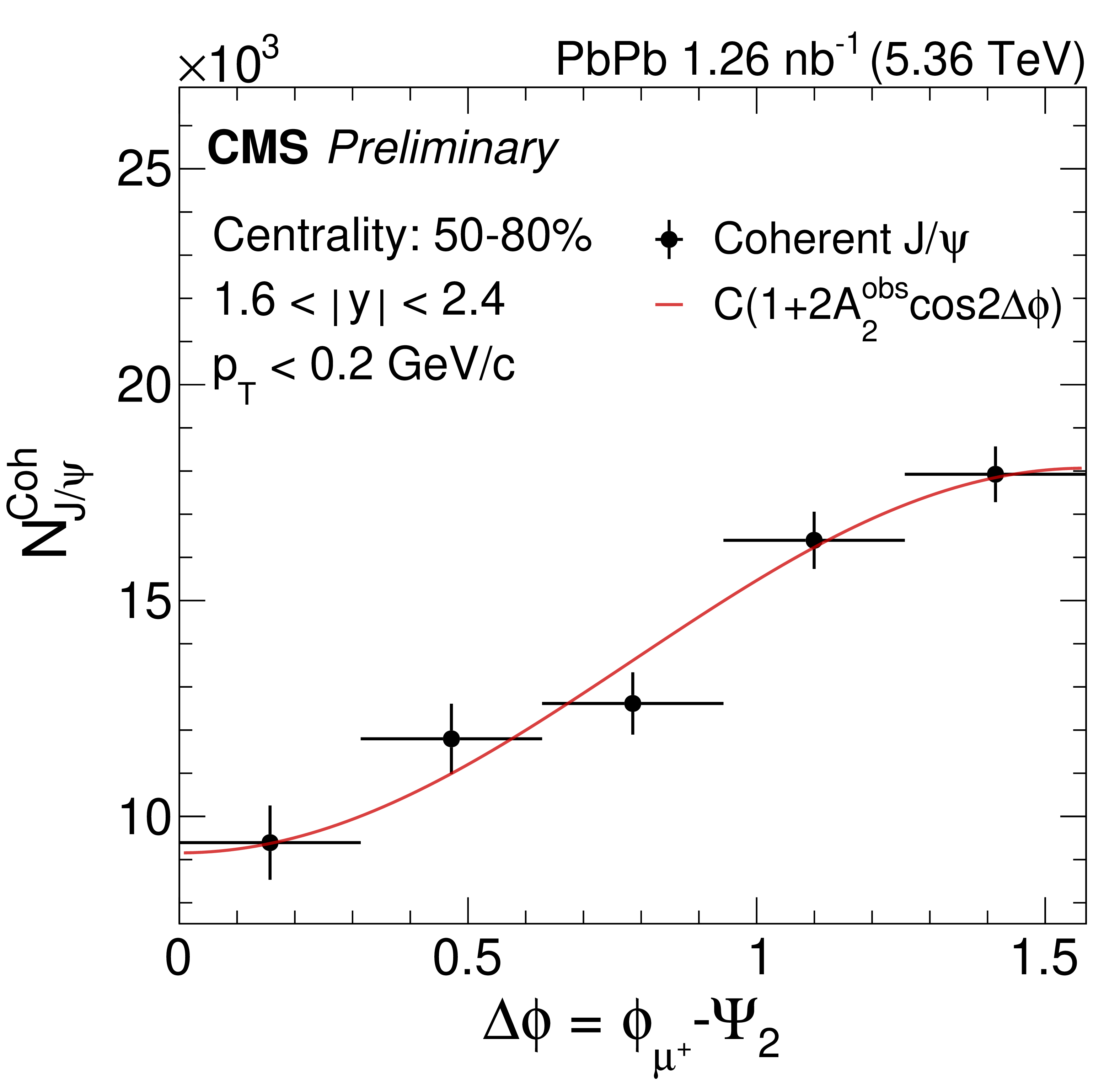

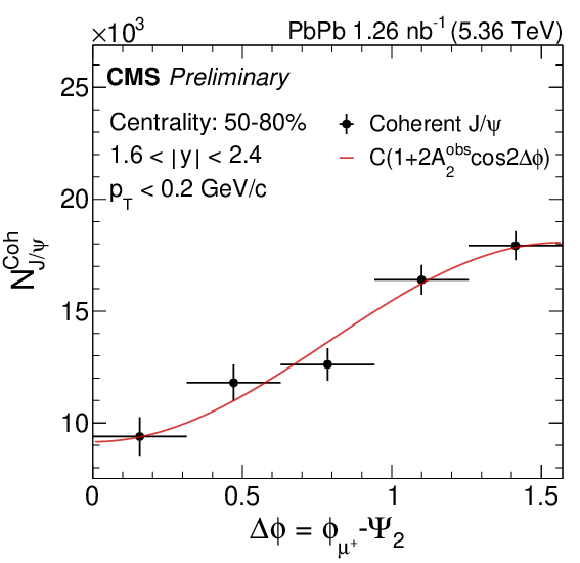

Figure 1-c:
The invariant mass distribution of muon pairs (left), the efficiency-corrected $ \mathrm{J}/\psi p_{\mathrm{T}} $ spectrum for 0.4 $ \pi < \Delta\phi < 0.5\pi $ (middle), and the coherent $ \mathrm{J}/\psi $ yield as a function of $ \Delta\phi $ (right) in PbPb collisions at 50-80% centrality and 1.6 $ < |y| < $ 2.4. The invariant mass distribution is fitted with a double-sided Crystal Ball function plus a third-order Chebyshev polynomial. The $ p_{\mathrm{T}} $ spectrum is fitted with Eq. 4 for $ p_{\mathrm{T}} > $ 1.5 GeV to estimate the hadronic and partial incoherent contaminations for $ p_{\mathrm{T}} < $ 0.2 GeV. The region $ p_{\mathrm{T}} < $ 0.2 GeV is chosen where coherent $ \mathrm{J}/\psi $ production is known to dominate, following the same selection used in previous CMS analyses [12,20]; the pronounced low-$ p_{\mathrm{T}} $ excess observed in the data is consistent with this expectation. The right panel shows the efficiency-corrected coherent $ \mathrm{J}/\psi $ yields as a function of $ \Delta\phi $, prior to correcting for event-plane resolution. Vertical bars represent statistical uncertainties in all three panels. |
png pdf |

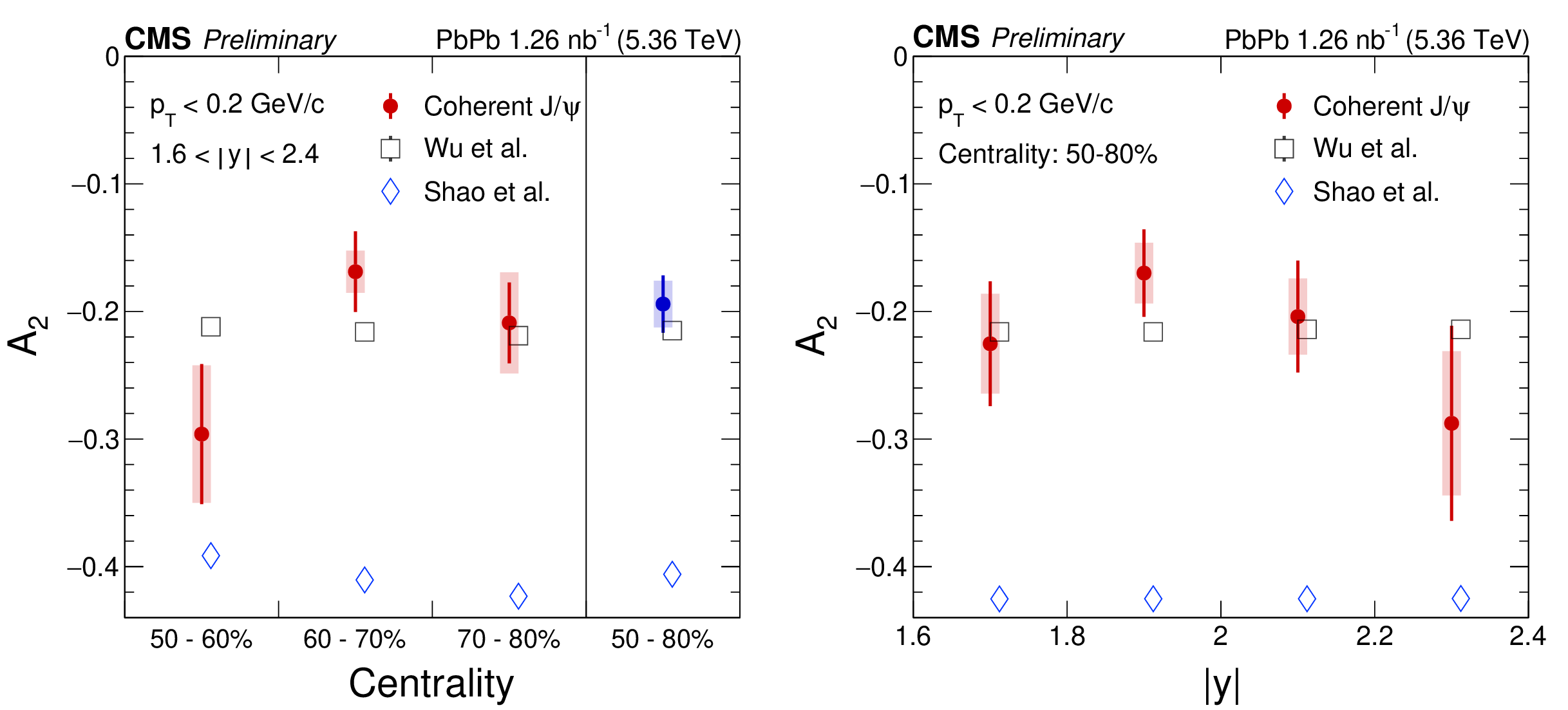

Figure 2:
The amplitude of the $ \cos2\Delta\phi $ modulation, $ A_2 $, of muons decayed from coherently photoproduced $ \mathrm{J}/\psi $ decays as a function of centrality (left) and rapidity (right) in PbPb collisions at $ \sqrt{s_{_{NN}}} = $ 5.36 TeV. The error bars represent the statistical uncertainties, and the shaded boxes represent the systematic uncertainties, respectively. The black open squares [32] and blue open diamonds [52] represent theoretical predictions considering the correlation between the vector meson polarization and the event plane. |
png pdf |

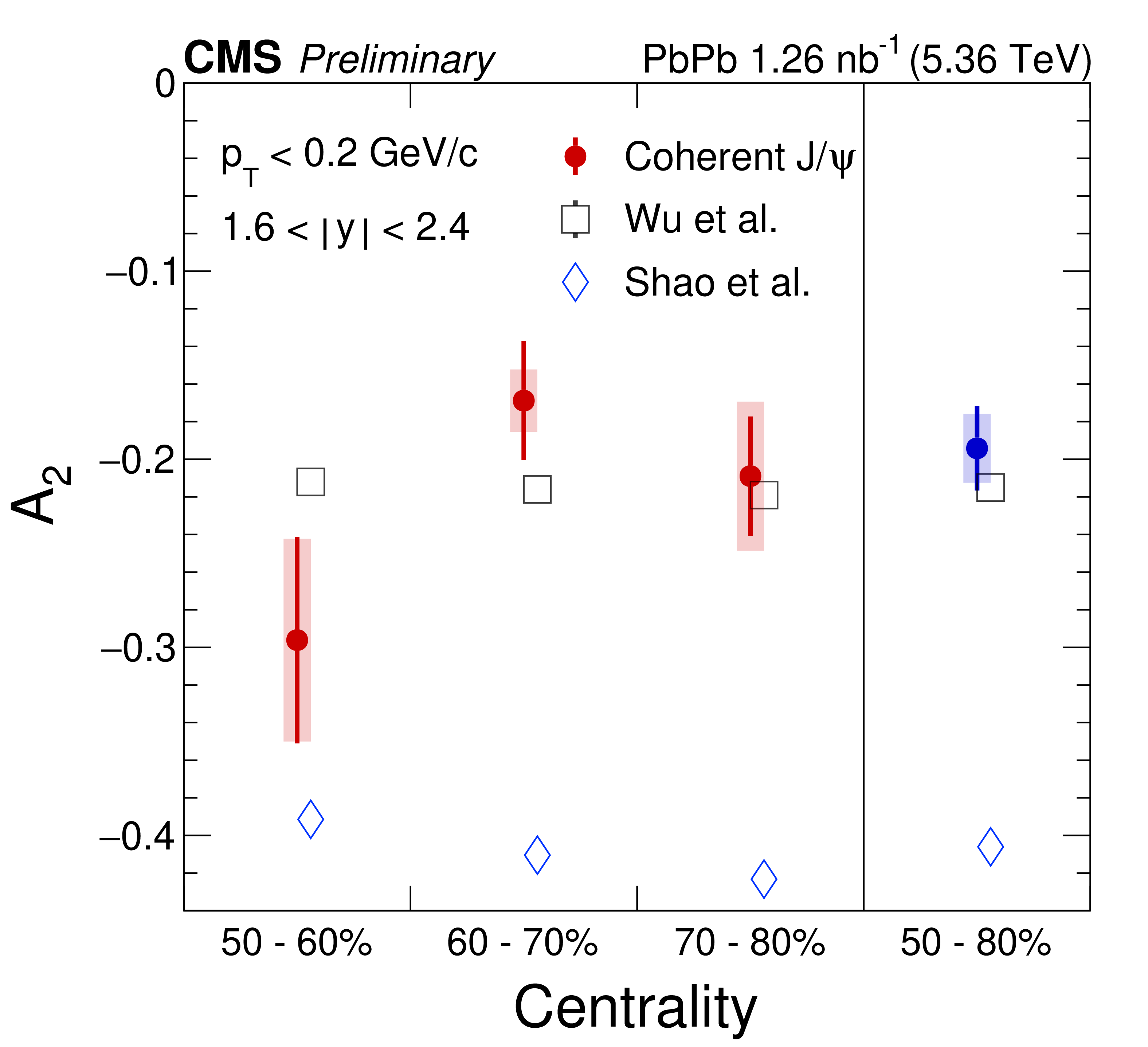

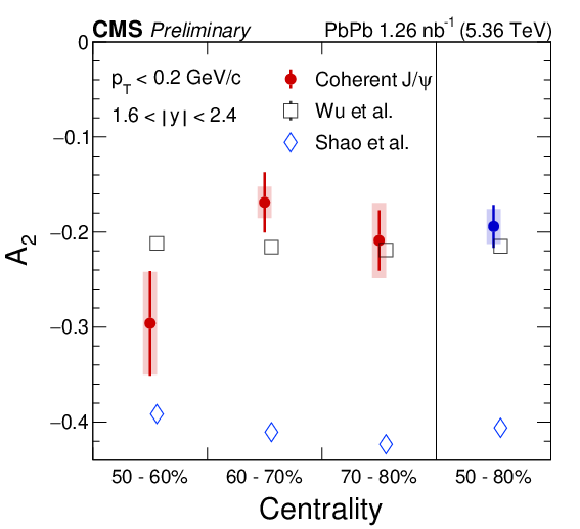

Figure 2-a:
The amplitude of the $ \cos2\Delta\phi $ modulation, $ A_2 $, of muons decayed from coherently photoproduced $ \mathrm{J}/\psi $ decays as a function of centrality (left) and rapidity (right) in PbPb collisions at $ \sqrt{s_{_{NN}}} = $ 5.36 TeV. The error bars represent the statistical uncertainties, and the shaded boxes represent the systematic uncertainties, respectively. The black open squares [32] and blue open diamonds [52] represent theoretical predictions considering the correlation between the vector meson polarization and the event plane. |
png pdf |

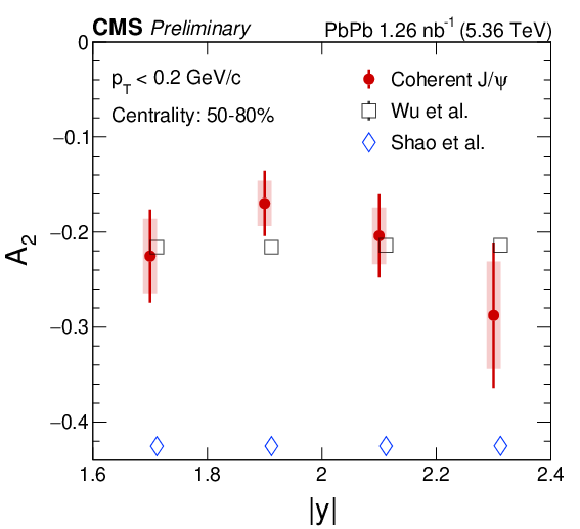

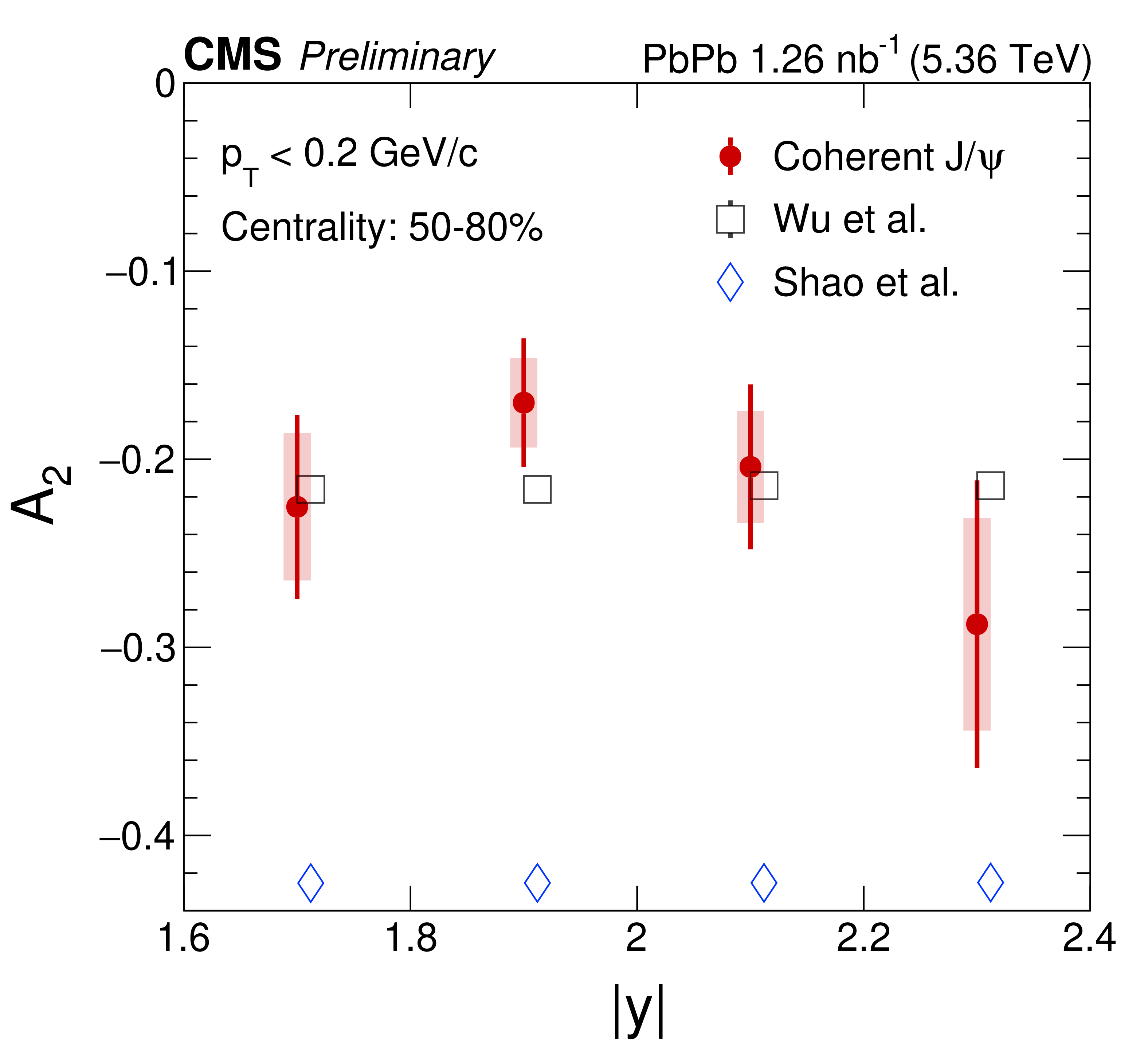

Figure 2-b:
The amplitude of the $ \cos2\Delta\phi $ modulation, $ A_2 $, of muons decayed from coherently photoproduced $ \mathrm{J}/\psi $ decays as a function of centrality (left) and rapidity (right) in PbPb collisions at $ \sqrt{s_{_{NN}}} = $ 5.36 TeV. The error bars represent the statistical uncertainties, and the shaded boxes represent the systematic uncertainties, respectively. The black open squares [32] and blue open diamonds [52] represent theoretical predictions considering the correlation between the vector meson polarization and the event plane. |
| Summary |
| In summary, we present the first measurement of azimuthal asymmetry in muons from coherently photoproduced $ \mathrm{J}/\psi $ vector mesons with respect to the second-order event plane in peripheral PbPb collisions at nucleon-nucleon center-of-mass energy of 5.36 TeV. The $\cos 2\Delta\phi$ coefficient $A_{2}$ is found to be negative for the first time and shows no significant dependence on $ \mathrm{J}/\psi $ rapidity or collision centrality, consistent with theoretical expectations linking the linear polarization of the $ \mathrm{J}/\psi $ to the reaction plane. Compared to previously measured positive $A_{2}$ values for spin-0 final states (pions from coherent $\rho^0$), these results provide a direct test of the spin-state dependence of azimuthal asymmetries and demonstrate feasibility of a complementary probe of the reaction plane through the intrinsic polarization of coherently photoproduced vector mesons. Furthermore, they demonstrate the potential of using such an intrinsic polarization as a complementary reaction-plane estimator in heavy-ion collisions, which may offer improved performance in small systems such as proton-nucleus collisions where event-by-event fluctuations and nonflow contributions are substantial. |
| References | ||||
| 1 | F. Krauss, M. Greiner, and G. Soff | Photon and gluon induced processes in relativistic heavy ion collisions | Prog. Part. Nucl. Phys. 39 (1997) 503--564 | |
| 2 | G. Baur et al. | Coherent $ \gamma \gamma $ and $ \gamma $A interactions in very peripheral collisions at relativistic ion colliders | Phys. Rep. 364 (2002) 359 | hep-ph/0112211 |
| 3 | C. A. Bertulani, S. R. Klein, and J. Nystrand | Physics of ultra-peripheral nuclear collisions | Annu. Rev. Nucl. Part. Sci. 55 (2005) 271 | nucl-ex/0502005 |
| 4 | A. J. Baltz et al. | The physics of ultraperipheral collisions at the LHC | Phys. Rep. 458 (2008) 1 | 0706.3356 |
| 5 | STAR Collaboration | Coherent $ \rho^0 $ production in ultraperipheral heavy ion collisions | PRL 89 (2002) 272302 | nucl-ex/0206004 |
| 6 | STAR Collaboration | Coherent diffractive photoproduction of $ \rho^0 $ mesons on gold nuclei at 200 GeV/nucleon-pair at the Relativistic Heavy Ion Collider | Phys. Rev. C 96 (2017) 054904 | 1702.07705 |
| 7 | STAR Collaboration | Tomography of ultrarelativistic nuclei with polarized photon-gluon collisions | Sci. Adv. 9 (2023) no. 1, | 2204.01625 |
| 8 | ALICE Collaboration | Coherent \ensuremath\rho$ ^{0} $ photoproduction in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | JHEP 09 (2015) 095 | 1503.09177 |
| 9 | ALICE Collaboration | First measurement of coherent \ensuremath\rho0 photoproduction in ultra-peripheral Xe-Xe collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.44 TeV | PLB 820 (2021) 136481 | 2101.02581 |
| 10 | ALICE Collaboration | Measurement of the impact-parameter dependent azimuthal anisotropy in coherent \ensuremath\rho0 photoproduction in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 858 (2024) 139017 | 2405.14525 |
| 11 | CMS Collaboration | Coherent J/$ \psi $ photoproduction in ultra-peripheral PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV with the CMS experiment | PLB 772 (2017) 489 | CMS-HIN-12-009 1605.06966 |
| 12 | CMS Collaboration | Probing Small Bjorken-x Nuclear Gluonic Structure via Coherent J/\ensuremath\psi Photoproduction in Ultraperipheral Pb-Pb Collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PRL 131 (2023) no. 26 | CMS-HIN-22-002 2303.16984 |
| 13 | ALICE Collaboration | Coherent J/$ \psi $ photoproduction at forward rapidity in ultra-peripheral Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 798 (2019) 134926 | 1904.06272 |
| 14 | ALICE Collaboration | Coherent $ J/\psi $ and $ \psi' $ photoproduction at midrapidity in ultra-peripheral Pb-Pb collisions at $ \sqrt{s_{\mathrm{NN}}} = $ 5.02 TeV | EPJC 81 (2021) no. 8 | 2101.04577 |
| 15 | LHCb Collaboration | Study of exclusive photoproduction of charmonium in ultra-peripheral lead-lead collisions | JHEP 06 (2023) 146 | 2206.08221 |
| 16 | STAR Collaboration | Observation of Strong Nuclear Suppression in Exclusive J/\ensuremath\psi Photoproduction in Au+Au Ultraperipheral Collisions at RHIC | PRL 133 (2024) no. 5 | 2311.13637 |
| 17 | ALICE Collaboration | Energy dependence of coherent photonuclear production of J/\ensuremath\psi mesons in ultra-peripheral Pb-Pb collisions at $ \sqrt{{\textrm{s}}_{\textrm{NN}}} = $ 5.02 TeV | JHEP 10 (2023) 119 | 2305.19060 |
| 18 | CMS Collaboration | Observation of coherent $ \phi $(1020) meson photoproduction in ultraperipheral PbPb collisions at $ \sqrt{s_\text{NN}} = $ 5.36 TeV | CMS-HIN-24-009 2504.05193 |
|
| 19 | ALICE Collaboration | First Measurement of the $ \lvert t \rvert $ Dependence of Incoherent J/\ensuremath\psi Photonuclear Production | no. 16, 162302, 2024 PRL 132 (2024) |
2305.06169 |
| 20 | CMS Collaboration | Small-$ x $ evolution of gluon fields from incoherent J/$ \psi $ photoproduction in ultraperipheral PbPb collisions | CMS-HIN-23-009 2503.08903 |
|
| 21 | STAR Collaboration | Exclusive J/\ensuremath\psi, \ensuremath\psi(2s), and $ e^+e^- $ pair production in Au+Au ultraperipheral collisions at the BNL Relativistic Heavy Ion Collider | Phys. Rev. C 110 (2024) no. 1, 014911 | 2311.13632 |
| 22 | C. Li, J. Zhou, and Y.-J. Zhou | Probing the linear polarization of photons in ultraperipheral heavy ion collisions | PLB 795 (2019) 576--580 | 1903.10084 |
| 23 | C. Li, J. Zhou, and Y.-J. Zhou | Impact parameter dependence of the azimuthal asymmetry in lepton pair production in heavy ion collisions | PRD 101 (2020) no. 3, 034015 | 1911.00237 |
| 24 | STAR Collaboration | Measurement of $ e^+e^- $ Momentum and Angular Distributions from Linearly Polarized Photon Collisions | PRL 127 (2021) no. 5, 052302 | 1910.12400 |
| 25 | STAR Collaboration | $ \rho^0 $ photoproduction in ultraperipheral relativistic heavy ion collisions at $ \sqrt {\smash [b]{s_{_{\mathrm {NN}}}}} = $ 200 GeV | Phys. Rev. C 77 (2008) 034910 | 0712.3320 |
| 26 | ALICE Collaboration | First polarisation measurement of coherently photoproduced J/$ \psi $ in ultra-peripheral Pb-Pb collisions at $ \sqrt{s_{\rm NN}} = $ 5.02 TeV | 2304.10928 | |
| 27 | H. Xing, C. Zhang, J. Zhou, and Y.-J. Zhou | The cos 2$ \phi $ azimuthal asymmetry in $ \rho^{0} $ meson production in ultraperipheral heavy ion collisions | JHEP 10 (2020) 064 | 2006.06206 |
| 28 | W. Zha et al. | Exploring the double-slit interference with linearly polarized photons | PRD 103 (2021) no. 3, 033007 | 2006.12099 |
| 29 | J. D. Brandenburg et al. | Exploring gluon tomography with polarization dependent diffractive J/\ensuremath\psi production | PRD 106 (2022) no. 7, 074008 | 2207.02478 |
| 30 | W. Zha et al. | Double-slit experiment at fermi scale: coherent photoproduction in heavy-ion collisions | Phys. Rev. C 99 (2019) no. 6, 06 | 1810.10694 |
| 31 | J. G. Contreras and J. D. Tapia Takaki | Ultra-peripheral heavy-ion collisions at the LHC | Int. J. Mod. Phys. A 30 (2015) 1542012 | |
| 32 | X. Wu et al. | Reaction plane alignment with linearly polarized photon in heavy-ion collisions | Phys. Rev. Res. 4 (2022) no. 4, L04 | 2302.10458 |
| 33 | ALICE Collaboration | Measurement of an excess in the yield of J/$ \psi $ at very low $ p_{\rm T} $ in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | PRL 116 (2016) 222301 | 1509.08802 |
| 34 | STAR Collaboration | Observation of excess J/$ \psi $ yield at very low transverse momenta in Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 200 GeV and U+U collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 193 GeV | PRL 123 (2019) 132302 | 1904.11658 |
| 35 | LHCb Collaboration | $ J/\psi $ photoproduction in Pb-Pb peripheral collisions at $ \sqrt {s_{NN}} = $ 5 TeV | Phys. Rev. C 105 (2022) no. 3, L032201 | 2108.02681 |
| 36 | D. d'Enterria and C. Loizides | Progress in the Glauber Model at Collider Energies | Ann. Rev. Nucl. Part. Sci. 71 (2021) 315--344 | 2011.14909 |
| 37 | CMS Collaboration | Performance of Electron Reconstruction and Selection with the CMS Detector in Proton-Proton Collisions at \ensuremath\sqrts = 8 TeV | JINST 10 (2015) no. 06, P06005 | CMS-EGM-13-001 1502.02701 |
| 38 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) no. 06, P06015 | CMS-MUO-16-001 1804.04528 |
| 39 | CMS Collaboration | Observation and studies of jet quenching in PbPb collisions at nucleon-nucleon center-of-mass energy = 2.76 TeV | Phys. Rev. C 84 (2011) 024906 | CMS-HIN-10-004 1102.1957 |
| 40 | O. Sur\'anyi et al. | Performance of the CMS Zero Degree Calorimeters in pPb collisions at the LHC | JINST 16 (2021) no. 05, P05008 | 2102.06640 |
| 41 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 42 | CMS Collaboration | Performance of CMS muon reconstruction in pp collision events at $ \sqrt{s}= $ 7 TeV | JINST 7 (2012) P10002 | CMS-MUO-10-004 1206.4071 |
| 43 | A. M. Poskanzer and S. A. Voloshin | Methods for analyzing anisotropic flow in relativistic nuclear collisions | Phys. Rev. C 58 (1998) 1671 | nucl-ex/9805001 |
| 44 | CMS Collaboration | Observation of the Charged-Particle Multiplicity Dependence of \ensuremath\sigma\ensuremath\psi(2S)/\ensuremath\sigmaJ/\ensuremath\psi in p-Pb Collisions at 8.16 TeV | PRL 135 (2025) no. 9, 092301 | CMS-HIN-24-001 2503.02139 |
| 45 | S. R. Klein et al. | STARlight: A Monte Carlo simulation program for ultra-peripheral collisions of relativistic ions | Comput. Phys. Commun. 212 (2017) 258--268 | 1607.03838 |
| 46 | I. P. Lokhtin and A. M. Snigirev | A Model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_T $ hadron spectra at RHIC | EPJC 45 (2006) 211--217 | hep-ph/0506189 |
| 47 | CMS Collaboration | Charged-particle nuclear modification factors in PbPb and pPb collisions at $ \sqrt{s_{\mathrm{N}\;\mathrm{N}}}= $ 5.02 TeV | JHEP 04 (2017) 039 | CMS-HIN-15-015 1611.01664 |
| 48 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | Nucl. Instrum. Meth. Phys. Res. Sect. A 506 (2003) 250 | |
| 49 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 50 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) no. 1, 4 | CMS-GEN-17-001 1903.12179 |
| 51 | ALICE Collaboration | Measurements of inclusive J/\ensuremath\psi production at midrapidity and forward rapidity in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 849 (2024) 138451 | 2303.13361 |
| 52 | D. Y. Shao, H.-Q. Yu, C. Zhang, and J. Zhou | Geometry-induced azimuthal anisotropy in coherent J/$ \psi $ photoproduction | 2511.17670 | |
|
|
