Search for heavy long-lived charged particles with Level-1 Scouting data from proton-proton collisions at $ \sqrt{s}= $ 13.6 TeV
CMS Collaboration
2025-09-23

Abstract: Heavy long-lived charged particles crossing the CMS muon chambers in several bunch crossings are searched for using 3.7 fb$ ^{-1} $ of data collected in 2024 at a center-of-mass energy of 13.6 TeV. The search relies, for the first time, on the Level-1 Scouting data set, collected without any trigger selection, allowing for correlations between bunch crossings to be analyzed. The results are interpreted as upper limits on the production cross section of several benchmark processes with pair-production of heavy long-lived charged particles. Fiducial upper limits on the cross section of a heavy long-lived charged particle with $ p_T > $ 500 GeV and $ \|\eta\| < $ 0.83 are also set in different ranges of $ \beta=v/c $. This analysis is a crucial proof-of-concept of the Level-1 Data Scouting system and complements existing searches for heavy long-lived charged particles by extending the sensitivity to lower $ \beta $ values.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

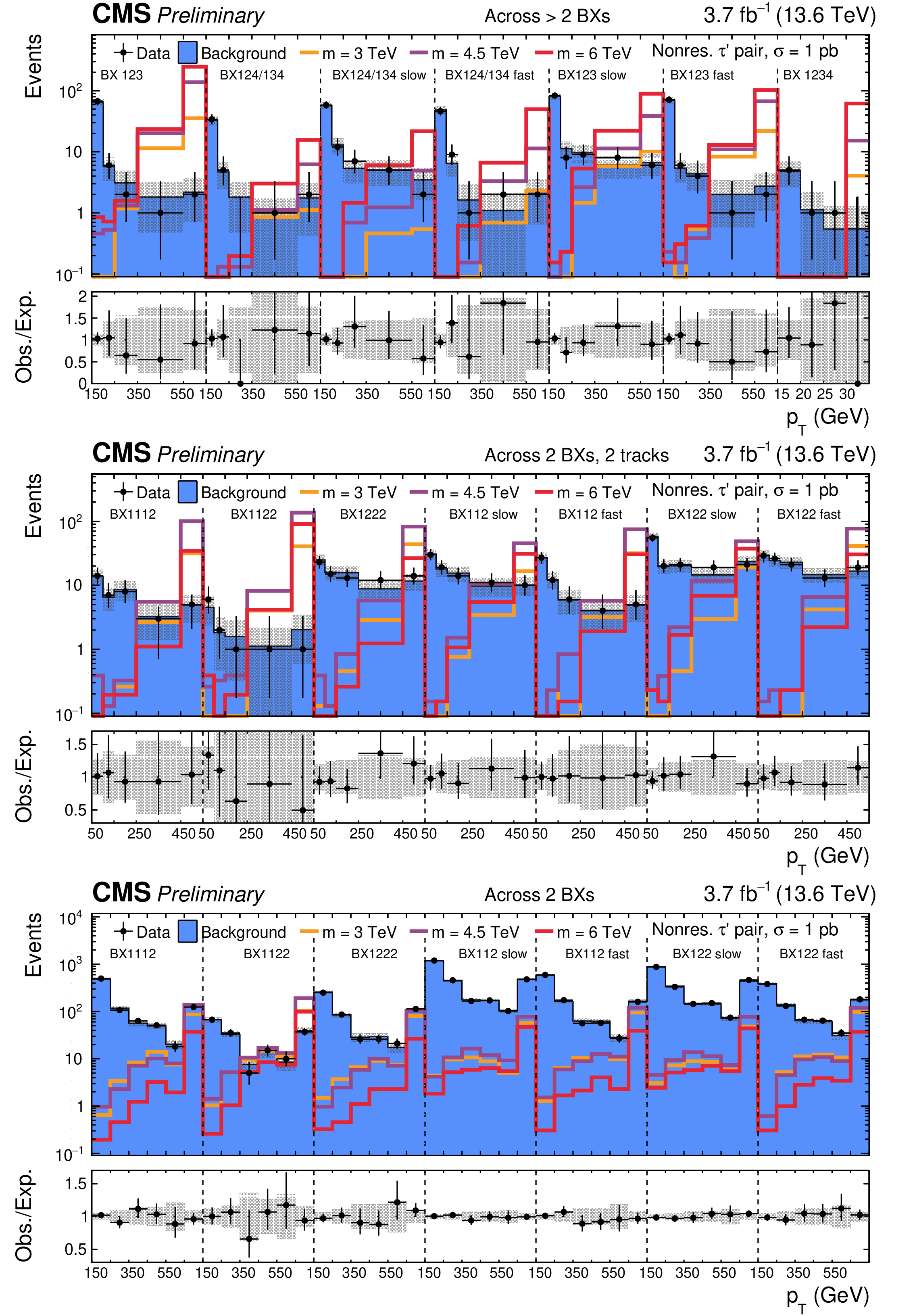

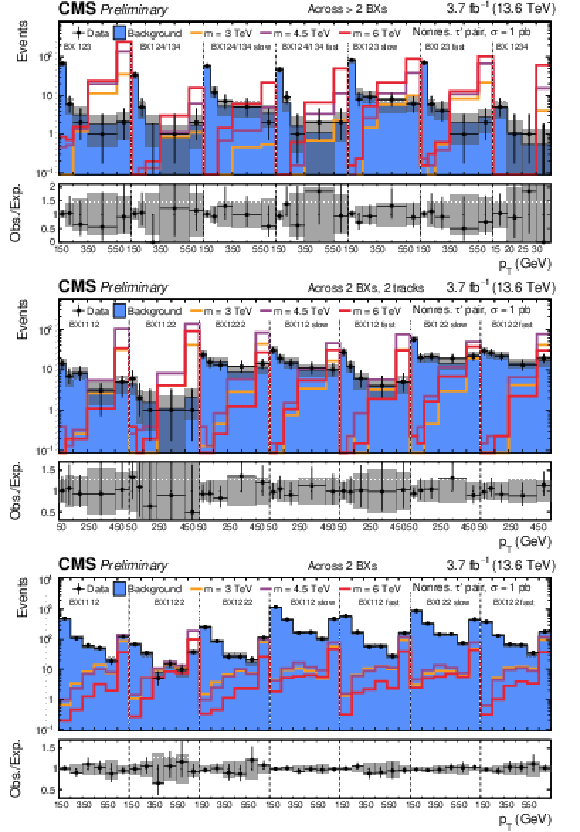

png pdf	Figure 1: SR distributions for the categories with tracks across $ > $ 2 ($ = $ 2,$ = $ 2) BXs without (with, without) additional track requirement are shown in the upper (center, lower) part of the figure. The background distributions are the result of the maximum likelihood fit. The signal is shown for a few mass hypotheses of the nonresonant fourth-generation lepton model, using a production cross section of 1 pb.

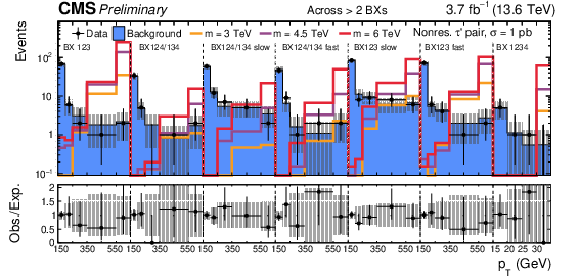

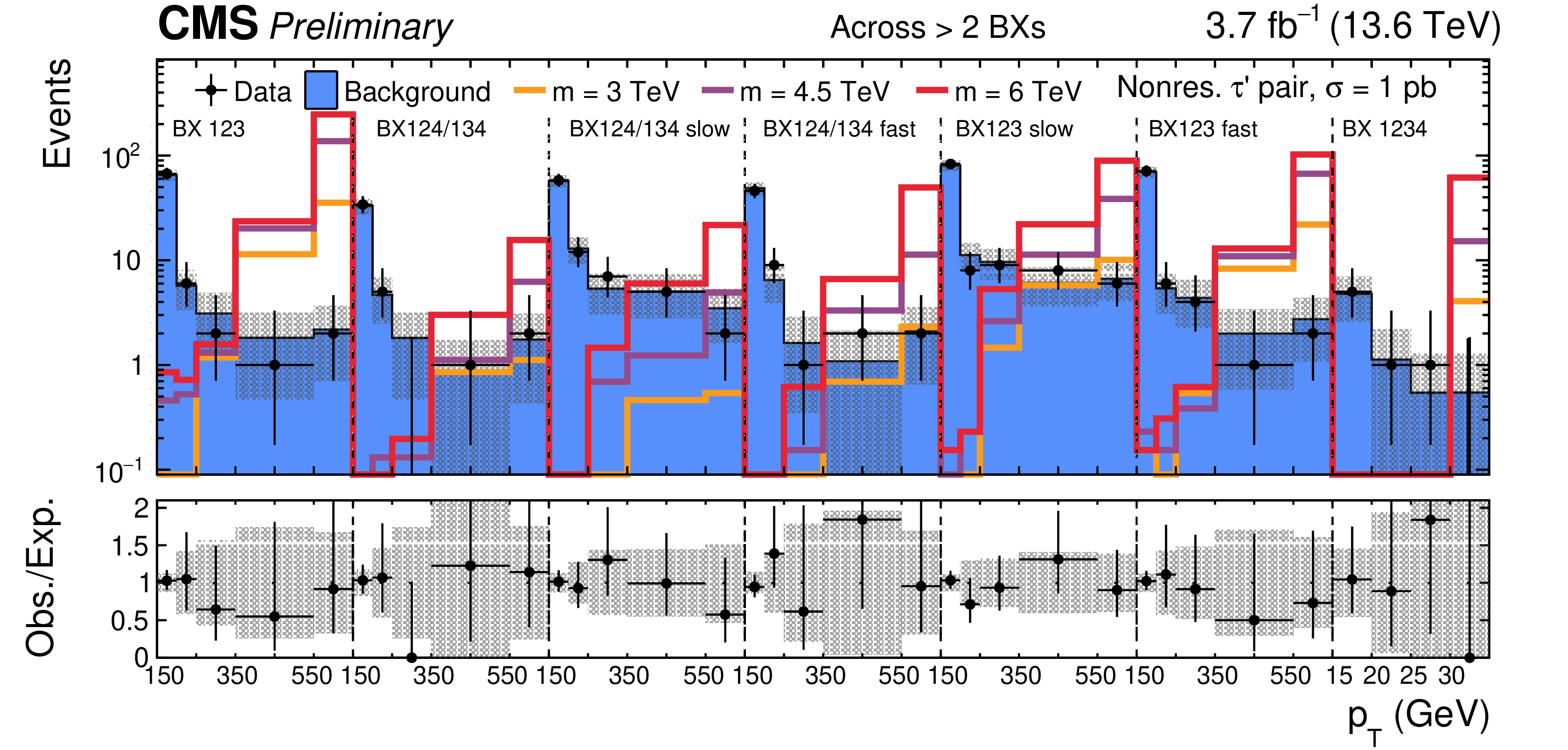

png pdf	Figure 1-a: SR distributions for the categories with tracks across $ > $ 2 ($ = $ 2,$ = $ 2) BXs without (with, without) additional track requirement are shown in the upper (center, lower) part of the figure. The background distributions are the result of the maximum likelihood fit. The signal is shown for a few mass hypotheses of the nonresonant fourth-generation lepton model, using a production cross section of 1 pb.

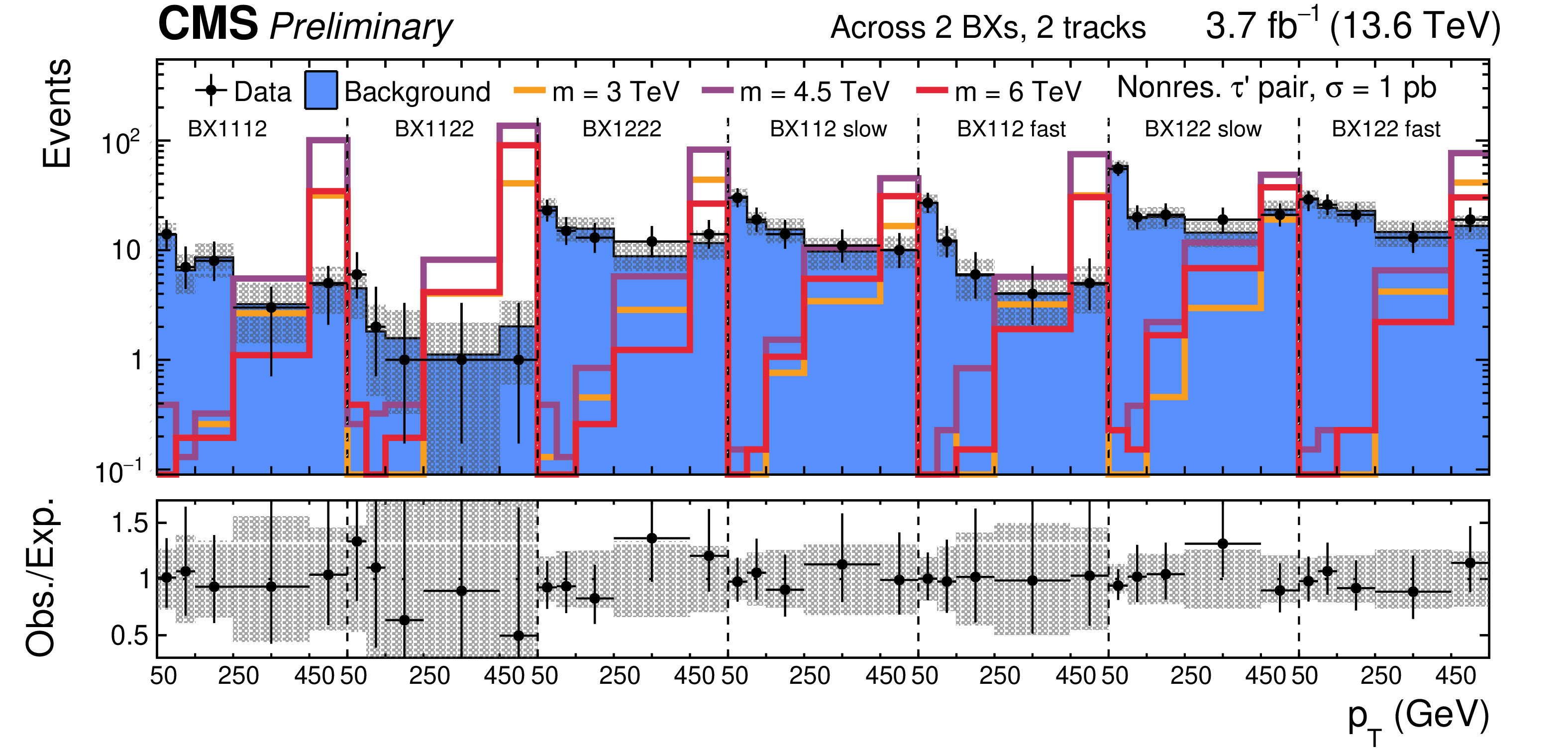

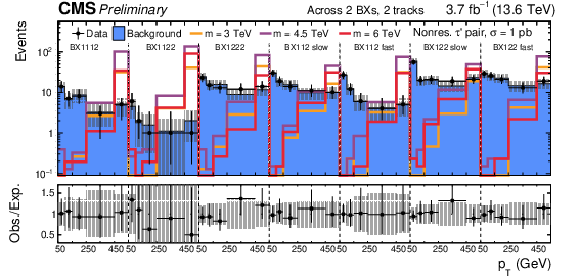

png pdf	Figure 1-b: SR distributions for the categories with tracks across $ > $ 2 ($ = $ 2,$ = $ 2) BXs without (with, without) additional track requirement are shown in the upper (center, lower) part of the figure. The background distributions are the result of the maximum likelihood fit. The signal is shown for a few mass hypotheses of the nonresonant fourth-generation lepton model, using a production cross section of 1 pb.

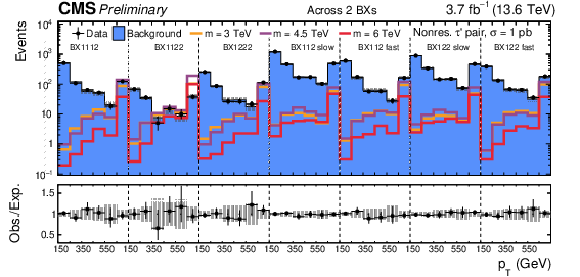

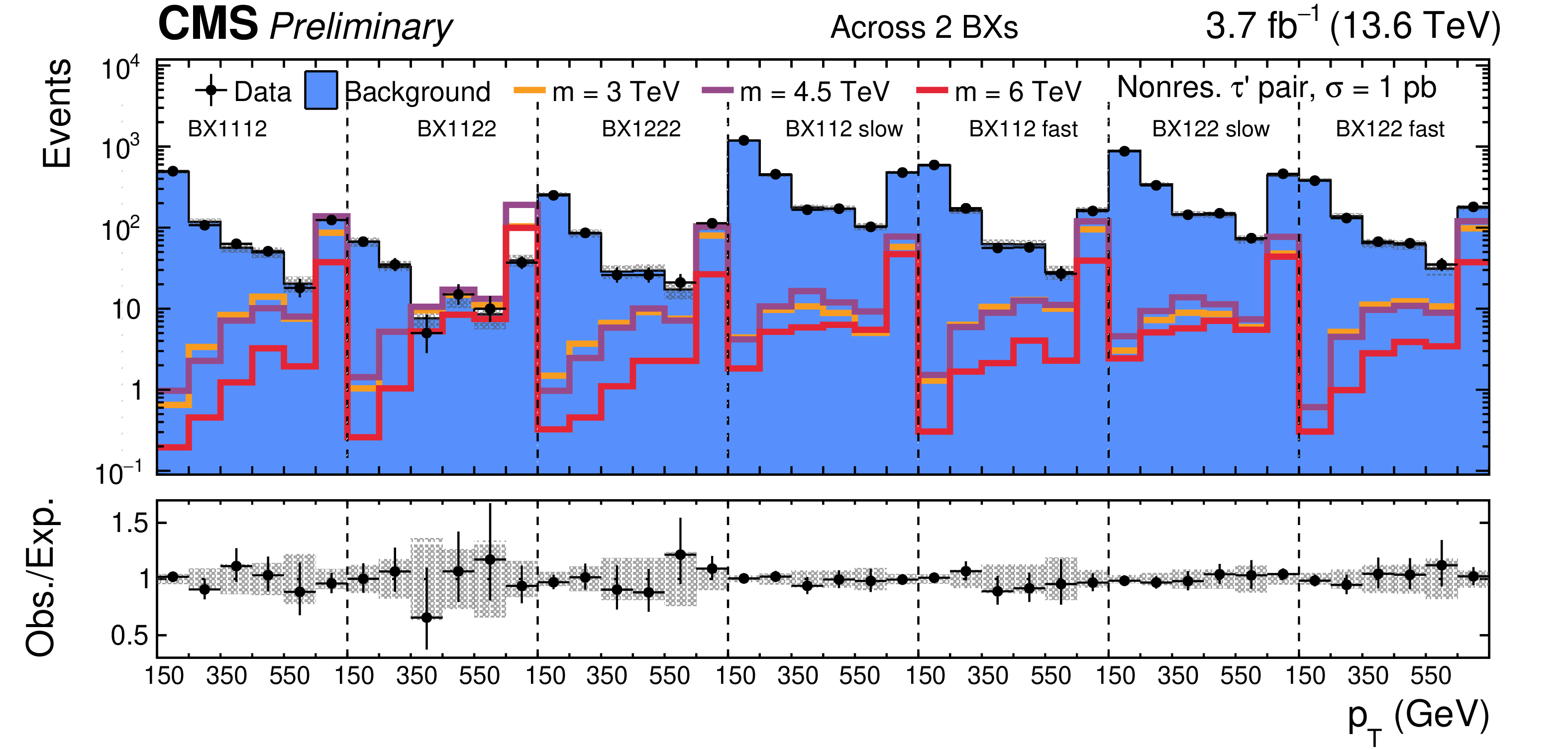

png pdf	Figure 1-c: SR distributions for the categories with tracks across $ > $ 2 ($ = $ 2,$ = $ 2) BXs without (with, without) additional track requirement are shown in the upper (center, lower) part of the figure. The background distributions are the result of the maximum likelihood fit. The signal is shown for a few mass hypotheses of the nonresonant fourth-generation lepton model, using a production cross section of 1 pb.

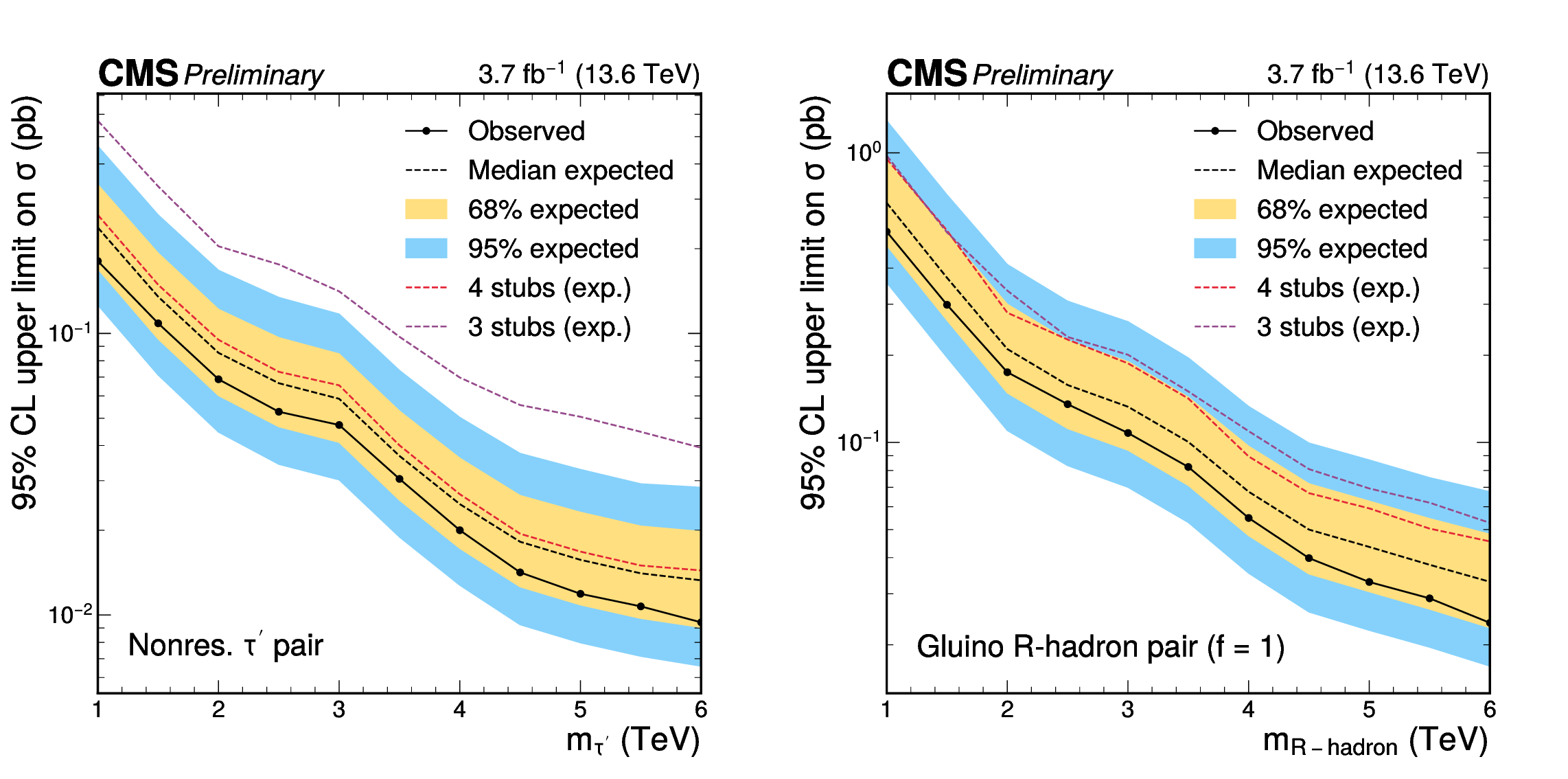

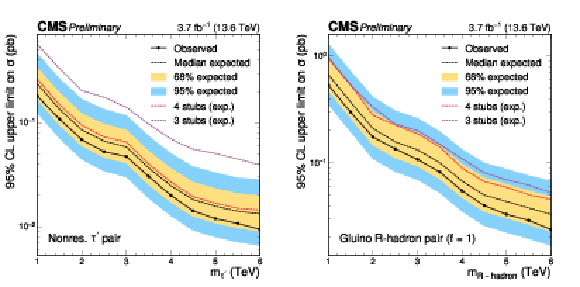

png pdf	Figure 2: Observed (full line with markers) and expected (dashed black line) upper limits at 95% CL on the production cross section of heavy fourth-generation leptons through nonresonant DY production (left) and of a gluino $ R $-hadron pair with $ f= $ 1 (right). The inner (yellow) band and the outer (blue) band indicate the regions containing 68 and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. The expected limits for the combinations of three-stub (dashed purple line) and four-stub (dashed-red line) categories are also shown.

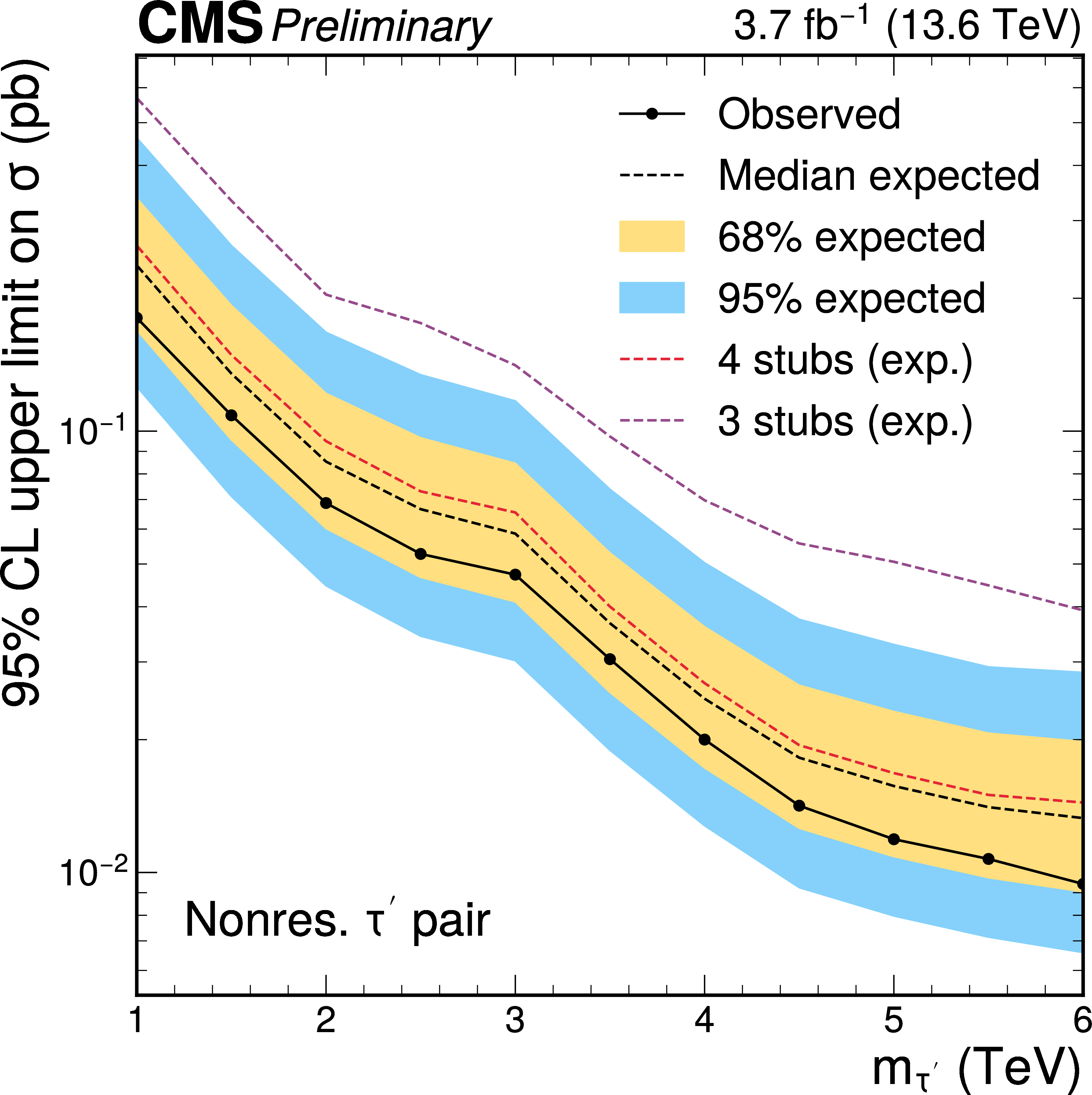

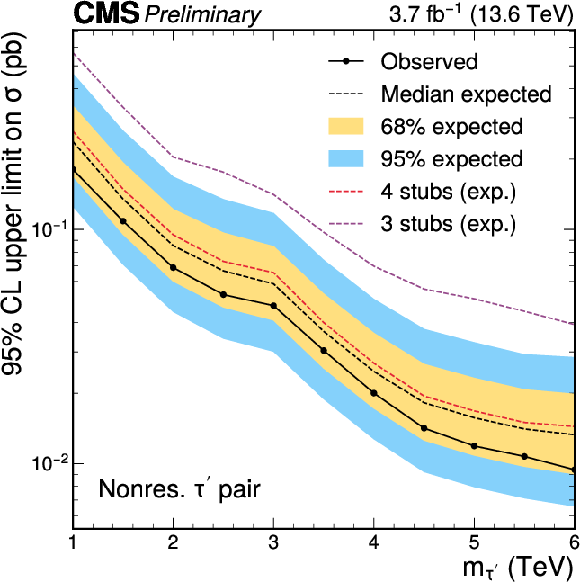

png pdf	Figure 2-a: Observed (full line with markers) and expected (dashed black line) upper limits at 95% CL on the production cross section of heavy fourth-generation leptons through nonresonant DY production (left) and of a gluino $ R $-hadron pair with $ f= $ 1 (right). The inner (yellow) band and the outer (blue) band indicate the regions containing 68 and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. The expected limits for the combinations of three-stub (dashed purple line) and four-stub (dashed-red line) categories are also shown.

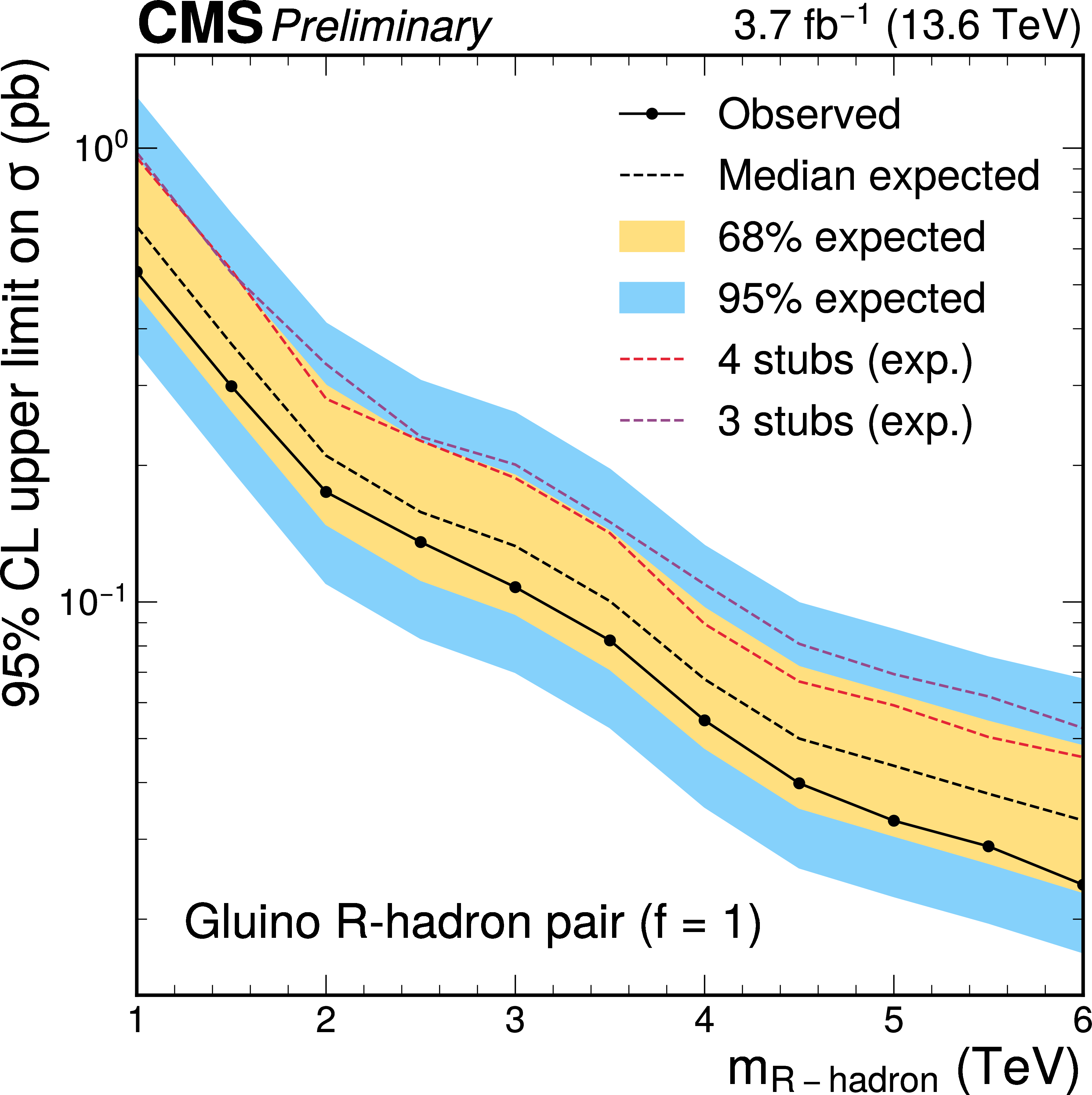

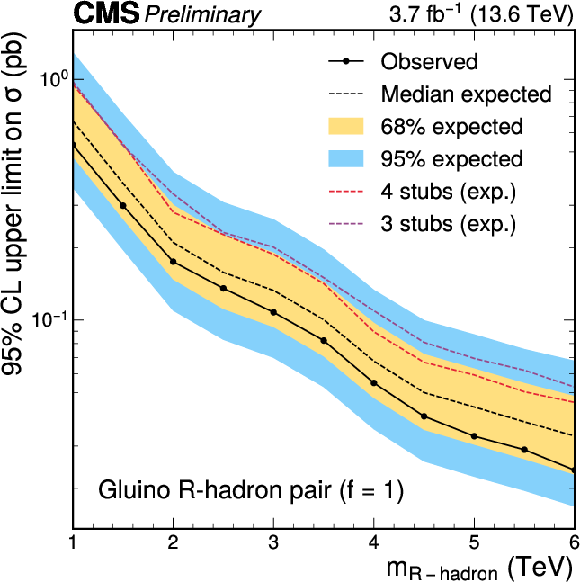

png pdf	Figure 2-b: Observed (full line with markers) and expected (dashed black line) upper limits at 95% CL on the production cross section of heavy fourth-generation leptons through nonresonant DY production (left) and of a gluino $ R $-hadron pair with $ f= $ 1 (right). The inner (yellow) band and the outer (blue) band indicate the regions containing 68 and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. The expected limits for the combinations of three-stub (dashed purple line) and four-stub (dashed-red line) categories are also shown.

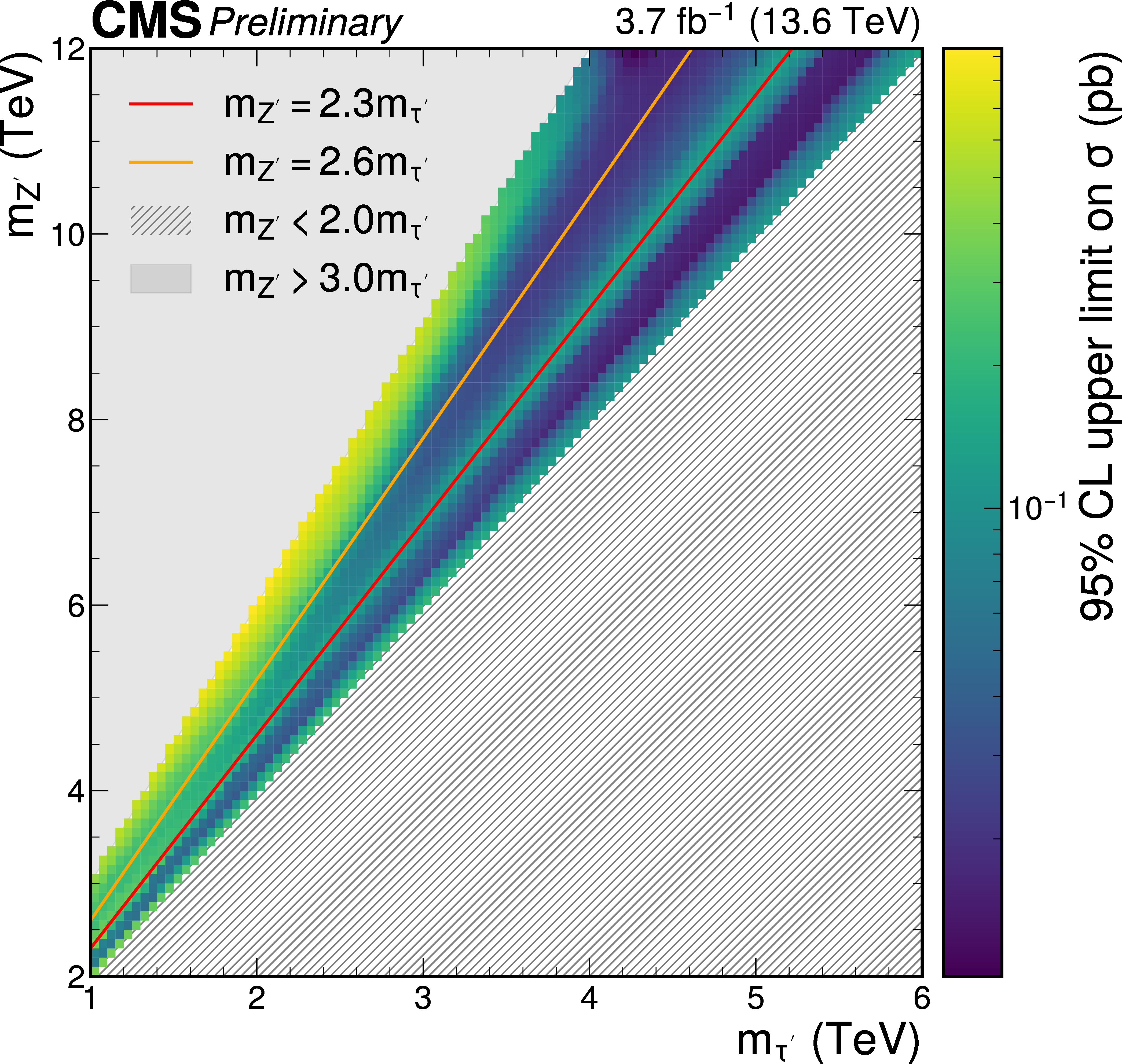

png pdf	Figure 3: Observed upper limits at 95% CL on the production cross section of heavy fourth-generation leptons through $ \mathrm{Z}' $ decays. Lines indicate different values of the ratio of $ \mathrm{Z}' $ to $ \tau' $ masses, for which $ \beta $ values are typically similar. For $ m_{\mathrm{Z}'} > $ 3.0 $m_{\tau'} $, the HSCPs typically have high $ \beta $ and are reconstructed in the same BX.

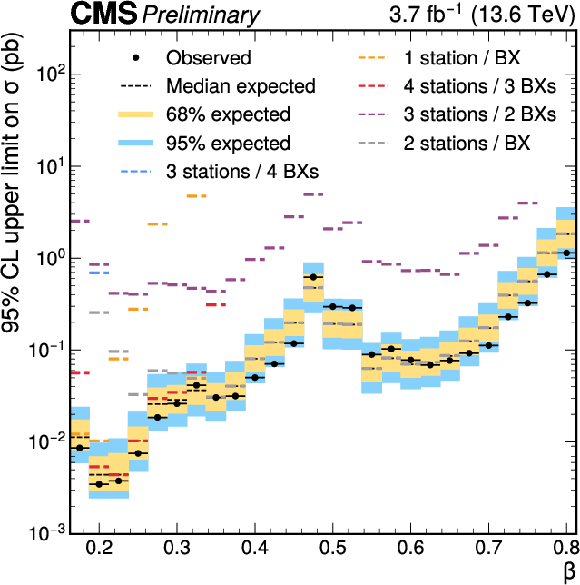

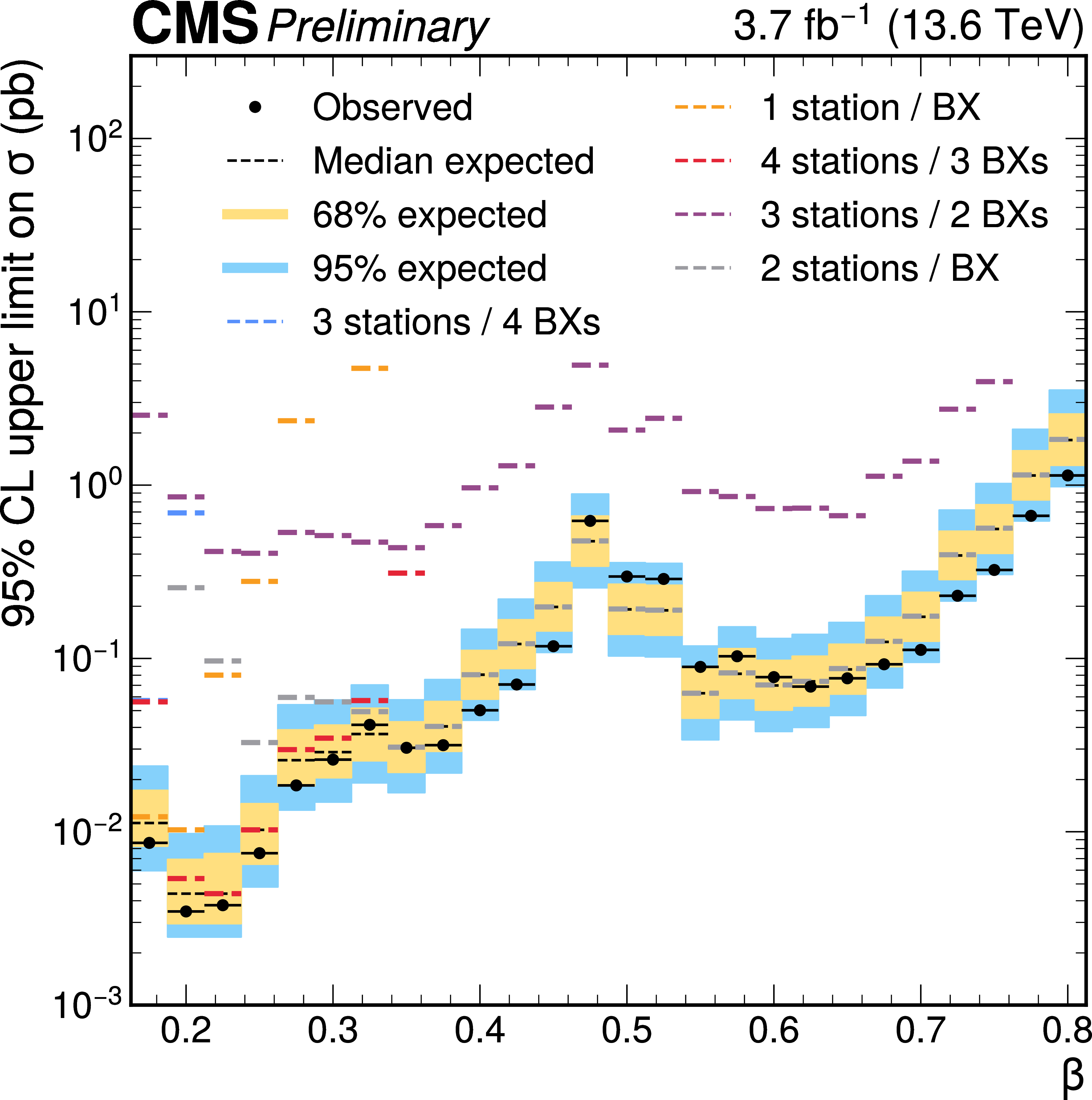

png pdf	Figure 4: Observed and expected upper limits at 95% CL on the fiducial cross section of a heavy particle leaving a signature in the muon stations with $ p_{\mathrm{T}} > $ 500 GeV, $ \|\eta\| < $ 0.83, and a given $ \beta $ range. The inner (yellow) band and the outer (blue) band indicate the regions containing 68 and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. The expected limits for groups of categories corresponding to a different number of stations crossed per BX are also shown with colorful dashed lines.

Tables

png pdf

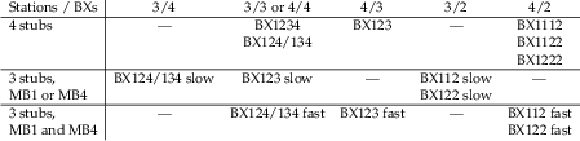

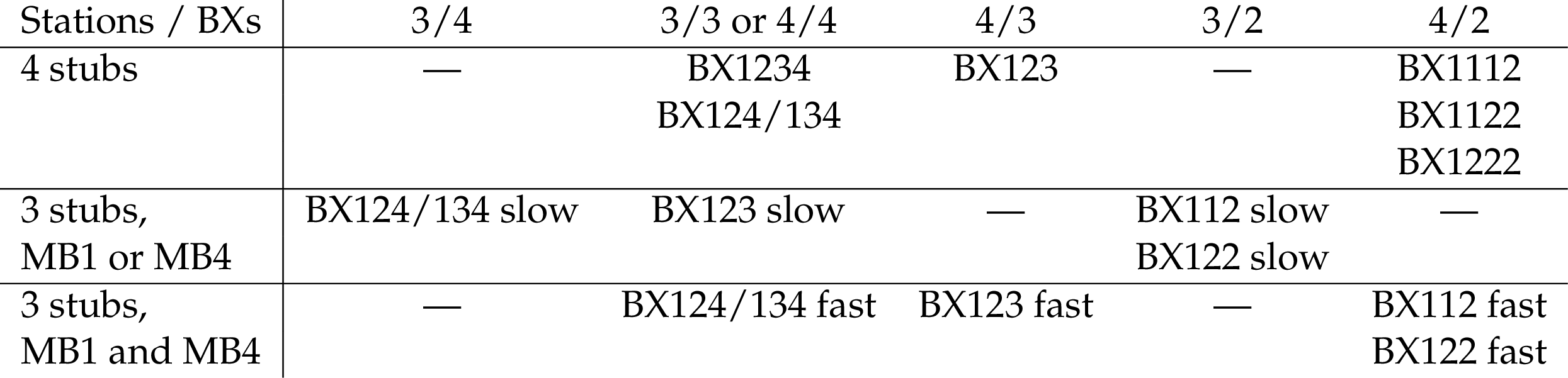

Table 1:
Categories based on the stub multiplicity of the track, the stations with stubs, and the speed expressed as the number of crossed stations divided by the number of BXs spent to cross them. BX1112 (1122, 1222) corresponds to three (two, one) stubs in the first BX, and one (two, three) stubs in the next BX, whereas BX112 (122) corresponds to two (one) stubs in the first BX and one (two) stubs in the next BX. For three-stub (four-stub) tracks, BX124/134 corresponds to three (four) stubs in three different BXs across a range of 4 BXs. Three-stub categories denoted "fast" have the first stub in MB1 and the last one in MB4, corresponding to a longer distance crossed in the same amount of time as their "slow" counterparts, which do not have stubs in both extreme stations.

Summary

In summary, a search for long-lived massive charged particles has been presented, exploiting a muon-like signature in the barrel muon chambers spread across several bunch crossings. For the first time, this analysis relies on the Level-1 scouting data set, for which no trigger selection is applied. A data-driven method is used to estimate the backgrounds, relying on tracks not compatible in time with the expectations from a slow particle exiting the detector. No significant excess of data above the predicted standard model backgrounds is observed. Upper limits are set on the cross section production of heavy stable charged particles in several models, and fiducial upper limits on the production cross section for different $ \beta=v/c $ ranges are also set for a model-independent interpretation. The analysis has unique sensitivity to particles with 0.15 $ \lesssim \beta \lesssim $ 0.50, which cannot be triggered on, and to neutral particles that acquire a charge when crossing the detector, which do not leave an ionization-loss signature in the tracker. An upper limit as low as 3.5fb is set at 95% confidence level on the fiducial production cross section of lepton-like charged particles with 0.1875 $ < \beta < $ 0.2125, $ |\eta| < $ 0.83, and $ p_{\mathrm{T}} > $ 500 GeV.

References
1	M. Fairbairn et al.	Stable massive particles at colliders	Phys. Rept. 438 (2007) 1	hep-ph/0611040
2	C. W. Bauer et al.	Supermodels for early LHC	PLB 690 (2010) 280	0909.5213
3	ALEPH Collaboration	Search for pair production of longlived heavy charged particles in $ e^+ e^- $ annihilation	PLB 405 (1997) 379	hep-ex/9706013
4	DELPHI Collaboration	Search for heavy stable and longlived particles in $ e^+ e^- $ collisions at $ \sqrt{s} = $ 189 GeV	PLB 478 (2000) 65	hep-ex/0103038
5	L3 Collaboration	Search for heavy neutral and charged leptons in $ e^{+} e^{-} $ annihilation at LEP	PLB 517 (2001) 75	hep-ex/0107015
6	OPAL Collaboration	Search for stable and longlived massive charged particles in $ e^+ e^- $ collisions at $ \sqrt{s}= $ 130 GeV to 209 GeV	PLB 572 (2003) 8	hep-ex/0305031
7	H1 Collaboration	Measurement of anti-deuteron photoproduction and a search for heavy stable charged particles at HERA	EPJC 36 (2004) 413	hep-ex/0403056
8	CDF Collaboration	Search for long-lived massive charged particles in 1.96 TeV $ \bar{p}p $ collisions	PRL 103 (2009) 021802	0902.1266
9	D0 Collaboration	Search for long-lived charged massive particles with the D0 detector	PRL 102 (2009) 161802	0809.4472
10	D0 Collaboration	A search for charged massive long-lived particles	PRL 108 (2012) 121802	1110.3302
11	D0 Collaboration Collaboration	Search for charged massive long-lived particles at $ \sqrt{s} = $ 1.96 TeV	PRD 87 (2013) 052011
12	ATLAS Collaboration	Search for heavy long-lived charged particles with the ATLAS detector in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV	PLB 703 (2011) 428	1106.4495
13	ATLAS Collaboration	Search for stable hadronising squarks and gluinos with the ATLAS experiment at the LHC	PLB 701 (2011) 1	1103.1984
14	ATLAS Collaboration	Search for massive long-lived highly ionising particles with the ATLAS detector at the LHC	PLB 698 (2011) 353	1102.0459
15	ATLAS Collaboration	Searches for heavy long-lived sleptons and R-hadrons with the ATLAS detector in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV	PLB 720 (2013) 277	1211.1597
16	ATLAS Collaboration	Search for long-lived, multi-charged particles in pp collisions at $ \sqrt{s} = $ 7 TeV using the ATLAS detector	PLB 722 (2013) 305	1301.5272
17	ATLAS Collaboration	Searches for heavy long-lived charged particles with the ATLAS detector in proton-proton collisions at $ \sqrt{s}= $ 8 TeV	JHEP 01 (2015) 068	1411.6795
18	ATLAS Collaboration	Search for heavy long-lived multi-charged particles in pp collisions at $ \sqrt{s}= $ 8 TeV using the ATLAS detector	EPJC 75 (2015) 362	1504.04188
19	ATLAS Collaboration	Search for metastable heavy charged particles with large ionisation energy loss in pp collisions at $ \sqrt{s} = $ 8 TeV using the ATLAS experiment	EPJC 75 (2015) 407	1506.05332
20	ATLAS Collaboration	Search for metastable heavy charged particles with large ionization energy loss in pp collisions at $ \sqrt{s} = $ 13 TeV using the ATLAS experiment	PRD 93 (2016) 112015	1604.04520
21	ATLAS Collaboration	Search for heavy long-lived charged $ R $-hadrons with the ATLAS detector in 3.2 fb$ ^{-1} $ of proton--proton collision data at $ \sqrt{s} = $ 13 TeV	PLB 760 (2016) 647	1606.05129
22	CMS Collaboration	Search for heavy stable charged particles in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV	JHEP 03 (2011) 024	CMS-EXO-10-011 1101.1645
23	CMS Collaboration	Search for fractionally charged particles in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV	PRD 87 (2013) 092008	CMS-EXO-11-074 1210.2311
24	CMS Collaboration	Search for heavy long-lived charged particles in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV	PLB 713 (2012) 408	CMS-EXO-11-022 1205.0272
25	CMS Collaboration	Searches for long-lived charged particles in $ pp $ collisions at $ \sqrt{s} = $ 7 and 8 TeV	JHEP 07 (2013) 122	CMS-EXO-12-026 1305.0491
26	CMS Collaboration	Search for long-lived charged particles in proton-proton collisions at $ \sqrt s= $ 13 TeV	PRD 94 (2016) 112004	CMS-EXO-15-010 1609.08382
27	CMS Collaboration	Search for decays of stopped exotic long-lived particles produced in proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JHEP 05 (2018) 127	CMS-EXO-16-004 1801.00359
28	ATLAS Collaboration	Search for heavy, long-lived, charged particles with large ionisation energy loss in $ pp $ collisions at $ \sqrt{s} = $ 13 TeV using the ATLAS experiment and the full Run 2 dataset	JHEP 06 (2023) 158	2205.06013
29	CMS Collaboration	Search for fractionally charged particles in proton-proton collisions at $ \sqrt{s}= $ 13 TeV	PRL 134 (2025) 131802	CMS-EXO-19-006 2402.09932
30	CMS Collaboration	Search for heavy long-lived charged particles with large ionization energy loss in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JHEP 04 (2025) 109	CMS-EXO-18-002 2410.09164
31	ATLAS Collaboration	Search for long-lived charged particles using large specific ionisation loss and time of flight in 140 fb$ ^{-1} $ of pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector	JHEP 07 (2025) 140	2502.06694
32	CMS Collaboration	The Phase-2 upgrade of the CMS Level-1 trigger	technical report, CERN, Geneva, 2020 CDS
33	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
34	M. Migliorini	40MHz scouting at the CMS experiment	PhD thesis, Padua University, CERN-THESIS-2024-288, 2024 link
35	R. Ardino	Search for rare boson decays with the CMS detector at LHC and the CMS Level-1 trigger Data Scouting	PhD thesis, Padua University, CERN-THESIS-2024-303, 2024 link
36	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
37	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
38	CMS Collaboration	The CMS barrel muon trigger upgrade	JINST 12 (2017) C01095
39	G. F. Giudice, M. McCullough, and D. Teresi	dE/dx from boosted long-lived particles	JHEP 08 (2022) 012	2205.04473
40	G. R. Farrar and P. Fayet	Phenomenology of the production, decay, and detection of new hadronic states associated with supersymmetry	PLB 76 (1978) 575
41	G. F. Giudice and A. Romanino	Split supersymmetry	NPB 699 (2004) 65	hep-ph/0406088
42	N. Arkani-Hamed and S. Dimopoulos	Supersymmetric unification without low energy supersymmetry and signatures for fine-tuning at the LHC	JHEP 06 (2005) 073	hep-th/0405159
43	A. C. Kraan	Interactions of heavy stable hadronizing particles	EPJC 37 (2004) 91	hep-ex/0404001
44	R. Mackeprang and A. Rizzi	Interactions of coloured heavy stable particles in matter	EPJC 50 (2007) 353	hep-ph/0612161
45	T. Sjostrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
46	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
47	R. D. Ball et al.	Unbiased global determination of parton distributions and their uncertainties at NNLO and at LO	NPB 855 (2012) 153	1107.2652
48	NNPDF Collaboration	Parton distributions with QED corrections	NPB 877 (2013) 290	1308.0598
49	NNPDF Collaboration	Parton distributions from high-precision collider data	EPJC 77 (2017) 663	1706.00428
50	GEANT4 Collaboration	GEANT 4 --- a simulation toolkit	NIM A 506 (2003) 250
51	CMS Collaboration	Bunch crossing identification studies for the CMS muon barrel local trigger	CDS
52	CMS Collaboration	The CMS statistical analysis and combination tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
