| CMS-PAS-B2G-24-008 | ||
| Search for charged Higgs bosons decaying into a top and a bottom quark in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | ||
| CMS Collaboration | ||
| 2025-08-23 | ||
| Abstract: A search is presented for charged Higgs bosons ($ \text{H}^\pm $) in proton-proton ($ \text{pp} $) collision events via the $ \text{pp}\rightarrow $ (q) $ \text{H}^\pm $ processes with $ \text{H}^\pm\rightarrow\text{tb} $ decays. The analysis is based on the data collected at a center-of-mass energy of 13 TeV with the CMS detector at the LHC, corresponding to an integrated luminosity of 138 $ \text{fb}^{-1} $. Charged Higgs bosons in the 200 GeV to 1 TeV mass range are targeted in the search. The results are interpreted in the framework of the generalized two-Higgs-doublet model (g2HDM) assuming the real components of the extra Yukawa couplings $ \rho_{\text{tt}} $ and $ \rho_{\text{tc}} $ range up to unity. No significant excess above the standard model prediction is observed. Stringent upper limits at 95% confidence level are derived on the product of the cross section $ \sigma({\text{pp}\rightarrow $ (q) $ \text{H}^\pm}) $ and branching ratio $ \mathcal{B}({\text{H}^\pm\rightarrow\text{tb}}, {\text{t}\rightarrow \text{bl}\nu}) $, where $ \text{l}=$ e, $\mu $, for $ \text{H}^\pm $ boson masses up to $ m_{\text{H}^\pm}= $ 1 TeV for $ \rho_{\text{tc}} \gtrsim $ 0.15-0.5 depending on the $ m_{\text{H}^\pm} $ and $ \rho_{\text{tt}} $ assumption. The results represent the first search for charged Higgs bosons based on the g2HDM at any collider and complement the existing results on additional neutral Higgs bosons. | ||
| Links: CDS record (PDF) ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

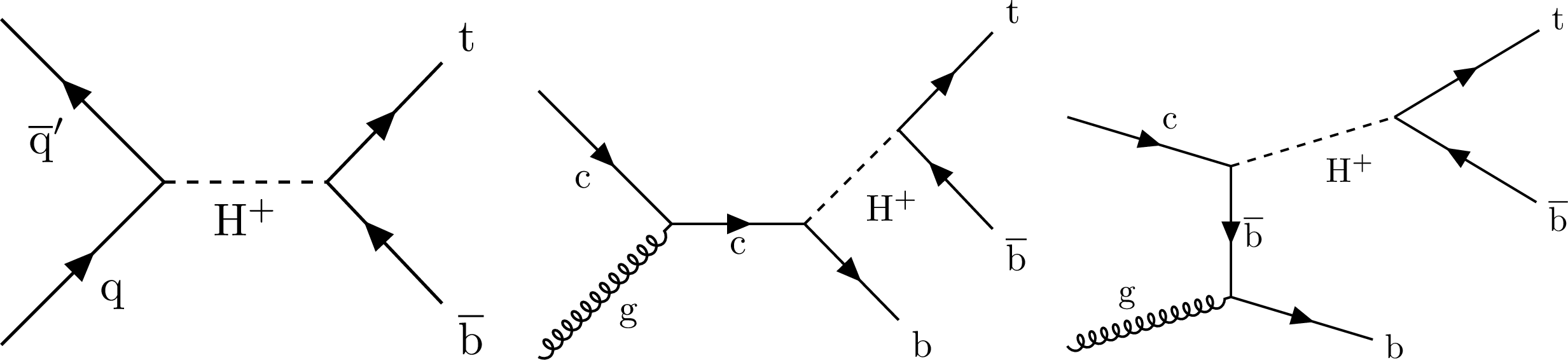

Figure 1:
Representative tree-level Feynman diagrams for the signal processes: $ \mathrm{p}\mathrm{p}\to\mathrm{H}^{+}, \mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (left), and $ \mathrm{p}\mathrm{p}\to\overline{\mathrm{q}}\mathrm{H}^{+},\mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (middle and right). |
png pdf |
Figure 1-a:
Representative tree-level Feynman diagrams for the signal processes: $ \mathrm{p}\mathrm{p}\to\mathrm{H}^{+}, \mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (left), and $ \mathrm{p}\mathrm{p}\to\overline{\mathrm{q}}\mathrm{H}^{+},\mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (middle and right). |
png pdf |

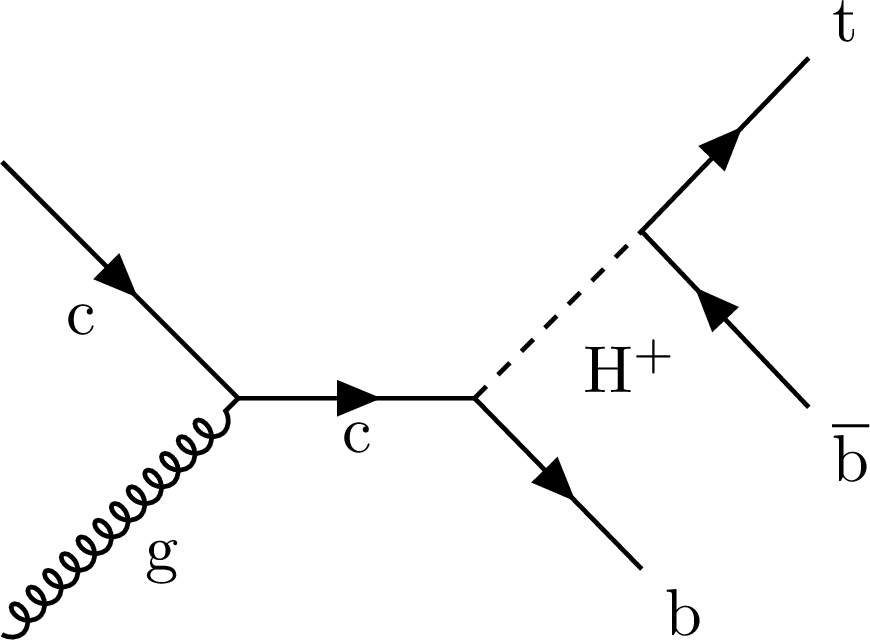

Figure 1-b:
Representative tree-level Feynman diagrams for the signal processes: $ \mathrm{p}\mathrm{p}\to\mathrm{H}^{+}, \mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (left), and $ \mathrm{p}\mathrm{p}\to\overline{\mathrm{q}}\mathrm{H}^{+},\mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (middle and right). |
png pdf |

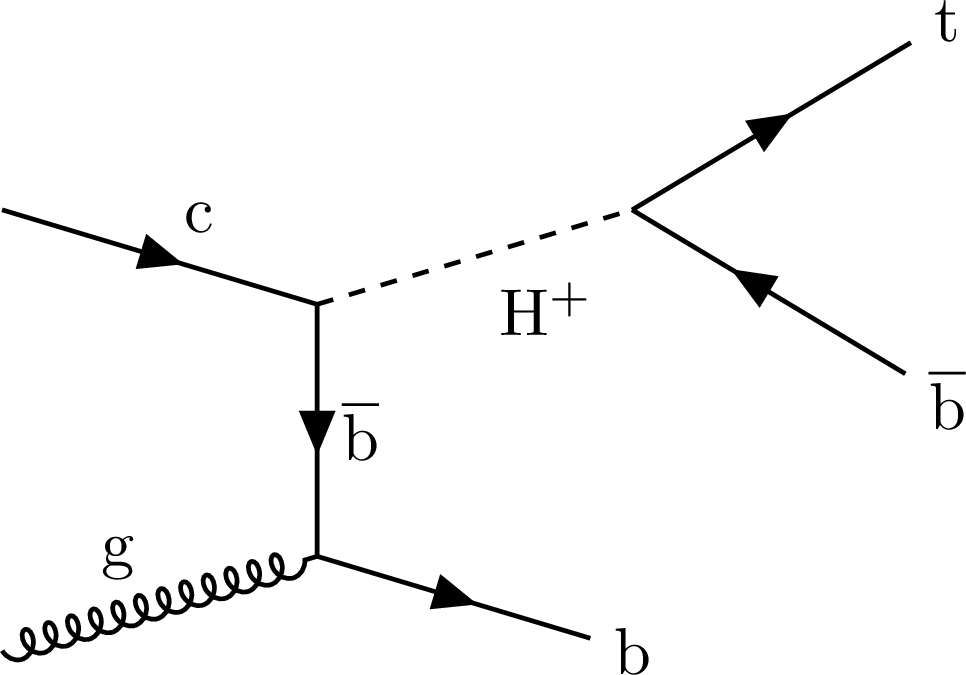

Figure 1-c:
Representative tree-level Feynman diagrams for the signal processes: $ \mathrm{p}\mathrm{p}\to\mathrm{H}^{+}, \mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (left), and $ \mathrm{p}\mathrm{p}\to\overline{\mathrm{q}}\mathrm{H}^{+},\mathrm{H}^+\to\mathrm{t}\overline{\mathrm{b}} $ (middle and right). |
png pdf |

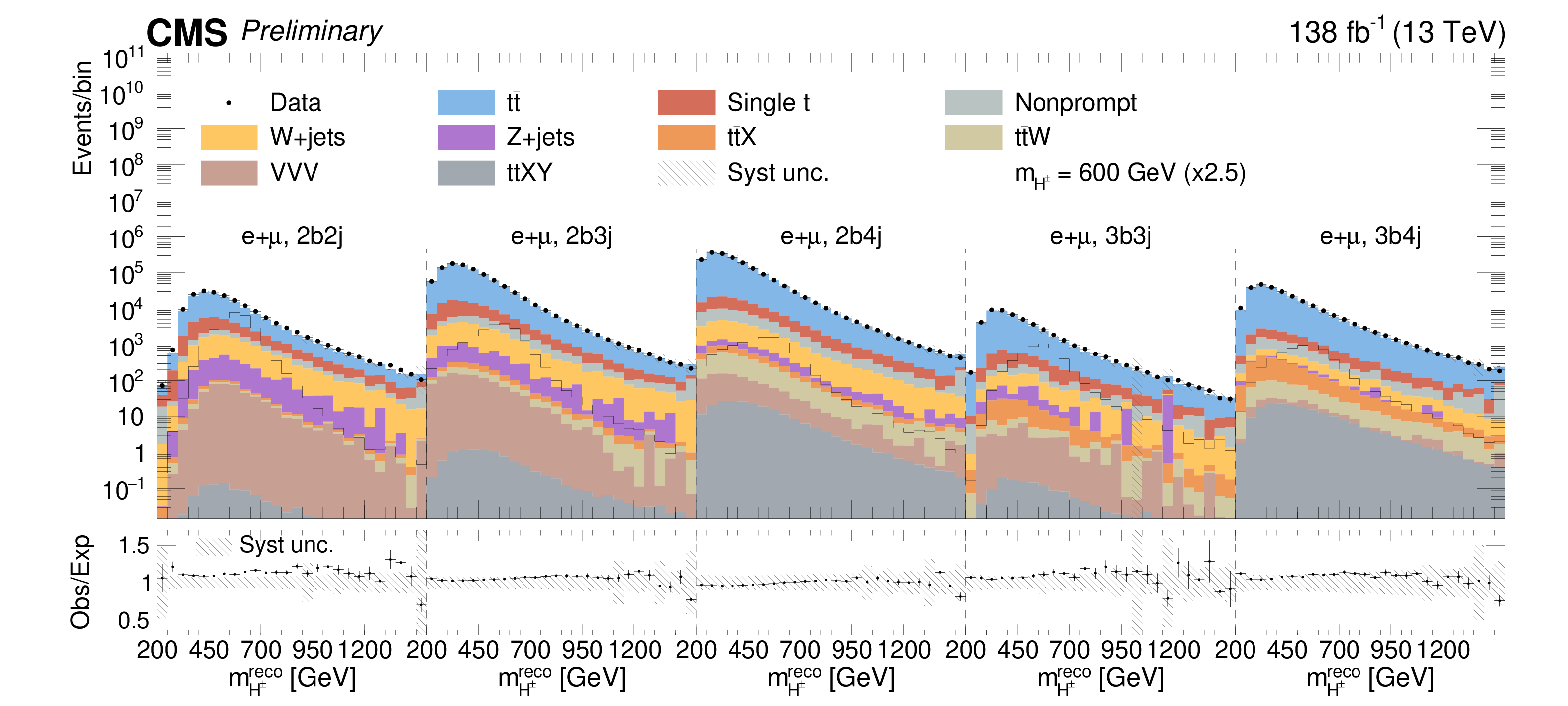

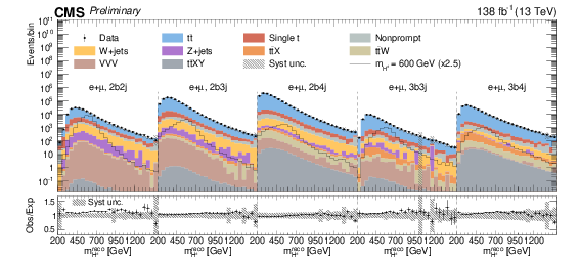

Figure 2:
The pre-fit reconstructed $ \mathrm{\widetilde{H}^{\pm}} $ mass distributions in each region using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, is also shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

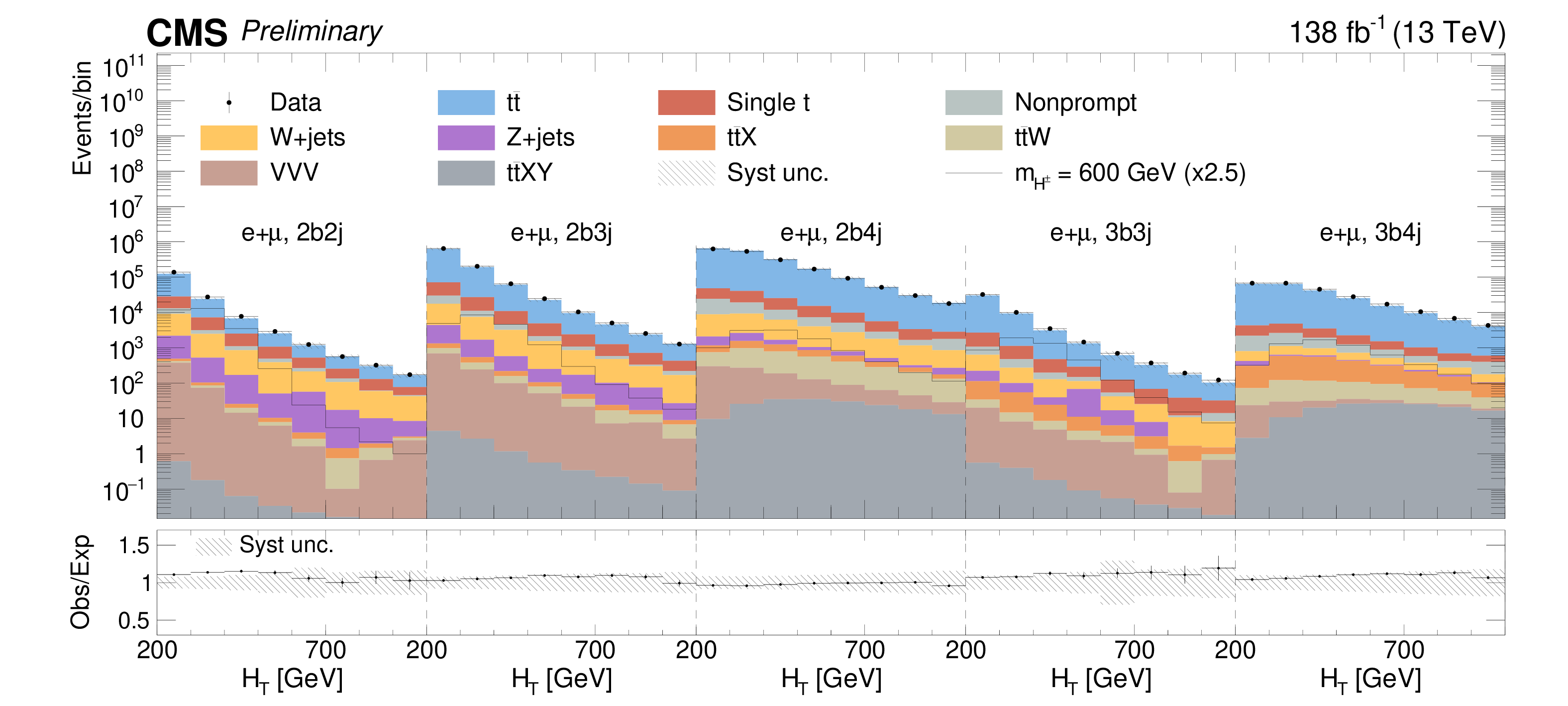

Figure 3:
The pre-fit reconstructed $ H_{\mathrm{T}} $ distributions in each region using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, is also shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

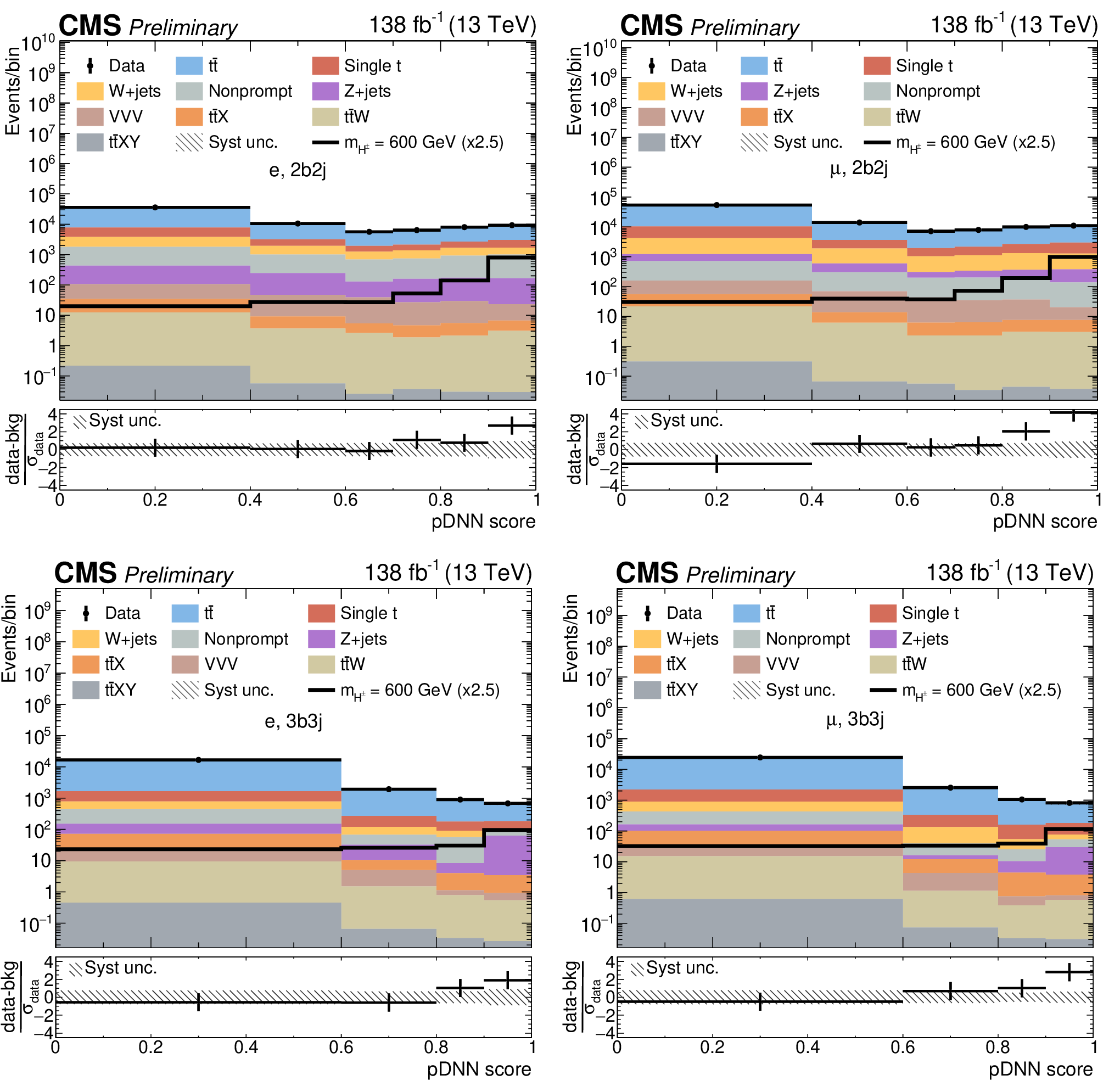

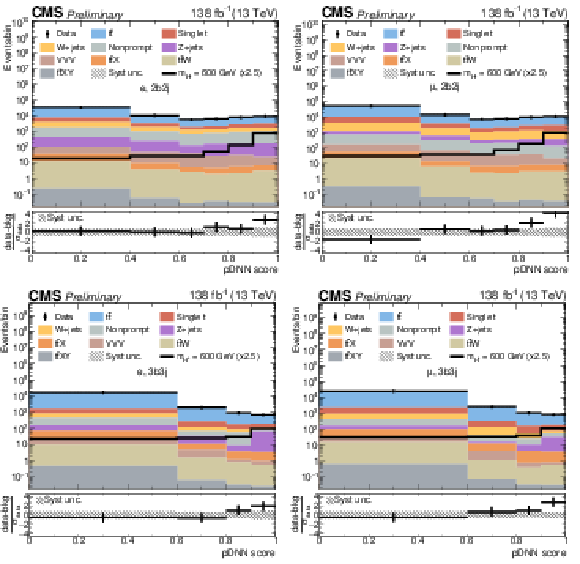

Figure 4:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

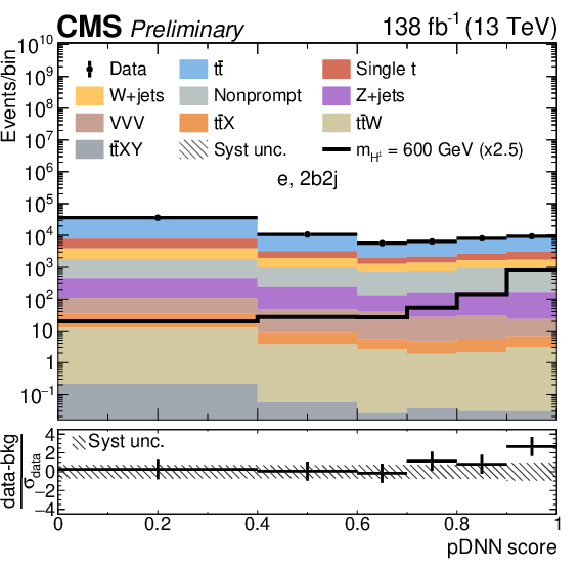

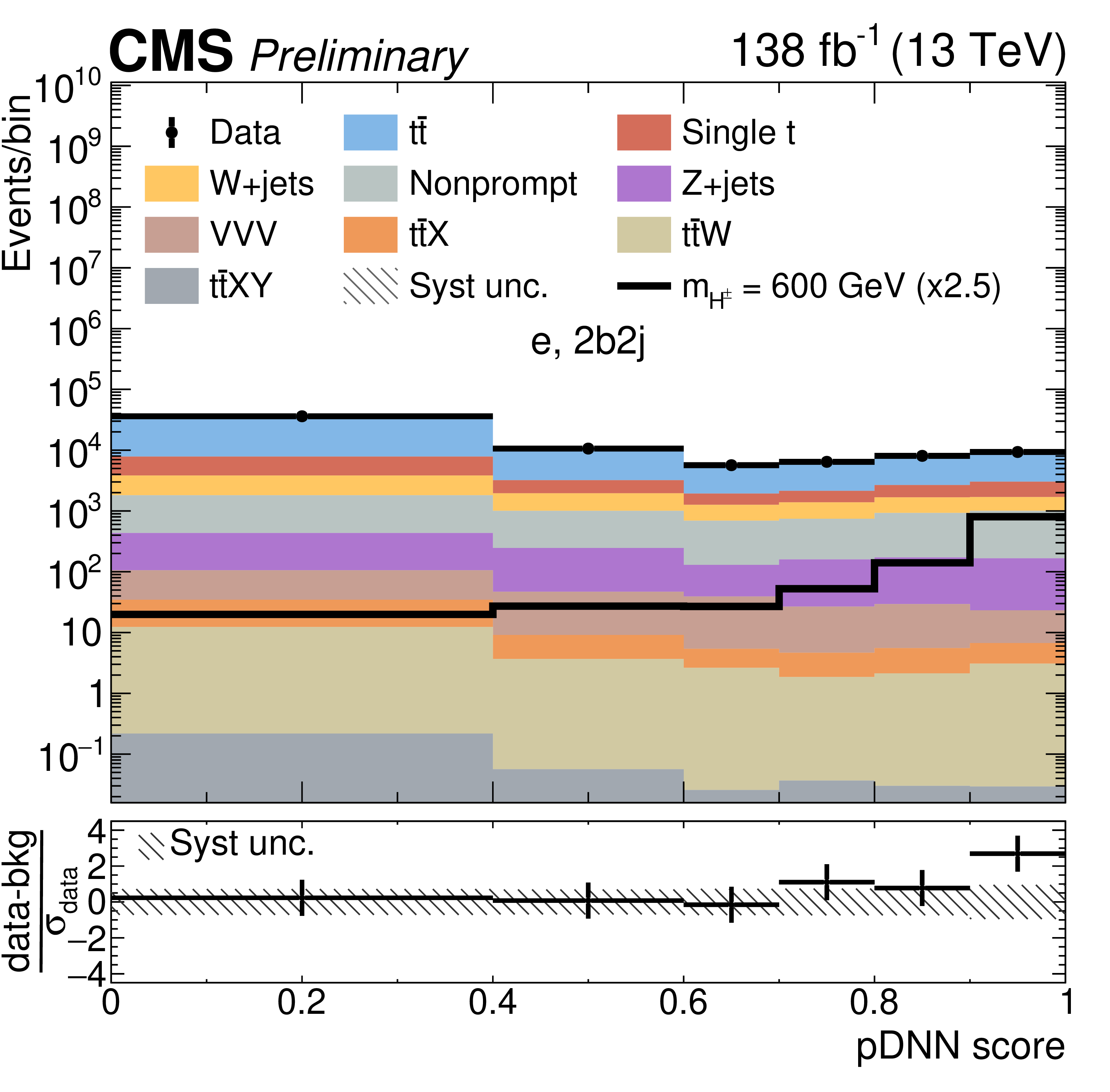

Figure 4-a:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

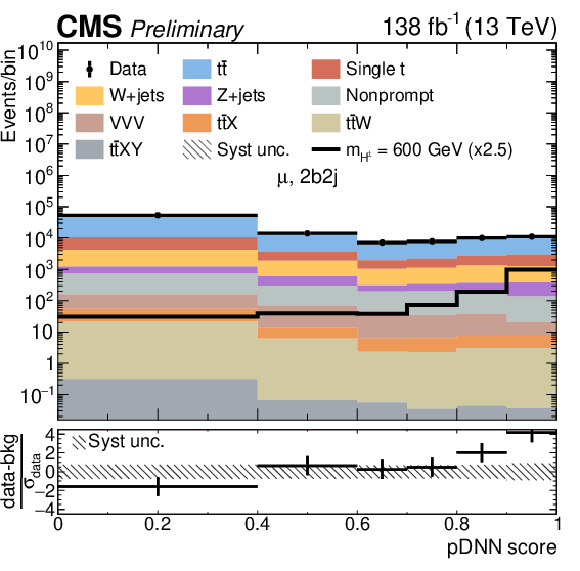

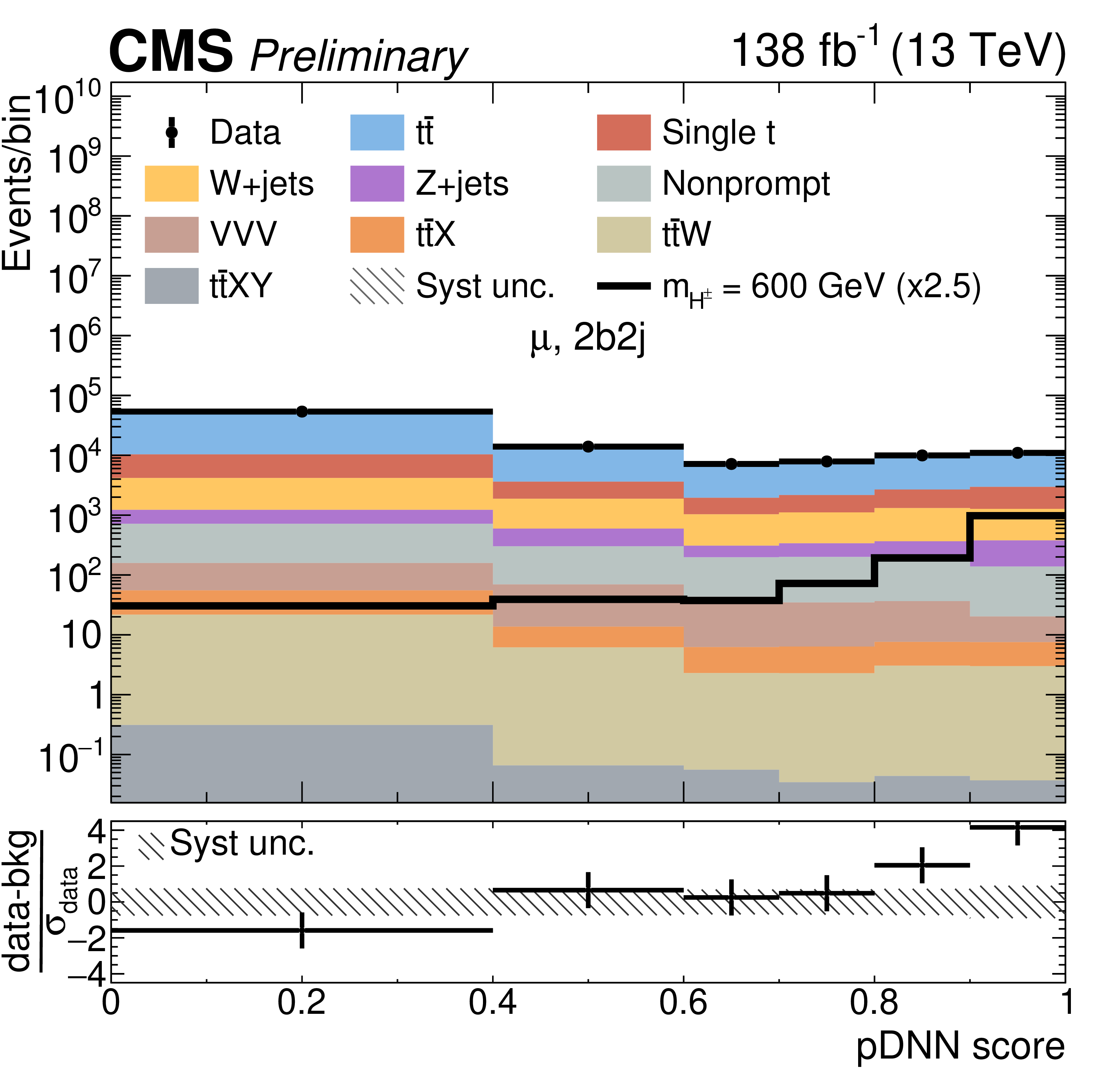

Figure 4-b:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

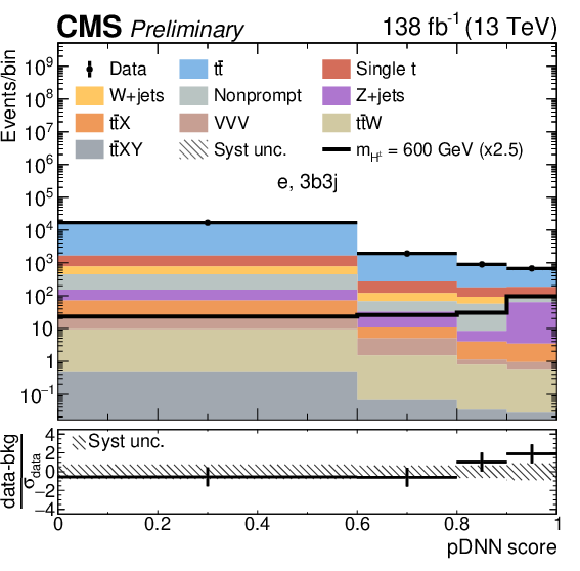

Figure 4-c:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

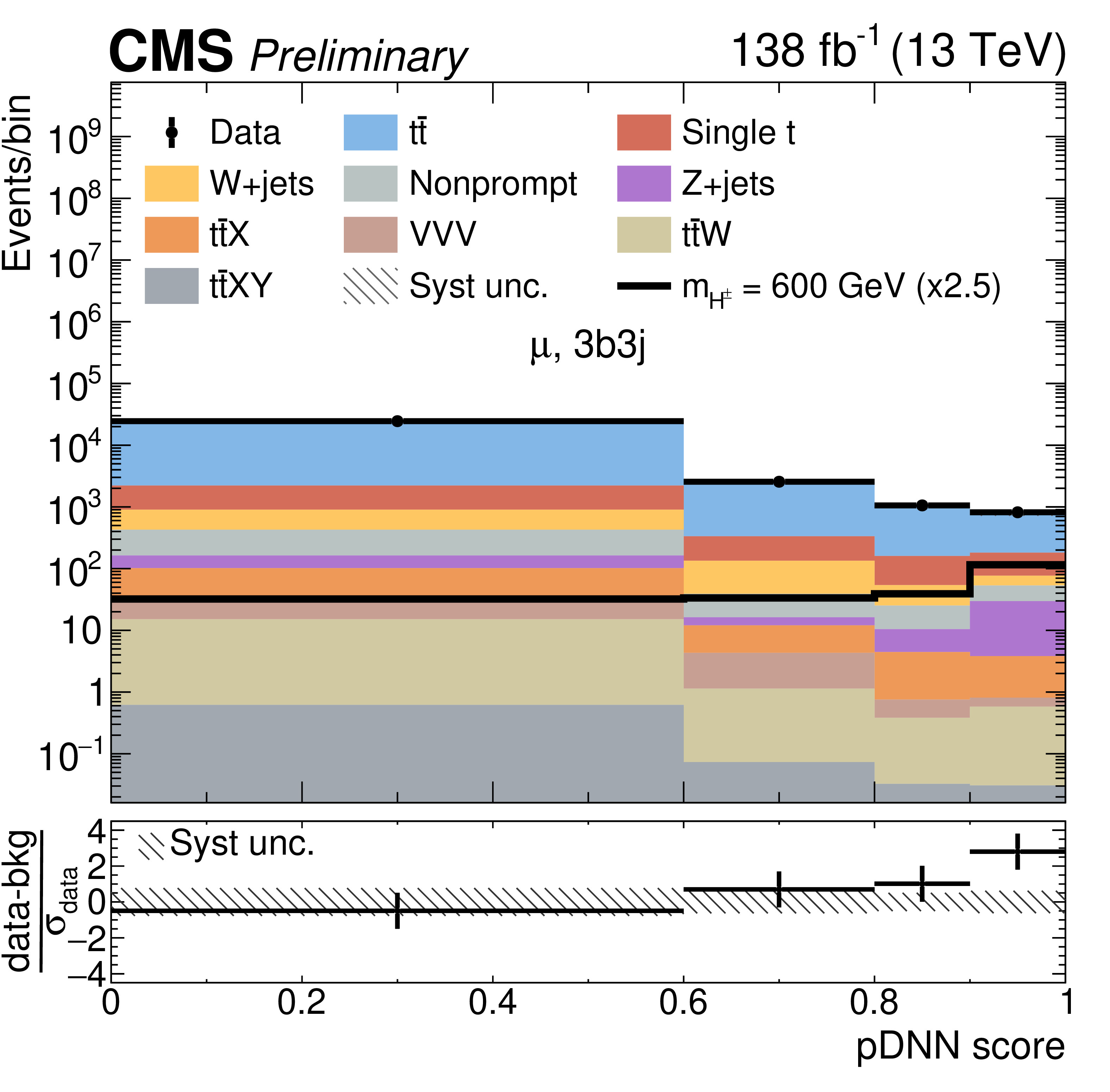

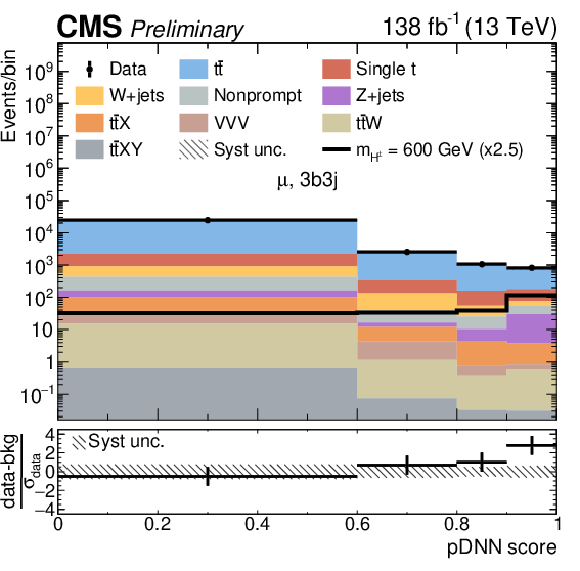

Figure 4-d:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

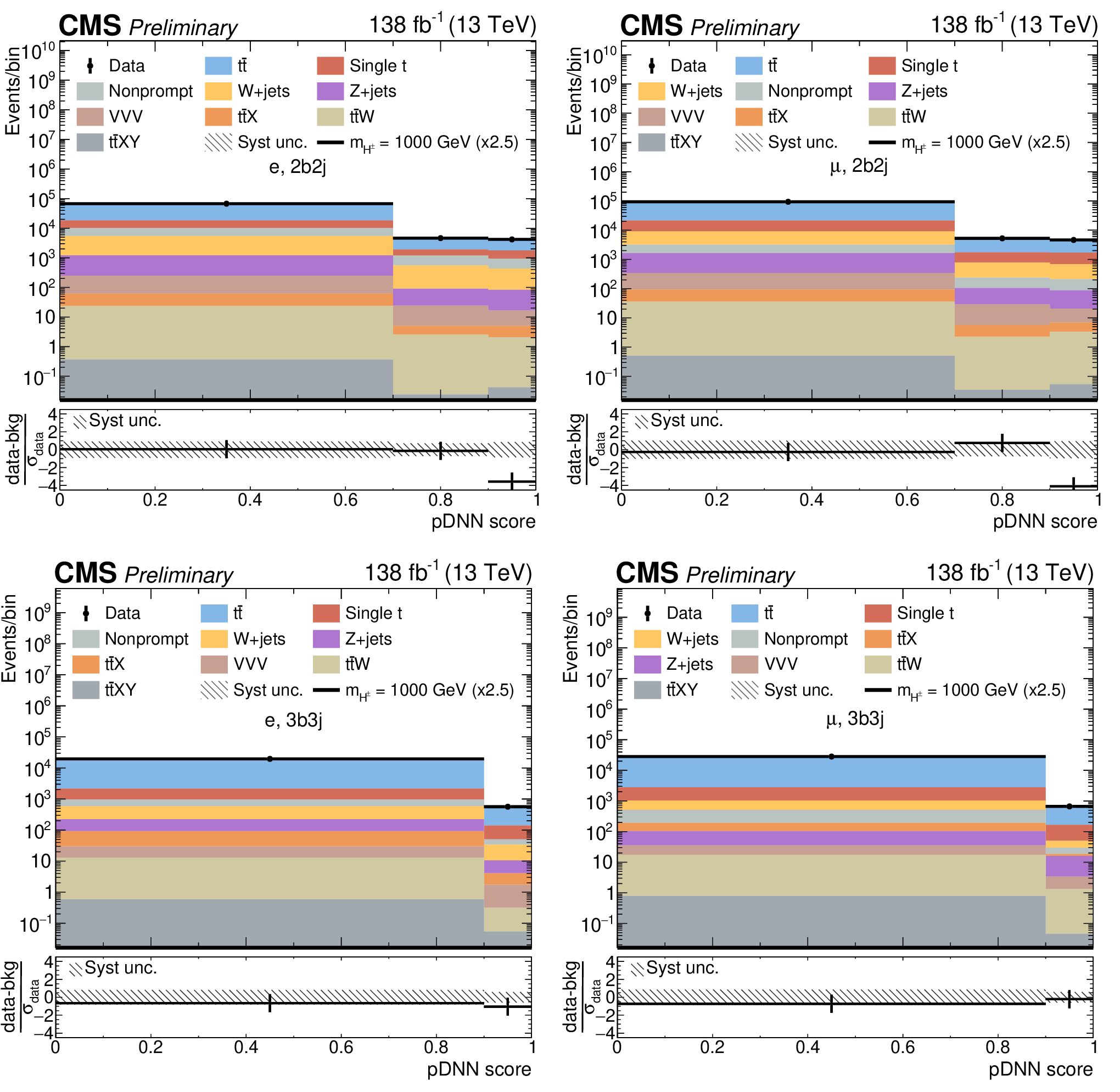

Figure 5:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

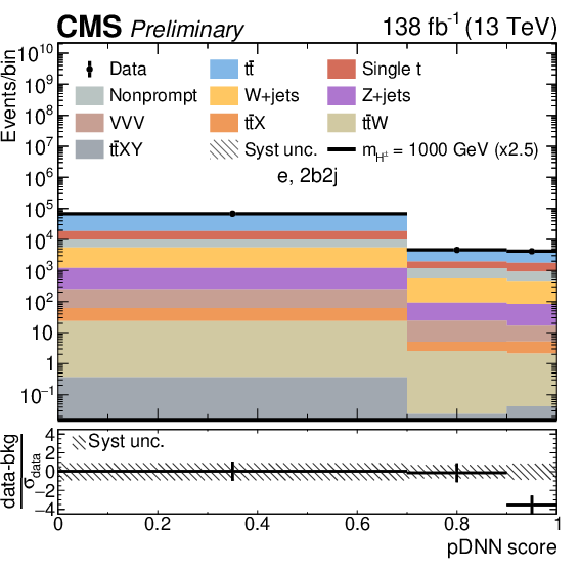

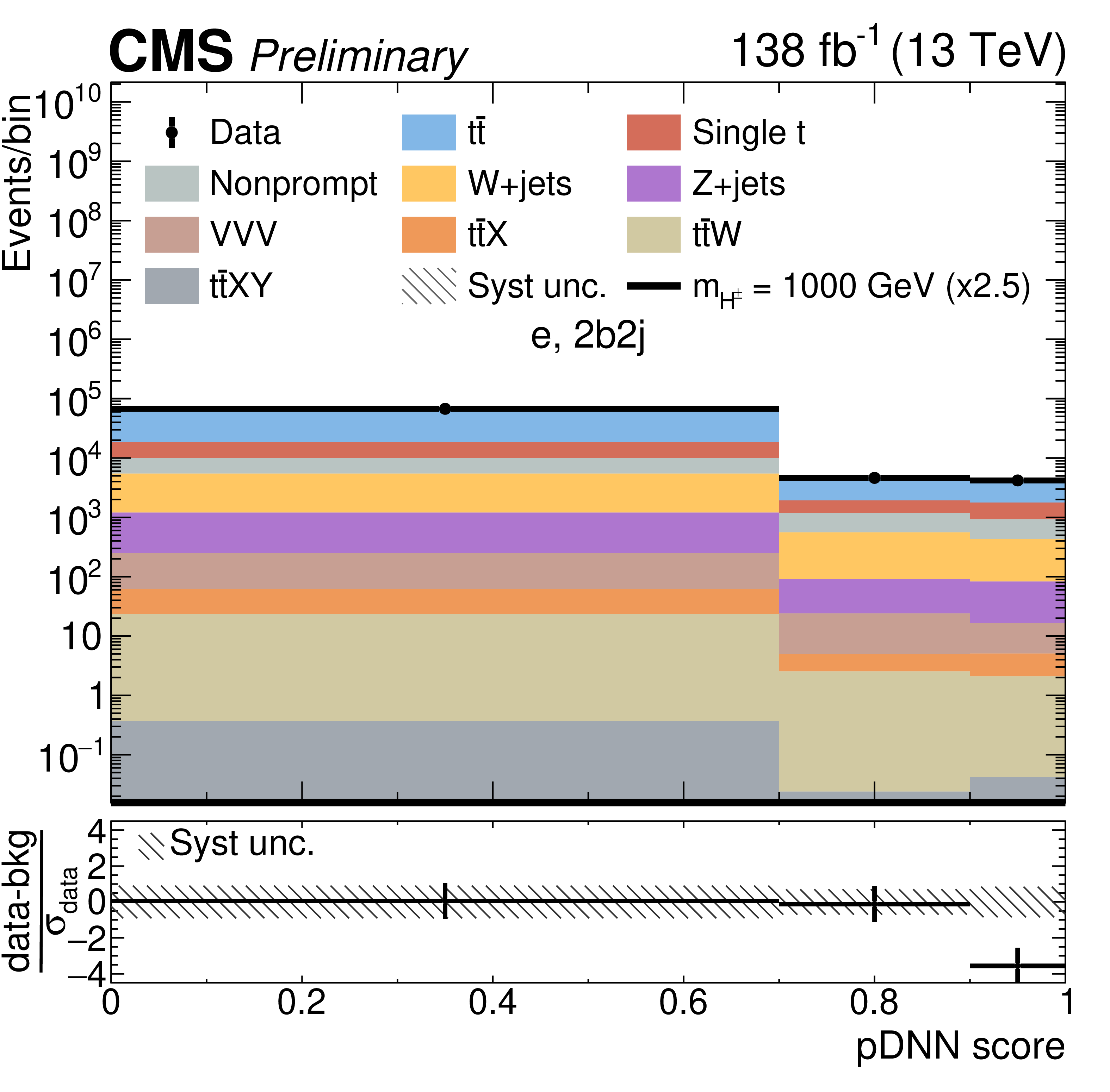

Figure 5-a:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

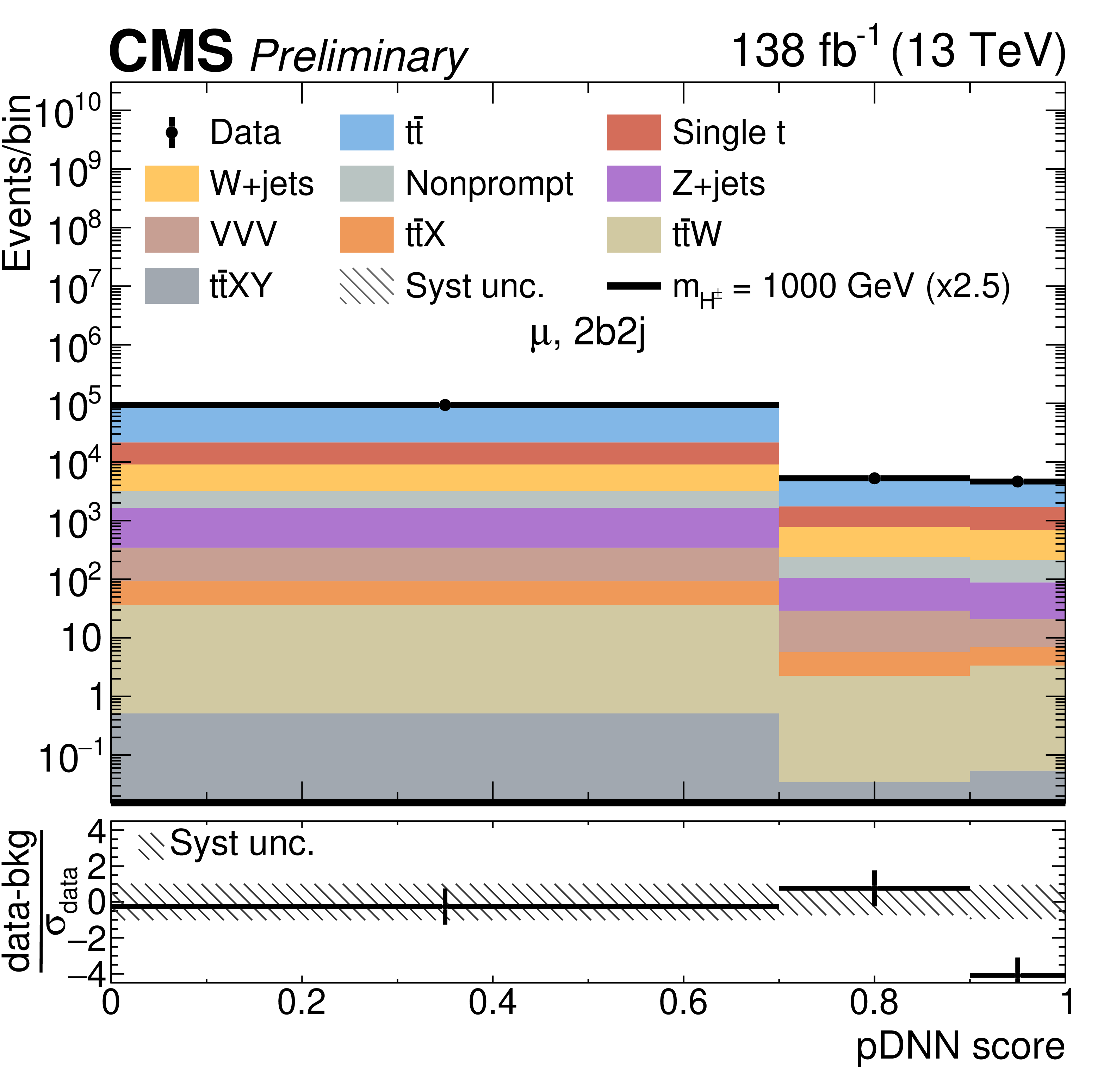

Figure 5-b:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |

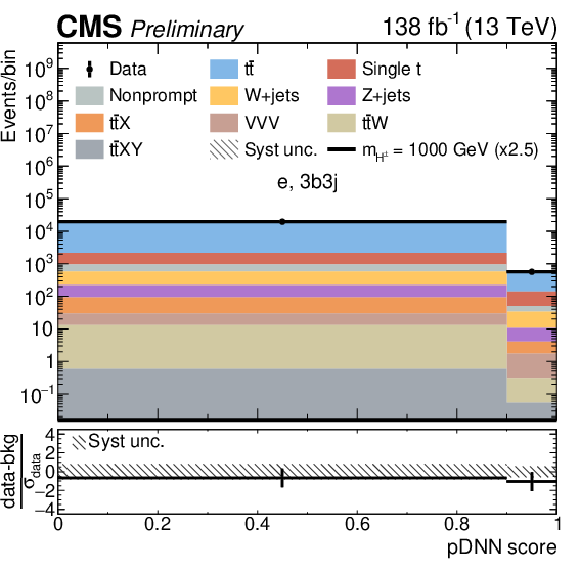

Figure 5-c:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |
Figure 5-d:
The post-fit pDNN distributions in the SR 2b2j (upper) and 3b3j (lower) for electron (left) and muon (right) channels assuming $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV using full Run 2 data. Predictions for the signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV, $ \rho_{tc}= $ 0.4, $ \rho_{tt}= $ 0.6 are shown. Beneath each plot the ratio of data to predictions is shown. The uncertainty bars in the ratio plots represent systematic uncertainties. |
png pdf |
Figure 6:
Observed and expected 95% CL limits on the cross section times branching ratio for different $ \mathrm{\widetilde{H}^{\pm}} $ mass hypotheses with $ \rho_{tc} = $ 0.4 and $ \rho_{tt} = $ 0.6 (left). The inner (green) band and the outer (yellow) band represent the regions containing 68% and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. Theoretical prediction with different $ \rho_{tc} $ and $ \rho_{tt} $ couplings are shown with the grey bands representing the corresponding uncertainties for the QCD factorization and renormalization scales and the PDFs. Observed local significance (right) extracted from the pDNN distribution using the full Run 2 results. Expected significances are obtained with the injection of a $ \sigma=$ 0.09 (0.05) pb of g2HDM signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV (1 TeV) $. The injected cross sections are picked as the best fit value for $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, and the theoretical prediction for $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV assuming $ \rho_{tc,tt}= $ 0.6. |
png pdf |

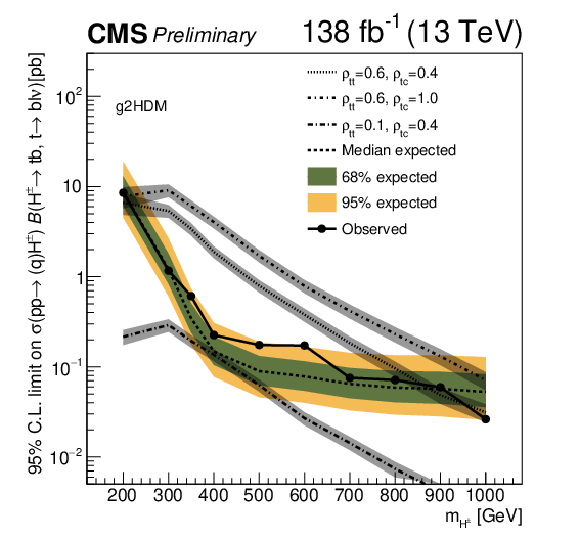

Figure 6-a:
Observed and expected 95% CL limits on the cross section times branching ratio for different $ \mathrm{\widetilde{H}^{\pm}} $ mass hypotheses with $ \rho_{tc} = $ 0.4 and $ \rho_{tt} = $ 0.6 (left). The inner (green) band and the outer (yellow) band represent the regions containing 68% and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. Theoretical prediction with different $ \rho_{tc} $ and $ \rho_{tt} $ couplings are shown with the grey bands representing the corresponding uncertainties for the QCD factorization and renormalization scales and the PDFs. Observed local significance (right) extracted from the pDNN distribution using the full Run 2 results. Expected significances are obtained with the injection of a $ \sigma=$ 0.09 (0.05) pb of g2HDM signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV (1 TeV) $. The injected cross sections are picked as the best fit value for $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, and the theoretical prediction for $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV assuming $ \rho_{tc,tt}= $ 0.6. |
png pdf |
Figure 6-b:
Observed and expected 95% CL limits on the cross section times branching ratio for different $ \mathrm{\widetilde{H}^{\pm}} $ mass hypotheses with $ \rho_{tc} = $ 0.4 and $ \rho_{tt} = $ 0.6 (left). The inner (green) band and the outer (yellow) band represent the regions containing 68% and 95%, respectively, of the distribution of limits expected under the background-only hypothesis. Theoretical prediction with different $ \rho_{tc} $ and $ \rho_{tt} $ couplings are shown with the grey bands representing the corresponding uncertainties for the QCD factorization and renormalization scales and the PDFs. Observed local significance (right) extracted from the pDNN distribution using the full Run 2 results. Expected significances are obtained with the injection of a $ \sigma=$ 0.09 (0.05) pb of g2HDM signal with $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV (1 TeV) $. The injected cross sections are picked as the best fit value for $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 600 GeV, and the theoretical prediction for $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV assuming $ \rho_{tc,tt}= $ 0.6. |
png pdf |

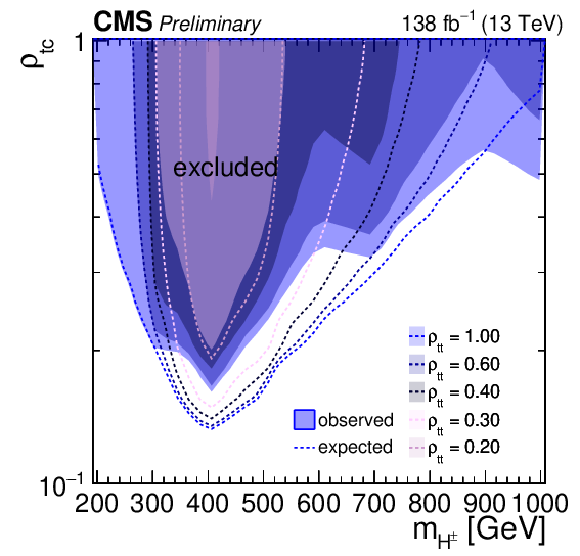

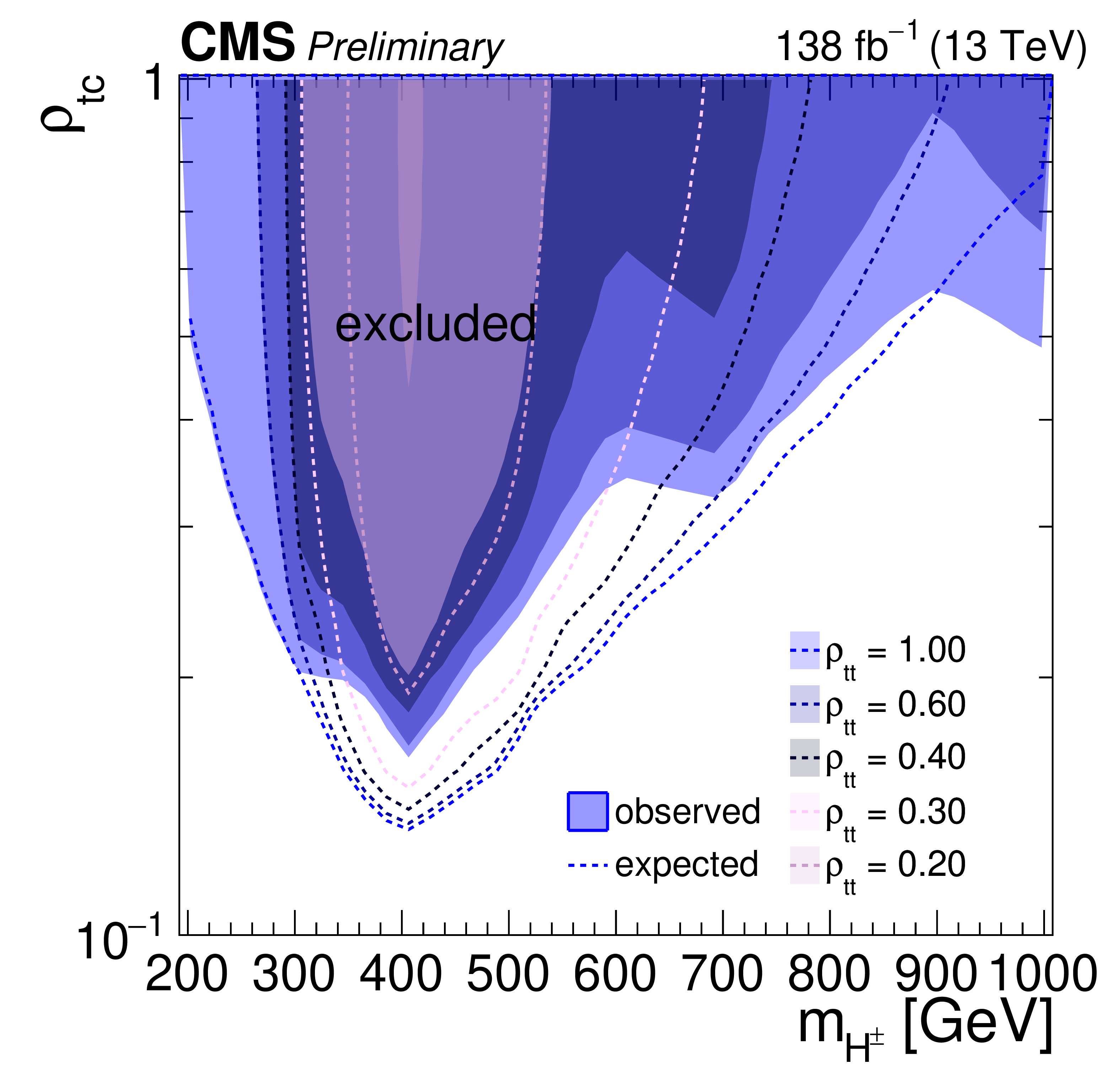

Figure 7:
Observed (expected) excluded phase-space regions as a function of $ m_{\mathrm{\widetilde{H}^{\pm}}} $ and $ \rho_{\mathrm{t}\mathrm{c}} $ for various assumed $ \rho_{\mathrm{t}\mathrm{t}} $ values represented with different colors. The limits are extracted from the pDNN distributions based on g2HDM assuming all the extra Yukawa couplings except $ \rho_{\mathrm{t}\mathrm{t}} $ and $ \rho_{\mathrm{t}\mathrm{c}} $ are zero. The results are obtained from the 95% CL limits on the cross section times branching ratio in Fig 6. |
png pdf |

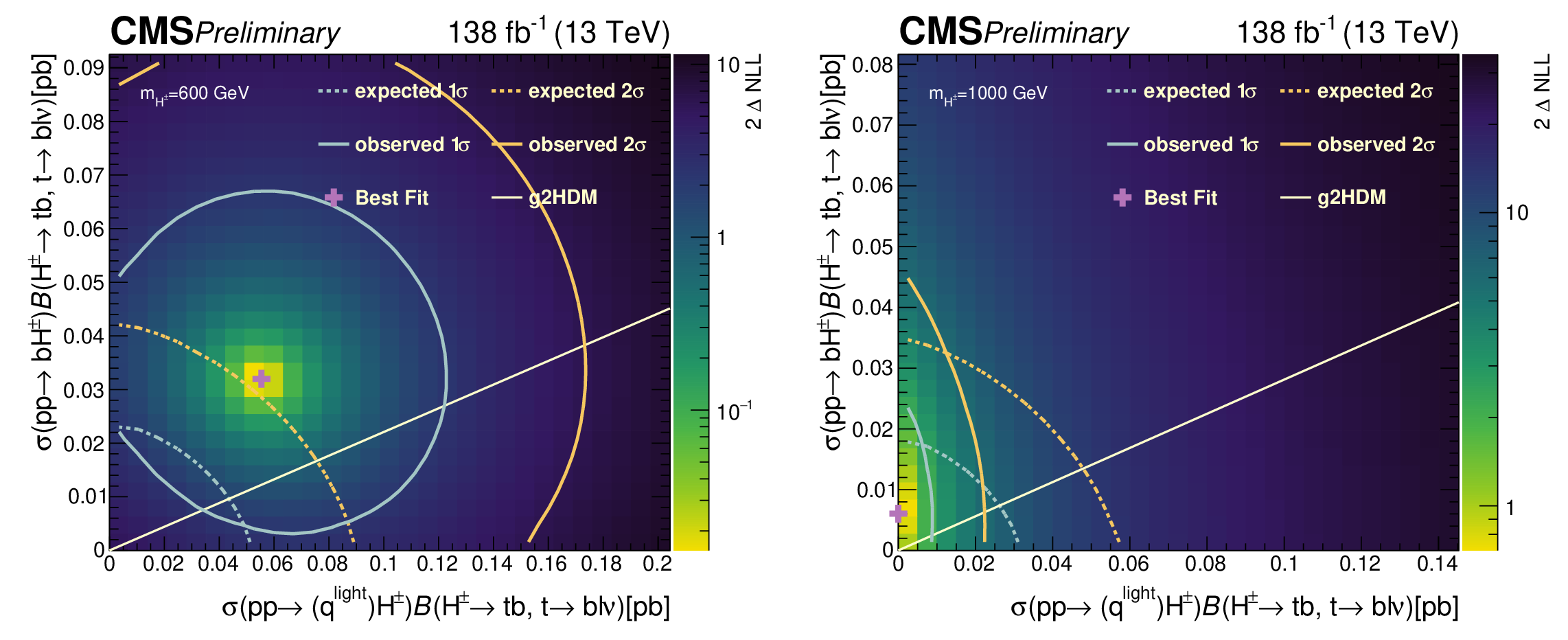

Figure 8:
Two times the difference of the negative log-likelihood (NLL) as a function of $ \sigma(\mathrm{p}\mathrm{p}\to(\mathrm{q}^\text{light})\mathrm{H}^\pm)\mathcal{B}(\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $ and $ \sigma(\mathrm{p}\mathrm{p}\to\mathrm{b}\mathrm{H}^\pm)\mathcal{B}(\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $ with the best fit point extracted from the pDNN distribution for the signal mass $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 600 GeV (left), and $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 1000 GeV (right) using all data-taking periods. The SM and the g2HDM predictions are also shown. The points along the g2HDM prediction line represent different $ \rho_{\mathrm{t}\mathrm{t}} $, $ \rho_{\mathrm{t}\mathrm{c}} $ coupling sets, with all other extra Yukawa couplings assumed to be zero. |
png pdf |

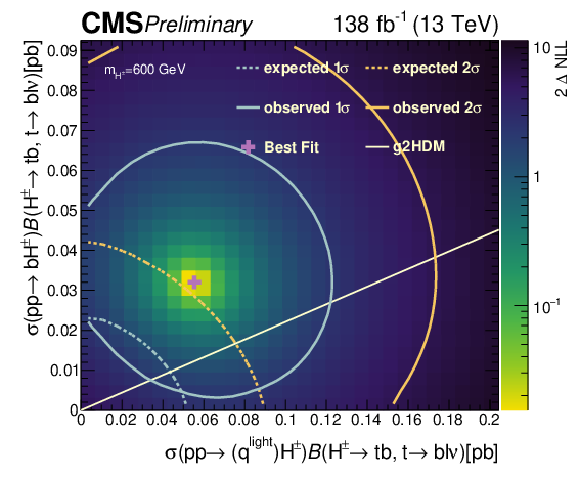

Figure 8-a:
Two times the difference of the negative log-likelihood (NLL) as a function of $ \sigma(\mathrm{p}\mathrm{p}\to(\mathrm{q}^\text{light})\mathrm{H}^\pm)\mathcal{B}(\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $ and $ \sigma(\mathrm{p}\mathrm{p}\to\mathrm{b}\mathrm{H}^\pm)\mathcal{B}(\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $ with the best fit point extracted from the pDNN distribution for the signal mass $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 600 GeV (left), and $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 1000 GeV (right) using all data-taking periods. The SM and the g2HDM predictions are also shown. The points along the g2HDM prediction line represent different $ \rho_{\mathrm{t}\mathrm{t}} $, $ \rho_{\mathrm{t}\mathrm{c}} $ coupling sets, with all other extra Yukawa couplings assumed to be zero. |
png pdf |

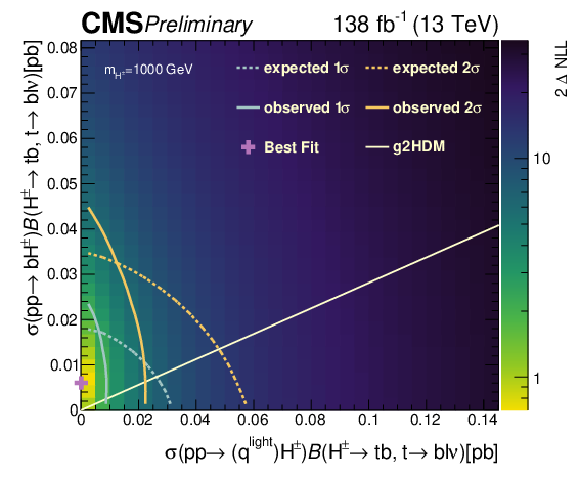

Figure 8-b:
Two times the difference of the negative log-likelihood (NLL) as a function of $ \sigma(\mathrm{p}\mathrm{p}\to(\mathrm{q}^\text{light})\mathrm{H}^\pm)\mathcal{B}(\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $ and $ \sigma(\mathrm{p}\mathrm{p}\to\mathrm{b}\mathrm{H}^\pm)\mathcal{B}(\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $ with the best fit point extracted from the pDNN distribution for the signal mass $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 600 GeV (left), and $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 1000 GeV (right) using all data-taking periods. The SM and the g2HDM predictions are also shown. The points along the g2HDM prediction line represent different $ \rho_{\mathrm{t}\mathrm{t}} $, $ \rho_{\mathrm{t}\mathrm{c}} $ coupling sets, with all other extra Yukawa couplings assumed to be zero. |
| Tables | |
png pdf |

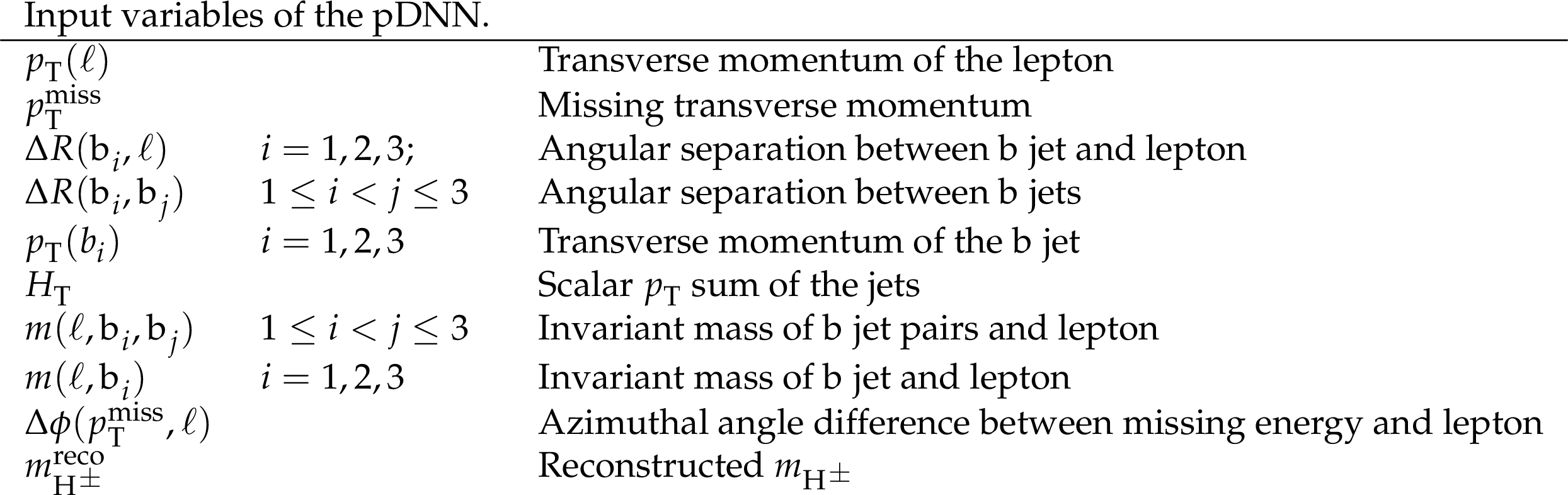

Table 1:
Input variables of the pDNN$_{3b} $ and pDNN$_{2b} $. Indices run up to including 3 for pDNN$_{3b} $ and 2 for pDNN$_{2b} $. |
| Summary |
| A search for charged Higgs bosons ($ \mathrm{\widetilde{H}^{\pm}} $) in proton-proton (pp) collisions at a center-of-mass energy of 13 TeV has been presented. The processes considered are $ \mathrm{p}\mathrm{p}\to(\mathrm{q})\mathrm{H}^{+} $ with $ \mathrm{H}^{+}\to\mathrm{t}\mathrm{b} $. The mass of the $ \mathrm{\widetilde{H}^{\pm}} $ ($ m_{\mathrm{\widetilde{H}^{\pm}}} $) is scanned over a range from 200 GeV to 1 TeV. No evidence for signal is observed, but a small excess is observed for $ m_{\mathrm{\widetilde{H}^{\pm}}} = $ 600 GeV with local significance of 2.4 standard deviations, corresponding to a global significance of 0.1 standard deviations. The results of the search are also interpreted in the generalized two-Higgs-doublet model (g2HDM) with the real part of extra top quark Yukawa couplings $ \rho_{\mathrm{t}\mathrm{t}} $, $ \rho_{\mathrm{t}\mathrm{c}} < $ 1. Stringent upper limits at 95% confidence level are derived on the product of the cross section $ \sigma({\mathrm{p}\mathrm{p}\to(\mathrm{q})\mathrm{H}^\pm}) $ and branching ratio $ \mathcal{B}({\mathrm{H}^\pm\to\mathrm{t}\mathrm{b}}, {\mathrm{t}\to\mathrm{b} \text{l}\nu}) $, where $ \text{l}=e, \mu $, for $ \mathrm{\widetilde{H}^{\pm}} $ boson masses up to $ m_{\mathrm{\widetilde{H}^{\pm}}}= $ 1 TeV for $ \rho_{\mathrm{t}\mathrm{c}} \gtrsim$ 0.15-0.5 depending on the $ m_{\mathrm{\widetilde{H}^{\pm}}} $ and $ \rho_{\mathrm{t}\mathrm{t}} $ assumption. The results represent the first search for the charged Higgs bosons based on the g2HDM. |
| References | ||||
| 1 | ATLAS Collaboration | Observation of a new particle in the search for the Standard Model Higgs boson with the ATLAS detector at the LHC | PLB 716 (2012) 1 | 1207.7214 |
| 2 | CMS Collaboration | Observation of a New Boson at a Mass of 125 GeV with the CMS Experiment at the LHC | PLB 716 (2012) 30 | CMS-HIG-12-028 1207.7235 |
| 3 | ATLAS and CMS Collaborations | Measurements of the Higgs boson production and decay rates and constraints on its couplings from a combined ATLAS and CMS analysis of the LHC pp collision data at $ \sqrt{s}= $ 7 and 8 TeV | JHEP 08 (2016) 045 | 1606.02266 |
| 4 | CMS Collaboration | A portrait of the Higgs boson by the CMS experiment ten years after the discovery | [Erratum: Nature 623], 2022 Nature 607 (2022) 60 |
CMS-HIG-22-001 2207.00043 |
| 5 | CMS Collaboration | Observation of $ \mathrm{t\overline{t}} $H production | PRL 120 (2018) 231801 | CMS-HIG-17-035 1804.02610 |
| 6 | CMS Collaboration | Measurement of the top quark Yukawa coupling from $ \mathrm{t\bar{t}} $ kinematic distributions in the dilepton final state in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | PRD 102 (2020) 092013 | CMS-TOP-19-008 2009.07123 |
| 7 | CMS Collaboration | Observation of Higgs boson decay to bottom quarks | PRL 121 (2018) 121801 | CMS-HIG-18-016 1808.08242 |
| 8 | CMS Collaboration | Observation of the Higgs boson decay to a pair of $ \tau $ leptons with the CMS detector | PLB 779 (2018) 283 | CMS-HIG-16-043 1708.00373 |
| 9 | CMS Collaboration | Evidence for Higgs boson decay to a pair of muons | JHEP 01 (2021) 148 | CMS-HIG-19-006 2009.04363 |
| 10 | CMS Collaboration | Search for Higgs boson decay to a charm quark-antiquark pair via ttH production | CDS | |
| 11 | G. C. Branco et al. | Theory and phenomenology of two-Higgs-doublet models | Phys. Rept. 516 (2012) 1 | 1106.0034 |
| 12 | S. Davidson and H. E. Haber | Basis-independent methods for the two-Higgs-doublet model | [Erratum: Phys.Rev.D 72, 099902], 2005 PRD 72 (2005) 035004 |
hep-ph/0504050 |
| 13 | D. K. Ghosh, W.-S. Hou, and T. Modak | Sub-TeV $ H^+ $ Boson Production as Probe of Extra Top Yukawa Couplings | PRL 125 (2020) 221801 | 1912.10613 |
| 14 | M. Kohda, T. Modak, and W.-S. Hou | Searching for new scalar bosons via triple-top signature in $ cg \to tS^0 \to tt\bar t $ | PLB 776 (2018) 379 | 1710.07260 |
| 15 | W.-S. Hou | Tree level t$ \to $ch or h$ \to $t anti-c decays | PLB 296 (1992) 179 | |
| 16 | W.-S. Hou and M. Kikuchi | Approximate Alignment in Two Higgs Doublet Model with Extra Yukawa Couplings | EPL 123 (2018) 11001 | 1706.07694 |
| 17 | K. Fuyuto, W.-S. Hou, and E. Senaha | Electroweak baryogenesis driven by extra top Yukawa couplings | PLB 776 (2018) 402 | 1705.05034 |
| 18 | K. Fuyuto, W.-S. Hou, and E. Senaha | Cancellation mechanism for the electron electric dipole moment connected with the baryon asymmetry of the Universe | PRD 101 (2020) 011901 | 1910.12404 |
| 19 | ATLAS Collaboration | Search for heavy Higgs bosons with flavour-violating couplings in multi-lepton plus b-jets final states in pp collisions at 13 TeV with the ATLAS detector | JHEP 12 (2023) 081 | 2307.14759 |
| 20 | CMS Collaboration | Search for new Higgs bosons via same-sign top quark pair production in association with a jet in proton-proton collisions at s=13TeV | PLB 850 (2024) 138478 | CMS-TOP-22-010 2311.03261 |
| 21 | CMS Collaboration | Performance of the CMS level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 22 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 23 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 24 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 25 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 26 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 27 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 28 | CMS Collaboration | Technical proposal for the phase-II upgrade of the Compact Muon Solenoid | CMS Technical proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS |
|
| 29 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_t $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 30 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 31 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 32 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 33 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 34 | CMS Collaboration | Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P10005 | CMS-TAU-16-003 1809.02816 |
| 35 | CMS Collaboration | Identification of hadronic tau lepton decays using a deep neural network | JINST 17 (2022) P07023 | CMS-TAU-20-001 2201.08458 |
| 36 | J. Alwall et al. | The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations | JHEP 07 (2014) 079 | 1405.0301 |
| 37 | J. Alwall et al. | Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions | EPJC 53 (2008) 473 | 0706.2569 |
| 38 | R. Frederix and S. Frixione | Merging meets matching in MC@NLO | JHEP 12 (2012) 061 | 1209.6215 |
| 39 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 40 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: the POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 41 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG box | JHEP 06 (2010) 043 | 1002.2581 |
| 42 | S. Frixione, P. Nason, and G. Ridolfi | A positive-weight next-to-leading-order Monte Carlo for heavy flavour hadroproduction | JHEP 09 (2007) 126 | 0707.3088 |
| 43 | T. Melia, P. Nason, R. Rontsch, and G. Zanderighi | W$ ^+ $W$ ^- $, WZ and ZZ production in the POWHEG box | JHEP 11 (2011) 078 | 1107.5051 |
| 44 | E. Re | Single-top Wt-channel production matched with parton showers using the POWHEG method | EPJC 71 (2011) 1547 | 1009.2450 |
| 45 | S. Alioli, P. Nason, C. Oleari, and E. Re | NLO single-top production matched with shower in POWHEG: \it s- and \it t-channel contributions | JHEP 09 (2009) 111 | 0907.4076 |
| 46 | H. B. Hartanto, B. Jager, L. Reina, and D. Wackeroth | Higgs boson production in association with top quarks in the POWHEG BOX | PRD 91 (2015) 094003 | 1501.04498 |
| 47 | T. Sjöstrand et al. | An introduction to PYTHIA8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 48 | M. Czakon and A. Mitov | Top++: A Program for the Calculation of the Top-Pair Cross-Section at Hadron Colliders | Comput. Phys. Commun. 185 (2014) 2930 | 1112.5675 |
| 49 | M. Botje et al. | The PDF4LHC Working Group Interim Recommendations | 1101.0538 | |
| 50 | A. D. Martin, W. J. Stirling, R. S. Thorne, and G. Watt | Uncertainties on alpha(S) in global PDF analyses and implications for predicted hadronic cross sections | EPJC 64 (2009) 653 | 0905.3531 |
| 51 | J. Gao et al. | CT10 next-to-next-to-leading order global analysis of QCD | PRD 89 (2014) 033009 | 1302.6246 |
| 52 | R. D. Ball et al. | Parton distributions with LHC data | NPB 867 (2013) 244 | 1207.1303 |
| 53 | Y. Li and F. Petriello | Combining QCD and electroweak corrections to dilepton production in FEWZ | PRD 86 (2012) 094034 | 1208.5967 |
| 54 | J. Campbell, T. Neumann, and Z. Sullivan | Single-top-quark production in the $ t $-channel at NNLO | JHEP 02 (2021) 040 | 2012.01574 |
| 55 | N. Kidonakis and N. Yamanaka | Higher-order corrections for $ tW $ production at high-energy hadron colliders | JHEP 05 (2021) 278 | 2102.11300 |
| 56 | P. Kant et al. | HatHor for single top-quark production: Updated predictions and uncertainty estimates for single top-quark production in hadronic collisions | Comput. Phys. Commun. 191 (2015) 74 | 1406.4403 |
| 57 | M. Aliev et al. | HATHOR: HAdronic Top and Heavy quarks crOss section calculatoR | Comput. Phys. Commun. 182 (2011) 1034 | 1007.1327 |
| 58 | A. Kulesza et al. | Associated production of a top quark pair with a heavy electroweak gauge boson at NLO$ + $NNLL accuracy | EPJC 79 (2019) 249 | 1812.08622 |
| 59 | R. Frederix and I. Tsinikos | On improving NLO merging for $ \mathrm{t}\overline{\mathrm{t}}\mathrm{W} $ production | JHEP 11 (2021) 029 | 2108.07826 |
| 60 | LHC Higgs Cross Section Working Group Collaboration | Handbook of LHC Higgs Cross Sections: 4. Deciphering the Nature of the Higgs Sector | 1610.07922 | |
| 61 | R. Frederix et al. | Higgs pair production at the LHC with NLO and parton-shower effects | PLB 732 (2014) 142 | 1401.7340 |
| 62 | F. Maltoni, D. Pagani, and I. Tsinikos | Associated production of a top-quark pair with vector bosons at NLO in QCD: impact on $ \mathrm{t}\overline{\mathrm{t}}\mathrm{H} $ searches at the LHC | JHEP 02 (2016) 113 | 1507.05640 |
| 63 | CMS Collaboration | Measurement of the associated production of a single top quark and a Z boson in pp collisions at $ \sqrt{s} = $ 13 TeV | PLB 779 (2018) 358 | CMS-TOP-16-020 1712.02825 |
| 64 | M. van Beekveld, A. Kulesza, and L. M. Valero | Threshold Resummation for the Production of Four Top Quarks at the LHC | PRL 131 (2023) 211901 | 2212.03259 |
| 65 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 66 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 67 | \GEANTfour Collaboration | GEANT 4 --- a simulation toolkit | NIM A 506 (2003) 250 | |
| 68 | CMS Collaboration | Measurement of differential $ t \bar t $ production cross sections in the full kinematic range using lepton+jets events from proton-proton collisions at $ \sqrt {s} = $ 13 TeV | PRD 104 (2021) 092013 | CMS-TOP-20-001 2108.02803 |
| 69 | K. Rehermann and B. Tweedie | Efficient Identification of Boosted Semileptonic Top Quarks at the LHC | JHEP 03 (2011) 059 | 1007.2221 |
| 70 | CMS Collaboration | Observation of four top quark production in proton-proton collisions at s=13TeV | PLB 847 (2023) 138290 | CMS-TOP-22-013 2305.13439 |
| 71 | CMS Collaboration | Muon identification using multivariate techniques in the CMS experiment in proton-proton collisions at sqrt(s) = 13 TeV | JINST 19 (2024) P02031 | CMS-MUO-22-001 2310.03844 |
| 72 | CMS Collaboration | Measurement of the Higgs boson production rate in association with top quarks in final states with electrons, muons, and hadronically decaying tau leptons at $ \sqrt{s} = $ 13 TeV | EPJC 81 (2021) 378 | CMS-HIG-19-008 2011.03652 |
| 73 | CMS Collaboration | Evidence for associated production of a Higgs boson with a top quark pair in final states with electrons, muons, and hadronically decaying $ \tau $ leptons at $ \sqrt{s} = $ 13 TeV | JHEP 08 (2018) 066 | CMS-HIG-17-018 1803.05485 |
| 74 | CMS Collaboration | Observation of Single Top Quark Production in Association with a $ Z $ Boson in Proton-Proton Collisions at $ \sqrt {s} = $ 13 TeV | PRL 122 (2019) 132003 | CMS-TOP-18-008 1812.05900 |
| 75 | CMS Collaboration | Measurements of the electroweak diboson production cross sections in proton-proton collisions at $ \sqrt{s} = $ 5.02 TeV using leptonic decays | PRL 127 (2021) 191801 | CMS-SMP-20-012 2107.01137 |
| 76 | CMS Collaboration | Inclusive and differential cross section measurements of single top quark production in association with a Z boson in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 02 (2022) 107 | CMS-TOP-20-010 2111.02860 |
| 77 | CMS Collaboration | Search for electroweak production of charginos and neutralinos in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 04 (2022) 147 | CMS-SUS-19-012 2106.14246 |
| 78 | CMS Collaboration | Measurement of the inclusive W and Z production cross sections in pp collisions at $ \sqrt{s}= $ 7 TeV | JHEP 10 (2011) 132 | CMS-EWK-10-005 1107.4789 |
| 79 | E. Bols et al. | Jet flavour classification using DeepJet | JINST 15 (2020) P12012 | 2008.10519 |
| 80 | CMS Collaboration | Performance summary of AK4 jet b tagging with data from proton-proton collisions at 13 TeV with the CMS detector | CMS Detector Performance Note CMS-DP-2023-005, 2023 CDS |
|
| 81 | CMS Collaboration | Identification of heavy-flavour jets with the CMS detector in pp collisions at 13 TeV | JINST 13 (2018) P05011 | CMS-BTV-16-002 1712.07158 |
| 82 | CMS Collaboration | Measurement of the top quark mass using events with a single reconstructed top quark in pp collisions at $ \sqrt{s} = $ 13 TeV | JHEP 12 (2021) 161 | CMS-TOP-19-009 2108.10407 |
| 83 | CMS Collaboration | Search for Flavor-Changing Neutral Current Interactions of the Top Quark and Higgs Boson in Final States with Two Photons in Proton-Proton Collisions at $ \sqrt{s}=13\text{ }\text{ }\mathrm{TeV} $ | PRL 129 (2022) 032001 | CMS-TOP-20-007 2111.02219 |
| 84 | Particle Data Group Collaboration | Review of particle physics | PRD 110 (2024) 030001 | |
| 85 | Particle Data Group Collaboration | Review of Particle Physics | ( and update) 083C01, 2022 PTEP 202 (2022) 2 |
|
| 86 | M. B. Kursa, A. Jankowski, and W. R. Rudnicki | Boruta - a system for feature selection | Fundam. Informaticae 101 (2010) 271 | |
| 87 | D. P. Kingma and J. Ba | Adam: A method for stochastic optimization | https://arxiv.org/abs/1412.6980 | |
| 88 | T. Dozat | Incorporating Nesterov Momentum into Adam | in Proceedings of the 4th International Conference on Learning Representations link |
|
| 89 | CMS Collaboration | Search for new physics with same-sign isolated dilepton events with jets and missing transverse energy at the LHC | JHEP 06 (2011) 077 | CMS-SUS-10-004 1104.3168 |
| 90 | CMS Collaboration | Search for new physics with same-sign isolated dilepton events with jets and missing transverse energy | PRL 109 (2012) 071803 | CMS-SUS-11-010 1205.6615 |
| 91 | CMS Collaboration | Search for New Physics in Events with Same-Sign Dileptons and $ b $ Jets in $ pp $ Collisions at $ \sqrt{s}= $ 8 TeV | [Erratum: JHEP 07, 041], 2013 JHEP 03 (2013) 037 |
CMS-SUS-12-017 1212.6194 |
| 92 | CMS Collaboration | Search for new physics in events with same-sign dileptons and $ b $-tagged jets in $ pp $ collisions at $ \sqrt{s}= $ 7 TeV | JHEP 08 (2012) 110 | CMS-SUS-11-020 1205.3933 |
| 93 | CMS Collaboration | Search for new physics in same-sign dilepton events in proton-proton collisions at $ \sqrt{s} = 13 \text {TeV} $ | EPJC 76 (2016) 439 | CMS-SUS-15-008 1605.03171 |
| 94 | ATLAS and CMS Collaborations and the LHC Higgs Combination Group | Procedure for the LHC Higgs boson search combination in summer 2011 | CMS Physics Analysis Summary CMS-NOTE-2011-005, ATL-PHYS-PUB-2011-11, 2011 | |
| 95 | R. J. Barlow and C. Beeston | Fitting using finite Monte Carlo samples | Comput. Phys. Commun. 77 (1993) 219 | |
| 96 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 97 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s}= $ 13 TeV | CMS Physics Analysis Summary, 2018 CMS-PAS-LUM-17-004 |
CMS-PAS-LUM-17-004 |
| 98 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s}= $ 13 TeV | CMS Physics Analysis Summary, 2019 CMS-PAS-LUM-18-002 |
CMS-PAS-LUM-18-002 |
| 99 | CMS Collaboration | Performance of the CMS muon trigger system in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 16 (2021) P07001 | CMS-MUO-19-001 2102.04790 |
| 100 | J. Butterworth et al. | PDF4LHC recommendations for LHC Run II | JPG 43 (2016) 023001 | 1510.03865 |
| 101 | hepstats | hepstats package: statistics tools and utilities | https://github.com/scikit-hep/hepstats | |
| 102 | J. D. Scargle, J. P. Norris, B. Jackson, and J. Chiang | Studies in Astronomical Time Series Analysis. VI. Bayesian Block Representations | Astrophysical Journal 764 (2013) 167 | 1207.5578 |
| 103 | CMS Collaboration | The CMS Statistical Analysis and Combination Tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 104 | S. Heinemeyer et al. | Handbook of LHC Higgs cross sections: 3. Higgs properties | CERN Report CERN-2013-004, 2013 link |
1307.1347 |
| 105 | T. Junk | Confidence level computation for combining searches with small statistics | NIM A 434 (1999) 435 | hep-ex/9902006 |
| 106 | A. L. Read | Presentation of search results: the CL$ _s $ technique | JPG 28 (2002) 2693 | |
| 107 | G. Cowan, K. Cranmer, E. Gross, and O. Vitells | Asymptotic formulae for likelihood-based tests of new physics | EPJC 71 (2011) 1554 | 1007.1727 |
|
|
