CMS-PAS-HIN-24-013

CMS-PAS-HIN-24-013
First measurement of coherent photoproduction of $ \Upsilon(\mathrm{1S}) $ mesons in lead-lead ultraperipheral collisions at $ \sqrt{s_{\mathrm{NN}}} = $ 5.02 TeV
CMS Collaboration
6 May 2025

Abstract: Coherent photoproduction of heavy-flavor vector mesons in ultrarelativistic heavy ion collisions (UPCs) provides a direct probe of the gluonic structure of nuclei. This note presents the first measurement of coherent photoproduction of $ \Upsilon(1S) $ off heavy nuclei. The analysis uses 1.66 nb$^{-1}$ of data collected by the CMS experiment in 2018 at the CERN LHC in lead-lead collisions at a center-of-mass energy per nucleon-nucleon pair of 5.02 TeV. The differential cross section for coherent $ \Upsilon(1S) $ is presented as a function of rapidity ($ \|y\| $) up to $ \|y\| < $ 2.4. At photon-nucleus center-of-mass energies per nucleon $ W_{\gamma \mathrm{N}}^{\mathrm{Pb}} \approx $ 200 GeV, the coherent $ \Upsilon(1S) $ photoproduction cross section is found to be significantly suppressed compared to the expected results from $ \gamma $-proton interactions. Results of this study are compared to theoretical calculations based on quantum chromodynamics.
Links: CDS record (PDF) ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

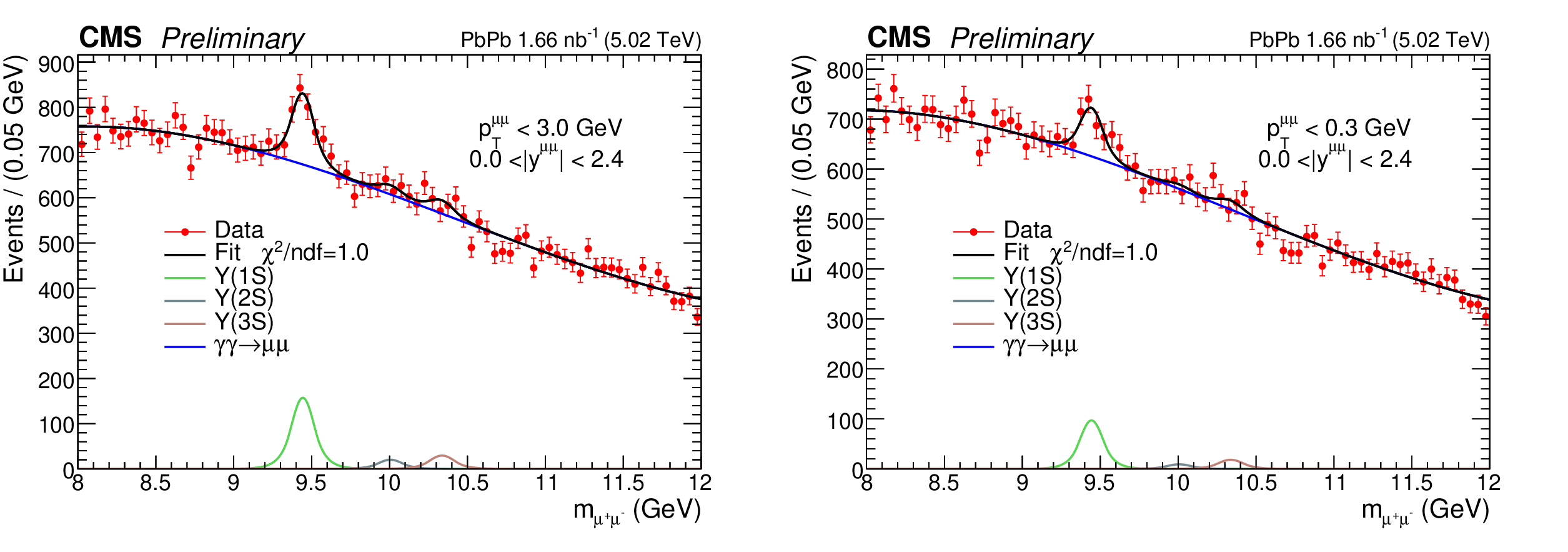

png pdf	Figure 1: Invariant mass distributions of muon pairs for $ p_{\mathrm{T}} < $ 3.0 GeV (left) and $ p_{\mathrm{T}} < $ 0.3 GeV (right). The total fit model (black) as well as the individual components are shown with different curves.

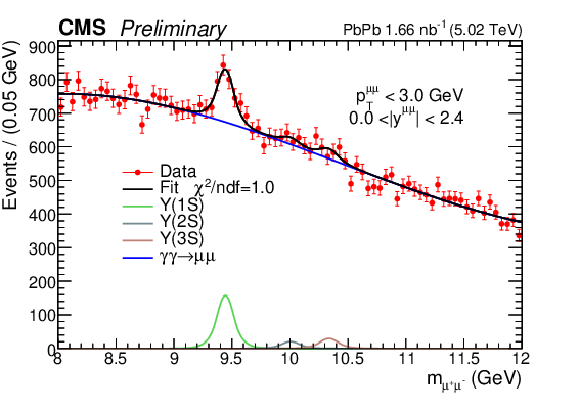

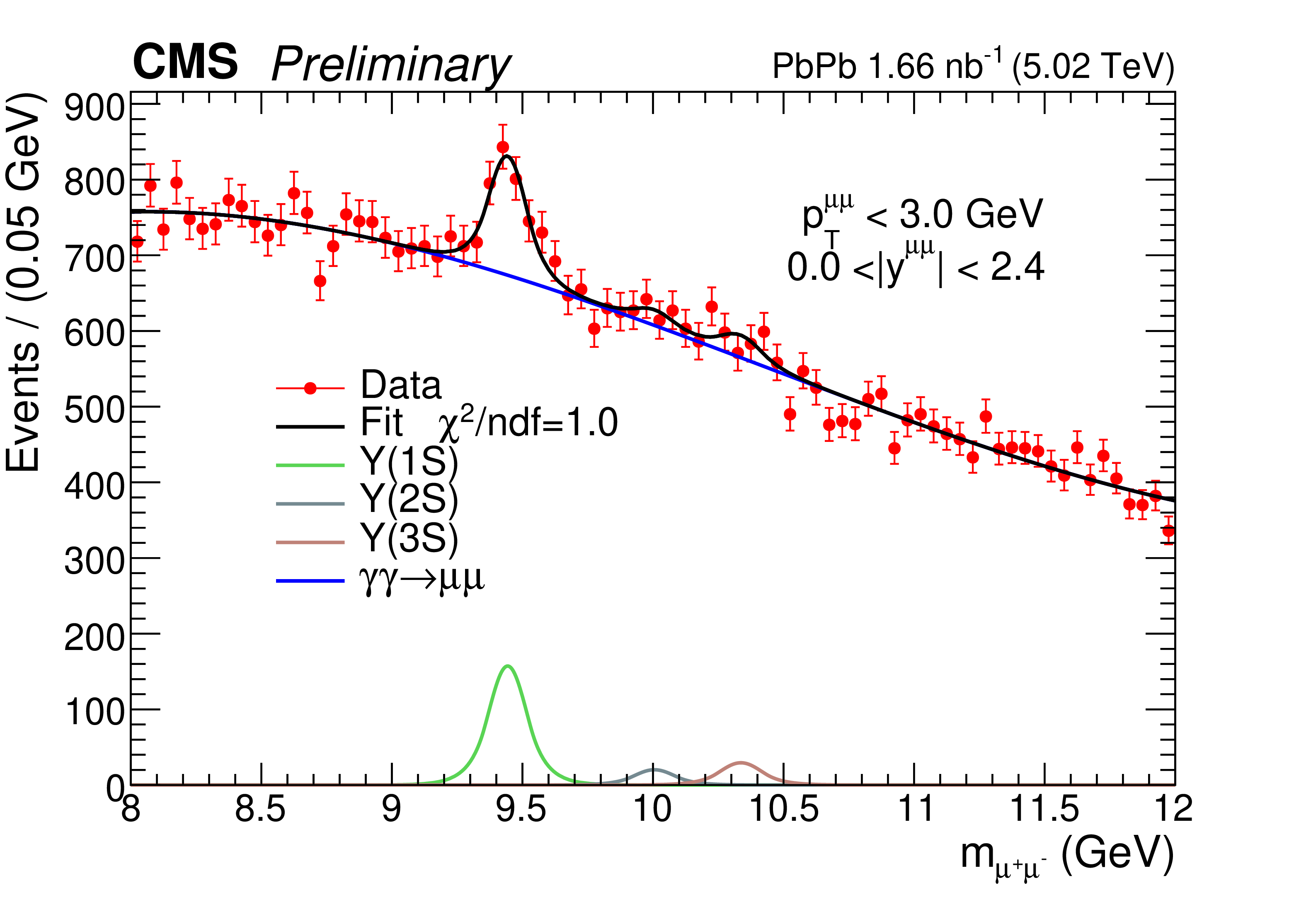

png pdf	Figure 1-a: Invariant mass distributions of muon pairs for $ p_{\mathrm{T}} < $ 3.0 GeV (left) and $ p_{\mathrm{T}} < $ 0.3 GeV (right). The total fit model (black) as well as the individual components are shown with different curves.

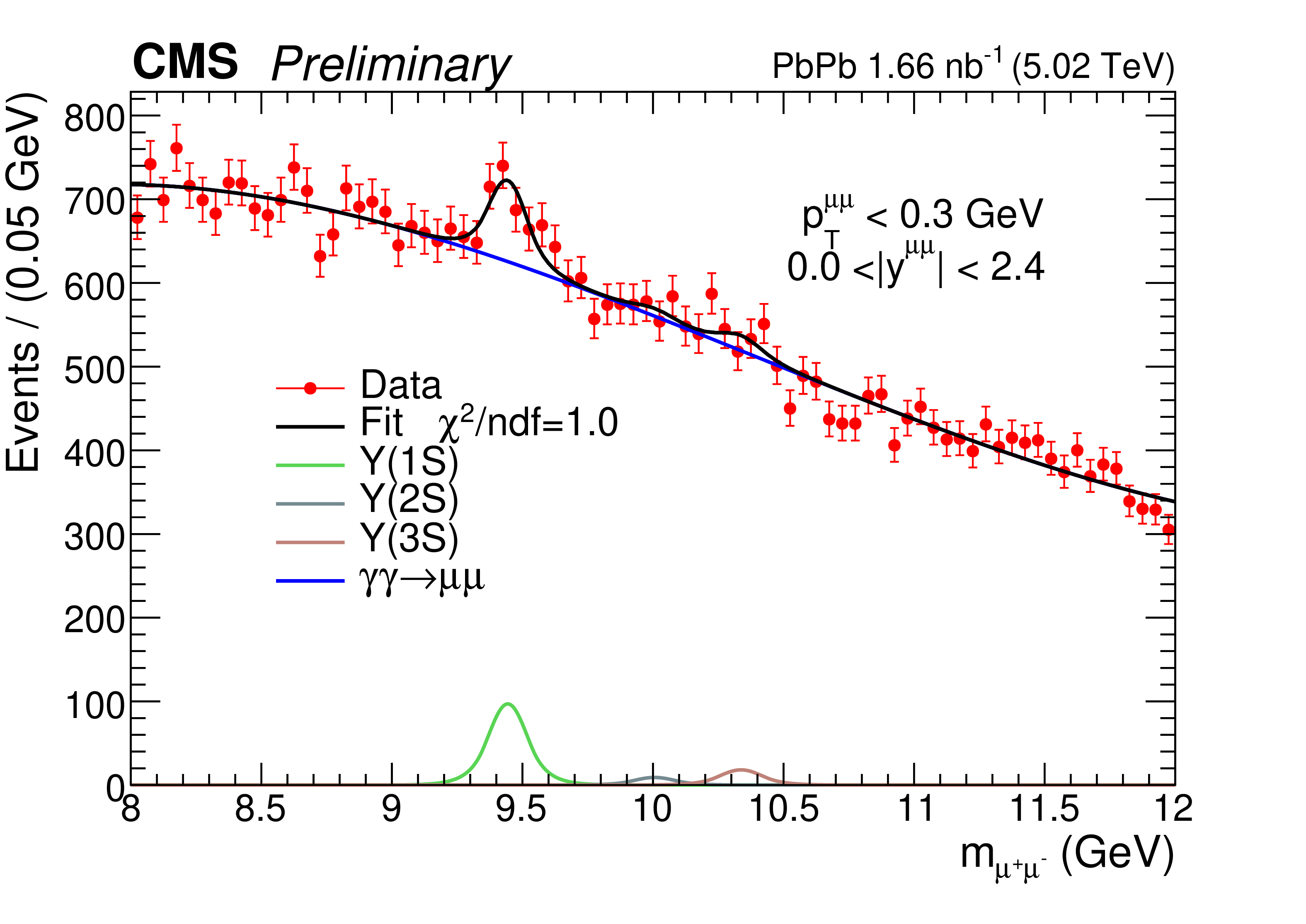

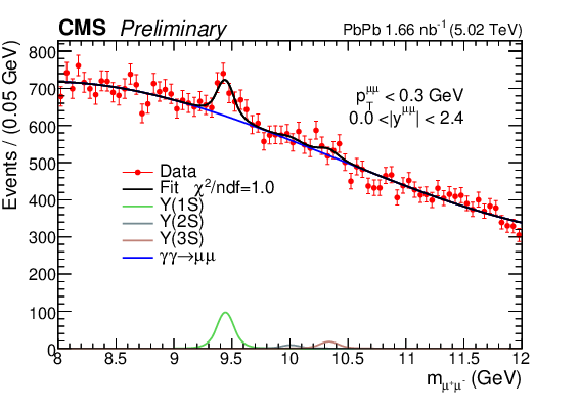

png pdf	Figure 1-b: Invariant mass distributions of muon pairs for $ p_{\mathrm{T}} < $ 3.0 GeV (left) and $ p_{\mathrm{T}} < $ 0.3 GeV (right). The total fit model (black) as well as the individual components are shown with different curves.

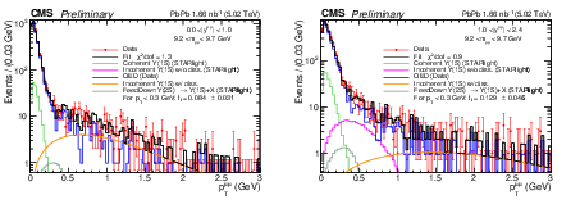

png pdf	Figure 2: Transverse momentum distributions of muon pairs in the rapidity range of $ \|y\| < $ 1.0 (left) and 1.0 $ < \|y\| < $ 2.4 (right) with invariant mass within the $ \Upsilon{\textrm{(1S)}} $ mass window (9.2 $ < m_{\mu^+\mu^-} < $ 9.7 GeV). The total model (black) as well as each template are shown.

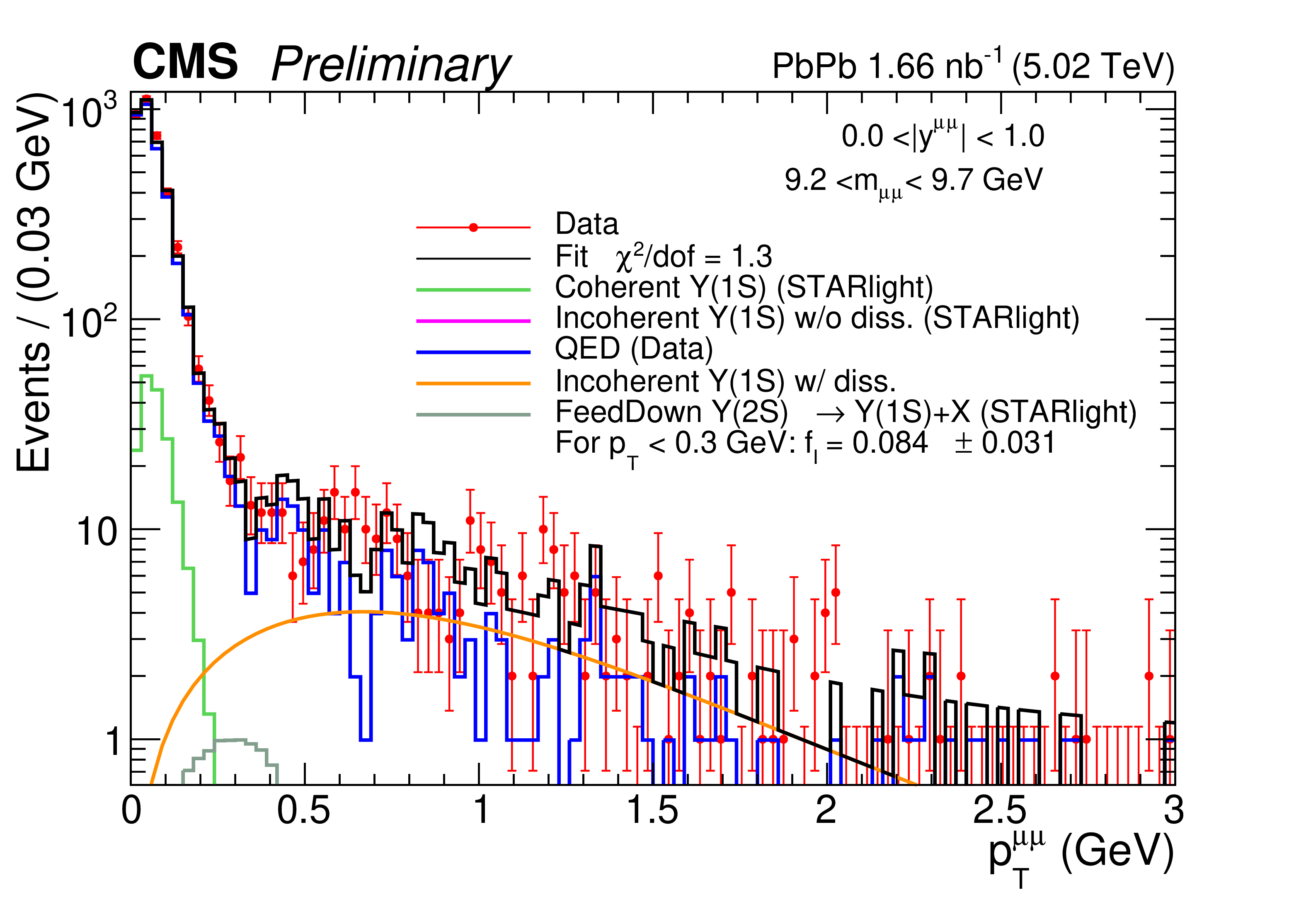

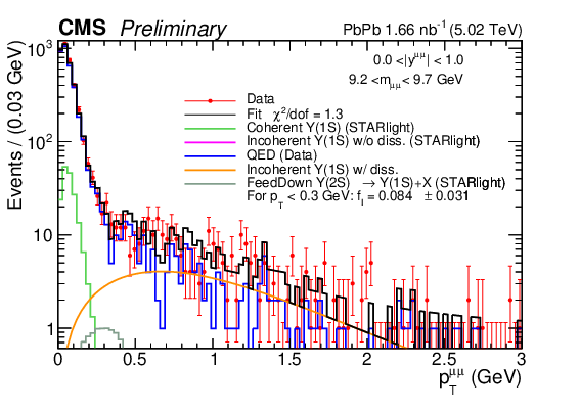

png pdf	Figure 2-a: Transverse momentum distributions of muon pairs in the rapidity range of $ \|y\| < $ 1.0 (left) and 1.0 $ < \|y\| < $ 2.4 (right) with invariant mass within the $ \Upsilon{\textrm{(1S)}} $ mass window (9.2 $ < m_{\mu^+\mu^-} < $ 9.7 GeV). The total model (black) as well as each template are shown.

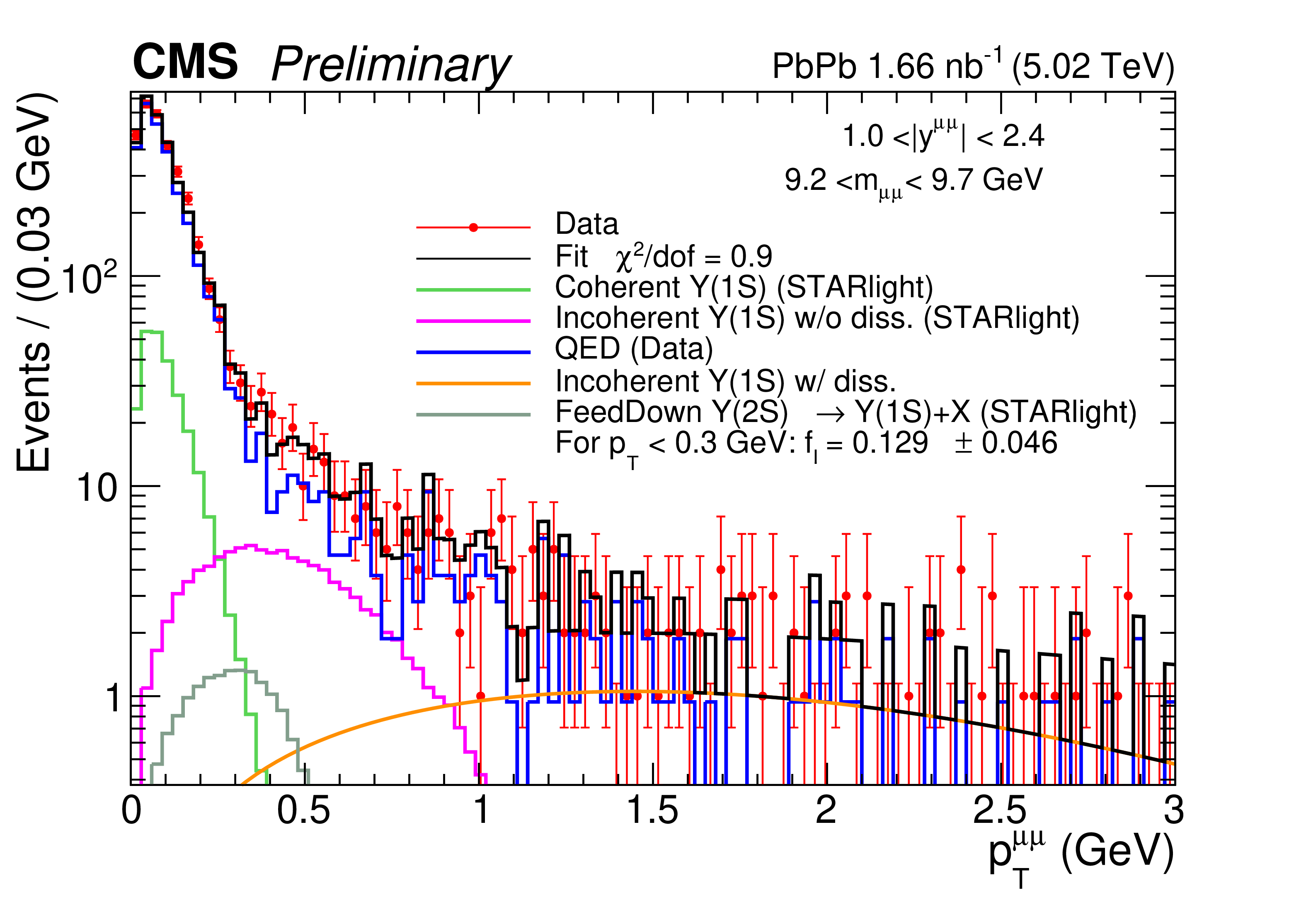

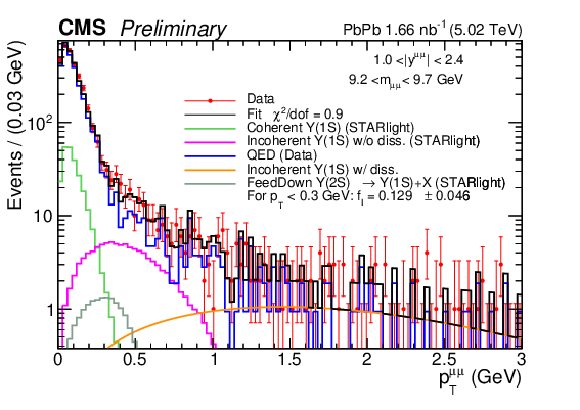

png pdf	Figure 2-b: Transverse momentum distributions of muon pairs in the rapidity range of $ \|y\| < $ 1.0 (left) and 1.0 $ < \|y\| < $ 2.4 (right) with invariant mass within the $ \Upsilon{\textrm{(1S)}} $ mass window (9.2 $ < m_{\mu^+\mu^-} < $ 9.7 GeV). The total model (black) as well as each template are shown.

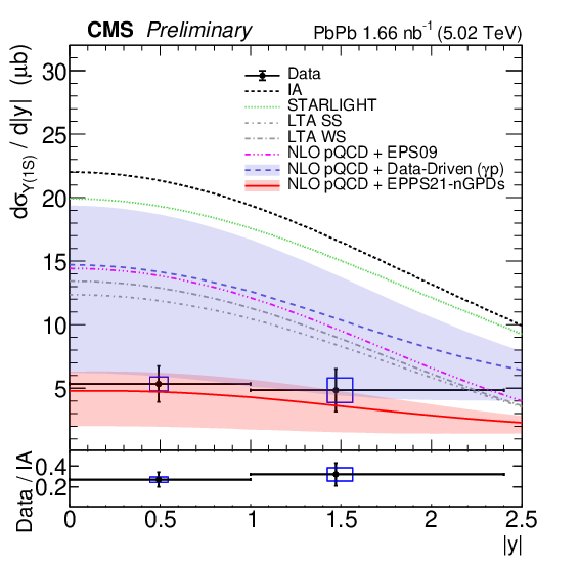

png pdf	Figure 3: Differential coherent $ \Upsilon{\textrm{(1S)}} $ cross section as a function of absolute rapidity. The vertical error bars and blue boxes represent the total and systematic uncertainties, respectively. The horizontal bars show the bin width with the bin centers located in the data average values. The data are compared with theoretical predictions from the impulse approximation [7], STARLIGHT [36], pQCD [23] and different treatments of nuclear shadowing [8]. The blue red bands indicate the nPDF-originating uncertainty of the pQCD + data-driven (blue dashed curve) and pQCD + EPPS21 prediction (red solid curve), respectively [23]. The lower panel illustrates the ratio of the data and the prediction by the impulse approximation.

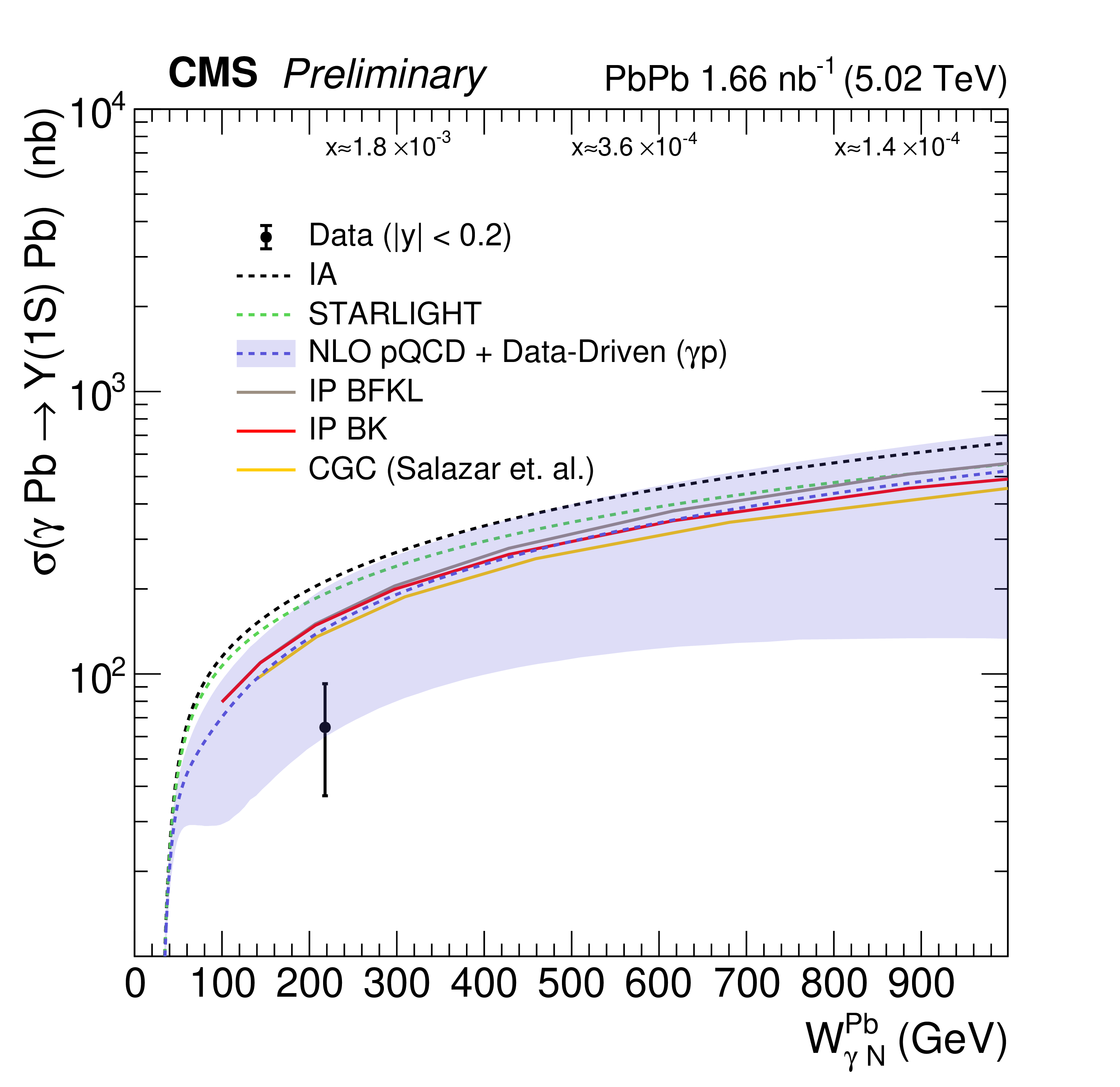

png pdf	Figure 4: Coherent $ \Upsilon{\textrm{(1S)}} $ photoproduction cross section as a function of $ W_{\gamma \rm{N}}^{\rm{Pb}} $. The vertical bar represents the total uncertainty. The data are compared with different predictions using the CGC framework [49,50,51] as well as a data driven prediction which uses $ \Upsilon{\textrm{(1S)}} $ photoproduction at HERA and LHC in ep and pp collisions as input [23]. The impulse approximation and STARLIGHT predictions are included for comparison. On the upper horizontal axis, the corresponding Bjorken-x values are displayed.

Tables

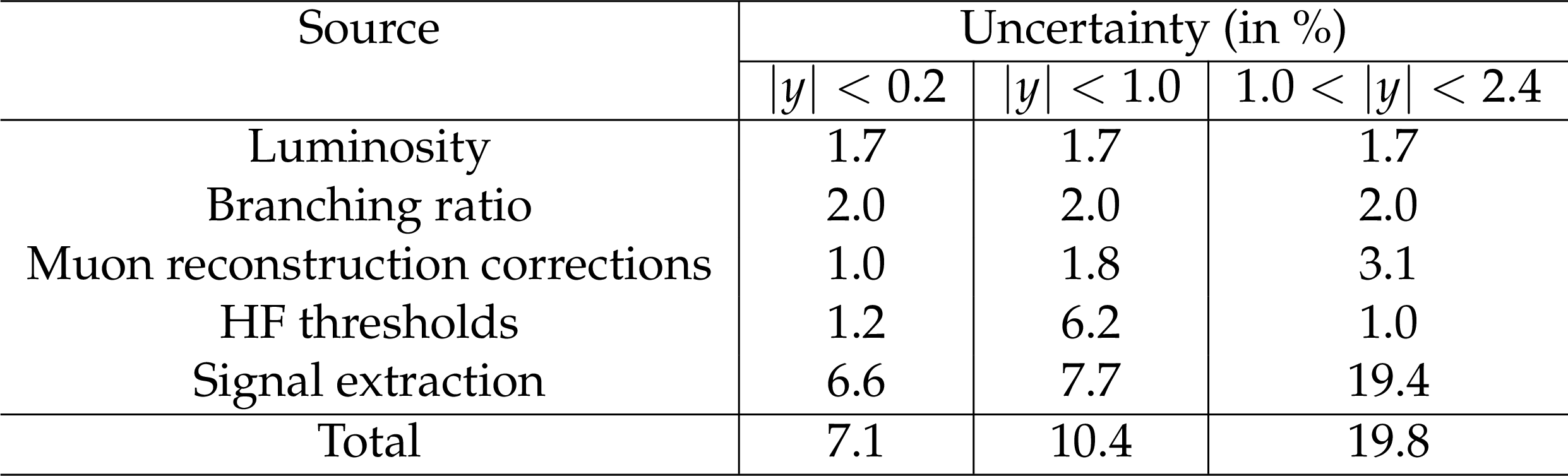

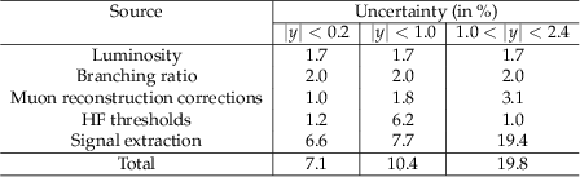

png pdf	Table 1: Summary of systematic uncertainties.

Summary

This note presented the first measurement of exclusive coherent photoproduction of $ \Upsilon{\textrm{(1S)}} $ mesons in ultraperipheral collisions (UPCs) of heavy ions. Rapidity-differential photoproduction cross sections are reported for both central and forward rapidities of the $ \Upsilon{\textrm{(1S)}} $ meson at a center-of-mass energy per nucleon pair of $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV. The measured cross section exhibits a substantial suppression relative to the central values of most theoretical models. The precision of the present measurement challenges the precision of some of the theoretical predictions used for the comparisons in this work. Finally, the photonuclear cross section at a photon-nucleus center-of-mass energy per nucleon of $ W_{\gamma \rm{N}}^{\rm{Pb}} \approx $ 200 GeV is extracted from the most central rapidity bin. This value is compared with theoretical predictions calculated in the color glass condensate formalism using the Balitsky--Kovchegov nonlinear evolution equation, as well as with predictions based on the Balitsky-Fadin--Kuraev--Lipatov linear evolution equation describing gluon density growth.

References
1	S. R. Klein and P. Steinberg	Photonuclear and two-photon interactions at high-energy nuclear colliders	Annu. Rev. Nucl. Part. Sci. 70 (2020) 323	2005.01872
2	C. A. Bertulani, S. R. Klein, and J. Nystrand	Physics of ultra-peripheral nuclear collisions	Ann. Rev. Nucl. Part. Sci. 55 (2005) 271	nucl-ex/0502005
3	A. J. Baltz	The Physics of Ultraperipheral Collisions at the LHC	Phys. Rept. 458 (2008) 1	0706.3356
4	M. G. Ryskin	Diffractive $ J/\psi $ electroproduction in LLA QCD	Z. Phys. C 57 (1993) 89
5	S. J. Brodsky et al.	Diffractive leptoproduction of vector mesons in QCD	PRD 50 (1994) 3134	hep-ph/9402283
6	A. Accardi et al.	Electron Ion Collider: The next QCD frontier: Understanding the glue that binds us all	Eur. Phys. J. A 52 (2016) 268	1212.1701
7	V. Guzey, M. Strikman, and M. Zhalov	Disentangling coherent and incoherent quasielastic $ J/\psi $ photoproduction on nuclei by neutron tagging in ultraperipheral ion collisions at the LHC	EPJC 74 (2014) 2942	1312.6486
8	V. Guzey, E. Kryshen, and M. Zhalov	Coherent photoproduction of vector mesons in ultraperipheral heavy ion collisions: Update for run 2 at the CERN Large Hadron Collider	Phys. Rev. C 93 (2016) 055206	1602.01456
9	H. M ä ntysaari	Review of proton and nuclear shape fluctuations at high energy	Rept. Prog. Phys. 83 (2020) 082201	2001.10705
10	PHENIX Collaboration	Photoproduction of $ {\mathrm{J}/\psi} $ and of high mass $ {\textrm{e}^+\textrm{e}^-} $ in ultra-peripheral au+au collisions at $ {\sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}} = $ 200 GeV	PLB 679 (2009) 321	0903.2041
11	STAR Collaboration	Coherent diffractive photoproduction of $ {\rho^0} $ mesons on gold nuclei at 200 GeV/nucleon-pair at the Relativistic Heavy Ion Collider	Phys. Rev. C 96 (2017) 054904	1702.07705
12	ALICE Collaboration	Charmonium and $ {\mathrm{e^+e^-}} $ pair photoproduction at mid-rapidity in ultra-peripheral Pb-Pb collisions at $ {\sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}} = $ 2.76 TeV	EPJC 73 (2013) 2617	1305.1467
13	CMS Collaboration	Coherent $ {\mathrm{J}/\psi} $ photoproduction in ultra-peripheral PbPb collisions at $ {\sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}} = $ 2.76 TeV with the CMS experiment	PLB 772 (2017) 489	CMS-HIN-12-009 1605.06966
14	ALICE Collaboration	Coherent $ J/\psi $ and $ \psi' $ photoproduction at midrapidity in ultra-peripheral Pb-Pb collisions at $ \sqrt{s_{\mathrm{NN}}} = $ 5.02 TeV	EPJC 81 (2021) 712	2101.04577
15	ALICE Collaboration	Coherent photoproduction of $ {\rho^0} $ vector mesons in ultra-peripheral Pb-Pb collisions at $ {\sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}} = $ 5.02 TeV	JHEP 06 (2020) 035	2002.10897
16	LHCb Collaboration	Study of coherent $ J/\psi $ production in lead-lead collisions at $ \sqrt{{\mathrm{s}}_{\mathrm{NN}}} $ = 5 TeV	JHEP 07 (2022) 117	2107.03223
17	CMS Collaboration	Probing Small Bjorken-x Nuclear Gluonic Structure via Coherent J/\ensuremath\psi Photoproduction in Ultraperipheral Pb-Pb Collisions at sNN=5.02\,\,TeV	PRL 131 (2023) 262301	CMS-HIN-22-002 2303.16984
18	ALICE Collaboration	Energy dependence of coherent photonuclear production of J/\ensuremath\psi mesons in ultra-peripheral Pb-Pb collisions at $ \sqrt{{\textrm{s}}_{\textrm{NN}}} $ = 5.02 TeV	JHEP 10 (2023) 119	2305.19060
19	STAR Collaboration	Observation of strong nuclear suppression in exclusive $ {\mathrm{J}/\psi} $ photoproduction in Au+Au ultraperipheral collisions at RHIC	PRL 133 (2024) 052301	2311.13637
20	H. Mäntysaari and B. Schenke	Probing subnucleon scale fluctuations in ultraperipheral heavy ion collisions	PLB 772 (2017) 832	1703.09256
21	D. Bendova, J. Cepila, J. G. Contreras, and M. Matas	Photonuclear $ \mathrm{J}/\psi $ production at the LHC: Proton-based versus nuclear dipole scattering amplitudes	PLB 817 (2021) 136306	2006.12980
22	K. J. Eskola et al.	Exclusive J/\ensuremath\psi photoproduction in ultraperipheral Pb+Pb collisions at the CERN Large Hadron Collider calculated at next-to-leading order perturbative QCD	Phys. Rev. C 106 (2022) 035202	2203.11613
23	K. J. Eskola et al.	Predictions for exclusive $ \varUpsilon $ photoproduction in ultraperipheral $ {\textrm{Pb}}+{\textrm{Pb}} $ collisions at the LHC at next-to-leading order in perturbative QCD	EPJC 83 (2023) 758	2303.03007
24	CMS Collaboration	Luminosity measurement for lead-lead collisions at $ \sqrt{s_{\mathrm{NN}}} = $ 5.02 TeV in 2015 and 2018 at CMS		CMS-LUM-20-002 2503.03946
25	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
26	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
27	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
28	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
29	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
30	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
31	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
32	G. Bayatian et al.	Design, performance and calibration of the CMS forward calorimeter wedges	EPJC 53 (2008) 139
33	O. Sur \'a nyi et al.	Performance of the CMS Zero Degree Calorimeters in pPb collisions at the LHC	JINST 16 (2021) P05008	2102.06640
34	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
35	CMS Collaboration	Performance of CMS Muon Reconstruction in $ pp $ Collision Events at $ \sqrt{s}= $ 7 TeV	JINST 7 (2012) P10002	CMS-MUO-10-004 1206.4071
36	S. R. Klein et al.	STARlight: A Monte Carlo simulation program for ultra-peripheral collisions of relativistic ions	Comput. Phys. Commun. 212 (2017) 258	1607.03838
37	GEANT4 Collaboration	GEANT4--a simulation toolkit	NIM A 506 (2003) 250
38	Particle Data Group Collaboration	Review of Particle Physics	PTEP 2022 (2022) 083C01
39	H1 Collaboration	Elastic and Proton-Dissociative Photoproduction of J/psi Mesons at HERA	EPJC 73 (2013) 2466	1304.5162
40	ALICE Collaboration	Coherent J/$ \psi $ photoproduction at forward rapidity in ultra-peripheral Pb-Pb collisions at $ \sqrt{s_{\rm{NN}}}= $ 5.02 TeV	PLB 798 (2019) 134926	1904.06272
41	CMS Collaboration	Measurement of the Inclusive $ W $ and $ Z $ Production Cross Sections in $ pp $ Collisions at $ \sqrt{s}= $ 7 TeV	JHEP 10 (2011) 132	CMS-EWK-10-005 1107.4789
42	D. d'Enterria and C. Loizides	Progress in the Glauber Model at Collider Energies	Ann. Rev. Nucl. Part. Sci. 71 (2021) 315	2011.14909
43	H1 Collaboration	Elastic photoproduction of J / psi and Upsilon mesons at HERA	PLB 483 (2000) 23	hep-ex/0003020
44	ZEUS Collaboration	Measurement of elastic Upsilon photoproduction at HERA	PLB 437 (1998) 432	hep-ex/9807020
45	ZEUS Collaboration	Exclusive photoproduction of upsilon mesons at HERA	PLB 680 (2009) 4	0903.4205
46	LHCb Collaboration	Measurement of the exclusive $\Upsilon$ production cross-section in pp collisions at $ \sqrt{s}= $ 7 TeV and 8 TeV	JHEP 09 (2015) 084	1505.08139
47	CMS Collaboration	Measurement of exclusive $ \Upsilon $ photoproduction from protons in pPb collisions at $ \sqrt {\smash [b]{s_{_{\mathrm {NN}}}}} = $ 5.02 TeV	EPJC 79 (2019) 277	CMS-FSQ-13-009 1809.11080
48	M. B. G. Ducati, F. Kopp, and M. V. T. Machado	Coherent and incoherent Upsilon production in ultraperipheral collisions at the Large Hadron Collider	PRD 96 (2017) 054001	1708.08546
49	Mäntysaari, Heikki and Salazar, Farid and Schenke, Björn	Nuclear geometry at high energy from exclusive vector meson production	PRD 106 (2022) 074019	2207.03712
50	H. Mäntysaari, F. Salazar, and B. Schenke	Energy dependent nuclear suppression from gluon saturation in exclusive vector meson production	PRD 109 (2024) L071504	2312.04194
51	J. Penttala and C. Royon	Gluon saturation effects in exclusive heavy vector meson photoproduction	PLB 864 (2025) 139394	2411.14815
52	I. I. Balitsky and L. N. Lipatov	The Pomeranchuk Singularity in Quantum Chromodynamics	Sov. J. Nucl. Phys. 28 (1978) 822
53	V. S. Fadin and L. N. Lipatov	BFKL pomeron in the next-to-leading approximation	PLB 429 (1998) 127	hep-ph/9802290
54	E. A. Kuraev, L. N. Lipatov, and V. S. Fadin	The Pomeranchuk Singularity in Nonabelian Gauge Theories	Sov. Phys. JETP 45 (1977) 199
55	I. Balitsky	Operator expansion for high-energy scattering	NPB 463 (1996) 99	hep-ph/9509348
56	Y. V. Kovchegov	Unitarization of the BFKL pomeron on a nucleus	PRD 61 (2000) 074018	hep-ph/9905214
