| CMS-PAS-EXO-25-001 | ||
| Search for Higgs compositeness effects in high-mass dilepton final states in proton-proton collisions at $ \sqrt{s} = $ 13 and 13.6 TeV | ||
| CMS Collaboration | ||
| 2026-07-06 | ||
| Abstract: A search for beyond the standard model effects in high-energy dielectron and dimuon final states with the CMS detector is performed, with a specific focus on Higgs compositeness. The search uses data collected at LHC at 13 and 13.6 TeV center-of-mass energies, for a total integrated luminosity of 207 fb$ ^{-1} $. These compositeness effects imply the presence of new massive boson resonances with couplings to difermions and dibosons. The analysis uses a reweighting procedure that is exact at next-to-leading order in QCD. Assuming new boson states with mass well above the TeV scale, an effective field theory approach provides stringent bounds on the oblique parameters $ {\cal W} $ and $ {\cal Y} $, which are zero in the standard model. One-dimensional fits, where only one of the oblique parameters is allowed to deviate from zero, provide the following limits: $ -3.9 \times 10^{-4} < {\cal Y} < 3.5 \times 10^{-4} $ and $ -2.1 \times 10^{-4} < {\cal W} < 1.6 \times 10^{-4} $ at 95% confidence level. More stringent compositeness constraints are derived under the assumption that a new Z$ ^\prime $ resonance is physically present inside or slightly above the visible mass spectrum. Various theoretical scenarios are considered in this context, including cases with large resonance decay width. | ||
| Links: CDS record (PDF) ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

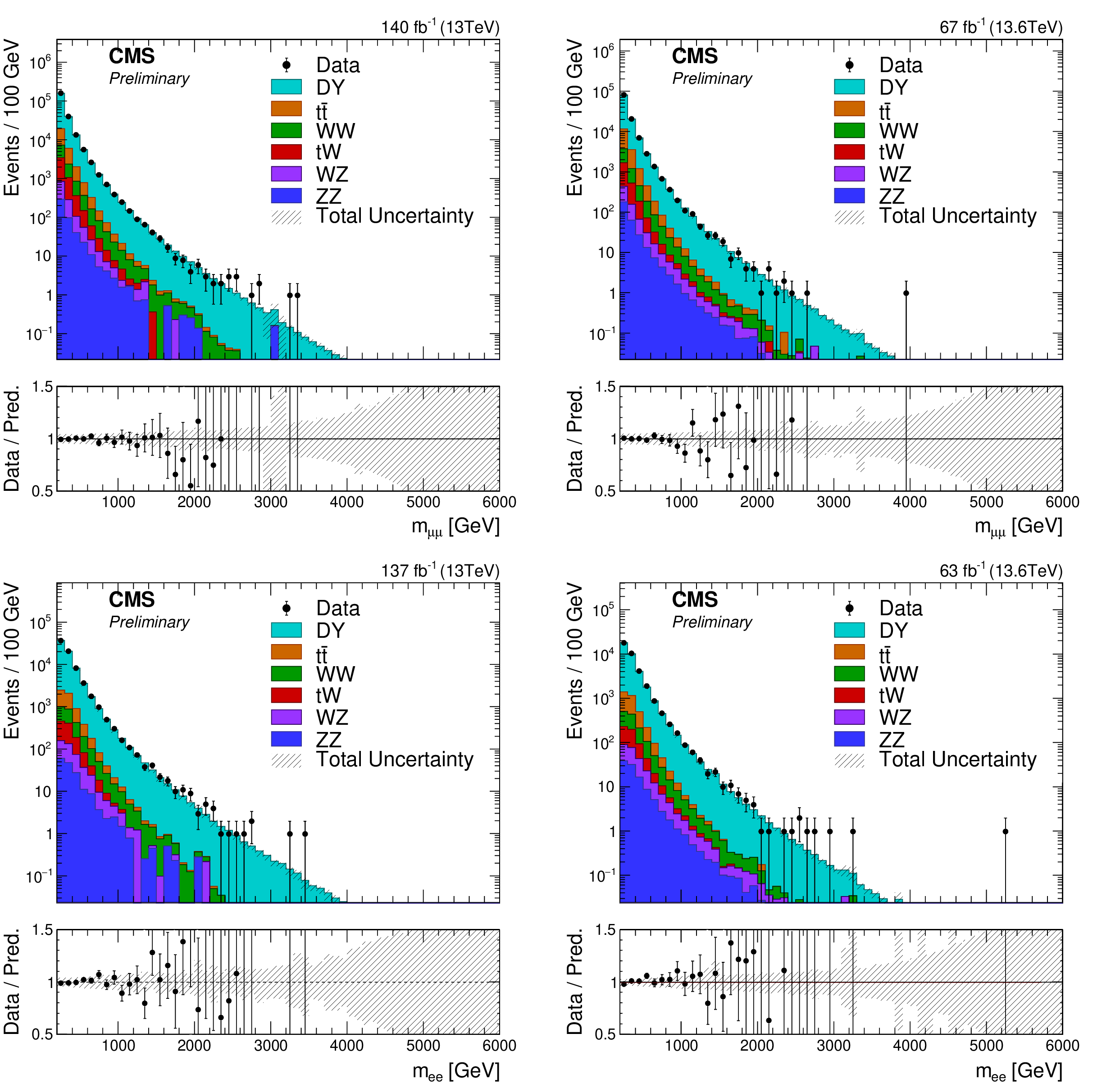

Figure 1:
Run 2 (left) and Run 3 (right) reconstructed dilepton invariant mass distribution after selection for (upper) muons and (lower) electrons. The uncertainty bands from the simulation include statistical uncertainties and systematic effects that modify the overall differential shape but not the normalization. |
png pdf |

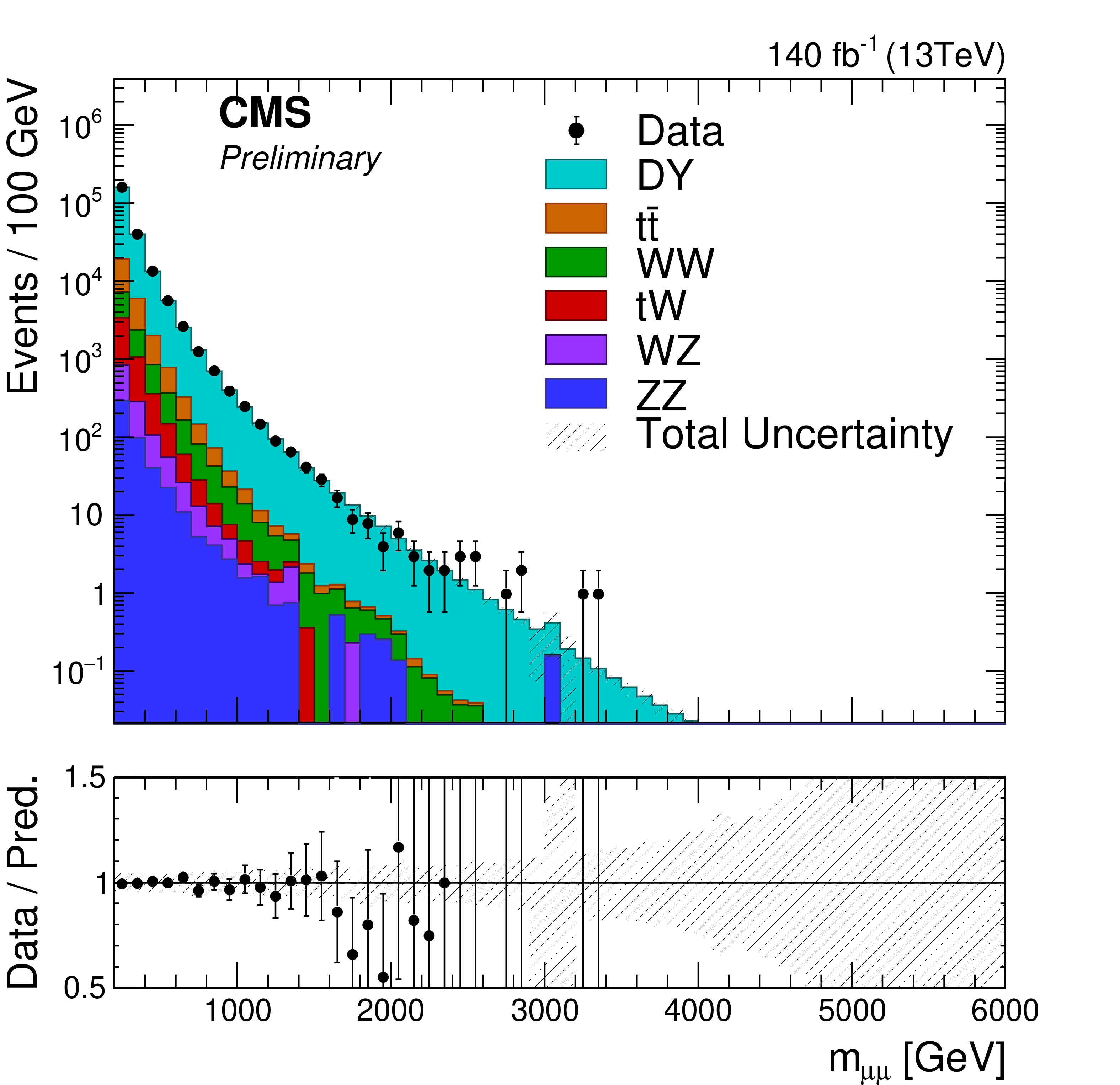

Figure 1-a:
Run 2 (left) and Run 3 (right) reconstructed dilepton invariant mass distribution after selection for (upper) muons and (lower) electrons. The uncertainty bands from the simulation include statistical uncertainties and systematic effects that modify the overall differential shape but not the normalization. |
png pdf |

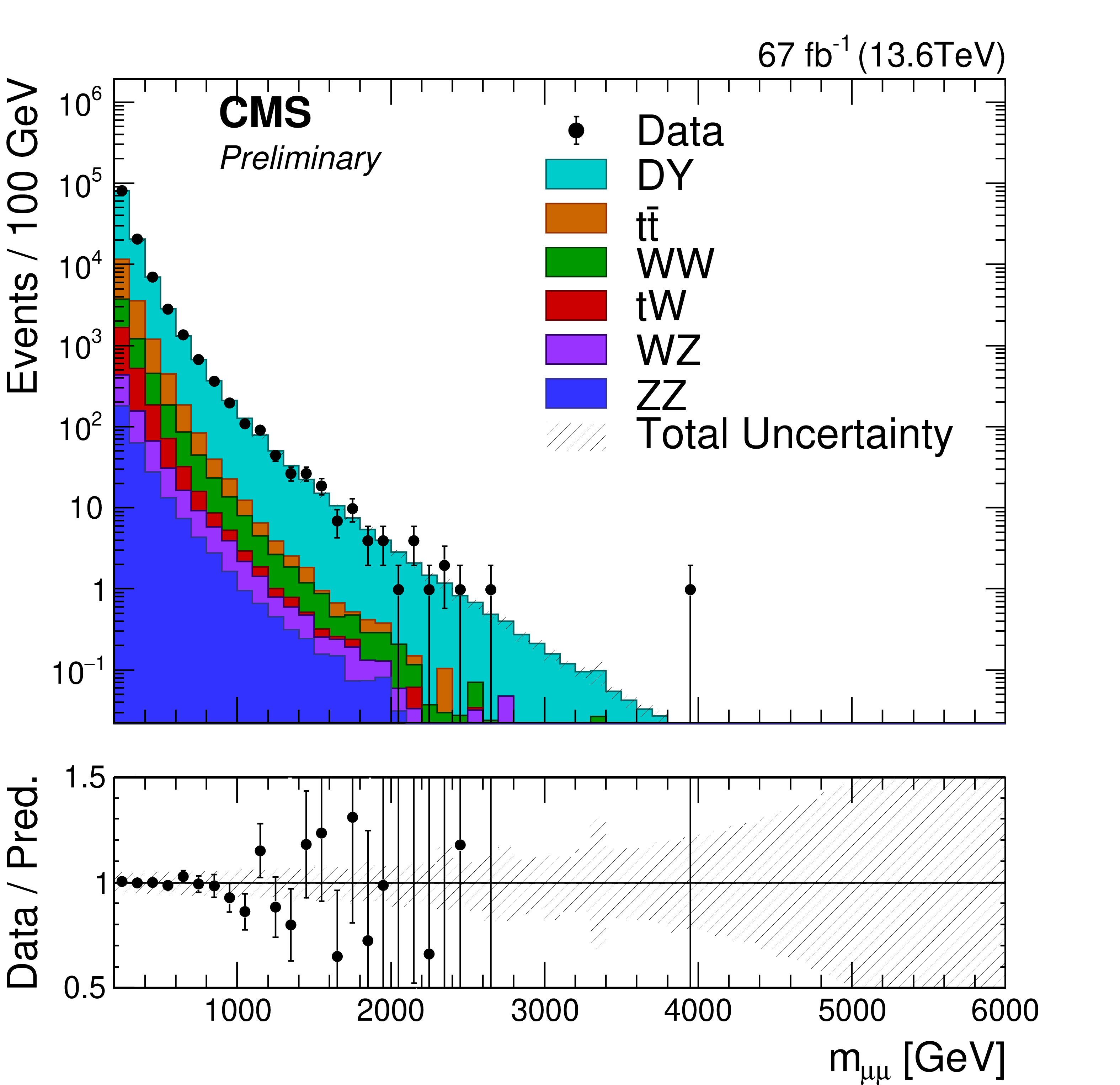

Figure 1-b:
Run 2 (left) and Run 3 (right) reconstructed dilepton invariant mass distribution after selection for (upper) muons and (lower) electrons. The uncertainty bands from the simulation include statistical uncertainties and systematic effects that modify the overall differential shape but not the normalization. |
png pdf |
Figure 1-c:

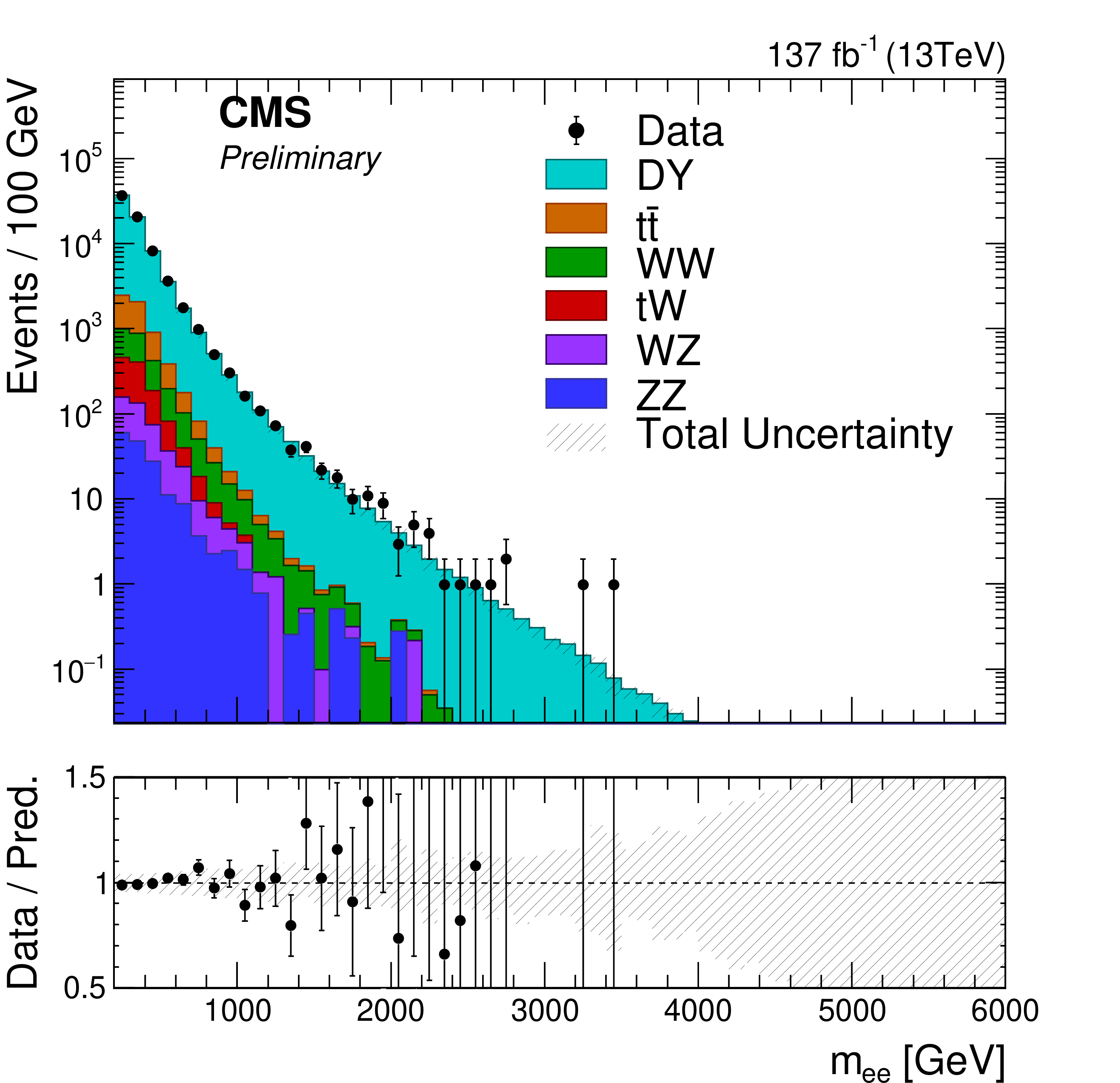

Run 2 (left) and Run 3 (right) reconstructed dilepton invariant mass distribution after selection for (upper) muons and (lower) electrons. The uncertainty bands from the simulation include statistical uncertainties and systematic effects that modify the overall differential shape but not the normalization. |
png pdf |
Figure 1-d:
Run 2 (left) and Run 3 (right) reconstructed dilepton invariant mass distribution after selection for (upper) muons and (lower) electrons. The uncertainty bands from the simulation include statistical uncertainties and systematic effects that modify the overall differential shape but not the normalization. |
png pdf |

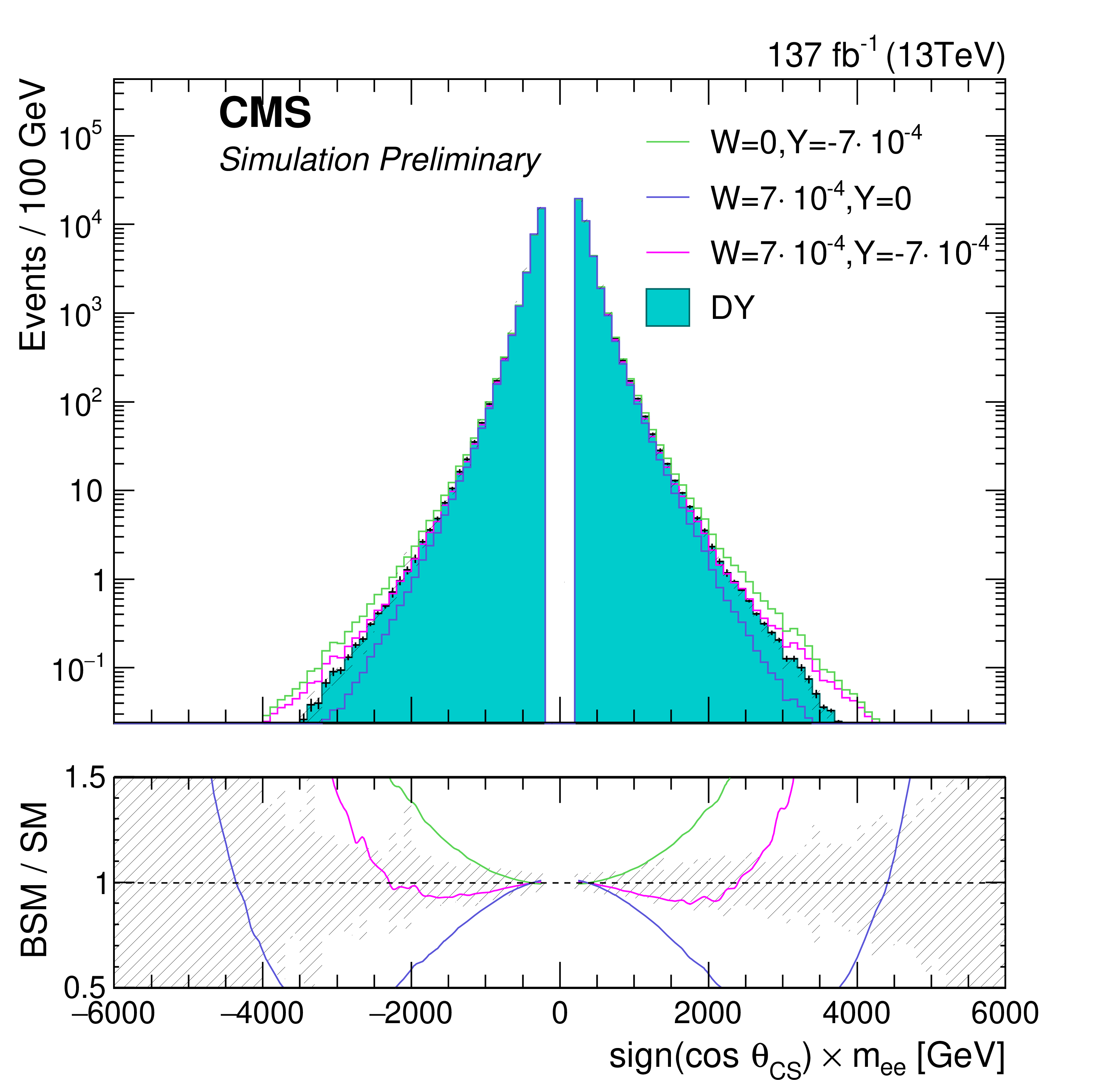

Figure 2:
Simulated DY invariant mass times the sign of $ \cos\theta_{\rm CS} $ distributions for electrons in Run 2, after the application of selection criteria. The expectations in the SM and in several BSM scenarios, corresponding to different values of $ {\cal W} $ and $ {\cal Y} $, are shown. The uncertainty band from the simulation includes the estimated statistical uncertainties and systematic effects. |
png pdf |

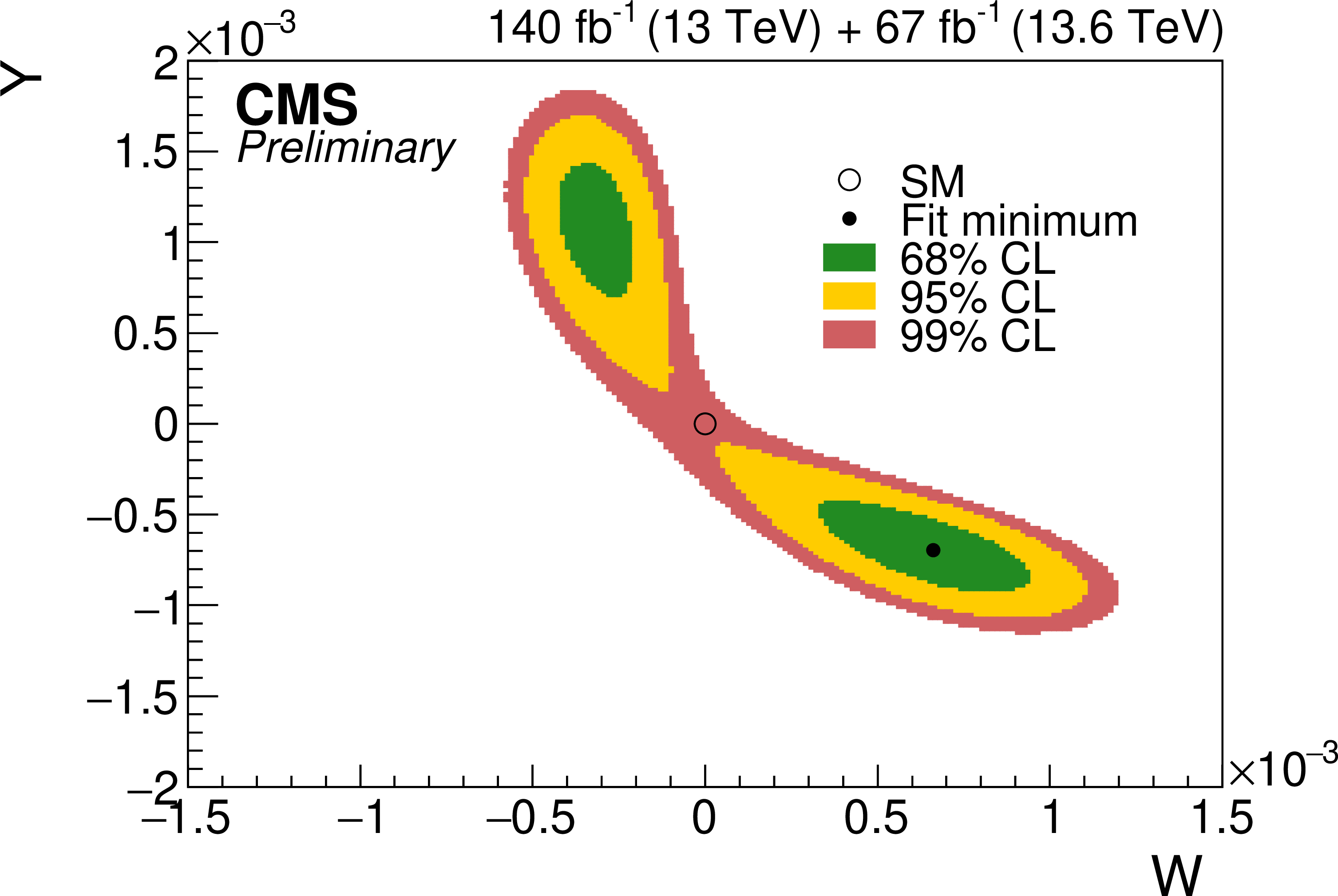

Figure 3:
Allowed regions in the 2-dimensional $ ({\cal W},{\cal Y} ) $ parameter plane, from a fit to the full data sample considered in the analysis. Both statistical and systematic uncertainties are considered in the fit. There is consistency with the SM at the 2 $ \sigma $ level. This deviation is largely driven by the presence of a dielectron event observed in 2022 data with an invariant mass above 5 TeV. |
png pdf |
Figure 4:

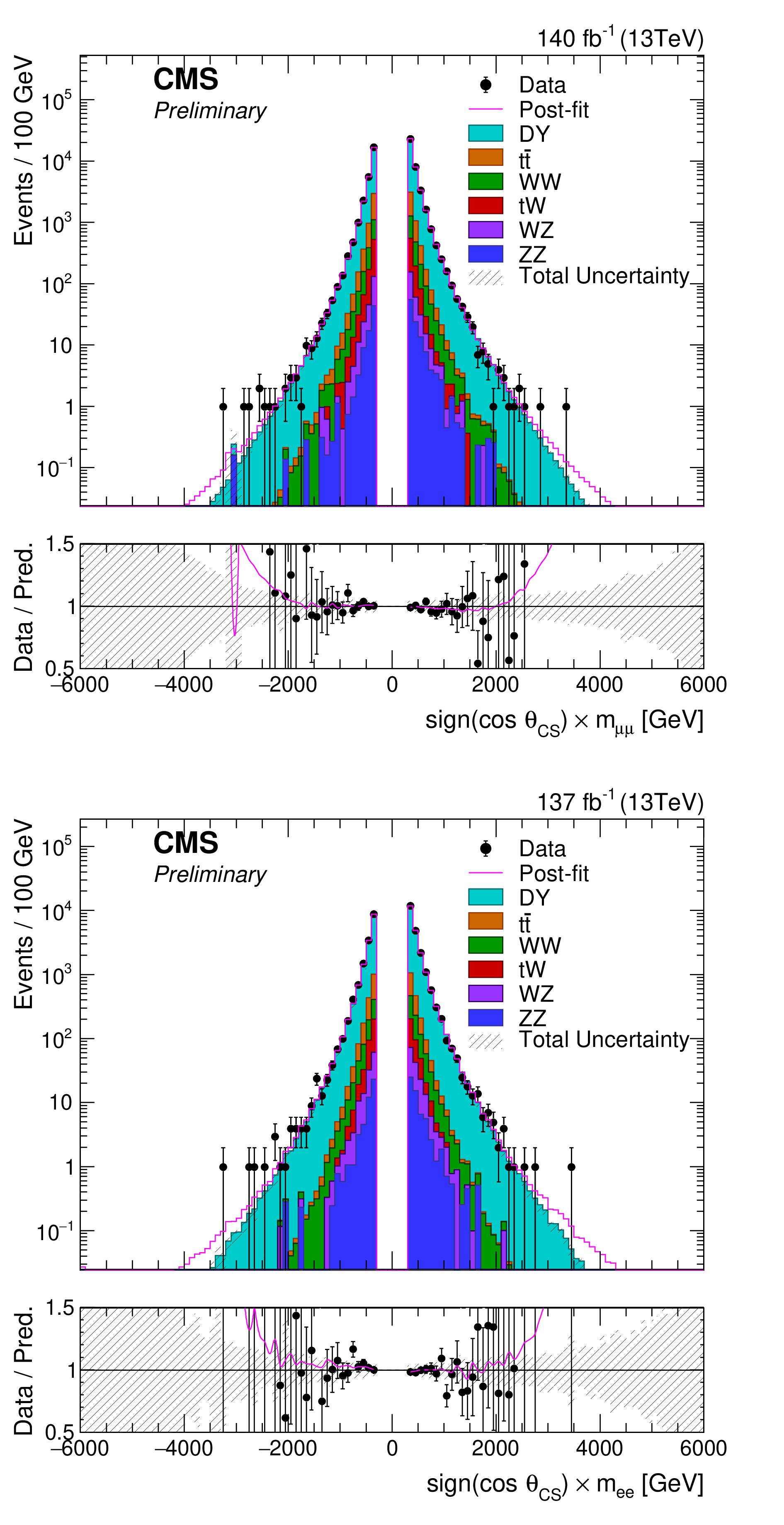

Two-dimensional EFT fit results superimposed on the observed data and SM predictions, for Run 2 dimuons (upper plot) and dielectrons (lower plot). |
png pdf |
Figure 4-a:

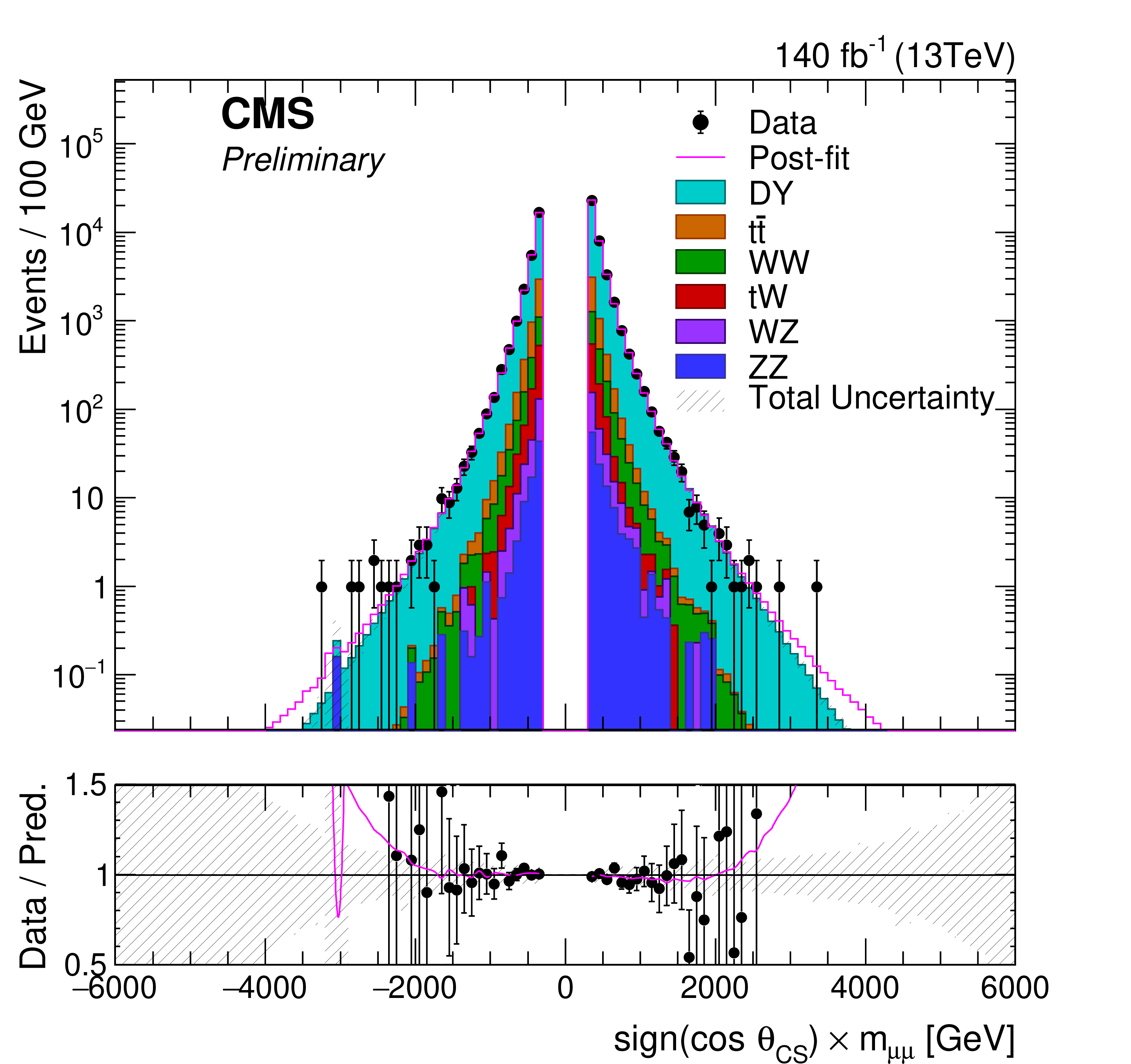

Two-dimensional EFT fit results superimposed on the observed data and SM predictions, for Run 2 dimuons (upper plot) and dielectrons (lower plot). |
png pdf |

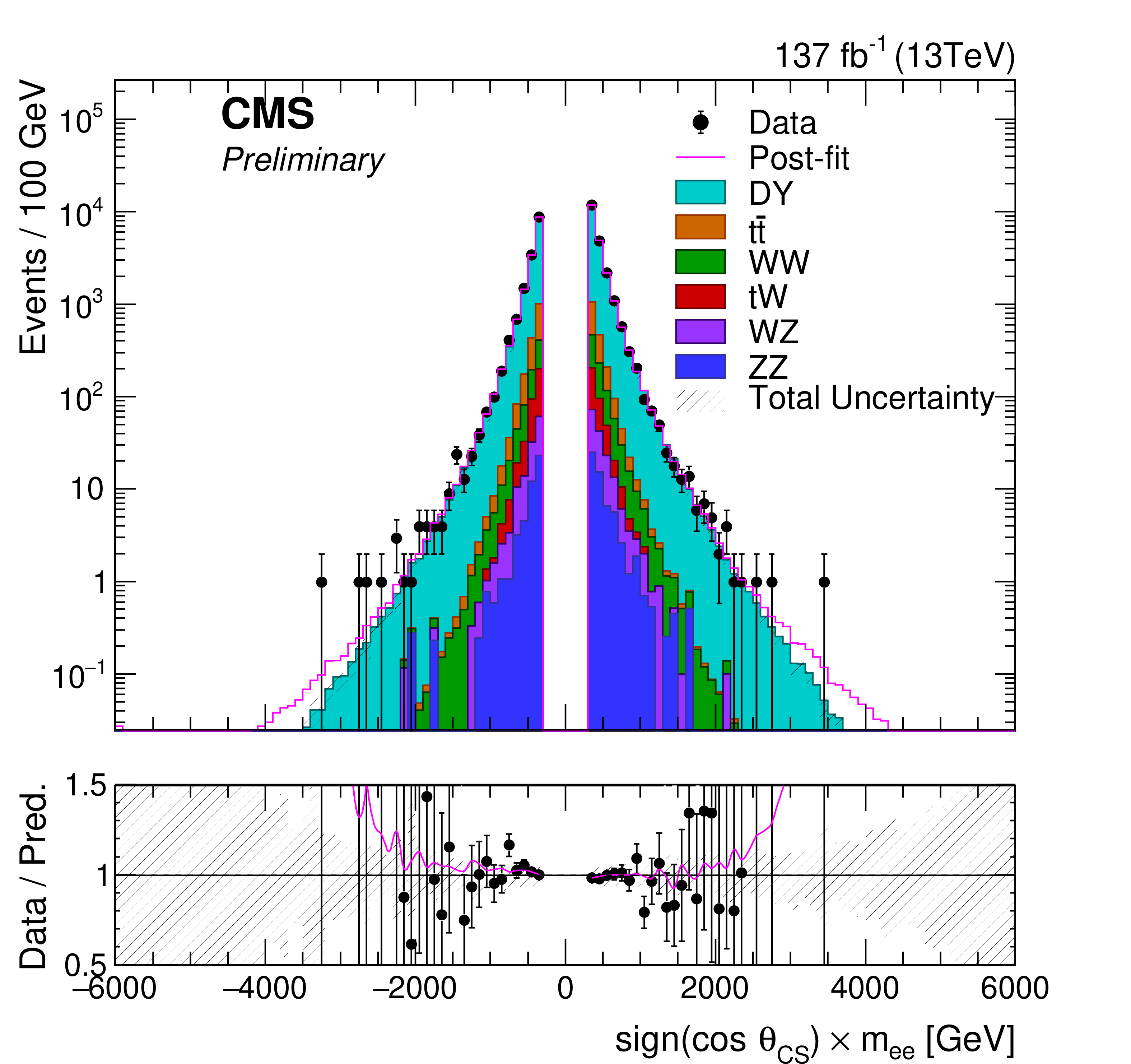

Figure 4-b:
Two-dimensional EFT fit results superimposed on the observed data and SM predictions, for Run 2 dimuons (upper plot) and dielectrons (lower plot). |
png pdf |
Figure 5:

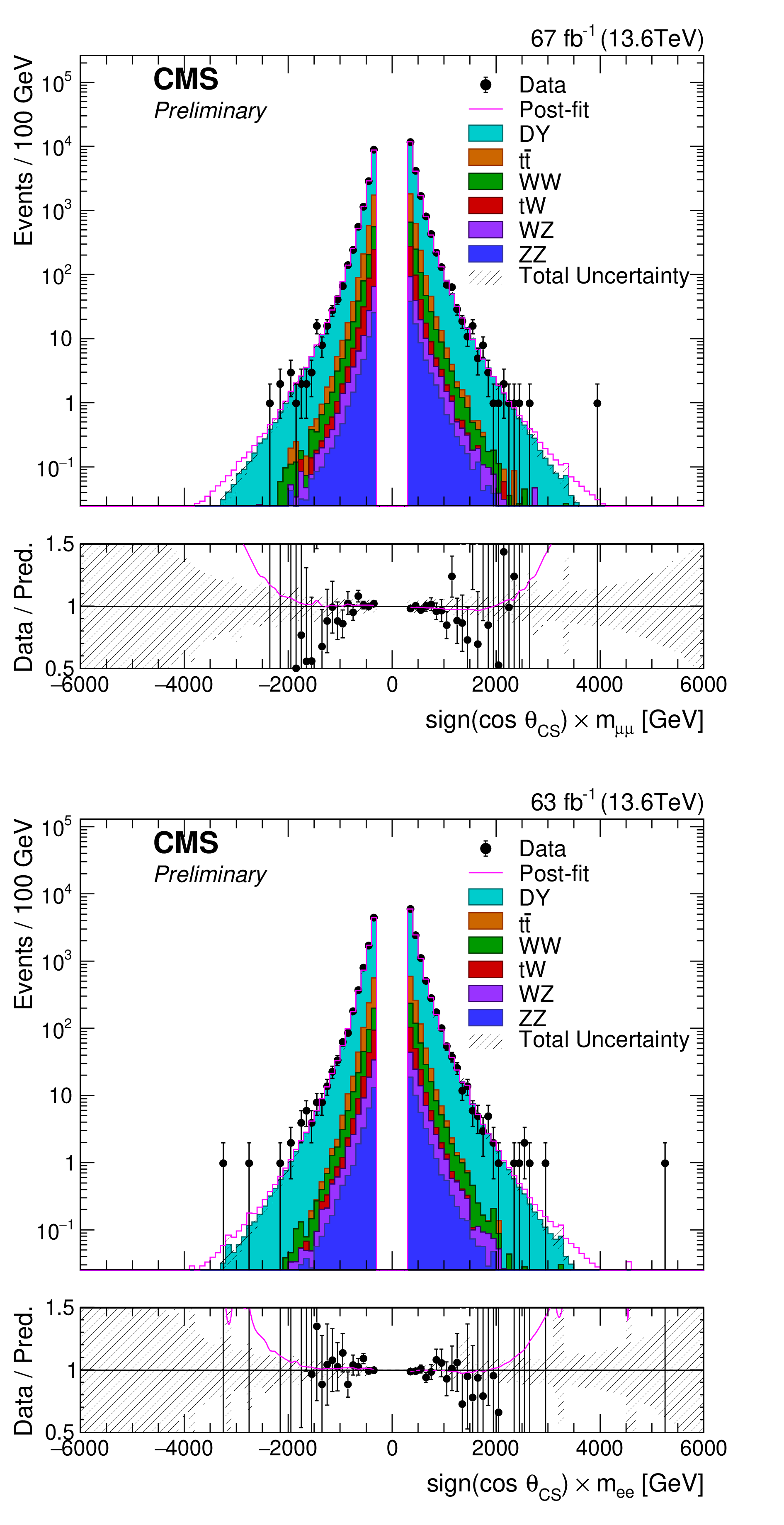

Two-dimensional EFT fit results superimposed on the observed data and SM predictions for Run 3 dimuons (upper plot) and dielectrons (lower plot). |
png pdf |

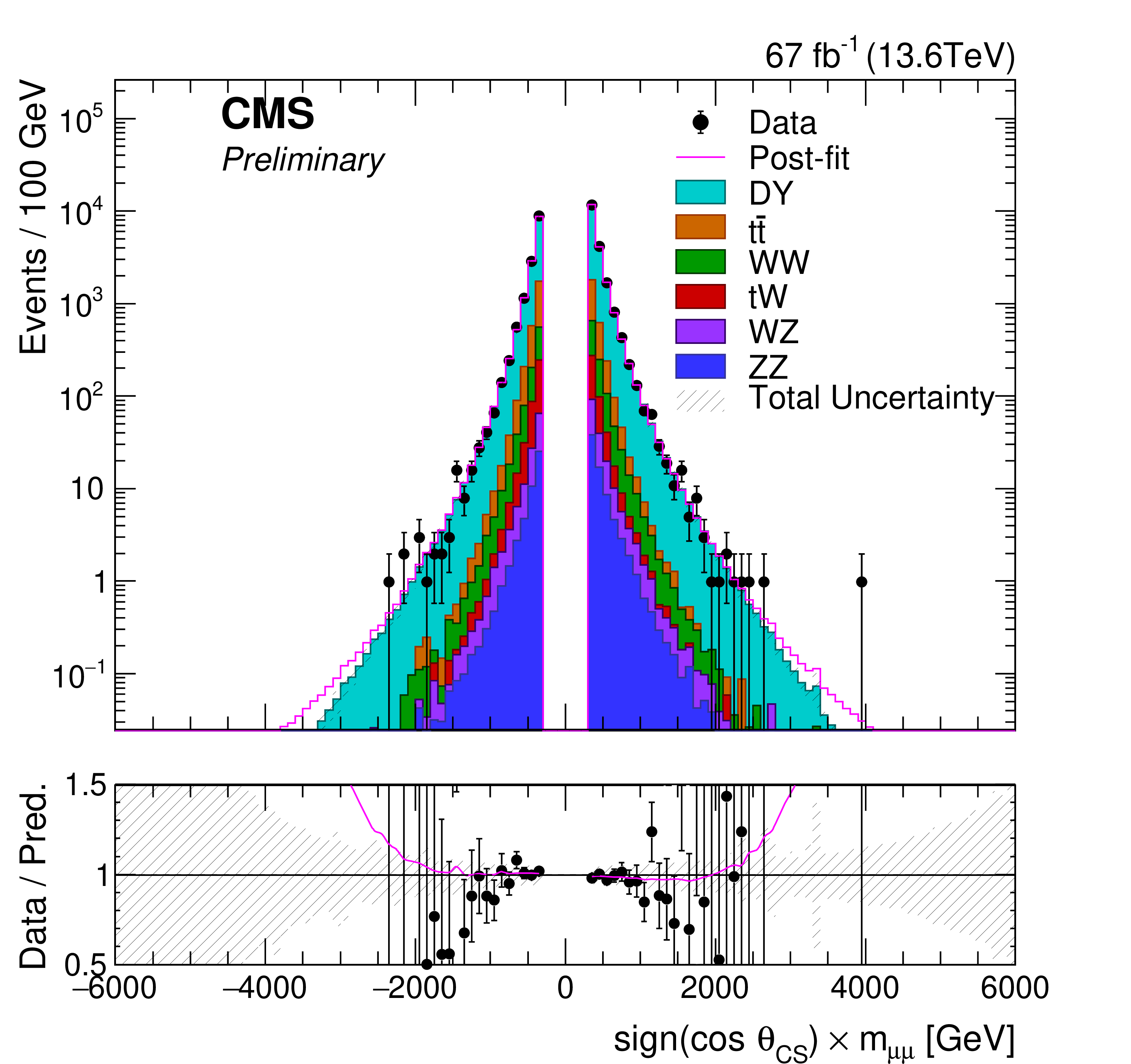

Figure 5-a:
Two-dimensional EFT fit results superimposed on the observed data and SM predictions for Run 3 dimuons (upper plot) and dielectrons (lower plot). |
png pdf |

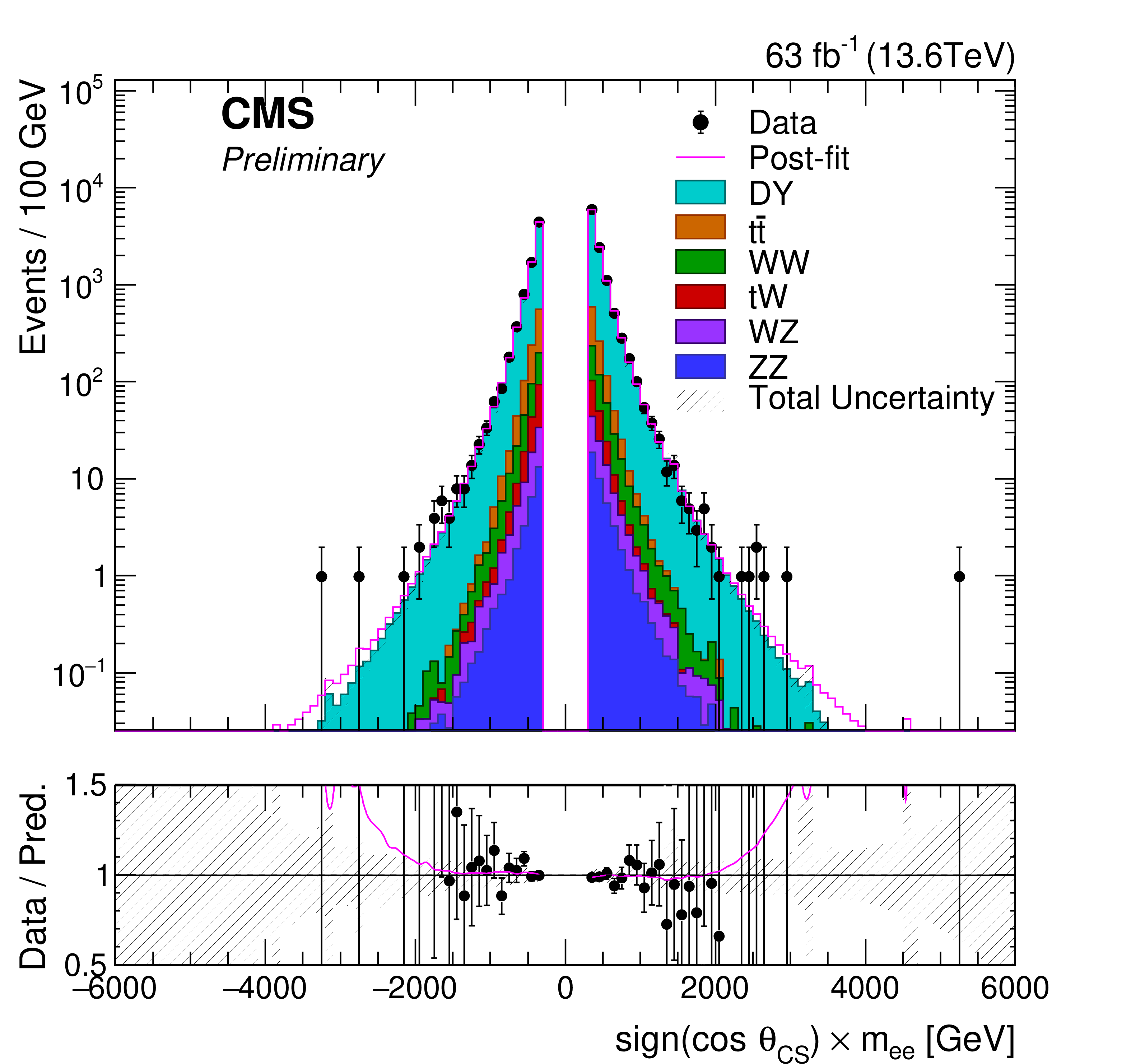

Figure 5-b:
Two-dimensional EFT fit results superimposed on the observed data and SM predictions for Run 3 dimuons (upper plot) and dielectrons (lower plot). |
png pdf |

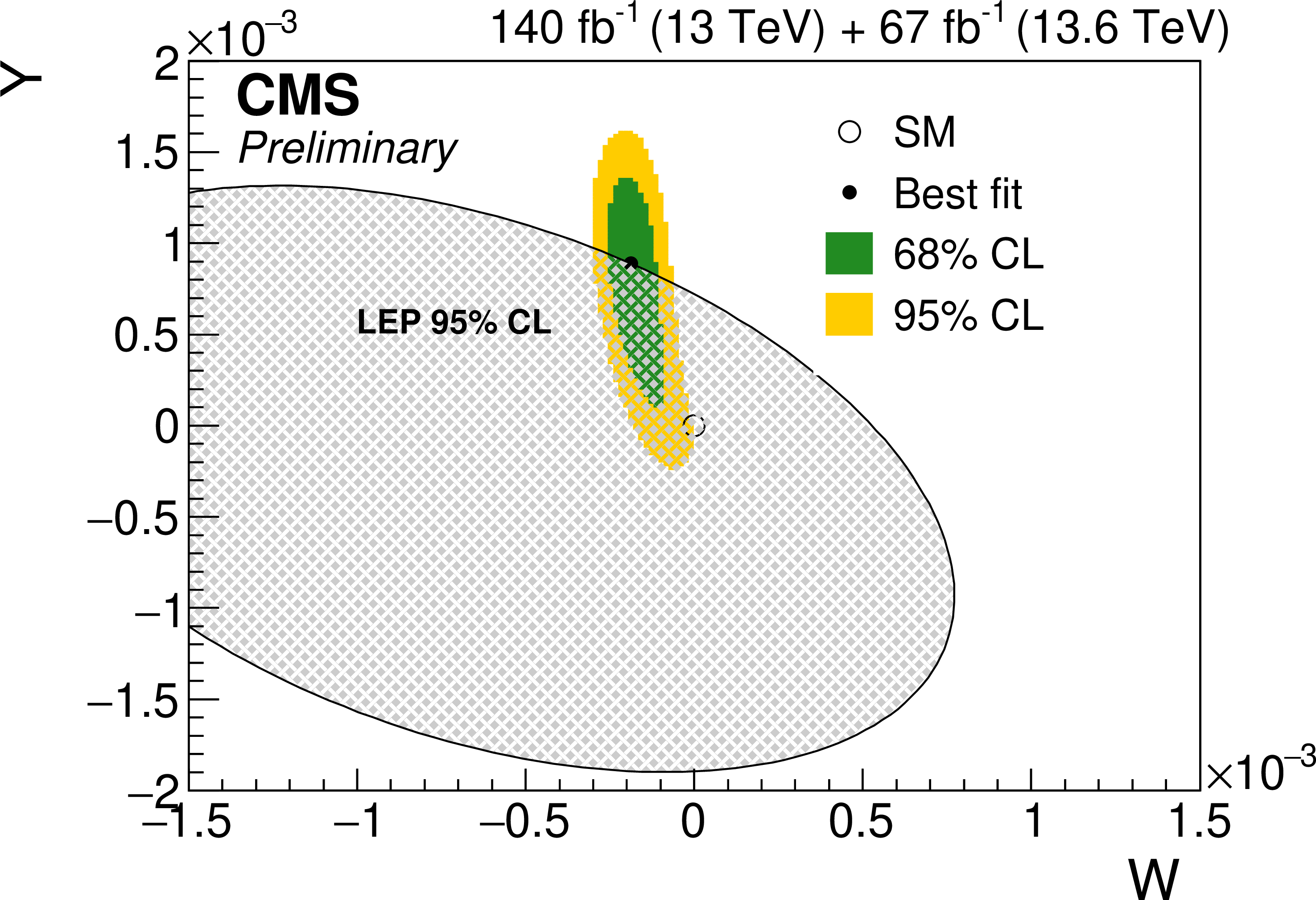

Figure 6:
Allowed region in the $ ({\cal W},{\cal Y} ) $ parameter plane, using the full data sample, when the $ {\cal W} $ constraint, $ {\cal W} = (- $ 1.2 $ \pm $ 0.6 $) 10^{-4} $ is included in the fit. The SM is consistent with the observations at the 2 $ \sigma $ level. The figure also shows the region constrained by LEP electroweak measurements [42]. |
png pdf |
Figure 7:

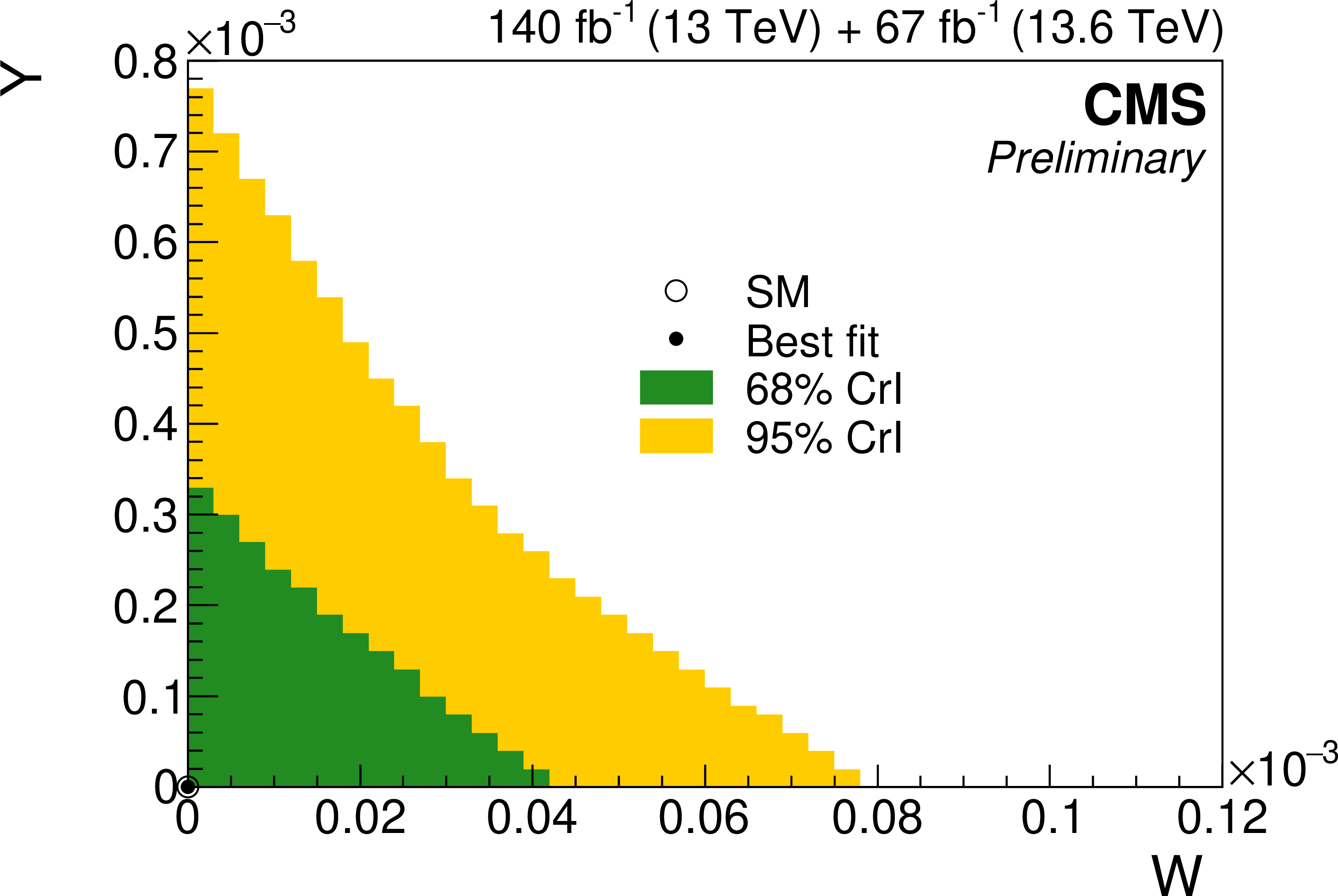

Allowed regions as a function of $ {\cal W} $ and $ {\cal Y} $ under a universality assumption, which requires that both $ {\cal W} $ and $ {\cal Y} $ are positive. The likelihood is derived from the analysis of the full Run 2+2022+2023 data sample of dielectrons and dimuons, considering both statistical and systematic uncertainties. The green and yellow areas correspond to BSM to the 68% and 95% Bayesian credible intervals (CrI) [8], under the positivity constraint and a flat prior assumption for the parameters. |
png pdf |

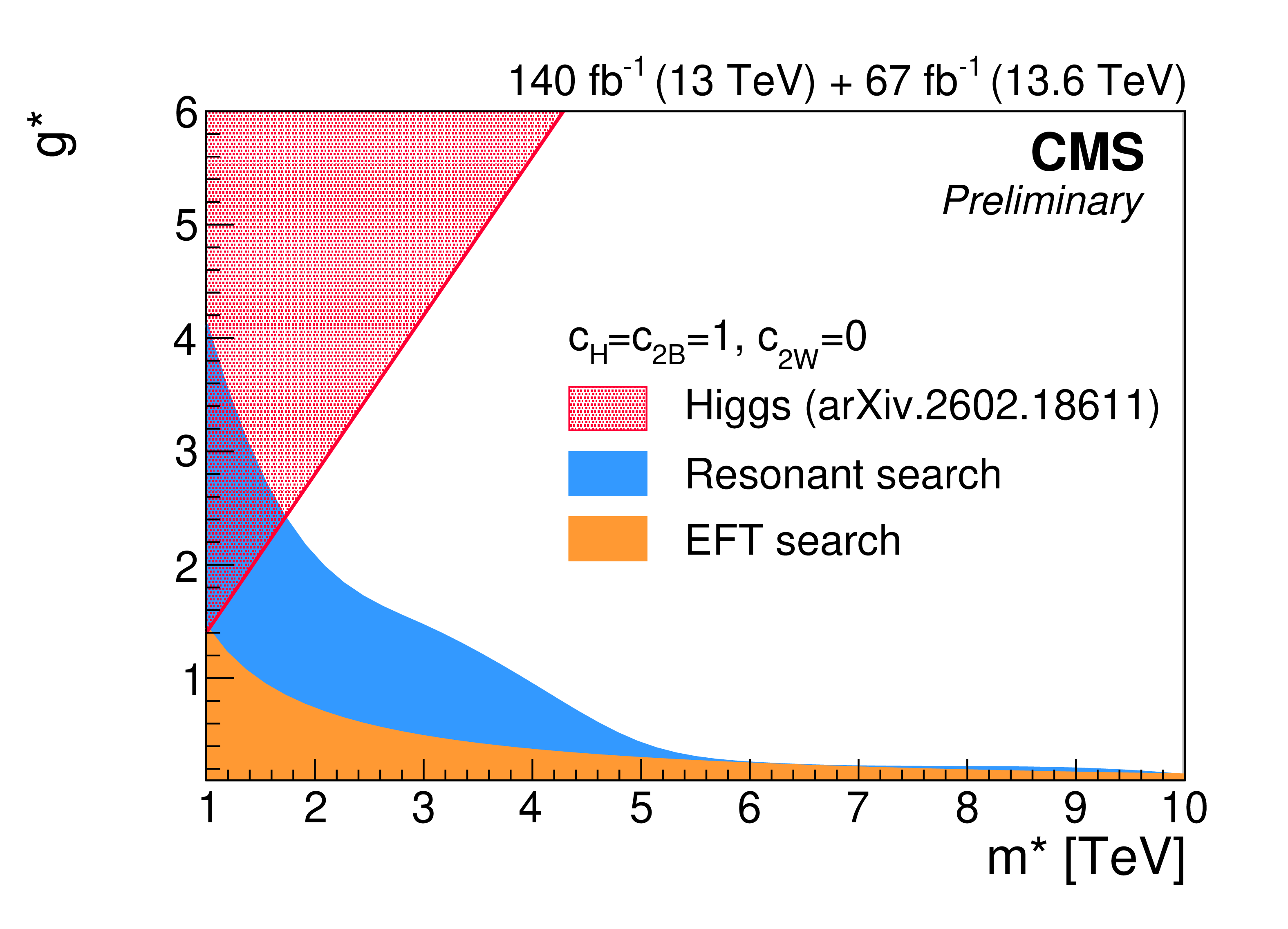

Figure 8:
Excluded region in the $ (m^*,g^*) $ plane in a Y-universal scenario [44], assuming the presence of a neutral gauge boson $ \mathrm{Z}^\prime $ of mass $ m^* $. Decays into WW and ZH final states are assumed to increase the width of the new resonance, which is explicitly defined as a function of the strong coupling constant $ g^* $ of the SILH model (see text). These bounds are compared with those deduced from a non-resonant, EFT fit and from the current CMS global fits of the Higgs signal strength modifier for $ c_{H}= $ 1 ($ g^* < 1.4 m^*[ \text{Te\hspace{-.08em}V}] $ at 95% CL) [49]. |
png pdf |
Figure 9:

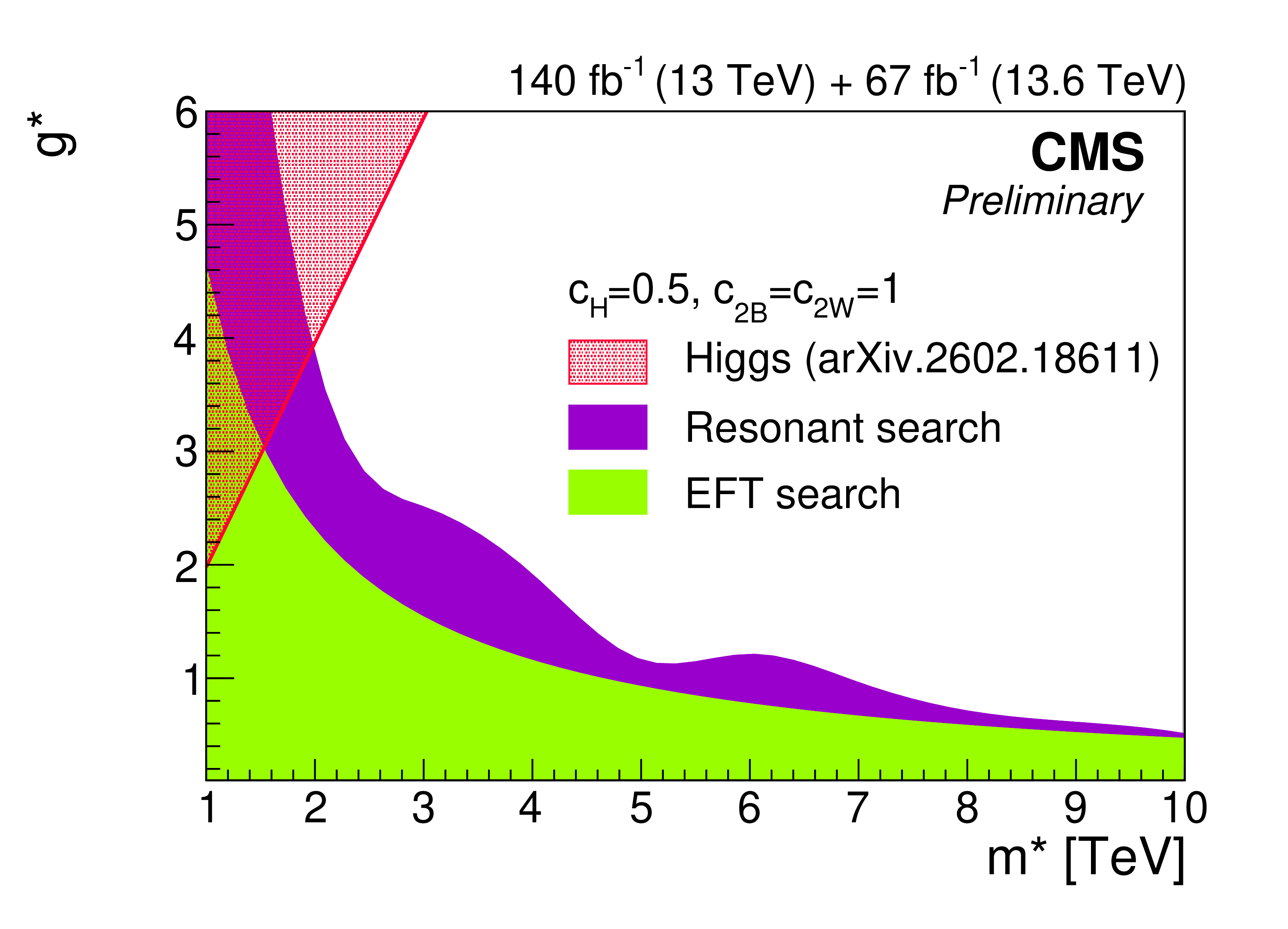

Excluded regions in the $ (m^*,g^*) $ plane in a Little Higgs scenario with custodial symmetry [46], assuming the presence of a neutral gauge boson $ \mathrm{Z}^\prime $ of mass $ m^* $. Decays into WW and ZH final states are assumed to increase the width of the new resonance, which is explicitly defined as a function of the strong coupling constant $ g^* $ of the SILH model (see text). These bounds are compared with those deduced from a non-resonant, EFT fit and from the current CMS global fits of the Higgs signal strength modifier for $ c_{H}= $ 0.5 ($ g^* < 2 m^*[ \text{Te\hspace{-.08em}V}] $ at 95% CL) [49]. |
png pdf |
Figure 10:

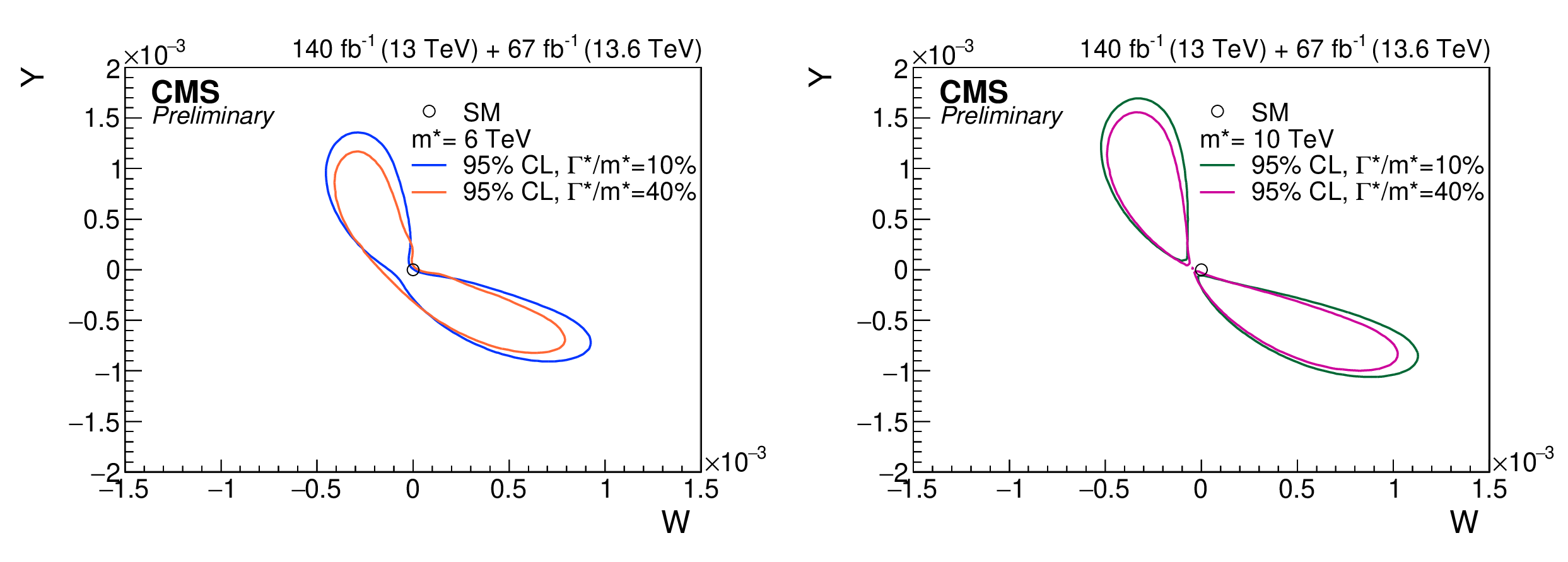

Allowed regions in the 2-dimensional $ ({\cal W},{\cal Y} ) $ parameter plane, assuming a nearby new physics energy scale. The presence of neutral gauge boson resonances of 6 TeV (left) and 10 TeV (right) is assumed, with a medium (10%) or large (40%) relative decay width, due to the potential presence of a significant decay rate into WW or ZH final states. Both statistical and systematic uncertainties are considered in the fit. |
png pdf |
Figure 10-a:

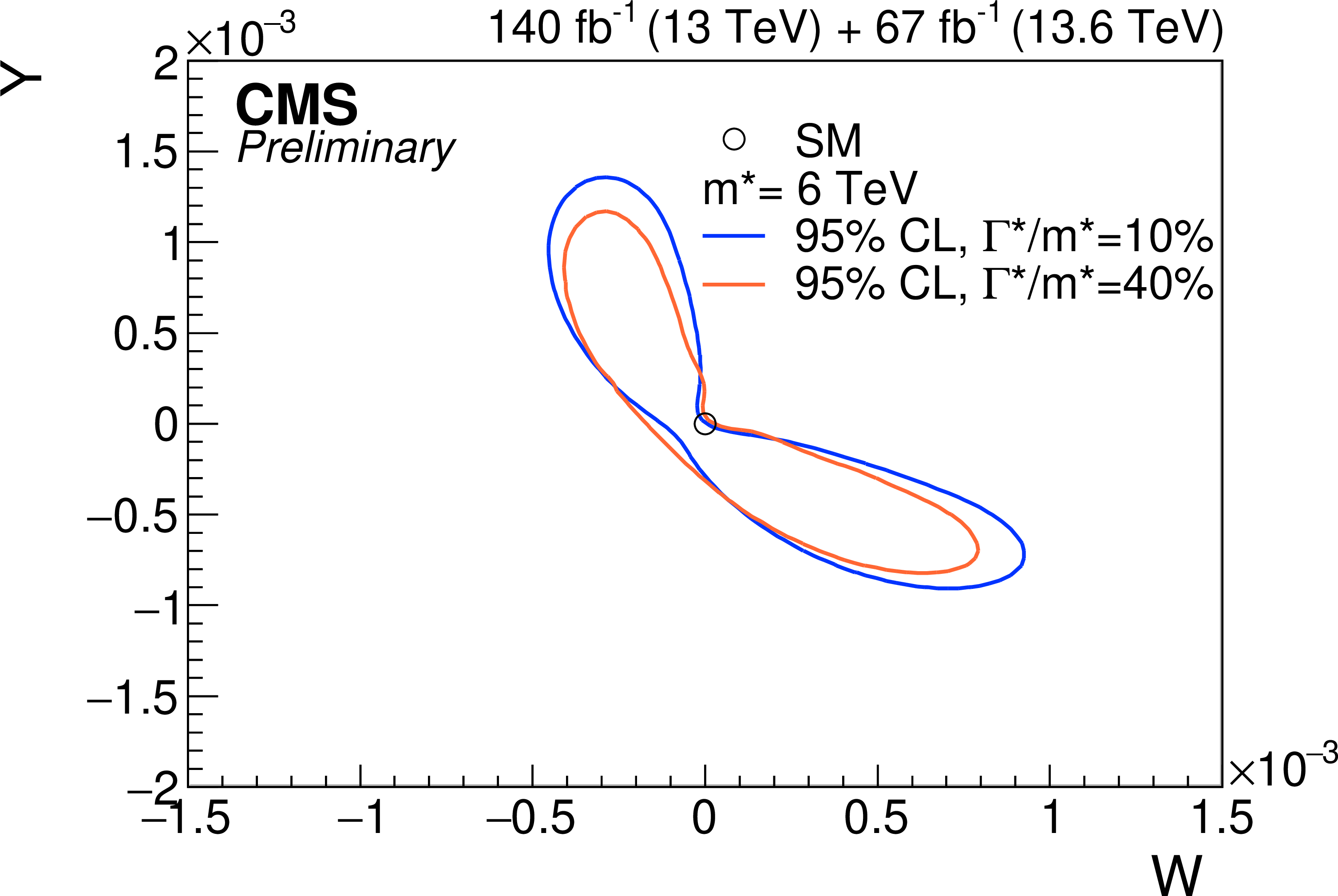

Allowed regions in the 2-dimensional $ ({\cal W},{\cal Y} ) $ parameter plane, assuming a nearby new physics energy scale. The presence of neutral gauge boson resonances of 6 TeV (left) and 10 TeV (right) is assumed, with a medium (10%) or large (40%) relative decay width, due to the potential presence of a significant decay rate into WW or ZH final states. Both statistical and systematic uncertainties are considered in the fit. |
png pdf |
Figure 10-b:

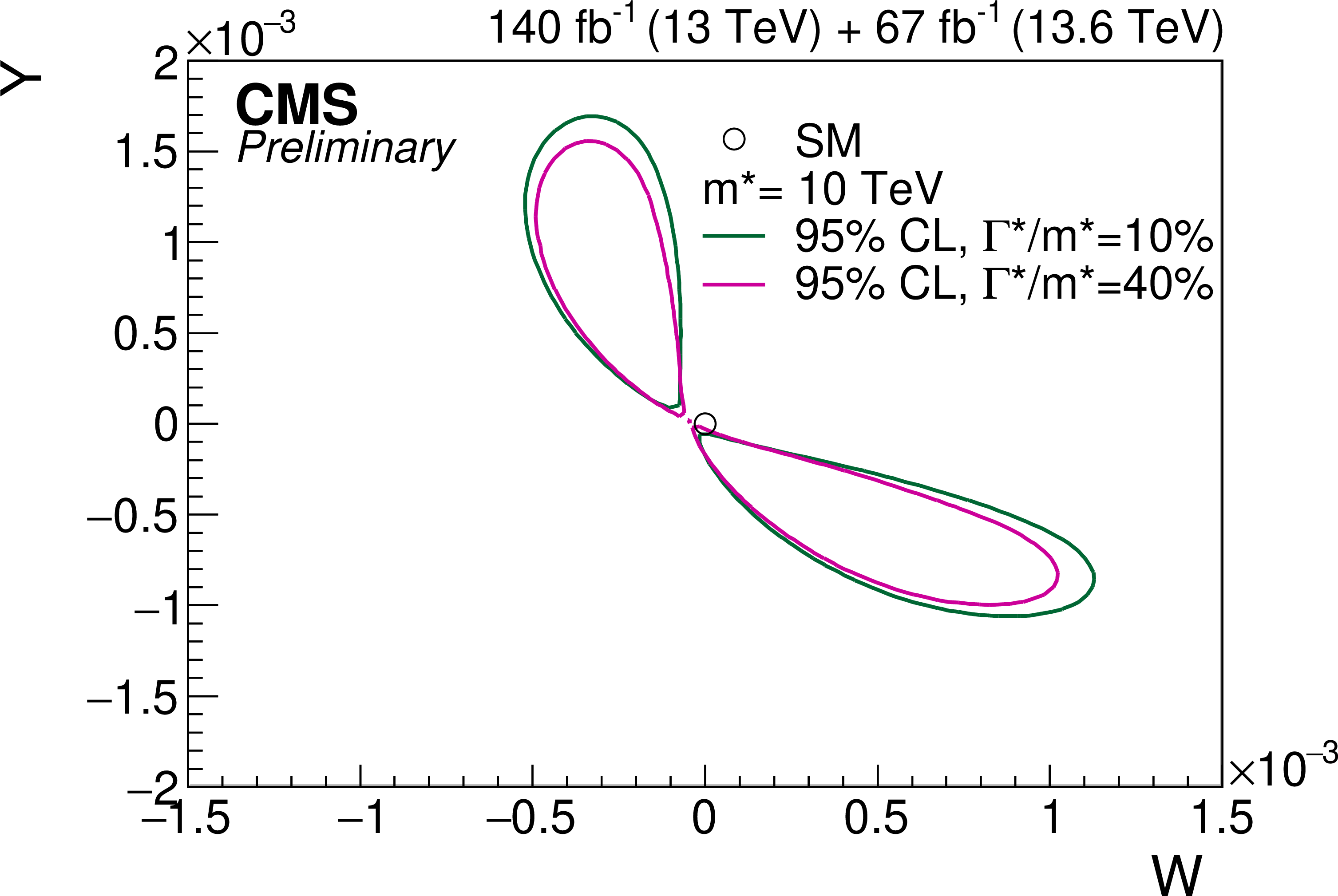

Allowed regions in the 2-dimensional $ ({\cal W},{\cal Y} ) $ parameter plane, assuming a nearby new physics energy scale. The presence of neutral gauge boson resonances of 6 TeV (left) and 10 TeV (right) is assumed, with a medium (10%) or large (40%) relative decay width, due to the potential presence of a significant decay rate into WW or ZH final states. Both statistical and systematic uncertainties are considered in the fit. |
| Tables | |
png pdf |

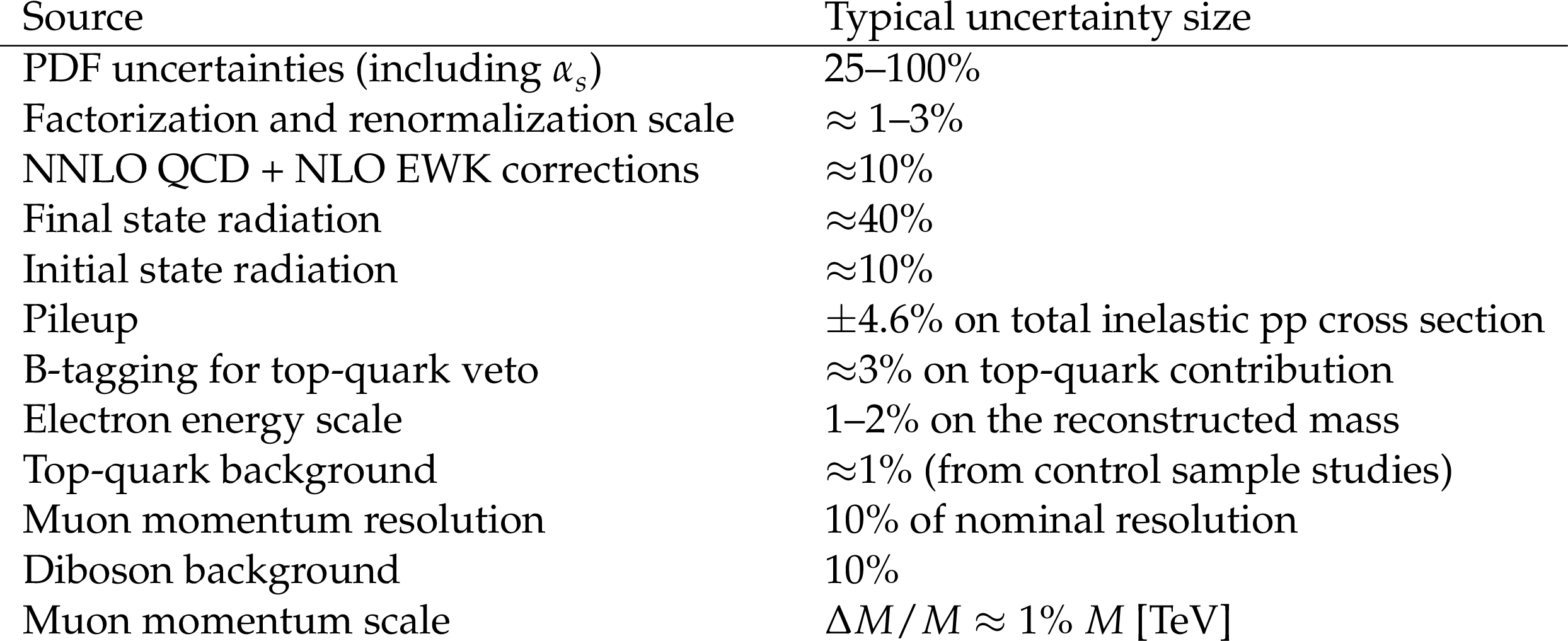

Table 1:
Systematic uncertainty sources considered in the analysis that have a non-negligible impact on the shape of the reconstructed invariant mass distribution in the 0.3 $ < M < $ 6 TeV mass interval. Their typical size, which was used as input for the likelihood fits, is also shown. |
png pdf |

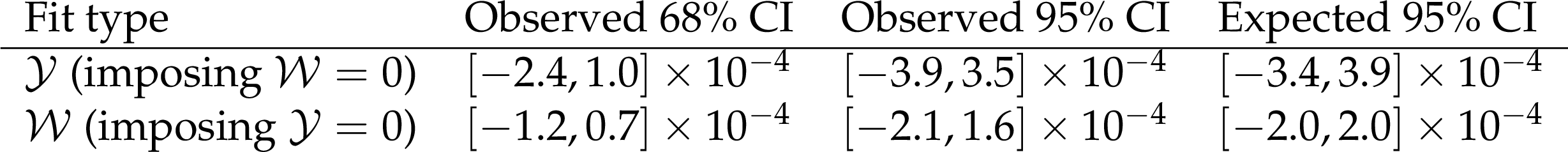

Table 2:
Confidence intervals (CI) of the one-dimensional fits to $ {\cal Y} $ and $ {\cal W} $. The value of the non-fitted parameter is fixed to be zero during minimization. The expected boundaries at the 95% CL under the SM assumption are also given. |
png pdf |

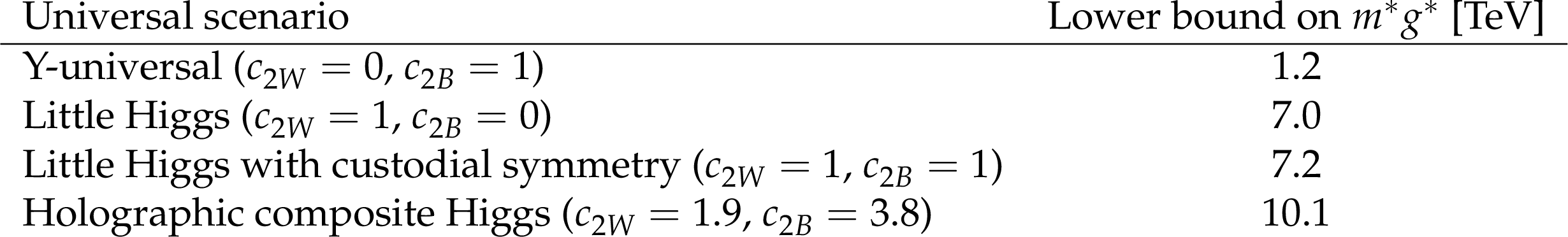

Table 3:
EFT constraints on the oblique parameters $ {\cal W} $ and $ {\cal Y} $ for several universal scenarios: Y-universal [Y-none], Little Higgs [45,5], Little Higgs with custodial symmetry [46,5], and holographic composite Higgs with equal bulk gauge couplings [47,5]). The quoted bounds on $ m^*g^* $ correspond to the 95% Bayesian credible intervals [8]. |
| Summary |
| Using the CMS detector, a search for new physics effects due to Higgs compositeness in high-energy dielectron and dimuon final states was performed, using LHC data at center-of-mass energies of $13$ and $13.6$ TeV for a total integrated luminosity of 207 fb$ ^{-1} $ The presence of these new physics effects implies the existence of new massive boson resonances with couplings to difermions and dibosons. The analysis employs an exact next-to-leading QCD order reweighting procedure. Assuming new boson states with masses well above the TeV scale, stringent bounds are set on the oblique parameters $ {\cal W} $ and $ {\cal Y} $,, which are zero in the Standard Model. These results were also combined with previous CMS constraints on $ {\cal W} $ and $ {\cal Y} $, searches to derive the CMS most stringent limits to date. One-dimensional fits, in which only one of the oblique parameters is permitted to deviate from zero, yield the following limits: $-3.9\times 10^{-4} < {\cal Y} <3.5\times 10^{-4}$, and $-2.1\times 10^{-4} < {\cal W} <1.6\times 10^{-4}$ at 95% CL. Within universal coupling scenarios with ${\cal W}, {\cal Y} > 0$, such as SILH, likelihood ratio criteria strongly constrain models with ${\cal W} > 7.8 \times 10^{-5}$ or ${\cal Y} > 7.6 \times 10^{-4}$. Taking into account the current CMS bounds on the Higgs signal strength modifier [49], compositeness Higgs scale limits at the TeV scale are effectively set in Y-universal and Little Higgs scenarios, independently of the value of the compositeness coupling strength $g*$. Limits are also set for Z$ ^\prime $ resonances in scenarios with large decay widths due to potentially significant decay branching fractions into diboson final states. |
| References | ||||
| 1 | S. Glashow | Partial symmetries of weak interactions | NP 22 (1961) 579 | |
| 2 | S. Weinberg | A model of leptons | PRL 19 (1967) 1264 | |
| 3 | A. Salam | Weak and electromagnetic interactions | Conf. Proc. C 680519 (1968) 367 | |
| 4 | M. J. G. Veltman | The infrared - ultraviolet connection | Acta Phys. Polon. B 12 (1981) 437 | |
| 5 | G. F. Giudice, C. Grojean, A. Pomarol, and R. Rattazzi | The strongly-interacting light Higgs | JHEP 06 (2007) 045 | hep-ph/0703164 |
| 6 | L. Evans and P. Bryant | LHC machine | JINST 3 (2008) S08001 | |
| 7 | R. Barbieri, A. Pomarol, R. Rattazzi, and A. Strumia | Electroweak symmetry breaking after LEP1 and LEP2 | Nuclear Physics B 703 (2004) 127 | |
| 8 | Particle Data Group , S. Navas et al. | Review of particle physics | PRD 110 (2024) 030001 | |
| 9 | CMS Collaboration | Search for new physics in the lepton plus missing transverse momentum final state in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 07 (2022) 067 | CMS-EXO-19-017 2202.06075 |
| 10 | S. Alioli, P. Nason, C. Oleari, and E. Re | NLO vector-boson production matched with shower in POWHEG | JHEP 07 (2008) 060 | 0805.4802 |
| 11 | R. Torre, L. Ricci, and A. Wulzer | On the W\&Y interpretation of high-energy Drell-Yan measurements | JHEP 02 (2021) 144 | 2008.12978 |
| 12 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 13 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | |
| 14 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 15 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 16 | CMS Collaboration | Performance of the CMS high-level trigger during LHC run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 17 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 18 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 19 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 20 | CMS Collaboration | Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid | CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS |
|
| 21 | CMS Collaboration | Performance of the reconstruction and identification of high-momentum muons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P02027 | CMS-MUO-17-001 1912.03516 |
| 22 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 23 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 24 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 25 | M. Farina et al. | Energy helps accuracy: electroweak precision tests at hadron colliders | Phys. Lett. B772 210, 2017 link |
1609.08157 |
| 26 | R. Barbieri, A. Pomarol, R. Rattazzi, and A. Strumia | Electroweak symmetry breaking after LEP-1 and LEP-2 | NPB 703 (2004) 127 | hep-ph/0405040 |
| 27 | M. Chaichian, M. Hayashi, and K. Yamagishi | Angular distributions of high mass Dileptons with finite transverse momentum in high-energy hadronic collisions | Phys. Rev. D25 130, erratum: Phys. Rev. D26 () 2534, 1982 link |
|
| 28 | J. C. Collins and D. E. Soper | Angular distribution of dileptons in high-energy hadron collisions | PRD 16 (1977) 2219 | |
| 29 | T. Sjöstrand and et al | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 30 | M. Czakon and A. Mitov | Top++: a program for the calculation of the top-pair cross-cection at hadron colliders | Comput. Phys. Commun. 185 (2014) 2930 | 1112.5675 |
| 31 | M. Grazzini, S. Kallweit, and M. Wiesemann | Fully differential NNLO computations with MATRIX | EPJC 78 (2018) 537 | 1711.06631 |
| 32 | R. Gavin, Y. Li, F. Petriello, and S. Quackenbush | FEWZ 2.0: A code for hadronic Z production at next-to-next-to-leading order | Comput. Phys. Commun. 182 (2011) 2388 | 1011.3540 |
| 33 | J. Butterworth et al. | PDF4LHC recommendations for LHC Run II | JPG 43 (2016) 023001 | 1510.03865 |
| 34 | PDF4LHC Working Group Collaboration | The PDF4LHC21 combination of global PDF fits for the LHC Run III | JPG 49 (2022) 080501 | 2203.05506 |
| 35 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 36 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 37 | CMS Collaboration | Search for resonant and nonresonant new phenomena in high-mass dilepton final states at $ \sqrt{s} = $ 13 TeV | JHEP 07 (2021) 208 | CMS-EXO-19-019 2103.02708 |
| 38 | CMS Collaboration | Identification of heavy-flavour jets with the CMS detector in pp collisions at 13 TeV | JINST 13 (2018) P05011 | CMS-BTV-16-002 1712.07158 |
| 39 | E. Bols et al. | Jet flavour classification using DeepJet | JINST 15 (2020) P12012 | 2008.10519 |
| 40 | CMS Collaboration | The CMS statistical analysis and combination tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 41 | A. Manohar, P. Nason, G. P. Salam, and G. Zanderighi | How bright is the proton? A precise determination of the photon parton distribution function | PRL 117 (2016) 242002 | 1607.04266 |
| 42 | A. Falkowski and K. Mimouni | Model independent constraints on four-lepton operators | JHEP 02 (2016) 086 | 1511.07434 |
| 43 | M. McCullough, M. Riembau, and L. Ricci | Boundaries of universal theories | PRD 111 (2025) 015031 | 2312.03834 |
| 44 | T. Appelquist, B. A. Dobrescu, and A. R. Hopper | Nonexotic neutral gauge bosons | PRD 68 (2003) 035012 | hep-ph/0212073 |
| 45 | N. Arkani-Hamed, A. G. Cohen, E. Katz, and A. E. Nelson | The Littlest Higgs | JHEP 07 (2002) 034 | hep-ph/0206021 |
| 46 | S. Chang | A 'Littlest Higgs' model with custodial SU(2) symmetry | JHEP 12 (2003) 057 | hep-ph/0306034 |
| 47 | K. Agashe, R. Contino, and A. Pomarol | The minimal composite Higgs model | NPB 719 (2005) 165 | hep-ph/0412089 |
| 48 | D. Pappadopulo, A. Thamm, R. Torre, and A. Wulzer | Heavy vector triplets: bridging theory and data | JHEP 09 (2014) 060 | 1402.4431 |
| 49 | CMS Collaboration | Combined measurements and interpretations of Higgs boson production and decay in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | Accepted for publication in Reports on Progress in Physics | CMS-HIG-21-018 2602.18611 |
|
|
