CMS-SUS-23-007

CMS-SUS-23-007 ; CERN-EP-2025-028
Search for the nonresonant production of a pair of additional Higgs bosons in the Type-X two-Higgs-doublet model in proton-proton collisions at $ \sqrt{s} = $ 13 TeV
CMS Collaboration
15 May 2026
Submitted to Physical Review Letters
Abstract: A search is presented for the production of two additional Higgs bosons from an off-shell Z boson, where both additional particles decay to $ \tau $ lepton pairs. The search is performed with a data sample collected with the CMS detector from proton-proton collisions at the LHC at $ \sqrt{s} = $ 13 TeV, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. No deviation from the standard model background is observed. Exclusion limits are set on the Type-X two-Higgs-doublet model alignment scenario. These results rule out this model as an explanation to the potential tension between the experimental and theoretical values of the muon anomalous magnetic moment.
Links: e-print arXiv:2605.16655 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ;

Figures	Summary	References	CMS Publications

Figures

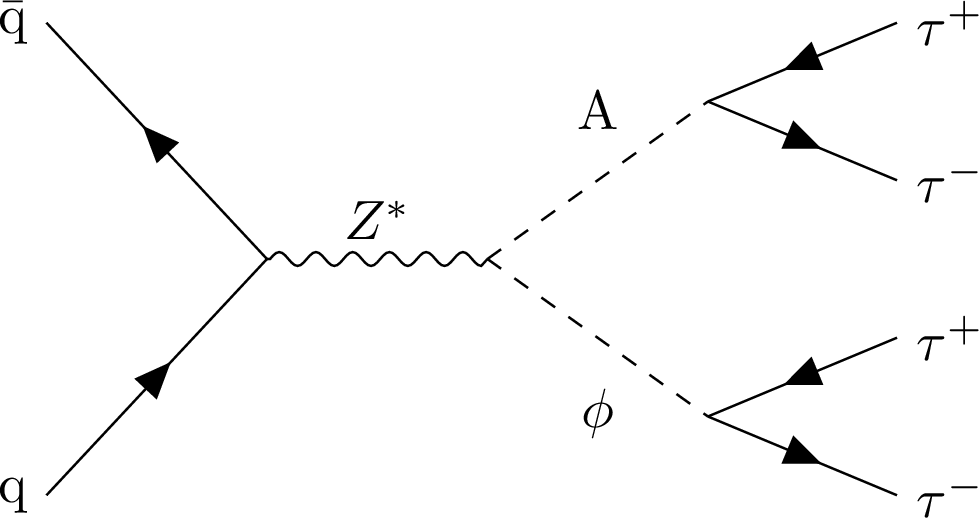

png pdf	Figure 1: Feynman diagram for the production of two BSM neutral Higgs bosons from an off-shell Z boson and their decay to $ \tau $ leptons.

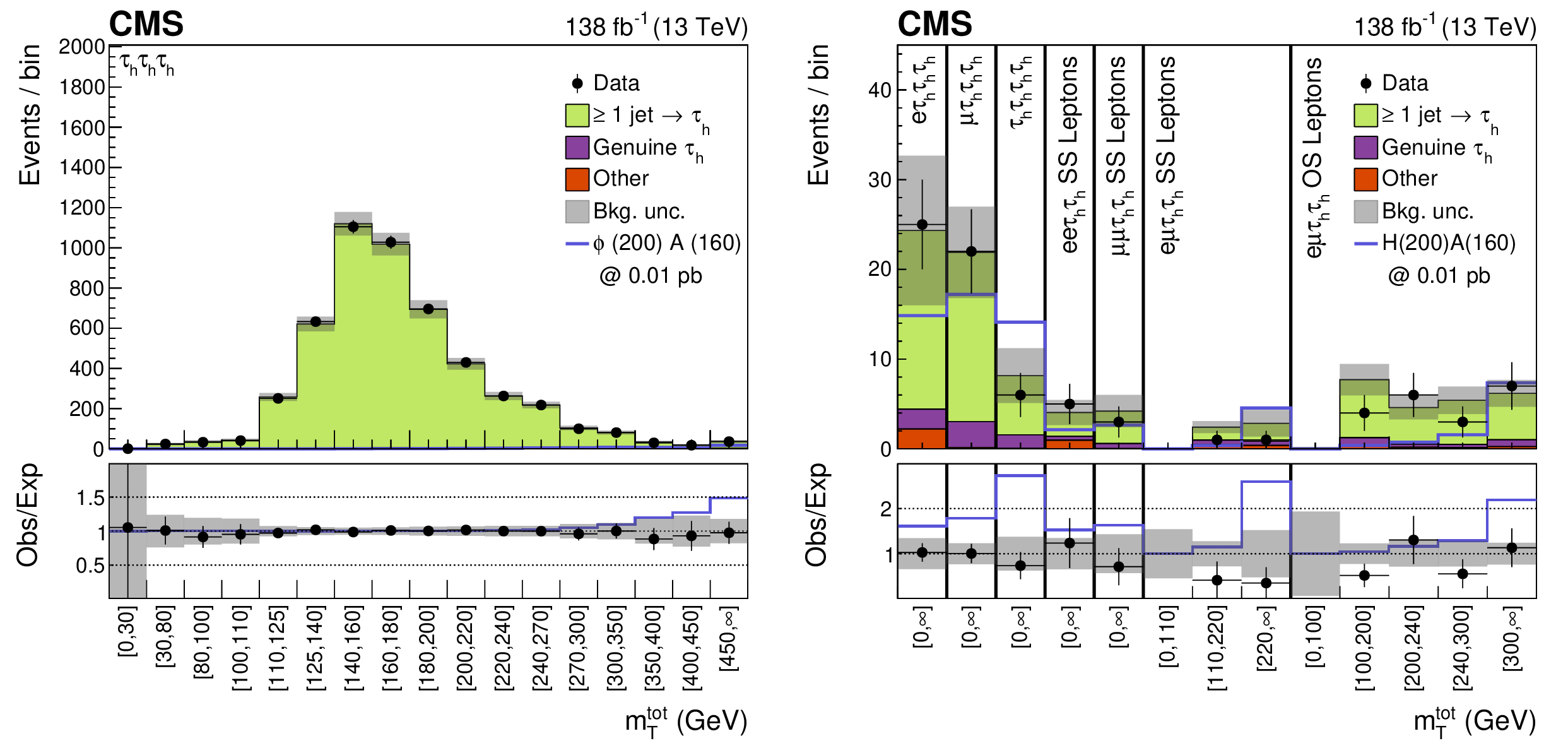

png pdf	Figure 2: Distributions of the discriminating variable $ m_{\mathrm{T}}^{\text{tot}} $ after a background-only fit to the data. The $ \tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $ channel (left) and the $ \mathrm{e}\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $, $ \mu\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $ channels, as well $ \mathrm{e}\mathrm{e}\tau_\mathrm{h}\tau_\mathrm{h} $ SS, $ \mu\mu\tau_\mathrm{h}\tau_\mathrm{h} $ SS, $ \mathrm{e}\mu\tau_\mathrm{h}\tau_\mathrm{h} $ SS, and $ \mathrm{e}\mu\tau_\mathrm{h}\tau_\mathrm{h} $ OS leptons categories are shown (right). The background uncertainty represents the combined statistical and systematic uncertainties. An example signal with mass hypotheses $ m_{\phi} = $ 200 GeV and $ m_{A } = $ 160 GeV, with the cross section scaled to 0.01 pb, is shown as a blue line.

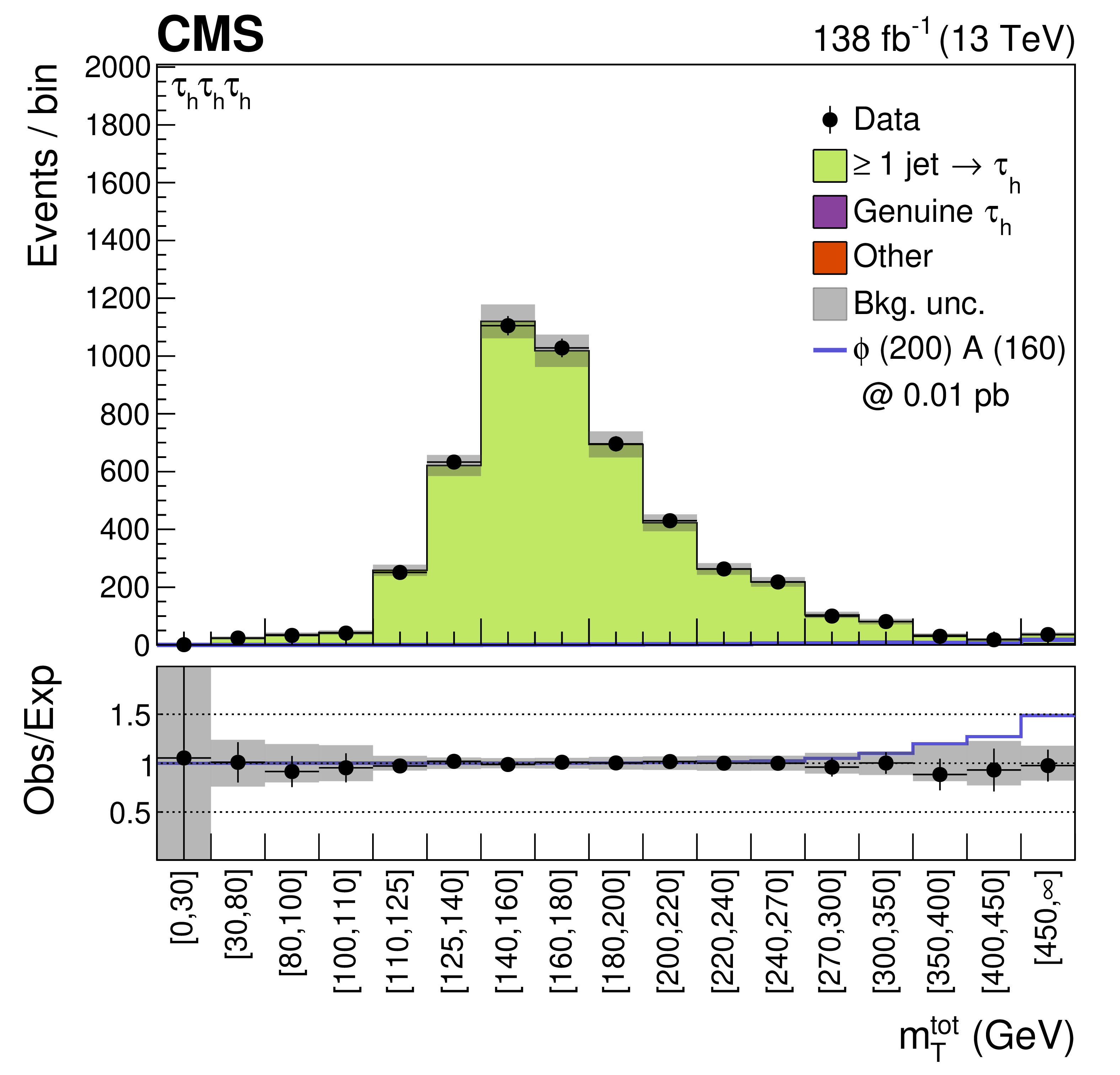

png pdf	Figure 2-a: Distributions of the discriminating variable $ m_{\mathrm{T}}^{\text{tot}} $ after a background-only fit to the data. The $ \tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $ channel (left) and the $ \mathrm{e}\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $, $ \mu\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $ channels, as well $ \mathrm{e}\mathrm{e}\tau_\mathrm{h}\tau_\mathrm{h} $ SS, $ \mu\mu\tau_\mathrm{h}\tau_\mathrm{h} $ SS, $ \mathrm{e}\mu\tau_\mathrm{h}\tau_\mathrm{h} $ SS, and $ \mathrm{e}\mu\tau_\mathrm{h}\tau_\mathrm{h} $ OS leptons categories are shown (right). The background uncertainty represents the combined statistical and systematic uncertainties. An example signal with mass hypotheses $ m_{\phi} = $ 200 GeV and $ m_{A } = $ 160 GeV, with the cross section scaled to 0.01 pb, is shown as a blue line.

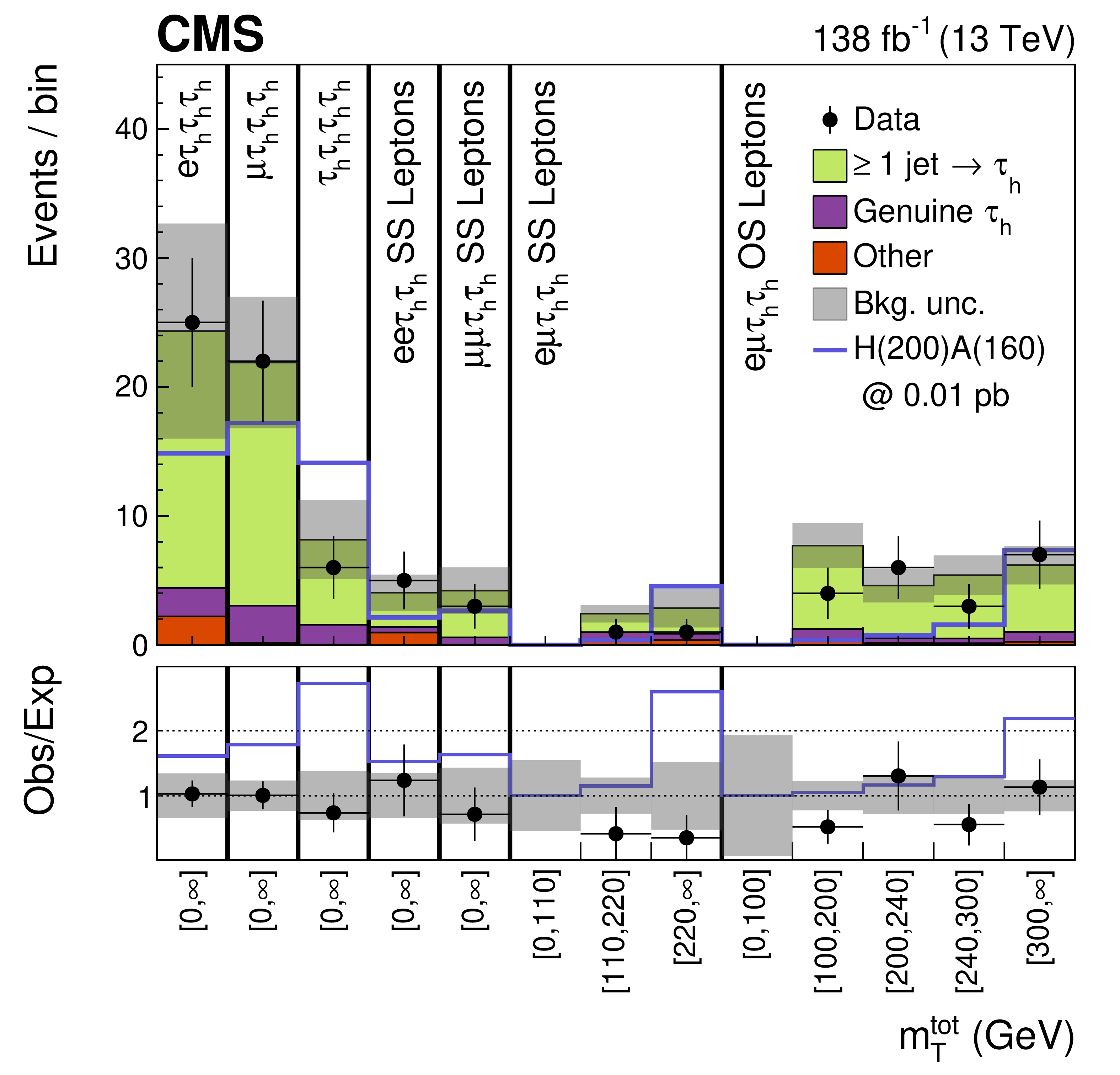

png pdf	Figure 2-b: Distributions of the discriminating variable $ m_{\mathrm{T}}^{\text{tot}} $ after a background-only fit to the data. The $ \tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $ channel (left) and the $ \mathrm{e}\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $, $ \mu\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $, and $ \tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h}\tau_\mathrm{h} $ channels, as well $ \mathrm{e}\mathrm{e}\tau_\mathrm{h}\tau_\mathrm{h} $ SS, $ \mu\mu\tau_\mathrm{h}\tau_\mathrm{h} $ SS, $ \mathrm{e}\mu\tau_\mathrm{h}\tau_\mathrm{h} $ SS, and $ \mathrm{e}\mu\tau_\mathrm{h}\tau_\mathrm{h} $ OS leptons categories are shown (right). The background uncertainty represents the combined statistical and systematic uncertainties. An example signal with mass hypotheses $ m_{\phi} = $ 200 GeV and $ m_{A } = $ 160 GeV, with the cross section scaled to 0.01 pb, is shown as a blue line.

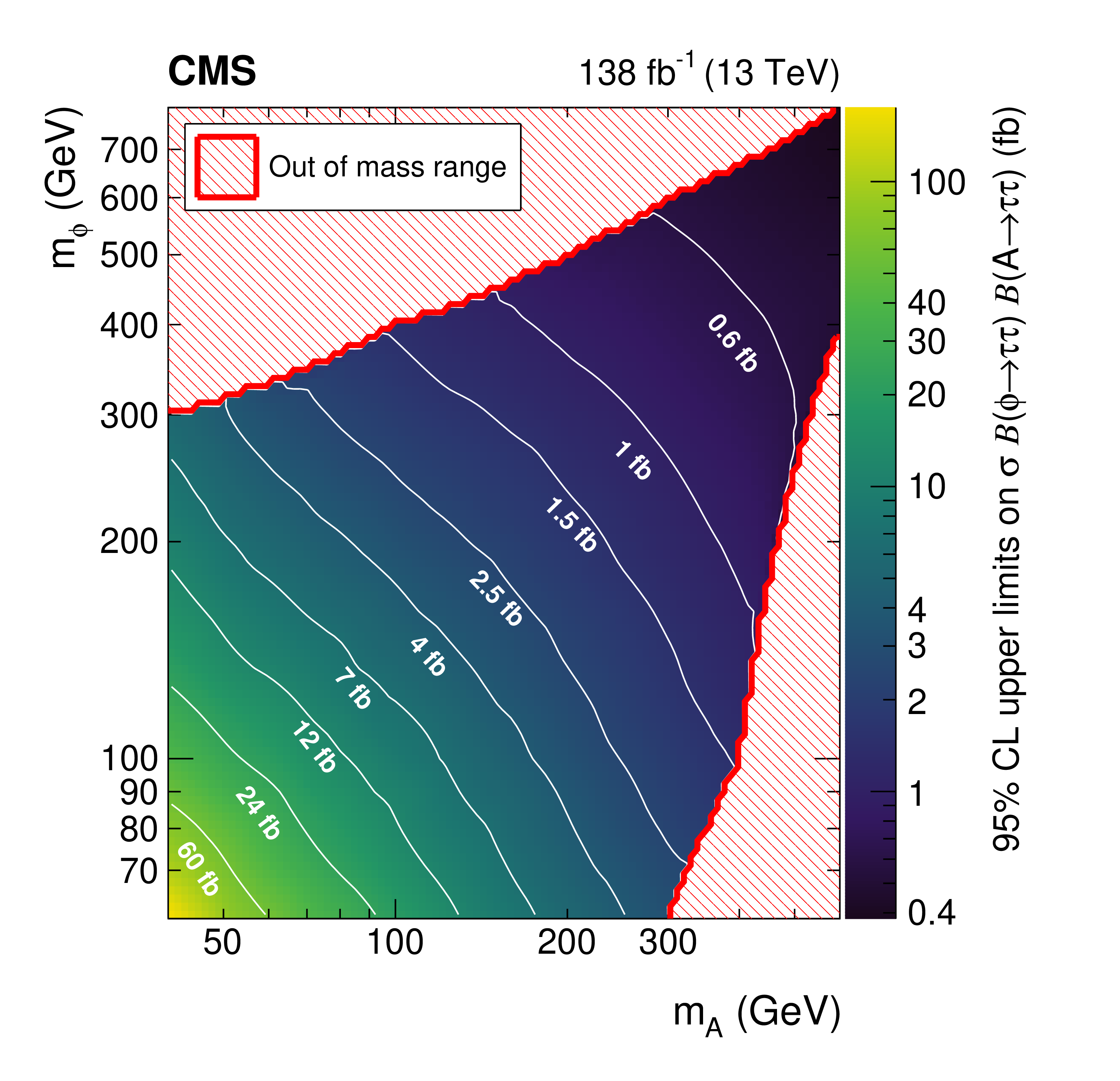

png pdf	Figure 3: Observed 95% CL upper limits on the product of the cross section ($ \sigma $) for the production of two BSM Higgs bosons produced via an off-shell Z boson, and the branching fractions ($ B $) for their decay into $ \tau $ leptons. This is shown as a function of $ m_{A } $ and $ m_{\phi} $. No limits are set in the red hatched region.

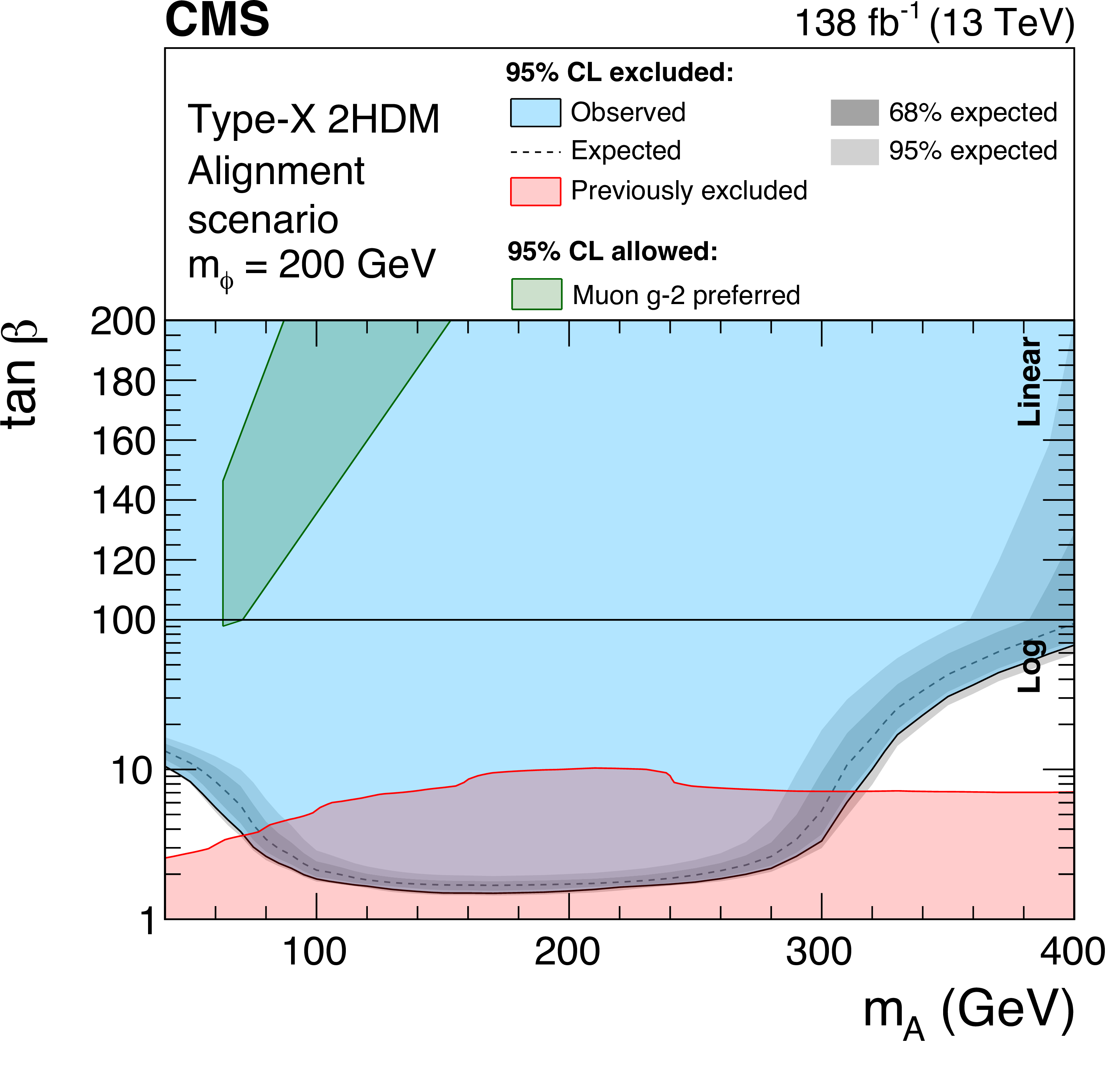

png pdf	Figure 4: Observed and expected 95% CL exclusion contours on the Type-X 2HDM alignment scenario for $ m_{\phi}= $ 200 GeV. This is shown as a function of $ m_{A } $ and $ \tan\beta $. The $ y $-axis scales logarithmically below 100 and linearly above 100. The dashed line represents the expected median, the dark and bright grey bands correspond to the central 68 and 95% expected intervals, and the blue area highlights the parameter space that has been excluded. Constraints from previous searches, obtained by HIGGSTOOLS-1 [66], are shown in red. The allowed region in the normal alignment scenario accommodating the current measurement of the muon anomalous magnetic moment, as detailed in Ref. [9], is shown in green.

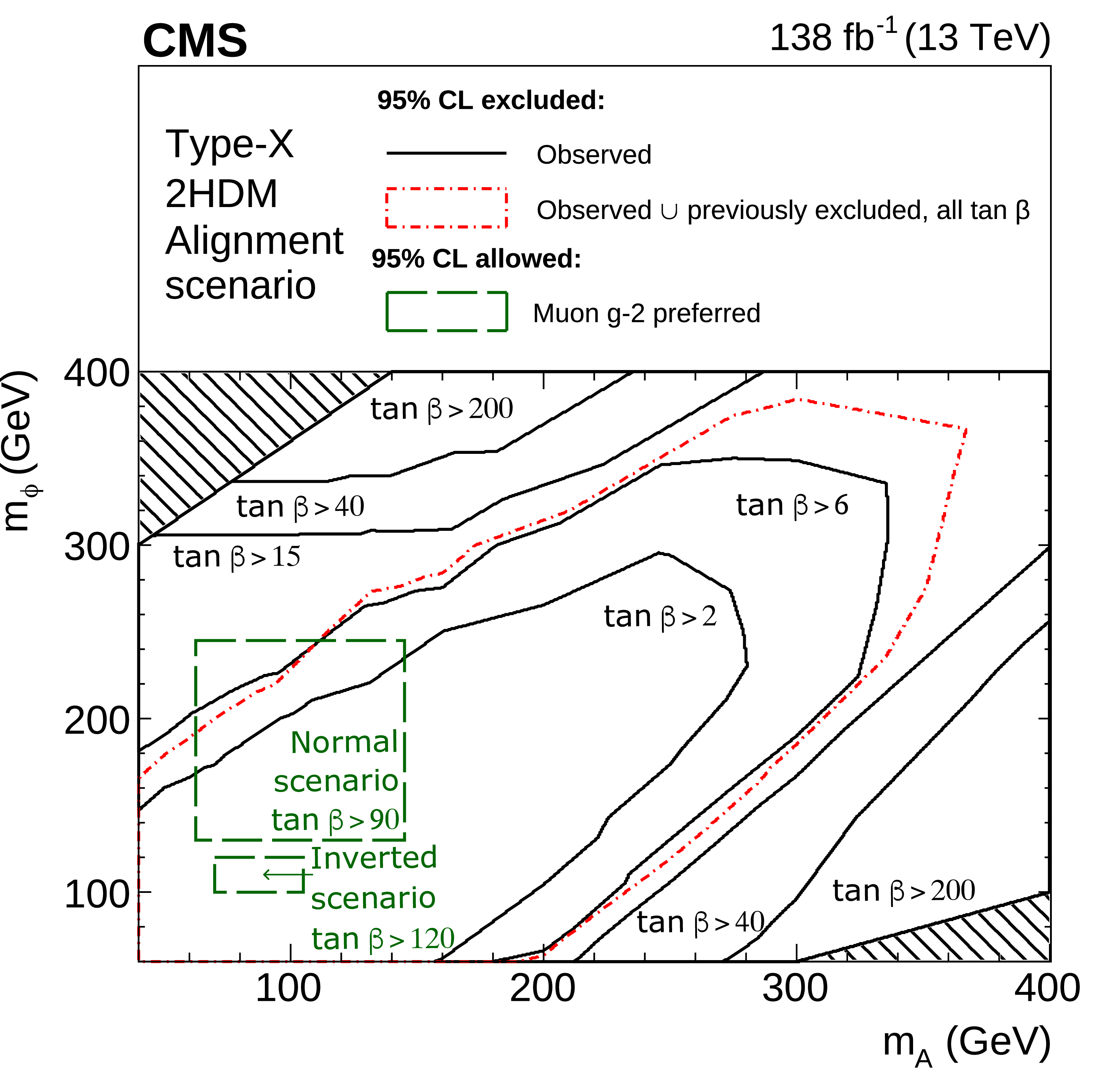

png pdf	Figure 5: Observed 95% CL exclusions of the Type-X 2HDM alignment scenario in the $ m_{A }-m_{\phi} $ plane are shown as black solid contours, with the $ \tan\beta $ exclusion of each bounded region written on the plot. The complete exclusion of this model, from the union of the observed limits and those obtained by HIGGSTOOLS-1 [66], is enclosed by the red dot-dashed contour. The allowed regions accommodating the current measurement of the muon anomalous magnetic moment, as detailed in Ref. [9], are shown as green dashed boxes, with the $ \tan\beta $ allowed range written on the plot. Hatched regions indicate parameter space for which no exclusion limit is set.

Summary

In summary, a search has been presented for beyond-the-standard-model Higgs bosons produced via off-shell Z bosons that decay into $\tau$ leptons in pp collisions at the LHC, using a data sample collected with the CMS detector at $\sqrt{s} = 13$ TeV.A good agreement between the background-only fit and the data is observed. Upper limits on the production cross sections times the branching fractions range from 0.4 fb at $m_A = 600$ GeV and $m_{\phi} = 800$ GeV to 190 fb at $m_A = 40$ GeV and $m_{\phi} = 60$ GeV. The data, combined with the constraints from previous searches, exclude a large portion of the Type-X two-Higgs-doublet model's phase space. This search rules out this model as an explanation for the muon anomalous magnetic moment, as described in Ref. [9].

References
1	Muon g-2 Collaboration	Final Report of the Muon E821 Anomalous Magnetic Moment Measurement at BNL	PRD 73 (2006) 072003	hep-ex/0602035
2	Muon g-2 Collaboration	Measurement of the Positive Muon Anomalous Magnetic Moment to 0.46 ppm	PRL 126 (2021) 141801	2104.03281
3	Muon g-2 Collaboration	Measurement of the Positive Muon Anomalous Magnetic Moment to 0.20 ppm	PRL 131 (2023) 161802	2308.06230
4	T. Aoyama et al.	The anomalous magnetic moment of the muon in the Standard Model	Phys. Rept. 887 (2020) 1	2006.04822
5	S. Borsanyi et al.	Leading hadronic contribution to the muon magnetic moment from lattice QCD	Nature 593 (2021) 51	2002.12347
6	M. Carena and H. E. Haber	Higgs Boson Theory and Phenomenology	Prog. Part. Nucl. Phys. 50 (2003) 63	hep-ph/0208209
7	V. Ilisie	New Barr-Zee contributions to (g-2)$ {_\mu} $ in two-Higgs-doublet models	JHEP 04 (2015) 077	1502.04199
8	N. Ghosh and J. Lahiri	Revisiting a generalized two-Higgs-doublet model in light of the muon anomaly and lepton flavor violating decays at the HL-LHC	PRD 103 (2021) 055009	2010.03590
9	A. Jueid, J. Kim, S. Lee, and J. Song	Type-X two-Higgs-doublet model in light of the muon g-2: Confronting Higgs boson and collider data	PRD 104 (2021) 095008	2104.10175
10	P. M. Ferreira, B. L. Gon ç alves, F. R. Joaquim, and M. Sher	(g-2)\ensuremath\mu in the 2HDM and slightly beyond: An updated view	PRD 104 (2021) 053008	2104.03367
11	T. Abe, R. Sato, and K. Yagyu	Lepton-specific two Higgs doublet model as a solution of muon g-2 anomaly	JHEP 07 (2015) 064	1504.07059
12	A. Broggio et al.	Limiting two-Higgs-doublet models	JHEP 11 (2014) 058	1409.3199
13	E. J. Chun, Z. Kang, M. Takeuchi, and Y.-L. S. Tsai	LHC \ensuremath\tau-rich tests of lepton-specific 2HDM for (g-2)$ _{\mu} $	JHEP 11 (2015) 099	1507.08067
14	G. C. Branco et al.	Theory and phenomenology of two-Higgs-doublet models	Phys. Rept. 516 (2012) 1	1106.0034
15	M. Carena, I. Low, N. R. Shah, and C. E. M. Wagner	Impersonating the Standard Model Higgs Boson: Alignment without Decoupling	JHEP 04 (2014) 015	1310.2248
16	P. Fayet	Supergauge invariant extension of the Higgs mechanism and a model for the electron and its neutrino	NPB 90 (1975) 104
17	P. Fayet	Spontaneously broken supersymmetric theories of weak, electromagnetic and strong interactions	PLB 69 (1977) 489
18	CMS Collaboration	Searches for additional Higgs bosons and for vector leptoquarks in $ \tau\tau $ final states in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JHEP 07 (2023) 073	CMS-HIG-21-001 2208.02717
19	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS	EPJC 81 (2021) 800	CMS-LUM-17-003 2104.01927
20	CMS Collaboration	CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV	CMS Physics Analysis Summary, 2018 link	CMS-PAS-LUM-17-004
21	CMS Collaboration	CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV	CMS Physics Analysis Summary, 2019 link	CMS-PAS-LUM-18-002
22	CMS Collaboration	HEPData record for this analysis	link
23	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
24	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
25	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
26	CMS Collaboration	Performance of the CMS high-level trigger during LHC run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
27	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
28	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
29	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
30	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
31	CMS Collaboration	Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P10005	CMS-TAU-16-003 1809.02816
32	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
33	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
34	CMS Collaboration	Identification of hadronic tau lepton decays using a deep neural network	JINST 17 (2022) P07023	CMS-TAU-20-001 2201.08458
35	CMS Collaboration	Identification of heavy-flavour jets with the CMS detector in pp collisions at 13 TeV	JINST 13 (2018) P05011	CMS-BTV-16-002 1712.07158
36	E. Bols et al.	Jet flavour classification using DeepJet	JINST 15 (2020) P12012	2008.10519
37	CMS Collaboration	Measurement of the $ \mathrm{Z}\gamma^{*} \to \tau\tau $ cross section in pp collisions at $ \sqrt{s} = $ 13 TeV and validation of $ \tau $ lepton analysis techniques	EPJC 78 (2018) 708	CMS-HIG-15-007 1801.03535
38	A. Rogozhnikov	Reweighting with Boosted Decision Trees	J. Phys. Conf. Ser. 762 (2016) 012036	1608.05806
39	J. Alwall et al.	MadGraph 5: Going beyond	JHEP 06 (2011) 128	1106.0522
40	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
41	R. Frederix and S. Frixione	Merging meets matching in MC@NLO	JHEP 12 (2012) 061	1209.6215
42	J. Alwall et al.	Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions	EPJC 53 (2008) 473	0706.2569
43	S. Alioli, S.-O. Moch, and P. Uwer	Hadronic top-quark pair-production with one jet and parton showering	JHEP 01 (2012) 137	1110.5251
44	R. Frederix, E. Re, and P. Torrielli	Single-top $ t $-channel hadroproduction in the four-flavour scheme with POWHEG and aMC@NLO	JHEP 09 (2012) 130	1207.5391
45	P. Nason	A new method for combining NLO QCD with shower Monte Carlo algorithms	JHEP 11 (2004) 040	hep-ph/0409146
46	S. Frixione, P. Nason, and C. Oleari	Matching NLO QCD computations with parton shower simulations: the POWHEG method	JHEP 11 (2007) 070	0709.2092
47	S. Alioli, P. Nason, C. Oleari, and E. Re	A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX	JHEP 06 (2010) 043	1002.2581
48	T. Je \v z o and P. Nason	On the treatment of resonances in next-to-leading order calculations matched to a parton shower	JHEP 12 (2015) 065	1509.09071
49	K. Melnikov and F. Petriello	Electroweak gauge boson production at hadron colliders through $ \mathcal{O}(\alpha_\text{s}^{2}) $	PRD 74 (2006) 114017	hep-ph/0609070
50	M. Czakon and A. Mitov	Top++: A program for the calculation of the top-pair cross-section at hadron colliders	Comput. Phys. Commun. 185 (2014) 2930	1112.5675
51	N. Kidonakis	Top quark production	in Proc. Helmholtz International Summer School on Physics of Heavy Quarks and Hadrons, 2014 link	1311.0283
52	J. M. Campbell, R. K. Ellis, and C. Williams	Vector boson pair production at the LHC	JHEP 07 (2011) 018	1105.0020
53	T. Gehrmann et al.	$ \mathrm{W^+}\mathrm{W^-} $ production at hadron colliders in next to next to leading order QCD	PRL 113 (2014) 212001	1408.5243
54	CMS Collaboration	Measurements of production cross sections of the Higgs boson in the four-lepton final state in proton-proton collisions at $ \sqrt{s} = 13 \text {Te}\text {V} $	EPJC 81 (2021) 488	CMS-HIG-19-001 2103.04956
55	M. Krause, M. M \"u hlleitner, and M. Spira	2HDECAY -- A program for the calculation of electroweak one-loop corrections to Higgs decays in the Two-Higgs-Doublet Model including state-of-the-art QCD corrections	Comput. Phys. Commun. 246 (2020) 106852	1810.00768
56	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
57	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
58	NNPDF Collaboration	Parton distributions from high-precision collider data	EPJC 77 (2017) 663	1706.00428
59	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
60	CMS Collaboration	Measurements of inclusive W and Z cross sections in pp collisions at $ \sqrt{s}= $ 7 TeV	JHEP 01 (2011) 080	CMS-EWK-10-002 1012.2466
61	R. J. Barlow and C. Beeston	Fitting using finite Monte Carlo samples	Comput. Phys. Commun. 77 (1993) 219
62	CMS Collaboration	The CMS statistical analysis and combination tool: Combine	Comput. Softw. Big Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
63	G. Cowan, K. Cranmer, E. Gross, and O. Vitells	Asymptotic formulae for likelihood-based tests of new physics	EPJC 71 (2011) 1554	1007.1727
64	T. Junk	Confidence level computation for combining searches with small statistics	NIM A 434 (1999) 435	hep-ex/9902006
65	A. L. Read	Presentation of search results: The CL$ _{\text{s}} $ technique	JPG 28 (2002) 2693
66	H. Bahl et al.	HiggsTools: BSM scalar phenomenology with new versions of HiggsBounds and HiggsSignals	Comput. Phys. Commun. 291 (2023) 108803	2210.09332
