CMS-SMP-24-017 ; CERN-EP-2026-041
Search for new physics in triple boson production in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the effective field theory approach
Submitted to the Journal of High Energy Physics
Abstract: A search for new physics in the production of three massive gauge bosons ($ \mathrm{V}\mathrm{V}\mathrm{V} $, where V is a W or Z boson) is presented. The event selection is most effective in the Lorentz-boosted regime in which all three bosons have a transverse momentum ($ p_{\mathrm{T}} $) above 200 GeV. Standard model (SM) processes contribute few events in this regime. When a boosted W or Z boson decays hadronically, the decay products tend to form a large-radius jet with substructure that reflects the presence of two quarks from the decay; such jets are called V-tagged jets. Special techniques to reconstruct and select V-tagged jets are applied. Events are categorized according to the number and kinematic features of charged leptons and V-tagged jets. Event yields are obtained in bins of a suitable kinematic variable such as the scalar $ p_{\mathrm{T}} $ sum of the reconstructed objects in the event. No excess over SM expectations is observed. Bounds are placed on Wilson coefficients for a set of mass dimension-6 and -8 operators in the framework of SM effective field theory. The two most stringent bounds placed by this analysis are $ -0.13 < c_\mathrm{W}/\Lambda^2 < 0.12 \text{TeV}^{-2} $ and $ -0.24 < c_{\text{Hq3}}/\Lambda^2 < 0.21 \text{TeV}^{-2} $ at 95% CL, where $ c_\mathrm{W} $ and $ c_{\text{Hq3}} $ are dimension-6 Wilson coefficients in the Warsaw basis and $ \Lambda $ is the mass scale of new physics.
Figures & Tables Summary References CMS Publications
Figures

png pdf

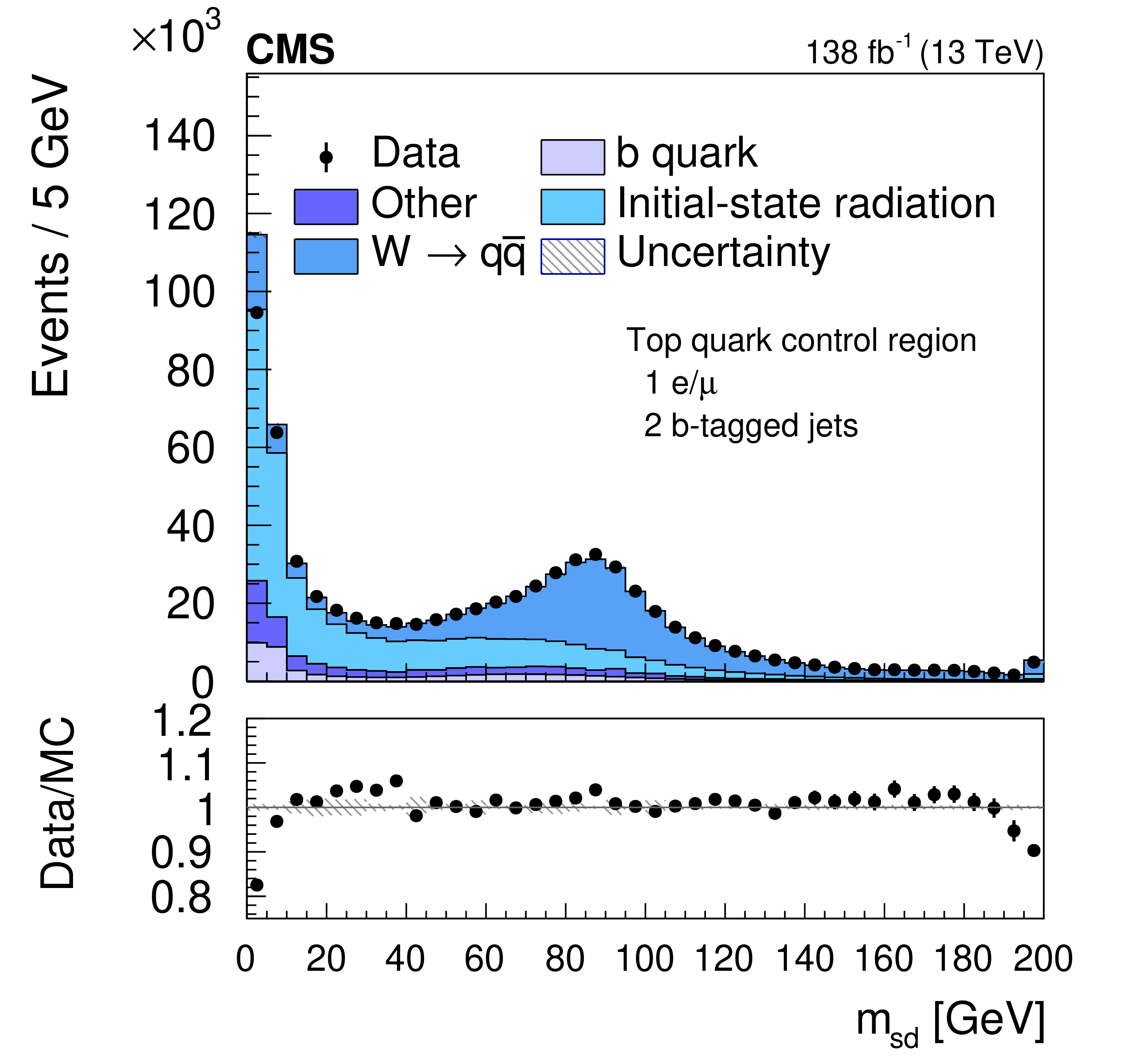

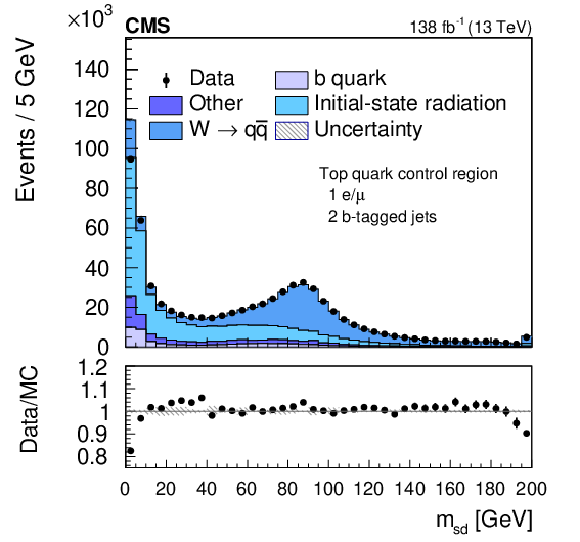

Figure 1:
Comparison of the $ m_{\text{SD}} $ distribution in data and simulation for events in a control region dominated by $ \mathrm{t} \overline{\mathrm{t}} $ production. $ \mathrm{W}\to\mathrm{q}\overline{\mathrm{q}} $ represents V-tagged jets that match the hadronic decay of a W boson; a prominent peak at the W boson mass is seen. The contribution marked Initial-state radiation corresponds to V-tagged jets matched to gluons emitted in the initial state. Jets containing single b quarks will sometimes be selected as V-tagged jets. Both ISR and b jets peak at small $ m_{\text{SD}} $ but not near the W boson mass. A small contamination from non- $ \mathrm{t} \overline{\mathrm{t}} $ events is marked as Other in the plot. The data are represented by black dots with error bars. The shaded band in the data/MC ratio plot shows the MC statistical uncertainty. This plot shows the MC prediction after fitting, i.e.,, these are post-fit distributions.

png pdf

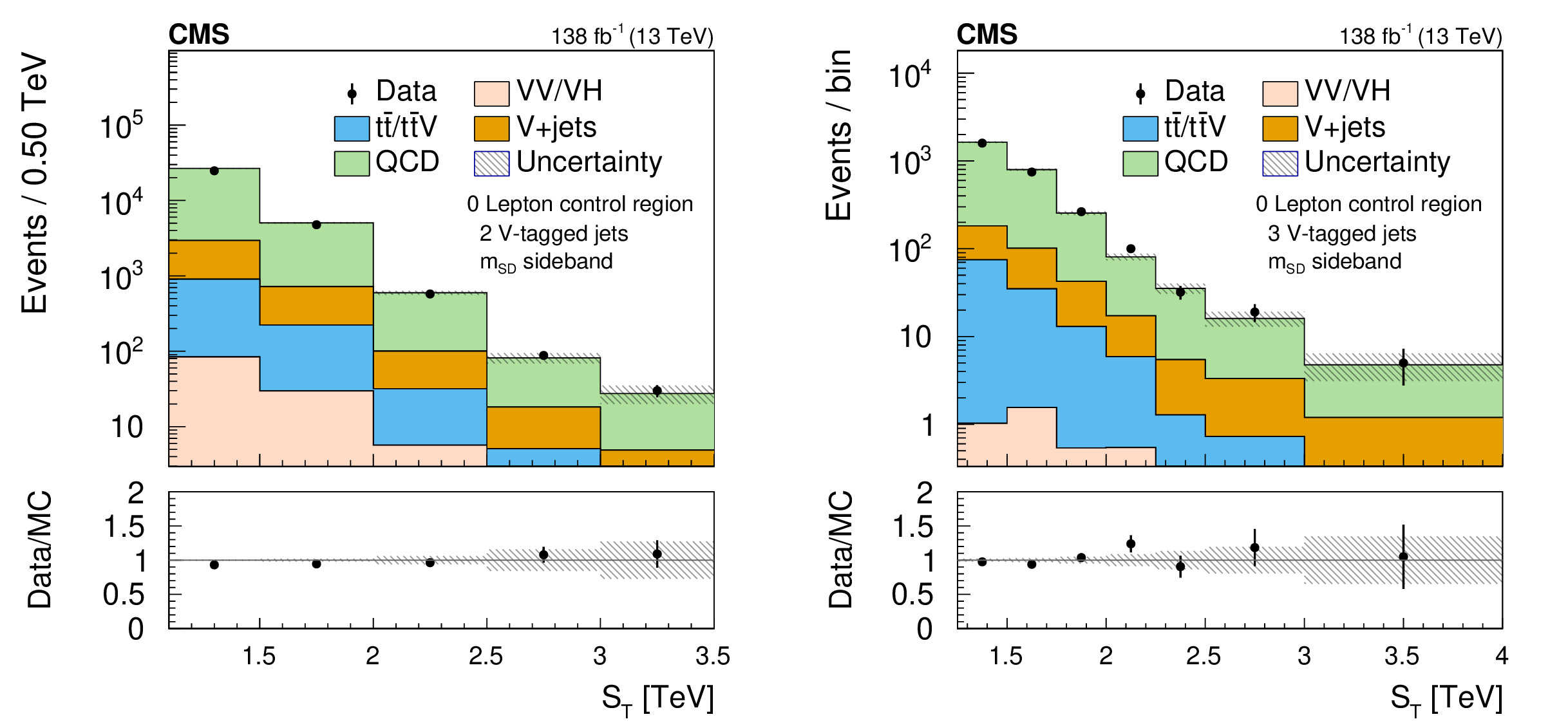

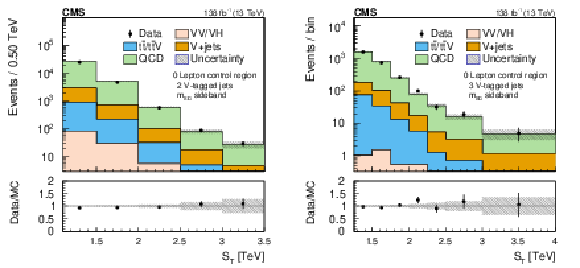

Figure 2:
Tests of the ABCD method in the SR-0\ell-2VTJ (left) and SR-0\ell-3VTJ (right) channels. The validation regions are dominated by QCD multijet backgrounds. The ABCD method is used to predict the QCD multijet background and the total SM background is compared to the data, showing good agreement. The shaded band in the ratio plot shows the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties. These are pre-fit distributions.

png pdf

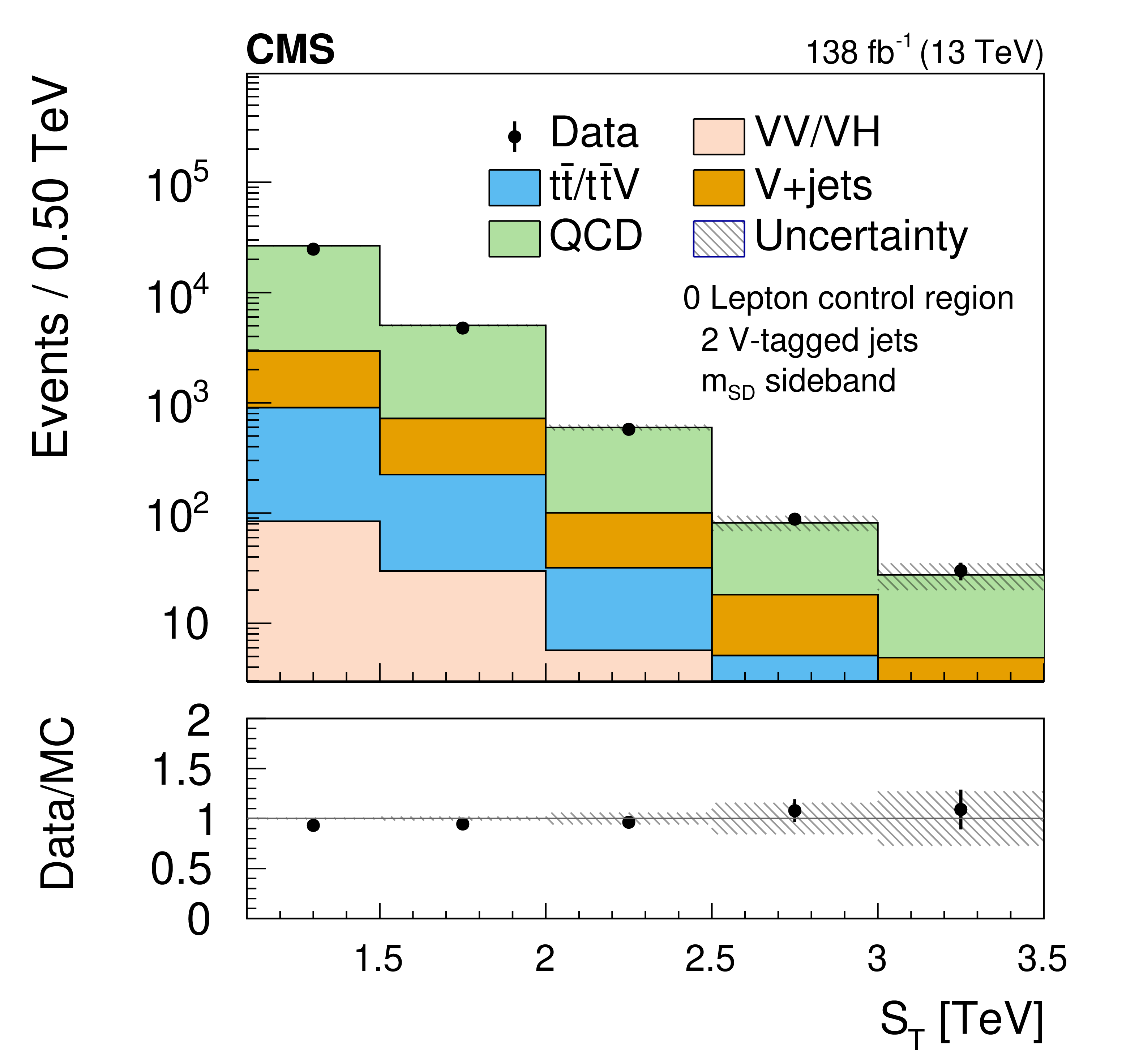

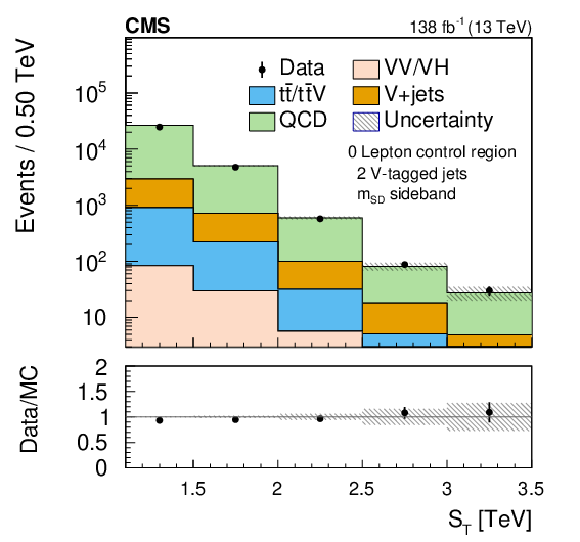

Figure 2-a:
Tests of the ABCD method in the SR-0\ell-2VTJ (left) and SR-0\ell-3VTJ (right) channels. The validation regions are dominated by QCD multijet backgrounds. The ABCD method is used to predict the QCD multijet background and the total SM background is compared to the data, showing good agreement. The shaded band in the ratio plot shows the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties. These are pre-fit distributions.

png pdf

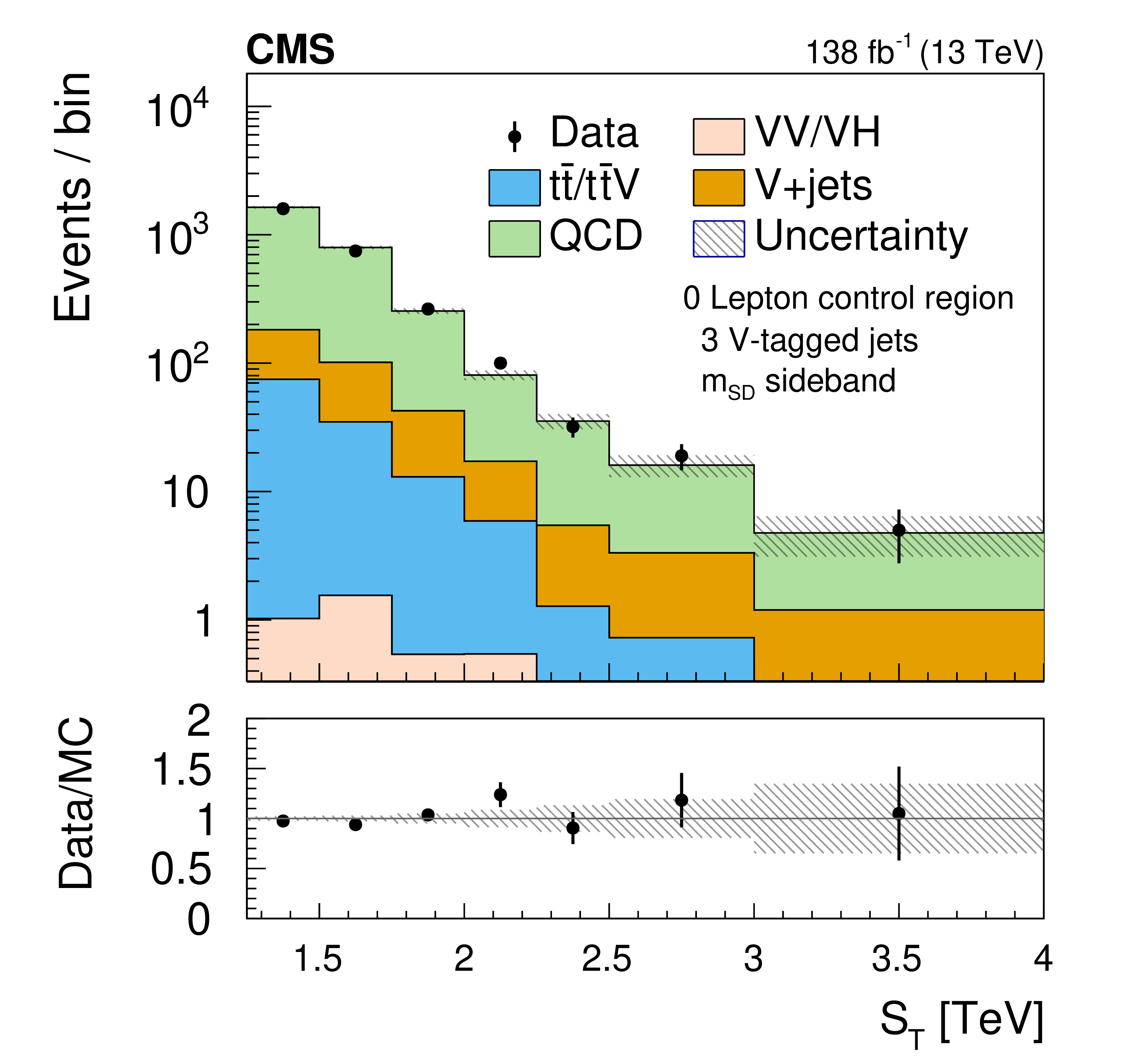

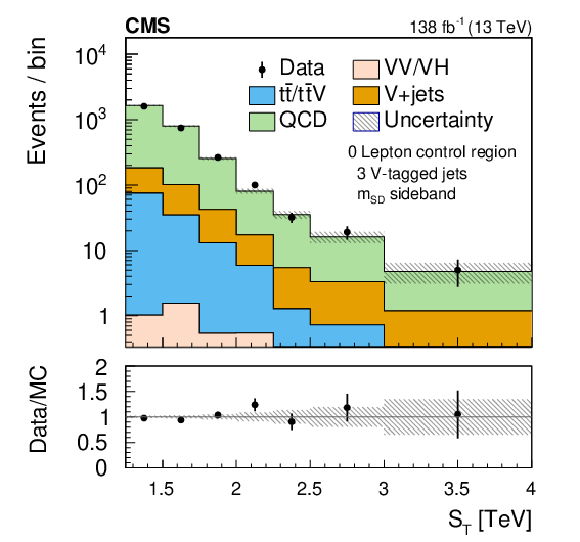

Figure 2-b:
Tests of the ABCD method in the SR-0\ell-2VTJ (left) and SR-0\ell-3VTJ (right) channels. The validation regions are dominated by QCD multijet backgrounds. The ABCD method is used to predict the QCD multijet background and the total SM background is compared to the data, showing good agreement. The shaded band in the ratio plot shows the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties. These are pre-fit distributions.

png pdf

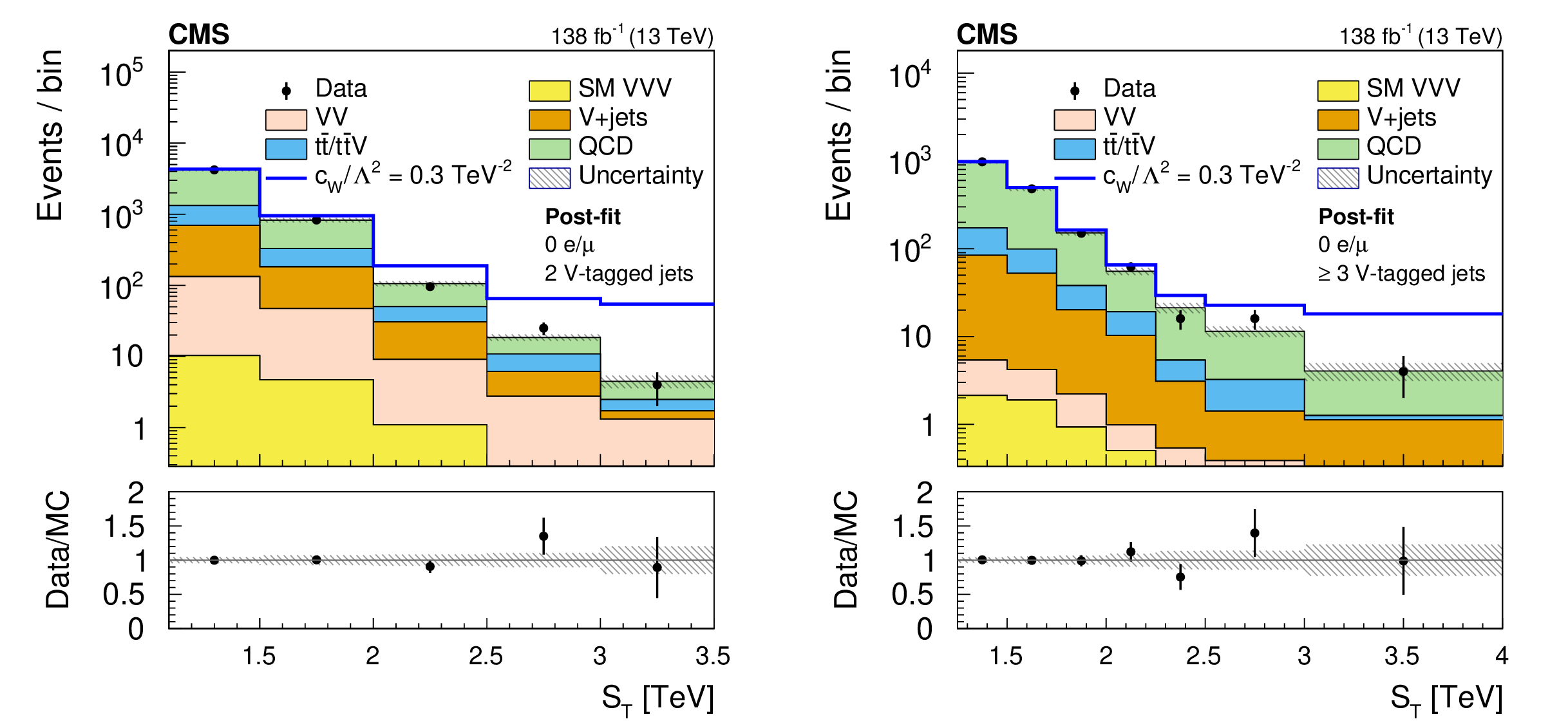

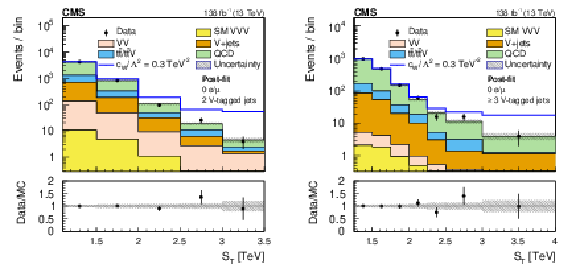

Figure 3:
Comparison of the $ S_\text{T} $ distributions for events in the zero-lepton signal regions with two V-tagged jets (left) and three V-tagged jets (right). The shaded band in the ratio plot shows the total uncertainty. The black dots with error bars represent the data with statistical uncertainties. These distributions are made after the fit, i.e.,, they are post-fit distributions.

png pdf

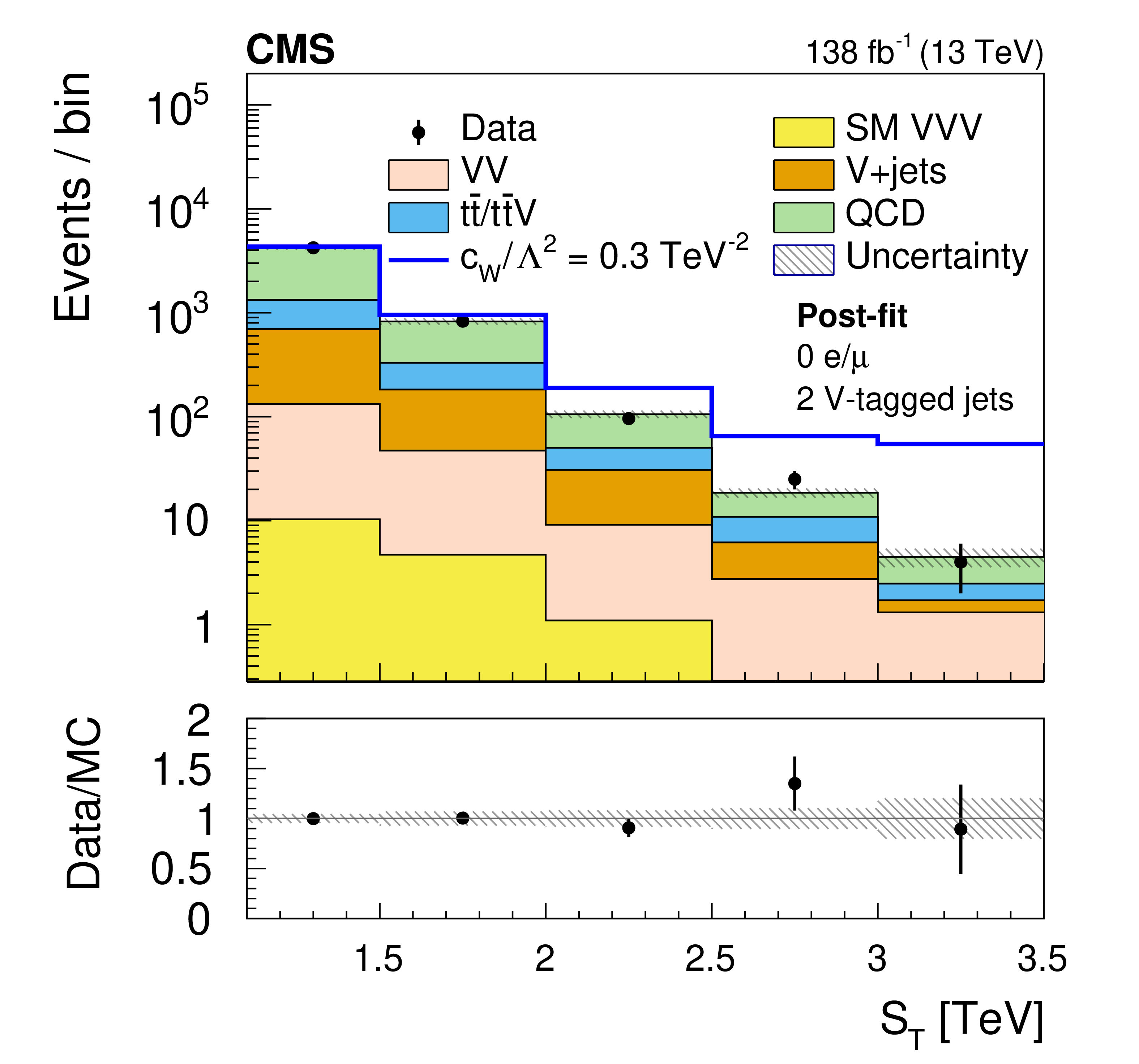

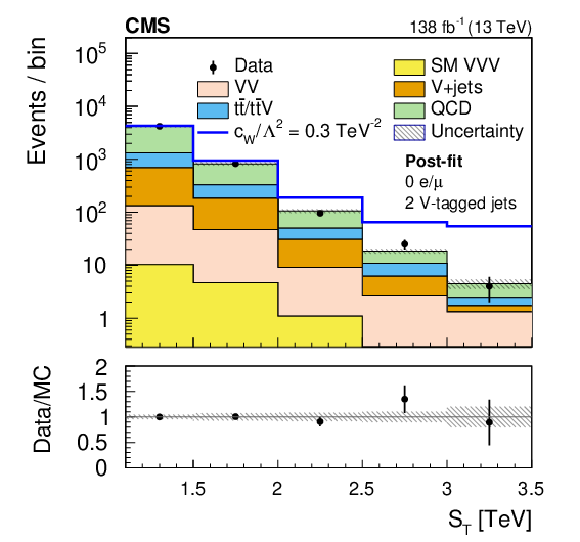

Figure 3-a:
Comparison of the $ S_\text{T} $ distributions for events in the zero-lepton signal regions with two V-tagged jets (left) and three V-tagged jets (right). The shaded band in the ratio plot shows the total uncertainty. The black dots with error bars represent the data with statistical uncertainties. These distributions are made after the fit, i.e.,, they are post-fit distributions.

png pdf

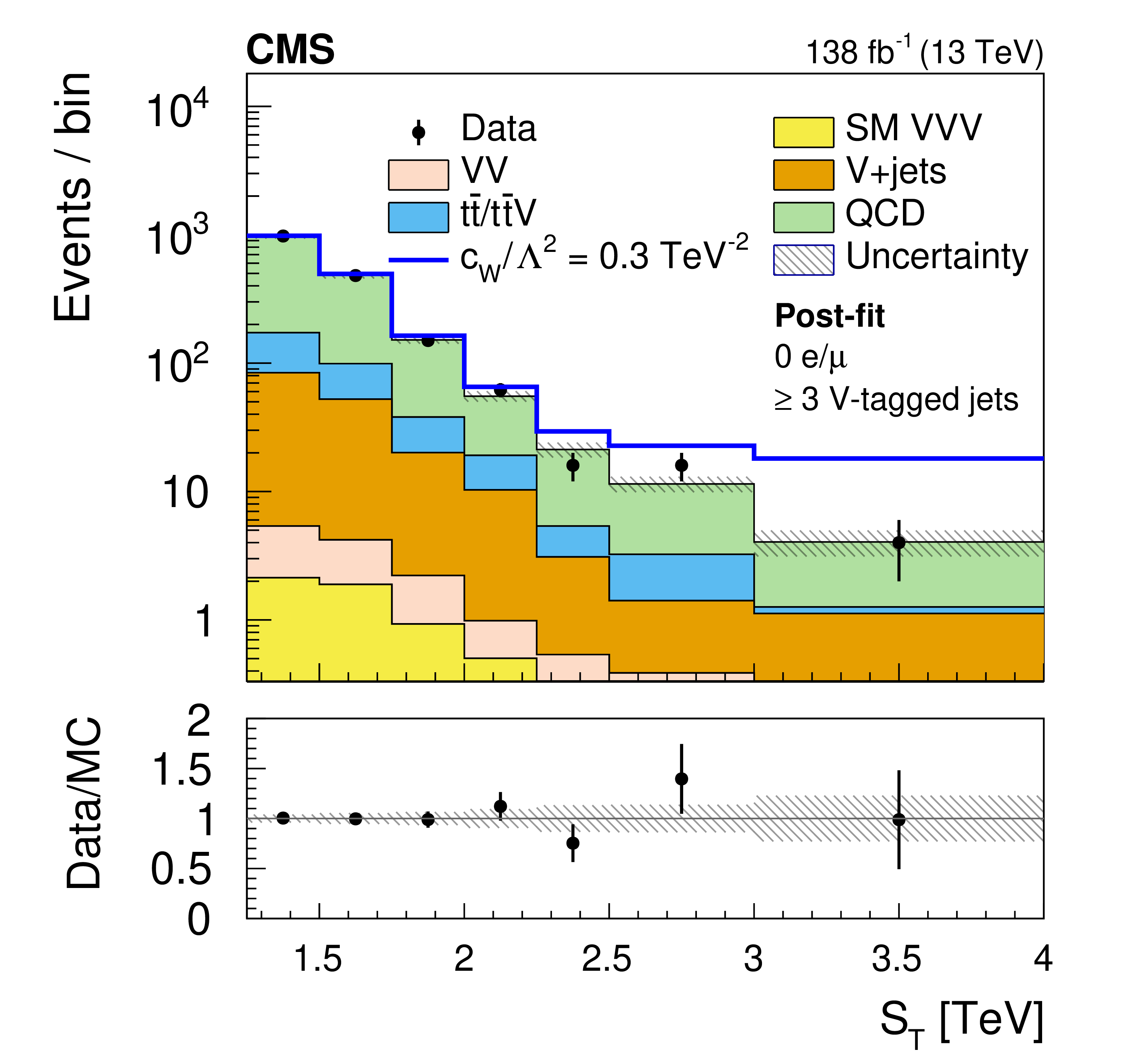

Figure 3-b:
Comparison of the $ S_\text{T} $ distributions for events in the zero-lepton signal regions with two V-tagged jets (left) and three V-tagged jets (right). The shaded band in the ratio plot shows the total uncertainty. The black dots with error bars represent the data with statistical uncertainties. These distributions are made after the fit, i.e.,, they are post-fit distributions.

png pdf

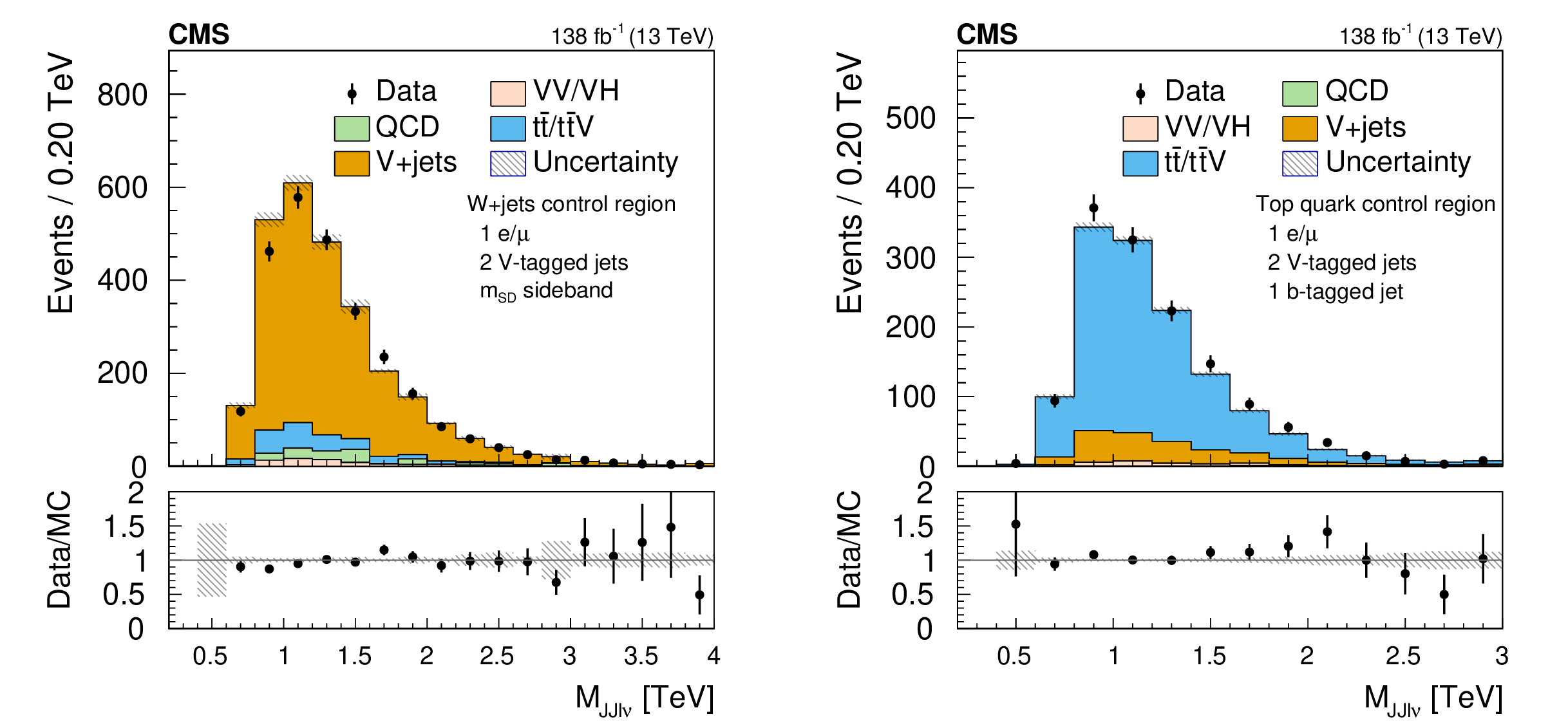

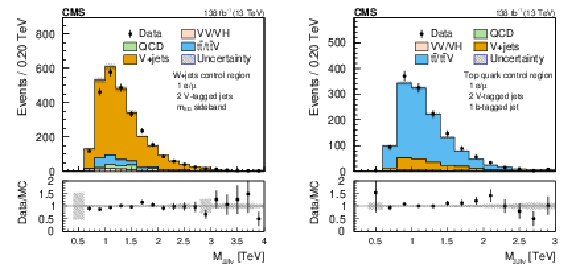

Figure 4:
Comparison of the pre-fit $ m_{\mathrm{JJ}\ell\nu} $ distributions for the one-lepton control regions for $ \mathrm{W}+ $jets (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) backgrounds. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

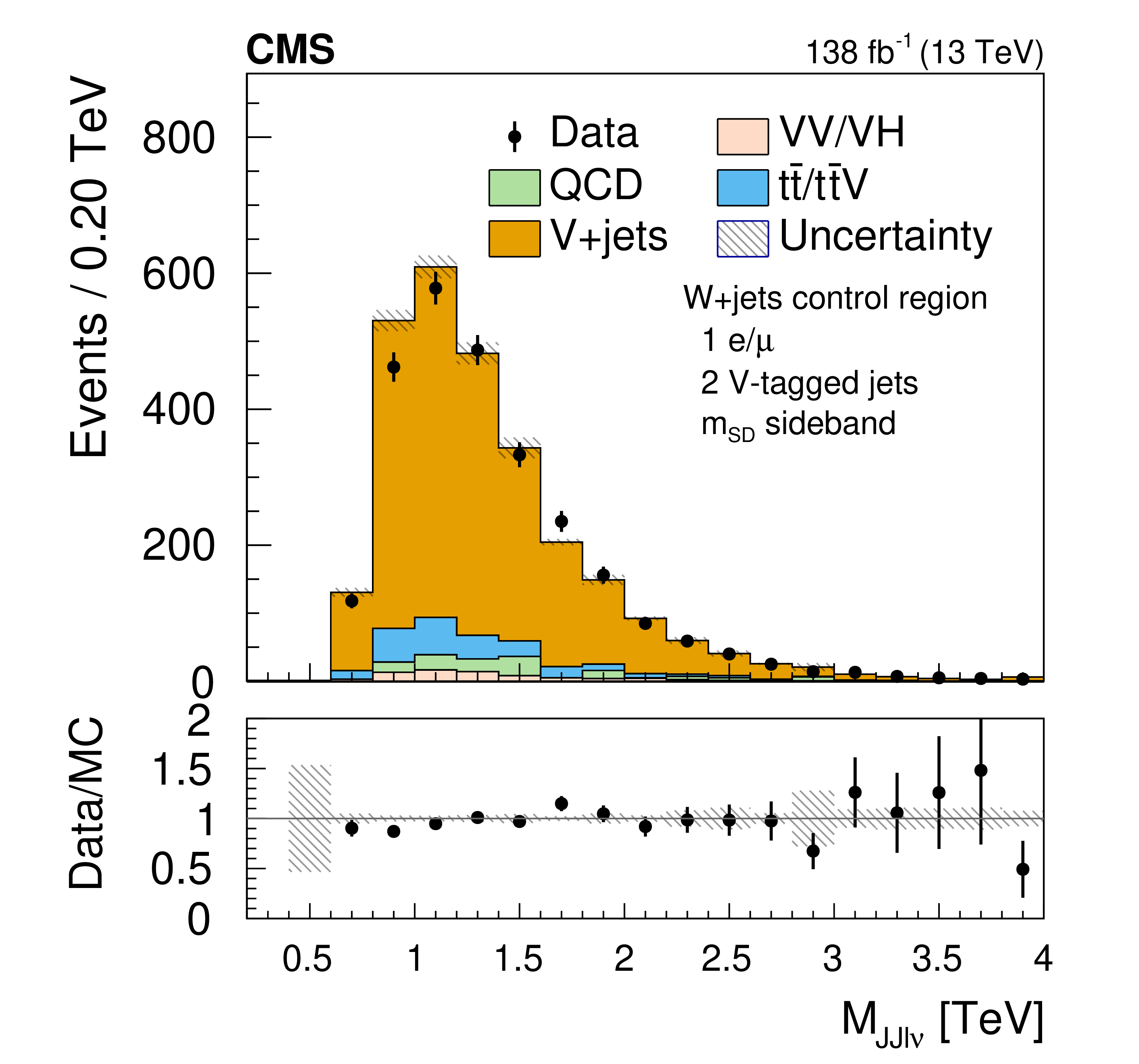

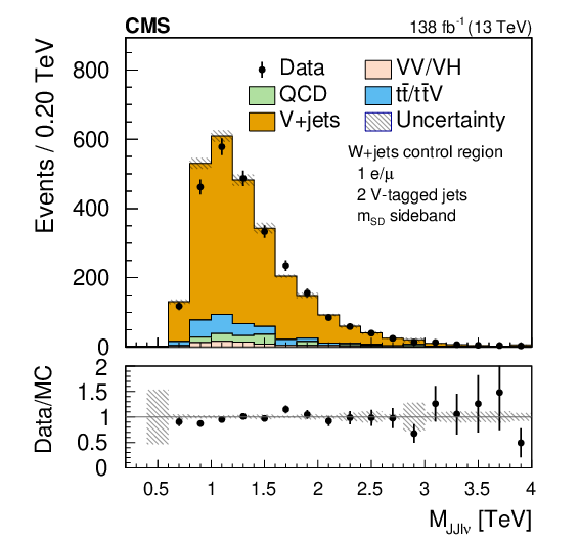

Figure 4-a:
Comparison of the pre-fit $ m_{\mathrm{JJ}\ell\nu} $ distributions for the one-lepton control regions for $ \mathrm{W}+ $jets (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) backgrounds. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

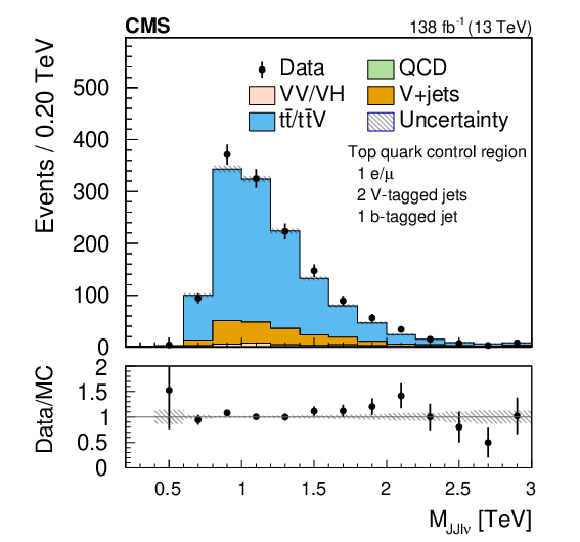

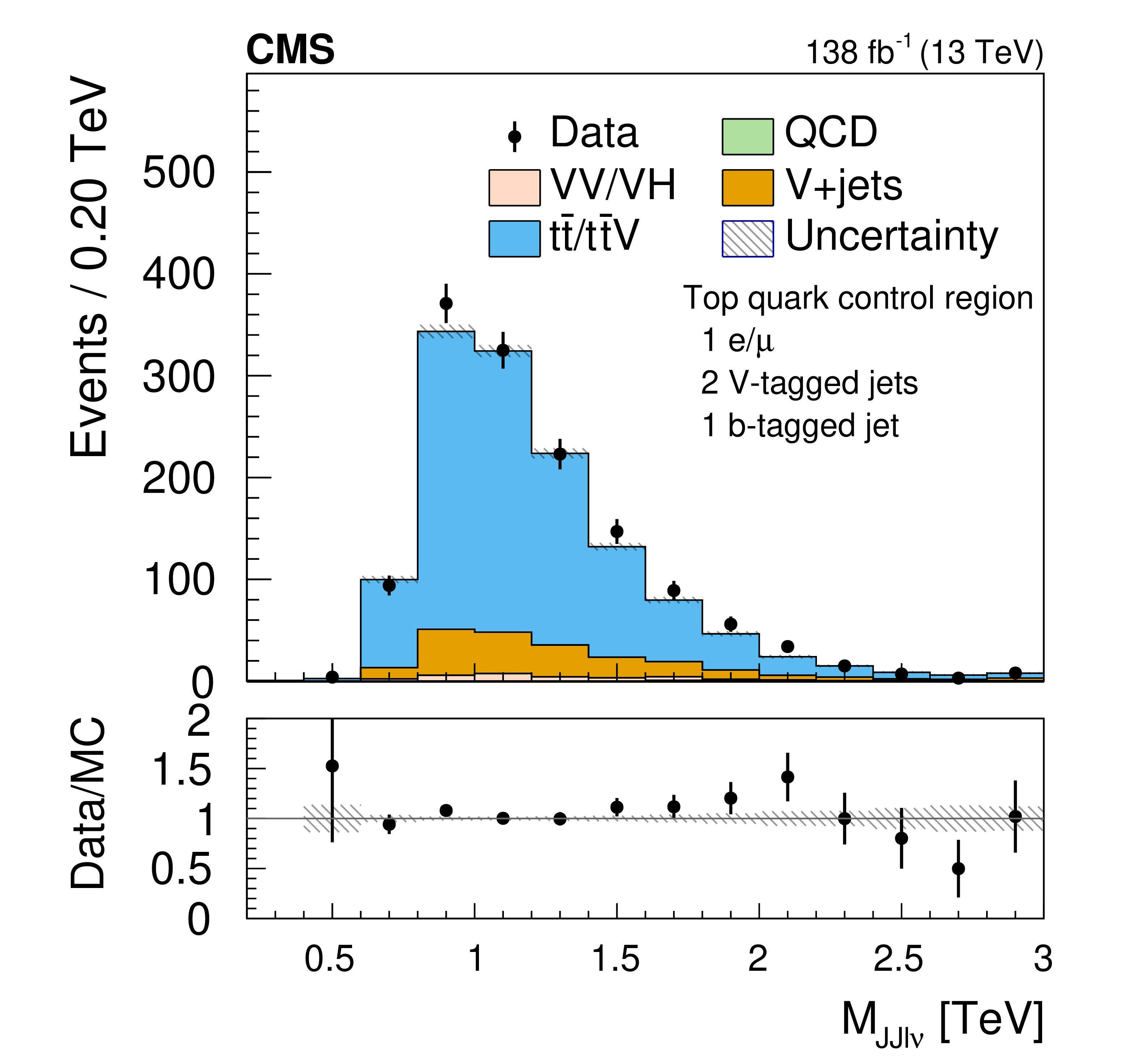

Figure 4-b:
Comparison of the pre-fit $ m_{\mathrm{JJ}\ell\nu} $ distributions for the one-lepton control regions for $ \mathrm{W}+ $jets (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) backgrounds. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

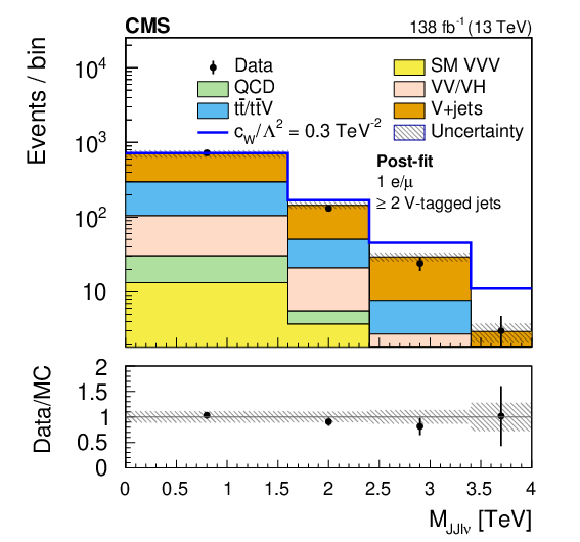

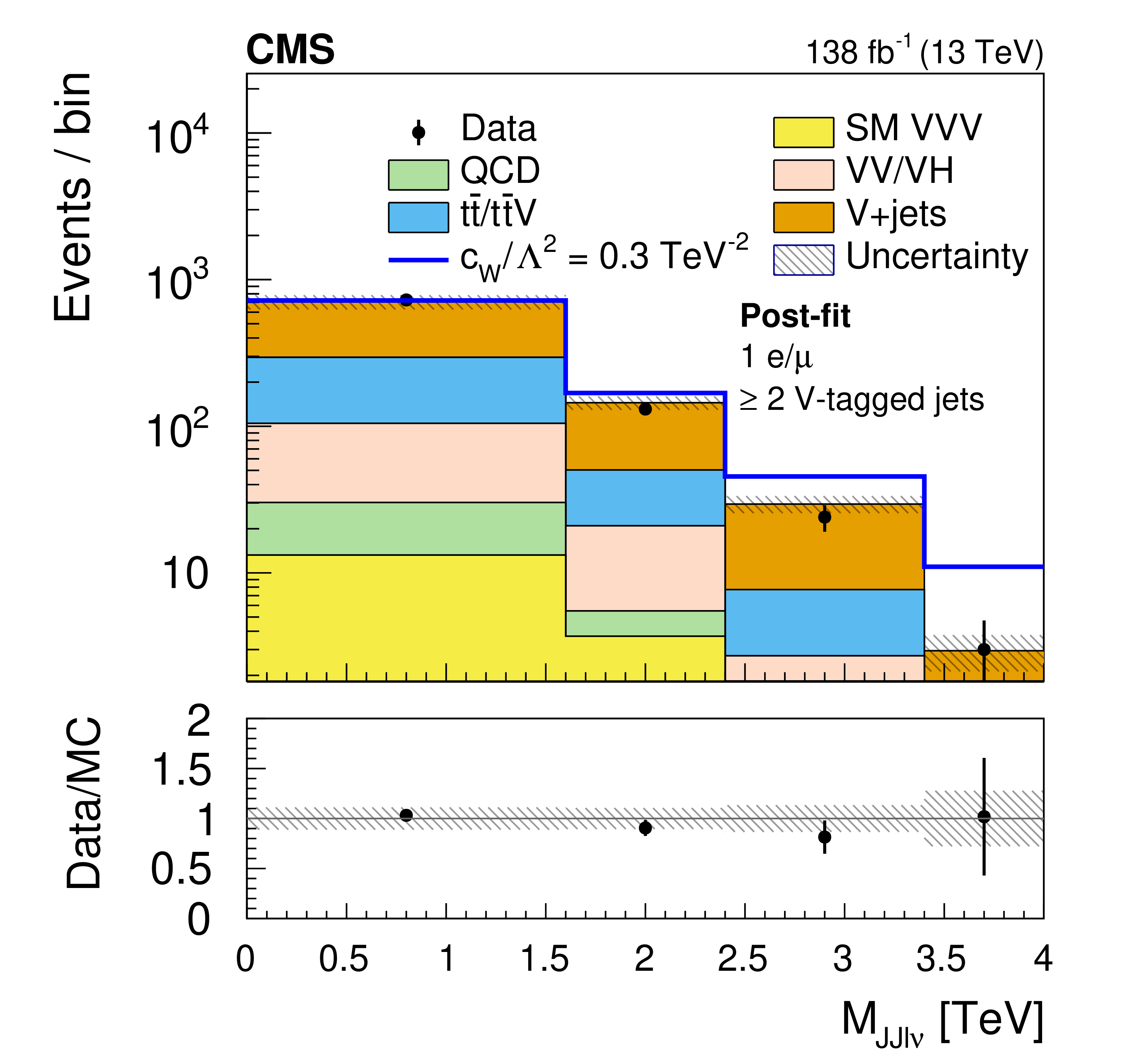

Figure 5:
Comparison of the post-fit $ m_{\mathrm{JJ}\ell\nu} $ distributions for the one-lepton and two V-tagged jets (SR-1\ell-2VTJ ) signal region. The shaded band in the ratio plot represents the total uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

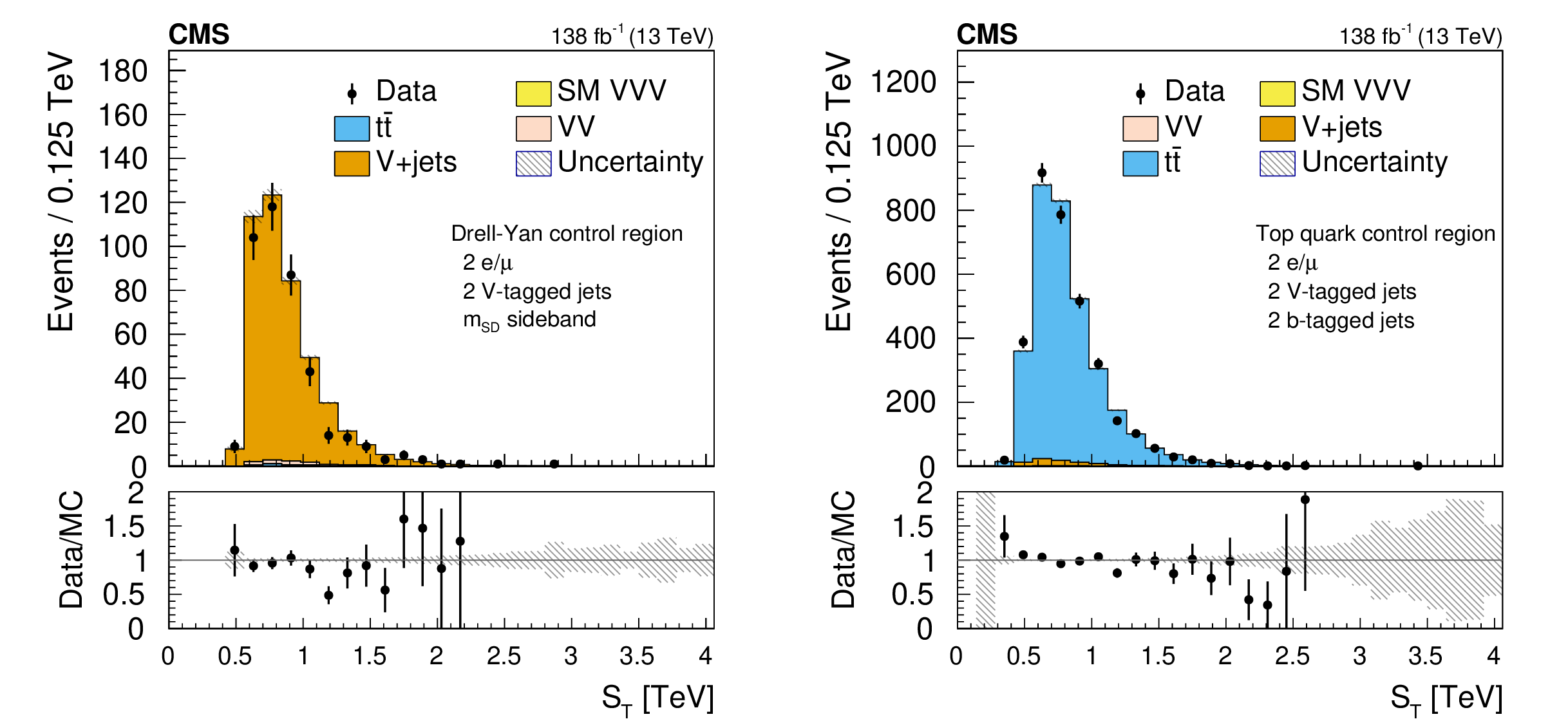

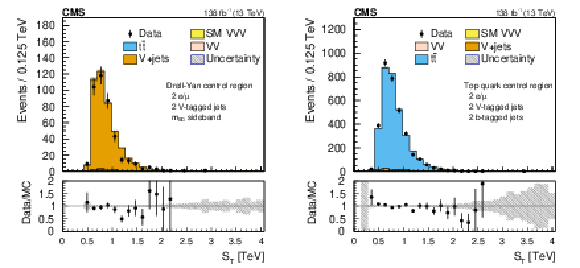

Figure 6:
Comparison of the pre-fit $ S_\text{T} $ distributions for the opposite-sign dilepton plus two V-tagged jets (SR-2\ell-OS-2VTJ ) control regions for $ \mathrm{Z}+ $jets (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) backgrounds. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

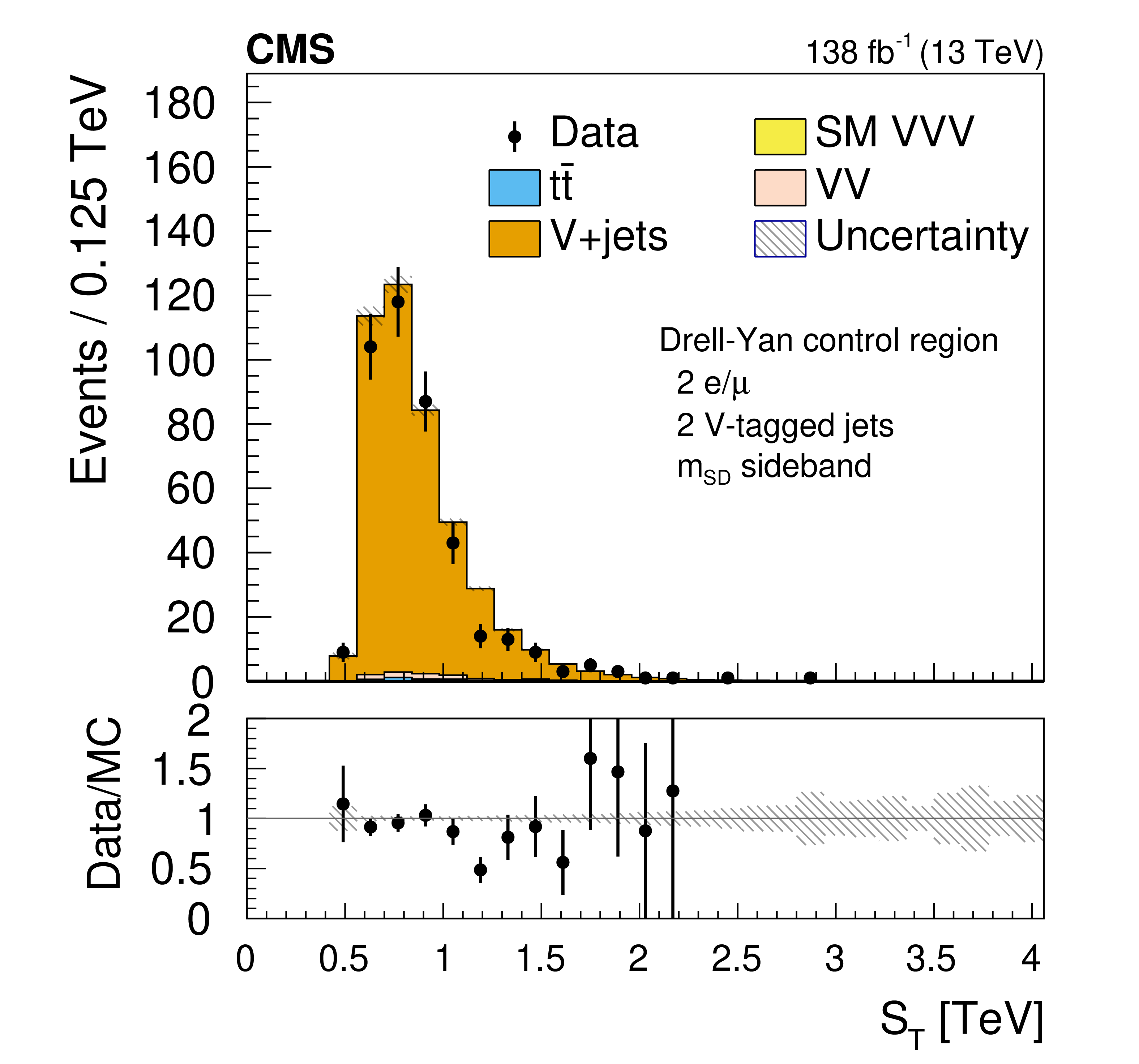

Figure 6-a:
Comparison of the pre-fit $ S_\text{T} $ distributions for the opposite-sign dilepton plus two V-tagged jets (SR-2\ell-OS-2VTJ ) control regions for $ \mathrm{Z}+ $jets (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) backgrounds. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

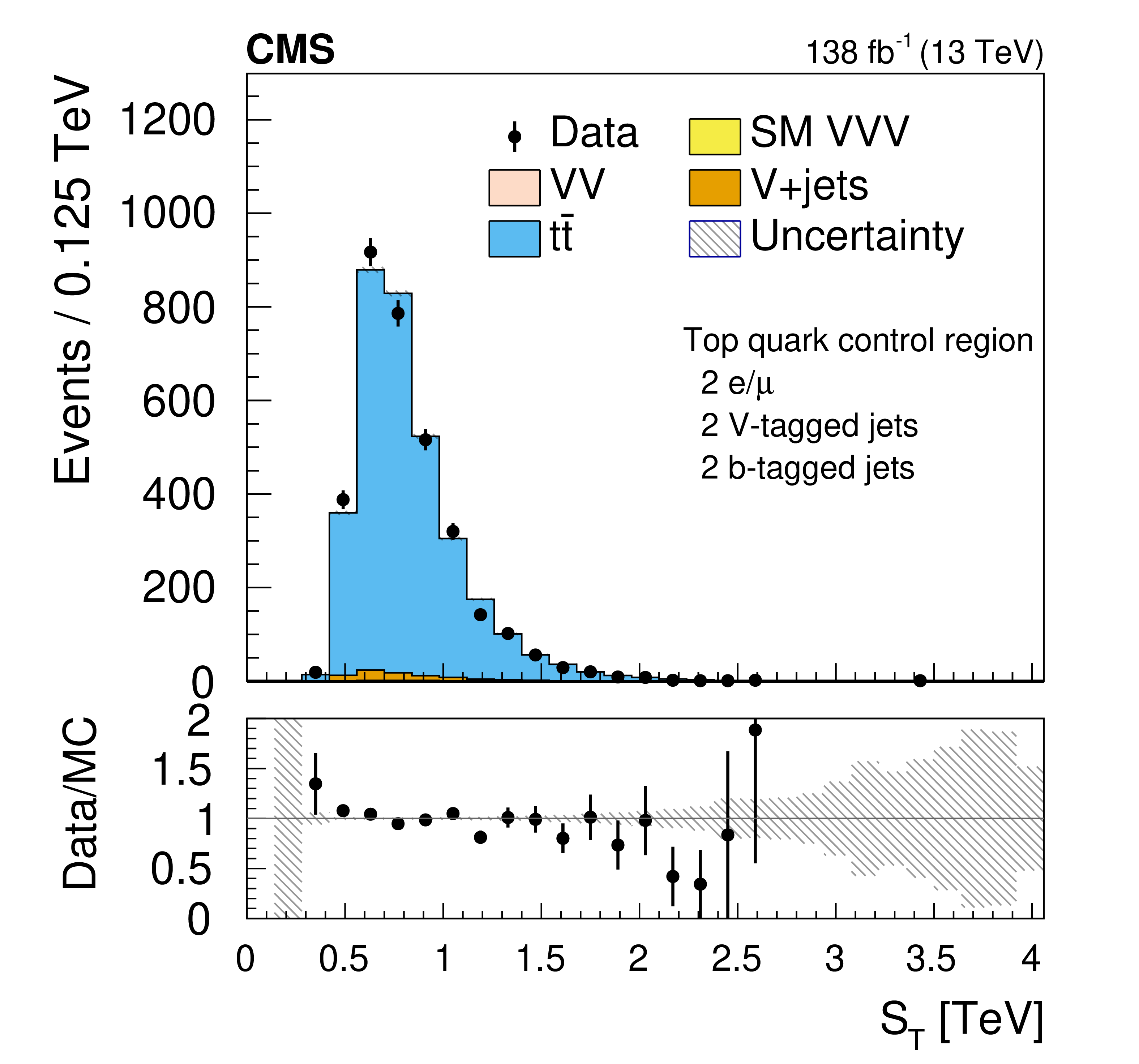

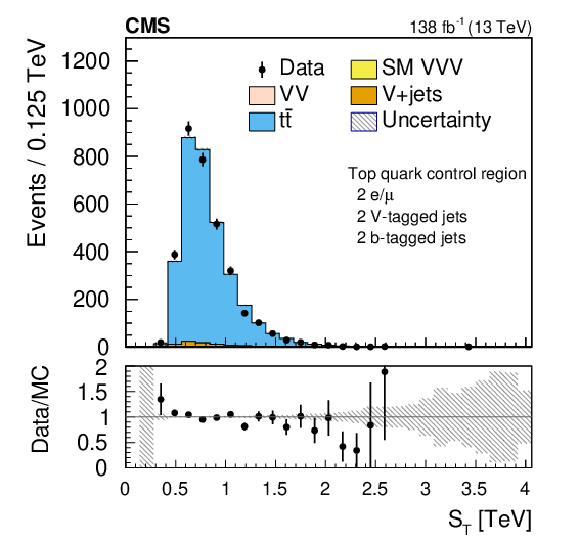

Figure 6-b:
Comparison of the pre-fit $ S_\text{T} $ distributions for the opposite-sign dilepton plus two V-tagged jets (SR-2\ell-OS-2VTJ ) control regions for $ \mathrm{Z}+ $jets (left) and $ \mathrm{t} \overline{\mathrm{t}} $ (right) backgrounds. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

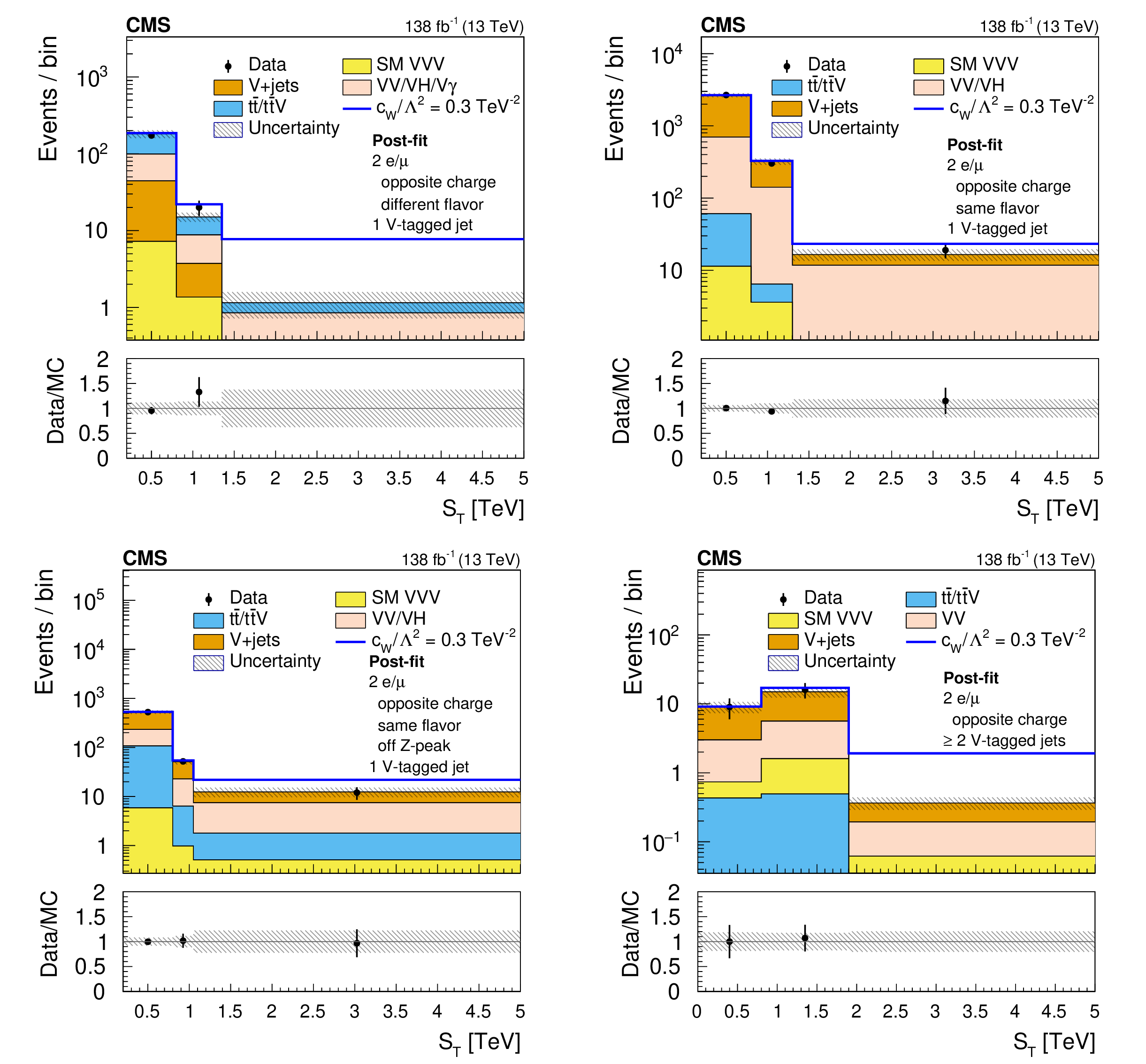

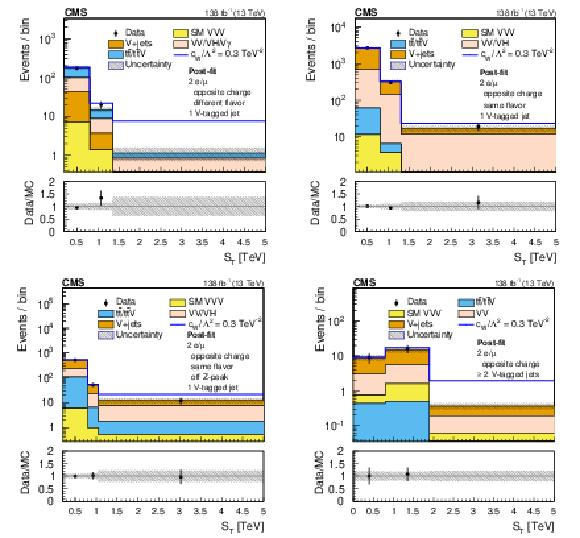

Figure 7:
Comparison of the post-fit $ S_\text{T} $ distributions. The upper plots and the lower left plot correspond to the opposite-sign dilepton and one V-tagged jet (SR-2\ell-OS-1VTJ ) channel, while the lower right plot corresponds to the opposite-sign dilepton and two or more V-tagged jets (SR-2\ell-OS-2VTJ ) channel. The shaded bands in the ratio plots represent the total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

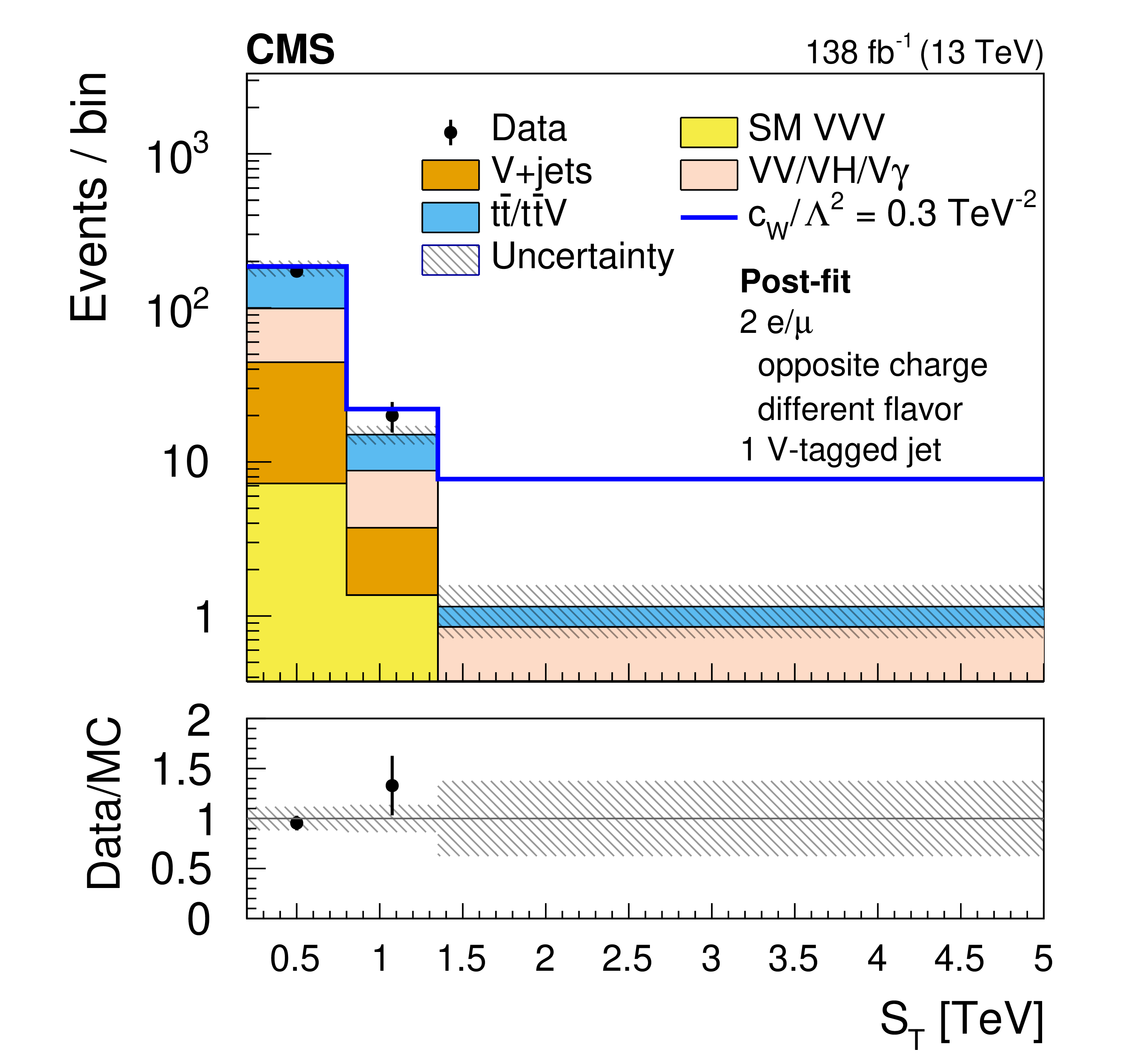

Figure 7-a:
Comparison of the post-fit $ S_\text{T} $ distributions. The upper plots and the lower left plot correspond to the opposite-sign dilepton and one V-tagged jet (SR-2\ell-OS-1VTJ ) channel, while the lower right plot corresponds to the opposite-sign dilepton and two or more V-tagged jets (SR-2\ell-OS-2VTJ ) channel. The shaded bands in the ratio plots represent the total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

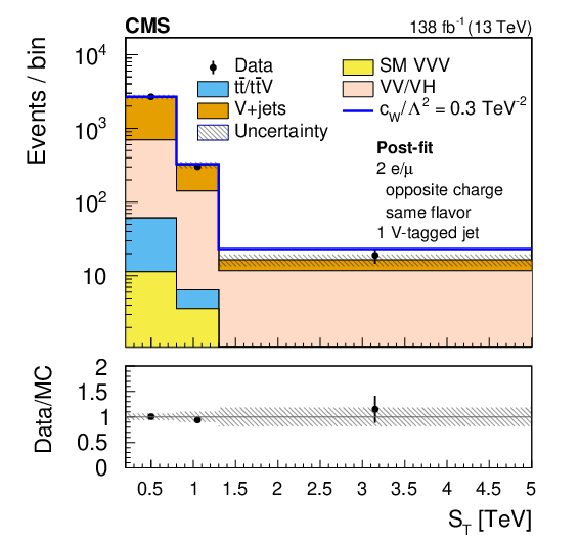

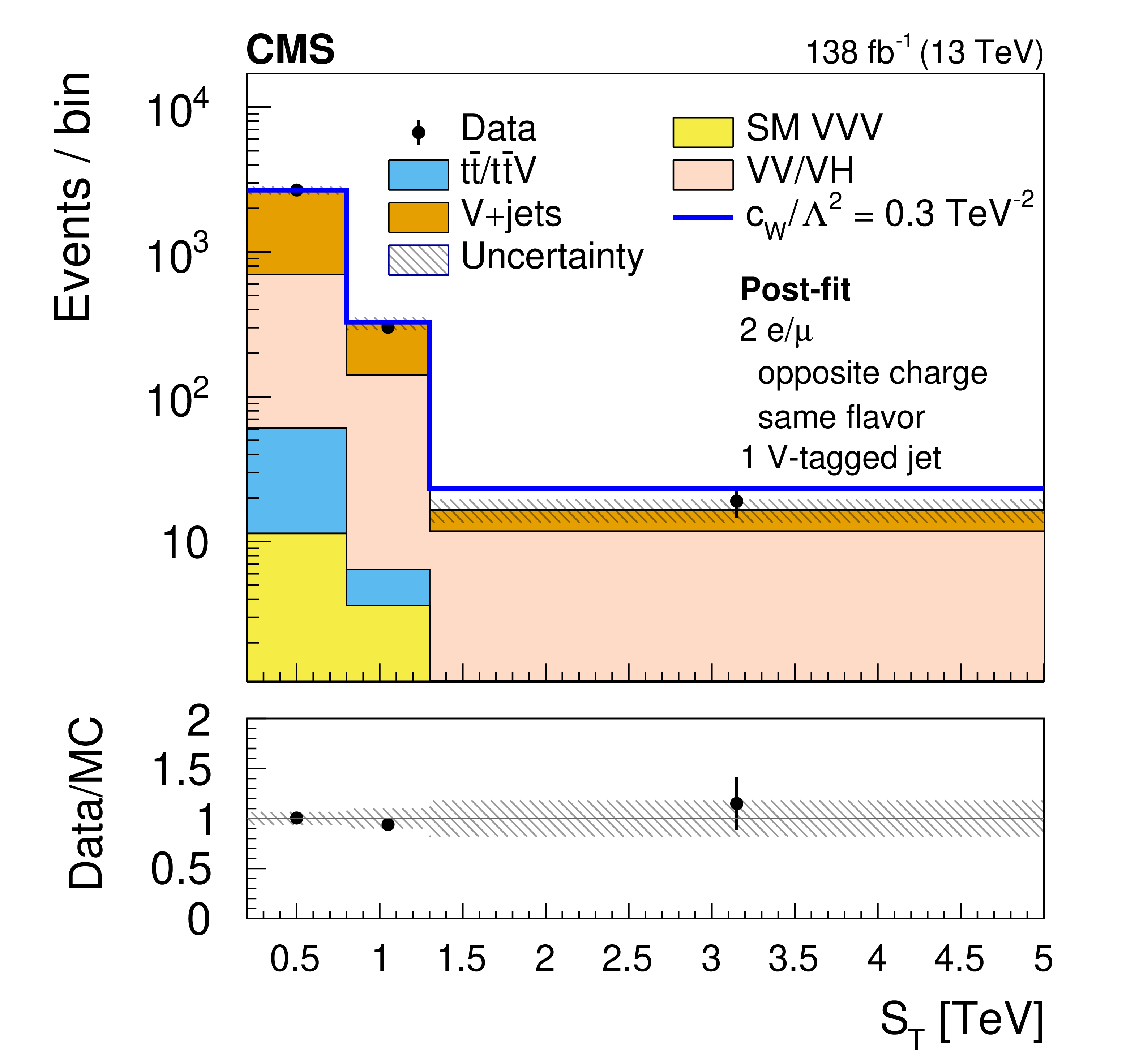

Figure 7-b:
Comparison of the post-fit $ S_\text{T} $ distributions. The upper plots and the lower left plot correspond to the opposite-sign dilepton and one V-tagged jet (SR-2\ell-OS-1VTJ ) channel, while the lower right plot corresponds to the opposite-sign dilepton and two or more V-tagged jets (SR-2\ell-OS-2VTJ ) channel. The shaded bands in the ratio plots represent the total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

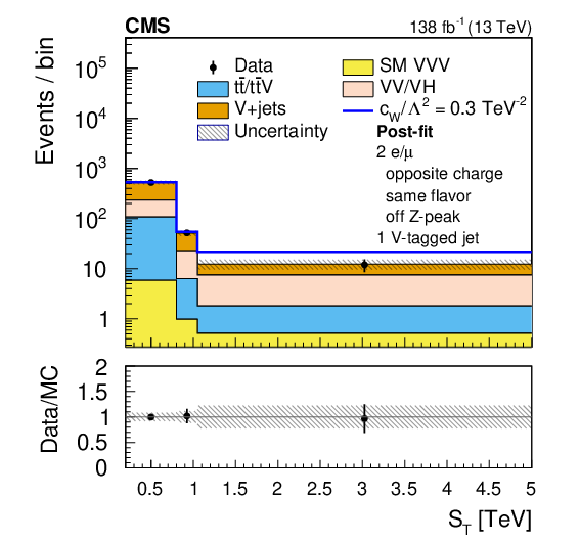

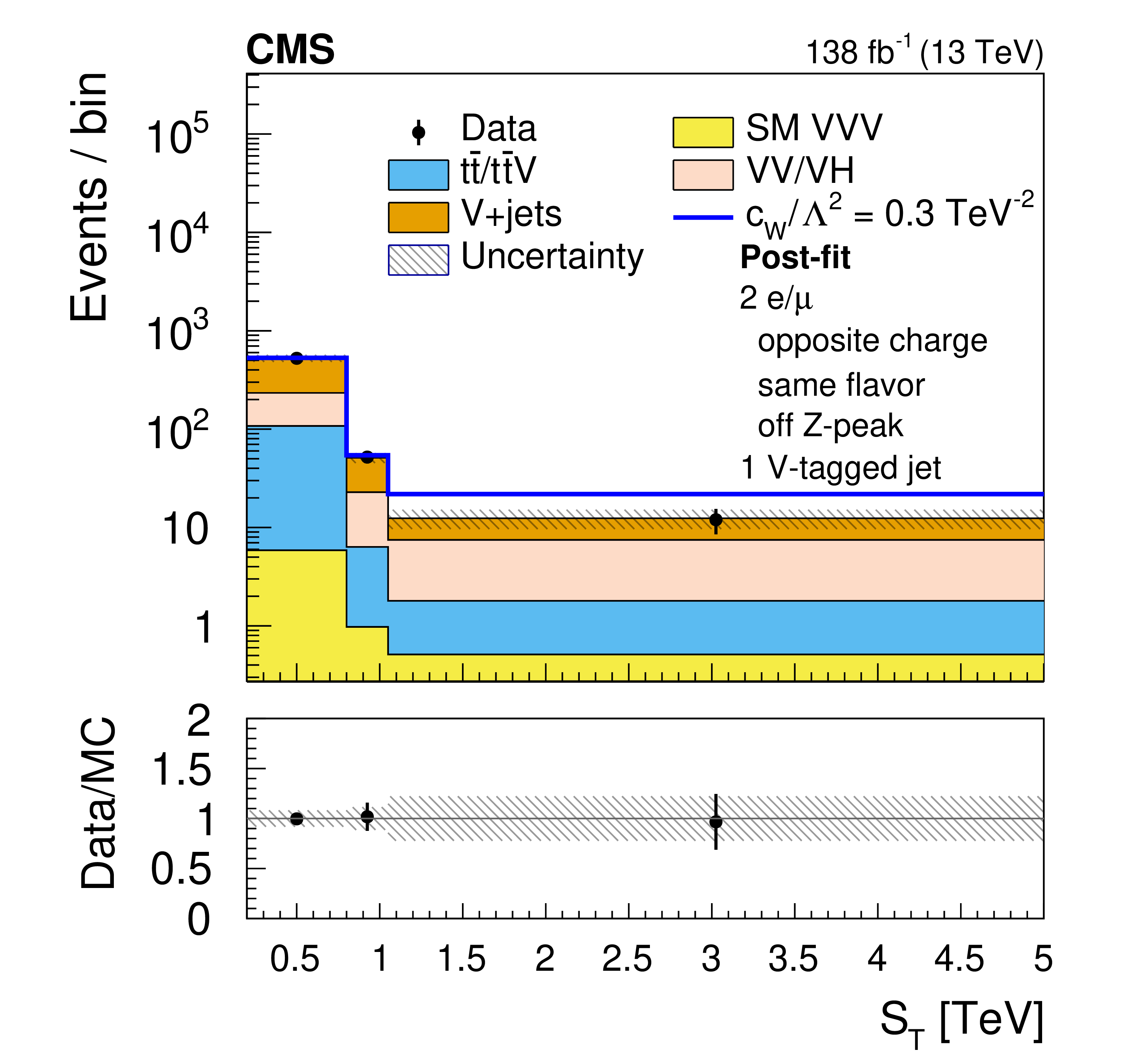

Figure 7-c:
Comparison of the post-fit $ S_\text{T} $ distributions. The upper plots and the lower left plot correspond to the opposite-sign dilepton and one V-tagged jet (SR-2\ell-OS-1VTJ ) channel, while the lower right plot corresponds to the opposite-sign dilepton and two or more V-tagged jets (SR-2\ell-OS-2VTJ ) channel. The shaded bands in the ratio plots represent the total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

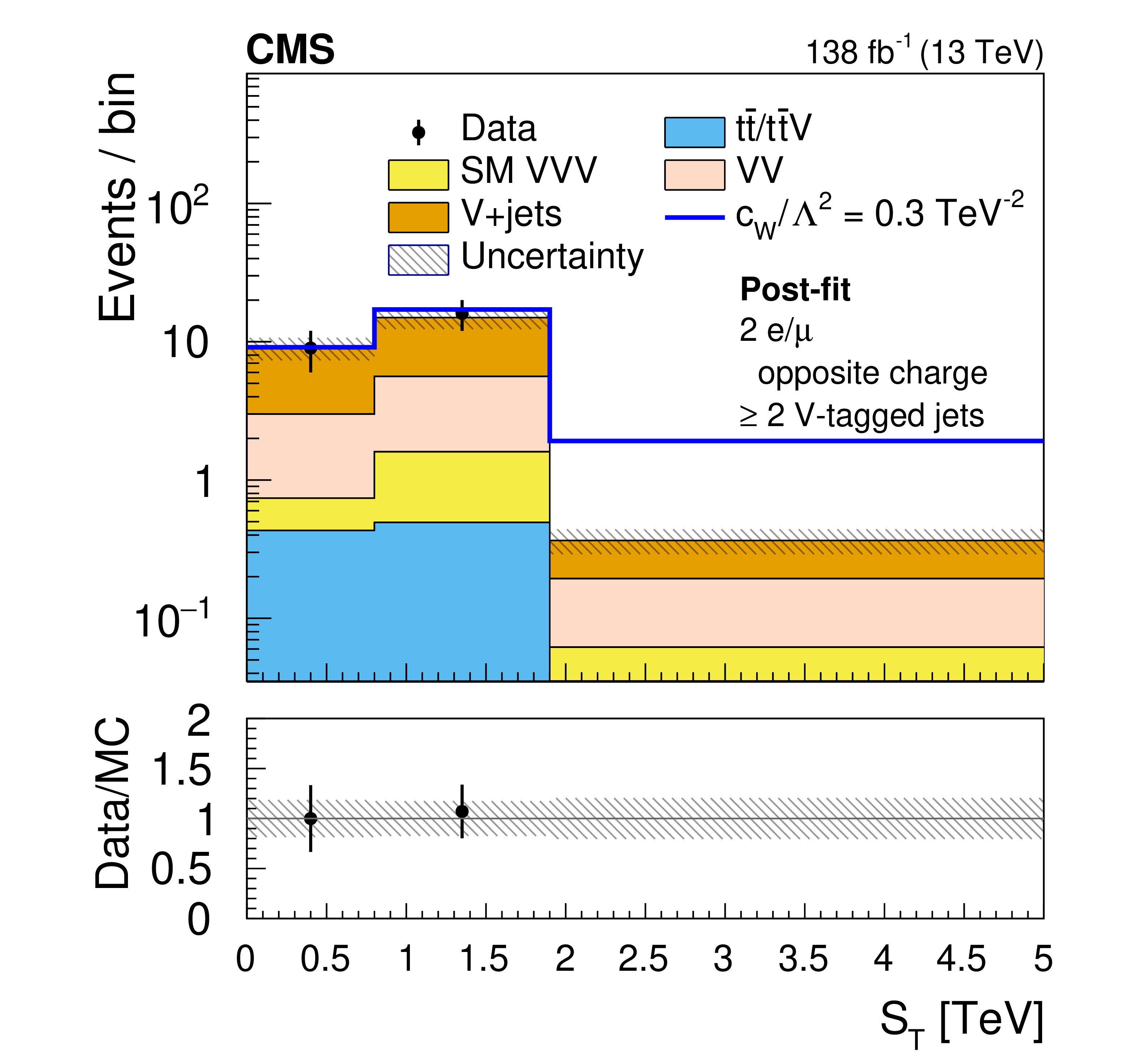

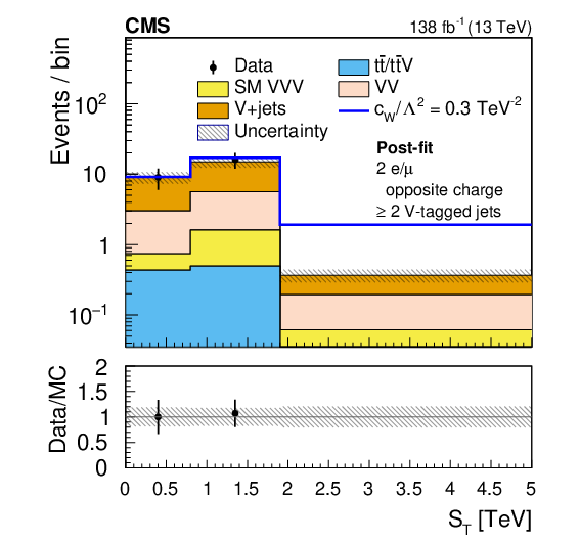

Figure 7-d:
Comparison of the post-fit $ S_\text{T} $ distributions. The upper plots and the lower left plot correspond to the opposite-sign dilepton and one V-tagged jet (SR-2\ell-OS-1VTJ ) channel, while the lower right plot corresponds to the opposite-sign dilepton and two or more V-tagged jets (SR-2\ell-OS-2VTJ ) channel. The shaded bands in the ratio plots represent the total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

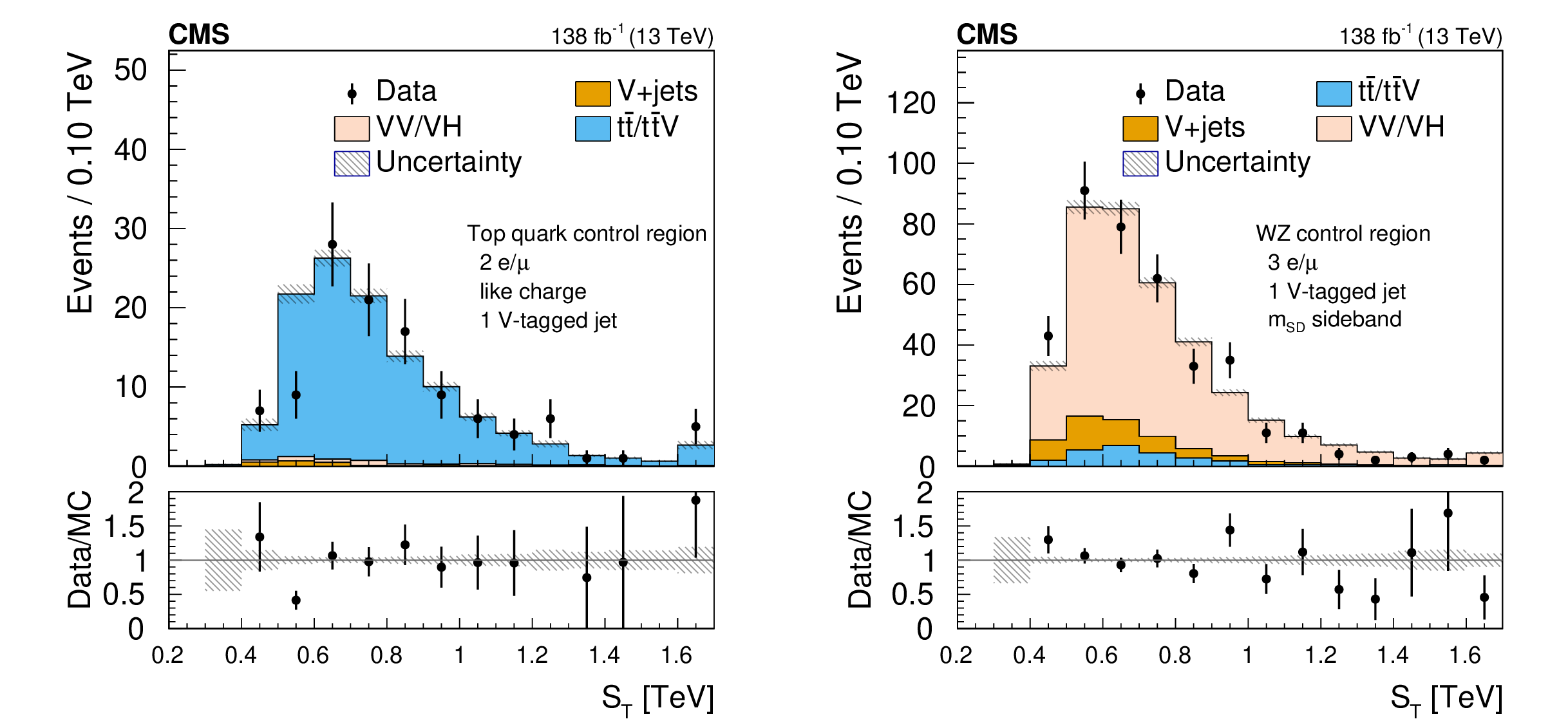

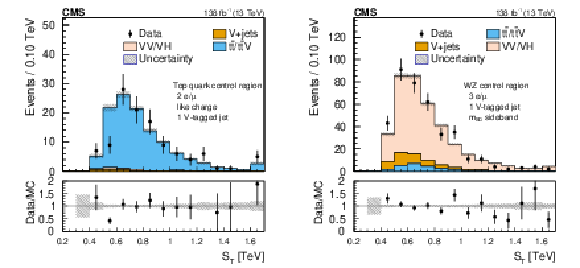

Figure 8:
Comparison of pre-fit $ S_\text{T} $ distributions for the $ \mathrm{t} \overline{\mathrm{t}} $ (left) and WZ (right) control regions in the SR-2\ell-SS-1VTJ channel. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

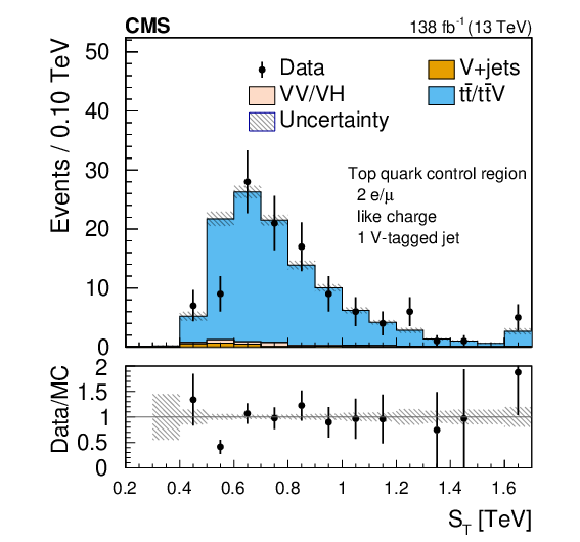

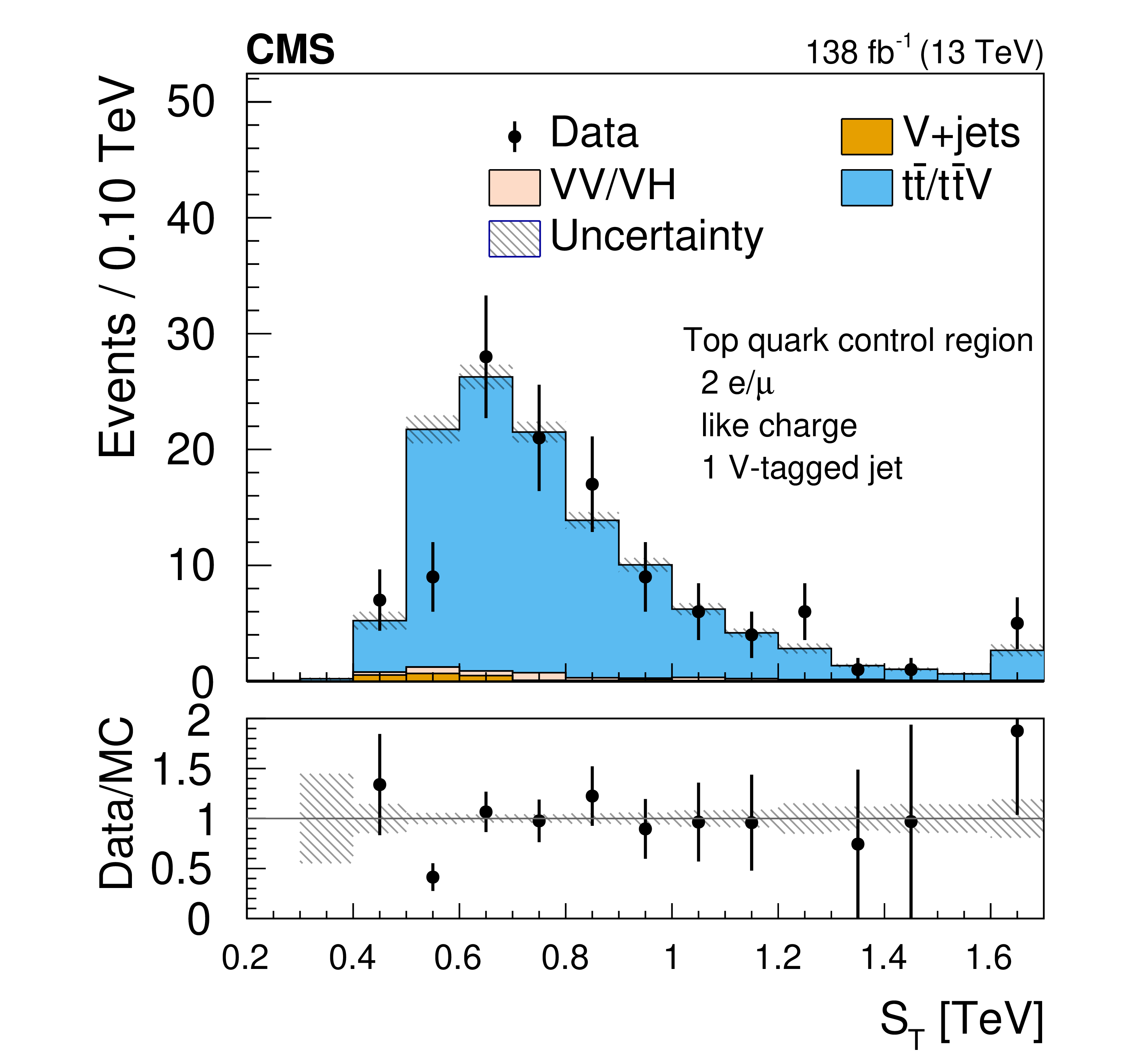

Figure 8-a:
Comparison of pre-fit $ S_\text{T} $ distributions for the $ \mathrm{t} \overline{\mathrm{t}} $ (left) and WZ (right) control regions in the SR-2\ell-SS-1VTJ channel. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

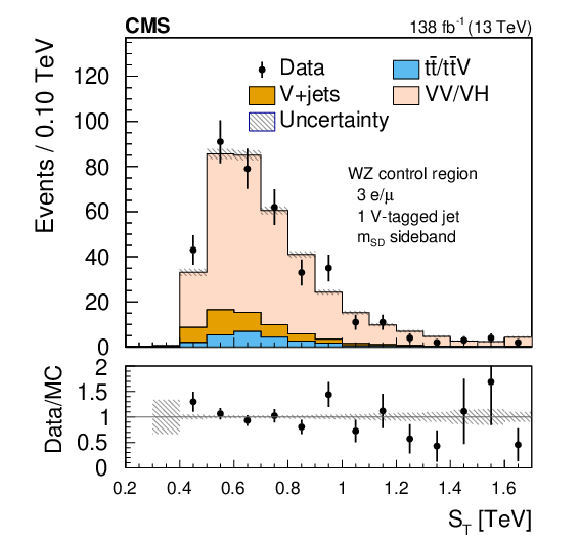

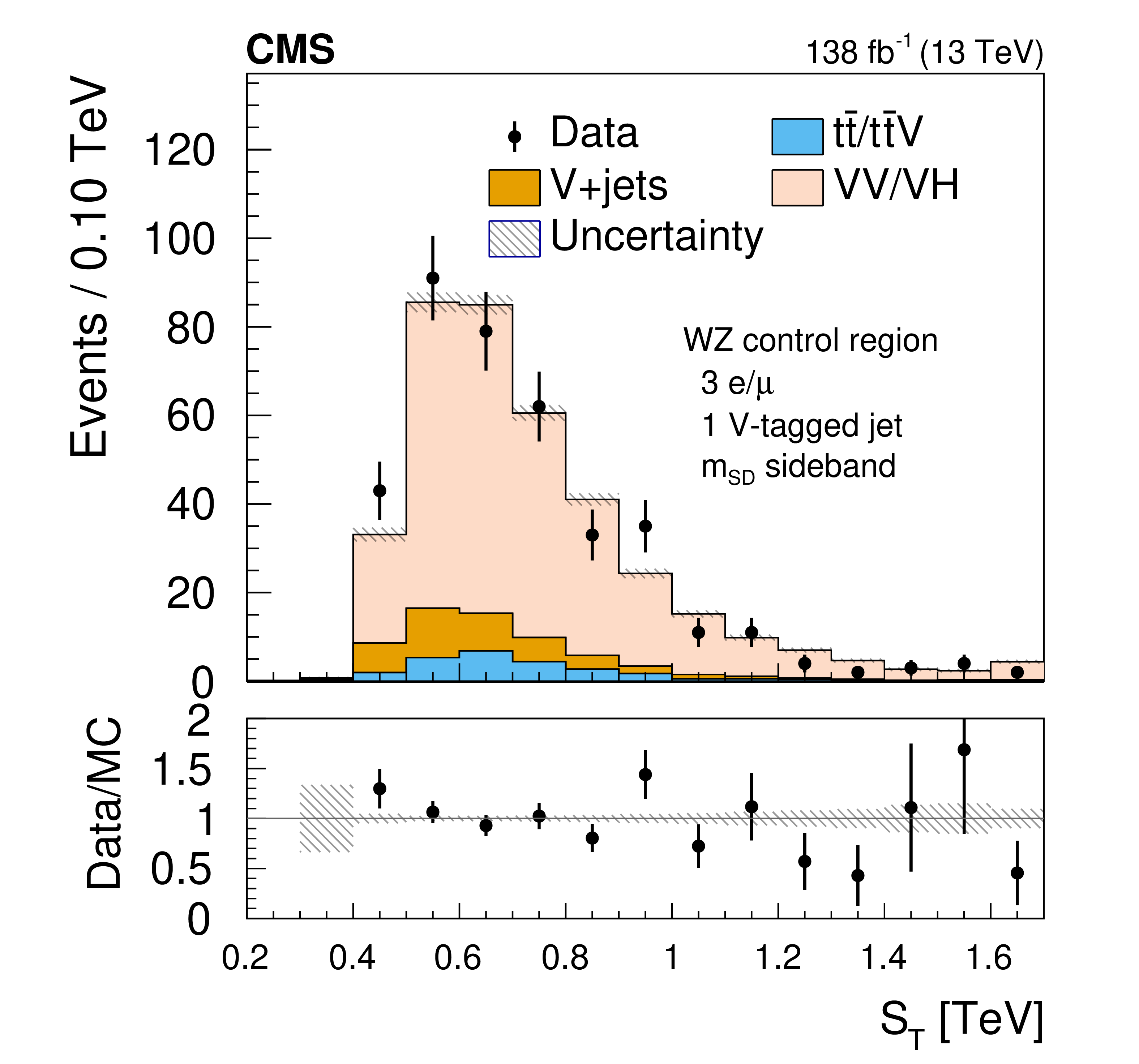

Figure 8-b:
Comparison of pre-fit $ S_\text{T} $ distributions for the $ \mathrm{t} \overline{\mathrm{t}} $ (left) and WZ (right) control regions in the SR-2\ell-SS-1VTJ channel. The shaded band in the ratio plot represents the MC statistical uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

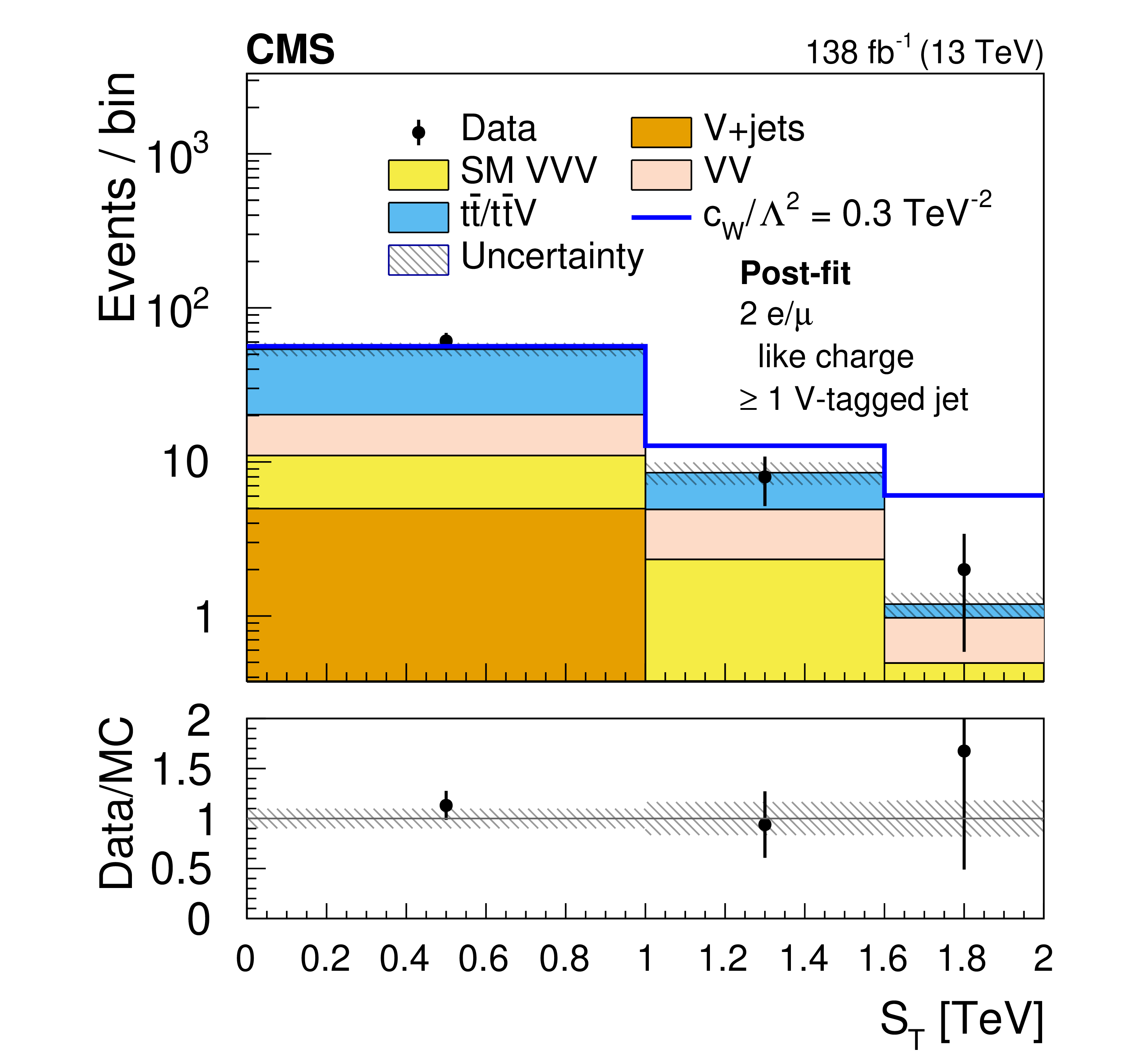

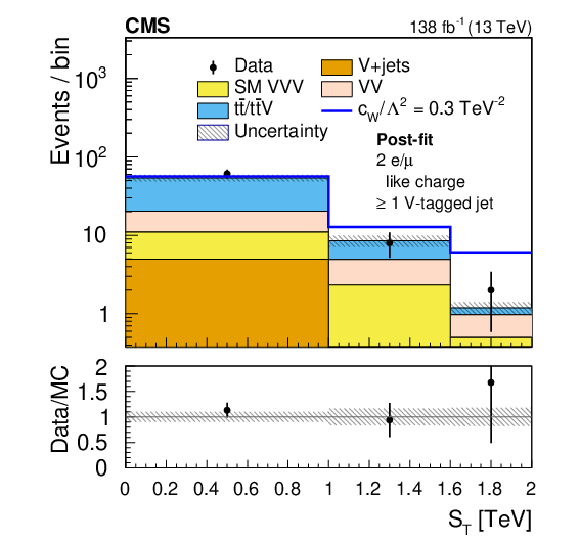

Figure 9:
Comparison of the post-fit $ S_\text{T} $ distributions for the same-sign dilepton plus one V-tagged jets (SR-2\ell-SS-1VTJ ) signal region. The shaded band in the ratio plot represents the total uncertainty. The black dots with error bars represent the data with statistical uncertainties.

png pdf

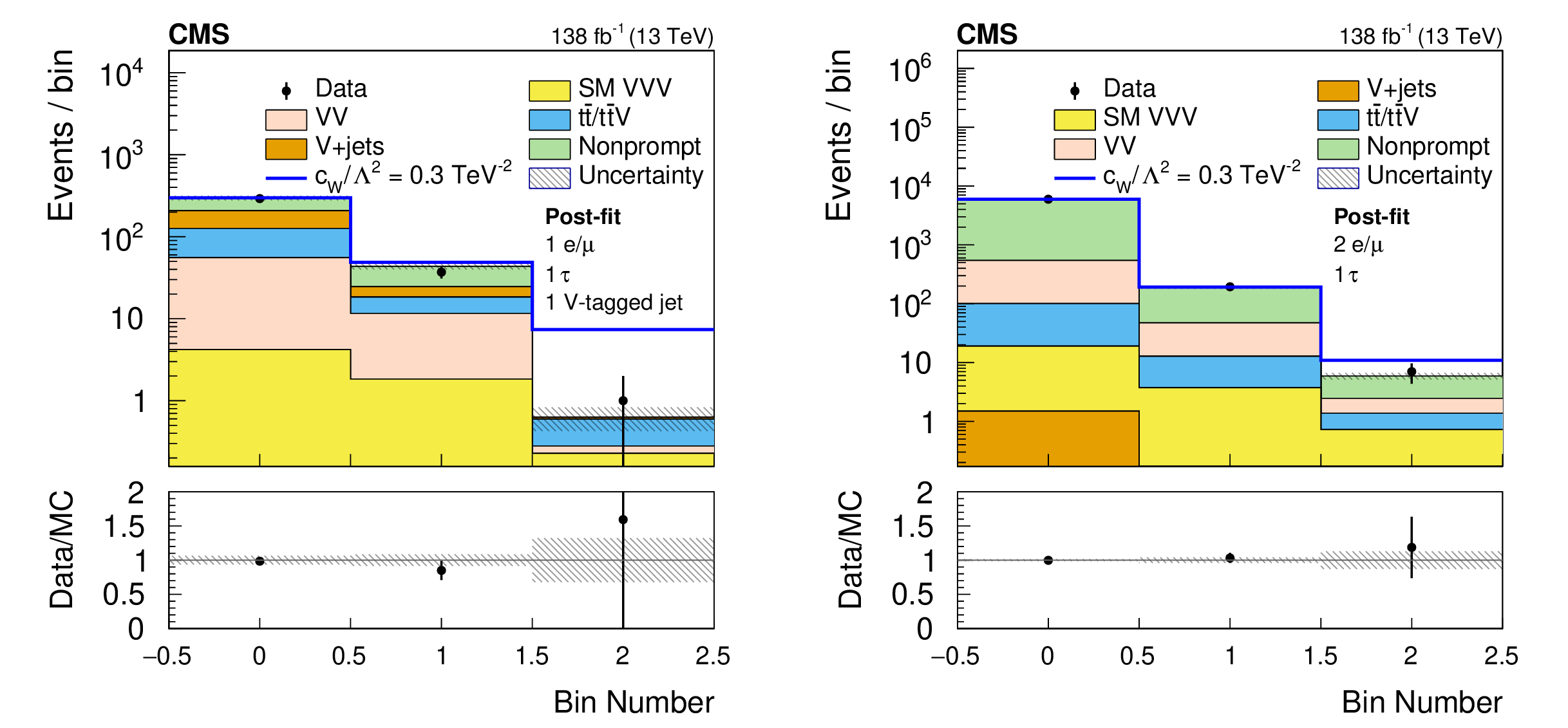

Figure 10:
Comparison of the post-fit distributions binned in the BDT score and $ S_\text{T} $ for the SR-1\ell-1$ \tau_\mathrm{h} $-1VTJ (left) and SR-2\ell-1$ \tau_\mathrm{h} $-0VTJ (right) signal regions. The shaded bands in the ratio plots represent the MC total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

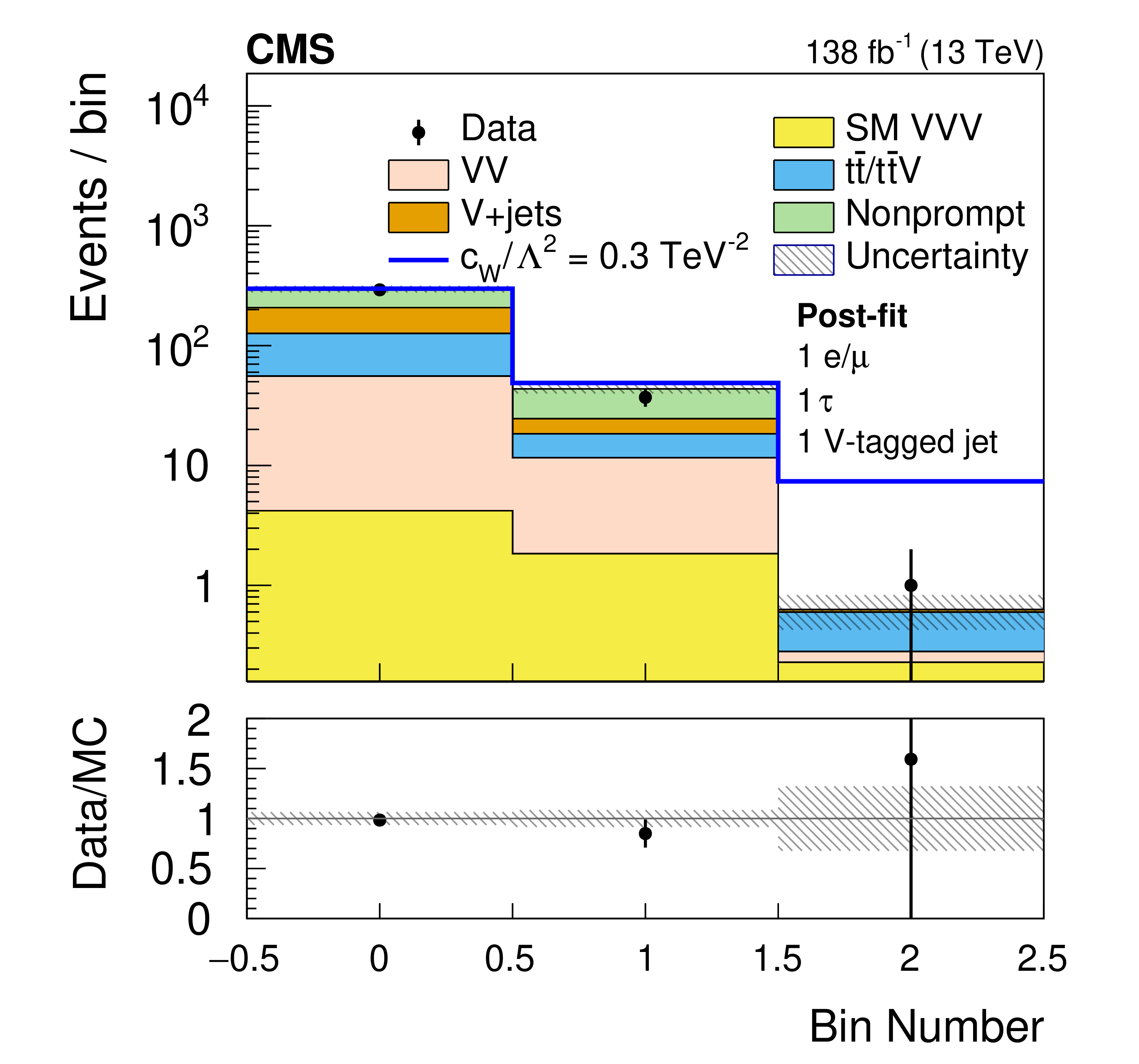

Figure 10-a:
Comparison of the post-fit distributions binned in the BDT score and $ S_\text{T} $ for the SR-1\ell-1$ \tau_\mathrm{h} $-1VTJ (left) and SR-2\ell-1$ \tau_\mathrm{h} $-0VTJ (right) signal regions. The shaded bands in the ratio plots represent the MC total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

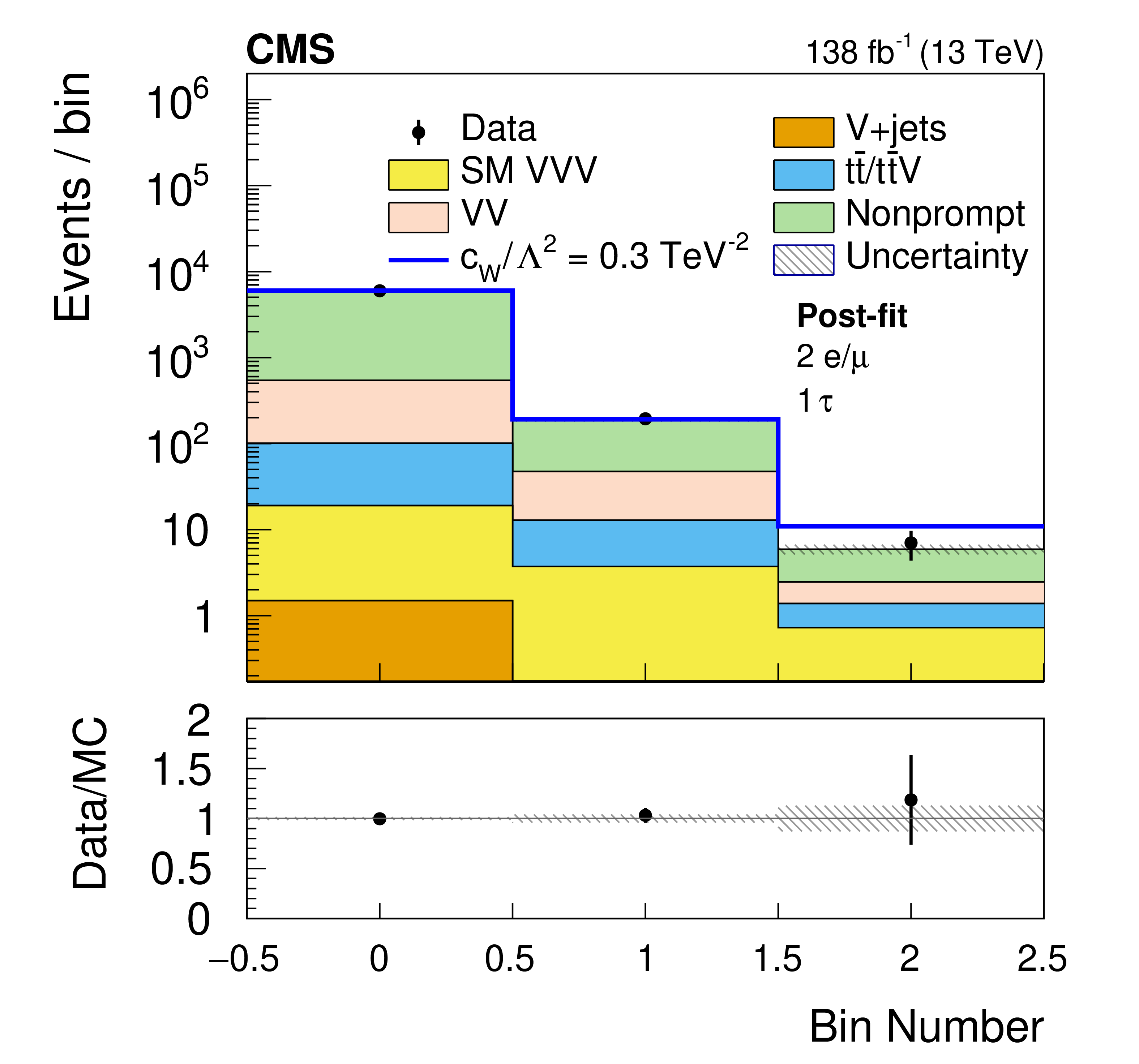

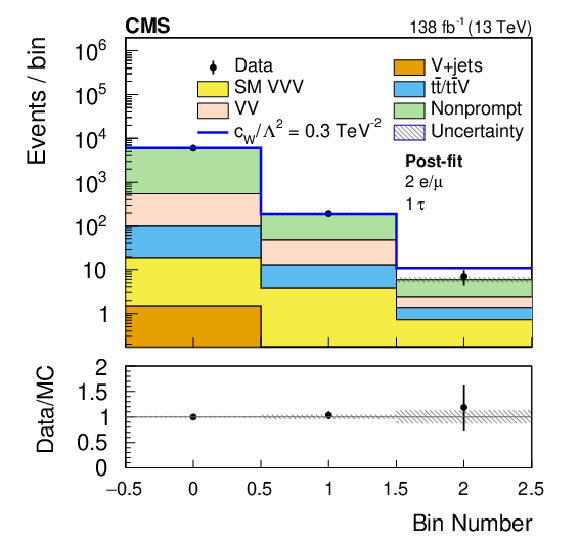

Figure 10-b:
Comparison of the post-fit distributions binned in the BDT score and $ S_\text{T} $ for the SR-1\ell-1$ \tau_\mathrm{h} $-1VTJ (left) and SR-2\ell-1$ \tau_\mathrm{h} $-0VTJ (right) signal regions. The shaded bands in the ratio plots represent the MC total uncertainties. The black dots with error bars represent the data with statistical uncertainties.

png pdf

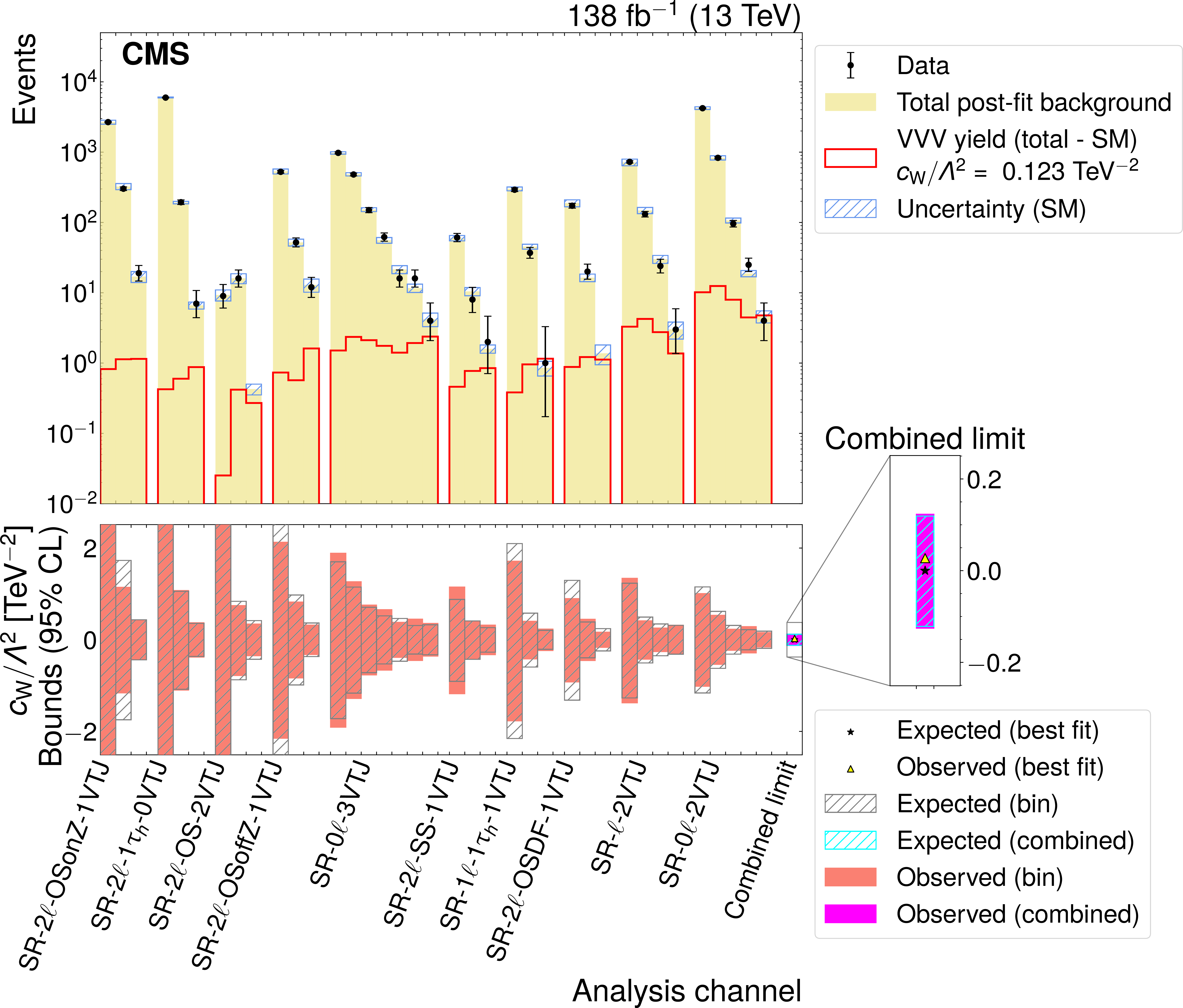

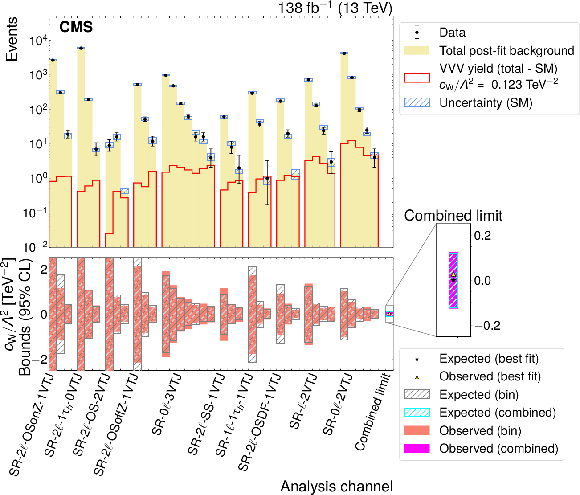

Figure 11:
Summary of the bin-by-bin yields in all signal regions and associated limits on $ c_\mathrm{W}/\Lambda^2 $. The channels are listed from left to right in order of increasing sensitivity to $ c_\mathrm{W}/\Lambda^2 $. In the upper panel, the beige histogram shows the predicted SM yields including SM $ \mathrm{V}\mathrm{V}\mathrm{V} $ production while the red line represents the additional contribution expected when $ c_\mathrm{W}/\Lambda^2 = 0.123 \text{TeV}^{-2} $. The black dots with error bars represent the data with statistical uncertainties. The lower panel shows the expected and observed limits on $ c_\mathrm{W}/\Lambda^2 $ for each bin in each channel. The 95% CL combined limit on $ c_\mathrm{W}/\Lambda^{-2} $ is obtained by performing the fit on all 37 bins; the observed (expected) result is represented by the magenta (cyan) bar.

png pdf

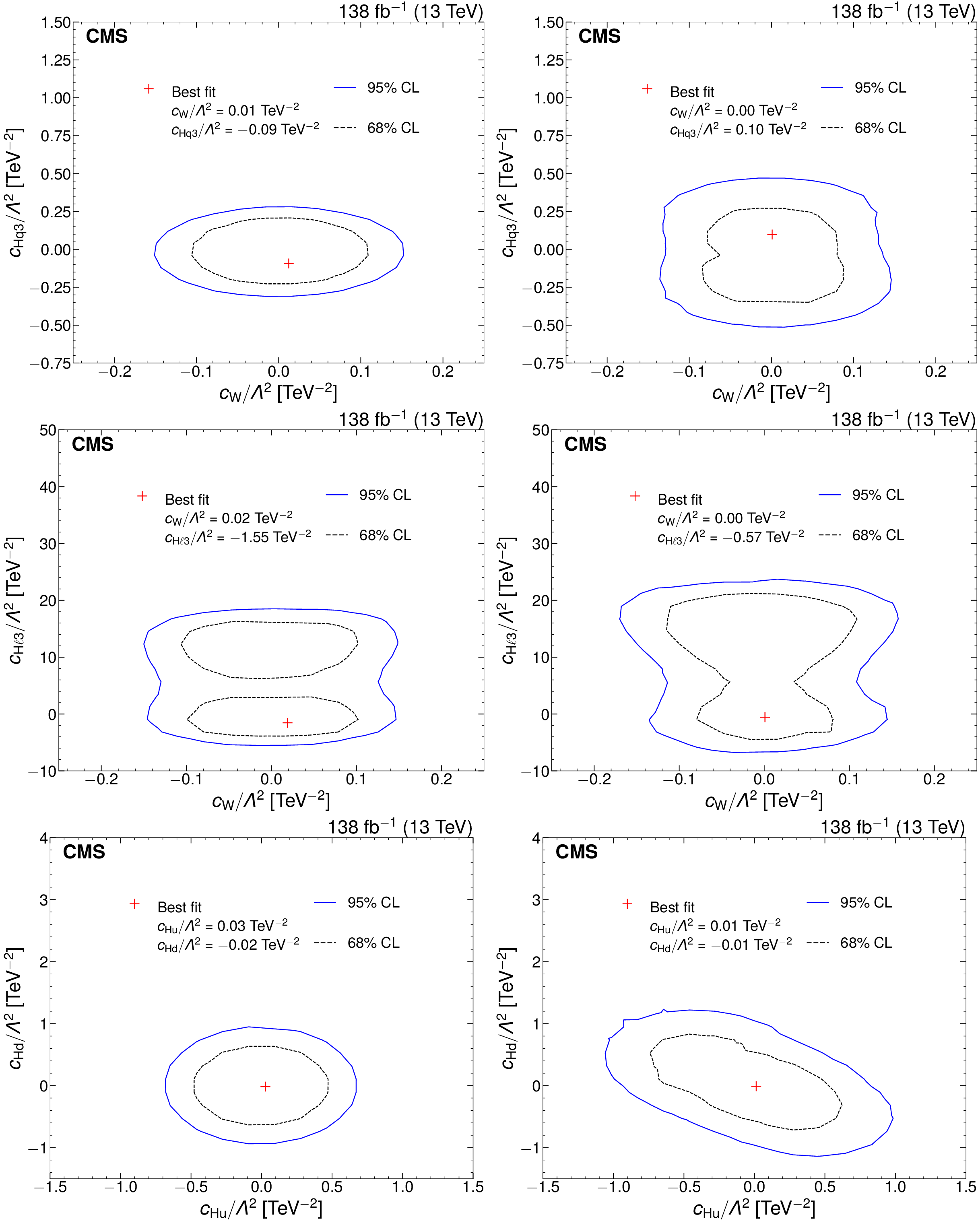

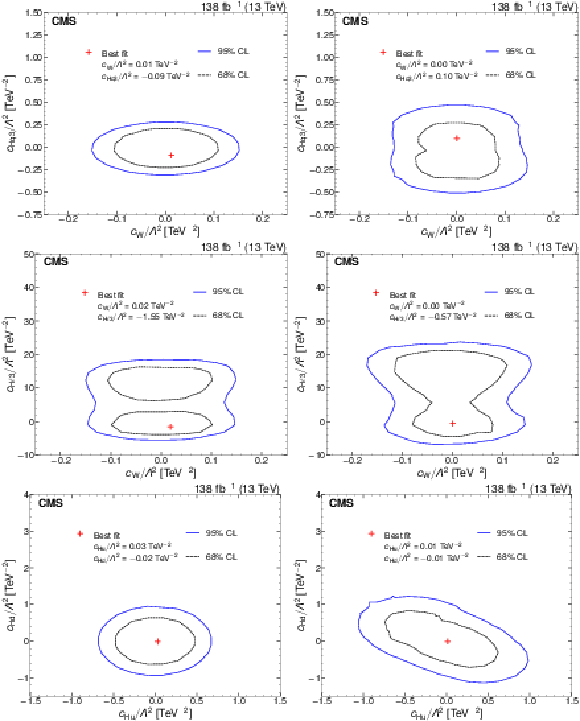

Figure 12:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

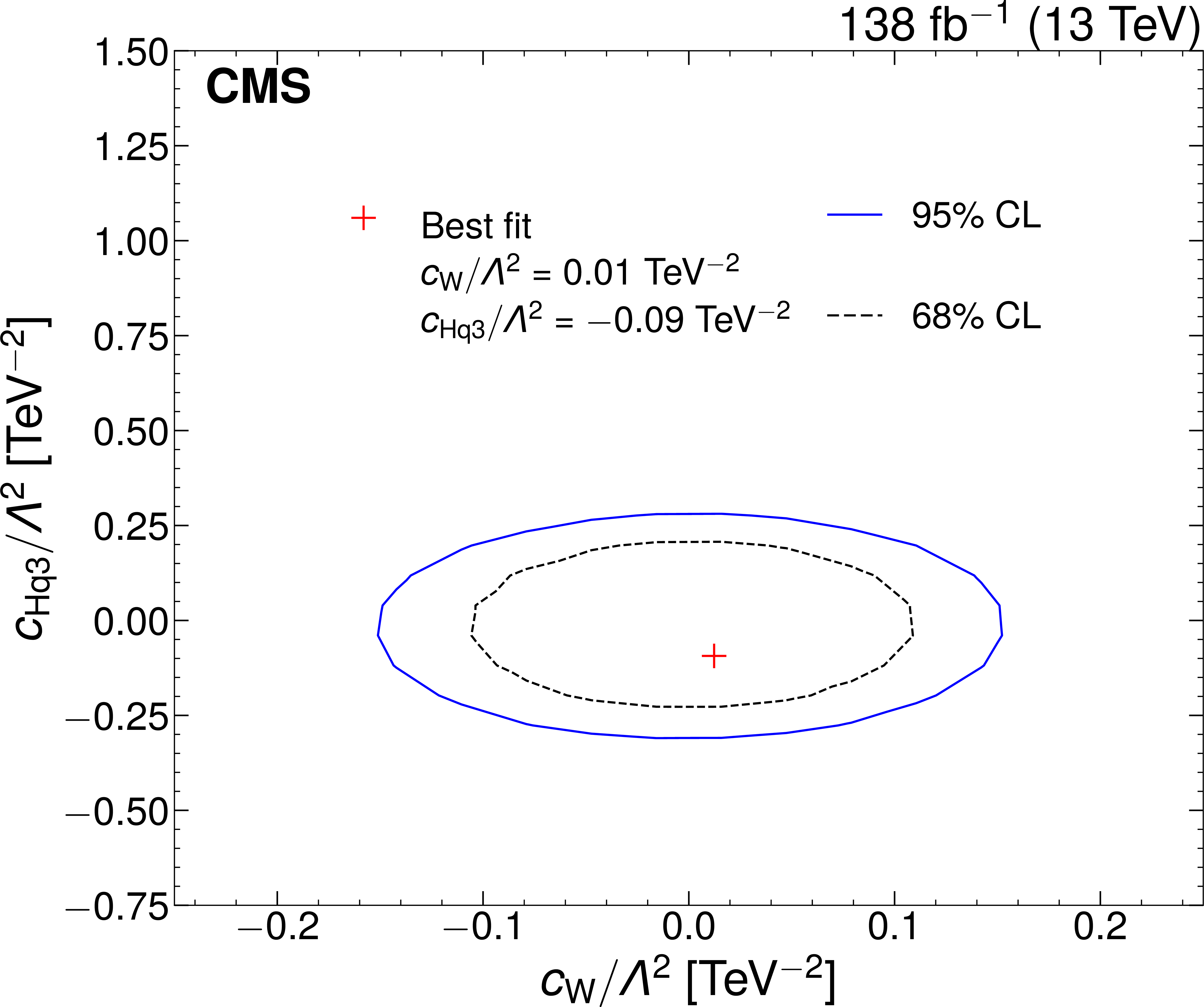

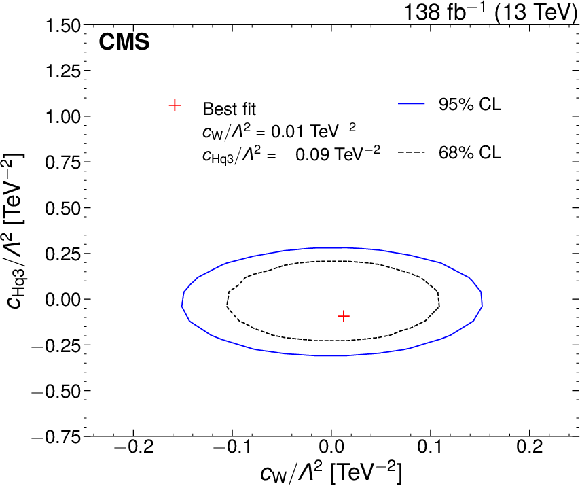

Figure 12-a:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

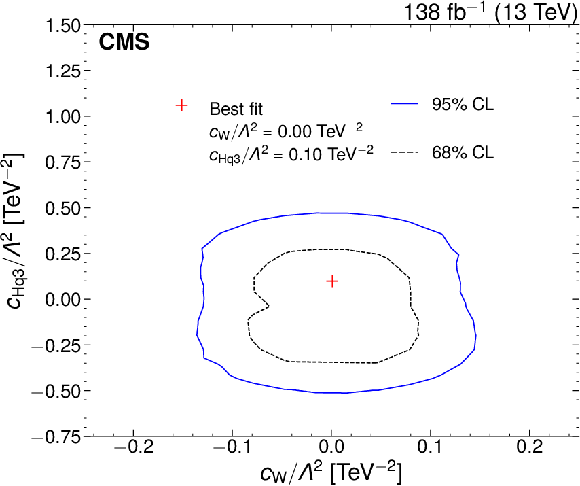

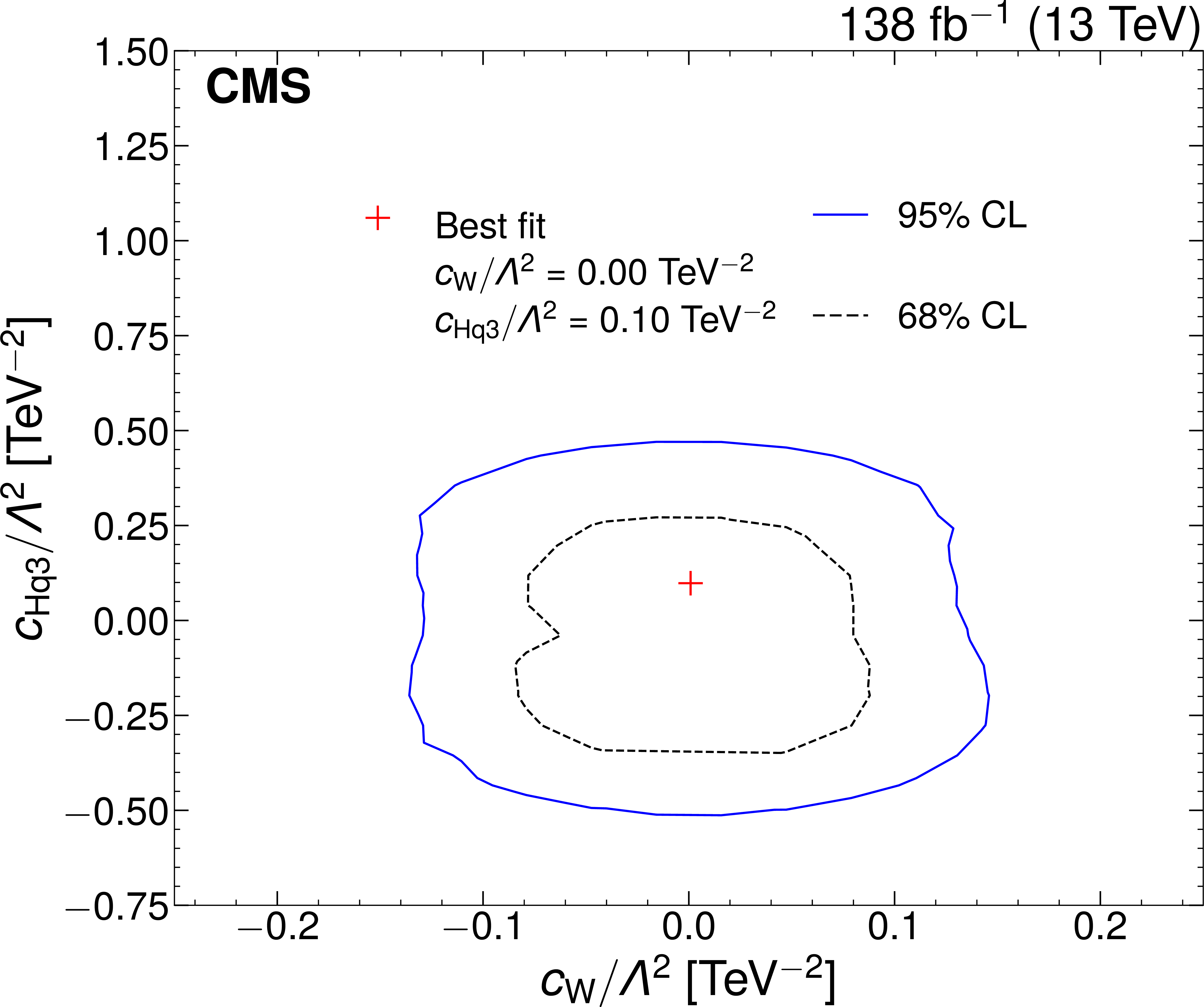

Figure 12-b:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

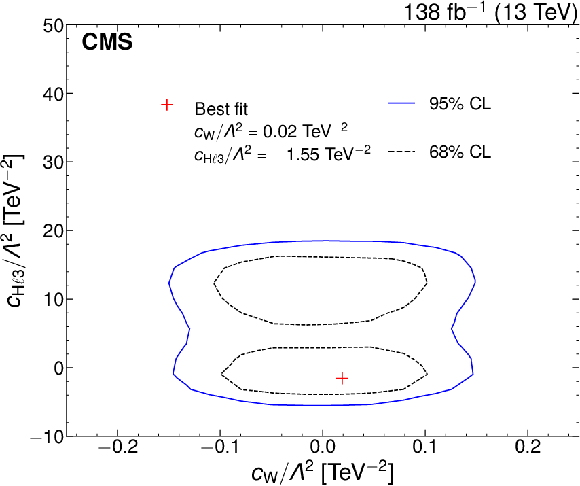

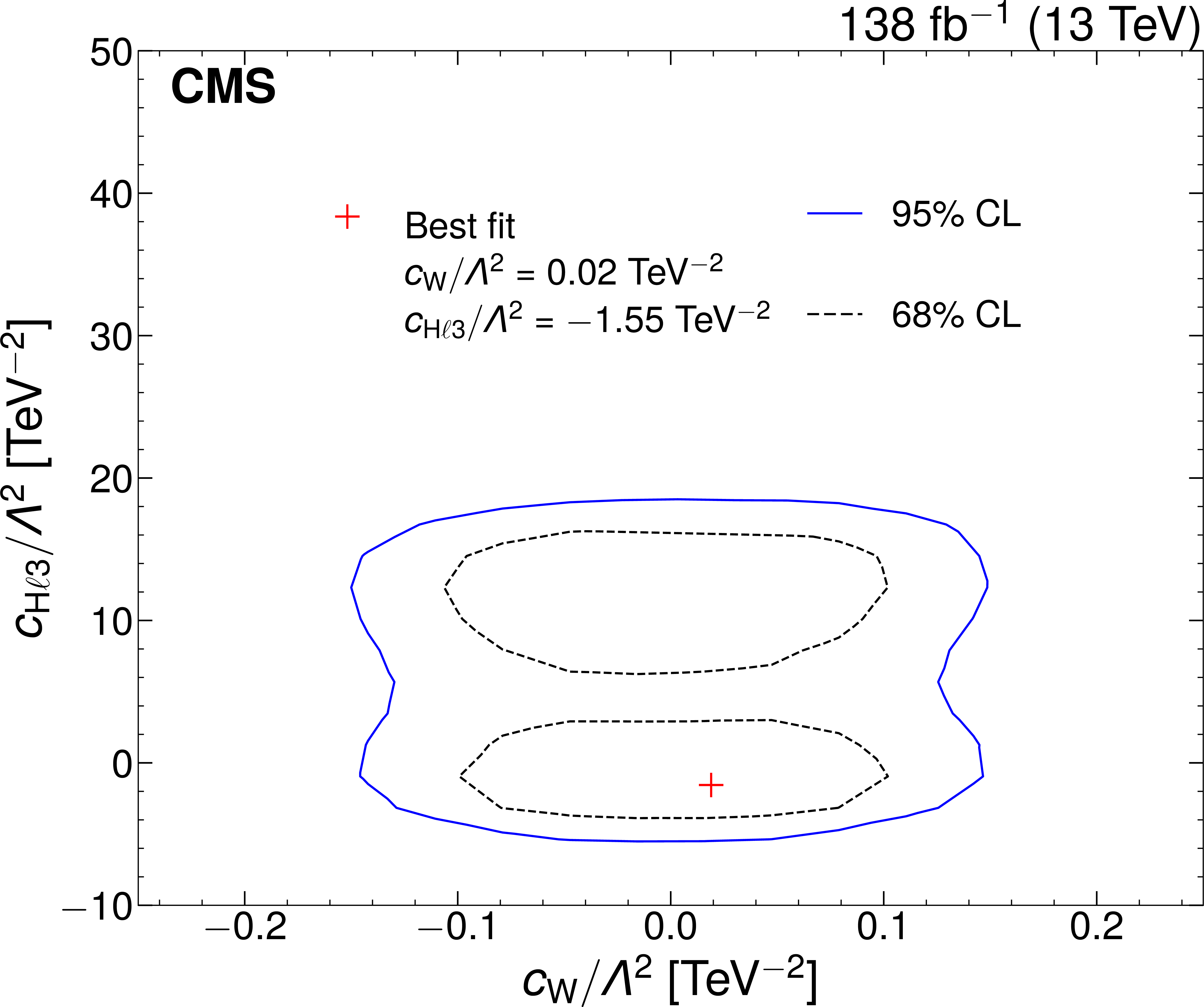

Figure 12-c:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

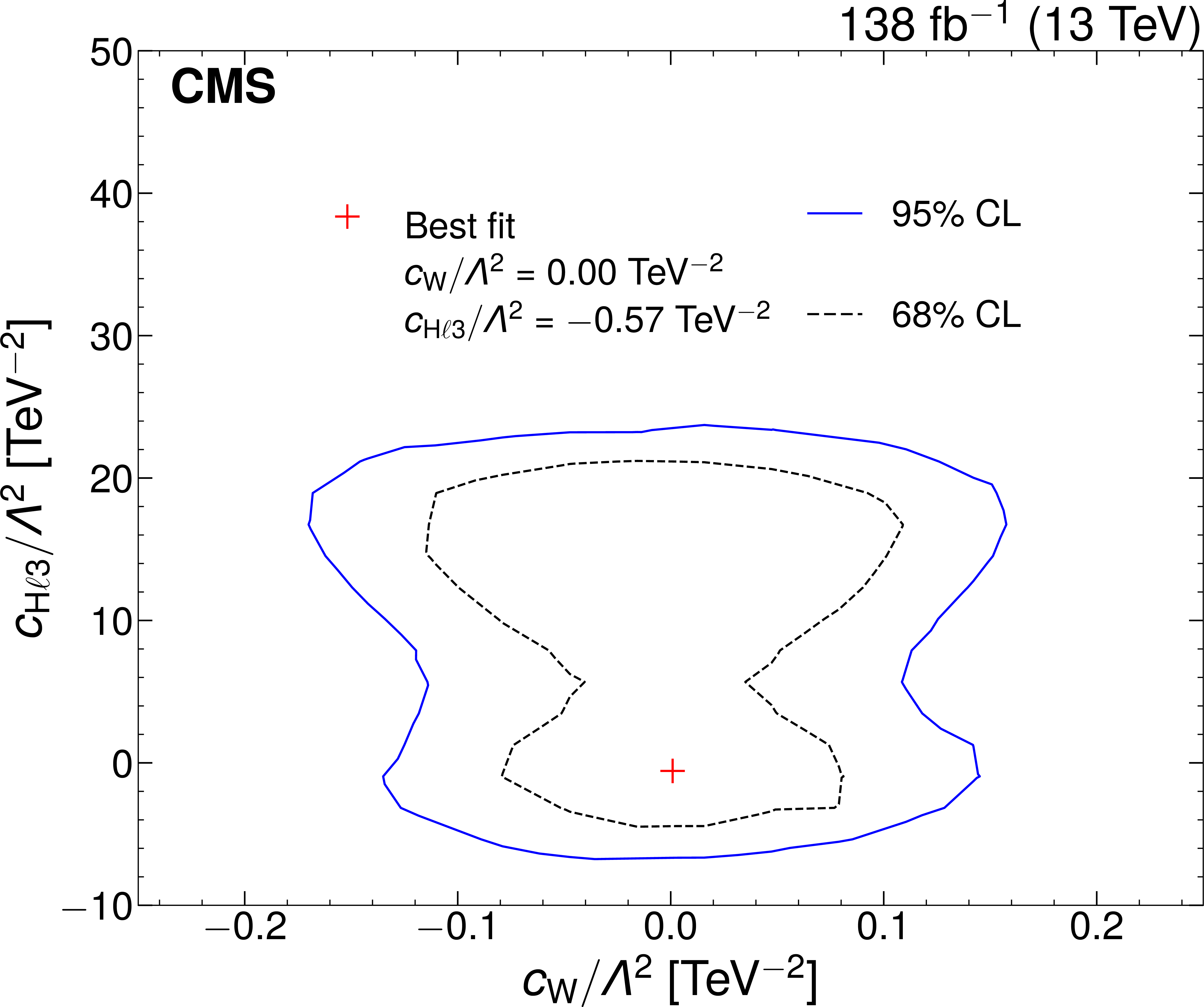

Figure 12-d:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

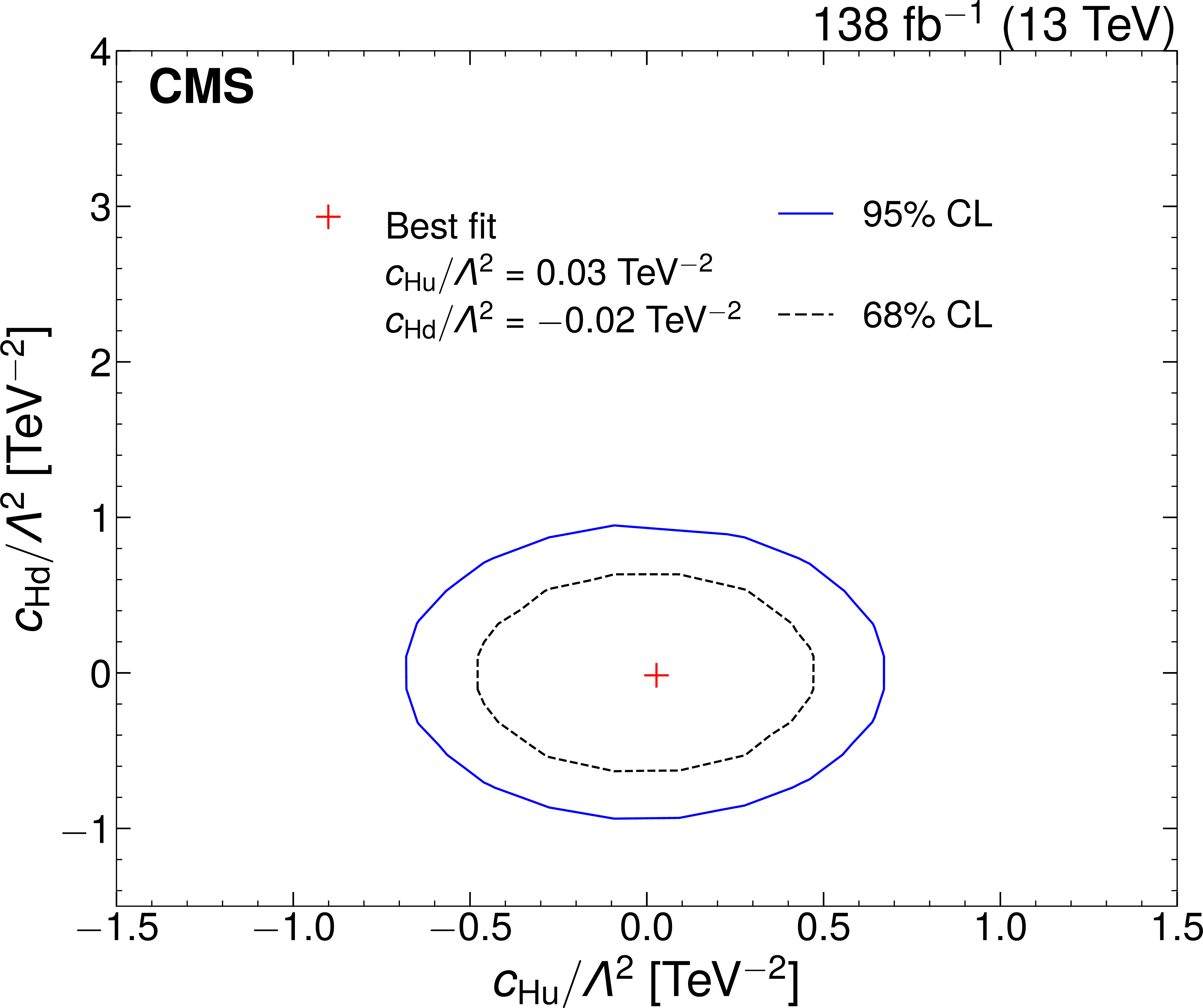

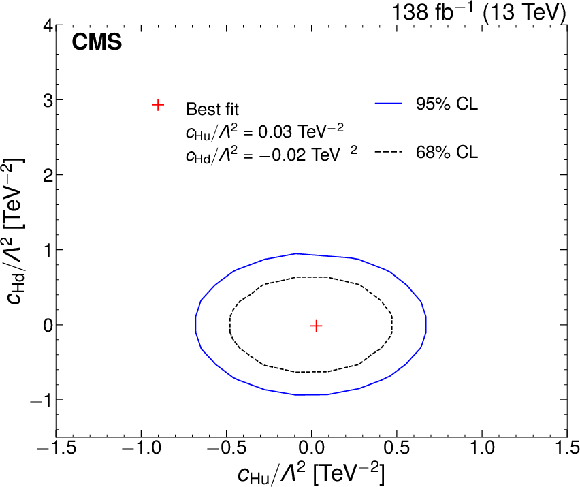

Figure 12-e:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

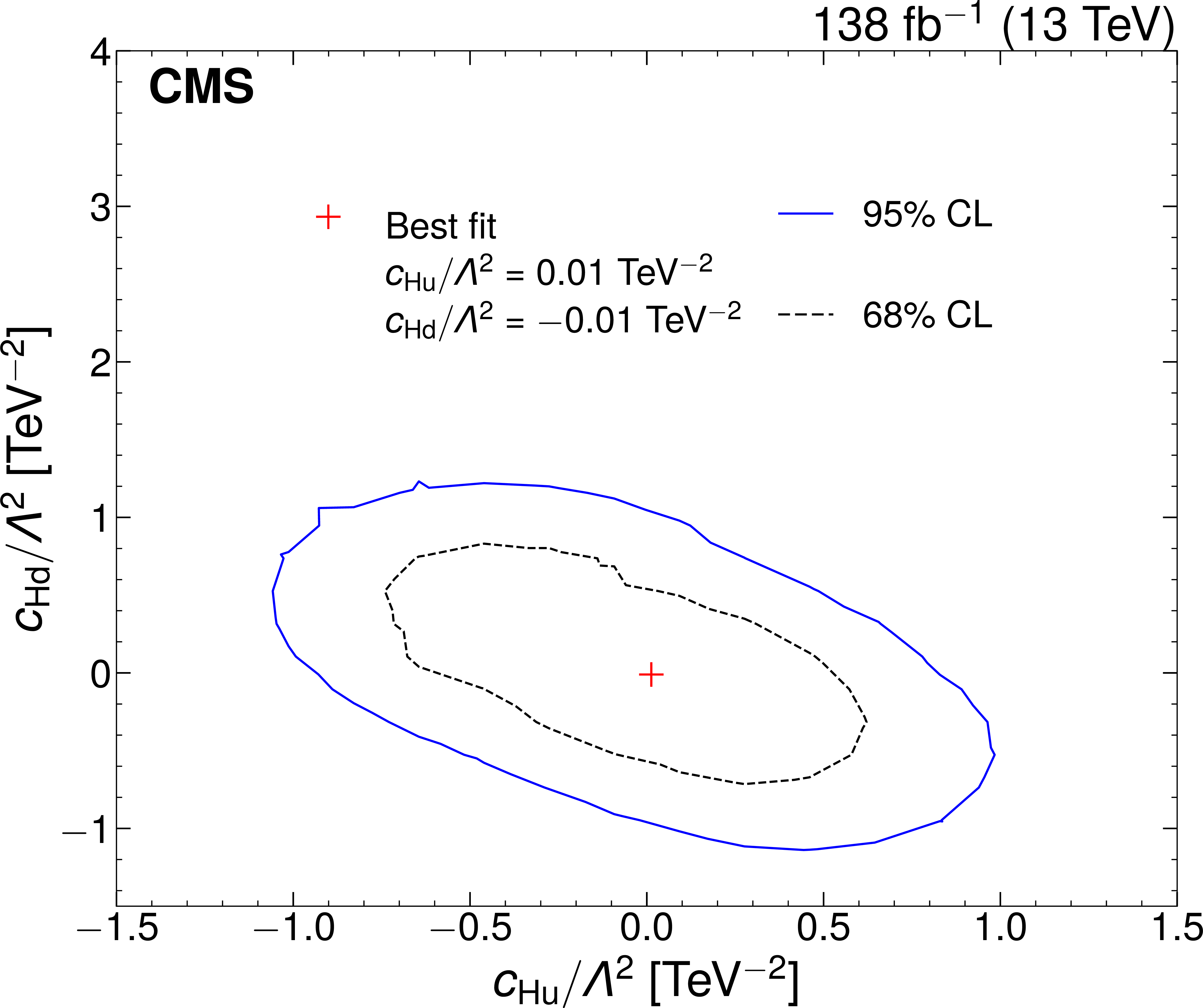

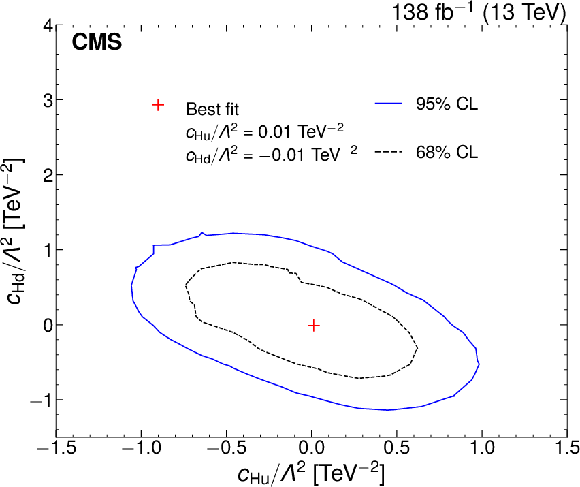

Figure 12-f:
Bounds on pairs of Wilson coefficients. The dashed black (solid blue) curves show the 68% (95%) CL bounds determined by 2D likelihood quantiles. The red plus sign indicates the minimum of 2 $ \Delta $ NLL which can be compared to the SM expectation (i.e.,, zero for both Wilson coefficients). The three plots on the left are made freezing all Wilson coefficients to zero except for the two indicated on the plot. The three plots on the right are made allowing all dim-6 Wilson coefficients to vary simultaneously.

png pdf

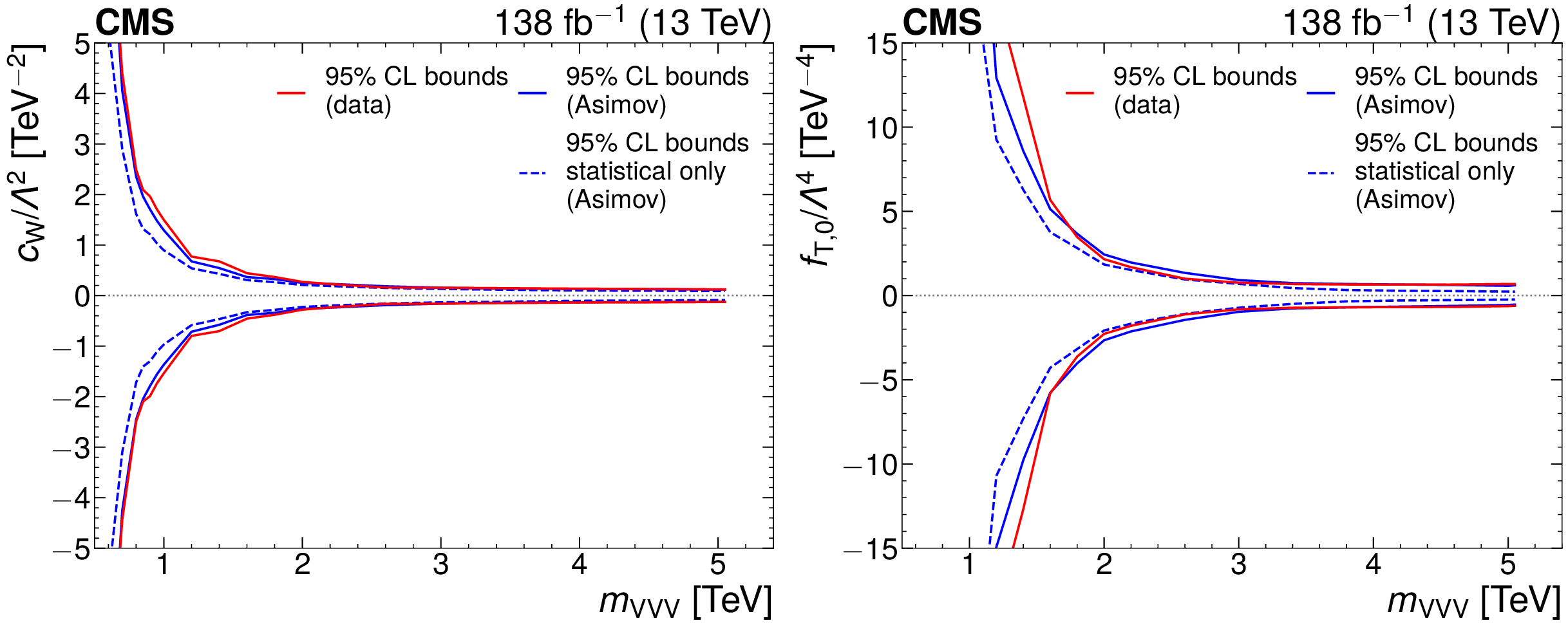

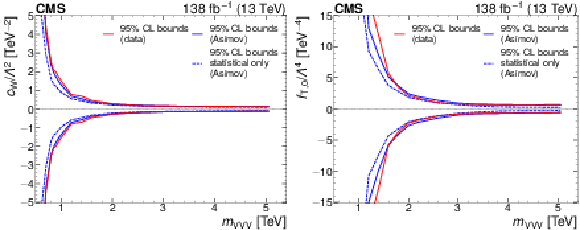

Figure 13:
Illustration of the impact of the clipping procedure. The horizontal axis indicates the threshold values placed in $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ (see text). When the threshold is high, there is little impact and the bounds on Wilson coefficients $ c_\mathrm{W}/\Lambda^2 $ (left) and $ f_{T,0}/\Lambda^4 $ (right) are essentially the same as reported in Tables 5 and 6. As the upper bound on $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ is reduced, however, the bounds on Wilson coefficients weaken substantially. The solid (dashed) blue lines show the expected bounds computing using Asimov [56] data sets including all (statistical) uncertainties.

png pdf

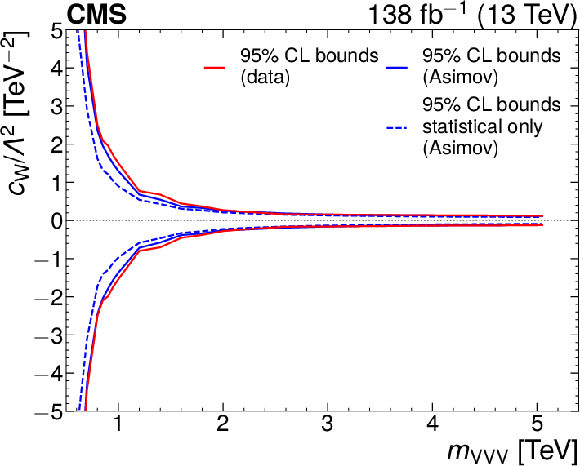

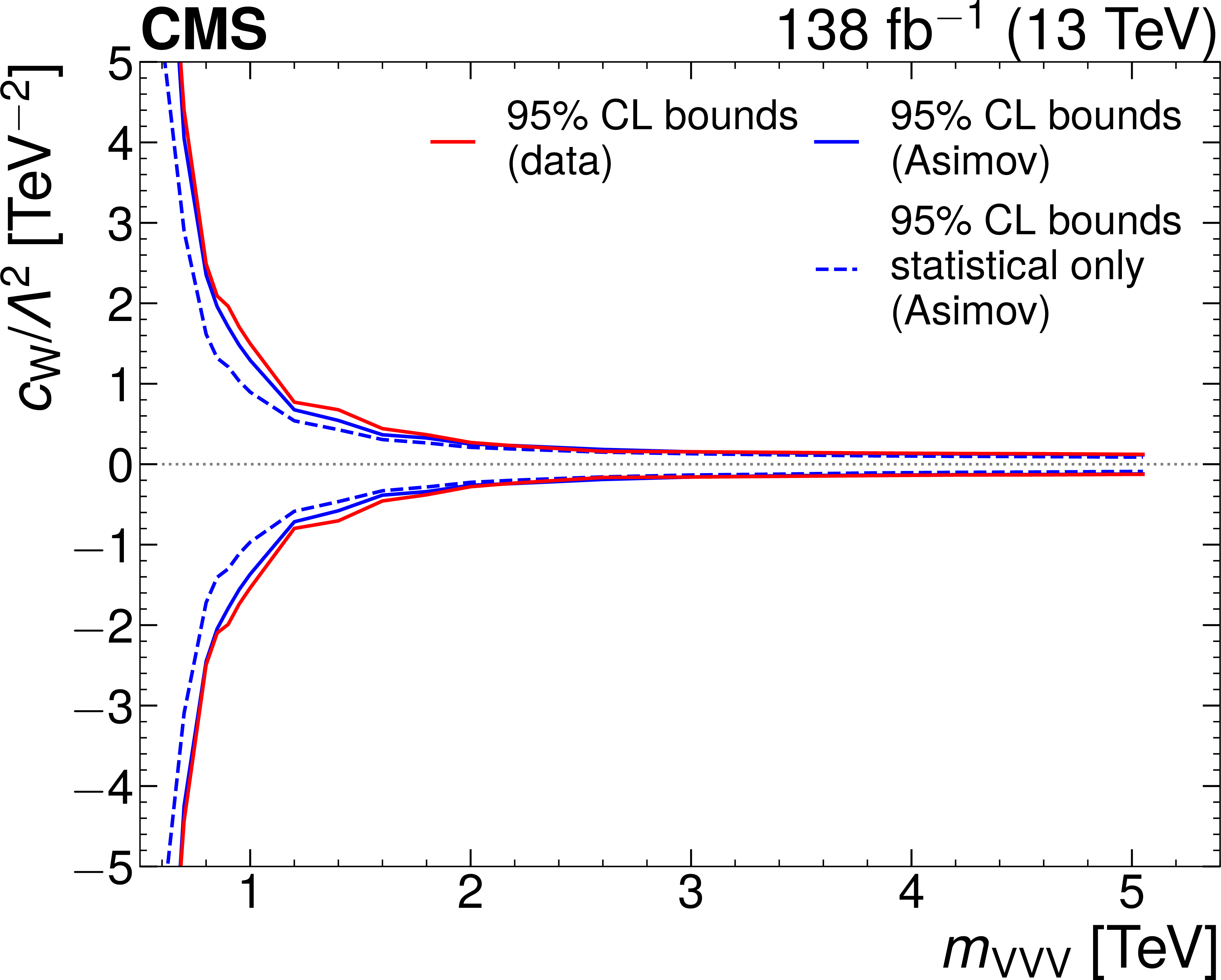

Figure 13-a:
Illustration of the impact of the clipping procedure. The horizontal axis indicates the threshold values placed in $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ (see text). When the threshold is high, there is little impact and the bounds on Wilson coefficients $ c_\mathrm{W}/\Lambda^2 $ (left) and $ f_{T,0}/\Lambda^4 $ (right) are essentially the same as reported in Tables 5 and 6. As the upper bound on $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ is reduced, however, the bounds on Wilson coefficients weaken substantially. The solid (dashed) blue lines show the expected bounds computing using Asimov [56] data sets including all (statistical) uncertainties.

png pdf

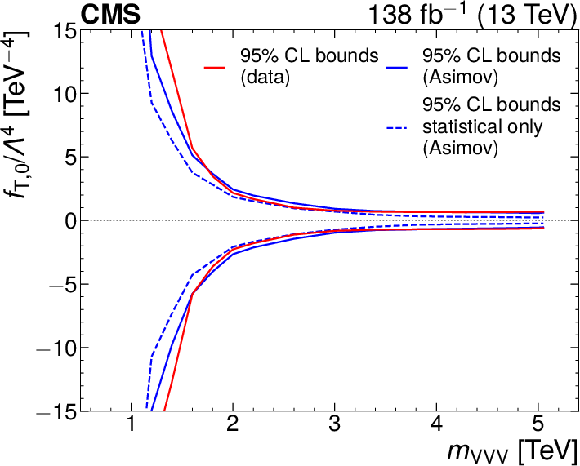

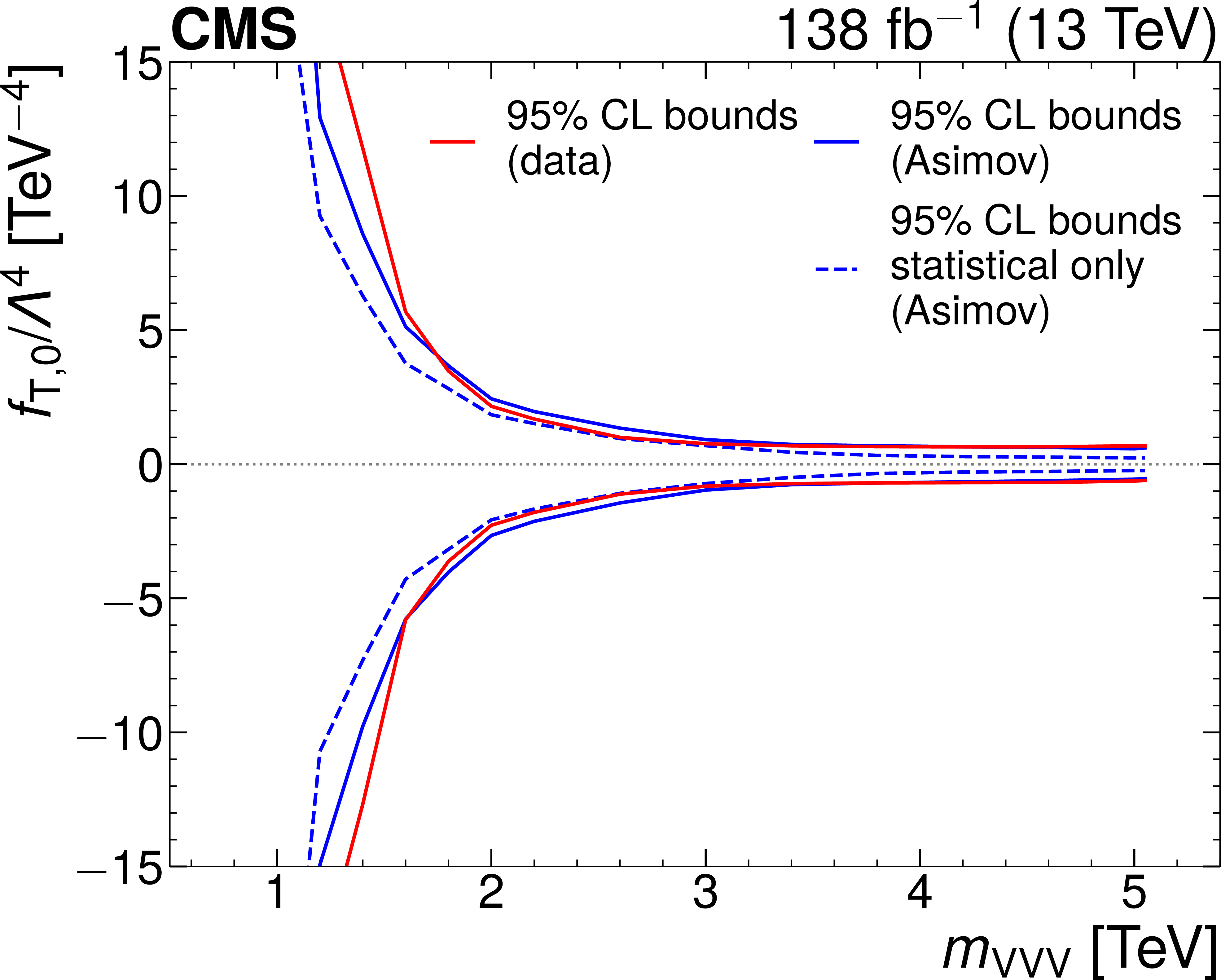

Figure 13-b:
Illustration of the impact of the clipping procedure. The horizontal axis indicates the threshold values placed in $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ (see text). When the threshold is high, there is little impact and the bounds on Wilson coefficients $ c_\mathrm{W}/\Lambda^2 $ (left) and $ f_{T,0}/\Lambda^4 $ (right) are essentially the same as reported in Tables 5 and 6. As the upper bound on $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ is reduced, however, the bounds on Wilson coefficients weaken substantially. The solid (dashed) blue lines show the expected bounds computing using Asimov [56] data sets including all (statistical) uncertainties.

png pdf

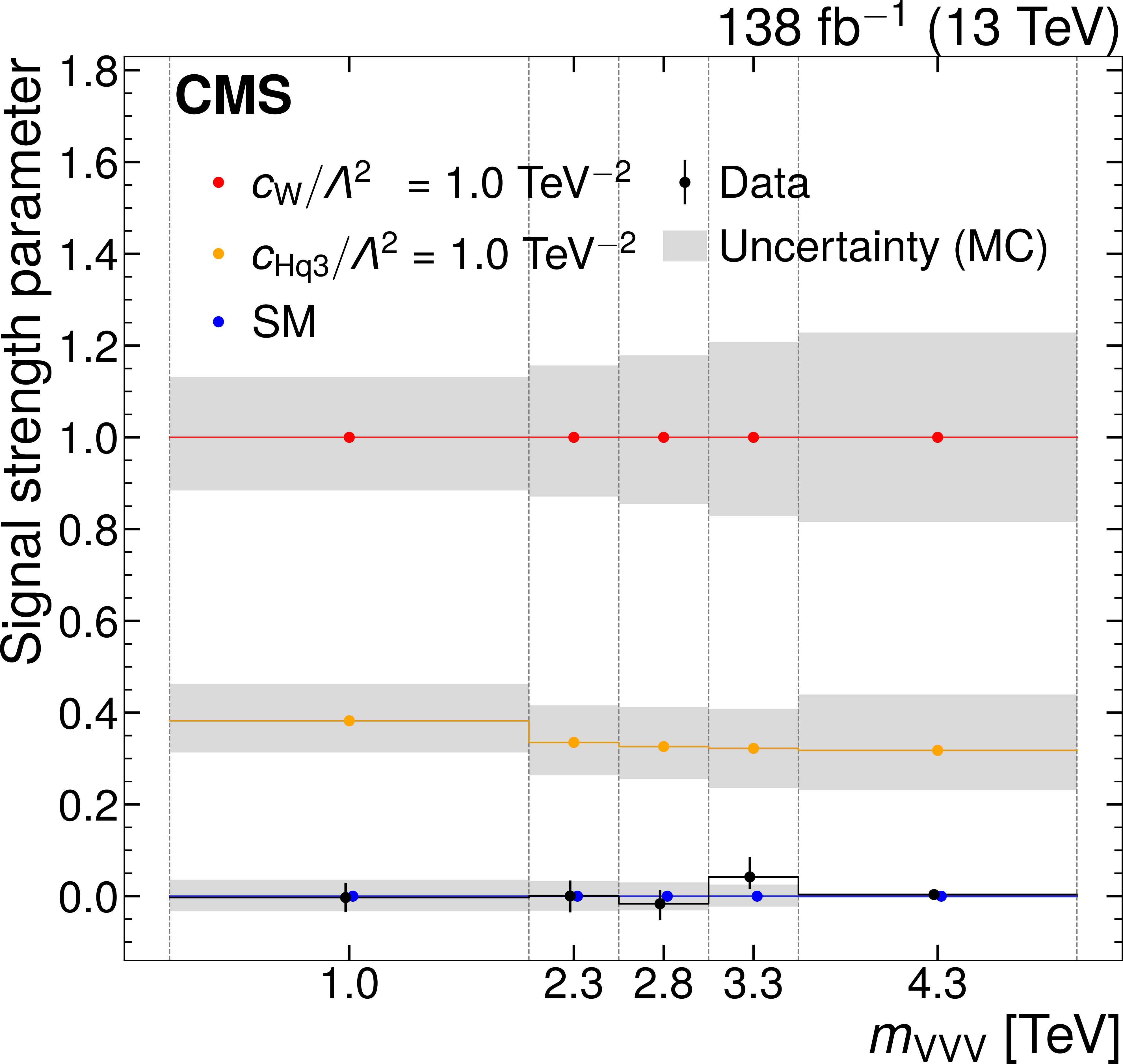

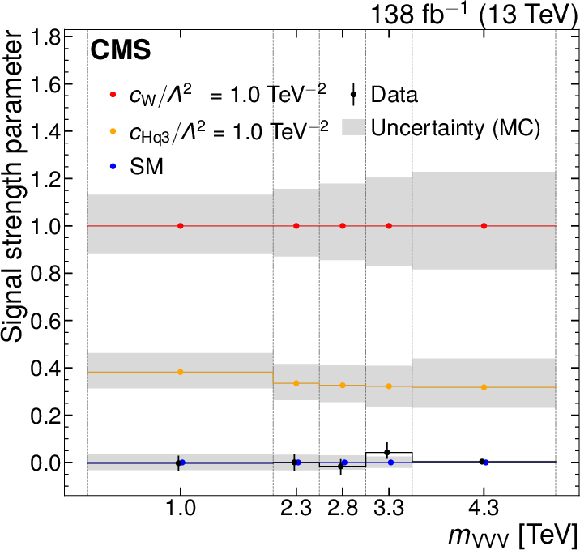

Figure 14:
Visual summary of fitted multiplicative values obtained from the template fit. In essence, this plot shows the $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ distribution inferred from the data (black points) which agrees with the SM prediction (blue points). The red and orange points correspond to new physics scenarios (see text). The shaded regions centered on the red, orange, and blue points show the predicted total uncertainties based on fits to Asimov data sets. The error bars for the black dots show the total uncertainties when fitting the data. The black and blue points are slightly displaced to avoid overlap that would obscure them. The values are listed in Table 8.

png pdf

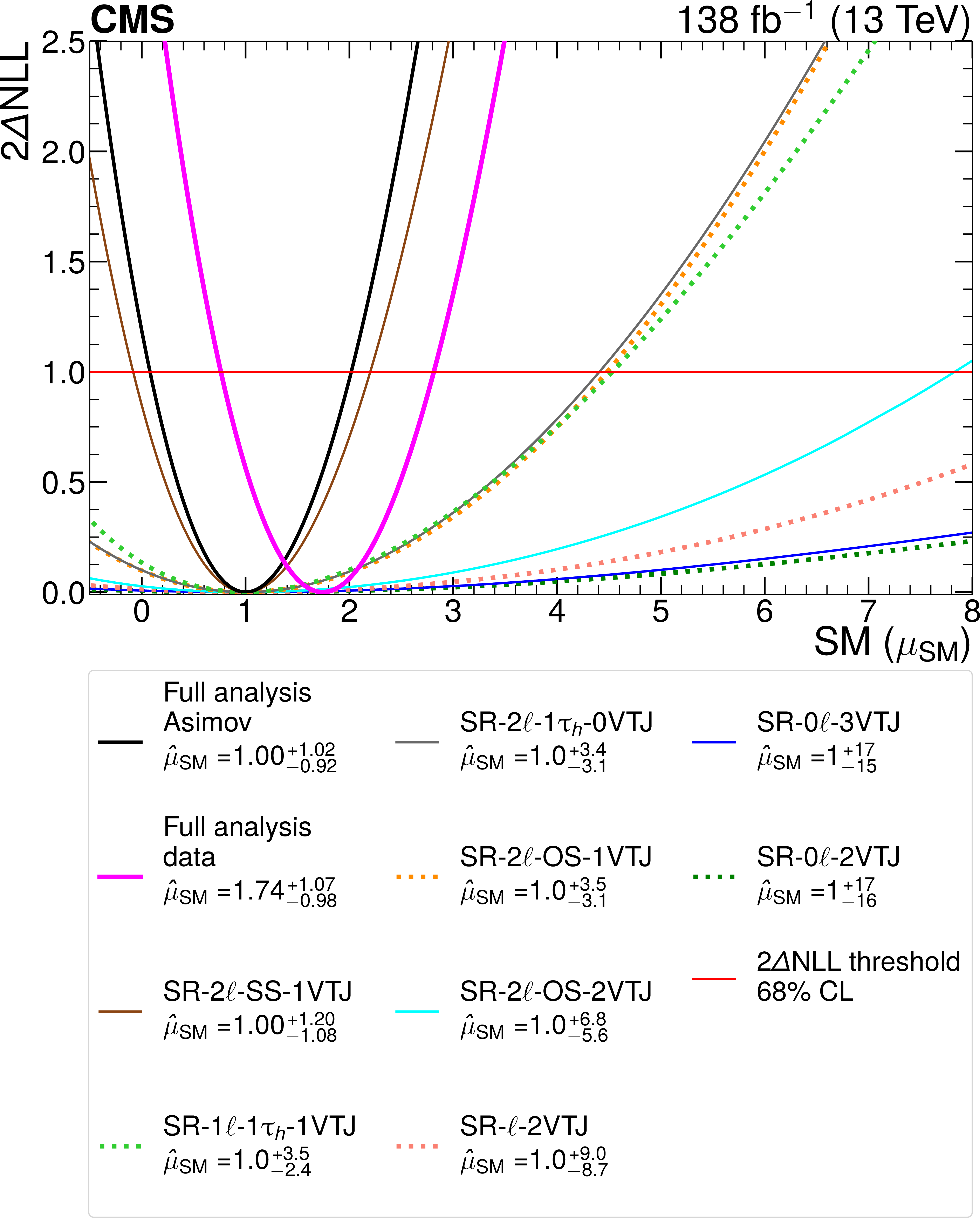

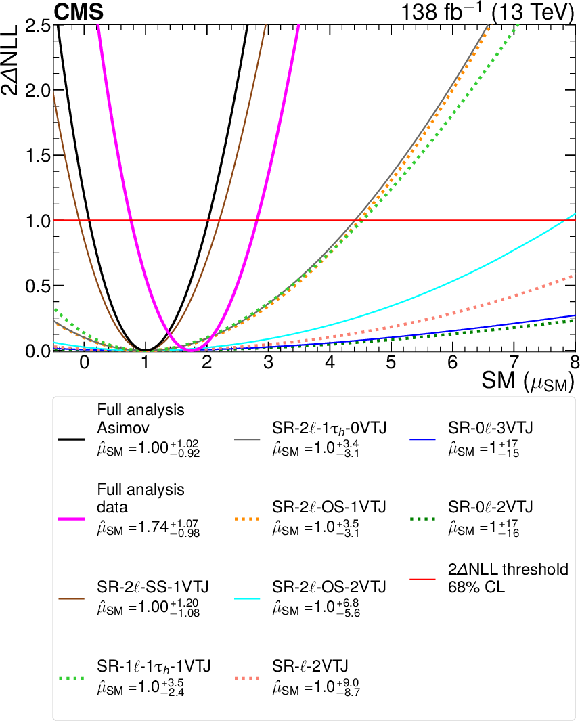

Figure 15:
Sensitivity to the SM $ \mathrm{V}\mathrm{V}\mathrm{V} $ production process. The curves show the variation of 2 $ \Delta $NNL with the SM signal strength, $ \mu_{\text{SM}} $. The Asimov curves for all the channels are shown, and the solid black curve shows the combined Asimov result. The solid magenta curve shows the combined result based on CMS data. Numerical values for 68% CL Asimov intervals and point values are listed in the box below the plot.
Tables

png pdf

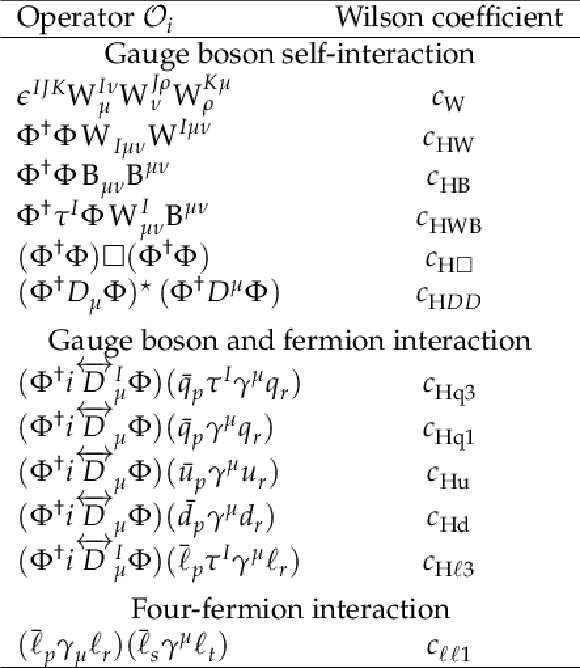

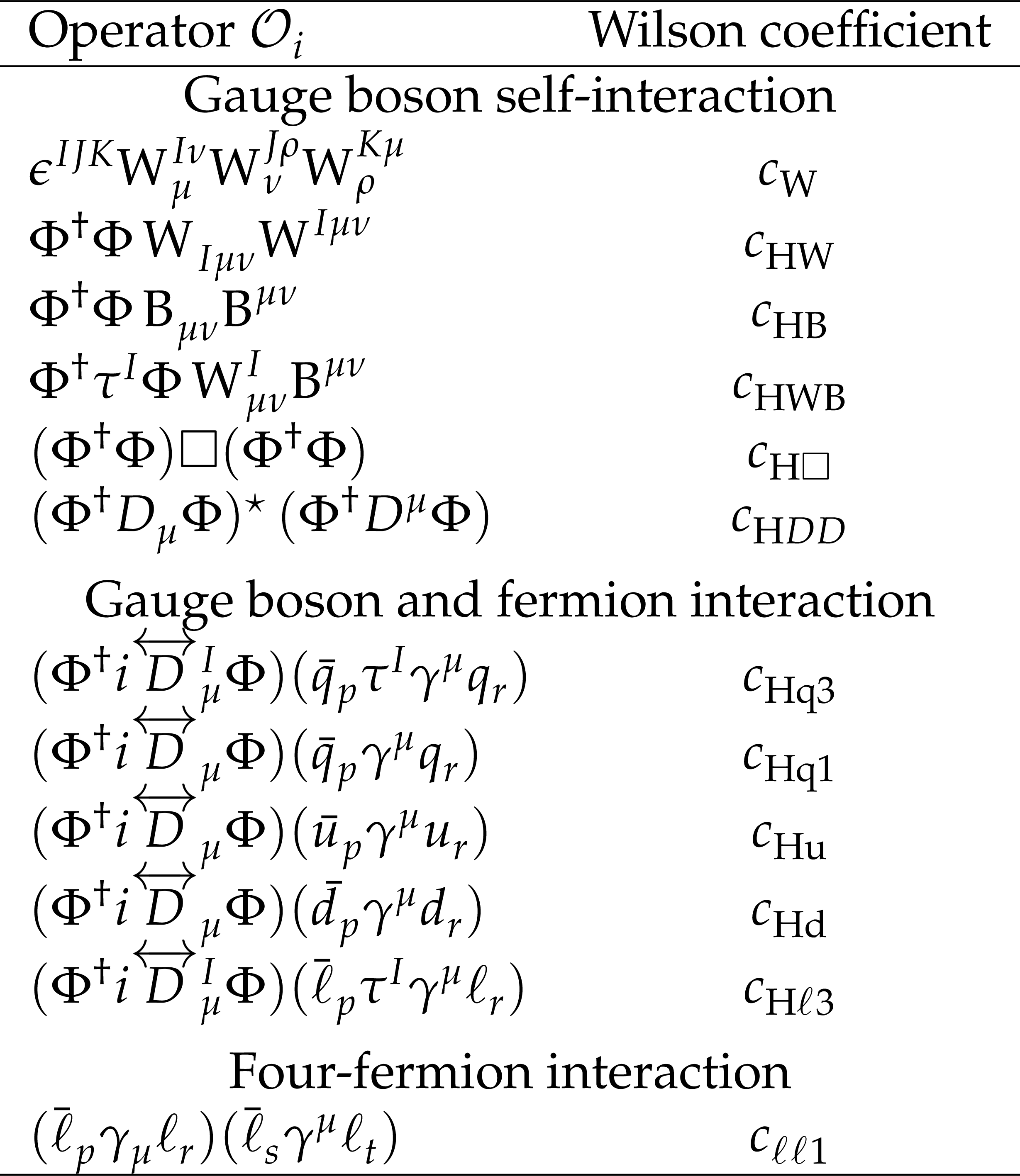

Table 1:
The set of 12 dim-6 operators studied in this analysis

png pdf

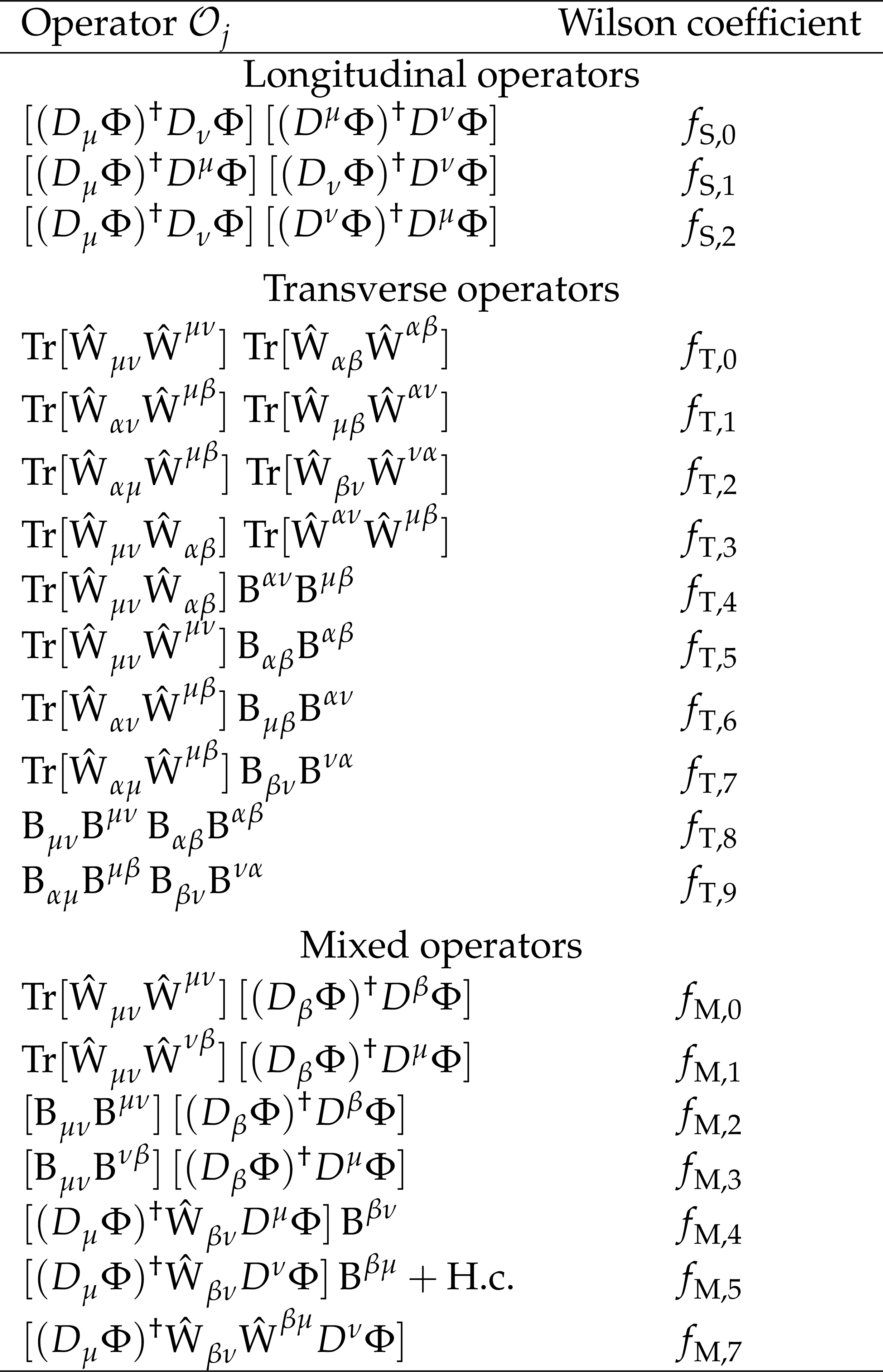

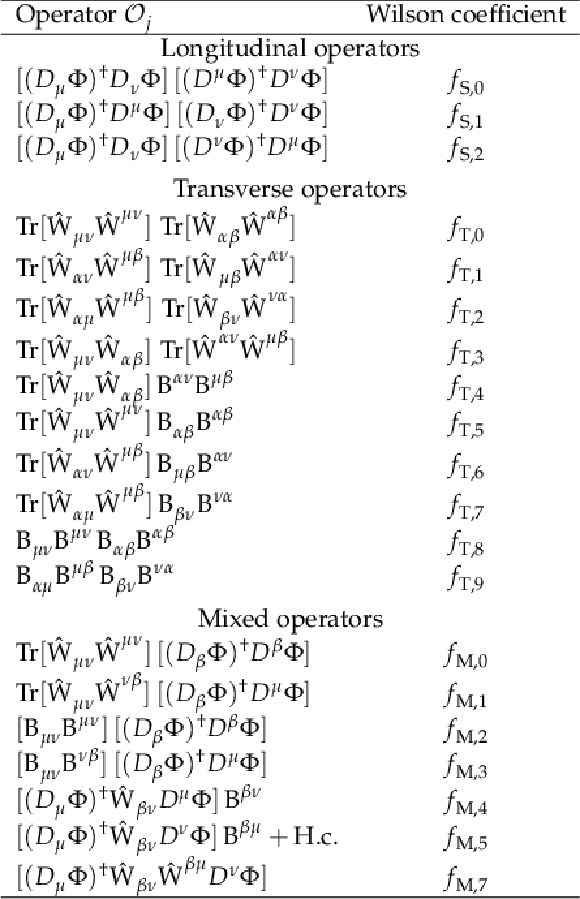

Table 2:
The set of 20 dim-8 operators studied in this analysis. H.c. stands for Hermitian conjugate.

png pdf

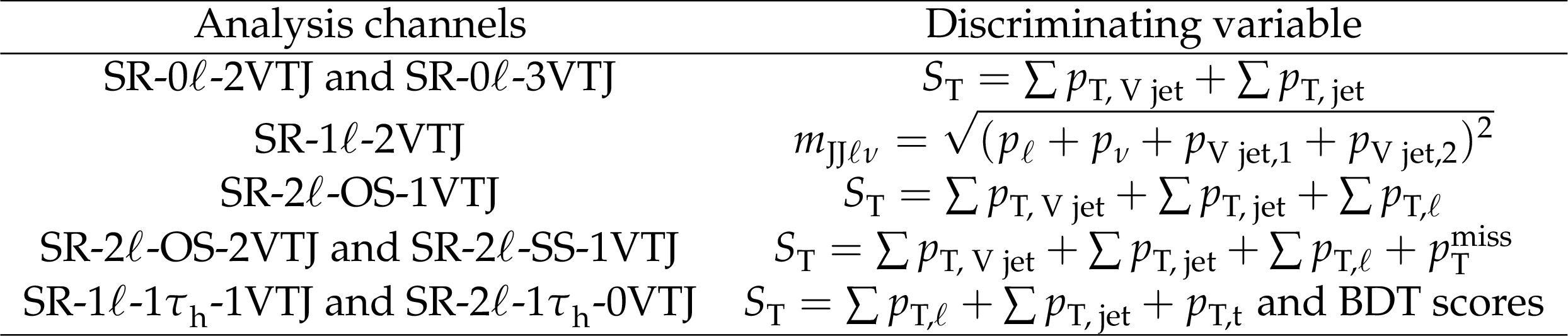

Table 3:
Definitions of the discriminating kinematic variables. Here, SR-2\ell-OS-1VTJ stands for SR-2\ell-OSoffZ-1VTJ, SR-2\ell-OSonZ-1VTJ, and SR-2\ell-OSDF-1VTJ (OSDF stands for opposite-sign, different-flavor). In the definition of $ m_{\mathrm{JJ}\ell\nu} $, $ p $ stands for a four-vector.

png pdf

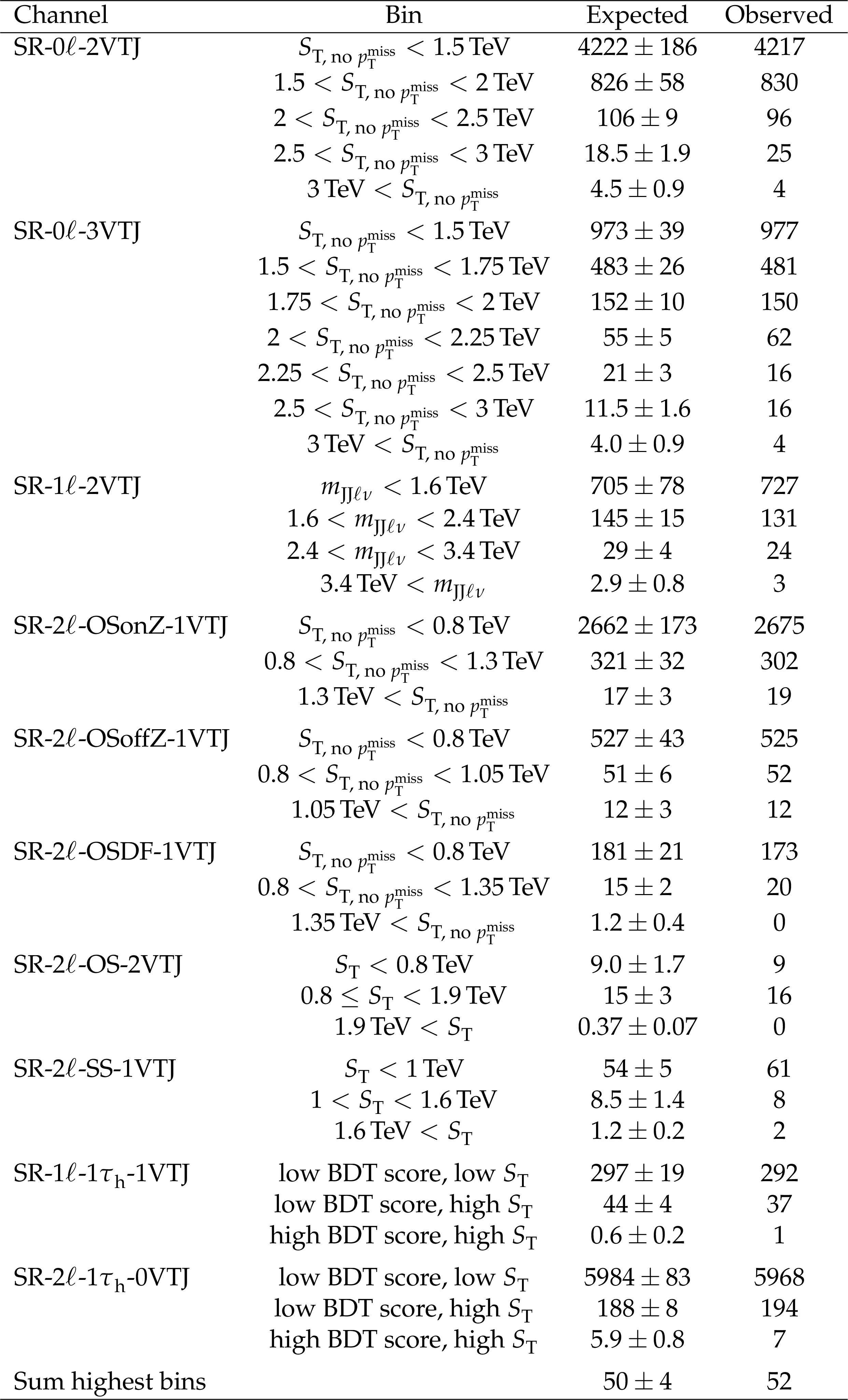

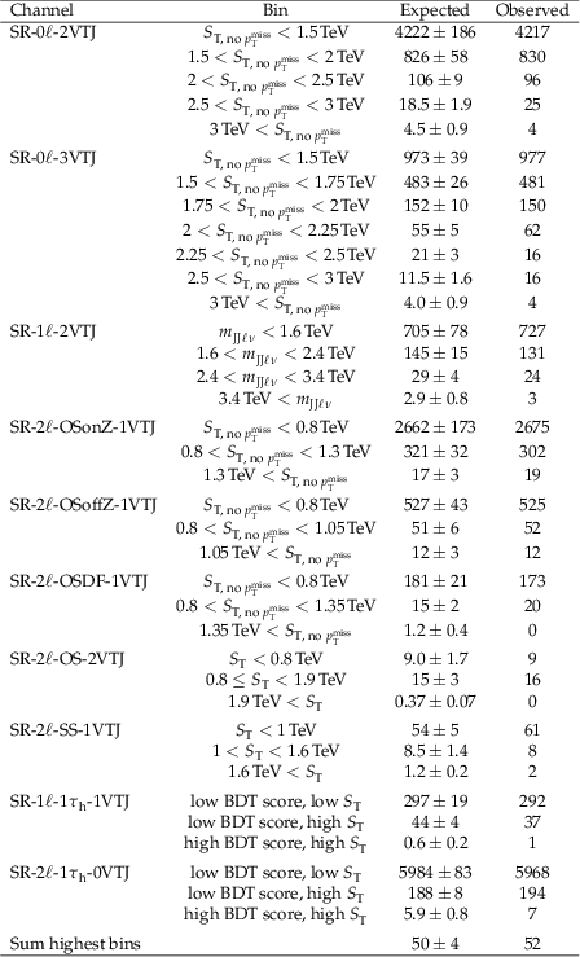

Table 4:
Summary of the SM expected and observed numbers of events. The post-fit uncertainties in the expected numbers of events include all statistical and systematic uncertainties relating to the prediction. The row ``Sum highest bins'' is computed by summing the expected and observed numbers of events for the last bin in each channel; the last bin in each channel is usually the most sensitive one.

png pdf

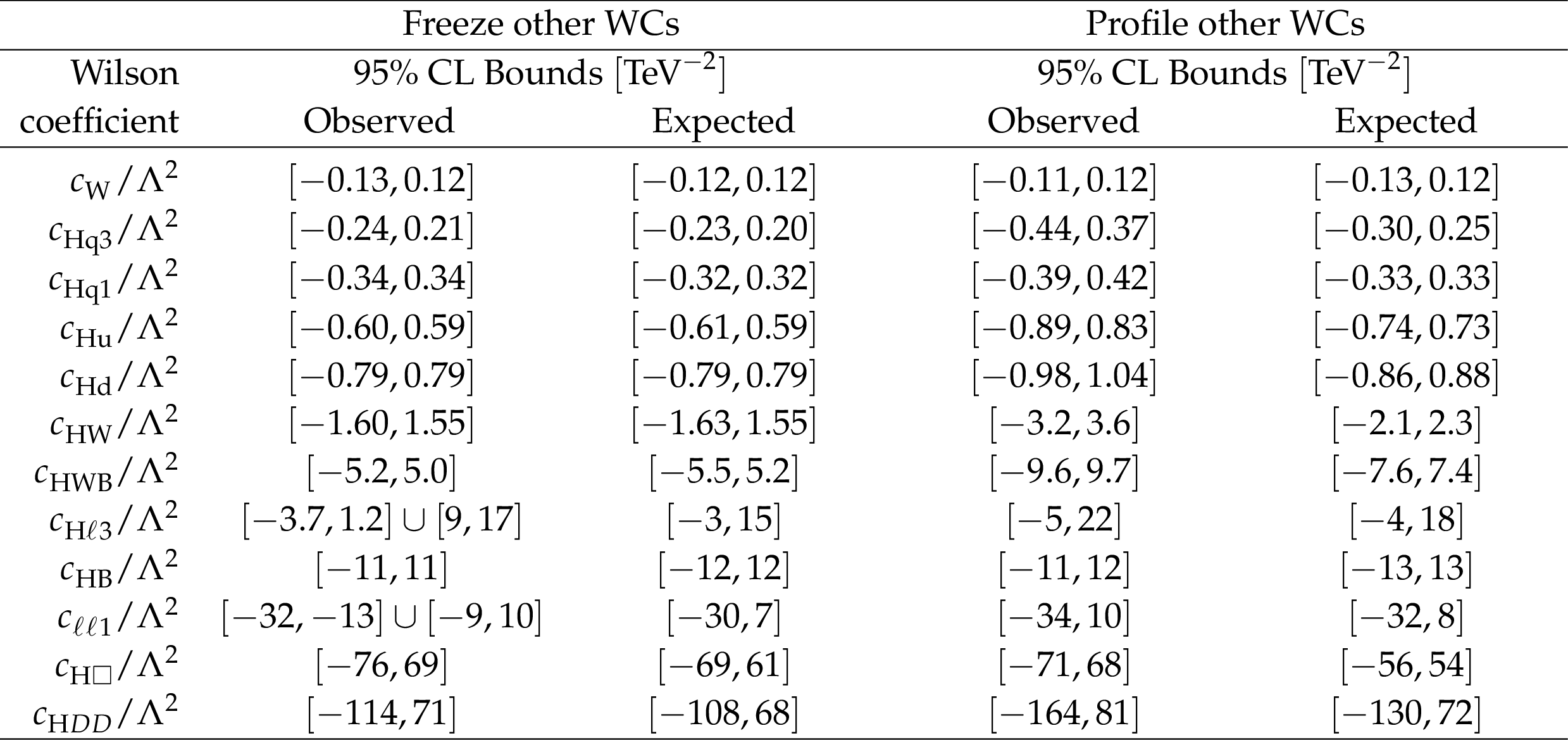

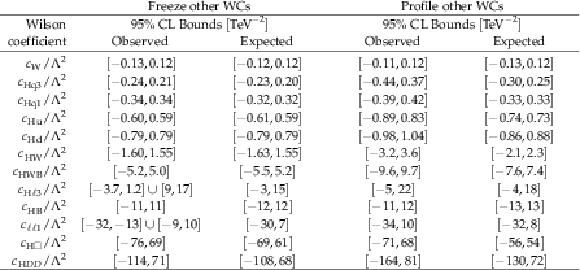

Table 5:
Summary of the 95% CL bounds on the dim-6 Wilson coefficients. We consider the case of a single varying Wilson coefficient (``Freeze other WCs'') as well as the case when the other Wilson coefficients are profiled (``Profile other WCs''). The Wilson coefficients are ordered by increasing confidence interval width.

png pdf

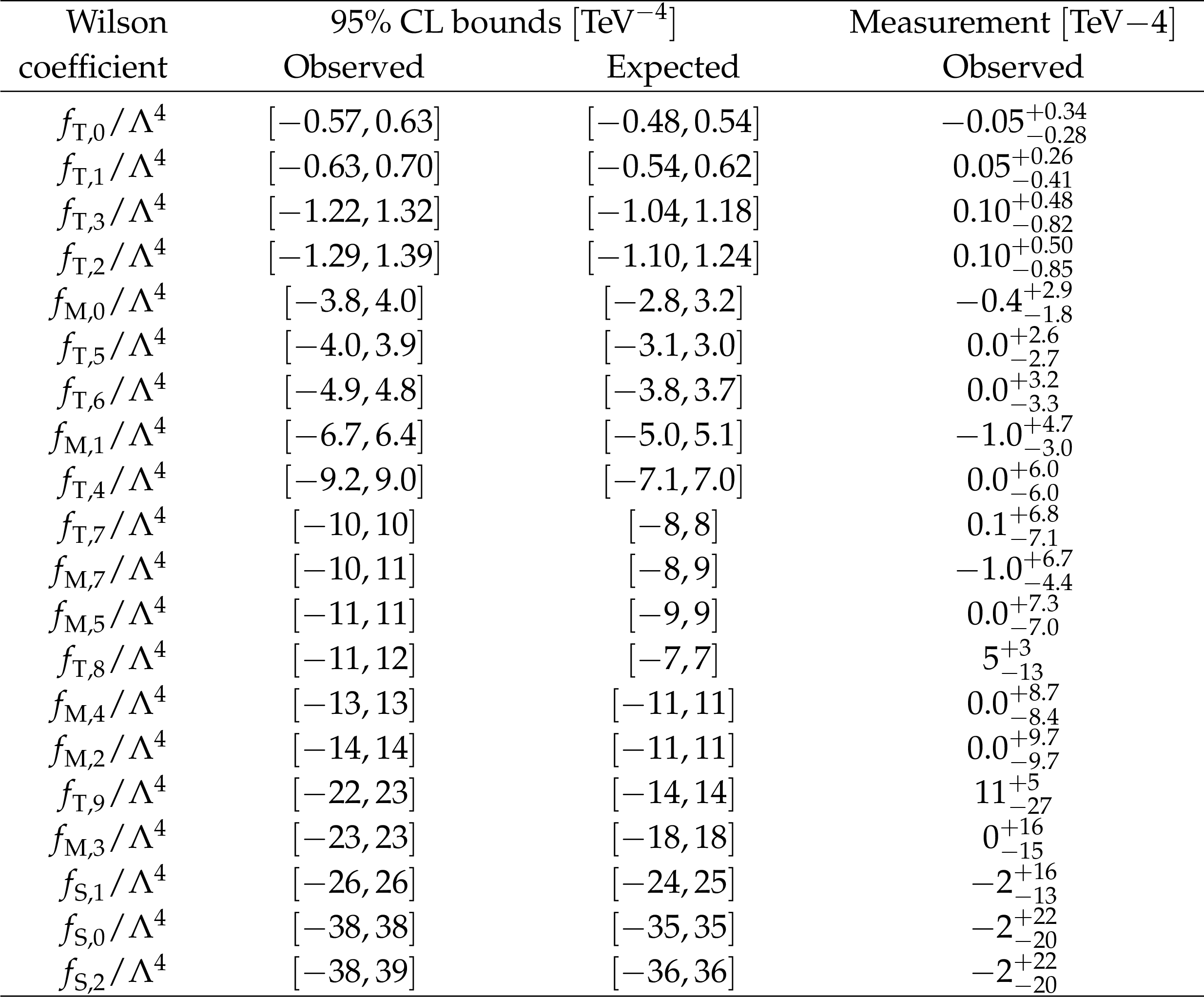

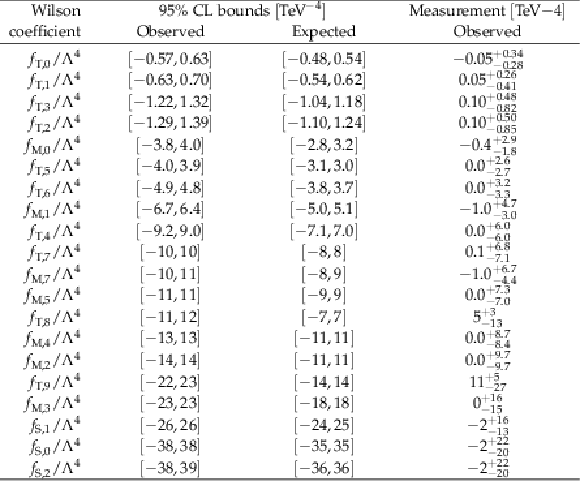

Table 6:
Summary of the 95% CL bounds and measurements on the dim-8 Wilson coefficients, when considering a single varying Wilson coefficient at a time. The Wilson coefficients are ordered by increasing confidence interval width.

png pdf

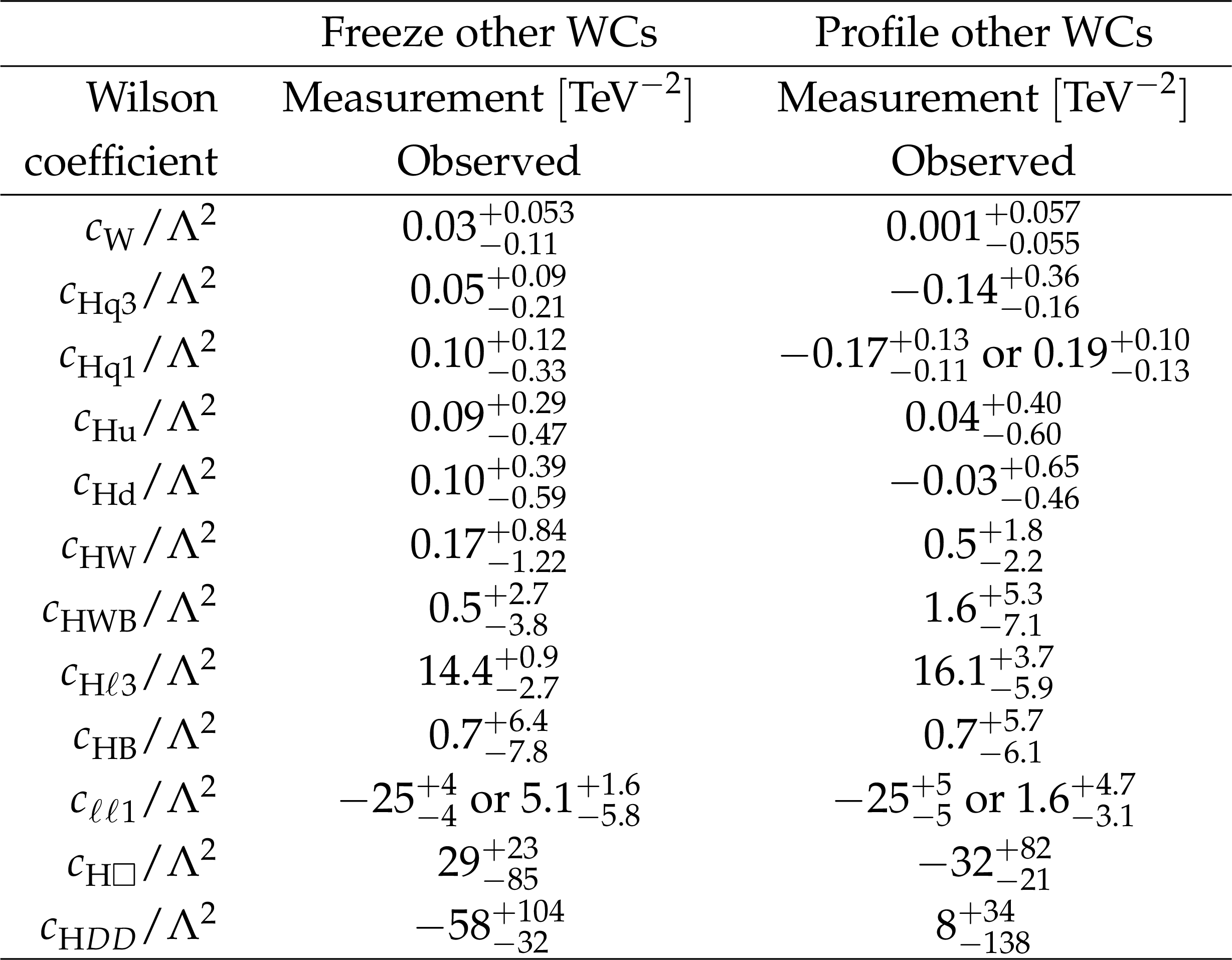

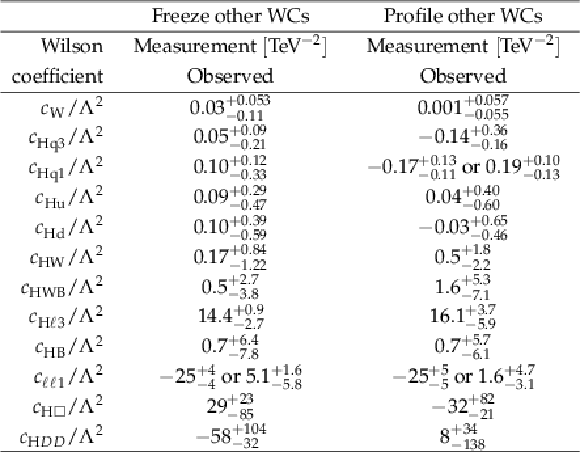

Table 7:
Summary of the measurements of the dim-6 Wilson coefficients. We consider the case of a single varying Wilson coefficient (``Freeze other WCs'') as well as the case when the other Wilson coefficients are profiled (``Profile other WCs'').

png pdf

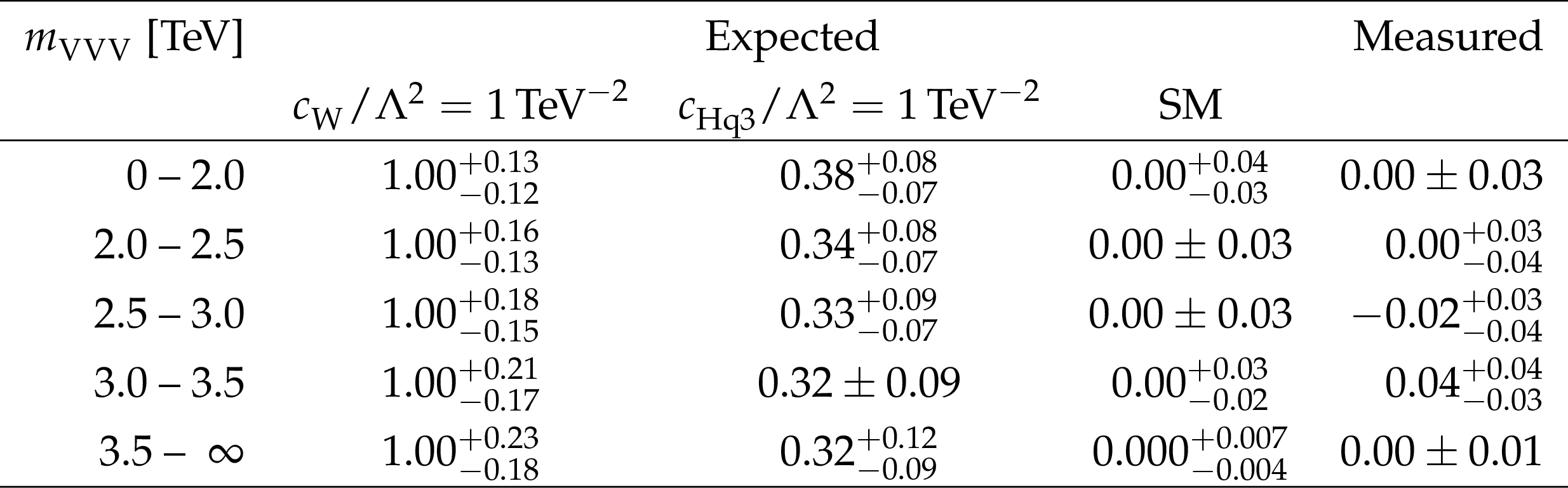

Table 8:
Summary of the fitted multiplicative values in the template fit. The case $ c_\mathrm{W}/\Lambda^2 = 1 \text{TeV}^{-2} $ defines the reference model and $ c_{\text{Hq3}}/\Lambda^2 = 1 \text{TeV}^{-2} $ is an alternative scenario resulting in multiplicative values less than unity. The SM expectation is zero and the measured values are consistent with the SM.
Summary
A search for new physics in the production of three massive gauge bosons in proton-proton collisions ($ \mathrm{p}\mathrm{p}\to\mathrm{V}\mathrm{V}\mathrm{V} $, with $ \mathrm{V} = \mathrm{W} $ or Z) has been reported. The analysis targets the boosted regime in which the bosons have transverse momentum $ p_{\mathrm{T}} > $ 200 GeV. When they decay hadronically, large-radius jets with substructure are formed; we identify such V-tagged jets using the PARTICLENET algorithm. Signal V-tagged jets have a soft-drop mass consistent with the W or Z boson mass. Several analysis channels are defined according to the multiplicities of leptons and V-tagged jets in an event; two channels feature hadronically decaying $ \tau $ leptons. Signal regions are defined by a suitable kinematic variable that correlates well with the triboson invariant mass, $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $. The observed signal yields are interpreted in a standard model effective field theory framework with twelve dimension-6 and twenty dimension-8 Wilson operators. Agreement with the SM predictions is good, and bounds are placed on Wilson coefficients at 95% CL in two scenarios. In the first, all Wilson coefficients are fixed to zero except the one under consideration, and in the second, all coefficients are allowed to float. Examples of bounds on pairs of Wilson coefficients are given, as well. Potential difficulties with unitarity are handled using a clipping procedure: the bounds on individual Wilson coefficients weaken as the threshold on $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ is lowered. A template fit is introduced to infer the $ m_{\mathrm{V}\mathrm{V}\mathrm{V}} $ distribution; the result is consistent with the SM. Finally, the result of a fit for the signal strength for SM $ \mathrm{V}\mathrm{V}\mathrm{V} $ production is, again, consistent with the SM.
References
1 B. Grzadkowski, M. Iskrzynski, M. Misiak, and J. Rosiek Dimension-six terms in the standard model Lagrangian JHEP 10 (2010) 085 1008.4884
2 I. Brivio SMEFTsim 3.0 \textemdash a practical guide JHEP 04 (2021) 073 2012.11343
3 CMS Collaboration Observation of the production of three massive gauge bosons at $ \sqrt{s} = $ 13 TeV Phys. Rev. Lett. 15180 (2020) 2 CMS-SMP-19-014
2006.11191
4 CMS Collaboration Measurement of WWZ and ZH production cross sections at $ \sqrt{s} = $ 13 and 13.6 TeV PRL 135 (2025) 091802 CMS-SMP-24-015
2505.20483
5 ATLAS Collaboration Observation of $ \mathrm{W}\mathrm{W}\mathrm{W} $ production in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector PRL 129 (2022) 061803 2201.13045
6 ATLAS Collaboration Observation of $ \mathrm{V}\mathrm{V}\mathrm{Z} $ production at $ \sqrt{s} = $ 13 TeV with the ATLAS detector PLB 866 (2025) 139527 2412.15123
7 CMS Collaboration The CMS statistical analysis and combination tool: \textttCOMBINE Comput. Softw. Big Sci. 8 (2024) 18 CMS-CAT-23-001
2404.06614
8 G. Boldrini SM and EFT interpretation of Vector Boson Scattering measurements at CMS and development of the DAQ system for the Barrel Timing Layer for HL-LHC PhD thesis, University of Milan, May, 2024
link
9 CMS Collaboration HEPData record for this analysis link
10 T. Corbett, J. Desai, O. J. P. Eboli, and M. C. Gonzalez-Garcia Dimension-eight operator basis for universal standard model effective field theory PRD 110 (2024) 033003 2404.03720
11 CMS Collaboration The CMS trigger system JINST 12 (2017) P01020 CMS-TRG-12-001
1609.02366
12 CMS Collaboration Performance of the CMS high-level trigger during LHC Run 2 JINST 19 (2024) P11021 CMS-TRG-19-001
2410.17038
13 CMS Collaboration The CMS experiment at the CERN LHC JINST 3 (2008) S08004
14 CMS Collaboration Development of the CMS detector for the CERN LHC Run 3 JINST 19 (2024) P05064 CMS-PRF-21-001
2309.05466
15 GEANT4 Collaboration GEANT 4 --- a simulation toolkit NIM A 506 (2003) 250
16 J. Alwall et al. The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations JHEP 07 (2014) 079 1405.0301
17 J. Alwall et al. Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions EPJC 53 (2008) 473 0706.2569
18 P. Nason A new method for combining NLO QCD with shower Monte Carlo algorithms JHEP 11 (2004) 040 hep-ph/0409146
19 S. Frixione, P. Nason, and C. Oleari Matching NLO QCD computations with parton shower simulations: the POWHEG method JHEP 11 (2007) 070 0709.2092
20 S. Alioli, P. Nason, C. Oleari, and E. Re A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX JHEP 06 (2010) 043 1002.2581
21 NNPDF Collaboration Parton distributions for the LHC Run II JHEP 04 (2015) 040 1410.8849
22 T. Sjöstrand et al. An introduction to PYTHIA 8.2 Comput. Phys. Commun. 191 (2015) 159 1410.3012
23 CMS Collaboration Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements EPJC 80 (2020) 4 CMS-GEN-17-001
1903.12179
24 R. Goldouzian et al. Matching in $ \mathrm{p}\mathrm{p} \rightarrow {\mathrm{t}\overline{\mathrm{t}}} \mathrm{W}/\mathrm{Z}/\mathrm{h} + $jet SMEFT studies JHEP 06 (2021) 151 2012.06872
25 CMS Collaboration Particle-flow reconstruction and global event description with the CMS detector JINST 12 (2017) P10003 CMS-PRF-14-001
1706.04965
26 CMS Collaboration Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC JINST 16 (2021) P05014 CMS-EGM-17-001
2012.06888
27 CMS Collaboration Performance of electron reconstruction and selection with the CMS detector in proton-proton collisions at $ \sqrt{s} = $ 8 TeV JINST 10 (2015) P06005 CMS-EGM-13-001
1502.02701
28 CMS Collaboration Performance of CMS muon reconstruction in pp collision events at $ \sqrt{s} = $ 7 TeV JINST 7 (2012) P10002 CMS-MUO-10-004
1206.4071
29 CMS Collaboration Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s} = $ 13 TeV JINST 13 (2018) P06015 CMS-MUO-16-001
1804.04528
30 CMS Collaboration Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s} = $ 13 TeV JINST 13 (2018) P10005 CMS-TAU-16-003
1809.02816
31 CMS Collaboration Identification of hadronic tau lepton decays using a deep neural network JINST 17 (2022) P07023 CMS-TAU-20-001
2201.08458
32 CMS Collaboration Identification of tau leptons using a convolutional neural network with domain adaptation JINST 20 (2025) P12032 CMS-TAU-24-001
2511.05468
33 M. Cacciari, G. P. Salam, and G. Soyez FastJet user manual EPJC 72 (2012) 1896 1111.6097
34 M. Cacciari and G. P. Salam Dispelling the $ N^{3} $ myth for the $ k_{\mathrm{T}} $ jet-finder PLB 641 (2006) 57 hep-ph/0512210
35 E. Bols et al. Jet flavour classification using DeepJet JINST 15 (2020) P12012 2008.10519
36 D. Bertolini, P. Harris, M. Low, and N. Tran Pileup per particle identification JHEP 10 (2014) 059 1407.6013
37 CMS Collaboration Pileup mitigation at CMS in 13 TeV data JINST 15 (2020) P09018 CMS-JME-18-001
2003.00503
38 A. J. Larkoski, S. Marzani, G. Soyez, and J. Thaler Soft drop JHEP 05 (2014) 146 1402.2657
39 CMS Collaboration Identification of heavy, energetic, hadronically decaying particles using machine-learning techniques JINST 15 (2020) P06005 CMS-JME-18-002
2004.08262
40 CMS Collaboration Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector JINST 14 (2019) P07004 CMS-JME-17-001
1903.06078
41 CDF Collaboration A measurement of $ \sigma \mathcal{B}(\mathrm{W} \to \mathrm{e} \nu) $ and $ \sigma \mathcal{B}(\mathrm{Z} \to \mathrm{e}^+\mathrm{e}^-) $ in $ \overline{\mathrm{p}}{\mathrm{p}} $ collisions at $ \sqrt{s} = $ 1800 GeV PRD 44 (1991) 29
42 Particle Data Group Review of particle physics PRD 110 (2024) 030001
43 CMS Collaboration First measurement of the cross section for top-quark pair production in proton-proton collisions at $ \sqrt{s} = $ 7 tev PLB 695 (2011) 424 CMS-TOP-10-001
1010.5994
44 CMS Collaboration Measurement of the inclusive W and Z production cross sections in pp collisions at $ \sqrt{s} = $ 7 TeV JHEP 10 (2011) 132 CMS-EWK-10-005
1107.4789
45 CMS Collaboration Performance of the CMS electromagnetic calorimeter in pp collisions at $ \sqrt{s} = $ 13 TeV JINST 19 (2024) P09004 CMS-EGM-18-002
2403.15518
46 CMS Collaboration Performance of the CMS muon trigger system in proton-proton collisions at $ \sqrt{s} = $ 13 TeV JINST 16 (2021) P07001 CMS-MUO-19-001
2102.04790
47 CMS Collaboration Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV JINST 12 (2017) P02014 CMS-JME-13-004
1607.03663
48 CMS Collaboration Determination of jet energy calibration and transverse momentum resolution in CMS JINST 6 (2011) P11002 CMS-JME-10-011
1107.4277
49 CMS Collaboration Measurement of the inelastic proton-proton cross section at $ \sqrt{s} = $ 13 TeV JHEP 07 (2018) 161 CMS-FSQ-15-005
1802.02613
50 CMS Collaboration Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS EPJC 81 (2021) 800 CMS-LUM-17-003
2104.01927
51 CMS Collaboration CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV CMS Physics Analysis Summary, 2017
CMS-PAS-LUM-17-004
CMS-PAS-LUM-17-004
52 CMS Collaboration CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV CMS Physics Analysis Summary, 2018
CMS-PAS-LUM-18-002
CMS-PAS-LUM-18-002
53 CMS Collaboration Measurements of production cross sections of WZ and same-sign WW boson pairs in association with two jets in proton-proton collisions at $ \sqrt{s} = $ 13 TeV PLB 809 (2020) 135710 CMS-SMP-19-012
2005.01173
54 M. Szleper et al. EFT validity issues in vector boson scattering processes PoS LHCP 023, 2020
link
55 E. Gross and O. Vitells Trial factors for the look elsewhere effect in high energy physics EPJC 70 (2010) 525 1005.1891
56 G. Cowan, K. Cranmer, E. Gross, and O. Vitells Asymptotic formulae for likelihood-based tests of new physics [Erratum: Eur.Phys.J.C 73, 2501 ()], 2011
EPJC 71 (2011) 1554
1007.1727
