CMS-SMP-24-014

CMS-SMP-24-014 ; CERN-EP-2026-102
Evidence of $ \mathrm{Z}\mathrm{Z}\gamma $ production and observation of 4 $ \ell\gamma $ in proton-proton collisions at $ \sqrt{s} = $ 13 TeV
CMS Collaboration
3 April 2026
Submitted to Physical Review Letters
Abstract: Evidence of the production of two Z bosons and a photon in proton-proton collisions is reported for the first time in CMS. The analysis uses data collected by the CMS experiment between 2016 and 2018 at a center-of-mass energy of 13 TeV, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. The first evidence for the process $ \mathrm{p}\mathrm{p}\to\mathrm{Z}\mathrm{Z}\gamma\to4\ell\gamma $ ($ \ell = \mathrm{e} $, $ \mu $), with an observed (expected) significance of 3.7 (3.1) standard deviations in a fiducial region defined by $ p_{\mathrm{T}}^\gamma > $ 20 GeV, $ \|\eta^\gamma\| < $ 2.4, $ \Delta R(\ell,\gamma) > $ 0.5, $ m_{\mathrm{Z}} $ between 60 and 120 GeV, and the invariant mass of either of the two Z bosons combined with the photon ($ m_{\mathrm{Z}\gamma} $) larger than 100 GeV, is reported. The measured (predicted) fiducial cross section is 60 $ ^{+27}_{-22} $ ab ( 47.56 $ \pm $ 0.04 ab). Additionally, the inclusive production of $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ is studied by removing the $ m_{\mathrm{Z}\gamma} $ requirement to include final state radiation where one Z boson decays to 2 $ \ell\gamma $, yielding an observed (expected) significance of 5.0 (4.2) standard deviations and a measured (predicted) fiducial cross section of 156 $ ^{+39}_{-35} $ ab ( 99.97 $ \pm $ 0.09 ab).
Links: e-print arXiv:2604.02594 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

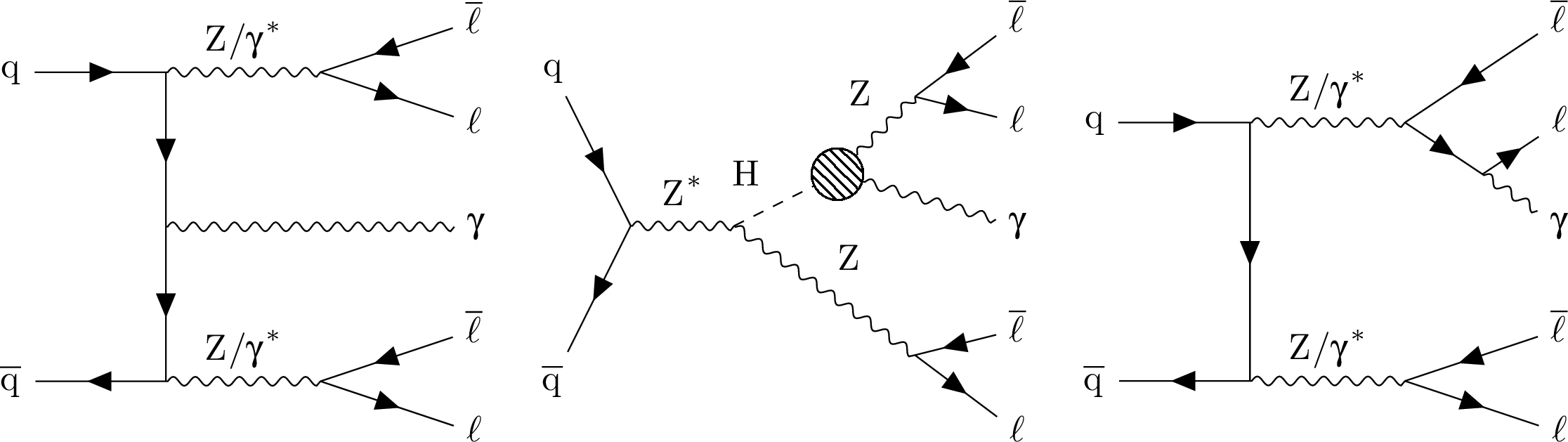

png pdf	Figure 1: Representative tree-level standard model Feynman diagrams with four isolated leptons and a photon in the final state. From left to right, photon emitted from a quark line, associated ZH production, and final-state radiation.

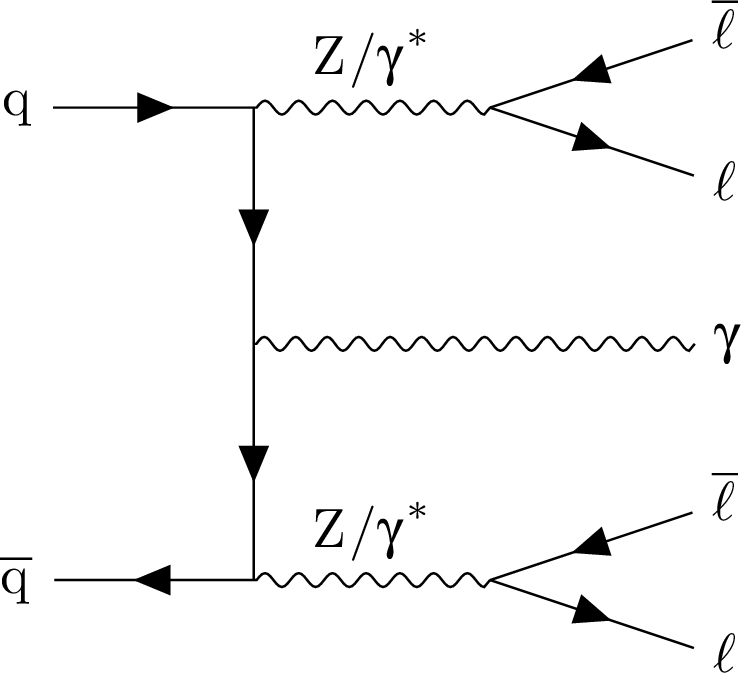

png pdf	Figure 1-a: Representative tree-level standard model Feynman diagrams with four isolated leptons and a photon in the final state. From left to right, photon emitted from a quark line, associated ZH production, and final-state radiation.

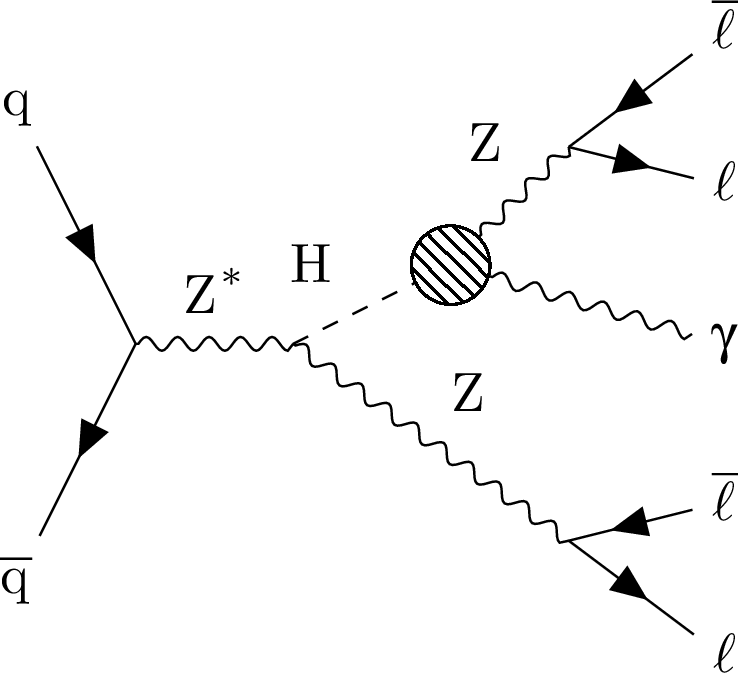

png pdf	Figure 1-b: Representative tree-level standard model Feynman diagrams with four isolated leptons and a photon in the final state. From left to right, photon emitted from a quark line, associated ZH production, and final-state radiation.

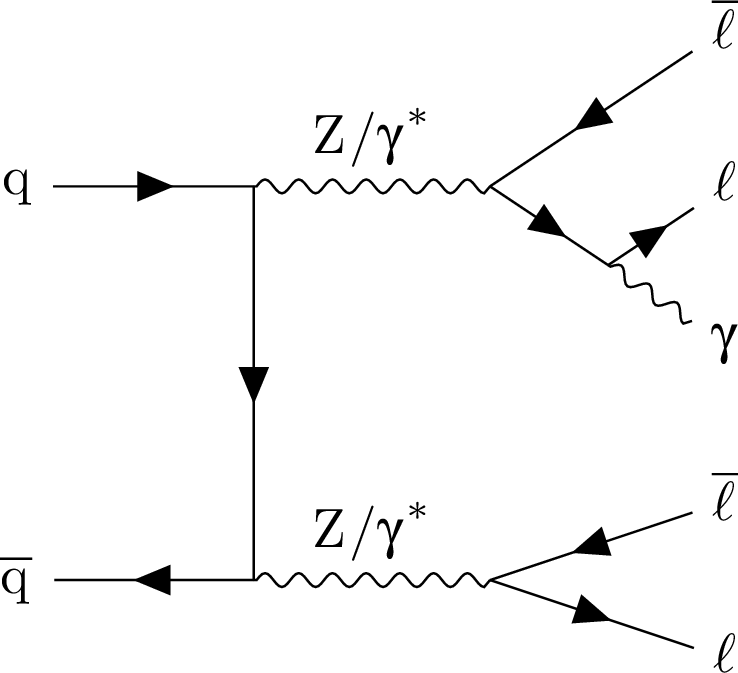

png pdf	Figure 1-c: Representative tree-level standard model Feynman diagrams with four isolated leptons and a photon in the final state. From left to right, photon emitted from a quark line, associated ZH production, and final-state radiation.

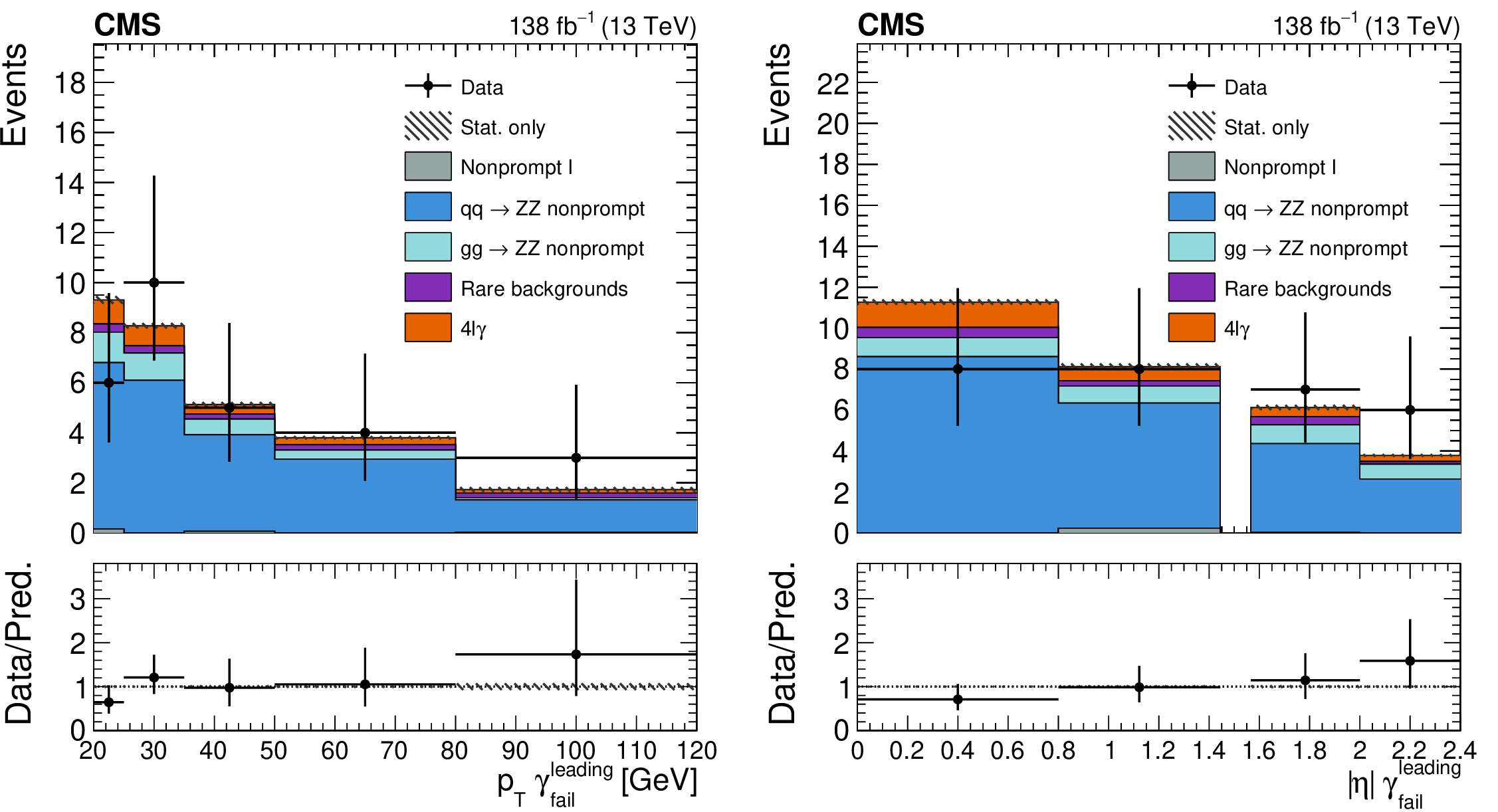

png pdf	Figure 2: Transverse momentum (left) and pseudorapidity (right) of the leading photon passing the loose selection and failing the tight cutoff-based identification in the nonprompt photon application region with four tight leptons. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the simulation.

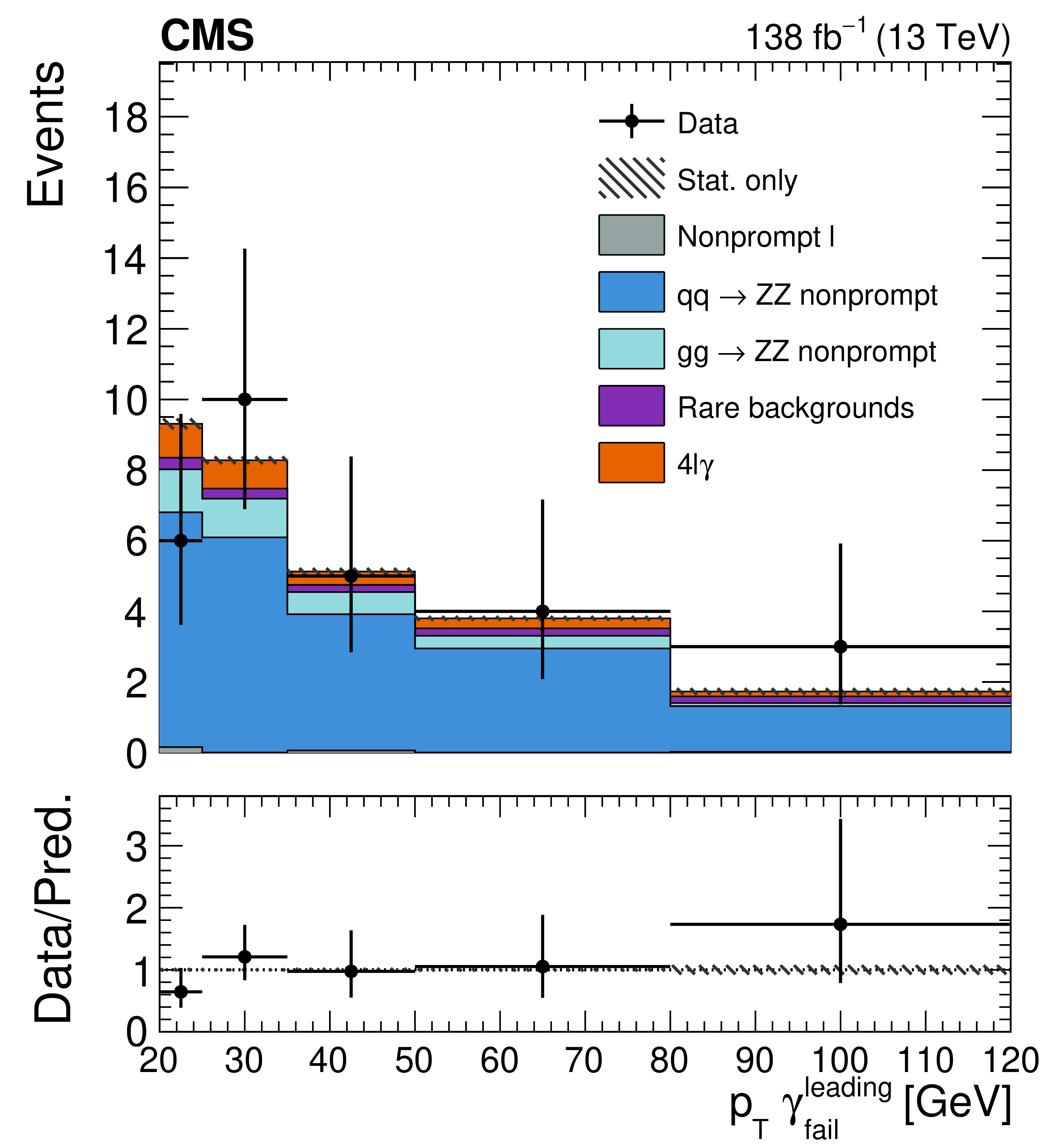

png pdf	Figure 2-a: Transverse momentum (left) and pseudorapidity (right) of the leading photon passing the loose selection and failing the tight cutoff-based identification in the nonprompt photon application region with four tight leptons. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the simulation.

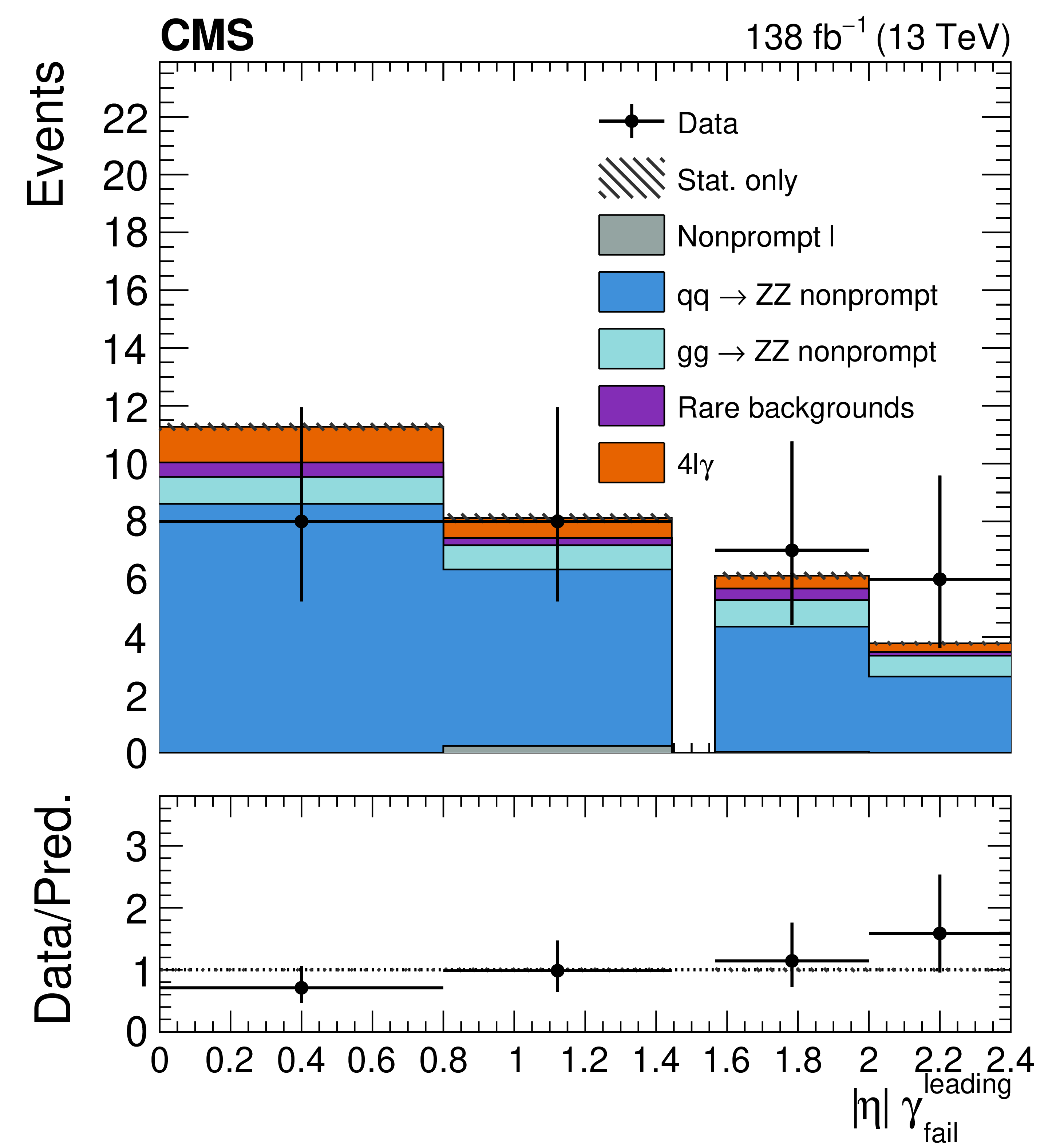

png pdf	Figure 2-b: Transverse momentum (left) and pseudorapidity (right) of the leading photon passing the loose selection and failing the tight cutoff-based identification in the nonprompt photon application region with four tight leptons. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the simulation.

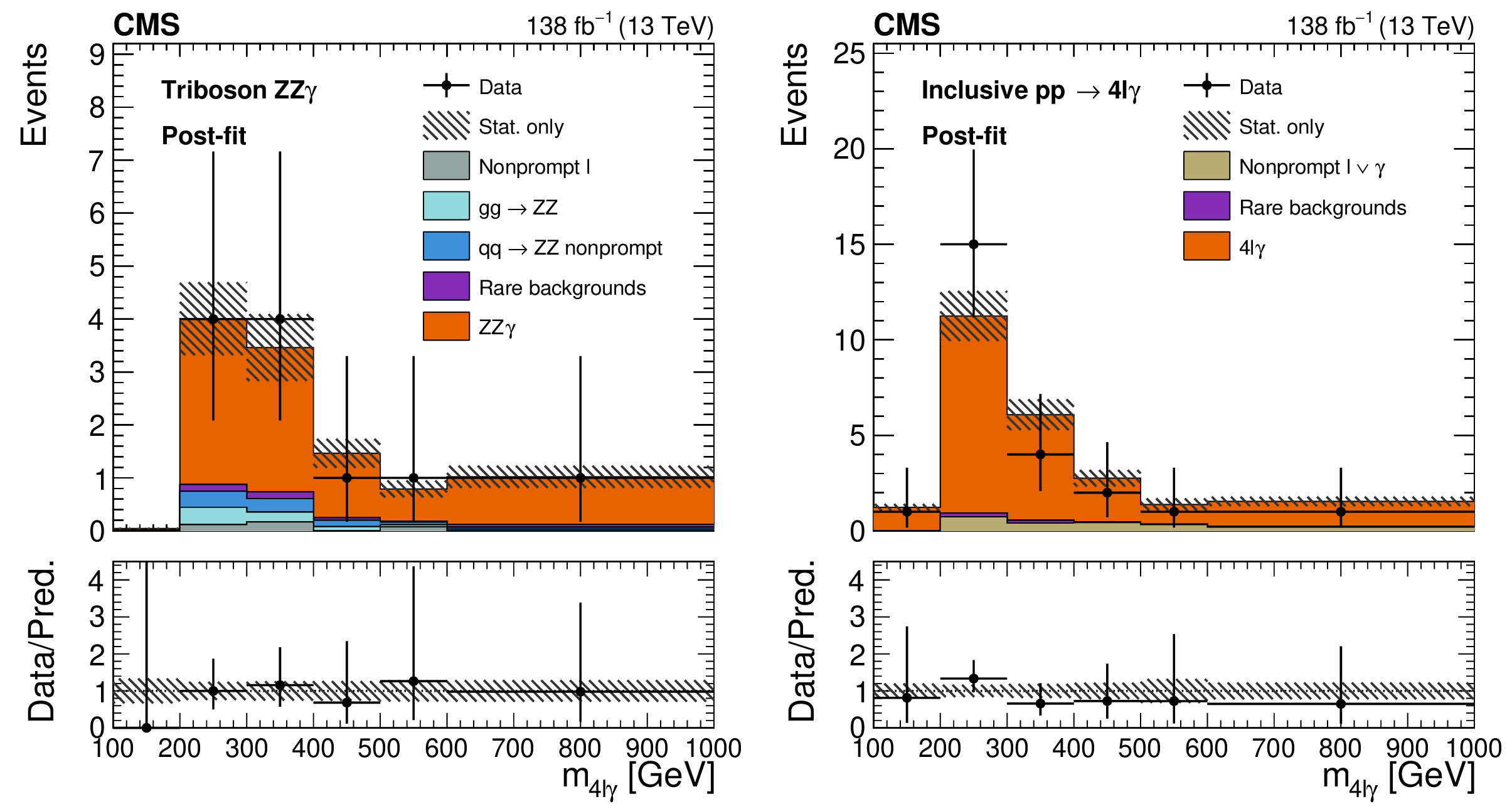

png pdf	Figure 3: Post-fit mass distributions of the $ \mathrm{Z}\mathrm{Z}\gamma $ system in the triboson $ \mathrm{Z}\mathrm{Z}\gamma $ (left) and inclusive $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ (right) regions, obtained with the cutoff-based and multivariate photon identification, respectively. The last bin includes the events exceeding the upper bound of the x-axis. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the simulation.

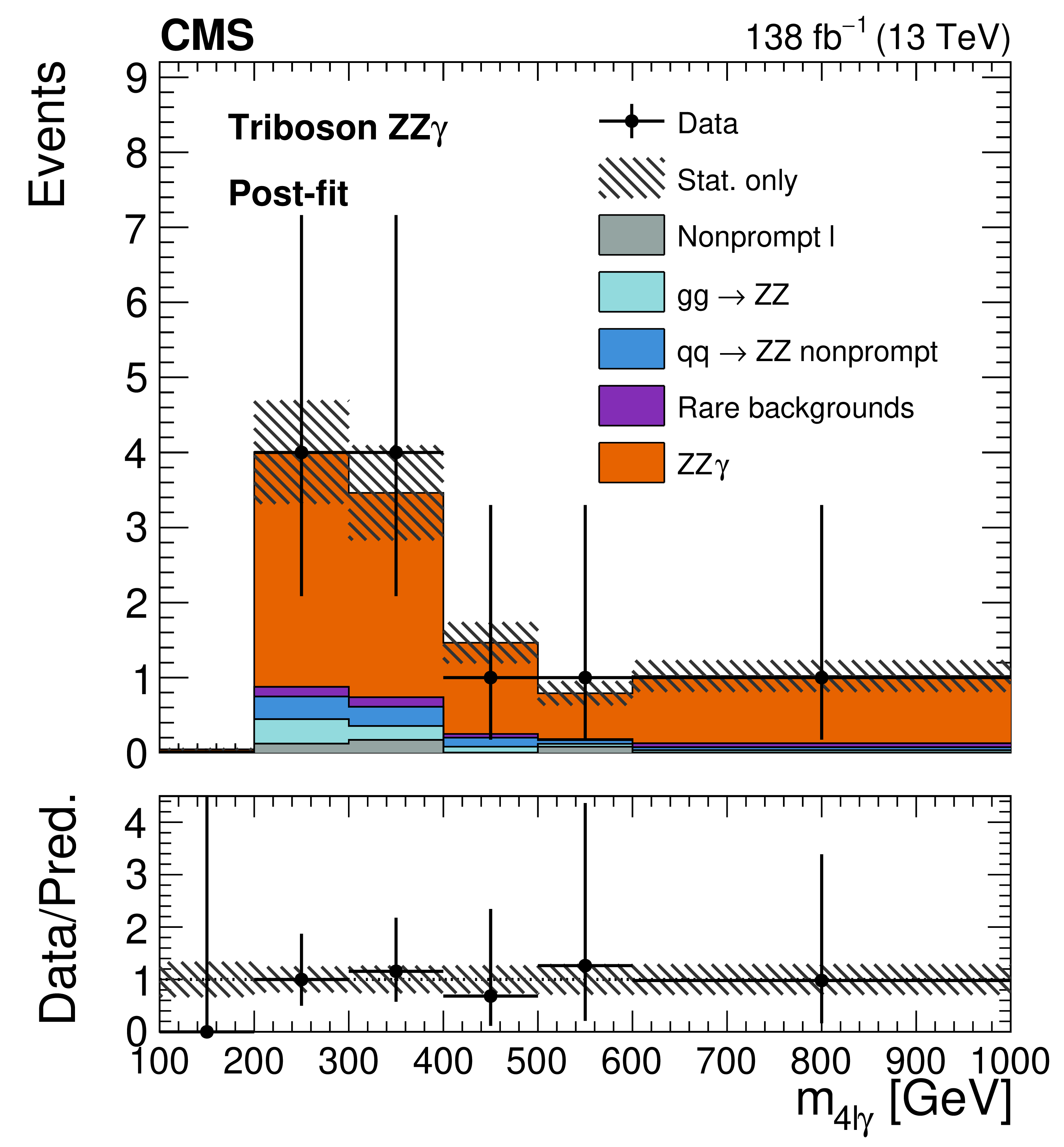

png pdf	Figure 3-a: Post-fit mass distributions of the $ \mathrm{Z}\mathrm{Z}\gamma $ system in the triboson $ \mathrm{Z}\mathrm{Z}\gamma $ (left) and inclusive $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ (right) regions, obtained with the cutoff-based and multivariate photon identification, respectively. The last bin includes the events exceeding the upper bound of the x-axis. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the simulation.

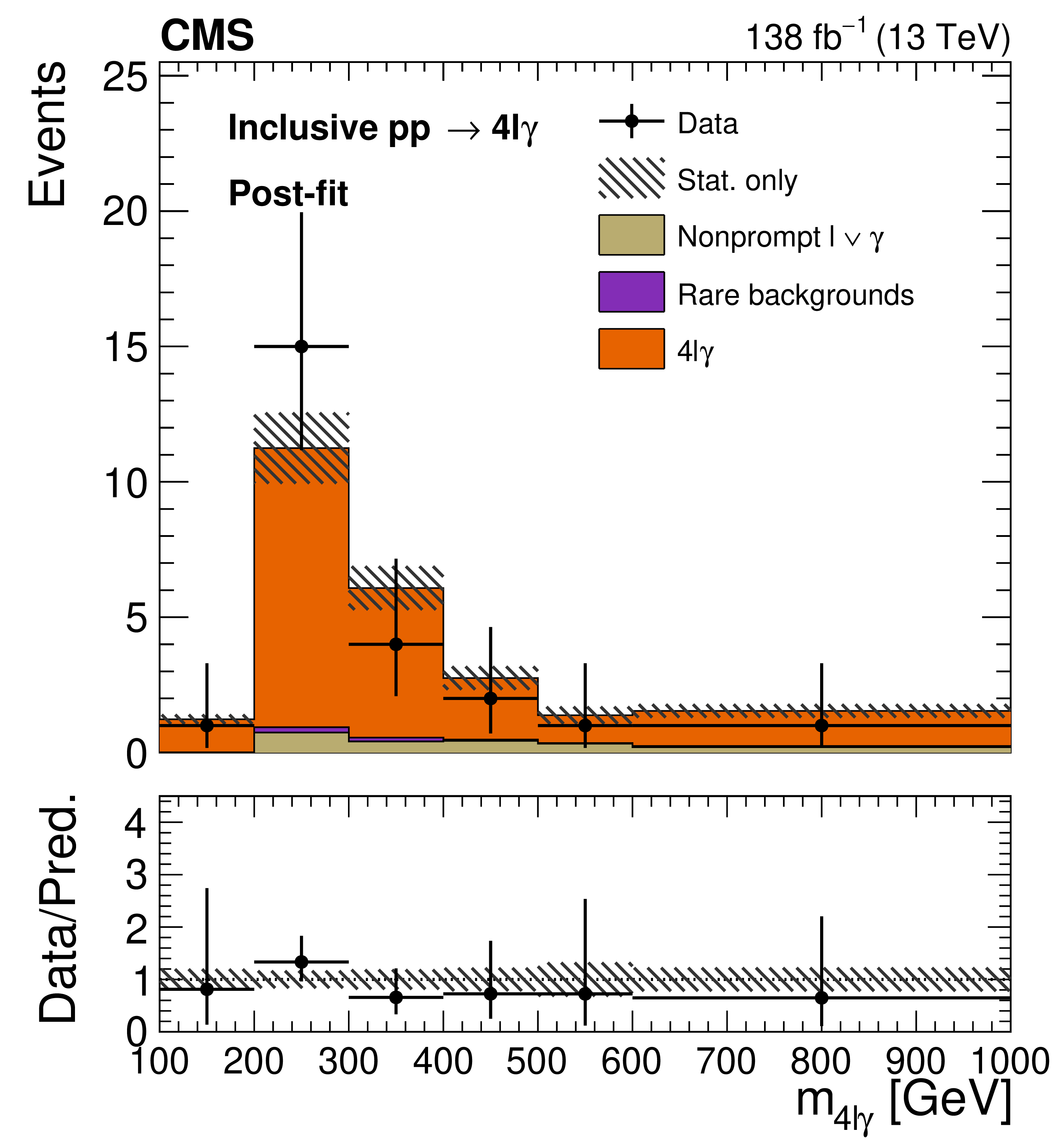

png pdf	Figure 3-b: Post-fit mass distributions of the $ \mathrm{Z}\mathrm{Z}\gamma $ system in the triboson $ \mathrm{Z}\mathrm{Z}\gamma $ (left) and inclusive $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ (right) regions, obtained with the cutoff-based and multivariate photon identification, respectively. The last bin includes the events exceeding the upper bound of the x-axis. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the simulation.

Tables

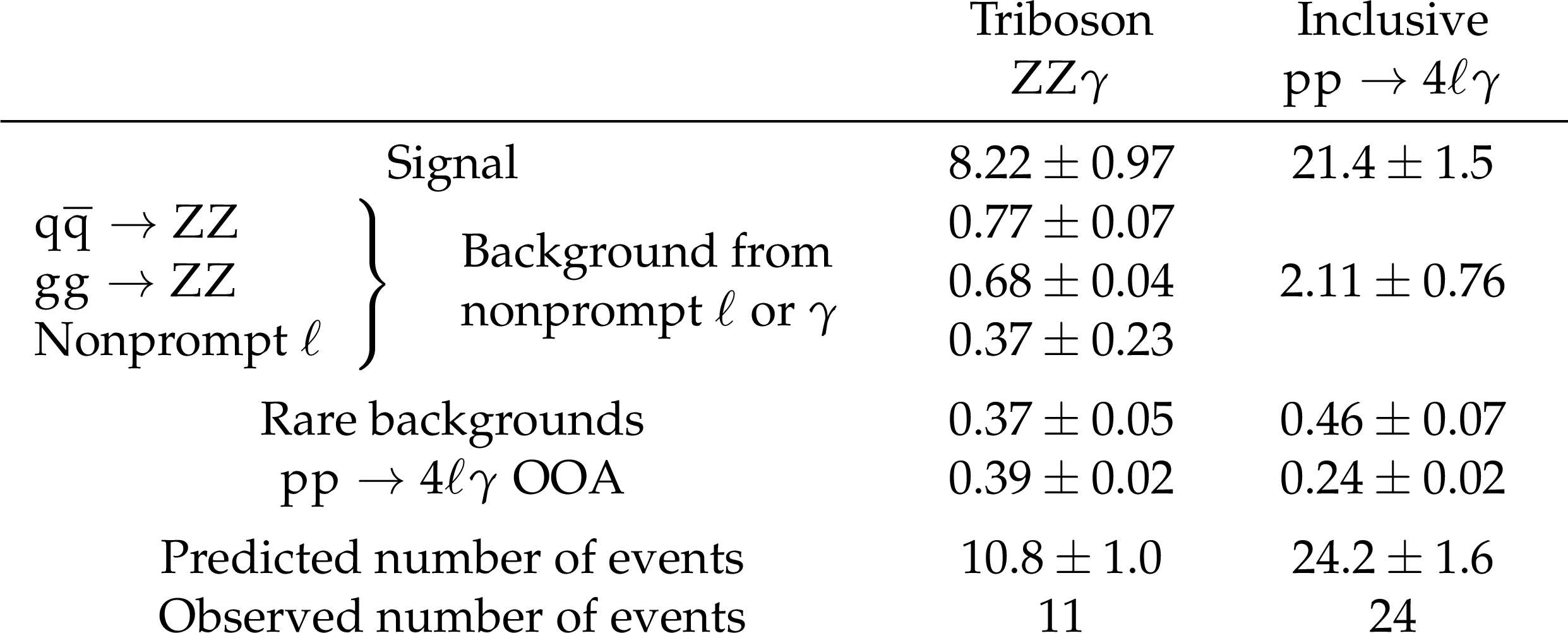

png pdf	Table 1: Post-fit event yields in the triboson $ \mathrm{Z}\mathrm{Z}\gamma $ (left) and inclusive 4 $ \ell\gamma $ (right) regions. Uncertainties are statistical only. The row labeled $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ OOA (out-of-acceptance) gives the number of events in the $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ signal sample failing the fiducial selection.

Summary

In summary, this Letter presents the first evidence in CMS for triboson production, $ \mathrm{p}\mathrm{p}\to\mathrm{Z}\mathrm{Z}\gamma\to4\ell\gamma $, where both Z bosons decay leptonically to electrons or muons, in proton-proton collisions at $\sqrt{s}=13$ TeV, collected in 2016--2018 and corresponding to an integrated luminosity of 138 fb$ ^{-1} $. The fiducial cross section, $\sigma_{\text{fid}} = 60^{+27}_{-22}$ ab, is the smallest ever measured at the LHC. In a more inclusive signal region with FSR contributions, $ \mathrm{p}\mathrm{p}\to4\ell\gamma $ production is also observed, with a fiducial cross section of $156^{+39}_{-35}$ ab. The results are in good agreement with standard model predictions.

References
1	ATLAS Collaboration	Measurement of $ \mathrm{Z}\gamma\gamma $ production in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector	Eur. Phys. J. C. 83 (2023) 539	2211.14171
2	ATLAS Collaboration	Observation of $ \mathrm{W}\gamma\gamma $ triboson production in proton-proton collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector	Phys. Lett. B. 848 (2024) 138400	2308.03041
3	CMS Collaboration	Measurements of the $ {\mathrm{p}}{\mathrm{p}}\to\mathrm{W^{\pm}}\gamma\gamma $ and $ {\mathrm{p}}{\mathrm{p}}\to\mathrm{Z}\gamma\gamma $ cross sections at $ \sqrt s = $ 13 TeV and limits on anomalous quartic gauge couplings	JHEP 10 (2021) 174	CMS-SMP-19-013 2105.12780
4	ATLAS Collaboration	Observation of $ \mathrm{W}\mathrm{Z}\gamma $ production in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS Detector	PRL 132 (2024) 021802	2305.16994
5	CMS Collaboration	Observation of $ \mathrm{W}\mathrm{Z}\gamma $ production and constraints on new physics scenarios in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	PRD 112 (2025) 012009	CMS-SMP-22-018 2503.21977
6	ATLAS Collaboration	Observation of $ \mathrm{W^+}\mathrm{W^-}\gamma $ production in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector and constraints on anomalous quartic gauge-boson couplings	PLB 873 (2026) 140050	2509.14070
7	CMS Collaboration	Observation of WW$ \gamma $ production and search for H$ \gamma $ production in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	PRL 132 (2024) 121901	CMS-SMP-22-006 2310.05164
8	ATLAS Collaboration	Evidence for the production of three massive vector bosons with the ATLAS detector	PLB 798 (2019) 134913	1903.10415
9	CMS Collaboration	Observation of the production of three massive gauge bosons at $ \sqrt{s} = $ 13 TeV	PRL 125 (2020) 151802	CMS-SMP-19-014 2006.11191
10	ATLAS Collaboration	Evidence of $ ZZ\gamma $ production with the ATLAS detector	Submitted to Phys. Rev. Lett, 2026	2602.17165
11	ATLAS Collaboration	Exploration at the high-energy frontier: ATLAS Run 2 searches investigating the exotic jungle beyond the Standard Model	Phys. Rep. 1116 301, 2024	2403.09292
12	CMS Collaboration	Stairway to discovery: a report on the CMS programme of cross section measurements from millibarns to femtobarns	Phys. Rep. 1115 (2025) 3	CMS-SMP-23-004 2405.18661
13	CMS Collaboration	HEPData record for this analysis	link
14	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
15	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
16	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
17	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
18	CMS Collaboration	Performance of the CMS high-level trigger during LHC Run 2	JINST 19 (2024) P11021	CMS-TRG-19-001 2410.17038
19	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
20	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
21	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
22	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
23	CMS Collaboration	Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_{\tau} $ in pp collisions at $ \sqrt{s} = $ 13 TeV	JINST 13 (2018) P10005	CMS-TAU-16-003 1809.02816
24	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
25	CMS Collaboration	Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector	JINST 14 (2019) P07004	CMS-JME-17-001 1903.06078
26	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
27	R. Frederix et al.	The automation of next-to-leading order electroweak calculations	JHEP 07 (2018)	1804.10017
28	P. Nason	A new method for combining NLO QCD with shower Monte Carlo algorithms	JHEP 11 (2004) 040	hep-ph/0409146
29	S. Frixione, P. Nason, and C. Oleari	Matching NLO QCD computations with parton shower simulations: the POWHEG method	JHEP 11 (2007) 070	0709.2092
30	S. Alioli, P. Nason, C. Oleari, and E. Re	A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX	JHEP 06 (2010) 043	1002.2581
31	T. Melia, P. Nason, R. Rontsch, and G. Zanderighi	$ \mathrm{W}^+\mathrm{W}^- $, WZ and $ ZZ $ production in the POWHEG BOX	JHEP 11 (2011) 078	1107.5051
32	P. Nason and G. Zanderighi	$ \mathrm{W^+}\mathrm{W^-} $, WZ and ZZ production in the POWHEG-BOX-V2	EPJC 74 (2014) no. 1, 2702	1311.1365
33	J. M. Campbell and R. K. Ellis	MCFM for the Tevatron and the LHC	Nucl. Phys. Proc. Suppl. 205 (2010) 10	1007.3492
34	T. Sjöstrand et al.	An introduction to PYTHIA 8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
35	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA-8 tunes from underlying-event measurements	Eur. Phys. J. C. 80 (2020) 4	CMS-GEN-17-001 1903.12179
36	GEANT4 Collaboration	GEANT4---a simulation toolkit	NIM A 506 (2003) 250
37	NNPDF Collaboration	Parton distributions for the LHC run II	JHEP 04 (2015) 040	1410.8849
38	CMS Collaboration	Technical proposal for the phase-II upgrade of the Compact Muon Solenoid	CMS Technical proposal CERN-LHCC-2015-010, CMS-TDR-15-02, CERN, 2015 CDS
39	CMS Collaboration	Measurements of inclusive and differential cross sections for the Higgs boson production and decay to four-leptons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JHEP 08 (2023) 040	CMS-HIG-21-009 2305.07532
40	CMS Collaboration	Performance of the reconstruction and identification of high-momentum muons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P02027	CMS-MUO-17-001 1912.03516
41	CMS Collaboration	Measurement of the ZZ production cross section and $ \mathrm{ Z } \to {\ell^+\ell^-\ell^{\prime+}\ell^{\prime-}} $ branching fraction in pp collisions at $ \sqrt{s} = $ 13 TeV	PLB 763 (2016) 280	CMS-SMP-16-001 1607.08834
42	CMS Collaboration	Measurement of vector boson scattering and constraints on anomalous quartic couplings from events with four leptons and two jets in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	PLB 774 (2017) 682	CMS-SMP-17-006 1708.02812
43	CMS Collaboration	Evidence for electroweak production of four charged leptons and two jets in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	PLB 812 (2020) 135992	CMS-SMP-20-001 2008.07013
44	CMS Collaboration	Measurement of differential ZZ + jets production cross sections in pp collisions at $ \sqrt{s} = $ 13 TeV	JHEP 10 (2024) 209	CMS-SMP-22-001 2404.02711
45	CMS Collaboration	Measurement of the properties of a Higgs boson in the four-lepton final state	PRD 89 (2014) 092007	CMS-HIG-13-002 1312.5353
46	J. Butterworth et al.	PDF4LHC recommendations for LHC Run II	JPG 43 (2016) 023001	1510.03865
47	CMS Collaboration	Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS	Eur. Phys. J. C. 81 (2021) 800	CMS-LUM-17-003 2104.01927
48	CMS Collaboration	CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s}= $ 13 TeV	CMS Physics Analysis Summary, 2018 CMS-PAS-LUM-17-004	CMS-PAS-LUM-17-004
49	CMS Collaboration	CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s}= $ 13 TeV	CMS Physics Analysis Summary, 2019 CMS-PAS-LUM-18-002	CMS-PAS-LUM-18-002
50	CMS Collaboration	Measurement of the inelastic proton-proton cross section at $ \sqrt{s} = $ 13 TeV	JHEP 07 (2018) 161	CMS-FSQ-15-005 1802.02613
51	CMS Collaboration	The CMS statistical analysis and combination tool: COMBINE	Comput. Softw. Big. Sci. 8 (2024) 19	CMS-CAT-23-001 2404.06614
