| CMS-NPS-25-003 ; CERN-EP-2026-133 | ||
| Search for Higgs boson decays into two neutral scalars with unequal masses in final states with b quarks and tau leptons in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | ||
| CMS Collaboration | ||
| 18 May 2026 | ||
| Submitted to the Journal of High Energy Physics | ||
| Abstract: A search for Higgs boson (H) decays into a pair of neutral scalars $ \phi_{1} $ and $ \phi_{2} $, with $ \phi_{2} $ heavier than $ \phi_{1} $, is performed in final states with b quarks and tau leptons. Depending on the masses of the neutral scalars, $ \phi_{2} $ can undergo a cascade decay into $ \phi_{1} \phi_{1} $. For both the cascade and non-cascade scenarios, one $ \phi_{1} $ is required to decay to a pair of tau leptons. Proton-proton collision data corresponding to an integrated luminosity of 138 fb$^{-1}$ collected with the CMS detector at the LHC at $ \sqrt{s}= $ 13 TeV are analyzed. No statistically significant excess over the standard model expectation is observed. Upper limits are set on the products $ \sigma \mathcal{B}(\mathrm{H} \to \phi_{1} \phi_{2} \to 3\phi_{1} \to 2\tau 4\mathrm{b}) $ and $ \sigma \mathcal{B}(\mathrm{H} \to \phi_{1} \phi_{2})\mathcal{B}(\phi_{1} \to 2\tau)\mathcal{B}(\phi_{2} \to 2\mathrm{b}) $ where $ \sigma $ is the Higgs boson production cross section. The observed upper limits range between 0.9 and 36.8 pb at 95% confidence level, depending on the mass hypothesis and decay scenario. | ||
| Links: e-print arXiv:2605.19144 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

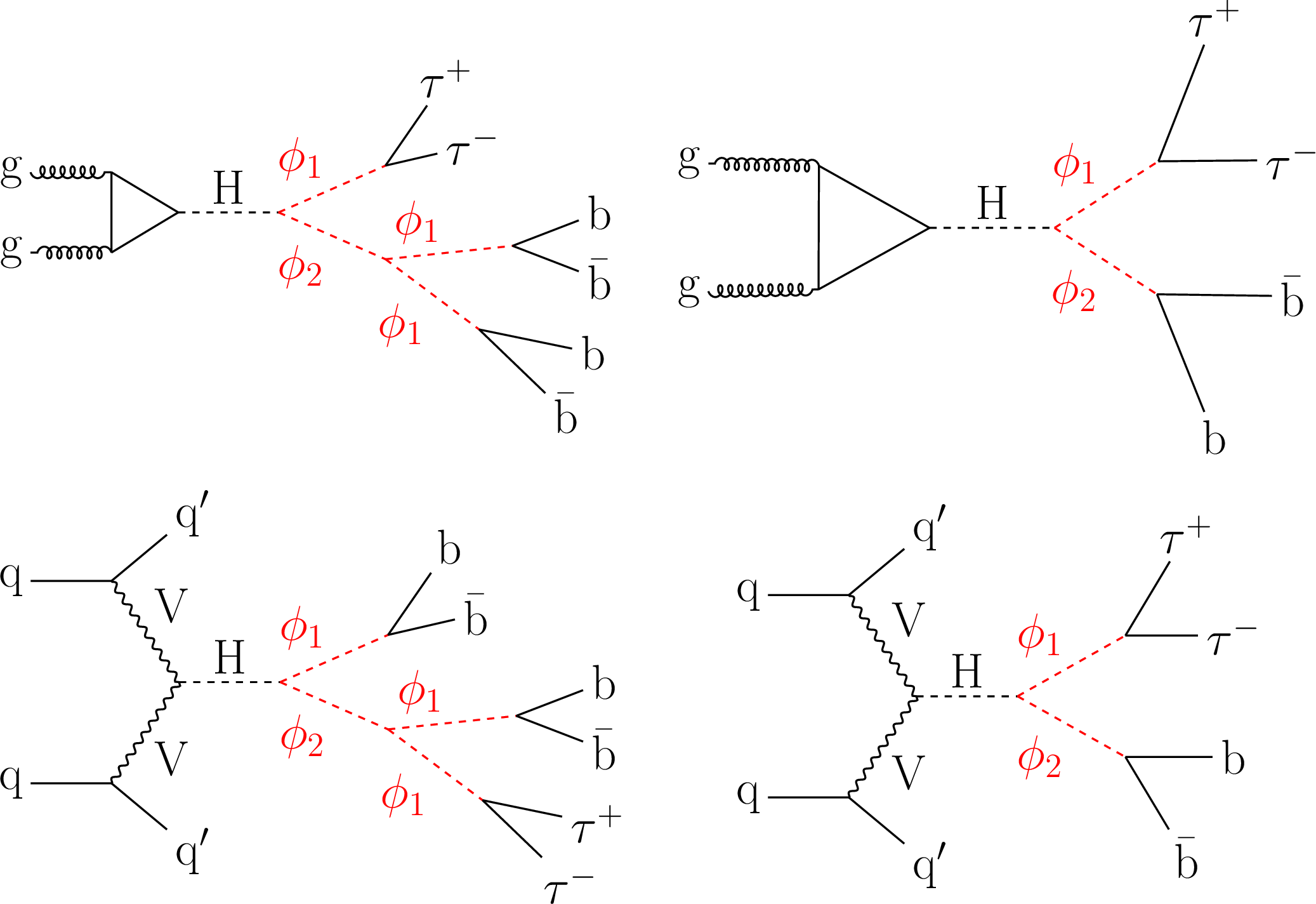

Figure 1:
Representative schematic diagrams showing the $ {\mathrm{g}\mathrm{g}} $F (upper) and VBF (lower) production of the Higgs boson decaying to 2 $ \tau4\mathrm{b} $ (cascade, left) and 2 $ \tau2\mathrm{b} $ (non-cascade, right) final states. |
png pdf |

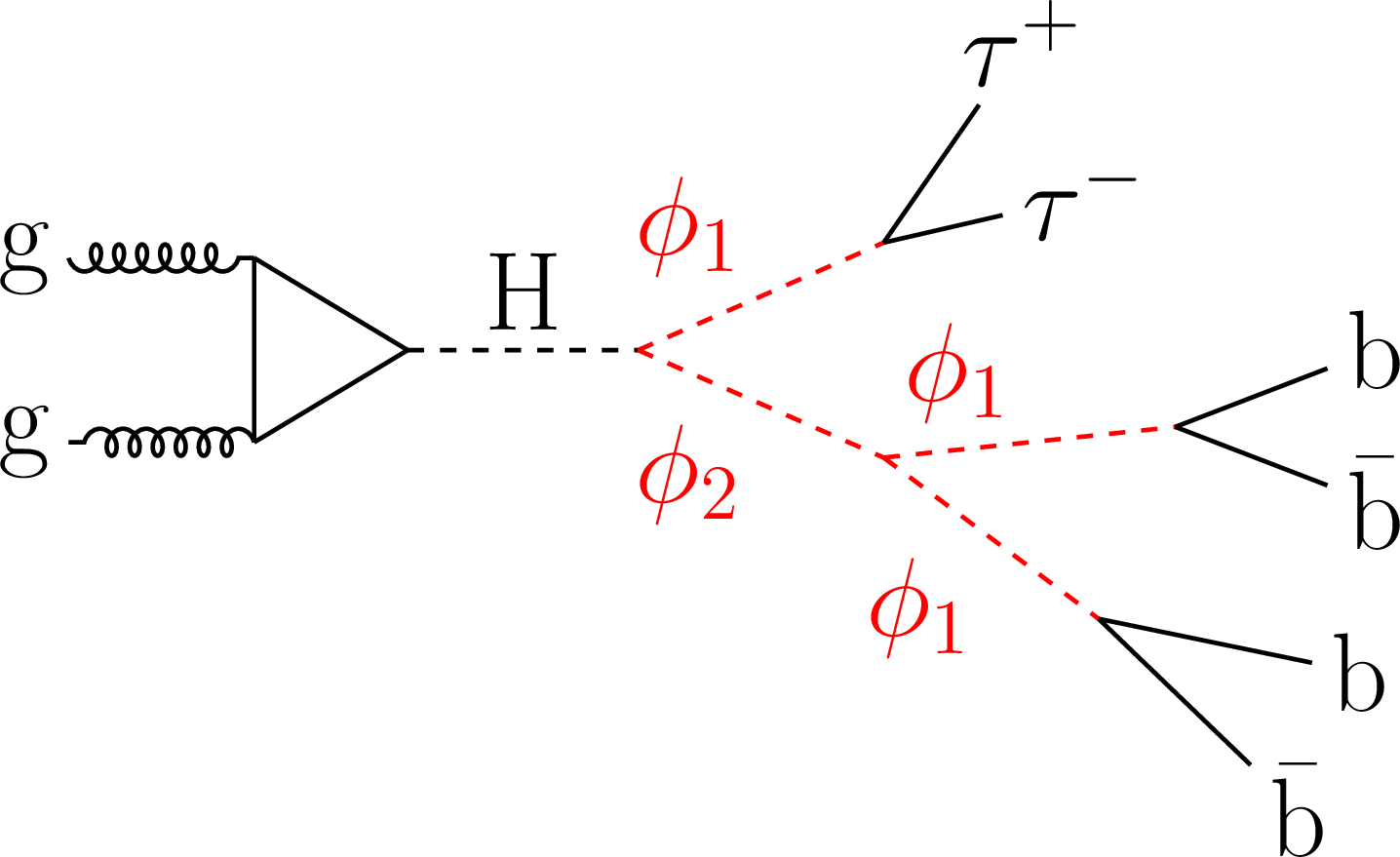

Figure 1-a:
Representative schematic diagrams showing the $ {\mathrm{g}\mathrm{g}} $F (upper) and VBF (lower) production of the Higgs boson decaying to 2 $ \tau4\mathrm{b} $ (cascade, left) and 2 $ \tau2\mathrm{b} $ (non-cascade, right) final states. |
png pdf |

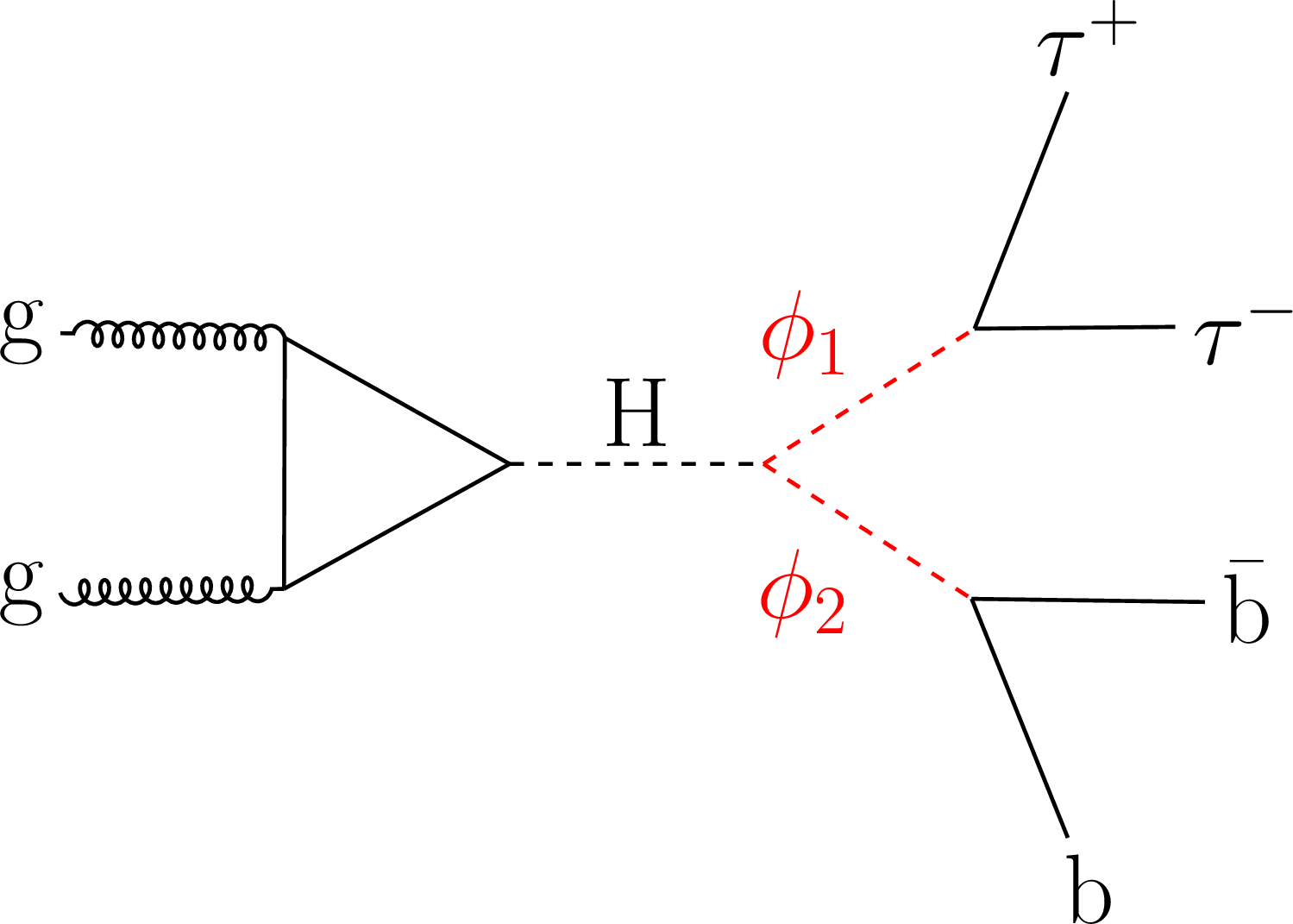

Figure 1-b:
Representative schematic diagrams showing the $ {\mathrm{g}\mathrm{g}} $F (upper) and VBF (lower) production of the Higgs boson decaying to 2 $ \tau4\mathrm{b} $ (cascade, left) and 2 $ \tau2\mathrm{b} $ (non-cascade, right) final states. |
png pdf |

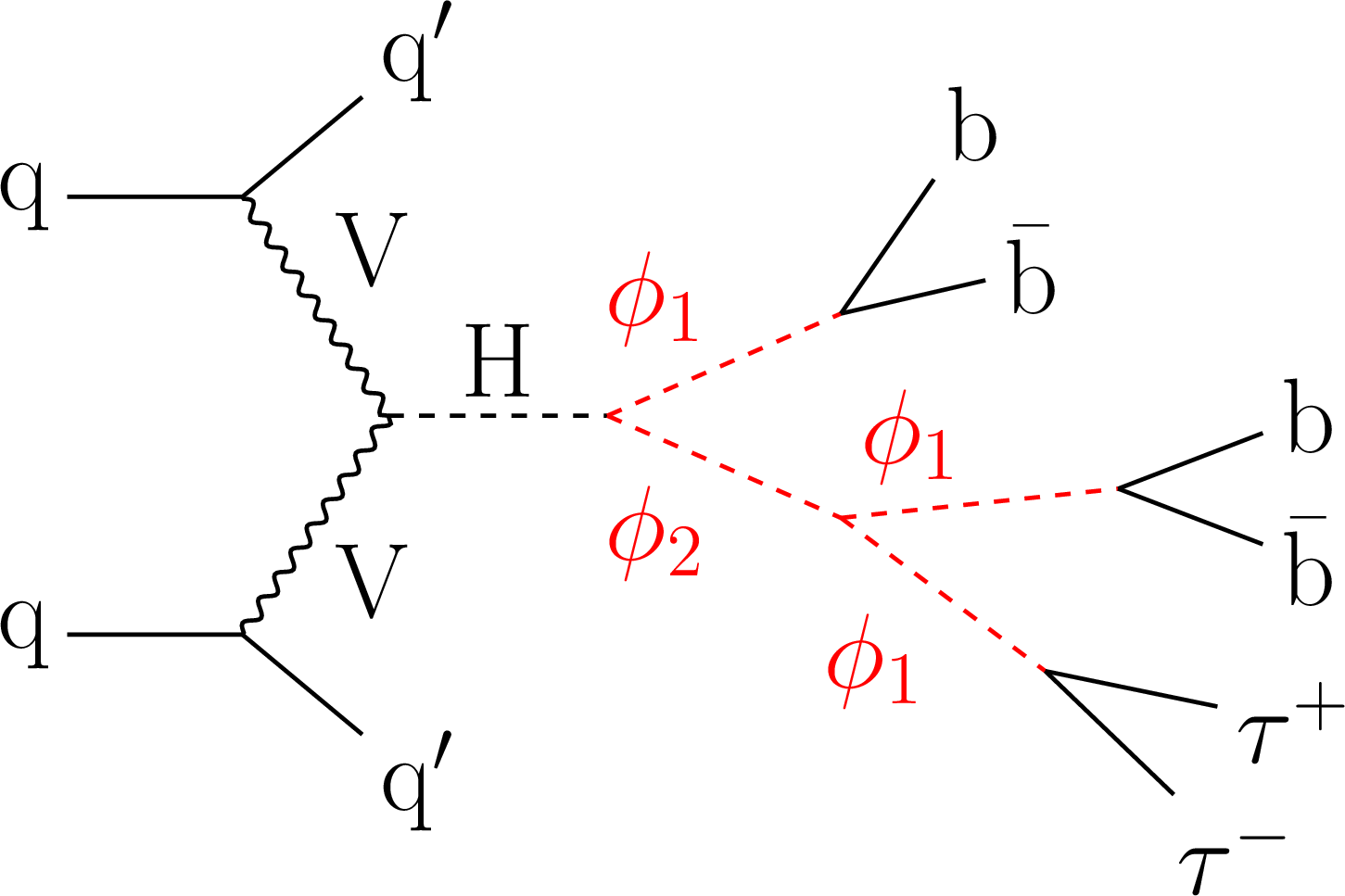

Figure 1-c:
Representative schematic diagrams showing the $ {\mathrm{g}\mathrm{g}} $F (upper) and VBF (lower) production of the Higgs boson decaying to 2 $ \tau4\mathrm{b} $ (cascade, left) and 2 $ \tau2\mathrm{b} $ (non-cascade, right) final states. |
png pdf |

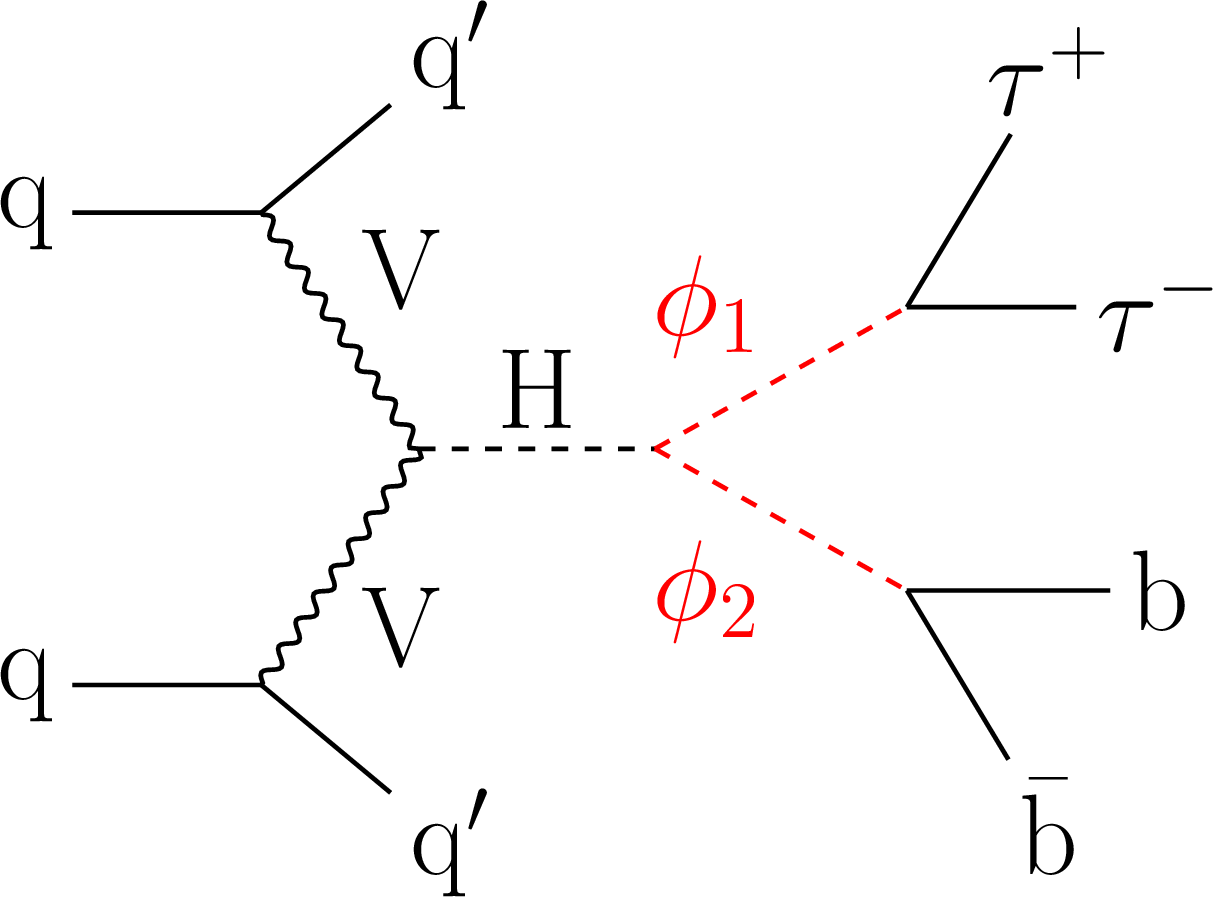

Figure 1-d:
Representative schematic diagrams showing the $ {\mathrm{g}\mathrm{g}} $F (upper) and VBF (lower) production of the Higgs boson decaying to 2 $ \tau4\mathrm{b} $ (cascade, left) and 2 $ \tau2\mathrm{b} $ (non-cascade, right) final states. |
png pdf |

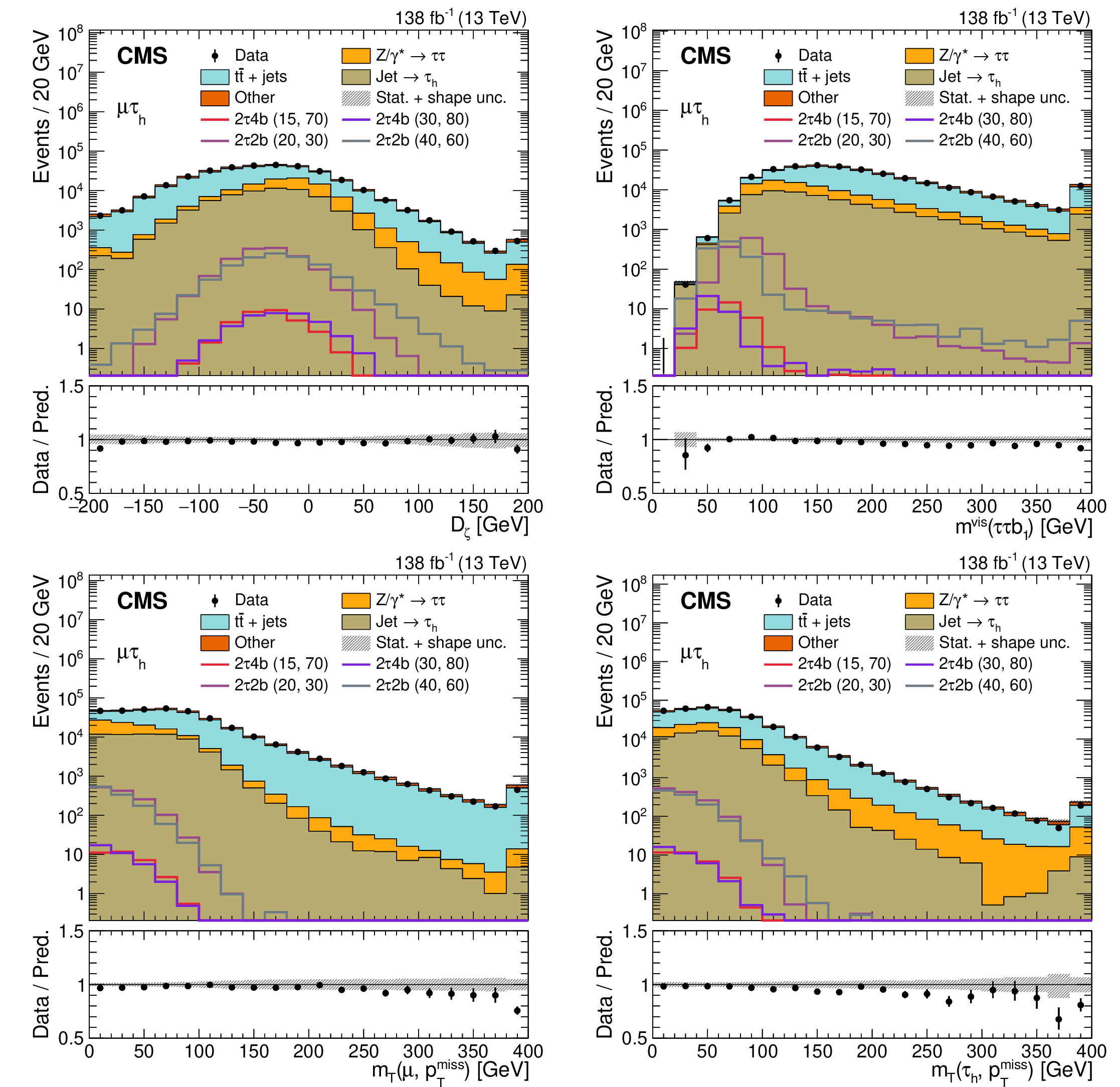

Figure 2:
Pre-fit distributions of $ D_{\zeta} $ (upper left), $ m^{\text{vis}}(\tau\tau\mathrm{b}_1) $ (upper right), $ m_{\mathrm{T}}(\mu, p_{\mathrm{T}}^\text{miss}) $ (lower left), and $ m_{\mathrm{T}}(\tau_\mathrm{h}, p_{\mathrm{T}}^\text{miss}) $ (lower right), including underflow and overflow bins, for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ channel, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

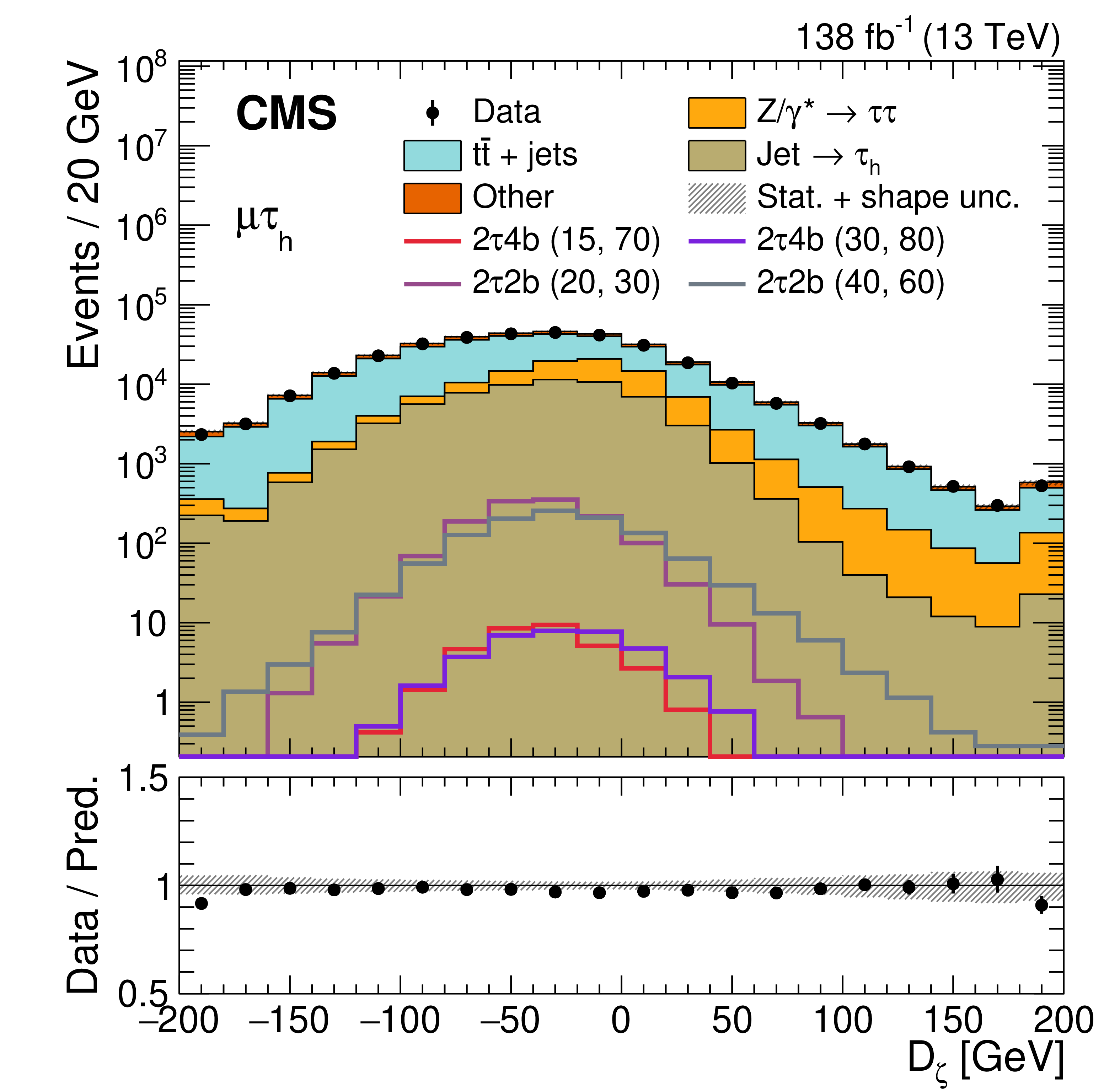

Figure 2-a:
Pre-fit distributions of $ D_{\zeta} $ (upper left), $ m^{\text{vis}}(\tau\tau\mathrm{b}_1) $ (upper right), $ m_{\mathrm{T}}(\mu, p_{\mathrm{T}}^\text{miss}) $ (lower left), and $ m_{\mathrm{T}}(\tau_\mathrm{h}, p_{\mathrm{T}}^\text{miss}) $ (lower right), including underflow and overflow bins, for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ channel, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

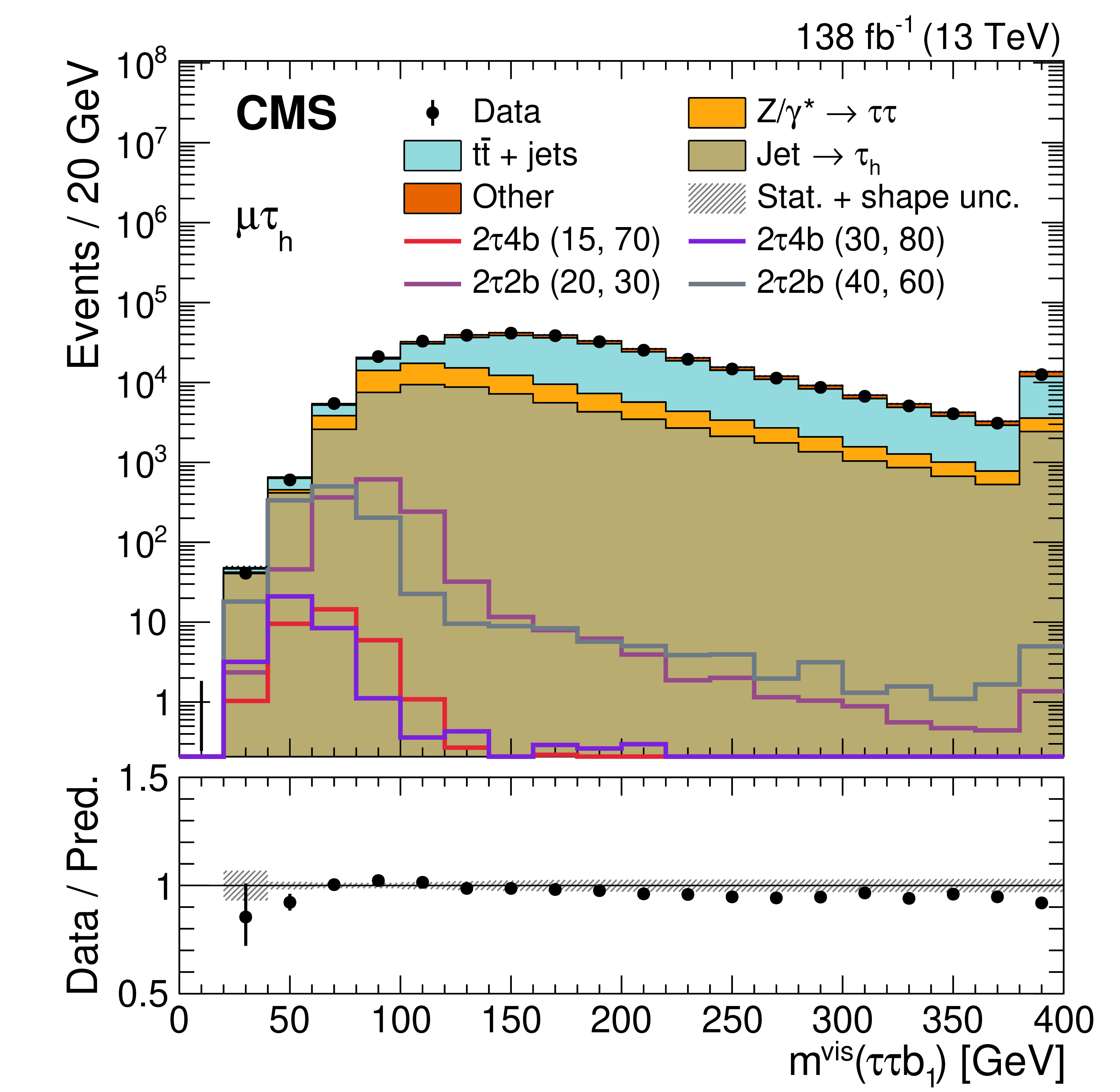

Figure 2-b:
Pre-fit distributions of $ D_{\zeta} $ (upper left), $ m^{\text{vis}}(\tau\tau\mathrm{b}_1) $ (upper right), $ m_{\mathrm{T}}(\mu, p_{\mathrm{T}}^\text{miss}) $ (lower left), and $ m_{\mathrm{T}}(\tau_\mathrm{h}, p_{\mathrm{T}}^\text{miss}) $ (lower right), including underflow and overflow bins, for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ channel, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

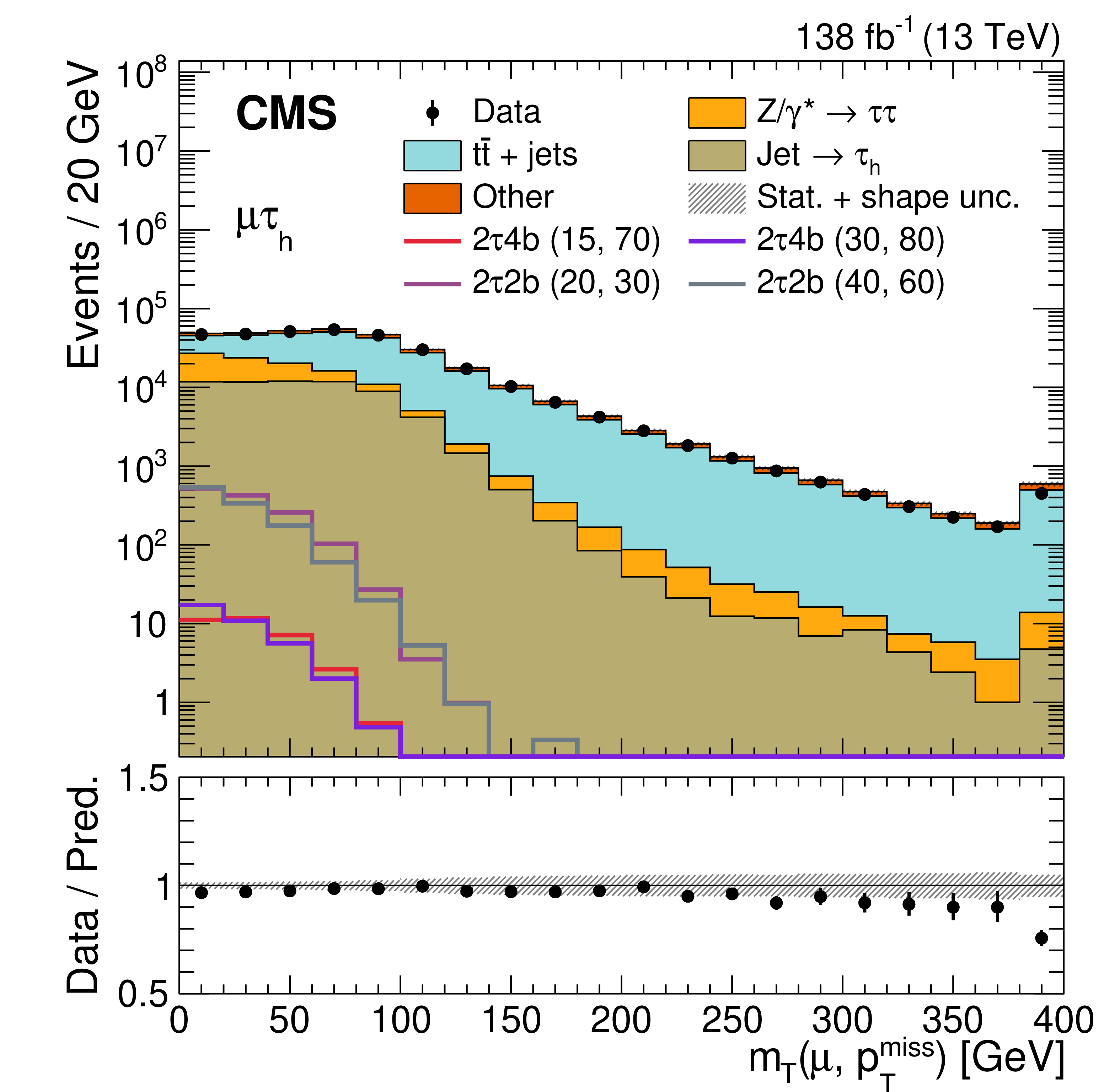

Figure 2-c:
Pre-fit distributions of $ D_{\zeta} $ (upper left), $ m^{\text{vis}}(\tau\tau\mathrm{b}_1) $ (upper right), $ m_{\mathrm{T}}(\mu, p_{\mathrm{T}}^\text{miss}) $ (lower left), and $ m_{\mathrm{T}}(\tau_\mathrm{h}, p_{\mathrm{T}}^\text{miss}) $ (lower right), including underflow and overflow bins, for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ channel, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

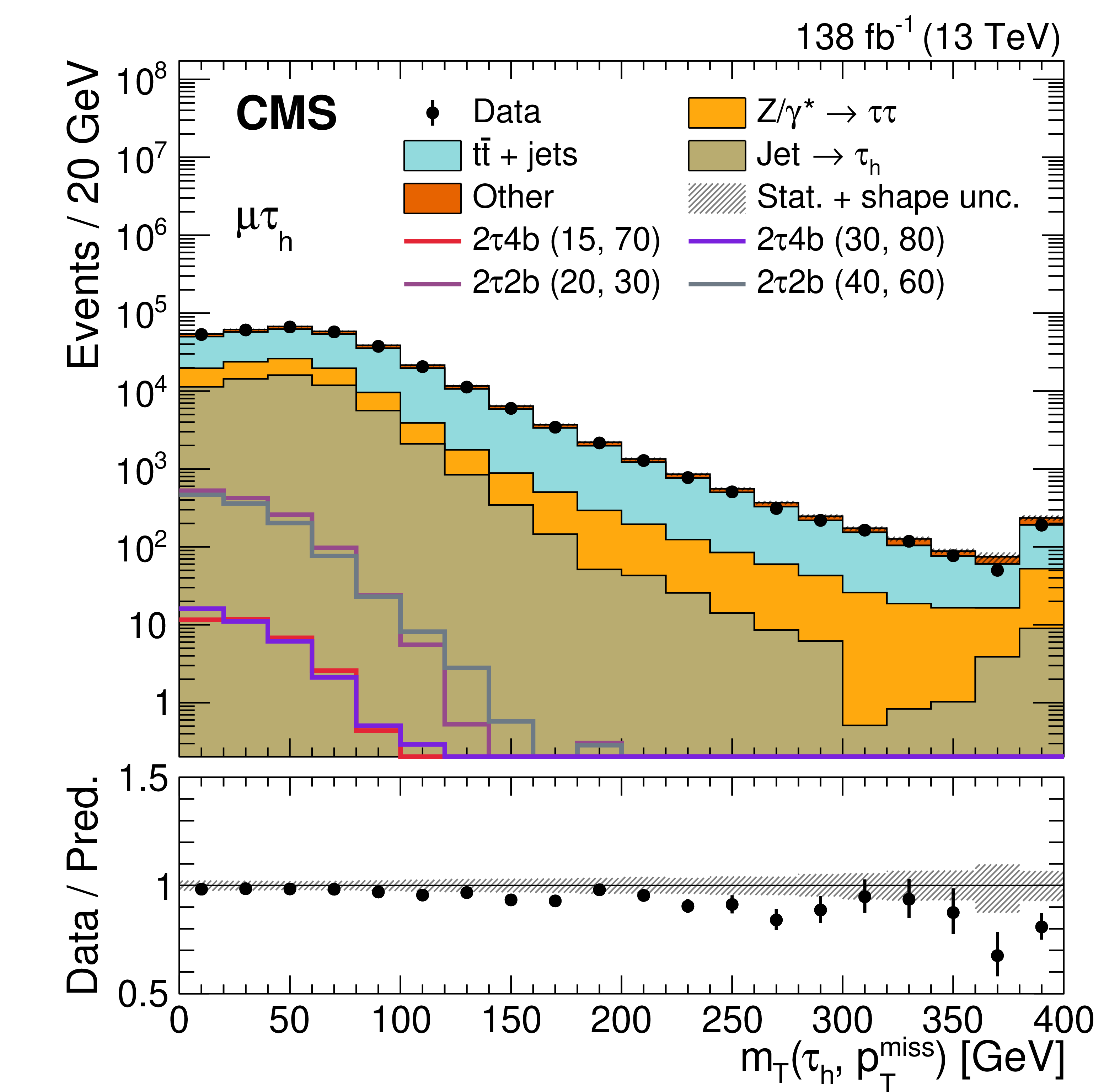

Figure 2-d:
Pre-fit distributions of $ D_{\zeta} $ (upper left), $ m^{\text{vis}}(\tau\tau\mathrm{b}_1) $ (upper right), $ m_{\mathrm{T}}(\mu, p_{\mathrm{T}}^\text{miss}) $ (lower left), and $ m_{\mathrm{T}}(\tau_\mathrm{h}, p_{\mathrm{T}}^\text{miss}) $ (lower right), including underflow and overflow bins, for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ channel, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

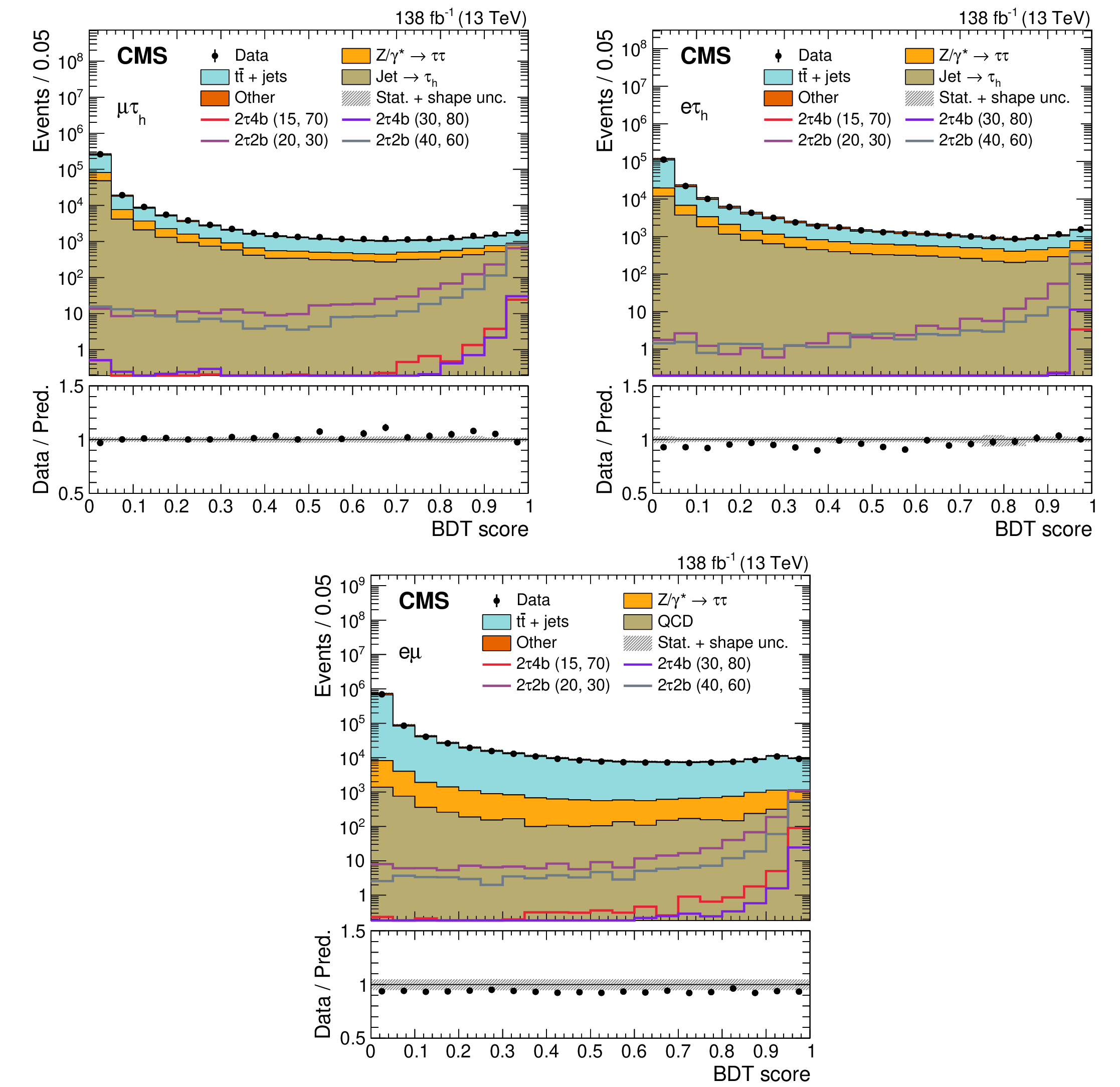

Figure 3:
Pre-fit BDT score distribution for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ (upper left), $ \mathrm{e}\tau_\mathrm{h} $ (upper right), and $ \mathrm{e}\mu $ (lower) channels, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |
Figure 3-a:
Pre-fit BDT score distribution for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ (upper left), $ \mathrm{e}\tau_\mathrm{h} $ (upper right), and $ \mathrm{e}\mu $ (lower) channels, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

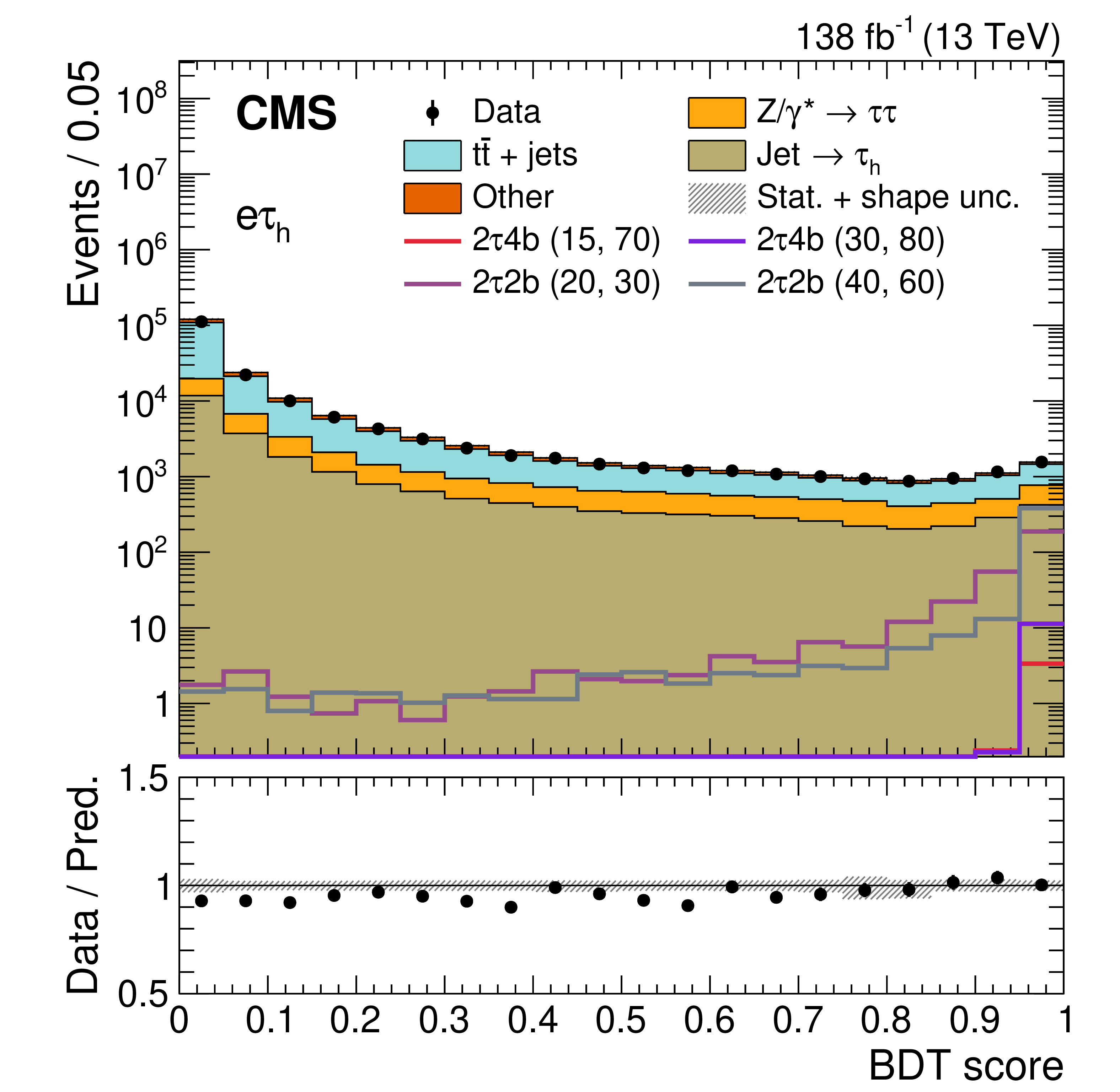

Figure 3-b:
Pre-fit BDT score distribution for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ (upper left), $ \mathrm{e}\tau_\mathrm{h} $ (upper right), and $ \mathrm{e}\mu $ (lower) channels, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |
Figure 3-c:
Pre-fit BDT score distribution for preselected events with at least one b-tagged jet for the $ \mu\tau_\mathrm{h} $ (upper left), $ \mathrm{e}\tau_\mathrm{h} $ (upper right), and $ \mathrm{e}\mu $ (lower) channels, without any SR requirements. The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The combination of statistical and shape systematic uncertainties is displayed with the hatched areas. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower panel of each plot shows the ratio of the data to the sum of the predicted number of background events. The vertical bars on the points show the statistical uncertainty in the ratio. |
png pdf |

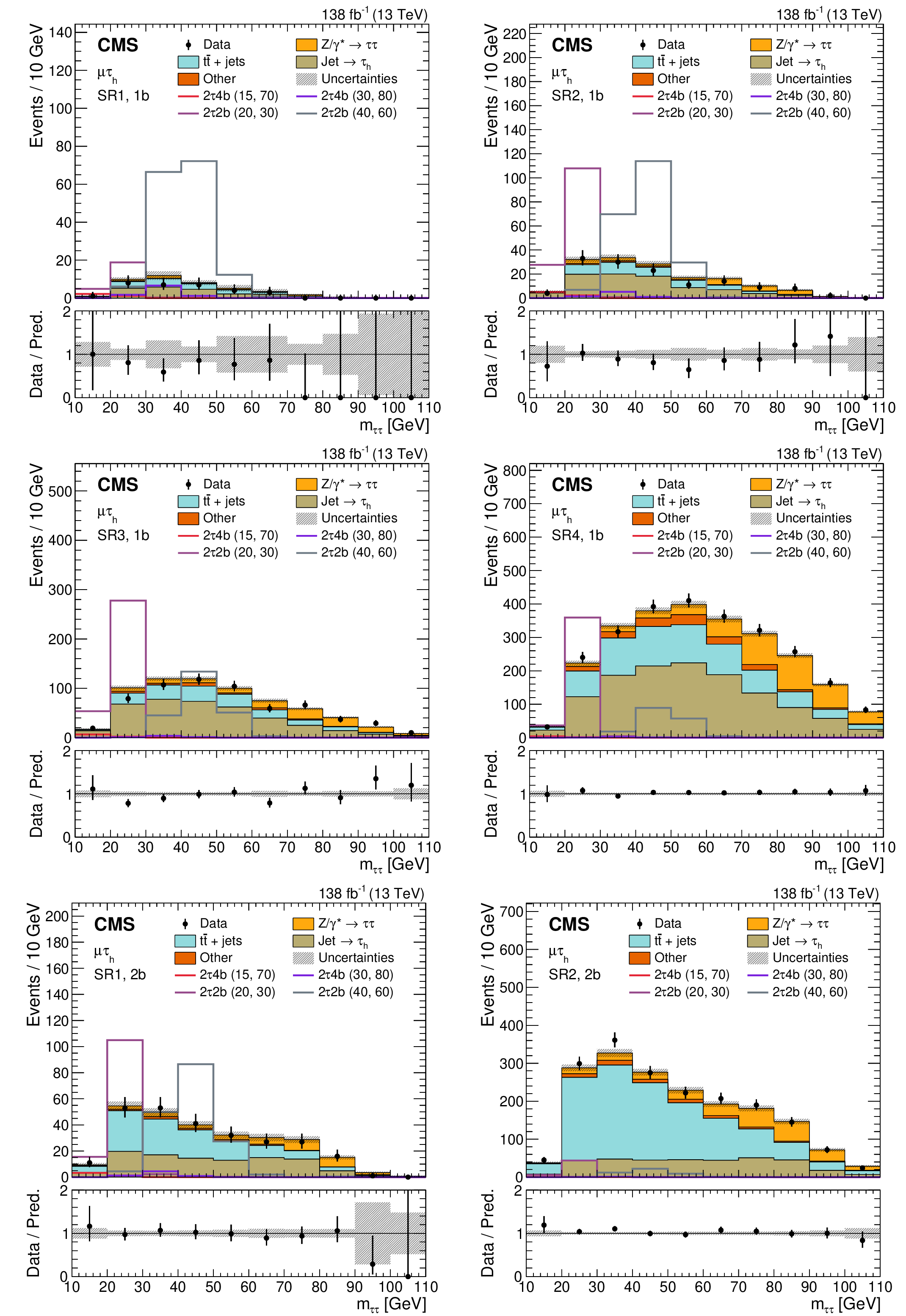

Figure 4:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

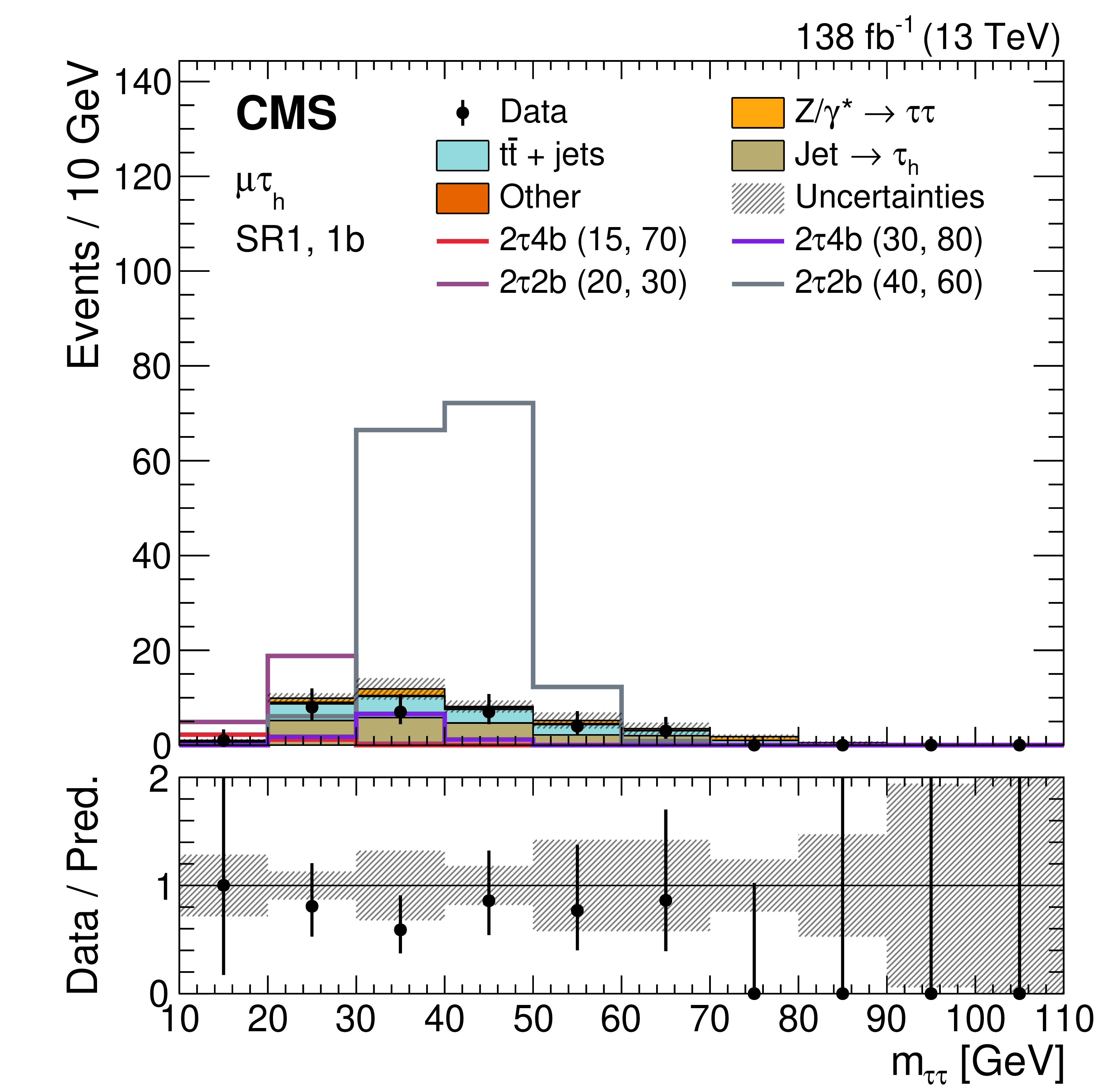

Figure 4-a:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

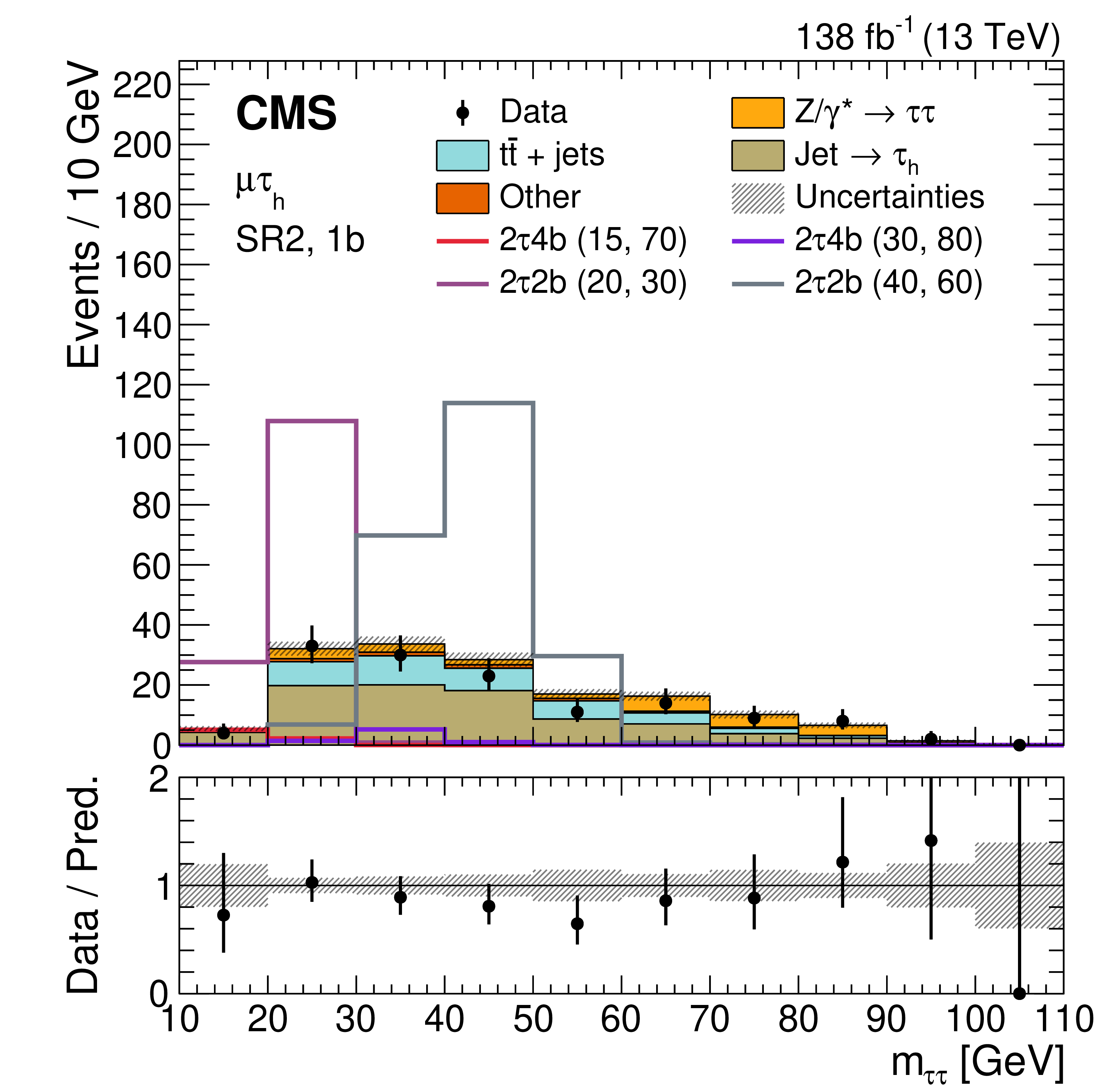

Figure 4-b:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

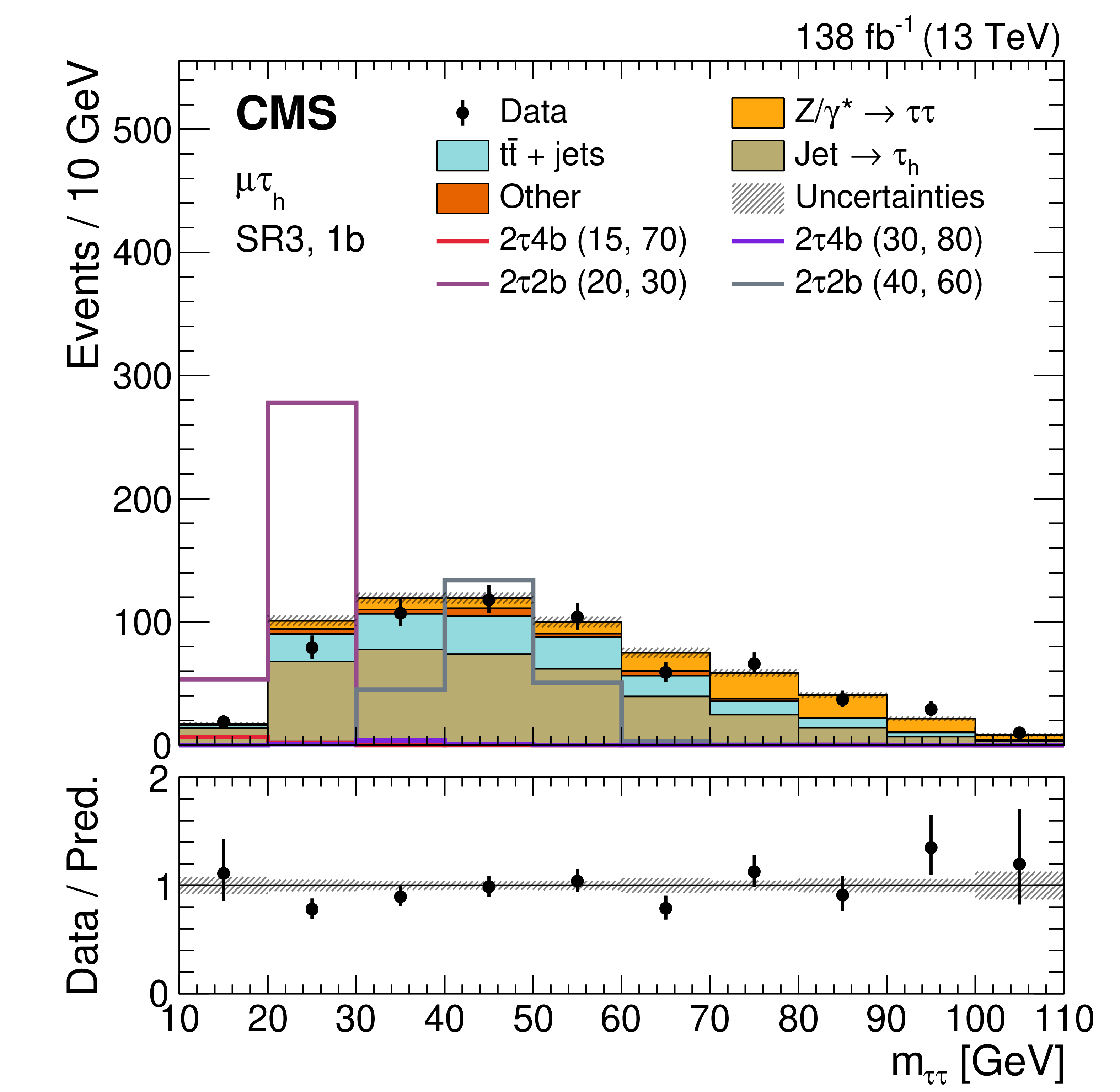

Figure 4-c:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

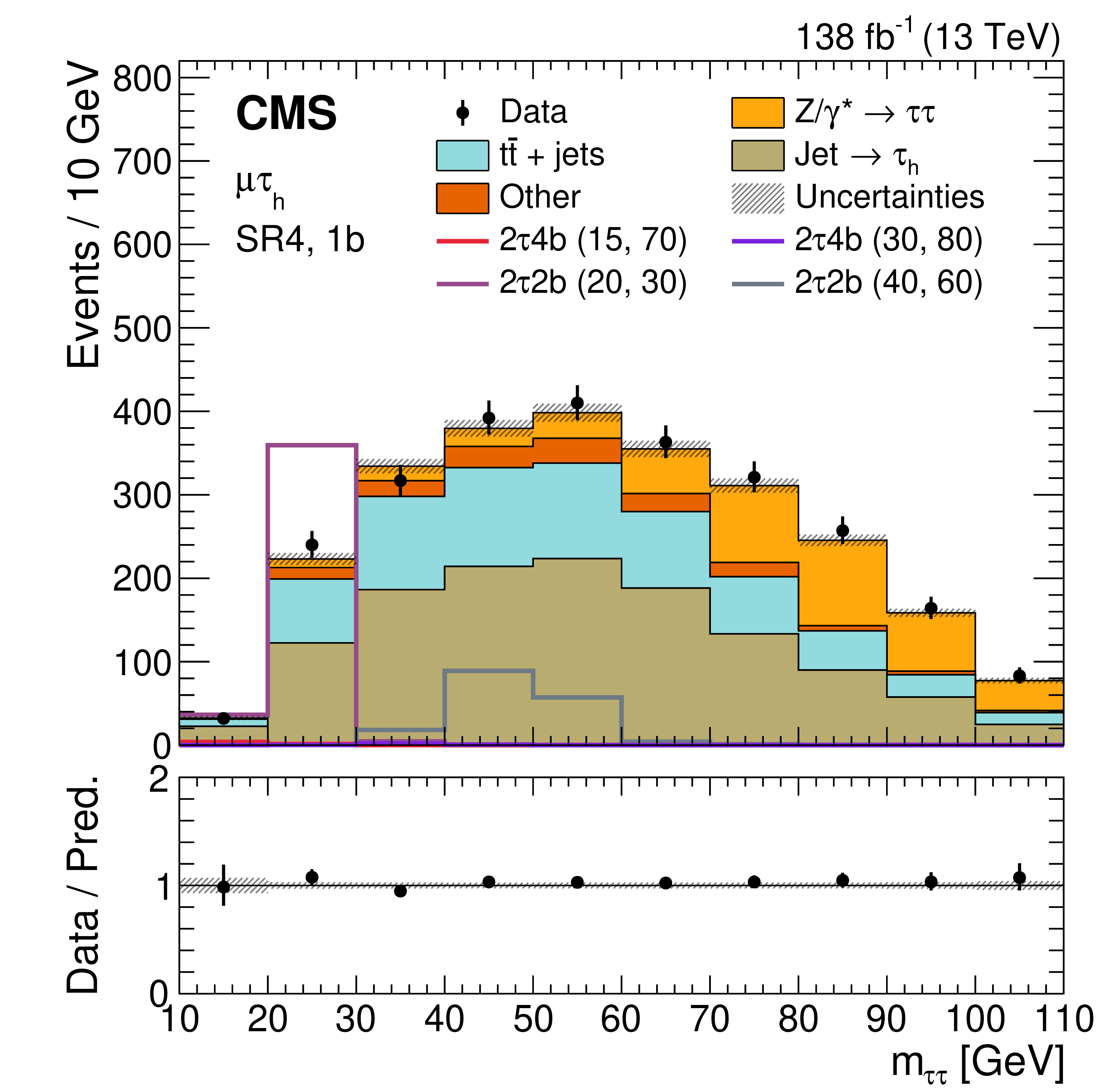

Figure 4-d:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

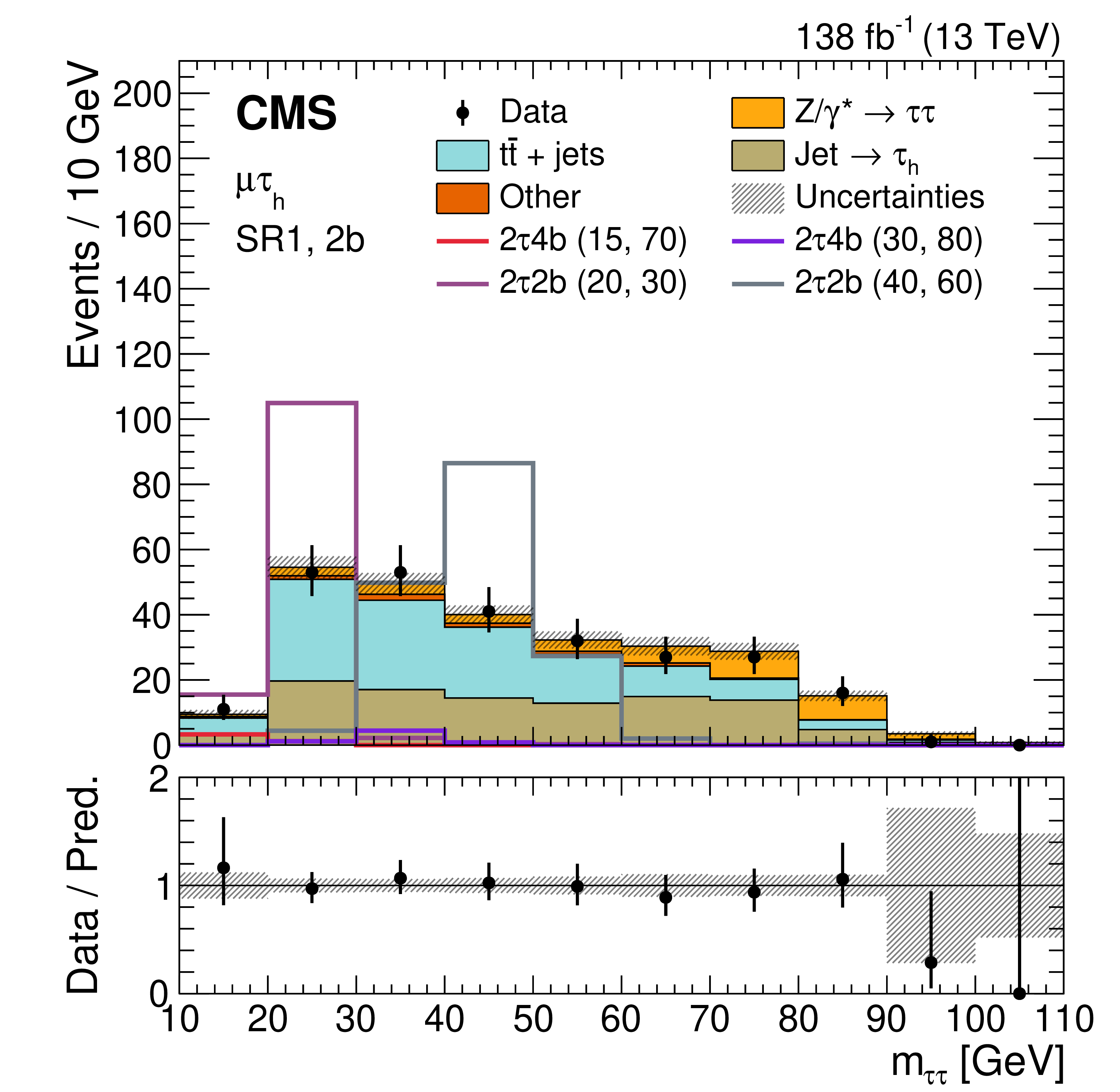

Figure 4-e:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

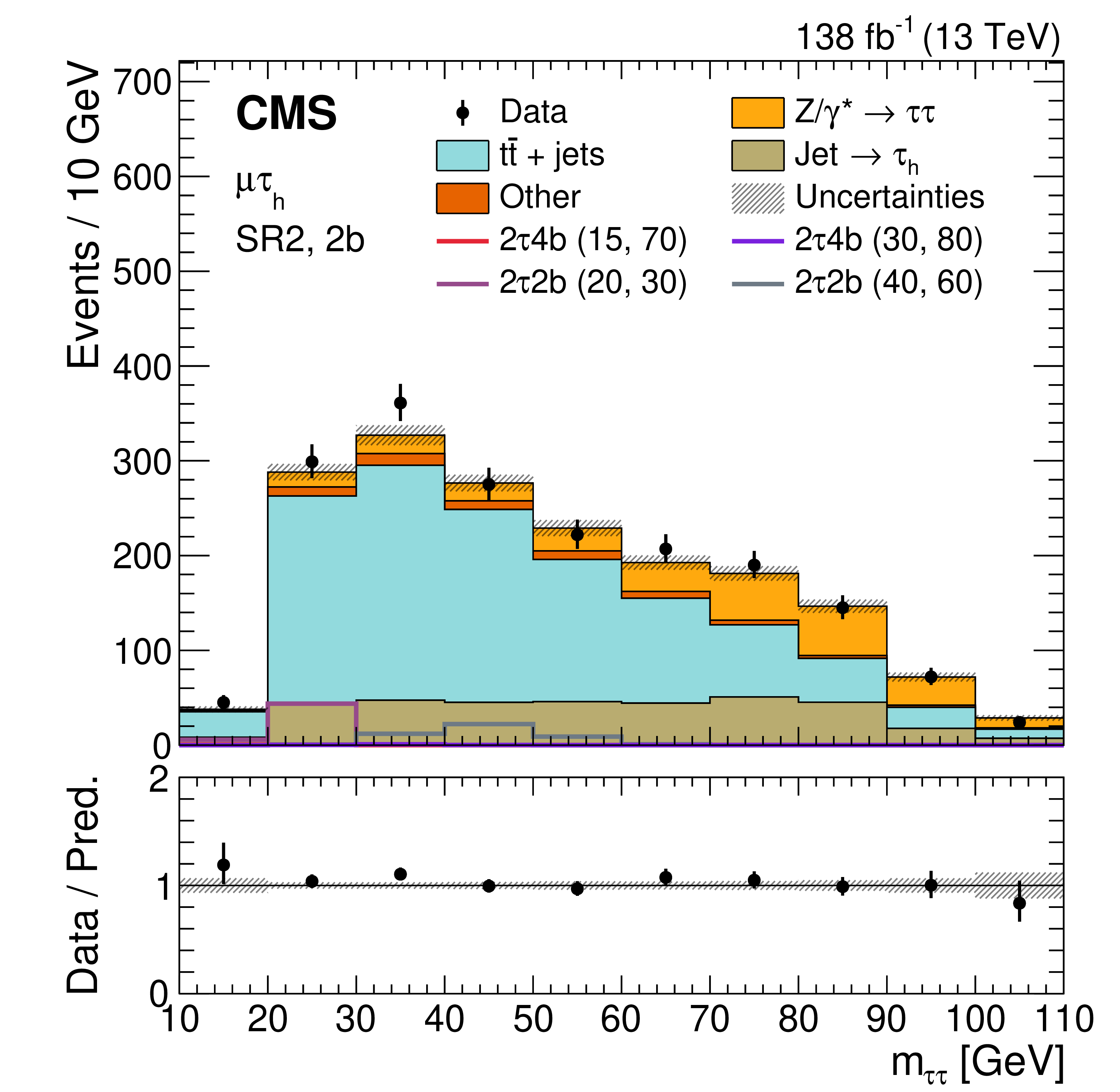

Figure 4-f:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

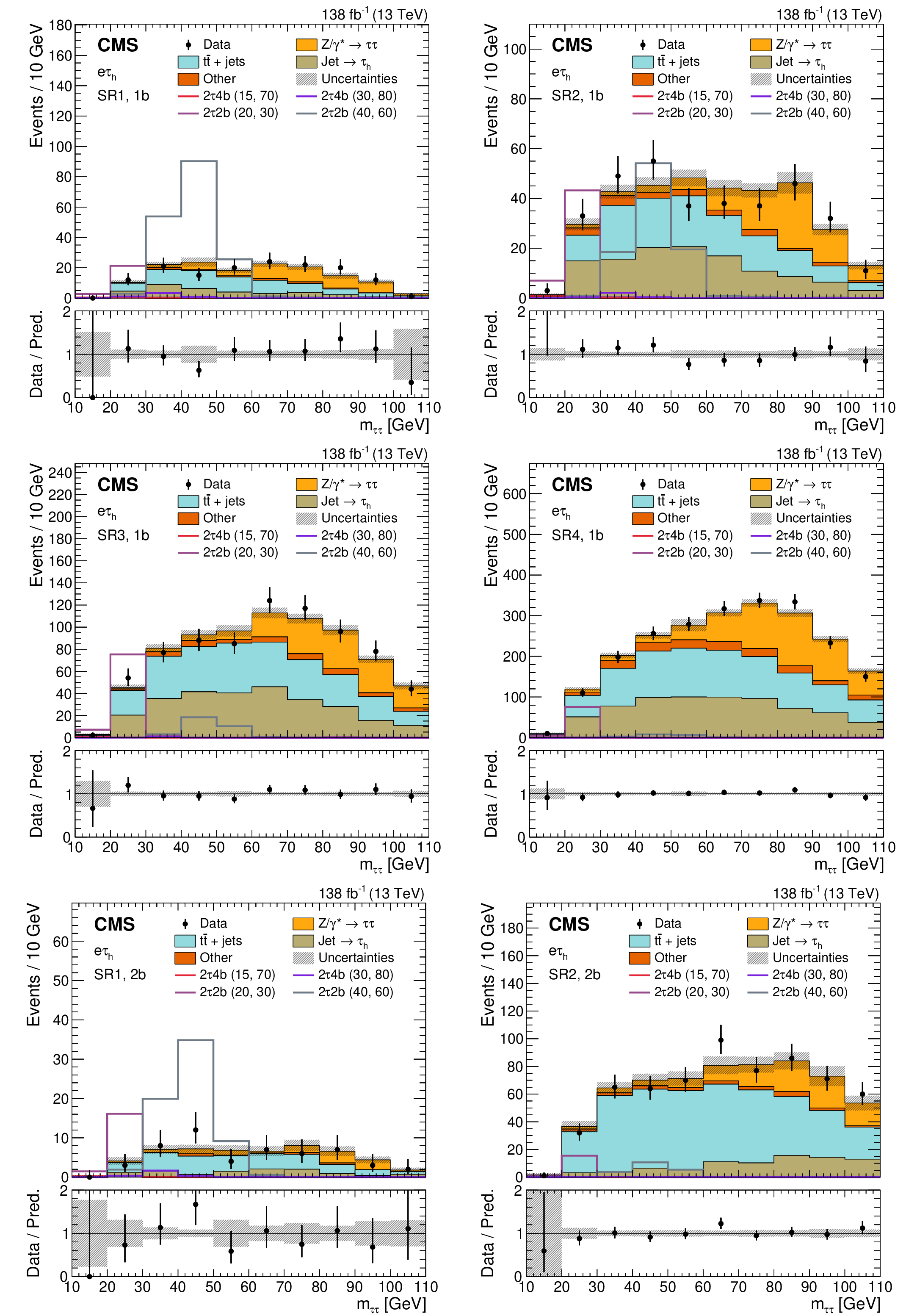

Figure 5:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |
Figure 5-a:

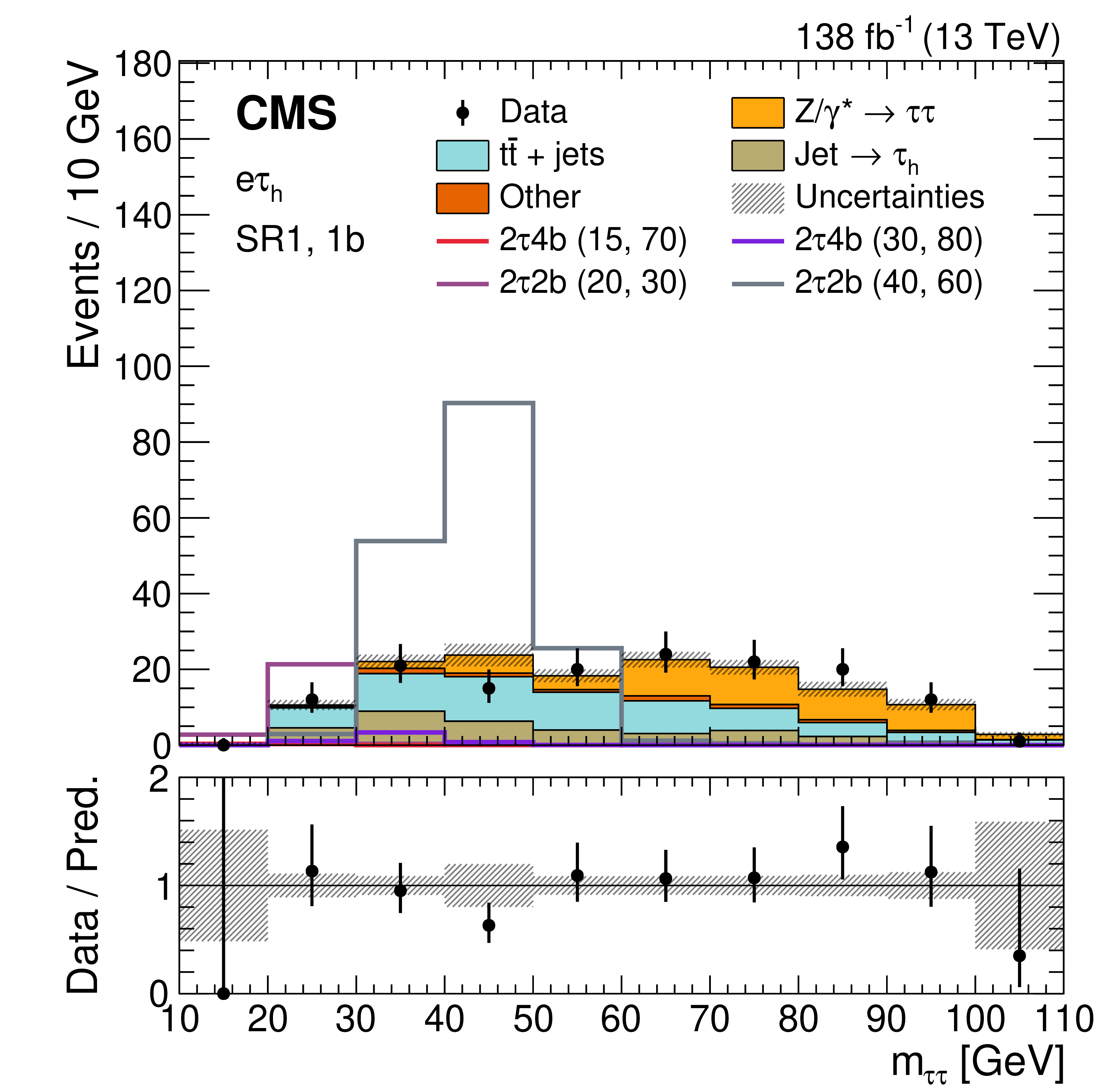

Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

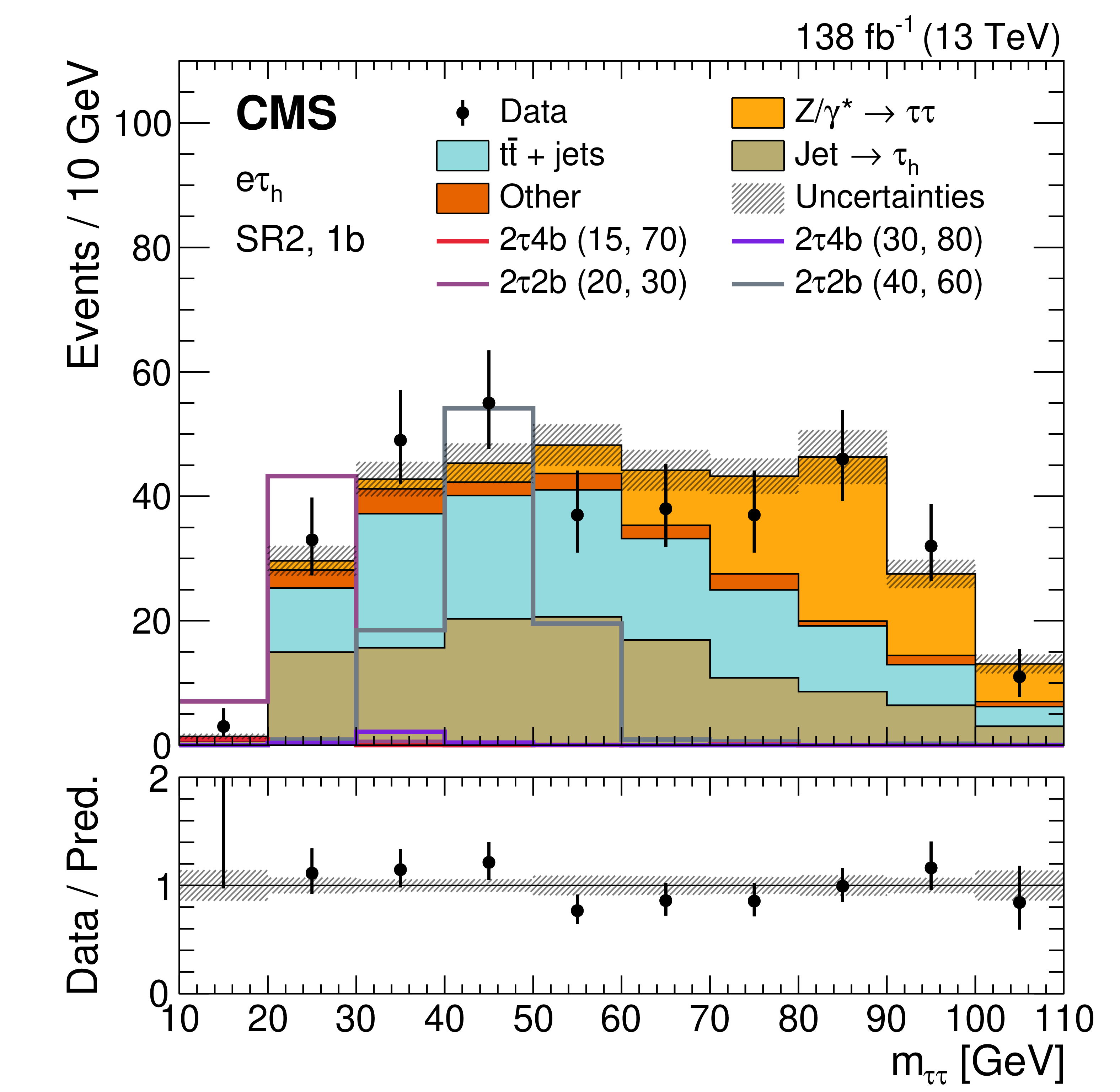

Figure 5-b:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

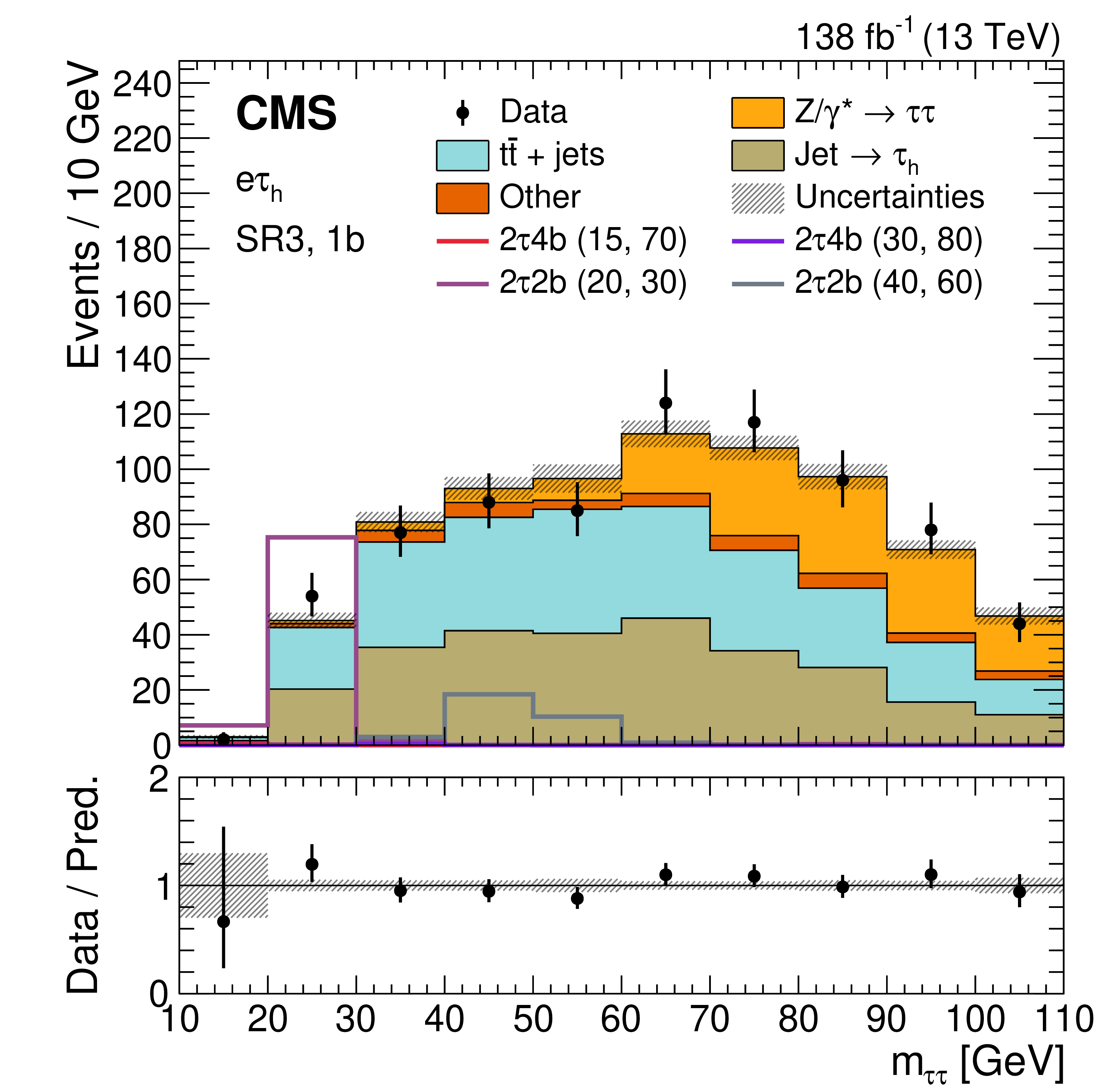

Figure 5-c:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |
Figure 5-d:

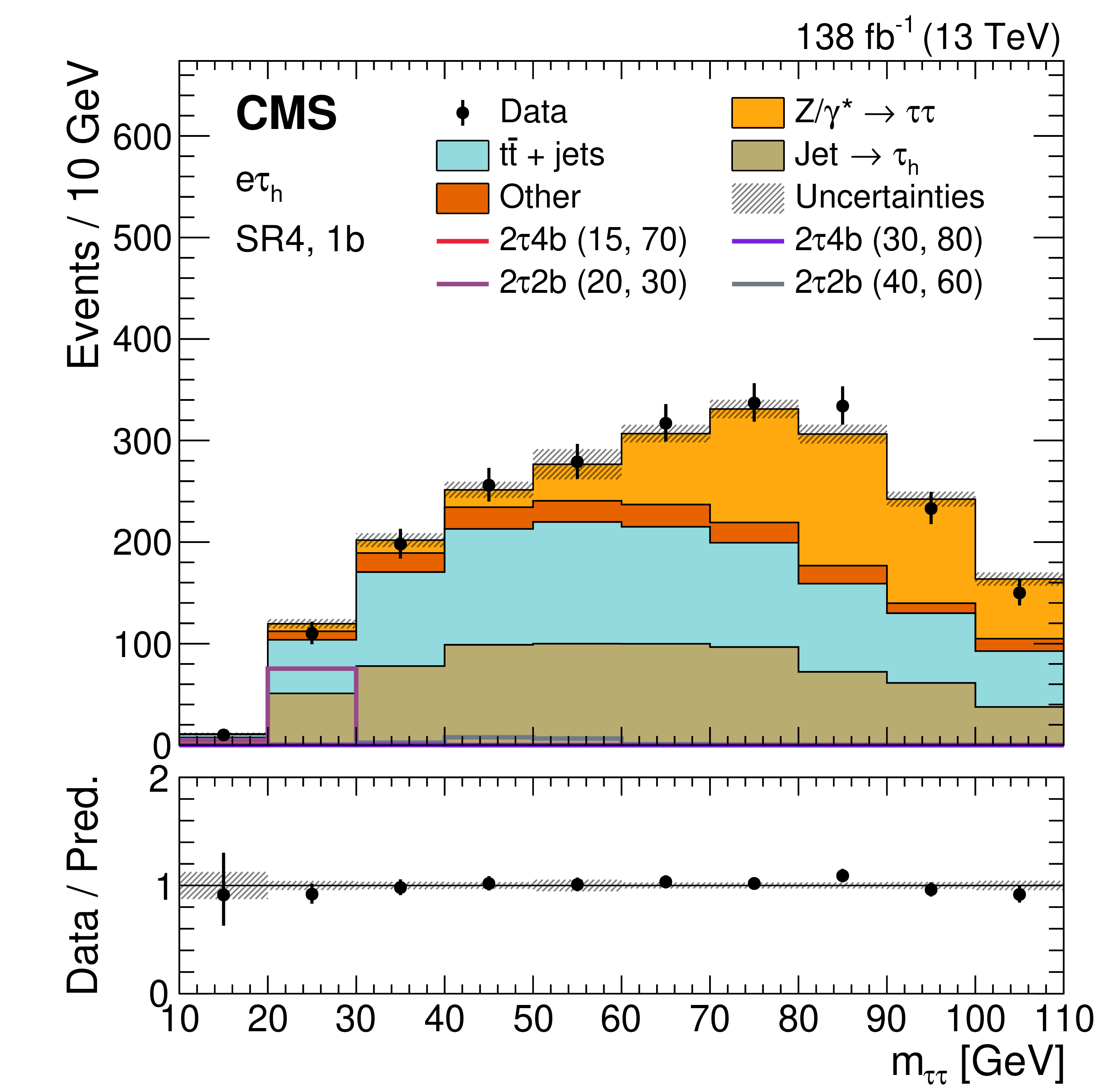

Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

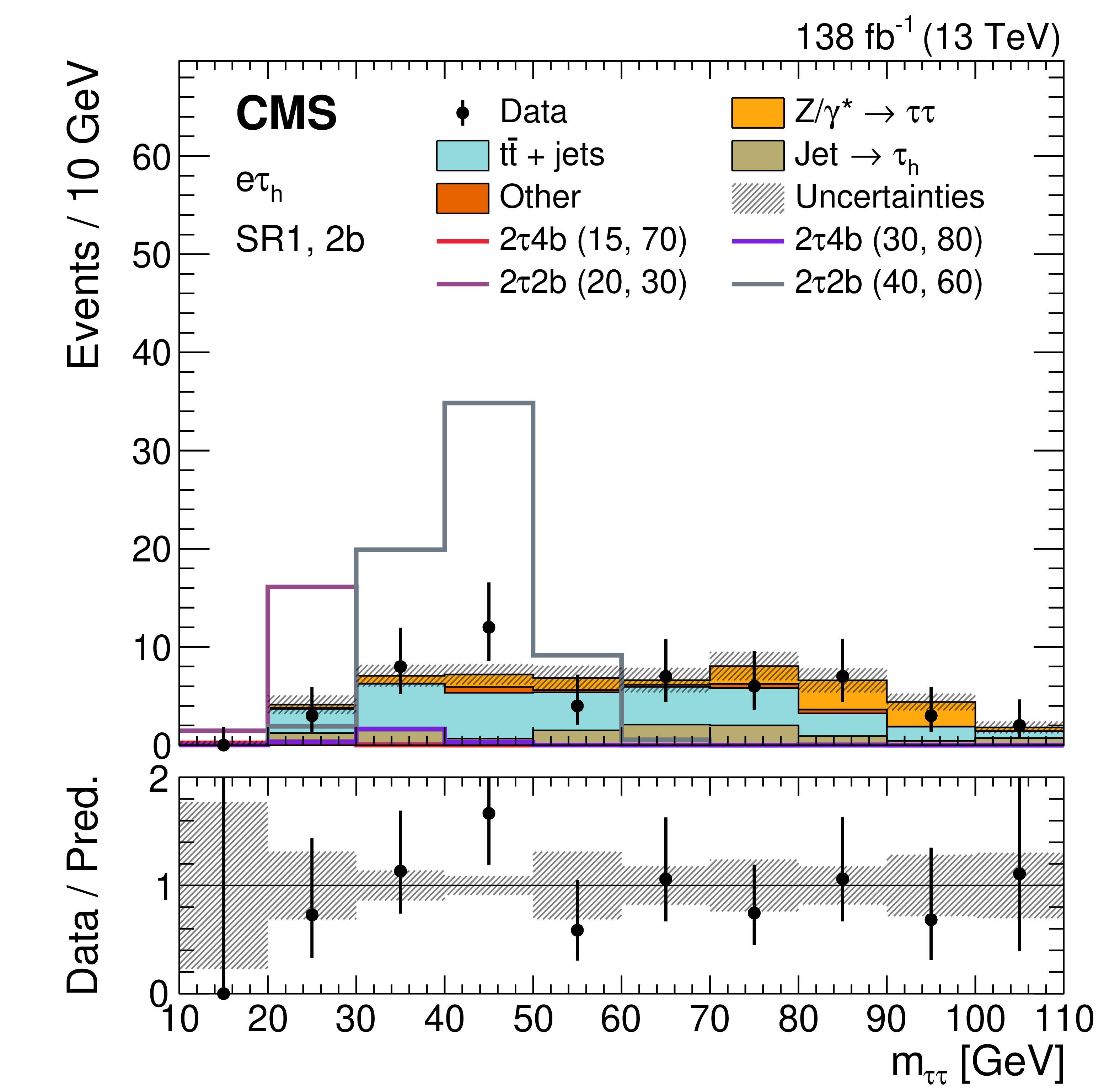

Figure 5-e:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

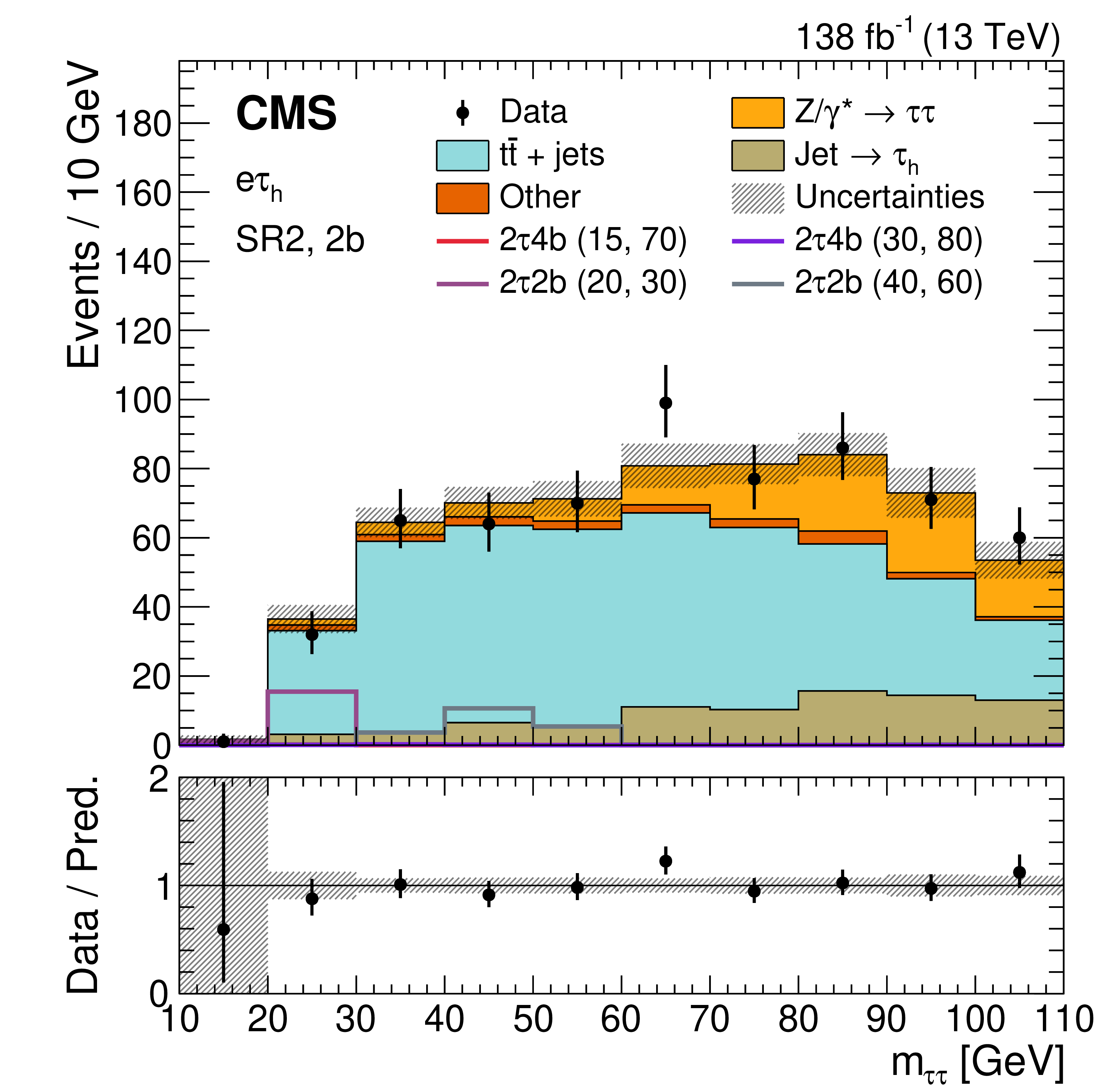

Figure 5-f:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), SR3 (middle left), and SR4 (middle right), and in events with at least two b-tagged jets: SR1 (lower left) and SR2 (lower right). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

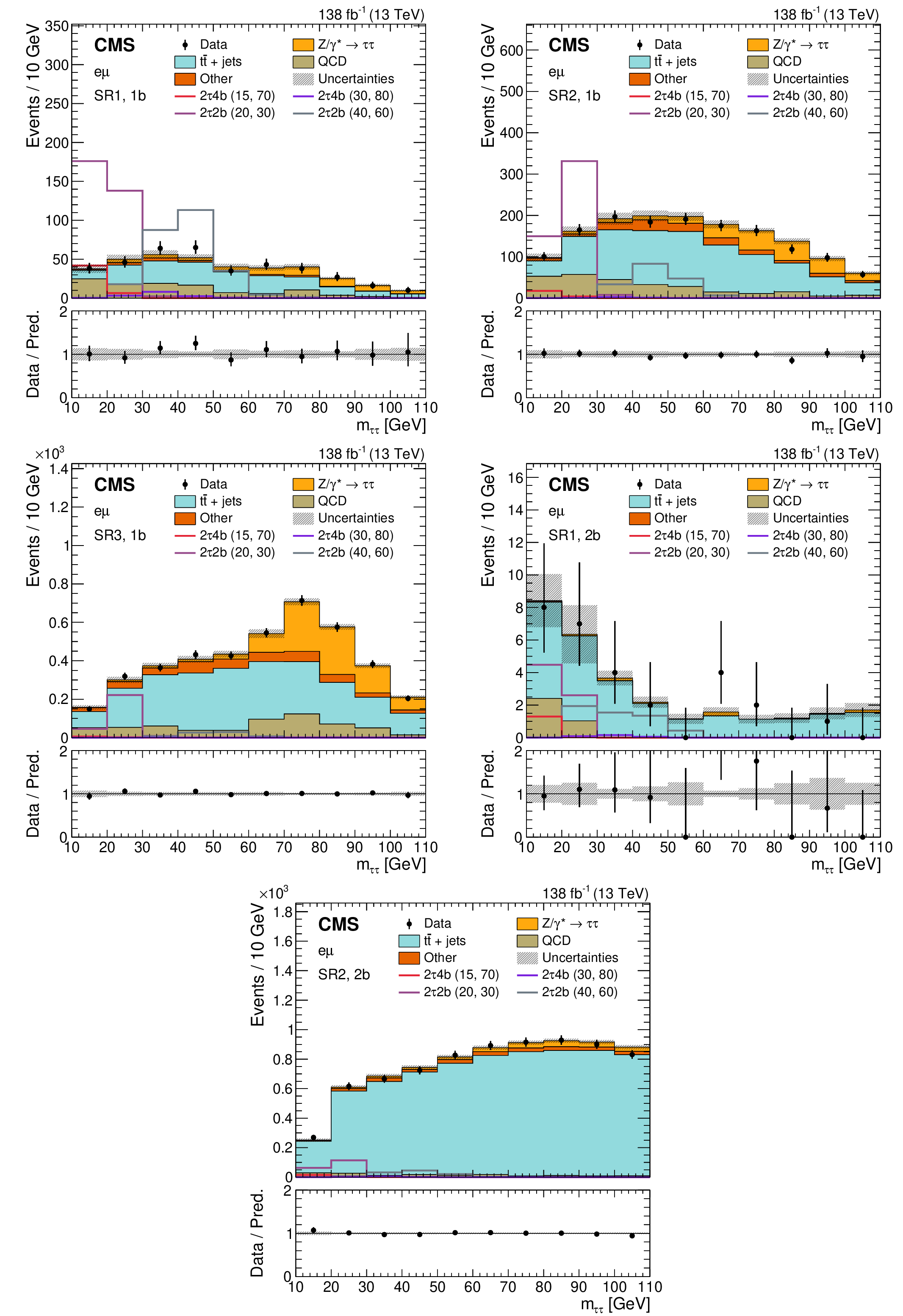

Figure 6:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), and SR3 (middle left), and in events with at least two b-tagged jets: SR1 (middle right) and SR2 (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

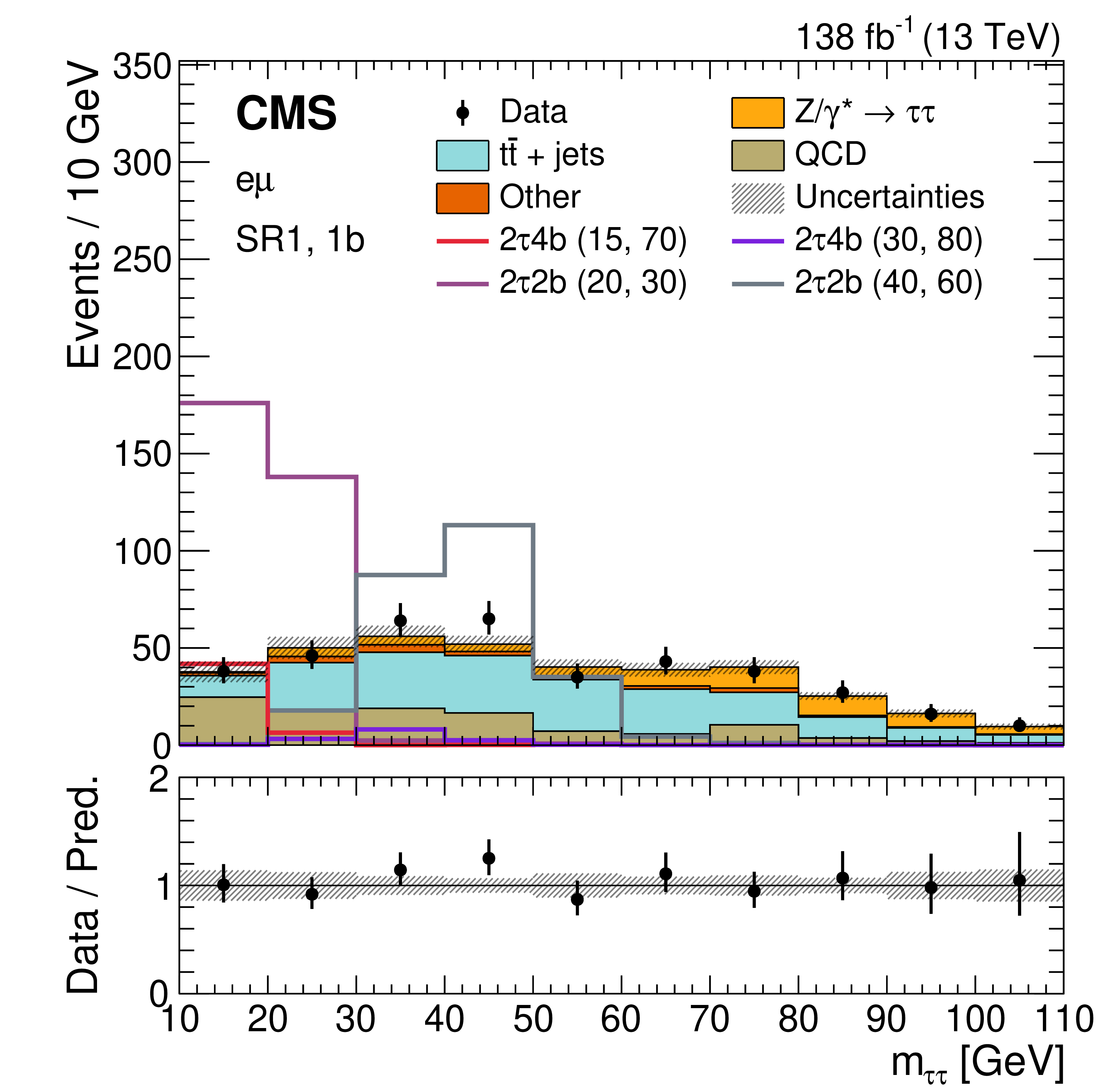

Figure 6-a:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), and SR3 (middle left), and in events with at least two b-tagged jets: SR1 (middle right) and SR2 (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

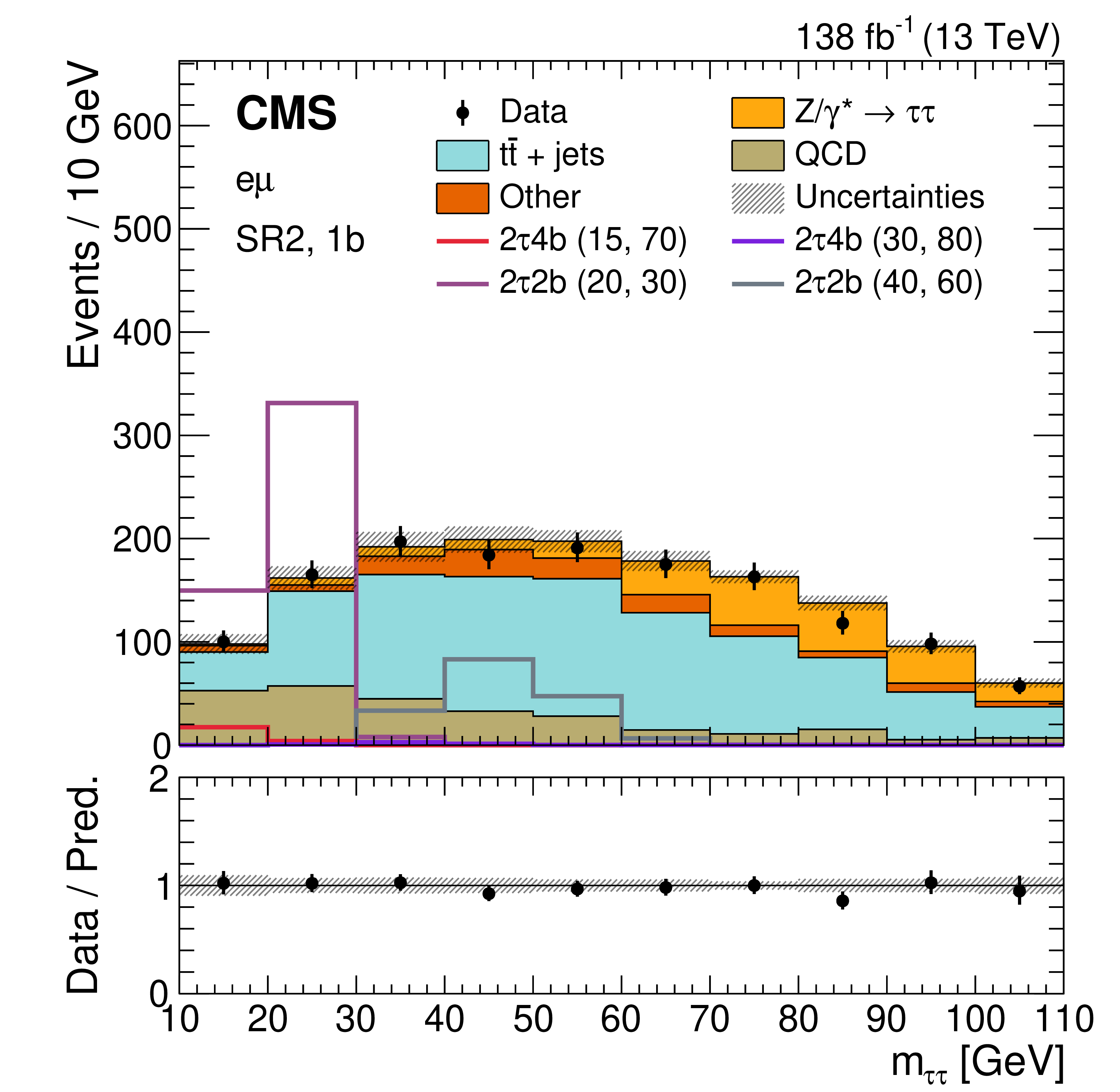

Figure 6-b:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), and SR3 (middle left), and in events with at least two b-tagged jets: SR1 (middle right) and SR2 (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

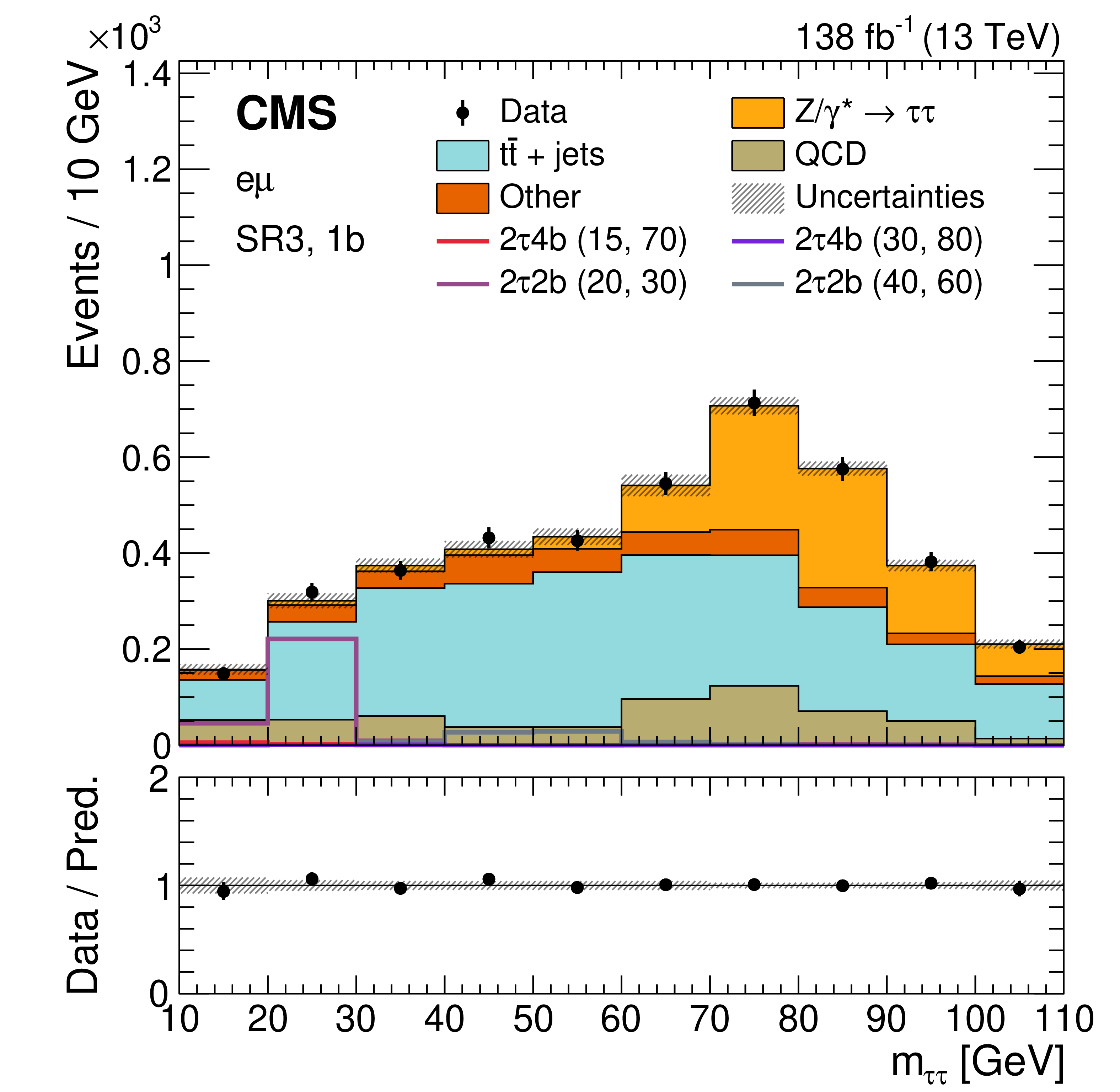

Figure 6-c:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), and SR3 (middle left), and in events with at least two b-tagged jets: SR1 (middle right) and SR2 (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

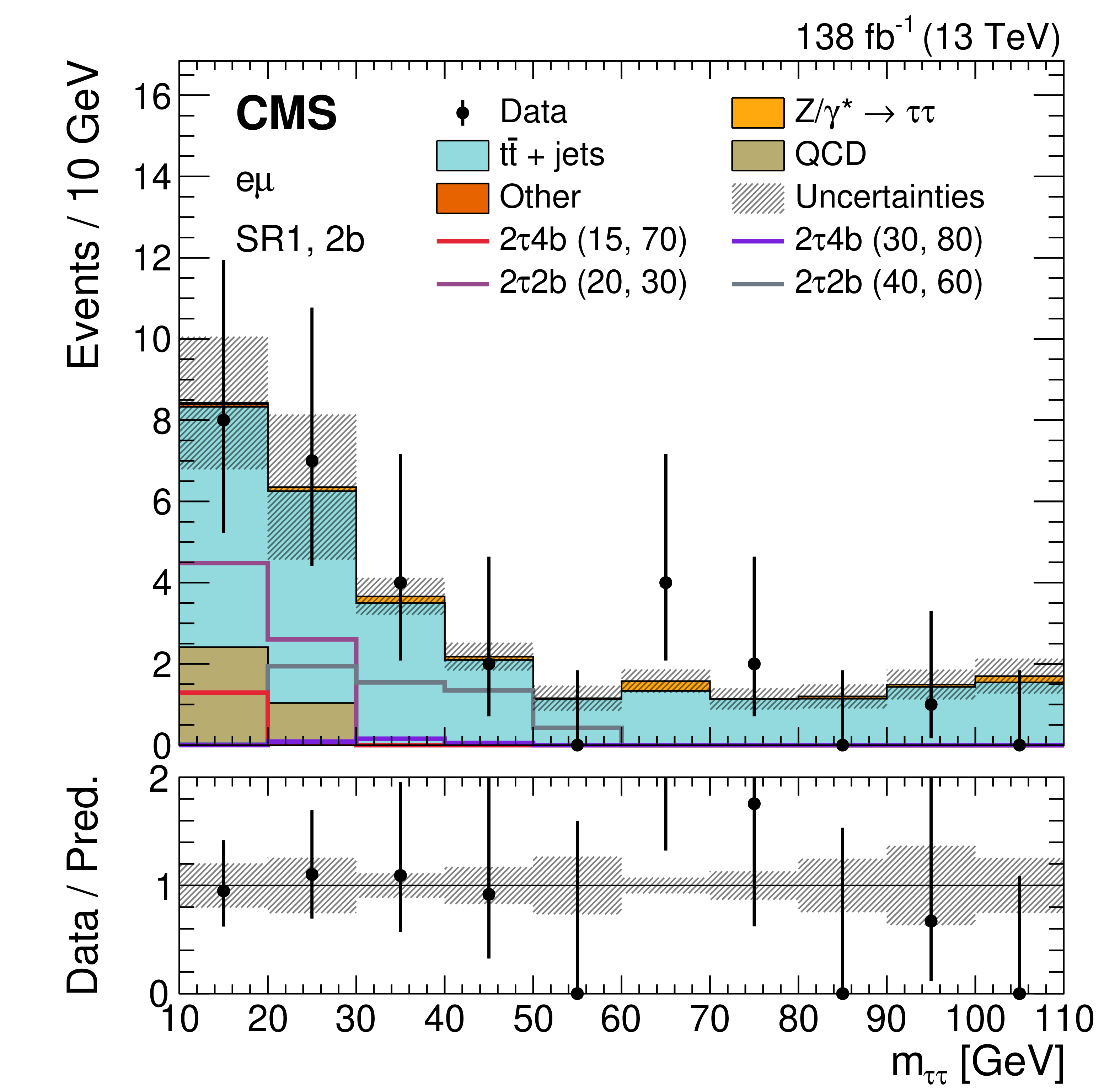

Figure 6-d:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), and SR3 (middle left), and in events with at least two b-tagged jets: SR1 (middle right) and SR2 (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |
Figure 6-e:

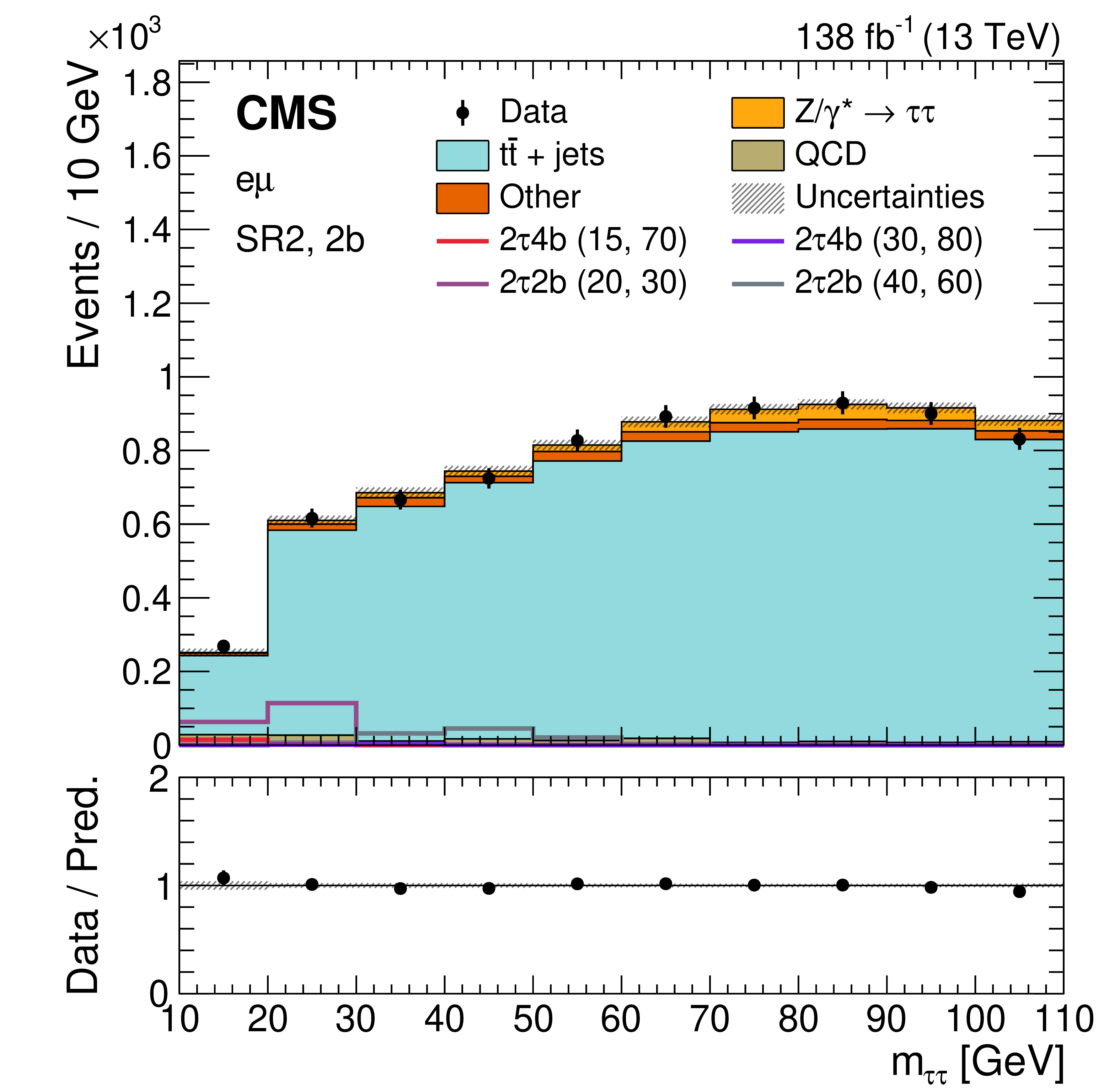

Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with exactly one b-tagged jet: SR1 (upper left), SR2 (upper right), and SR3 (middle left), and in events with at least two b-tagged jets: SR1 (middle right) and SR2 (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |
Figure 7:

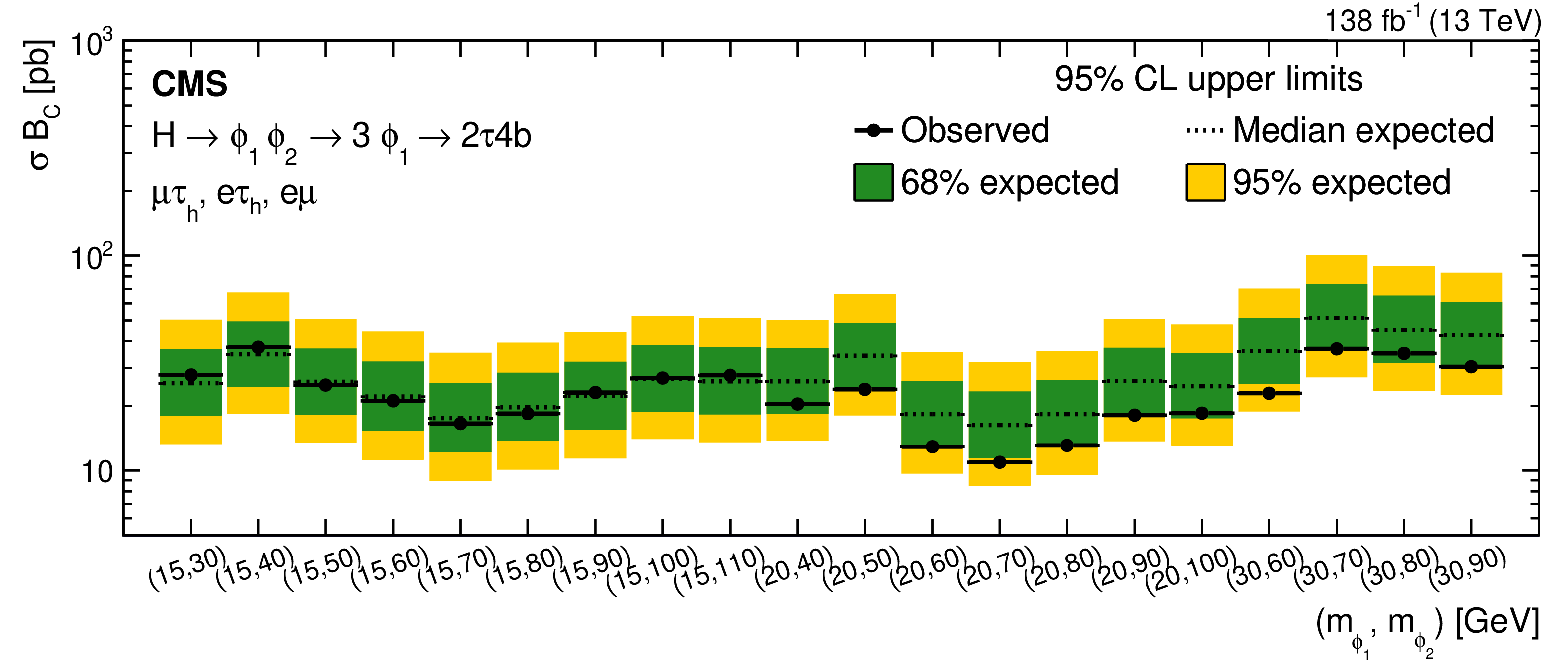

The observed (points) and median expected (dotted line) 95% CL upper limits on the product $ \sigma \mathrm{B_{C}} $ for the cascade scenario using the BDT-based event categorization and the fit to the $ m_{\tau\tau} $ distribution, for different mass hypotheses ($ m_{\phi_{1}} $, $ m_{\phi_{2}} $). The horizontal bars on the points are for better legibility only. The green and yellow regions show the 68 and 95% expected range for the median value, respectively. |
png pdf |

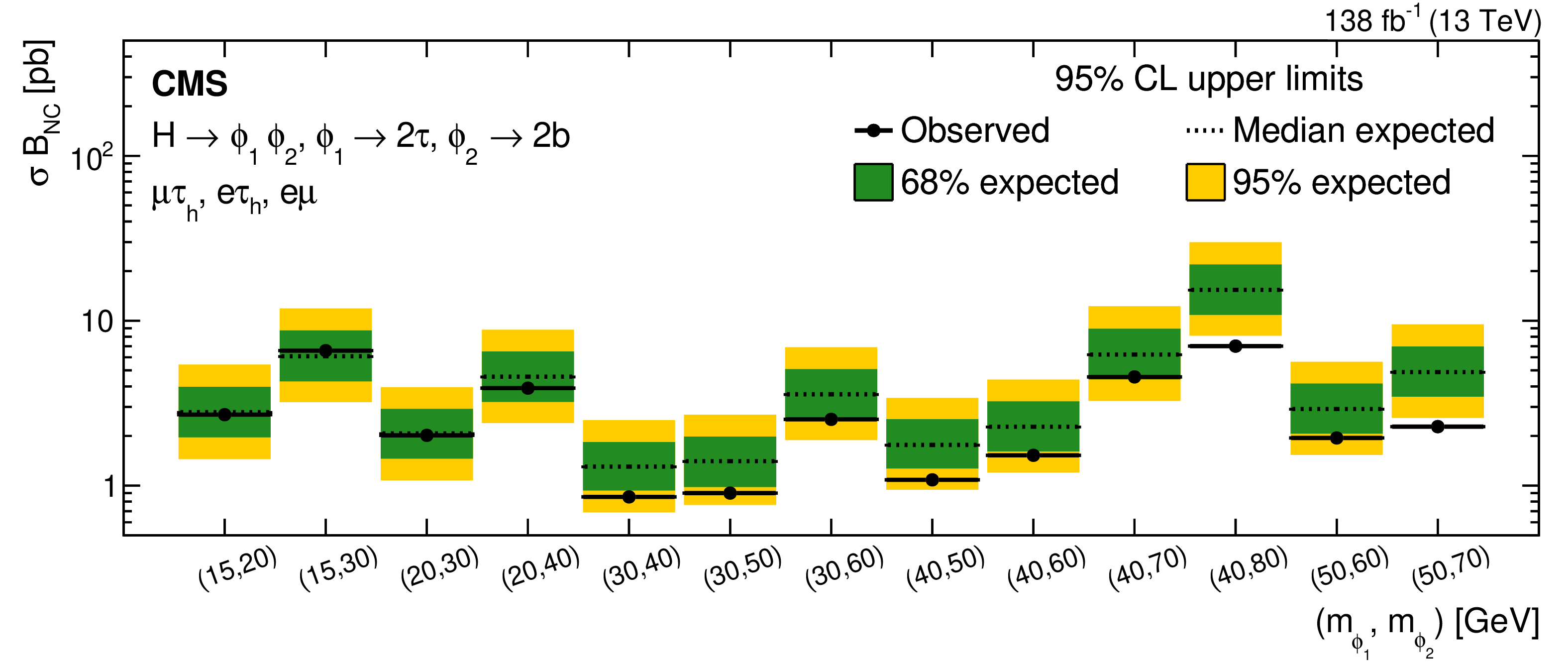

Figure 8:
The observed (points) and median expected (dotted line) 95% CL upper limits on the product $ \sigma \mathrm{B_{NC}} $ for the non-cascade scenario using the BDT-based event categorization and the fit to the $ m_{\tau\tau} $ distribution, for different mass hypotheses ($ m_{\phi_{1}} $, $ m_{\phi_{2}} $). The horizontal bars on the points are for better legibility only. The green and yellow regions show the 68 and 95% expected range for the median value, respectively. |
png pdf |

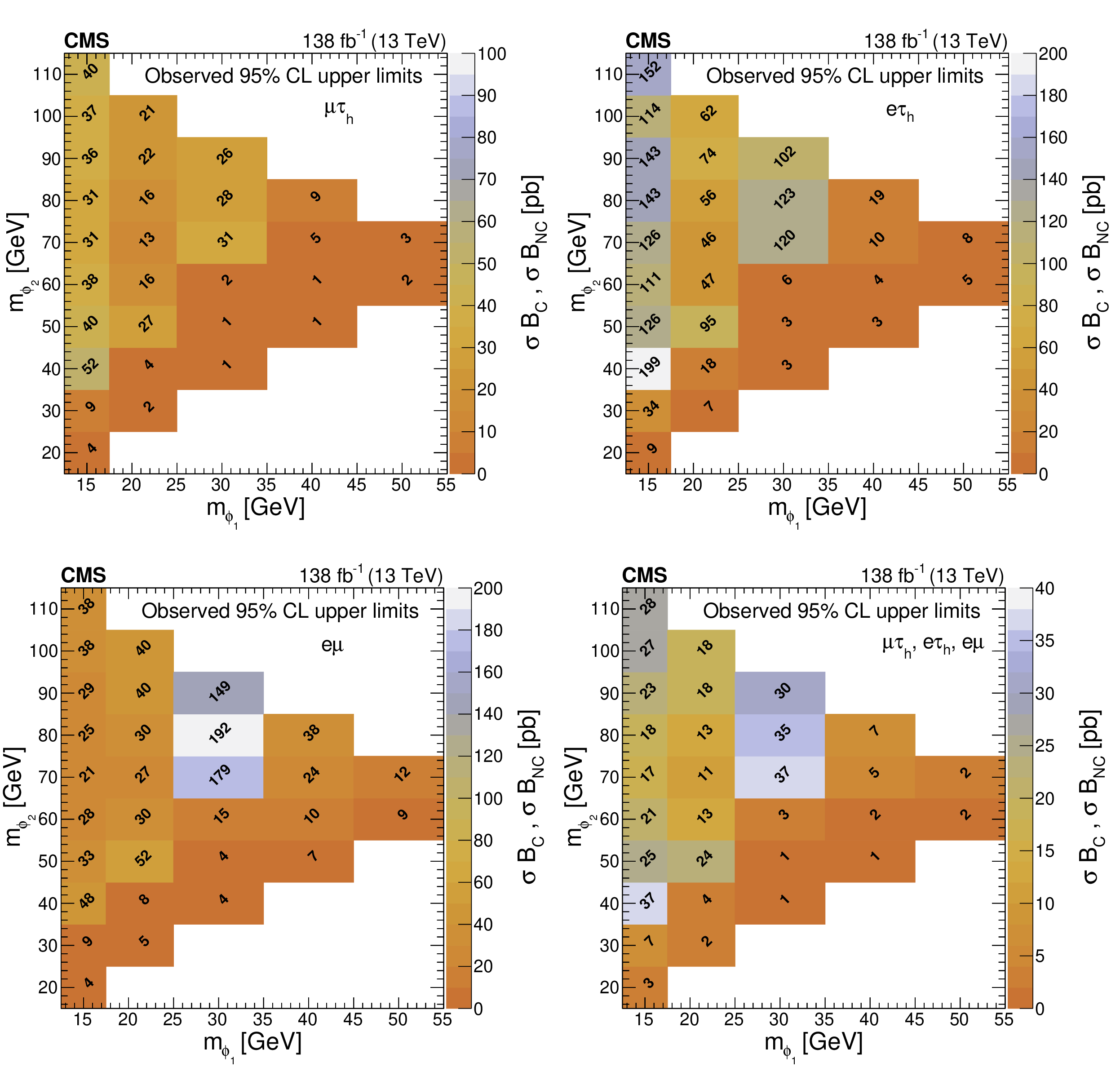

Figure 9:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $, obtained using the BDT-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

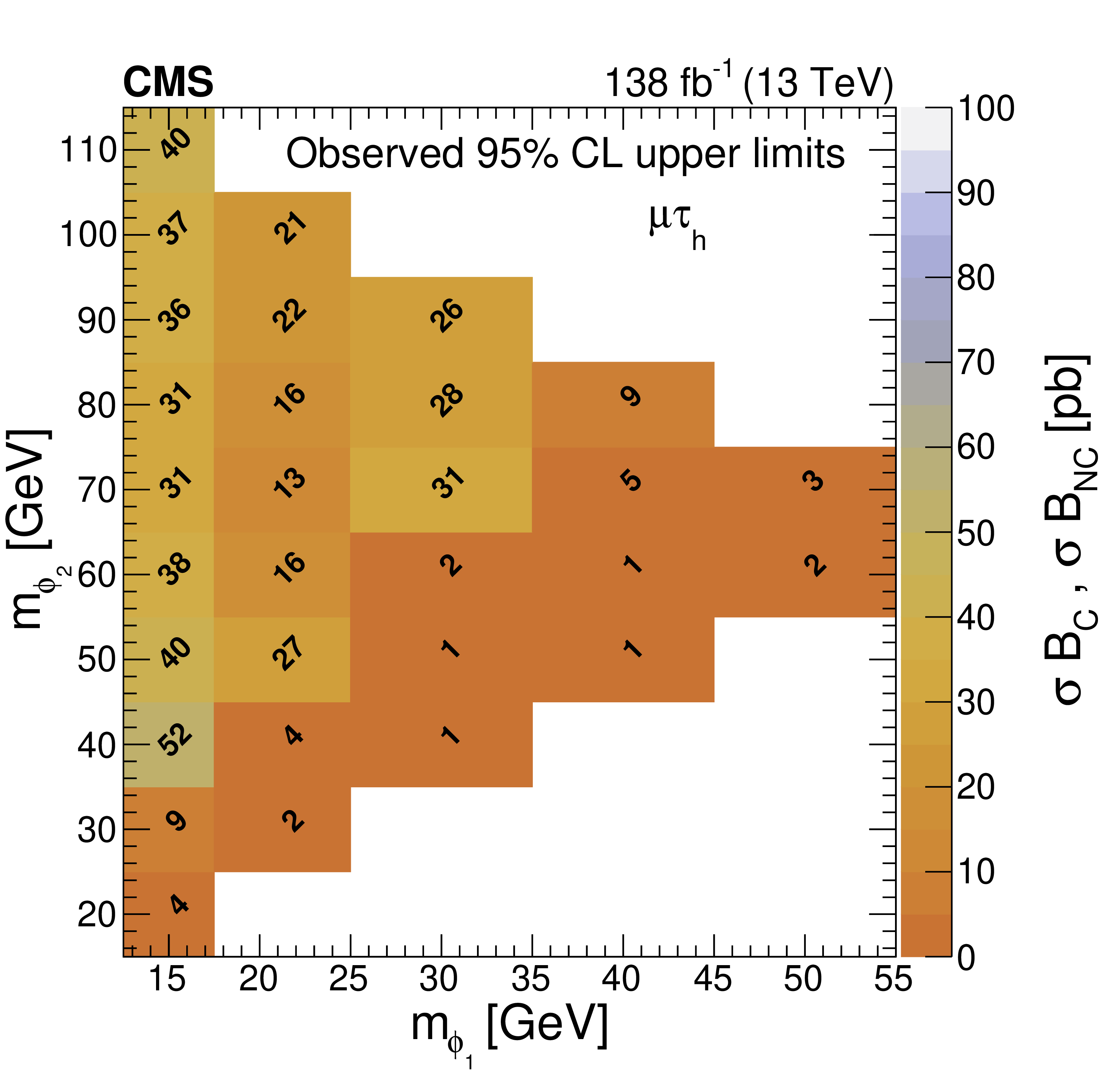

Figure 9-a:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $, obtained using the BDT-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

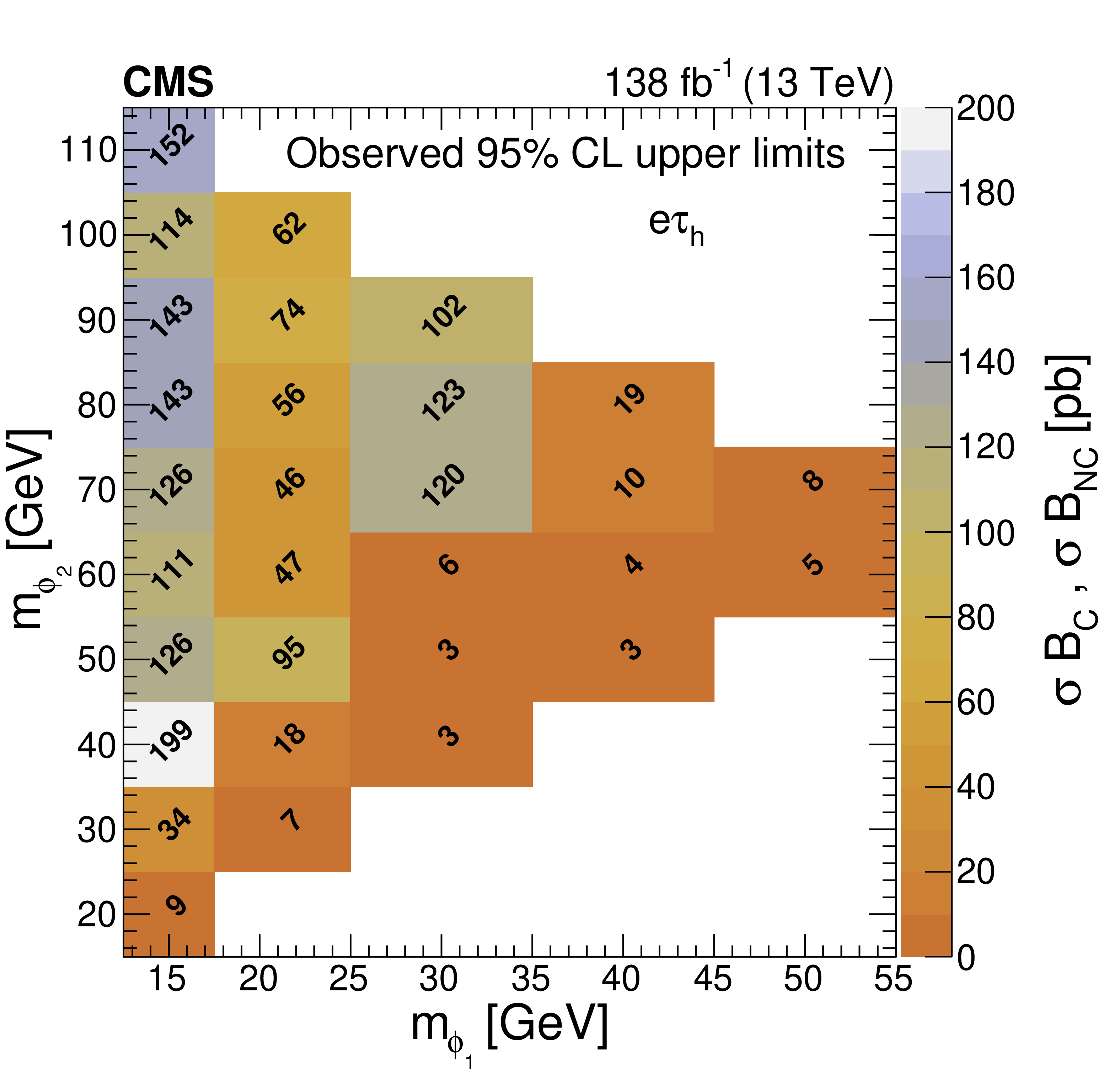

Figure 9-b:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $, obtained using the BDT-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

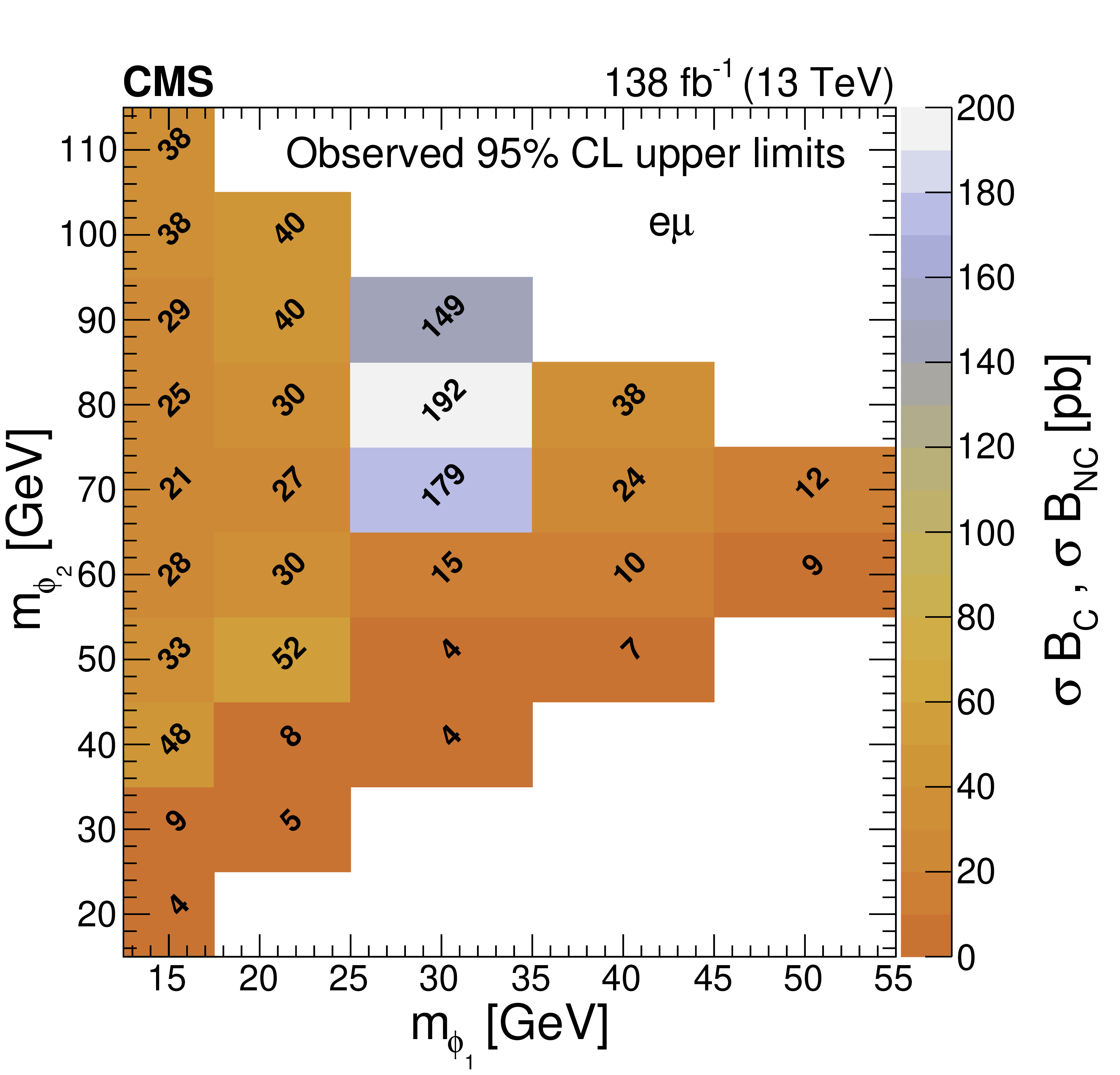

Figure 9-c:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $, obtained using the BDT-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

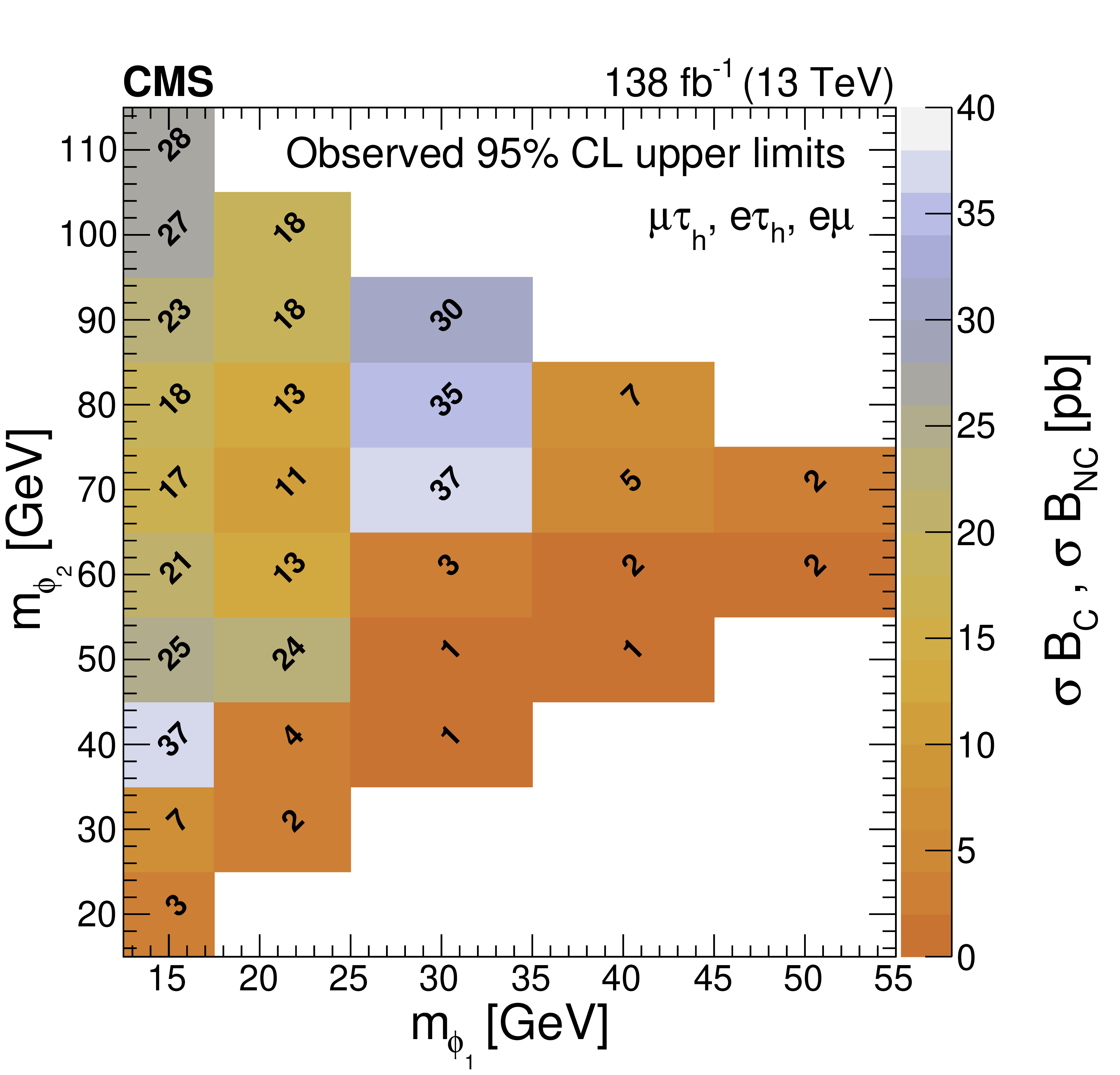

Figure 9-d:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $, obtained using the BDT-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

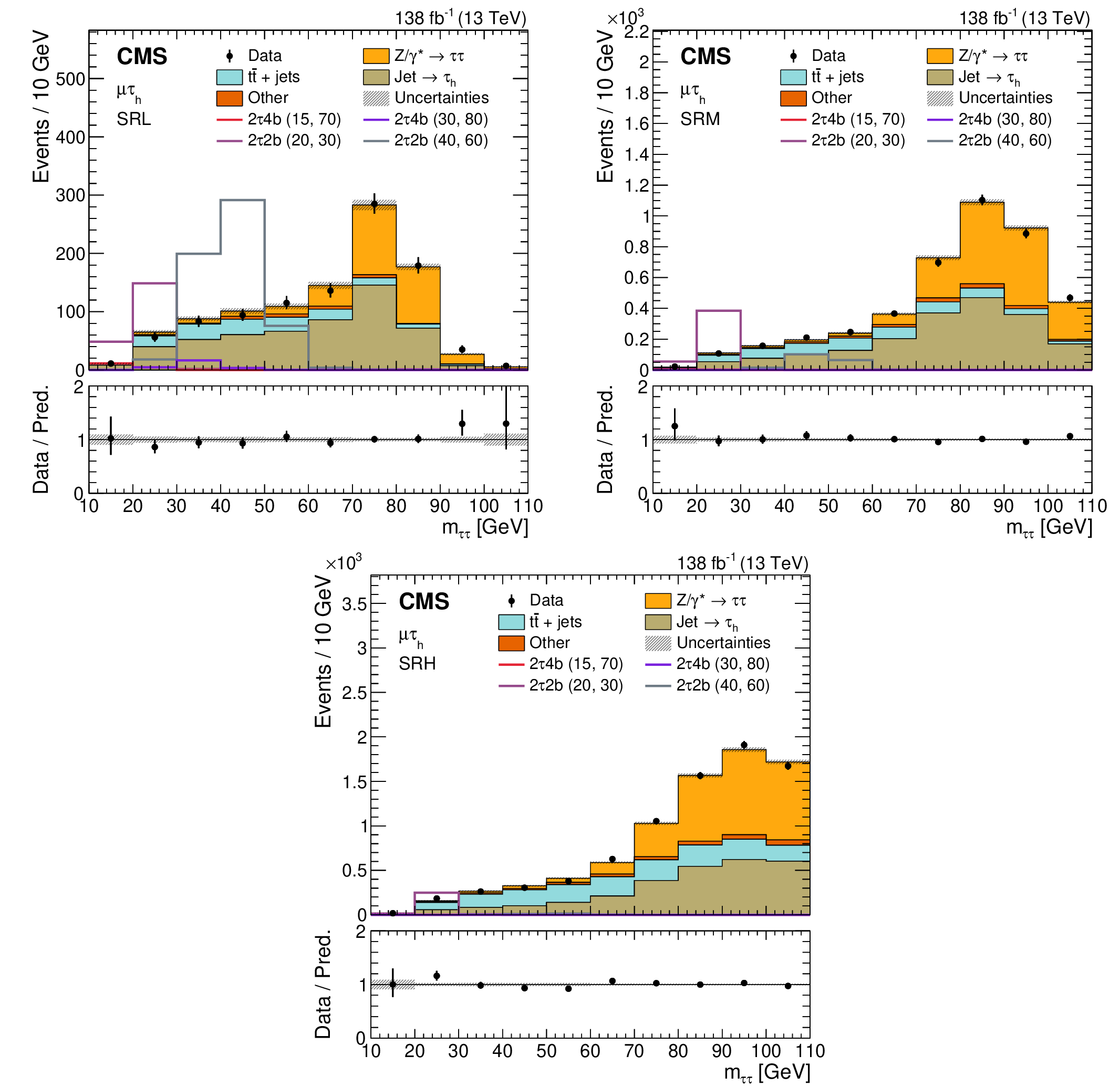

Figure A1:

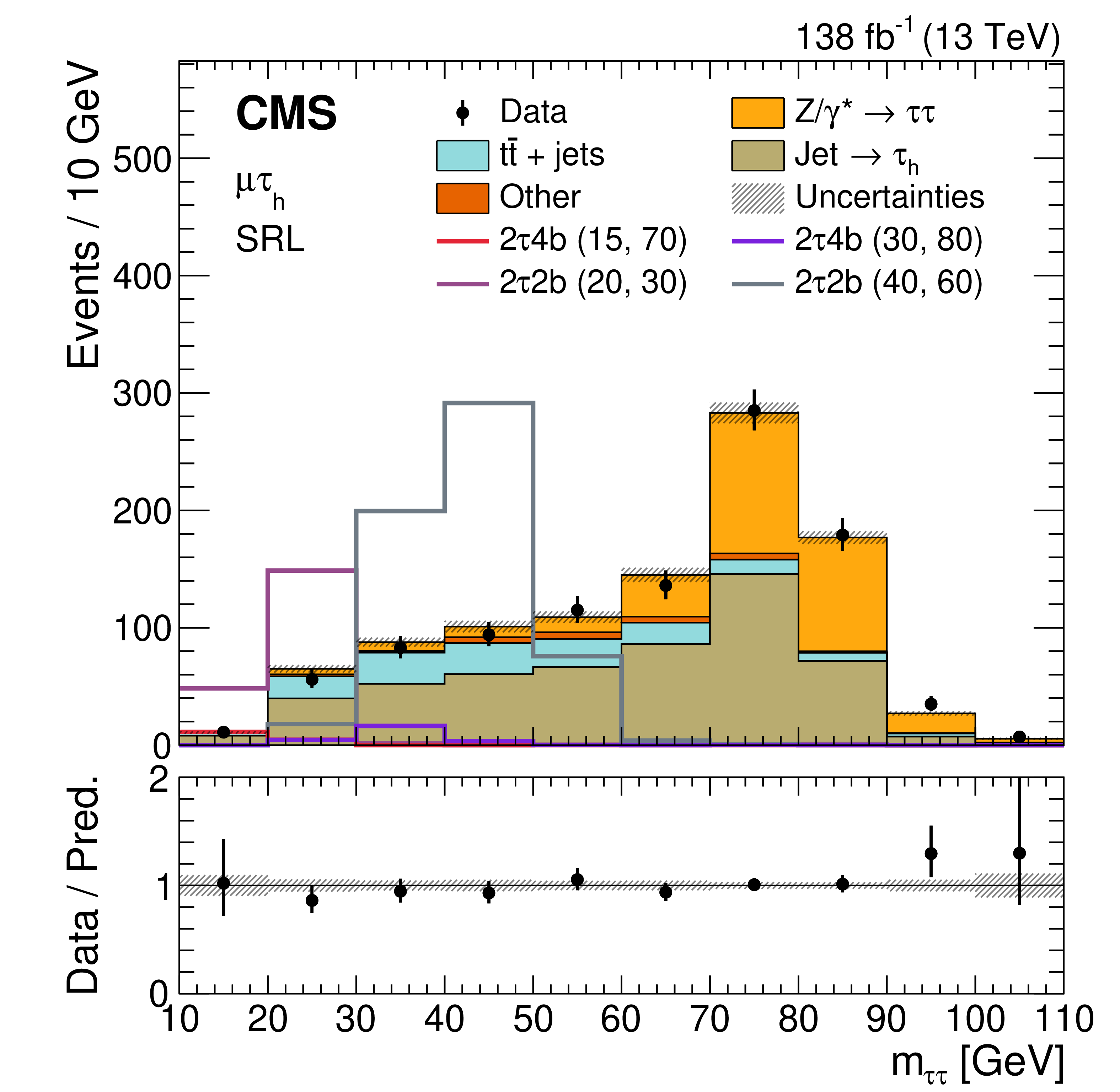

Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |
Figure A1-a:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

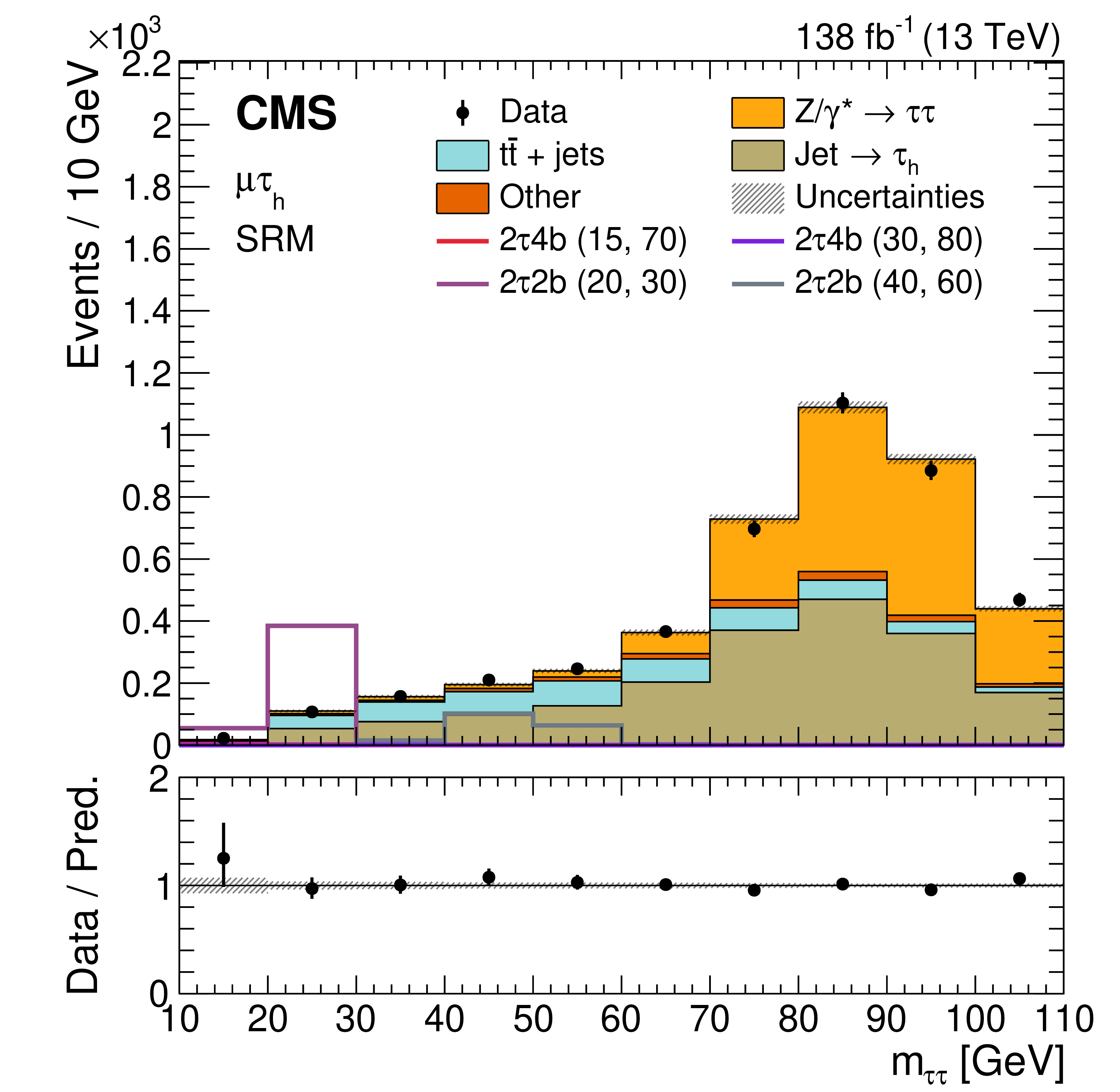

Figure A1-b:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

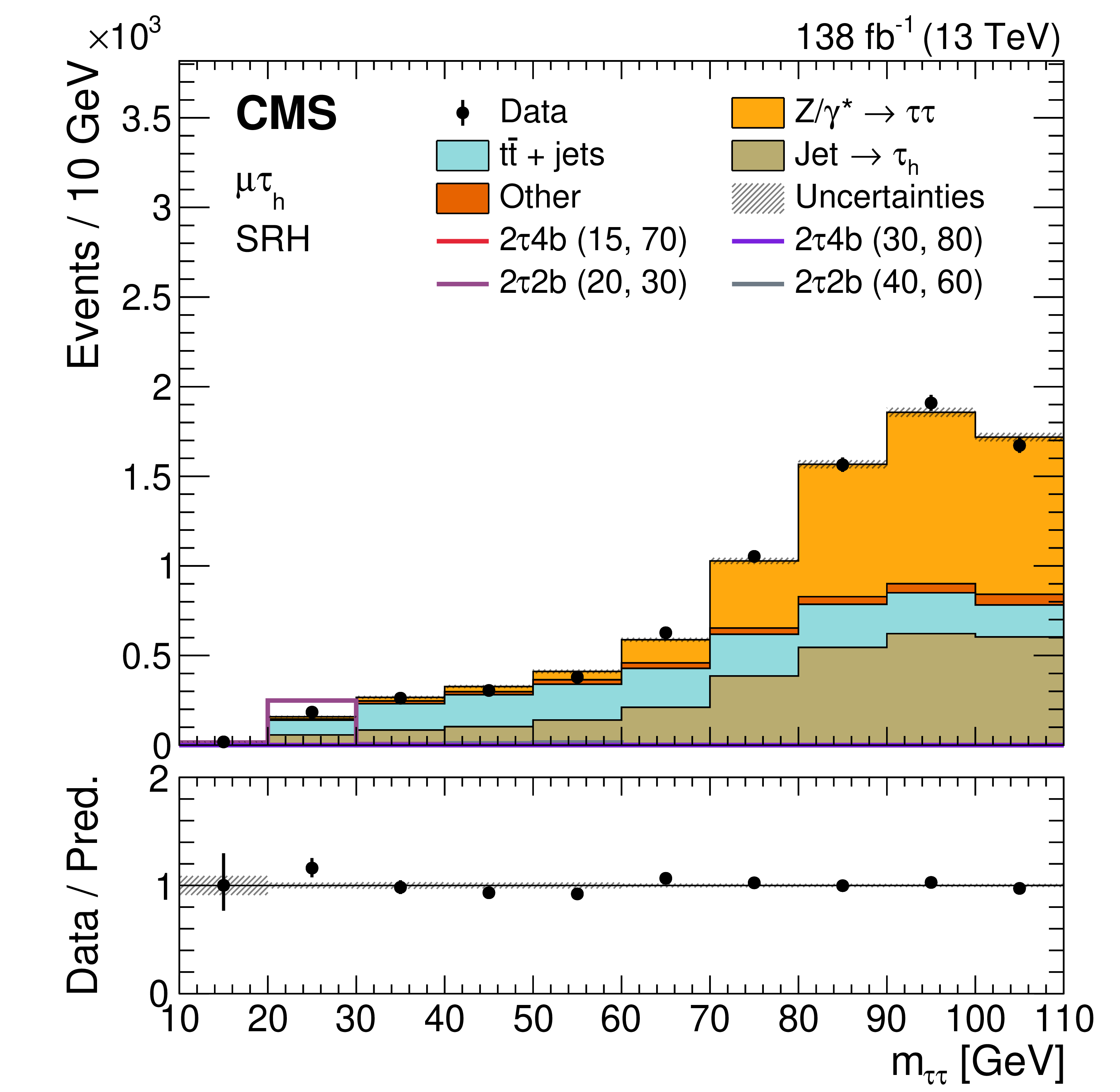

Figure A1-c:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mu\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

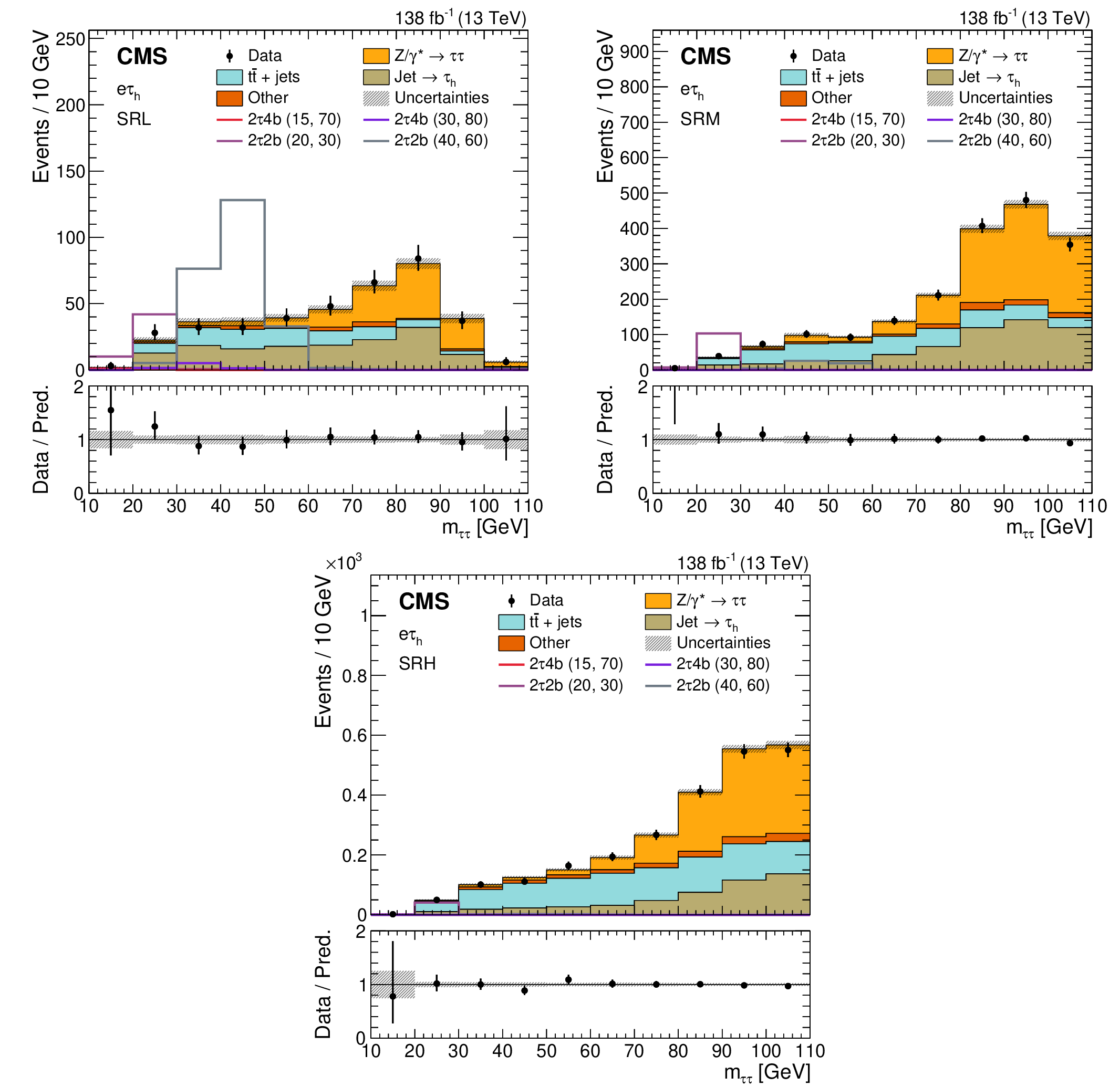

Figure A2:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

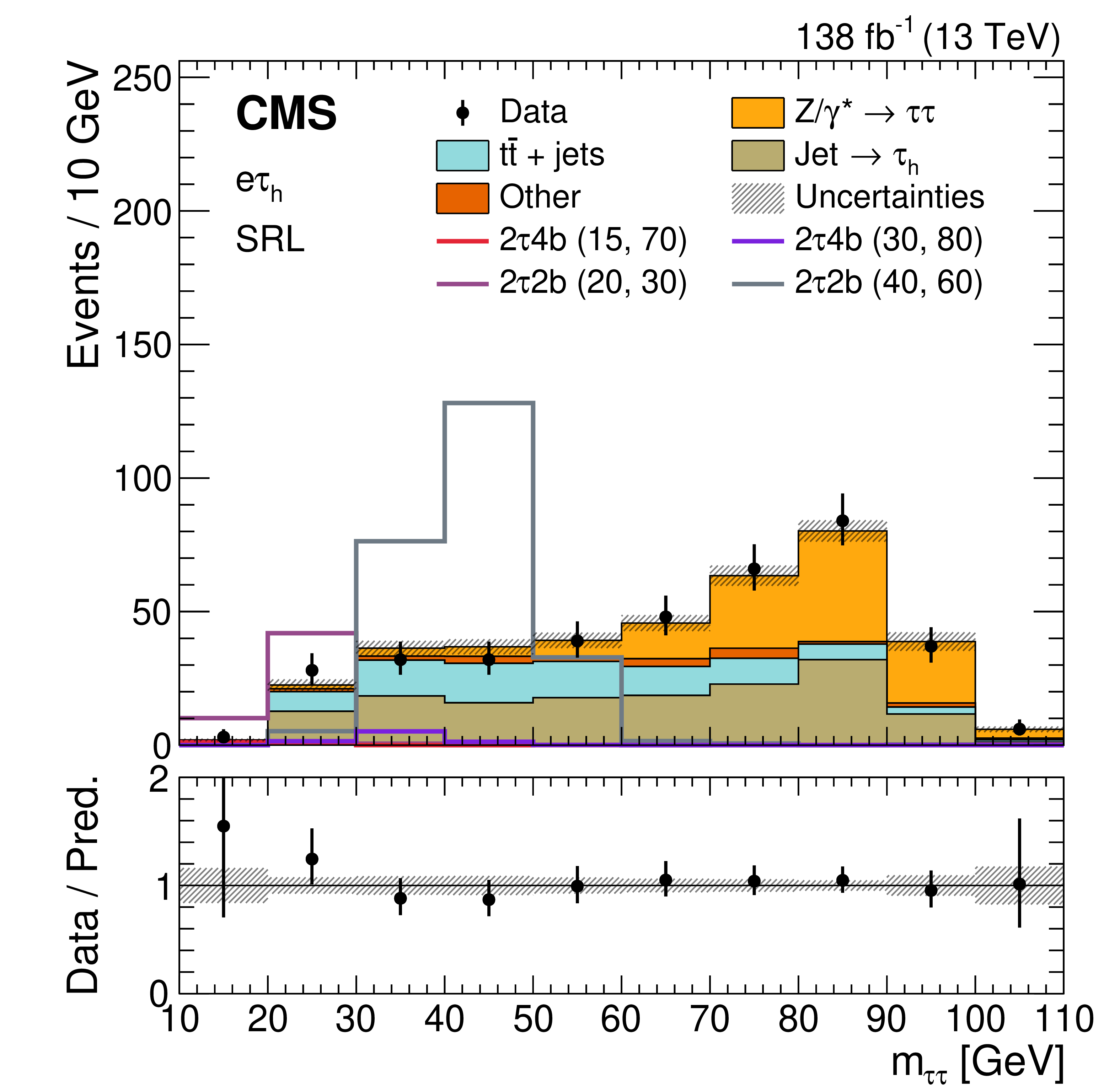

Figure A2-a:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

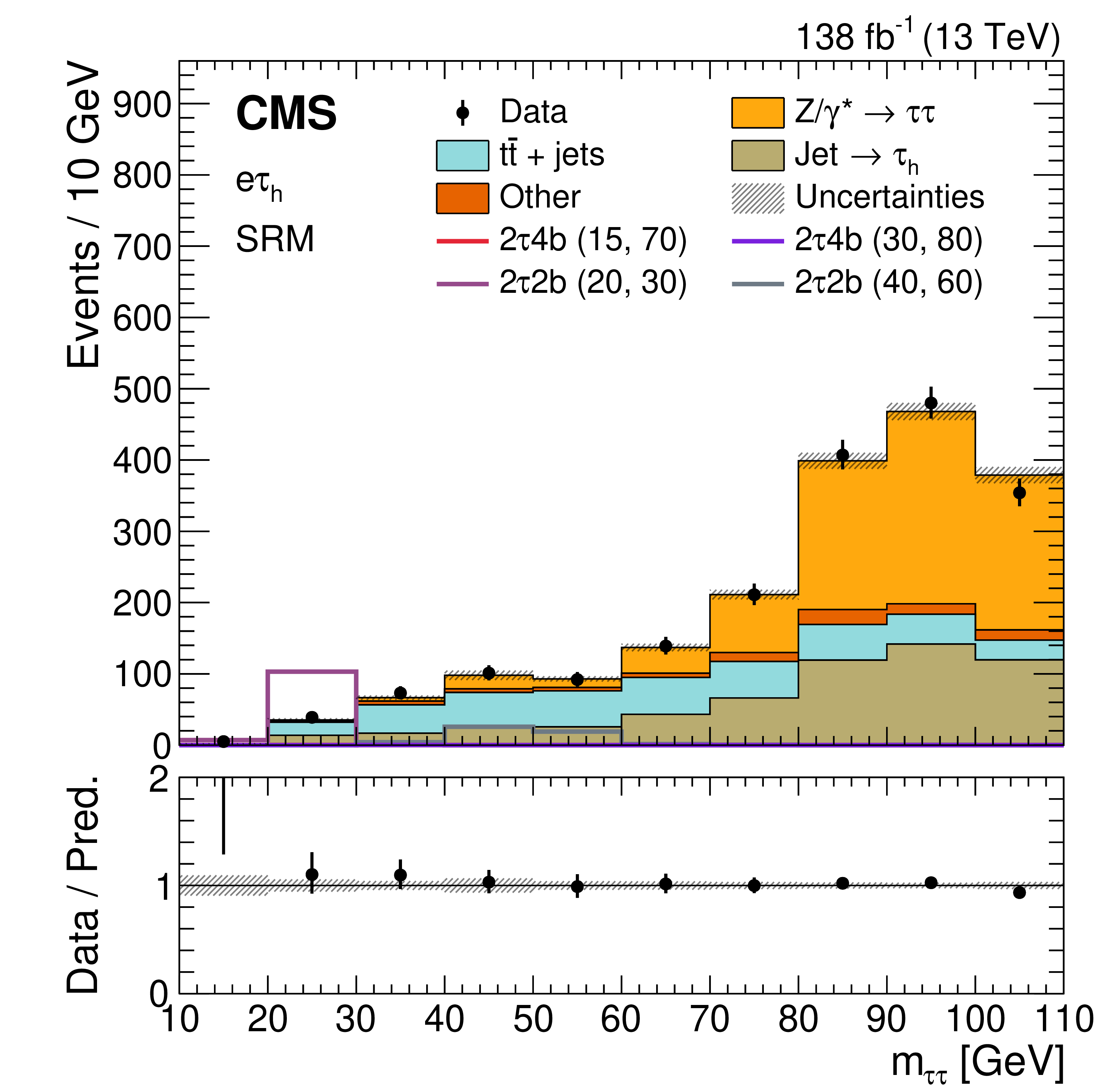

Figure A2-b:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

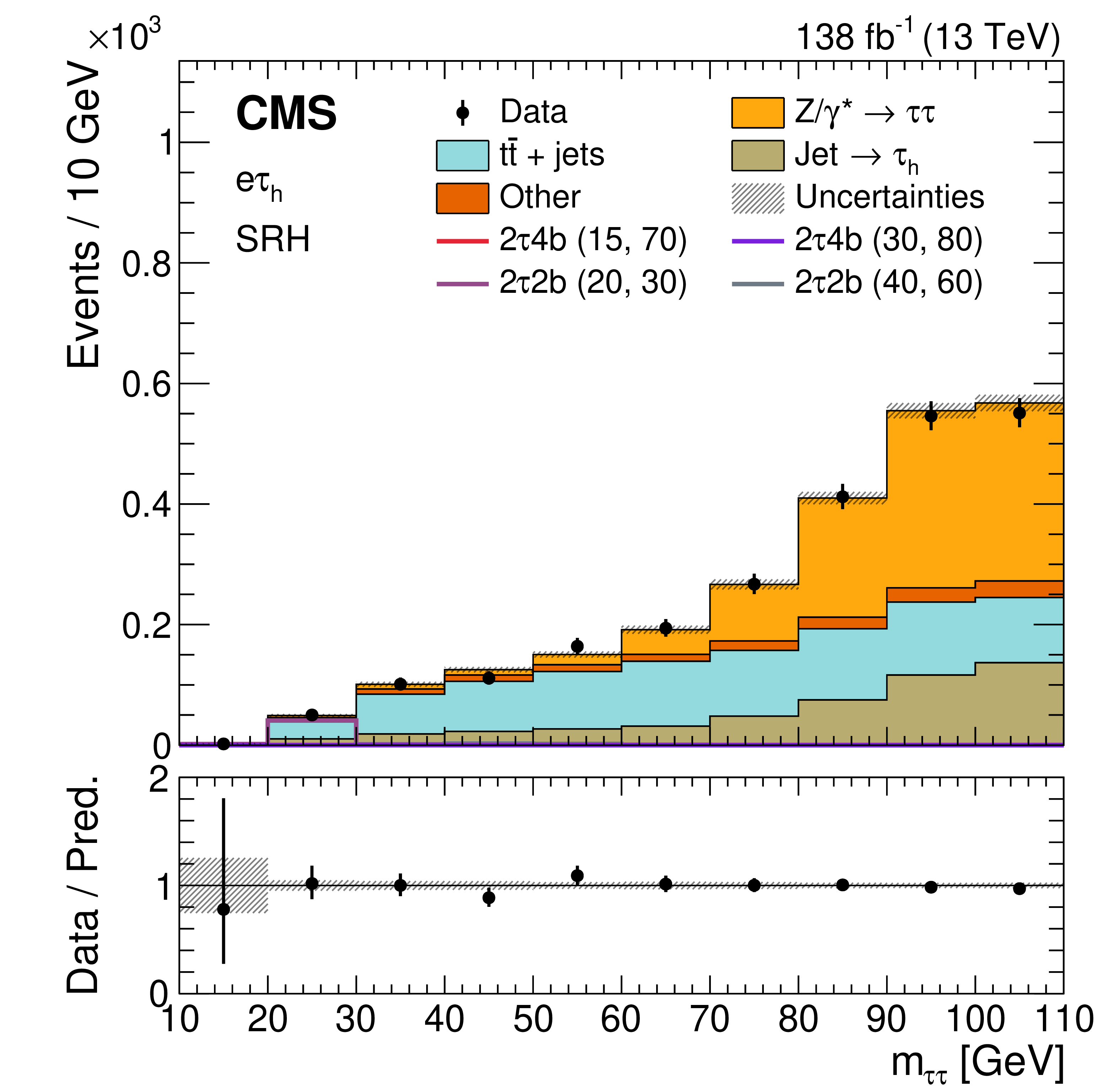

Figure A2-c:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\tau_\mathrm{h} $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

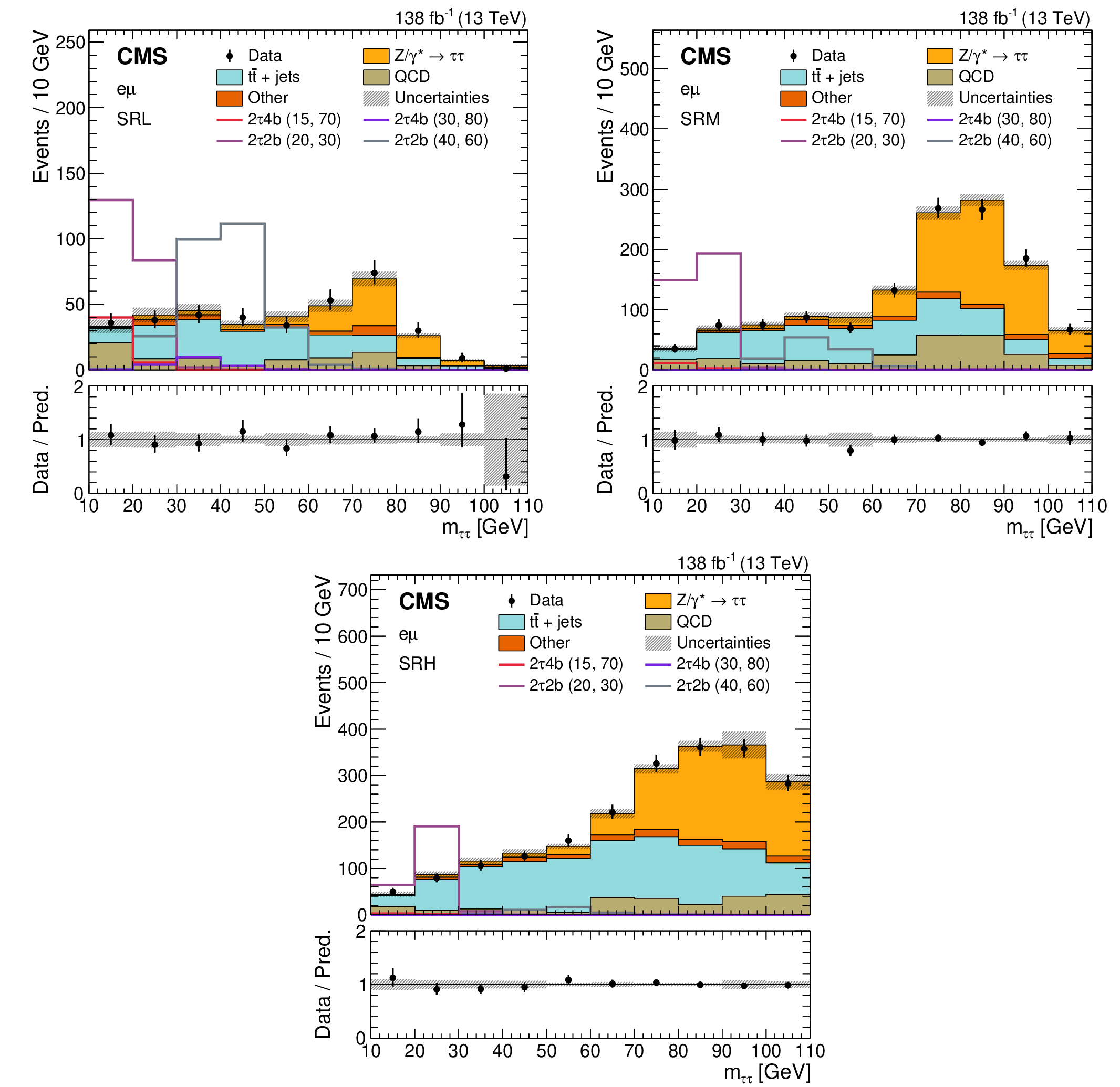

Figure A3:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

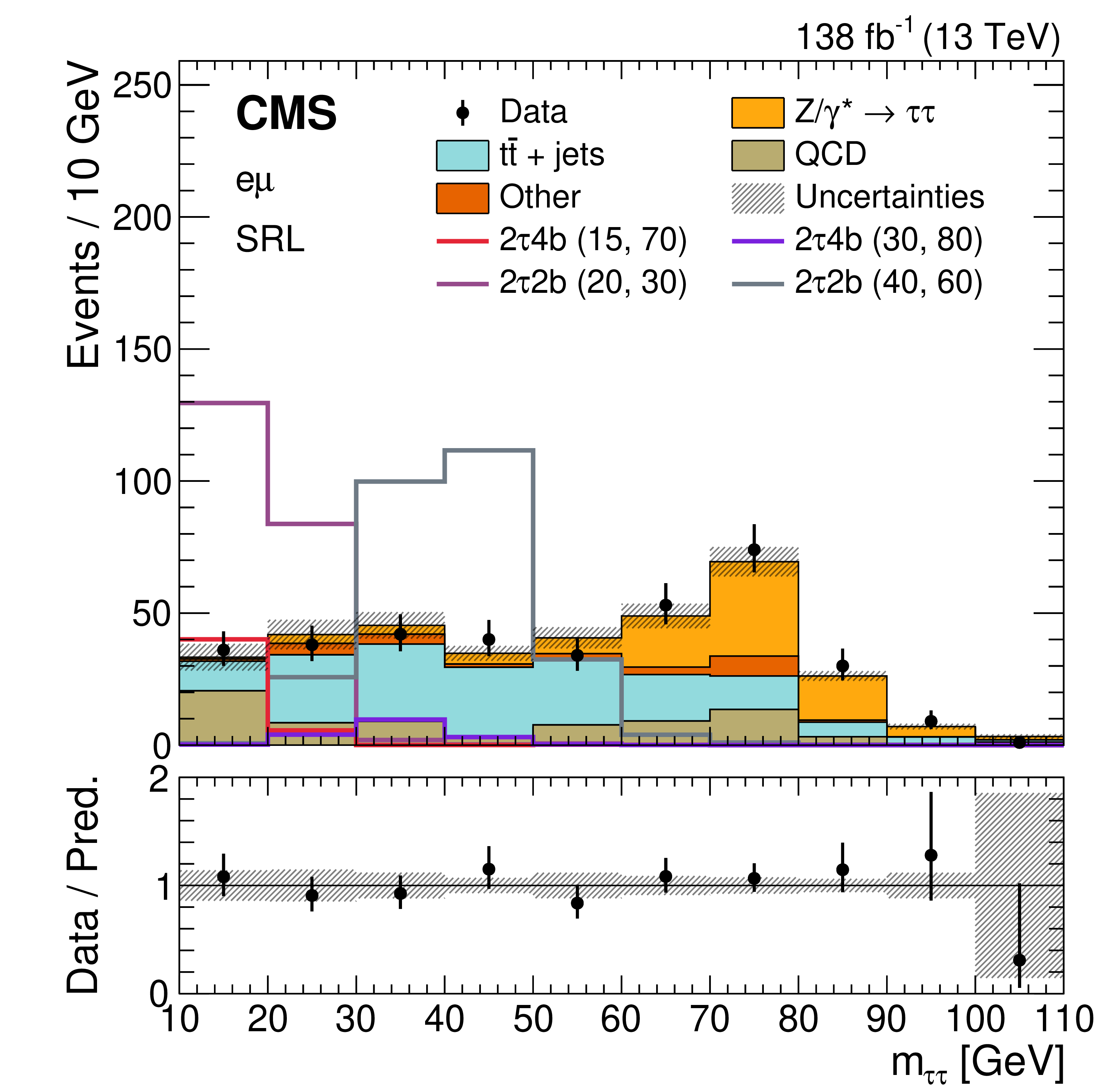

Figure A3-a:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

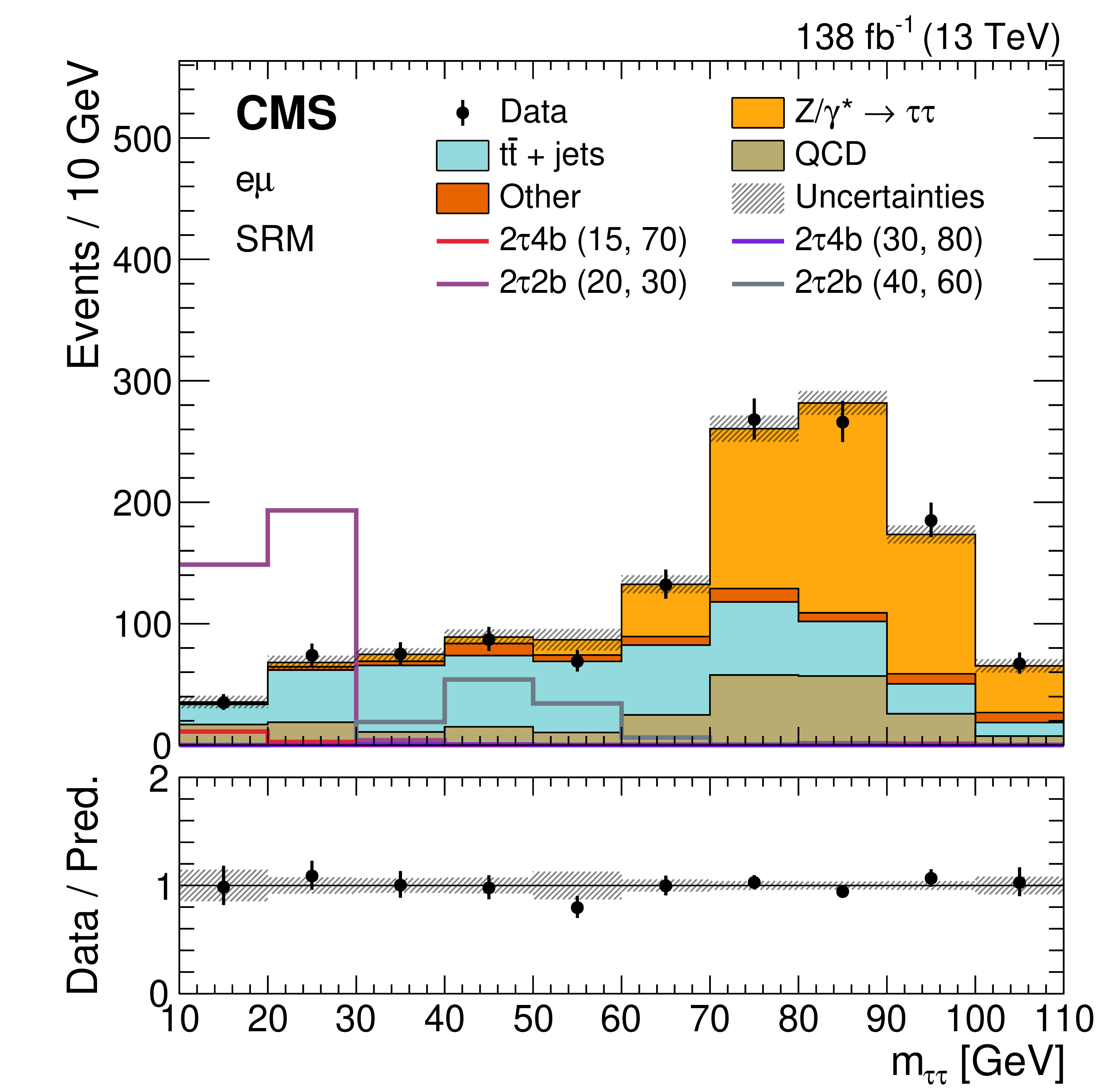

Figure A3-b:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

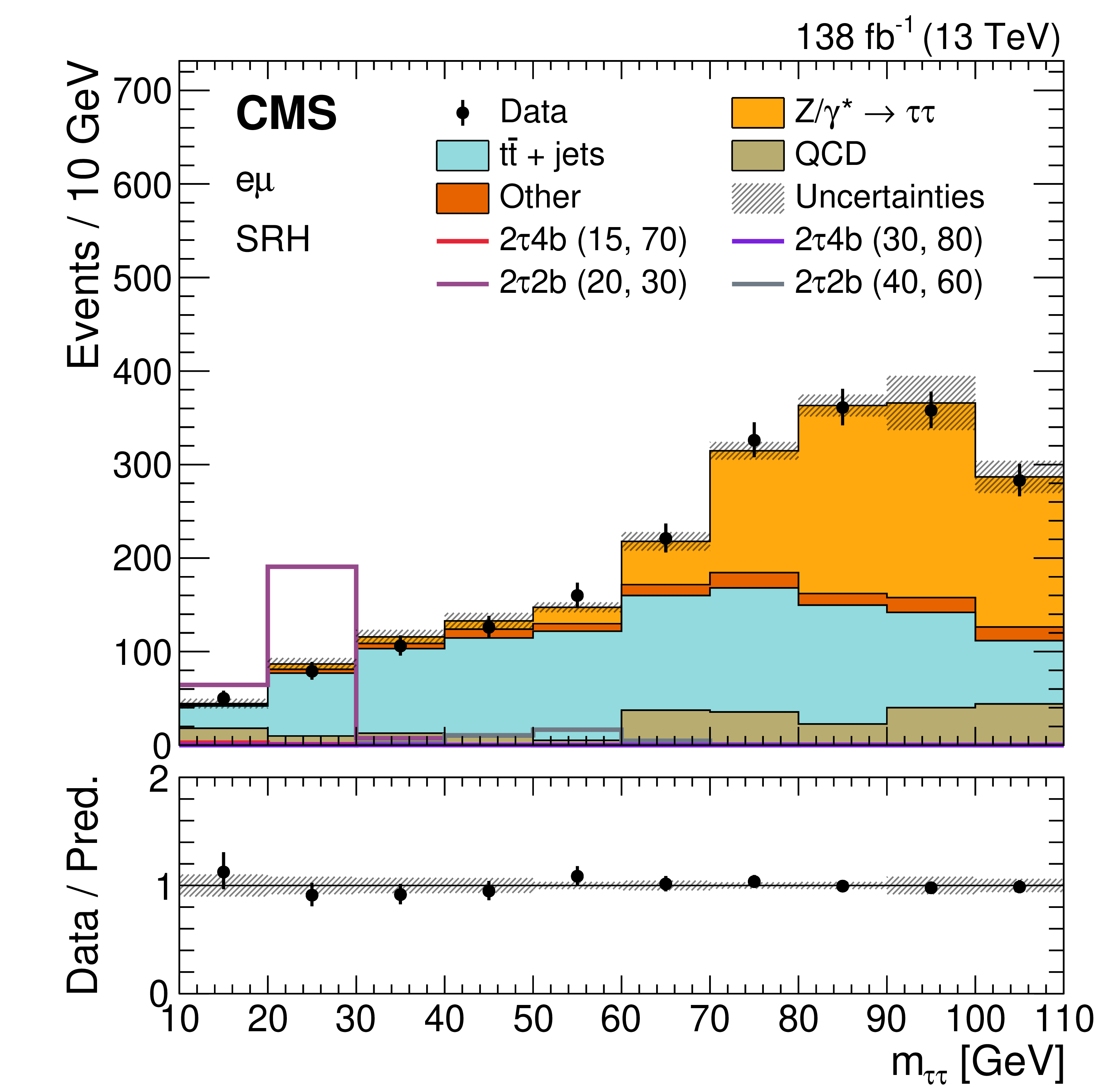

Figure A3-c:
Background only, post-fit $ m_{\tau\tau} $ distributions for the $ \mathrm{e}\mu $ channel, in events with at least one b-tagged jet: SRL (upper left), SRM (upper right), and SRH (lower). The data are shown by the markers with vertical bars and various backgrounds by the colored histograms. The total systematic uncertainty is shown by the hatched area. The colored open histograms display the predicted signal distribution for two cascade decays and two non-cascade decays, with four different values of $ \phi_{1} $ and $ \phi_{2} $ masses, for an assumed branching fraction of 100%. The lower plot of each panel gives the ratio of the data to the sum of the predicted number of background events. The vertical bars display the statistical uncertainty in the ratio. |
png pdf |

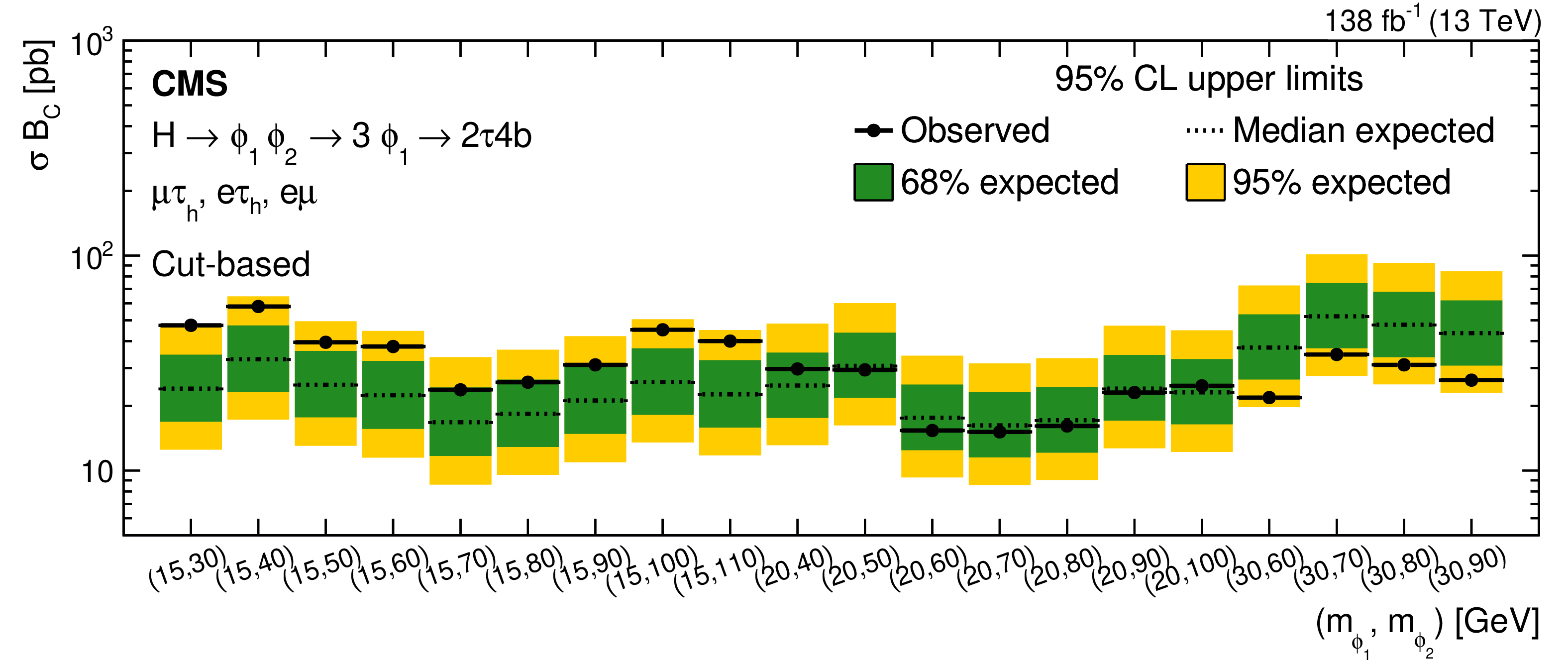

Figure A4:
The observed (points) and median expected (dotted line) 95% CL upper limits on $ \sigma \mathrm{B_{C}} $ for the cascade scenario using the cut-based event categorization and the fit to the $ m_{\tau\tau} $ distribution, for different mass hypotheses ($ m_{\phi_{1}} $, $ m_{\phi_{2}} $). The horizontal bars on the points are for better legibility only. The green and yellow regions show the 68 and 95% expected range for the median value, respectively. |
png pdf |

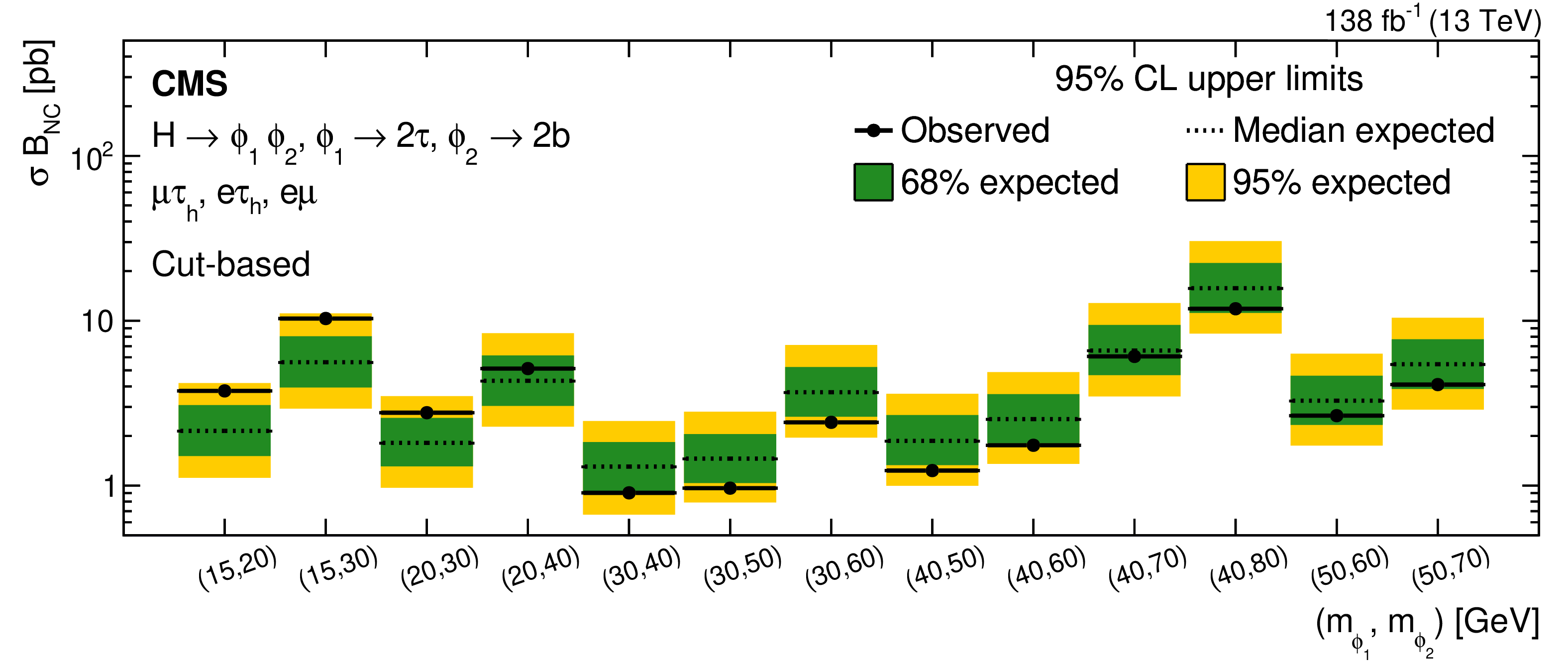

Figure A5:
The observed (points) and median expected (dotted line) 95% CL upper limits on $ \sigma \mathrm{B_{NC}} $ for the non-cascade scenario using the cut-based event categorization and the fit to the $ m_{\tau\tau} $ distribution, for different mass hypotheses ($ m_{\phi_{1}} $, $ m_{\phi_{2}} $). The horizontal bars on the points are for better legibility only. The green and yellow regions show the 68 and 95% expected range for the median value, respectively. |
png pdf |

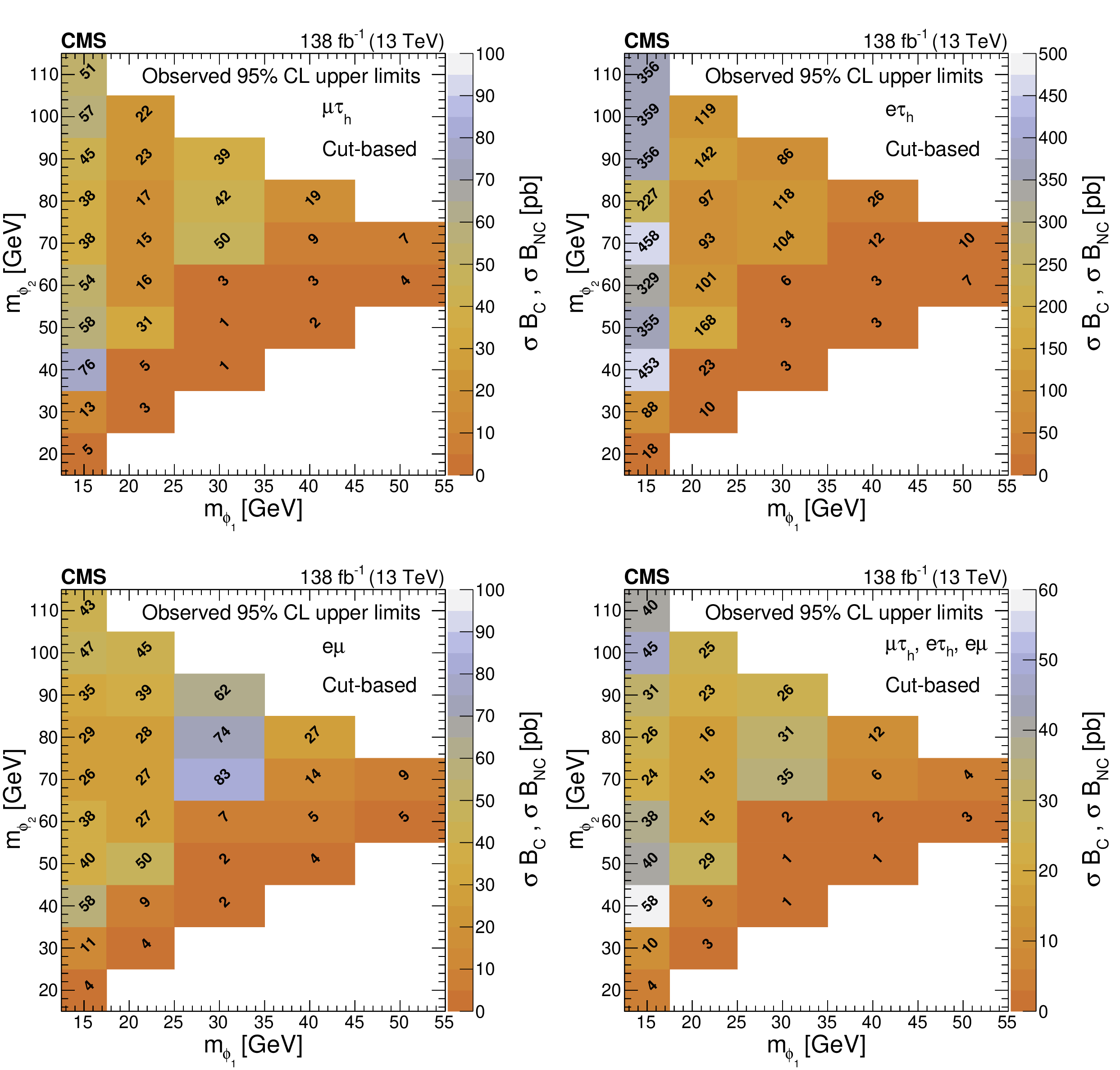

Figure A6:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ obtained using the cut-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

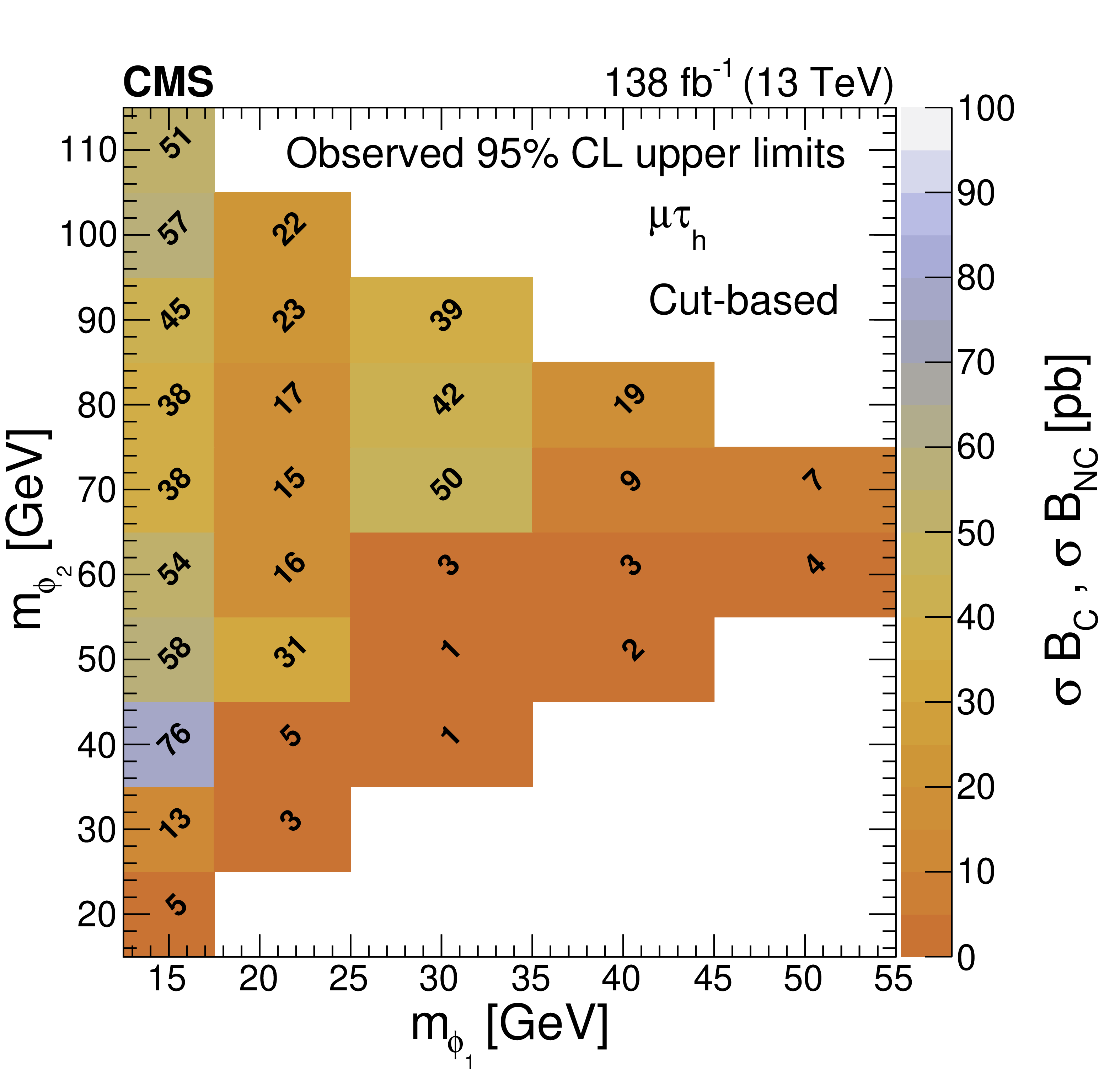

Figure A6-a:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ obtained using the cut-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

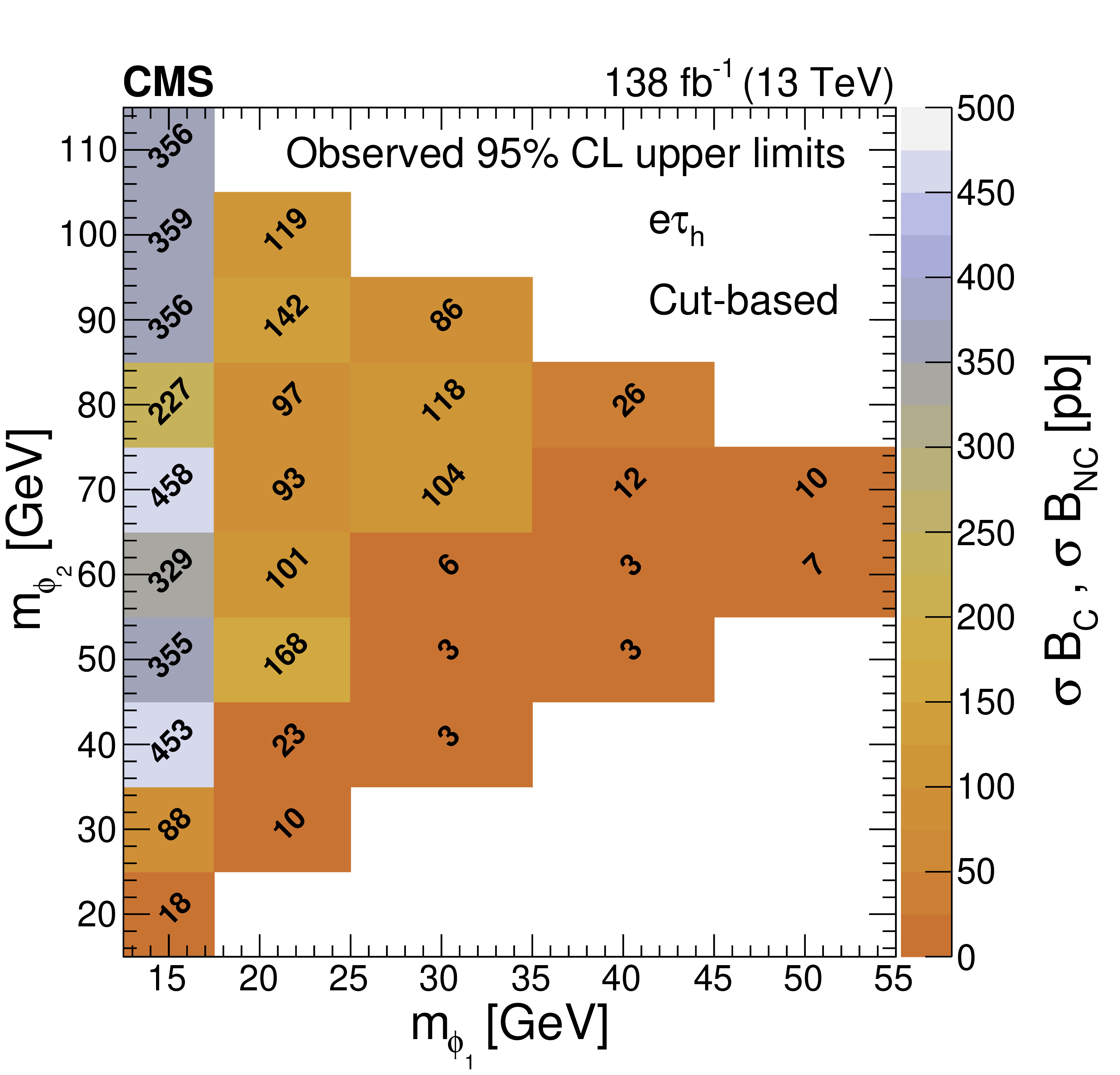

Figure A6-b:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ obtained using the cut-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

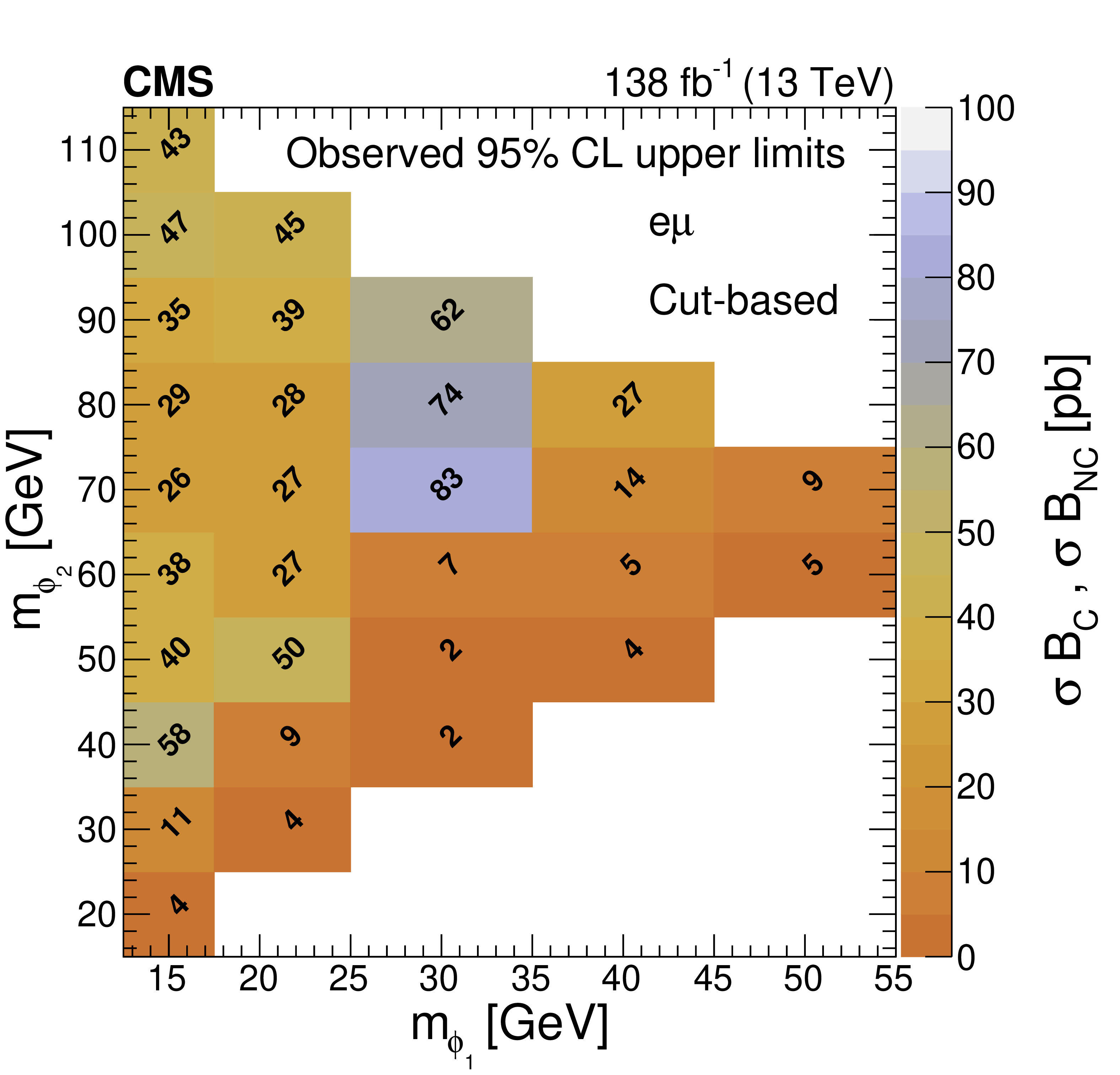

Figure A6-c:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ obtained using the cut-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
png pdf |

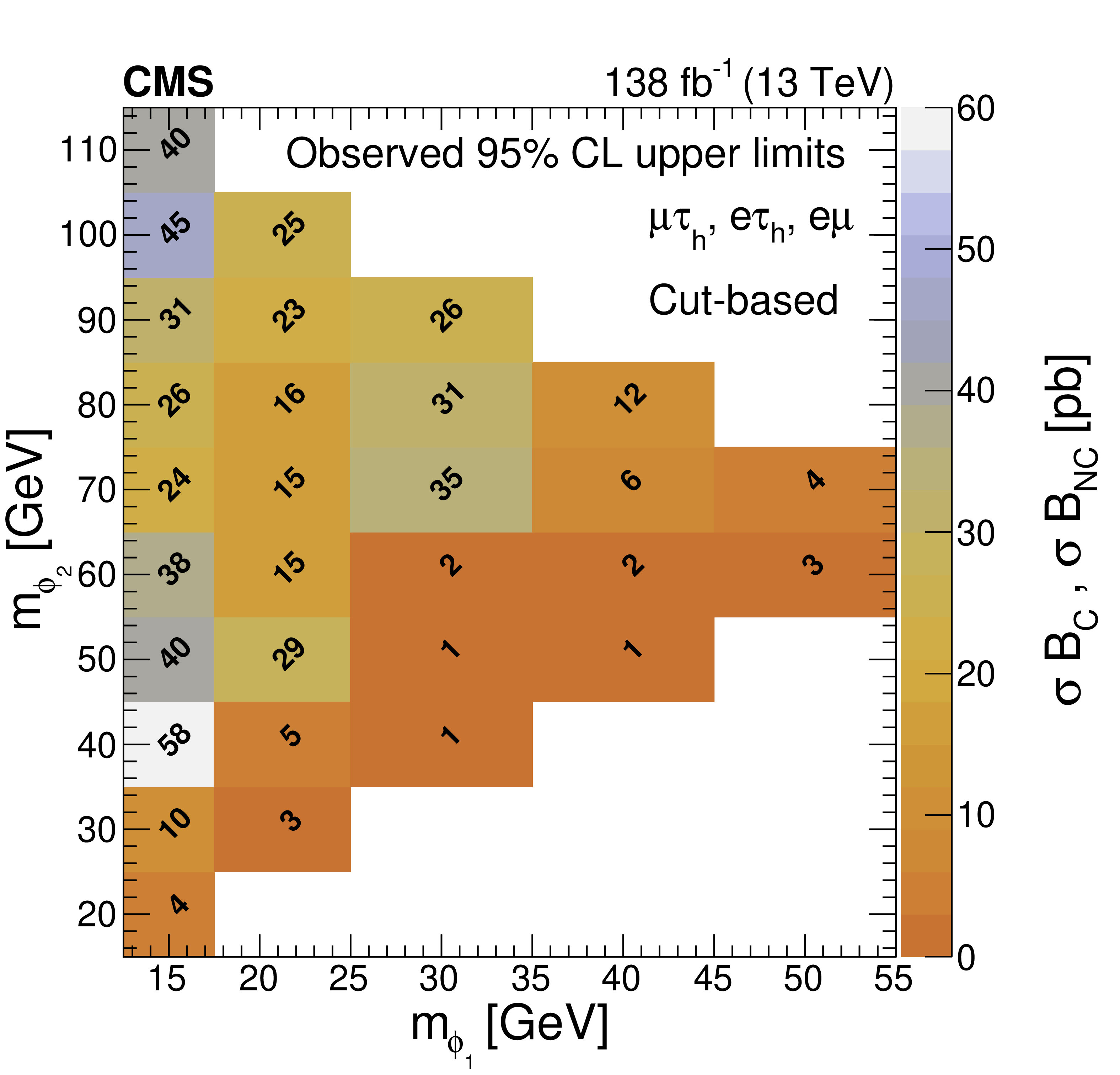

Figure A6-d:
The 95% CL upper limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ obtained using the cut-based event categorization, as a function of the scalar masses $ m_{\phi_{1}} $ and $ m_{\phi_{2}} $. For the ($ \phi_{1} $, $ \phi_{2} $) mass hypotheses (15, 30), (20, 40), and (30, 60) GeV, only the non-cascade limits are shown. For all other mass hypotheses, either cascade or non-cascade limits are presented, depending on whether the cascade decay is kinematically allowed ($ m_{\phi_{2}} \geq 2 m_{\phi_{1}} $). The numbers displayed in the plot are in \unitpb. |
| Tables | |
png pdf |
Table 1:

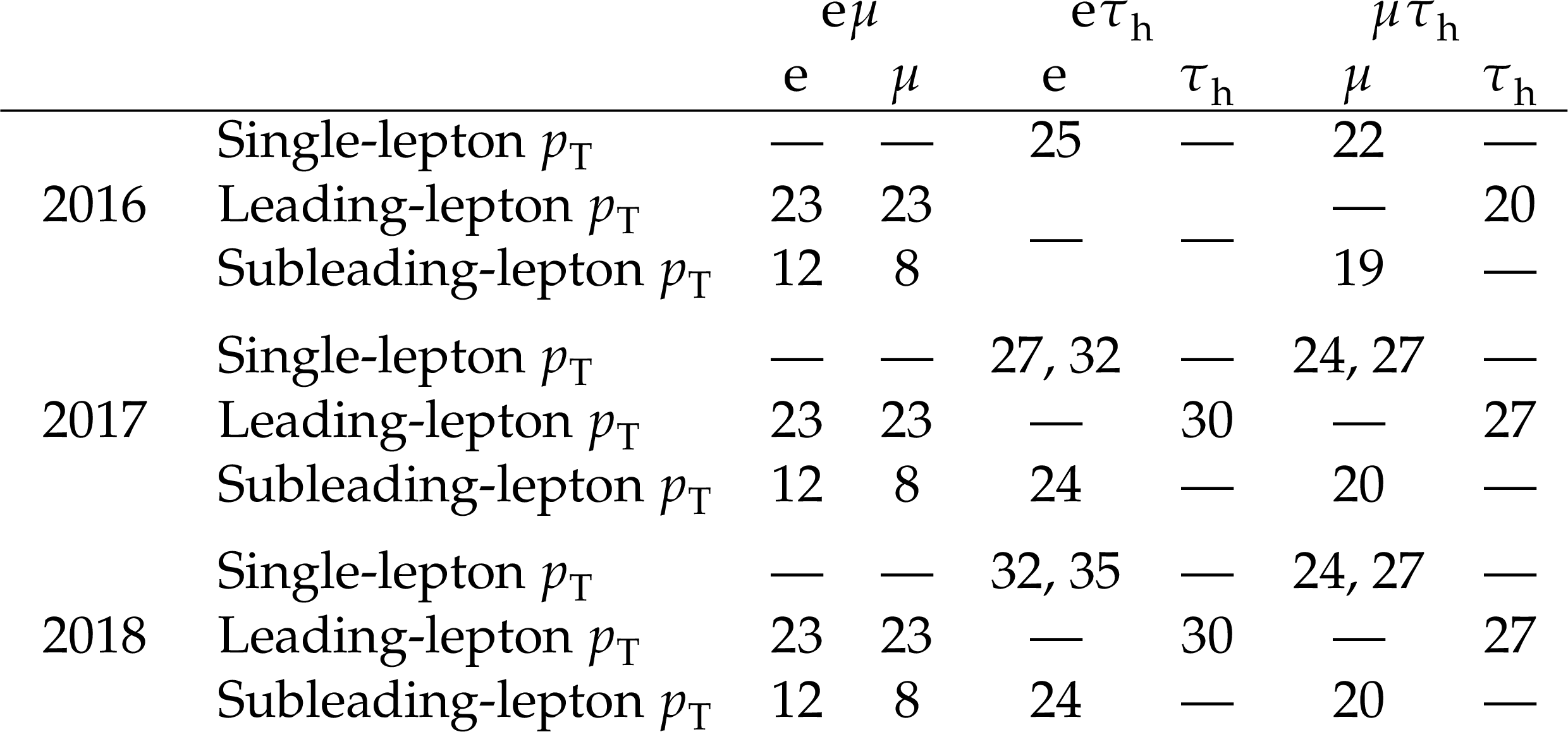

The $ p_{\mathrm{T}} $ thresholds for e, $ \mu $, and $ \tau_\mathrm{h} $ at the trigger level for the three data-taking periods. For the $ \mathrm{e}\tau_\mathrm{h} $ and $ \mu\tau_\mathrm{h} $ channels, the $ p_{\mathrm{T}} $ thresholds for the e and $ \mu $ are dependent on the specific high-level trigger used, i.e.,, the single-lepton or the cross trigger. Thresholds are stated as follows: the single-lepton and cross-trigger $ p_{\mathrm{T}} $ thresholds, and thresholds for the highest $ p_{\mathrm{T}} $ (leading) and second-highest $ p_{\mathrm{T}} $ (subleading) leptons. Multiple single-lepton triggers are listed as comma-separated $ p_{\mathrm{T}} $ thresholds. For cross triggers, the leading and subleading $ p_{\mathrm{T}} $ thresholds are applied simultaneously to the lepton pair. |
png pdf |

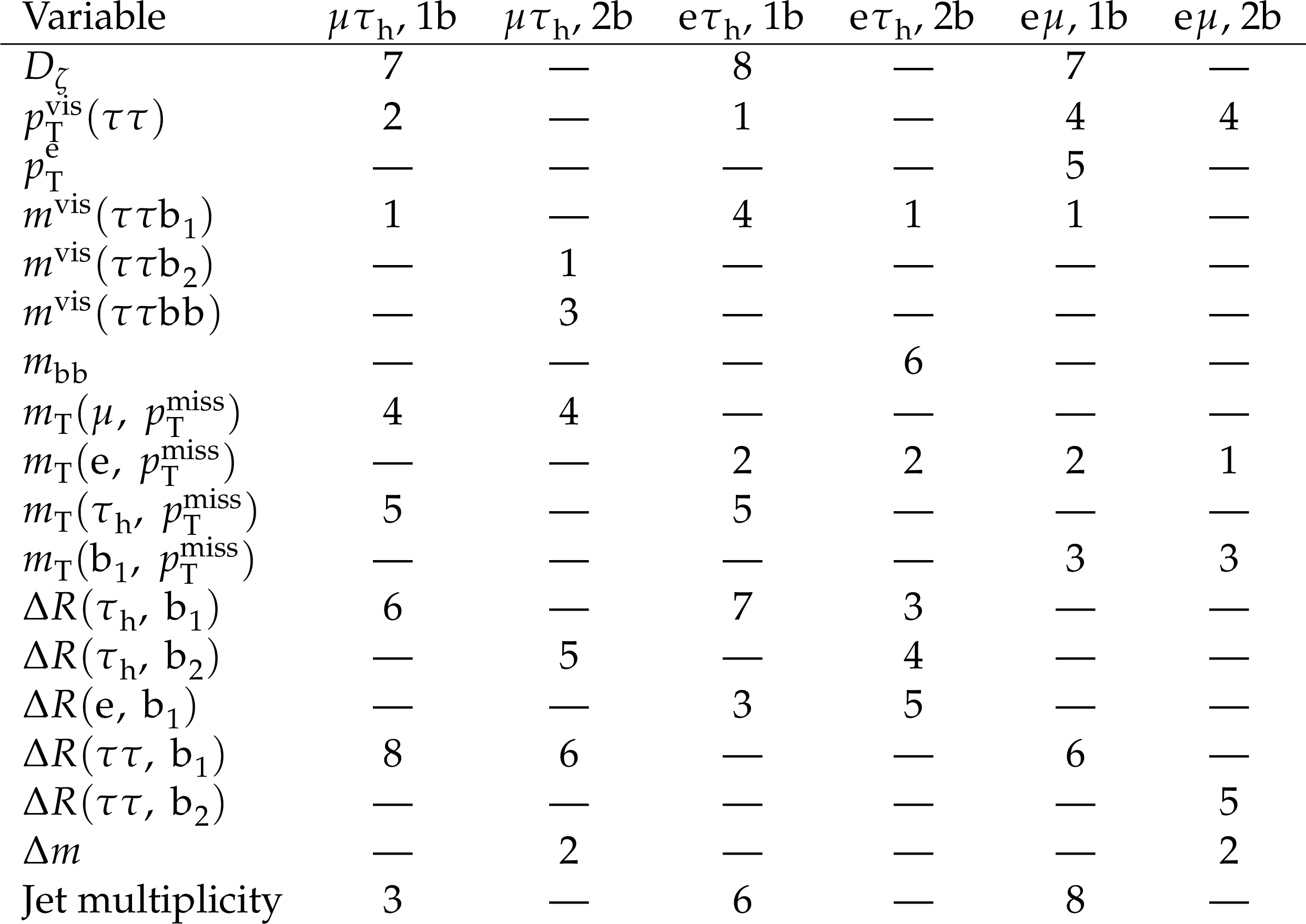

Table 2:
List of kinematic variables used as inputs to the BDT discriminator, with their importance rankings. The leading and subleading b-tagged jets are denoted by $ \mathrm{b}_1 $ and $ \mathrm{b}_2 $, respectively. Depending on the channel, the importance of an input variable in the performance of the BDT varies. The increasing importance of a variable in the training is denoted by decreasing numerical values. |
png pdf |
Table 3:

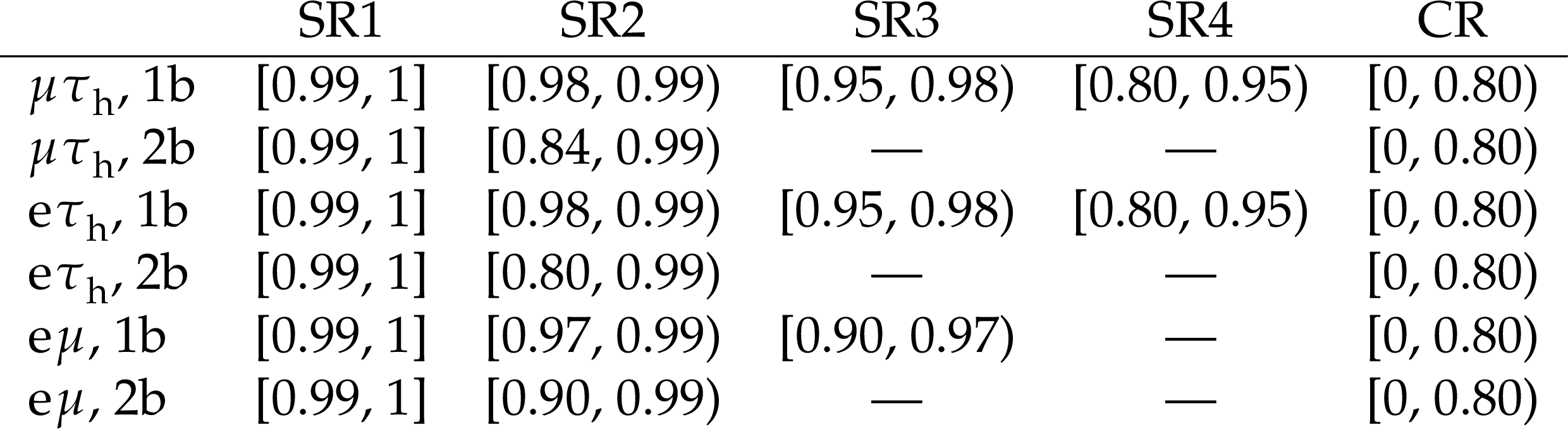

The BDT discriminator score ranges defining the different SRs and CRs. |
png pdf |

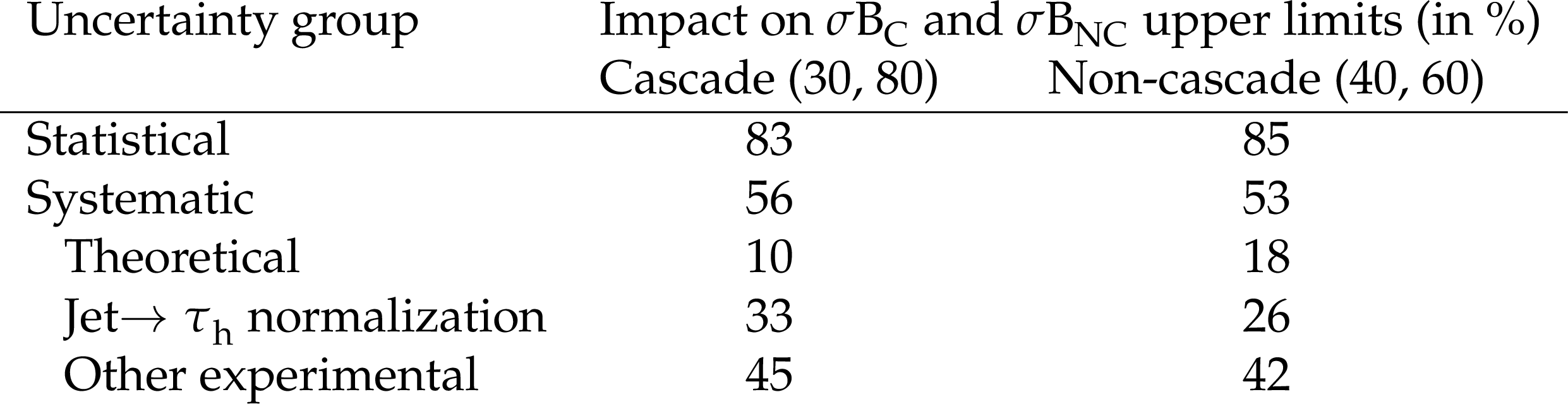

Table 4:
Impact of different groups of uncertainties in the observed limits on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ using BDT-based SR categories. The contribution of each uncertainty group in the total signal strength uncertainty is given as a percentage. Once cascade and one non-cascade example is shown, where the $ \phi_{1} $ and $ \phi_{2} $ mass values are given in GeV. |
png pdf |
Table A1:

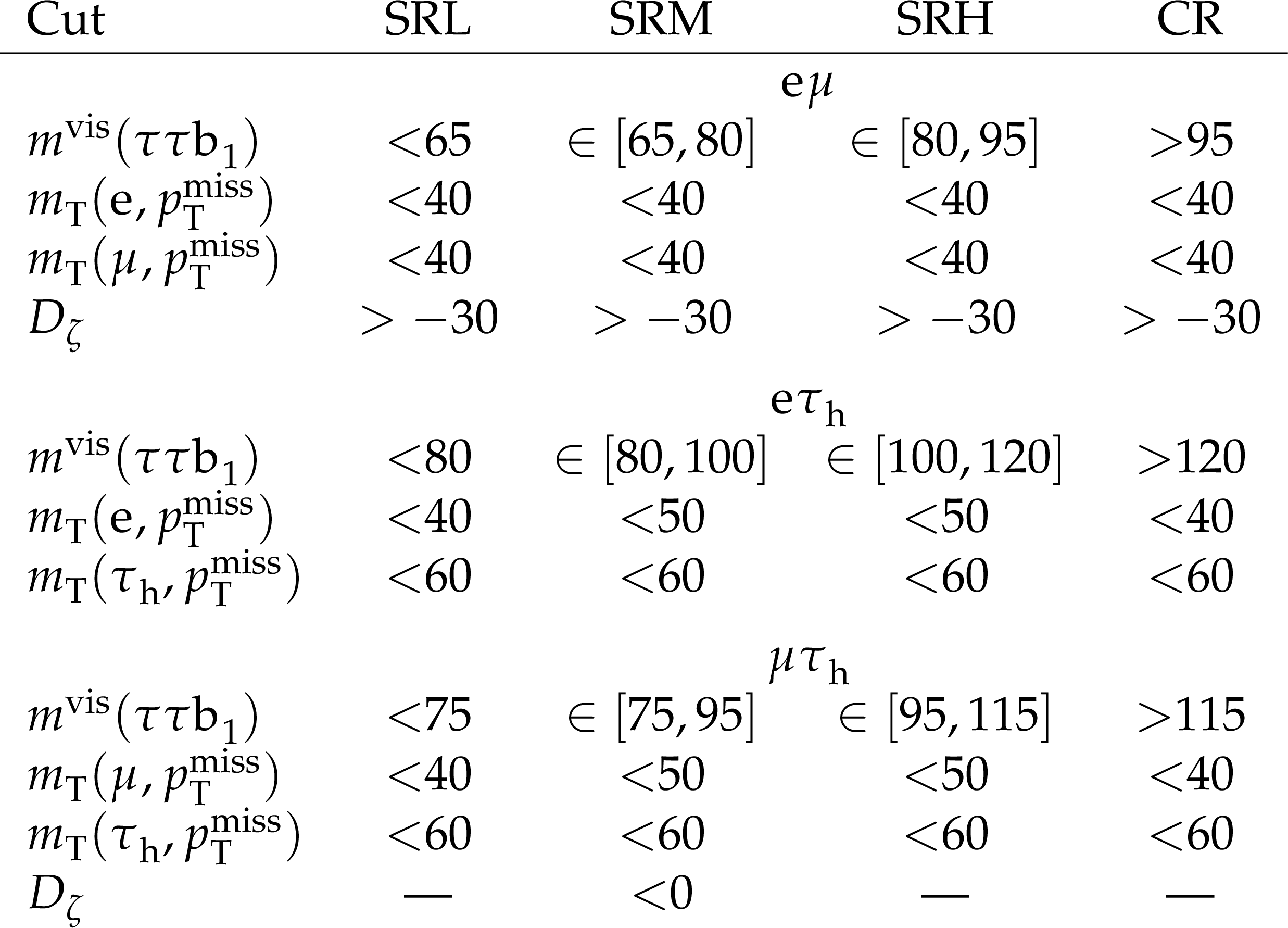

Definitions of cut-based event categories in the three channels. The selection boundaries are indicated in GeV. |
| Summary |
| A search for exotic decays of the Higgs boson (H) into a pair of light neutral scalars $ \phi_{1} $ and $ \phi_{2} $ with masses $ m_{\phi_{2}} > m_{\phi_{1}} $, has been presented. Final states with at least one jet coming from the fragmentation of a b quark and two tau leptons are studied. The search utilizes a data sample of proton-proton collisions corresponding to an integrated luminosity of 138 fb$^{-1}$, accumulated by the CMS experiment at the LHC during 2016--2018 at a center-of-mass energy of 13 TeV. The results are dominated by the statistical uncertainties and the systematic uncertainties arising from the normalizations of the backgrounds. Overall, no statistically significant deviation from the expected standard model background prediction is observed, and upper limits are set on the products $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ for the cascade and non-cascade decay scenarios, respectively, where $ \sigma $ is the Higgs boson production cross section, $ \mathrm{B_{C}}=\mathcal{B}(\mathrm{H} \to \phi_{1} \phi_{2} \to 3 \phi_{1} \to 2\tau4\mathrm{b}) $, and $ \mathrm{B_{NC}} = \mathcal{B}(\mathrm{H} \to \phi_{1} \phi_{2})\ \mathcal{B}(\phi_{1} \to 2\tau)\ \mathcal{B}(\phi_{2} \to 2\mathrm{b}) $. This analysis is sensitive to enhanced branching fractions of the neutral scalars into b quarks and tau leptons for some of the mass hypotheses where $ m_{\phi_{2}} \leq 2m_{\phi_{1}} $. The observed upper limits at 95% confidence level on the combined measurement of $ \sigma \mathrm{B_{C}} $ and $ \sigma \mathrm{B_{NC}} $ range between 0.9 and 36.8\unitpb, depending on the mass hypothesis and decay scenario. These are the first limits using 13 TeV data from CMS on exotic Higgs boson decays into two light neutral scalar particles of unequal masses in final states involving b quarks and tau leptons. |
| References | ||||
| 1 | S. Weinberg | A model of leptons | PRL 19 (1967) 1264 | |
| 2 | A. Salam | Weak and electromagnetic interactions | link | |
| 3 | F. Englert and R. Brout | Broken symmetry and the mass of gauge vector mesons | PRL 13 (1964) 321 | |
| 4 | P. W. Higgs | Broken symmetries, massless particles and gauge fields | PL 12 (1964) 132 | |
| 5 | P. W. Higgs | Broken symmetries and the masses of gauge bosons | PRL 13 (1964) 508 | |
| 6 | G. S. Guralnik, C. R. Hagen, and T. W. B. Kibble | Global conservation laws and massless particles | PRL 13 (1964) 585 | |
| 7 | P. W. Higgs | Spontaneous symmetry breakdown without massless bosons | PR 145 (1966) 1156 | |
| 8 | T. W. B. Kibble | Symmetry breaking in non-Abelian gauge theories | PR 155 (1967) 1554 | |
| 9 | ATLAS Collaboration | Observation of a new particle in the search for the standard model Higgs boson with the ATLAS detector at the LHC | PLB 716 (2012) 1 | 1207.7214 |
| 10 | CMS Collaboration | Observation of a new boson at a mass of 125 GeV with the CMS experiment at the LHC | PLB 716 (2012) 30 | CMS-HIG-12-028 1207.7235 |
| 11 | CMS Collaboration | Observation of a new boson with mass near 125 GeV in pp collisions at $ \sqrt{s} = $ 7 and 8 TeV | JHEP 06 (2013) 081 | CMS-HIG-12-036 1303.4571 |
| 12 | B. Grzadkowski and P. Osland | Tempered two-Higgs-doublet model | PRD 82 (2010) 125026 | 0910.4068 |
| 13 | A. Drozd, B. Grzadkowski, J. F. Gunion, and Y. Jiang | Extending two-Higgs-doublet models by a singlet scalar field - the case for dark matter | JHEP 11 (2014) 105 | 1408.2106 |
| 14 | CMS Collaboration | A portrait of the Higgs boson by the CMS experiment ten years after the discovery. | Nature 607 (2022) 60 | CMS-HIG-22-001 2207.00043 |
| 15 | ATLAS Collaboration | A detailed map of Higgs boson interactions by the ATLAS experiment ten years after the discovery | Nature 607 (2022) 52 | 2207.00092 |
| 16 | ATLAS Collaboration | Search for new light gauge bosons in Higgs boson decays to four-lepton final states in pp collisions at $ \sqrt{s}= $ 8 TeV with the ATLAS detector at the LHC | PRD 92 (2015) 092001 | 1505.07645 |
| 17 | CMS Collaboration | Search for a non-standard-model Higgs boson decaying to a pair of new light bosons in four-muon final states | PLB 726 (2013) 564 | CMS-EXO-12-012 1210.7619 |
| 18 | CMS Collaboration | A search for pair production of new light bosons decaying into muons | PLB 752 (2016) 146 | CMS-HIG-13-010 1506.00424 |
| 19 | CMS Collaboration | Search for light bosons in decays of the 125 GeV Higgs boson in proton-proton collisions at $ \sqrt{s}= $ 8 TeV | JHEP 10 (2017) 076 | CMS-HIG-16-015 1701.02032 |
| 20 | CMS Collaboration | Search for a very light NMSSM Higgs boson produced in decays of the 125 GeV scalar boson and decaying into $ \tau $ leptons in pp collisions at $ \sqrt{s}= $ 8 TeV | JHEP 01 (2016) 079 | CMS-HIG-14-019 1510.06534 |
| 21 | ATLAS Collaboration | Search for new phenomena in events with at least three photons collected in pp collisions at $ \sqrt{s} = $ 8 TeV with the ATLAS detector | EPJC 76 (2016) 210 | 1509.05051 |
| 22 | ATLAS Collaboration | Search for Higgs boson decays to beyond-the-standard-model light bosons in four-lepton events with the ATLAS detector at $ \sqrt{s}= $ 13 TeV | JHEP 06 (2018) 166 | 1802.03388 |
| 23 | CMS Collaboration | A search for pair production of new light bosons decaying into muons in proton-proton collisions at 13 TeV | PLB 796 (2019) 131 | CMS-HIG-18-003 1812.00380 |
| 24 | ATLAS Collaboration | Search for Higgs bosons decaying to aa in the $ \mu\mu\tau\tau $ final state in pp collisions at $ \sqrt{s} = $ 8 TeV with the ATLAS experiment | PRD 92 (2015) 052002 | 1505.01609 |
| 25 | CMS Collaboration | Search for an exotic decay of the Higgs boson to a pair of light pseudoscalars in the final state of two muons and two $ \tau $ leptons in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 11 (2018) 018 | CMS-HIG-17-029 1805.04865 |
| 26 | CMS Collaboration | Search for a light pseudoscalar Higgs boson in the boosted $ \mu\mu\tau\tau $ final state in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 08 (2020) 139 | CMS-HIG-18-024 2005.08694 |
| 27 | ATLAS Collaboration | Search for Higgs boson decays into a pair of light bosons in the bb$ \mu\mu $ final state in pp collision at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PLB 790 (2019) 1 | 1807.00539 |
| 28 | CMS Collaboration | Search for exotic decays of the Higgs boson to a pair of pseudoscalars in the $ \mu\mu $bb and $ \tau\tau $bb final states | EPJC 84 (2024) 493 | CMS-HIG-22-007 2402.13358 |
| 29 | ATLAS Collaboration | Search for Higgs boson decays into pairs of light (pseudo)scalar particles in the $ \gamma\gamma \mathrm{jj} $ final state in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PLB 782 (2018) 750 | 1803.11145 |
| 30 | CMS Collaboration | Search for light pseudoscalar boson pairs produced from decays of the 125 GeV Higgs boson in final states with two muons and two nearby tracks in pp collisions at $ \sqrt{s}= $ 13 TeV | PLB 800 (2020) 135087 | CMS-HIG-18-006 1907.07235 |
| 31 | CMS Collaboration | Search for the decay of the Higgs boson to a pair of light pseudoscalar bosons in the final state with four bottom quarks in proton-proton collisions at $ \sqrt{\textrm{s}} = $ 13 TeV | JHEP 06 (2024) 097 | CMS-HIG-18-026 2403.10341 |
| 32 | CMS Collaboration | Search for the exotic decay of the Higgs boson into two light pseudoscalars with four photons in the final state in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 07 (2023) 148 | CMS-HIG-21-003 2208.01469 |
| 33 | CMS Collaboration | Search for exotic Higgs boson decays $ \mathrm{H} \to \mathcal{A}\mathcal{A} \to 4\gamma $ with events containing two merged diphotons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | PRL 131 (2023) 101801 | CMS-HIG-21-016 2209.06197 |
| 34 | CMS Collaboration | Search for light pseudoscalar boson pairs produced from Higgs boson decays using the 4$ \tau $ and 2$ \mu $2$ \tau $ final states in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | Accepted by JHEP, 2025 | CMS-SUS-24-002 2508.06947 |
| 35 | CMS Collaboration | Model-independent search for pair production of new bosons decaying into muons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 12 (2024) 172 | CMS-HIG-21-004 2407.20425 |
| 36 | ATLAS Collaboration | Search for Higgs boson exotic decays into Lorentz-boosted light bosons in the four-\ensuremath\tau final state at $ \sqrt{s} = $ 13 TeV with the ATLAS detector | PLB 870 (2025) 139843 | 2503.05463 |
| 37 | G. C. Branco et al. | Theory and phenomenology of two-Higgs-doublet models | Phys. Rept. 516 (2012) 1 | 1106.0034 |
| 38 | P. Fayet | Supergauge invariant extension of the Higgs mechanism and a model for the electron and its neutrino | NPB 90 (1975) 104 | |
| 39 | R. K. Kaul and P. Majumdar | Cancellation of quadratically divergent mass corrections in globally supersymmetric spontaneously broken gauge theories | NPB 199 (1982) 36 | |
| 40 | R. Barbieri, S. Ferrara, and C. A. Savoy | Gauge models with spontaneously broken local supersymmetry | PLB 119 (1982) 343 | |
| 41 | H. P. Nilles, M. Srednicki, and D. Wyler | Weak interaction breakdown induced by supergravity | PL 120 (1983) 346 | |
| 42 | J. M. Frere, D. R. T. Jones, and S. Raby | Fermion masses and induction of the weak scale by supergravity | NPB 222 (1983) 11 | |
| 43 | J. P. Derendinger and C. A. Savoy | Quantum effects and SU(2)$ \times $U(1) breaking in supergravity gauge theories | NPB 237 (1984) 307 | |
| 44 | M. Drees | Supersymmetric models with extended Higgs sector | Int. J. Mod. Phys. A 4 (1989) 3635 | |
| 45 | M. Maniatis | The next-to-minimal supersymmetric extension of the standard model reviewed | Int. J. Mod. Phys. A 25 (2010) 3505 | 0906.0777 |
| 46 | U. Ellwanger, C. Hugonie, and A. M. Teixeira | The next-to-minimal supersymmetric standard model | Phys. Rept. 496 (2010) 1 | 0910.1785 |
| 47 | J. E. Kim | Weak interaction singlet and strong CP invariance | PRL 43 (1979) 103 | |
| 48 | L. D. Duffy and K. van Bibber | Axions as dark matter particles | New J. Phys 11 (2009) 105008 | |
| 49 | N. Arkani-Hamed, D. P. Finkbeiner, T. R. Slatyer, and N. Weiner | A theory of dark matter | PRD 79 (2009) 015014 | 0810.0713 |
| 50 | M. Baumgart et al. | Non-Abelian dark sectors and their collider signatures | JHEP 04 (2009) 014 | 0901.0283 |
| 51 | A. Falkowski, J. T. Ruderman, T. Volansky, and J. Zupan | Hidden Higgs decaying to lepton jets | JHEP 05 (2010) 077 | 1002.2952 |
| 52 | T. Robens, T. Stefaniak, and J. Wittbrodt | Two-real-scalar-singlet extension of the SM: LHC phenomenology and benchmark scenarios | EPJC 80 (2020) 151 | 1908.08554 |
| 53 | T. Robens | TRSM benchmark planes - EPS-HEP2023 update | in European Physical Society Conference on High Energy Physics (EPS-HEP),.. [PoS(EPS-HEP)055], 2023 link |
2310.18045 |
| 54 | CMS Collaboration | Search for a massive scalar resonance decaying to a light scalar and a Higgs boson in the four b quarks final state with boosted topology | PLB 842 (2023) 137392 | 2204.12413 |
| 55 | CMS Collaboration | Search for a new resonance decaying into two spin-0 bosons in a final state with two photons and two bottom quarks in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 05 (2024) 316 | CMS-HIG-21-011 2310.01643 |
| 56 | CMS Collaboration | Searches for Higgs boson production through decays of heavy resonances | Phys. Rept. 1115 (2025) 368 | 2403.16926 |
| 57 | ATLAS Collaboration | Search for decays of the Higgs boson into scalar particles decaying into four or six b-quarks using pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PRD 112 (2025) 072005 | 2507.01165 |
| 58 | CMS Collaboration | HEPData record for this analysis | link | |
| 59 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 60 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 61 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 62 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 63 | CMS Collaboration | Performance of the CMS high-level trigger during LHC Run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 64 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 65 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 66 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 67 | T. Sjöstrand et al. | An Introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 68 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 69 | J. Alwall et al. | Comparative study of various algorithms for the merging of parton showers and matrix elements in hadronic collisions | EPJC 53 (2008) 473 | 0706.2569 |
| 70 | S. Alioli, P. Nason, C. Oleari, and E. Re | NLO Higgs boson production via gluon fusion matched with shower in POWHEG | JHEP 04 (2009) 002 | 0812.0578 |
| 71 | E. Bagnaschi, G. Degrassi, P. Slavich, and A. Vicini | Higgs production via gluon fusion in the POWHEG approach in the SM and in the MSSM | JHEP 02 (2012) 088 | 1111.2854 |
| 72 | P. Nason and C. Oleari | NLO Higgs boson production via vector-boson fusion matched with shower in POWHEG | JHEP 02 (2010) 037 | 0911.5299 |
| 73 | G. Luisoni, P. Nason, C. Oleari, and F. Tramontano | $ \mathrm{H}\mathrm{W}^{\pm} $/HZ + 0 and 1 jet at NLO with the POWHEG BOX interfaced to GoSam and their merging within MiNLO | JHEP 10 (2013) 083 | 1306.2542 |
| 74 | H. B. Hartanto, B. Jager, L. Reina, and D. Wackeroth | Higgs boson production in association with top quarks in the POWHEG BOX | PRD 91 (2015) 094003 | 1501.04498 |
| 75 | D. de Florian et al. | Handbook of LHC Higgs cross sections: 4. Deciphering the nature of the Higgs sector | CERN Report CERN-2017-002-M, 2016 link |
1610.07922 |
| 76 | CMS Collaboration | An embedding technique to determine $ \tau\tau $ backgrounds in proton-proton collision data | JINST 14 (2019) P06032 | CMS-TAU-18-001 1903.01216 |
| 77 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 78 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: the POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 79 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX | JHEP 06 (2010) 043 | 1002.2581 |
| 80 | S. Alioli et al. | Jet pair production in POWHEG | JHEP 04 (2011) 081 | 1012.3380 |
| 81 | M. Czakon et al. | Top-pair production at the LHC through NNLO QCD and NLO EW | JHEP 10 (2017) 186 | 1705.04105 |
| 82 | M. Czakon and A. Mitov | Top++: A program for the calculation of the top-pair cross-section at hadron colliders | Comput. Phys. Commun. 185 (2014) 2930 | 1112.5675 |
| 83 | NNPDF Collaboration | Parton distributions for the LHC Run II | JHEP 04 (2015) 040 | 1410.8849 |
| 84 | A. D. Martin, W. J. Stirling, R. S. Thorne, and G. Watt | Uncertainties on $ \alpha $(S) in global PDF analyses and implications for predicted hadronic cross sections | EPJC 64 (2009) 653 | 0905.3531 |
| 85 | J. Gao et al. | CT10 next-to-next-to-leading order global analysis of QCD | PRD 89 (2014) 033009 | 1302.6246 |
| 86 | R. D. Ball et al. | Parton distributions with LHC data | NPB 867 (2013) 244 | 1207.1303 |
| 87 | J. Campbell, T. Neumann, and Z. Sullivan | Single-top-quark production in the $ t $-channel at NNLO | JHEP 02 (2021) 040 | 2012.01574 |
| 88 | PDF4LHC Working Group Collaboration | The PDF4LHC21 combination of global PDF fits for the LHC Run III | JPG 49 (2022) 080501 | 2203.05506 |
| 89 | K. Melnikov and F. Petriello | Electroweak gauge boson production at hadron colliders through $ O(\alpha_s^2) $ | PRD 74 (2006) 114017 | hep-ph/0609070 |
| 90 | A. D. Martin, W. J. Stirling, R. S. Thorne, and G. Watt | Parton distributions for the LHC | EPJC 63 (2009) 189 | 0901.0002 |
| 91 | CMS Collaboration | Measurements of Higgs boson production in the decay channel with a pair of $ \tau $ leptons in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | EPJC 83 (2023) 562 | CMS-HIG-19-010 2204.12957 |
| 92 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 93 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 94 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 95 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 96 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 97 | E. Bols et al. | Jet flavour classification using DeepJet | JINST 15 (2020) P12012 | 2008.10519 |
| 98 | CMS Collaboration | Identification of heavy-flavour jets with the CMS detector in pp collisions at 13 TeV | JINST 13 (2018) P05011 | CMS-BTV-16-002 1712.07158 |
| 99 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 100 | CMS Collaboration | Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P10005 | CMS-TAU-16-003 1809.02816 |
| 101 | CMS Collaboration | Identification of hadronic tau lepton decays using a deep neural network | JINST 17 (2022) P07023 | CMS-TAU-20-001 2201.08458 |
| 102 | L. Bianchini et al. | Reconstruction of the Higgs mass in events with Higgs bosons decaying into a pair of tau leptons using matrix element technique | NIM A 862 (2017) 54 | 1603.05910 |
| 103 | A. Kalinowski and W. Matyszkiewicz | Efficient tau-pair invariant mass reconstruction with simplified matrix element techniques | NIM A 1086 (2026) 171318 | 2509.26069 |
| 104 | T. Chen and C. Guestrin | Xgboost: A scalable tree boosting system | in nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 2016 Proceedings of the 2 (2016) 785 |
|
| 105 | CMS Collaboration | Search for an exotic decay of the Higgs boson to a pair of light pseudoscalars in the final state with two b quarks and two $ \tau $ leptons in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | PLB 785 (2018) 462 | CMS-HIG-17-024 1805.10191 |
| 106 | CDF Collaboration | Search for neutral Higgs bosons of the minimal supersymmetric standard model decaying to $ \tau $ pairs in $ \mathrm{p}\bar{\mathrm{p}} $ collisions at $ \sqrt{s} = $ 1.96 TeV | PRL 96 (2006) 011802 | hep-ex/0508051 |
| 107 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 108 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2018 link |
CMS-PAS-LUM-17-004 |
| 109 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2019 link |
CMS-PAS-LUM-18-002 |
| 110 | R. J. Barlow and C. Beeston | Fitting using finite Monte Carlo samples | Comput. Phys. Commun. 77 (1993) 219 | |
| 111 | CMS Collaboration | The CMS statistical analysis and combination tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 112 | G. Cowan, K. Cranmer, E. Gross, and O. Vitells | Asymptotic formulae for likelihood-based tests of new physics | EPJC 71 (2011) 1554 | 1007.1727 |
|
|
Compact Muon Solenoid LHC, CERN |
|
|
|
|
|
|
