CMS-HIN-24-016

CMS-HIN-24-016 ; CERN-EP-2025-260
Probing early parton emissions in heavy ion collisions using the Lund jet plane
CMS Collaboration
9 Febraury 2026
Submitted to Phys. Rev. Lett.
Abstract: In scattering experiments, high-virtuality partons, i.e.,, quarks and gluons, initiate a series of additional parton emissions to create collimated sprays of particles known as jets. This paper presents a measurement of the Lund jet plane (LJP) of high-energy jets produced in lead-lead (PbPb) collisions and compares the results to data for proton-proton (pp) collisions. The LJP is formed by iteratively declustering the constituents of a jet into consecutive emissions and recording the relative transverse momentum ($ k_{\mathrm{T}} $) and angle of the resulting emission with respect to its emitter. The angular distributions of two different $ k_{\mathrm{T}} $ slices of the LJP are investigated for jets with radius parameter of 0.4 and transverse momentum in the range 200-1000 GeV. The PbPb (pp) data were recorded by the CMS experiment in 2018 (2017) and correspond to an integrated luminosity of 1.7$ \text{nb}^{-1}$ (301$ \text{pb}^{-1}$) at a nucleon-nucleon center-of-mass energy of 5.02 TeV. The measurement was designed to test whether the earliest jet emissions are produced before the formation of the quark-gluon plasma (QGP) in PbPb collisions. Within the experimental uncertainties, no significant difference is observed between the angular distribution of high-$ k_{\mathrm{T}} $ emissions in pp and PbPb collisions, which is consistent with these emissions occurring early in the jet evolution, before substantial interaction with the QGP.
Links: e-print arXiv:2602.09271 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures

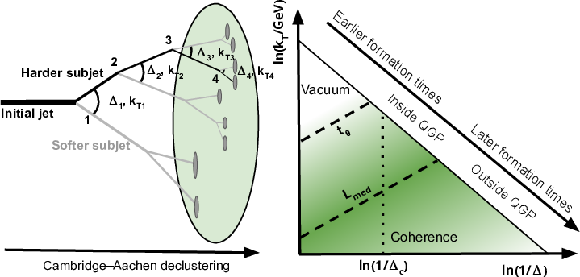

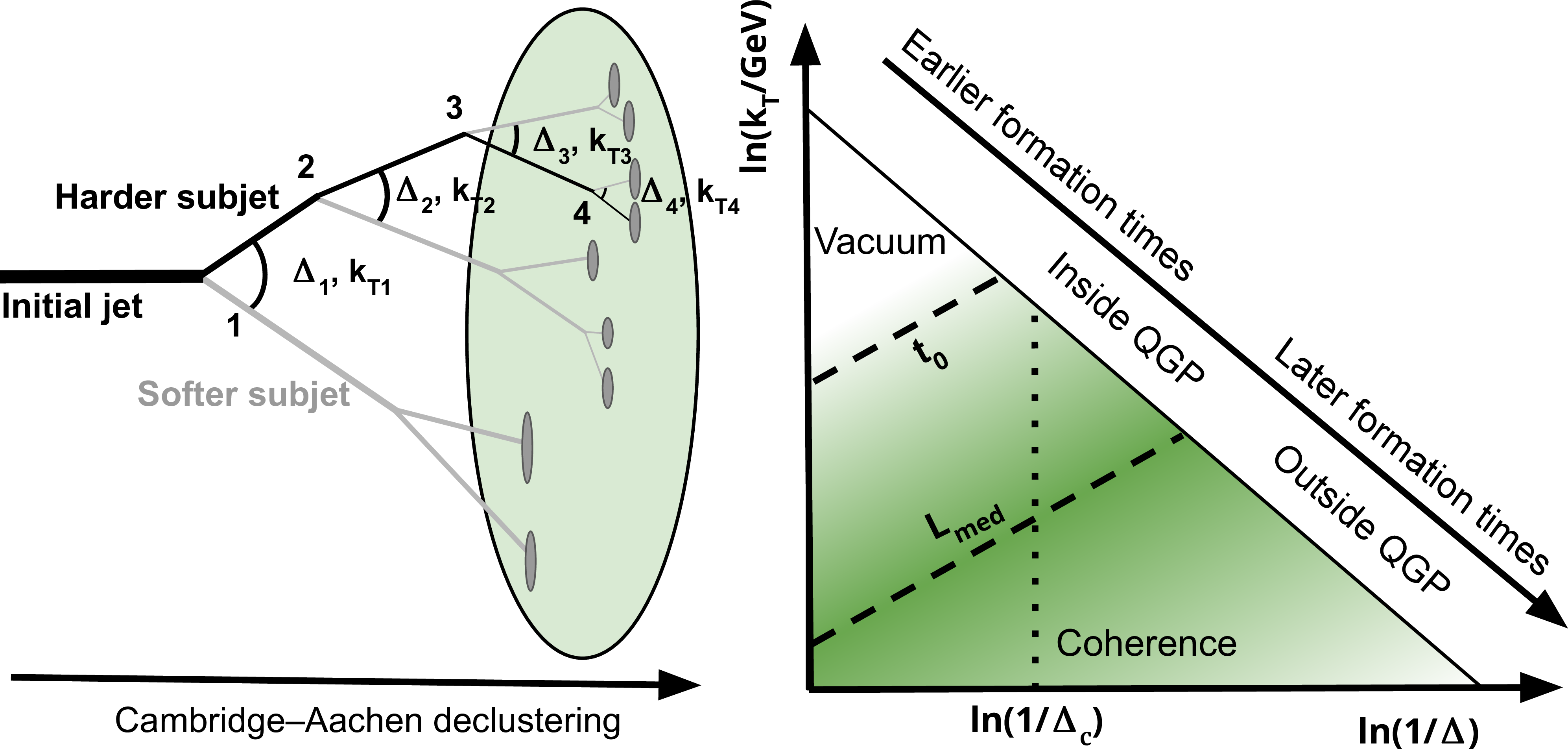

png pdf	Figure 1: Left: Schematic diagram of the Cambridge--Aachen primary declusterings. The kinematics of the softer (grey) subjets in subsequent numbered emissions at each step from the harder subjet (bold black) is mapped onto the PLJP. Right: Distinct regions of the PLJP with the expected sensitivities of the jet shower evolution as the jet shower traverses the QGP, with maximum path length inside the medium $ L_\text{med} $. Emissions with formation times $ t_\text{form} > L_\text{med} $ are formed outside of the QGP, while emissions with $ t_\text{form} < t_0 $, where $ t_0 $ is the hydrodynamic initialization time, are vacuum-like. The typical values of these timescales are $ t_0\sim $ 0.6 fm and $ L_\text{med}\sim $ 6 fm.

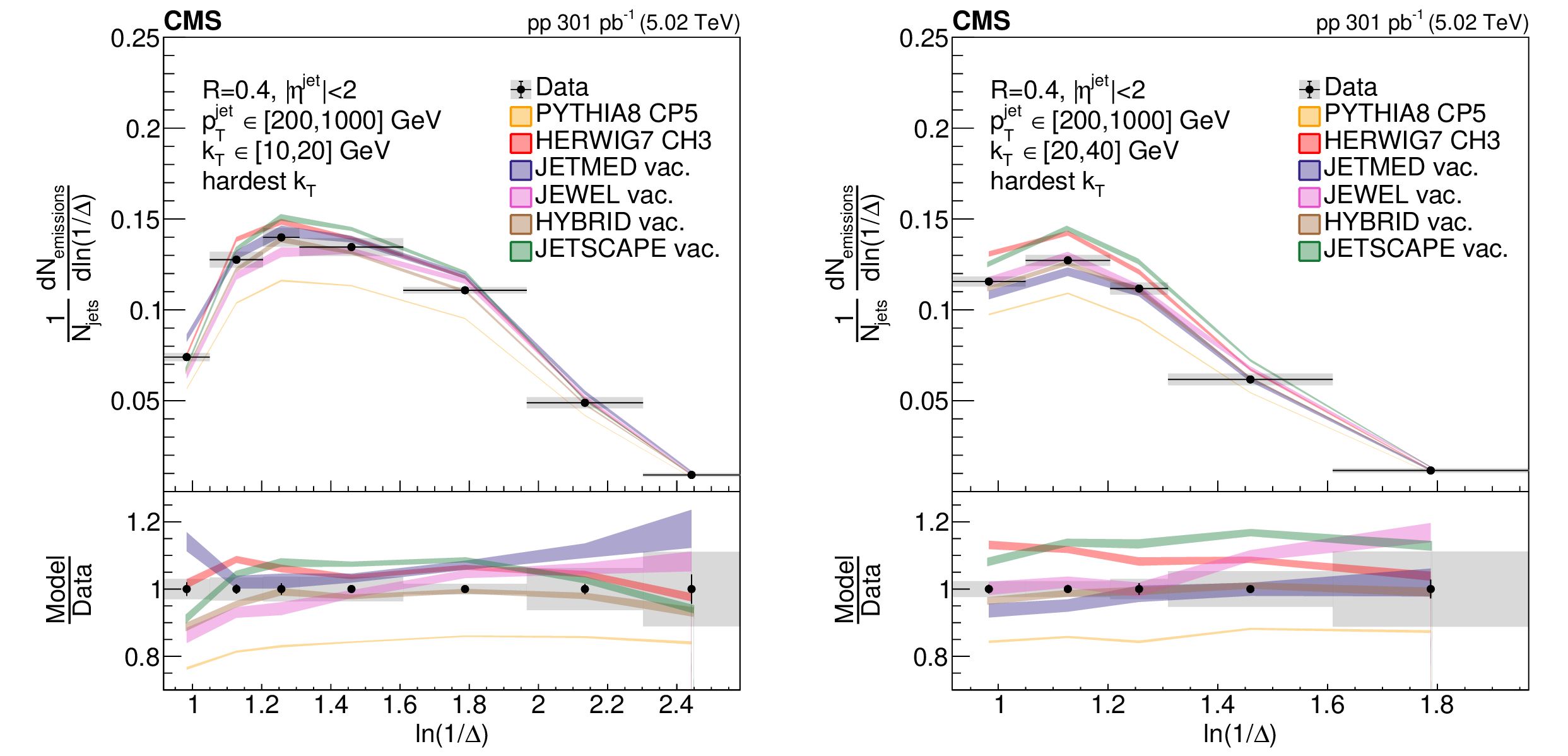

png pdf	Figure 2: Particle-level angular distributions ($ \ln(1/\Delta) $) of the hardest $ k_{\mathrm{T}} $ emissions in the ranges $ k_{\mathrm{T}} \in [10,20] \text{Ge\hspace{-.08em}V} $ (left) and $ k_{\mathrm{T}} \in [20,40] \text{Ge\hspace{-.08em}V} $ (right) in pp collisions. A comparison is made with model predictions by PYTHIA, HERWIG, HYBRID, JEWEL, HYBRID and JETSCAPE, with their ratios to data shown in the bottom panels. The uncertainties in the model predictions are statistical only. The shaded boxes represent the total uncertainty in data.

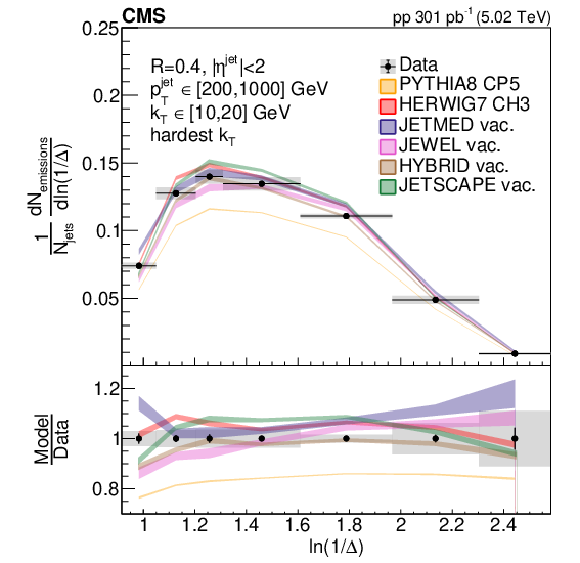

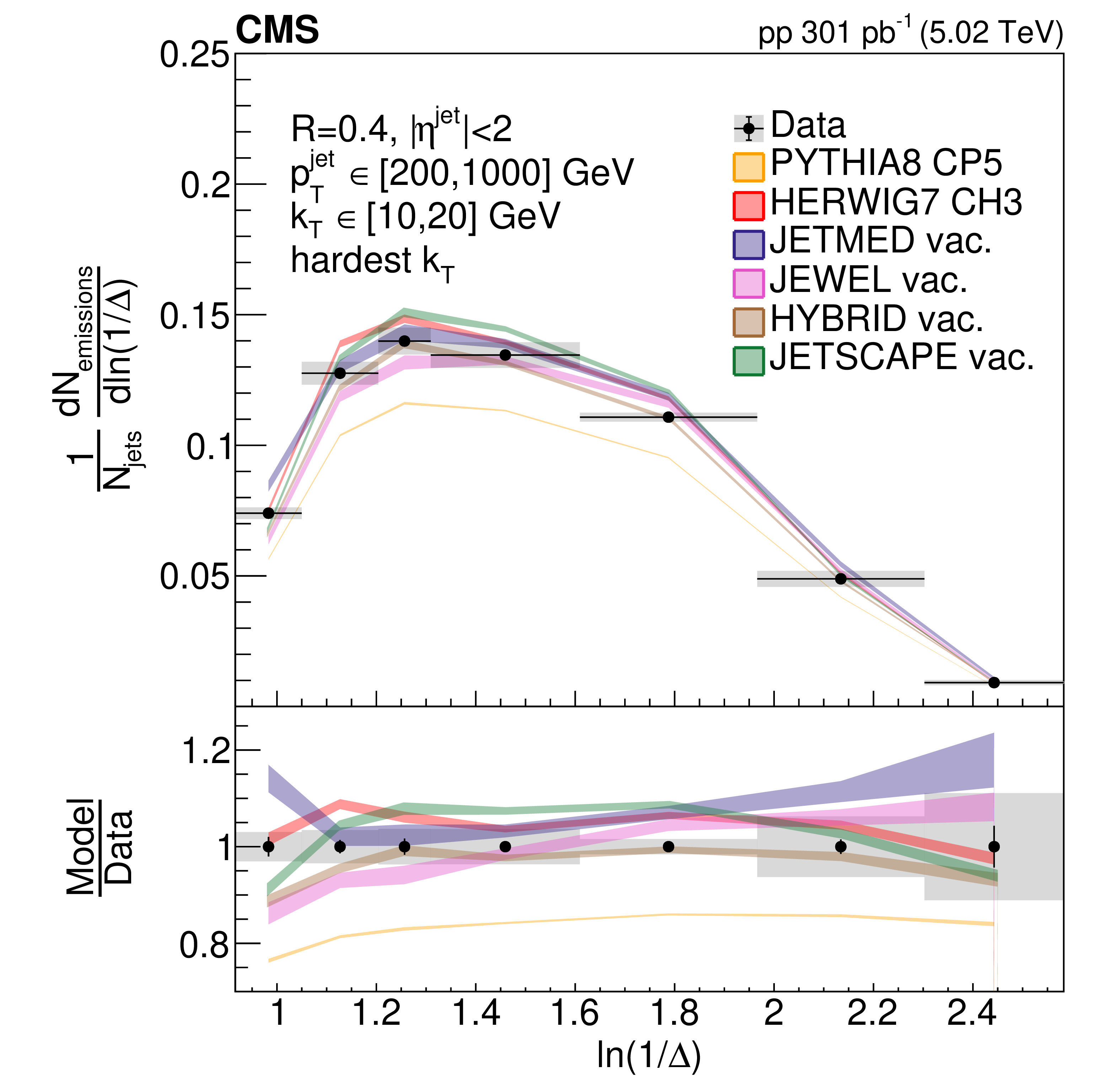

png pdf	Figure 2-a: Particle-level angular distributions ($ \ln(1/\Delta) $) of the hardest $ k_{\mathrm{T}} $ emissions in the ranges $ k_{\mathrm{T}} \in [10,20] \text{Ge\hspace{-.08em}V} $ (left) and $ k_{\mathrm{T}} \in [20,40] \text{Ge\hspace{-.08em}V} $ (right) in pp collisions. A comparison is made with model predictions by PYTHIA, HERWIG, HYBRID, JEWEL, HYBRID and JETSCAPE, with their ratios to data shown in the bottom panels. The uncertainties in the model predictions are statistical only. The shaded boxes represent the total uncertainty in data.

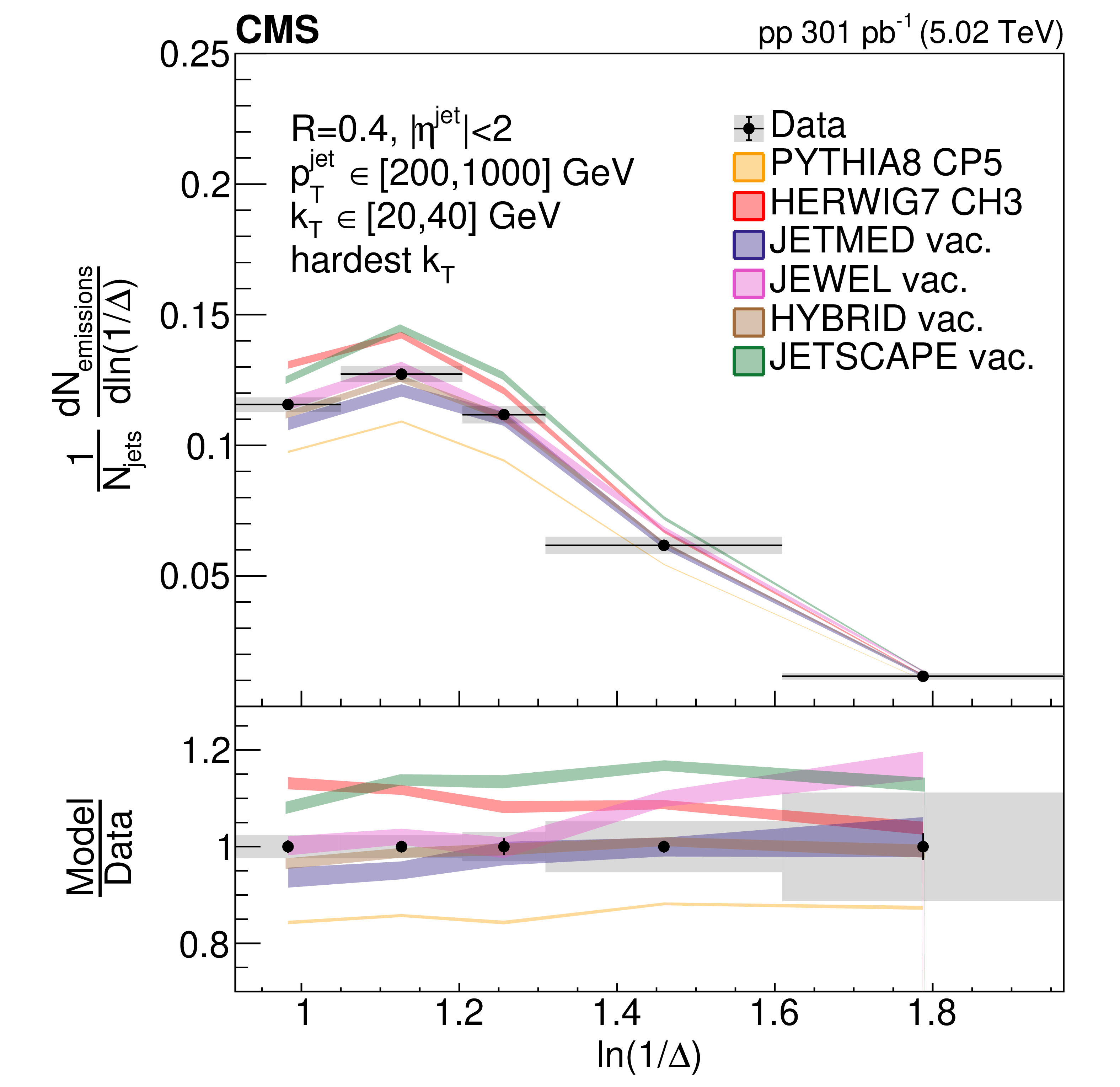

png pdf	Figure 2-b: Particle-level angular distributions ($ \ln(1/\Delta) $) of the hardest $ k_{\mathrm{T}} $ emissions in the ranges $ k_{\mathrm{T}} \in [10,20] \text{Ge\hspace{-.08em}V} $ (left) and $ k_{\mathrm{T}} \in [20,40] \text{Ge\hspace{-.08em}V} $ (right) in pp collisions. A comparison is made with model predictions by PYTHIA, HERWIG, HYBRID, JEWEL, HYBRID and JETSCAPE, with their ratios to data shown in the bottom panels. The uncertainties in the model predictions are statistical only. The shaded boxes represent the total uncertainty in data.

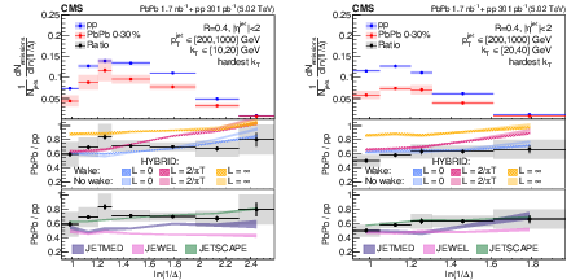

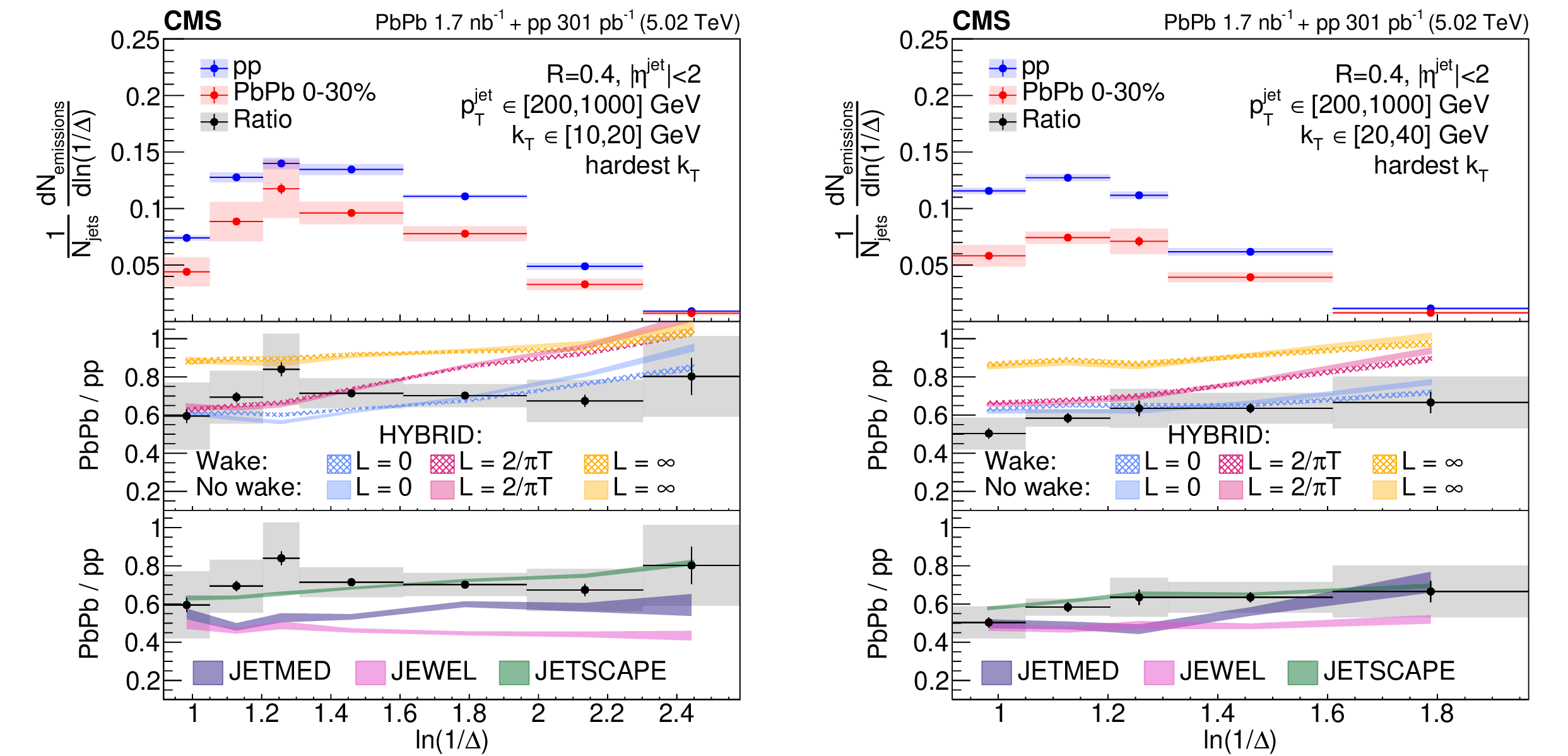

png pdf	Figure 3: The hardest $ k_{\mathrm{T}} $ emission angular distributions ($ \ln(1/\Delta) $) in the ranges $ k_{\mathrm{T}} \in [10,20] \text{Ge\hspace{-.08em}V} $ (left) and $ k_{\mathrm{T}} \in [20,40] \text{Ge\hspace{-.08em}V} $ (right) for pp and PbPb collisions of centrality 0--30% and their ratios in the lower panels. The ratios are compared with jet quenching model predictions by HYBRID, JETSCAPE, JEWEL and HYBRID, which provides different medium resolution lengths ($ L $) and the inclusion/exclusion of backreacting medium particles (wake). The uncertainties in the model predictions are statistical only. The shaded boxes in the data distributions represent the total uncertainty.

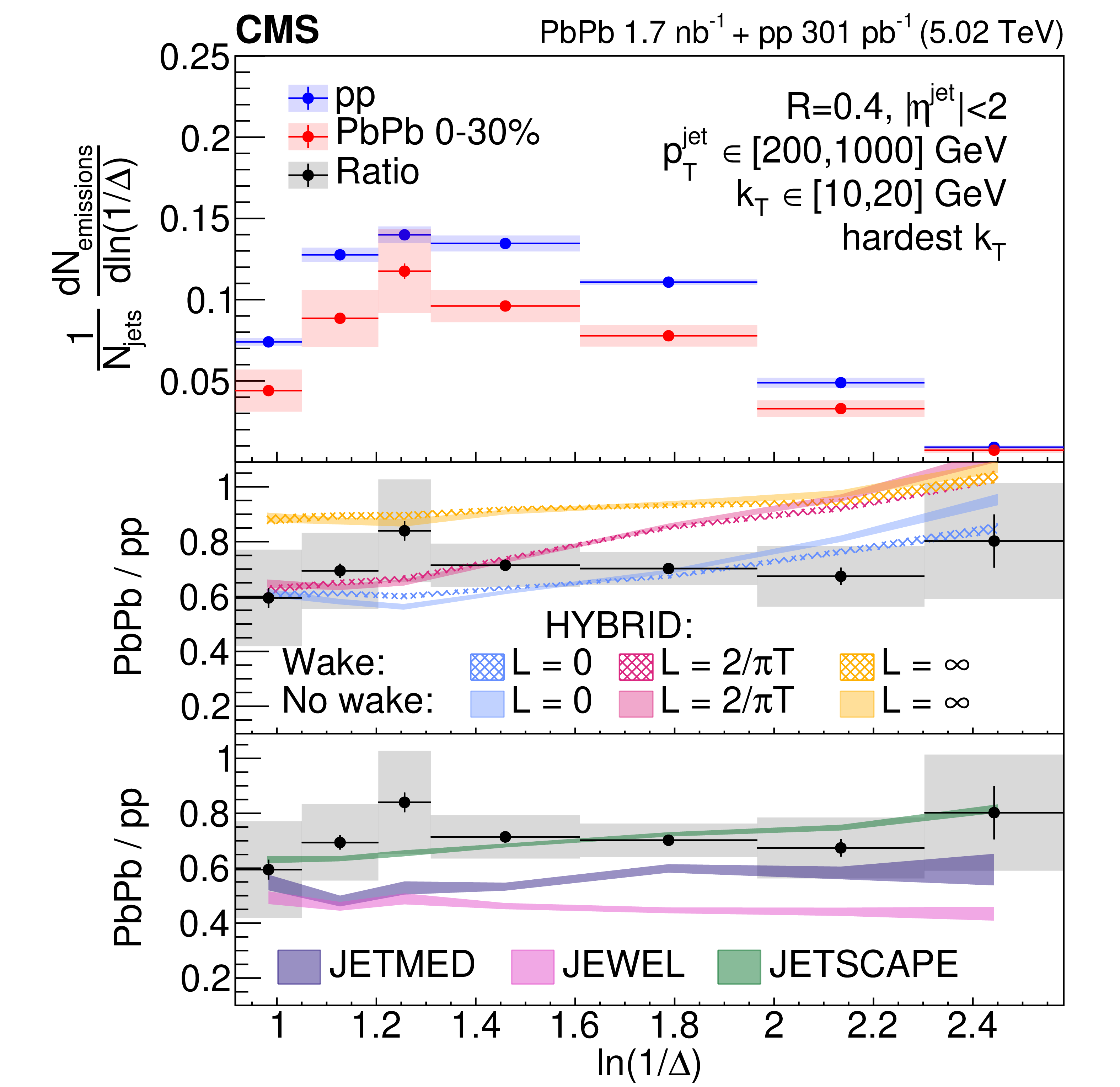

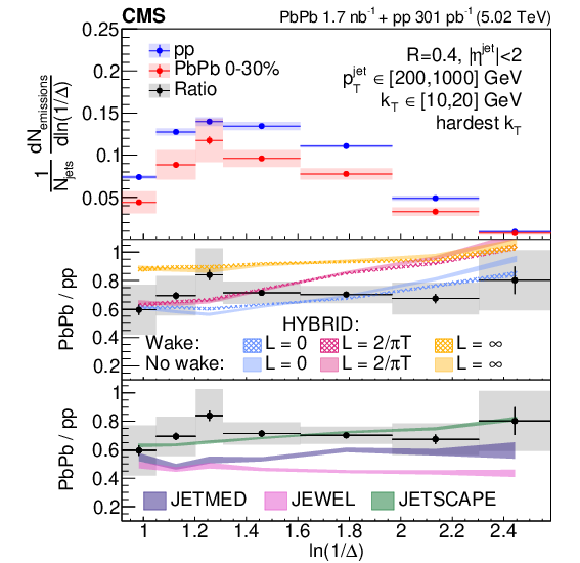

png pdf	Figure 3-a: The hardest $ k_{\mathrm{T}} $ emission angular distributions ($ \ln(1/\Delta) $) in the ranges $ k_{\mathrm{T}} \in [10,20] \text{Ge\hspace{-.08em}V} $ (left) and $ k_{\mathrm{T}} \in [20,40] \text{Ge\hspace{-.08em}V} $ (right) for pp and PbPb collisions of centrality 0--30% and their ratios in the lower panels. The ratios are compared with jet quenching model predictions by HYBRID, JETSCAPE, JEWEL and HYBRID, which provides different medium resolution lengths ($ L $) and the inclusion/exclusion of backreacting medium particles (wake). The uncertainties in the model predictions are statistical only. The shaded boxes in the data distributions represent the total uncertainty.

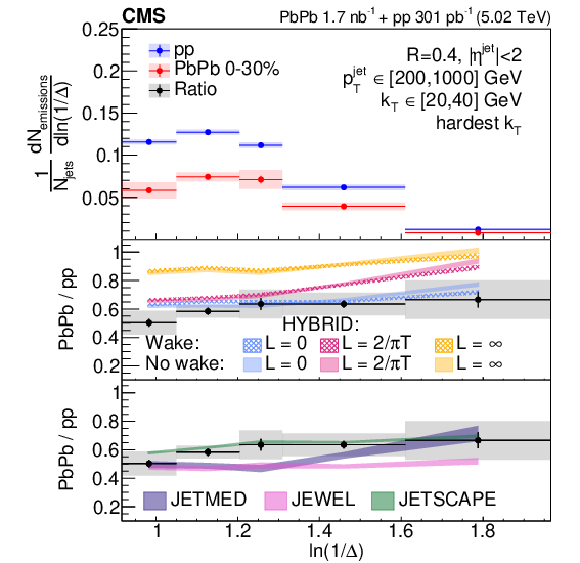

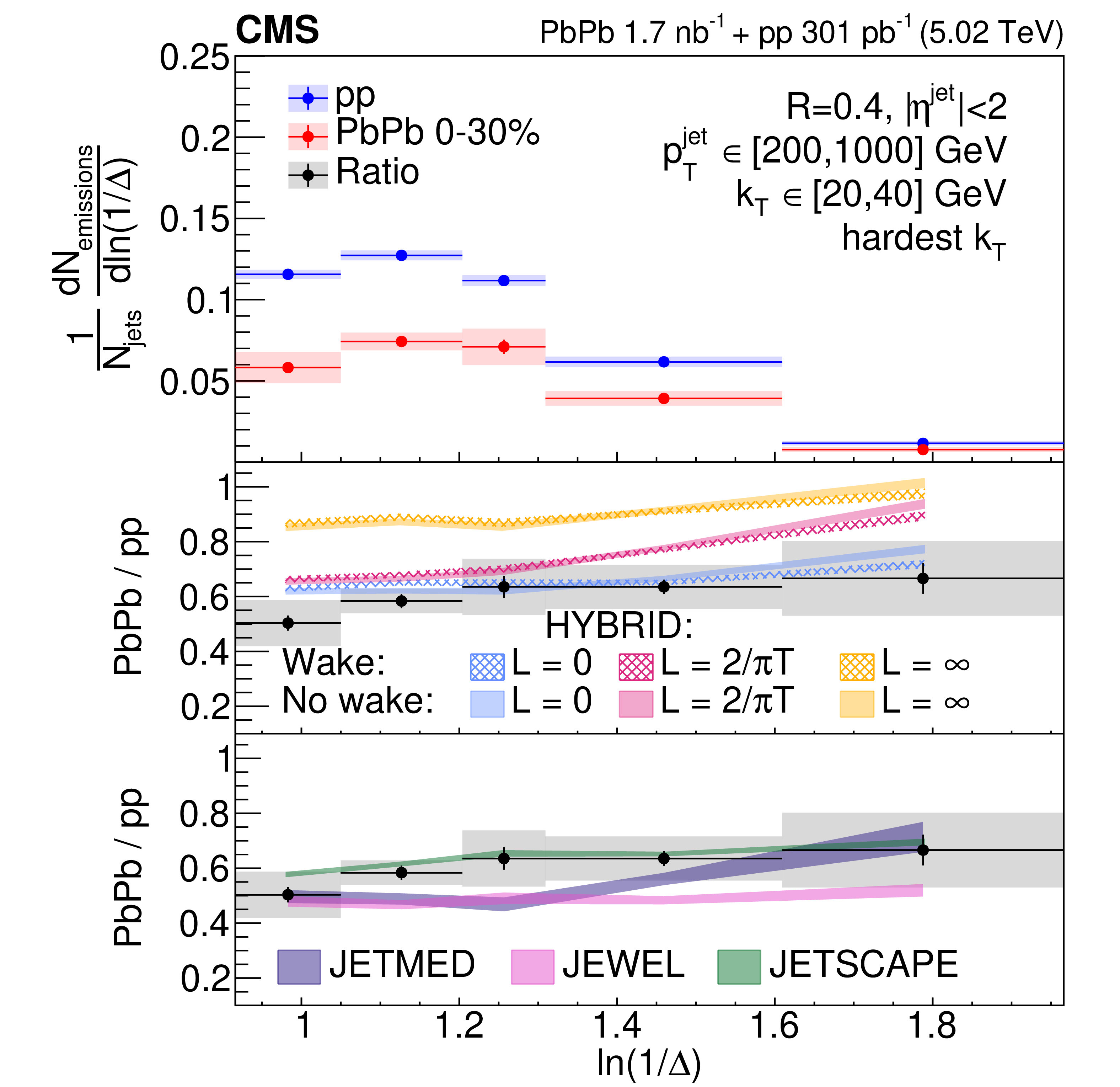

png pdf	Figure 3-b: The hardest $ k_{\mathrm{T}} $ emission angular distributions ($ \ln(1/\Delta) $) in the ranges $ k_{\mathrm{T}} \in [10,20] \text{Ge\hspace{-.08em}V} $ (left) and $ k_{\mathrm{T}} \in [20,40] \text{Ge\hspace{-.08em}V} $ (right) for pp and PbPb collisions of centrality 0--30% and their ratios in the lower panels. The ratios are compared with jet quenching model predictions by HYBRID, JETSCAPE, JEWEL and HYBRID, which provides different medium resolution lengths ($ L $) and the inclusion/exclusion of backreacting medium particles (wake). The uncertainties in the model predictions are statistical only. The shaded boxes in the data distributions represent the total uncertainty.

Tables

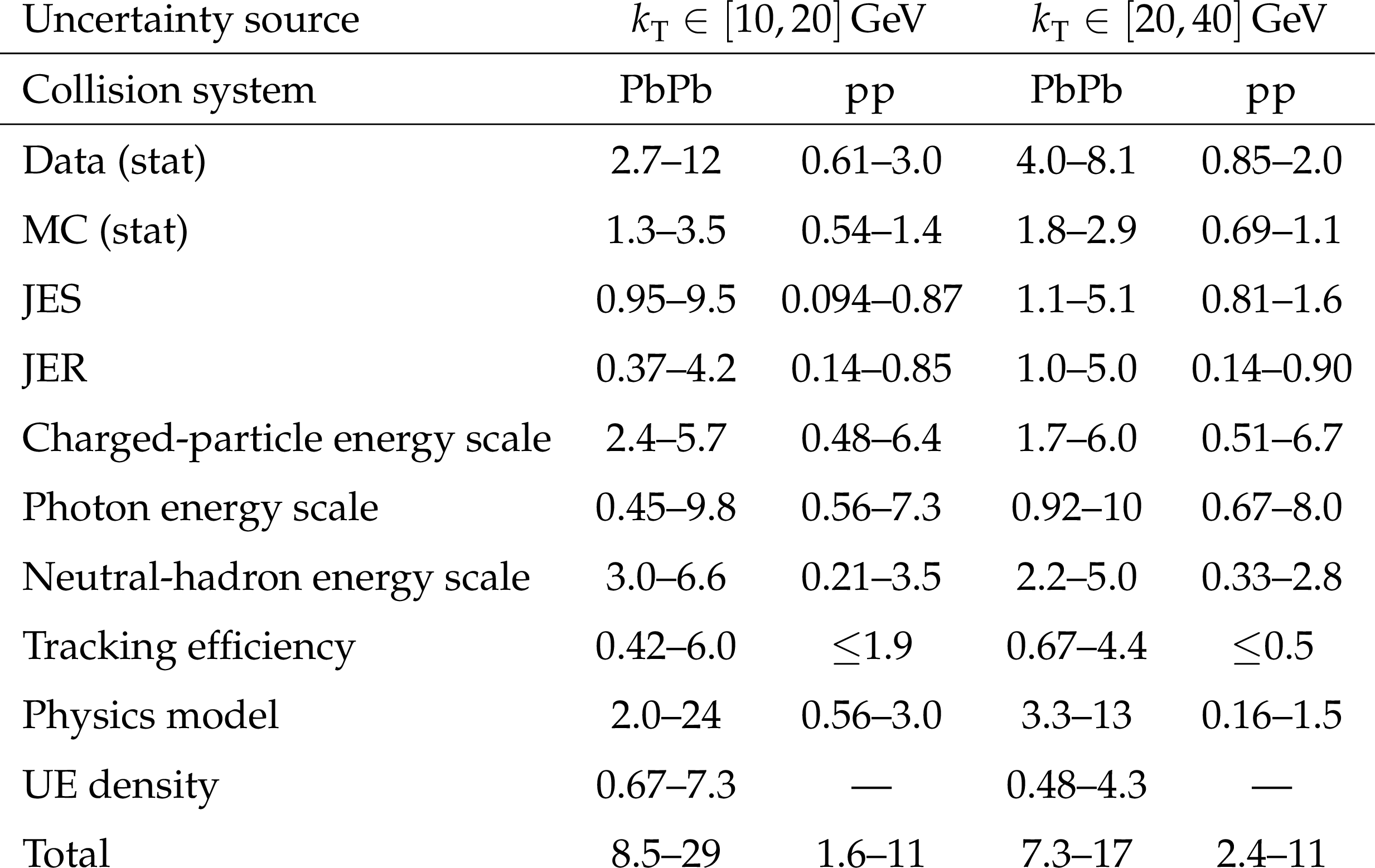

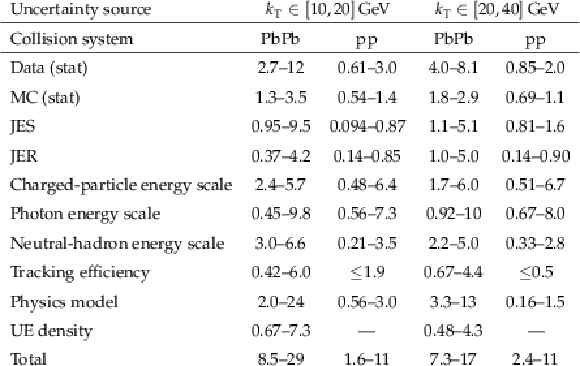

png pdf	Table 1: Lower and upper bounds of fractional uncertainties (in %) for each source in PbPb and pp collisions for both reported $ k_{\mathrm{T}} $ ranges.

Summary

In summary, the primary Lund jet plane in heavy ion collisions has been presented for the first time in slices of relative momentum $ k_{\mathrm{T}} $. This measurement provides an experimental approach to search for the presence of early vacuum-like emissions within jet evolution in heavy ion collisions.The unfolded angular distribution of the hardest splittings selected in two intervals of \$ k_{\mathrm{T}} $ are compared in proton-proton (pp) and lead-lead (PbPb) collisions.The ratio of the two distributions in data is compared with predictions by the HYBRID, JETSCAPE, JEWEL, and JETMED models.Predictions employing both factorized and interleaved treatment of emissions are consistent with the observed ratio. In the $ k_{\mathrm{T}} $ ranges considered, the HYBRID model distributions are unaffected by the inclusion of the backreaction of the medium. The data ratios are most consistent with zero resolution length in the HYBRID model and with the JETSCAPE model, which does not have an explicit implementation of color coherence. The PbPb/pp ratios in data are independent of angle within experimental uncertainties, with values smaller than unity. This observation is consistent with the presence of early vacuum-like emissions in PbPb collisions, which subsequently undergo quenching.

References
1	W. Busza, K. Rajagopal, and W. van der Schee	Heavy ion collisions: the big picture and the big questions	Ann. Rev. Nucl. Part. Sci. 68 (2018) 339	1802.04801
2	A. Adams et al.	Strongly correlated quantum fluids: ultracold quantum gases, quantum chromodynamic plasmas, and holographic duality	New J. Phys. 14 (2012) 115009	1205.5180
3	CMS Collaboration	Overview of high-density QCD studies with the CMS experiment at the LHC	Phys. Rep. 1115 (2025) 219	CMS-HIN-23-011 2405.10785
4	L. Cunqueiro and A. M. Sickles	Studying the QGP with jets at the LHC and RHIC	Prog. Part. Nucl. Phys. 124 (2022) 103940	2110.14490
5	L. Apolin{\'a}rio, Y.-J. Lee, and M. Winn	Heavy quarks and jets as probes of the QGP	Prog. Part. Nucl. Phys. 127 (2022) 103990	2203.16352
6	M. Gyulassy and M. Plumer	Jet quenching in dense matter	PLB 243 (1990) 432	hep-ph/9408344
7	R. Baier et al.	Radiative energy loss of high-energy quarks and gluons in a finite-volume quark-gluon plasma	NPB 483 (1997) 291	hep-ph/9607355
8	R. Baier et al.	Radiative energy loss and $ p_{\mathrm{T}} $ broadening of high-energy partons in nuclei	NPB 484 (1997) 265	hep-ph/9608322
9	J. Casalderrey-Solana and E. Iancu	Interference effects in medium-induced gluon radiation	JHEP 08 (2011) 015	1105.1760
10	Y. Mehtar-Tani, C. A. Salgado, and K. Tywoniuk	Anti-angular ordering of gluon radiation in QCD media	PRL 106 (2011) 122002	1009.2965
11	J. Casalderrey-Solana, Y. Mehtar-Tani, C. A. Salgado, and K. Tywoniuk	New picture of jet quenching dictated by color coherence	PLB 725 (2013) 357	1210.7765
12	S. Cao and G.-Y. Qin	Medium response and jet-hadron correlations in relativistic heavy-ion collisions	Ann. Rev. Nucl. Part. Sci. 73 (2023) 205	2211.16821
13	P. Caucal, E. Iancu, A. H. Mueller, and G. Soyez	Vacuum-like jet fragmentation in a dense QCD medium	PRL 120 (2018) 232001	1801.09703
14	JETSCAPE Collaboration	Hard jet substructure in a multistage approach	Phys. Rev. C 110 (2024) 044907	2301.02485
15	K. C. Zapp, F. Krauss, and U. A. Wiedemann	A perturbative framework for jet quenching	JHEP 03 (2013) 080	1212.1599
16	A. Lifson, G. P. Salam, and G. Soyez	Calculating the primary Lund jet plane density	JHEP 10 (2020) 170	2007.06578
17	F. A. Dreyer, G. P. Salam, and G. Soyez	The Lund jet plane	JHEP 12 (2018) 064	1807.04758
18	Y. L. Dokshitzer, G. D. Leder, S. Moretti, and B. R. Webber	Better jet clustering algorithms	JHEP 08 (1997) 001	hep-ph/9707323
19	L. Cunqueiro et al.	Isolating perturbative QCD splittings in heavy-ion collisions	PRD 110 (2024) 014015	2311.07643
20	CMS Collaboration	Measurement of the primary Lund jet plane density in proton-proton collisions at $ \sqrt{\textrm{s}} = $ 13 TeV	JHEP 05 (2024) 116	CMS-SMP-22-007 2312.16343
21	ATLAS Collaboration	Measurement of the Lund jet plane using charged particles in 13 TeV proton-proton collisions with the ATLAS detector	PRL 124 (2020) 222002	2004.03540
22	LHCb Collaboration	Measurement of the Lund plane for light- and beauty-quark jets	PRD 112 (2025) 072015	2505.23530
23	A. J. Larkoski, S. Marzani, G. Soyez, and J. Thaler	Soft drop	JHEP 05 (2014) 146	1402.2657
24	Y. Mehtar-Tani, A. Soto-Ontoso, and K. Tywoniuk	Dynamical grooming of QCD jets	PRD 101 (2020) 034004	1911.00375
25	CMS Collaboration	Measurement of the splitting function in pp and PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV	PRL 120 (2018) 142302	CMS-HIN-16-006 1708.09429
26	CMS Collaboration	Measurement of the groomed jet mass in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV	JHEP 10 (2018) 161	CMS-HIN-16-024 1805.05145
27	ALICE Collaboration	Exploration of jet substructure using iterative declustering in pp and PbPb collisions at LHC energies	PLB 802 (2020) 135227	1905.02512
28	ALICE Collaboration	Measurement of the groomed jet radius and momentum splitting fraction in pp and PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV	PRL 128 (2022) 102001	2107.12984
29	ATLAS Collaboration	Measurement of substructure-dependent jet suppression in Pb+Pb collisions at 5.02 TeV with the ATLAS detector	Phys. Rev. C 107 (2023) 054909	2211.11470
30	ALICE Collaboration	Search for quasi-particle scattering in the quark-gluon plasma with jet splittings in pp and Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV	PRL 135 (2025) 031901	2409.12837
31	ATLAS Collaboration	Measurement of suppression of large-radius jets and its dependence on substructure in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV with the ATLAS detector	PRL 131 (2023) 172301	2301.05606
32	CMS Collaboration	CMS luminosity measurement for nucleus-nucleus collisions at 5.02 TeV in Run 2	CMS Physics Analysis Summary, \urlhttps://cds.cern.ch/record/093, 2024 CMS-PAS-LUM-20-002	CMS-PAS-LUM-20-002
33	CMS Collaboration	Luminosity measurement in proton-proton collisions at 5.02 TeV in 2017 at CMS	CMS Physics Analysis Summary, \urlhttp://cds.cern.ch/record/2765655, 2021 CMS-PAS-LUM-19-001	CMS-PAS-LUM-19-001
34	CMS Collaboration	HEPData record for this analysis	link
35	CMS Collaboration	The CMS experiment at the CERN LHC	JINST 3 (2008) S08004
36	CMS Collaboration	Development of the CMS detector for the CERN LHC Run 3	JINST 19 (2024) P05064	CMS-PRF-21-001 2309.05466
37	CMS Collaboration	Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV	JINST 15 (2020) P10017	CMS-TRG-17-001 2006.10165
38	CMS Collaboration	The CMS trigger system	JINST 12 (2017) P01020	CMS-TRG-12-001 1609.02366
39	CMS Collaboration	Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC	JINST 16 (2021) P05014	CMS-EGM-17-001 2012.06888
40	CMS Collaboration	Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV	JINST 13 (2018) P06015	CMS-MUO-16-001 1804.04528
41	CMS Collaboration	Description and performance of track and primary-vertex reconstruction with the CMS tracker	JINST 9 (2014) P10009	CMS-TRK-11-001 1405.6569
42	CMS Collaboration	Particle-flow reconstruction and global event description with the CMS detector	JINST 12 (2017) P10003	CMS-PRF-14-001 1706.04965
43	C. Loizides, J. Kamin, and D. d'Enterria	Improved Monte Carlo Glauber predictions at present and future nuclear colliders	Phys. Rev. C 97 (2018) 054910	1710.07098
44	CMS Collaboration	Observation and studies of jet quenching in PbPb collisions at nucleon-nucleon center-of-mass energy $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV	Phys. Rev. C 84 (2011) 024906	CMS-HIN-10-004 1102.1957
45	M. Cacciari, G. P. Salam, and G. Soyez	The anti-$ k_{\mathrm{T}} $ jet clustering algorithm	JHEP 04 (2008) 063	0802.1189
46	M. Cacciari, G. P. Salam, and G. Soyez	FastJet user manual	EPJC 72 (2012) 1896	1111.6097
47	P. Berta, M. Spousta, D. W. Miller, and R. Leitner	Particle-level pileup subtraction for jets and jet shapes	JHEP 06 (2014) 092	1403.3108
48	O. Kodolova, I. Vardanyan, A. Nikitenko, and A. Oulianov	The performance of the jet identification and reconstruction in heavy ions collisions with CMS detector	EPJC 50 (2007) 117
49	ALICE Collaboration	Measurement of event background fluctuations for charged particle jet reconstruction in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV	JHEP 03 (2012) 053	1201.2423
50	CMS Collaboration	Determination of jet energy calibration and transverse momentum resolution in CMS	JINST 6 (2011) P11002	CMS-JME-10-011 1107.4277
51	CMS Collaboration	Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV	JINST 12 (2017) P02014	CMS-JME-13-004 1607.03663
52	T. Sj$\text ö $strand et al.	An introduction to PYTHIA8.2	Comput. Phys. Commun. 191 (2015) 159	1410.3012
53	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
54	G. Corcella et al.	HERWIG 6	JHEP 01 (2001) 010
55	G. Corcella et al.	HERWIG 6.5 Release Note. HERWIG 6.5	Technical Report CERN-TH-2002-270, CERN, 2002	hep-ph/0210213
56	CMS Collaboration	Development and validation of HERWIG 7 tunes from CMS underlying-event measurements	EPJC 81 (2021) 312	CMS-GEN-19-001 2011.03422
57	I. P. Lokhtin and A. M. Snigirev	A model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_{\mathrm{T}} $ hadron spectra at RHIC	EPJC 45 (2006) 211	hep-ph/0506189
58	GEANT4 Collaboration	GEANT 4---a simulation toolkit	NIM A 506 (2003) 250
59	J. Mulligan and M. Ploskon	Identifying groomed jet splittings in heavy ion collisions	Phys. Rev. C 102 (2020) 044913	2006.01812
60	M. van Beekveld et al.	A new standard for the logarithmic accuracy of parton showers	PRL 134 (2025) 011901	2406.02661
61	G. D'Agostini	A multidimensional unfolding method based on Bayes' theorem	NIM A 362 (1995) 487	1010.0632
62	T. Adye	Unfolding algorithms and tests using RooUnfold	in Proc. workshop on Statistical Issues Related to Discovery Claims in Search Experiments and Unfolding, 2011 PHYSTAT 2011 (2011) 313	1105.1160
63	E. Gross and O. Vitells	Trial factors for the look elsewhere effect in high energy physics	EPJC 70 (2010) 525	1005.1891
64	J. Casalderrey-Solana et al.	A hybrid strong/weak coupling approach to jet quenching	JHEP 10 (2014) 019	1405.3864
65	J. Casalderrey-Solana et al.	Jet wake from linearized hydrodynamics	JHEP 05 (2021) 230	2010.01140
66	K. C. Zapp	JEWEL 2.0.0: directions for use	EPJC 74 (2014) 2762	1311.0048
67	CMS Collaboration	Study of quark and gluon jet substructure in Z+jet and dijet events from pp collisions	JHEP 01 (2022) 188	CMS-SMP-20-010 2109.03340
68	CMS Collaboration	Study of jet quenching with isolated-photon+jet correlations in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV	PLB 785 (2018) 14	CMS-HIN-16-002 1711.09738
69	CMSnoop	Jet evolution in a dense QCD medium	P. Caucal, PhD thesis, Saclay, 2020	2010.02874
70	JETSCAPE Collaboration	Multistage Monte Carlo simulation of jet modification in a static medium	Phys. Rev. C 96 (2017) 024909	1705.00050
71	P. Skands, S. Carrazza, and J. Rojo	Tuning PYTHIA8.1: the Monash 2013 tune	EPJC 74 (2014) 3024	1404.5630
72	A. Majumder	Incorporating space-time within medium-modified jet-event generators	Phys. Rev. C 88 (2013) 014909	1301.5323
73	S. Cao and A. Majumder	Nuclear modification of leading hadrons and jets within a virtuality ordered parton shower	Phys. Rev. C 101 (2020) 024903	1712.10055
74	JETSCAPE Collaboration	Jetscape framework: p+p results	Phys. Rev. C 102 (2020) 054906	1910.05481
75	CMS Collaboration	Measurement of the differential $ \mathrm{t} \overline{\mathrm{t}} $ production cross section as a function of the jet mass and extraction of the top quark mass in hadronic decays of boosted top quarks	EPJC 83 (2023) 560	CMS-TOP-21-012 2211.01456
76	Z. Hulcher, D. Pablos, and K. Rajagopal	Resolution effects in the hybrid strong/weak coupling model	JHEP 03 (2018) 010	1707.05245
77	JETSCAPE Collaboration	Inclusive jet and hadron suppression in a multistage approach	Phys. Rev. C 107 (2023) 034911	2204.01163
78	JETSCAPE Collaboration	Multiscale evolution of charmed particles in a nuclear medium	Phys. Rev. C 107 (2023) 054901	2208.00983
79	CMS Collaboration	Girth and groomed radius of jets recoiling against isolated photons in lead-lead and proton-proton collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV	PLB 861 (2025) 139088	CMS-HIN-23-001 2405.02737
