| CMS-HIN-24-010 ; CERN-EP-2024-345 | ||
| Search for medium effects using jet axis decorrelation in inclusive jets from PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | ||
| CMS Collaboration | ||
| 18 February 2025 | ||
| JHEP 06 (2025) 120 | ||
| Abstract: The jet axis decorrelation in inclusive jets is studied using lead-lead (PbPb) collisions at a center-of-mass energy per nucleon pair of 5.02 TeV. The jet axis decorrelation is defined as the angular difference between two definitions of the jet axis. It is obtained by applying two recombination schemes on all the constituents of a given jet reconstructed by the anti-$ k_{\mathrm{T}} $ sequential algorithm with a distance parameter of $ R = $ 0.4. The data set, corresponding to an integrated luminosity of 0.66 nb$^{-1}$, was collected in 2018 with the CMS detector at the CERN LHC. The jet axis decorrelations are examined across collision centrality selections and intervals of jet transverse momentum. A centrality dependent evolution of the measured distributions is observed, with a progressive narrowing seen in more central events. This narrowing could result from medium-induced modification of the internal jet structure or reflect color charge effects in energy loss. This new measurement probes jet substructure in previously unexplored kinematic domains and show great promise for providing new insights on the color charge dependence of energy loss to jet-quenching models. | ||
| Links: e-print arXiv:2502.13020 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

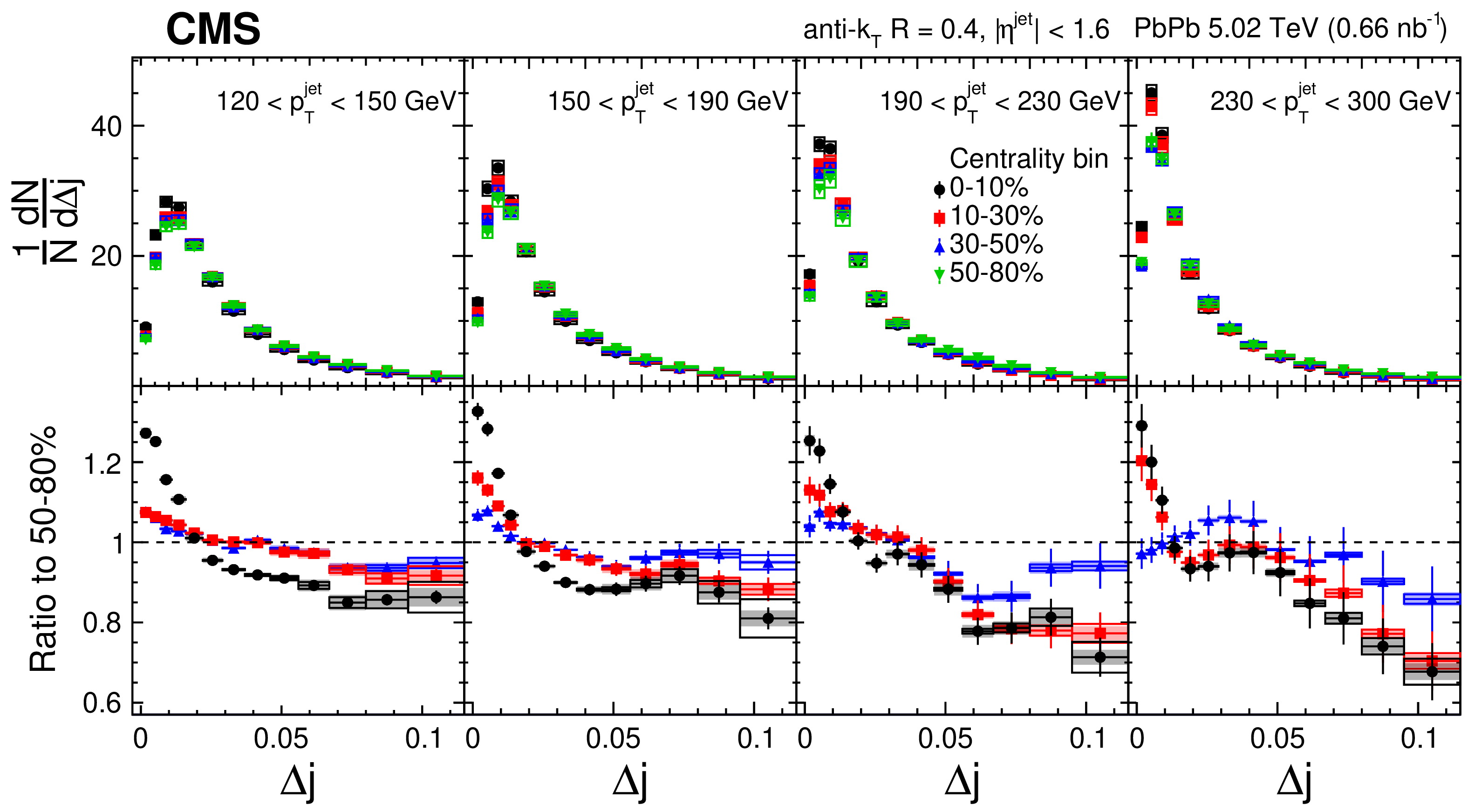

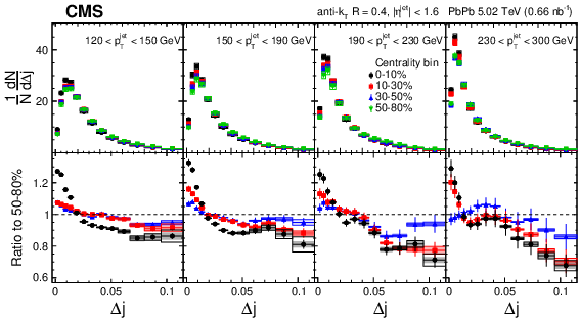

Figure 1:
The unfolded normalized $ \Delta\text{j} $ distributions are measured across different centrality and $ p_{\mathrm{T}} $ intervals. Each panel displays distributions for four centrality intervals within a specific $ p_{\mathrm{T}} $ bin, with $ p_{\mathrm{T}} $ ranges (indicated in each panel) increasing from left to right. In each panel, the black circles show measurements for 0-10% centrality interval, the red squares for 10-30%, and the blue-up and green-down triangles for 30-50% and 50-80% centrality intervals, respectively. The vertical solid lines represent the statistical uncertainties, while the rectangles and shaded areas represent the correlated and uncorrelated systematic uncertainties, respectively. |
png pdf |

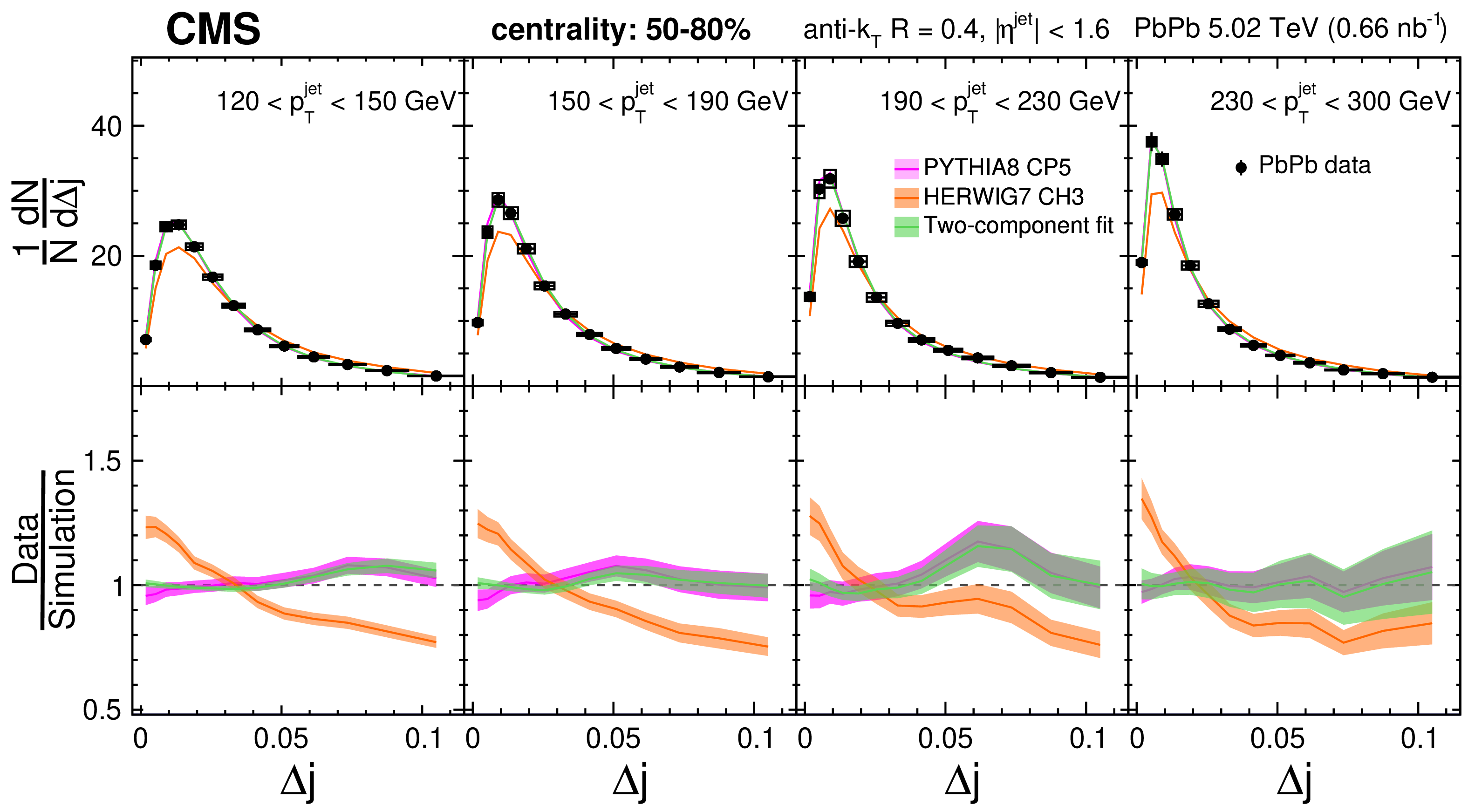

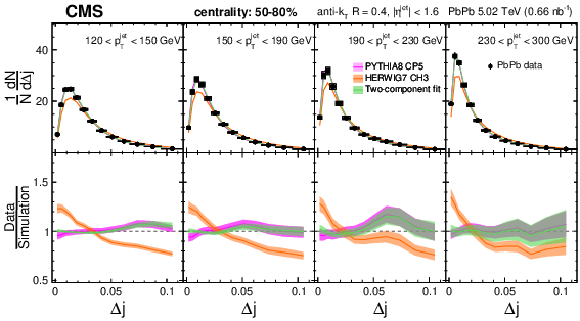

Figure 2:
The unfolded $ \Delta\text{j} $ distributions (black circles) are compared with simulations from PYTHIA, HERWIG, and a two-component, represented as colored bands, for the 50-80% centrality range across different $ p_{\mathrm{T}} $ intervals. The vertical solid lines represent the statistical uncertainties, while the rectangles and shaded areas represent the correlated and uncorrelated systematic uncertainties, respectively. Only statistical uncertainties are shown for the simulated distributions. |
png pdf |

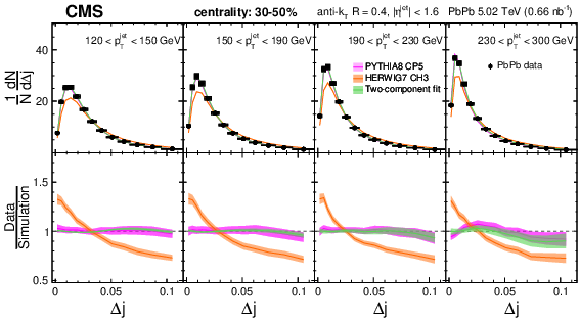

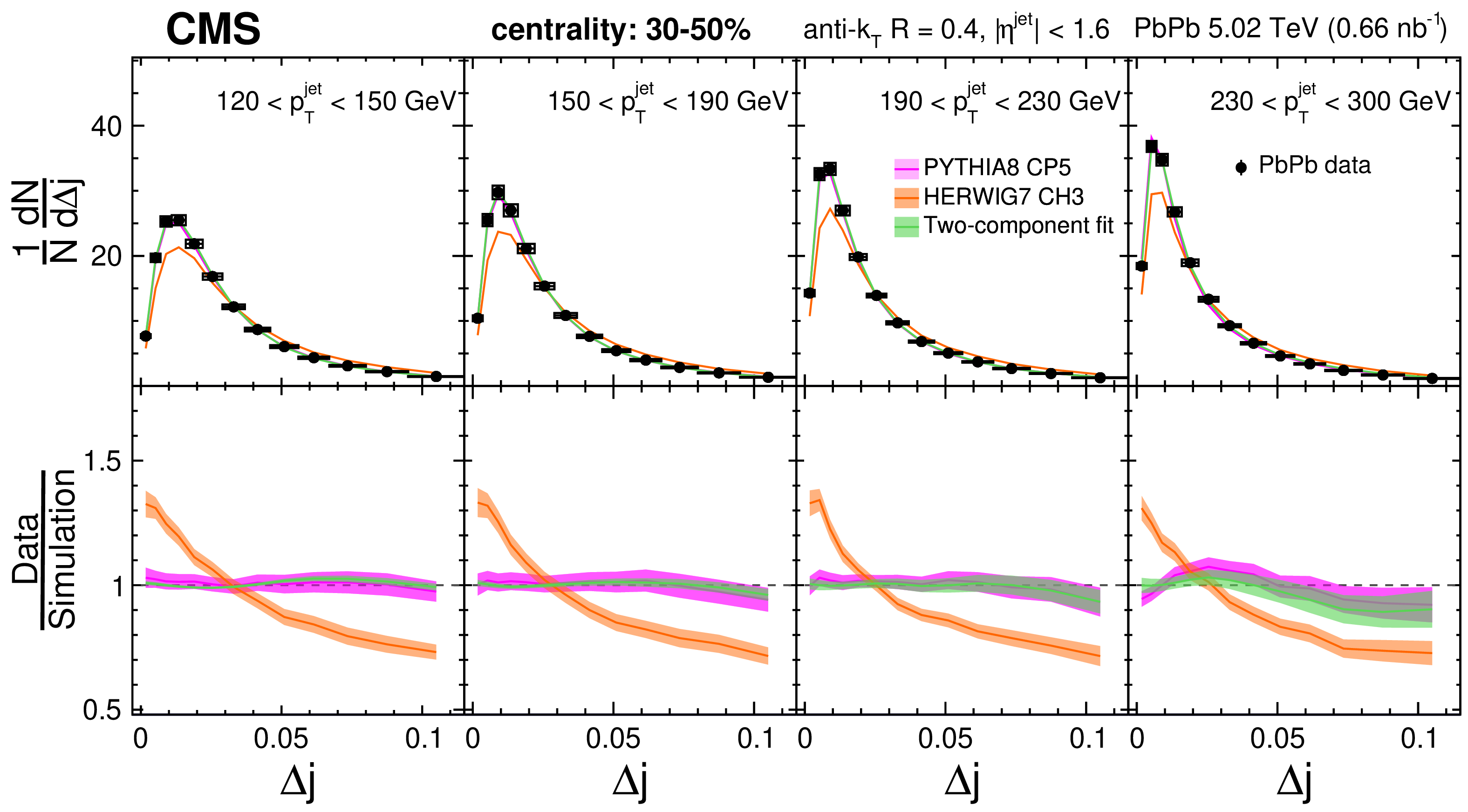

Figure 3:
The unfolded $ \Delta\text{j} $ distributions (black circles) are compared with simulations from PYTHIA, HERWIG, and a two-component, represented as colored bands, for the 30-50% centrality range across different $ p_{\mathrm{T}} $ intervals. The vertical solid lines represent the statistical uncertainties, while the rectangles and shaded areas represent the correlated and uncorrelated systematic uncertainties, respectively. Only statistical uncertainties are shown for the simulated distributions. |
png pdf |

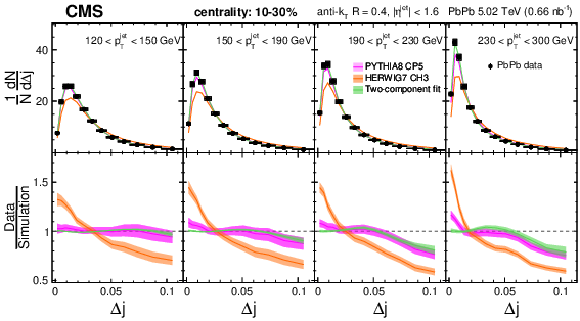

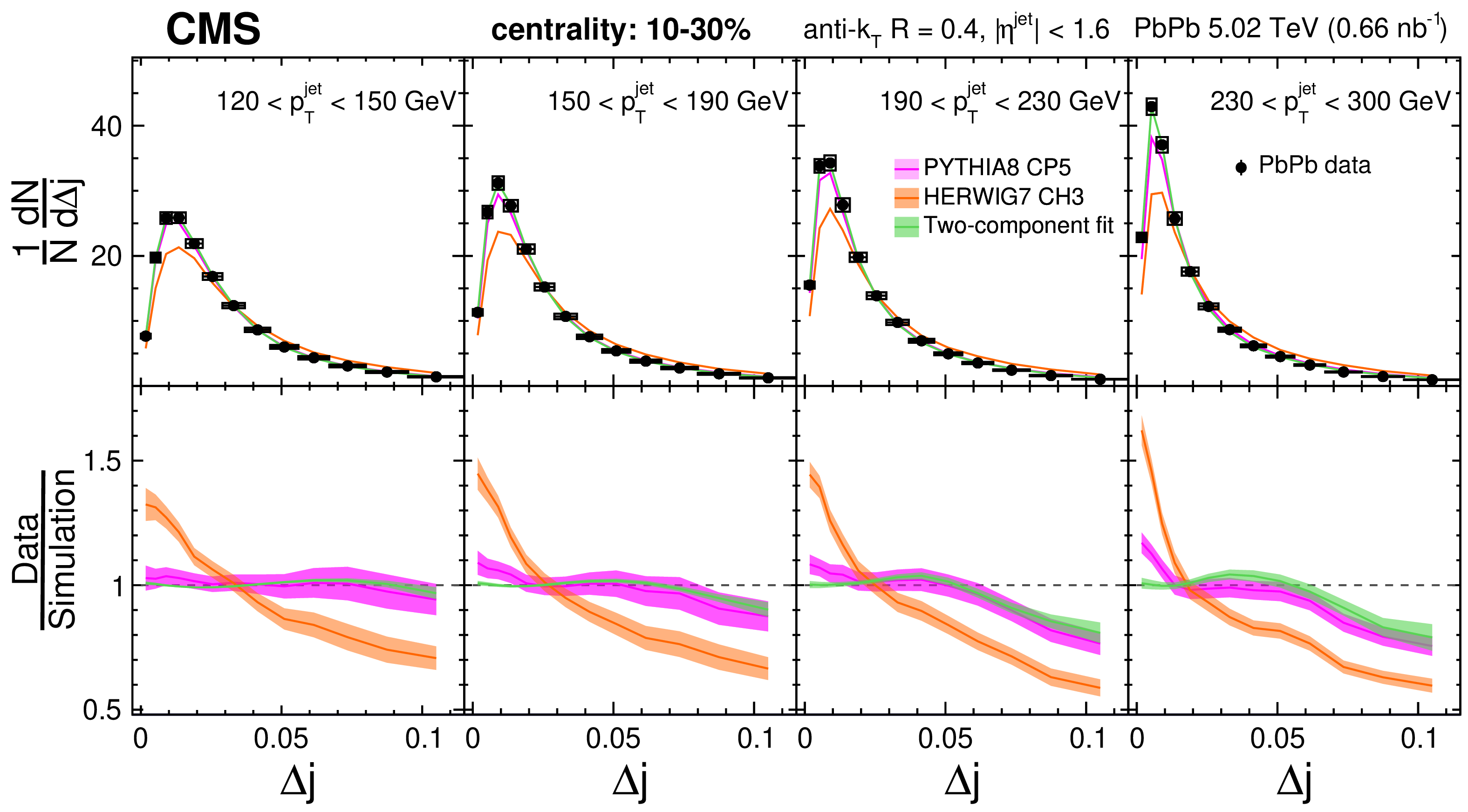

Figure 4:
The unfolded $ \Delta\text{j} $ distributions (black circles) are compared with simulations from PYTHIA, HERWIG, and a two-component, represented as colored bands, for the 10-30% centrality range across different $ p_{\mathrm{T}} $ intervals. The vertical solid lines represent the statistical uncertainties, while the rectangles and shaded areas represent the correlated and uncorrelated systematic uncertainties, respectively. Only statistical uncertainties are shown for the simulated distributions. |
png pdf |

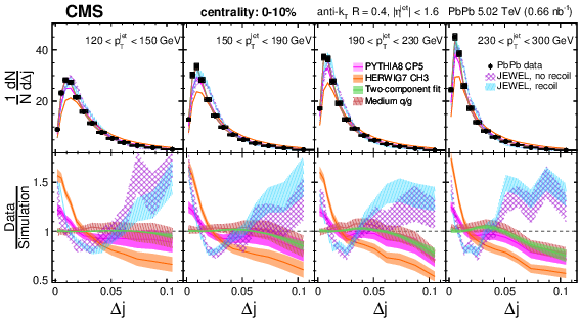

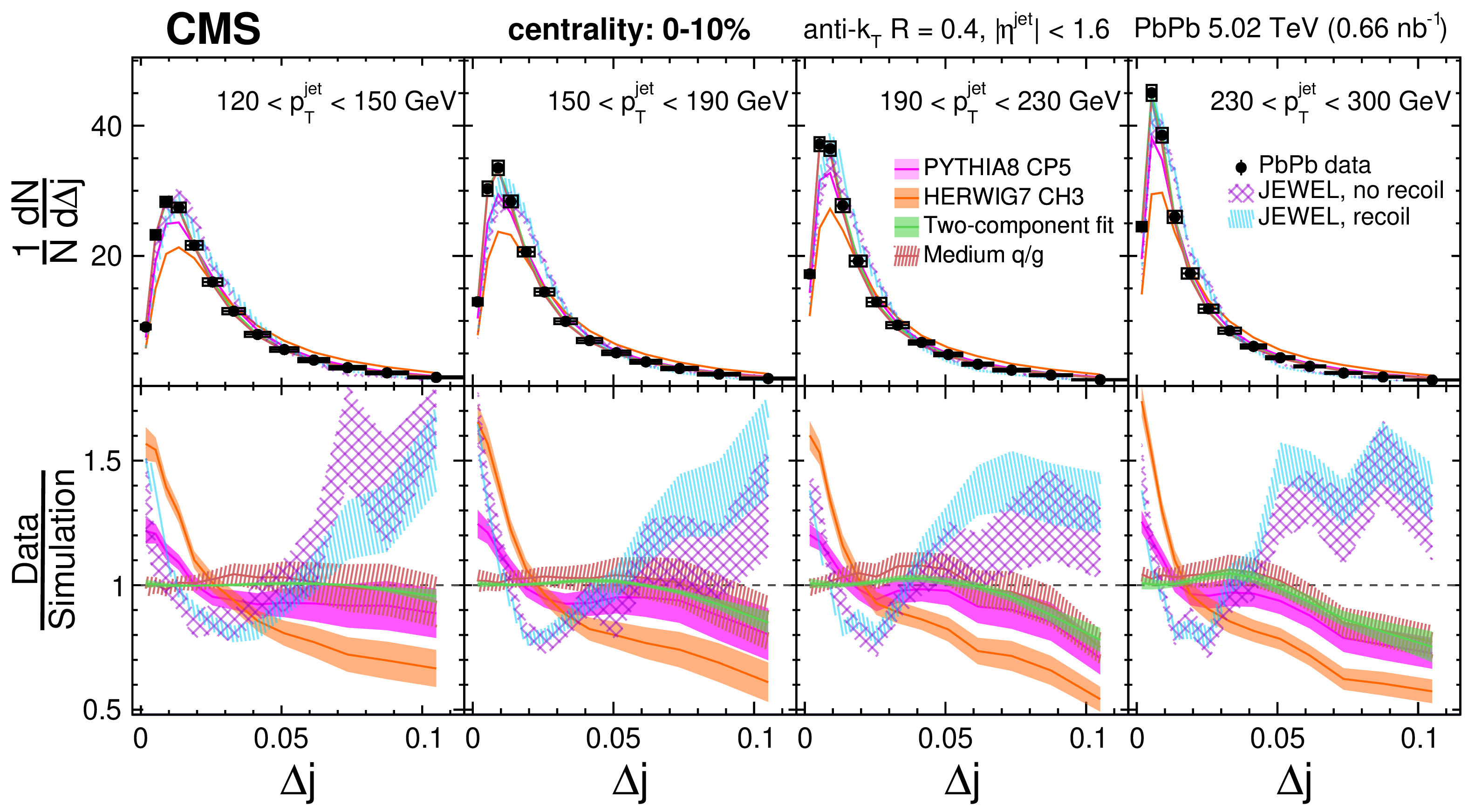

Figure 5:
The unfolded $ \Delta\text{j} $ distributions (black circles) are compared with simulations from PYTHIA, HERWIG, and a two-component (represented as colored bands), as well as medium q/g and JEWEL predictions (represented as hatched lines) for the 0-10% centrality range across different $ p_{\mathrm{T}} $ intervals. The vertical solid lines represent the statistical uncertainties, while the rectangles and shaded areas represent the correlated and uncorrelated systematic uncertainties, respectively. Only statistical uncertainties are shown for the simulated distributions. |
png pdf |

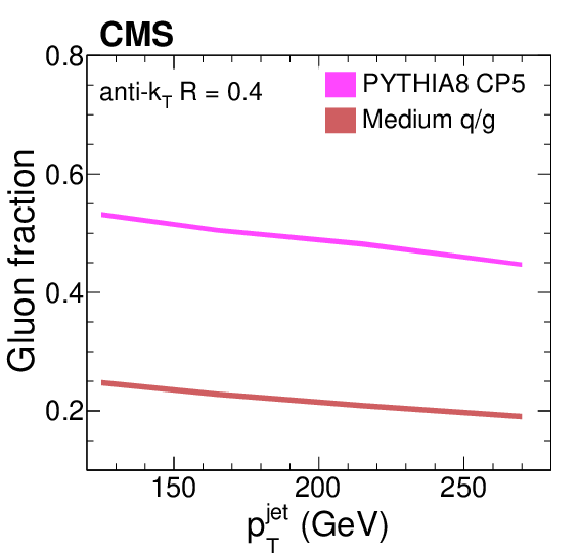

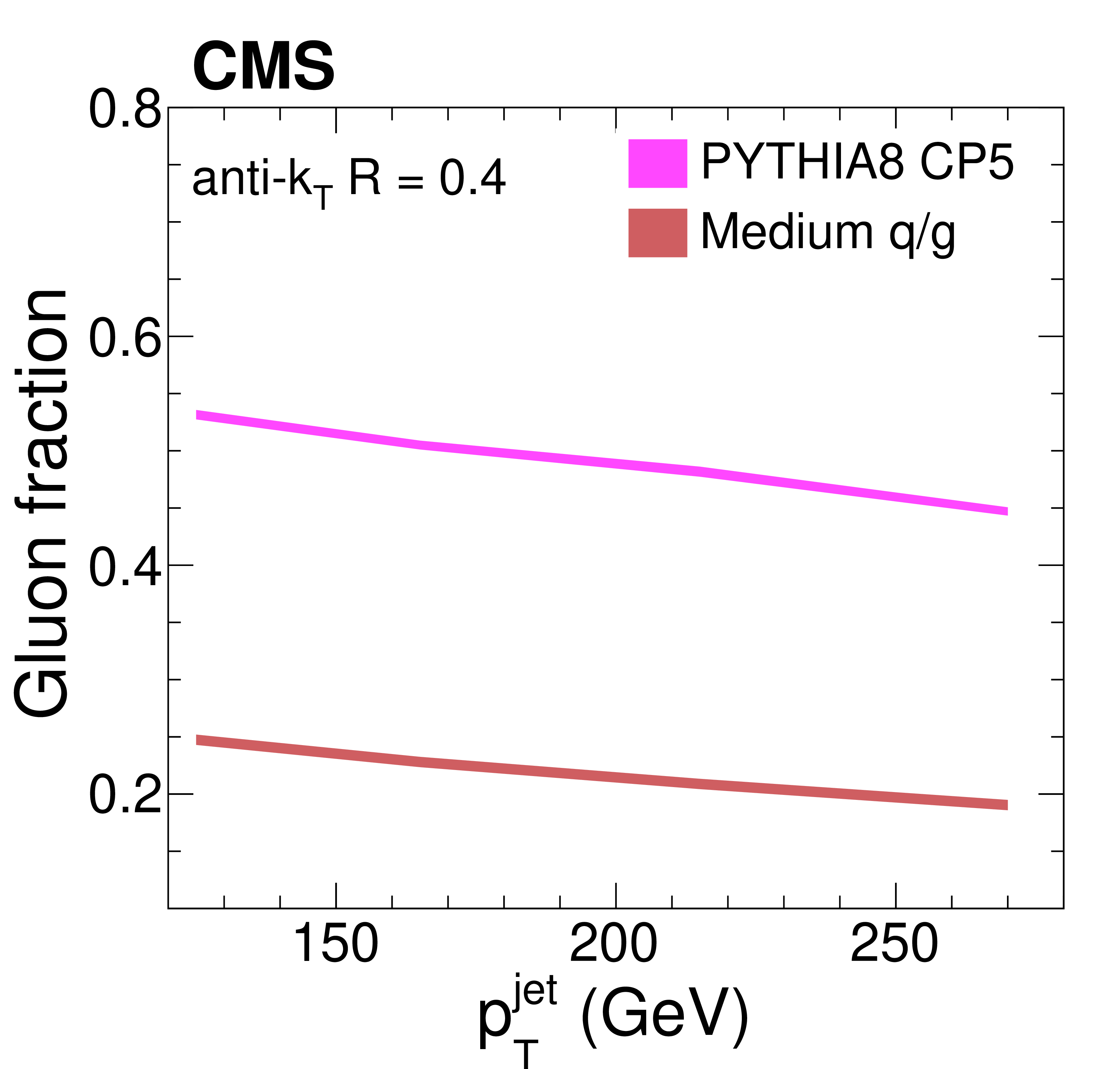

Figure A1:
Expected gluon fraction in inclusive $ R = $ 0.4 jet sample in the vacuum (based on PYTHIA8 with tune CP5) and in medium (based on Refs. [51,52]). |
| Tables | |
png pdf |

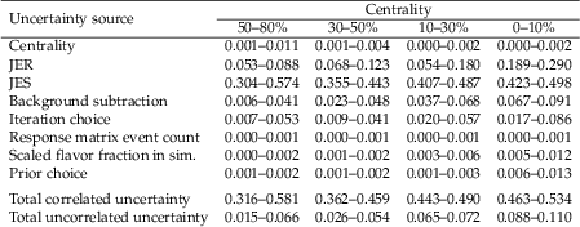

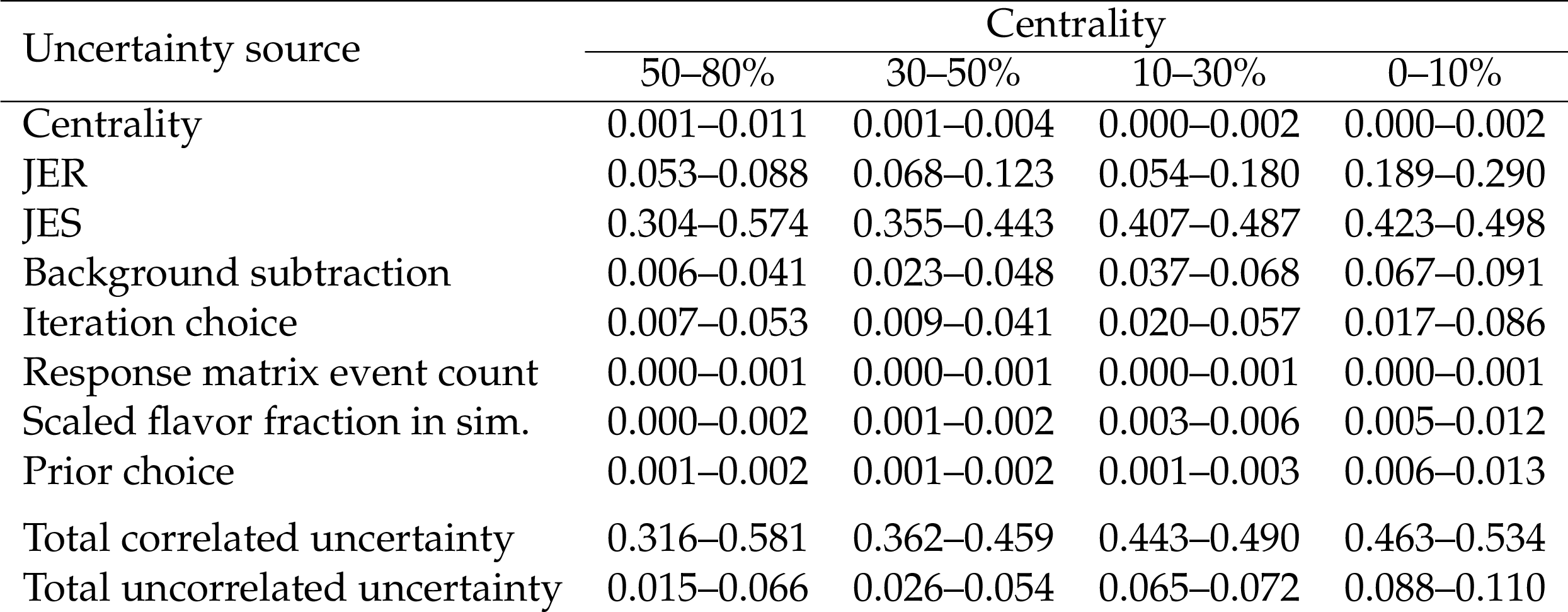

Table 1:
Summary of absolute systematic uncertainties, averaged over the $ \Delta\text{j} $ distributions for different centrality intervals. The range of uncertainty values reflects the maximum variation across different $ p_{\mathrm{T}} $ intervals. |
| Summary |
| This paper presents the first measurement of jet axis decorrelation ($ \Delta\text{j} $) between two types of jet axes for inclusive jets from lead-lead (PbPb) collision data collected with the CMS detector at the LHC, at a nucleon-nucleon center-of-mass energy of 5.02 TeV. These measurements are performed using anti-$ k_{\mathrm{T}} $ jets with a radius parameter $ R = $ 0.4 and with pseudorapidity $ |\eta| < $ 1.6 in four centrality intervals and four transverse momentum $ p_{\mathrm{T}} $ intervals ranging from 120 to 300 GeV. Significant modifications of $ \Delta\text{j} $ distributions are observed in central compared to peripheral collisions, with a progressive narrowing of the distributions toward more central events. This narrowing behavior could result from medium-induced modifications of the internal jet structure, although the possibility of a selection bias towards a less-quenched sample should be considered. Such a bias could arise from the predicted color charge dependence of partonic energy loss, with gluon jets expected to lose more energy than quark jets. The measured distributions from peripheral collisions are described by the PYTHIA8 event generator without any jet quenching effects. Progressive narrowing of the $ \Delta\text{j} $ distribution is observed toward more central events for all $ p_{\mathrm{T}} $ intervals studied. Comparisons with phenomenological and simple simulation-based models indicate that the observed narrowing in the $ \Delta\text{j} $ distributions in central PbPb collisions may be largely described by a decrease in the relative gluon jet abundance, except for higher jet $ p_{\mathrm{T}} $ intervals. Deviations at high $ p_{\mathrm{T}} $ suggest that accounting for jet substructure modifications or a more sophisticated implementation of color charge effects in energy loss is needed to fully describe the data. These new measurements explore jet substructure in previously unexplored kinematic domains and show great promise for providing new insights into the color charge dependence of energy loss. |
| References | ||||
| 1 | L. Apolinàrio, Y.-J. Lee, and M. Winn | Heavy quarks and jets as probes of the QGP | Prog. Part. Nucl. Phys. 127 (2022) 103990 | 2203.16352 |
| 2 | L. Cunqueiro and A. M. Sickles | Studying the QGP with jets at the LHC and RHIC | Prog. Part. Nucl. Phys. 124 (2022) 103940 | 2110.14490 |
| 3 | PHENIX Collaboration | Suppression of hadrons with large transverse momentum in central Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 130 GeV | PRL 88 (2002) 022301 | nucl-ex/0109003 |
| 4 | STAR Collaboration | Centrality dependence of high $ p_{\mathrm{T}} $ hadron suppression in Au+Au collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 130 GeV | PRL 89 (2002) 202301 | nucl-ex/0206011 |
| 5 | CMS Collaboration | First measurement of large area jet transverse momentum spectra in heavy-ion collisions | JHEP 05 (2021) 284 | CMS-HIN-18-014 2102.13080 |
| 6 | CMS Collaboration | In-medium modification of dijets in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 05 (2021) 116 | CMS-HIN-19-013 2101.04720 |
| 7 | ATLAS Collaboration | Measurement of suppression of large-radius jets and its dependence on substructure in Pb+Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV with the ATLAS detector | PRL 131 (2023) 172301 | 2301.05606 |
| 8 | ALICE Collaboration | Measurement of the radius dependence of charged-particle jet suppression in Pb-Pb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 849 (2024) 138412 | 2303.00592 |
| 9 | CMS Collaboration | Girth and groomed radius of jets recoiling against isolated photons in lead-lead and proton-proton collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | Accepted by Phys. Lett. B, 2024 | CMS-HIN-23-001 2405.02737 |
| 10 | CMS Collaboration | First measurement of jet axis decorrelation with photon-tagged jets in pp and PbPb collisions at 5.02 TeV | CMS Physics Analysis Summary, 2024 CMS-PAS-HIN-21-019 |
CMS-PAS-HIN-21-019 |
| 11 | ALICE Collaboration | Measurement of the angle between jet axes in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | Submitted to Phys. Rev. Lett., 2023 | 2303.13347 |
| 12 | CMS Collaboration | Overview of high-density QCD studies with the CMS experiment at the LHC | Accepted by Phys. Rept., 2024 | CMS-HIN-23-011 2405.10785 |
| 13 | P. Cal, D. Neill, F. Ringer, and W. J. Waalewijn | Calculating the angle between jet axes | JHEP 04 (2020) 211 | 1911.06840 |
| 14 | ALICE Collaboration | Measurement of the angle between jet axes in pp collisions at $ \sqrt{s} = $ 5.02 TeV | JHEP 07 (2022) 201 | 2211.08928 |
| 15 | CMS Collaboration | HEPData record for this analysis | link | |
| 16 | CMS Collaboration | Performance of the CMS level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 17 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 18 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 19 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 20 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 21 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2018 link |
CMS-PAS-LUM-17-004 |
| 22 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2019 CMS-PAS-LUM-18-002 |
CMS-PAS-LUM-18-002 |
| 23 | CMS Collaboration | Charged-particle nuclear modification factors in PbPb and pPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 04 (2017) 039 | CMS-HIN-15-015 1611.01664 |
| 24 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 25 | CMS Collaboration | Transverse-momentum and pseudorapidity distributions of charged hadrons in pp collisions at $ \sqrt{s} = $ 0.9 and 2.36 TeV | JHEP 02 (2010) 041 | CMS-QCD-09-010 1002.0621 |
| 26 | CMS Collaboration | Observation and studies of jet quenching in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | Phys. Rev. C 84 (2011) 024906 | CMS-HIN-10-004 1102.1957 |
| 27 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 28 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 29 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 30 | I. P. Lokhtin and A. M. Snigirev | A model of jet quenching in ultrarelativistic heavy ion collisions and high-$ p_{\mathrm{T}} $ hadron spectra at RHIC | EPJC 45 (2006) 211 | hep-ph/0506189 |
| 31 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 32 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 33 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 34 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 35 | P. Berta, M. Spousta, D. W. Miller, and R. Leitner | Particle-level pileup subtraction for jets and jet shapes | JHEP 06 (2014) 092 | 1403.3108 |
| 36 | D. Bertolini, T. Chan, and J. Thaler | Jet observables without jet algorithms | JHEP 04 (2014) 013 | 1310.7584 |
| 37 | A. J. Larkoski, D. Neill, and J. Thaler | Jet shapes with the broadening axis | JHEP 04 (2014) 017 | 1401.2158 |
| 38 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 39 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 40 | G. D'Agostini | A multidimensional unfolding method based on Bayes' theorem | NIM A 362 (1995) 487 | |
| 41 | W. H. Richardson | Bayesian-based iterative method of image restoration | Opt. Soc. Am. 62 (1972) 55 | |
| 42 | L. B. Lucy | An iterative technique for the rectification of observed distributions | Astron. J. 79 (1974) 745 | |
| 43 | T. Adye | Unfolding algorithms and tests using RooUnfold | in Proc. PHYSTATS 2011 Workshop, CERN, 2011 CERN-2011-006 |
1105.1160 |
| 44 | CMS Collaboration | Observation of nuclear modification of energy-energy correlators inside jets in heavy ion collisions | PLB 866 (2025) 139556 | CMS-HIN-23-004 2503.19993 |
| 45 | S. Gieseke, P. Stephens, and B. Webber | New formalism for QCD parton showers | JHEP 12 (2003) 045 | hep-ph/0310083 |
| 46 | NNPDF Collaboration | Parton distributions for the LHC Run 2 | JHEP 04 (2015) 040 | 1410.8849 |
| 47 | B. R. Webber | A QCD model for jet fragmentation including soft gluon interference | NPB 238 (1984) 492 | |
| 48 | CMS Collaboration | Development and validation of HERWIG 7 tunes from CMS underlying-event measurements | EPJC 81 (2021) 312 | CMS-GEN-19-001 2011.03422 |
| 49 | R. Kunnawalkam Elayavalli and K. C. Zapp | Medium response in JEWEL and its impact on jet shape observables in heavy ion collisions | JHEP 07 (2017) 141 | 1707.01539 |
| 50 | S.-L. Zhang, E. Wang, H. Xing, and B.-W. Zhang | Flavor dependence of jet quenching in heavy-ion collisions from a Bayesian analysis | PLB 850 (2024) 138549 | 2303.14881 |
| 51 | J.-W. Qiu, F. Ringer, N. Sato, and P. Zurita | Factorization of jet cross sections in heavy-ion collisions | PRL 122 (2019) 252301 | 1903.01993 |
| 52 | J.-W. Qiu, F. Ringer, N. Sato, and P. Zurita | QCD factorization and universality of jet cross sections in heavy-ion collisions | Nucl. Phys. A 1005 (2021) 121853 | 2002.01652 |
|
|
