Search for jet quenching with dijets from high-multiplicity pPb collisions at sNN= 8.16 TeV
Submitted to J. High Energy Phys.
Abstract: The first measurement of the dijet transverse momentum balance xj in proton-lead (pPb) collisions at a nucleon-nucleon center-of-mass energy of sNN= 8.16 TeV is presented. The xj observable, defined as the ratio of the subleading over leading jet transverse momentum in a dijet pair, is used to search for jet quenching effects. The data, corresponding to an integrated luminosity of 174.6 nb1, were collected with the CMS detector in 2016. The xj distributions and their average values are studied as functions of the charged-particle multiplicity of the events and for various dijet rapidity selections. The latter enables probing hard scattering of partons carrying distinct nucleon momentum fractions x in the proton- and lead-going directions. The former, aided by the high-multiplicity triggers, allows probing for potential jet quenching effects in high-multiplicity events (with up to 400 charged particles), for which collective phenomena consistent with quark-gluon plasma (QGP) droplet formation were previously observed. The ratios of xj distributions for high- to low-multiplicity events are used to quantify the possible medium effects. These ratios are consistent with simulations of the hard-scattering process that do not include QGP production. These measurements set an upper limit on medium-induced energy loss of the subleading jet of 1.26% of its transverse momentum at the 90% confidence level in high multiplicity pPb events.
Figures Summary References CMS Publications
Figures

png pdf

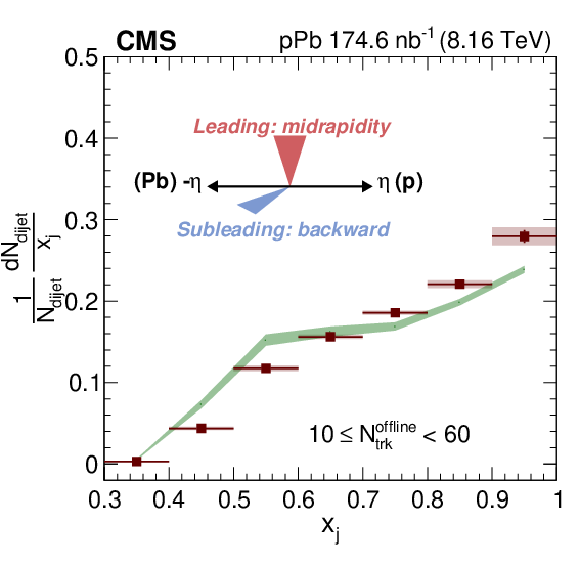

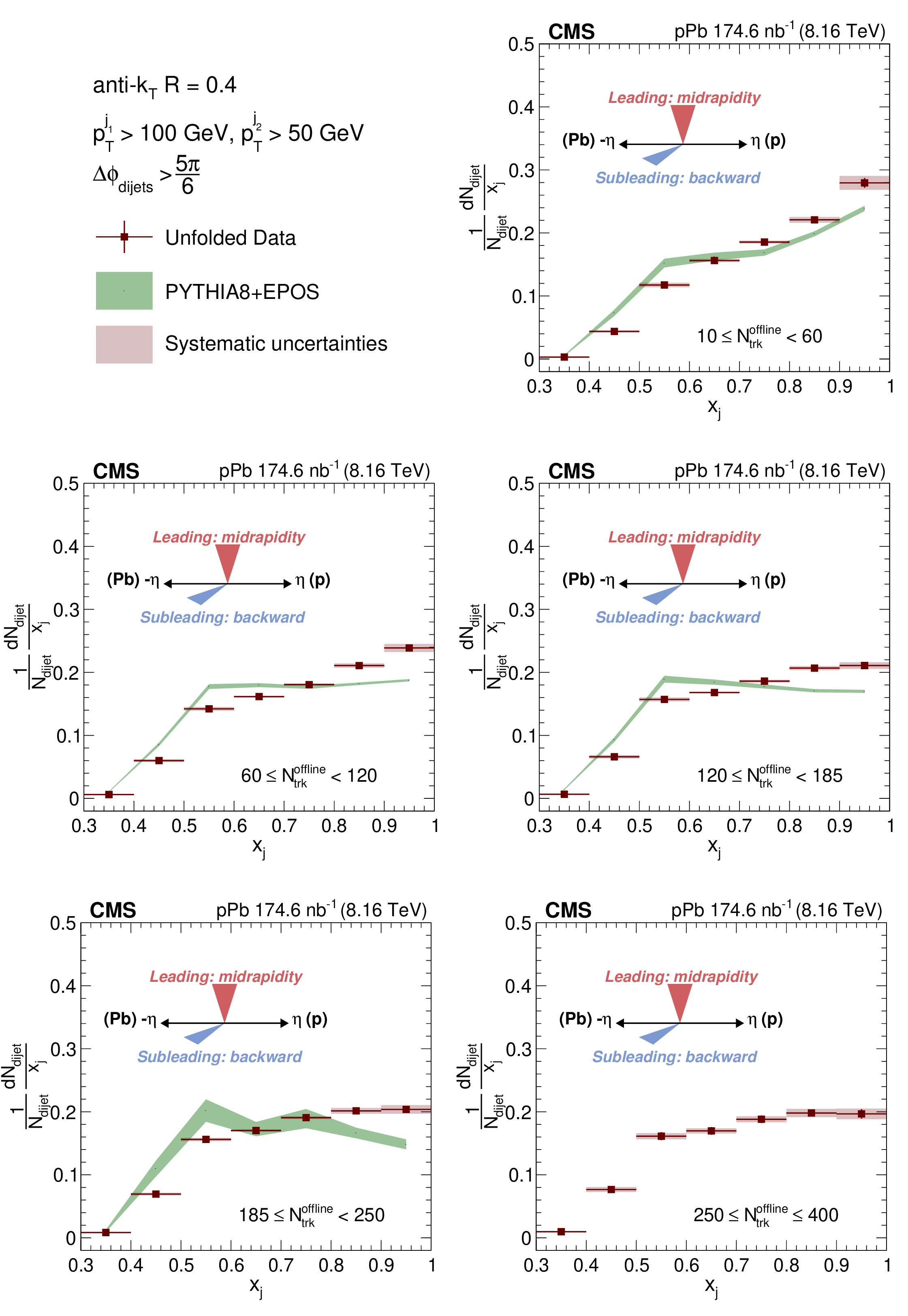

Figure 1:

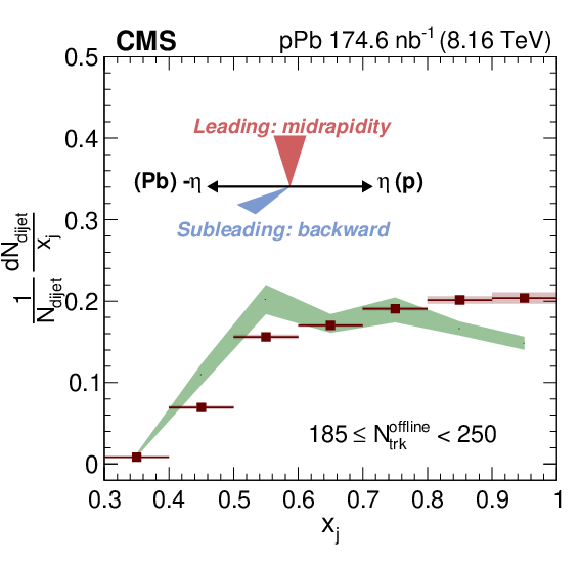

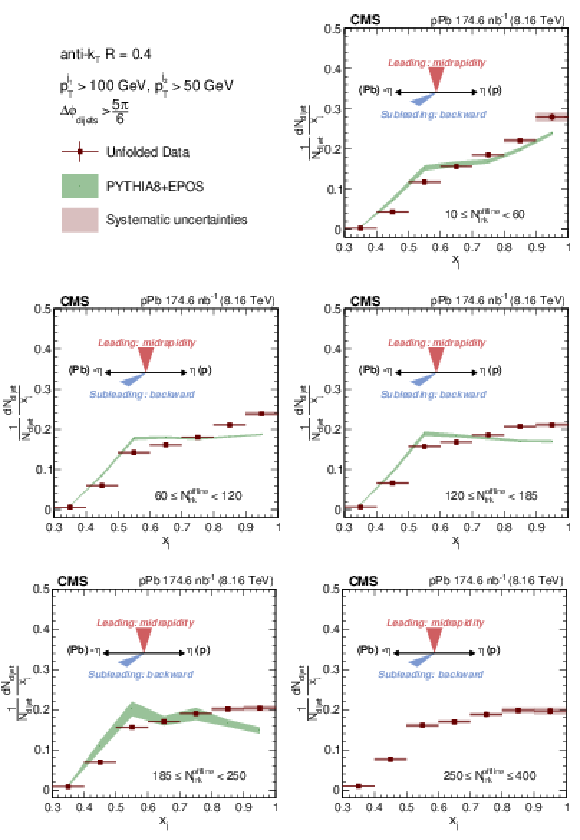

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf
Figure 1-a:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

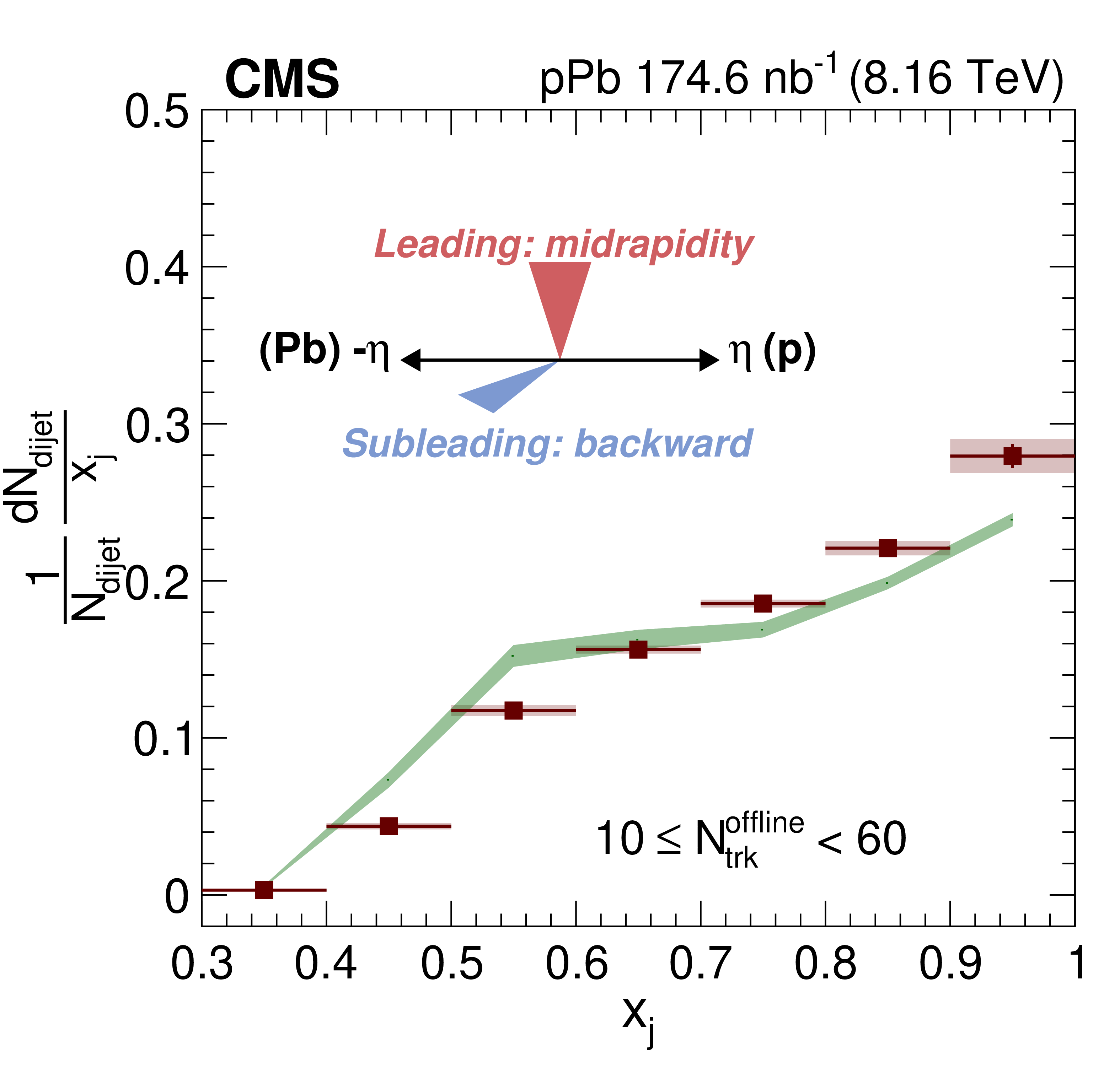

Figure 1-b:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

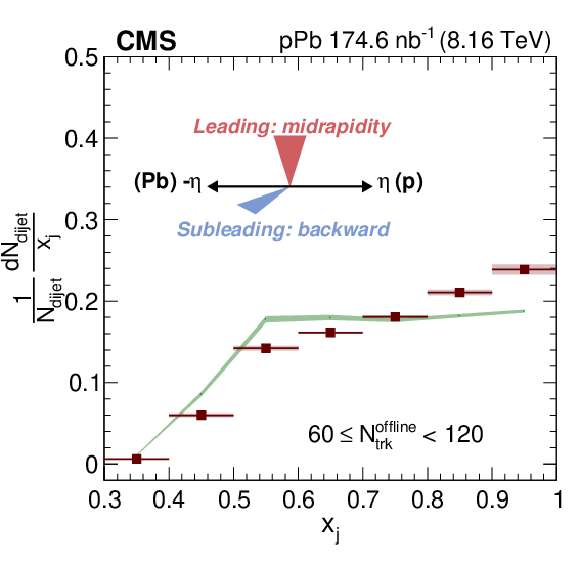

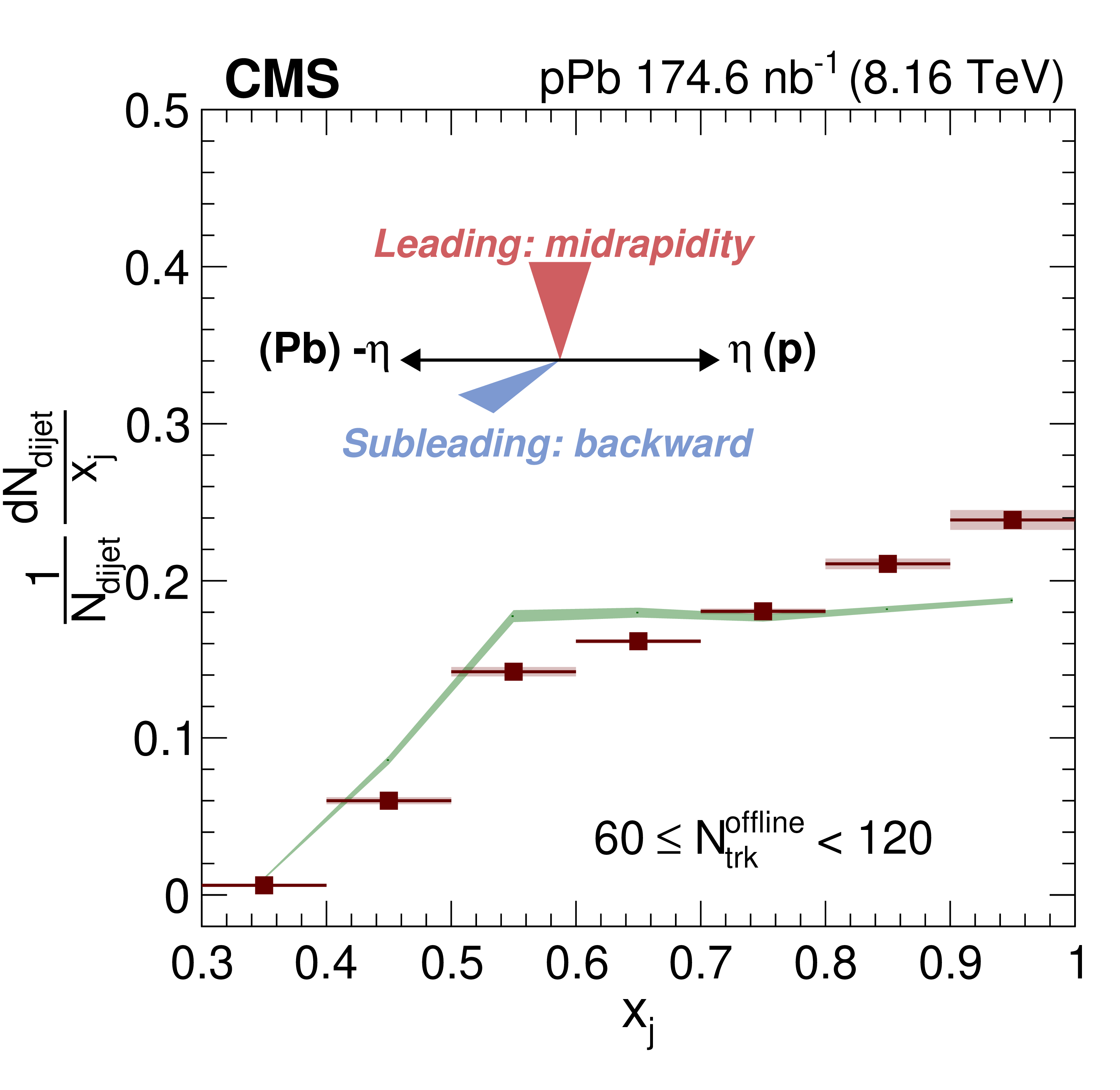

Figure 1-c:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

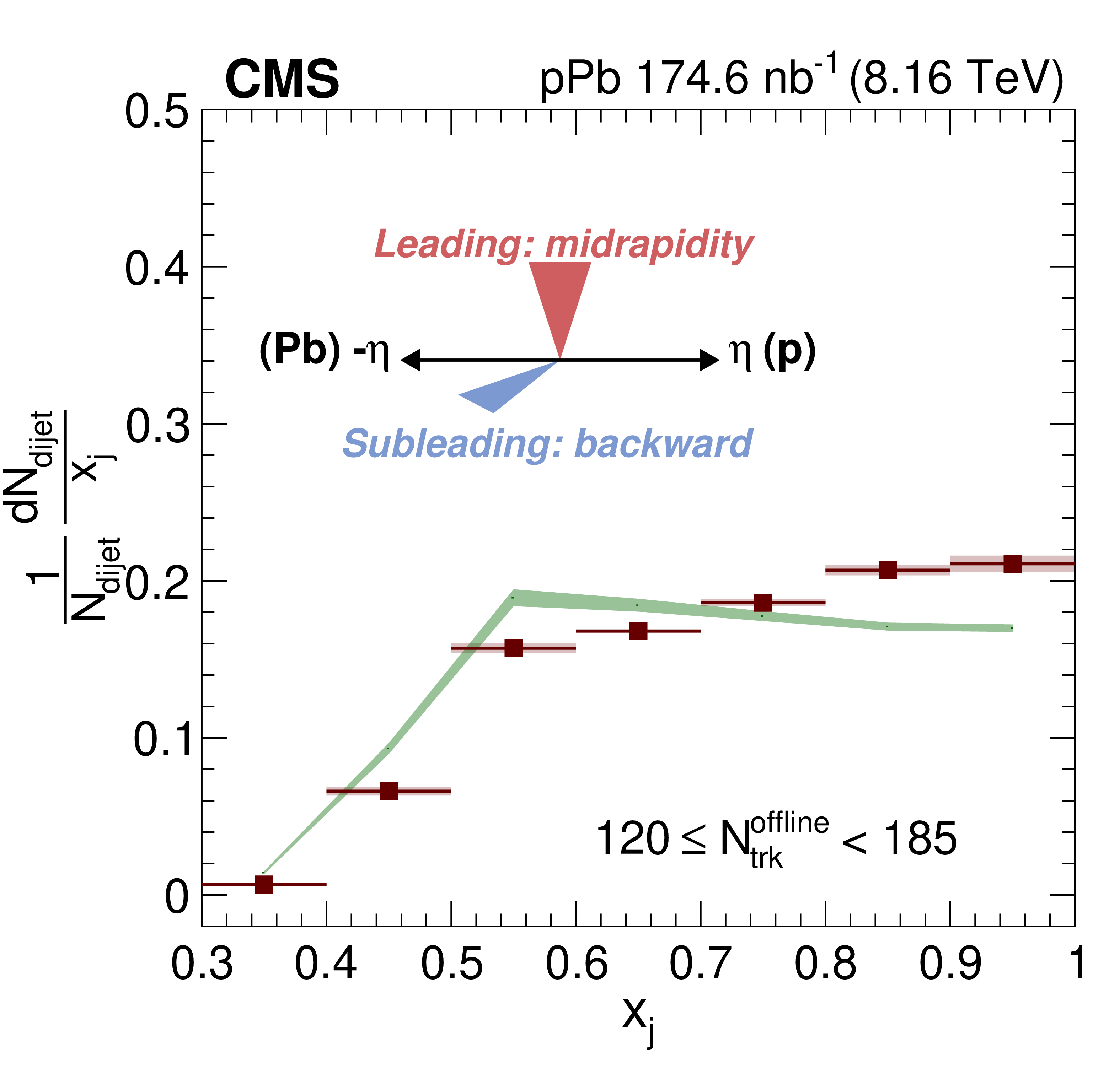

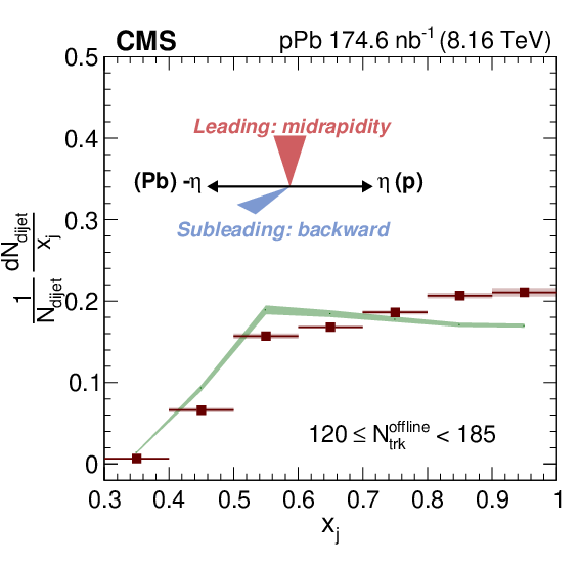

Figure 1-d:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

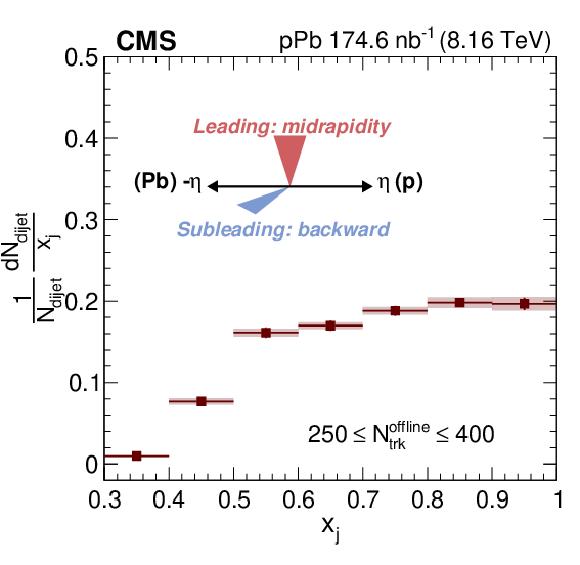

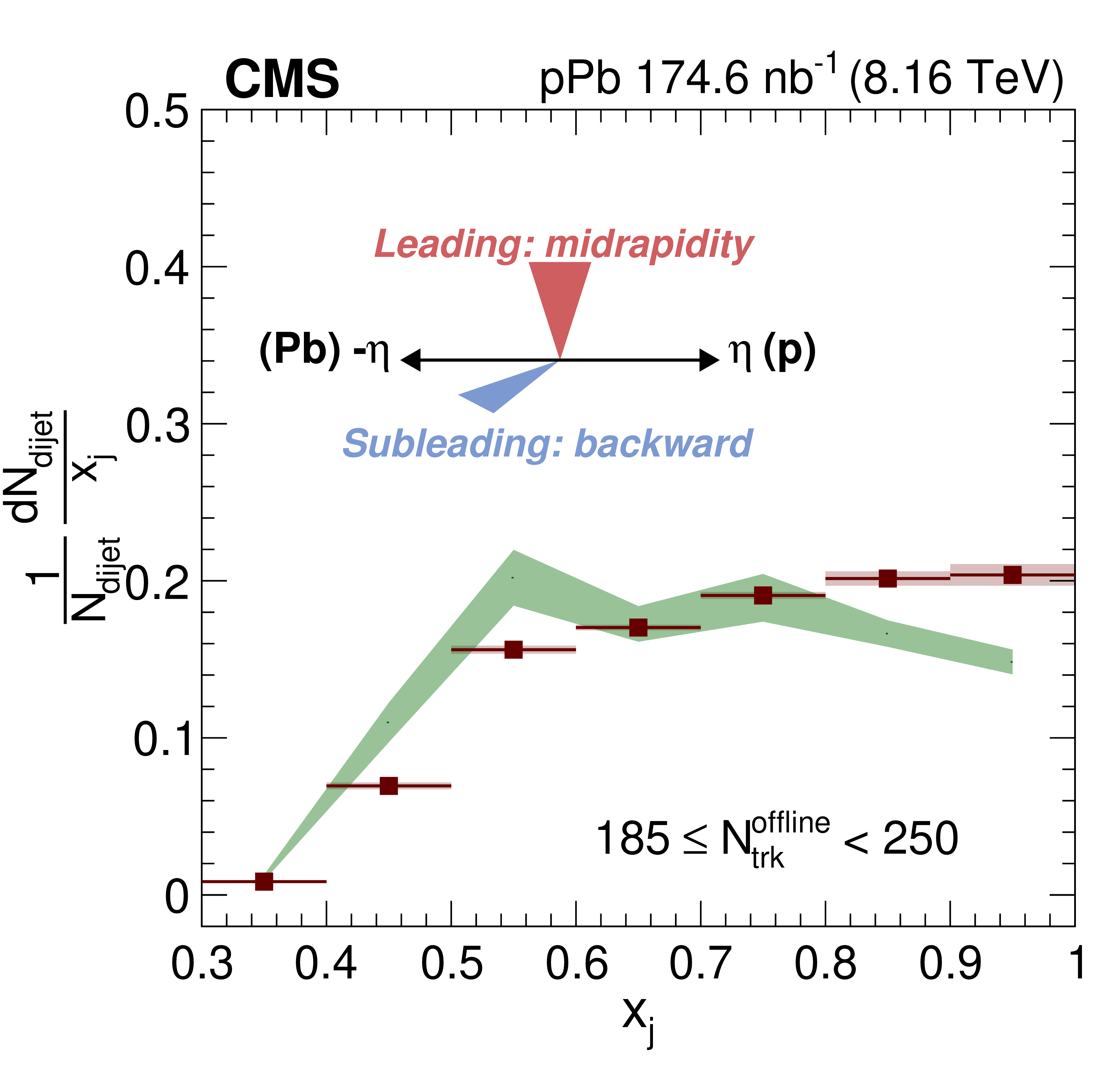

Figure 1-e:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

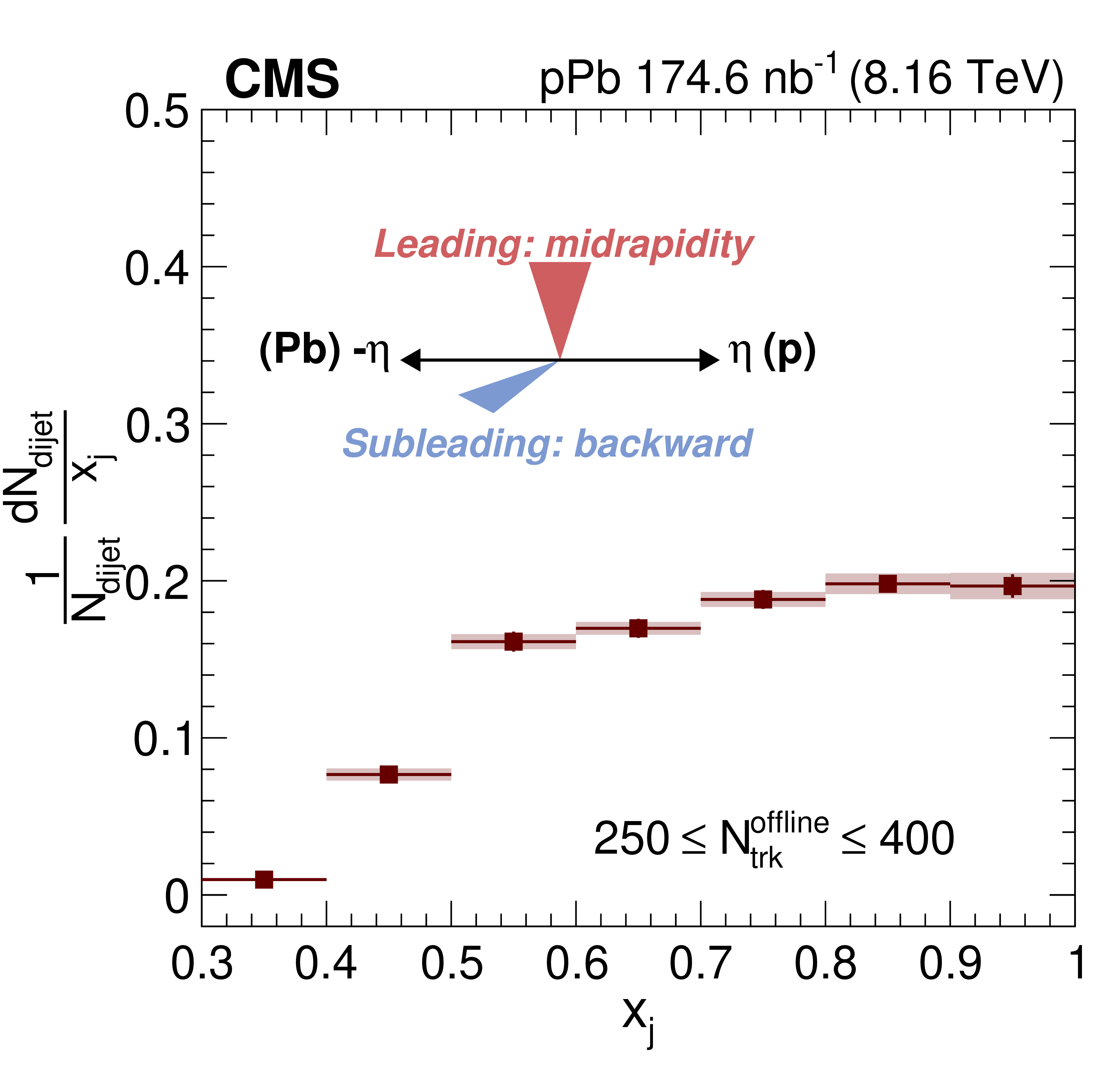

Figure 1-f:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

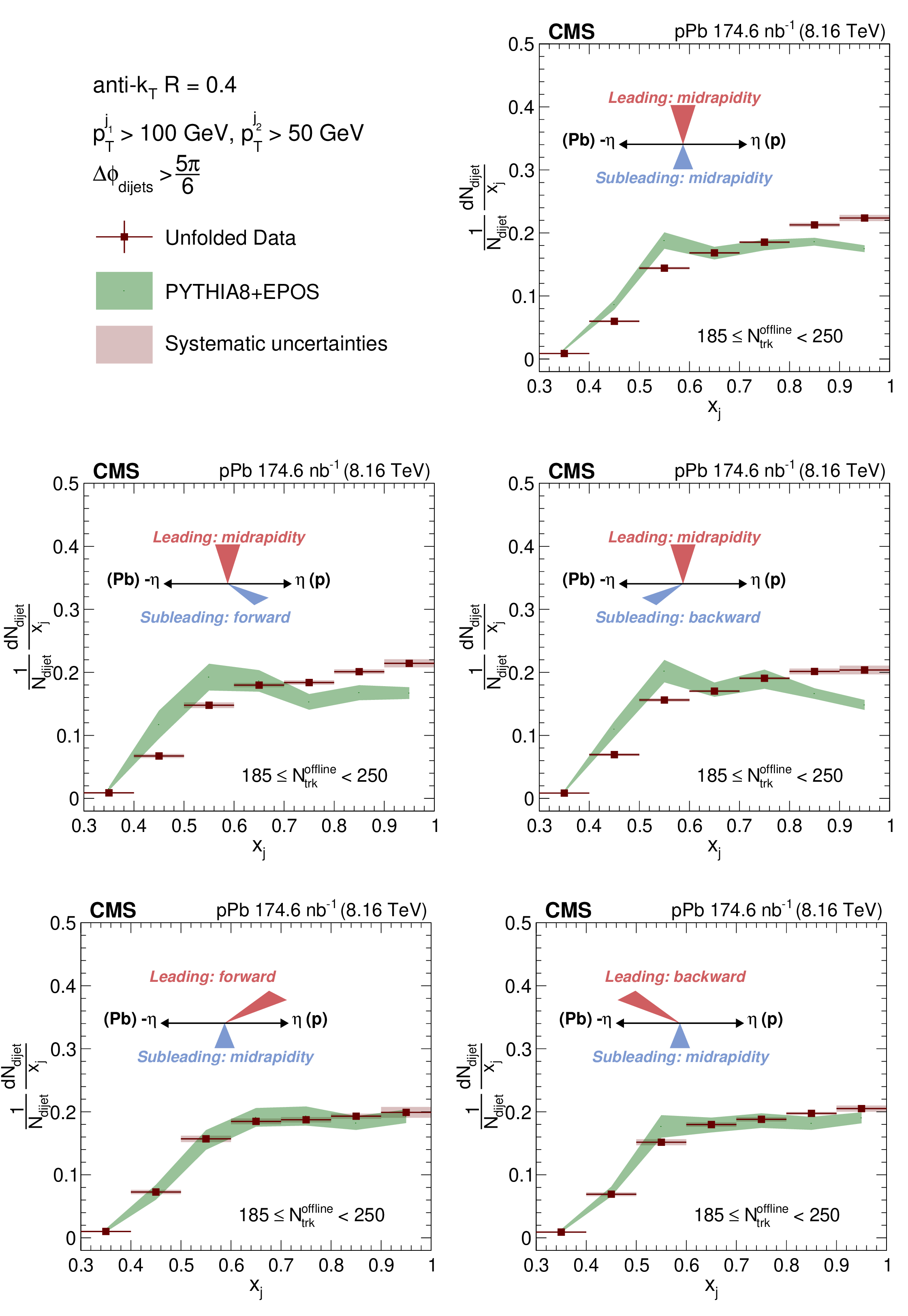

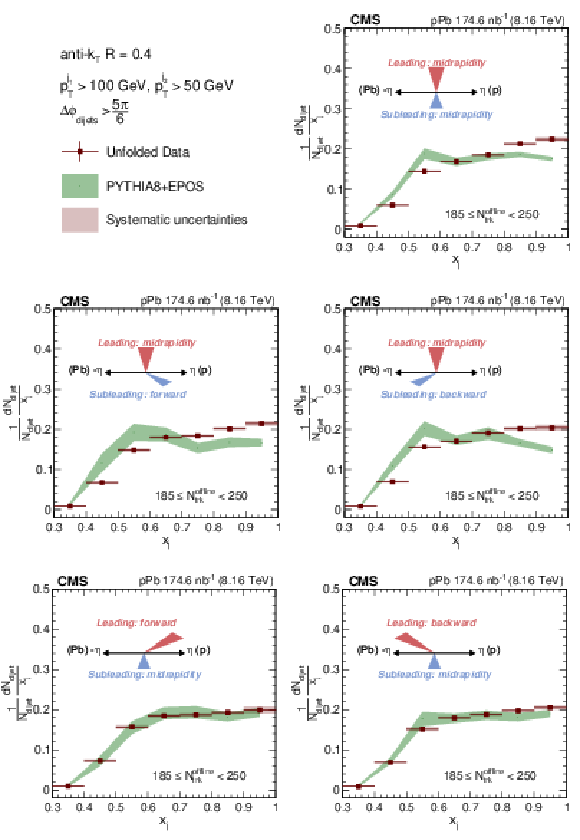

Figure 2:

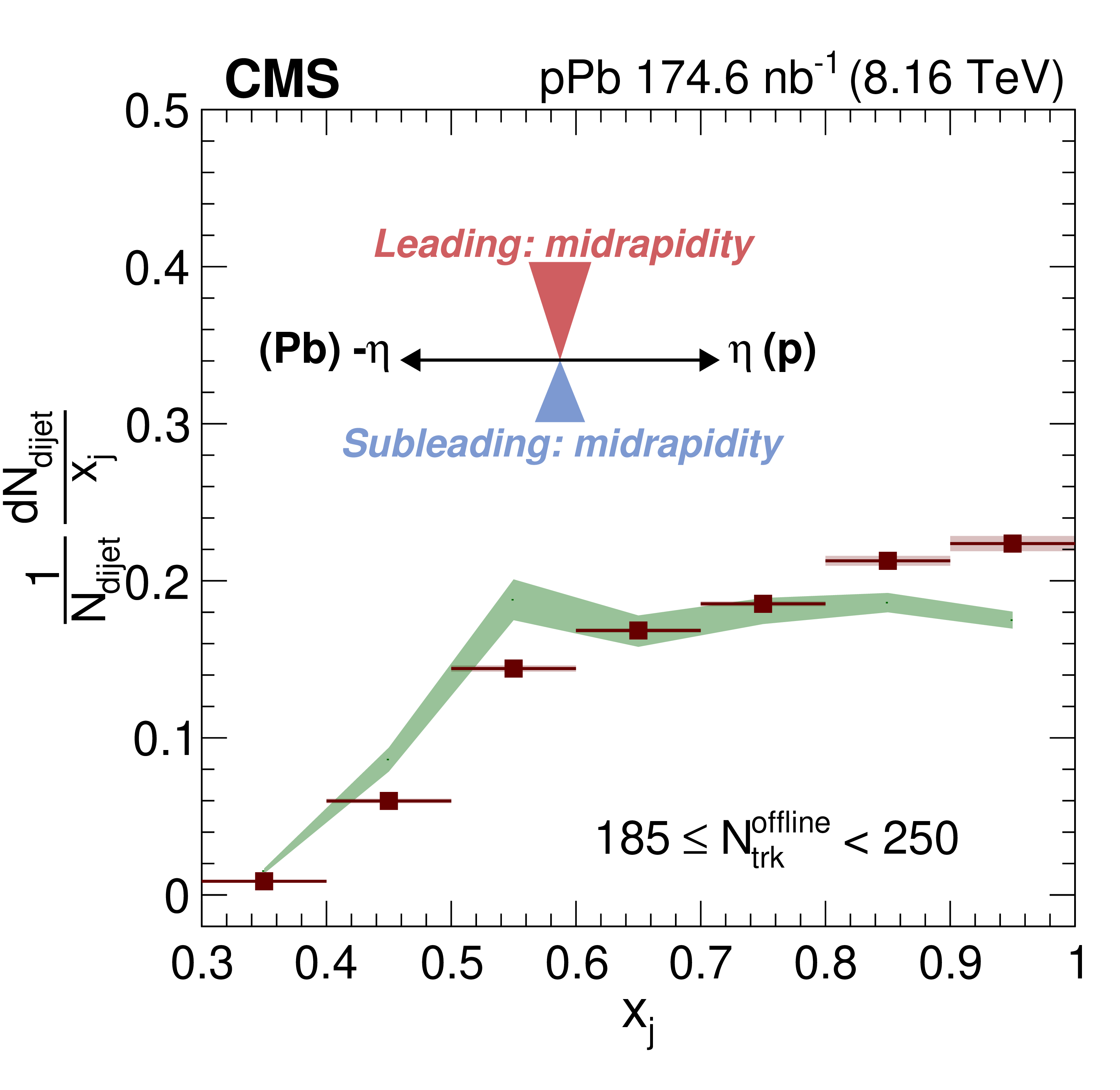

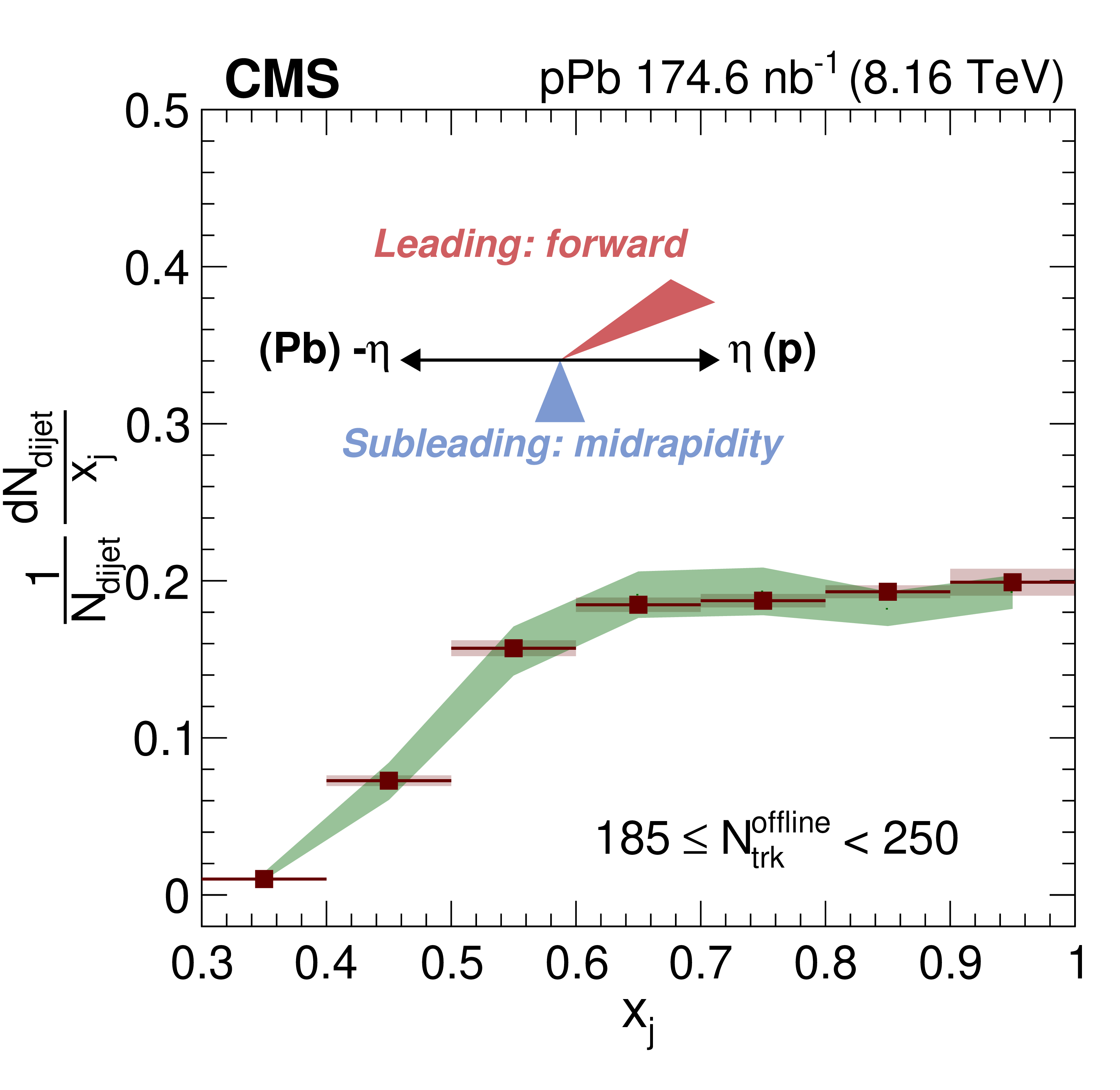

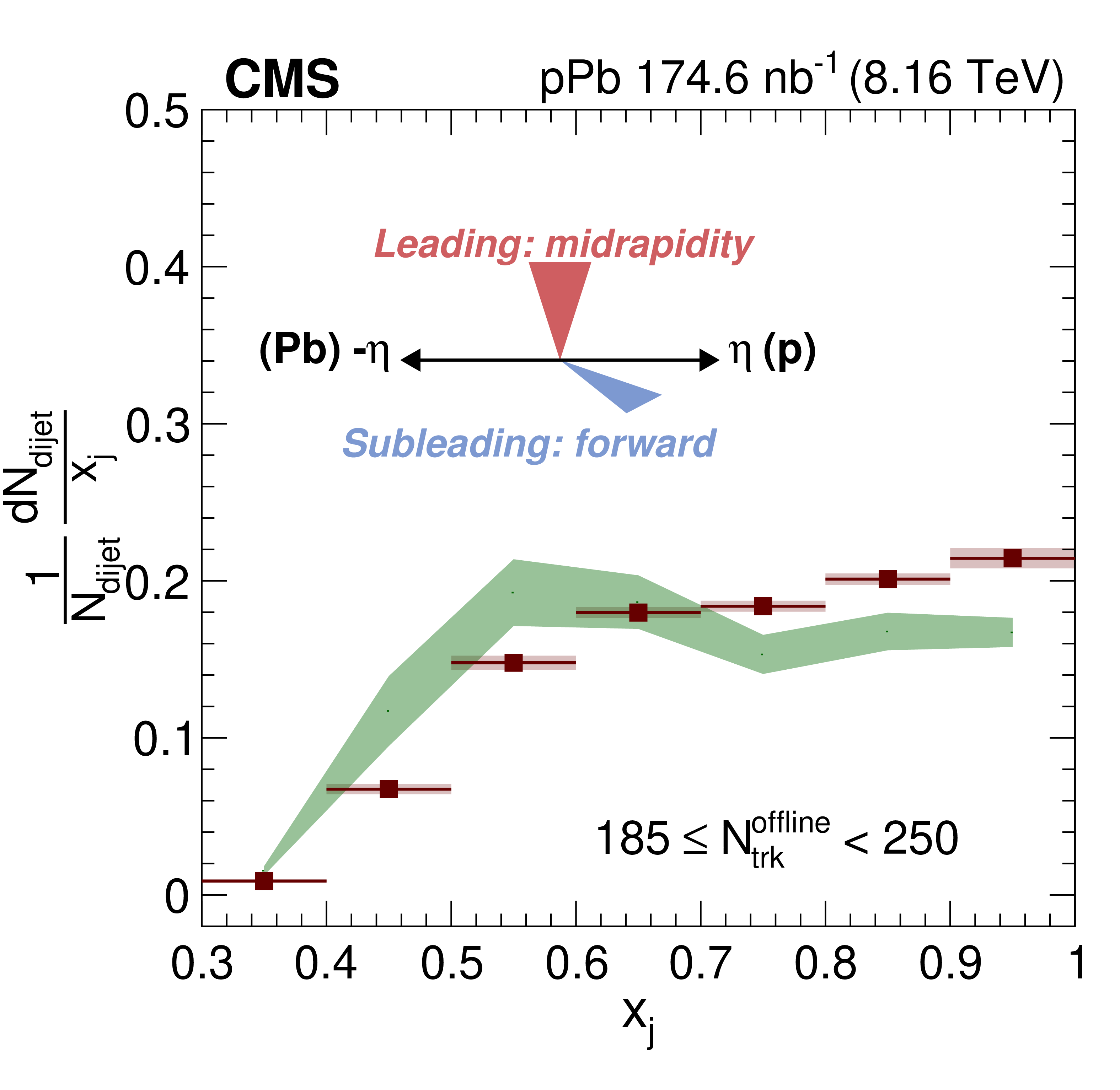

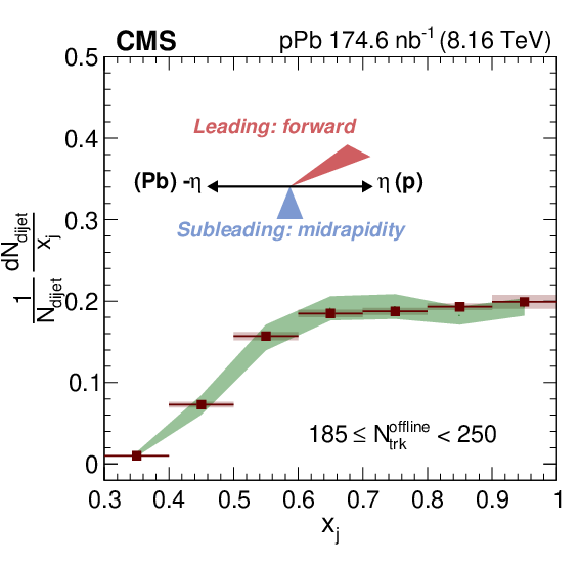

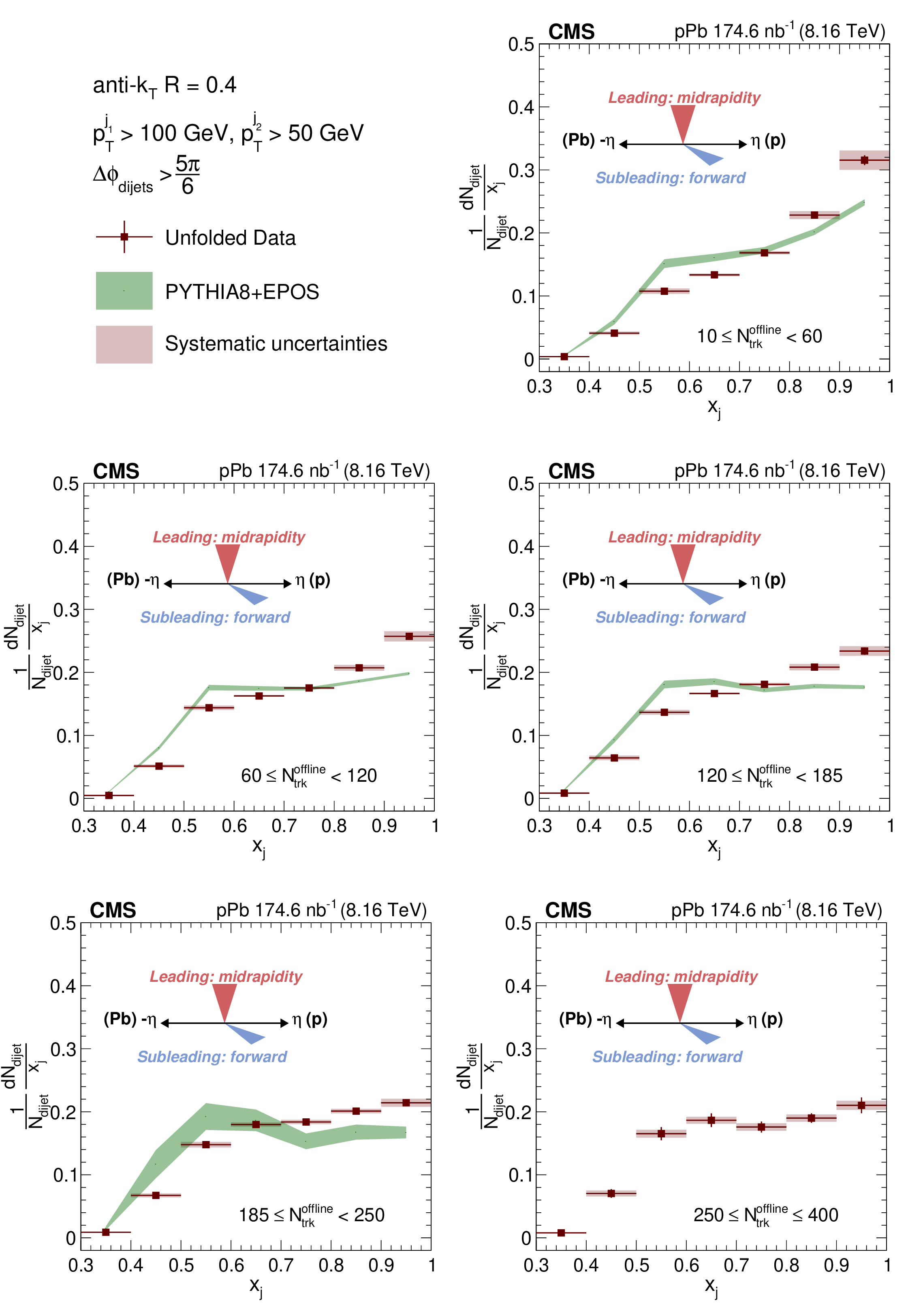

The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure 2-a:
The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

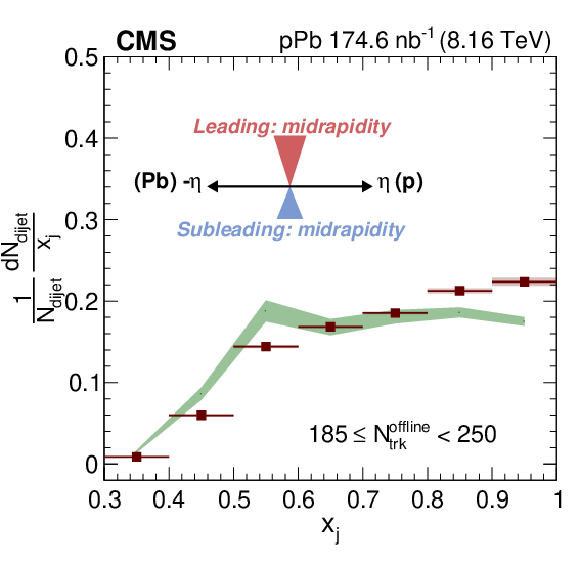

Figure 2-b:
The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure 2-c:
The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

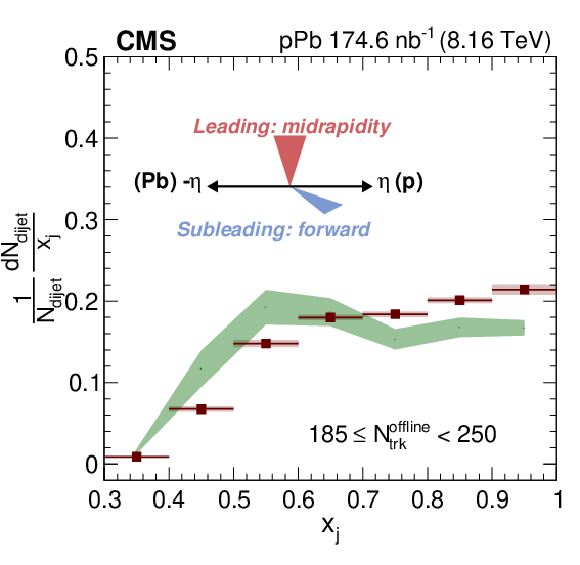

Figure 2-d:
The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

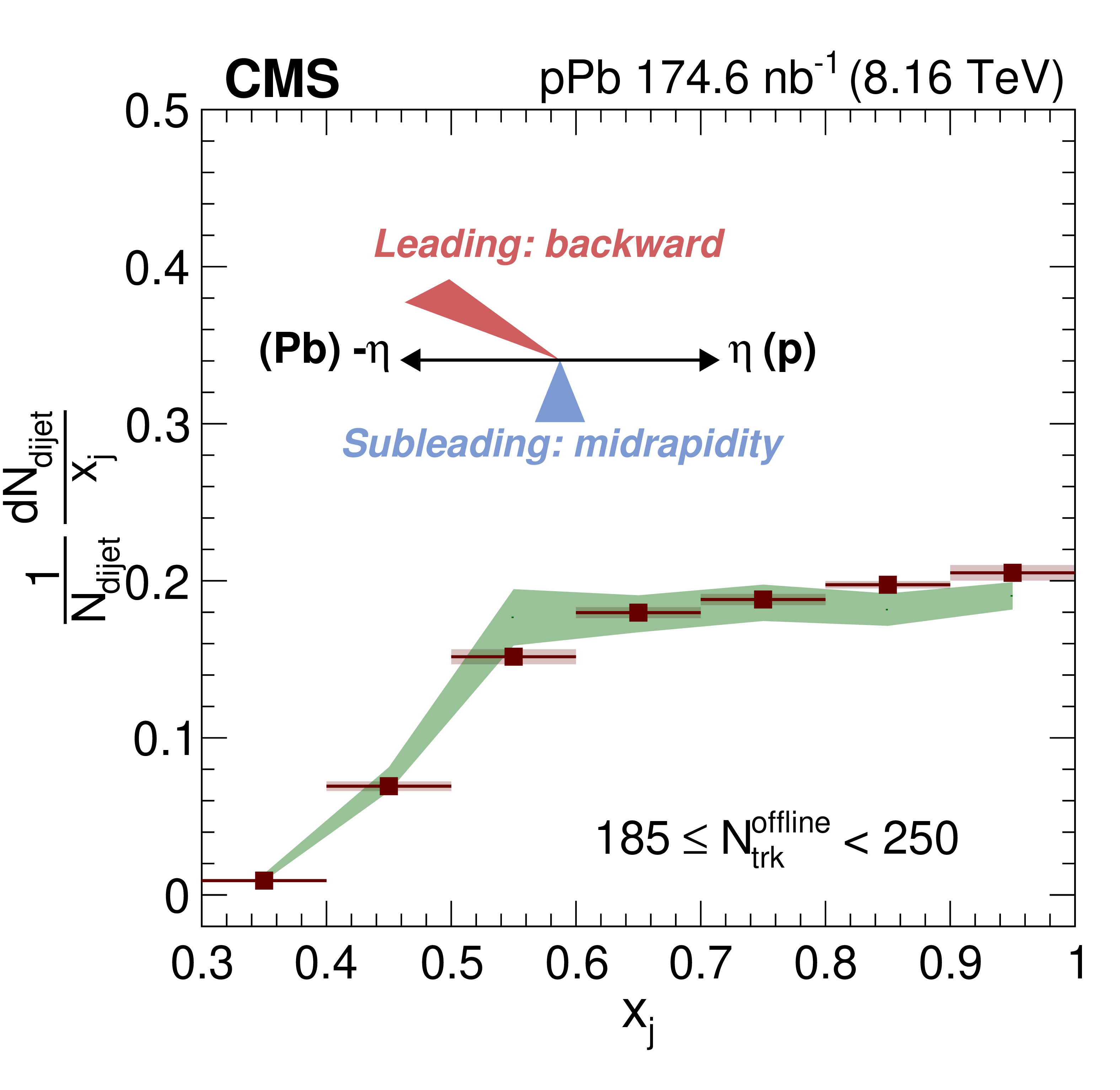

Figure 2-e:
The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

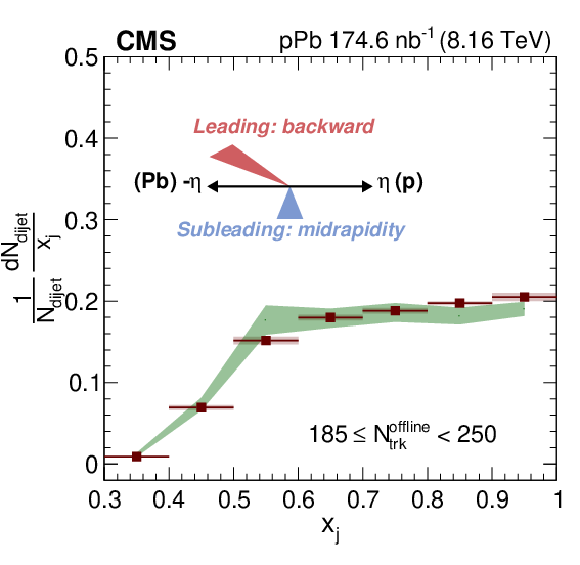

Figure 2-f:
The unfolded xj distributions, in the multiplicity range 185 Nofflinetrk< 250 from different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

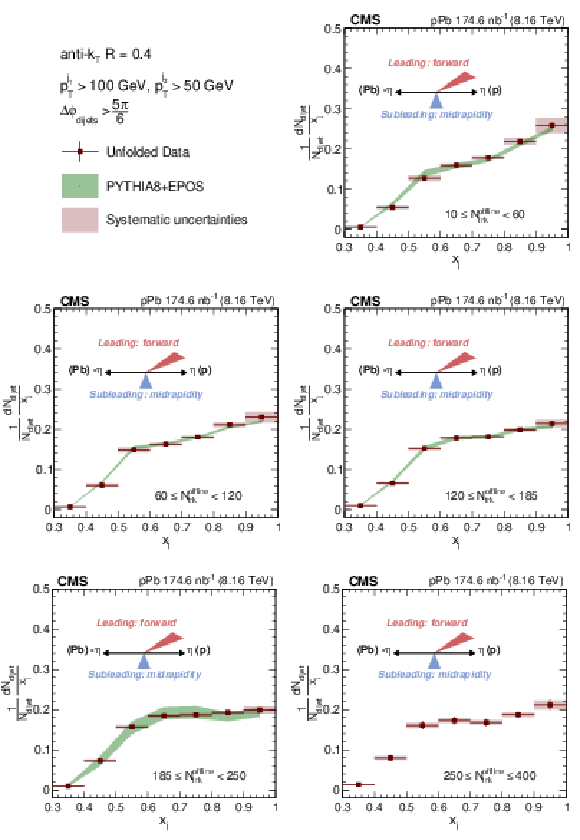

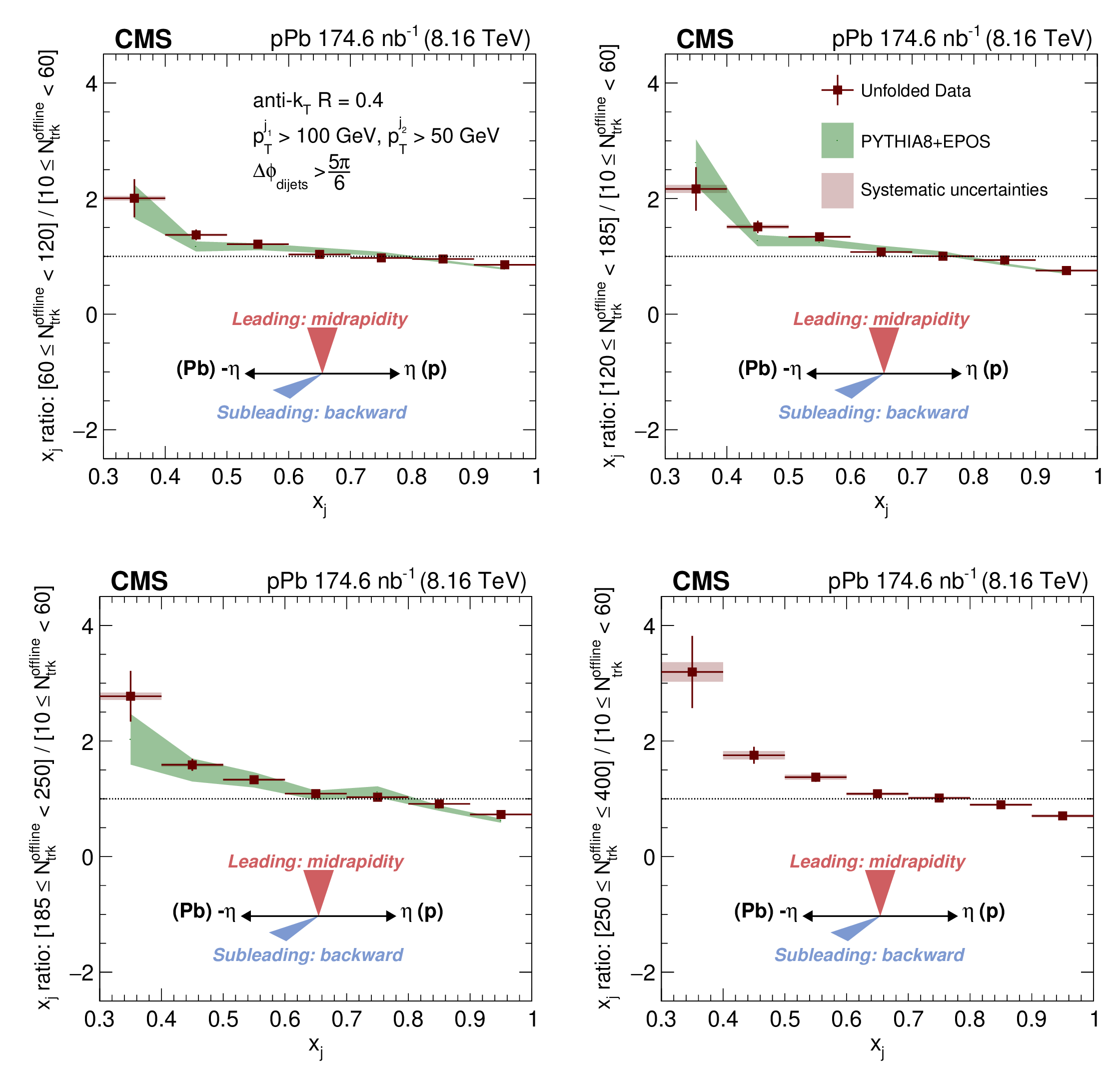

Figure 3:

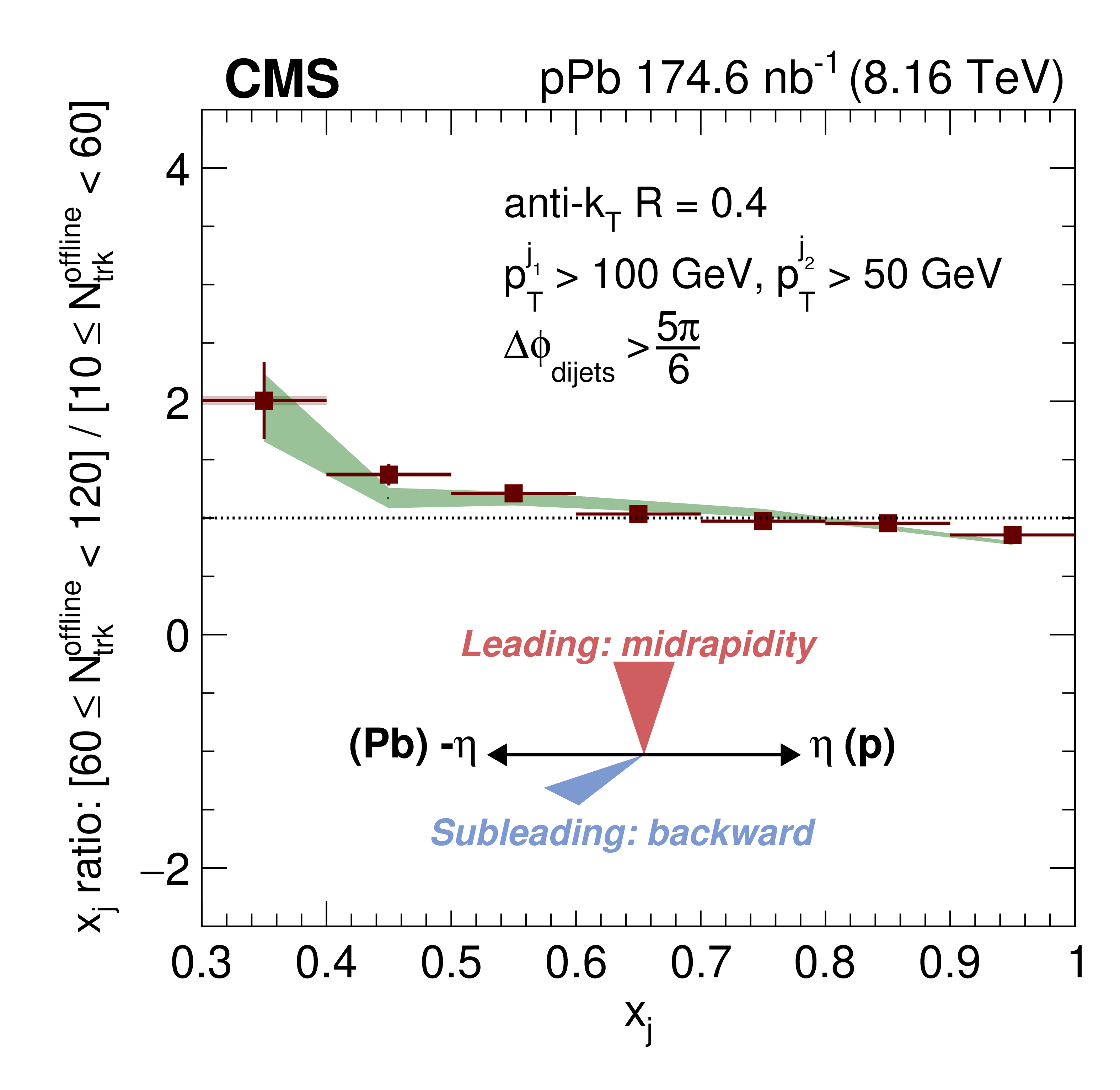

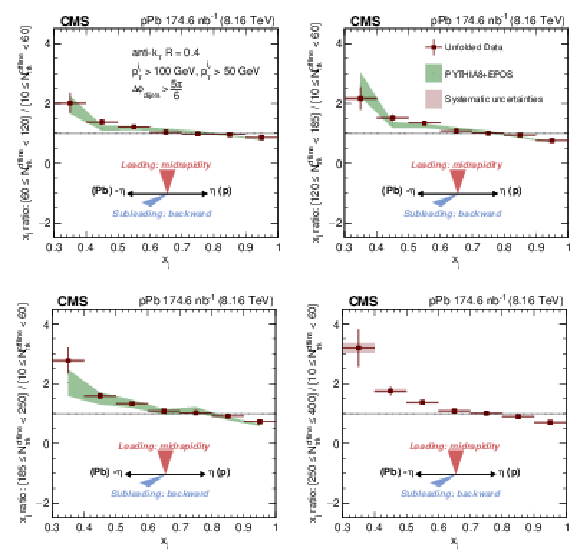

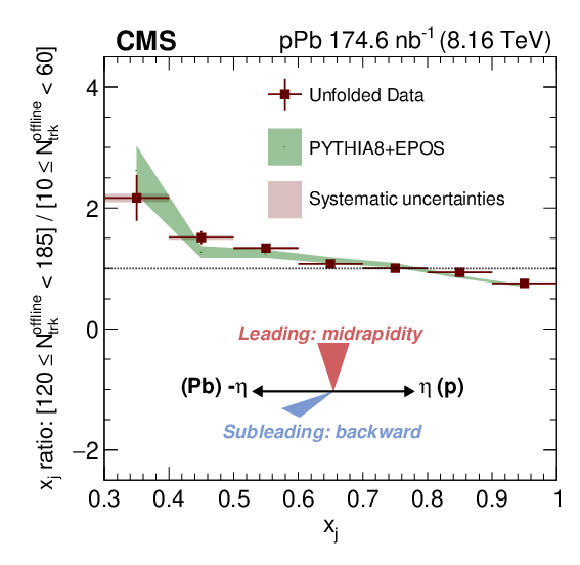

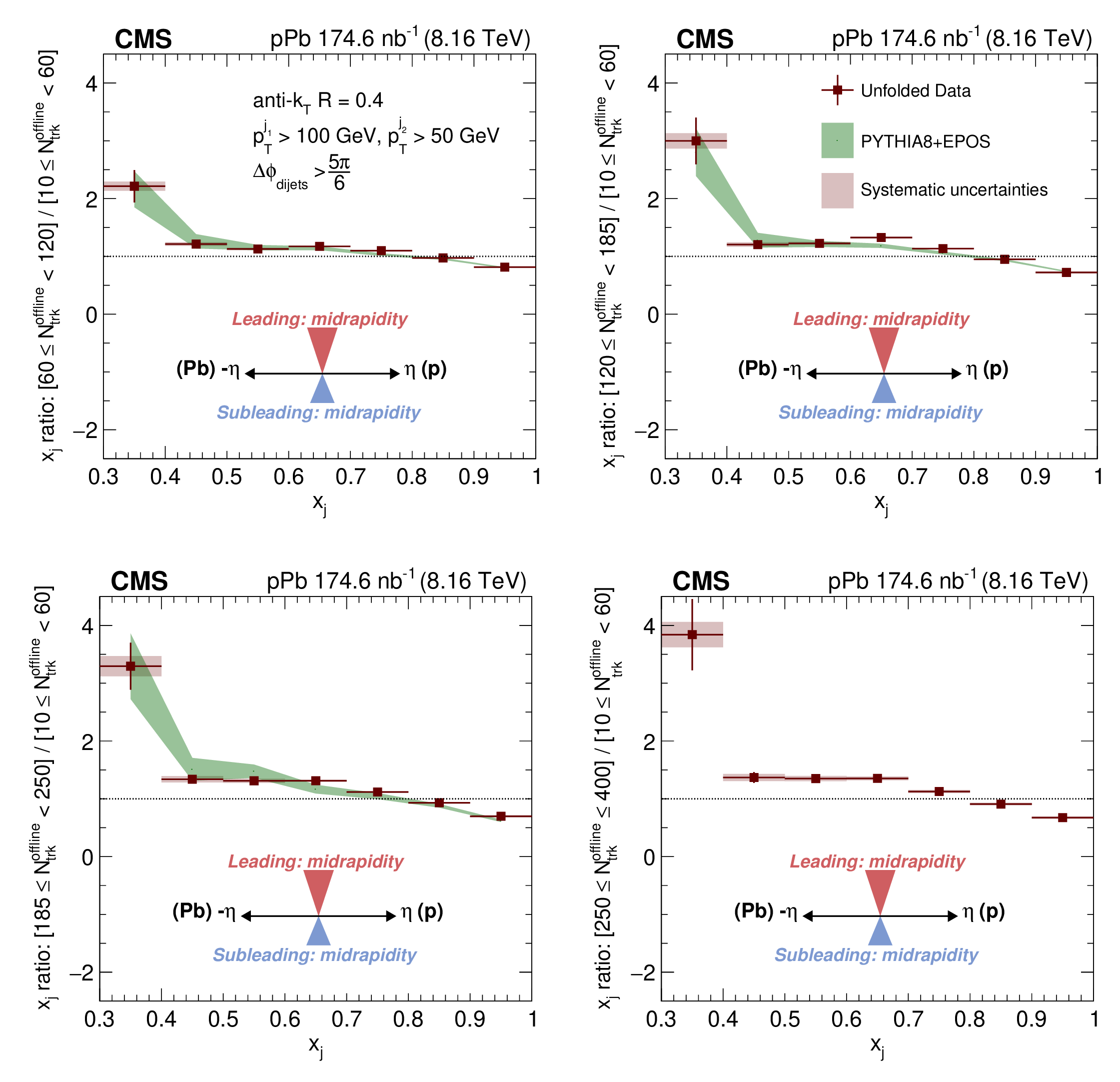

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf
Figure 3-a:

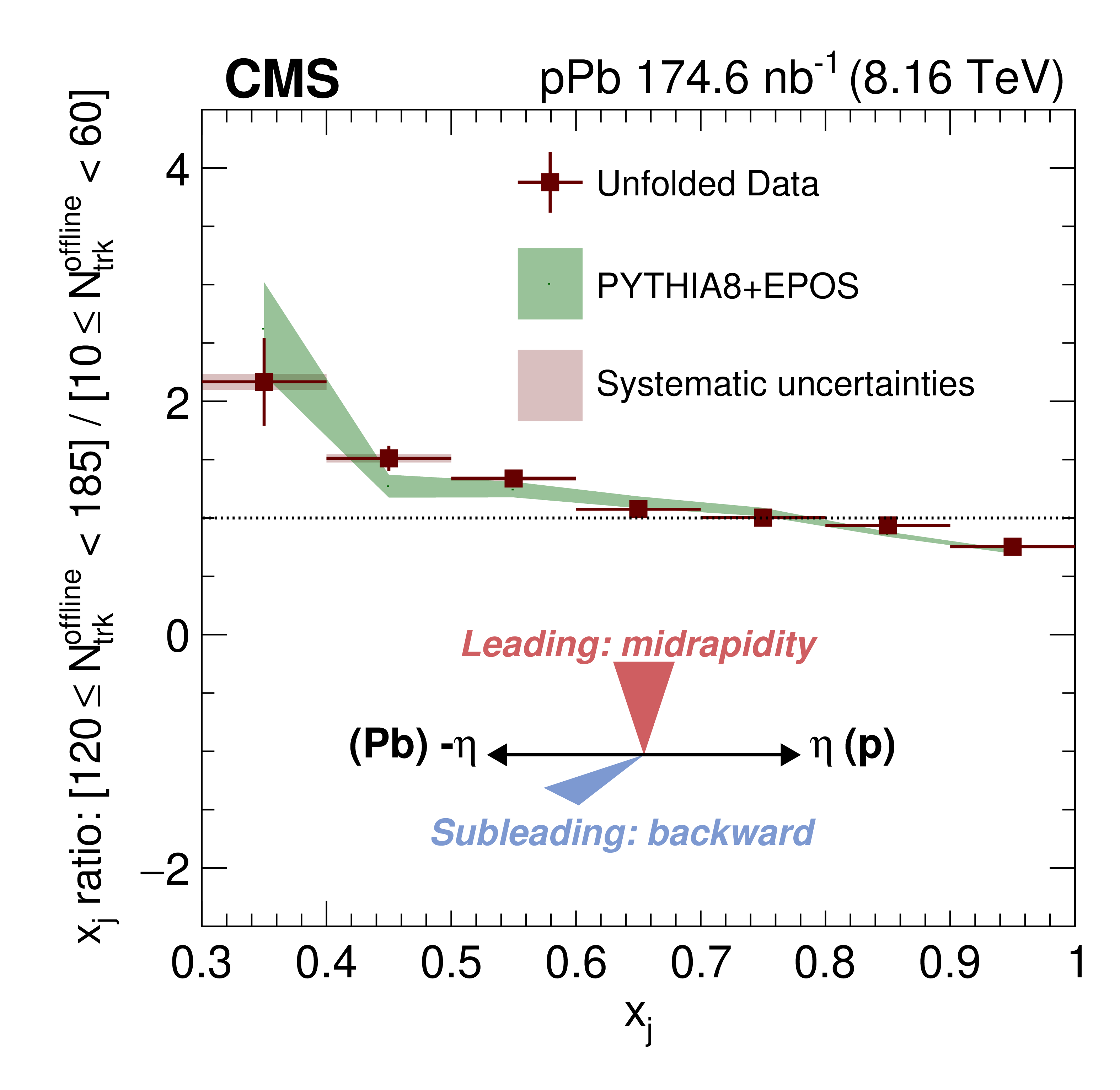

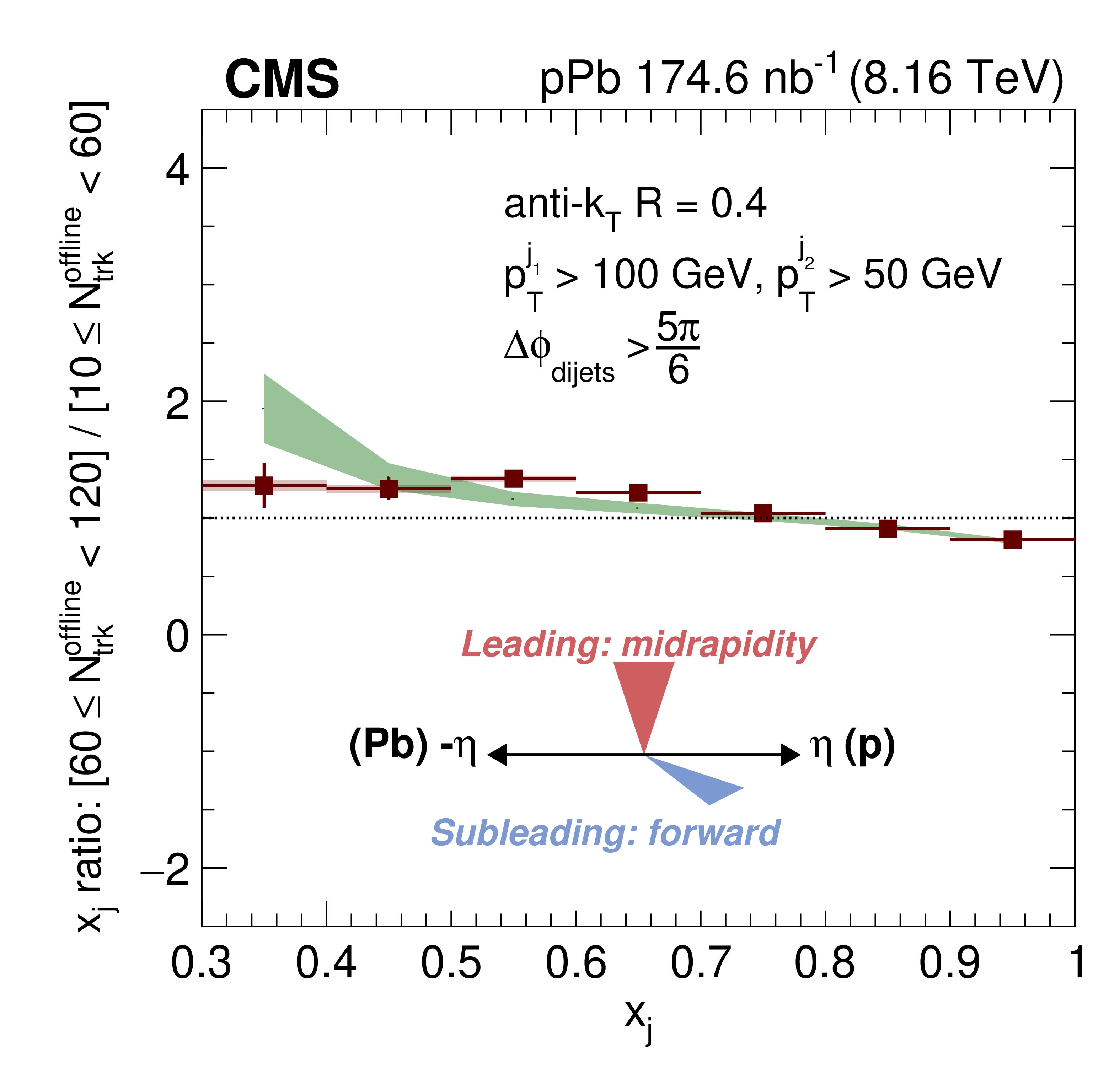

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf
Figure 3-b:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf
Figure 3-c:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

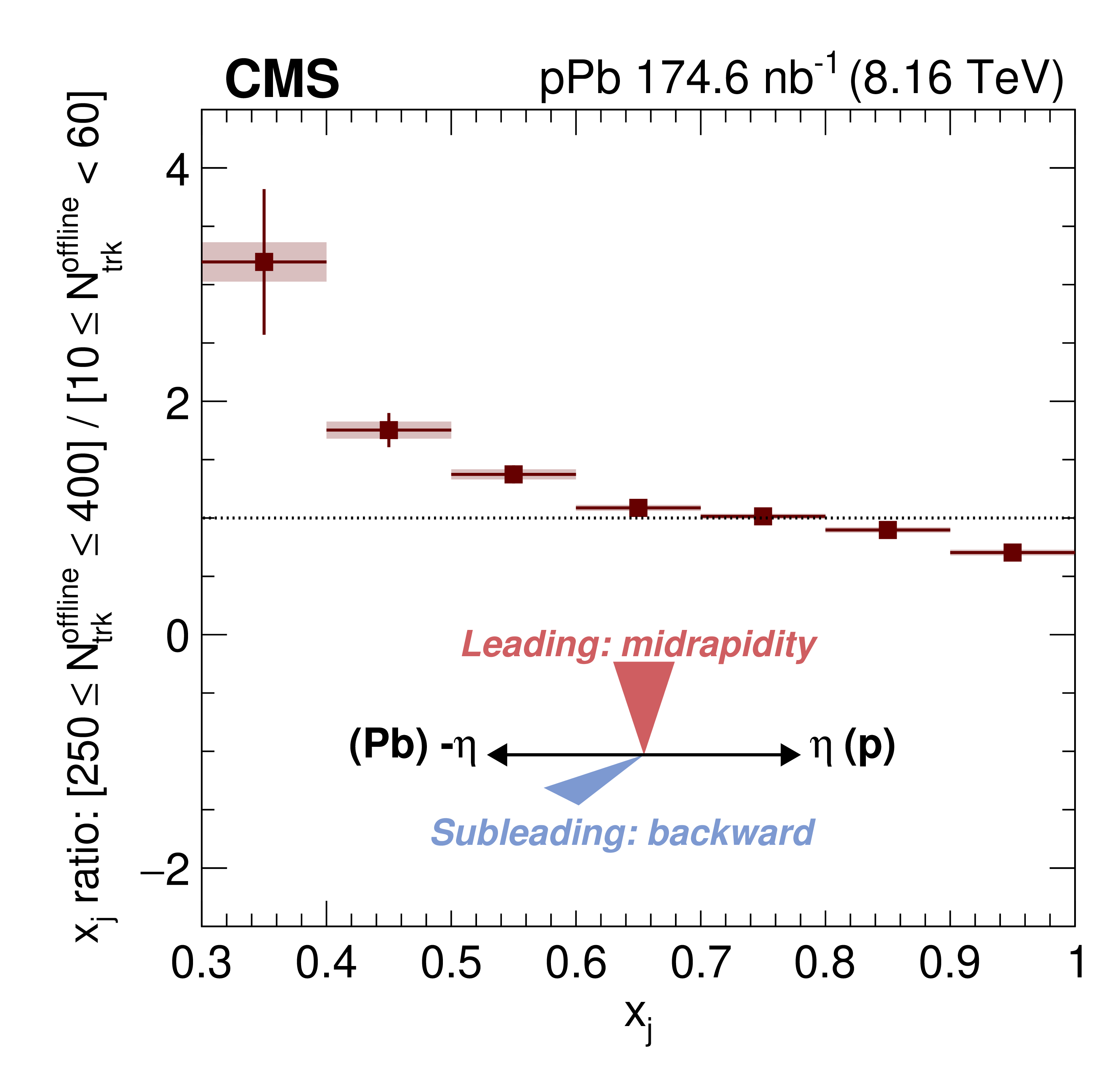

Figure 3-d:

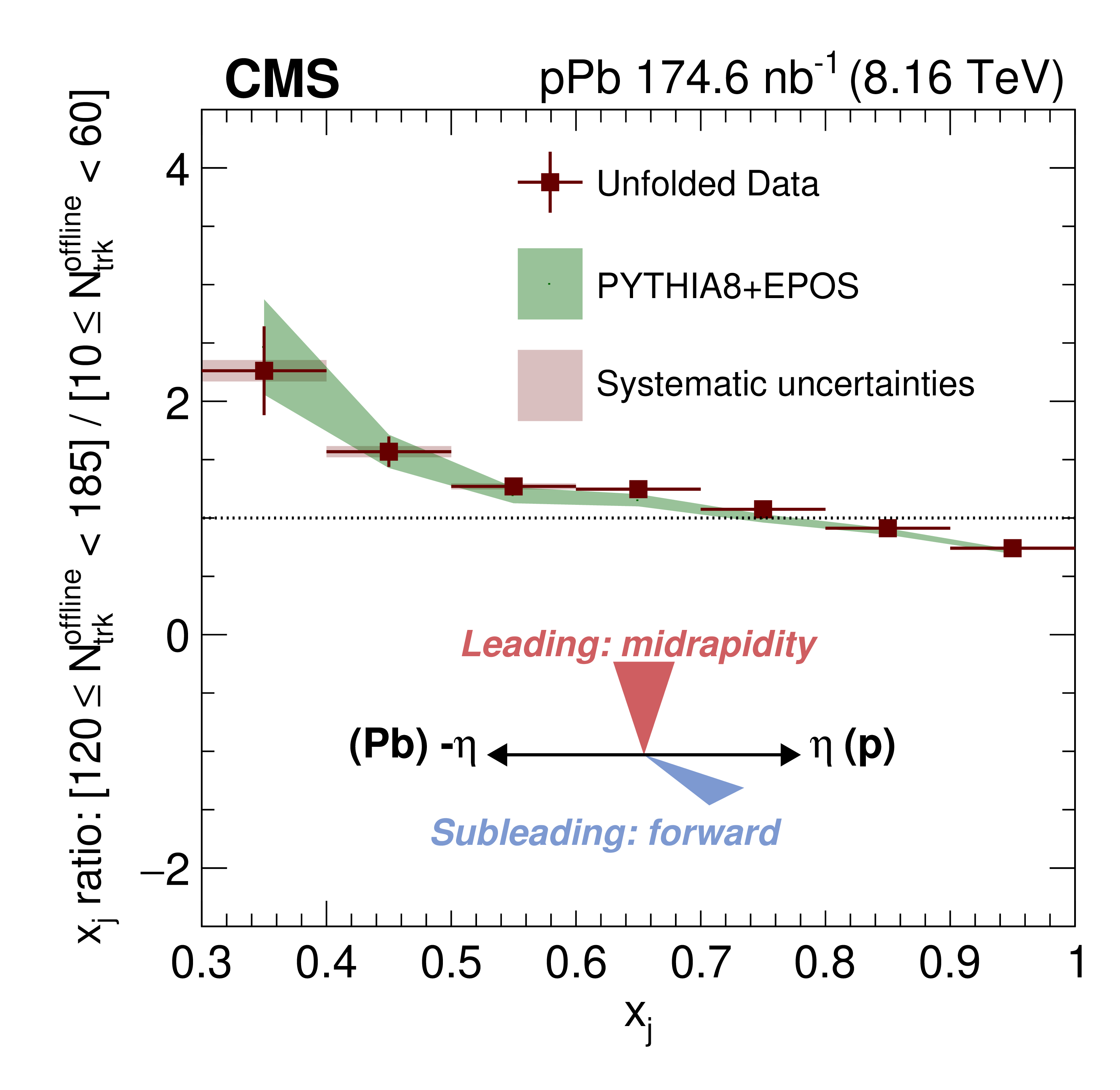

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed. Monte Carlo event generation for multiplicities greater than 250 was deemed impractical.

png pdf

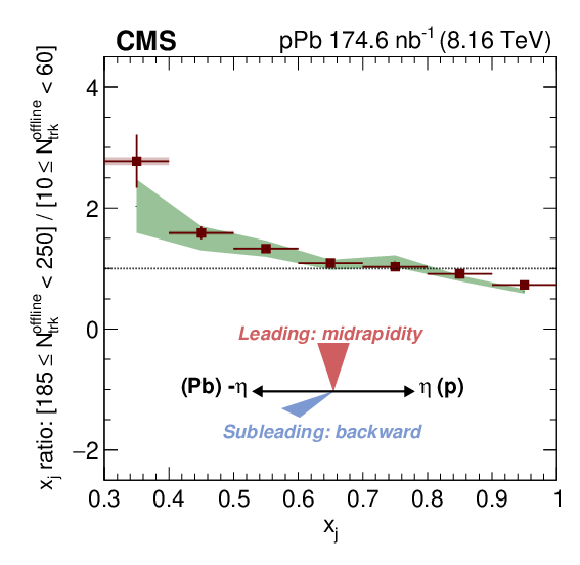

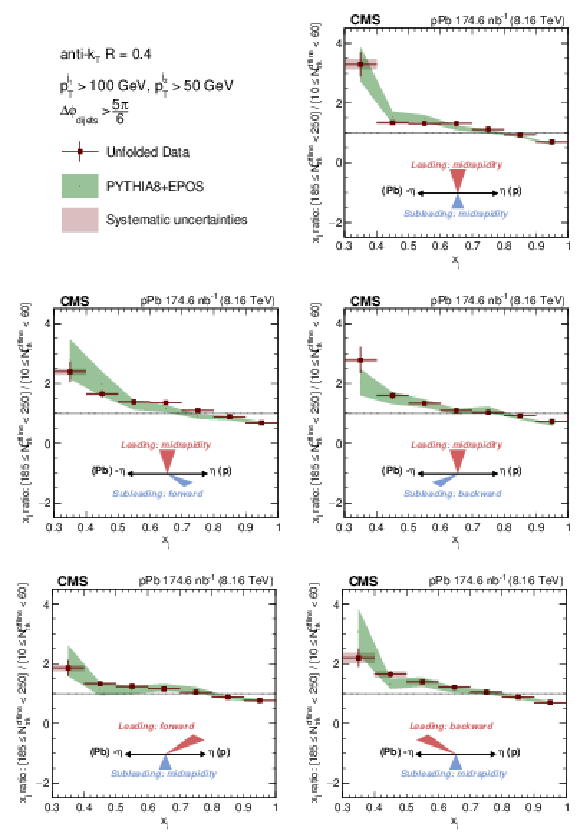

Figure 4:

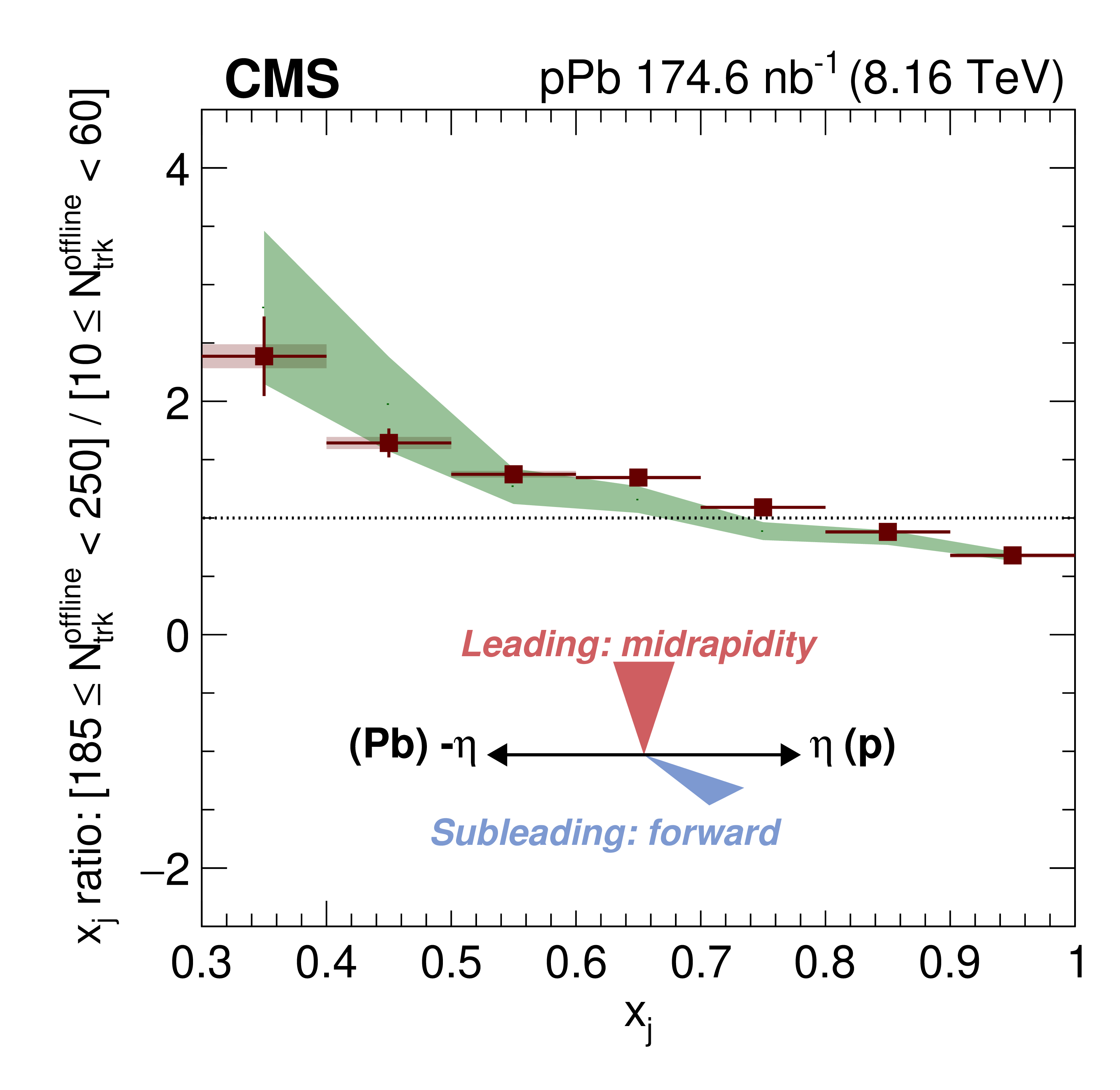

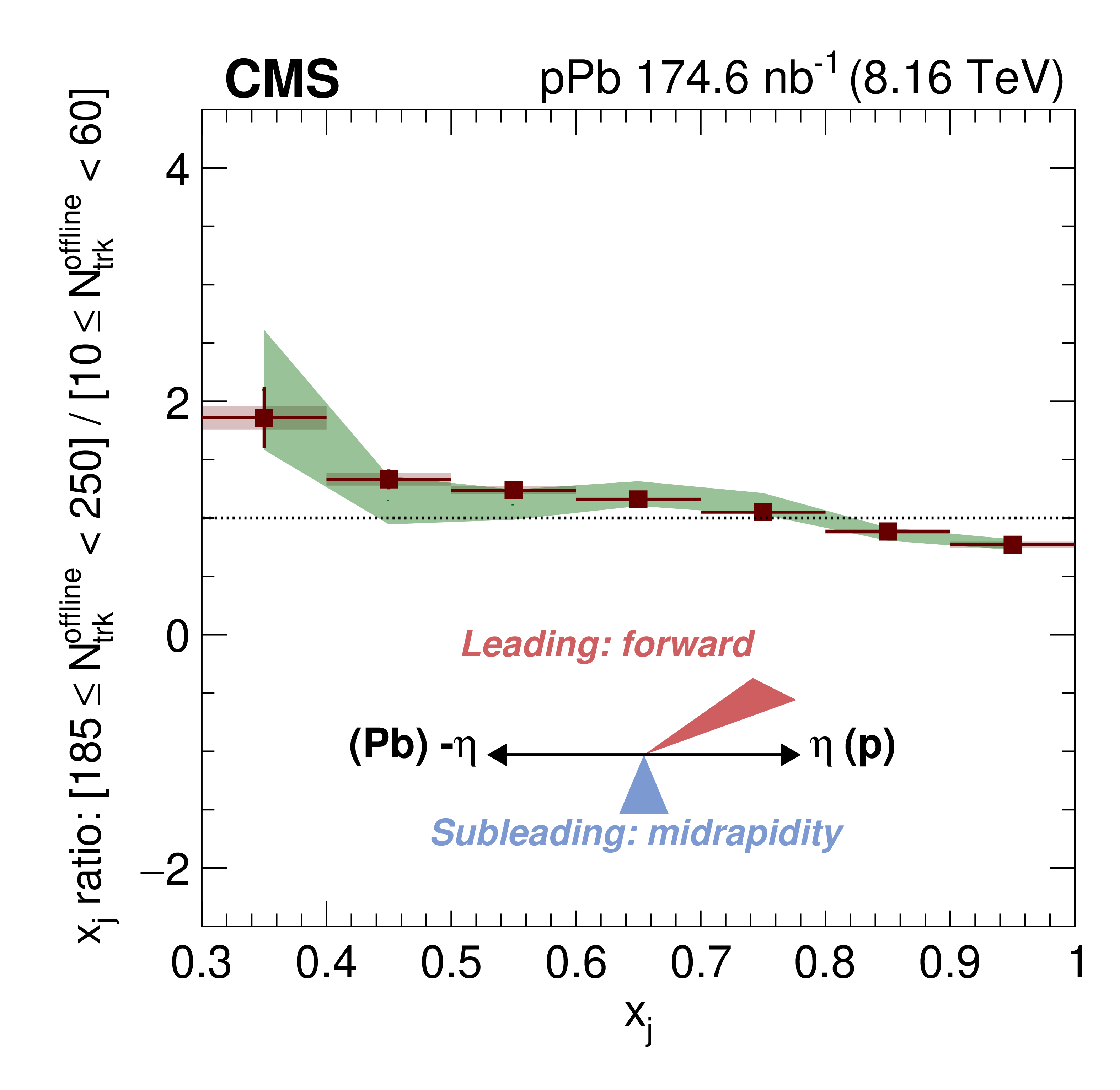

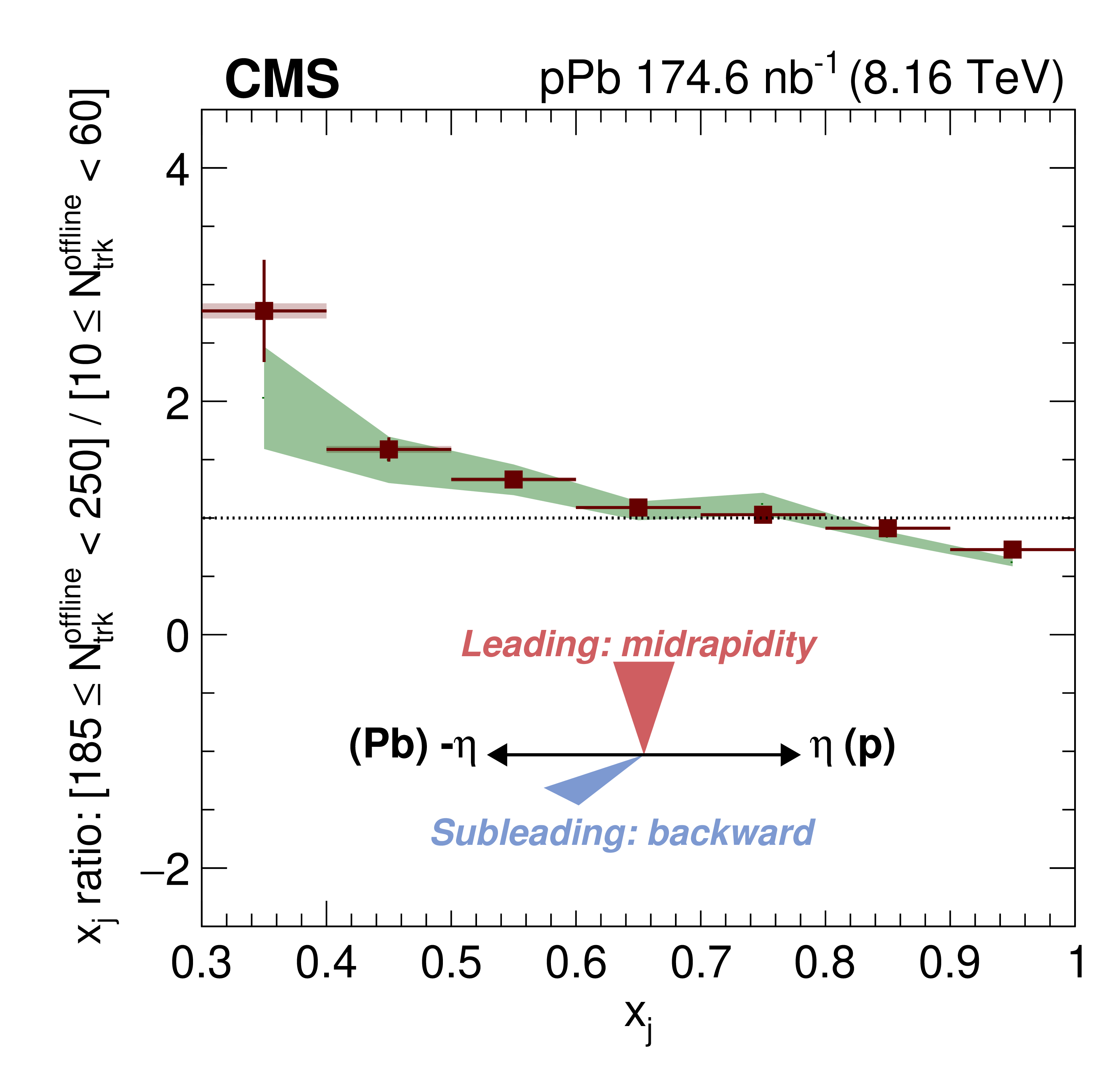

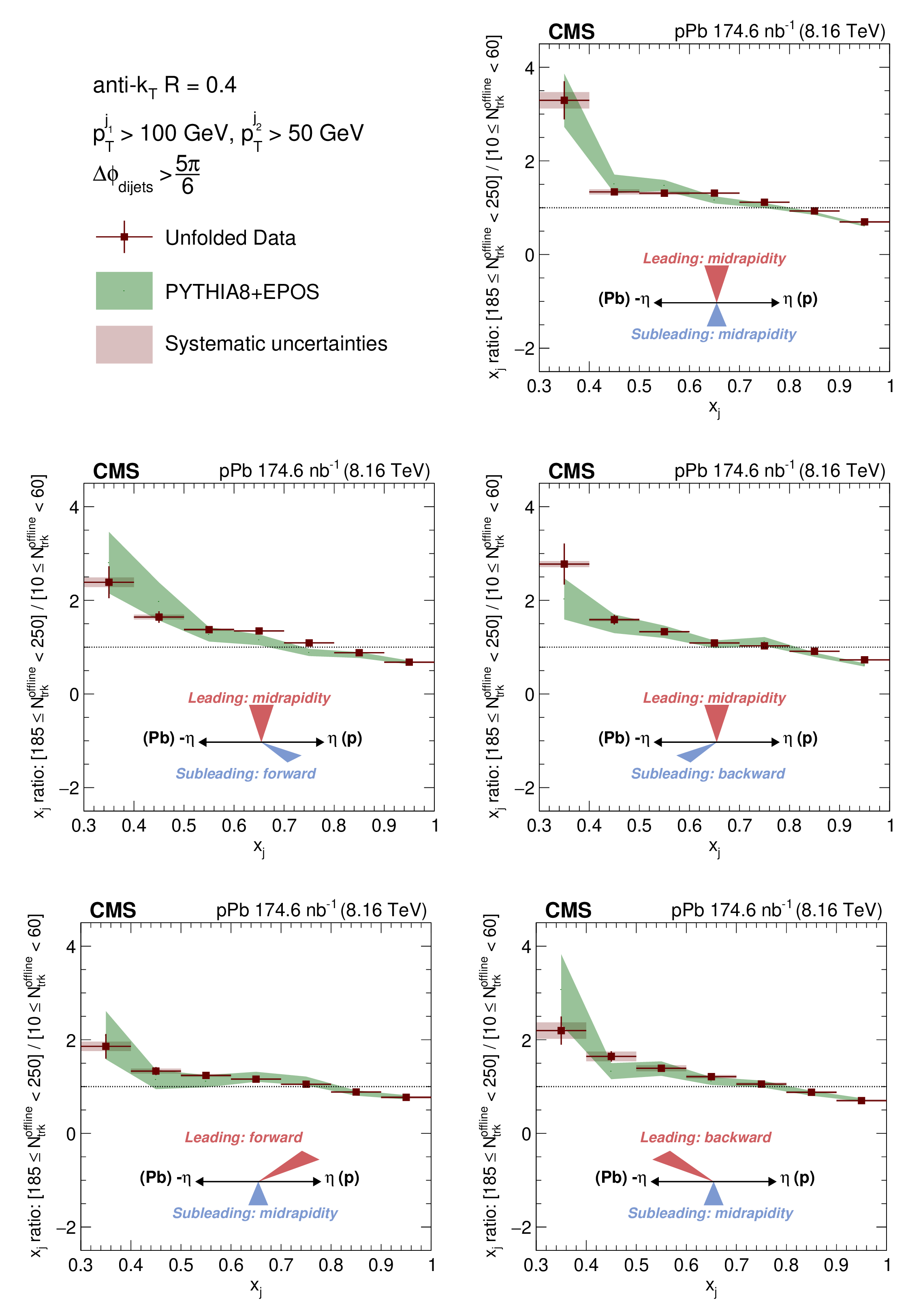

The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure 4-a:
The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

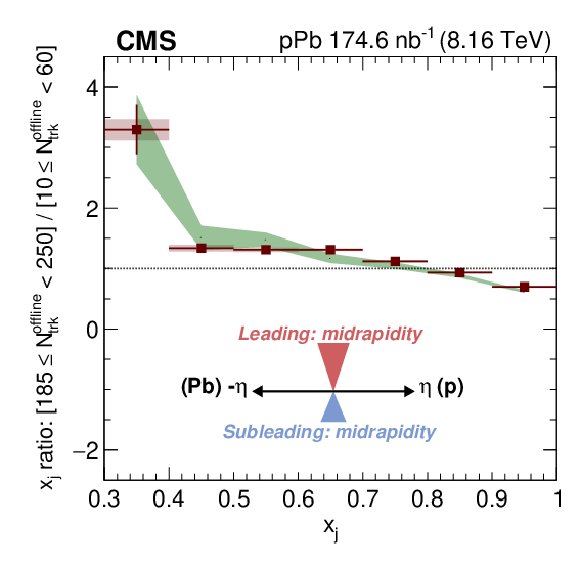

Figure 4-b:
The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

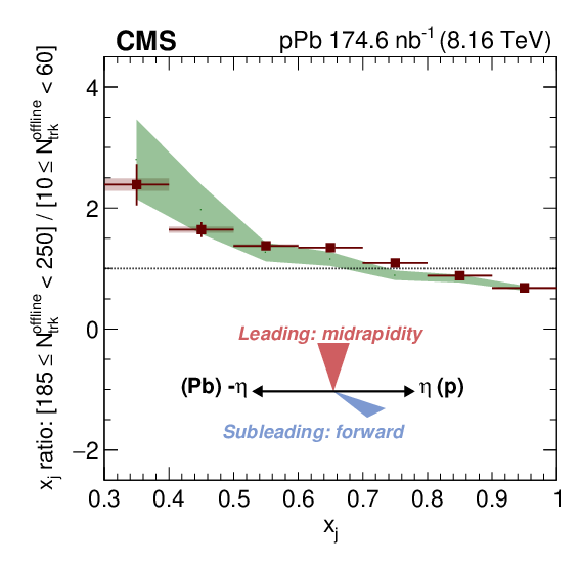

Figure 4-c:
The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure 4-d:
The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure 4-e:
The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

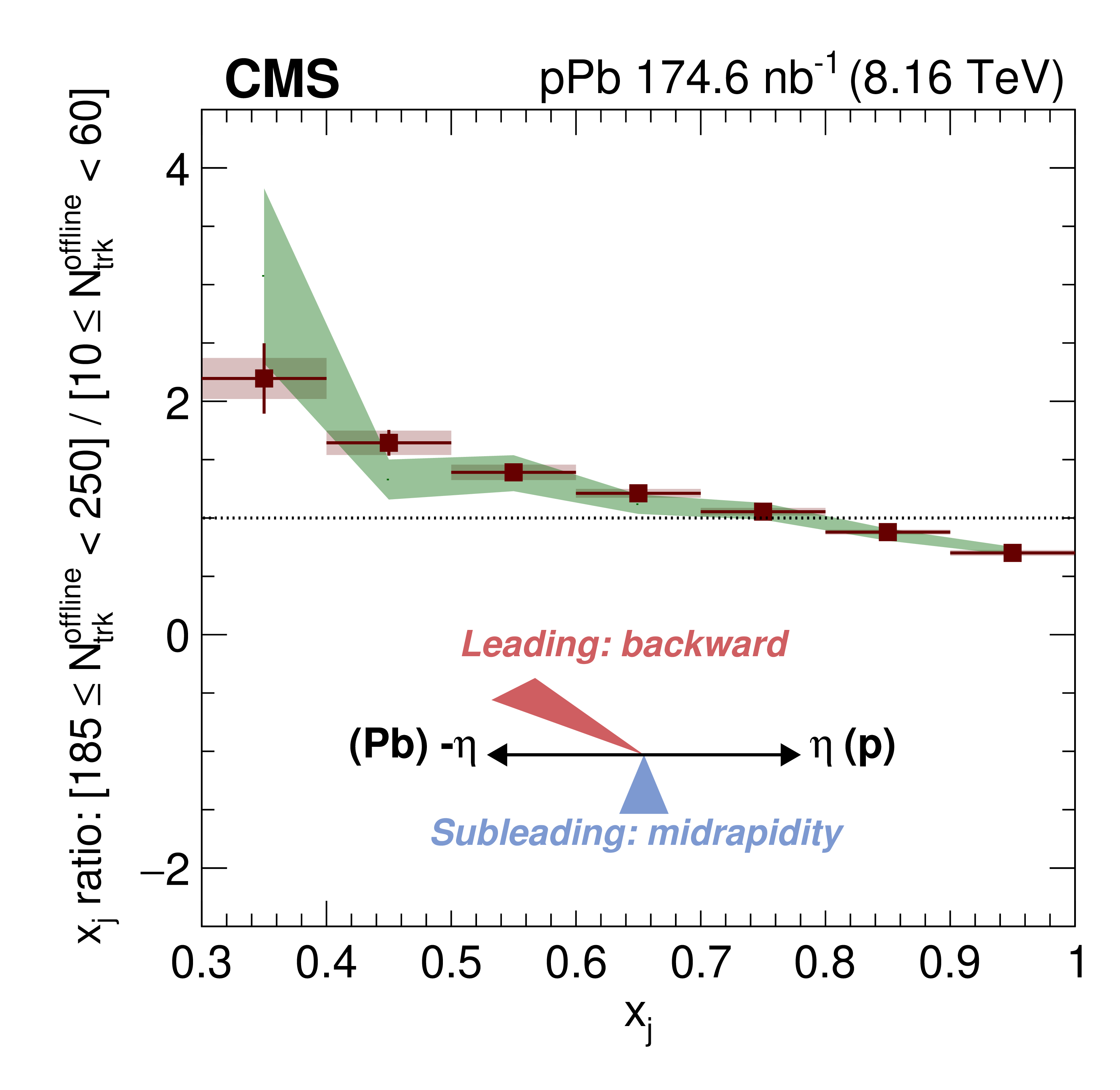

Figure 4-f:
The ratio of unfolded xj distributions between dijet events from multiplicity range 185 Nofflinetrk< 250 to 10 Nofflinetrk< 60 is shown for leading and subleading jet combinations at mid-, forward, and backward rapidity regions. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

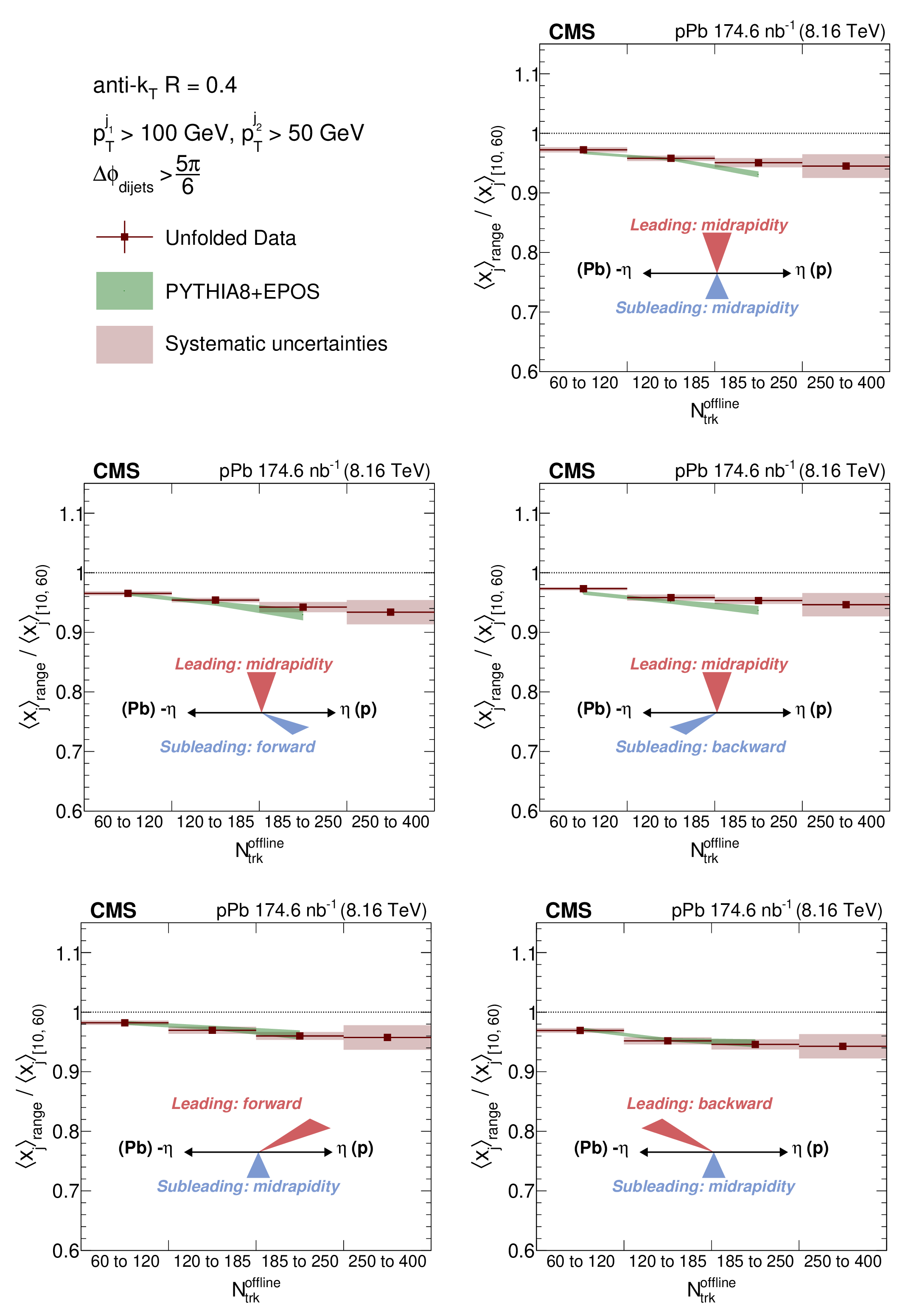

Figure 5:

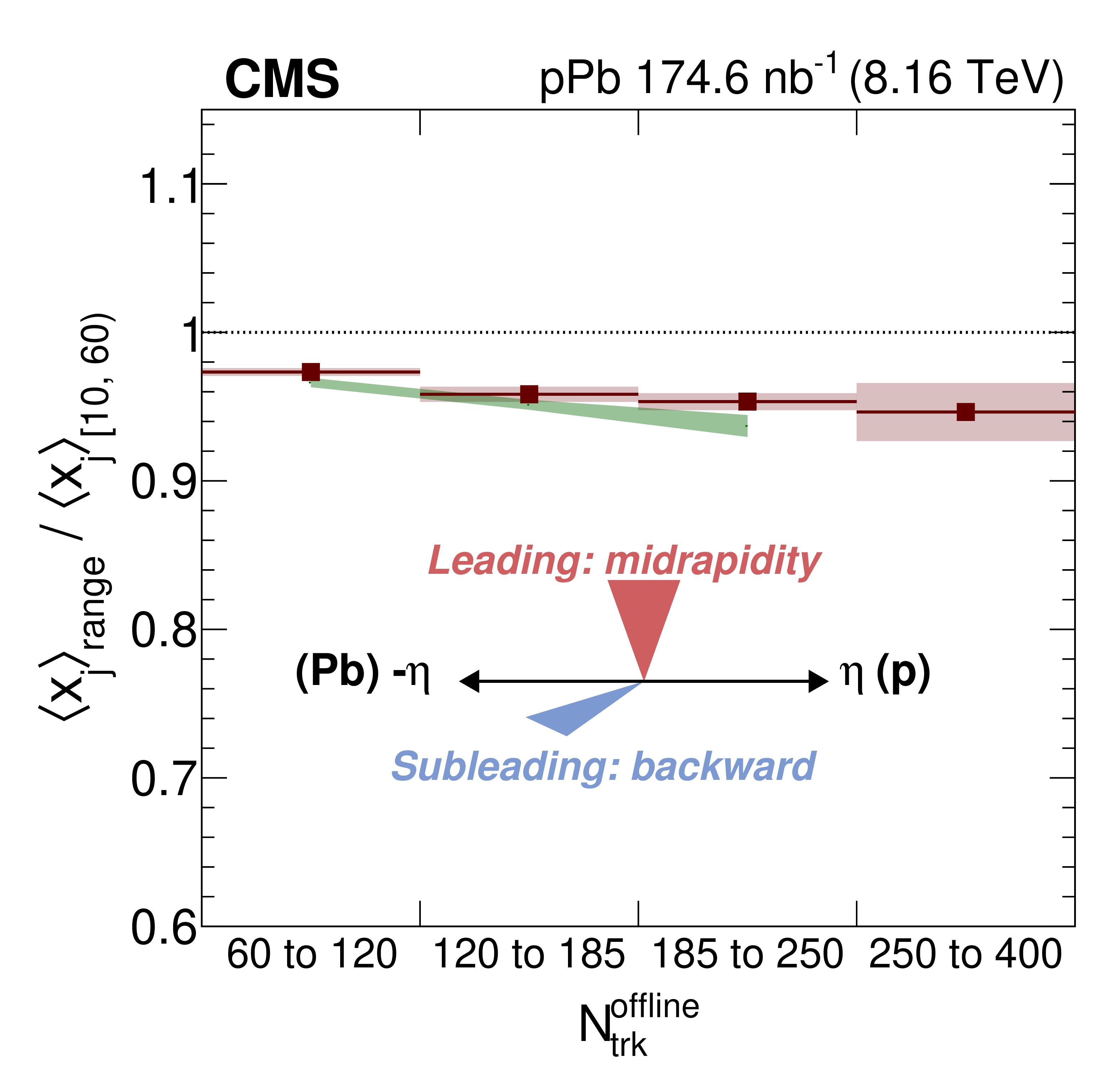

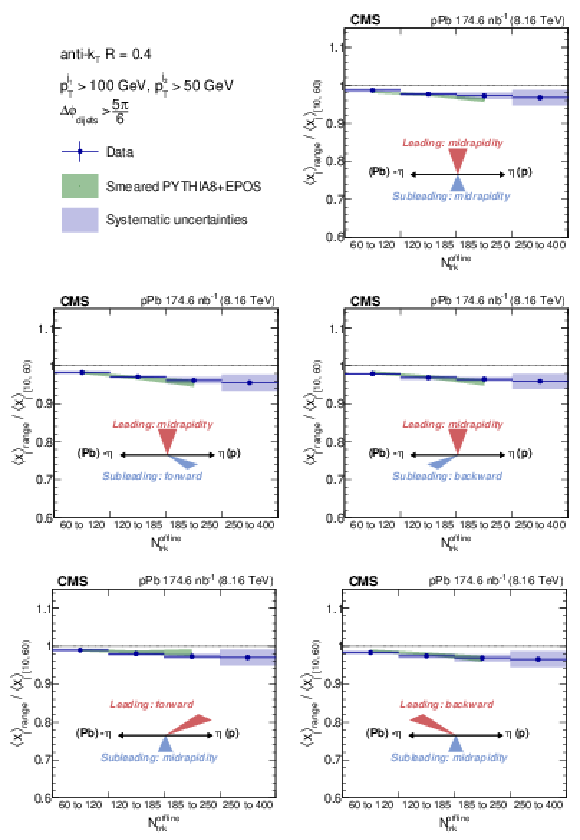

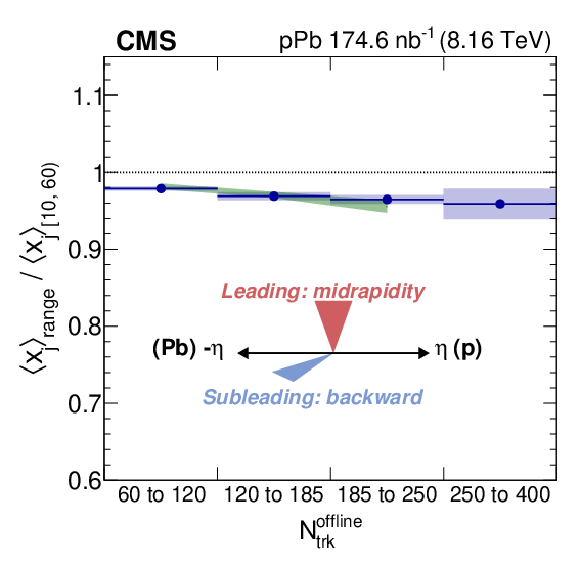

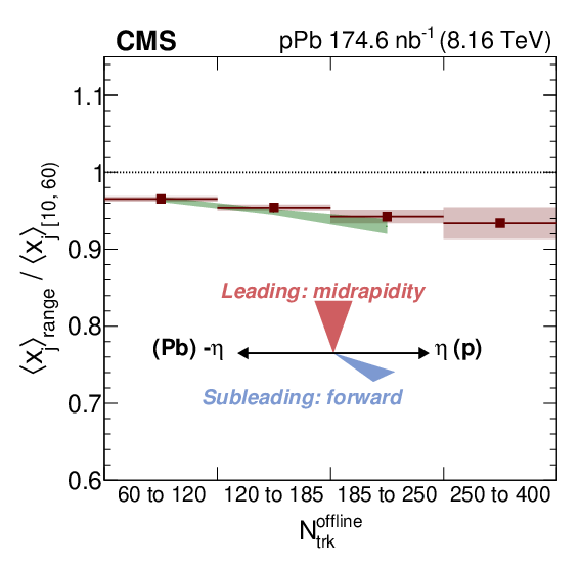

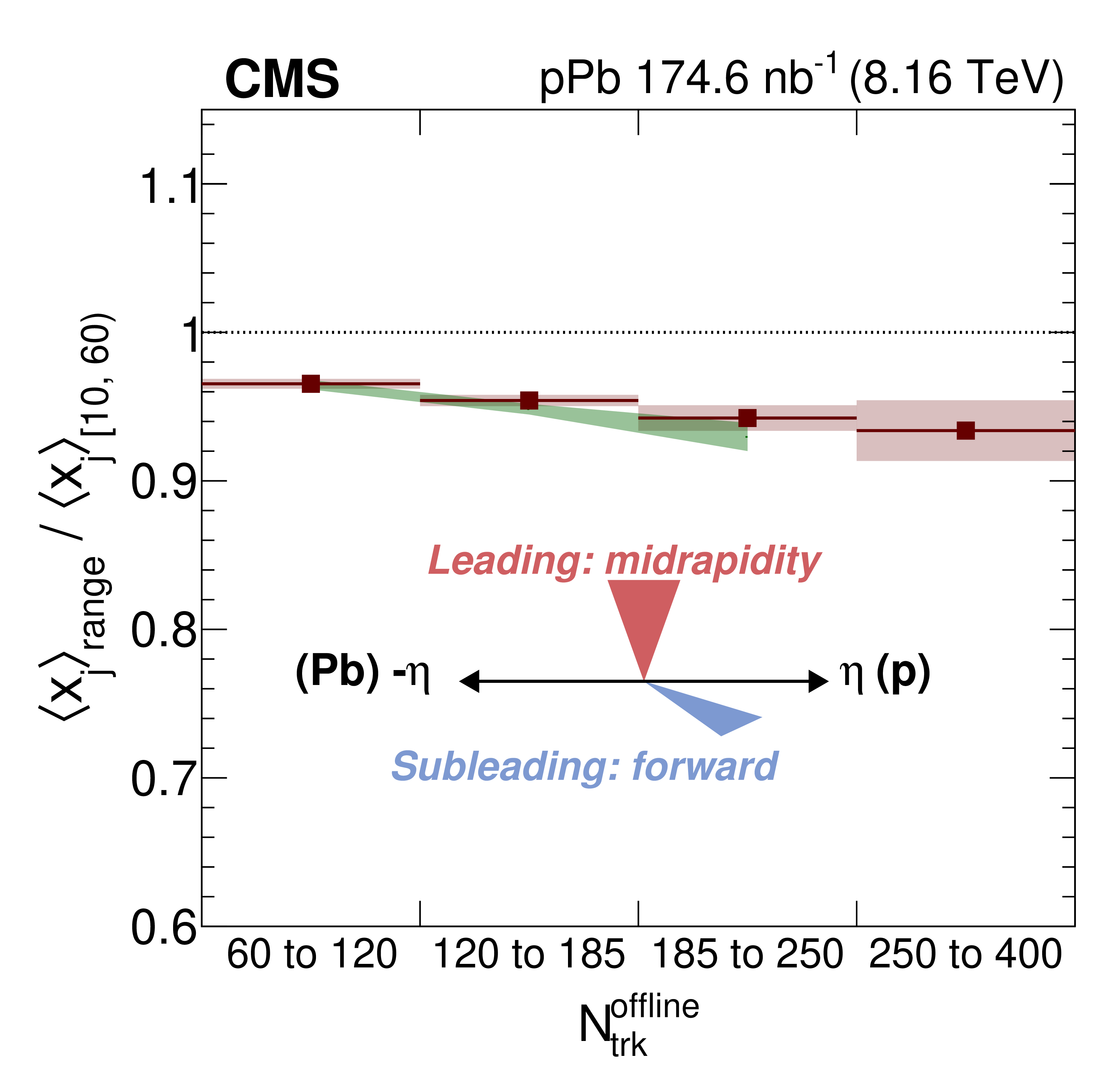

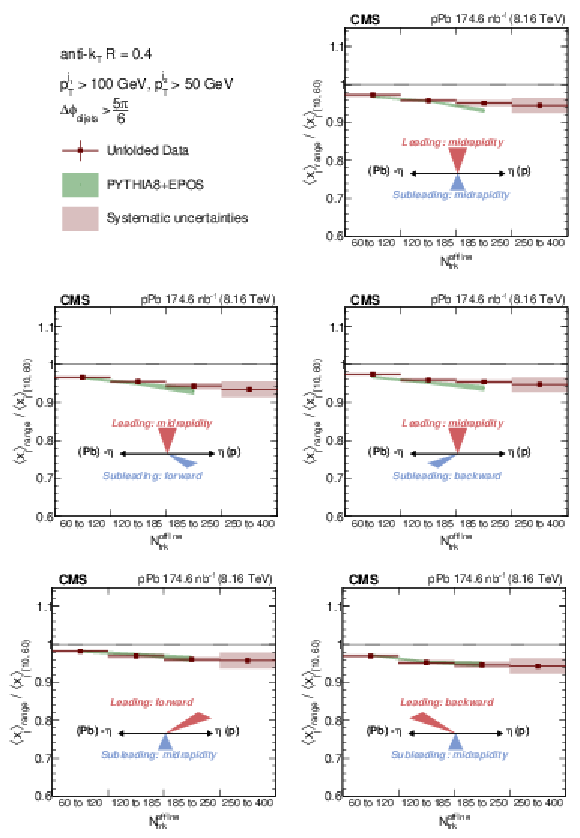

The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf

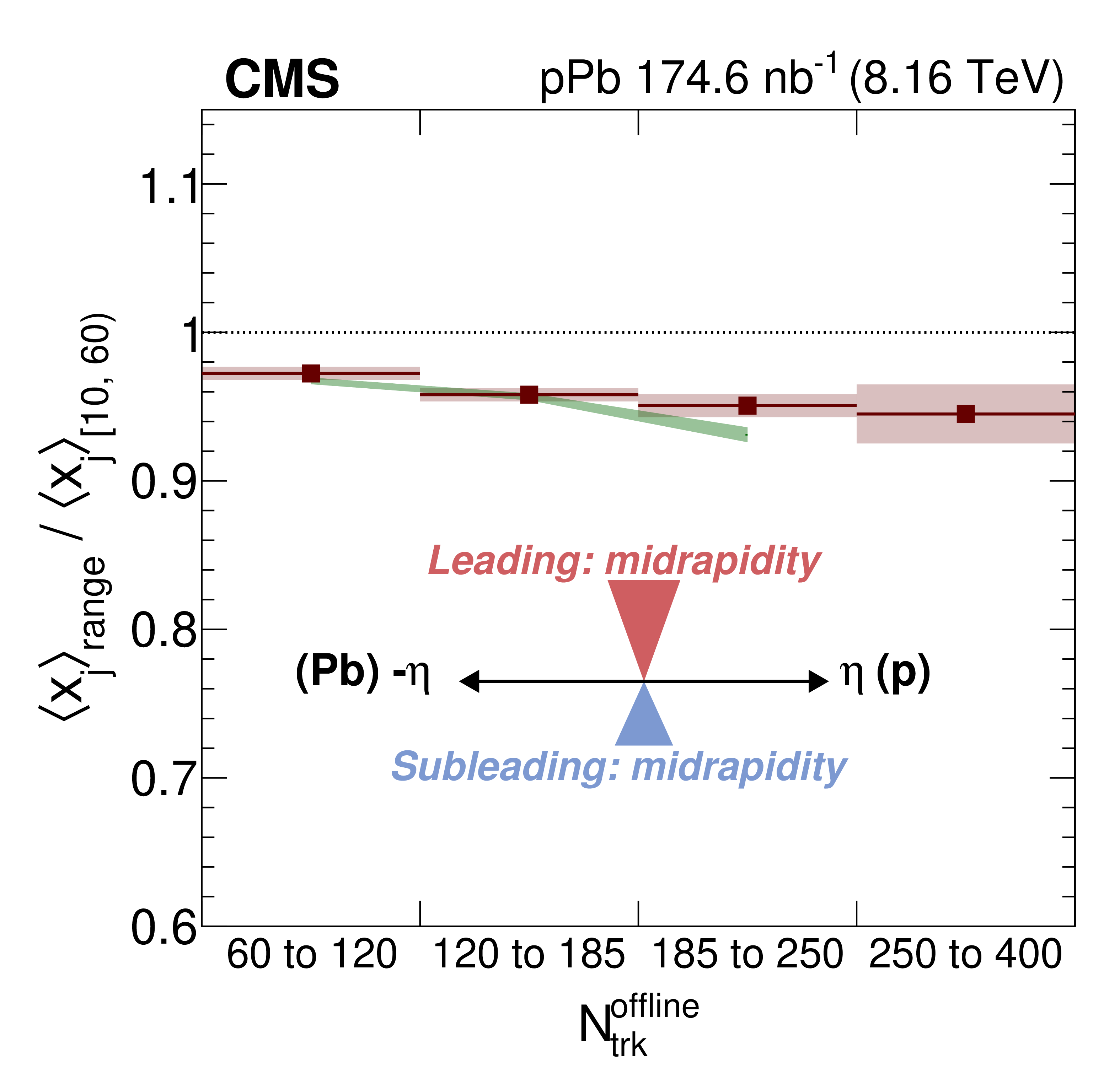

Figure 5-a:
The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf

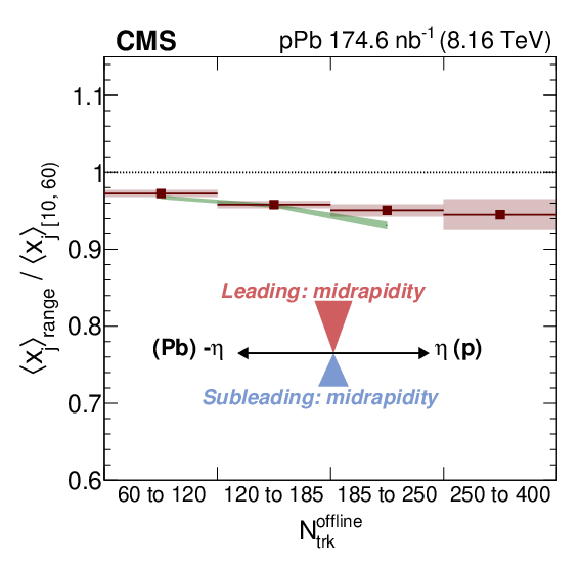

Figure 5-b:
The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf
Figure 5-c:
The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf

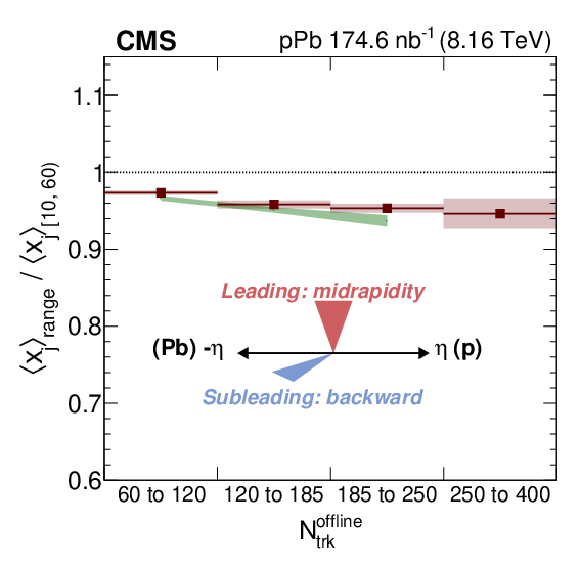

Figure 5-d:
The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf

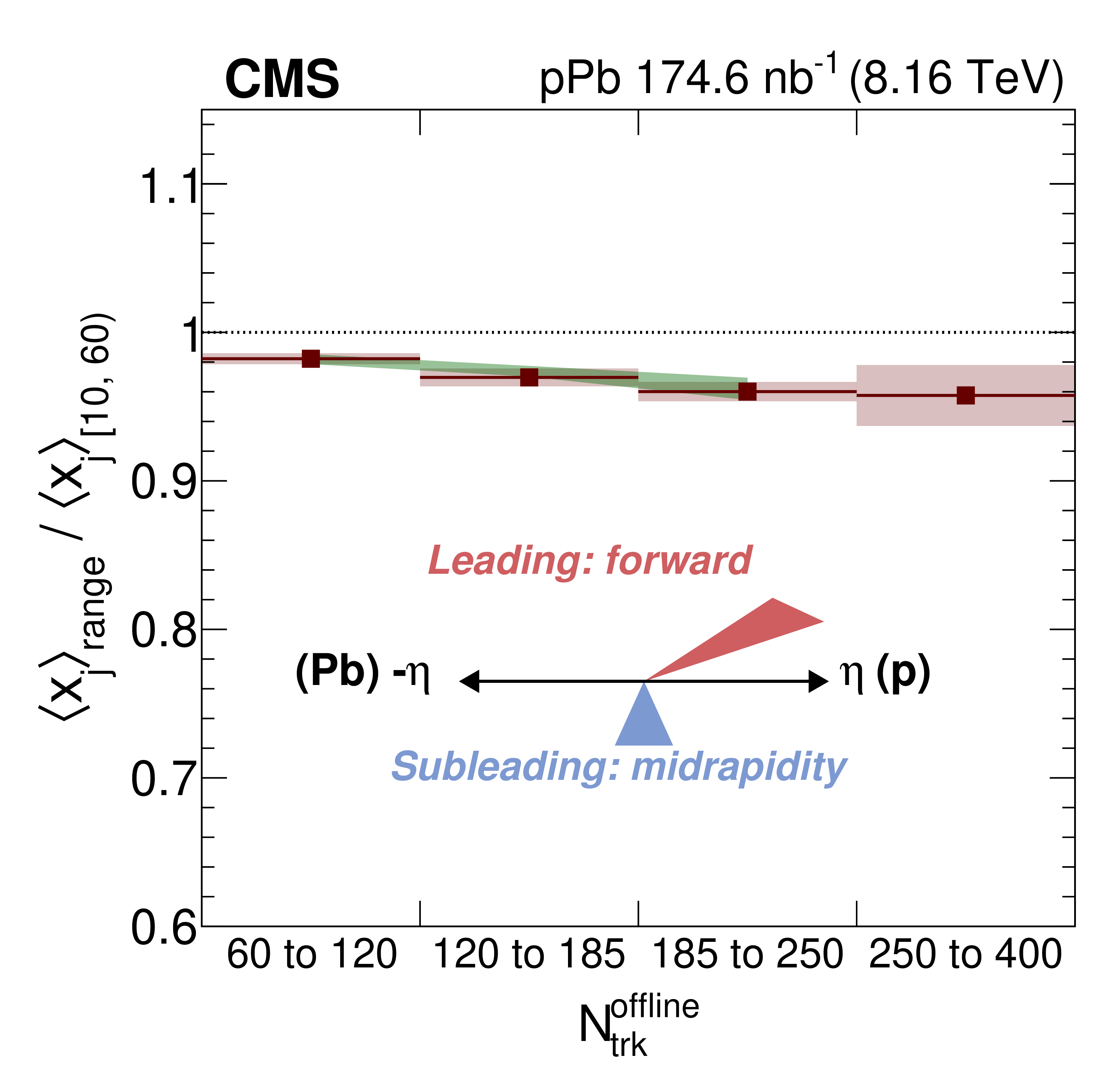

Figure 5-e:
The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf
Figure 5-f:
The ratio of the mean xj values ratio xj for dijet events from different multiplicity classes to that of events with the lowest multiplicity selection in the range 10 Nofflinetrk< 60. The ratios of xj values, extracted from unfolded xj distributions, are presented for different leading and subleading jet selections from mid-, forward and backward rapidity regions. Comparison with the generator-level (green band) PYTHIA8+EPOS LHC are also displayed. The multiplicity range shown on the x-axis represents the multiplicity selection for the numerator of the ratio.

png pdf
Figure A1:

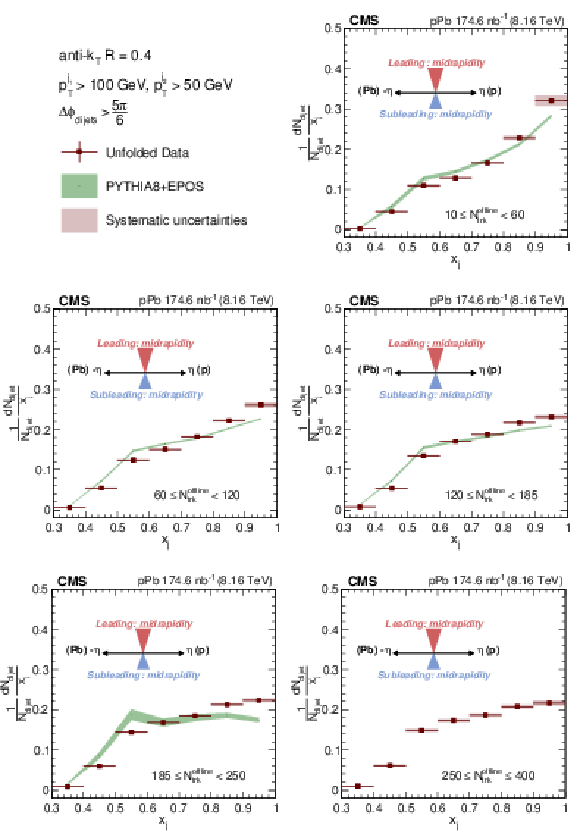

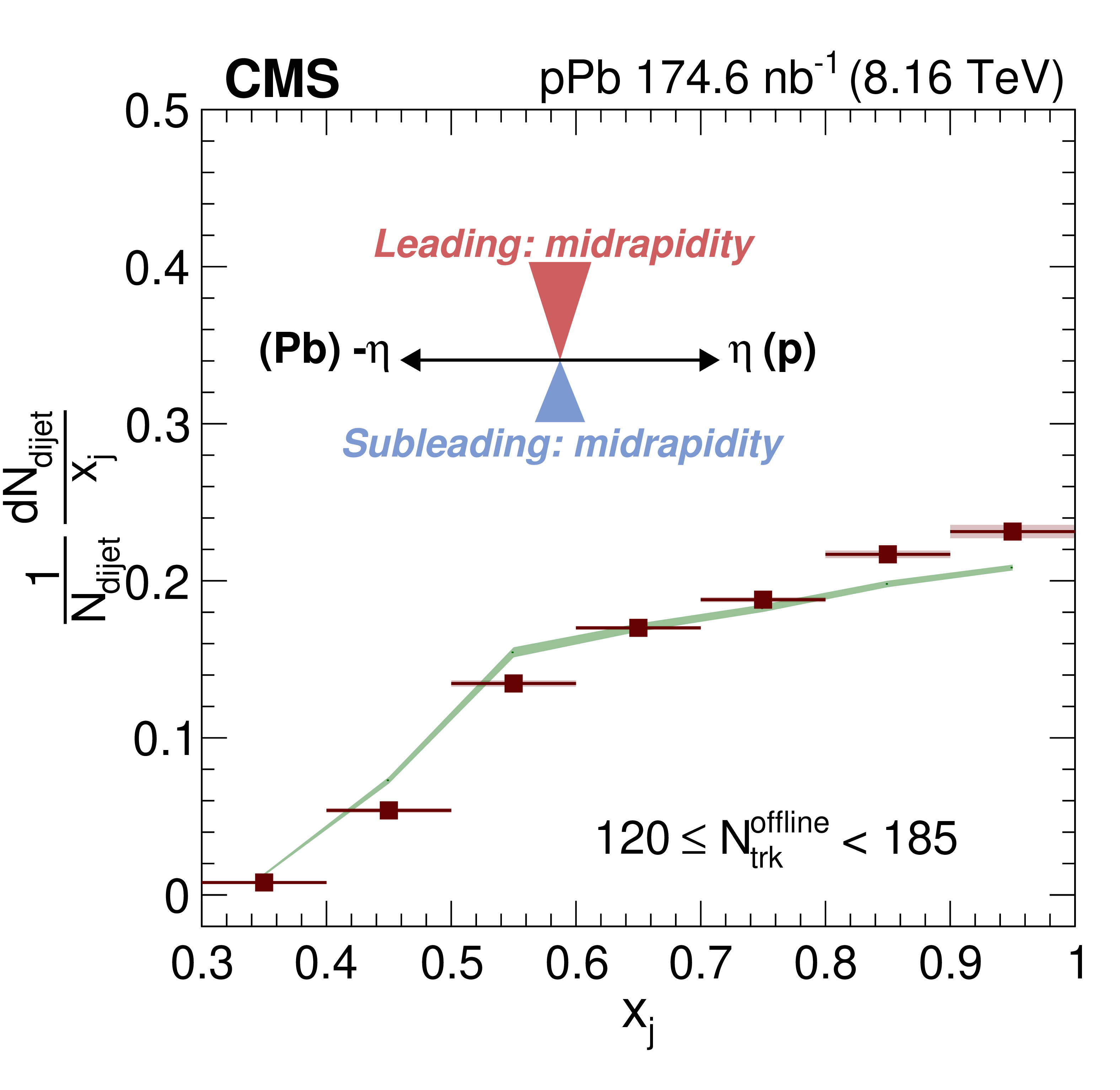

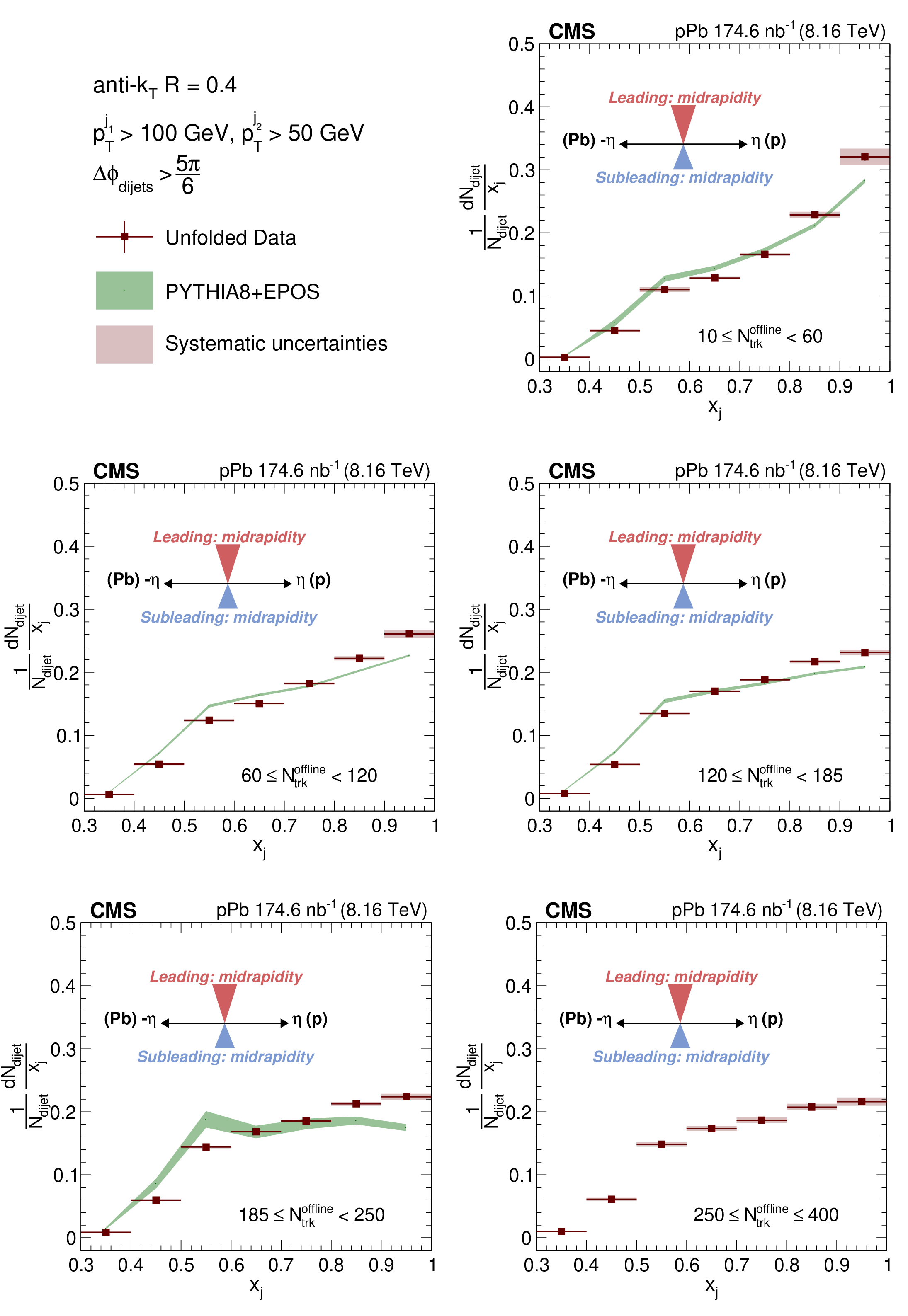

The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A1-a:

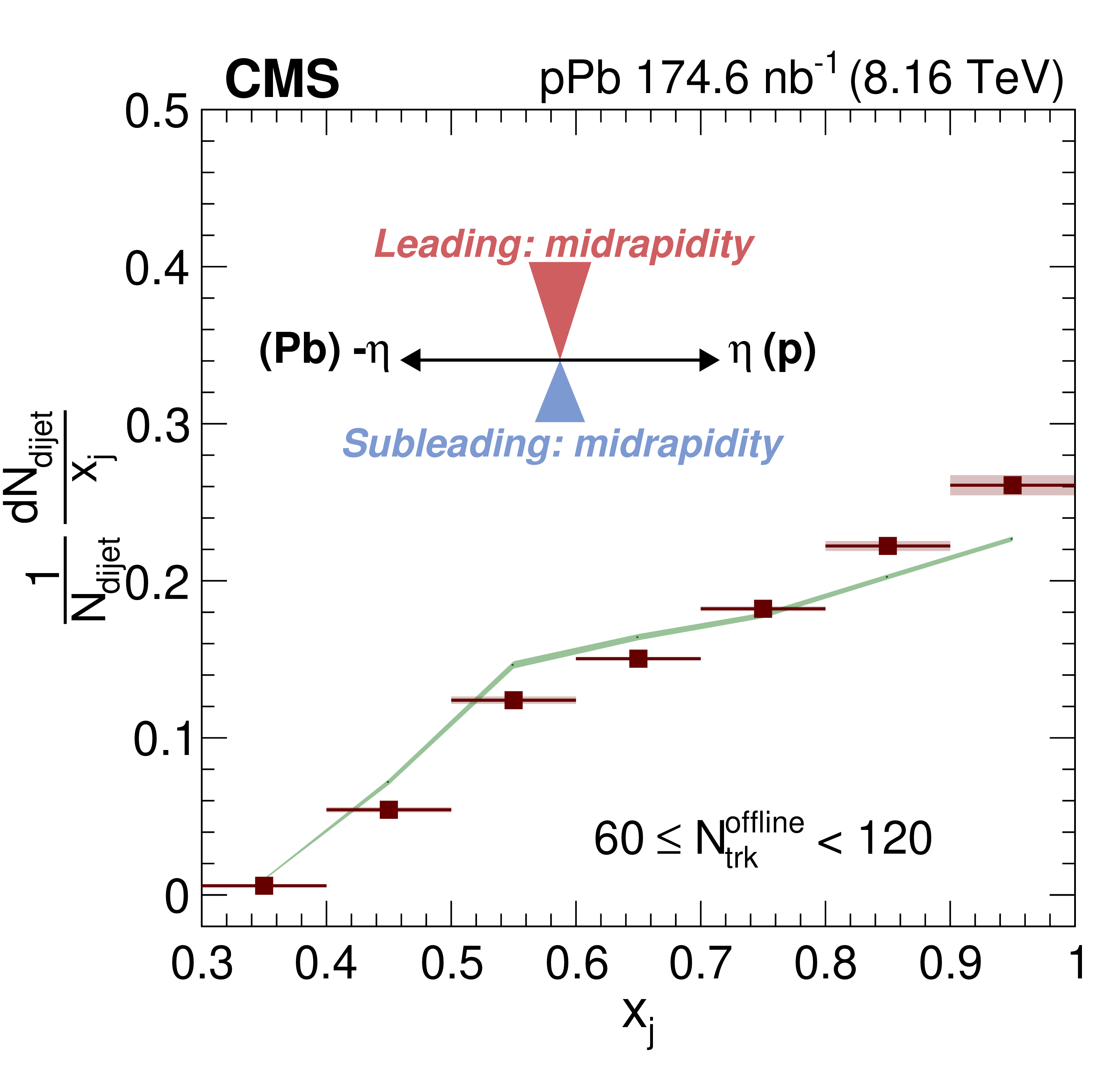

The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

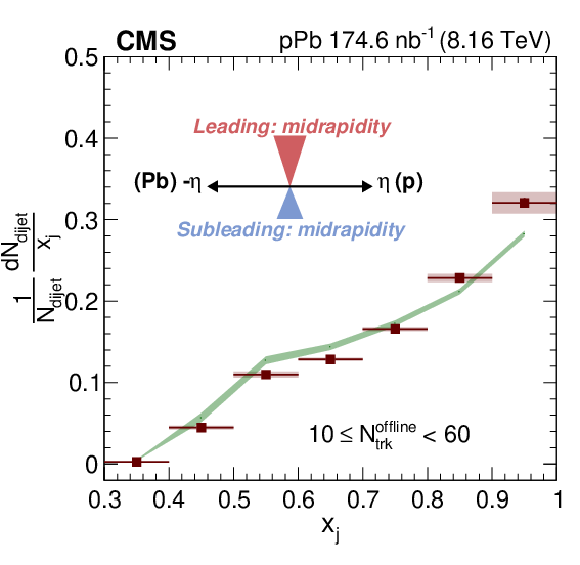

Figure A1-b:

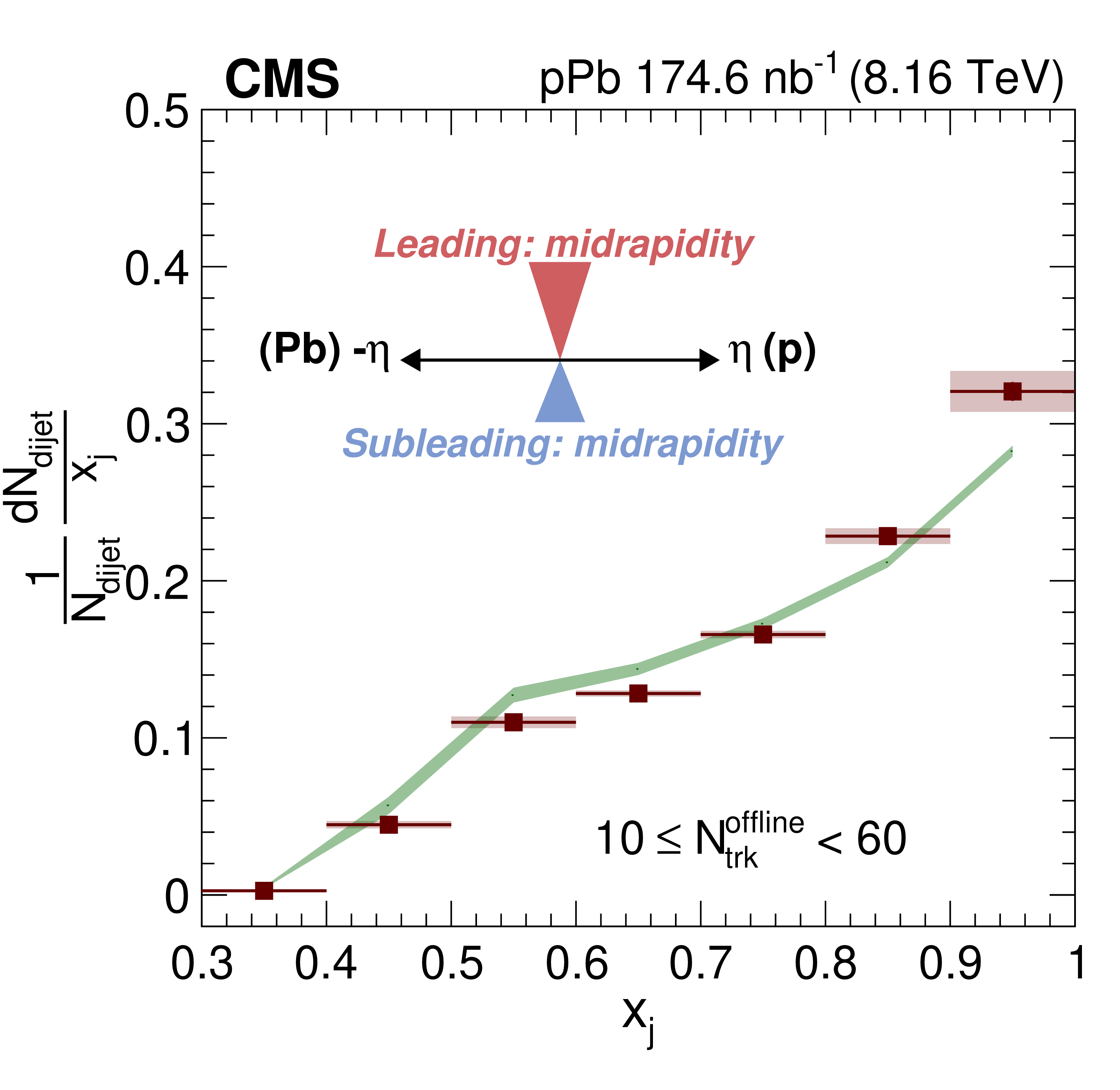

The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

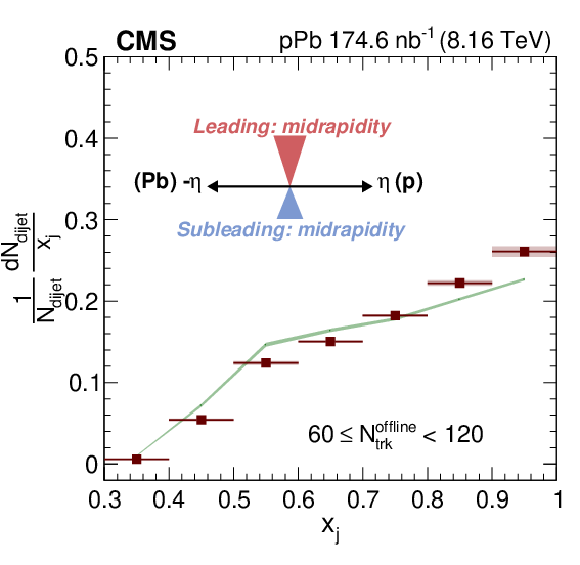

Figure A1-c:
The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A1-d:
The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A1-e:
The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

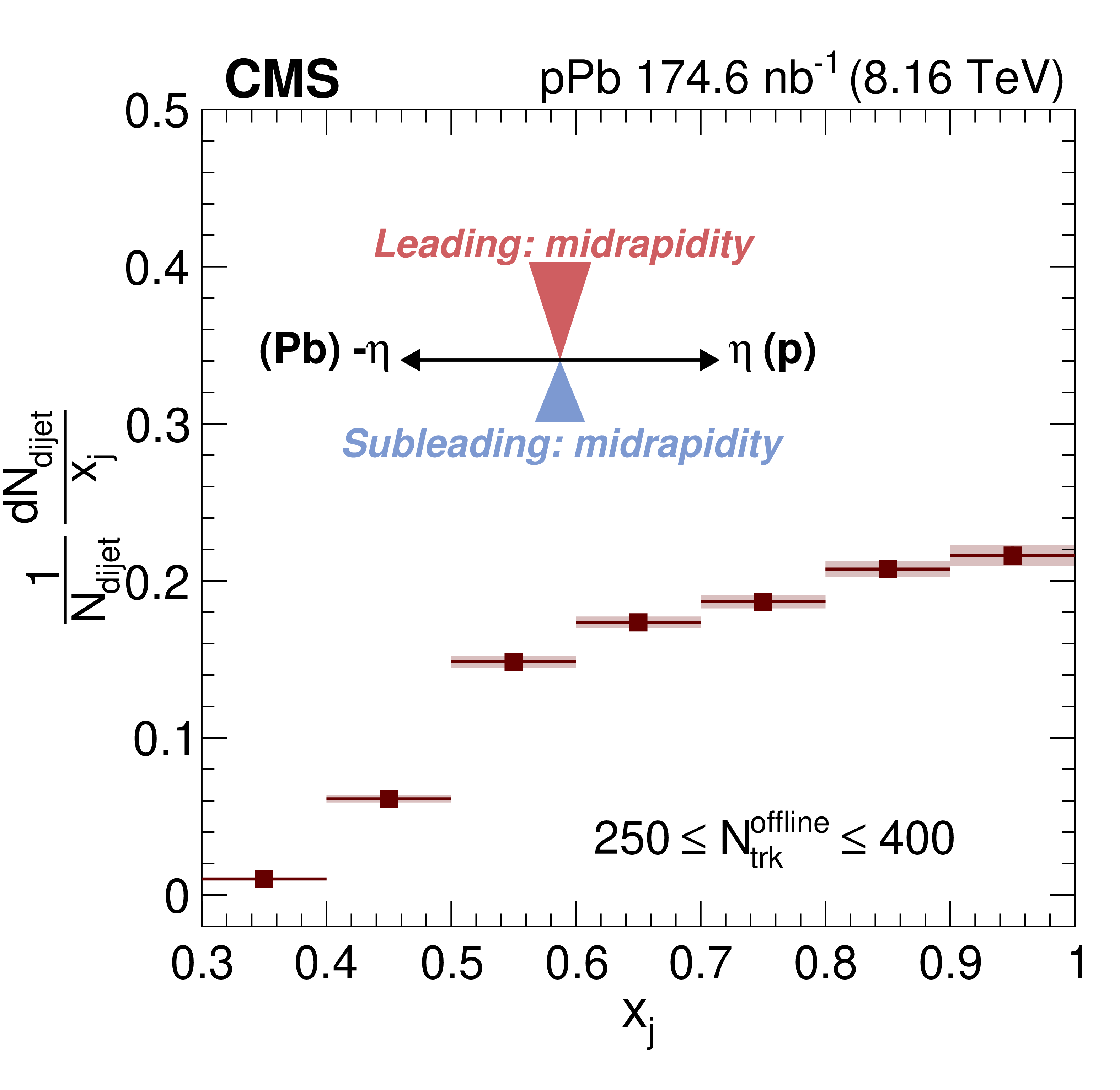

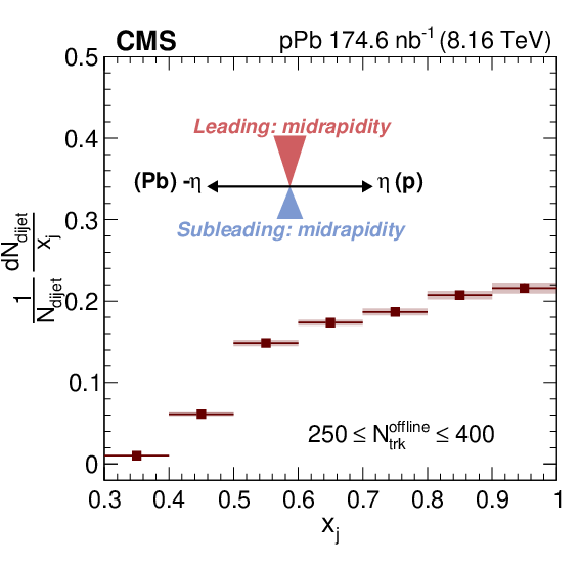

Figure A1-f:
The unfolded xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A2:

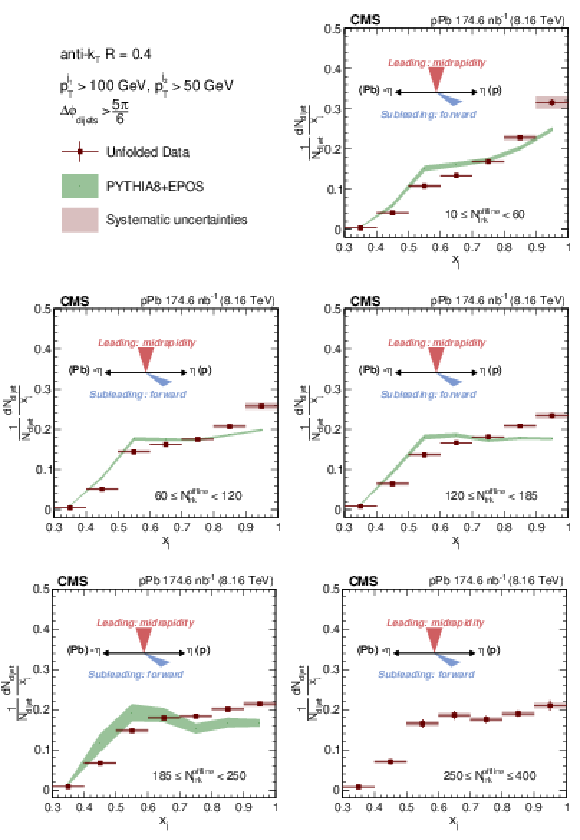

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A2-a:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

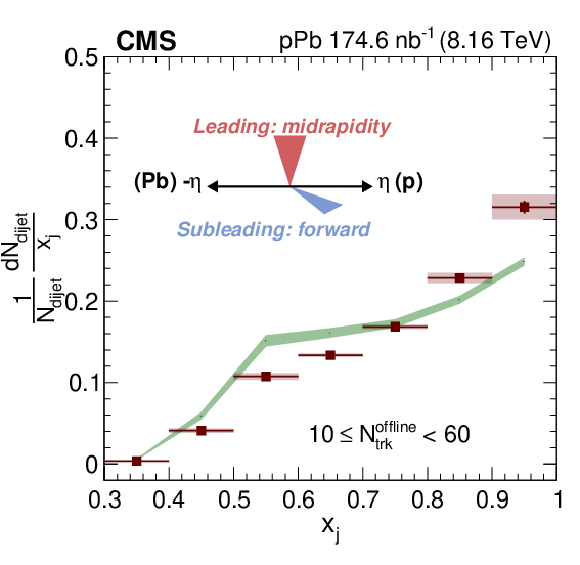

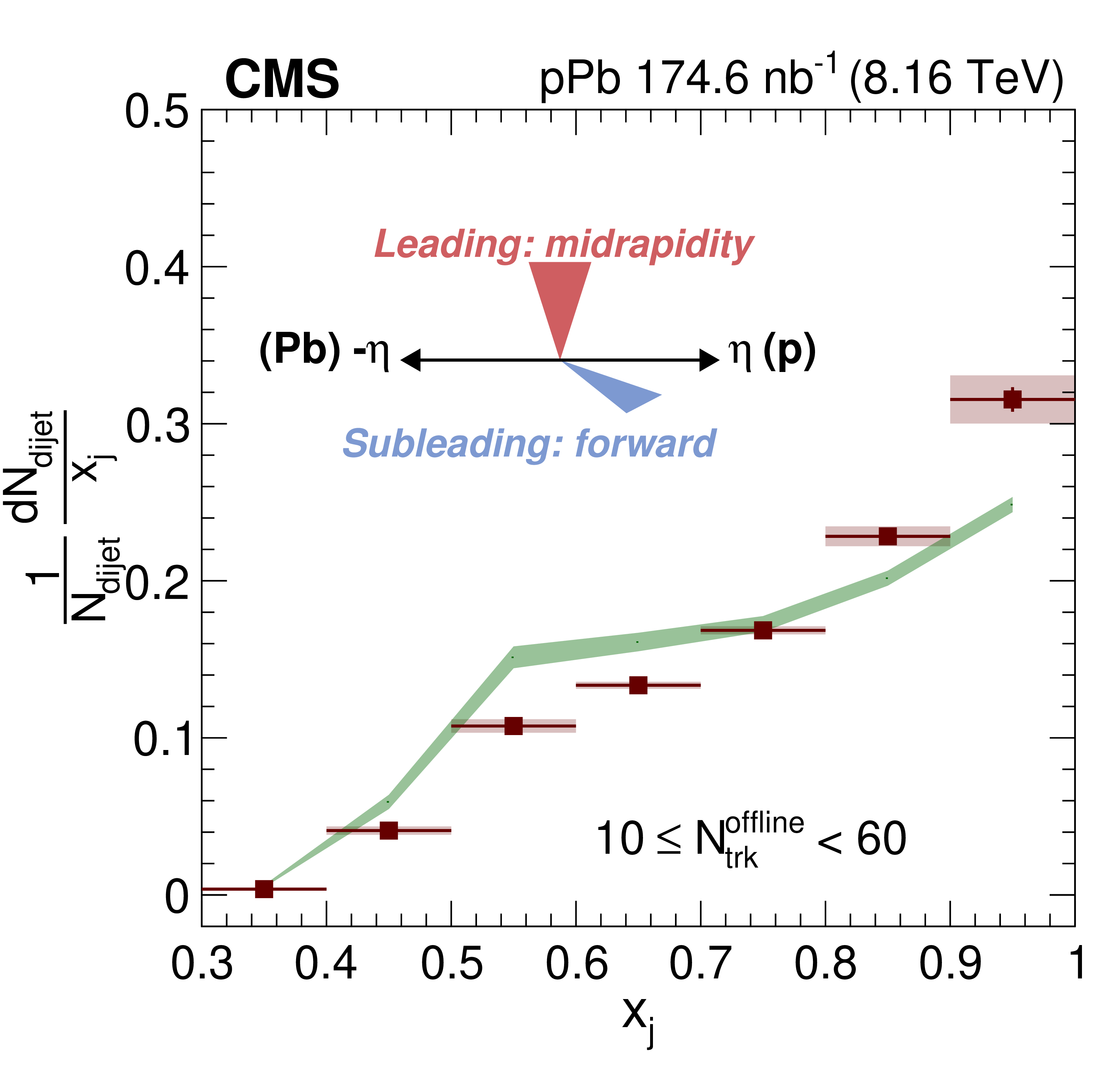

Figure A2-b:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

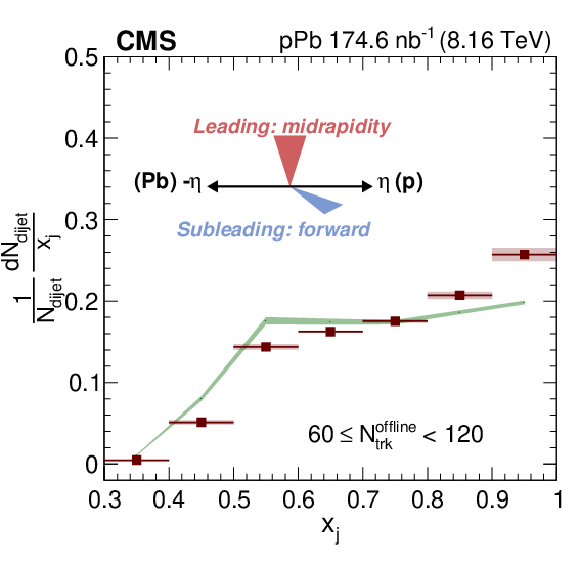

Figure A2-c:

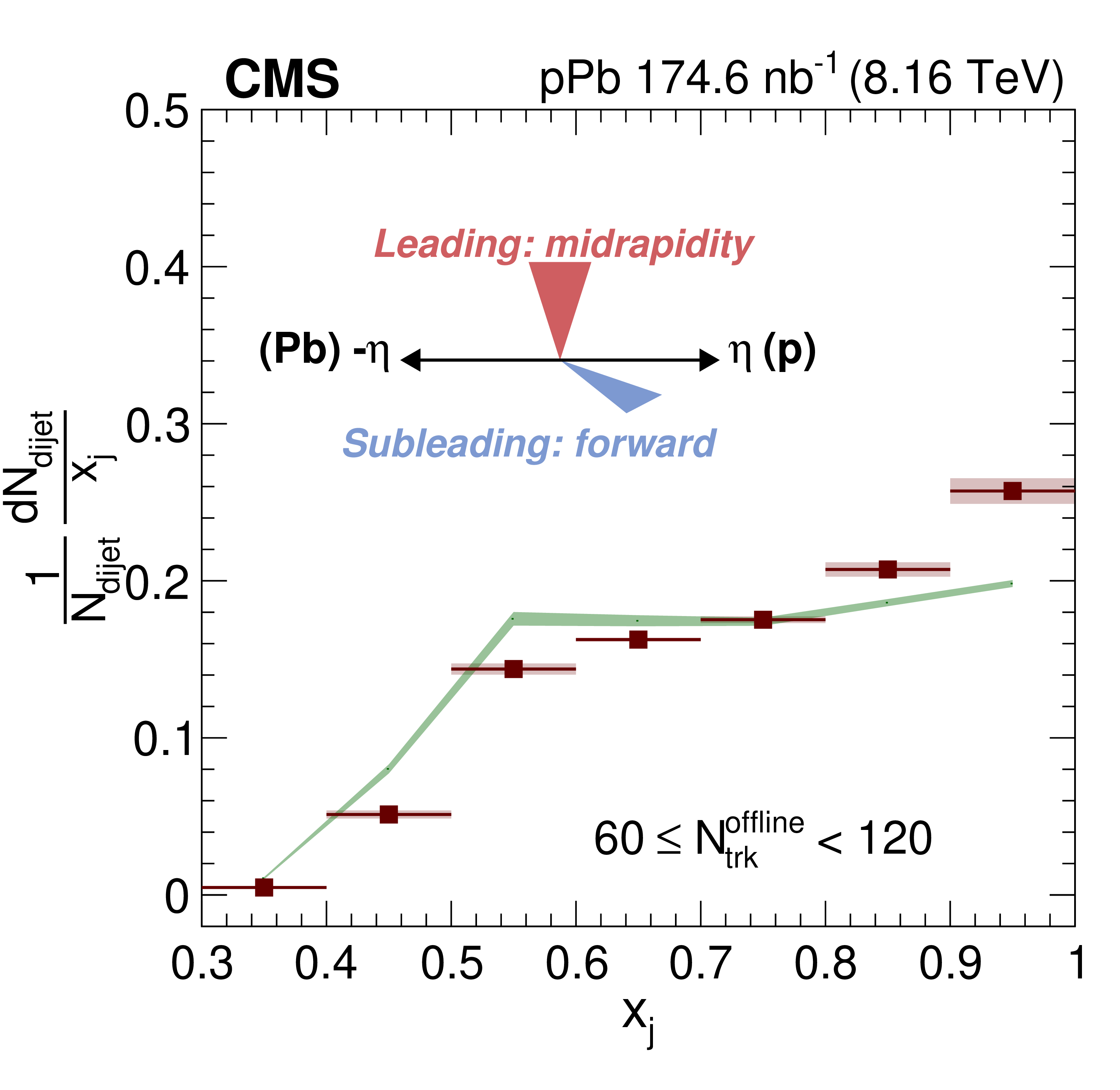

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

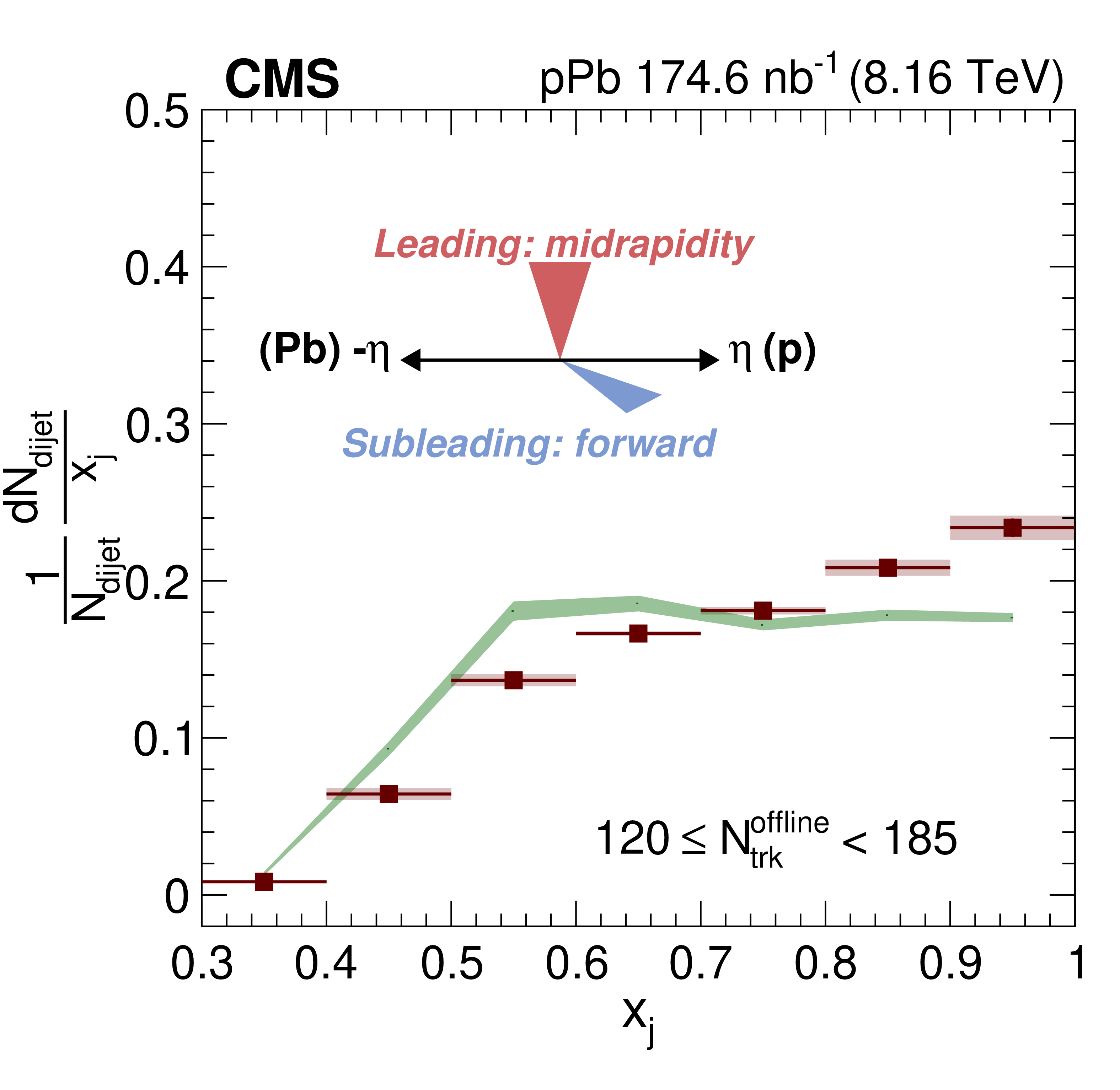

Figure A2-d:

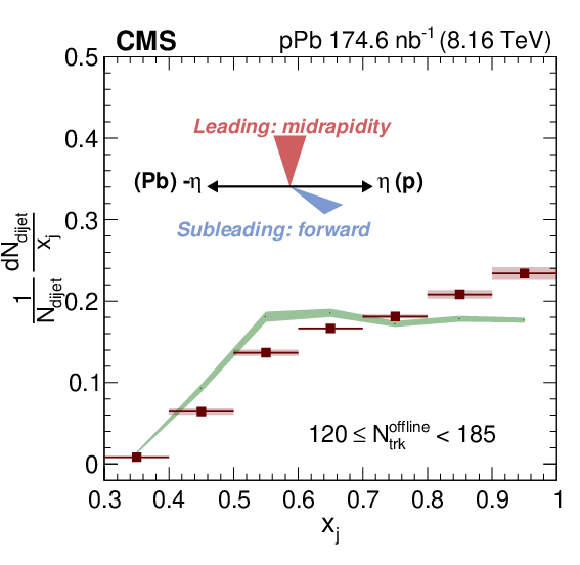

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A2-e:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

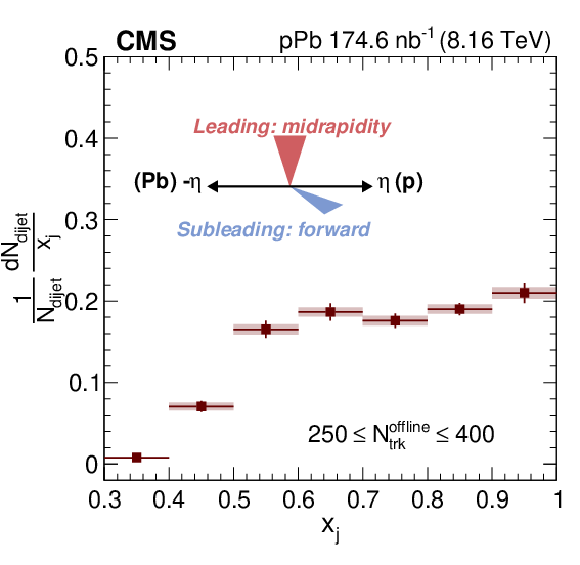

Figure A2-f:

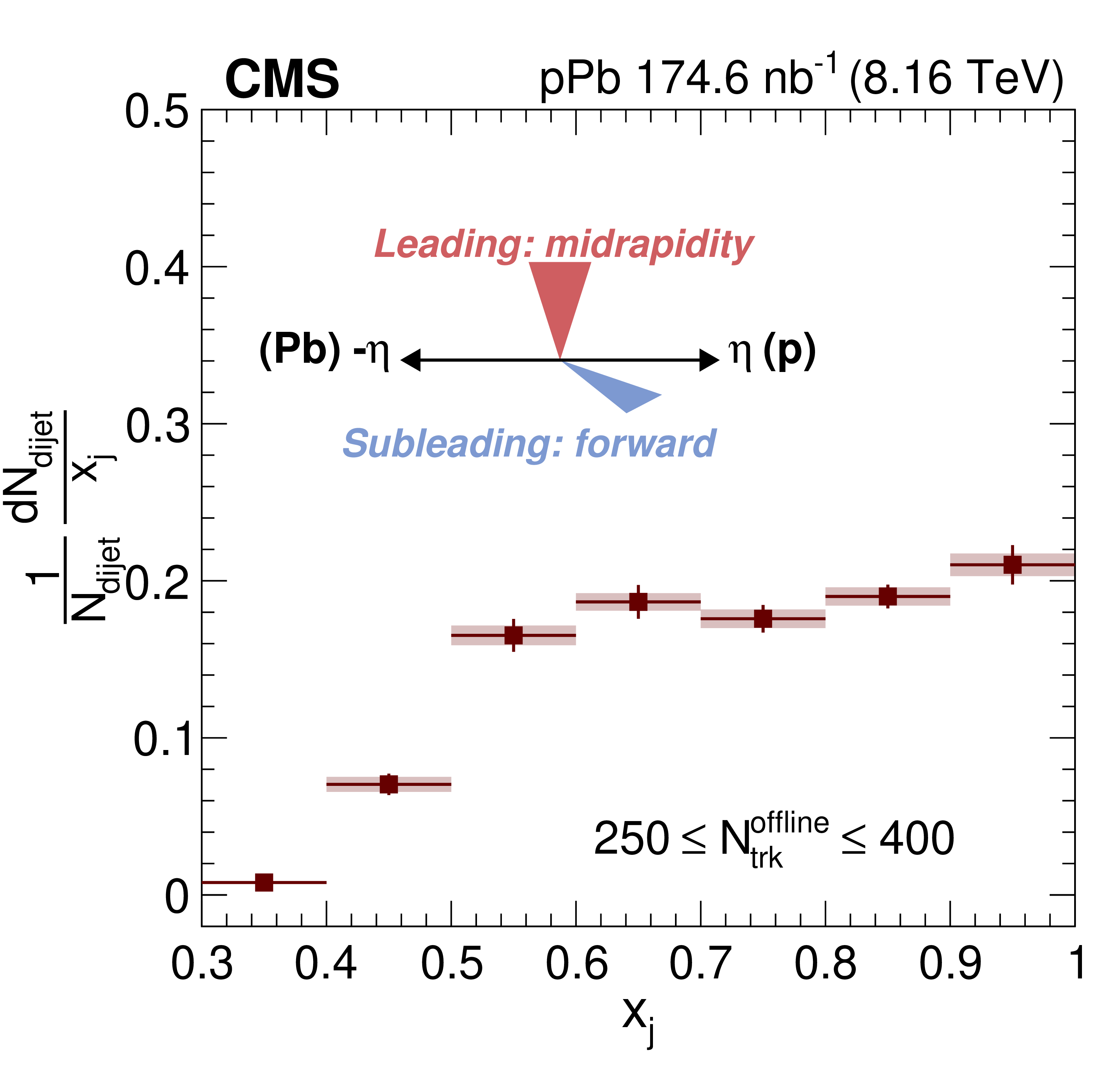

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

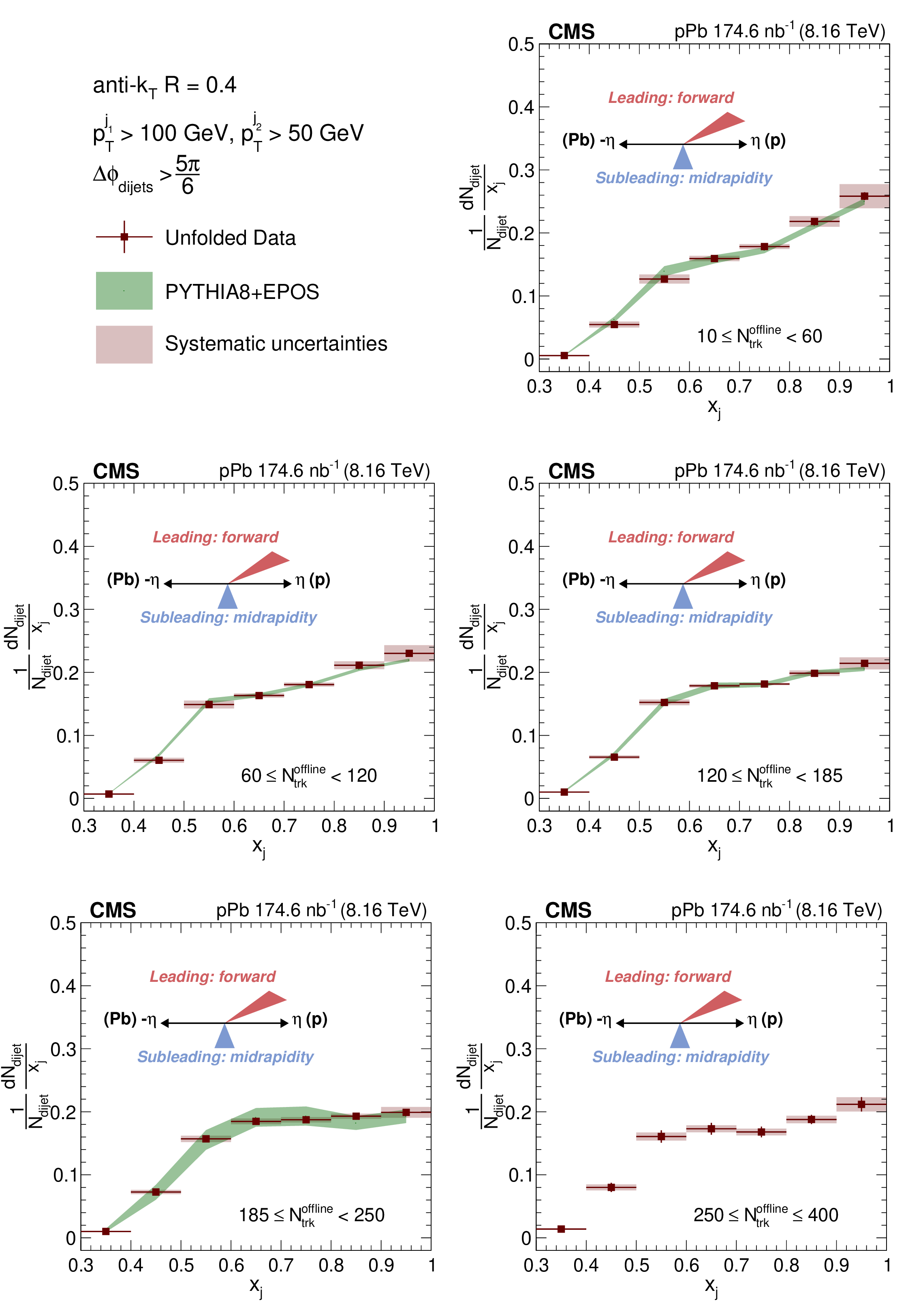

Figure A3:

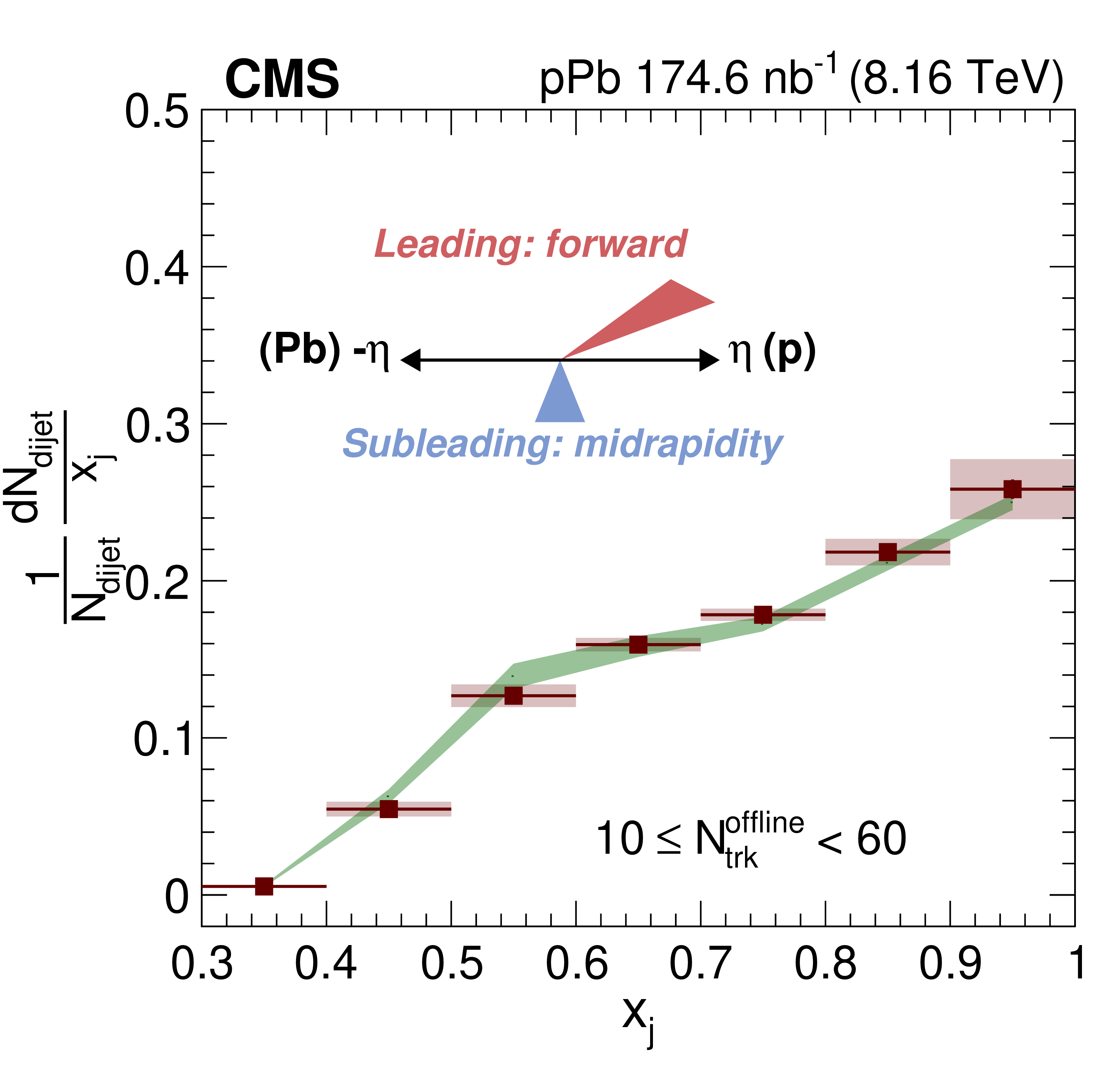

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

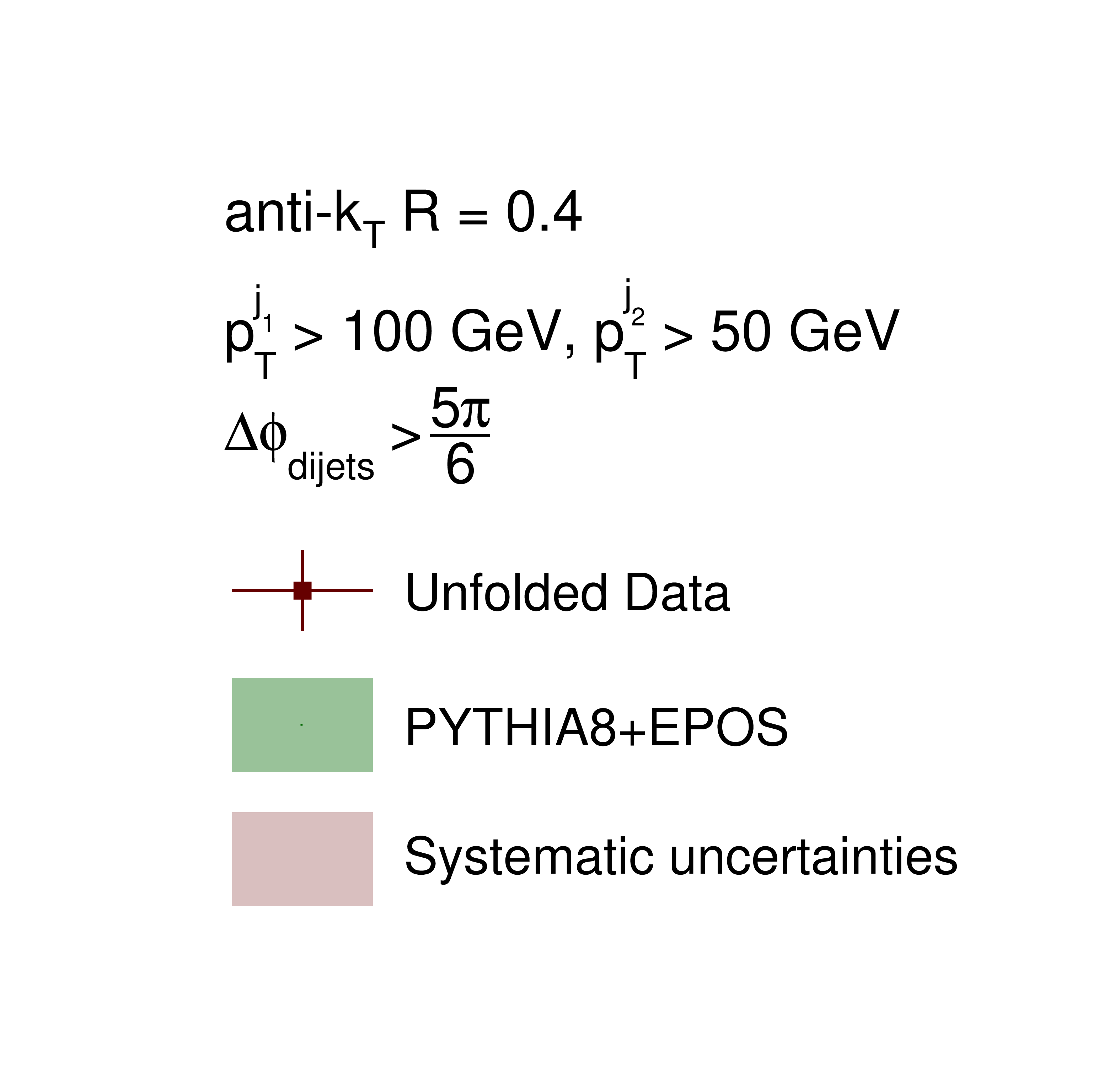

Figure A3-a:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A3-b:

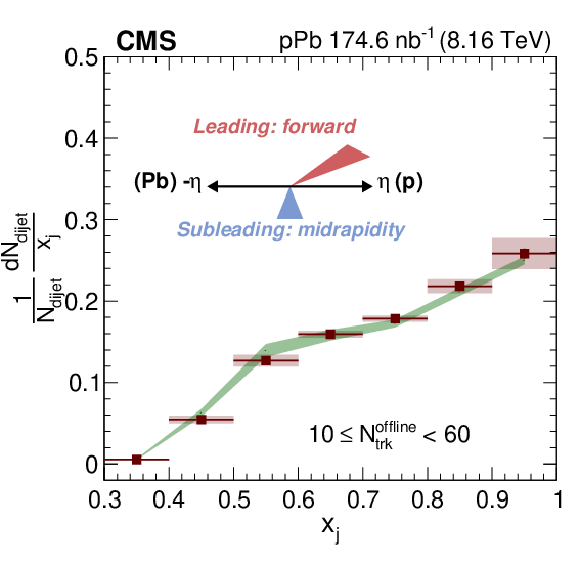

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

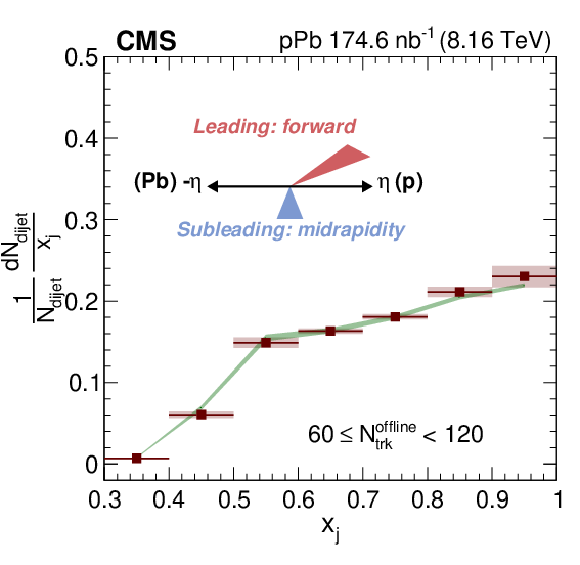

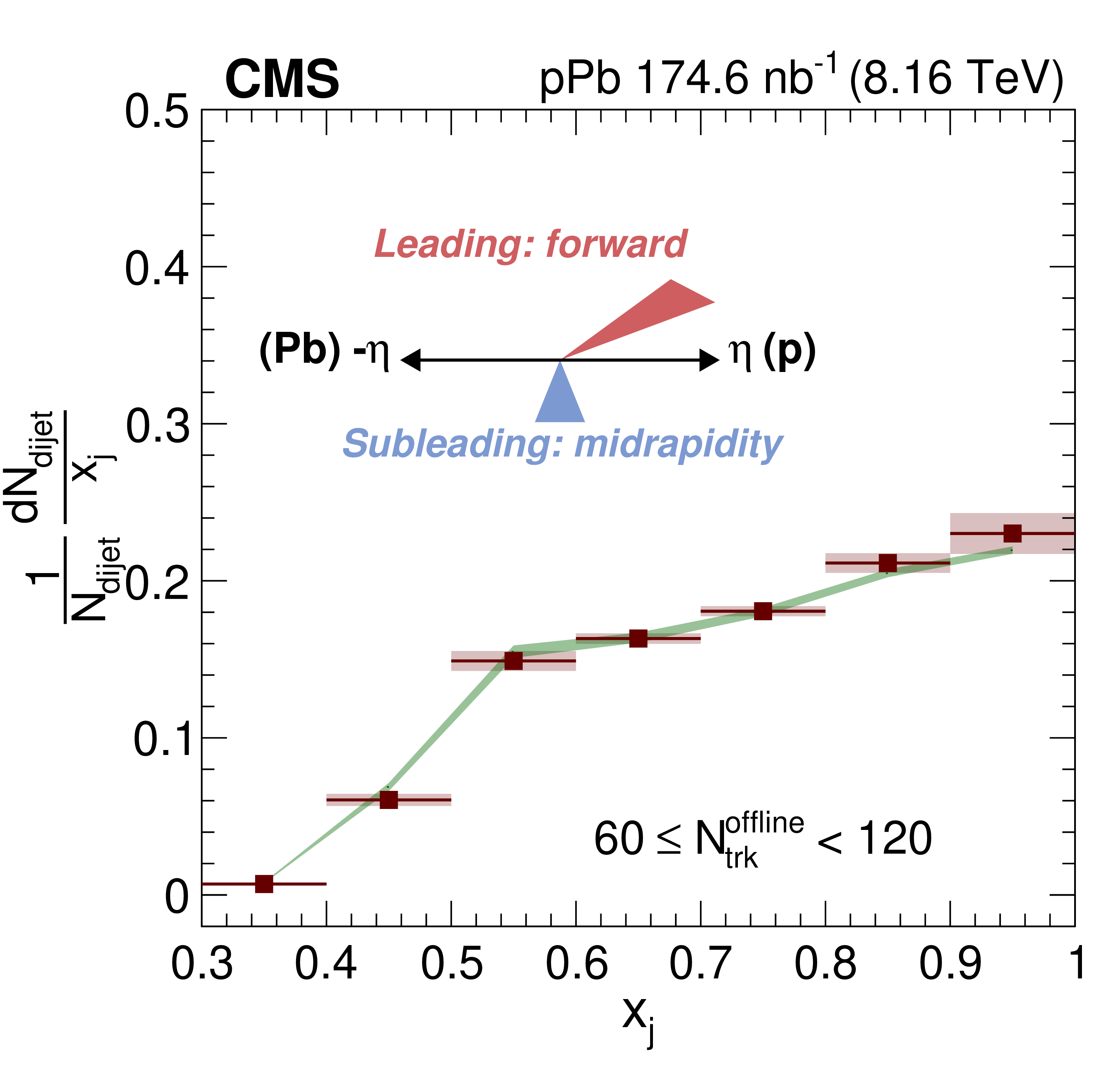

Figure A3-c:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A3-d:

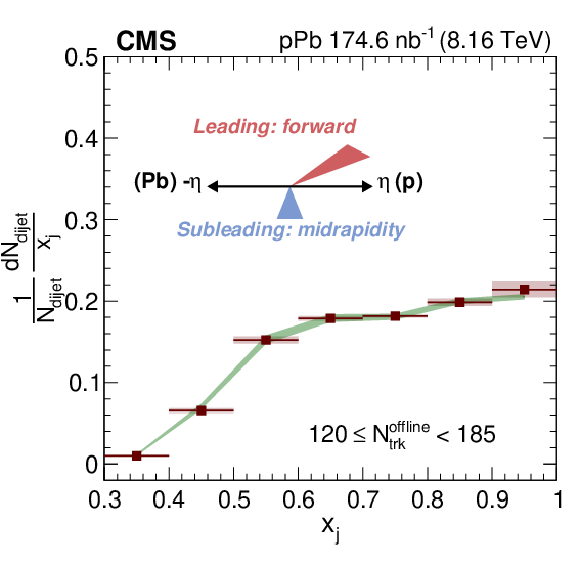

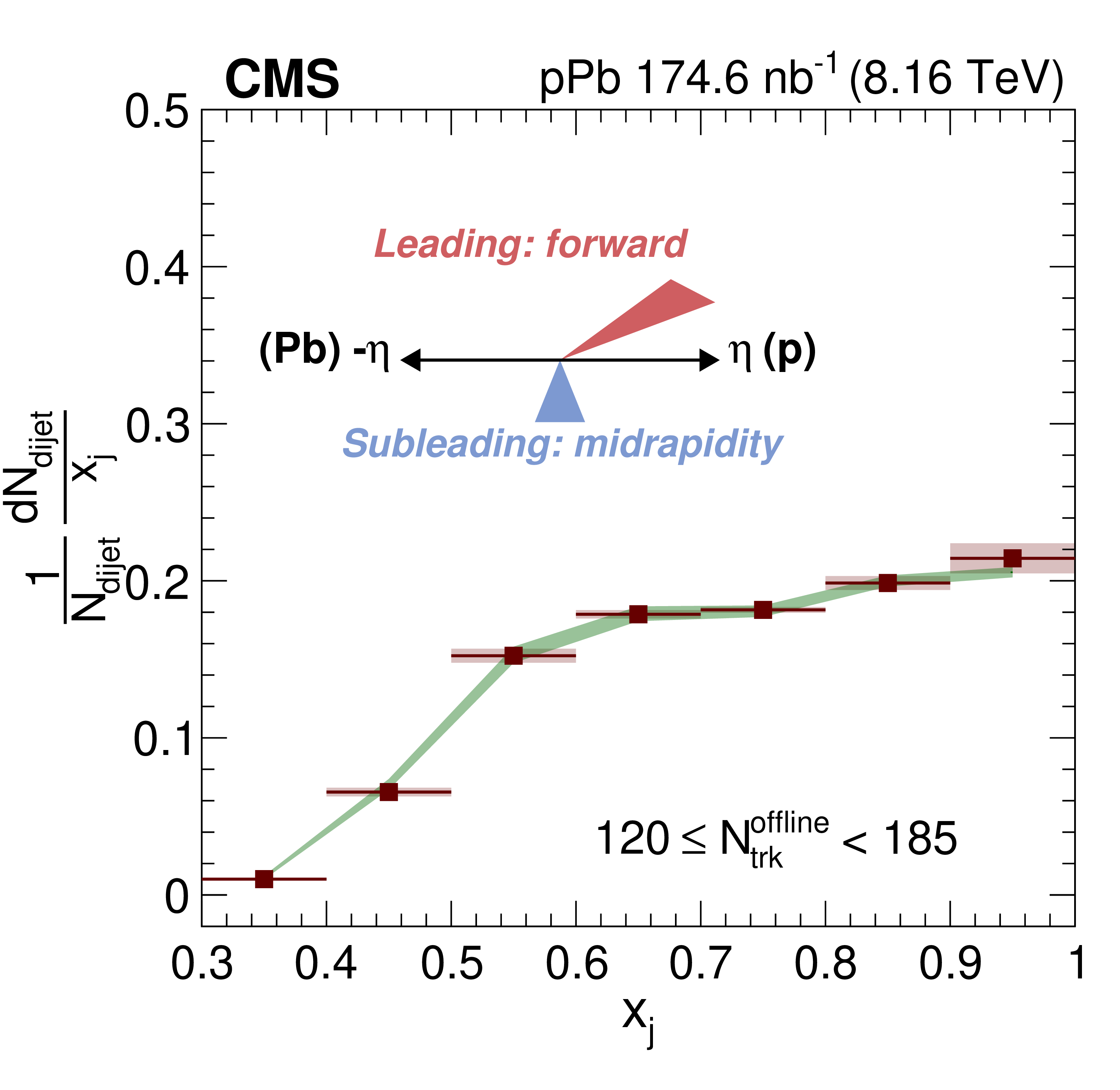

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A3-e:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

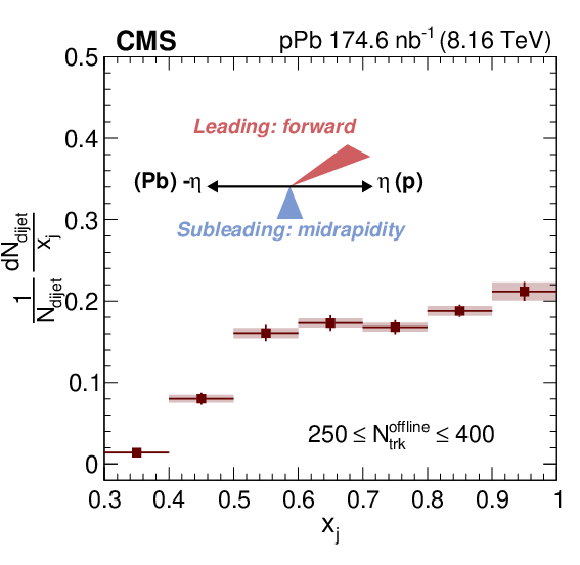

Figure A3-f:

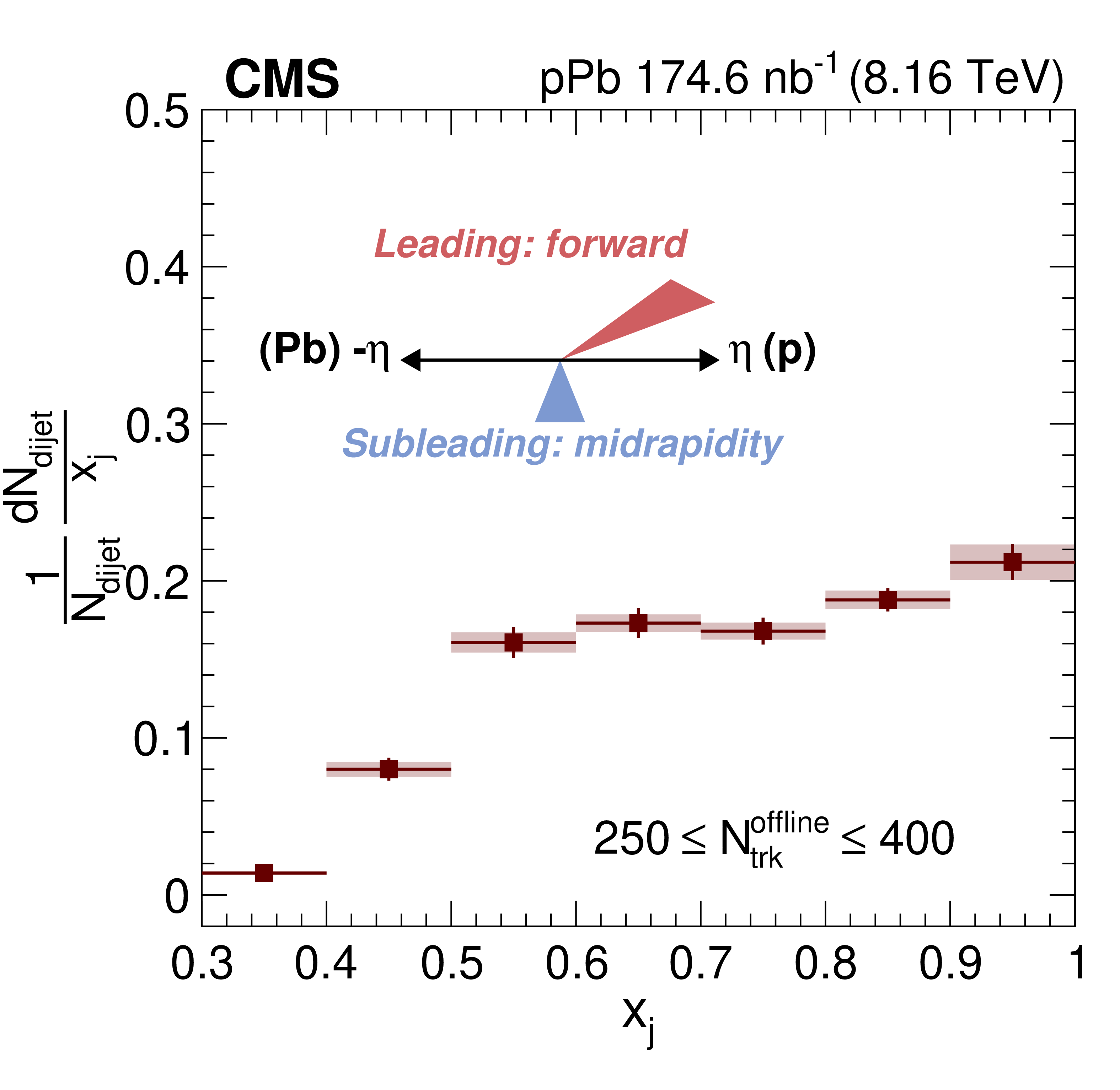

The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

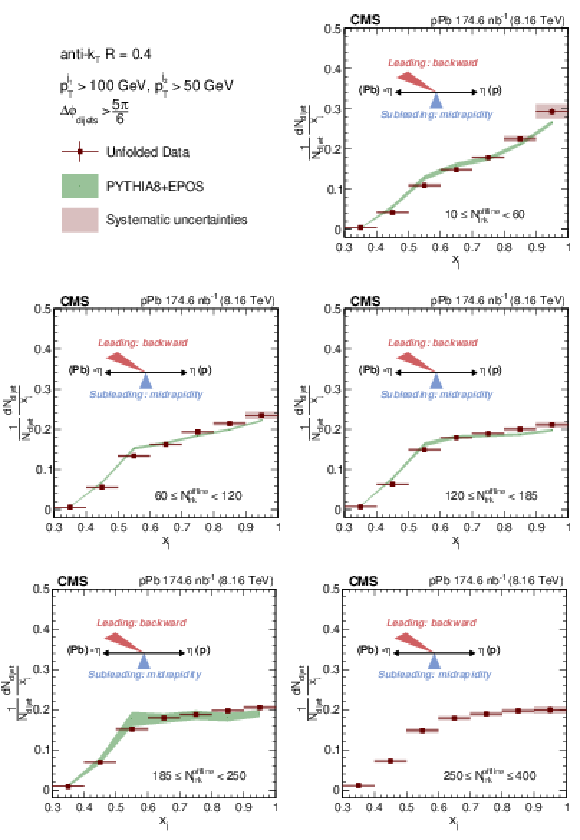

Figure A4:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A4-a:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

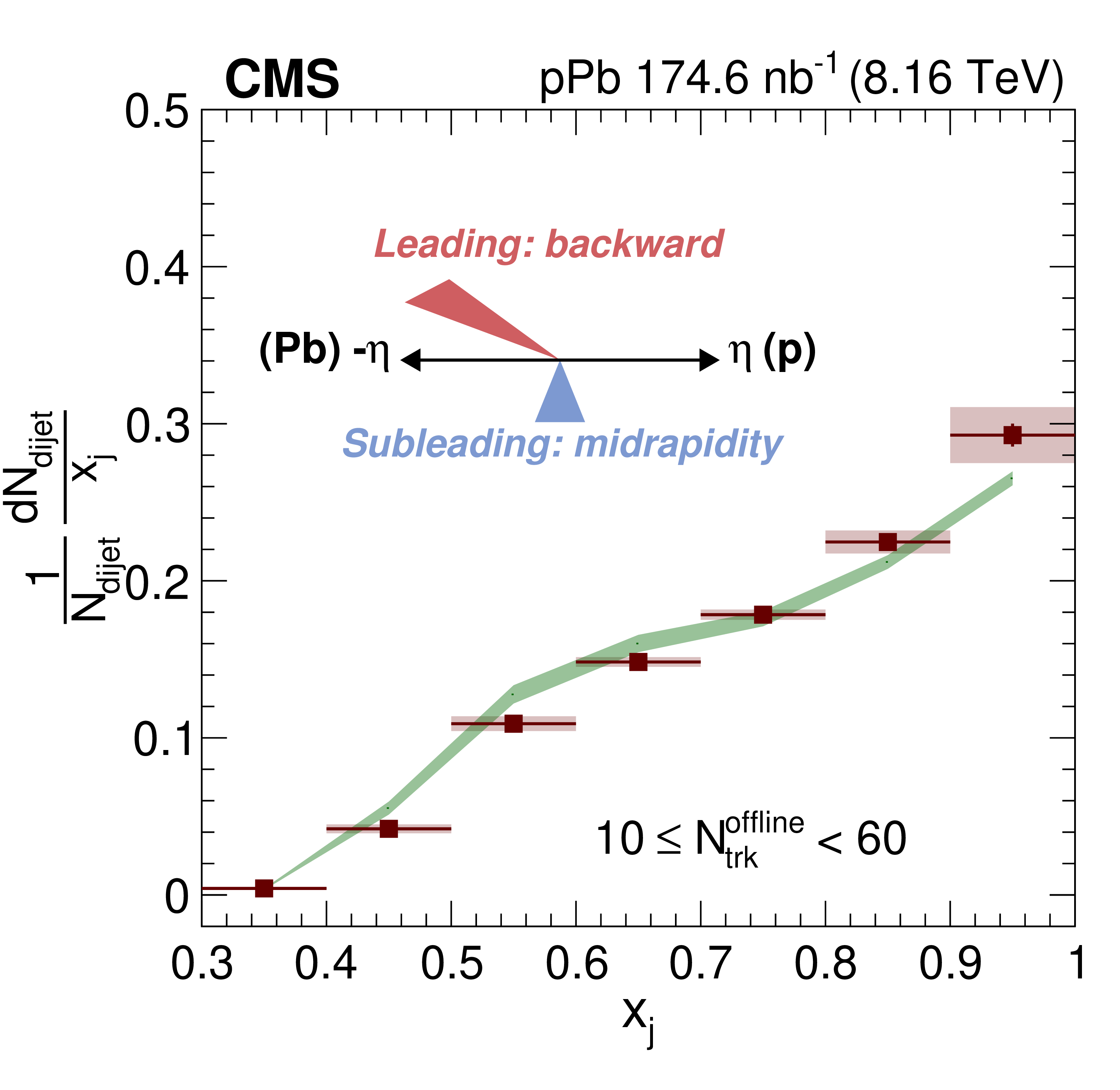

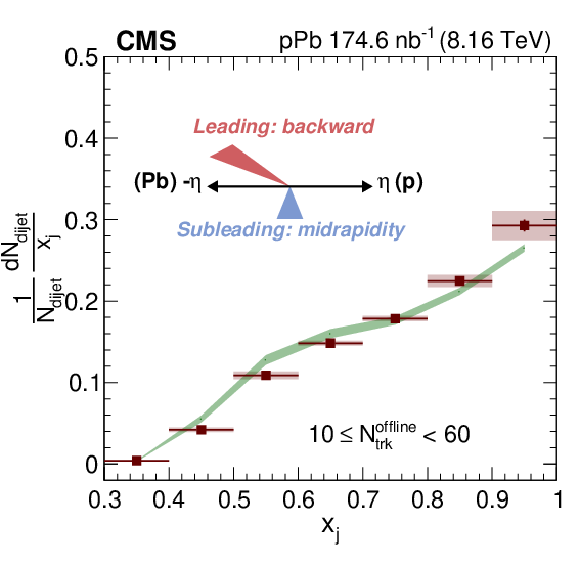

Figure A4-b:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

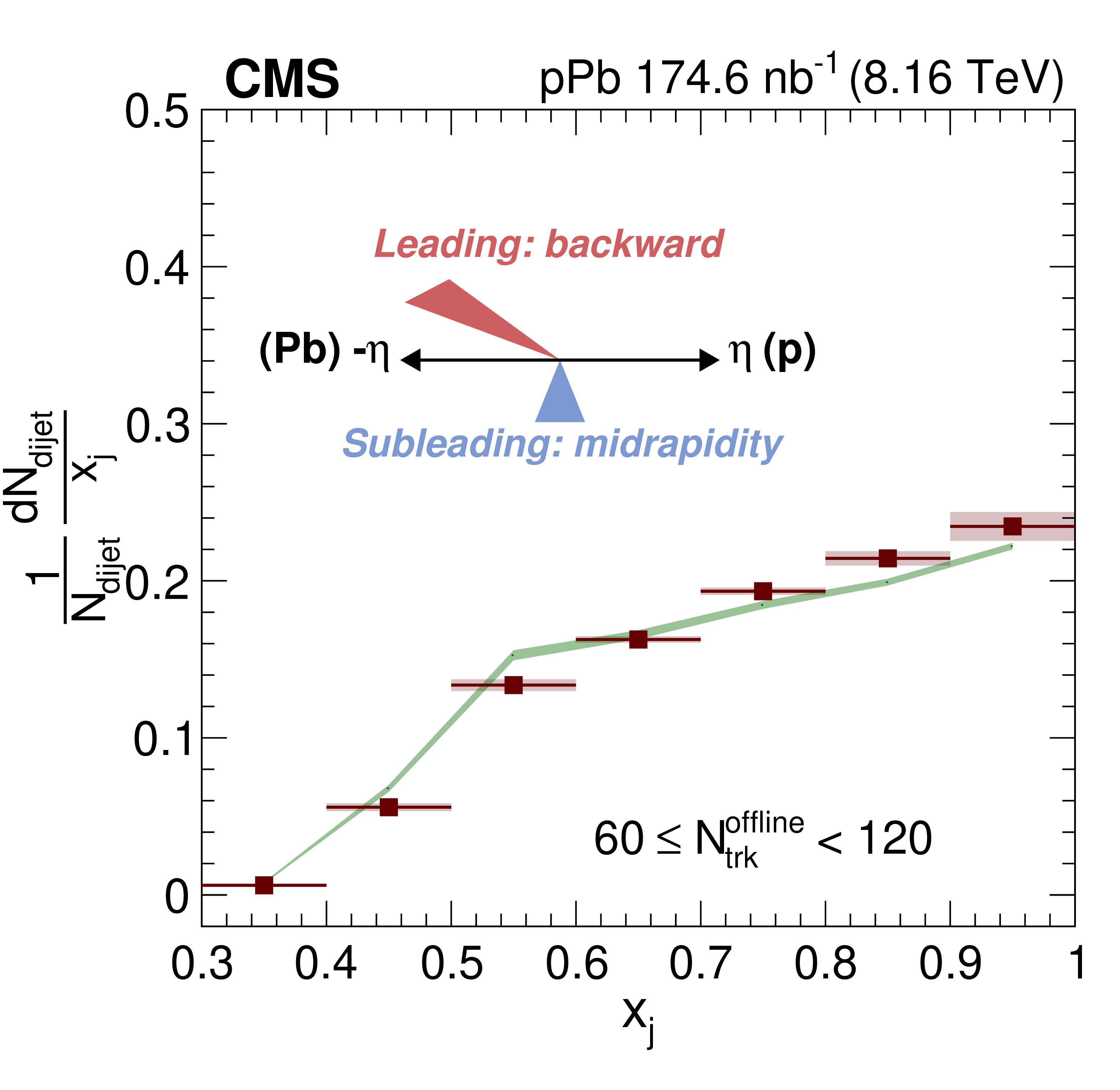

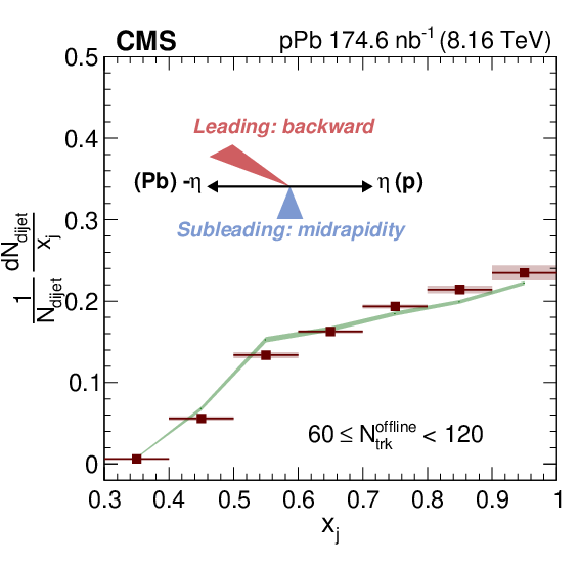

Figure A4-c:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

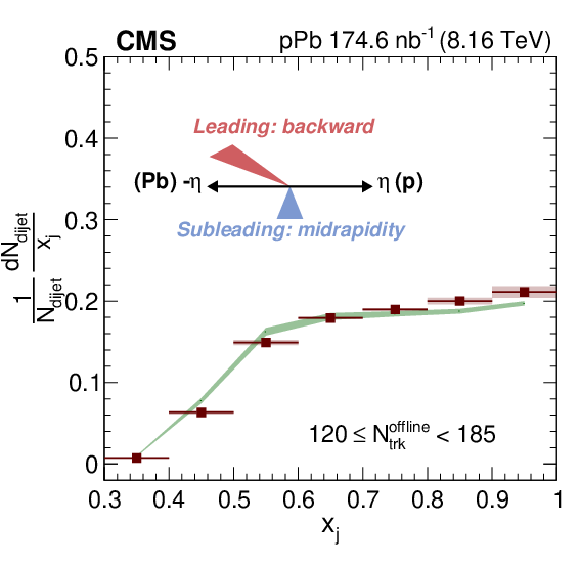

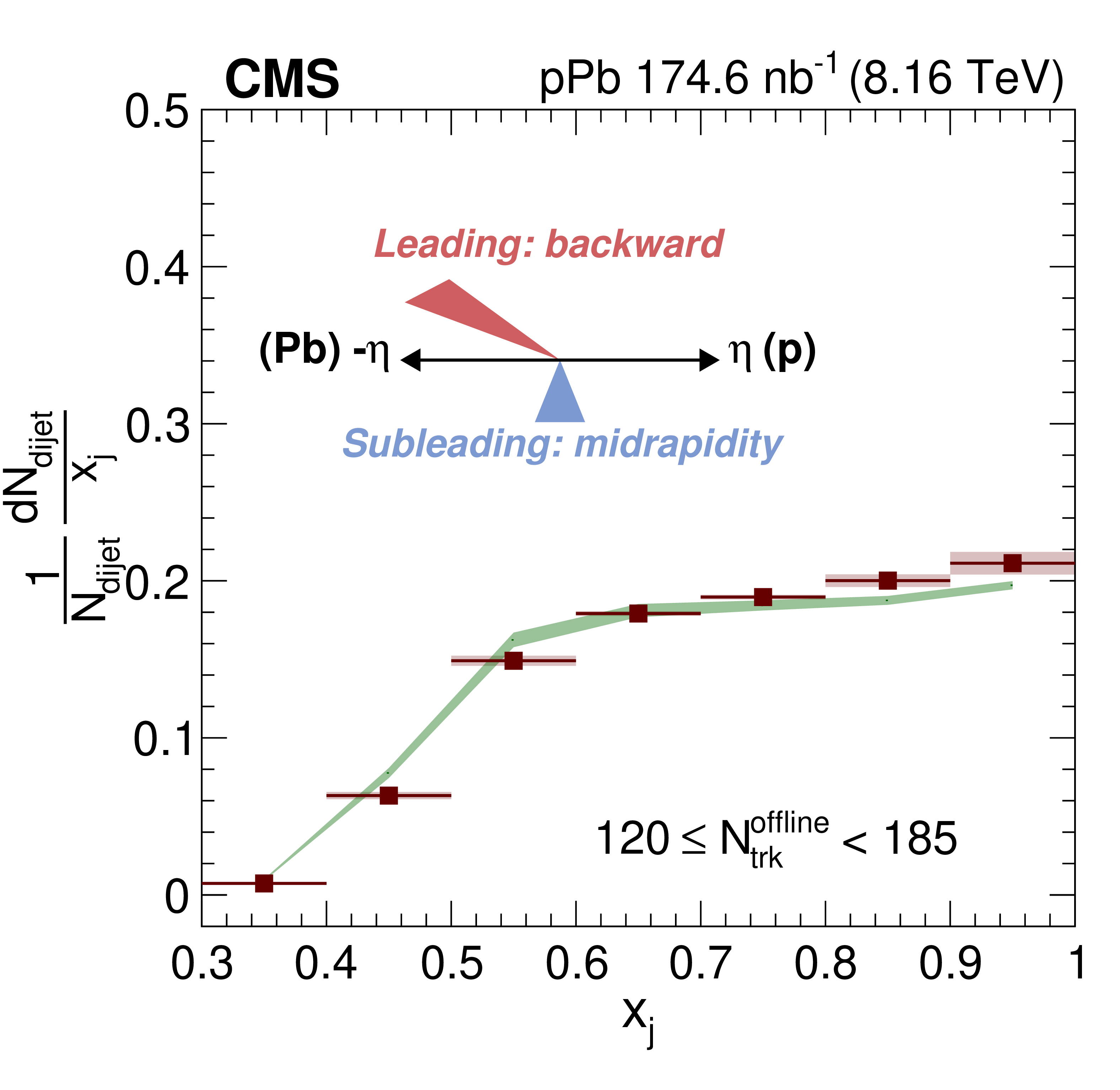

Figure A4-d:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A4-e:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A4-f:
The unfolded xj distributions, from lower to higher multiplicities, and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A5:

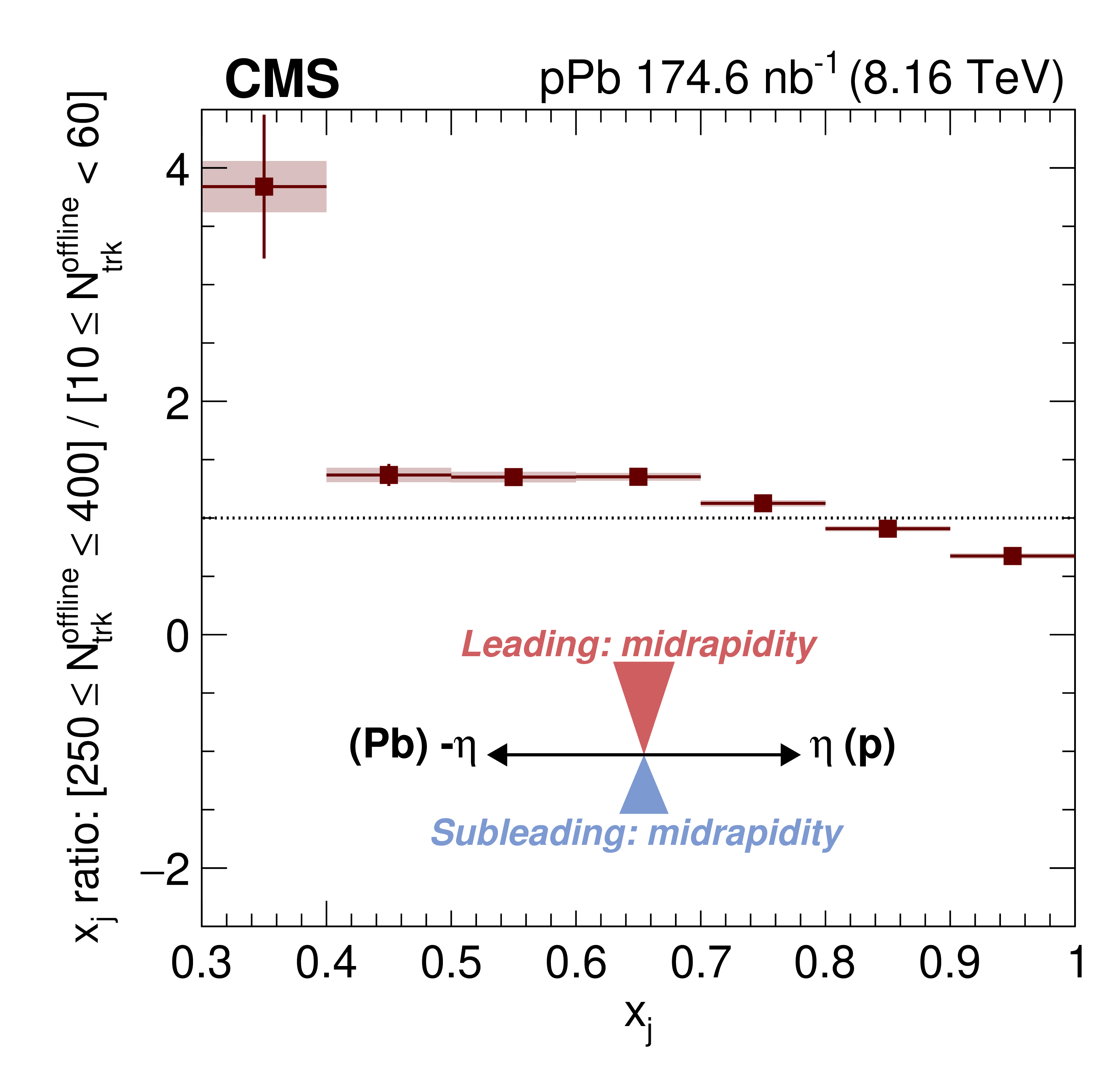

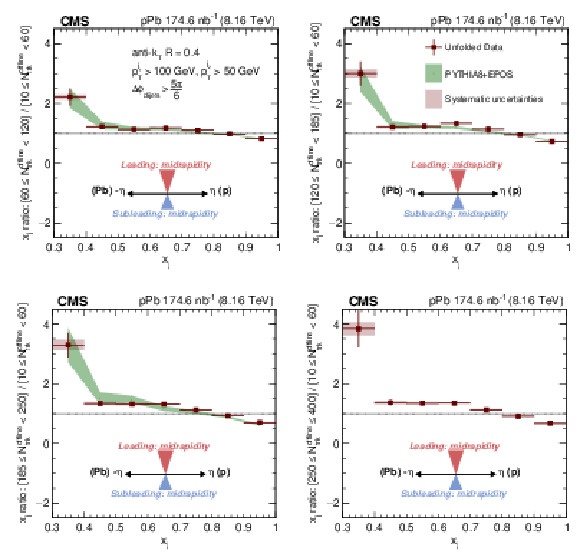

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

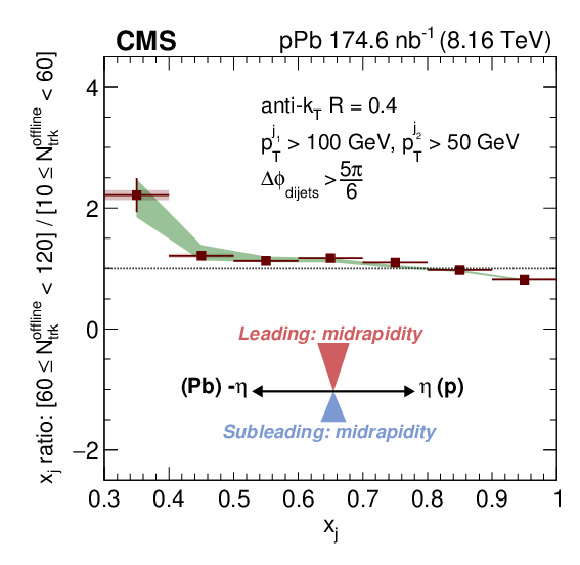

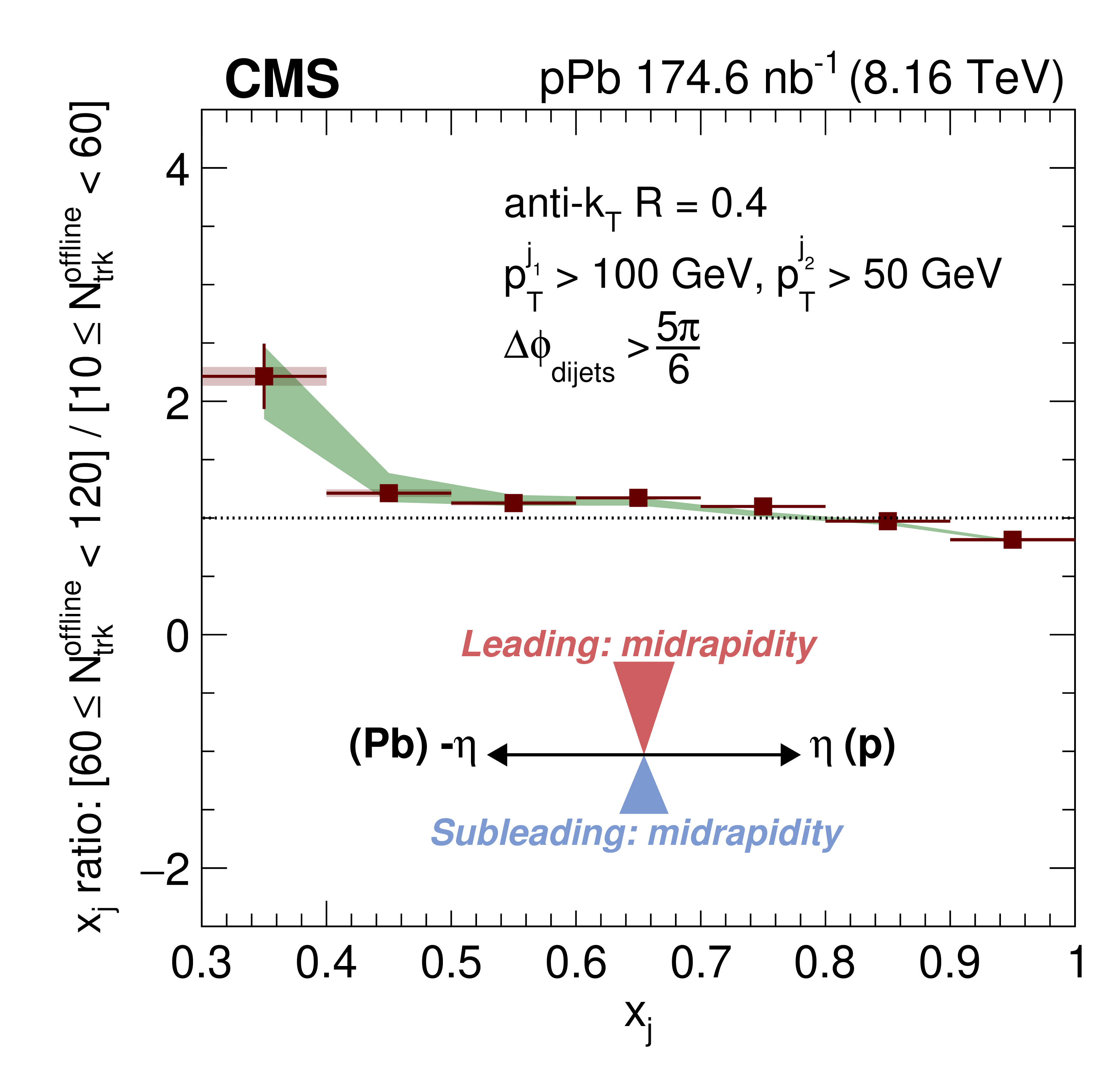

Figure A5-a:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A5-b:

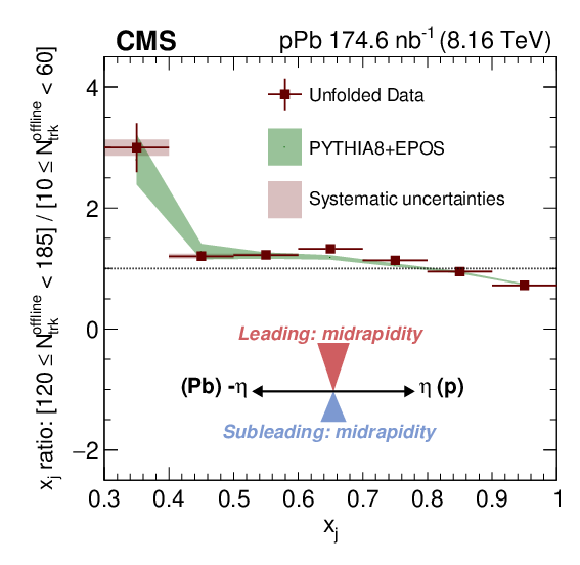

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

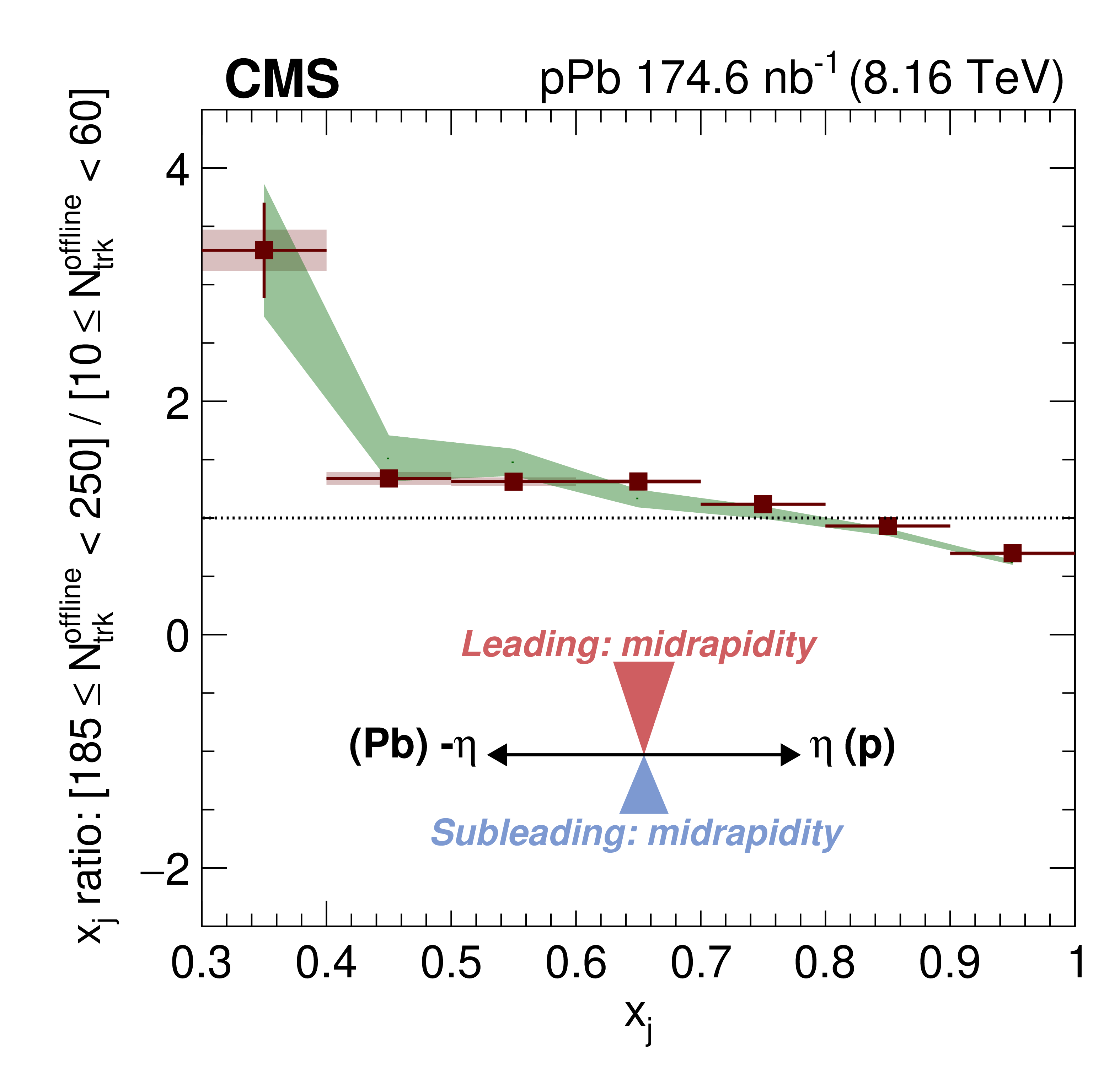

Figure A5-c:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

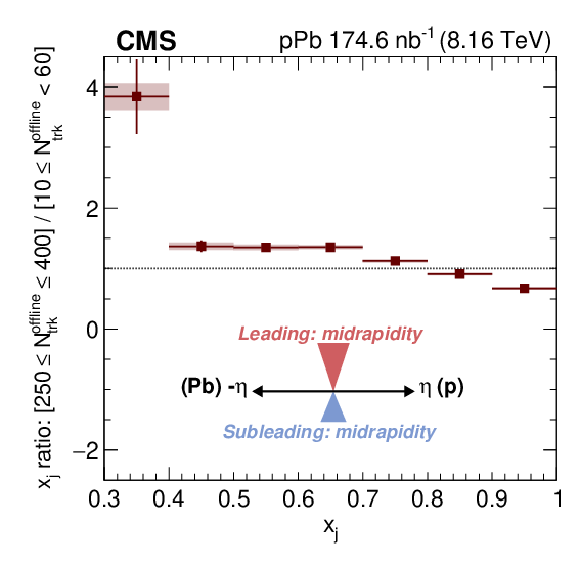

Figure A5-d:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

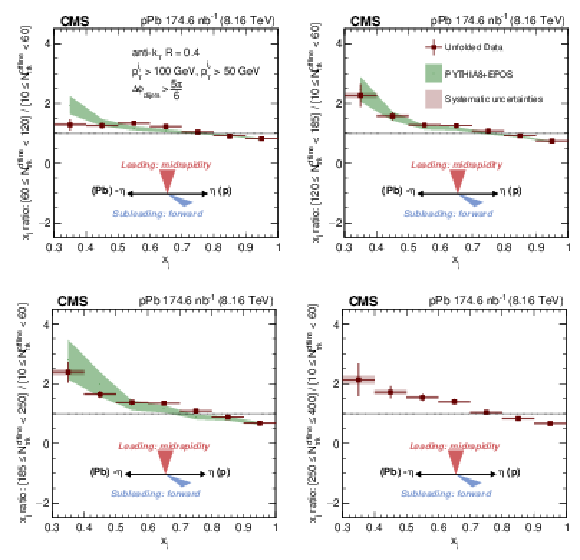

Figure A6:

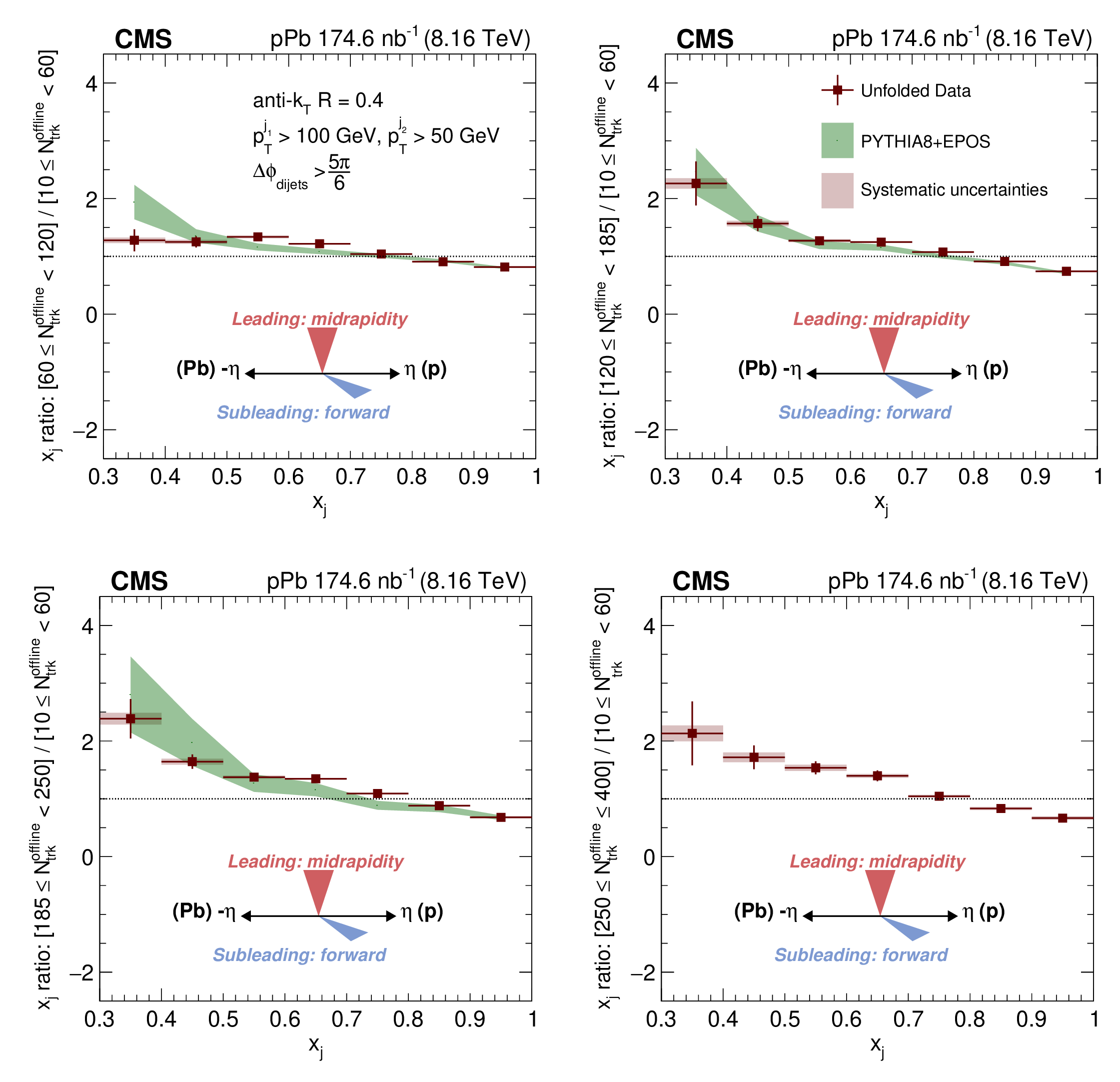

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

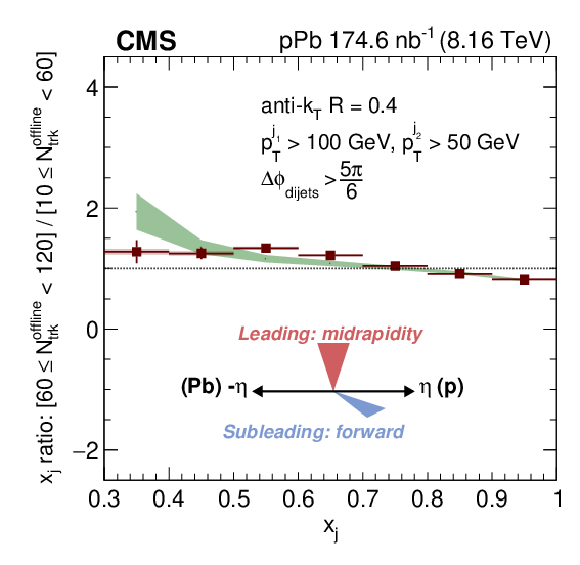

Figure A6-a:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A6-b:

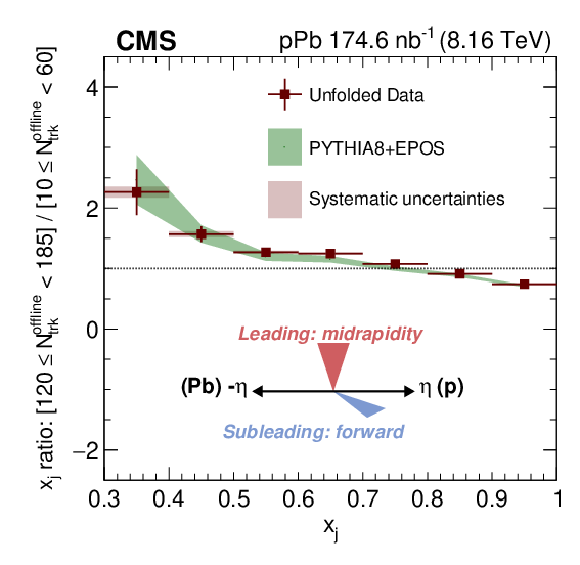

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A6-c:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

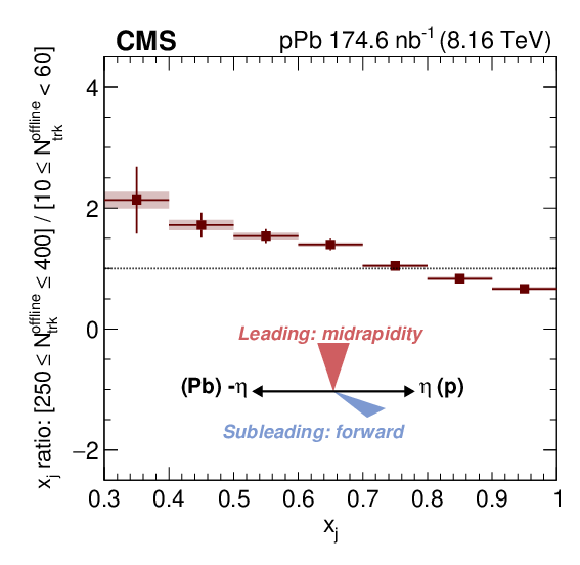

Figure A6-d:

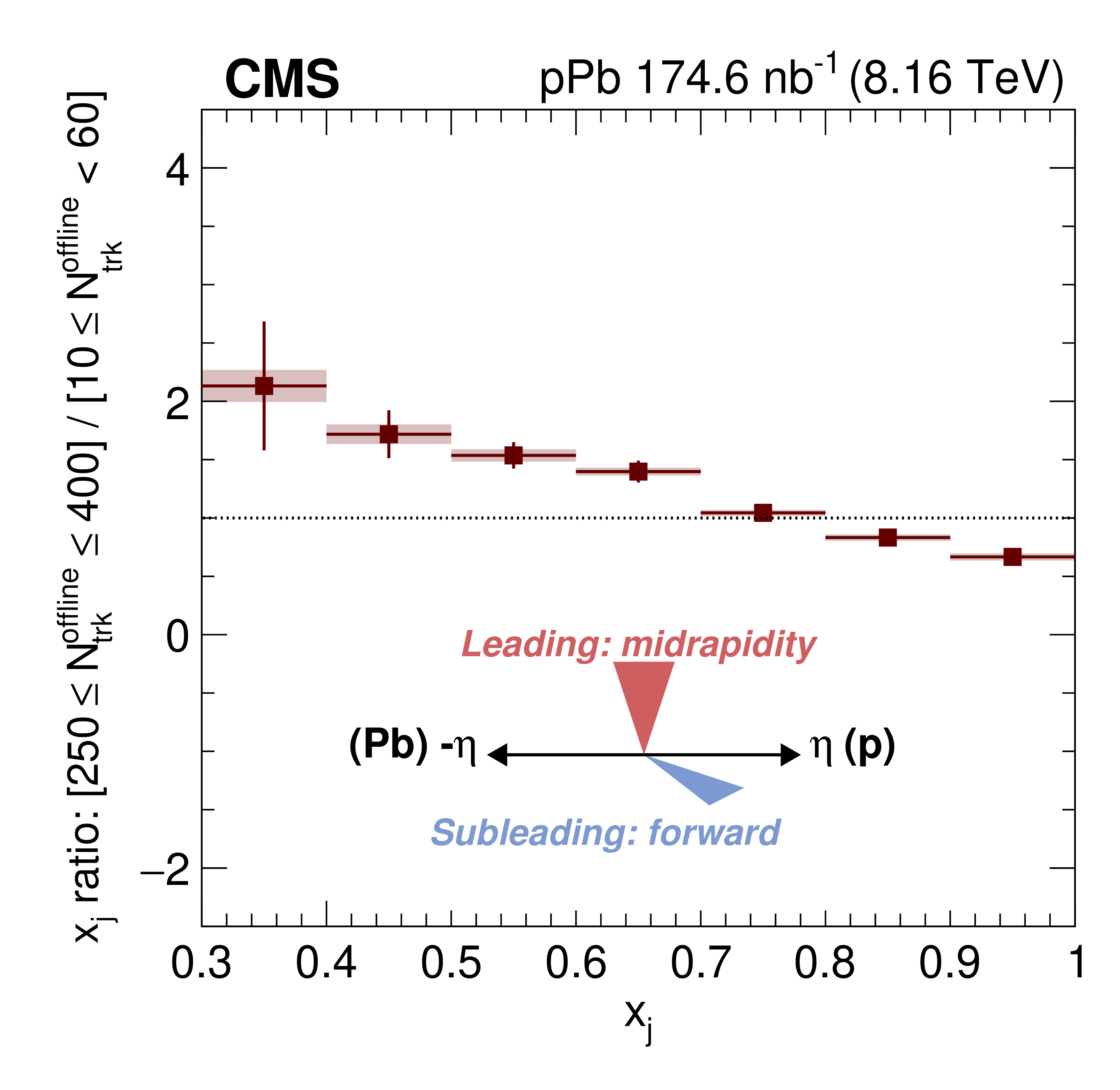

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

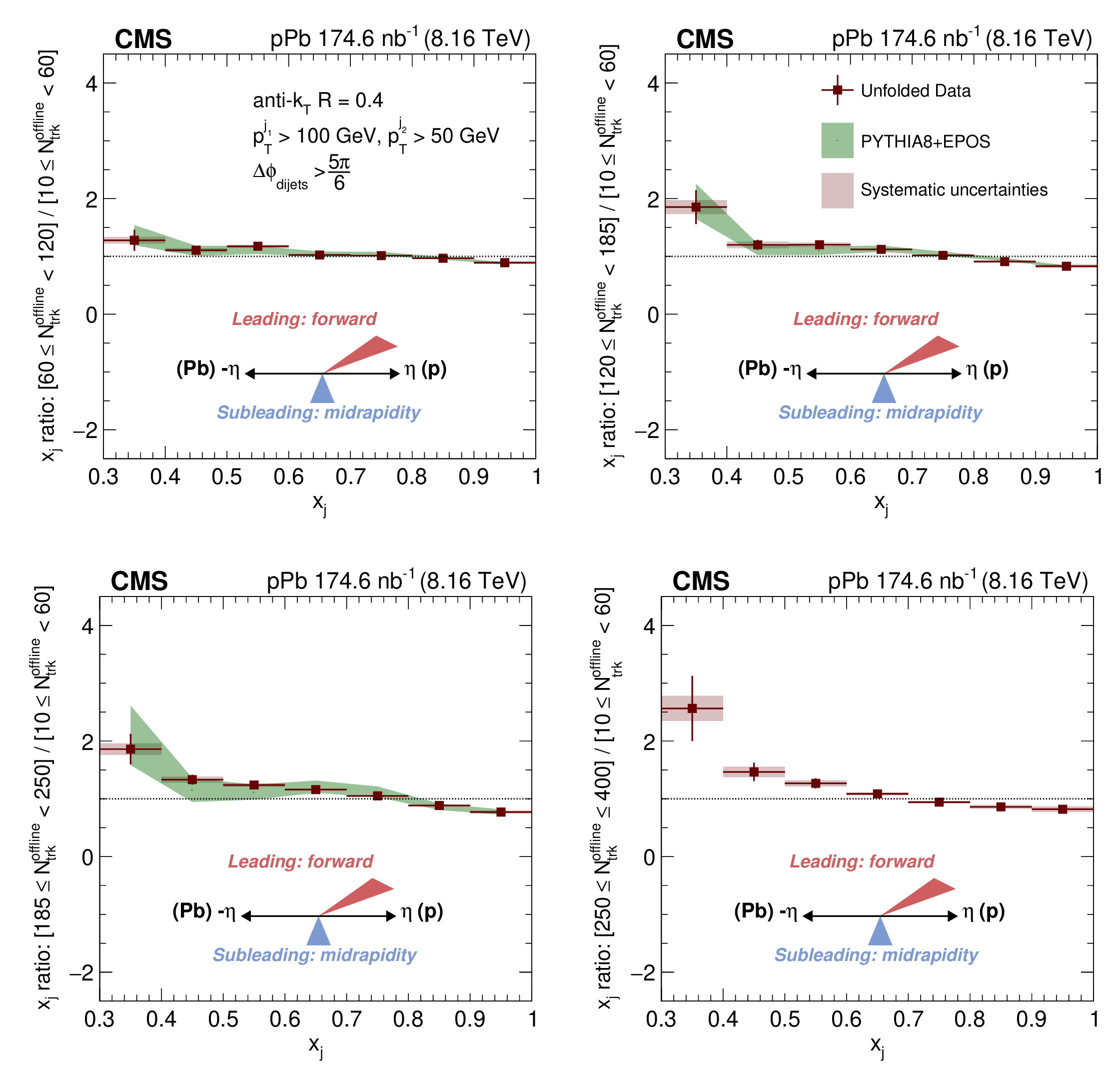

Figure A7:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

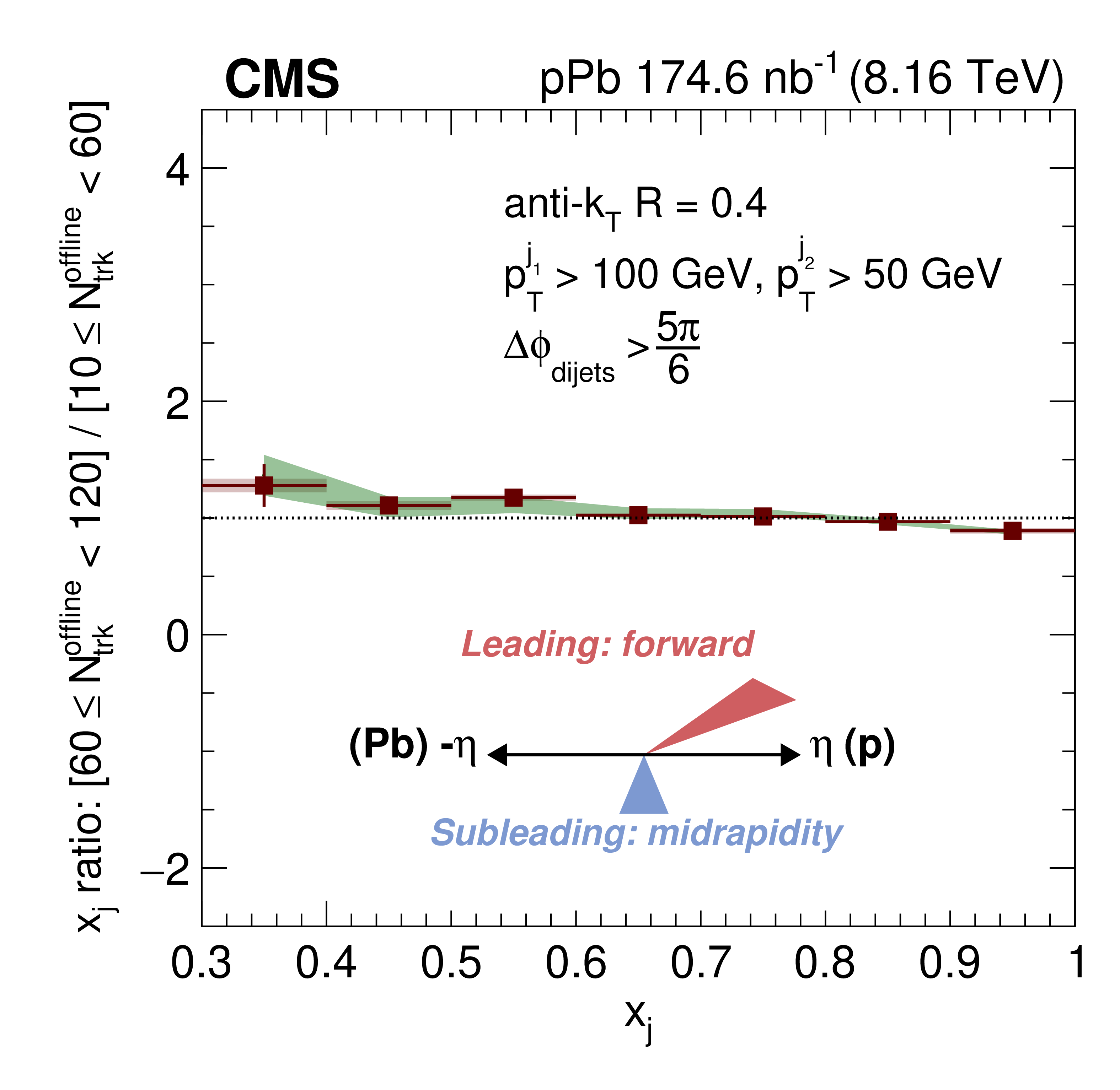

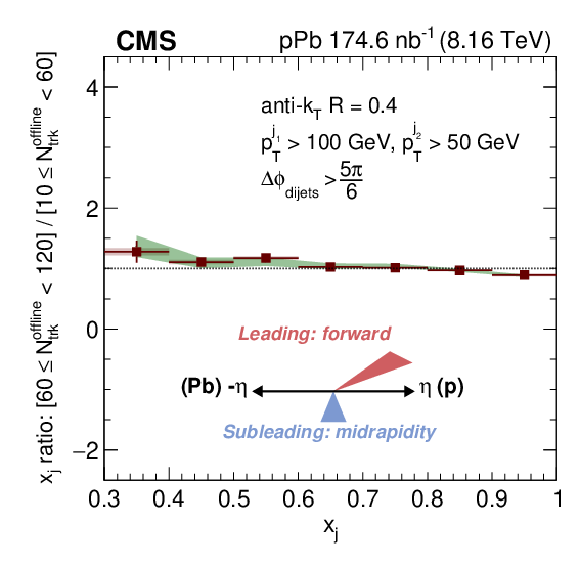

Figure A7-a:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

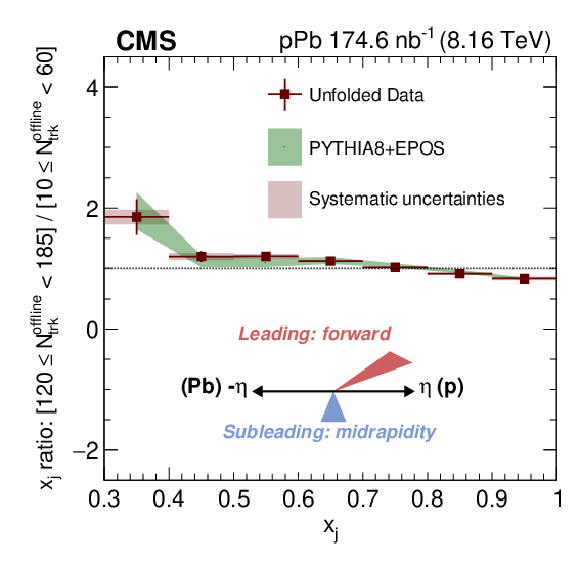

Figure A7-b:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

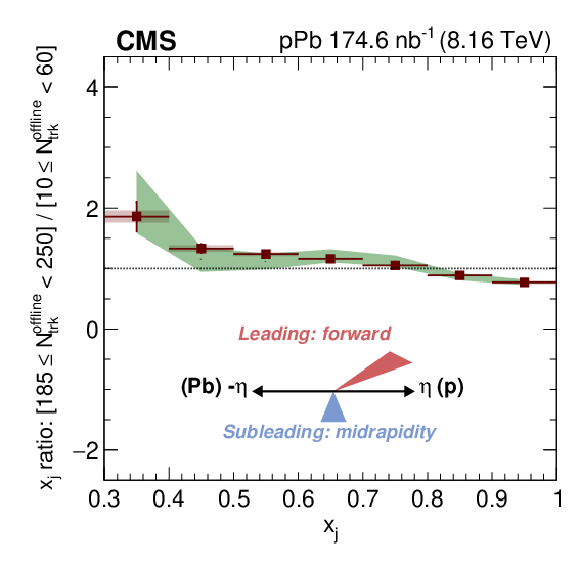

Figure A7-c:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

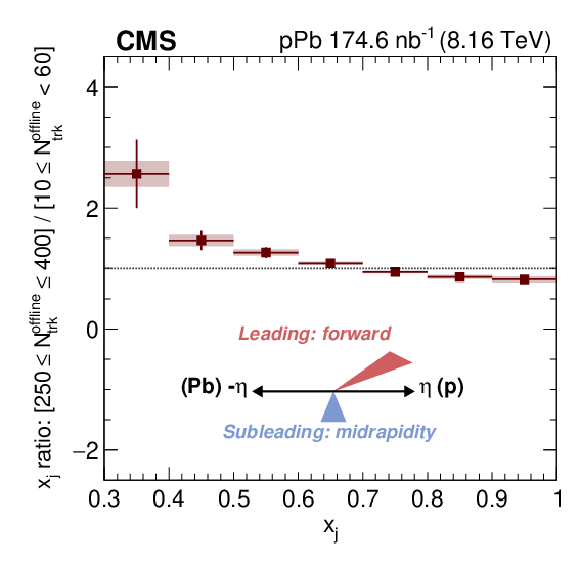

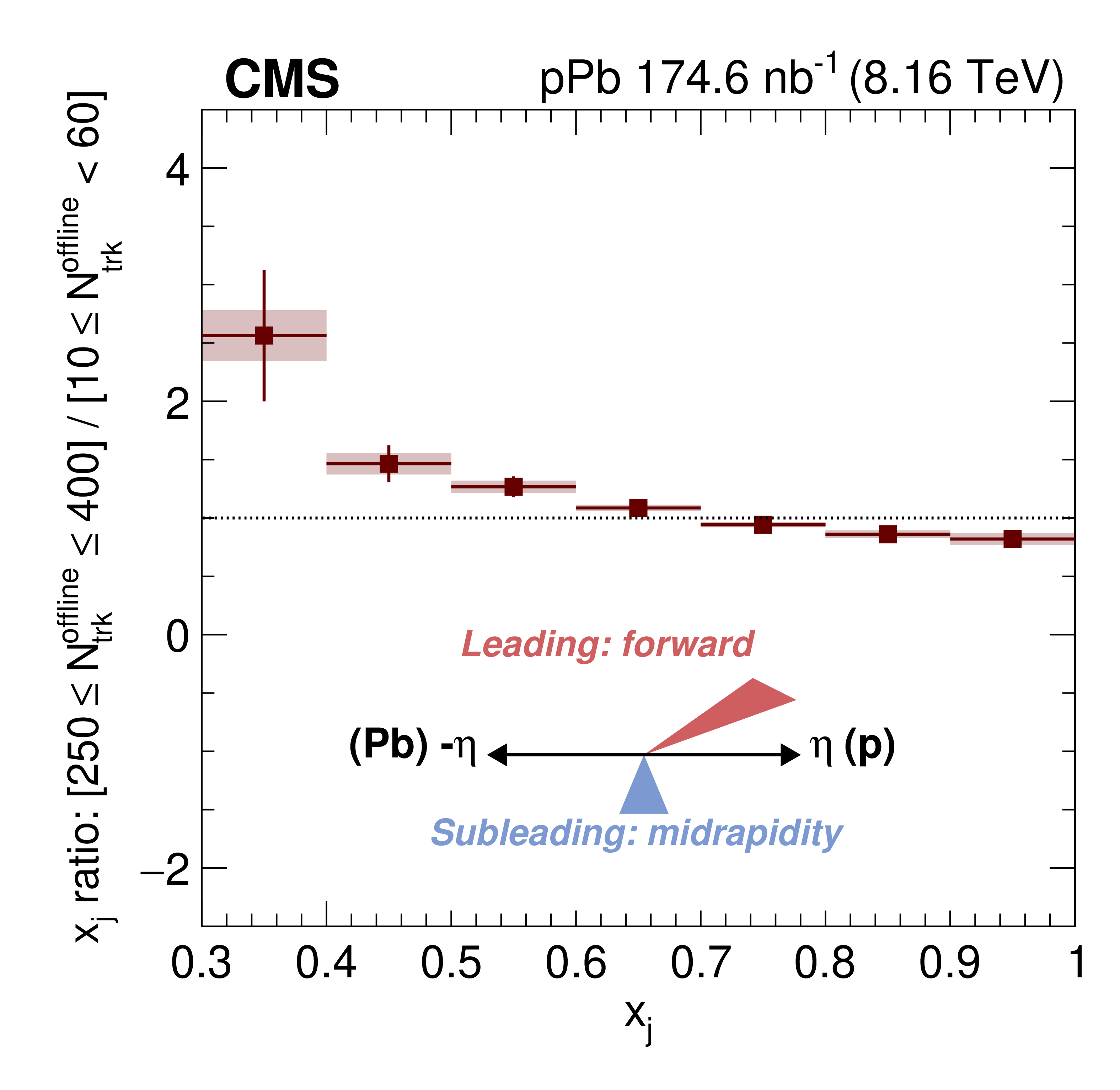

Figure A7-d:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

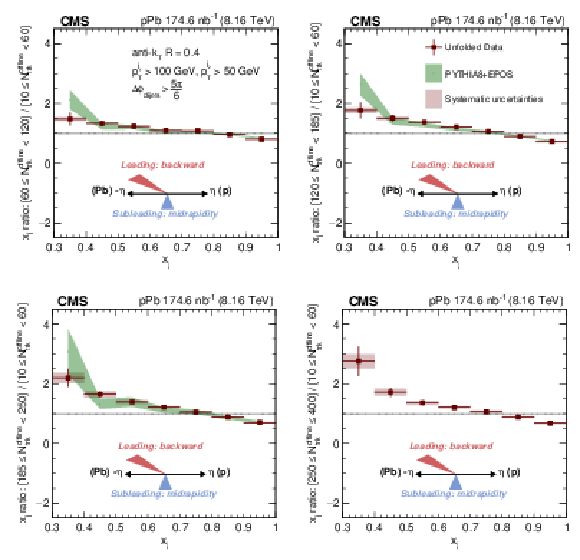

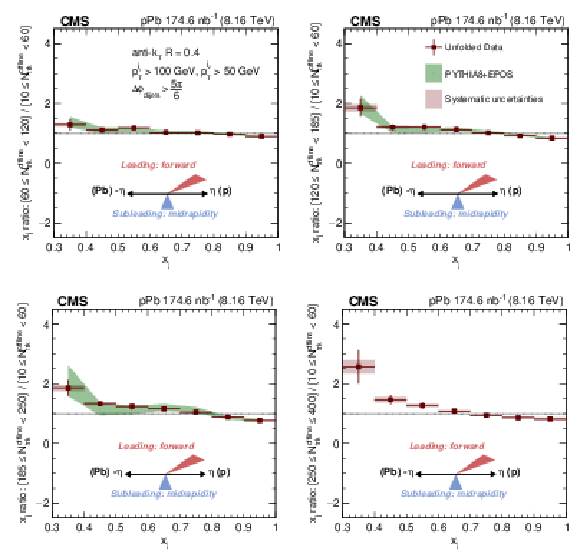

Figure A8:

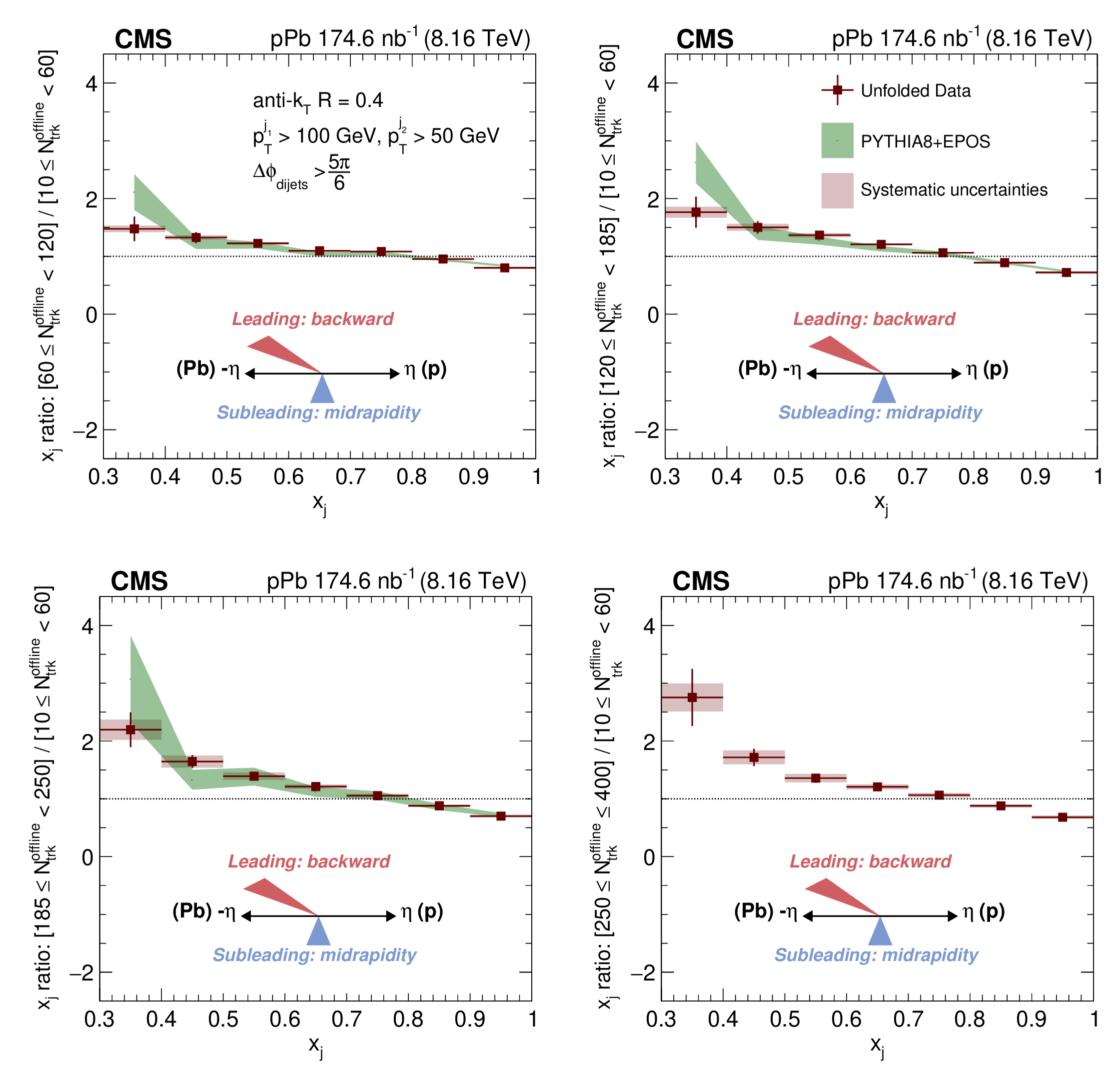

The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

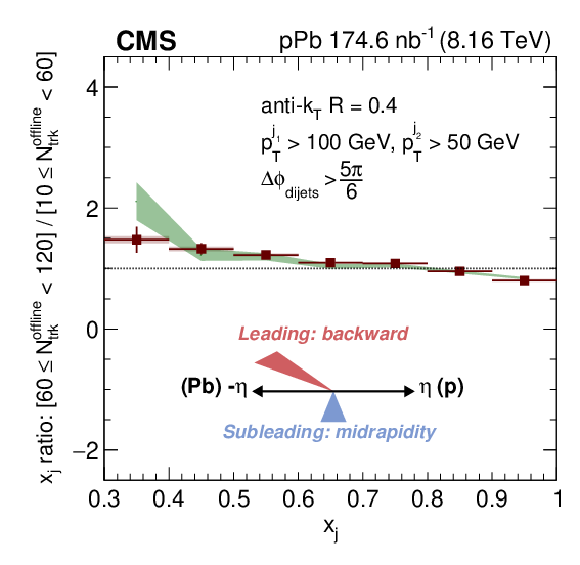

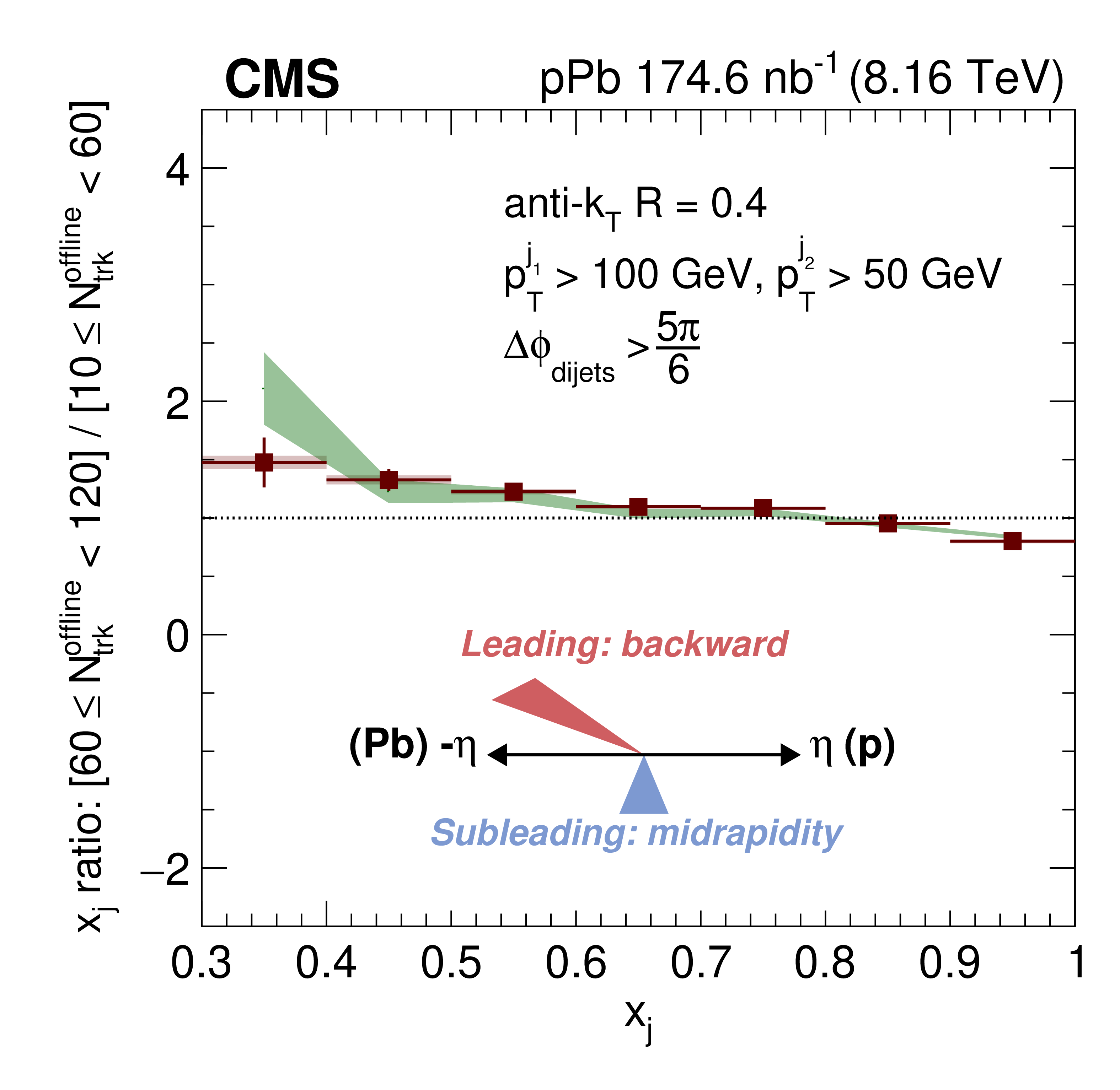

Figure A8-a:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

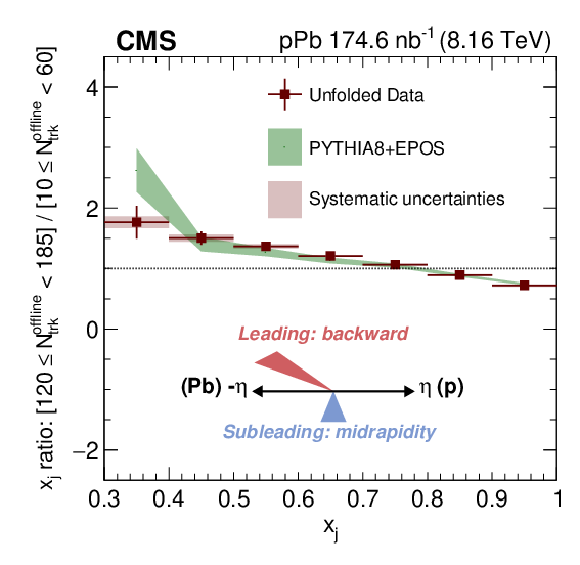

Figure A8-b:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A8-c:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

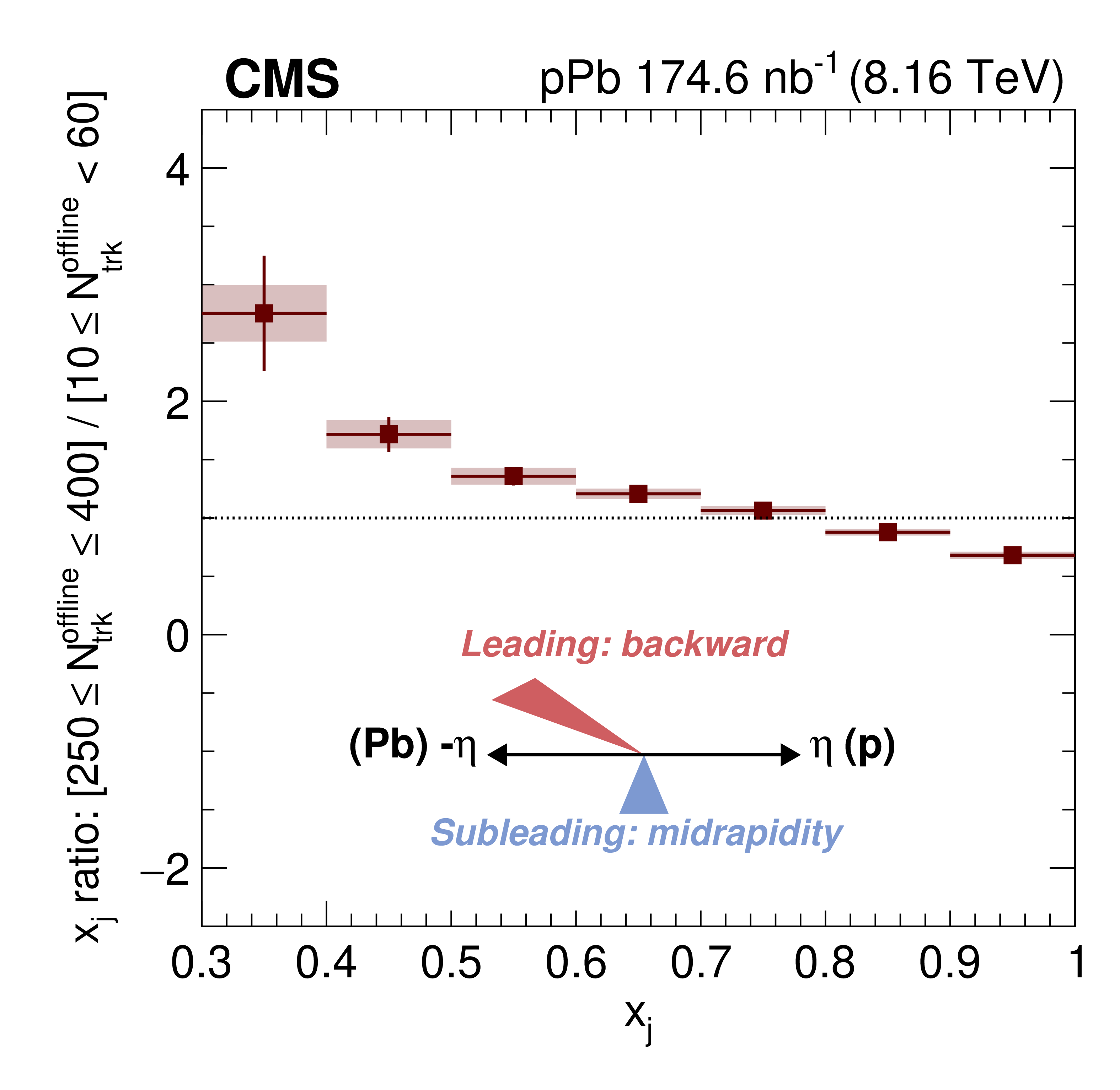

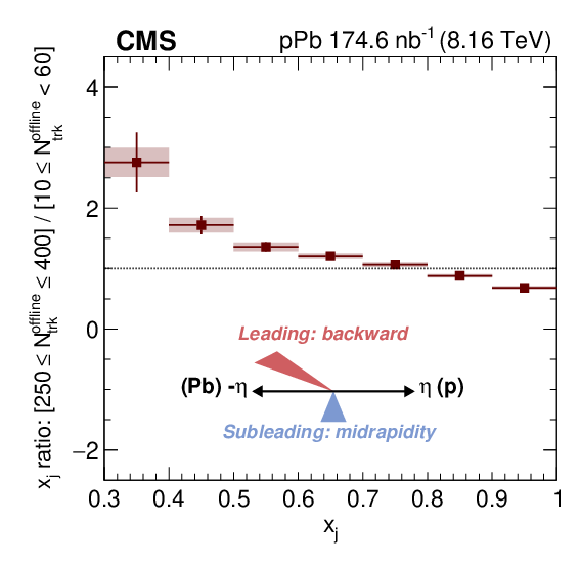

Figure A8-d:
The unfolded xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the generator-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A9:

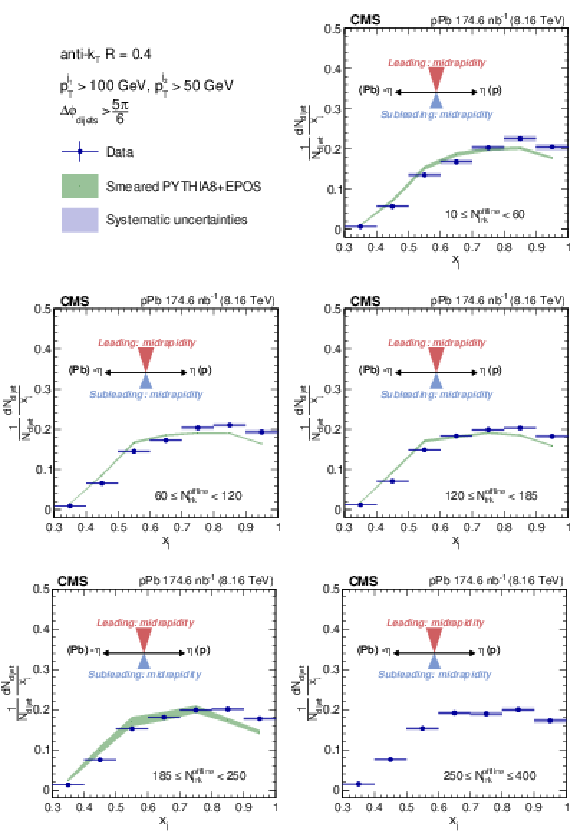

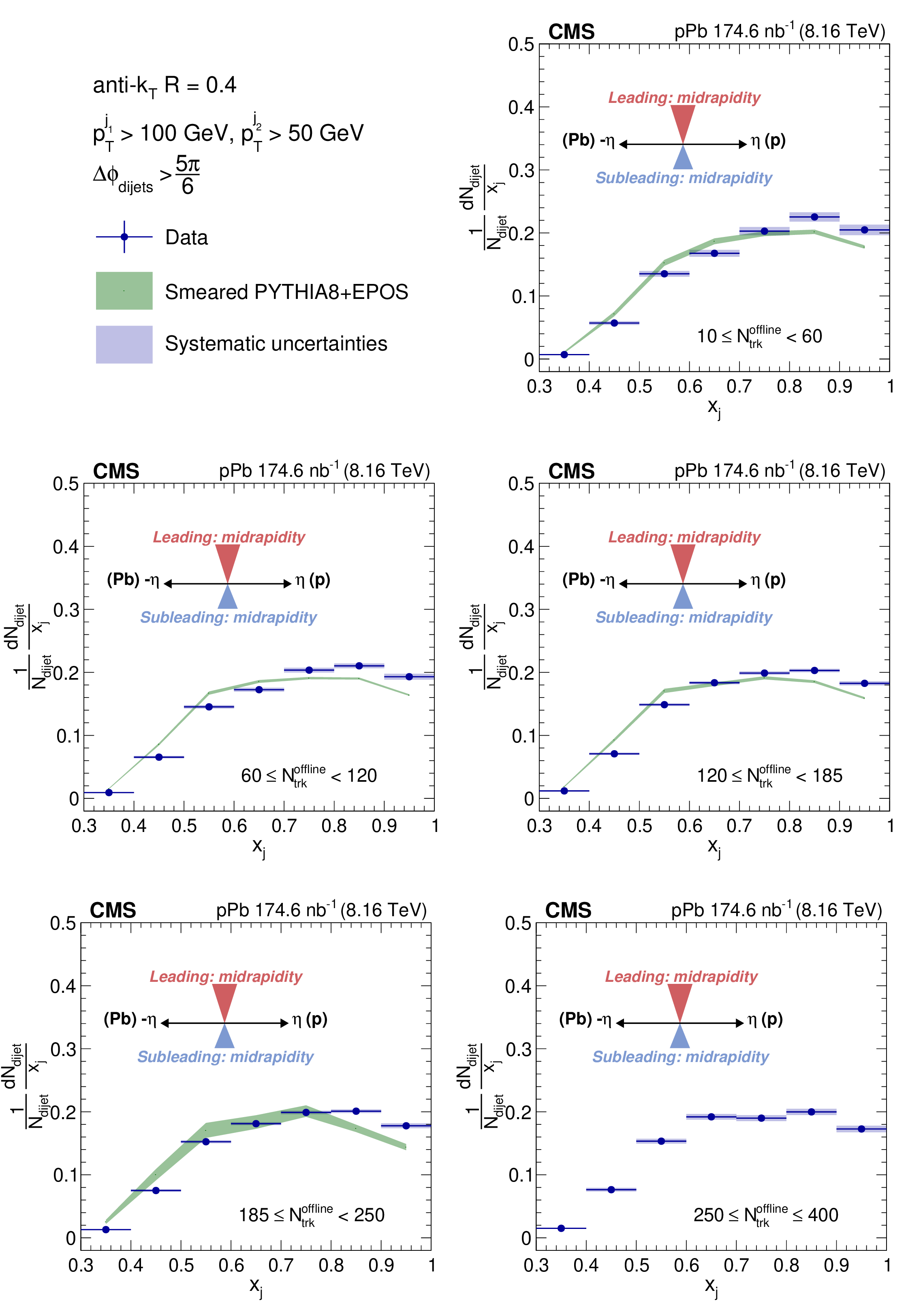

The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A9-a:

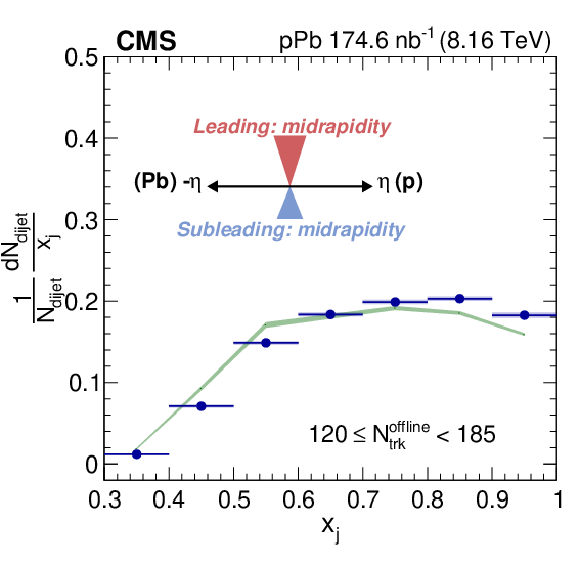

The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

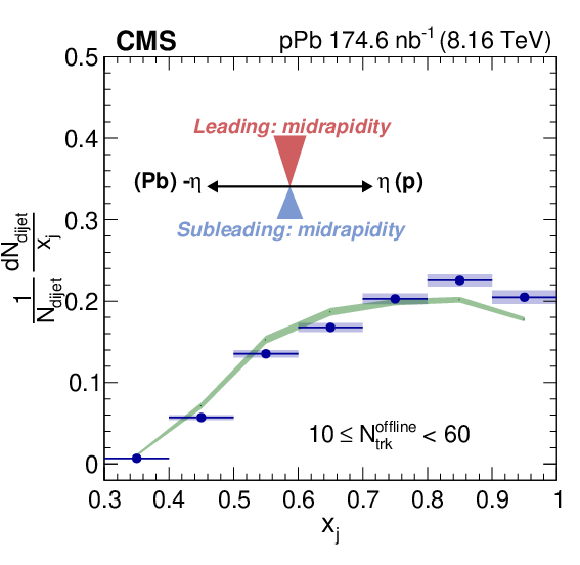

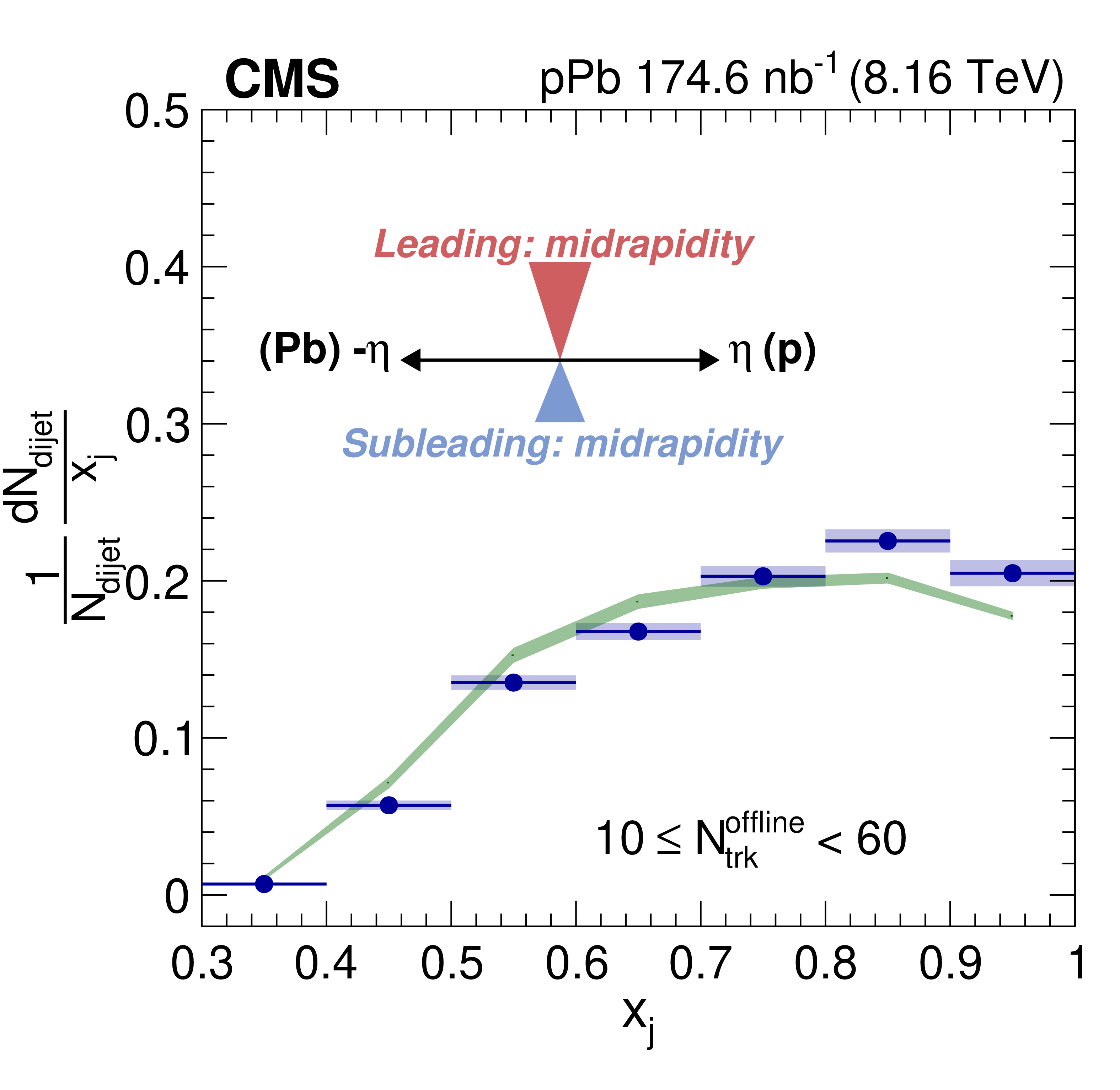

Figure A9-b:
The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

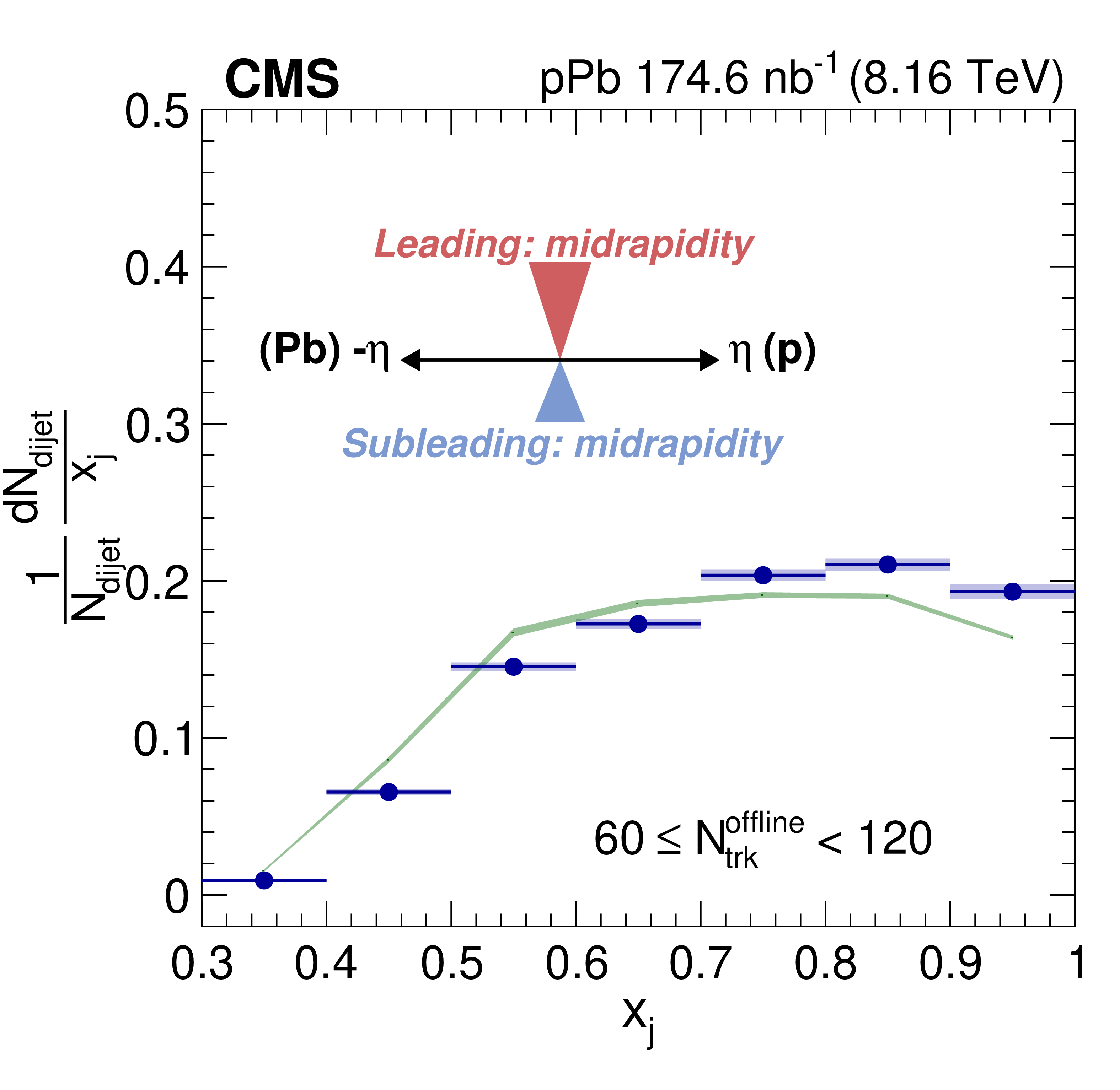

Figure A9-c:

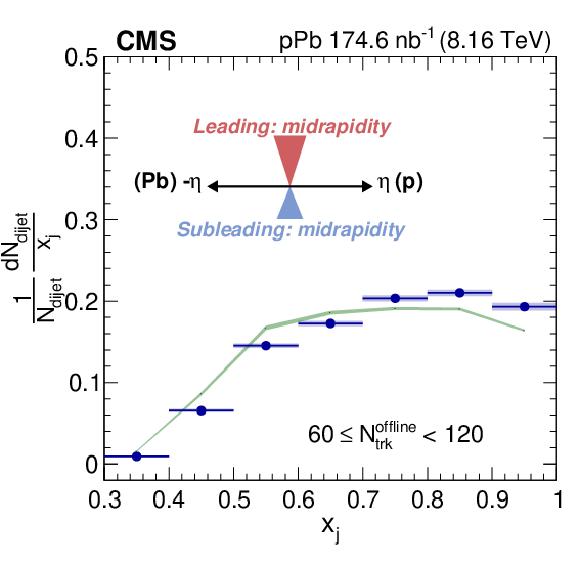

The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

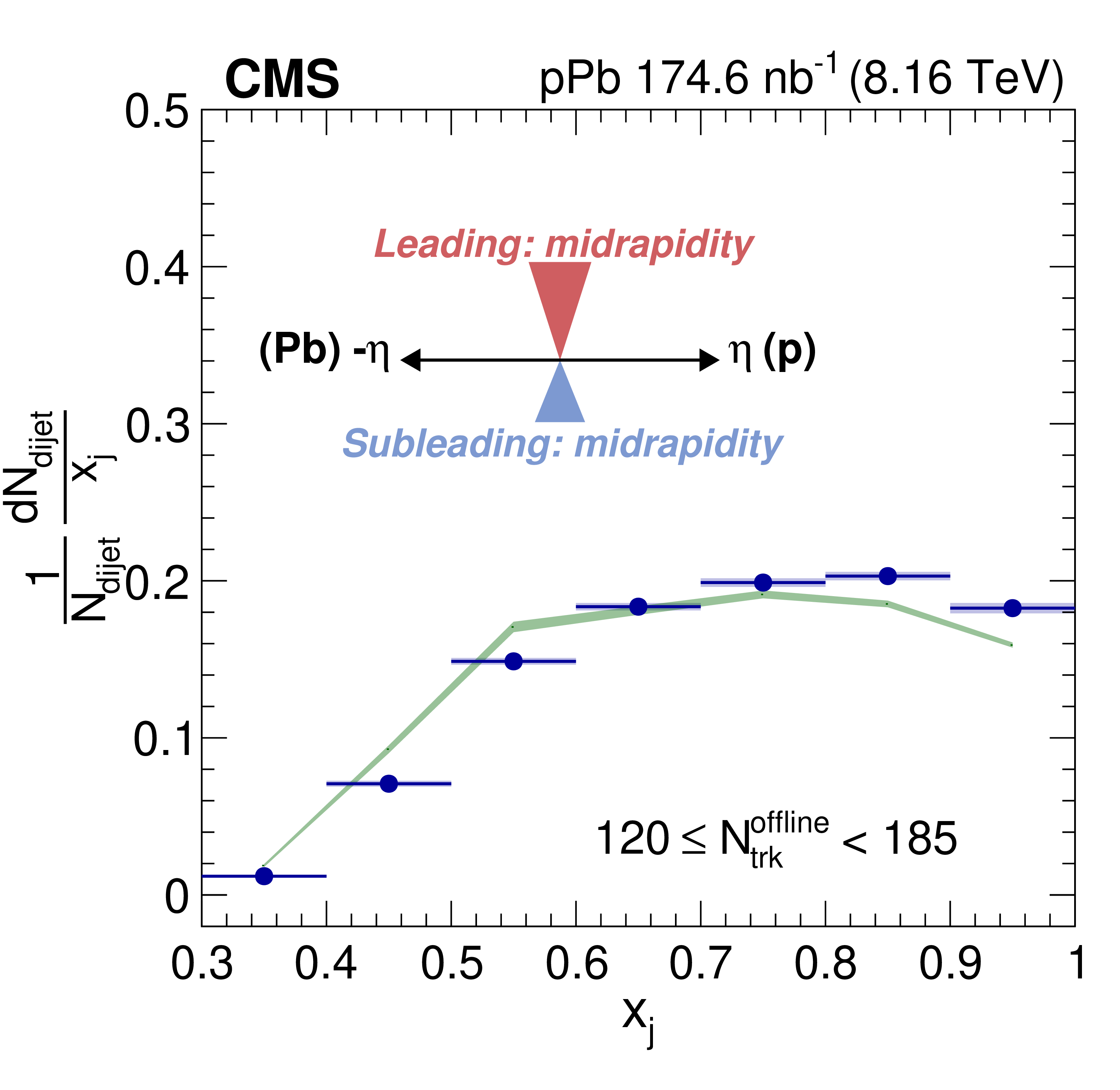

Figure A9-d:
The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

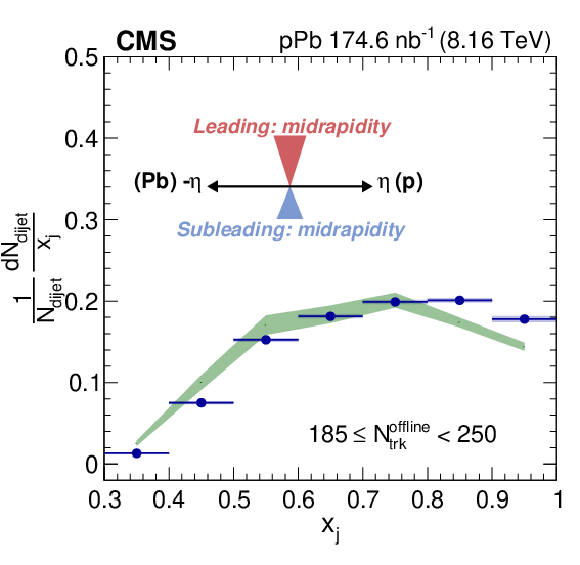

Figure A9-e:

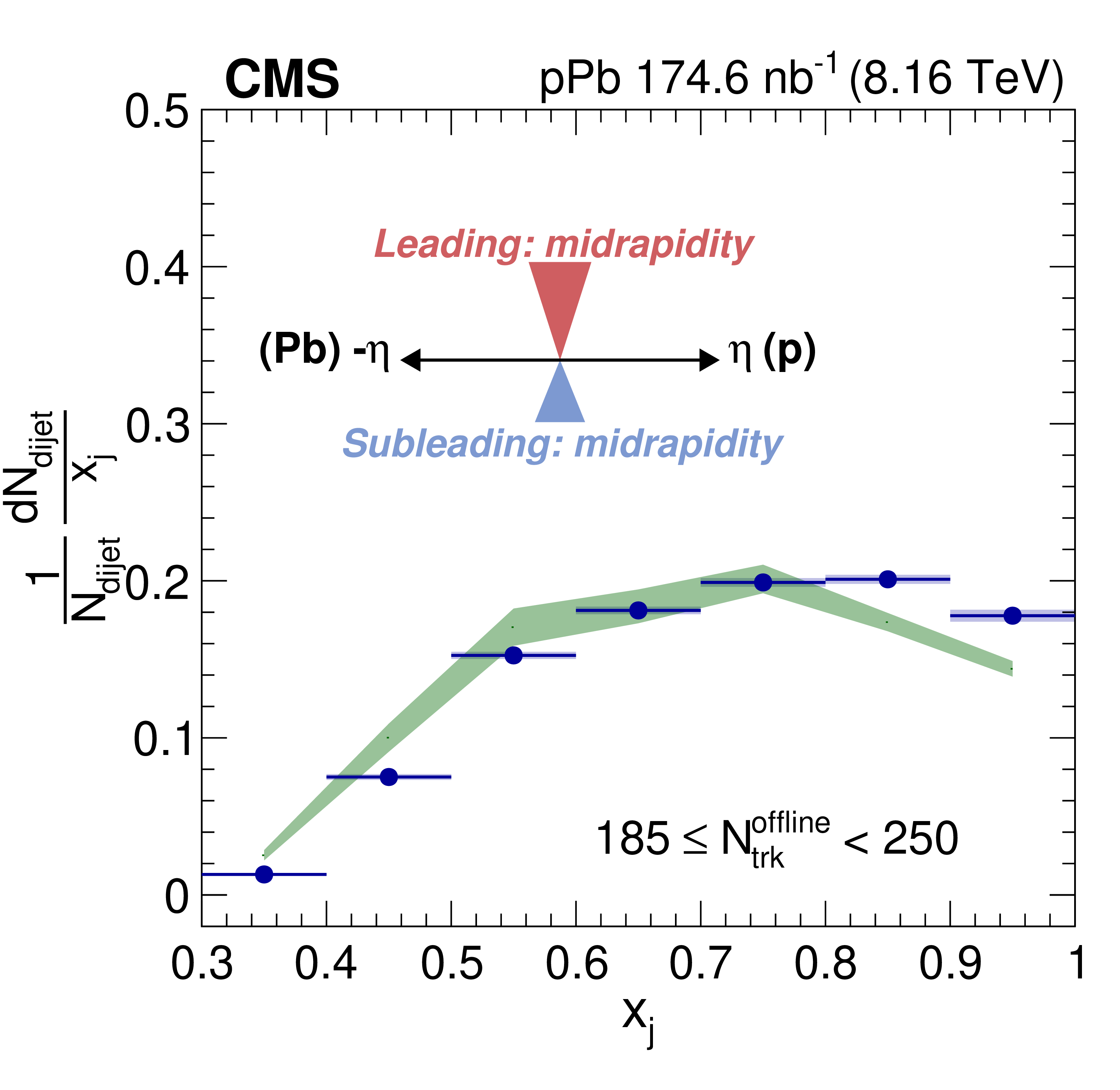

The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

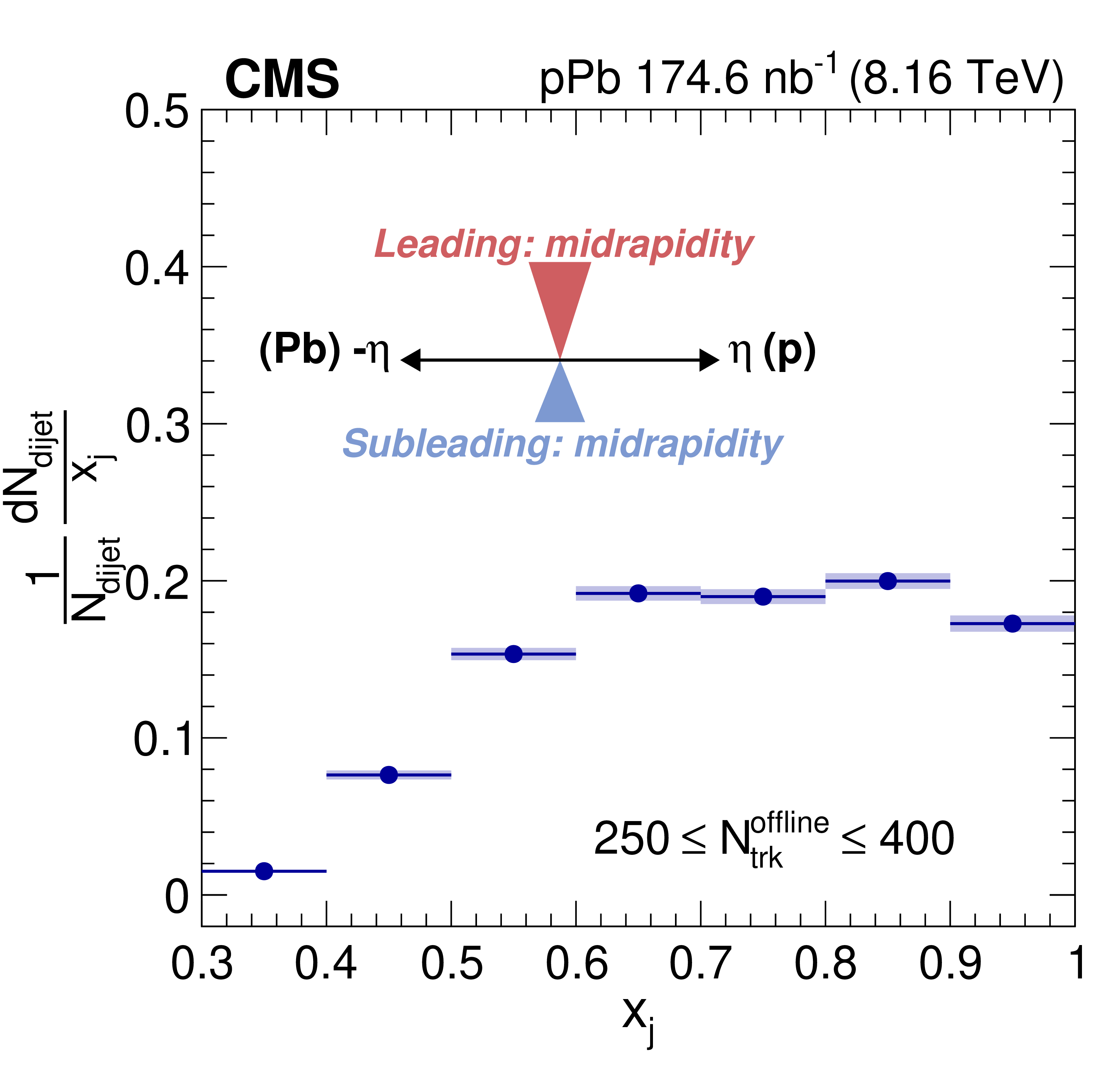

Figure A9-f:
The measured (raw) xj distributions, from lower to higher multiplicities and for both leading and subleading jets in the midrapidity region, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

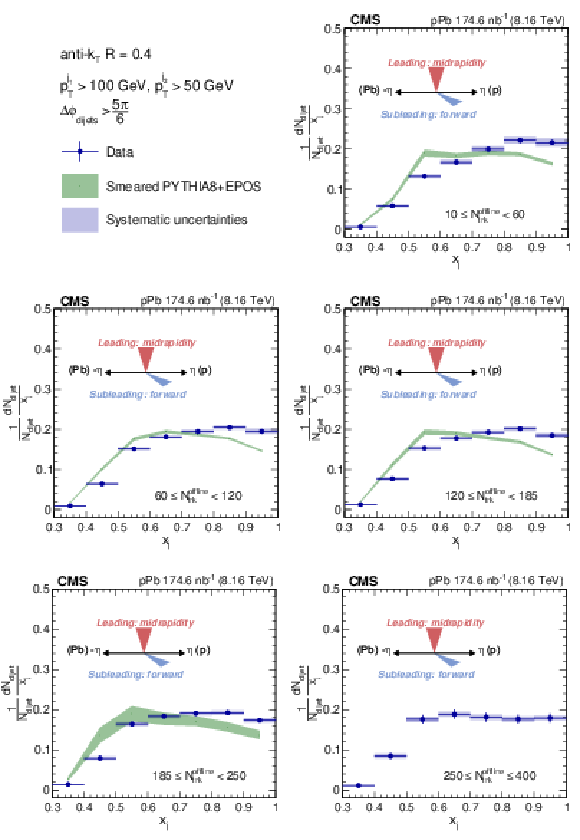

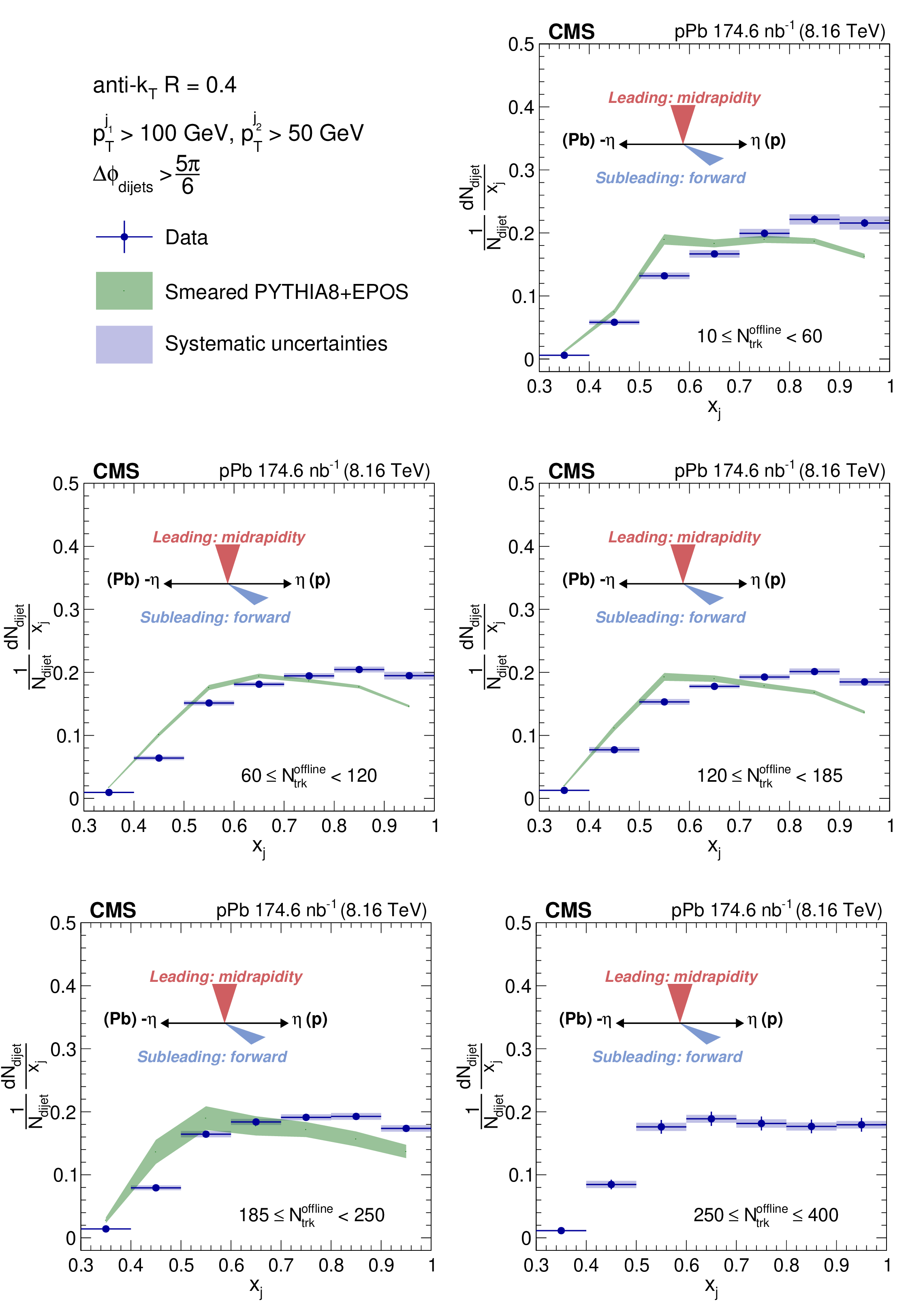

Figure A10:

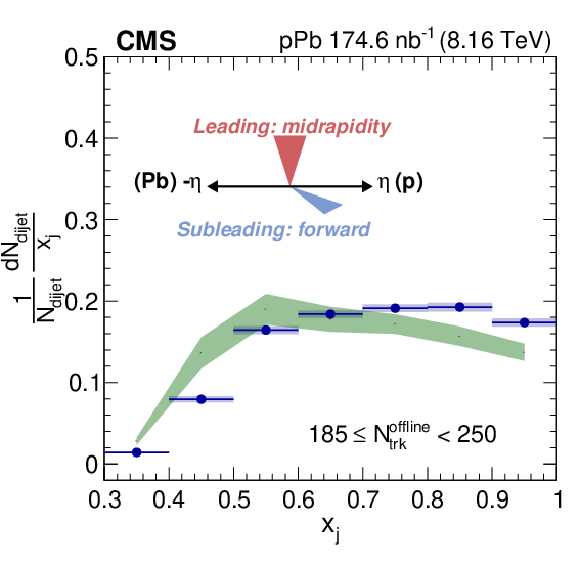

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A10-a:

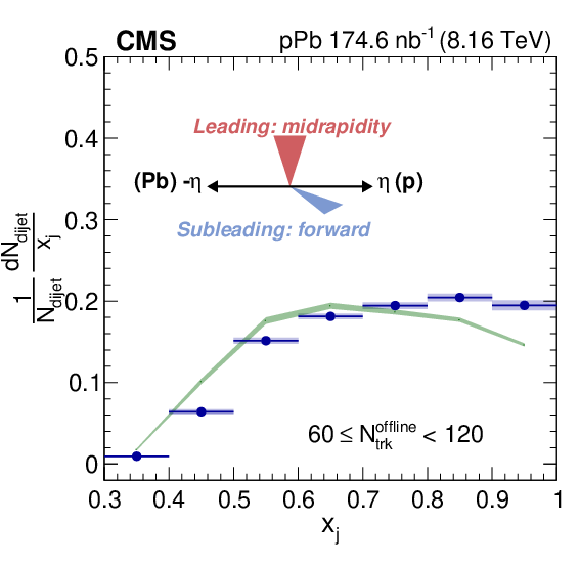

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

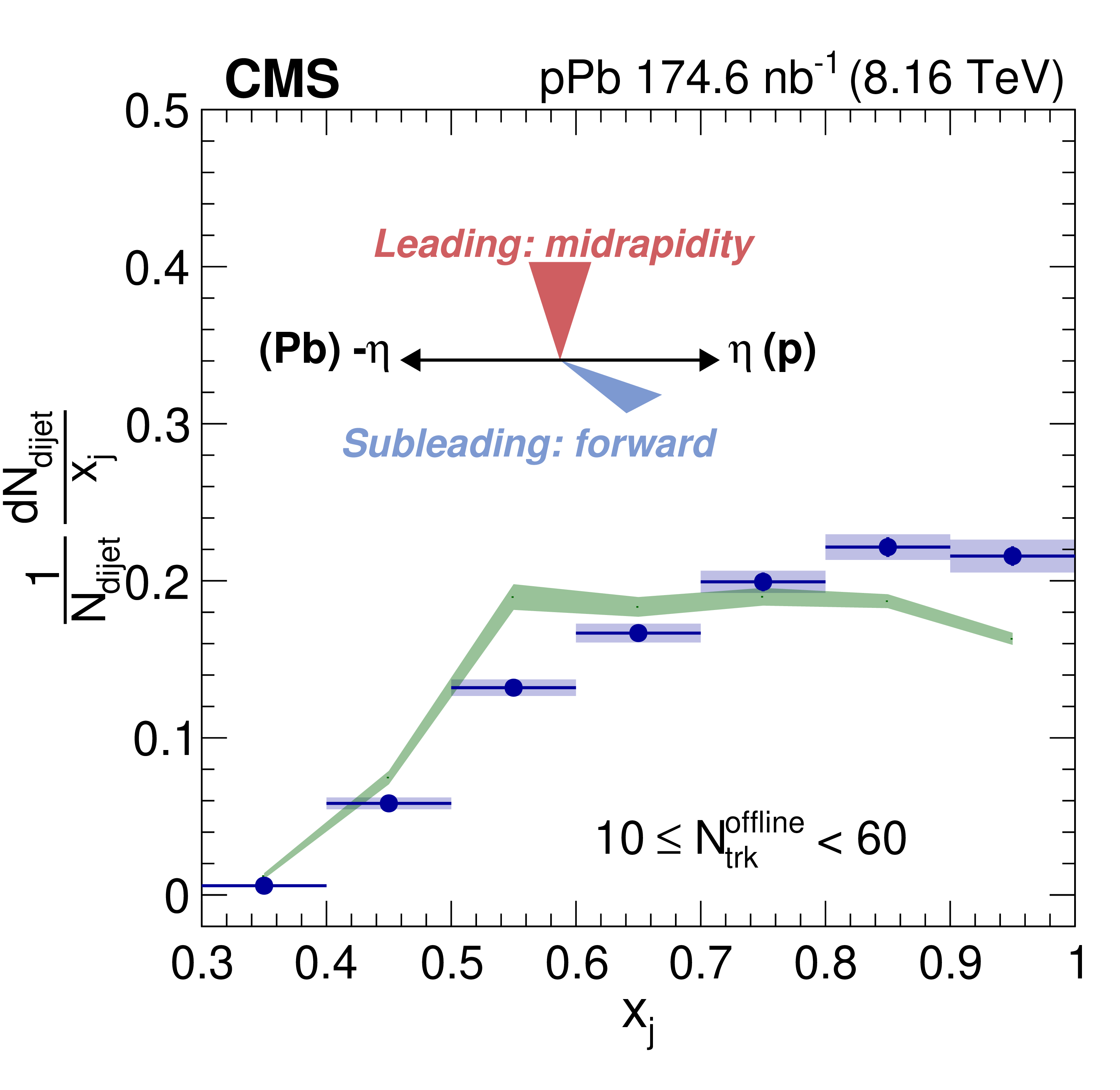

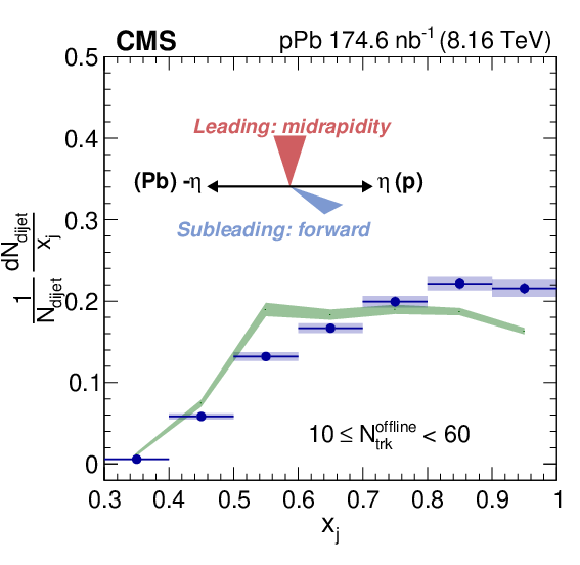

Figure A10-b:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

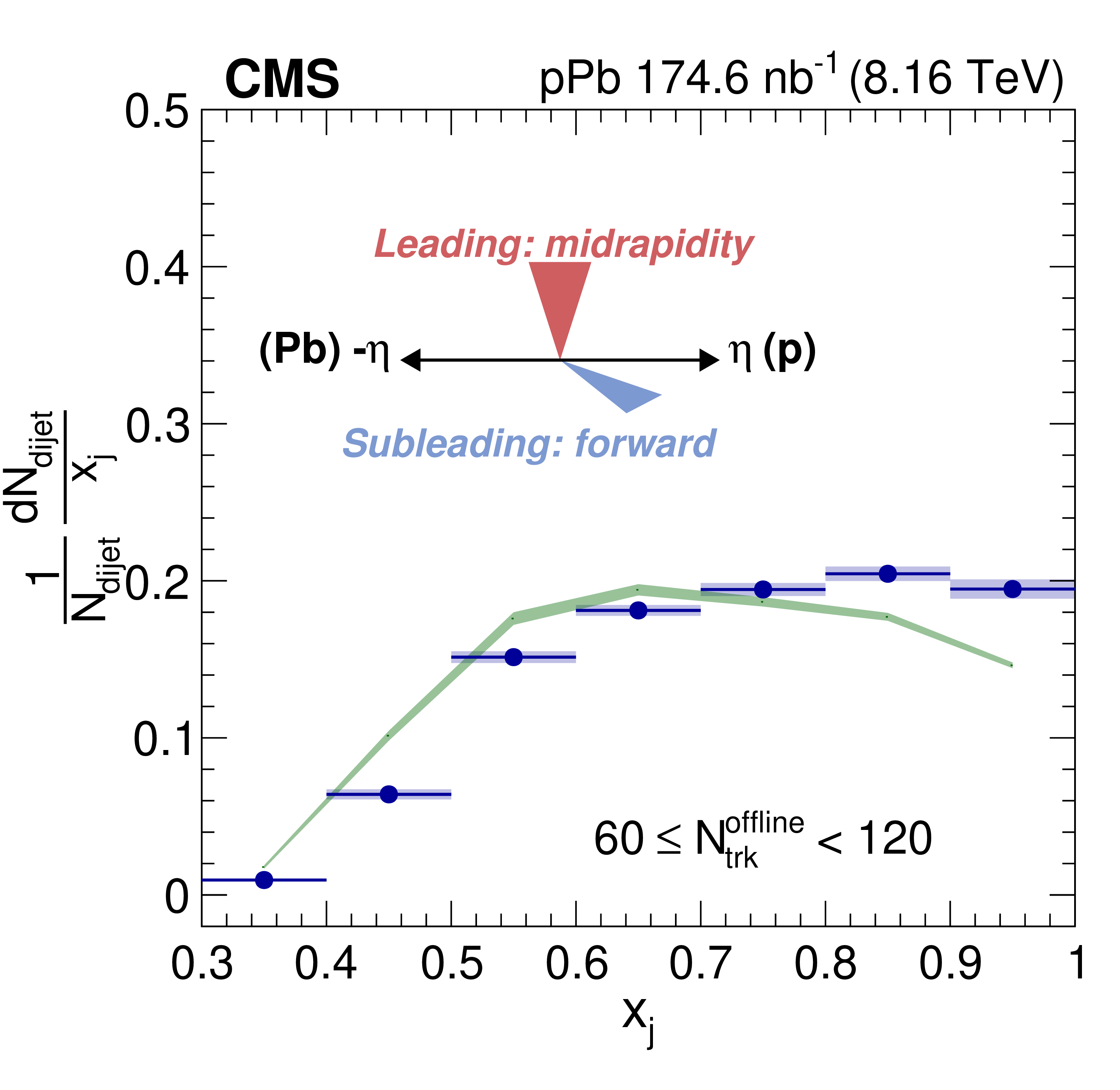

Figure A10-c:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

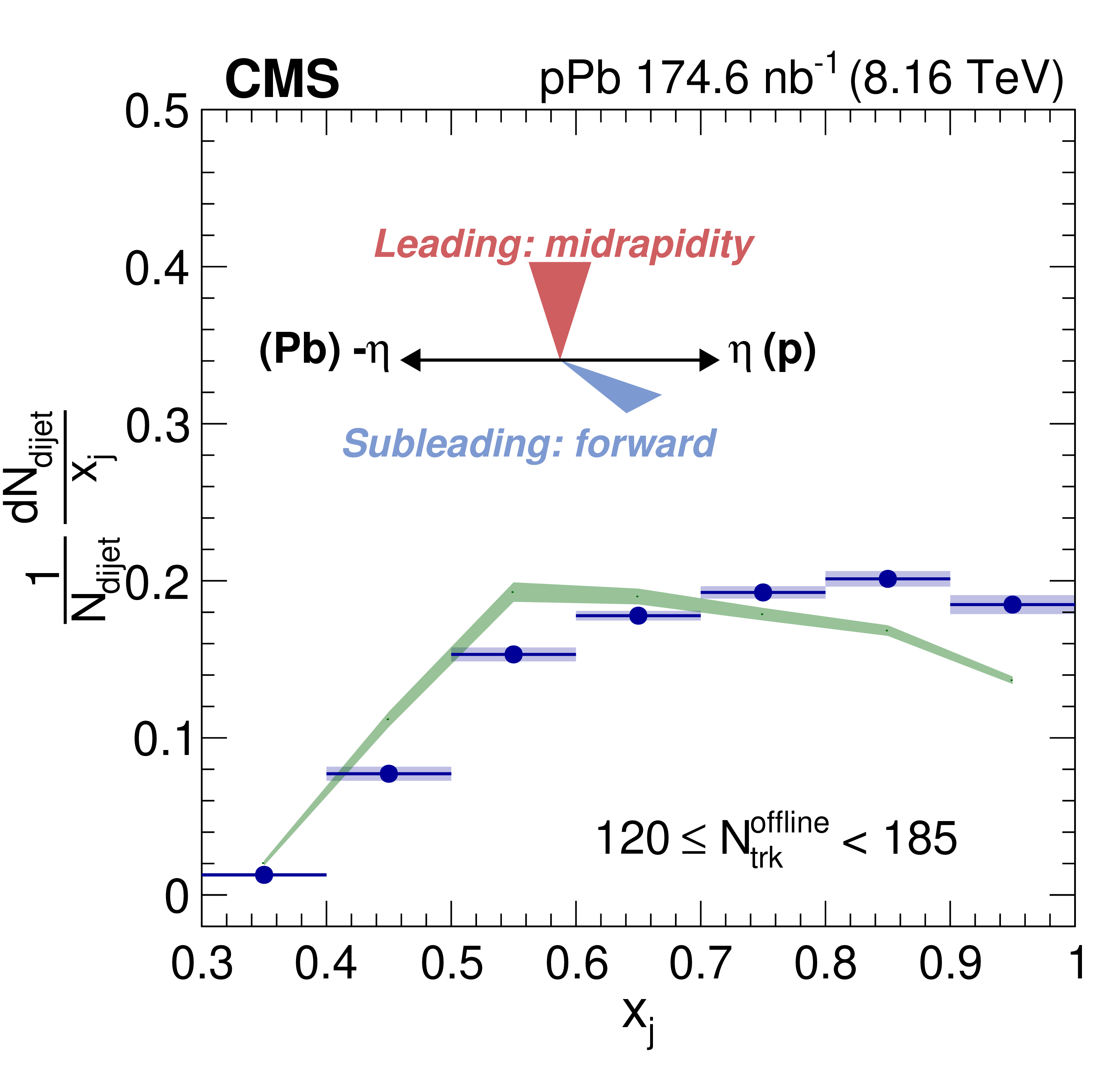

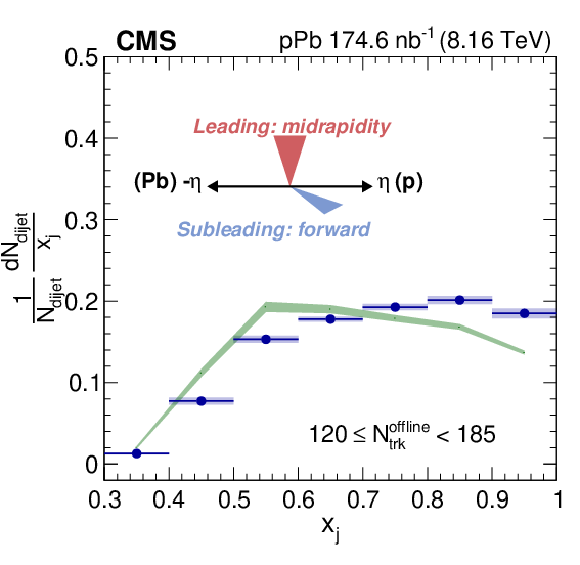

Figure A10-d:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A10-e:

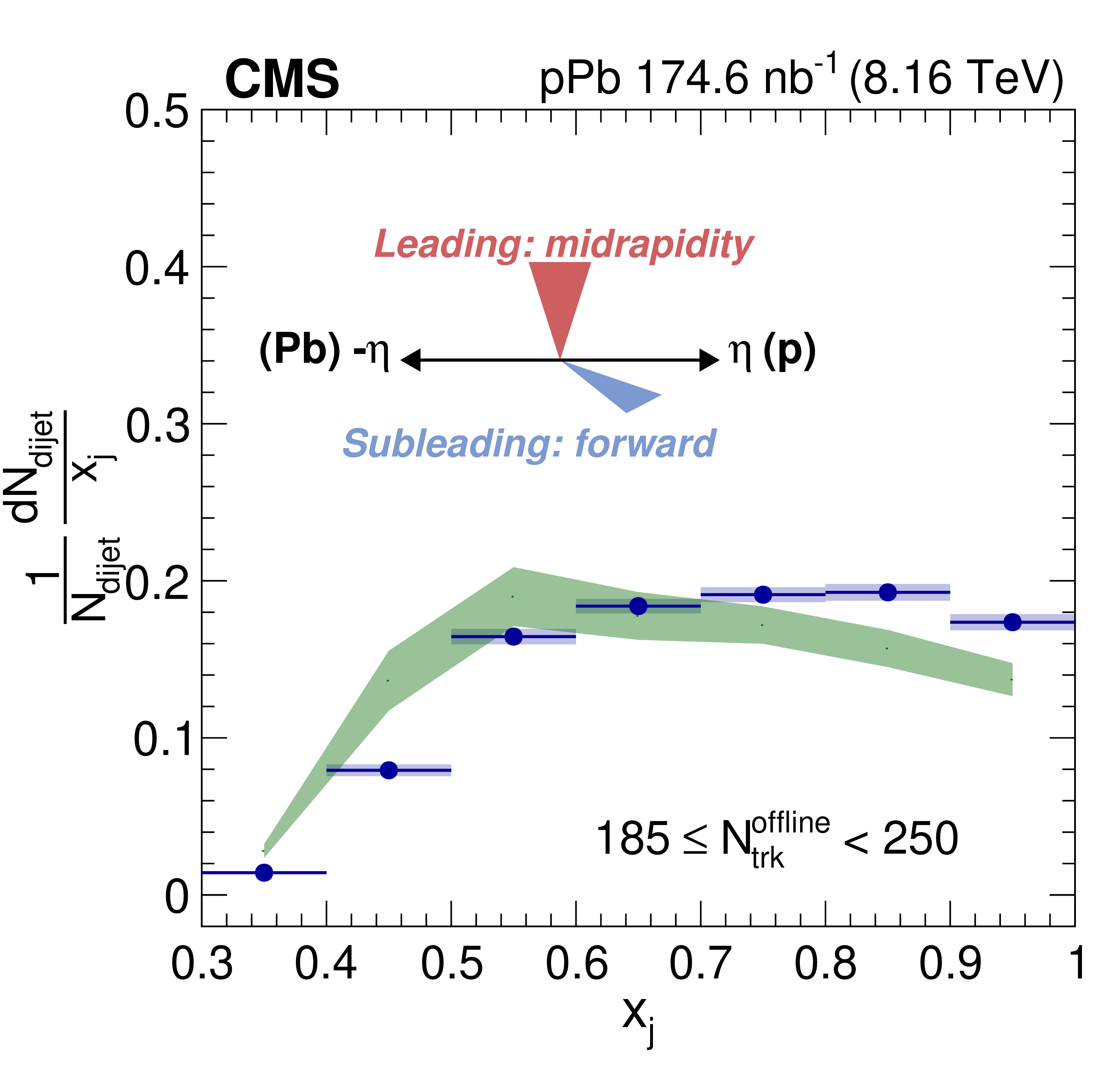

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

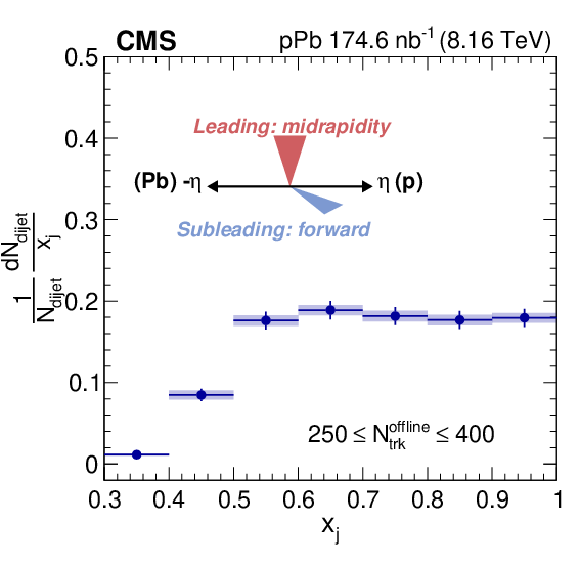

Figure A10-f:

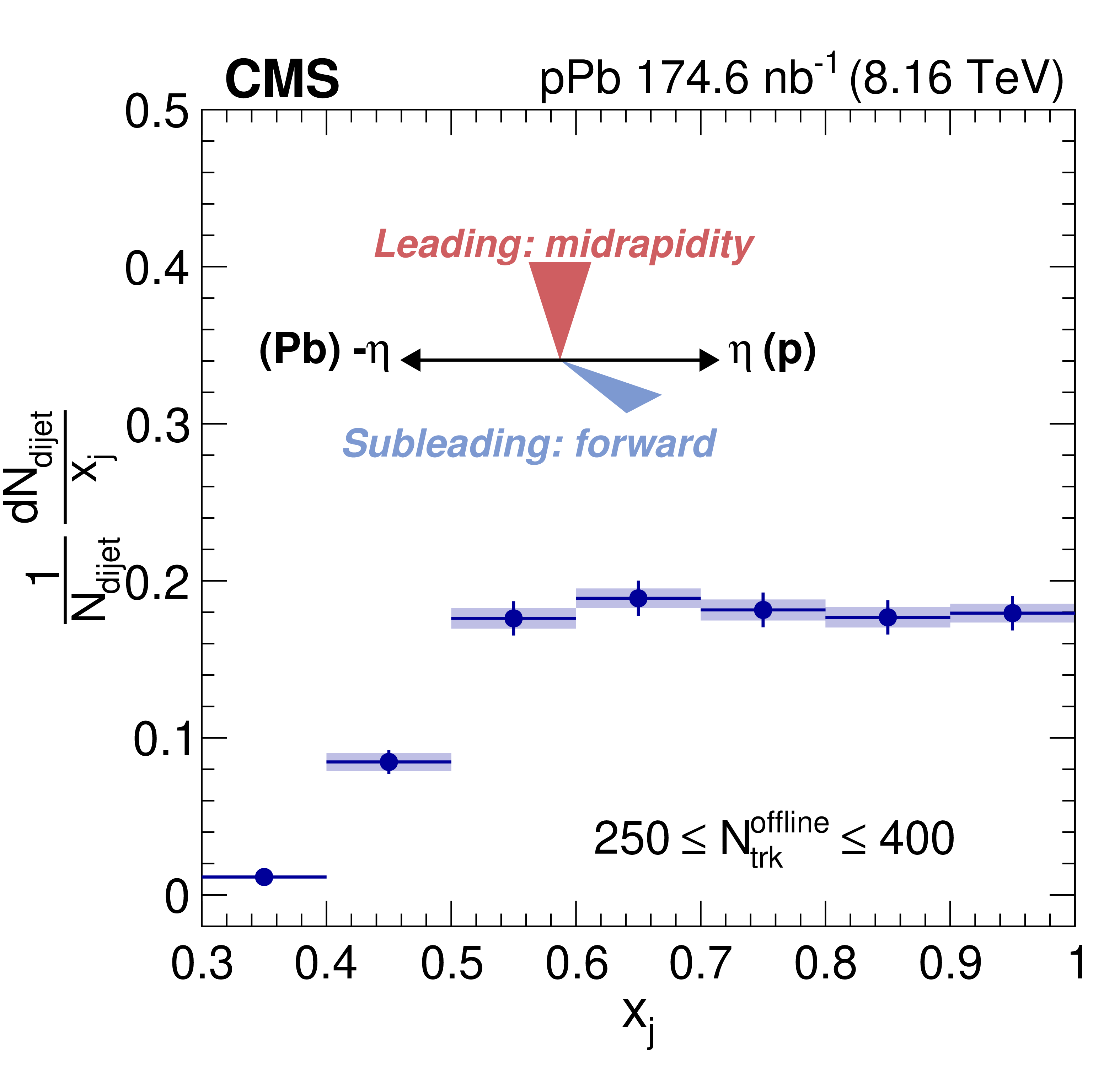

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

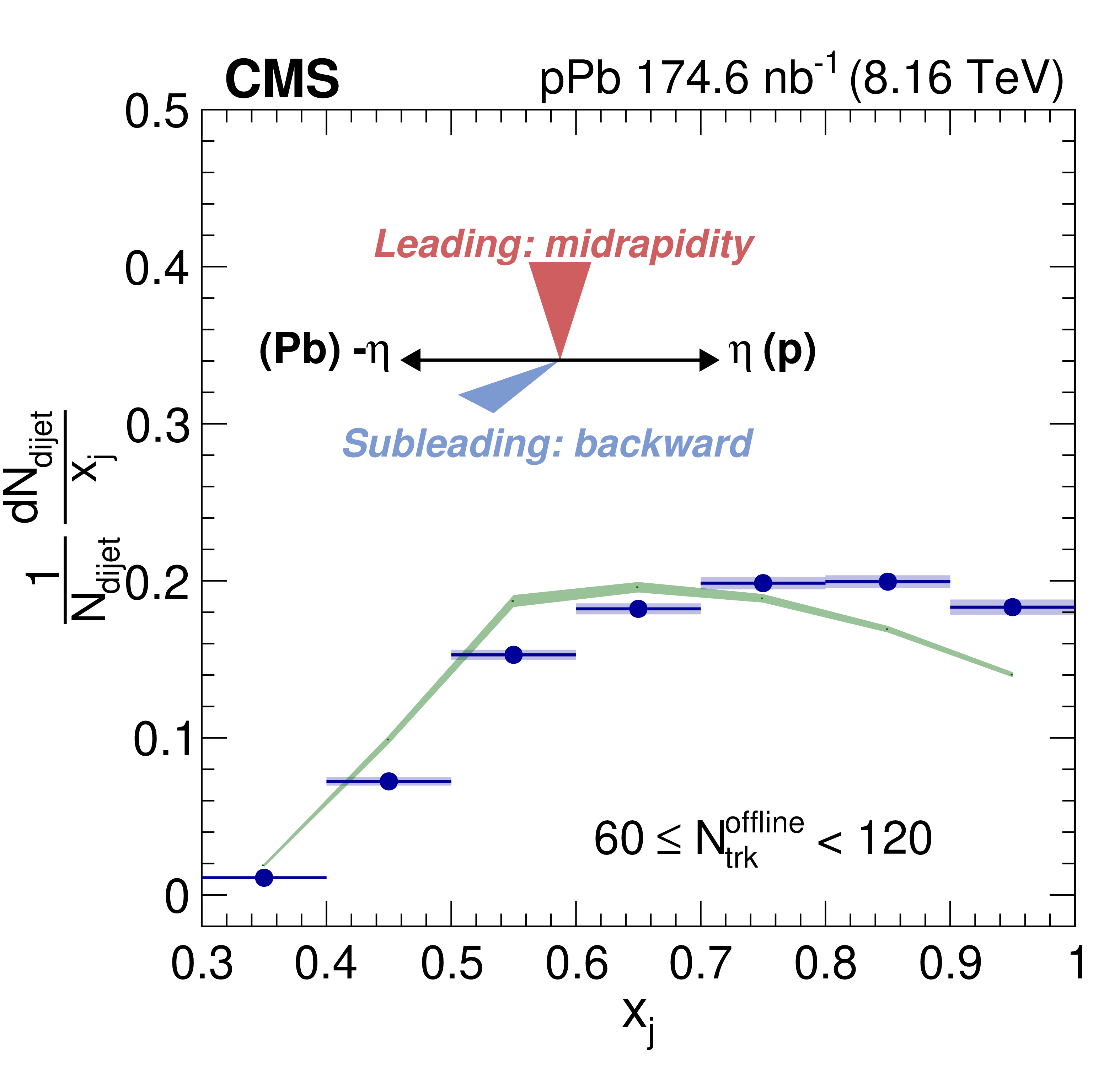

Figure A11:

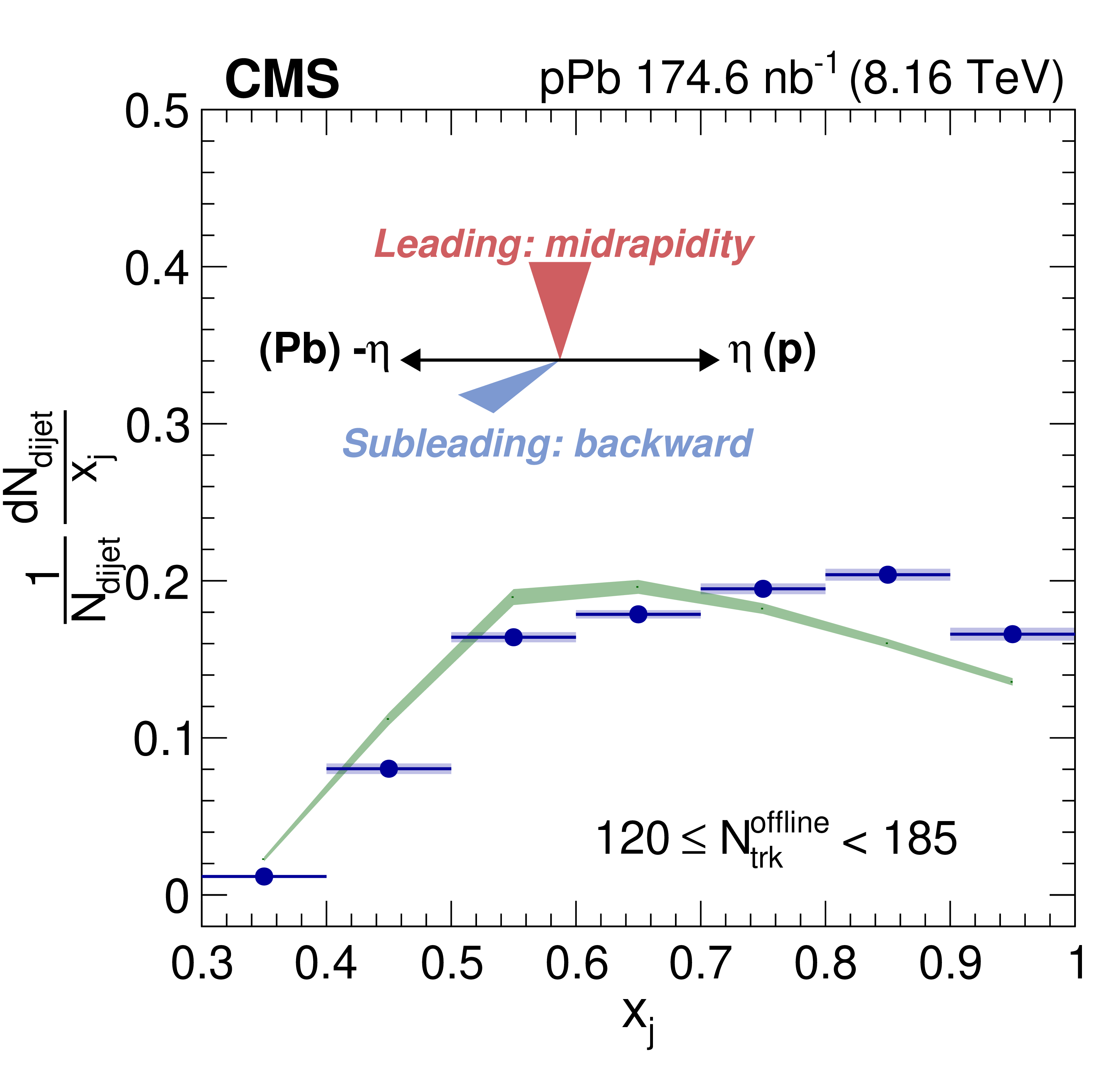

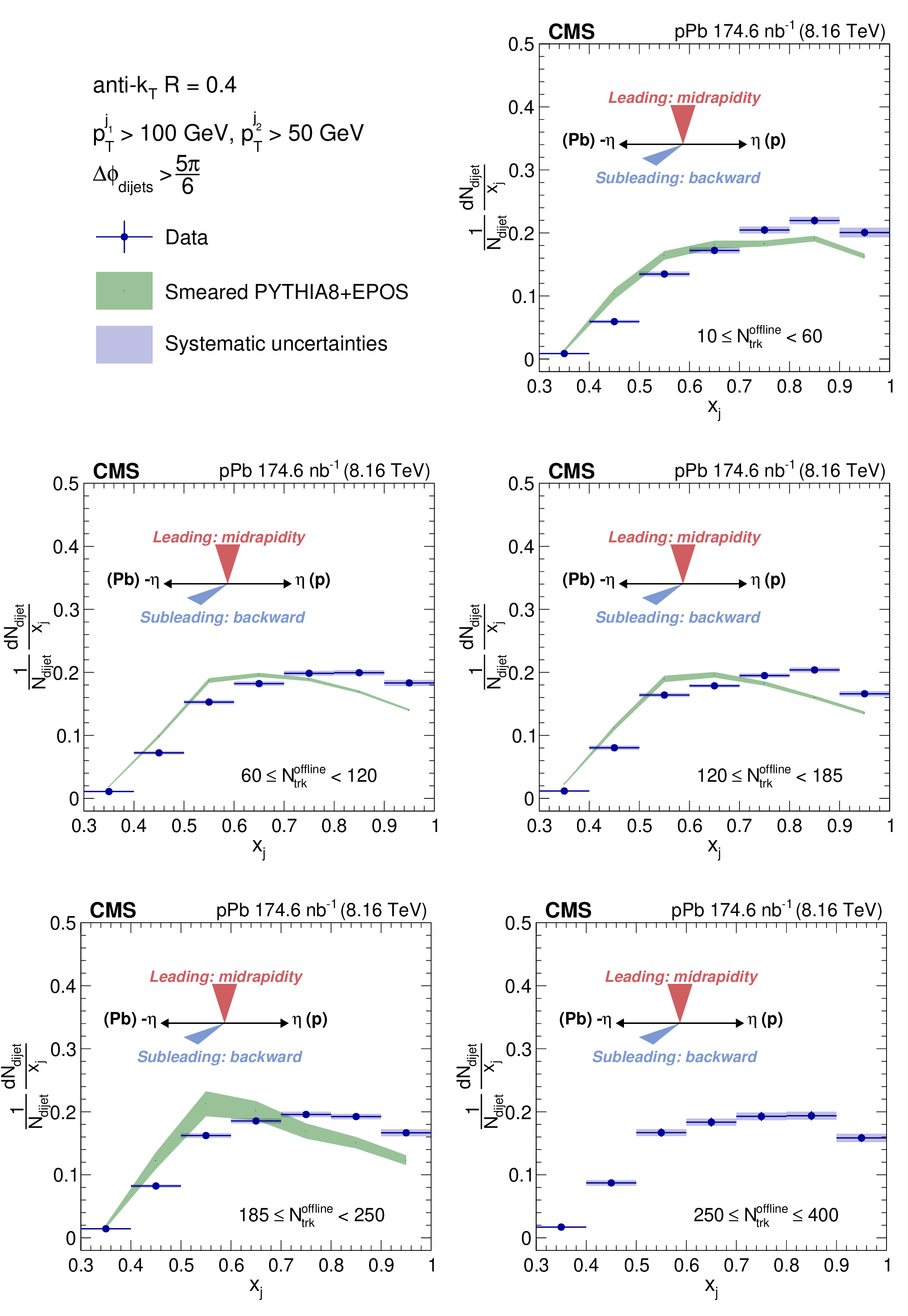

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A11-a:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

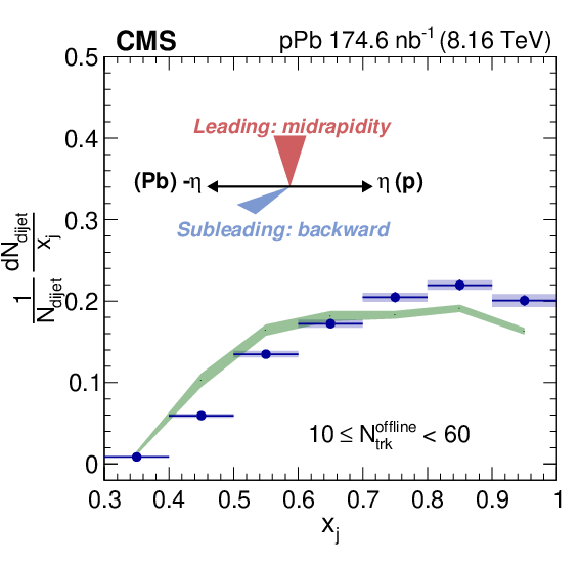

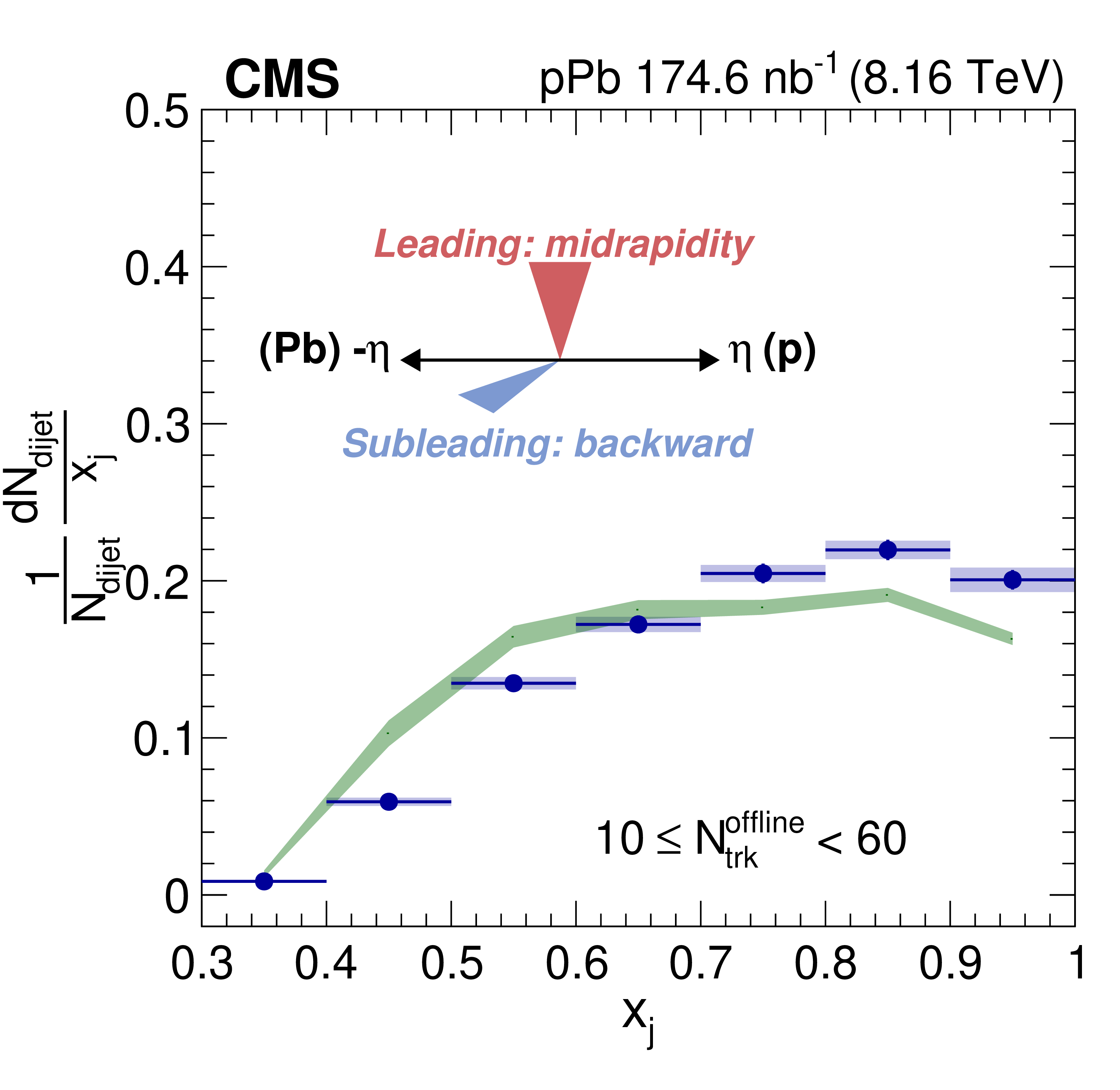

Figure A11-b:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

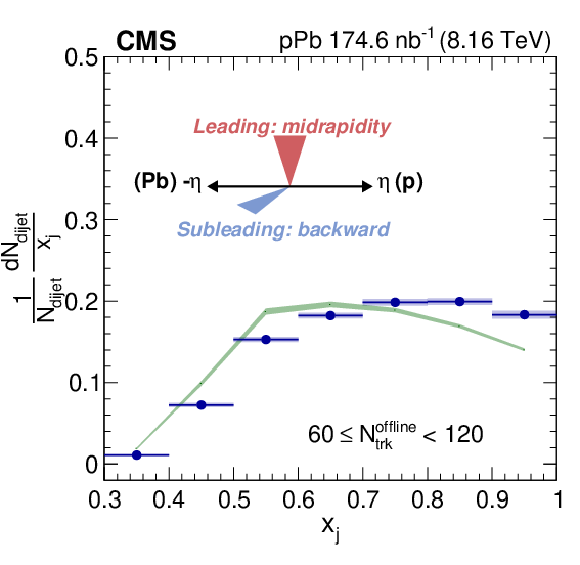

Figure A11-c:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A11-d:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A11-e:

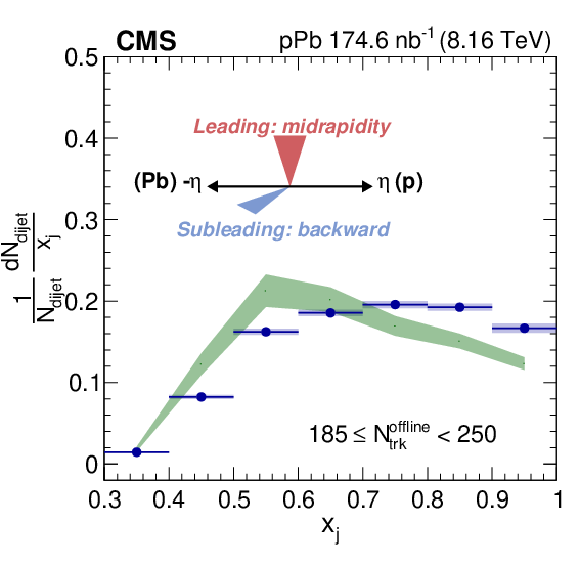

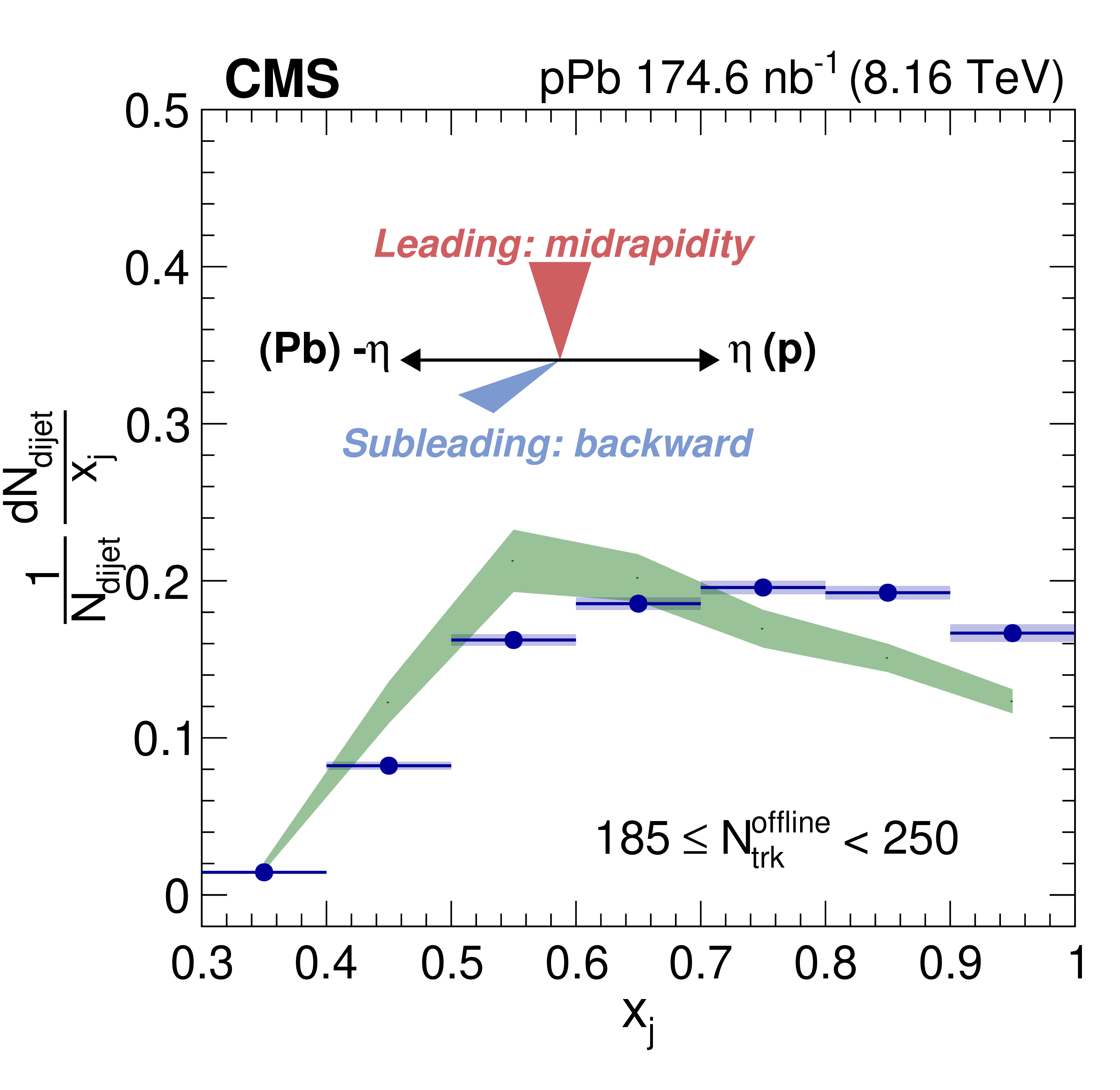

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

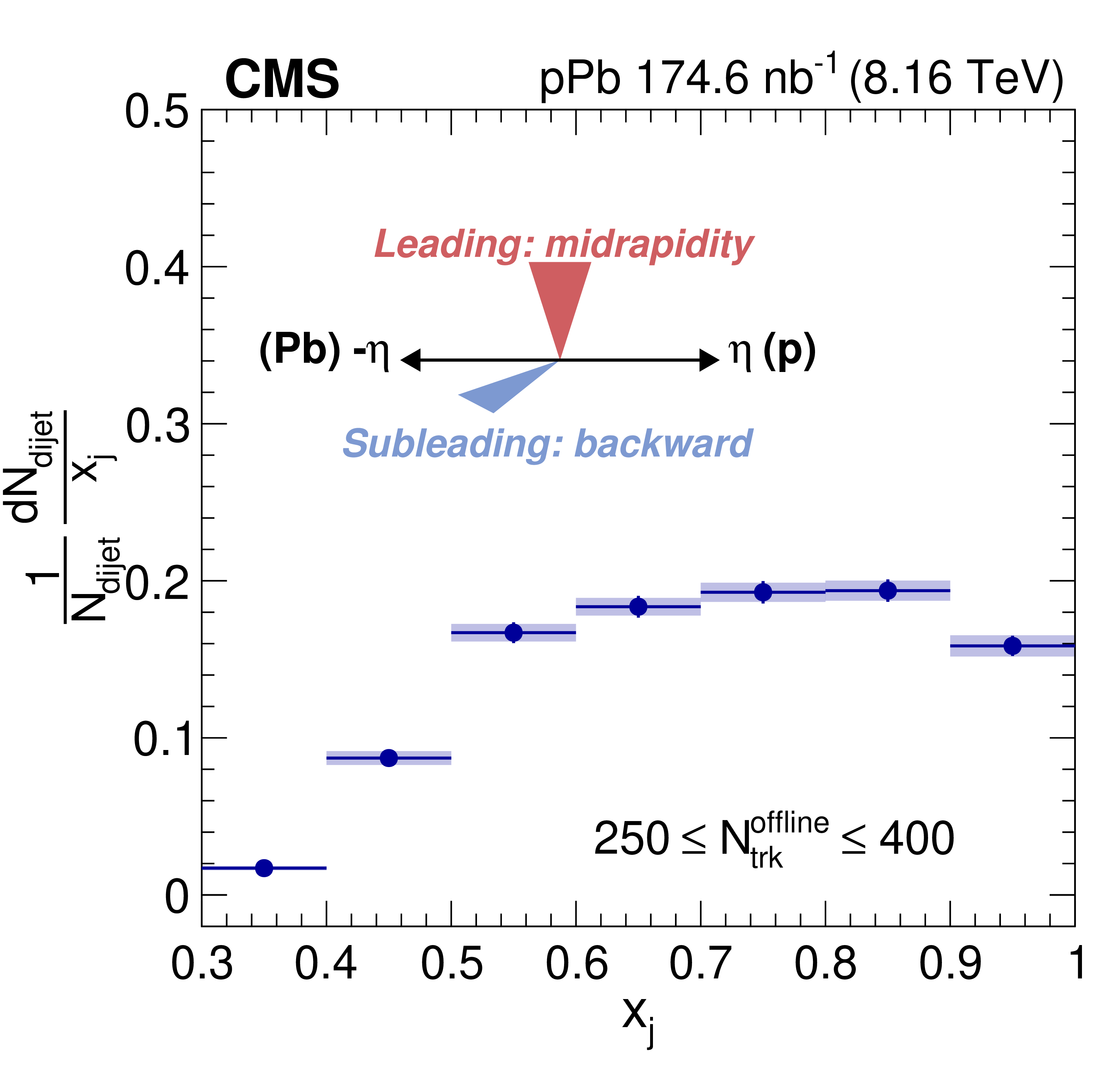

Figure A11-f:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A12:

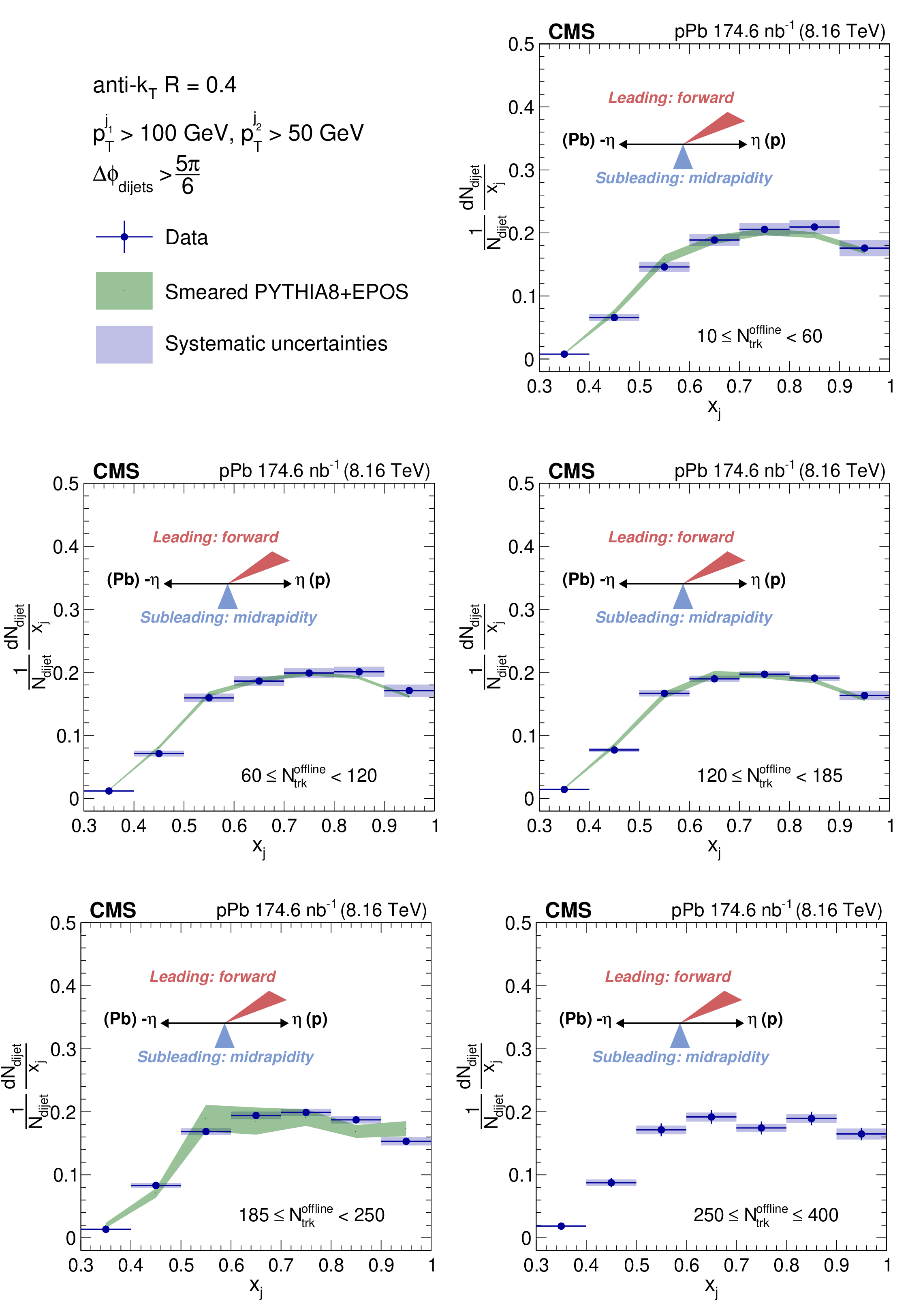

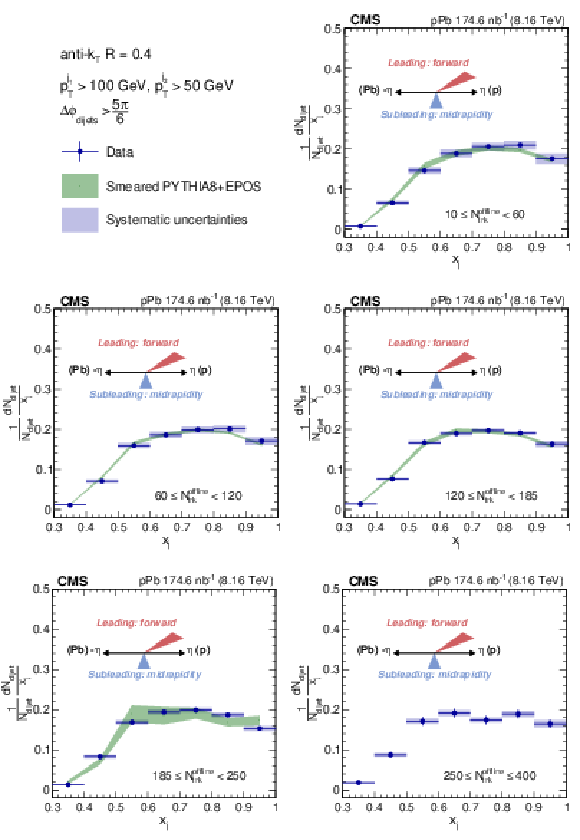

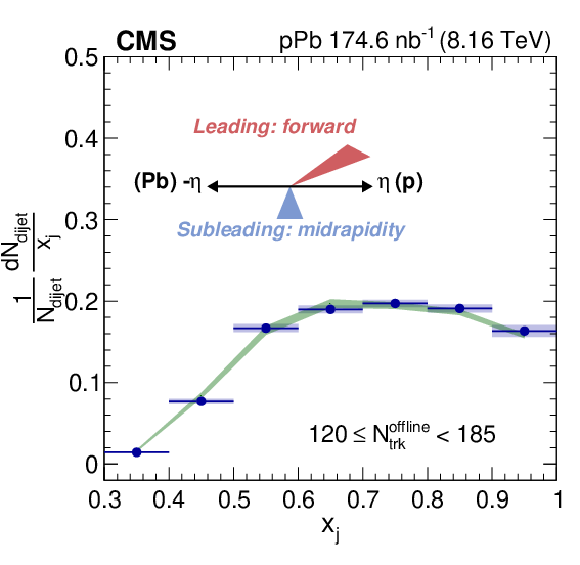

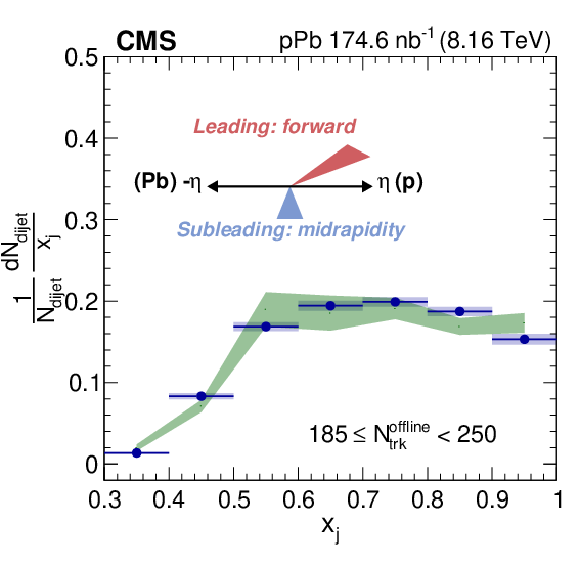

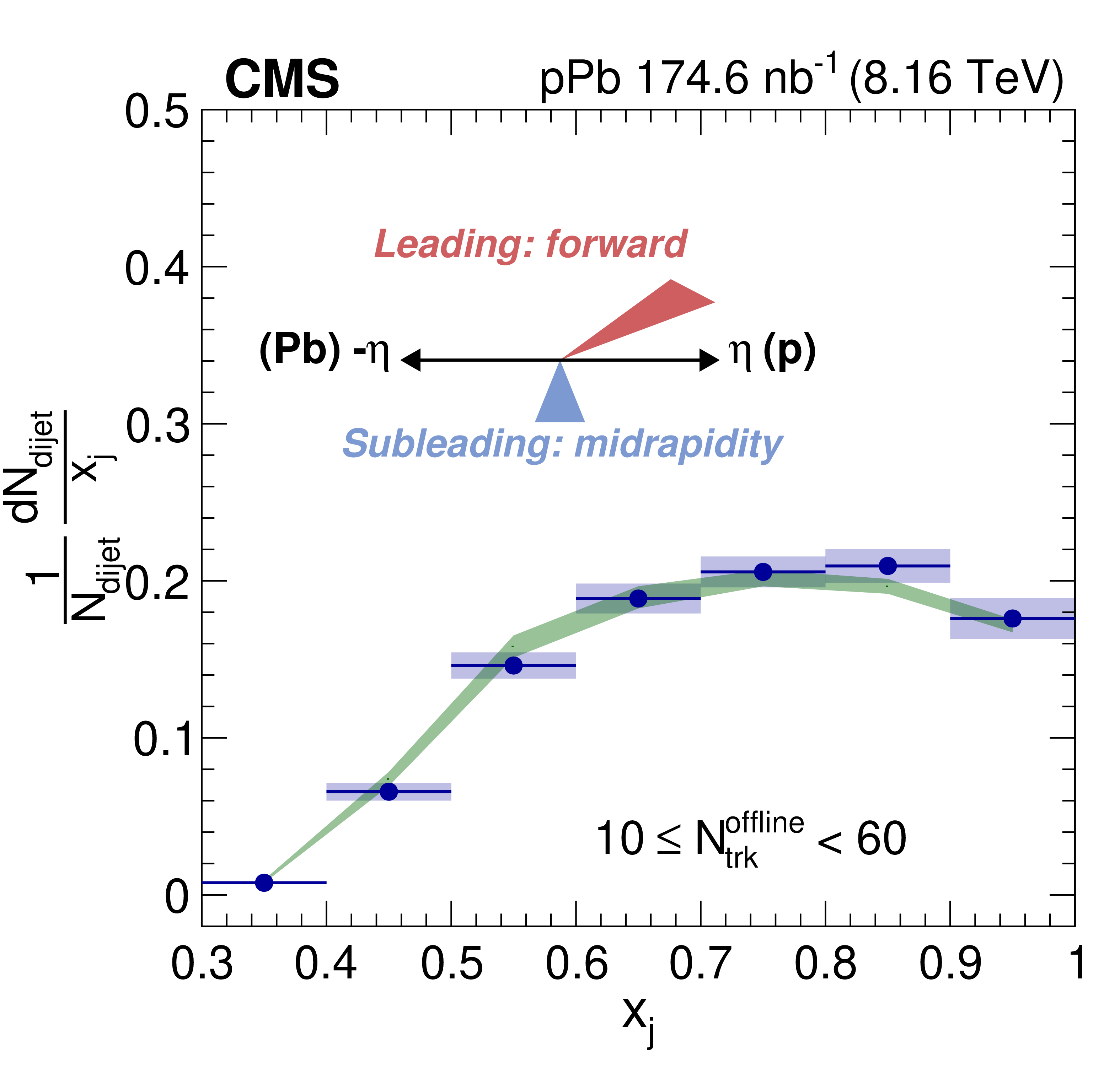

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

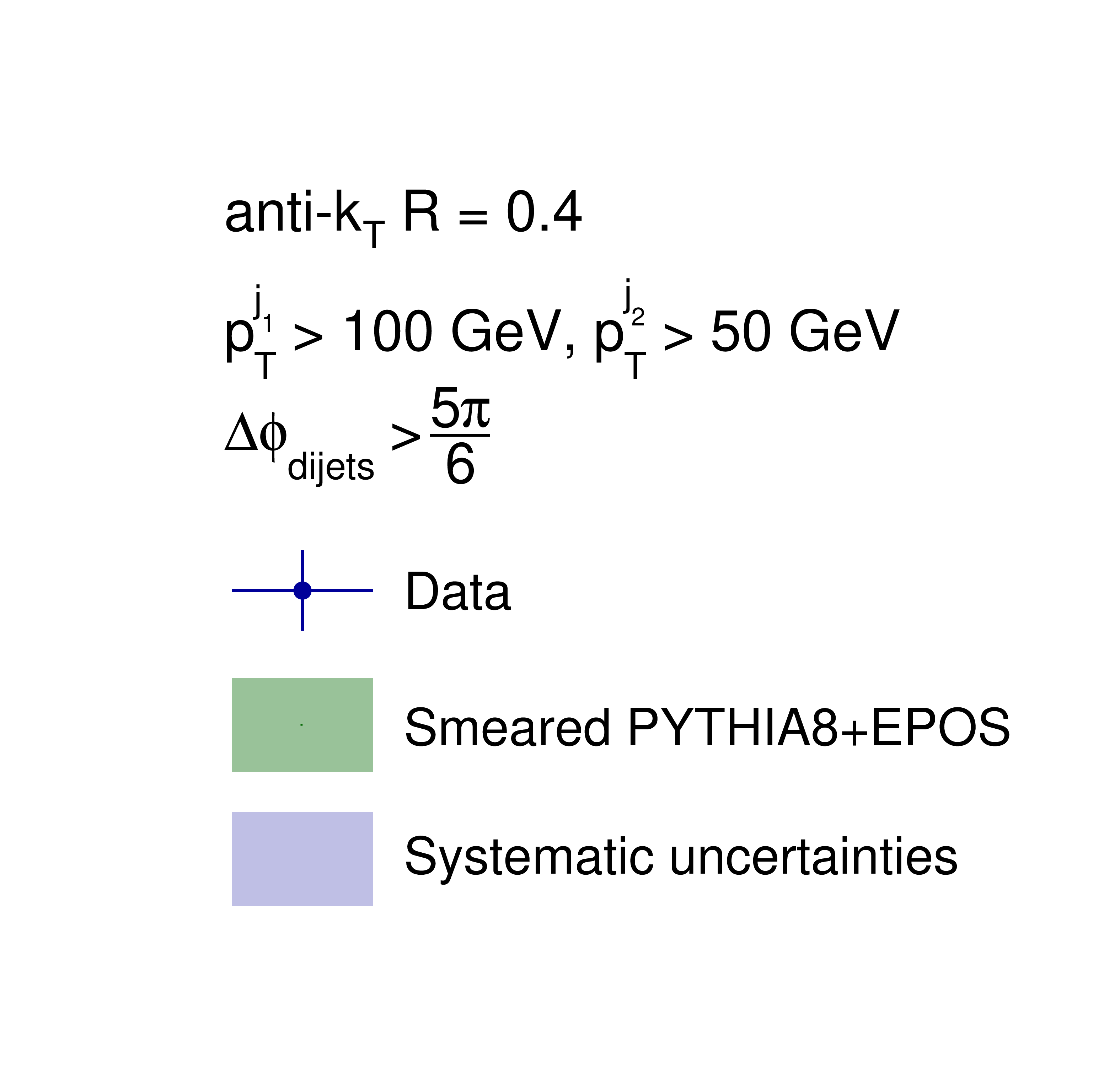

Figure A12-a:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A12-b:

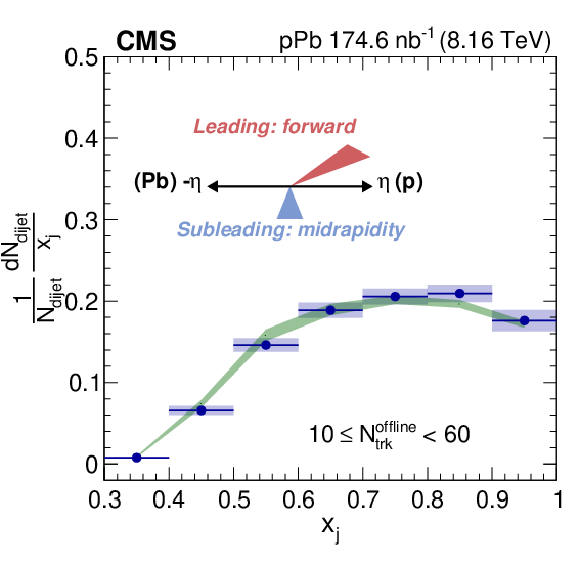

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

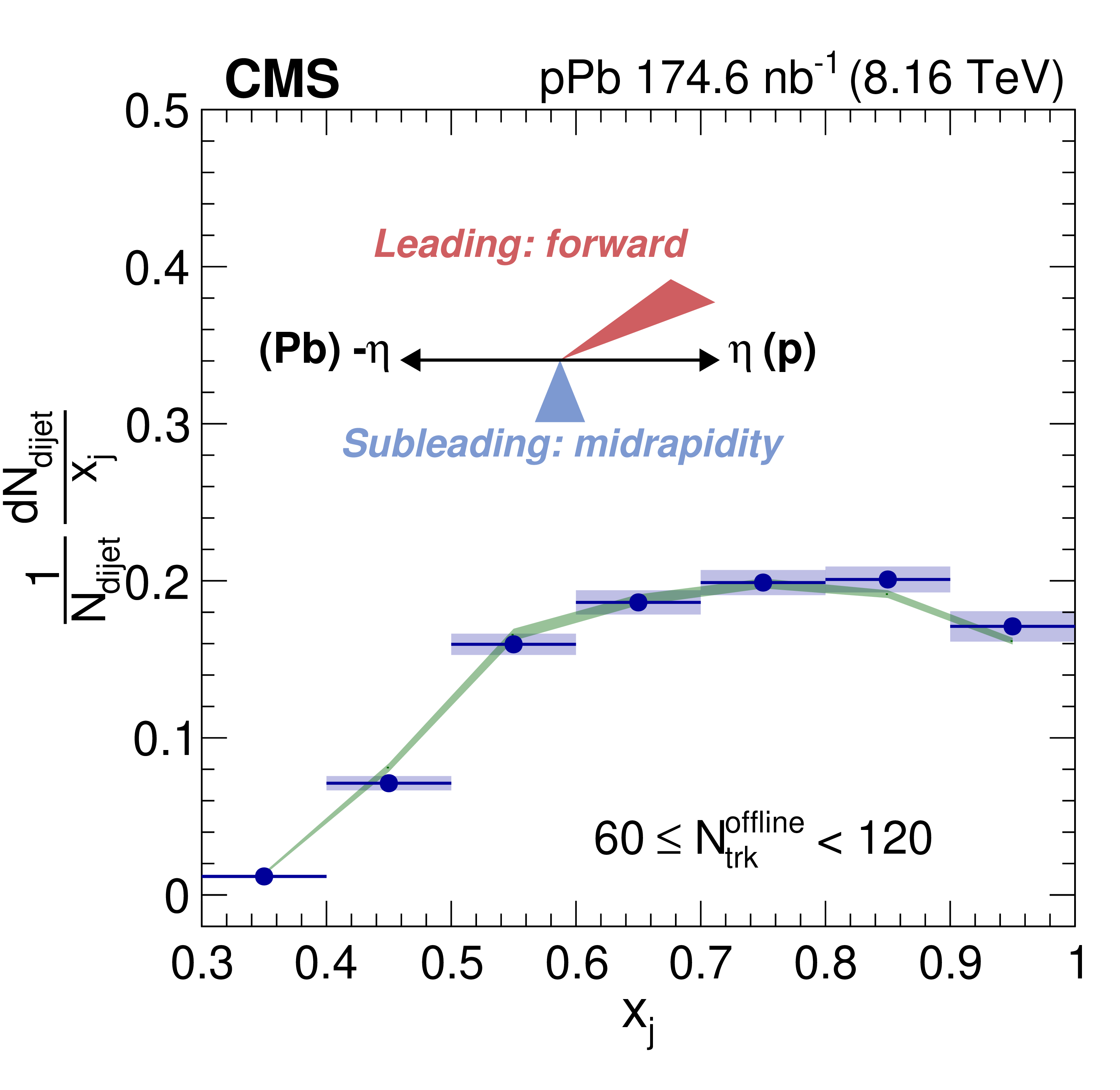

Figure A12-c:

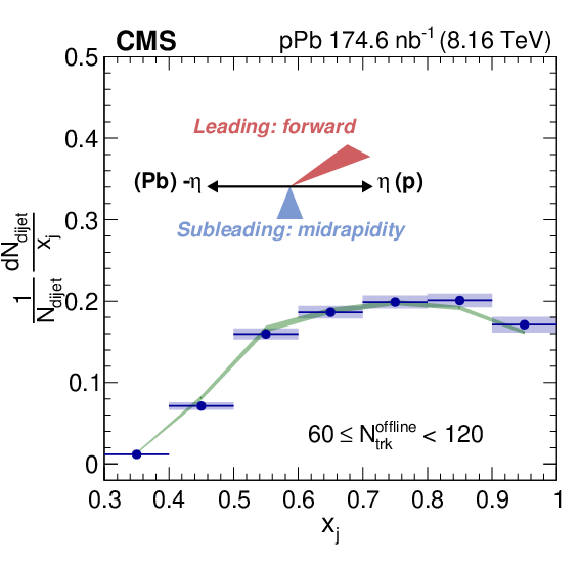

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A12-d:

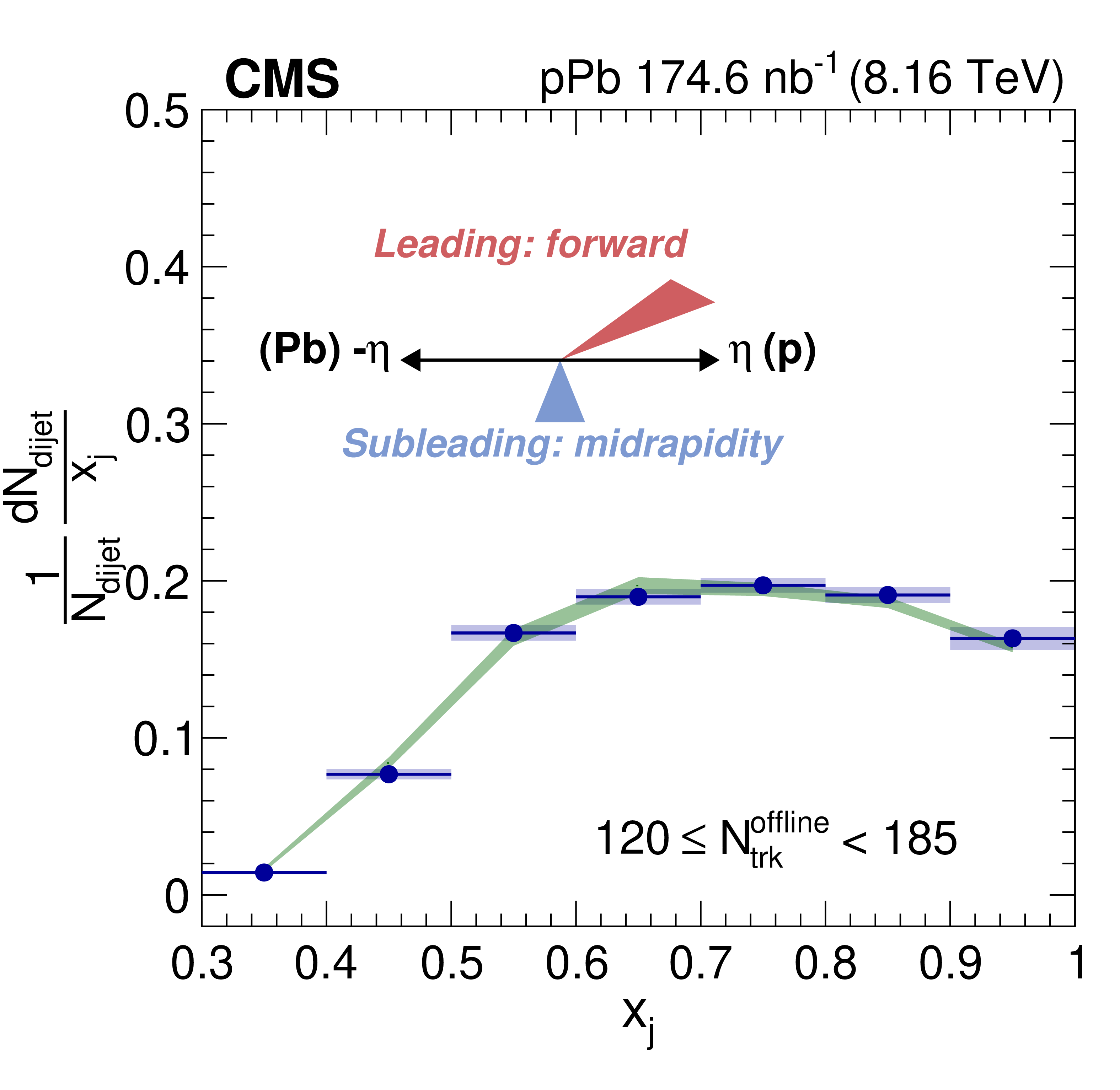

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A12-e:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

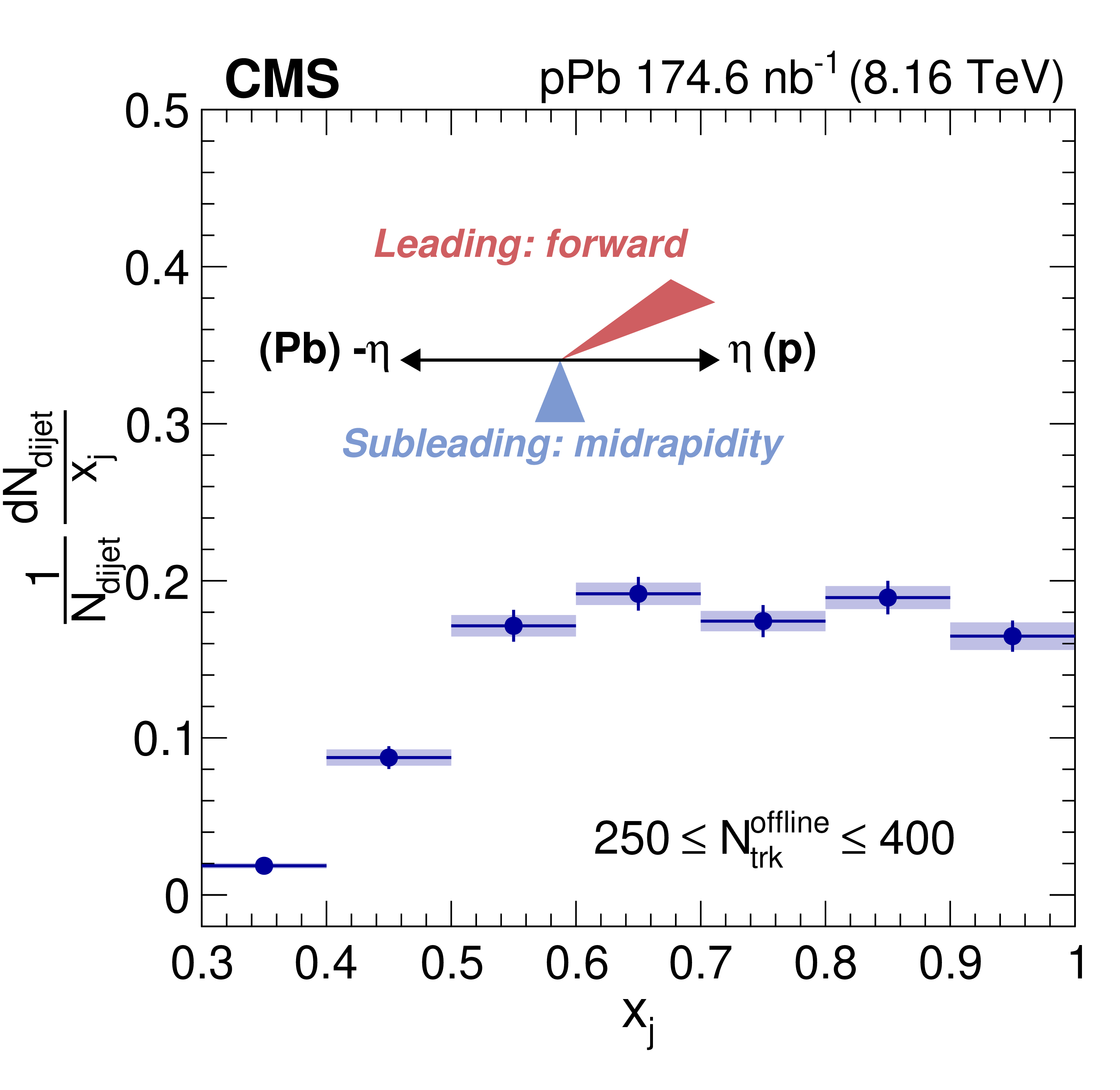

Figure A12-f:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A13:

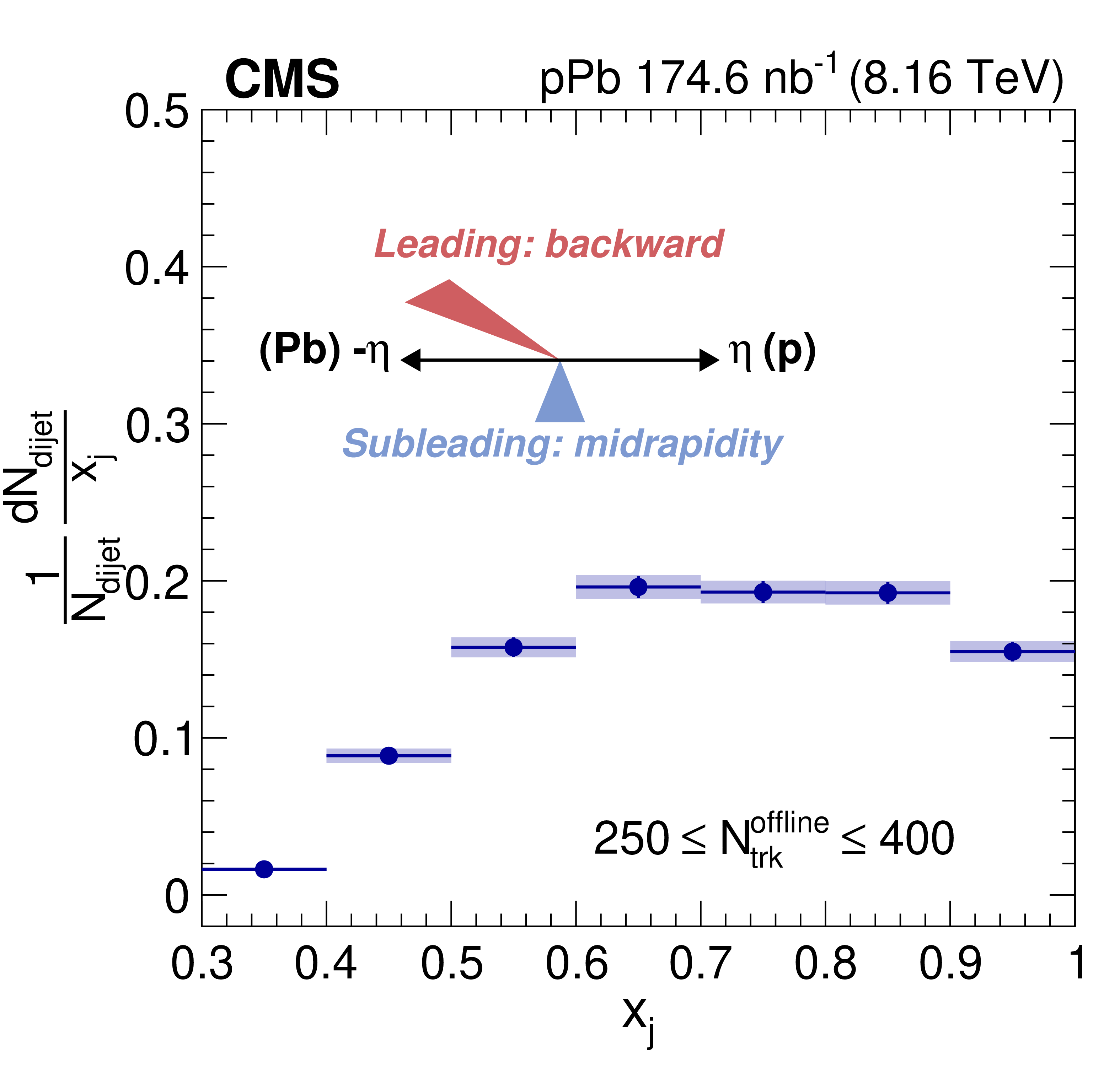

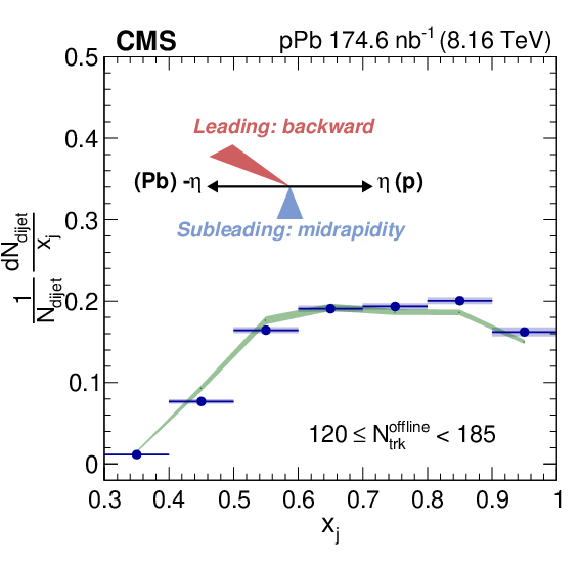

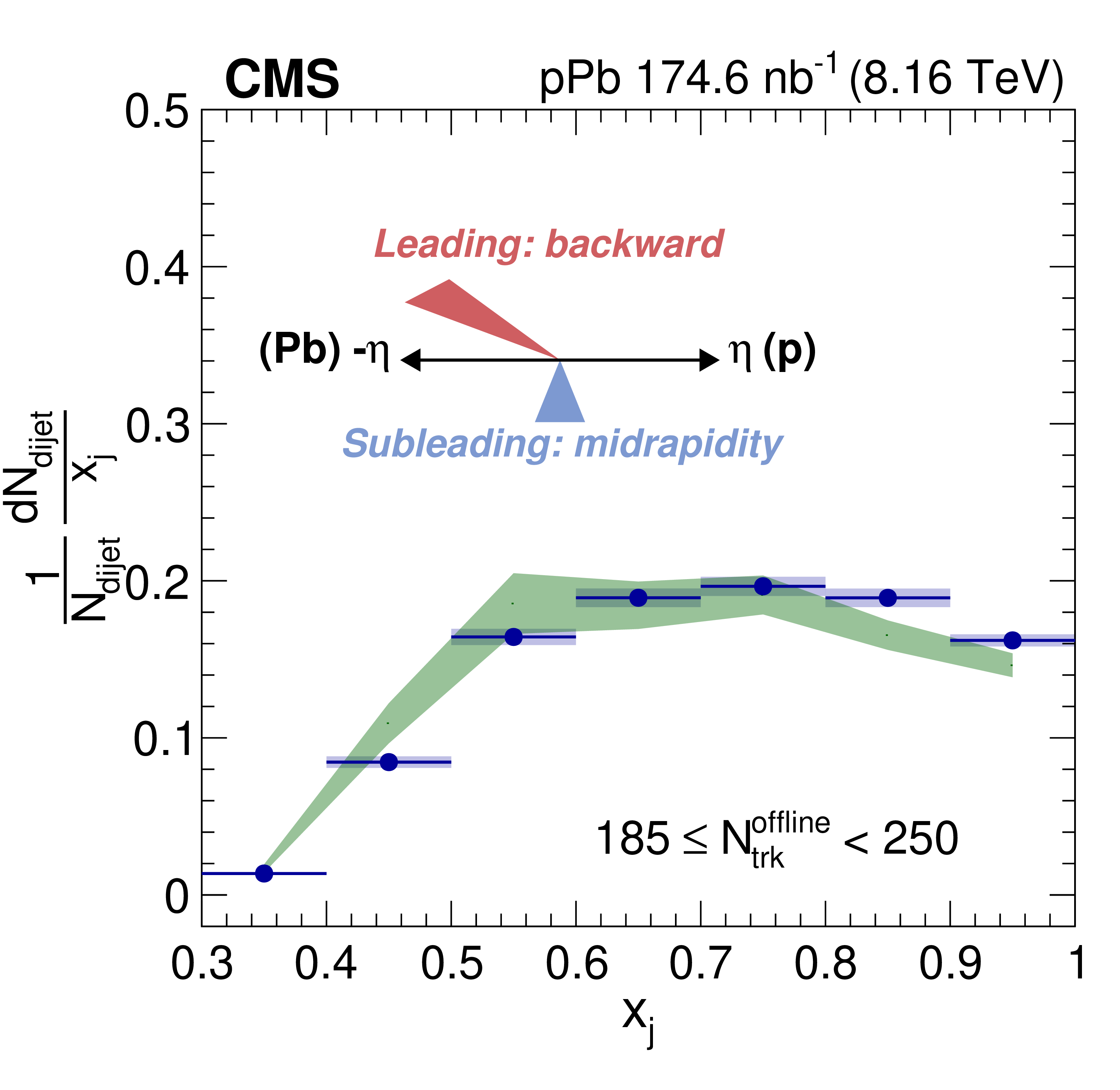

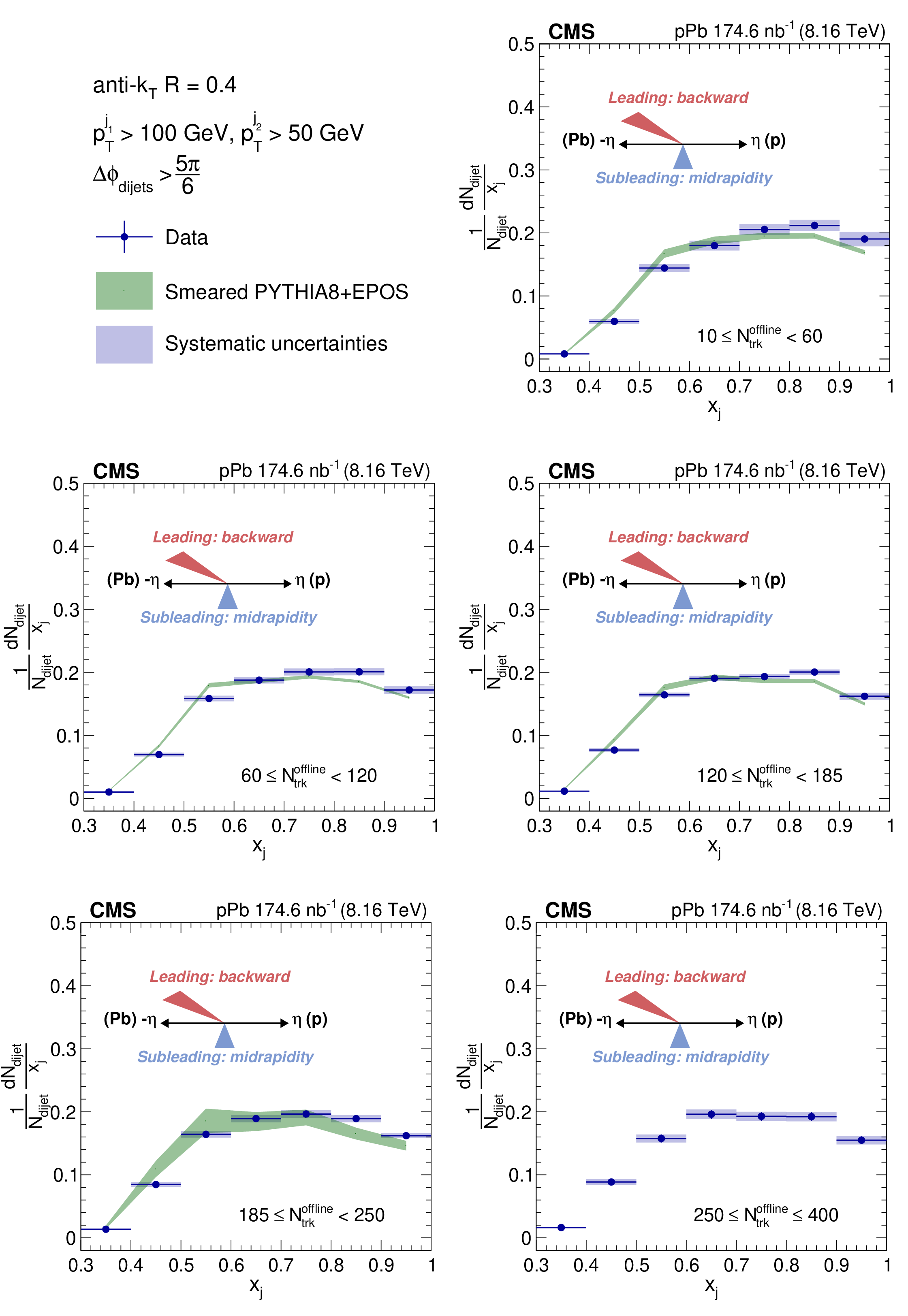

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

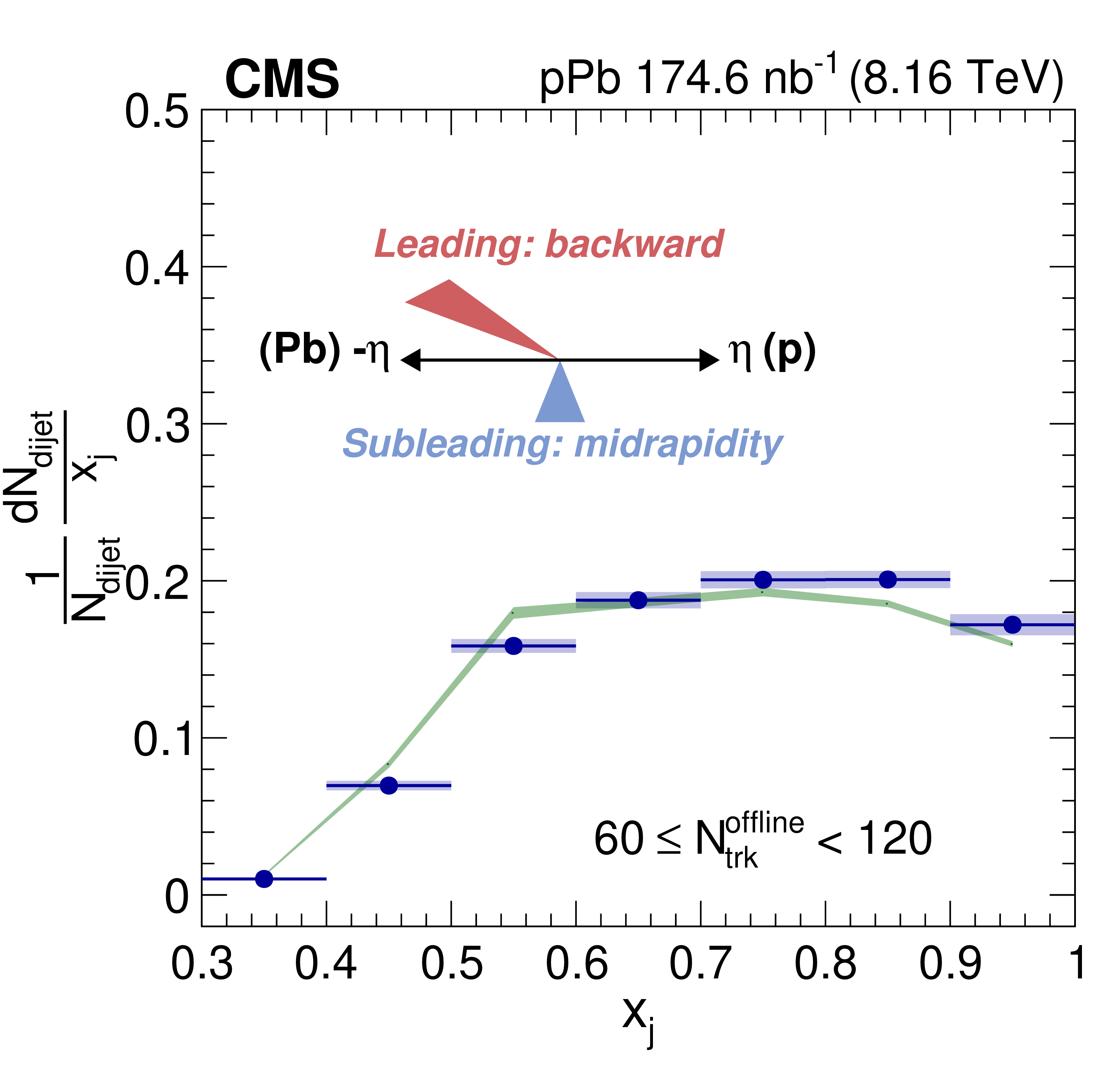

Figure A13-a:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

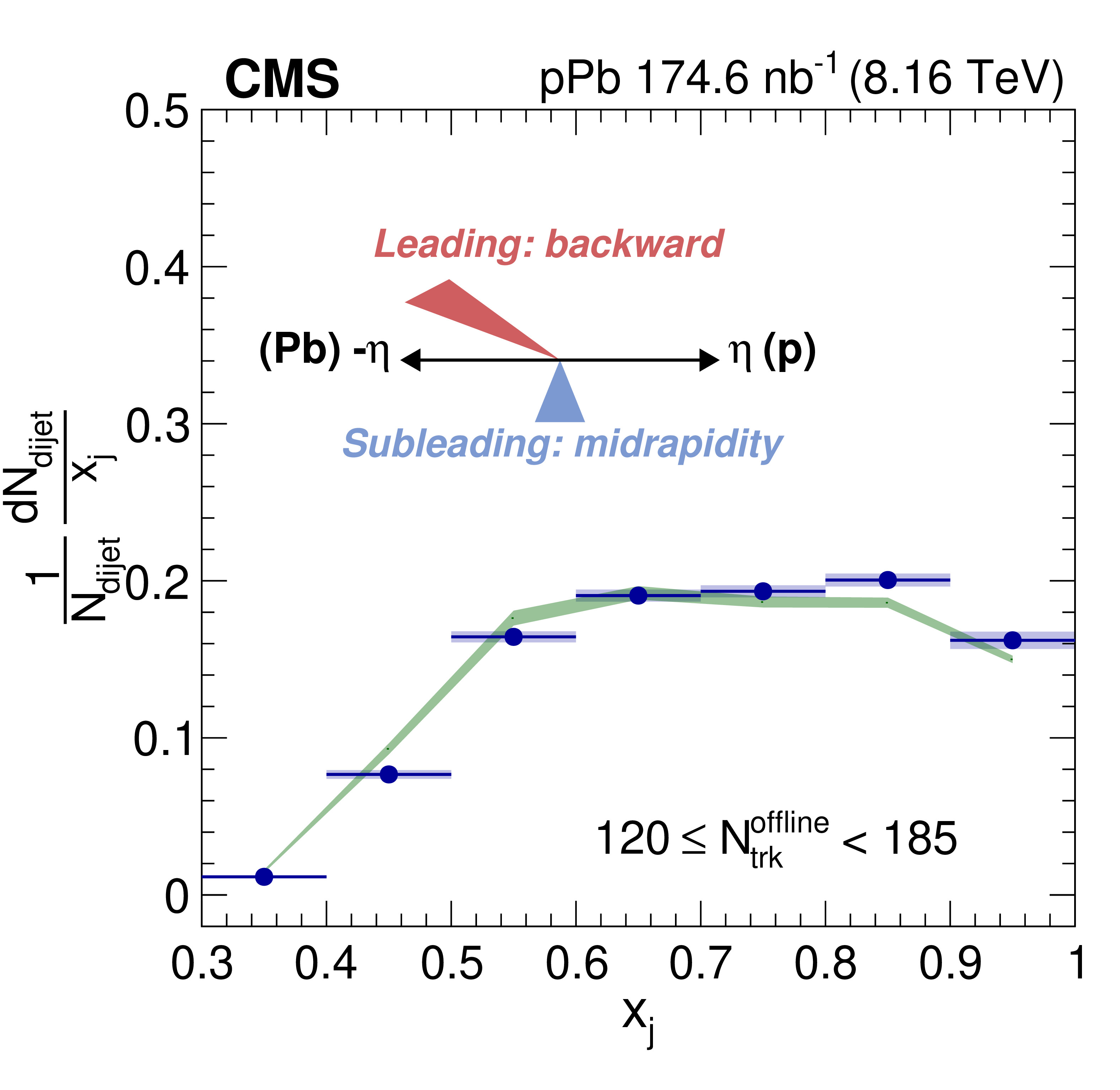

Figure A13-b:

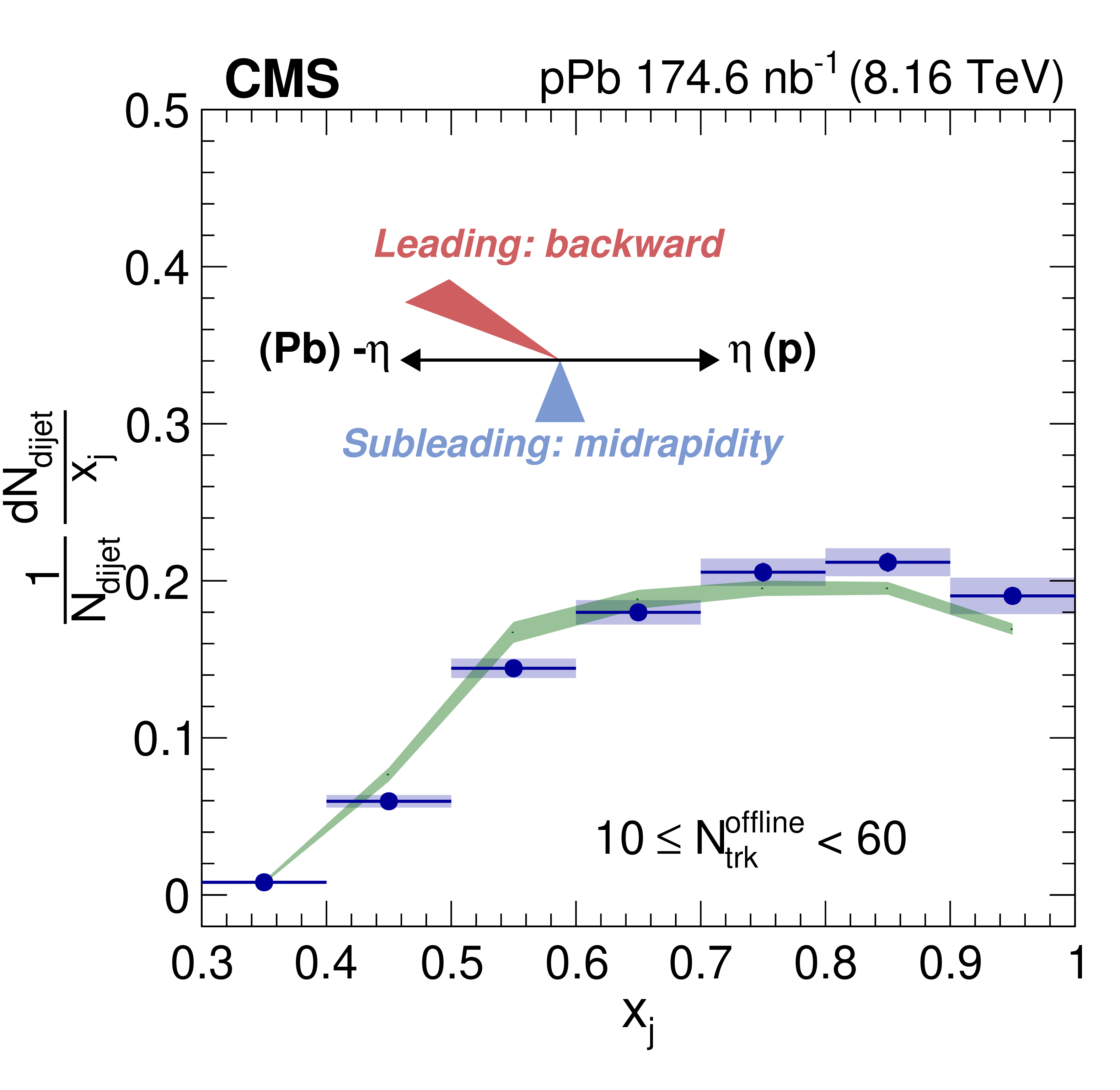

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

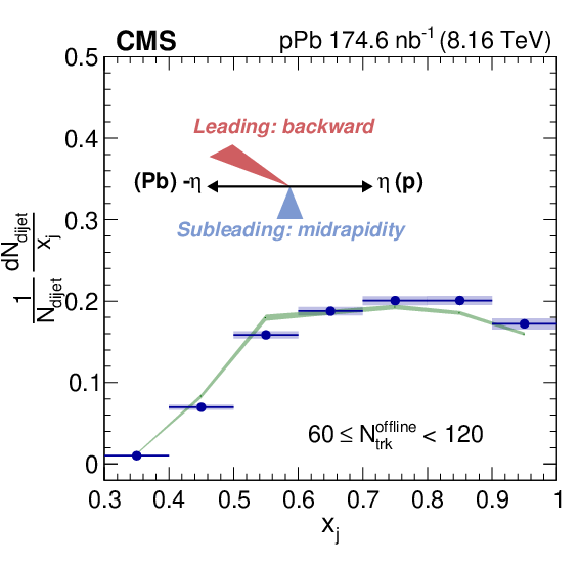

Figure A13-c:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

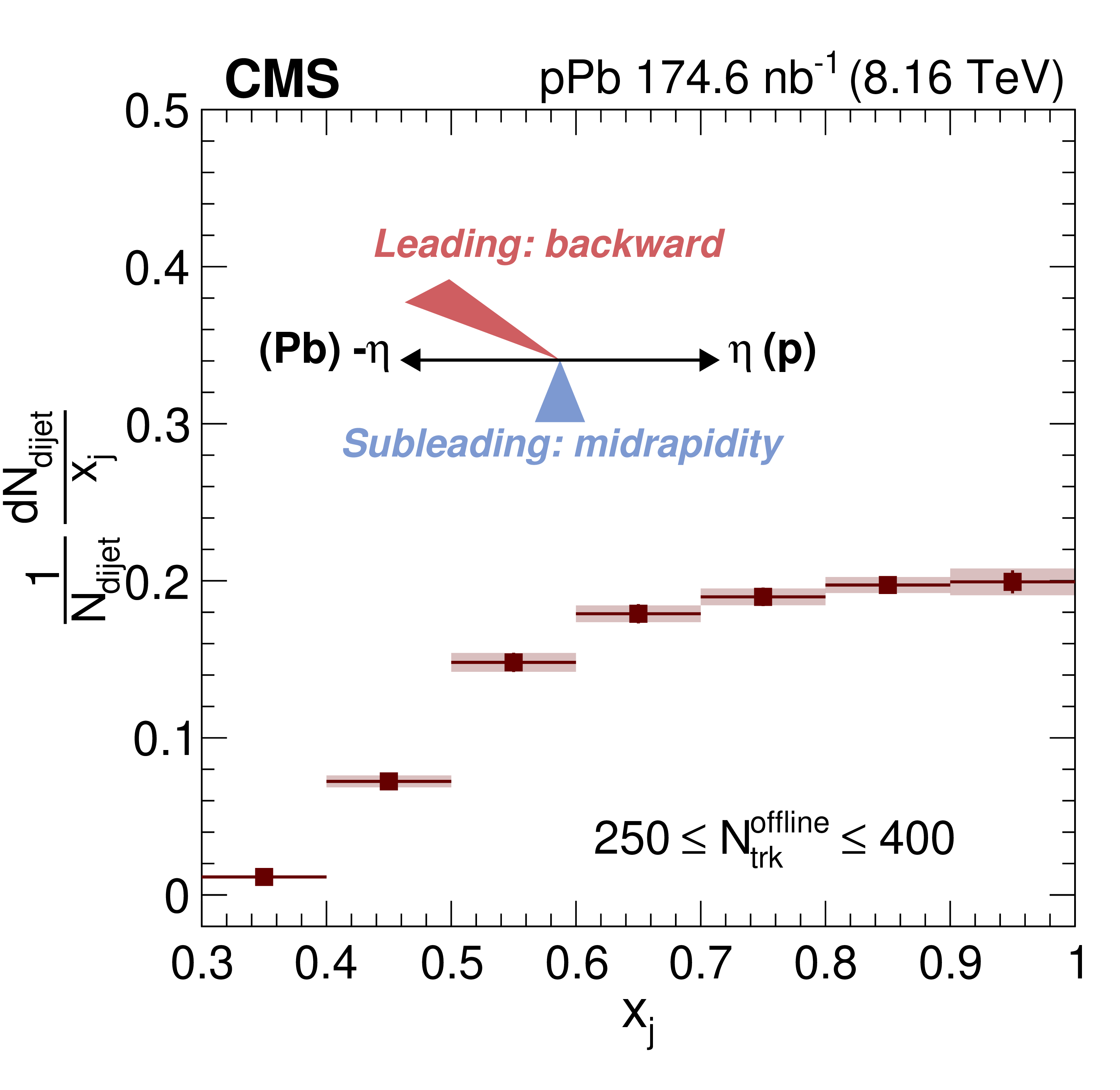

png pdf
Figure A13-d:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A13-e:

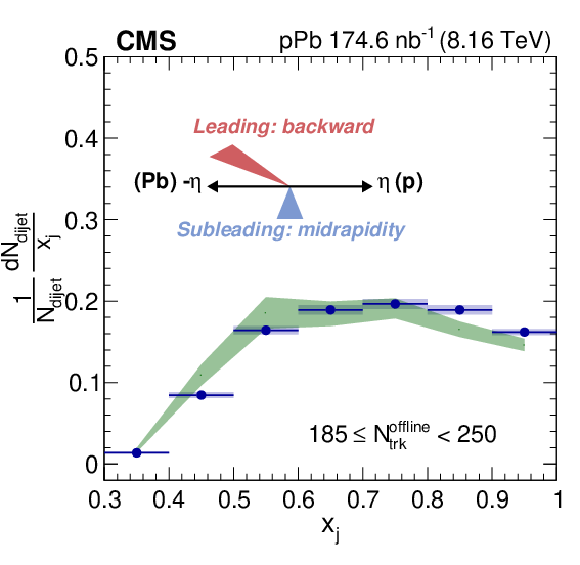

The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A13-f:
The measured (raw) xj distributions, from lower to higher multiplicities and for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparisons with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A14:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

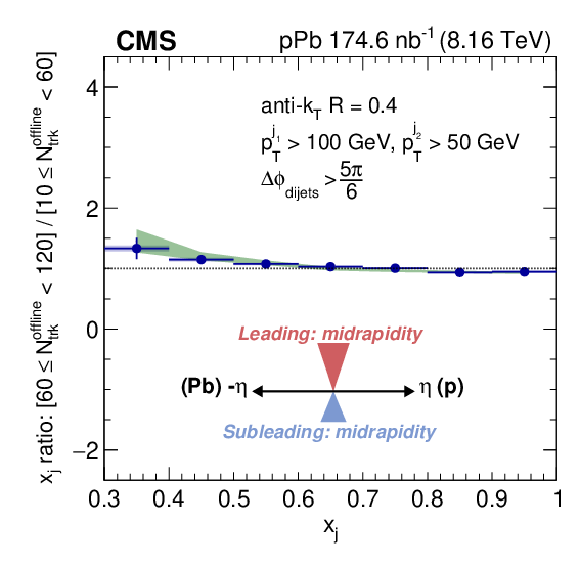

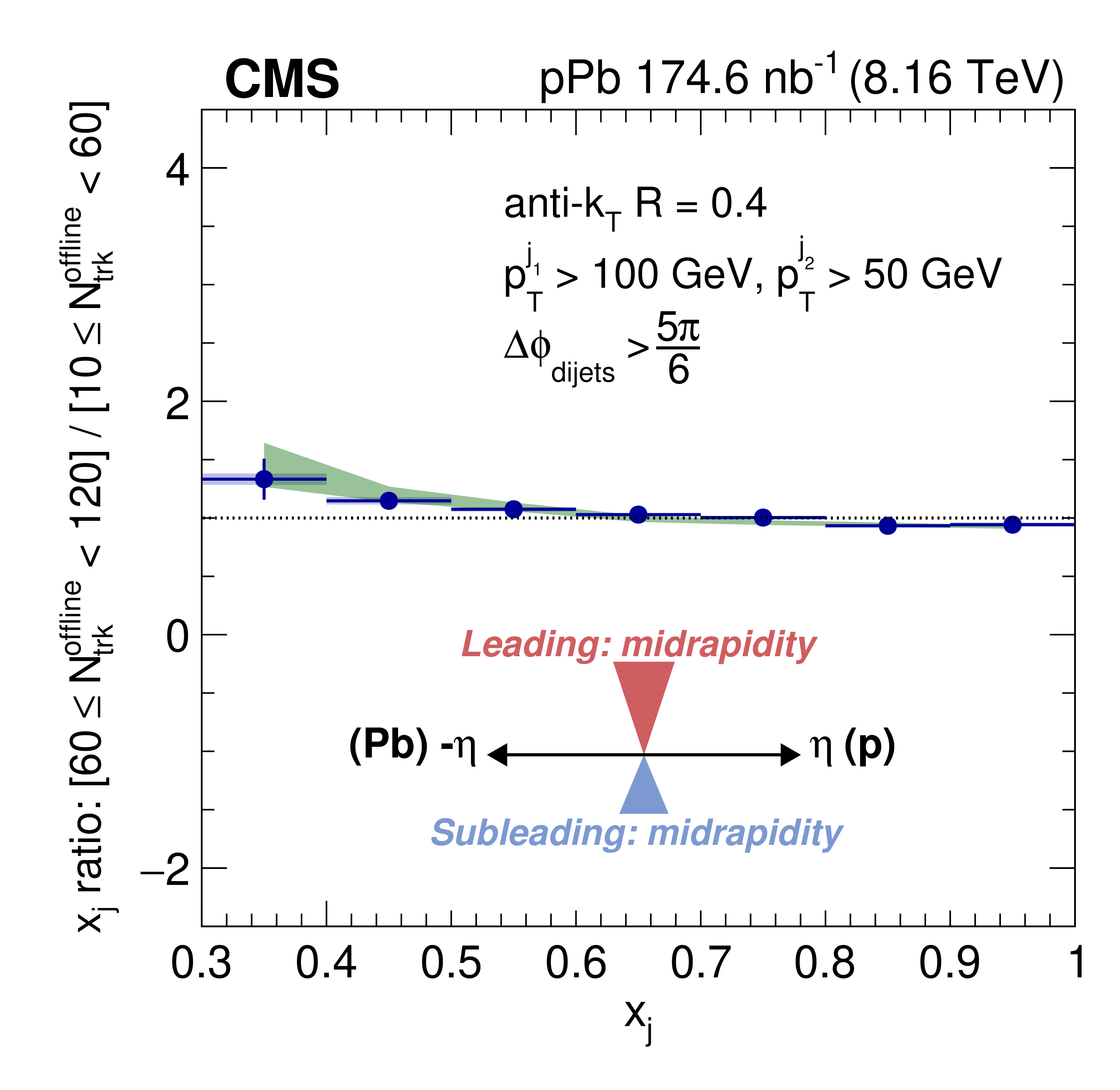

Figure A14-a:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

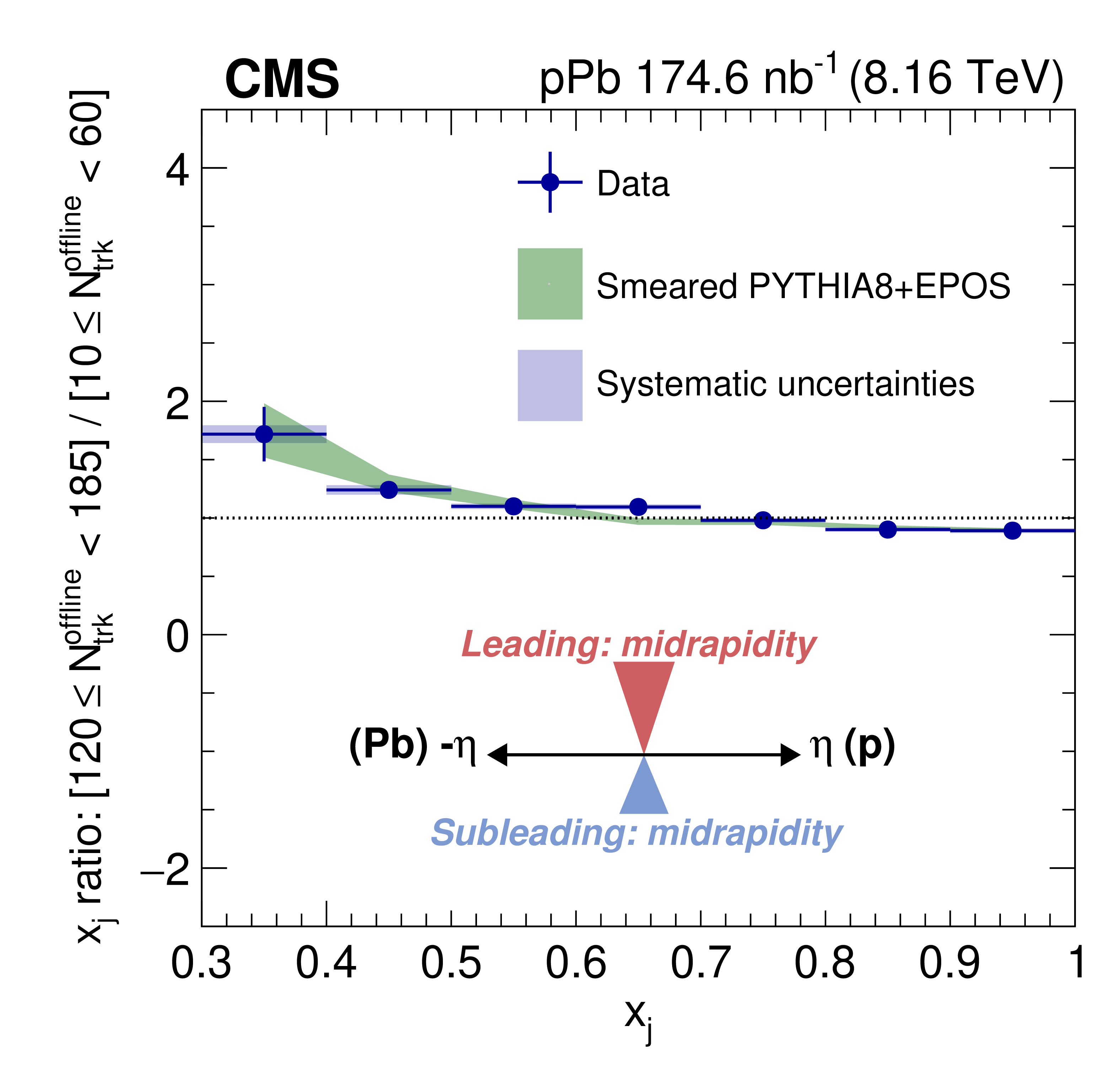

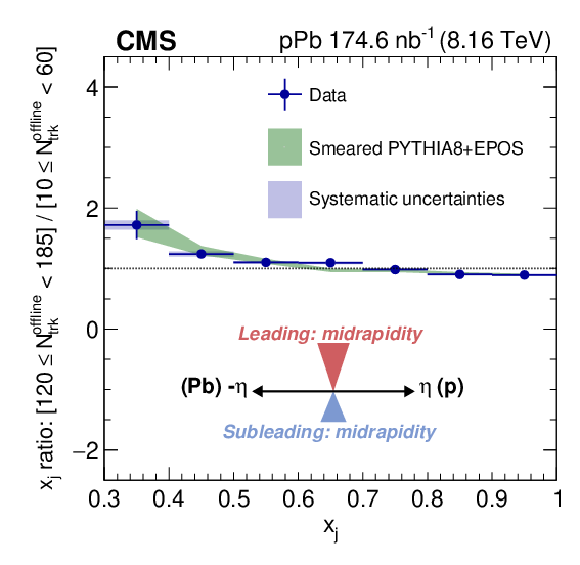

Figure A14-b:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

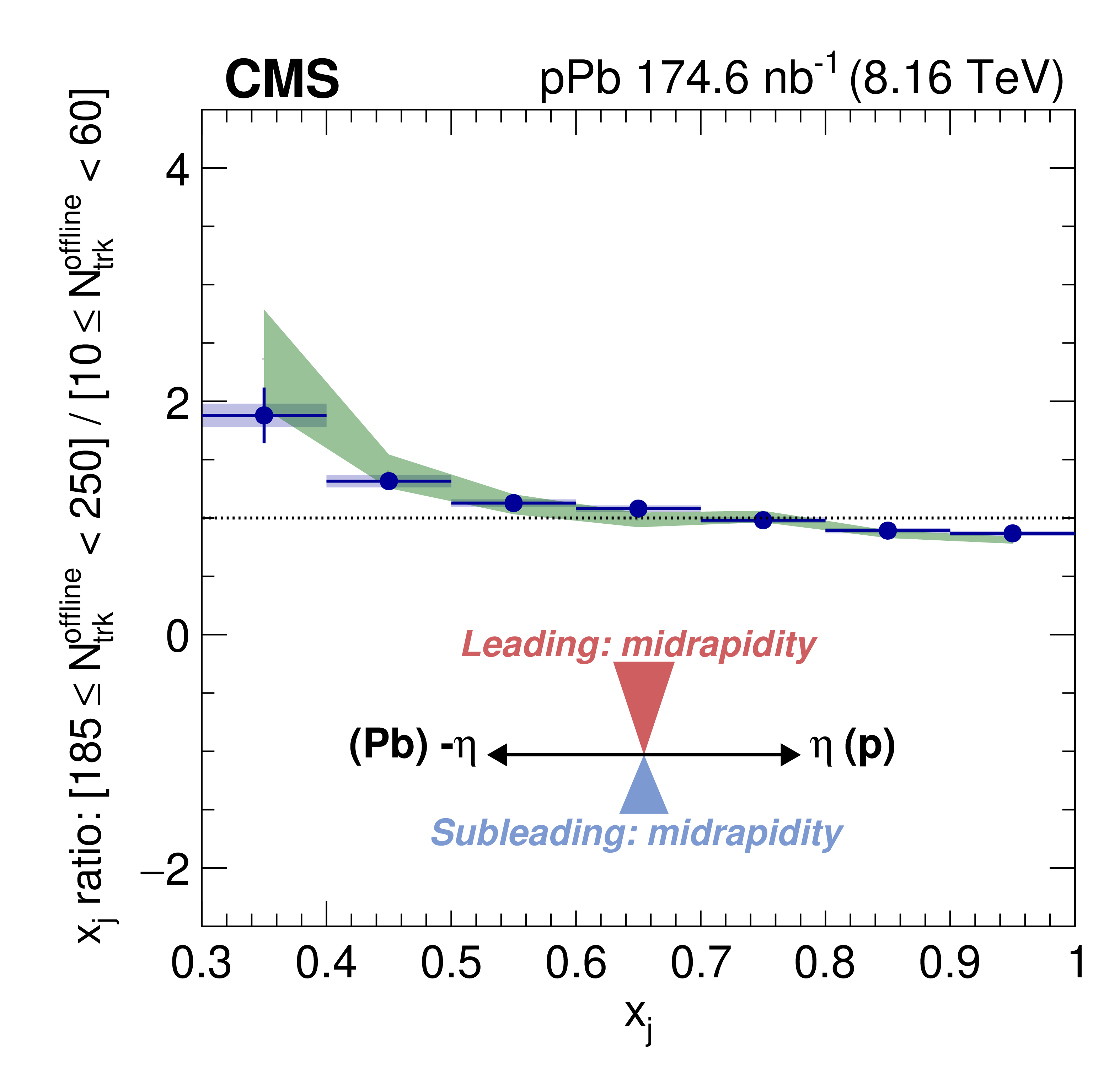

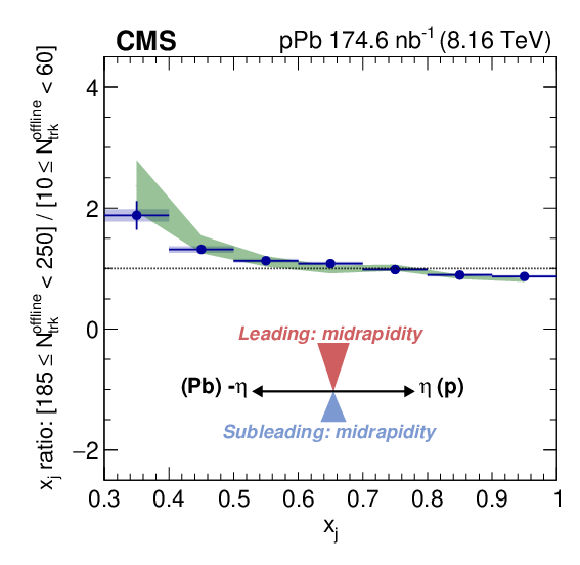

Figure A14-c:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

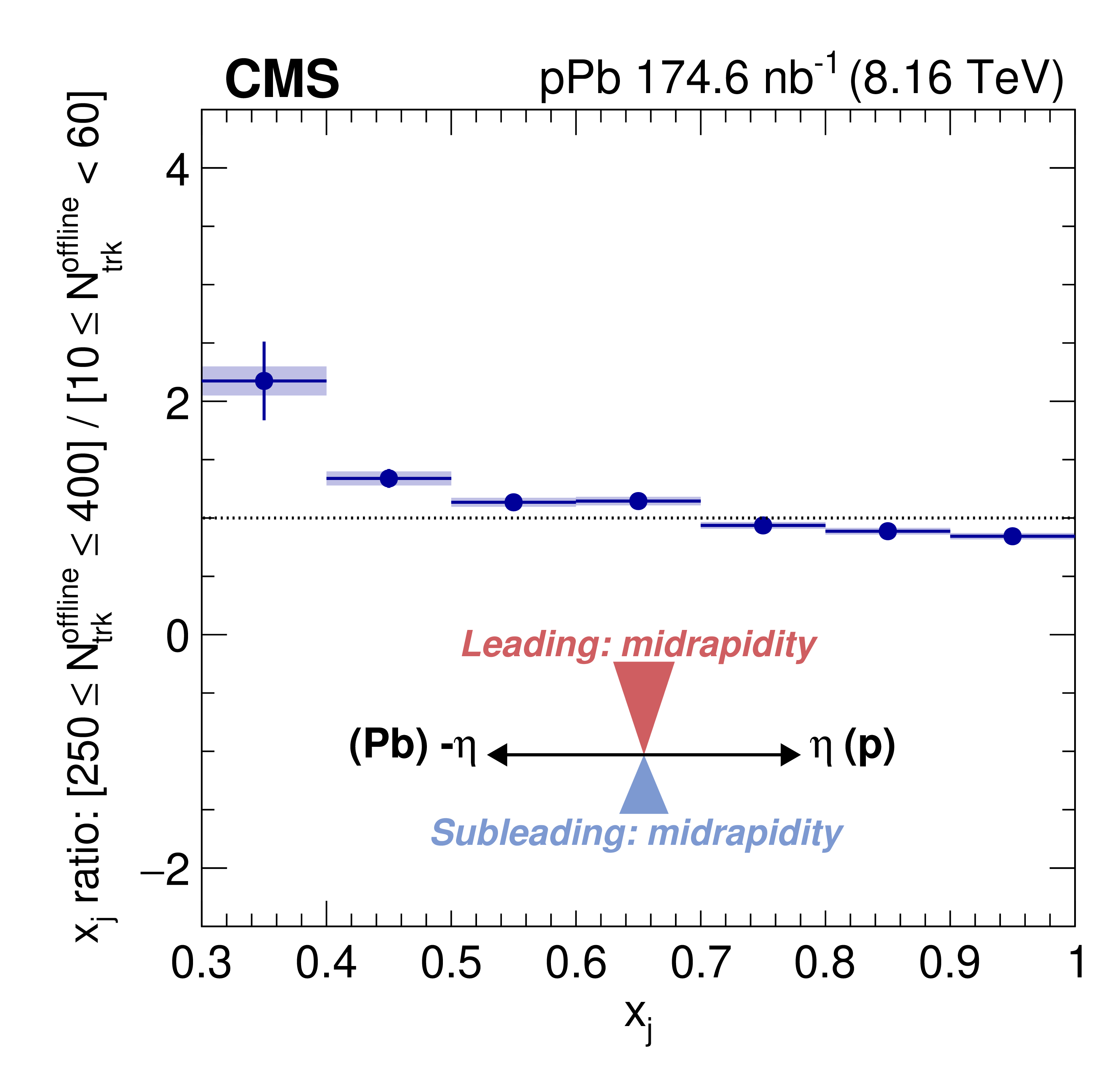

Figure A14-d:

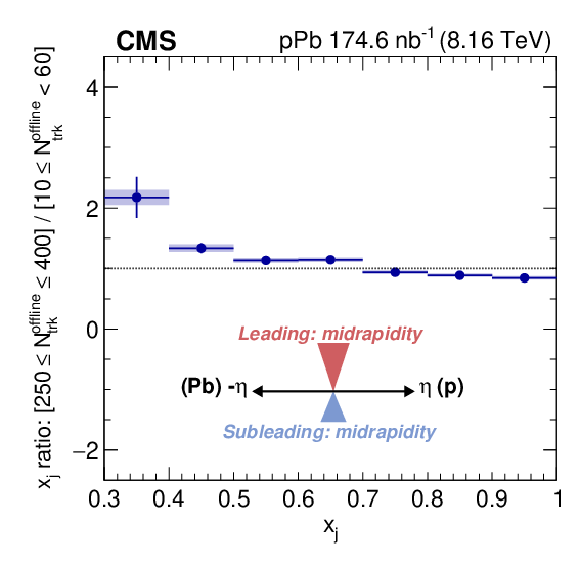

The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for both leading and subleading jets in the midrapidity region, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

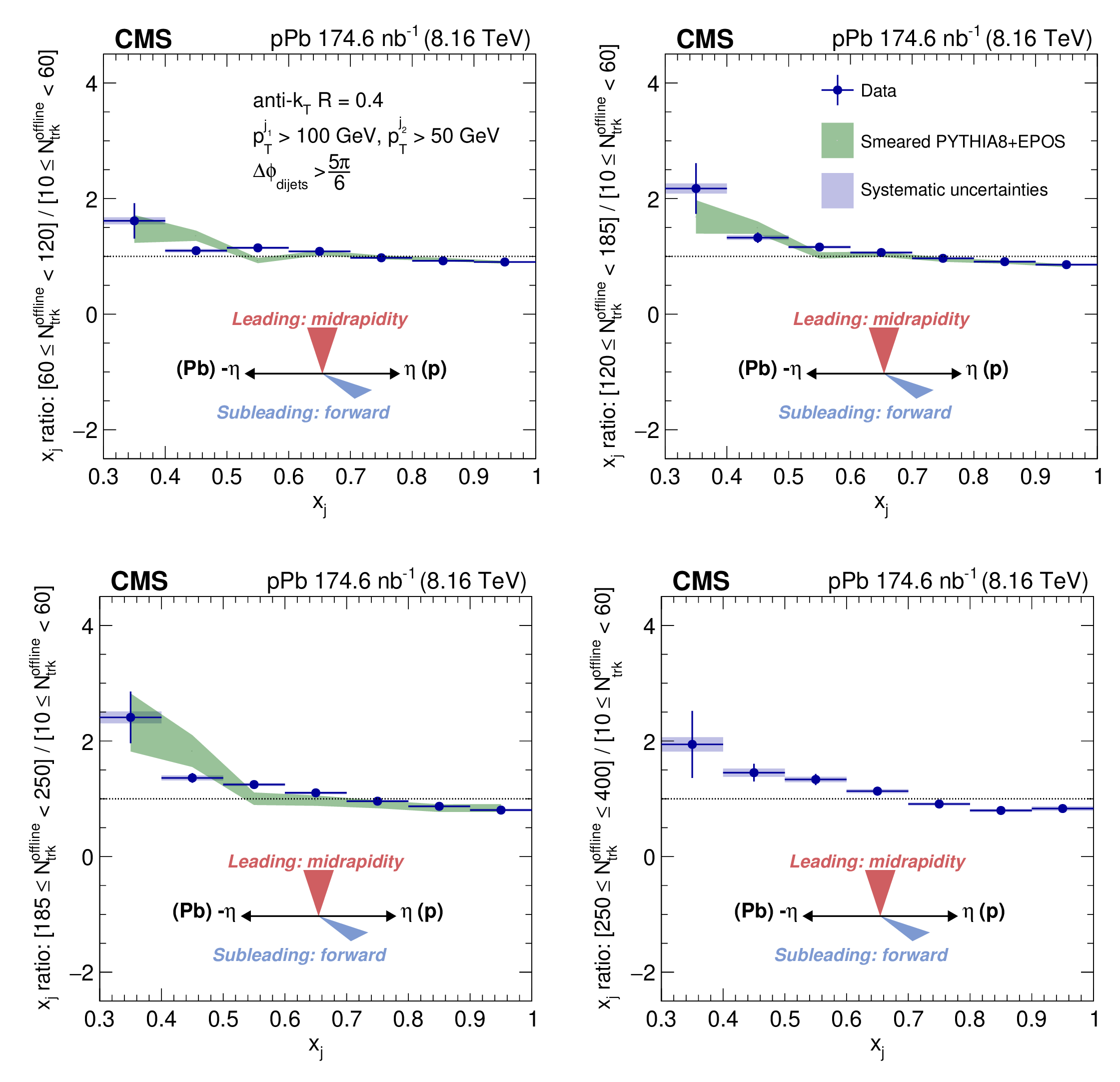

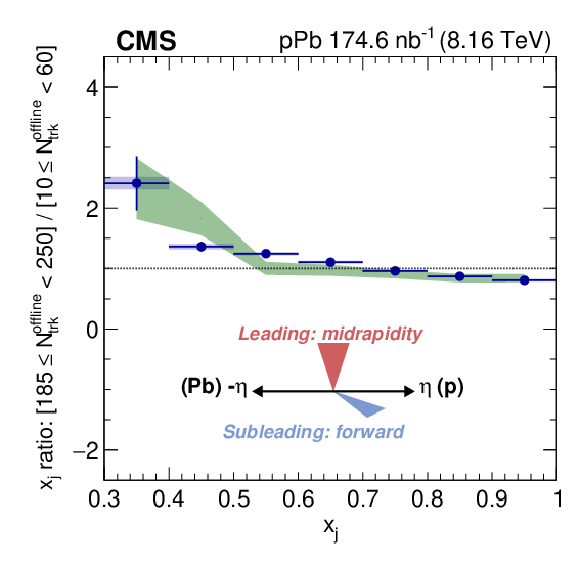

Figure A15:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

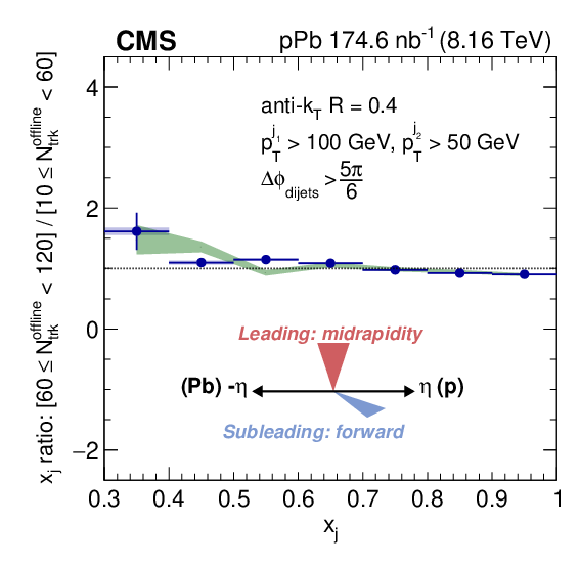

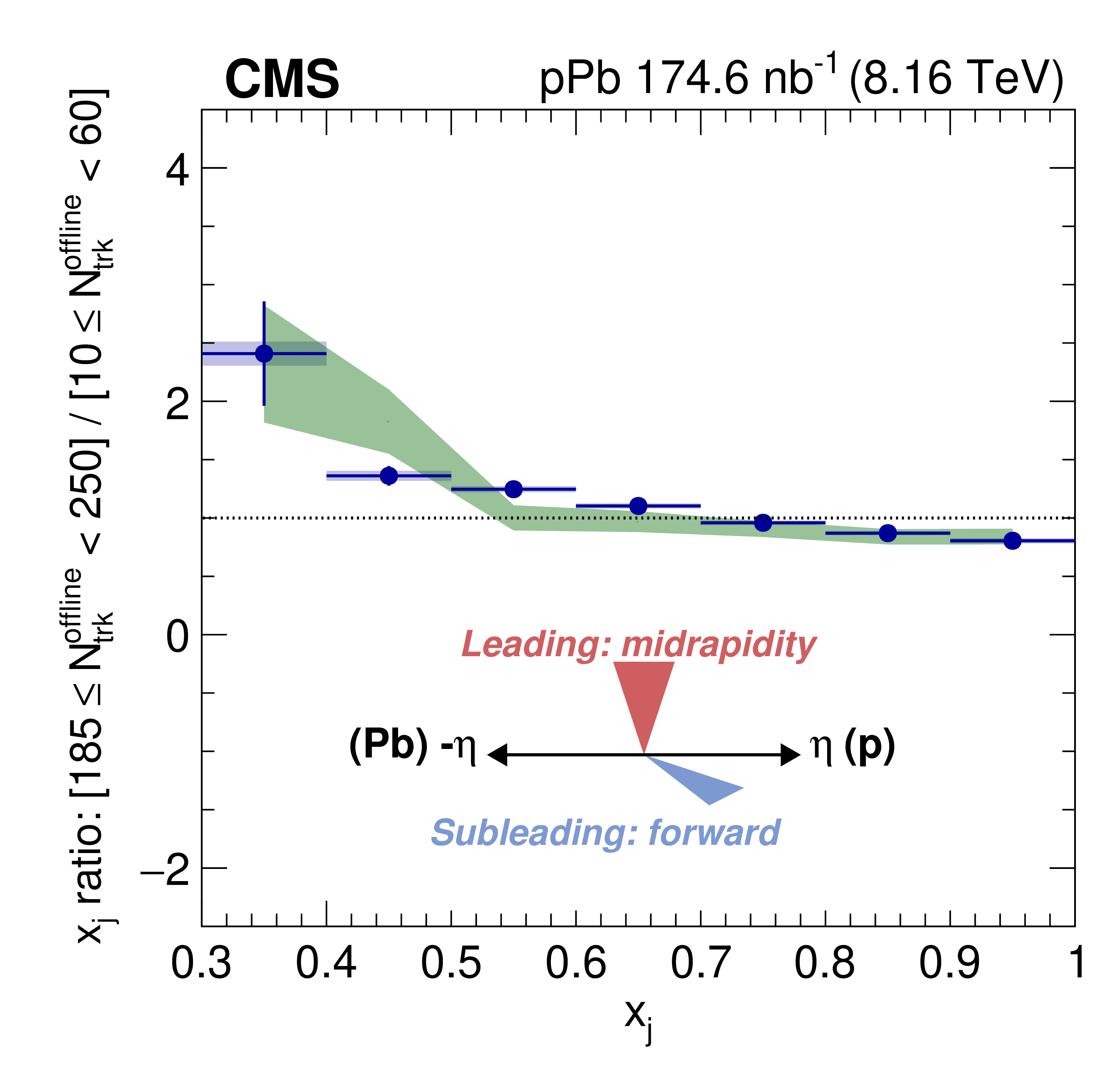

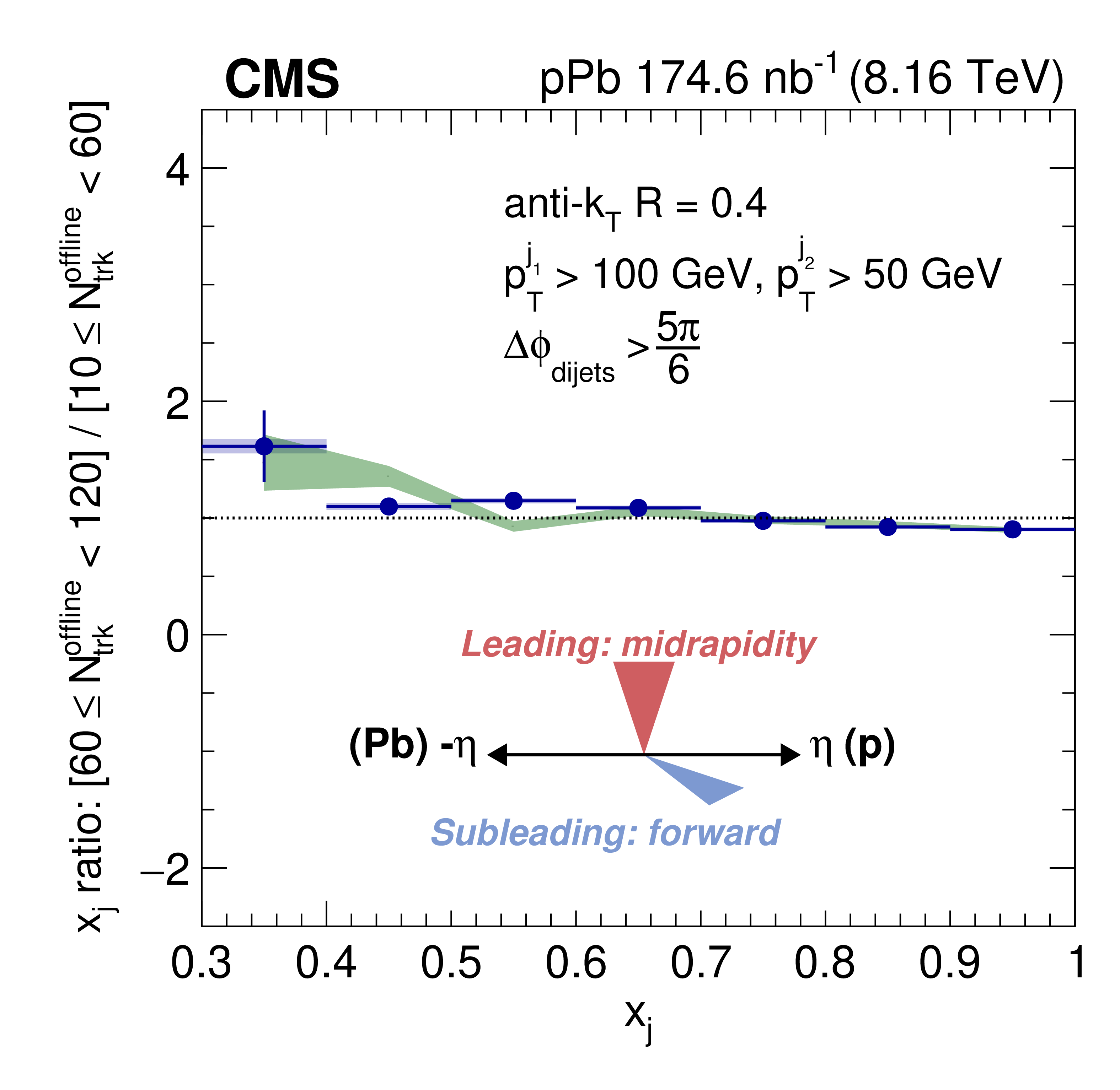

Figure A15-a:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

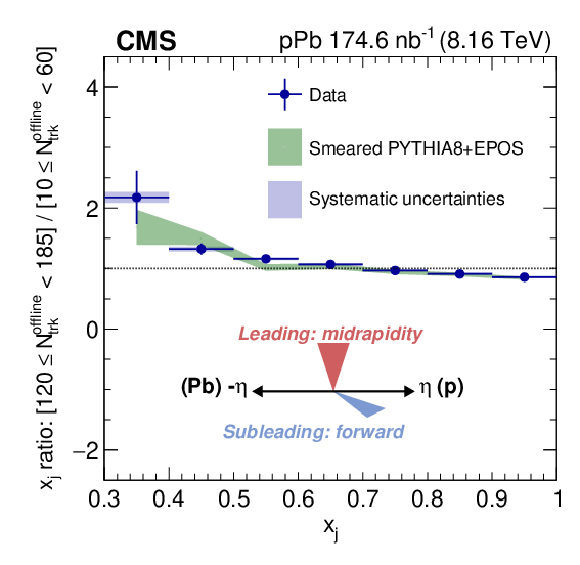

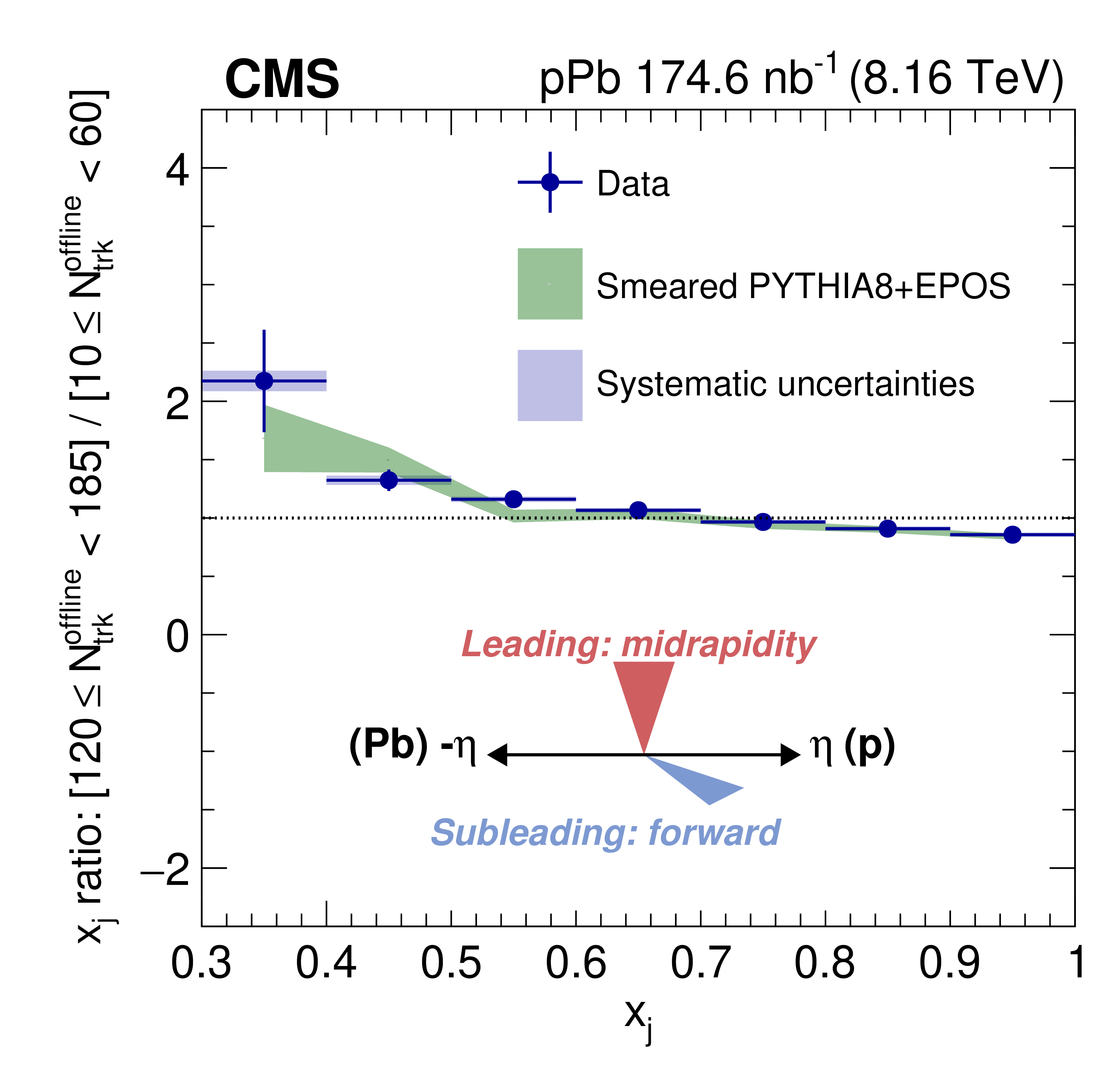

Figure A15-b:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf
Figure A15-c:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

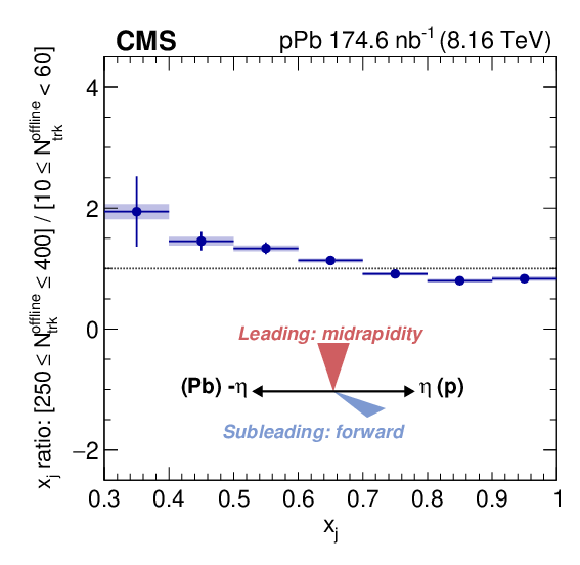

Figure A15-d:

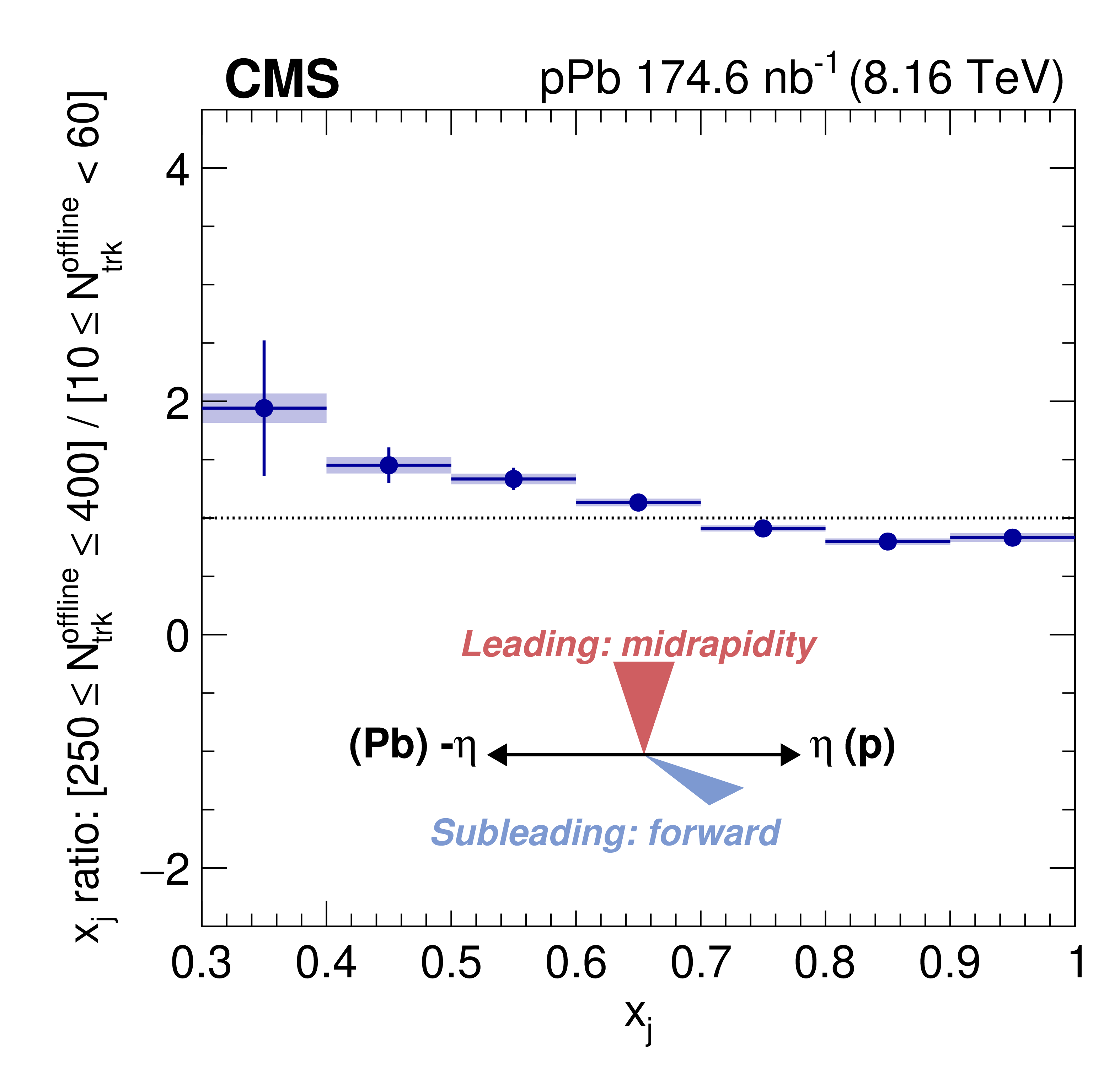

The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and forward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

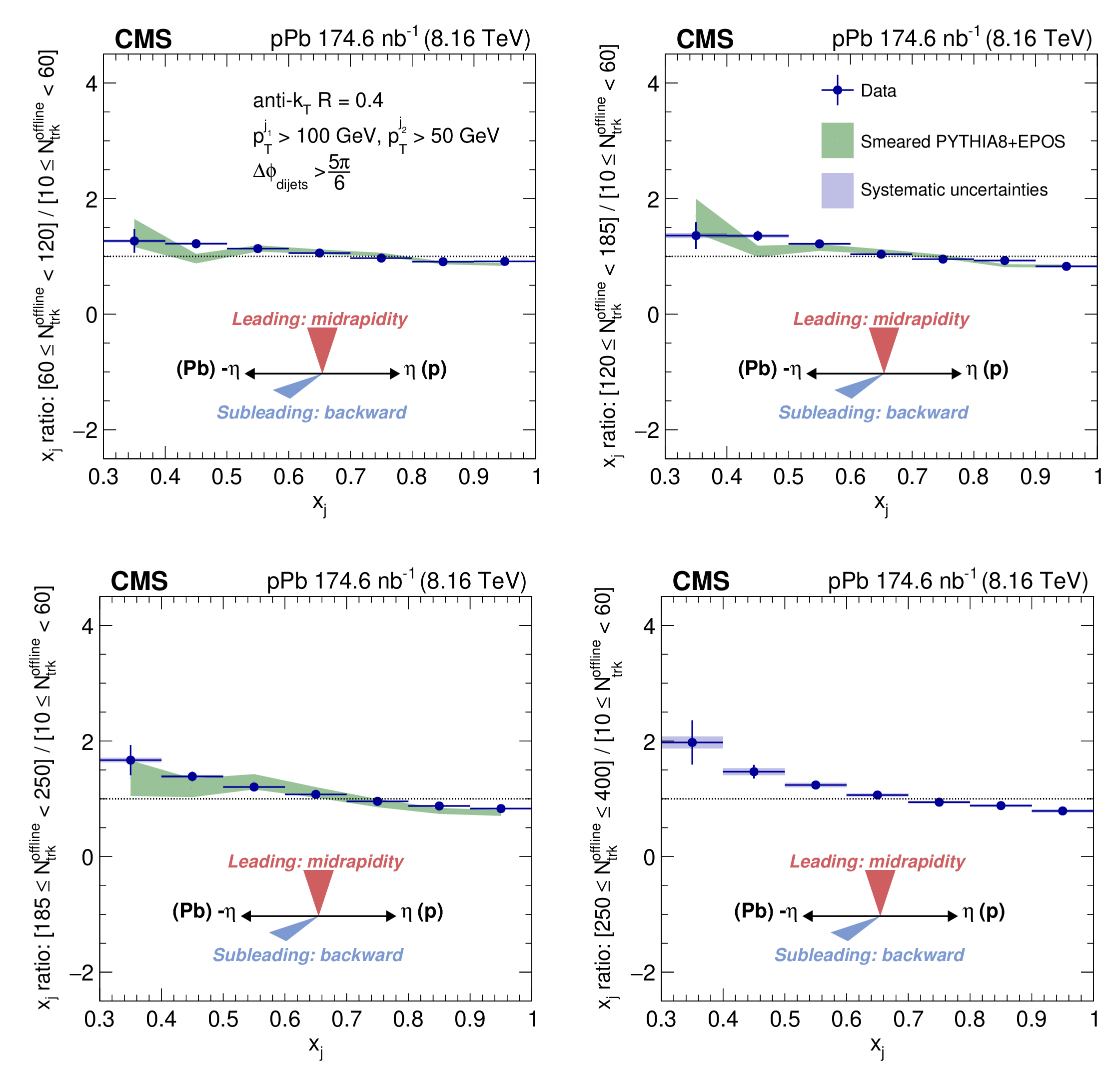

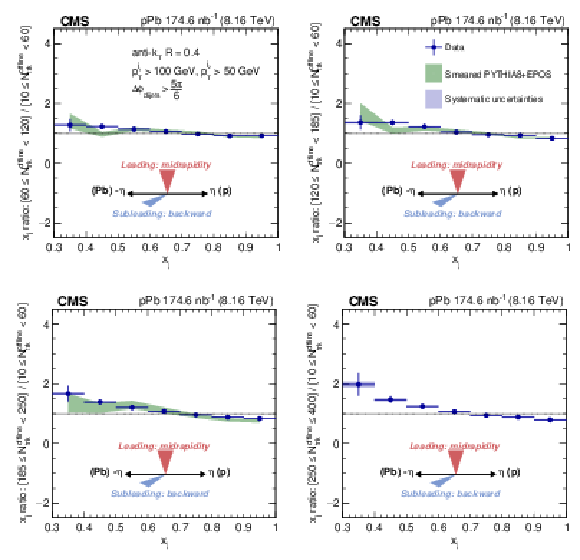

Figure A16:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

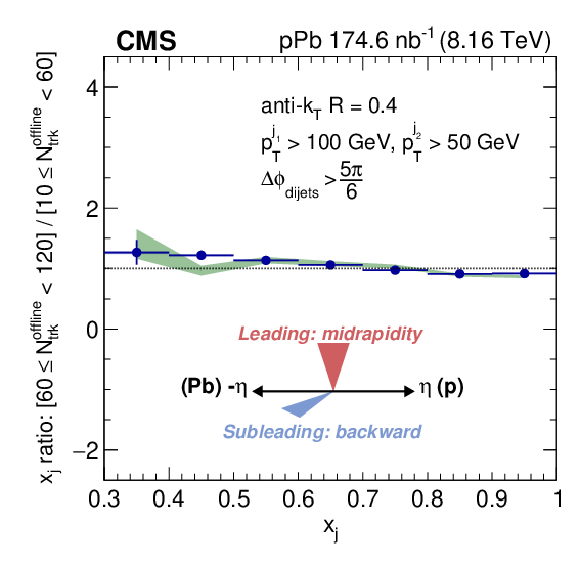

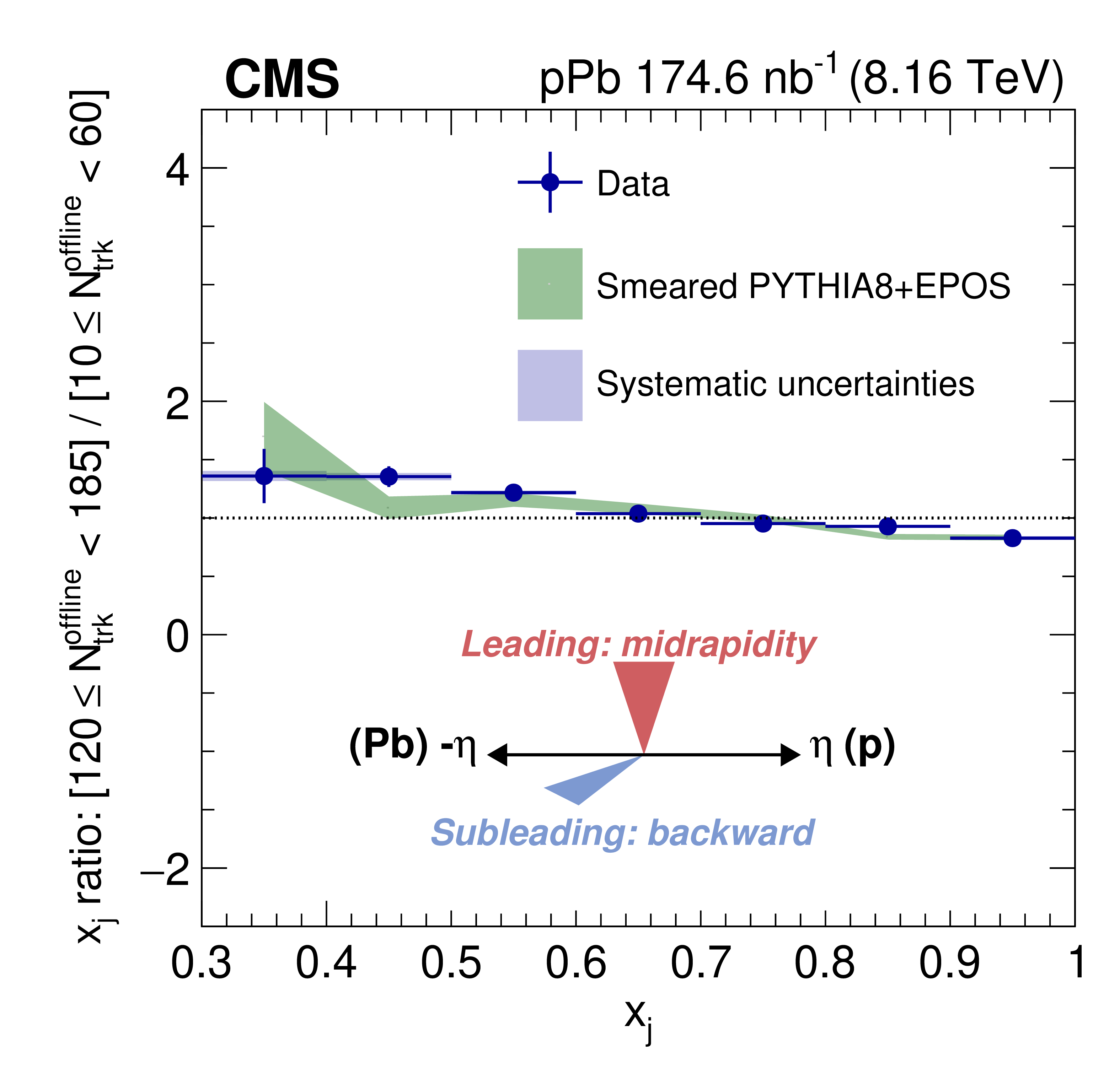

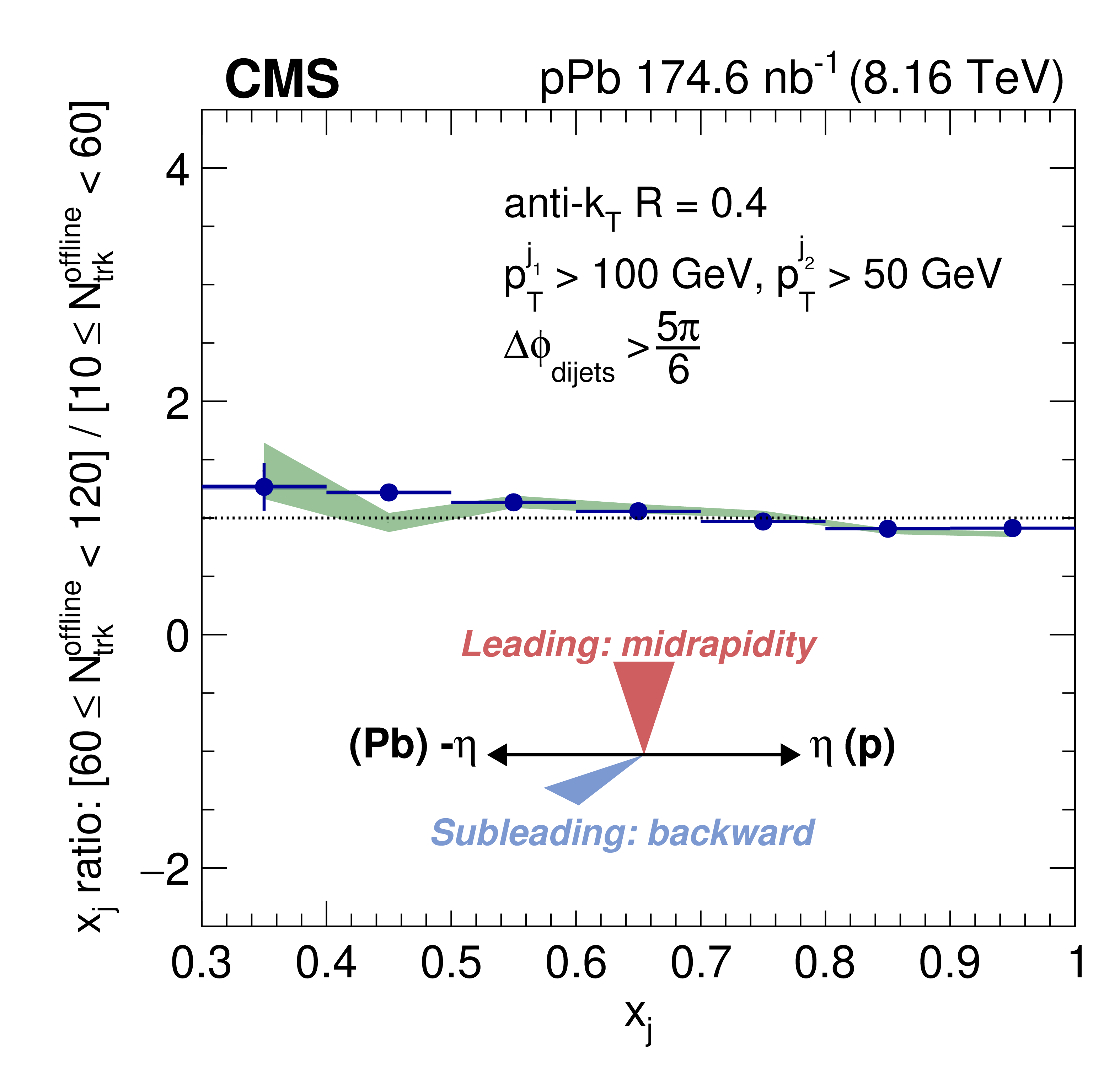

Figure A16-a:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

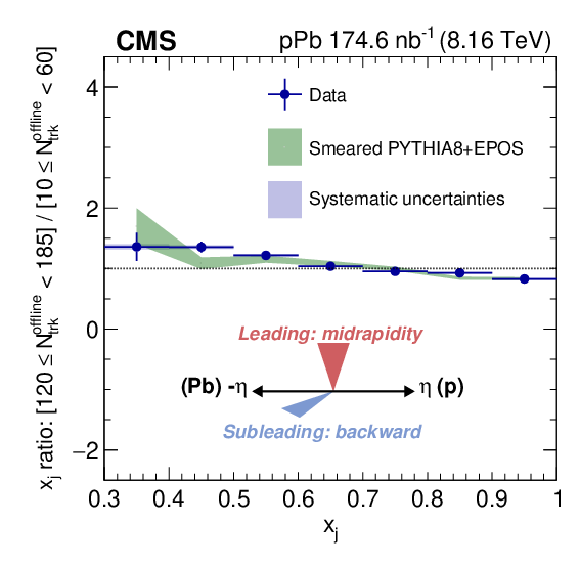

Figure A16-b:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

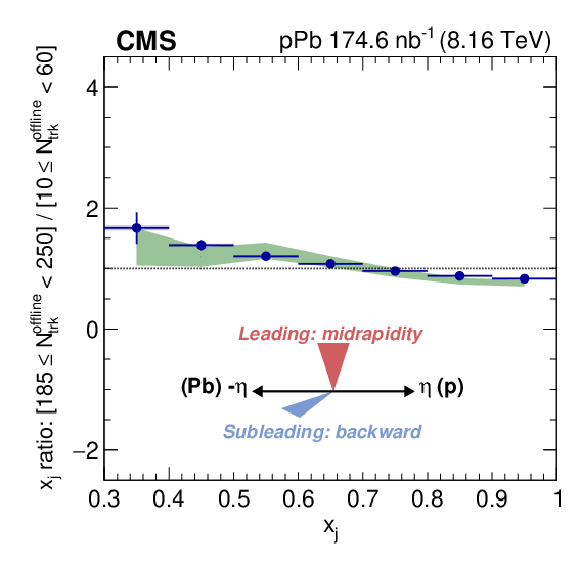

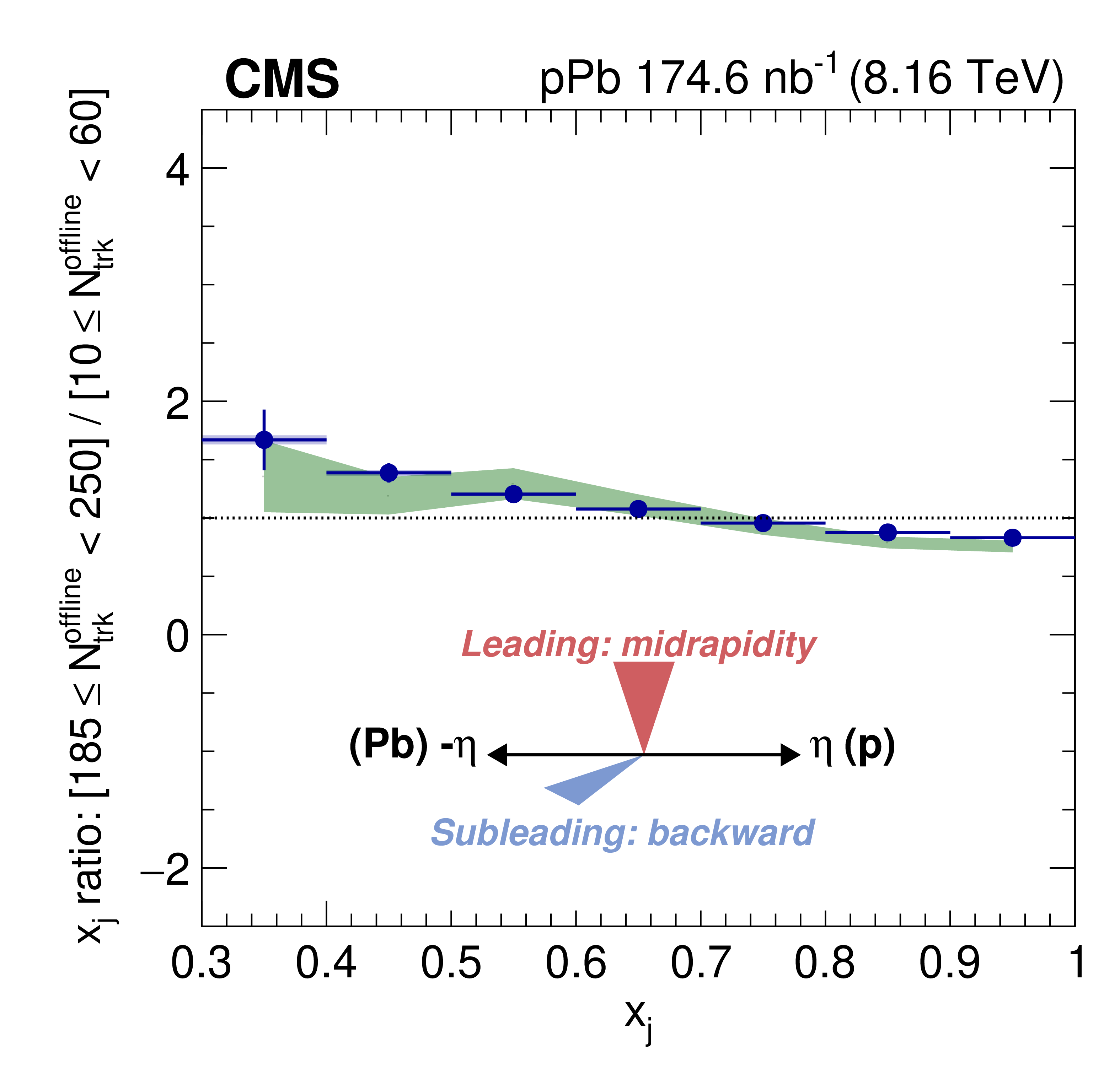

Figure A16-c:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

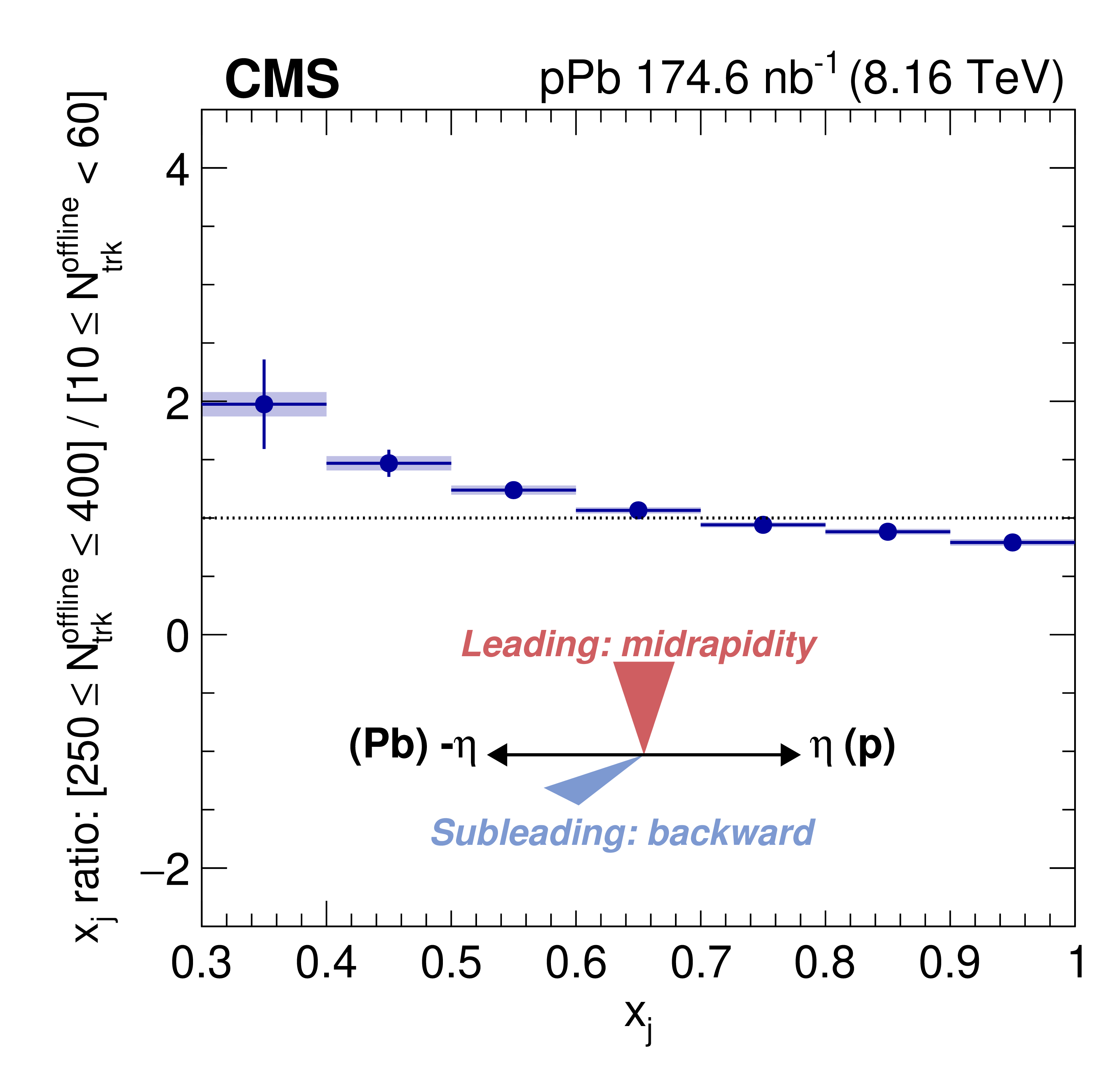

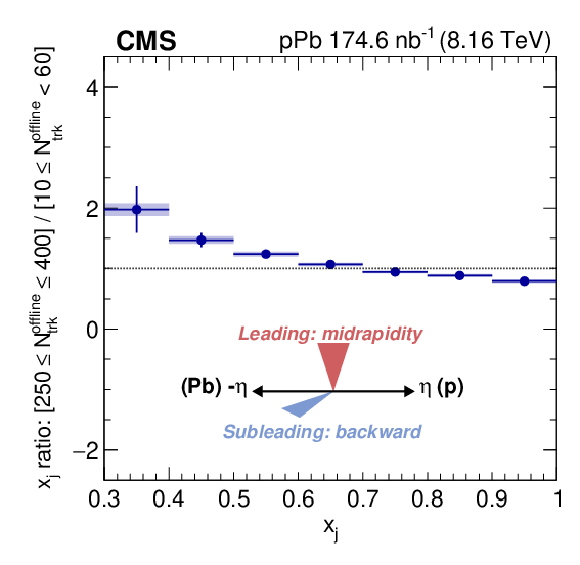

Figure A16-d:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the midrapidity and backward regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

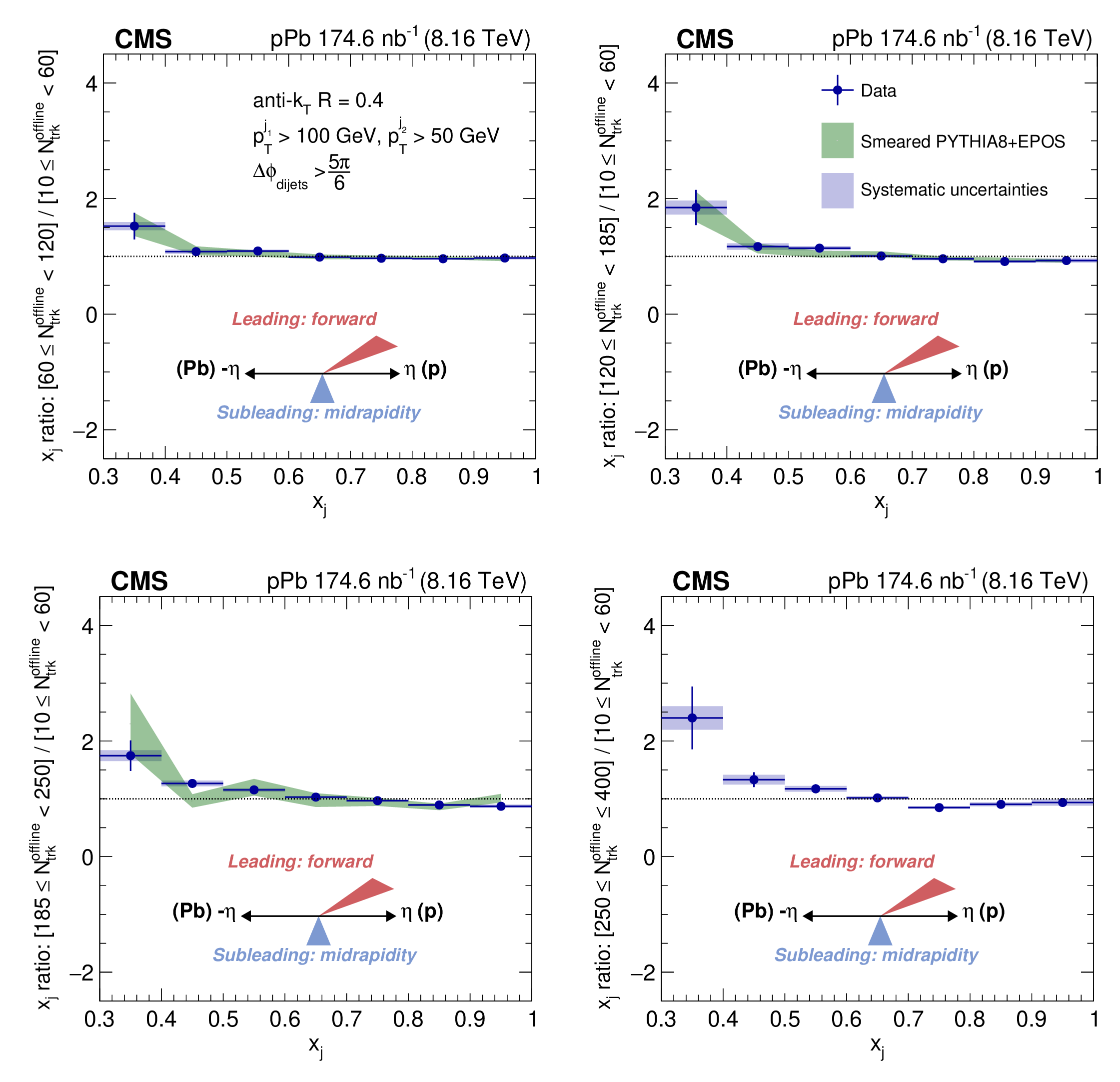

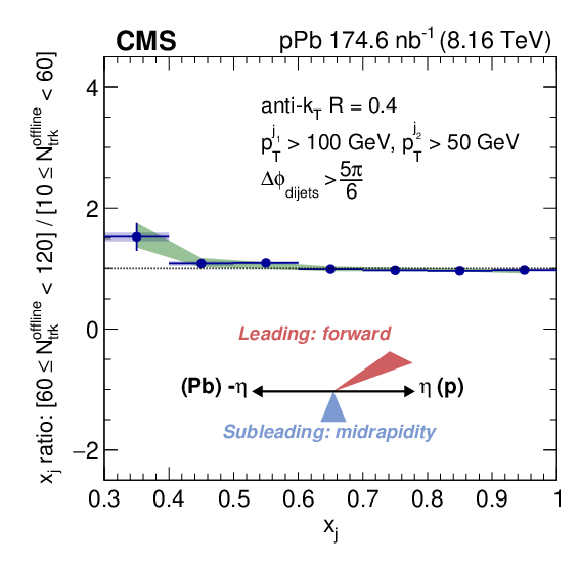

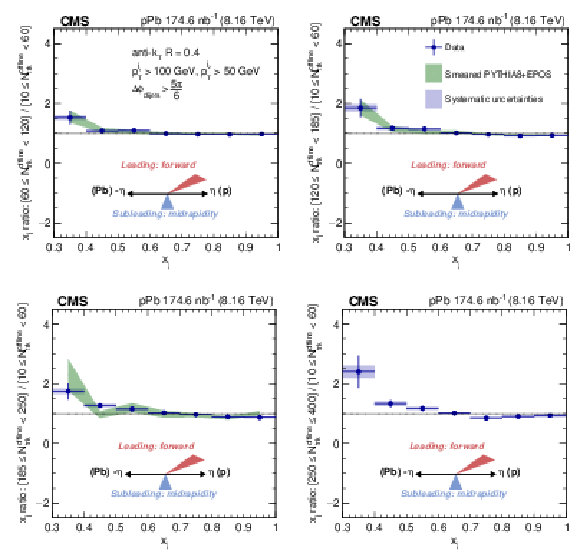

Figure A17:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

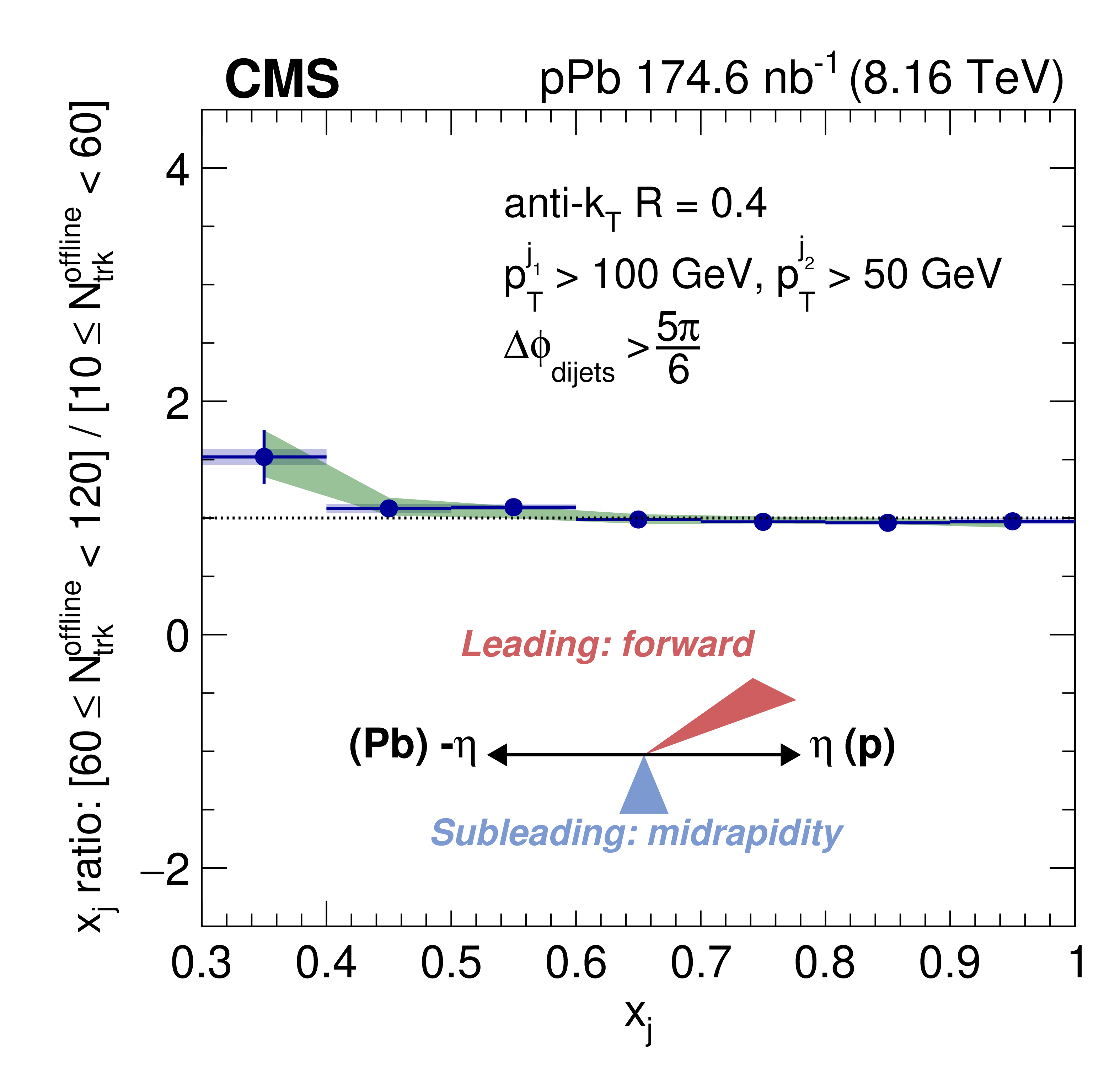

Figure A17-a:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

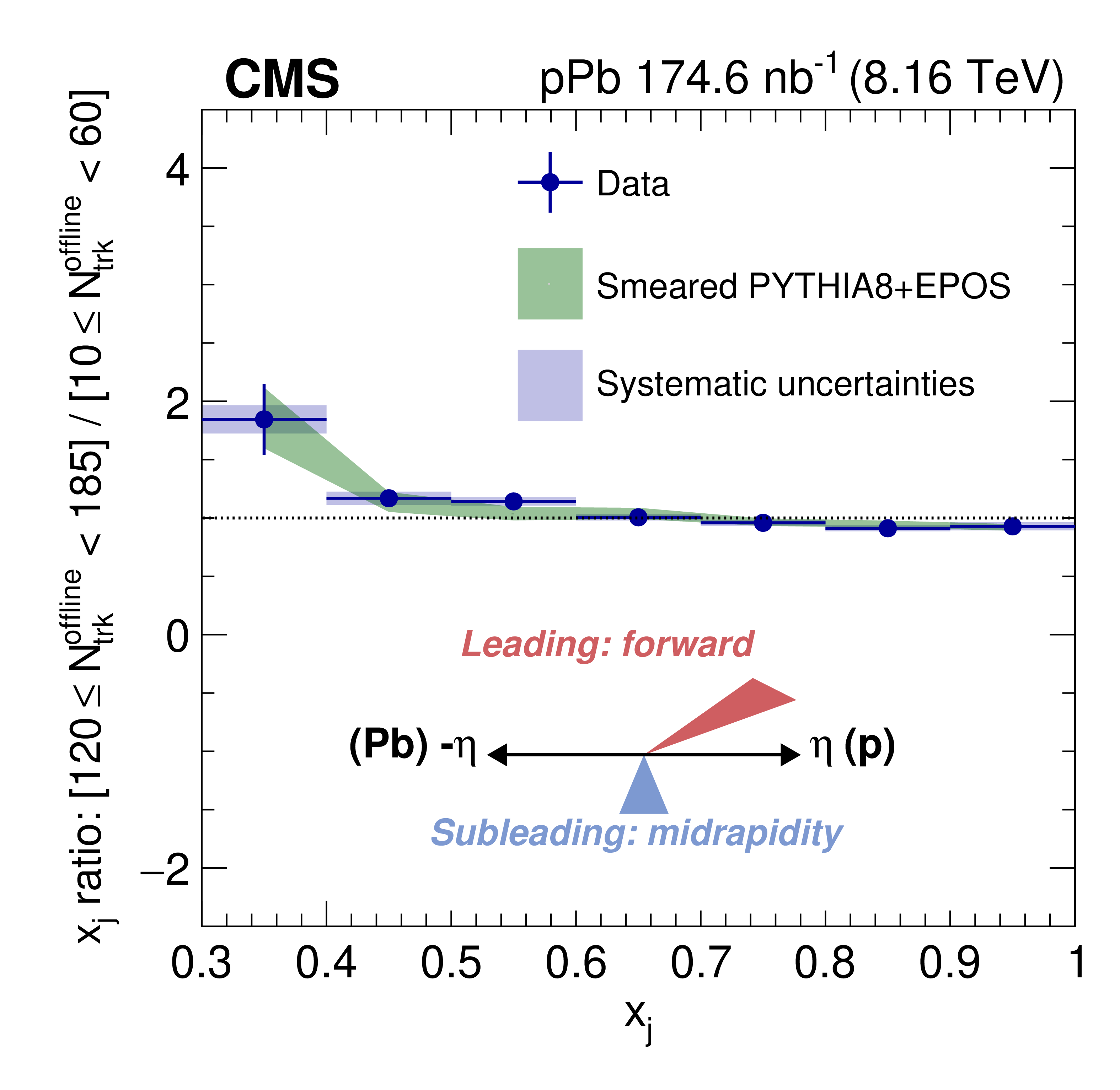

Figure A17-b:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

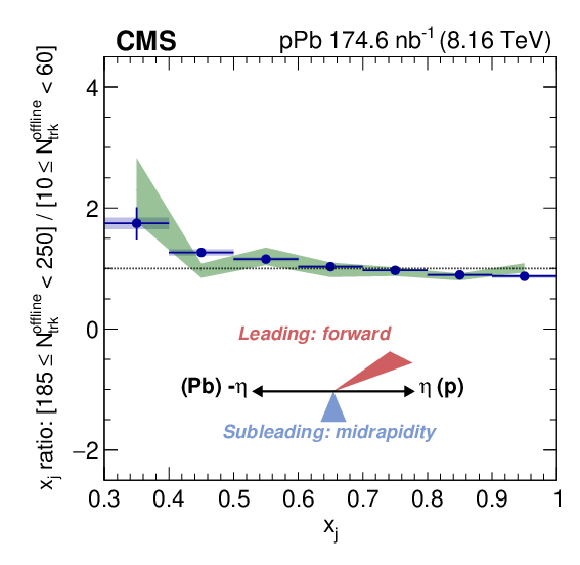

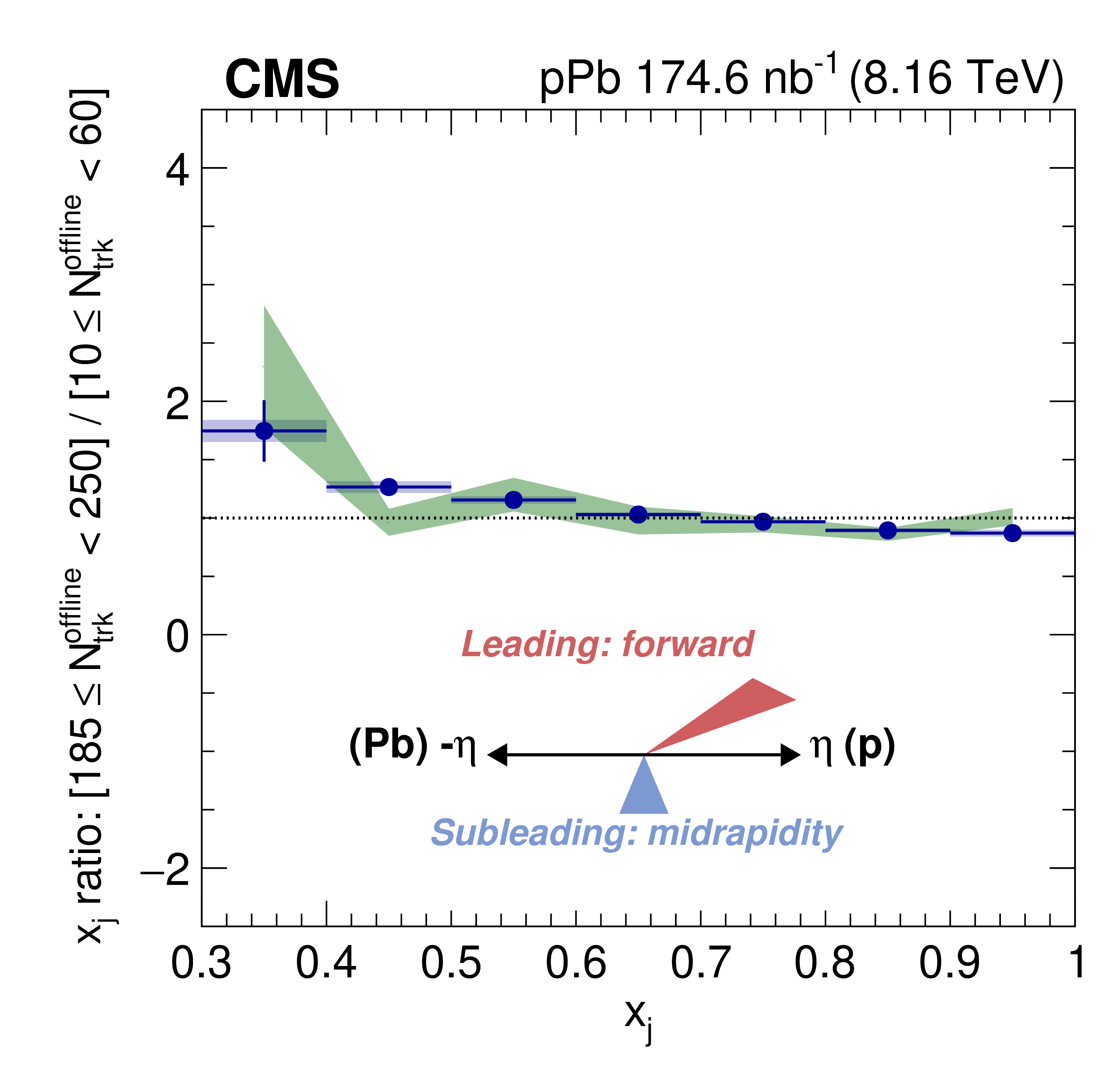

Figure A17-c:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

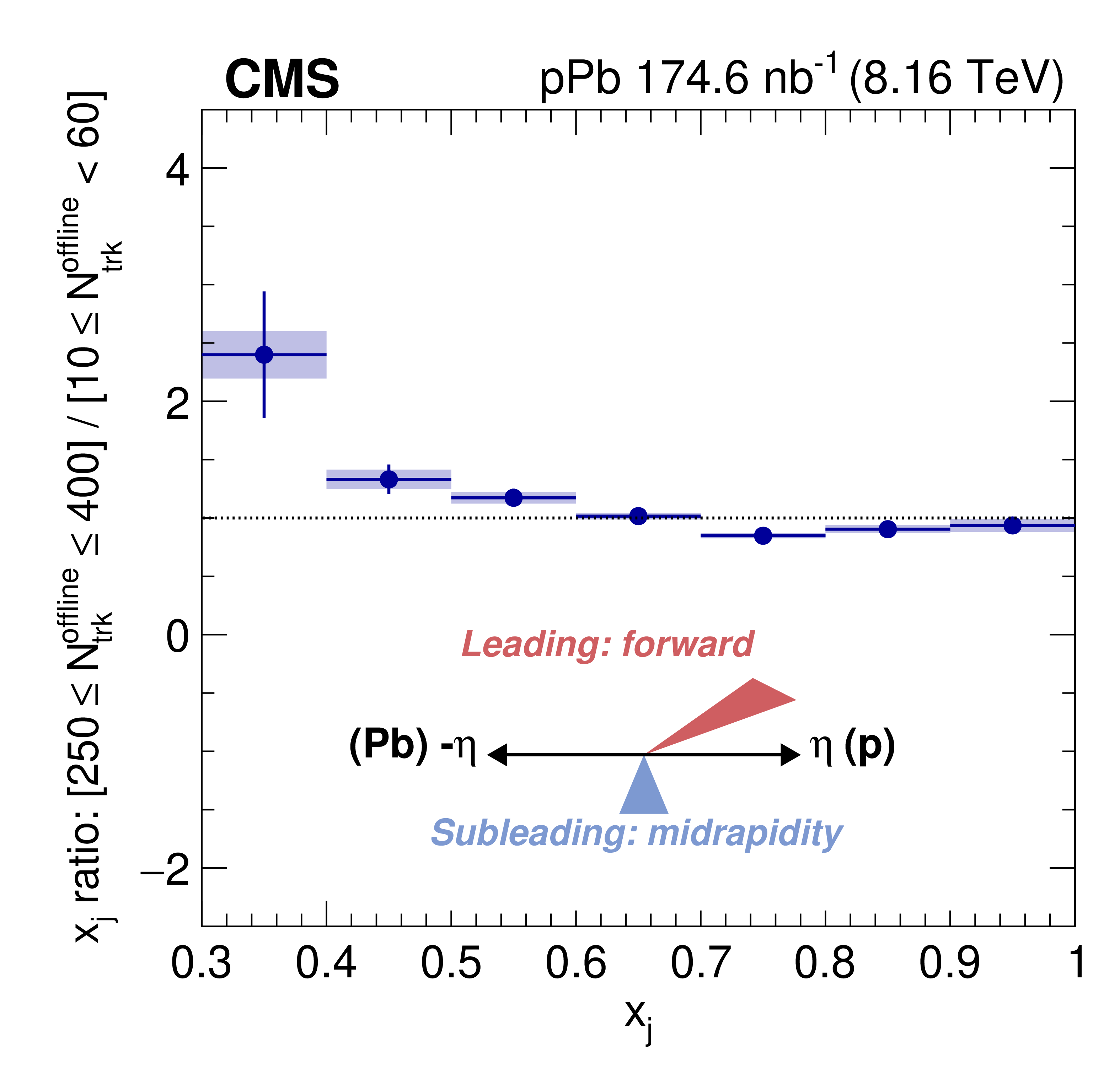

Figure A17-d:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the forward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

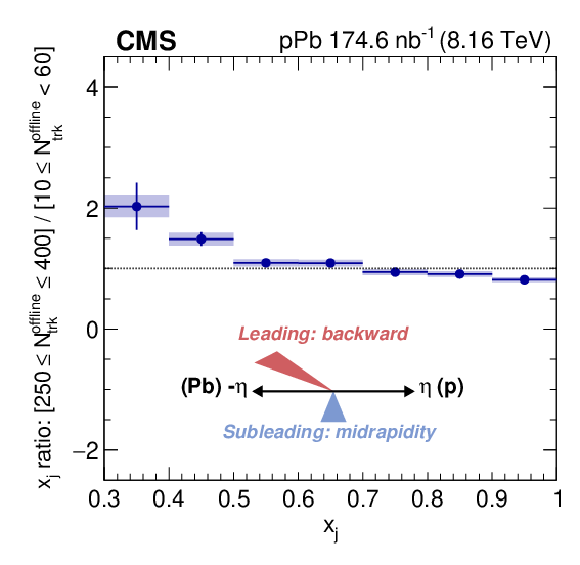

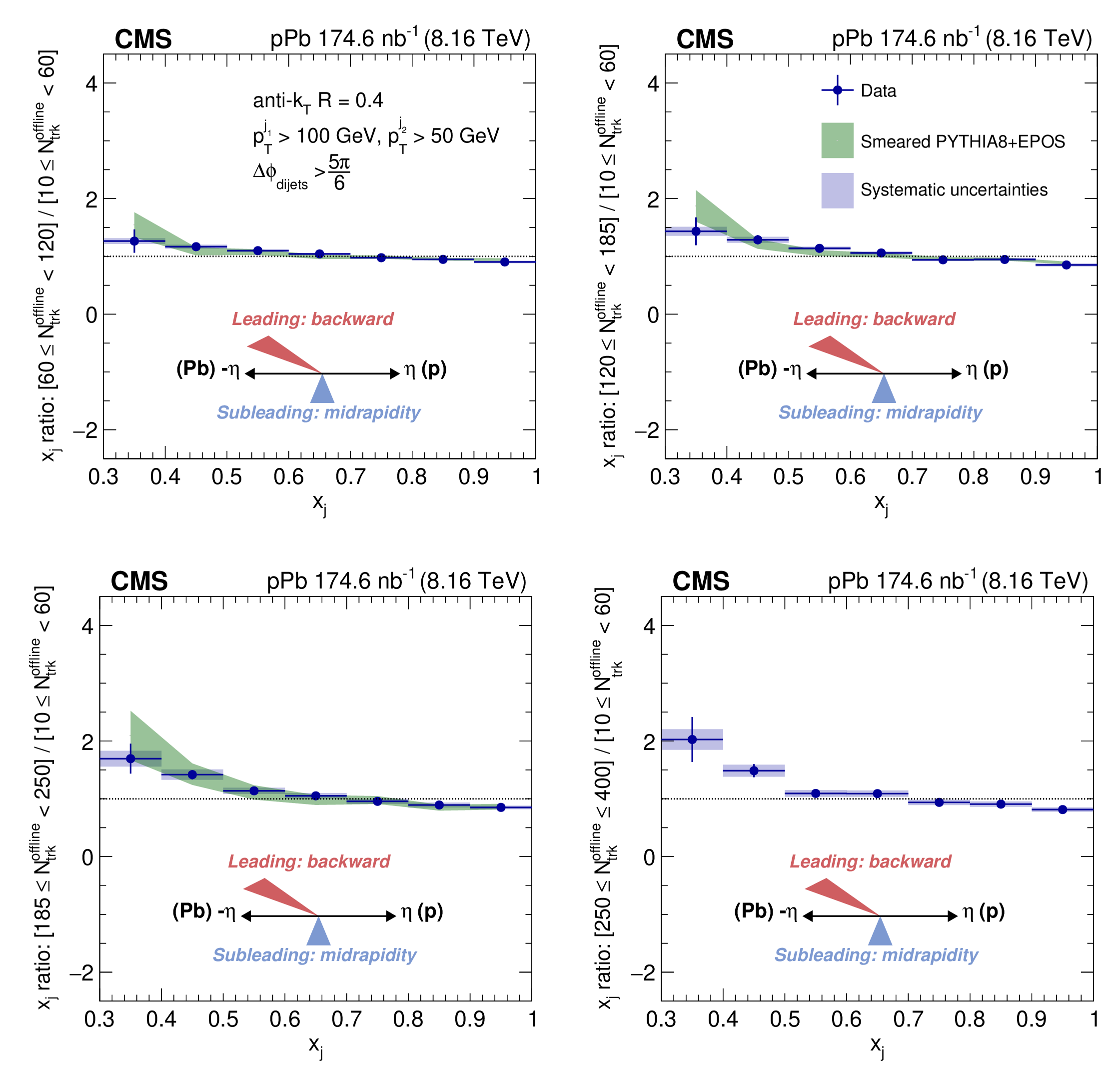

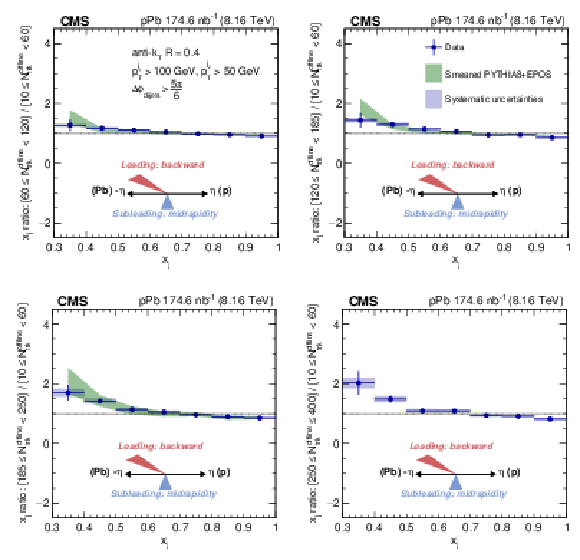

Figure A18:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

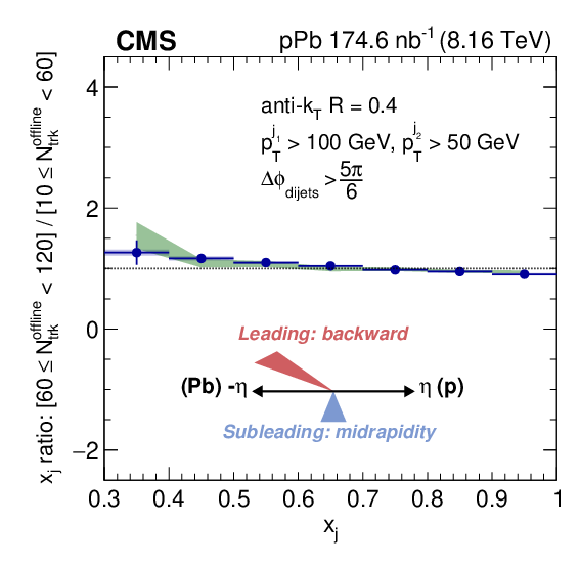

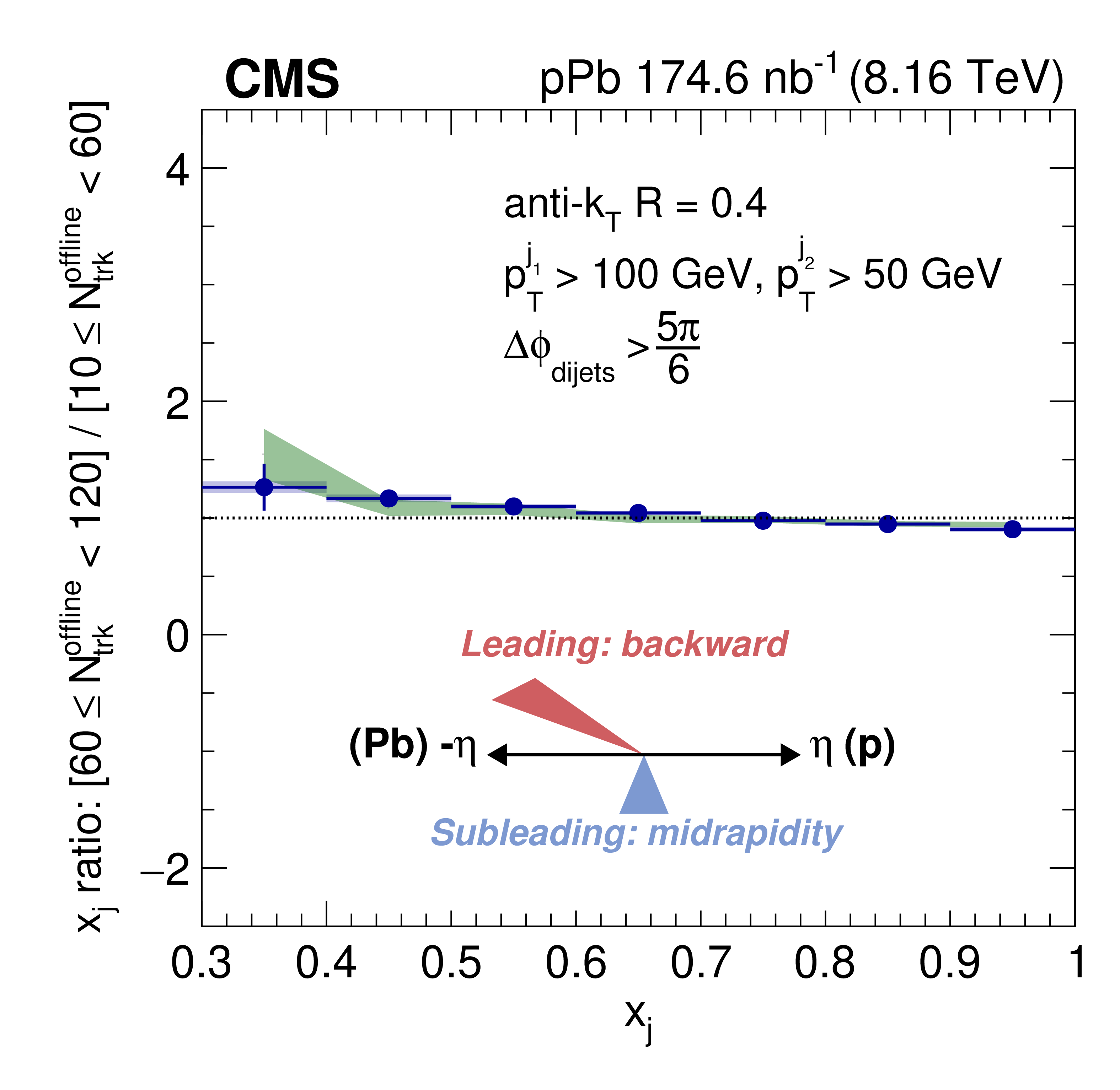

Figure A18-a:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

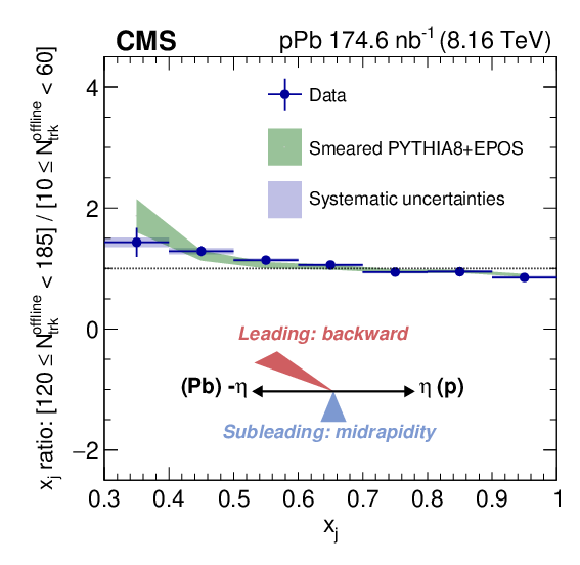

Figure A18-b:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

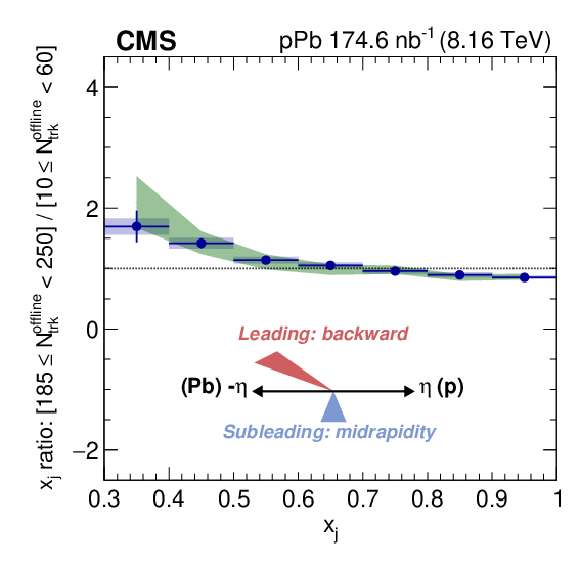

Figure A18-c:

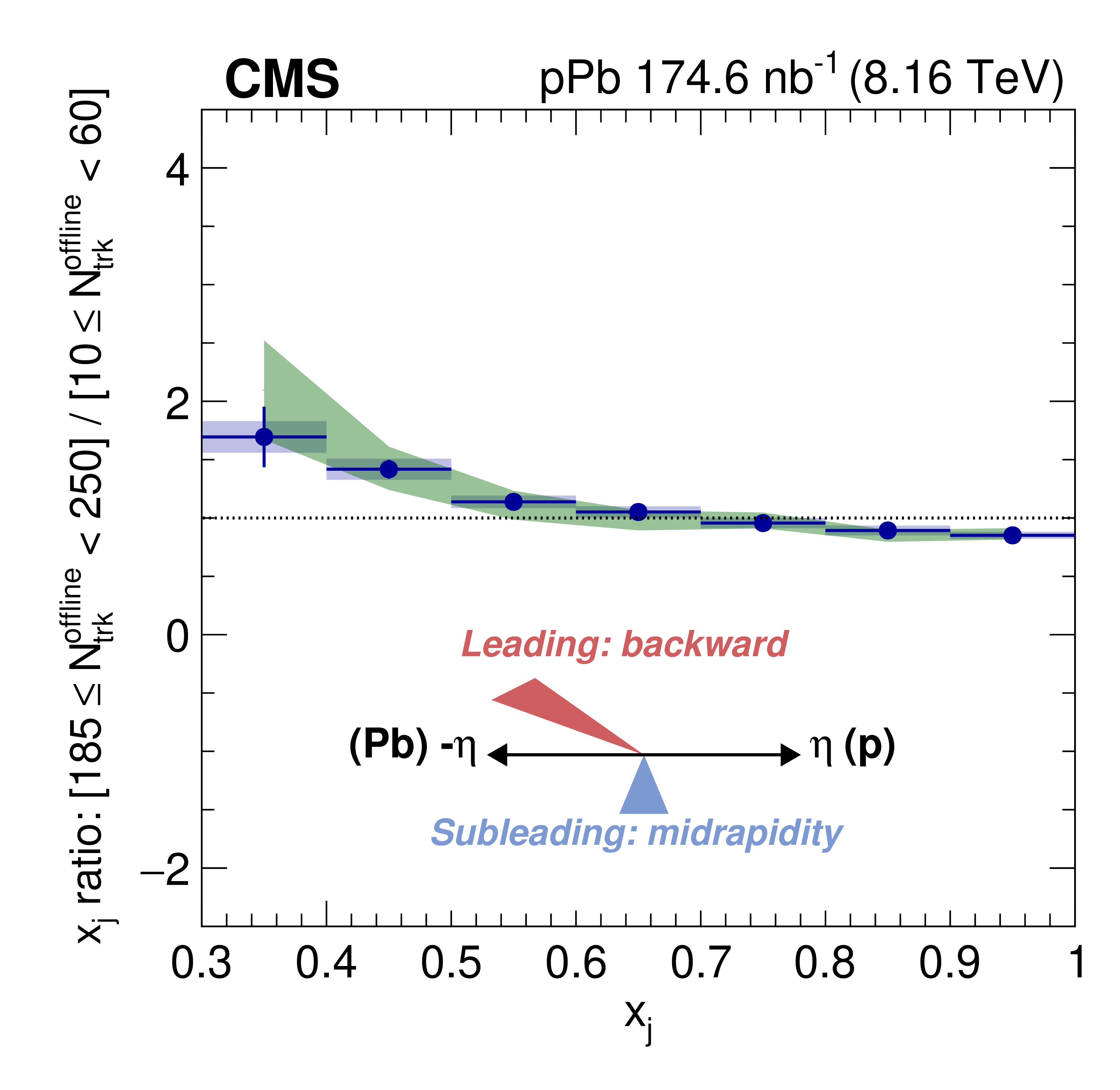

The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

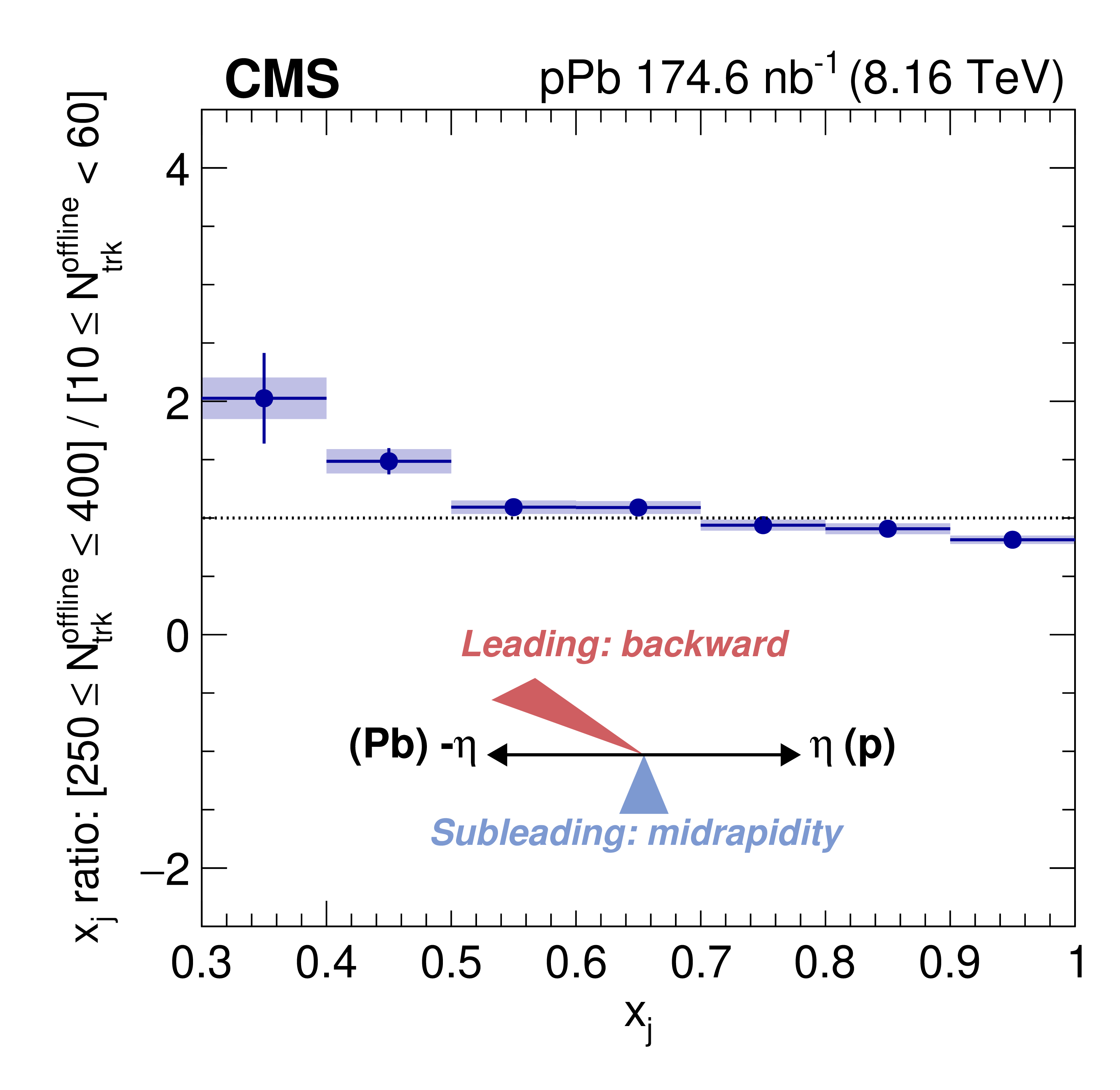

Figure A18-d:
The measured (raw) xj ratio in the range 10 Nofflinetrk< 60, from lower to higher multiplicities for leading and subleading jets in the backward and midrapidity regions, respectively, are shown. Comparison with the reconstruction-level PYTHIA8+EPOS LHC simulation (green band) are also displayed.

png pdf

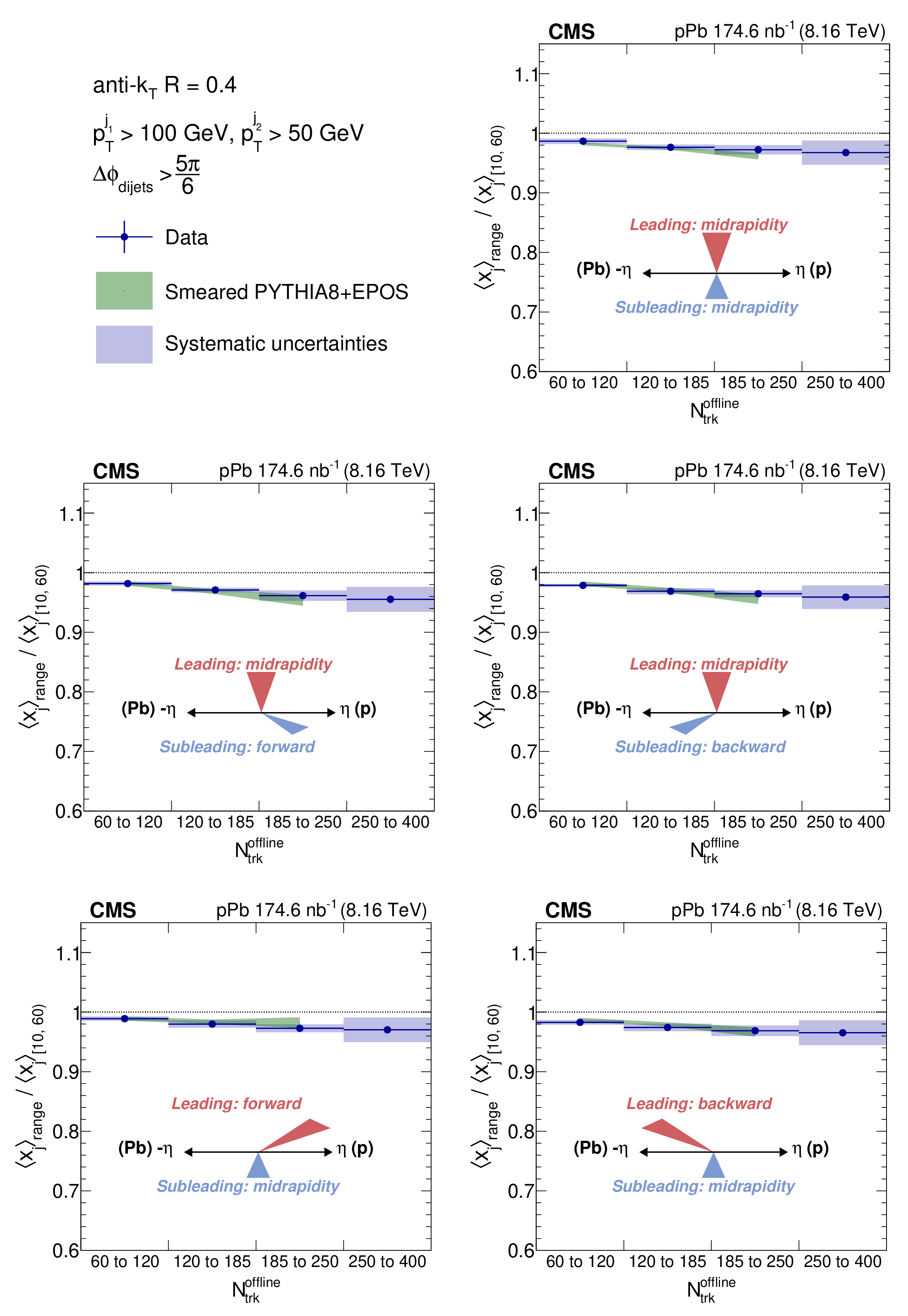

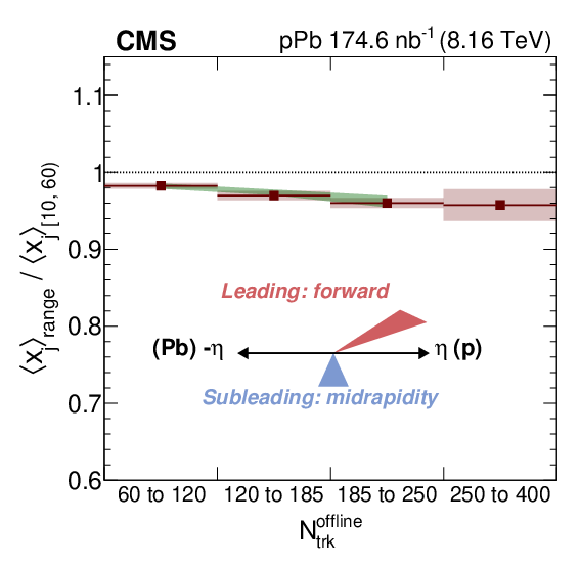

Figure A19:
Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.

png pdf
Figure A19-a:
Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.

png pdf

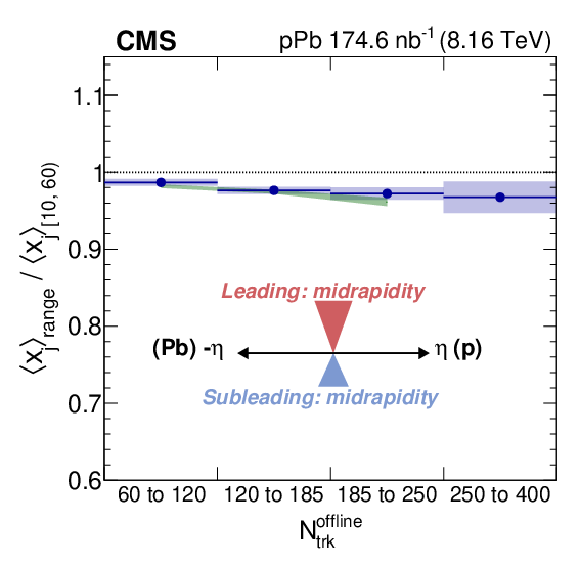

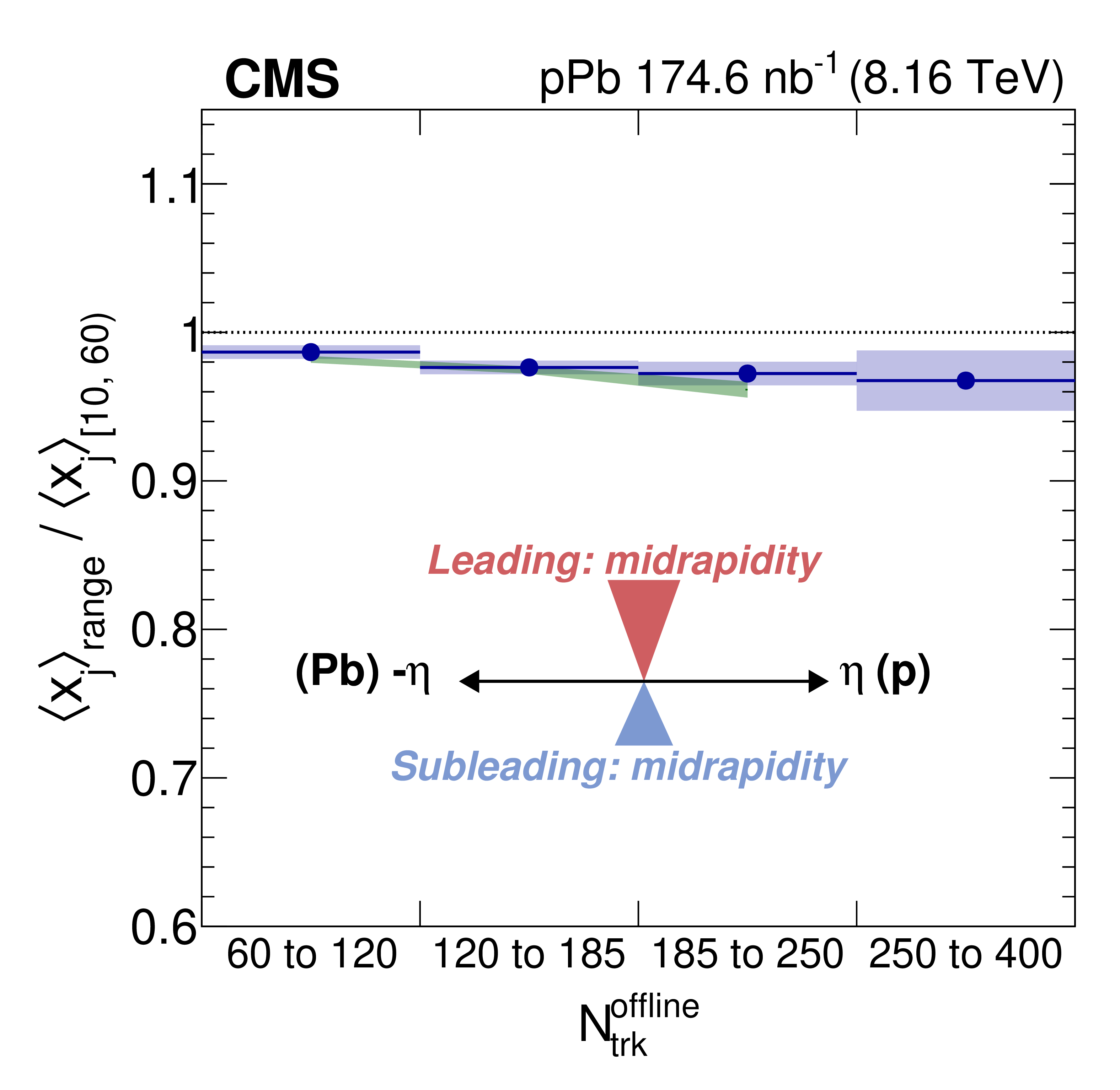

Figure A19-b:
Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.

png pdf
Figure A19-c:

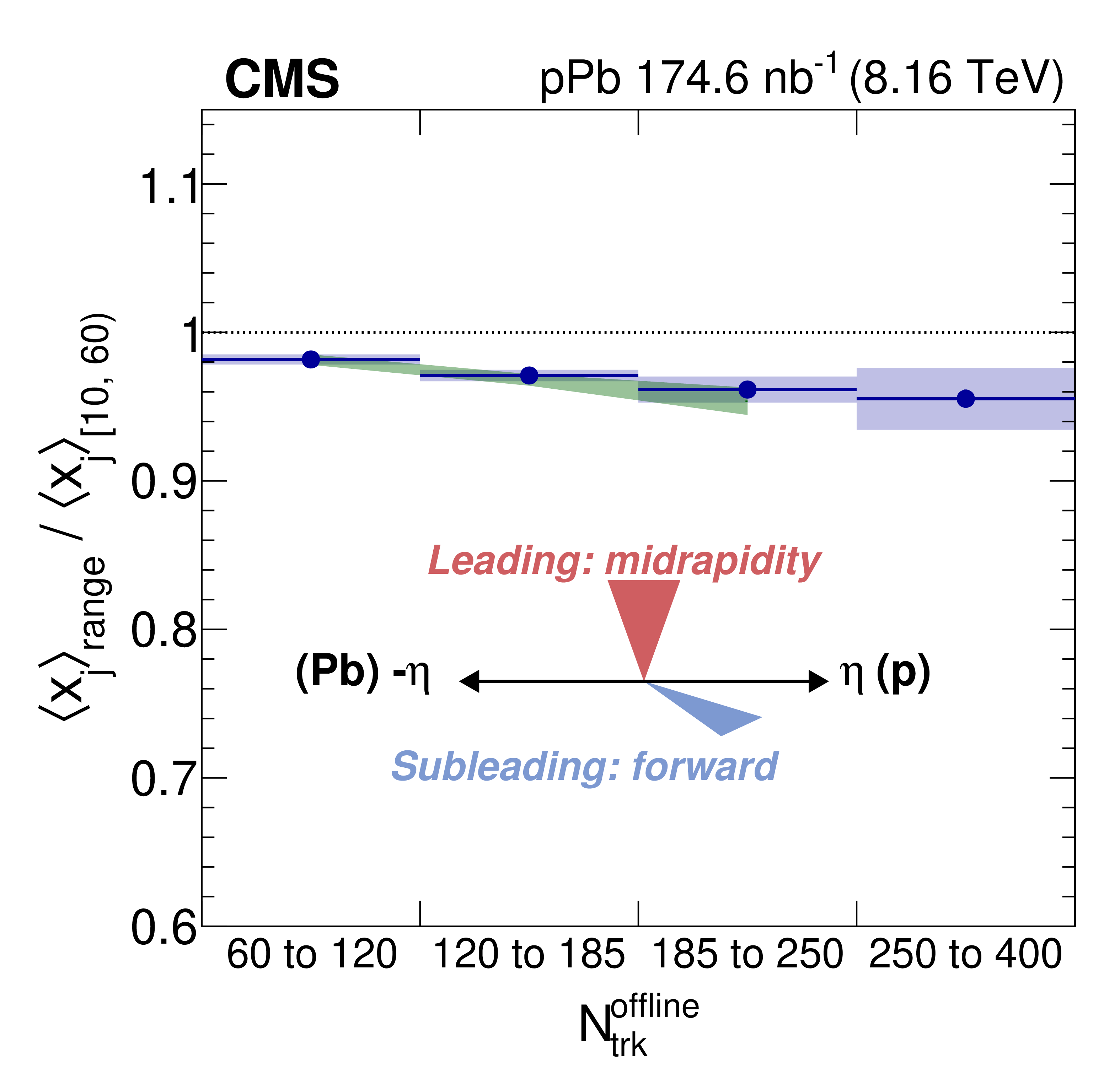

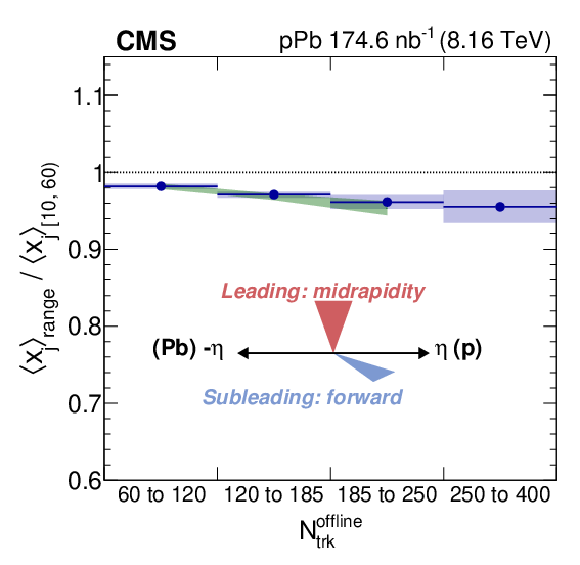

Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.

png pdf

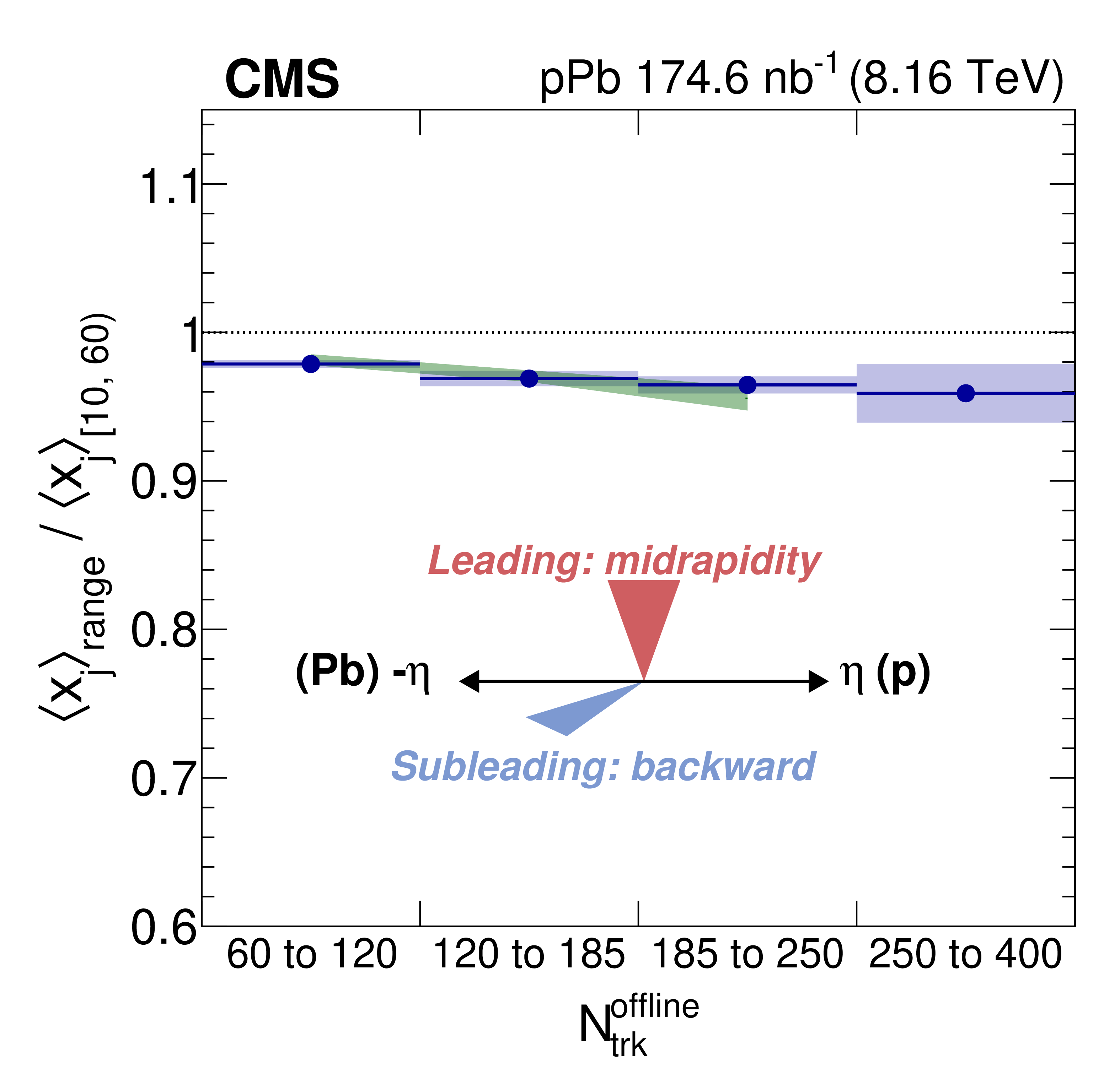

Figure A19-d:
Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.

png pdf

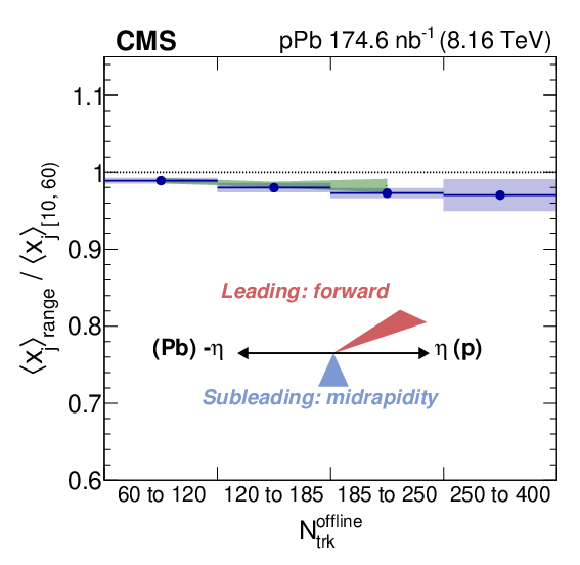

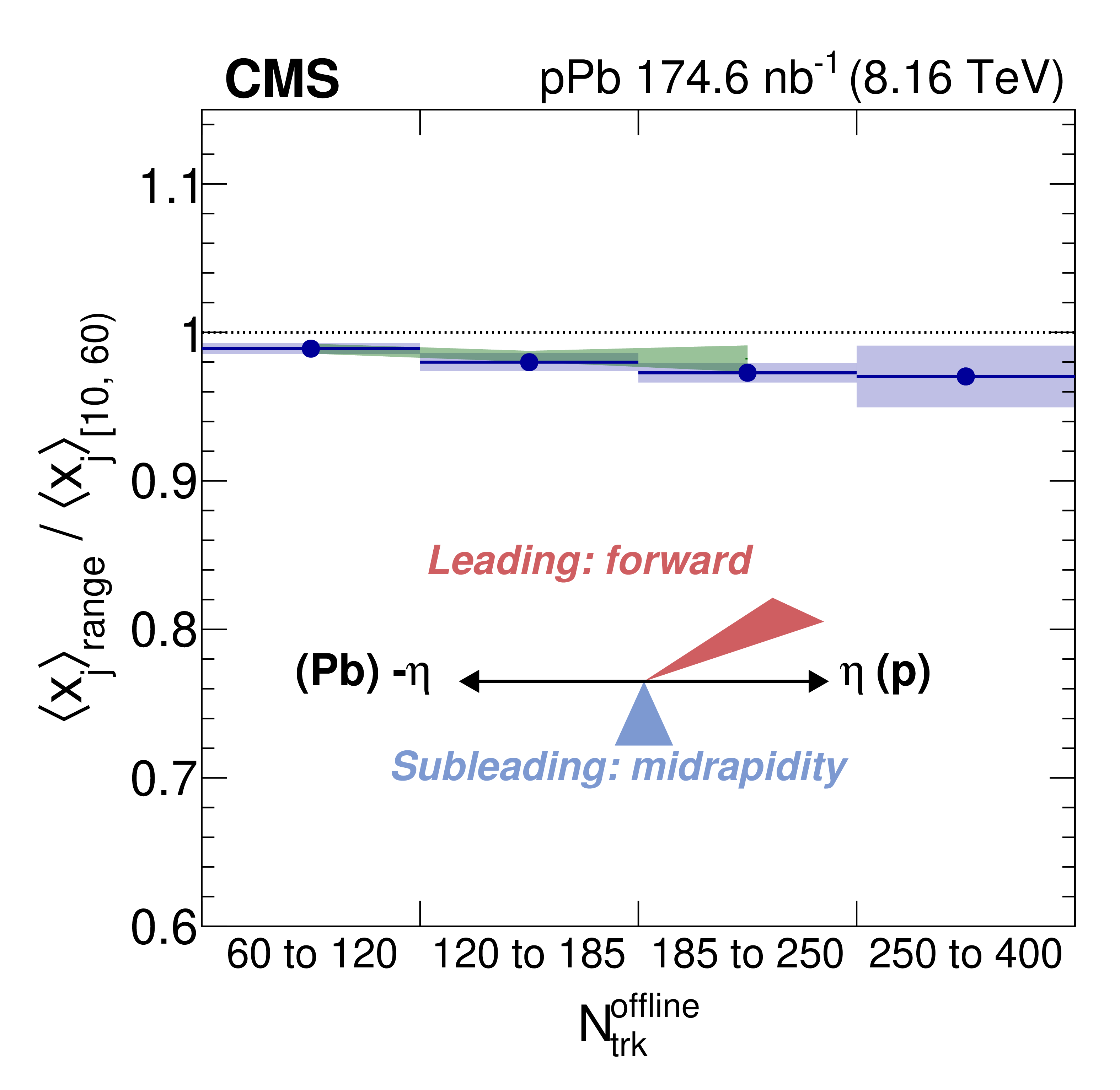

Figure A19-e:
Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.

png pdf

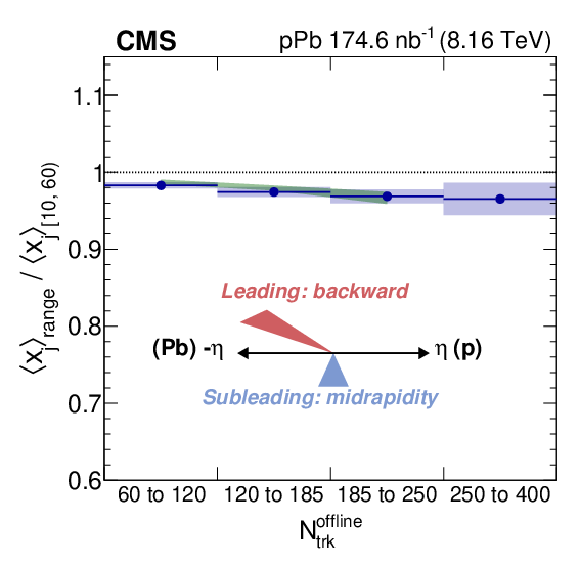

Figure A19-f:

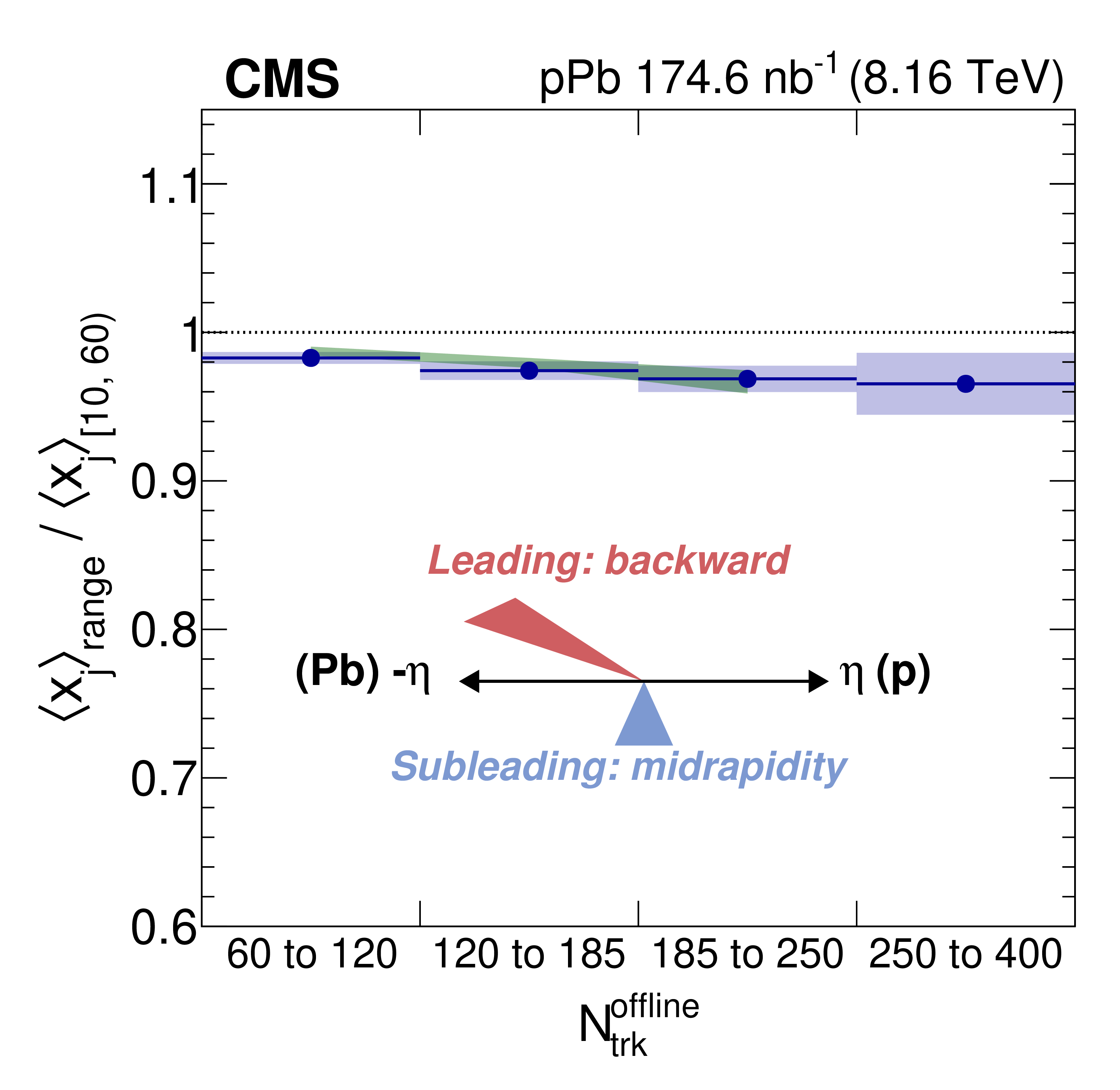

Mean xj ratio, xj, in the range 10 Nofflinetrk< 60 as measured (raw) for different multiplicities, for different leading and subleading jet combinations for the midrapidity, forward, and backward regions, are shown. Comparison with the reconstruction-level (green band) PYTHIA8+EPOS LHC are also displayed. The xjrange corresponds to the higher multiplicity ranges shown in the x-axis.
Summary
The first search for jet quenching effects on dijet momentum balance in proton-lead collisions at a nucleon-nucleon center-of-mass energy of sNN= 8.16 TeV is presented. The dijet transverse momentum balance (xj), defined as the ratio of the subleading over the leading jet in a dijet pair, was studied as a function of charged-particle multiplicity for several dijet kinematic selections. The data collected by the CMS experiment with minimum bias and special high-multiplicity triggers during the 2016 data-taking period corresponds to an integrated luminosity of 174.6 nb1. These special triggers aided the accumulation of a substantial sample of high multiplicity events (producing up to 400 charged-particles per event) and enabled jet-quenching signal search in high-multiplicity events. An anti-kT algorithm with a distance parameter of 0.4 is used to reconstruct jets using a combination of tracker and calorimeter information. The dijets were formed by the two highest transverse momentum (pT) jets in the event with the minimum pT requirements of 100 GeV and 50 GeV, respectively, that pass back-to-back selection (azimuthal separation greater than 5 π/ 6). The xj distributions for such dijets were measured for events in several multiplicity ranges, and modifications of the measured distributions were quantified by taking ratios of the measurements from the higher multiplicity event selections to that of the lowest multiplicity class. These high-to-low multiplicity selection ratios are found to be close to unity and in agreement with simulations that do not include jet-quenching effects. These measurements set an upper limit on medium-induced energy loss of the subleading jet to be less than 1.26% of its transverse momentum at the one-sided 90% confidence level at an average pT of 103.5 GeV for high-multiplicity pPb events, where strong collective signals have been reported. Interpreting this upper limit on jet quenching and the previously observed evidence for collective behavior in small systems will require further theoretical developments to reproduce all observations.
References
0 J. D. Bjorken Energy loss of energetic partons in quark-gluon plasma: possible extinction of high pT jets in hadron-hadron collisions Fermilab theory preprint FERMILAB-PUB-82-059-THY, 1982
link
2 CMS Collaboration Observation and studies of jet quenching in PbPb collisions at sNN = 2.76 TeV Phys. Rev. C \textbf84 024906, 2011
link
CMS-HIN-10-004
1102.1957
3 ATLAS Collaboration Observation of a centrality-dependent dijet asymmetry in lead-lead collisions at sNN = 2.76 TeV with the ATLAS detector at the LHC PRL 105 (2010) 252303 1011.6182
4 STAR Collaboration Measurements of jet quenching with semi-inclusive hadron+jet distributions in Au+Au collisions at sNN = 200 GeV Phys. Rev. C 96 (2017) 024905 1702.01108
5 STAR Collaboration Beam energy dependence of jet-quenching effects in Au+Au collisions at sNN = 7.7, 11.5, 14.5, 19.6, 27, 39, and 62.4 GeV PRL 121 (2018) 032301 1707.01988
6 CMS Collaboration Comparing transverse momentum balance of b jet pairs in pp and PbPb collisions at sNN = 5.02 TeV JHEP 03 (2018) 181 CMS-HIN-16-005
1802.00707
7 CMS Collaboration Overview of high-density QCD studies with the CMS experiment at the LHC Physics Reports 1115 (2025) 219
8 CMS Collaboration Measurement of long-range near-side two-particle angular correlations in pp collisions at s = 13 TeV PRL 116 (2016) 172302 CMS-FSQ-15-002
1510.03068
9 CMS Collaboration Evidence for collectivity in pp collisions at the LHC Phys. Lett. B \textbf765 193, 2017
link
CMS-HIN-16-010
1606.06198
10 CMS Collaboration Observation of long-range near-side angular correlations in proton-lead collisions at the LHC Phys. Lett. B \textbf718 795, 2013
link
CMS-HIN-12-015
1210.5482
11 PHENIX Collaboration Creation of quark-gluon plasma droplets with three distinct geometries Nature Phys. 15 (2019) 214 1805.02973
12 ALICE Collaboration Enhanced production of multi-strange hadrons in high-multiplicity proton-proton collisions Nature Phys. 13 (2017) 535 1606.07424
13 CMS Collaboration Studies of dijet transverse momentum balance and pseudorapidity distributions in pPb collisions at sNN = 5.02 TeV EPJC 74 (2014) 2951 CMS-HIN-13-001
1401.4433
14 PHENIX Collaboration Centrality-dependent modification of jet-production rates in deuteron-gold collisions at sNN = 200 GeV Phys. Rev. Lett. \textbf116 122301, 2016
link
1509.04657
15 CMS Collaboration Measurement of inclusive jet production and nuclear modifications in pPb collisions at sNN = 5.02 TeV EPJC 76 (2016) 372 CMS-HIN-14-001
1601.02001
16 ALICE Collaboration Constraints on jet quenching in p-Pb collisions at sNN = 5.02 TeV measured by the event-activity dependence of semi-inclusive hadron-jet distributions Phys. Lett. B \textbf783 95, 2018
link
1712.05603
17 ATLAS Collaboration Strong constraints on jet quenching in centrality-dependent p+Pb collisions at 5.02 TeV from ATLAS PRL 131 (2023) 072301 2206.01138
18 STAR Collaboration Correlations of event activity with hard and soft processes in p+Au collisions at sNN = 200 GeV at the RHIC STAR experiment Phys. Rev. C 110 (2024) 044908 2404.08784
19 CMS Collaboration Precision luminosity measurement in proton-proton collisions at s = 13 TeV in 2015 and 2016 at CMS EPJC 81 (2021) 800 CMS-LUM-17-003
2104.01927
20 CMS Collaboration CMS luminosity measurement for the 2017 data-taking period at s = 13 TeV CMS Physics Analysis Summary, 2018
link
CMS-PAS-LUM-17-004
21 CMS Collaboration CMS luminosity measurement for the 2018 data-taking period at s = 13 TeV CMS Physics Analysis Summary, 2019
CMS-PAS-LUM-18-002
CMS-PAS-LUM-18-002
22 CMS Collaboration HEPData record for this analysis link
23 CMS Collaboration The CMS experiment at the CERN LHC JINST 3 (2008) S08004
24 CMS Collaboration Particle-flow reconstruction and global event description with the CMS detector JINST 12 (2017) P10003 CMS-PRF-14-001
1706.04965
25 CMS Collaboration Performance of the CMS Level-1 trigger in proton-proton collisions at s = 13 TeV JINST 15 (2020) P10017 CMS-TRG-17-001
2006.10165
26 CMS Collaboration The CMS trigger system JINST 12 (2017) P01020 CMS-TRG-12-001
1609.02366
27 CMS Collaboration Constraints on the chiral magnetic effect using charge-dependent azimuthal correlations in pPb and PbPb collisions at the CERN Large Hadron Collider Phys. Rev. C 97 (2018) 044912 CMS-HIN-17-001
1708.01602
28 CMS Collaboration Observation of correlated azimuthal anisotropy fourier harmonics in pp and p+Pb collisions at the LHC PRL 120 (2018) 092301 CMS-HIN-16-022
1709.09189
29 CMS Collaboration Description and performance of track and primary-vertex reconstruction with the CMS tracker JINST 9 (2014) P10009 CMS-TRK-11-001
1405.6569
30 T. Sjöstrand et al. An introduction to PYTHIA 8.2 Comput. Phys. Commun. 191 (2015) 159 1410.3012
31 T. Pierog et al. EPOS LHC: Test of collective hadronization with data measured at the CERN Large Hadron Collider Phys. Rev. C 92 (2015) 034906
32 CMS Collaboration Event generator tunes obtained from underlying event and multiparton scattering measurements EPJC 76 (2016) 155 CMS-GEN-14-001
1512.00815
33 GEANT4 Collaboration GEANT 4---A simulation toolkit NIM A 506 (2003) 250
34 M. Cacciari, G. P. Salam, and G. Soyez The anti-kT jet clustering algorithm JHEP 04 (2008) 063 0802.1189
35 M. Cacciari, G. P. Salam, and G. Soyez FASTJET user manual EPJC 72 (2012) 1896 1111.6097
36 P. Berta, M. Spousta, D. W. Miller, and R. Leitner Particle-level pileup subtraction for jets and jet shapes JHEP 06 (2014) 092 1403.3108
37 CMS Collaboration Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV JINST 12 (2017) P02014 CMS-JME-13-004
1607.03663
38 CMS Collaboration Jet momentum dependence of jet quenching in PbPb collisions at sNN = 2.76 TeV PLB 712 (2012) 176 CMS-HIN-11-013
1202.5022
39 ATLAS Collaboration Measurements of the suppression and correlations of dijets in Pb+Pb collisions at sNN = 5.02 TeV Phys. Rev. C 107 (2023) 054908 2205.00682
40 CMS Collaboration Pileup mitigation at CMS in 13 TeV data JINST 15 (2020) P09018 CMS-JME-18-001
2003.00503
41 T. Adye Unfolding algorithms and tests using RooUnfold in , . CERN, Geneva, 2011
PHYSTAT 201 (2011) 313
1105.1160
42 L. Brenner et al. Comparison of unfolding methods using RooFitUnfold Int. J. Mod. Phys. A 35 (2020) 2050145 1910.14654
43 G. D'Agostini A multidimensional unfolding method based on Bayes' theorem NIM A 362 (1995) 487
44 W. H. Richardson Bayesian-based iterative method of image restoration J. Opt. Soc. Am. 62 (1972) 55
45 L. B. Lucy An iterative technique for the rectification of observed distributions Astron. J. 79 (1974) 745
46 CMS Collaboration Determination of jet energy calibration and transverse momentum resolution in CMS JINST 6 (2011) P11002 CMS-JME-10-011
1107.4277
47 CMS Collaboration First measurement of large area jet transverse momentum spectra in heavy-ion collisions JHEP 05 (2021) 284 CMS-HIN-18-014
2102.13080
48 M. Kordell and A. Majumder Jets in d(p)-A collisions: Color transparency or energy conservation Phys. Rev. C 97 (2018) 054904 1601.02595
Compact Muon Solenoid
LHC, CERN
