| CMS-HIN-21-019 ; CERN-EP-2024-331 | ||
| First measurement of jet axis decorrelation with photon-tagged jets in pp and $ \mathrm{PbPb} $ collisions at 5.02 TeV | ||
| CMS Collaboration | ||
| 20 February 2026 | ||
| Submitted to Physics Letters B | ||
| Abstract: The first measurement of the jet axis decorrelation in events with jets recoiling from an isolated photon is presented for lead-lead ($ \mathrm{PbPb} $) and proton-proton (pp) collisions at a nucleon-nucleon center-of-mass energy of 5.02 TeV. The jet axis decorrelation is the angular difference ($ \Delta{j} $) between two definitions of the jet axis. This quantity is expected to be sensitive to the scattering of jet constituents in the quark-gluon plasma (QGP). Events which have a leading isolated photon with transverse momentum 60 $ < p_{\mathrm{T}}^{\gamma} < $ 200 GeV and recoiling jets with 30 $ < p_{\mathrm{T}}^{\text{jet}} < $ 100 GeV are selected for the analysis. The $ \mathrm{PbPb} $ result is reported as a function of collision centrality and compared to pp reference data. Jets with $ p_{\mathrm{T}}^{\text{jet}} < $ 60 GeV have consistent $ \Delta{j} $ shapes for pp and $ \mathrm{PbPb} $ collisions. However, a narrowing is observed for jets with $ p_{\mathrm{T}}^{\text{jet}} > $ 60 GeV in central $ \mathrm{PbPb} $ collisions. The results are compared to predictions from the JEWEL, PYQUEN and HYBRID theoretical models, which include different descriptions of parton energy loss in the QGP. | ||
| Links: e-print arXiv:2602.18279 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

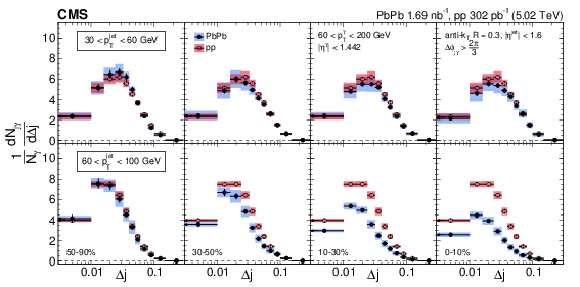

Figure 1:
Photon-tagged jet axis decorrelation $ \Delta{j} $ in pp collisions (red boxes, open circles) and $ \mathrm{PbPb} $ collisions (blue boxes, filled circles), normalized per photon. The columns show different $ \mathrm{PbPb} $ centralities, while the top (bottom) row shows low (high) jet $ p_{\mathrm{T}} $. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. |
png pdf |

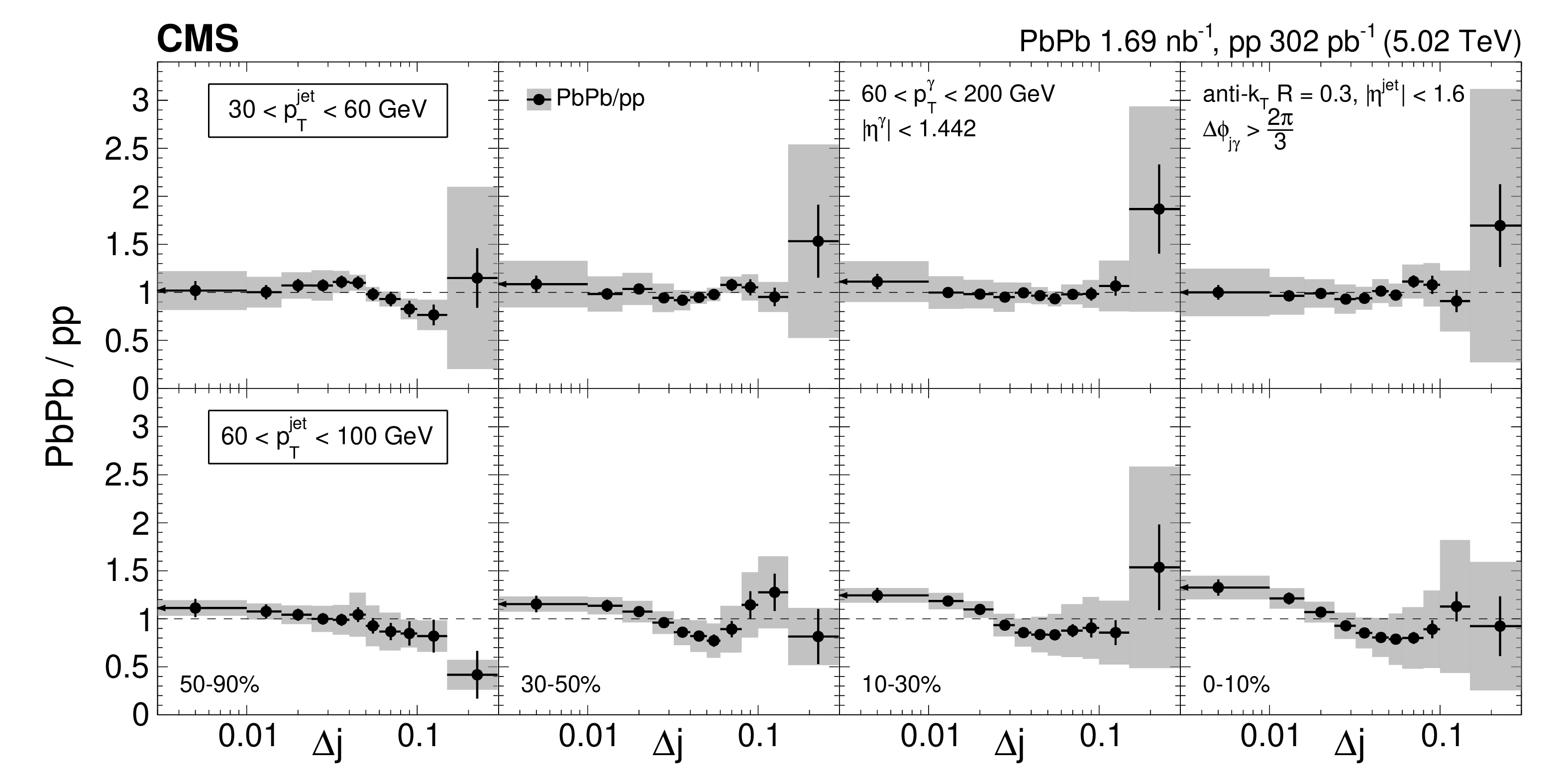

Figure 2:
Ratios of photon-tagged jet $ \Delta{j} $ spectra in $ \mathrm{PbPb} $ and pp collisions normalized per photon-jet pair. The columns show different $ \mathrm{PbPb} $ centralities, while the top (bottom) row shows low (high) jet $ p_{\mathrm{T}} $. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent total systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. |
png pdf |
Figure 3:
Photon-tagged jet axis decorrelation $ \Delta{j} $ in pp collisions, normalized per photon. The left (right) panel shows low (high) jet $ p_{\mathrm{T}} $. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, statistical uncertainties are within the marker size, and the horizontal bars indicate the bin width. The results are compared to theoretical predictions from the HYBRID, JEWEL, PYQUEN, and PYTHIA models. The theory bands represent the statistical uncertainties. |
png pdf |

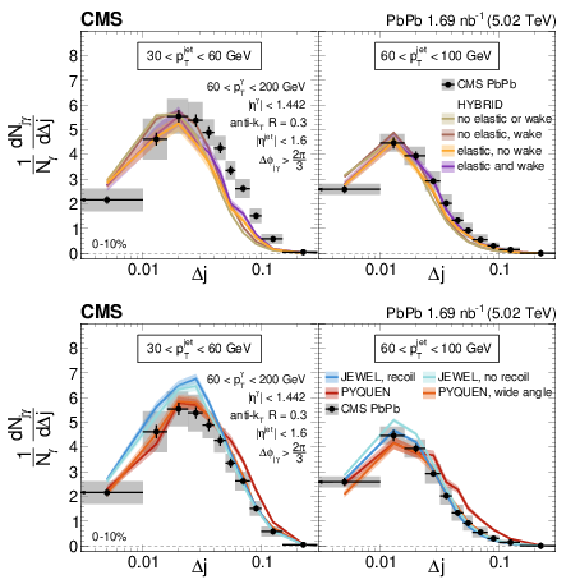

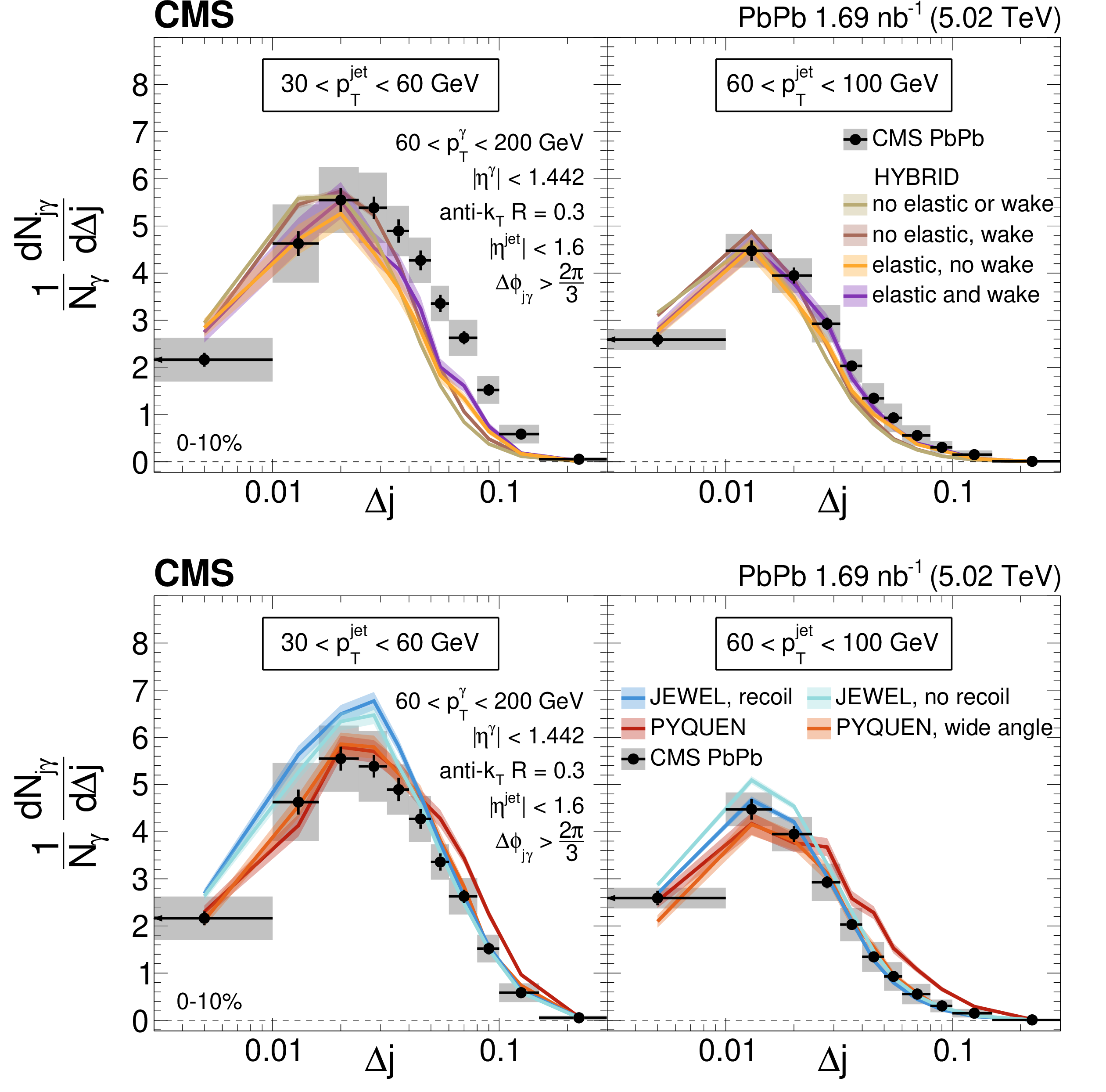

Figure 4:
Photon-tagged jet axis decorrelation $ \Delta{j} $ in $ \mathrm{PbPb} $ collisions with 0--10% centrality, normalized per photon. The left (right) column shows low (high) jet $ p_{\mathrm{T}} $ while the top (bottom) row shows comparisons to predictions from the HYBRID (JEWEL and PYQUEN) models. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. The theory bands represent the statistical uncertainties. |
png pdf |

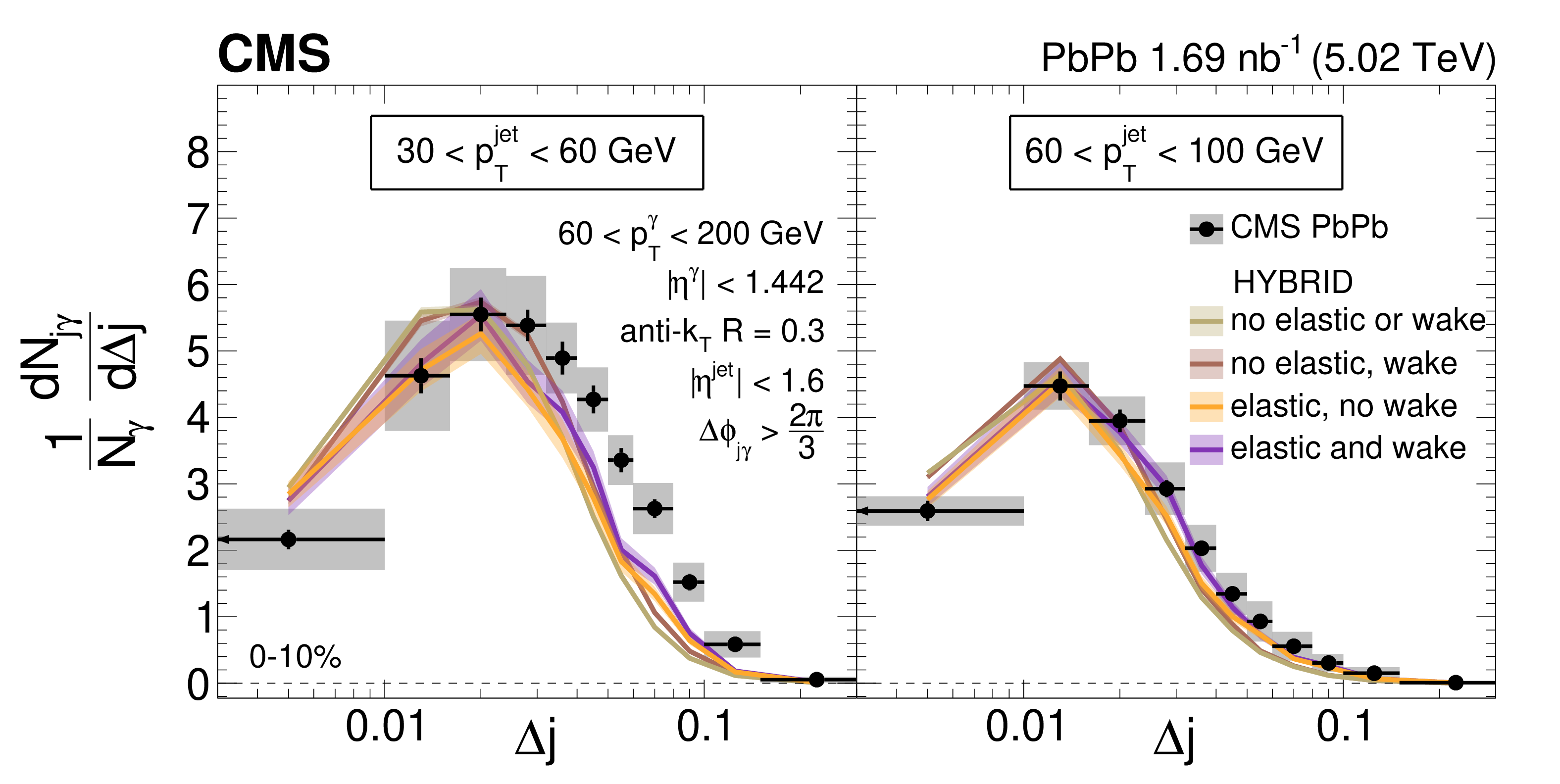

Figure 4-a:
Photon-tagged jet axis decorrelation $ \Delta{j} $ in $ \mathrm{PbPb} $ collisions with 0--10% centrality, normalized per photon. The left (right) column shows low (high) jet $ p_{\mathrm{T}} $ while the top (bottom) row shows comparisons to predictions from the HYBRID (JEWEL and PYQUEN) models. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. The theory bands represent the statistical uncertainties. |
png pdf |

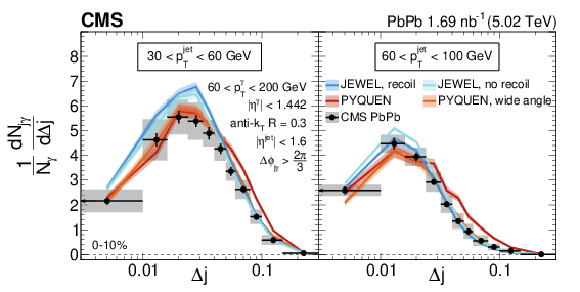

Figure 4-b:
Photon-tagged jet axis decorrelation $ \Delta{j} $ in $ \mathrm{PbPb} $ collisions with 0--10% centrality, normalized per photon. The left (right) column shows low (high) jet $ p_{\mathrm{T}} $ while the top (bottom) row shows comparisons to predictions from the HYBRID (JEWEL and PYQUEN) models. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. The theory bands represent the statistical uncertainties. |
png pdf |

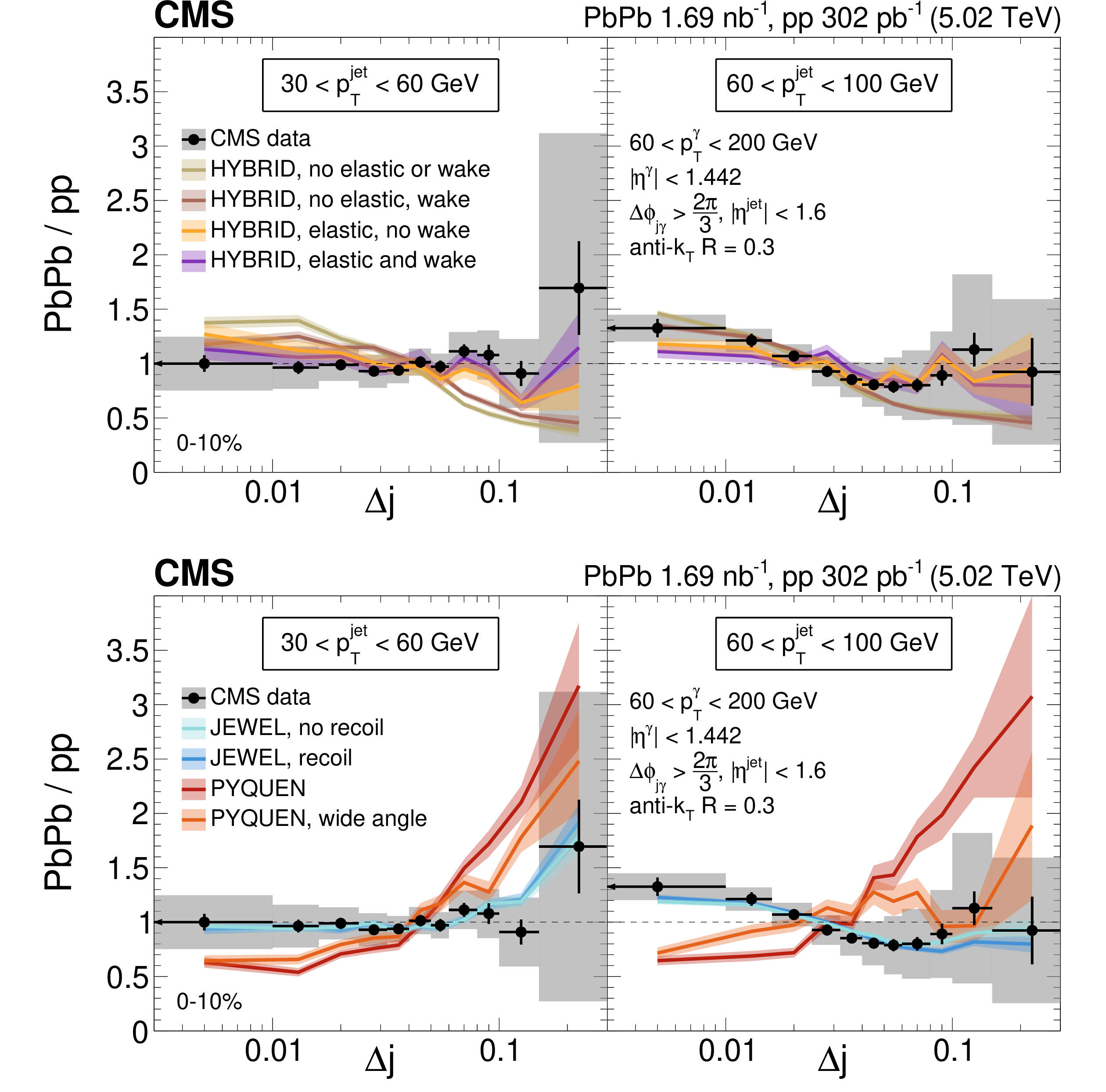

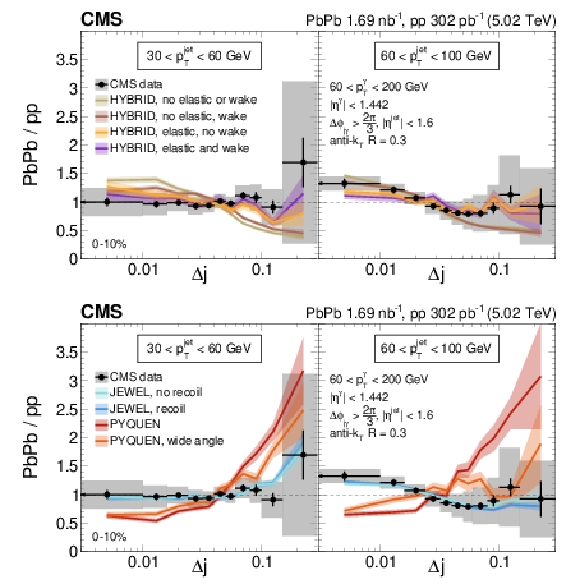

Figure 5:
Ratios of photon-tagged jet axis decorrelation $ \Delta{j} $ in $ \mathrm{PbPb} $ and pp collisions normalized per photon-jet pair, shown for centrality 0--10%. The left (right) column shows low (high) jet $ p_{\mathrm{T}} $ while the top (bottom) row shows comparisons to predictions from the HYBRID (JEWEL and PYQUEN) models. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. The theory bands represent the statistical uncertainties. |
png pdf |

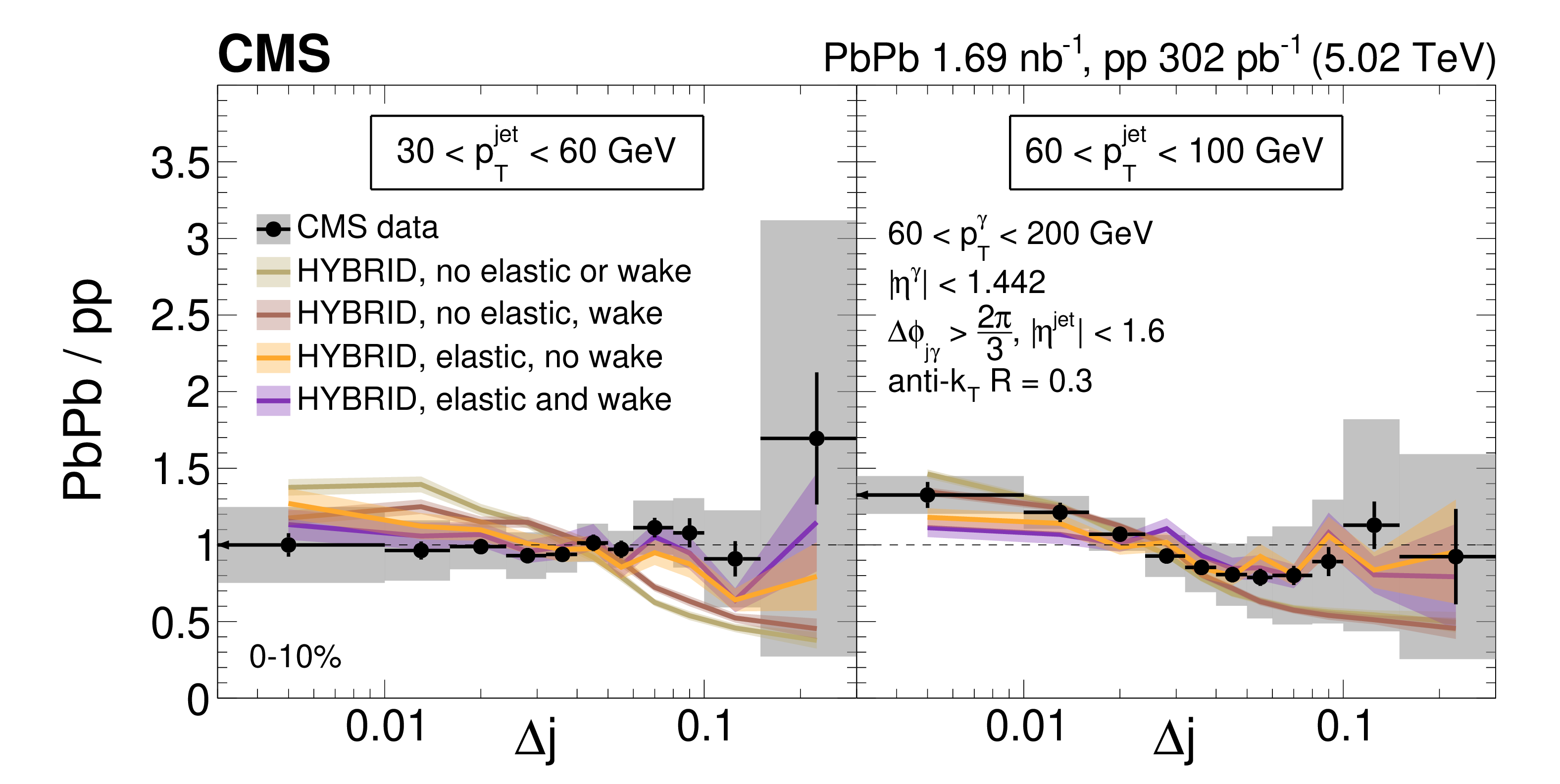

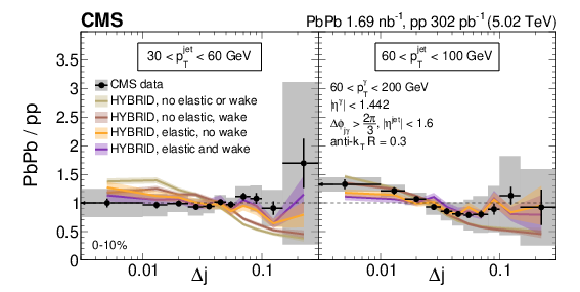

Figure 5-a:
Ratios of photon-tagged jet axis decorrelation $ \Delta{j} $ in $ \mathrm{PbPb} $ and pp collisions normalized per photon-jet pair, shown for centrality 0--10%. The left (right) column shows low (high) jet $ p_{\mathrm{T}} $ while the top (bottom) row shows comparisons to predictions from the HYBRID (JEWEL and PYQUEN) models. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. The theory bands represent the statistical uncertainties. |
png pdf |

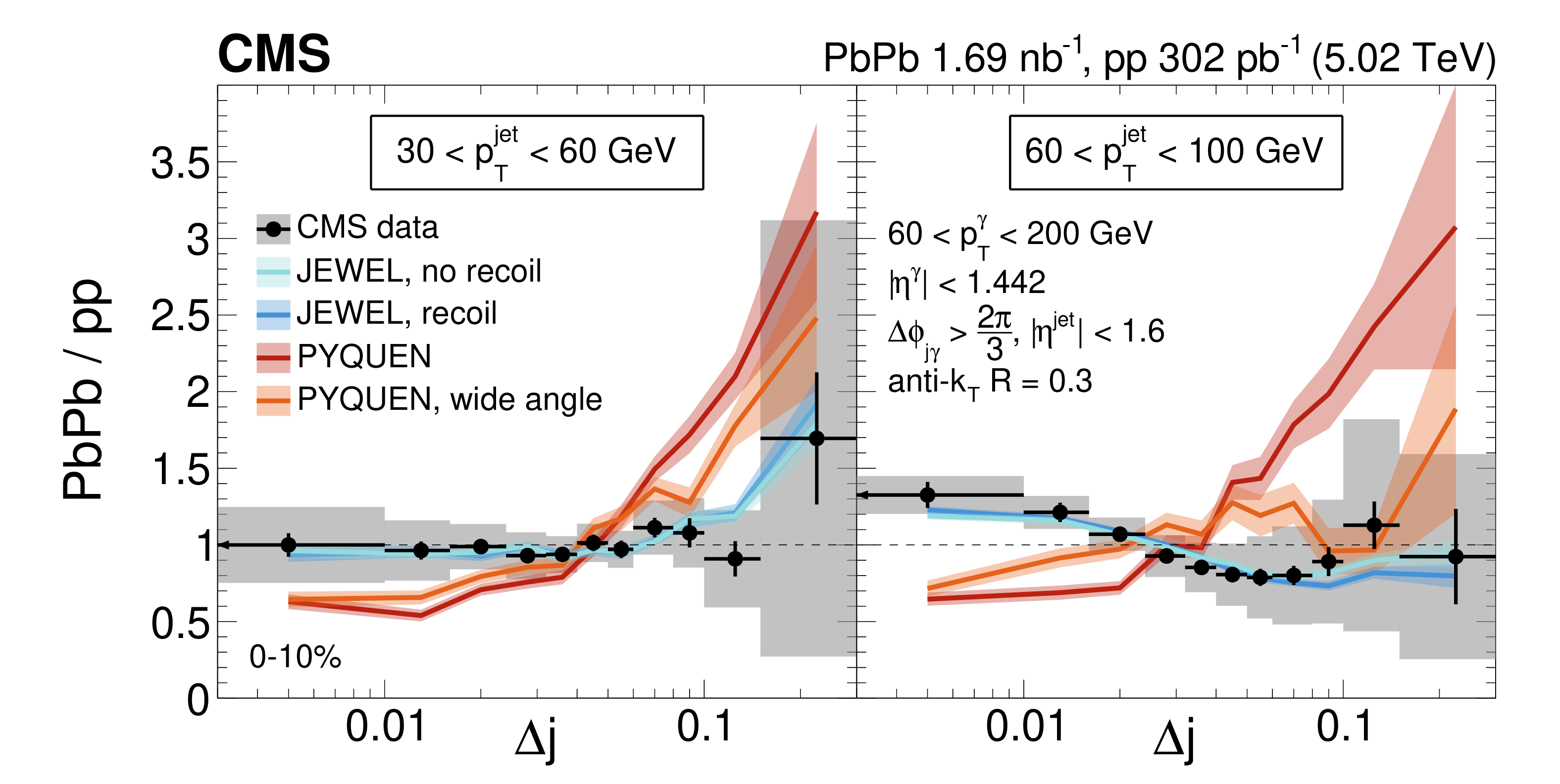

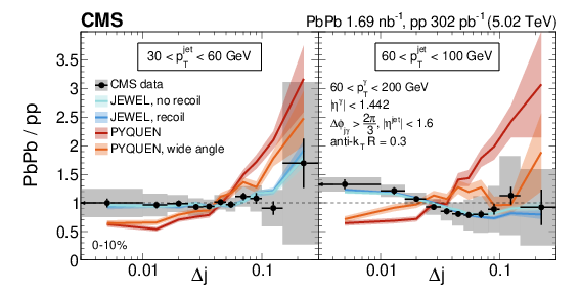

Figure 5-b:
Ratios of photon-tagged jet axis decorrelation $ \Delta{j} $ in $ \mathrm{PbPb} $ and pp collisions normalized per photon-jet pair, shown for centrality 0--10%. The left (right) column shows low (high) jet $ p_{\mathrm{T}} $ while the top (bottom) row shows comparisons to predictions from the HYBRID (JEWEL and PYQUEN) models. The leftmost bins extend down to $ \Delta{j} = $ 0. The shaded boxes represent systematic uncertainties, the vertical bars indicate statistical uncertainties, and the horizontal bars indicate the bin width. The theory bands represent the statistical uncertainties. |
| Tables | |
png pdf |

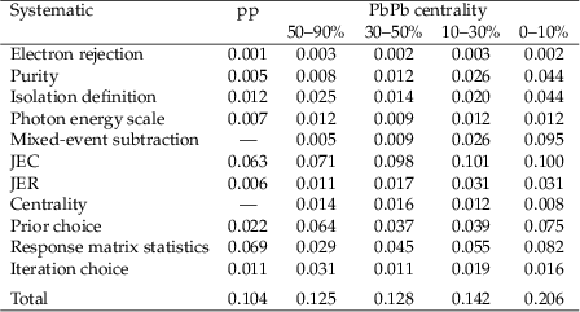

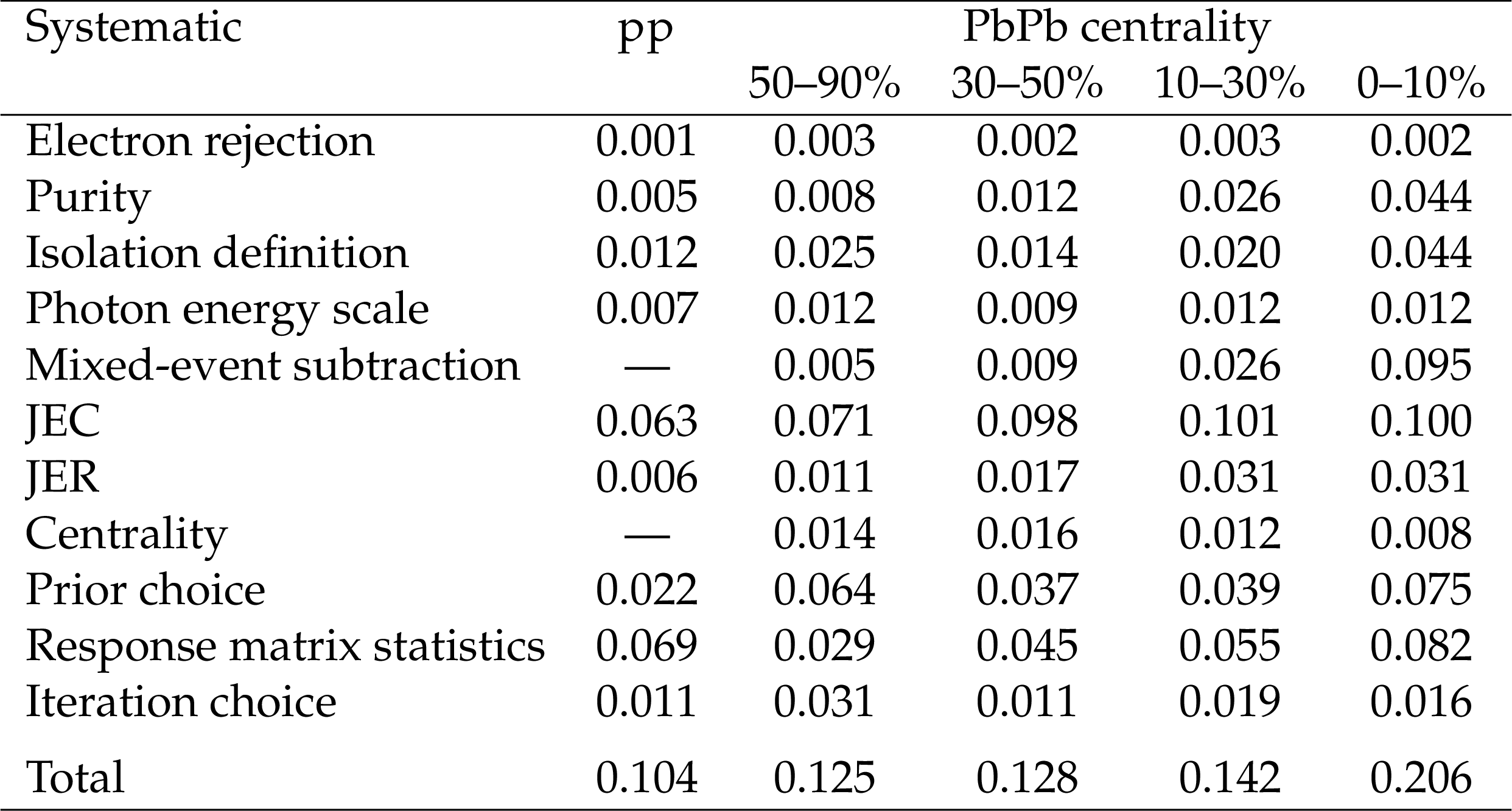

Table 1:
Average of the bin-by-bin $ \Delta{j} $ absolute, symmetric systematic uncertainties for jets with 30 $ < p_{\mathrm{T}}^{\text{jet}} < $ 60 GeV in pp data as well as in $ \mathrm{PbPb} $ data for each of the centrality bins. |
png pdf |

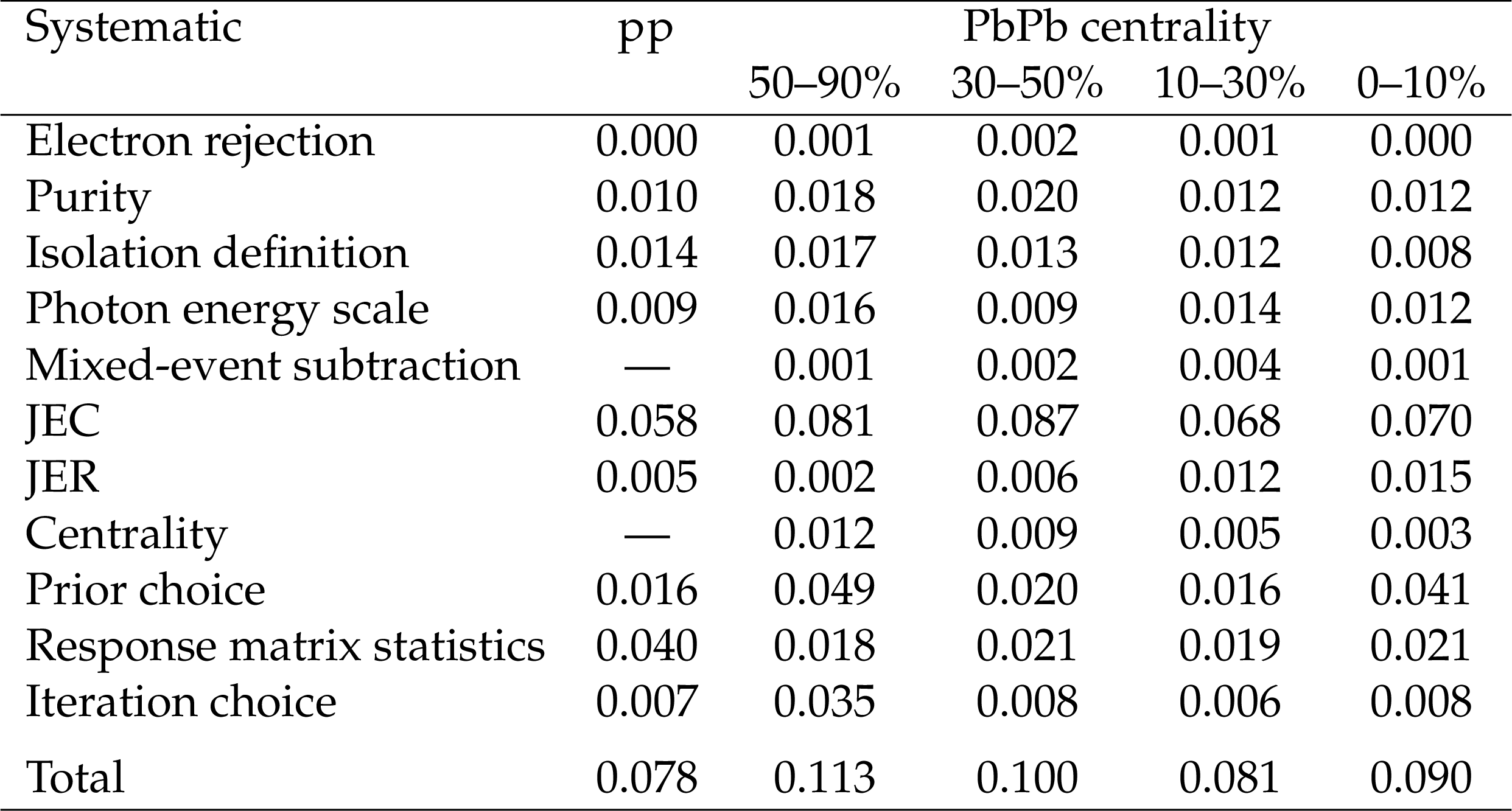

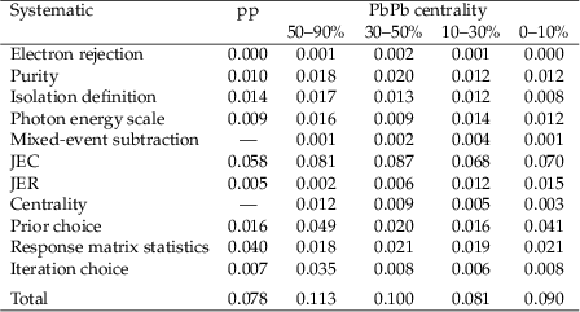

Table 2:
Average of the bin-by-bin $ \Delta{j} $ absolute, symmetric systematic uncertainties for jets with 60 $ < p_{\mathrm{T}}^{\text{jet}} < $ 100 GeV in pp data as well as in $ \mathrm{PbPb} $ data for each of the centrality bins. |
| Summary |
| Measurements of the photon-tagged jet axis decorrelation ($ \Delta{j} $), between jet axes defined by the energy-weight ($ E\text{--scheme} $) and the winner-take-all (WTA) schemes, are reported for the first time. These measurements are performed at a nucleon-nucleon center-of-mass energy of $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV, using proton-proton (pp) and lead-lead ($ \mathrm{PbPb} $) data sets recorded by the CMS experiment at the CERN LHC in 2017 and 2018, respectively. This study uses comparisons between $ \mathrm{PbPb} $ and pp collisions to investigate the in-medium modification of the $ \Delta{j} $ distribution. The corrected $ \Delta{j} $ spectra are analyzed in four $ \mathrm{PbPb} $ centrality intervals: 0--10%, 10--30%, 30--50%, and 50--90%. The use of photon-tagged jet events reduces the jet survivor bias and allows a focus on a quark-enriched sample with the initial transverse momentum tagged by the photon with energy between 60 and 200 GeV. This tagging requirement reduces competing effects compared to inclusive jet-based measurements, allowing for the investigation of jet survivor bias effects. The data are divided into lower- and higher-$ p_{\mathrm{T}} $ jet intervals to explore the effects of jet survivor bias. In contrast to the narrowing effects observed in the ALICE inclusive charged jet measurement in $ \mathrm{PbPb} $ collisions, the CMS results show that the $ \mathrm{PbPb} $ and pp spectra for 30 $ < p_{\mathrm{T}}^{\text{jet}} < $ 60 GeV are consistent. However, the higher-$ p_{\mathrm{T}} $ jet sample of 60 $ < p_{\mathrm{T}}^{\text{jet}} < $ 100 GeV, which is more affected by jet survivor bias, displays similar signs of narrowing at small $ \Delta{j} $ as reported by the ALICE experiment. The JEWEL model offers a reasonable description of the experimental data and suggests that the $ \Delta{j} $ observable is relatively insensitive to the quark-gluon plasma (QGP) medium recoil effects. The broadening predicted by JEWEL at large $ \Delta{j} $ and low $ p_{\mathrm{T}}^{\text{jet}} $, as well as the narrowing at small $ \Delta{j} $ and high $ p_{\mathrm{T}}^{\text{jet}} $ in the most central collisions, both align with the data. Similarly, the HYBRID model indicates that $ \Delta{j} $ is relatively unaffected by the QGP wake contribution, but is highly sensitive to elastic scattering of partons with the QGP. In contrast, the PYQUEN model overestimates medium-induced broadening effects, with only slight improvement when wide-angle radiation is included. These new measurements of the photon-tagged jet axis decorrelation provide deeper insights into the mechanisms of jet quenching in the QGP. |
| References | ||||
| 1 | J. C. Collins and M. J. Perry | Superdense matter: Neutrons or asymptotically free quarks? | PRL 34 (1975) 1353 | |
| 2 | F. Karsch | The phase transition to the quark gluon plasma: Recent results from lattice calculations | Nucl. Phys. A 590 (1995) 367 | hep-lat/9503010 |
| 3 | W. Busza, K. Rajagopal, and W. van der Schee | Heavy ion collisions: The big picture, and the big questions | Ann. Rev. Nucl. Part. Sci. 68 (2018) 339 | 1802.04801 |
| 4 | J. D. Bjorken | Highly relativistic nucleus-nucleus collisions: the central rapidity region | PRD 27 (1983) 140 | |
| 5 | D. A. Appel | Jets as a probe of quark-gluon plasmas | PRD 33 (1986) 717 | |
| 6 | J. P. Blaizot and L. D. McLerran | Jets in expanding quark-gluon plasmas | PRD 34 (1986) 2739 | |
| 7 | M. Gyulassy and M. Pl \"u mer | Jet quenching in dense matter | PLB 243 (1990) 432 | |
| 8 | X.-N. Wang and M. Gyulassy | Gluon shadowing and jet quenching in AA collisions at $ \sqrt{s} = 200A $ GeV | PRL 68 (1992) 1480 | |
| 9 | R. Baier et al. | Radiative energy loss and $ p_{\mathrm{T}} $-broadening of high energy partons in nuclei | NPB 484 (1997) 265 | hep-ph/9608322 |
| 10 | B. G. Zakharov | Radiative energy loss of high-energy quarks in finite-size nuclear matter and quark-gluon plasma | JETP Lett. 65 (1997) 615 | hep-ph/9704255 |
| 11 | M. Connors, C. Nattrass, R. Reed, and S. Salur | Jet measurements in heavy ion physics | Rev. Mod. Phys. 90 (2018) 025005 | 1705.01974 |
| 12 | L. Cunqueiro and A. M. Sickles | Studying the QGP with jets at the LHC and RHIC | Prog. Part. Nucl. Phys. 124 (2022) 103940 | 2110.14490 |
| 13 | L. Apolinario, Y.-J. Lee, and M. Winn | Heavy quarks and jets as probes of the QGP | Prog. Part. Nucl. Phys. 127 (2022) 103990 | 2203.16352 |
| 14 | CMS Collaboration | Overview of high-density QCD studies with the CMS experiment at the LHC | Phys. Rept. 1115 (2025) 219 | CMS-HIN-23-011 2405.10785 |
| 15 | STAR Collaboration | Transverse-momentum and collision-energy dependence of high-$ p_{\mathrm{T}} $ hadron suppression in AuAu collisions at ultrarelativistic energies | PRL 91 (2003) 172302 | nucl-ex/0305015 |
| 16 | PHENIX Collaboration | Suppression pattern of neutral pions at high transverse momentum in AuAu collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 200 GeV and constraints on medium transport coefficients | PRL 101 (2008) 232301 | 0801.4020 |
| 17 | ALICE Collaboration | Centrality dependence of charged particle production at large transverse momentum in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | PLB 720 (2013) 52 | 1208.2711 |
| 18 | ATLAS Collaboration | Measurement of charged-particle spectra in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV with the ATLAS detector at the LHC | JHEP 09 (2015) 050 | 1504.04337 |
| 19 | CMS Collaboration | Study of high-$ p_{\rm{T}} $ charged particle suppression in PbPb compared to pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | EPJC 72 (2012) 1945 | CMS-HIN-10-005 1202.2554 |
| 20 | CMS Collaboration | Charged-particle nuclear modification factors in PbPb and pPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV | JHEP 04 (2017) 039 | CMS-HIN-15-015 1611.01664 |
| 21 | CMS Collaboration | Observation and studies of jet quenching in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | Phys. Rev. C 84 (2011) 024906 | CMS-HIN-10-004 1102.1957 |
| 22 | ATLAS Collaboration | Observation of a centrality-dependent dijet asymmetry in lead-lead collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV with the ATLAS detector at the LHC | PRL 105 (2010) 252303 | 1011.6182 |
| 23 | ATLAS Collaboration | Centrality and rapidity dependence of inclusive jet production in $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV proton-lead collisions with the ATLAS detector | PLB 748 (2015) 392 | 1412.4092 |
| 24 | ALICE Collaboration | Measurement of jet quenching with semi-inclusive hadron-jet distributions in central PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | JHEP 09 (2015) 170 | 1506.03984 |
| 25 | CMS Collaboration | Measurement of inclusive jet cross sections in pp and PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | Phys. Rev. C 96 (2017) 015202 | CMS-HIN-13-005 1609.05383 |
| 26 | ALICE Collaboration | Measurement of jet suppression in central PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV | PLB 746 (2015) 1 | 1502.01689 |
| 27 | STAR Collaboration | Dijet imbalance measurements in AuAu and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 200 GeV at STAR | PRL 119 (2017) 062301 | 1609.03878 |
| 28 | Z. Hulcher, D. Pablos, and K. Rajagopal | Sensitivity of jet observables to the presence of quasi-particles in QGP | in th Int. Conf. on Utrarelativistic Nucleus-Nucleus Collisions (QM ), Krakow, Poland, 4-10 April, 2022 Proc. 2 (2022) 9 |
2208.13593 |
| 29 | CMS Collaboration | Calculating the angle between jet axes | JHEP 04 (2020) 211 | 1911.06840 |
| 30 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 31 | D. Bertolini, T. Chan, and J. Thaler | Jet observables without jet algorithms | JHEP 04 (2014) 013 | 1310.7584 |
| 32 | J. Brewer, Q. Brodsky, and K. Rajagopal | Disentangling jet modification in jet simulations and in Z+jet data | JHEP 02 (2022) 175 | 2110.13159 |
| 33 | ALICE Collaboration | Measurement of the angle between jet axes in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | Submitted to: Phys. Rev. Lett, 2023 | 2303.13347 |
| 34 | V. Kartvelishvili, R. Kvatadze, and R. Shanidze | On Z and Z+jet production in heavy ion collisions | PLB 356 (1995) 589 | hep-ph/9505418 |
| 35 | X.-N. Wang, Z. Huang, and I. Sarcevic | Jet quenching in the direction opposite to a tagged photon in high-energy heavy ion collisions | PRL 77 (1996) 231 | hep-ph/9605213 |
| 36 | X.-N. Wang and Z. Huang | Medium-induced parton energy loss in $ \gamma $+jet events of high-energy heavy ion collisions | Phys. Rev. C 55 (1997) 3047 | hep-ph/9701227 |
| 37 | W. Dai, I. Vitev, and B.-W. Zhang | Momentum imbalance of isolated photon-tagged jet production at RHIC and LHC | PRL 110 (2013) 142001 | 1207.5177 |
| 38 | Z.-B. Kang, I. Vitev, and H. Xing | Vector-boson-tagged jet production in heavy ion collisions at energies available at the CERN Large Hadron Collider | Phys. Rev. C 96 (2017) 014912 | 1702.07276 |
| 39 | ATLAS Collaboration | Centrality, rapidity and transverse momentum dependence of isolated prompt photon production in lead-lead collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 2.76 TeV measured with the ATLAS detector | Phys. Rev. C 93 (2016) 034914 | 1506.08552 |
| 40 | CMS Collaboration | Measurement of isolated photon production in pp and PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | PLB 710 (2012) 256 | CMS-HIN-11-002 1201.3093 |
| 41 | CMS Collaboration | Study of W boson production in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | PLB 715 (2012) 66 | CMS-HIN-11-008 1205.6334 |
| 42 | CMS Collaboration | Study of Z production in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV in the dimuon and dielectron decay channels | JHEP 03 (2015) 022 | CMS-HIN-13-004 1410.4825 |
| 43 | CMS Collaboration | The production of isolated photons in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | JHEP 07 (2020) 116 | CMS-HIN-18-016 2003.12797 |
| 44 | R. B. Neufeld, I. Vitev, and B. W. Zhang | Physics of $ Z^0/\gamma^* $-tagged jets at energies available at the CERN Large Hadron Collider | Phys. Rev. C 83 (2011) 034902 | 1006.2389 |
| 45 | X.-N. Wang and Y. Zhu | Medium modification of $ \gamma $ jets in high-energy heavy ion collisions | PRL 111 (2013) 062301 | 1302.5874 |
| 46 | J. Casalderrey-Solana et al. | A hybrid strong/weak coupling approach to jet quenching | JHEP 10 (2014) 019 | 1405.3864 |
| 47 | J. Casalderrey-Solana et al. | Predictions for boson-jet observables and fragmentation function ratios from a hybrid strong/weak coupling model for jet quenching | JHEP 03 (2016) 053 | 1508.00815 |
| 48 | R. K. Elayavalli and K. C. Zapp | Simulating V+jet processes in heavy ion collisions with JEWEL | EPJC 76 (2016) 695 | 1608.03099 |
| 49 | CMS Collaboration | Studies of jet quenching using isolated photon+jet correlations in PbPb and $ pp $ collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 2.76 TeV | PLB 718 (2013) 773 | CMS-HIN-11-010 1205.0206 |
| 50 | CMS Collaboration | Using Z boson events to study parton-medium interactions in PbPb collisions | PRL 128 (2022) 122301 | CMS-HIN-19-006 2103.04377 |
| 51 | CMS Collaboration | Study of jet quenching with isolated photon+jet correlations in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PLB 785 (2018) 14 | CMS-HIN-16-002 1711.09738 |
| 52 | CMS Collaboration | Jet shapes of isolated photon-tagged jets in PbPb and pp collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}} = $ 5.02 TeV | PRL 122 (2019) 152001 | CMS-HIN-18-006 1809.08602 |
| 53 | CMS Collaboration | Observation of medium-induced modifications of jet fragmentation in PbPb collisions at $ \sqrt{\smash[b]{s_{_{\mathrm{NN}}}}}= $ 5.02 TeV using isolated photon-tagged jets | PRL 121 (2018) 242301 | CMS-HIN-16-014 1801.04895 |
| 54 | ATLAS Collaboration | Comparison of fragmentation functions for jets dominated by light quarks and gluons from pp and PbPb Collisions in ATLAS | PRL 123 (2019) 042001 | 1902.10007 |
| 55 | CMS Collaboration | Girth and groomed radius of jets recoiling against isolated photons in lead-lead and proton-proton collisions at sNN=5.02 TeV | PLB 861 (2025) 139088 | CMS-HIN-23-001 2405.02737 |
| 56 | CMS Collaboration | HEPData record for this analysis | link | |
| 57 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 58 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 59 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 60 | CMS Collaboration | Luminosity measurement for lead-lead collisions at $ \sqrt{s_{\mathrm{NN}}} = $ 5.02 TeV in 2015 and 2018 at CMS | Submitted to Eur. Phys. J. C, 2025 link |
CMS-LUM-20-002 2503.03946 |
| 61 | CMS Collaboration | Luminosity measurement in proton-proton collisions at 5.02 TeV in 2017 at CMS | CMS Physics Analysis Summary CMS-PAS-LUM-19-001 |
CMS-PAS-LUM-19-001 |
| 62 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 63 | CMS Collaboration | Transverse-momentum and pseudorapidity distributions of charged hadrons in pp collisions at $ \sqrt{s} = $ 7 TeV | PRL 105 (2010) 022002 | CMS-QCD-10-006 1005.3299 |
| 64 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 65 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 66 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 67 | P. Berta, M. Spousta, D. W. Miller, and R. Leitner | Particle-level pileup subtraction for jets and jet shapes | JHEP 06 (2014) 092 | 1403.3108 |
| 68 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 69 | CMS Collaboration | CMS jet algorithms performance in 13 TeV data | CMS Physics Analysis Summary CMS-PAS-JME-16-003 |
CMS-PAS-JME-16-003 |
| 70 | CMS Collaboration | Measurement of the isolated prompt photon production cross section in pp collisions at $ \sqrt{s} = $ 7 TeV | PRL 106 (2011) 082001 | CMS-QCD-10-019 1012.0799 |
| 71 | T. C. Awes et al. | A simple method of shower localization and identification in laterally segmented calorimeters | Nucl. Instrum. Meth. A 311 130, 1992 | |
| 72 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 73 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA 8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 74 | I. P. Lokhtin et al. | Heavy ion event generator HYDJET++ (HYDrodynamics plus JETs) | Comput. Phys. Commun. 180 (2009) 779 | 0809.2708 |
| 75 | CMS Collaboration | First measurement of large area jet transverse momentum spectra in heavy ion collisions | JHEP 05 (2021) 284 | CMS-HIN-18-014 2102.13080 |
| 76 | G. D'Agostini | A multidimensional unfolding method based on Bayes' theorem | NIM A 362 (1995) 487 | |
| 77 | L. Brenner et al. | Comparison of unfolding methods using RooFitUnfold | Int. J. Mod. Phys. A 35 (2020) 2050145 | 1910.14654 |
| 78 | T. Skwarnicki | A study of the radiative CASCADE transitions between the Upsilon-Prime and Upsilon resonances | PhD thesis, Cracow link |
|
| 79 | J. Casalderrey-Solana, Y. Mehtar-Tani, C. A. Salgado, and K. Tywoniuk | New picture of jet quenching dictated by color coherence | PLB 725 (2013) 357 | 1210.7765 |
| 80 | R. K. Elayavalli and K. C. Zapp | Medium response in \sc jewel and its impact on jet shape observables in heavy ion collisions | JHEP 07 (2017) 141 | 1707.01539 |
| 81 | J. Casalderrey-Solana et al. | Angular structure of jet quenching within a hybrid strong/weak coupling model | JHEP 03 (2017) 135 | 1609.05842 |
| 82 | I. P. Lokhtin, A. V. Belyaev, and A. M. Snigirev | Jet quenching pattern at LHC in PYQUEN model | EPJC 71 (2011) | 1103.1853 |
| 83 | P. Skands, S. Carrazza, and J. Rojo | Tuning PYTHIA 8.1: the Monash 2013 tune | EPJC 74 (2014) 3024 | 1404.5630 |
|
|
