| CMS-HIG-25-004 ; CERN-EP-2026-211 | ||
| Constraint on the Higgs boson width in the diphoton final state using signal-background interference in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | ||
| CMS Collaboration | ||
| 1 September 2026 | ||
| Submitted to Physical Review Letters | ||
| Abstract: The standard model Higgs boson, with a mass of 125 GeV, has a predicted decay width, $ \Gamma_{\mathrm{H}} $, of 4.1 MeV. This Letter presents the first constraint on $ \Gamma_{\mathrm{H}} $ obtained through the interference between the resonant $ \mathrm{H} \to \gamma\gamma $ process and the continuum $ \gamma\gamma $ production, both produced via gluon-gluon fusion. The analysis is performed using proton-proton collision data at $ \sqrt{s}= $ 13 TeV, collected by the CMS experiment between 2016 and 2018, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. The observed (expected) limit on the Higgs boson width is $ \Gamma_{\mathrm{H}} < 92 (138) \text{MeV} $ at 95% confidence level. This is the most stringent constraint on $ \Gamma_{\mathrm{H}} $ from on-shell Higgs boson measurements to date. | ||
| Links: e-print arXiv:2609.01385 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

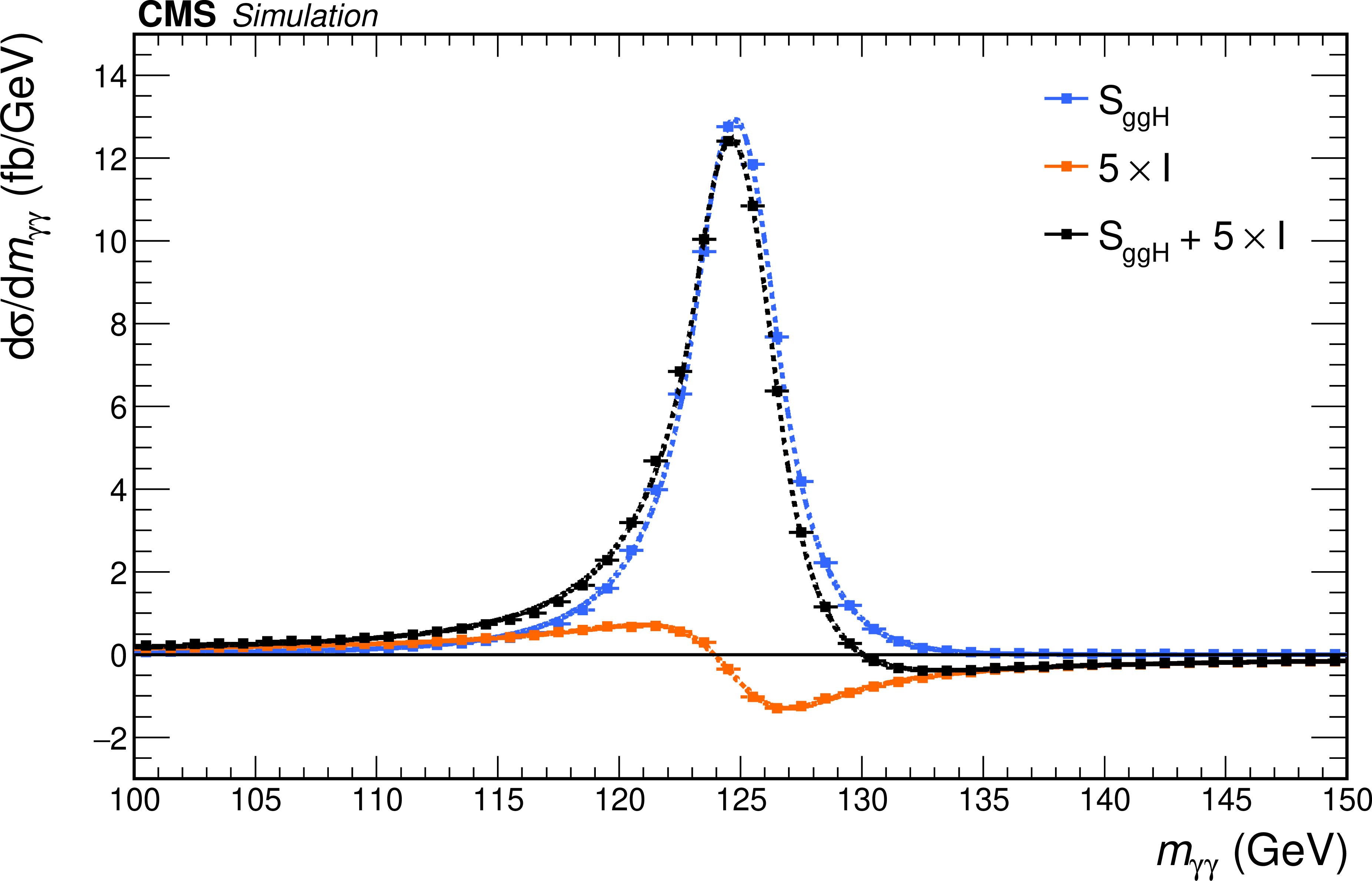

Figure 1:
Diphoton invariant mass spectrum after full detector simulation, for the $ \mathrm{g}\mathrm{g}\mathrm{H} $ signal component of Eq. (1), denoted $ \mathcal{S}_{\mathrm{g}\mathrm{g}\mathrm{H}} $ (blue points), for the interference contribution of Eq. \eqrefeq:sigmaI, denoted $ \mathcal{I} $ and amplified by a factor 5 for better visualization (orange points), and their sum (black points), for samples with $ m_{\mathrm{H}}= $ 125 GeV and $ \Gamma_{\mathrm{H}}=\Gamma_{\mathrm{H}}^\mathrm{SM} $. |
png pdf |

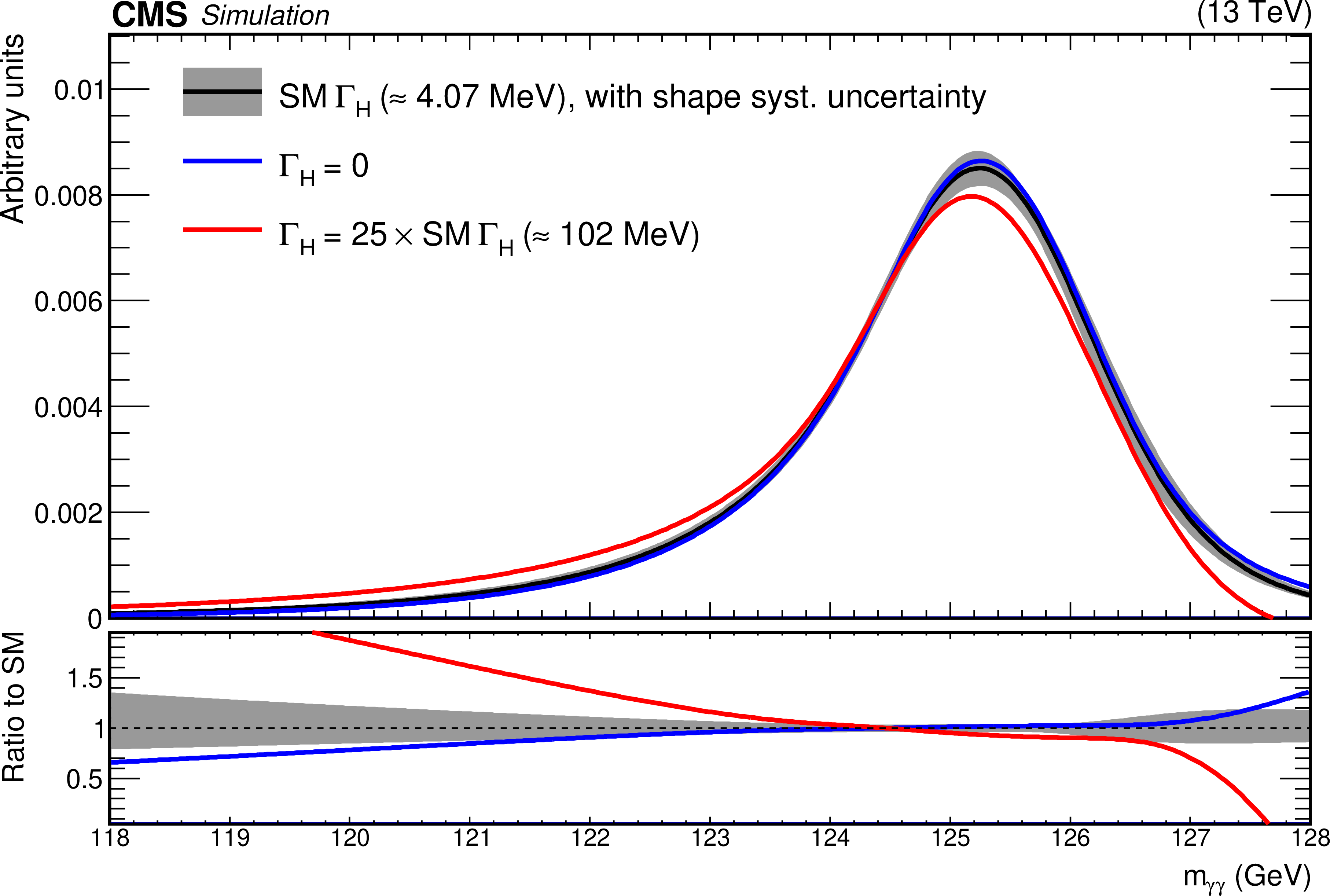

Figure 2:
The nominal signal shape in $ m_{\gamma\gamma} $ for $ \Gamma_{\mathrm{H}}=\Gamma_{\mathrm{H}}^\mathrm{SM} $, shown with the 68% CL envelope of all the experimental shape systematic uncertainties (grey band), together with the $ \Gamma_{\mathrm{H}} = $ 0 and 25 $ \Gamma_{\mathrm{H}}^\mathrm{SM} $ hypotheses (blue and red lines, respectively). The shown shapes are obtained as the weighted sum of each process and category. The weight for each category is proportional to $ S/(S+B) $, where $ S $ and $ B $ are, respectively, the expected signal and background yields in a narrow window around the $ \mathrm{H}\to\gamma\gamma $ mass peak. |
png pdf |

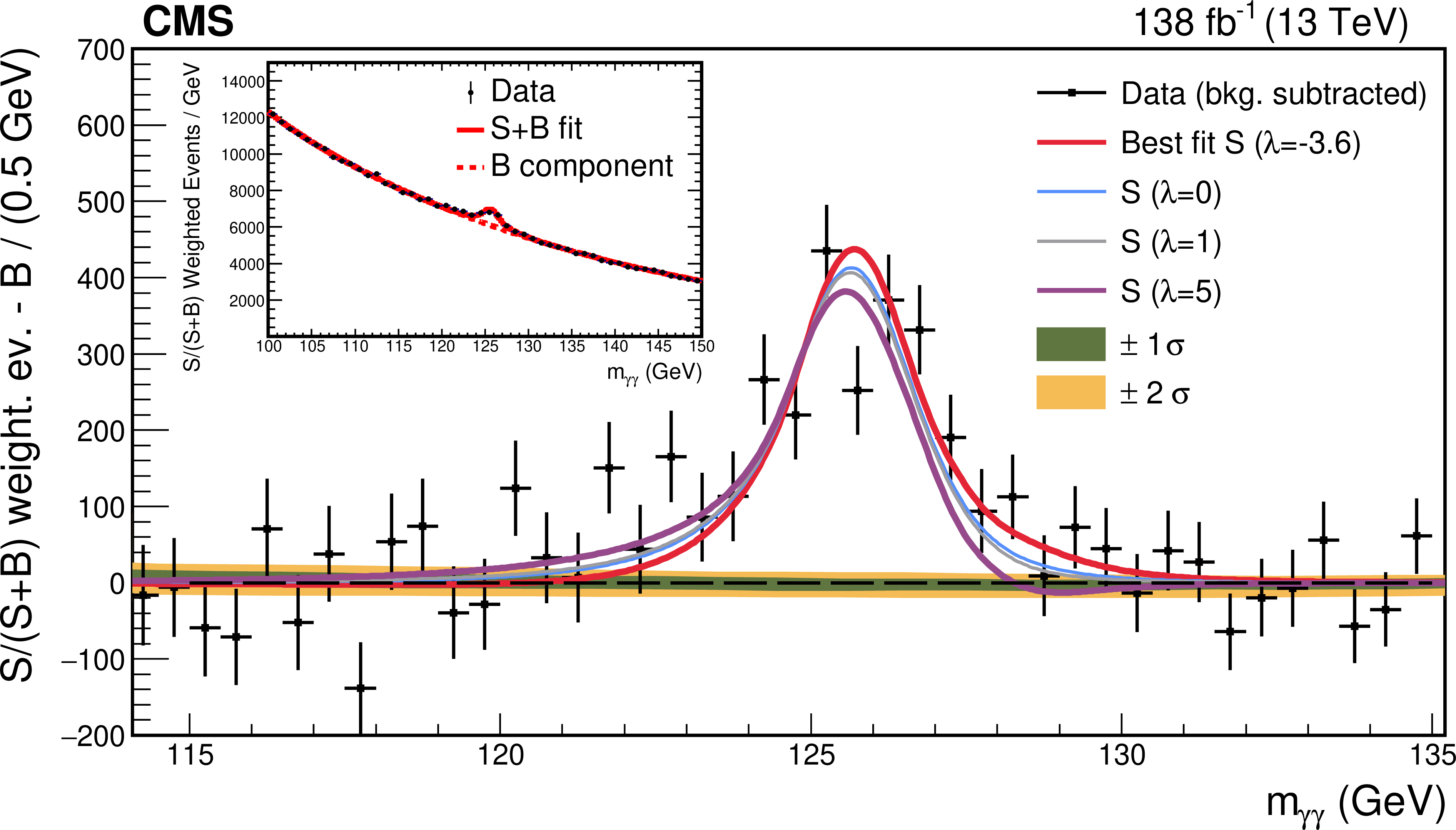

Figure 3:
Weighted $ m_{\gamma\gamma} $ distribution in data, after background subtraction, with weights proportional to $ S/(S+B) $, in a zoomed range around the observed $ m_{\mathrm{H}} $. The best fit signal model (red line) is superimposed on the data, together with signal predictions in which all parameters except $ \lambda = \sqrt{\smash[b]{\Gamma_{\mathrm{H}}/\Gamma_{\mathrm{H}}^\mathrm{SM}}} $ are set to their best fit values. The parameter $ \lambda $ is evaluated at several different values of $ \lambda=0, 1, $ 5 (blue, gray, purple lines). In the inset plot, the data and fitted distributions are shown before background subtraction in the full fit range. |
png pdf |

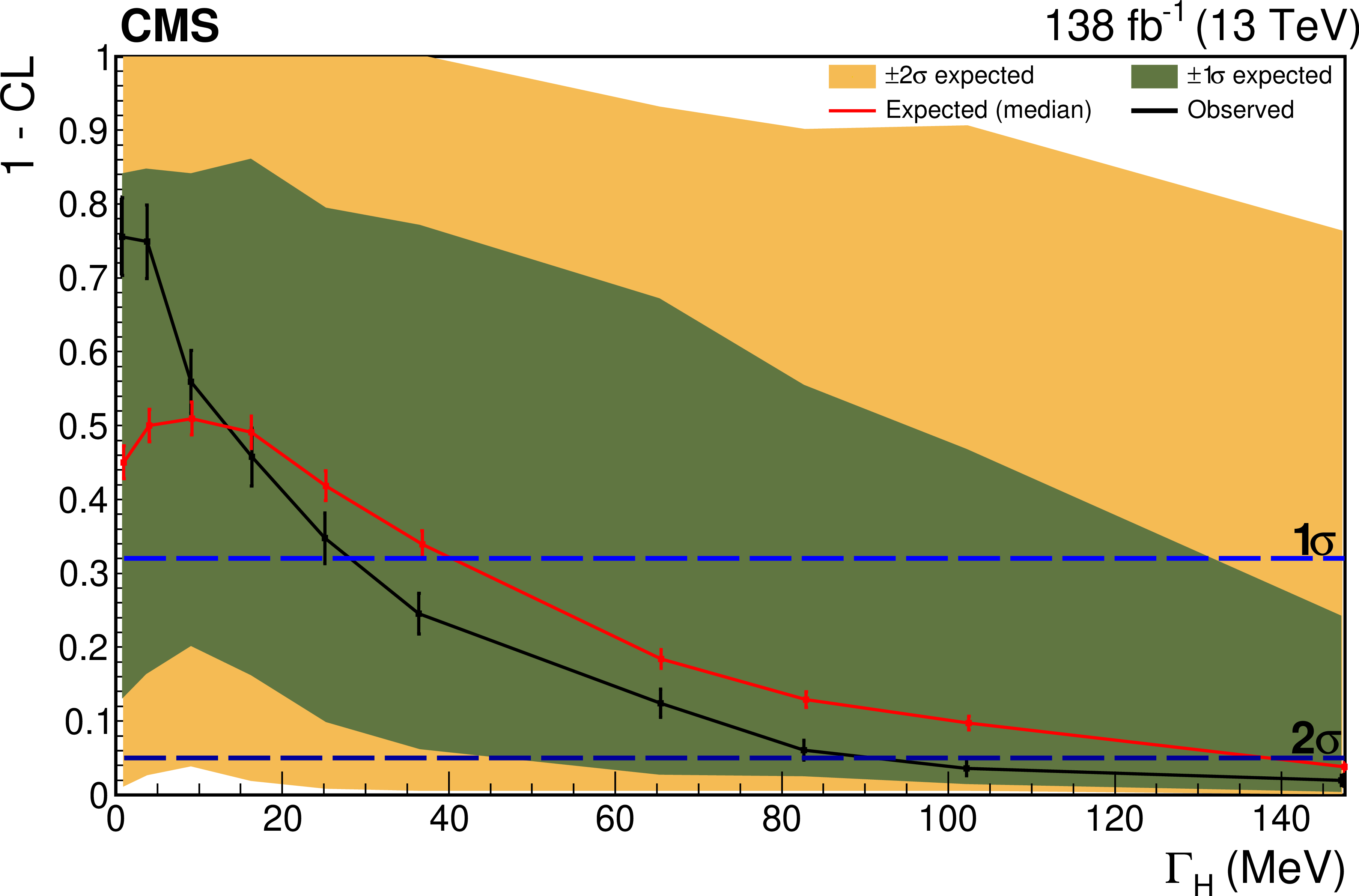

Figure 4:
Distribution of 1 $ - \text{CL} $ as a function of $ \Gamma_{\mathrm{H}} $, constructed using the Feldman--Cousins approach as defined in the text. The vertical bars on the points represent the statistical uncertainty in 1 $ - \text{CL} $ due to the limited number of pseudo-experiments. The dashed horizontal lines indicate the 68% and 95% confidence levels. |
| Summary |
| In summary, a constraint on the Higgs boson width $ \Gamma_{\mathrm{H}} $ is presented, using for the first time the interference between the resonant $ \mathrm{H} \to \gamma\gamma $ and continuum $ \gamma\gamma $ processes, both produced via gluon-gluon fusion. The observed (expected) limit is $ \Gamma_{\mathrm{H}} < 92 (138) \text{MeV} $ at 95%confidence level. This is the most stringent constraint on $ \Gamma_{\mathrm{H}} $ from on-shell Higgs boson measurements to date. |
| References | ||||
| 1 | ATLAS Collaboration | Observation of a new particle in the search for the standard model Higgs boson with the ATLAS detector at the LHC | PLB 716 (2012) 1 | 1207.7214 |
| 2 | CMS Collaboration | Observation of a new boson at a mass of 125GeV with the CMS experiment at the LHC | PLB 716 (2012) 30 | CMS-HIG-12-028 1207.7235 |
| 3 | CMS Collaboration | Observation of a new boson with mass near 125 GeV in pp collisions at $ \sqrt{s}= $ 7 and 8 TeV | JHEP 06 (2013) 081 | CMS-HIG-12-036 1303.4571 |
| 4 | D. de Florian | Handbook of LHC Higgs cross sections: 4. Deciphering the nature of the Higgs sector | link | |
| 5 | A. Azatov et al. | Off-shell Higgs interpretations task force: models and effective field theories subgroup report | link | |
| 6 | CMS Collaboration | Measurement of the Higgs boson mass and width using the four-lepton final state in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | PRD 111 (2025) 092014 | CMS-HIG-21-019 2409.13663 |
| 7 | CMS Collaboration | Combined measurements of Higgs boson couplings in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | EPJC 79 (2019) 421 | CMS-HIG-17-031 1809.10733 |
| 8 | ATLAS Collaboration | Measurements of the Higgs boson production and decay rates and coupling strengths using pp collision data at $ \sqrt{s}= $ 7 and 8 TeV in the ATLAS experiment | EPJC 76 (2016) 6 | 1507.04548 |
| 9 | F. Caola and K. Melnikov | Constraining the Higgs boson width with ZZ production at the LHC | PRD 88 (2013) 054024 | 1307.4935 |
| 10 | CMS Collaboration | Measurement of the Higgs boson total decay width using the $ H \rightarrow WW \rightarrow e\nu\mu\nu $ decay channel in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | PRD 113 (2026) 092014 | CMS-HIG-24-011 2601.05168 |
| 11 | ATLAS Collaboration | Measurement of off-shell Higgs boson production in the $ \mathrm{H}^*\rightarrow \mathrm{Z}\mathrm{Z}\rightarrow 4\ell $ decay channel using a neural simulation-based inference technique in 13 TeV pp collisions with the ATLAS detector | Reports on Progress in Physics 88 (2025) 057803 | 2412.01548 |
| 12 | ATLAS Collaboration | Constraining off-shell Higgs boson production and the Higgs boson total width using $ WW\to \ell\nu\ell\nu $ final states with the ATLAS detector | PLB 870 (2025) 139898 | 2504.07710 |
| 13 | S. P. Martin | Shift in the LHC Higgs diphoton mass peak from interference with background | PRD 86 (2012) 073016 | 1208.1533 |
| 14 | L. J. Dixon and Y. Li | Bounding the Higgs boson width through interferometry | PRL 111 (2013) 111802 | 1305.3854 |
| 15 | J. Campbell, M. Carena, R. Harnik, and Z. Liu | Interference in the $ gg \rightarrow h \rightarrow \gamma\gamma $ on-shell rate and the Higgs boson total width | PRL 119 (2017) 181801 | 1704.08259 |
| 16 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s}= $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 17 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s}= $ 13 TeV | CMS Physics Analysis Summary, 2018 link |
CMS-PAS-LUM-17-004 |
| 18 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s}= $ 13 TeV | CMS Physics Analysis Summary, 2019 link |
CMS-PAS-LUM-18-002 |
| 19 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 20 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 21 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 22 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 23 | CMS Collaboration | Performance of the CMS high-level trigger during LHC Run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 24 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 25 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 26 | CMS Collaboration | Performance of photon reconstruction and identification with the CMS detector in proton-proton collisions at $ \sqrt{s} = $ 8 TeV | JINST 10 (2015) P08010 | CMS-EGM-14-001 1502.02702 |
| 27 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 28 | CMS Collaboration | Performance of reconstruction and identification of $ \tau $ leptons decaying to hadrons and $ \nu_\tau $ in pp collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P10005 | CMS-TAU-16-003 1809.02816 |
| 29 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 30 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 31 | J. Alwall et al. | The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations | JHEP 07 (2014) 079 | 1405.0301 |
| 32 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 33 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 34 | CMS Collaboration | Measurements of Higgs boson production cross sections and couplings in the diphoton decay channel at $ \sqrt{s} = $ 13 TeV | JHEP 07 (2021) 027 | CMS-HIG-19-015 2103.06956 |
| 35 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 36 | E. Bothmann et al. | Event generation with SHERPA 2.2 | SciPost Phys. 7 (2019) 034 | 1905.09127 |
| 37 | S. Catani and M. H. Seymour | A general algorithm for calculating jet cross-sections in NLO QCD | NPB 485 (1997) 291 | hep-ph/9605323 |
| 38 | F. Buccioni and F. Devoto | Interference effects in gluon-fusion Higgs boson production | technical report, CERN, Geneva, 2026 | |
| 39 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 40 | R. Barlow | Extended maximum likelihood | NIM A 297 (1990) 496 | |
| 41 | M. J. Oreglia | A study of the reactions $ \psi^\prime \to \gamma \gamma \psi $ | PhD thesis, Stanford University, SLAC Report SLAC-R-236, 1980 link |
|
| 42 | E. Gaiser | Charmonium spectroscopy from radiative decays of the $ \mathrm{J}/\psi $ and $ {\psi^\prime} $ | PhD thesis, Stanford University, SLAC-0255, 1982 | |
| 43 | CMS Collaboration | A measurement of the Higgs boson mass in the diphoton decay channel | PLB 805 (2020) 135425 | CMS-HIG-19-004 2002.06398 |
| 44 | P. Dauncey, M. Kenzie, N. Wardle, and G. Davies | Handling uncertainties in background shapes: the discrete profiling method | JINST 10 (2015) P04015 | 1408.6865 |
| 45 | CMS Collaboration | The CMS statistical analysis and combination tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 46 | G. J. Feldman and R. D. Cousins | Unified approach to the classical statistical analysis of small signals | PRD 57 (1998) 3873 | physics/9711021 |
| 47 | CMS Collaboration | HEPData record for this analysis | link | |
|
|
