| CMS-HIG-24-012 ; CERN-EP-2026-157 | ||
| Search for nonresonant triple Higgs boson production in the final state with six bottom quarks in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | ||
| CMS Collaboration | ||
| 6 July 2026 | ||
| Submitted to Physical Review Letters | ||
| Abstract: A search for nonresonant triple Higgs boson ($ {\mathrm{H}\mathrm{H}\mathrm{H}} $) production in the final state with six bottom quarks is performed using proton-proton collisions at $ \sqrt{s}= $ 13 TeV corresponding to an integrated luminosity of 138 fb$ ^{-1} $ recorded by the CMS experiment. No significant excess of events over the background prediction is seen. Observed (expected) 95% confidence level upper limits on the signal cross section are set at 44 (43) fb, corresponding to 588 (572) times the standard model expectation. The observed (expected) constraint on the trilinear coupling modifier $ \kappa_3 $ is $ -7.4 < \kappa_3 < $ 12.4 ($ -6.4 < \kappa_3 < $ 11.2), assuming the quartic coupling modifier $ \kappa_4= $ 1. The corresponding constraint on $ \kappa_4 $ is $ -177 < \kappa_4 < $ 185 ($ -180 < \kappa_4 < $ 190), assuming $ \kappa_3= $ 1. This analysis provides the most stringent constraint to date on nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production and excludes, for the first time, part of the $ (\kappa_3,\kappa_4) $ space allowed by the perturbative unitarity bound. | ||
| Links: e-print arXiv:2607.05145 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | Summary | Additional Figures & Tables | References | CMS Publications |
|---|
| Figures | |
png pdf |

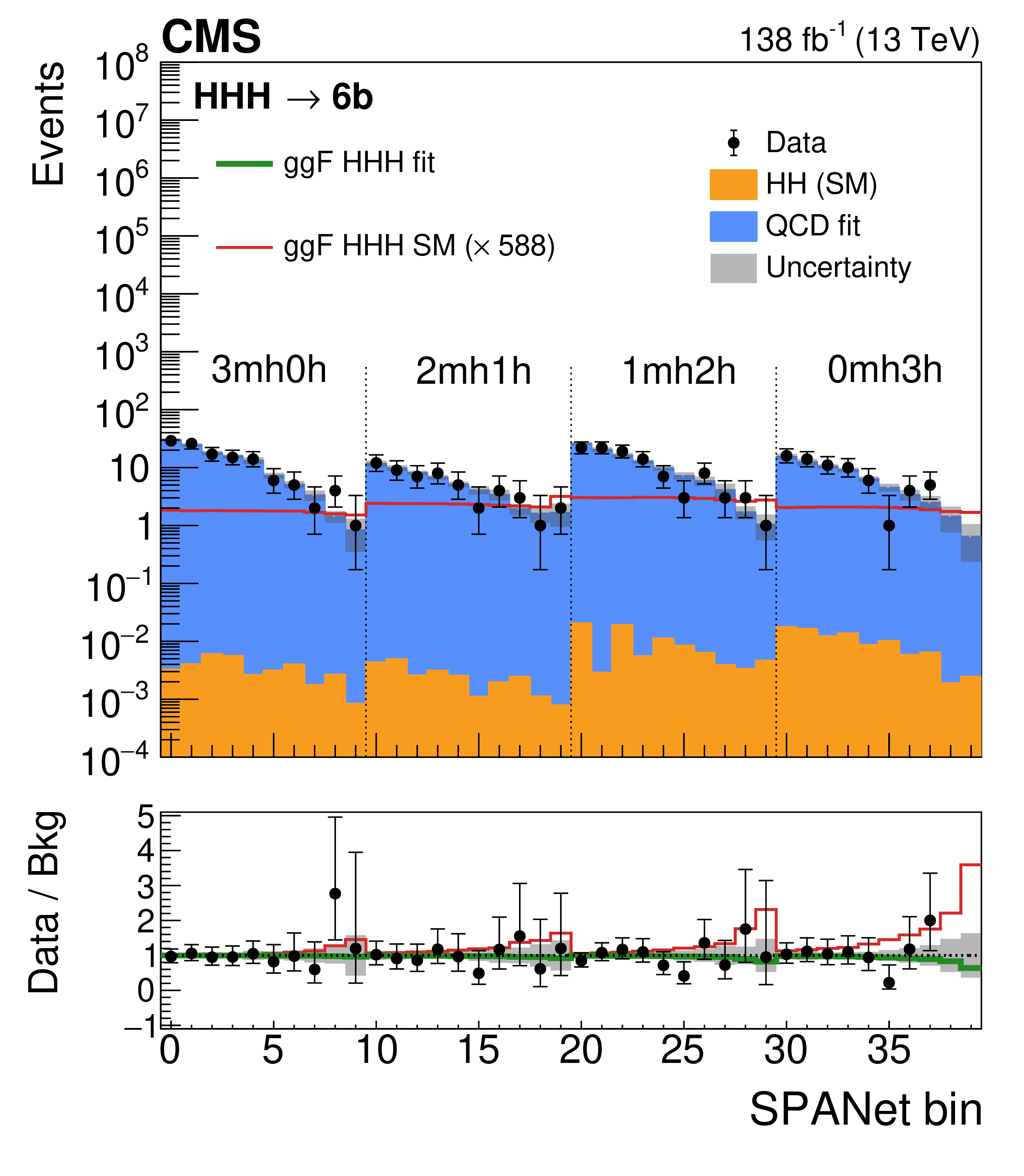

Figure 1:
Post-fit yields in the SR categories with three reconstructed H. Bins correspond to ten intervals per category of the SPANET score $ \mathrm{ProbMultiH} $ in the high-score range 0.8--1.0, ordered by increasing purity. |
png pdf |

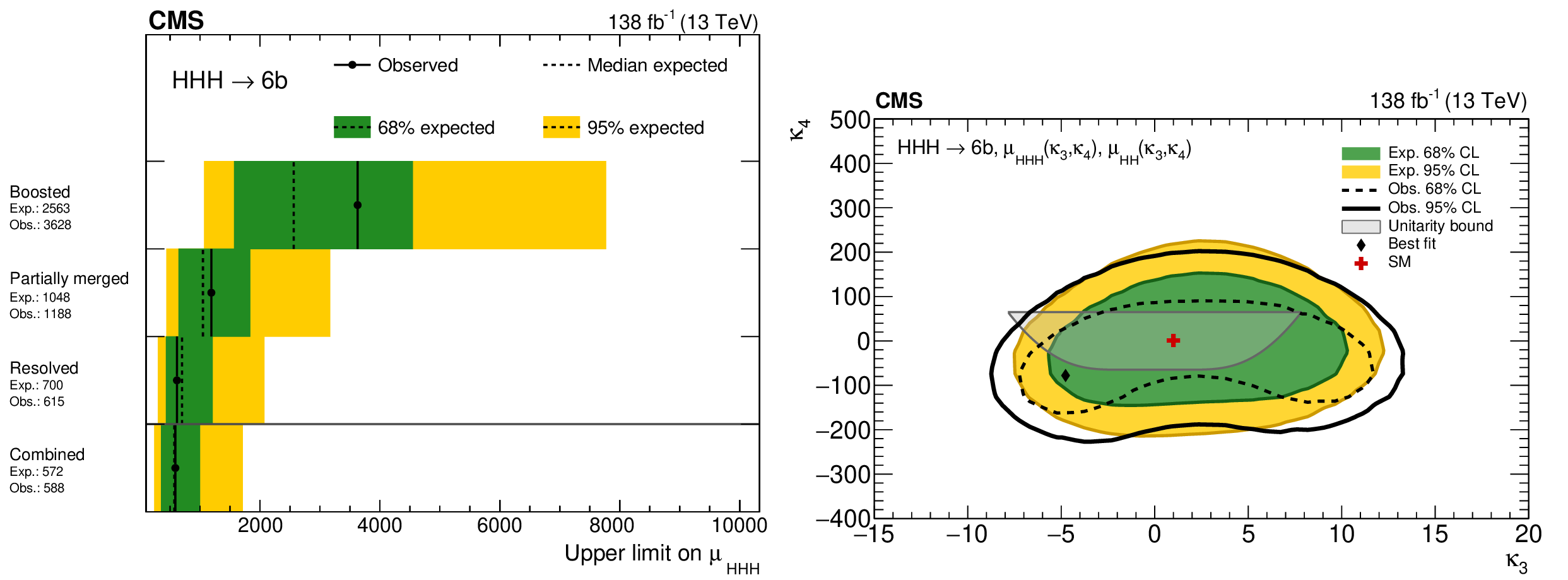

Figure 2:
Expected and observed ULs on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength shown separately for merged, partially merged, and resolved event topologies, along with the combined result (left). The 68 and 95% CL contours in the $ (\kappa_3,\kappa_4) $ plane from the combined profile likelihood scan (right). The gray region denotes parameter space allowed by perturbative unitarity in $ \mathrm{H}\mathrm{H}\to\mathrm{H}\mathrm{H} $ scattering [47]. |
png pdf |

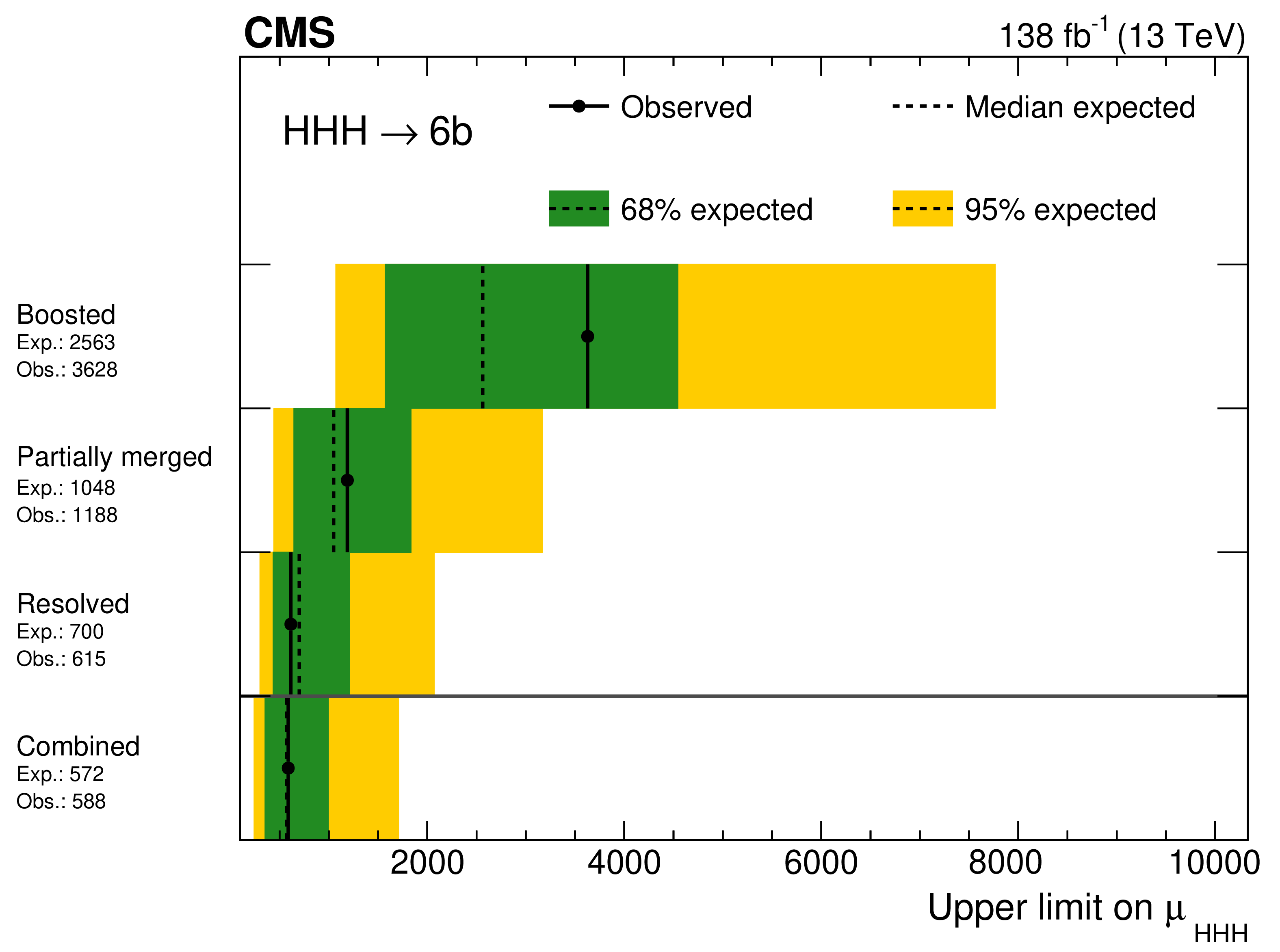

Figure 2-a:
Expected and observed ULs on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength shown separately for merged, partially merged, and resolved event topologies, along with the combined result (left). The 68 and 95% CL contours in the $ (\kappa_3,\kappa_4) $ plane from the combined profile likelihood scan (right). The gray region denotes parameter space allowed by perturbative unitarity in $ \mathrm{H}\mathrm{H}\to\mathrm{H}\mathrm{H} $ scattering [47]. |
png pdf |

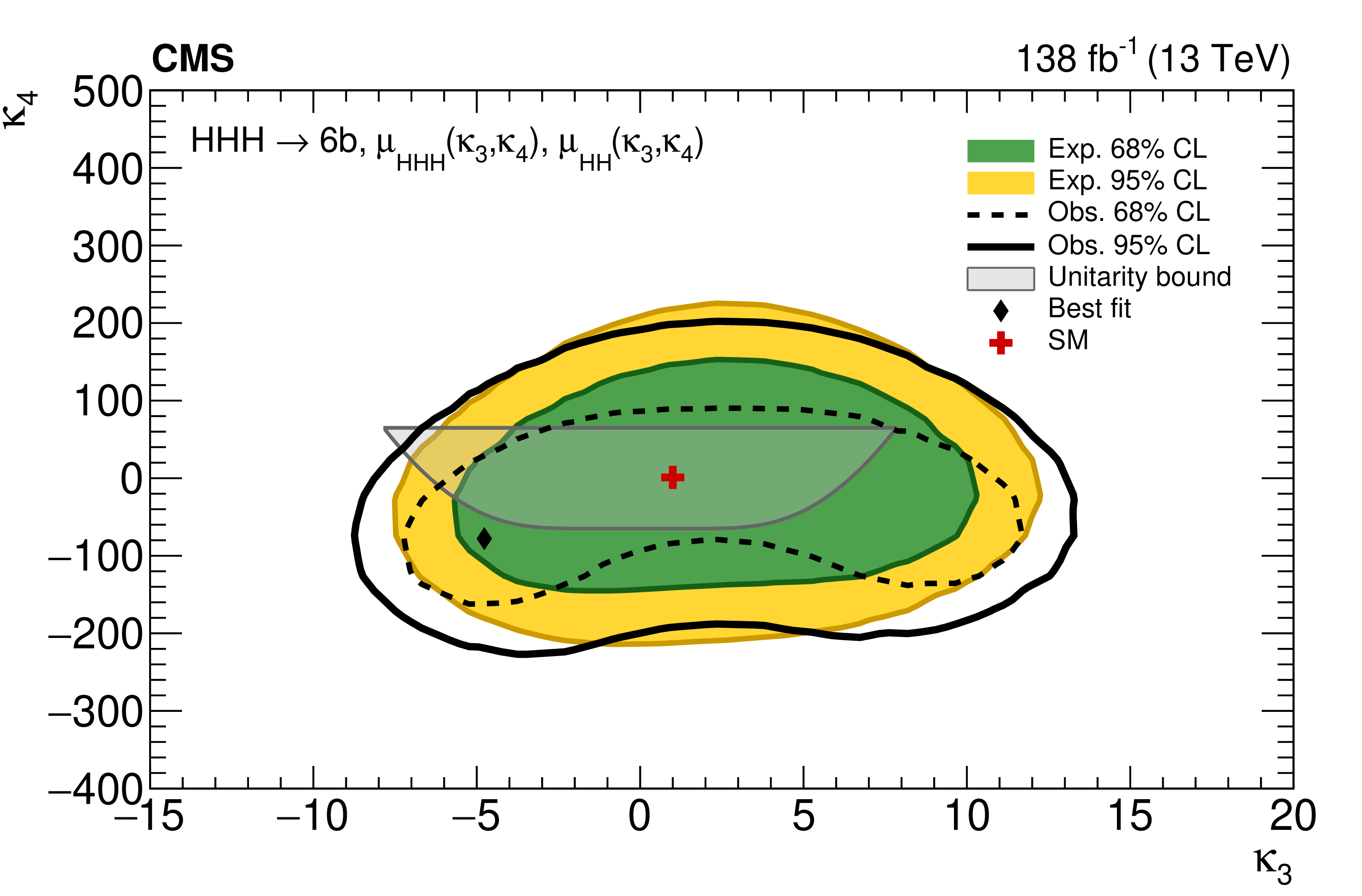

Figure 2-b:
Expected and observed ULs on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength shown separately for merged, partially merged, and resolved event topologies, along with the combined result (left). The 68 and 95% CL contours in the $ (\kappa_3,\kappa_4) $ plane from the combined profile likelihood scan (right). The gray region denotes parameter space allowed by perturbative unitarity in $ \mathrm{H}\mathrm{H}\to\mathrm{H}\mathrm{H} $ scattering [47]. |
png pdf |

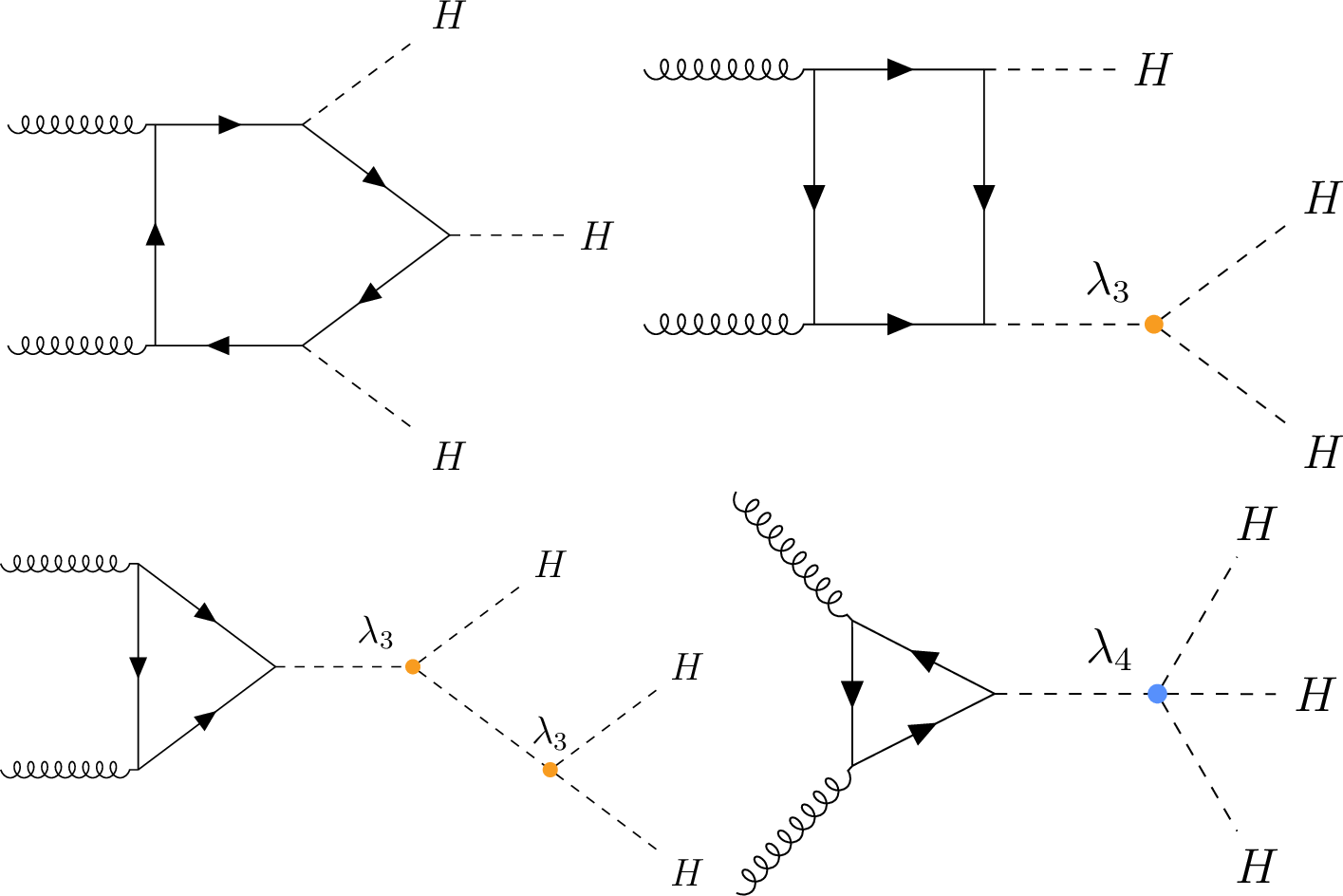

Figure 3:
Representative leading-order Feynman diagrams for nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production via gluon fusion. The last three diagrams provide direct sensitivity to the trilinear ($ \lambda_3 $) and quartic ($ \lambda_4 $) H self-couplings. |
png pdf |

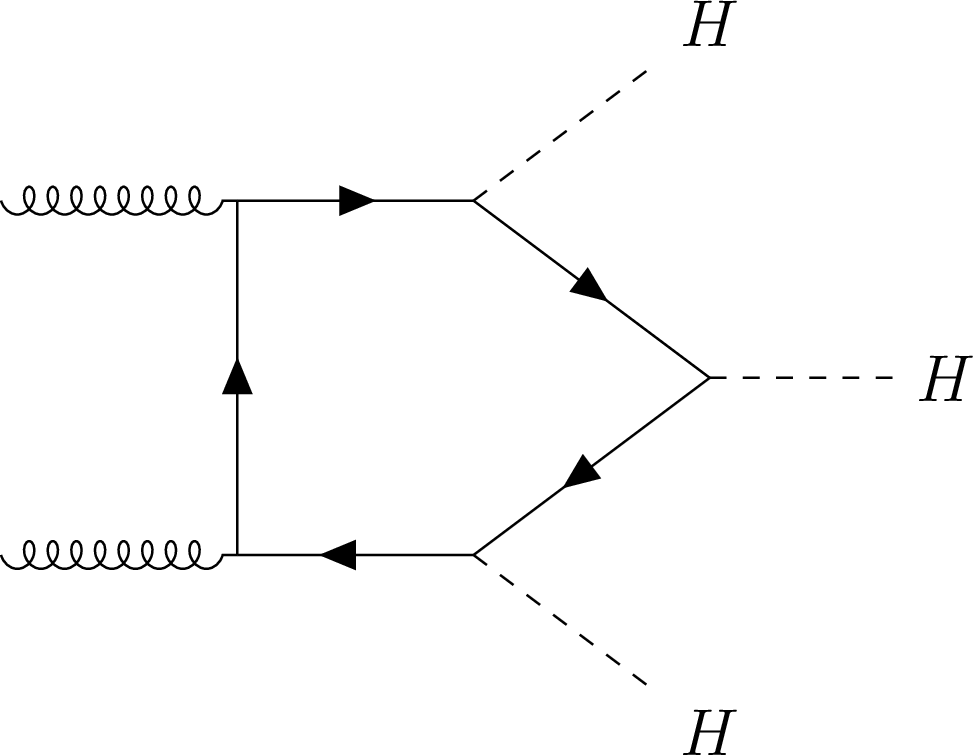

Figure 3-a:
Representative leading-order Feynman diagrams for nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production via gluon fusion. The last three diagrams provide direct sensitivity to the trilinear ($ \lambda_3 $) and quartic ($ \lambda_4 $) H self-couplings. |
png pdf |
Figure 3-b:
Representative leading-order Feynman diagrams for nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production via gluon fusion. The last three diagrams provide direct sensitivity to the trilinear ($ \lambda_3 $) and quartic ($ \lambda_4 $) H self-couplings. |
png pdf |

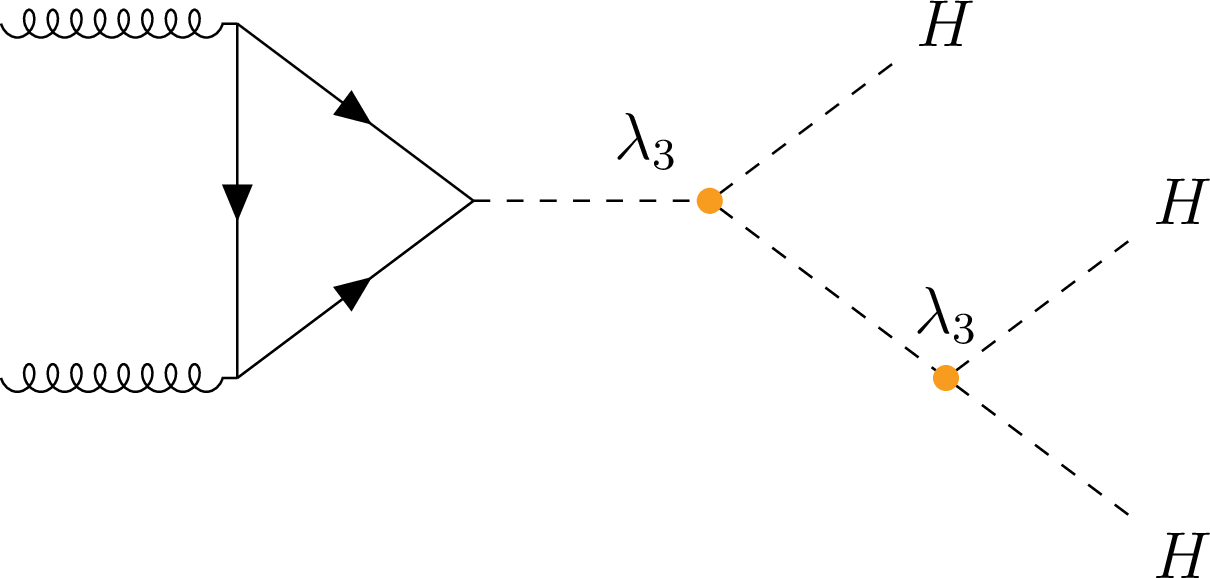

Figure 3-c:
Representative leading-order Feynman diagrams for nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production via gluon fusion. The last three diagrams provide direct sensitivity to the trilinear ($ \lambda_3 $) and quartic ($ \lambda_4 $) H self-couplings. |
png pdf |
Figure 3-d:
Representative leading-order Feynman diagrams for nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production via gluon fusion. The last three diagrams provide direct sensitivity to the trilinear ($ \lambda_3 $) and quartic ($ \lambda_4 $) H self-couplings. |
png pdf |

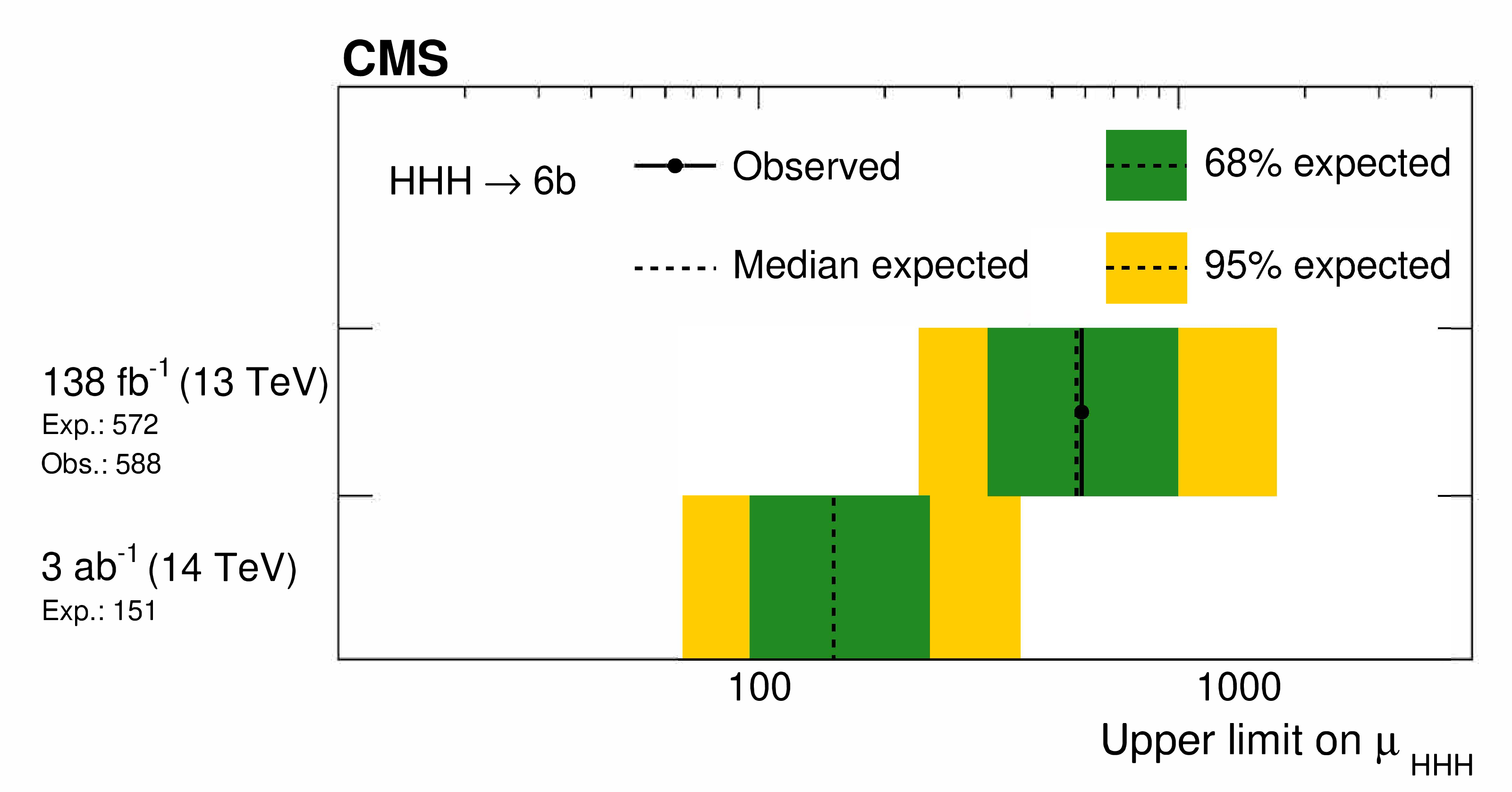

Figure 4:
Observed and expected 95% CL upper limits on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength $ \mu_{{\mathrm{H}\mathrm{H}\mathrm{H}}} $. Results are shown for the analyzed dataset of 138 fb$ ^{-1} $ of pp collisions at $ \sqrt{s}= $ 13 TeV, along with projections for 14 TeV and an integrated luminosity of 3$ \text{ab}^{-1}$. |
png pdf |

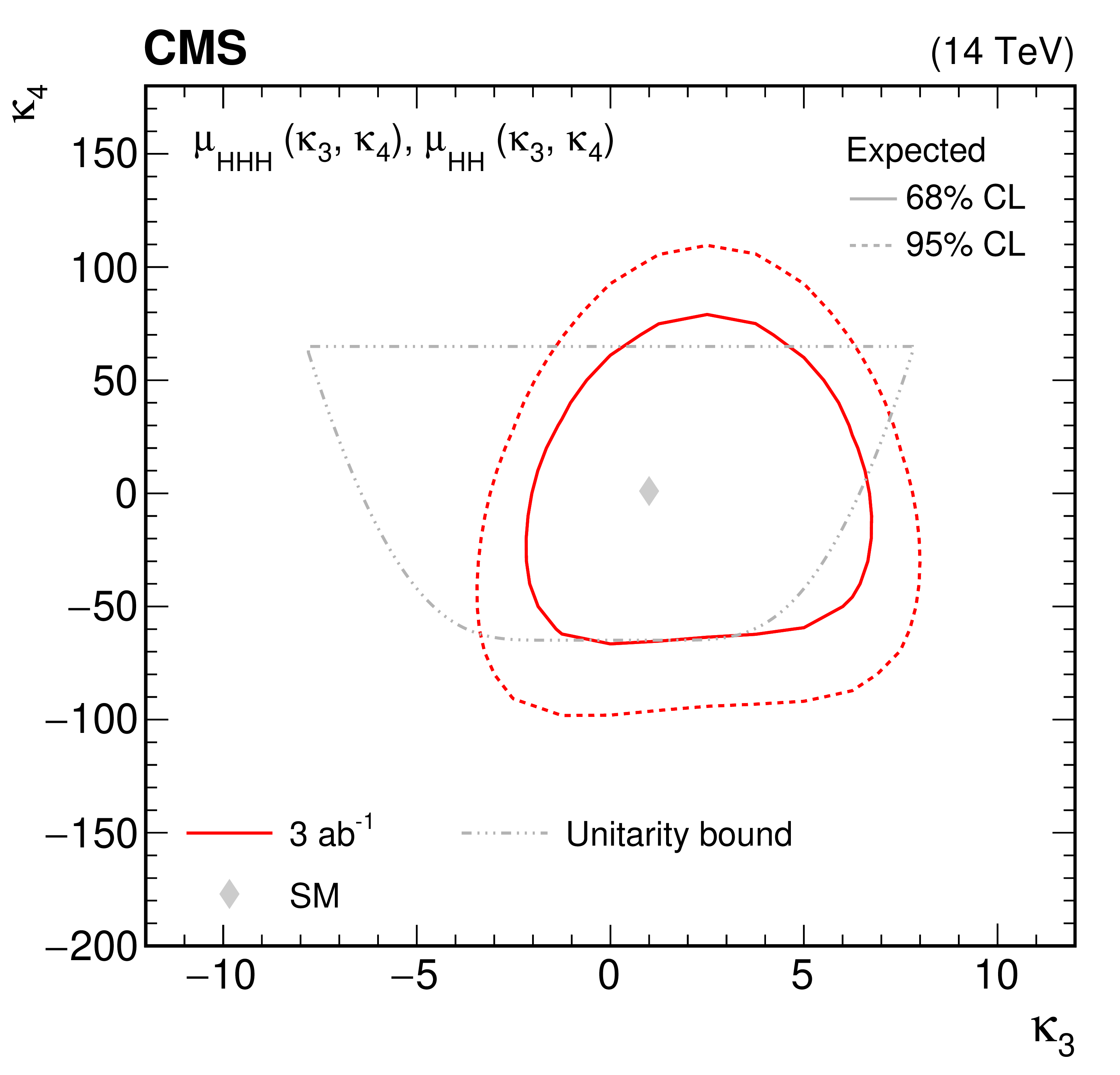

Figure 5:
Expected 68 and 95% CL constraints in the $ (\kappa_3,\kappa_4) $ plane for the $ \mathrm{H}\mathrm{H}\mathrm{H} \to 6\mathrm{b} $ analysis in the HL-LHC scenario ($ \sqrt{s}= $ 14 TeV, 3$ \text{ab}^{-1}$). The unitarity boundary is overlaid, and the best-fit point from the projection is indicated. |
| Summary |
| In summary, this Letter presents a search for nonresonant triple Higgs boson ($ {\mathrm{H}\mathrm{H}\mathrm{H}} $) production in the final state with six bottom quarks using 138 fb$ ^{-1} $ of proton-proton collision data at $\sqrt{s}=13$ TeV collected by the CMS experiment between 2016 and 2018. No significant deviation from the background prediction is observed. At 95% confidence level, the observed (expected) upper limit on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production cross section is 44 (43) fb, corresponding to 588 (572) times the standard model prediction. In the framework of Higgs boson self-coupling modifiers ($\kappa$), the search constrains the trilinear coupling modifier $\kappa_3$ to $-7.4 < \kappa_3 < 12.4$ for the quartic coupling modifier $\kappa_4=1$ and constrains $\kappa_4$ to $-177 < \kappa_4 < 185$ for $\kappa_3=1$. The two-dimensional $(\kappa_3,\kappa_4)$ scan constrains, for the first time in a direct search for nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production, the perturbative unitarity boundary and excludes part of the allowed parameter space. These results are the most stringent constraints to date on nonresonant $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ production and on $\kappa_4$. |
| Additional Figures | |
png pdf |

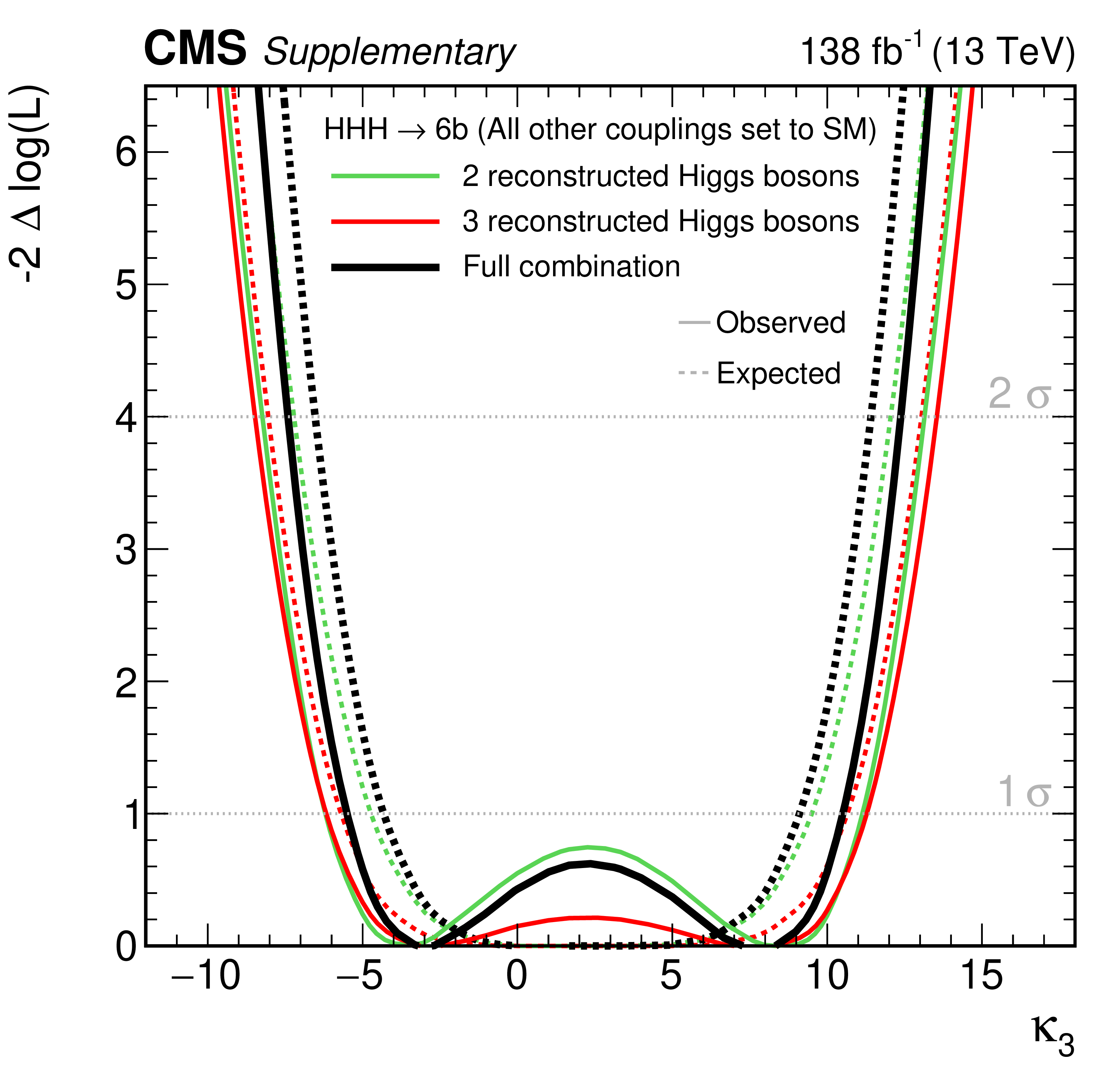

Additional Figure 1:
Profile likelihood scans of the trilinear Higgs boson self-coupling modifier $\kappa_3$ ($\kappa_4=1$), shown separately for events with 2$\mathrm{H}$, 3$\mathrm{H}$, and their combination. Solid (dashed) curves correspond to the observed (expected) scan; horizontal lines indicate the $1\sigma$ and $2\sigma$ intervals. |
png pdf |

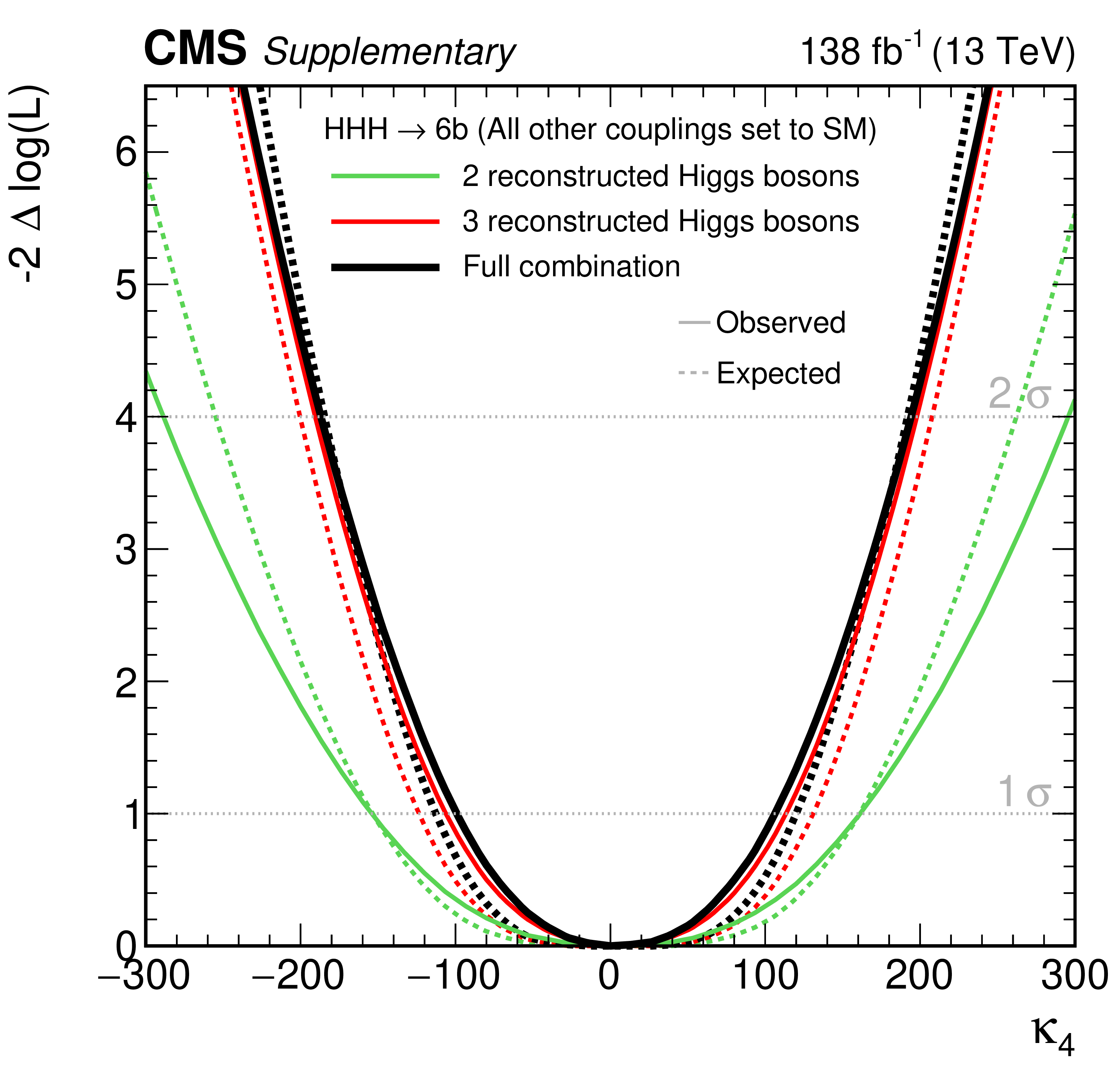

Additional Figure 2:
Profile likelihood scans of the quartic Higgs boson self-coupling modifier $\kappa_4$ ($\kappa_3=1$), shown separately for events with 2$\mathrm{H}$, 3$\mathrm{H}$, and their combination. Solid (dashed) curves correspond to the observed (median expected) scan; horizontal lines indicate the $1\sigma$ and $2\sigma$ intervals. |
png pdf |

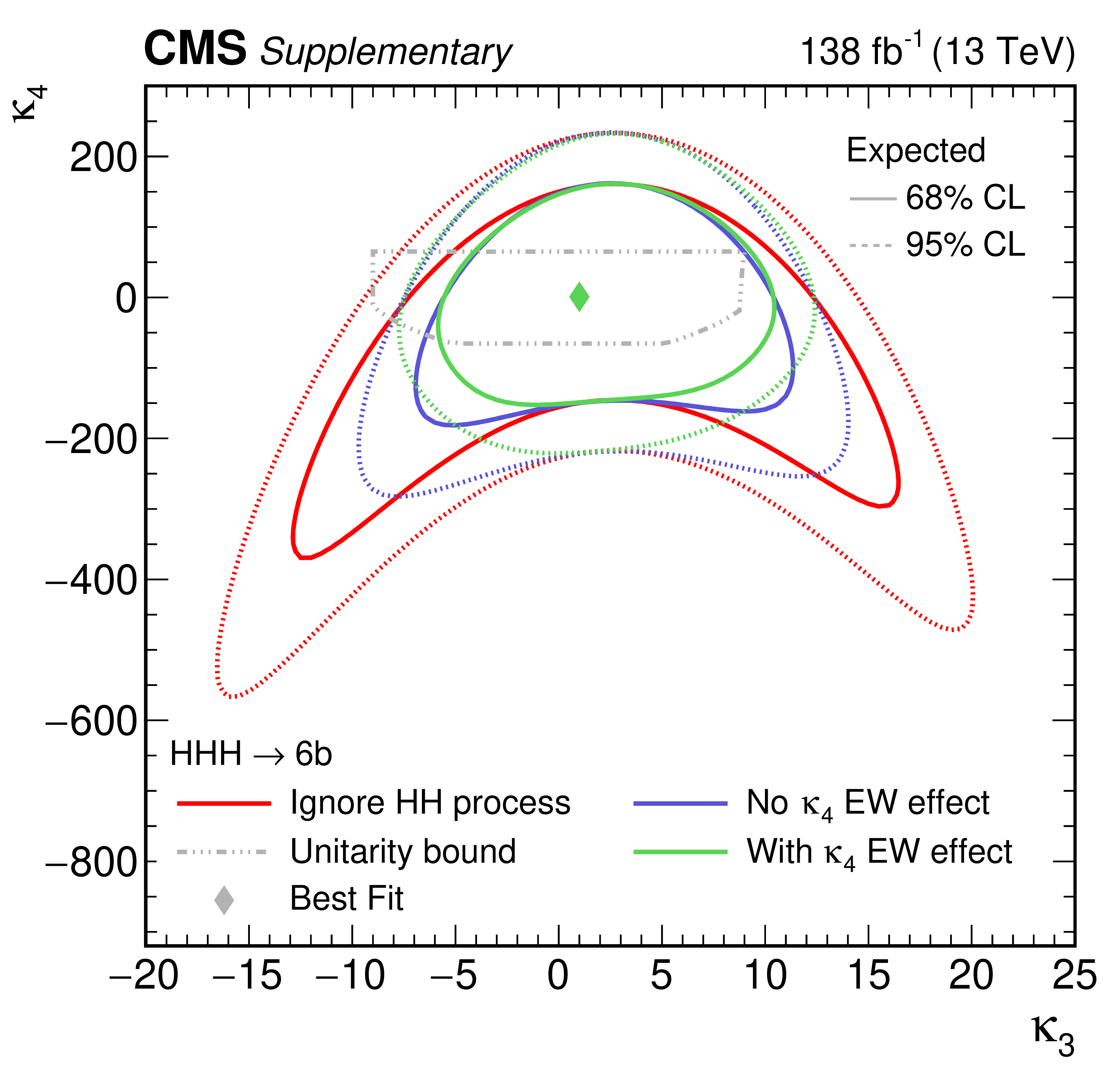

Additional Figure 3:
Expected 68% and 95% CL constraints in the $(\kappa_3,\kappa_4)$ plane from the $ {\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $analysis under alternative treatments of the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ contribution: the nominal modeling, a model excluding the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ process, and a model including $\kappa_4$-dependent electroweak corrections in $ {\mathrm{H}\mathrm{H}\mathrm{H}} $. The unitarity boundary and best-fit point are overlaid. |
png pdf |

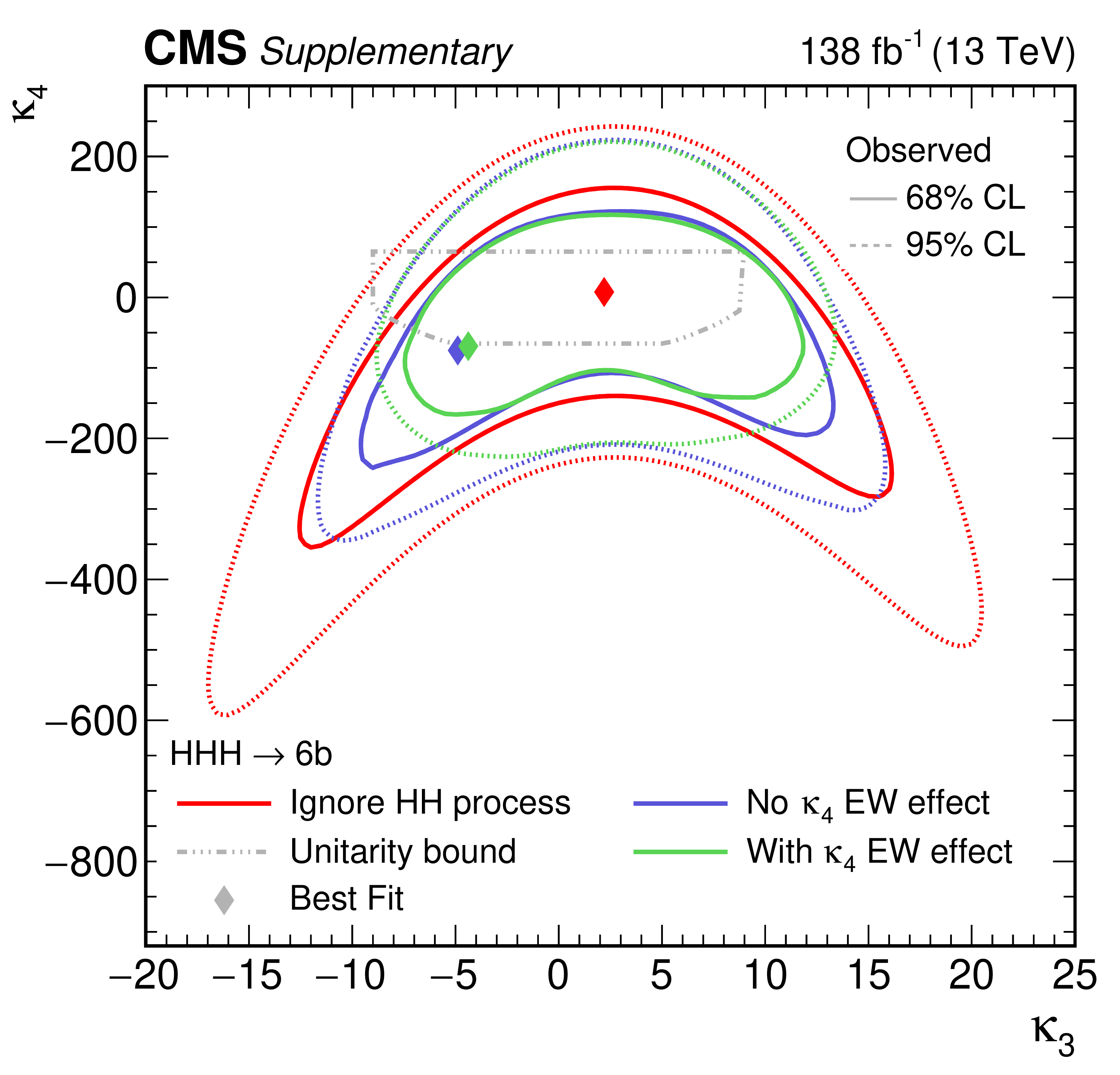

Additional Figure 4:
Observed 68% and 95% CL constraints in the $(\kappa_3,\kappa_4)$ plane from the $ {\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $analysis under alternative treatments of the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ contribution (nominal; no $ {\mathrm{H}\mathrm{H}\mathrm{H}} $; $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ with $\kappa_4$-dependent electroweak corrections). The unitarity boundary and best-fit point are shown. |
png pdf |
Additional Figure 5:
Expected 68% and 95% CL constraints in the $(\kappa_3,\kappa_4)$ plane for integrated luminosities of 3 and 6 ab$ ^{-1} $. The unitarity boundary and the SM point are shown. |
png pdf |
Additional Figure 6:
Expected and observed 95% CL upper limits on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} $ for the 2$\mathrm{H}$ region (events with two reconstructed Higgs bosons) and its subcategories. Categories are labeled by the number of merged Higgs boson candidates (mh) and resolved Higgs boson candidates (h); the median expected limit and the $\pm1\sigma$ ($\pm2\sigma$) bands are shown. |
png pdf |

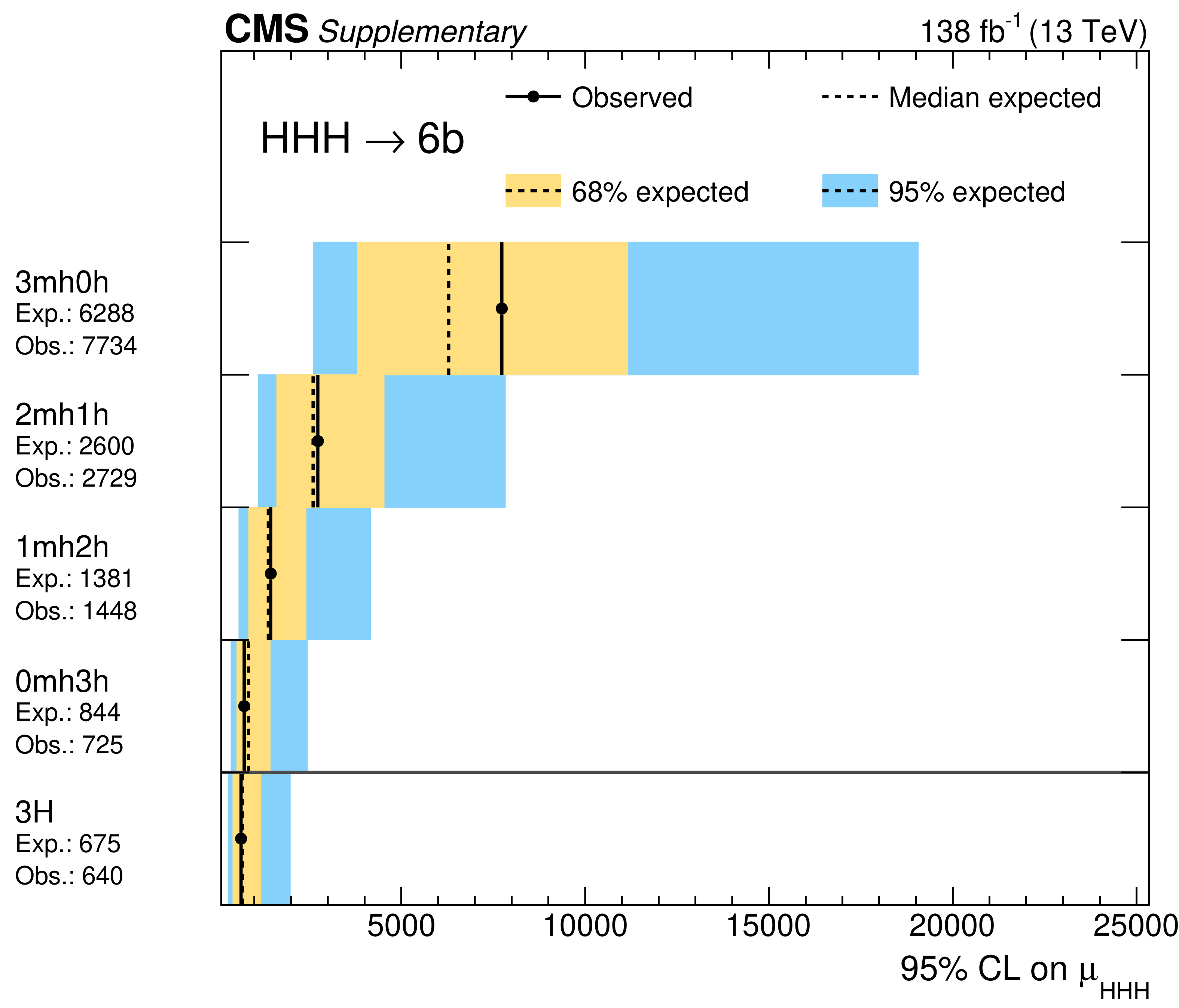

Additional Figure 7:
Expected and observed 95% CL upper limits on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} $ for the 3$\mathrm{H}$ region (events with three reconstructed Higgs bosons) and its subcategories, labeled by the number of merged (mh) and resolved (h) Higgs boson candidates. The median expected limit and the $\pm1\sigma$ ($\pm2\sigma$) bands are shown. |
png pdf |

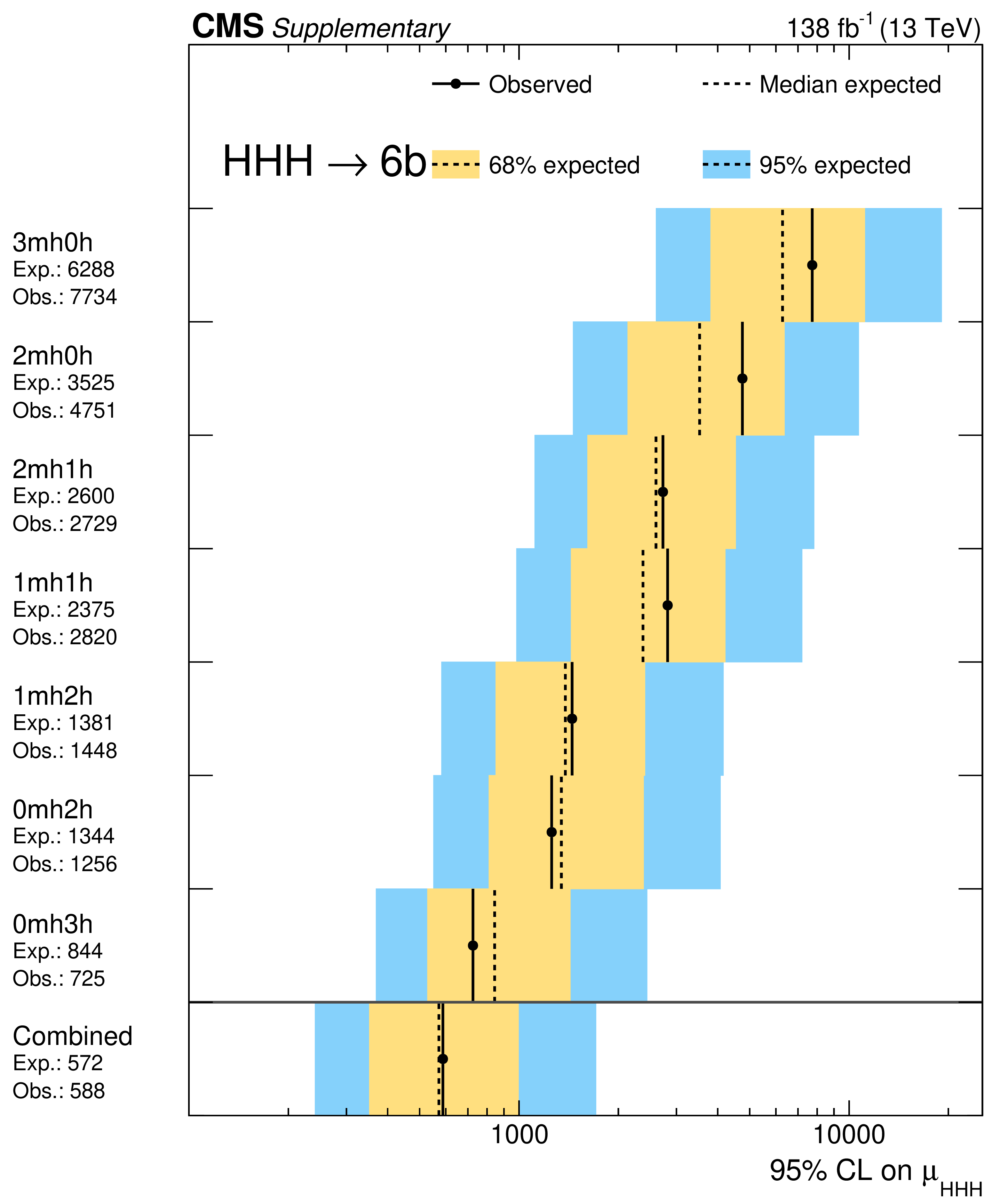

Additional Figure 8:
Expected and observed 95% CL upper limits on $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} $ for each $ {\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $analysis category (labeled by the number of merged and resolved Higgs boson candidates) and for their combination. The median expected limit and the $\pm1\sigma$ ($\pm2\sigma$) bands are shown. |
png pdf |

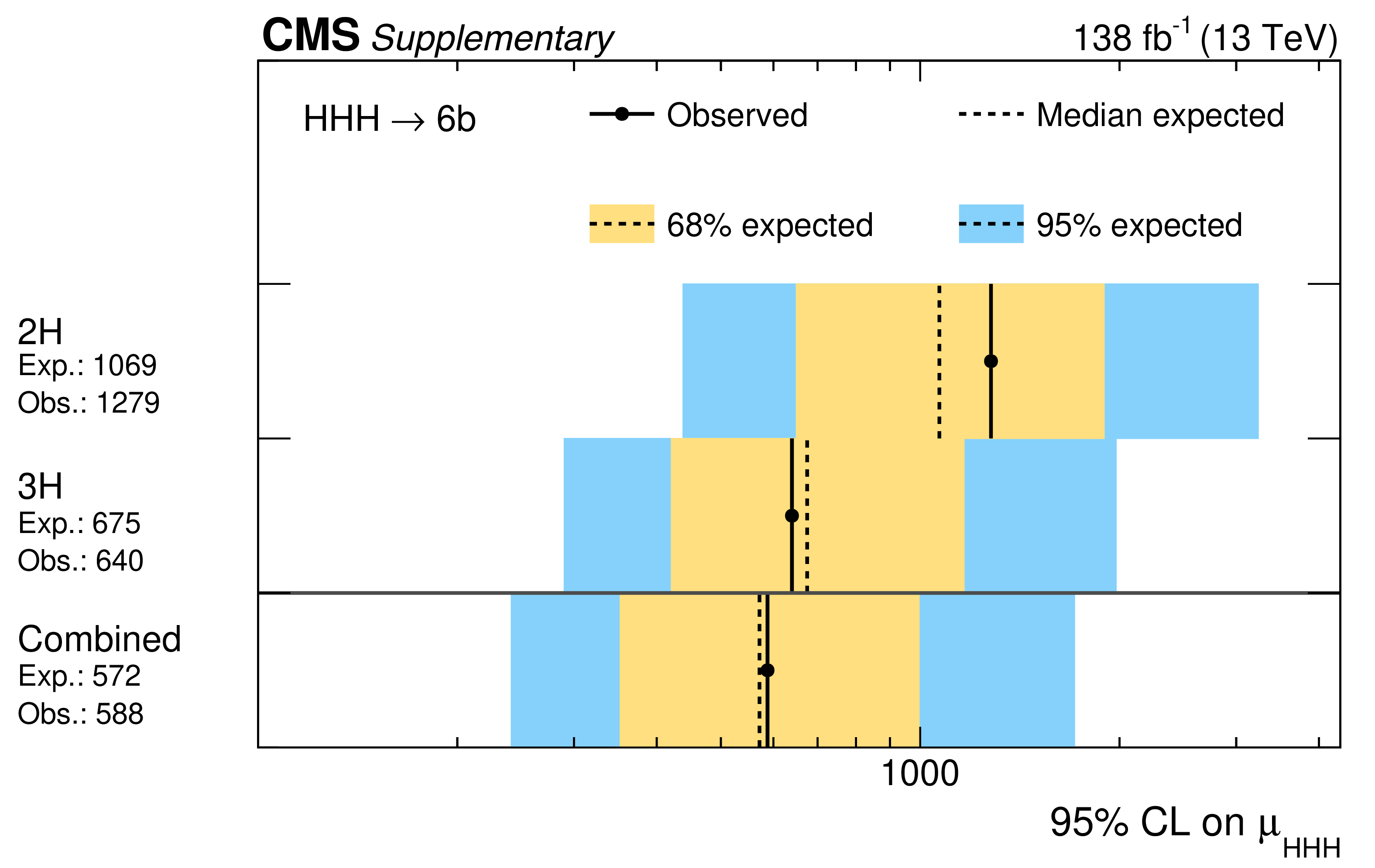

Additional Figure 9:
Summary of the expected and observed 95% CL upper limits on the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal strength $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} $ for the 2$\mathrm{H}$ and 3$\mathrm{H}$ regions and their combination. The median expected limit and the $\pm1\sigma$ ($\pm2\sigma$) bands are shown. |
png pdf |

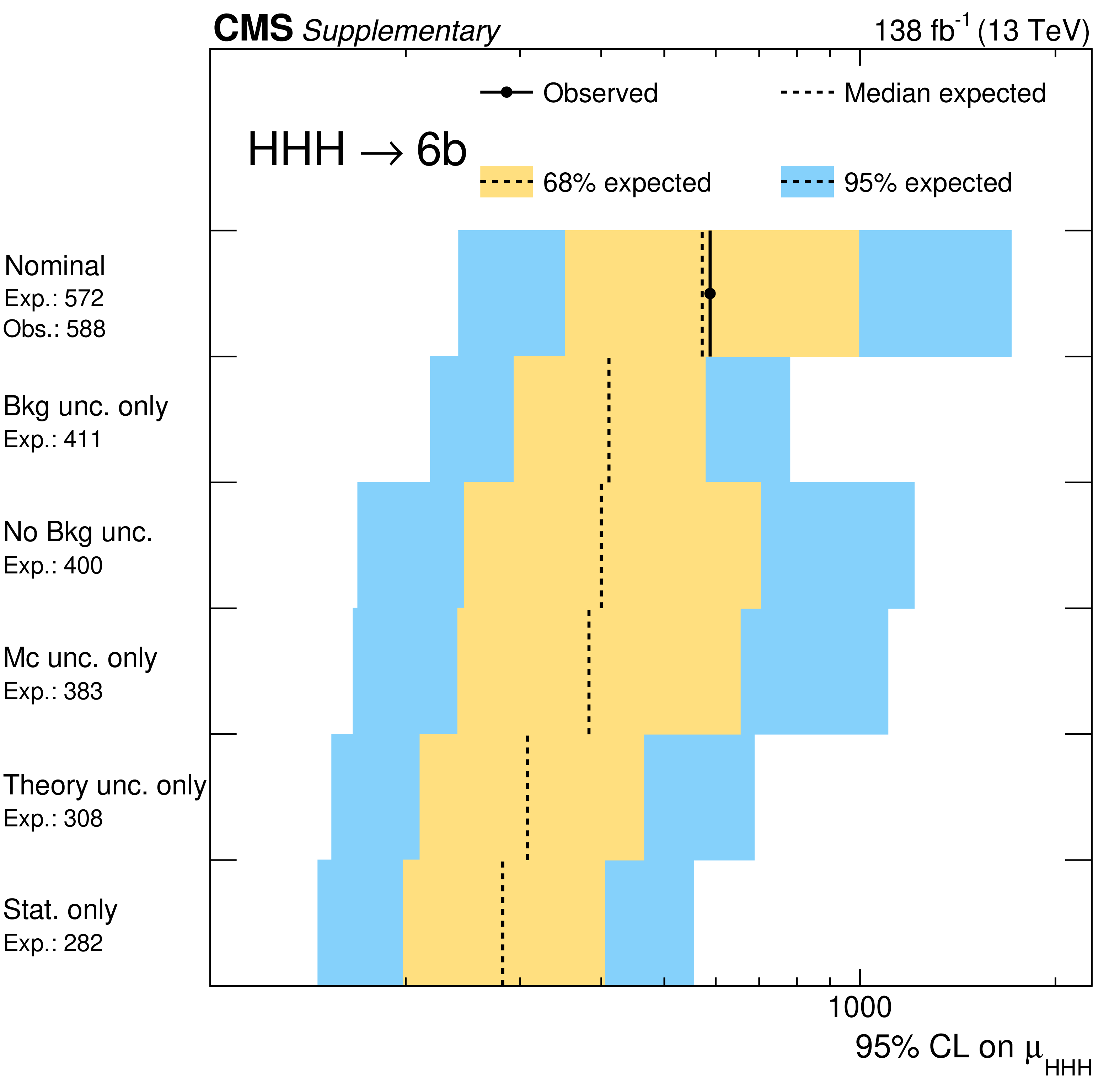

Additional Figure 10:
Impact of uncertainty groupings on the expected and observed 95% CL upper limits on $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} $ in the $ {\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $analysis. Limits are recomputed under alternative configurations (nominal; removing background uncertainties; background-only; MC-only; theory-only; and statistical-only), illustrating the relative contribution of each uncertainty class. |
png pdf |
Additional Figure 11:
Post-fit distribution of the binned SPANET discriminant in the 0$\mathrm{H}$ (0mh0h) category of the $ {\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $analysis at 13 TeV with 138fb$ ^{-1} $ , shown on a linear scale. The fitted background components (QCD multijet and $ {\mathrm{H}\mathrm{H}\mathrm{H}} $) are stacked and compared to data; the $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal shape is overlaid for the SM expectation and scaled to the observed upper limit for visibility. The lower panel shows the data-to-prediction ratio with the post-fit uncertainty band. |
png pdf |

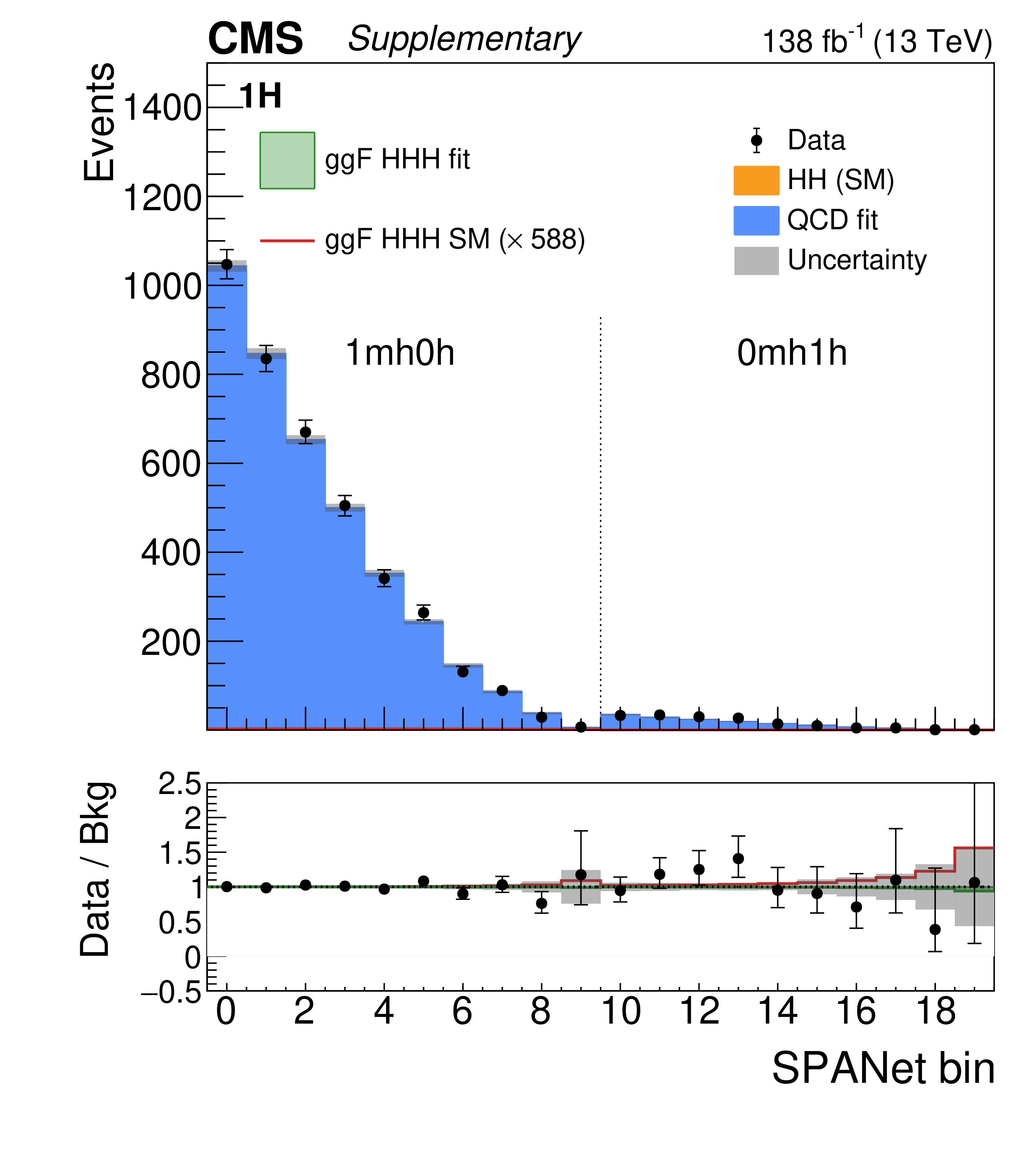

Additional Figure 12:
Post-fit distribution of the binned SPANET discriminant in the 1$\mathrm{H}$ categories (1mh0h and 0mh1h), shown on a linear scale. Vertical dashed lines separate the category-specific bin ranges; the stacked post-fit backgrounds, overlaid $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal reference, and data-to-prediction ratio are shown. |
png pdf |

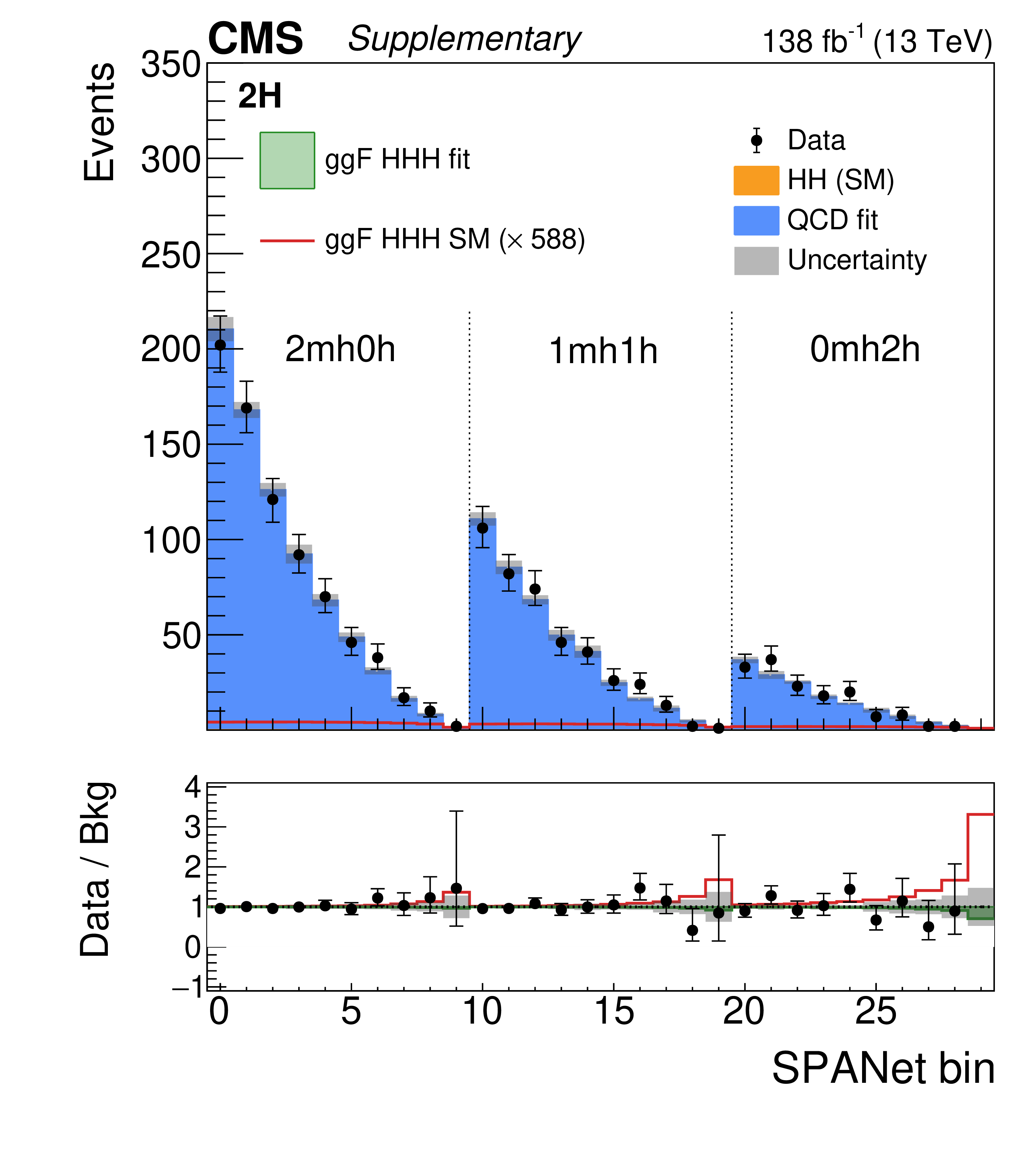

Additional Figure 13:
Post-fit distribution of the binned SPANET discriminant in the 2$\mathrm{H}$ categories (2mh0h, 1mh1h, and 0mh2h), shown on a linear scale. Vertical dashed lines separate the category-specific bin ranges; the stacked post-fit backgrounds, overlaid $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal reference, and data-to-prediction ratio are shown. |
png pdf |

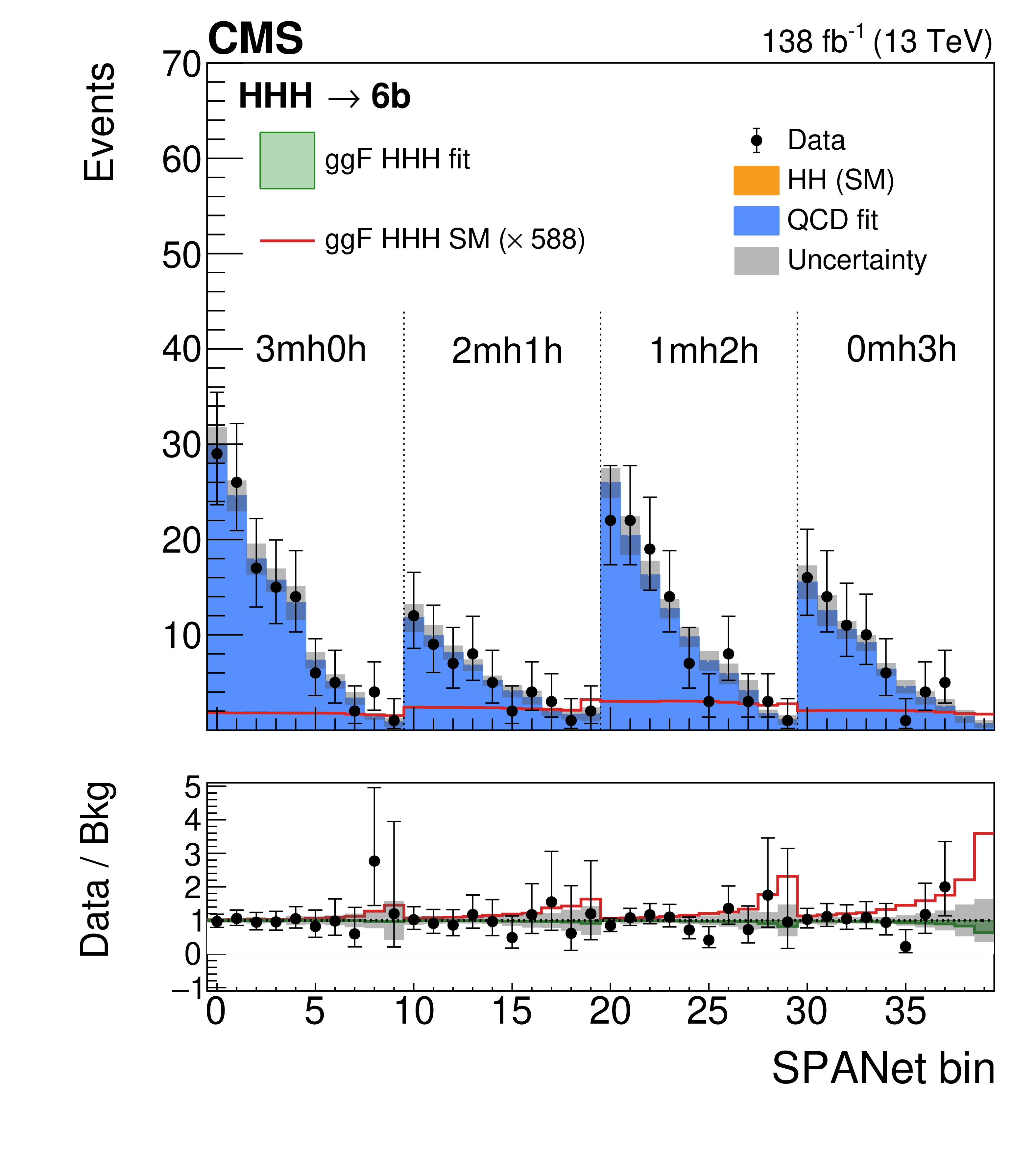

Additional Figure 14:
Post-fit distribution of the binned SPANET discriminant in the 3$\mathrm{H}$ categories (3mh0h, 2mh1h, 1mh2h, and 0mh3h), shown on a linear scale. Vertical dashed lines separate the category-specific bin ranges; the stacked post-fit backgrounds, overlaid $ {\mathrm{H}\mathrm{H}\mathrm{H}} $ signal reference, and data-to-prediction ratio are shown. |
png pdf |

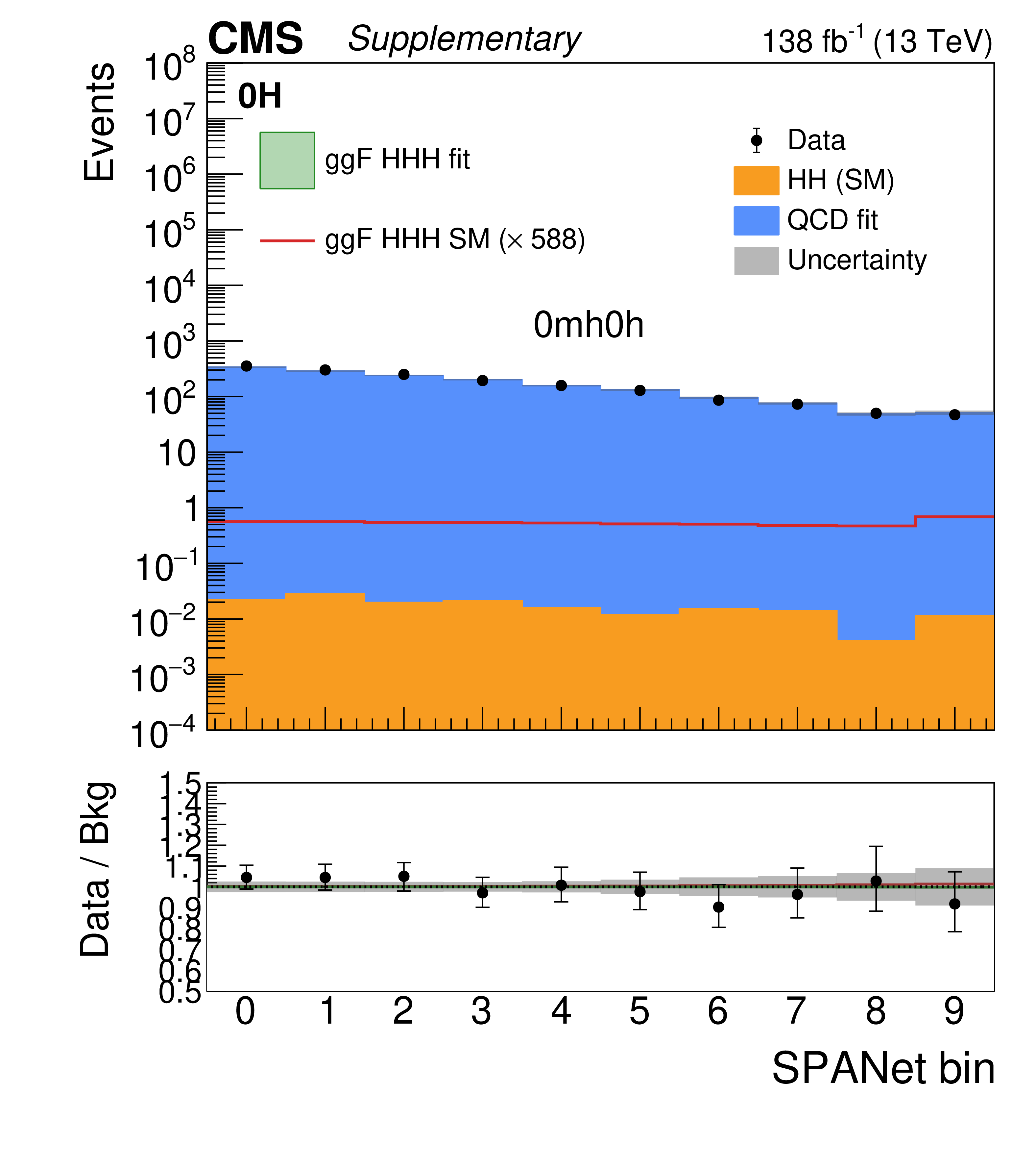

Additional Figure 15:
Post-fit distribution of the binned SPANET discriminant in the 0$\mathrm{H}$ (0mh0h) category of the $ {\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $analysis at 13 TeV with 138fb$ ^{-1} $ , shown with a logarithmic $y$-axis to emphasize the low-yield and high-discriminant regions. |
png pdf |

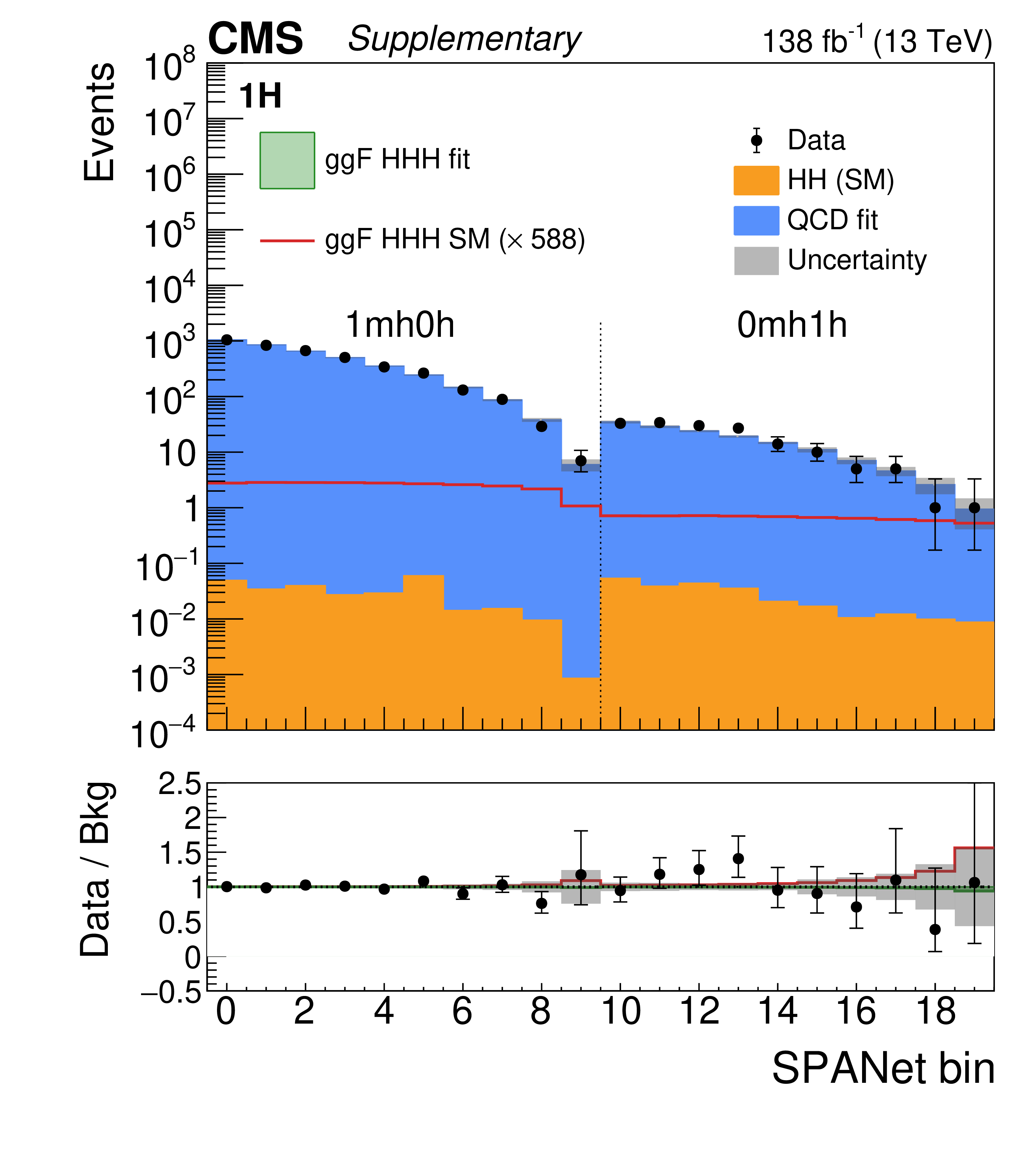

Additional Figure 16:
Post-fit distribution of the binned SPANET discriminant in the 1$\mathrm{H}$ categories (1mh0h and 0mh1h), shown with a logarithmic $y$-axis to emphasize the low-yield and high-discriminant regions. |
png pdf |

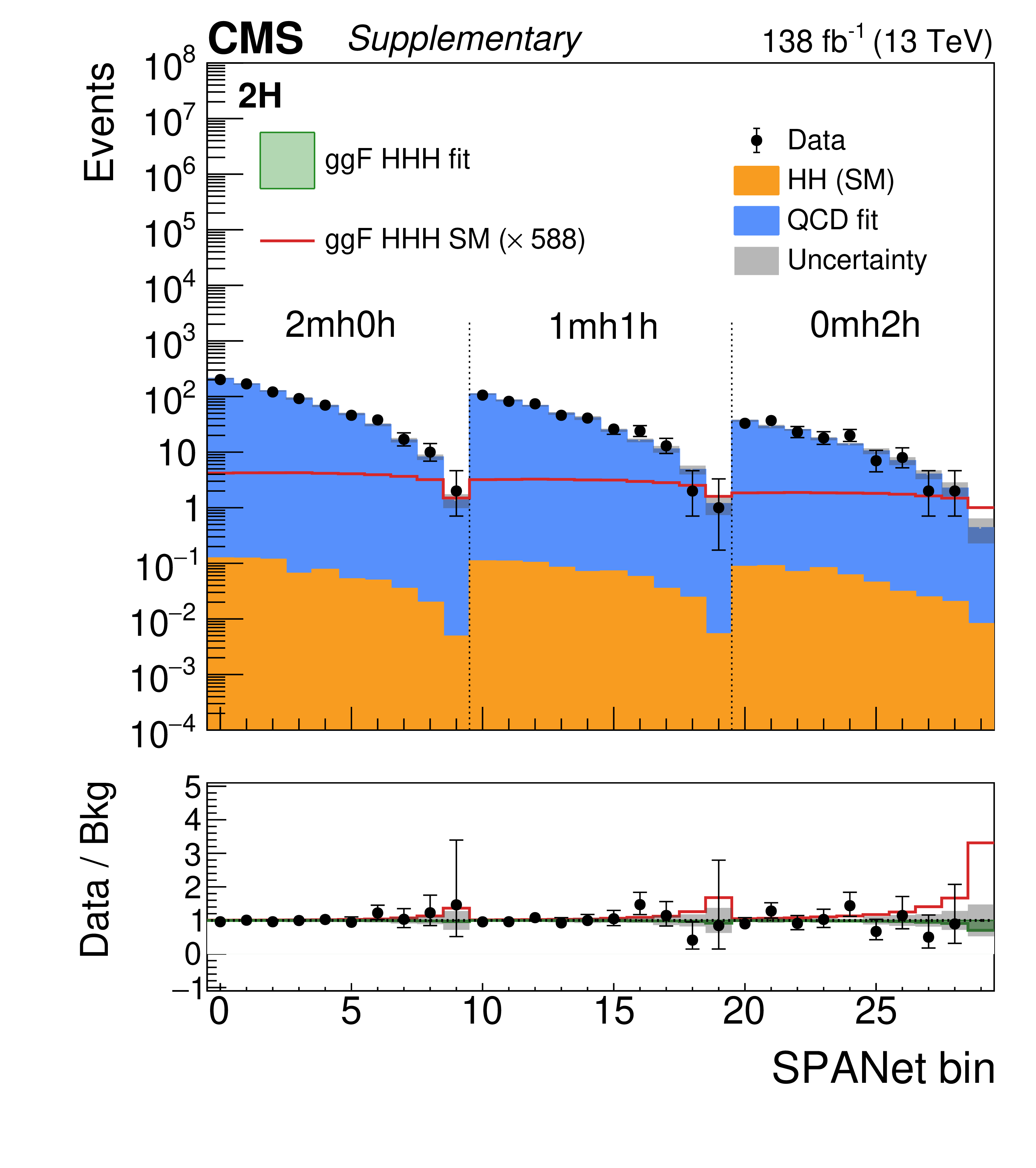

Additional Figure 17:
Post-fit distribution of the binned SPANET discriminant in the 2$\mathrm{H}$ categories (2mh0h, 1mh1h, and 0mh2h), shown with a logarithmic $y$-axis to emphasize the low-yield and high-discriminant regions. |
png pdf |

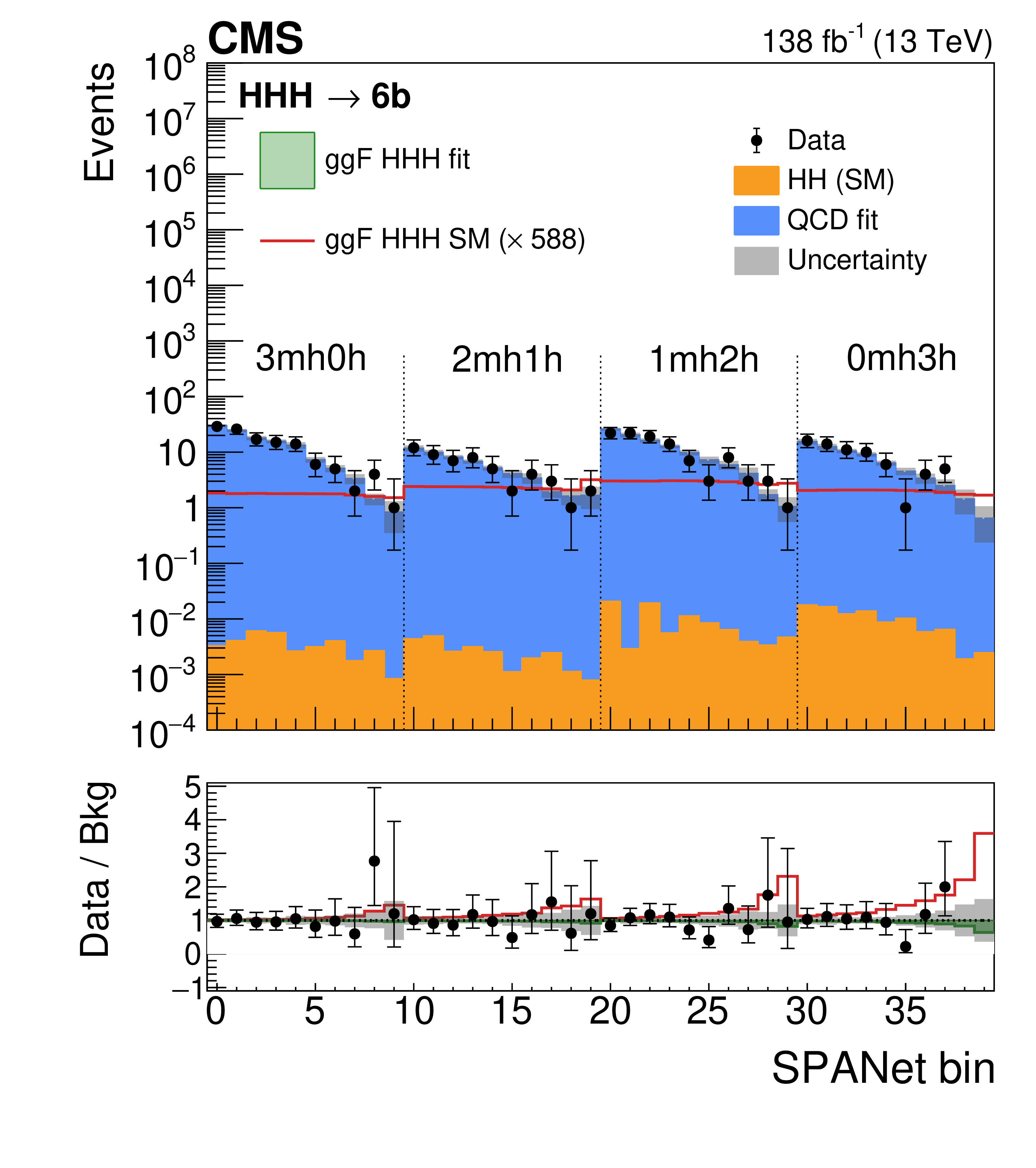

Additional Figure 18:
Post-fit distribution of the binned SPANET discriminant in the 3$\mathrm{H}$ categories (3mh0h, 2mh1h, 1mh2h, and 0mh3h), shown with a logarithmic $y$-axis to emphasize the low-yield and high-discriminant regions. |
png pdf |

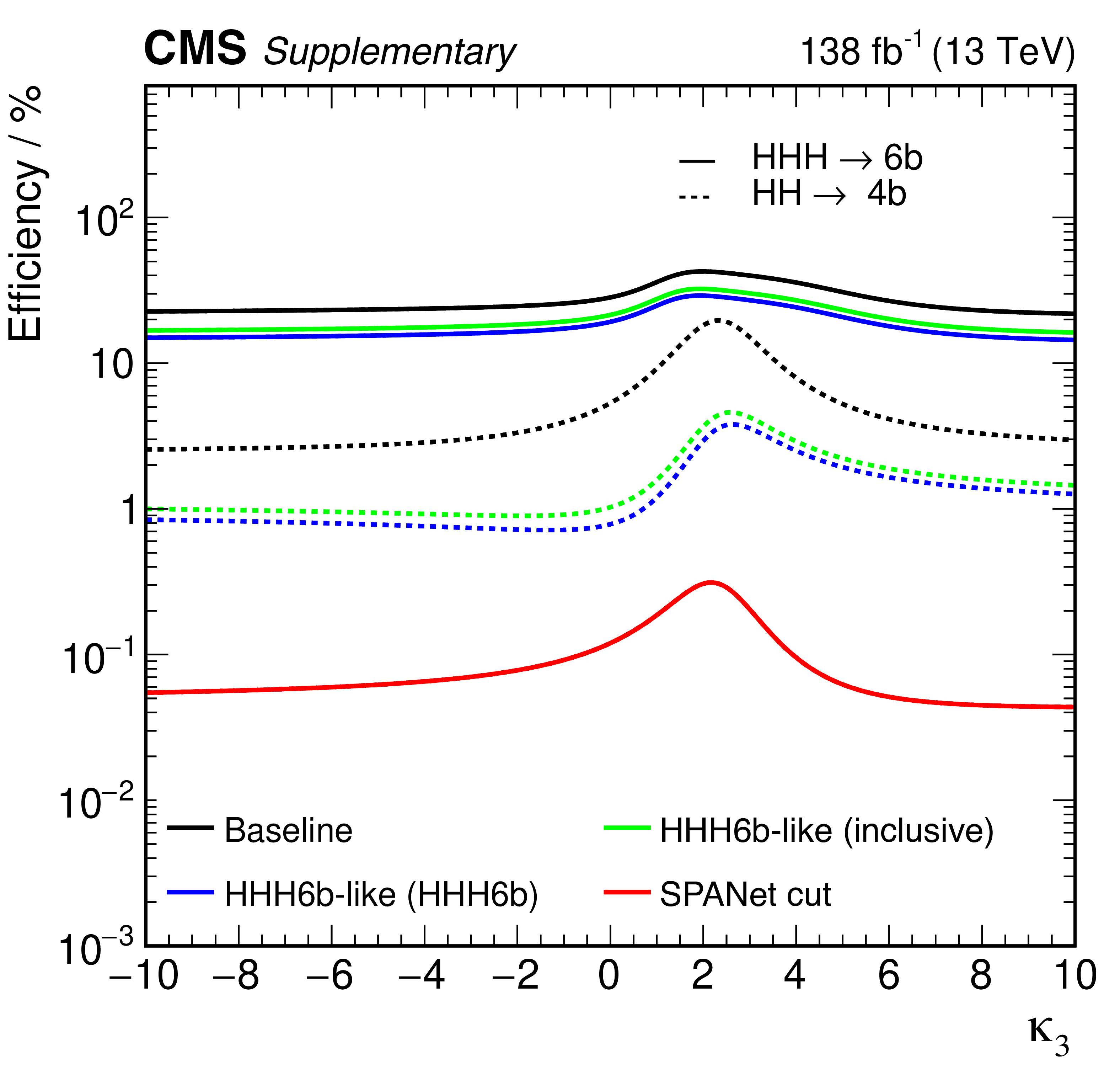

Additional Figure 19:
Selection efficiency as a function of the trilinear coupling modifier $\kappa_3$ for simulated $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $ (solid) and $$\mathrm{H}$$\mathrm{H}$ \to 4\PQb$ (dashed) samples. Efficiencies are shown after baseline preselection (black), after the $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $ like categorization in the inclusive region (green) and signal region (blue), and after the final SPANET requirement (red). |
png pdf |

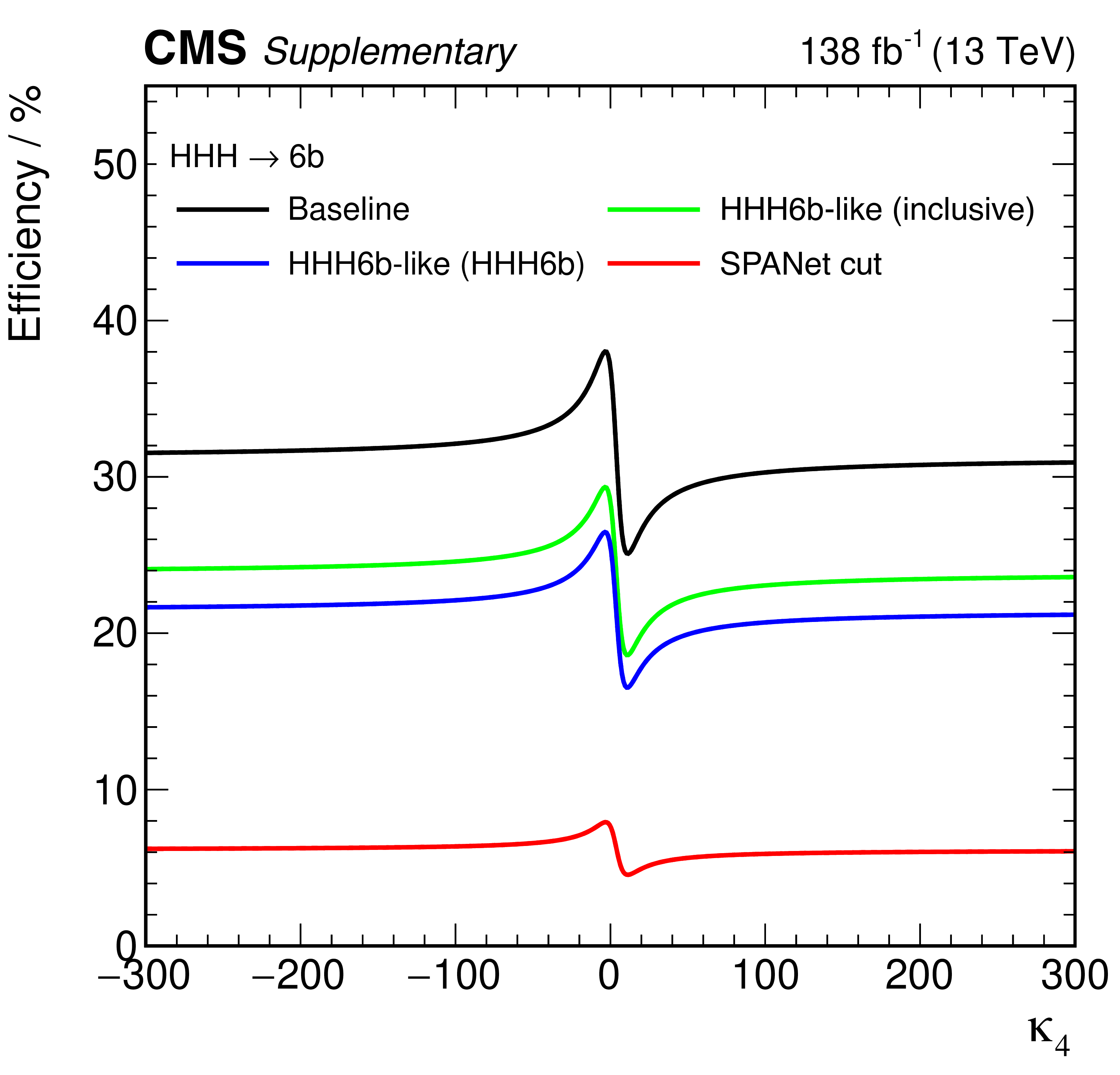

Additional Figure 20:
Selection efficiency as a function of the quartic coupling modifier $\kappa_4$ for simulated $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $ events. Efficiencies are shown after baseline preselection (black), after the $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $ like categorization in the inclusive region (green) and signal region (blue), and after the final SPANET requirement (red). |
png pdf |

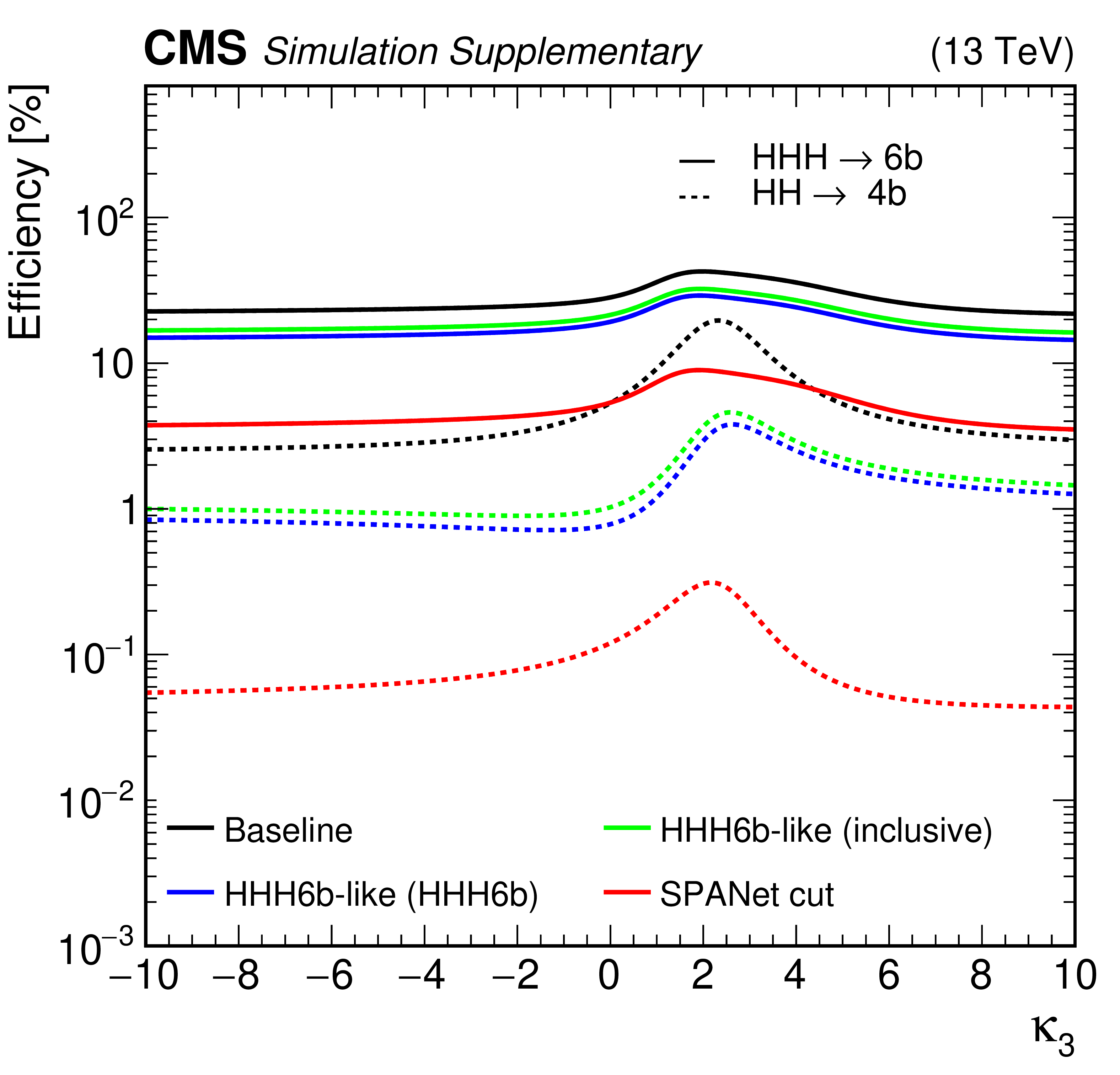

Additional Figure 21:
Selection efficiency versus $\kappa_3$ for $\mathrm{H}\mathrm{H}\mathrm{H}$(solid) and $\mathrm{H}\mathrm{H}$(dashed) signals at successive selections: baseline, inclusive categorization, $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $ selection, and final SPANET requirement. |
png pdf |

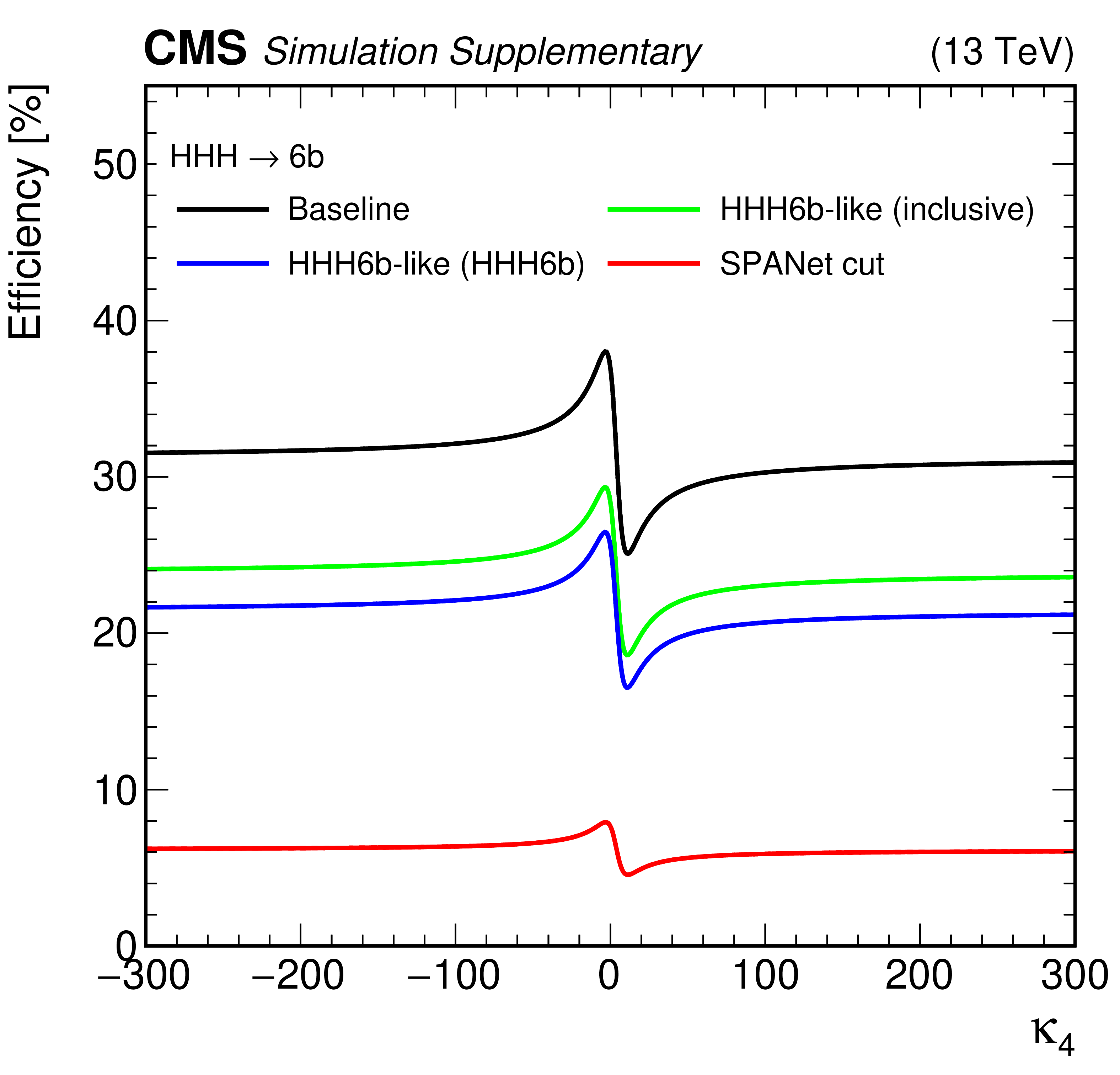

Additional Figure 22:
Selection efficiency versus $\kappa_4$ for $\mathrm{H}\mathrm{H}\mathrm{H}$(solid) and $\mathrm{H}\mathrm{H}$(dashed) signals at successive selections: baseline, inclusive categorization, $ \mu_{\mathrm{H}\mathrm{H}\mathrm{H}} \to 6\mathrm{b} $ selection, and final SPANET requirement. |
| Additional Tables | |
png pdf |
Additional Table 1:
Summary of the Monte Carlo simulated processes used in the analysis, listing the event generator configuration, nominal perturbative accuracy of the generated samples, the cross-section normalization order, and the production cross section at $\sqrt{s}=13$ TeV in pb. |
png pdf |

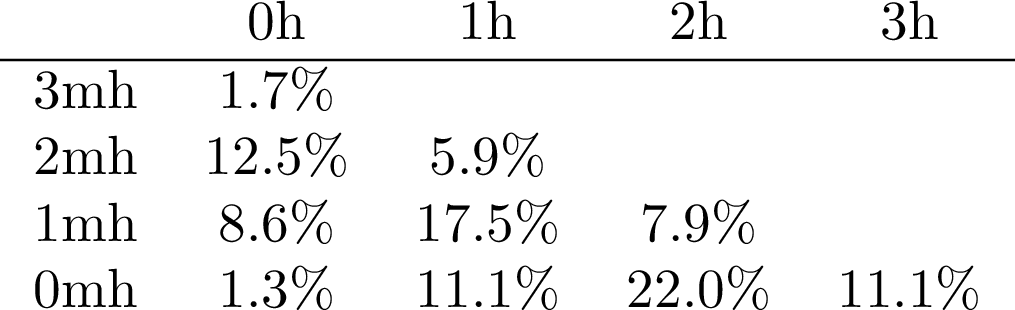

Additional Table 2:
Composition of reconstructible $\mathrm{H}$ boson candidates based on MC simulation. Columns list the number of candidates reconstructed in two small-radius jets (0h, 1h, 2h, 3h) and rows list the number of candidates reconstructed in one large-radius jet (3mh, 2mh, 1mh, 0mh). |
png pdf |
Additional Table 3:
Benchmark cross sections for $gg \to {\mathrm{H}\mathrm{H}\mathrm{H}} $ and $gg \to {\mathrm{H}\mathrm{H}}$ as a function of $(\kappa_3,\kappa_4)$ (or $\kappa_3$ for $ {\mathrm{H}\mathrm{H}\mathrm{H}} $), including associated theoretical uncertainties. These values define the coupling-scan points used to map limits in the $(\kappa_3,\kappa_4)$ parameter space. |
| References | ||||
| 1 | F. Englert and R. Brout | Broken symmetry and the mass of gauge vector mesons | PRL 13 (1964) 321 | |
| 2 | P. W. Higgs | Broken symmetries, massless particles and gauge fields | PL 12 (1964) 132 | |
| 3 | P. W. Higgs | Broken symmetries and the masses of gauge bosons | PRL 13 (1964) 508 | |
| 4 | G. S. Guralnik, C. R. Hagen, and T. W. B. Kibble | Global conservation laws and massless particles | PRL 13 (1964) 585 | |
| 5 | P. W. Higgs | Spontaneous symmetry breakdown without massless bosons | PR 145 (1966) 1156 | |
| 6 | T. W. B. Kibble | Symmetry breaking in non-Abelian gauge theories | PR 155 (1967) 1554 | |
| 7 | ATLAS Collaboration | Observation of a new particle in the search for the Standard Model Higgs boson with the ATLAS detector at the LHC | PLB 716 (2012) 1 | 1207.7214 |
| 8 | CMS Collaboration | Observation of a new boson with mass near 125 GeV in pp collisions at the LHC | PLB 716 (2012) 30 | CMS-HIG-12-028 1207.7235 |
| 9 | CMS Collaboration | Observation of a new boson with mass near 125 GeV in pp collisions at $ \sqrt{s}= $ 7 and 8 TeV | JHEP 06 (2013) 081 | CMS-HIG-12-036 1303.4571 |
| 10 | B. Horn | The Higgs field and early universe cosmology: A (brief) review | Physics 2 (2020) 503 | 2007.10377 |
| 11 | M. Reichert et al. | Probing baryogenesis through the Higgs boson self-coupling | PRD 97 (2018) 075008 | 1711.00019 |
| 12 | A. Noble and M. Perelstein | Higgs self-coupling as a probe of the electroweak phase transition | PRD 78 (2008) 063518 | 0711.3018 |
| 13 | T. Markkanen, A. Rajantie, and S. Stopyra | Cosmological Aspects of Higgs Vacuum Metastability | Front. Astron. Space Sci. 5 (2018) 40 | 1809.06923 |
| 14 | M. Grazzini et al. | Higgs boson pair production at NNLO with top quark mass effects | JHEP 05 (2018) 059 | 1803.02463 |
| 15 | S. Dawson, S. Dittmaier, and M. Spira | Neutral Higgs-boson pair production at hadron colliders: QCD corrections | PRD 58 (1998) 115012 | hep-ph/9805244 |
| 16 | S. Borowka et al. | Higgs boson pair production in gluon fusion at next-to-leading order with full top-quark mass dependence | [Erratum: \doi10.1103/PhysRevLett.117.079901], 2016 PRL 117 (2016) 012001 |
1604.06447 |
| 17 | J. Baglio et al. | Gluon fusion into Higgs pairs at NLO QCD and the top mass scheme | EPJC 79 (2019) 459 | 1811.05692 |
| 18 | D. de Florian and J. Mazzitelli | Higgs boson pair production at next-to-next-to-leading order in QCD | PRL 111 (2013) 201801 | 1309.6594 |
| 19 | D. Y. Shao, C. S. Li, H. T. Li, and J. Wang | Threshold resummation effects in Higgs boson pair production at the LHC | JHEP 07 (2013) 169 | 1301.1245 |
| 20 | D. de Florian and J. Mazzitelli | Higgs pair production at next-to-next-to-leading logarithmic accuracy at the LHC | JHEP 09 (2015) 053 | 1505.07122 |
| 21 | J. Baglio et al. | $ \mathrm{g}\mathrm{g}\to\mathrm{H}\mathrm{H} $: Combined uncertainties | PRD 103 (2021) 056002 | 2008.11626 |
| 22 | G. Heinrich, J. Lang, and L. Scyboz | SMEFT predictions for $ \mathrm{g}\mathrm{g} \to \mathrm{H}\mathrm{H} $ at full NLO QCD and truncation uncertainties | JHEP 08 (2022) 079 | 2204.13045 |
| 23 | E. Bagnaschi, G. Degrassi, and R. Gröber | Higgs boson pair production at NLO in the POWHEG approach and the top quark mass uncertainties | EPJC 83 (2023) 1054 | 2309.10525 |
| 24 | F. Maltoni, E. Vryonidou, and M. Zaro | Top-quark mass effects in double and triple Higgs production in gluon-gluon fusion at NLO | JHEP 11 (2014) 079 | 1408.6542 |
| 25 | A. Papaefstathiou and G. Tetlalmatzi-Xolocotzi | Multi-Higgs boson production with anomalous interactions at current and future proton colliders | JHEP 06 (2024) 124 | 2312.13562 |
| 26 | D. de Florian, I. Fabre, and J. Mazzitelli | Triple Higgs production at hadron colliders at NNLO in QCD | JHEP 03 (2020) 155 | 1912.02760 |
| 27 | H. Abouabid et al. | HHH whitepaper | EPJC 84 (2024) 1183 | 2407.03015 |
| 28 | LHC Higgs Cross Section Working Group | Handbook of LHC Higgs Cross Sections: 3. Higgs properties | CERN Yellow Rep. Monogr, 2013 link |
1307.1347 |
| 29 | ATLAS Collaboration | Studies of new Higgs boson interactions through nonresonant HH production in the $ \mathrm{b}\overline{\mathrm{b}}\gamma\gamma $ final state in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector | JHEP 01 (2024) 066 | 2310.12301 |
| 30 | ATLAS Collaboration | Search for nonresonant pair production of Higgs bosons in the $ \mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ final state in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PRD 108 (2023) 052003 | 2301.03212 |
| 31 | ATLAS Collaboration | Search for the nonresonant production of Higgs boson pairs via gluon fusion and vector-boson fusion in the $ \mathrm{b}\overline{\mathrm{b}}\tau^{+}\tau^{-} $ final state in proton-proton collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PRD 110 (2024) 032012 | 2404.12660 |
| 32 | ATLAS Collaboration | Search for non-resonant Higgs boson pair production in final states with leptons, taus, and photons in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector | JHEP 08 (2024) 164 | 2405.20040 |
| 33 | ATLAS Collaboration | Search for non-resonant Higgs boson pair production in the 2 $ \mathrm{b}+2\ell+E_{\mathrm{T}}^{\text{miss}} $ final state in pp collisions at $ \sqrt{s} = $ 13 TeV with the ATLAS detector | JHEP 02 (2024) 037 | 2310.11286 |
| 34 | CMS Collaboration | Search for nonresonant Higgs boson pair production in final state with two bottom quarks and two tau leptons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | PLB 842 (2023) 137531 | CMS-HIG-20-010 2206.09401 |
| 35 | CMS Collaboration | Search for Higgs boson pair production with one associated vector boson in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JHEP 10 (2024) 061 | CMS-HIG-22-006 2404.08462 |
| 36 | CMS Collaboration | Search for Higgs boson pairs decaying to WW*WW*, WW*$ \tau\tau $, and $ \tau\tau\tau\tau $ in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 07 (2023) 095 | CMS-HIG-21-002 2206.10268 |
| 37 | CMS Collaboration | Search for Higgs boson pair production in the $ \textrm{b}\overline{\textrm{b}}{\textrm{W}}^{+}{\textrm{W}}^{-} $ decay mode in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 07 (2024) 293 | CMS-HIG-21-005 2403.09430 |
| 38 | ATLAS Collaboration | Combination of searches for Higgs boson pair production in pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PRL 133 (2024) 101801 | 2406.09971 |
| 39 | CMS Collaboration | A portrait of the Higgs boson by the CMS experiment ten years after the discovery | [Corrigendum: \DOI10./s41586-023-06164-8], 2022 Nature 607 (2022) 60 |
CMS-HIG-22-001 2207.00043 |
| 40 | ATLAS Collaboration | Search for pair production of boosted Higgs bosons via vector-boson fusion in the $ \mathrm{b}\overline{\mathrm{b}}\mathrm{b}\overline{\mathrm{b}} $ final state using pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PLB 858 (2024) 139007 | 2404.17193 |
| 41 | CMS Collaboration | Search for Higgs boson pair production in the four b quark final state in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | PRL 129 (2022) 081802 | CMS-HIG-20-005 2202.09617 |
| 42 | CMS Collaboration | Search for nonresonant pair production of highly energetic Higgs bosons decaying to bottom quarks | PRL 131 (2023) 041803 | 2205.06667 |
| 43 | ATLAS Collaboration | Search for triple Higgs boson production in the 6 b final state using pp collisions at $ \sqrt{s}= $ 13 TeV with the ATLAS detector | PRD 111 (2025) 032006 | 2411.02040 |
| 44 | W. Bizo \'n , U. Haisch, and L. Rottoli | Constraints on the quartic Higgs self-coupling from double-Higgs production at future hadron colliders | JHEP 10 (2019) 267 | 1810.04665 |
| 45 | W. Bizo \'n et al. | Addendum to: Constraints on the quartic Higgs self-coupling from double-Higgs production at future hadron colliders | JHEP 02 (2024) 170 | 2402.03463 |
| 46 | CMS Collaboration | Combination of searches for nonresonant Higgs boson pair production in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | Submitted to J. Phys. G, 2025 | CMS-HIG-20-011 2510.07527 |
| 47 | P. Stylianou and G. Weiglein | Constraints on the trilinear and quartic Higgs couplings from triple Higgs production at the LHC and beyond | EPJC 84 (2024) 366 | 2312.04646 |
| 48 | L. Biermann et al. | Double and triple Higgs boson production to probe the electroweak phase transition | PRD 110 (2024) 095012 | 2408.08043 |
| 49 | D. Egana-Ugrinovic, S. Homiller, and P. Meade | Aligned and spontaneous flavor violation | PRL 123 (2019) 031802 | 1811.00017 |
| 50 | D. Egana-Ugrinovic, S. Homiller, and P. R. Meade | Higgs bosons with large couplings to light quarks | PRD 100 (2019) 115041 | 1908.11376 |
| 51 | B. Fuks, J. H. Kim, and S. J. Lee | Probing Higgs self-interactions in proton-proton collisions at a center-of-mass energy of 100 TeV | PRD 93 (2016) 035026 | 1510.07697 |
| 52 | A. Papaefstathiou, G. Tetlalmatzi-Xolocotzi, and M. Zaro | Triple Higgs boson production to six b-jets at a 100 TeV proton collider | EPJC 79 (2019) 947 | 1909.09166 |
| 53 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s}= $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 54 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2018 link |
CMS-PAS-LUM-17-004 |
| 55 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2019 link |
CMS-PAS-LUM-18-002 |
| 56 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 57 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 58 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 59 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 60 | CMS Collaboration | Performance of the CMS high-level trigger during LHC run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 61 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 62 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 63 | CMS Collaboration | Description and performance of track and primary-vertex reconstruction with the CMS tracker | JINST 9 (2014) P10009 | CMS-TRK-11-001 1405.6569 |
| 64 | J. Alwall et al. | The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations | JHEP 07 (2014) 079 | 1405.0301 |
| 65 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 66 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: the POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 67 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG box | JHEP 06 (2010) 043 | 1002.2581 |
| 68 | E. Bagnaschi, G. Degrassi, P. Slavich, and A. Vicini | Higgs production via gluon fusion in the POWHEG approach in the SM and in the MSSM | JHEP 02 (2012) 088 | 1111.2854 |
| 69 | G. Heinrich et al. | NLO predictions for Higgs boson pair production with full top quark mass dependence matched to parton showers | JHEP 08 (2017) 088 | 1703.09252 |
| 70 | S. Jones and S. Kuttimalai | Parton shower and NLO-matching uncertainties in Higgs boson pair production | JHEP 02 (2018) 176 | 1711.03319 |
| 71 | G. Buchalla et al. | Higgs boson pair production in non-linear effective field theory with full $ m_\mathrm{t} $-dependence at NLO QCD | JHEP 09 (2018) 057 | 1806.05162 |
| 72 | G. Heinrich et al. | Probing the trilinear Higgs boson coupling in di-Higgs production at NLO QCD including parton shower effects | JHEP 06 (2019) 066 | 1903.08137 |
| 73 | G. Heinrich, S. P. Jones, M. Kerner, and L. Scyboz | A non-linear EFT description of $ \mathrm{g}\mathrm{g}\to\mathrm{H}\mathrm{H} $ at NLO interfaced to POWHEG | JHEP 10 (2020) 021 | 2006.16877 |
| 74 | J. Davies et al. | Double Higgs boson production at NLO: Combining the exact numerical result and high-energy expansion | JHEP 11 (2019) 024 | 1907.06408 |
| 75 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 76 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 77 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 78 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 79 | CMS Collaboration | Pileup removal algorithms | CMS Physics Analysis Summary, 2014 CMS-PAS-JME-14-001 |
CMS-PAS-JME-14-001 |
| 80 | D. Bertolini, P. Harris, M. Low, and N. Tran | Pileup per particle identification | JHEP 10 (2014) 059 | 1407.6013 |
| 81 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 82 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 83 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 84 | H. Qu and L. Gouskos | Jet tagging via particle clouds | PRD 101 (2020) 056019 | 1902.08570 |
| 85 | CMS Collaboration | Performance of the PARTICLENET} \MATHRM{B and $ \mathrm{b}\mathrm{b} $-tagging algorithms in the CMS High-Level Trigger in Run 3 | CMS Detector Performance Note CMS-DP-2025-009, 2025 CDS |
|
| 86 | CMS Collaboration | Simultaneous probe of the charm and bottom quark Yukawa couplings using $ {\mathrm{t}\overline{\mathrm{t}}} \mathrm{H} $ events | PRL 136 (2026) 011801 | CMS-HIG-24-018 2509.22535 |
| 87 | CMS Collaboration | Search for $ \gamma\mathrm{H} $ production and constraints on the Yukawa couplings of light quarks to the Higgs boson | PRD 112 (2025) 112001 | CMS-HIG-23-011 2502.05665 |
| 88 | CMS Collaboration | HEPData record for this analysis | link | |
| 89 | A. Shmakov et al. | SPANET: Generalized permutationless set assignment for particle physics using symmetry preserving attention | SciPost Phys. 12 (2022) 178 | 2106.03898 |
| 90 | M. J. Fenton et al. | Permutationless many-jet event reconstruction with symmetry preserving attention networks | PRD 105 (2022) 112008 | 2010.09206 |
| 91 | M. J. Fenton et al. | Reconstruction of unstable heavy particles using deep symmetry-preserving attention networks | Comm. Phys. 7 (2024) 139 | 2309.01886 |
| 92 | C.-W. Chiang, F.-Y. Hsieh, S.-C. Hsu, and I. Low | Deep learning to improve the sensitivity of di-Higgs searches in the 4b channel | JHEP 09 (2024) 139 | 2401.14198 |
| 93 | H. Li et al. | Reconstruction of boosted and resolved multi-Higgs-boson events with symmetry-preserving attention networks | JHEP 11 (2025) 119 | 2412.03819 |
| 94 | R. E. Schapire, | The Boosting Approach to Machine Learning: An Overview | link | |
| 95 | R. Frederix et al. | Higgs pair production at the LHC with NLO QCD corrections and parton-shower effects | PLB 732 (2014) 142 | 1401.7340 |
| 96 | F. Maltoni, D. Pagani, A. Shivaji, and X. Zhao | Trilinear Higgs coupling determination via single-Higgs differential measurements at the LHC | EPJC 77 (2017) 887 | 1709.08649 |
| 97 | U. Haisch, A. Sankar, and G. Zanderighi | A new probe of the quartic Higgs self-coupling | PRL 136 (2026) 011801 | 2505.20463 |
| 98 | ATLAS and CMS Collaborations, and LHC Higgs Combination Group | Procedure for the LHC Higgs boson search combination in Summer 2011 | Technical Report CMS-NOTE-2011-005, ATL-PHYS-PUB-2011-11, 2011 | |
| 99 | G. Cowan, K. Cranmer, E. Gross, and O. Vitells | Asymptotic formulae for likelihood-based tests of new physics | EPJC 71 (2011) 1554 | 1007.1727 |
| 100 | T. Junk | Confidence level computation for combining searches with small statistics | NIM A 434 (1999) 435 | hep-ex/9902006 |
| 101 | A. L. Read | Presentation of search results: the $ \mathit{CL}_{s} $ technique | JPG 28 (2002) 2693 | |
| 102 | CMS Collaboration | The CMS statistical analysis and combination tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 103 | W. Verkerke and D. Kirkby | The RooFit toolkit for data modeling | in the International Conference on Computing in High Energy and Nuclear Physics (CHEP ): La Jolla CA, United States, March 24--28, 2003 Proc. 1 (2003) 3 |
physics/0306116 |
| 104 | L. Moneta et al. | The RooStats project | in the International Workshop on Advanced Computing and Analysis Techniques in Physics Research (ACAT ): Jaipur, India, February 22--27, 2010 Proc. 1 (2010) 3 |
1009.1003 |
| 105 | J.-L. Ding et al. | Constraining the Higgs potential using multi-Higgs production | SciPost Phys. Comm. Rep. 2 (2026) 4 | 2601.13248 |
| 106 | A. Carvalho et al. | Higgs pair production: Choosing benchmarks with cluster analysis | JHEP 04 (2016) 126 | 1507.02245 |
| 107 | M. Capozi and G. Heinrich | Exploring anomalous couplings in Higgs boson pair production through shape analysis | JHEP 03 (2020) 091 | 1908.08923 |
| 108 | J. Baglio et al. | The measurement of the Higgs self-coupling at the LHC: Theoretical status | JHEP 04 (2013) 151 | 1212.5581 |
| 109 | S. Frixione, P. Nason, and G. Ridolfi | A positive-weight next-to-leading-order Monte Carlo for heavy flavour hadroproduction | JHEP 09 (2007) 126 | 0707.3088 |
| 110 | T. Je \v z o et al. | An NLO+PS generator for $ {\mathrm{t}\overline{\mathrm{t}}} $ and $ \mathrm{W}\mathrm{t} $ production and decay including non-resonant and interference effects | EPJC 76 (2016) 691 | 1607.04538 |
| 111 | M. Czakon and A. Mitov | Top++: A program for the calculation of the top-pair cross-section at hadron colliders | Comput. Phys. Commun. 185 (2014) 2930 | 1112.5675 |
| 112 | M. Czakon et al. | Top-pair production at the LHC through NNLO QCD and NLO EW | JHEP 10 (2017) 186 | 1705.04105 |
| 113 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 114 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 115 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 116 | CMS Collaboration | Performance of electron reconstruction and selection with the CMS detector in proton-proton collisions at $ \sqrt{s} = $ 8 TeV | JINST 10 (2015) P06005 | CMS-EGM-13-001 1502.02701 |
| 117 | CMS Collaboration | Search for supersymmetry in pp collisions at $ \sqrt{s}= $ 13 TeV in the single-lepton final state using the sum of masses of large-radius jets | JHEP 08 (2016) 122 | CMS-SUS-15-007 1605.04608 |
| 118 | CMS Collaboration | Projection of CMS experimental reach on HH production at HL-LHC | CMS Note CMS-NOTE-2025-006, 2025 CDS |
|
| 119 | ATLAS and CMS Collaborations | Highlights of the HL-LHC physics projections by ATLAS and CMS | Submitted to European Strategy for Particle Physics Update 202 (2025) 6 |
2504.00672 |
|
|
Compact Muon Solenoid LHC, CERN |
|
|
|
|
|
|
