CMS-GEN-22-001

CMS-GEN-22-001 ; CERN-EP-2024-216
Energy-scaling behavior of intrinsic transverse momentum parameters in Drell-Yan simulation
CMS Collaboration
26 September 2024
Phys. Rev. D 111 (2025) 072003
Abstract: An analysis is presented based on models of the intrinsic transverse momentum (intrisic $k_{\mathrm{T}}$ ) of partons in nucleons by studying the dilepton transverse momentum in Drell--Yan events. Using parameter tuning in event generators and existing data from fixed-target experiments and from hadron colliders, our investigation spans three orders of magnitude in center-of-mass energy and two orders of magnitude in dilepton invariant mass. The results show an energy-scaling behavior of the intrinsic $k_{\mathrm{T}}$ parameters, independent of the dilepton invariant mass at a given center-of-mass energy.
Links: e-print arXiv:2409.17770 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ;

Figures & Tables	Summary	References	CMS Publications

Figures
png pdf	Figure 1: Effect of the variation of the UE parameters on the DY $p_{\mathrm{T}}(\ell^+\ell^-)$ spectrum (upper) and of the variation of the intrinsic $k_{\mathrm{T}}$ parameter on the charged $p_{\mathrm{T}}^{\text{sum}}$ density as a function of $p_{\mathrm{T}}^{\text{max}}$ in the transMAX region of the MB process (lower). The red and violet shaded areas represent the predictions from the up and down variations of the UE tune and the intrinsic $k_{\mathrm{T}}$ tune, respectively. In the upper distribution, both shaded areas are based on the prediction of tuned intrinsic $k_{\mathrm{T}}$ parameter on top of PYTHIA CP5 (``int. $k_{\mathrm{T}}$ tune''). In the lower distribution, the red shaded areas are based on the prediction of the intrinsic $k_{\mathrm{T}}$ parameter set to the default 1.8 and the UE tune set to PYTHIA CP5 (``Default int. $k_{\mathrm{T}}$ ''), and the violet shaded area is based on the ``int. $k_{\mathrm{T}}$ tune'' prediction. The error bars represent the statistical uncertainty in the simulated events. The lower distribution also includes the UE prediction of the combined tune of the intrinsic $k_{\mathrm{T}}$ and the ISR cutoff scale to the DY $p_{\mathrm{T}}(\ell^+\ell^-)$ distribution (``int. $k_{\mathrm{T}}$ +ISR $p_{\text{T0Ref}}$ tune''). The data are from the CMS measurements on the DY process [22] and the MB process [38] at 13 TeV.
png pdf	Figure 1-a: Effect of the variation of the UE parameters on the DY $p_{\mathrm{T}}(\ell^+\ell^-)$ spectrum (upper) and of the variation of the intrinsic $k_{\mathrm{T}}$ parameter on the charged $p_{\mathrm{T}}^{\text{sum}}$ density as a function of $p_{\mathrm{T}}^{\text{max}}$ in the transMAX region of the MB process (lower). The red and violet shaded areas represent the predictions from the up and down variations of the UE tune and the intrinsic $k_{\mathrm{T}}$ tune, respectively. In the upper distribution, both shaded areas are based on the prediction of tuned intrinsic $k_{\mathrm{T}}$ parameter on top of PYTHIA CP5 (``int. $k_{\mathrm{T}}$ tune''). In the lower distribution, the red shaded areas are based on the prediction of the intrinsic $k_{\mathrm{T}}$ parameter set to the default 1.8 and the UE tune set to PYTHIA CP5 (``Default int. $k_{\mathrm{T}}$ ''), and the violet shaded area is based on the ``int. $k_{\mathrm{T}}$ tune'' prediction. The error bars represent the statistical uncertainty in the simulated events. The lower distribution also includes the UE prediction of the combined tune of the intrinsic $k_{\mathrm{T}}$ and the ISR cutoff scale to the DY $p_{\mathrm{T}}(\ell^+\ell^-)$ distribution (``int. $k_{\mathrm{T}}$ +ISR $p_{\text{T0Ref}}$ tune''). The data are from the CMS measurements on the DY process [22] and the MB process [38] at 13 TeV.
png pdf	Figure 1-b: Effect of the variation of the UE parameters on the DY $p_{\mathrm{T}}(\ell^+\ell^-)$ spectrum (upper) and of the variation of the intrinsic $k_{\mathrm{T}}$ parameter on the charged $p_{\mathrm{T}}^{\text{sum}}$ density as a function of $p_{\mathrm{T}}^{\text{max}}$ in the transMAX region of the MB process (lower). The red and violet shaded areas represent the predictions from the up and down variations of the UE tune and the intrinsic $k_{\mathrm{T}}$ tune, respectively. In the upper distribution, both shaded areas are based on the prediction of tuned intrinsic $k_{\mathrm{T}}$ parameter on top of PYTHIA CP5 (``int. $k_{\mathrm{T}}$ tune''). In the lower distribution, the red shaded areas are based on the prediction of the intrinsic $k_{\mathrm{T}}$ parameter set to the default 1.8 and the UE tune set to PYTHIA CP5 (``Default int. $k_{\mathrm{T}}$ ''), and the violet shaded area is based on the ``int. $k_{\mathrm{T}}$ tune'' prediction. The error bars represent the statistical uncertainty in the simulated events. The lower distribution also includes the UE prediction of the combined tune of the intrinsic $k_{\mathrm{T}}$ and the ISR cutoff scale to the DY $p_{\mathrm{T}}(\ell^+\ell^-)$ distribution (``int. $k_{\mathrm{T}}$ +ISR $p_{\text{T0Ref}}$ tune''). The data are from the CMS measurements on the DY process [22] and the MB process [38] at 13 TeV.
png pdf	Figure 2: Tuned parameter $q$ values for DY measurements at different center-of-mass energies (points) for various PYTHIA and HERWIG setups (colors). The error bars on the points represent the tuning uncertainties. The tuned values are given in Appendix. For each generator setup, the function $b \sqrt{s}^a$ is fitted to the points and shown as a line, assuming the same slope $a$ for all the settings. The $\chi^2_{\text{lin.}}/\text{NDF}$ and $p$ -value of the combined linear fit is given in the plot. The uncertainty in each fit is shown as a colored band and corresponds to the up and down variations of the fit parameters, propagated from the tune uncertainties. The CASCADE predictions (CAS3) [2,3] are also fitted separately with the function $b \sqrt{s}^a$ for comparison with PYTHIA and HERWIG.
png pdf	Figure 3: Tuned parameter $q$ values for DY measurements at different center-of-mass energies (points) for various generator settings (lines and bands). The error bars on the points represent the tuning uncertainties. The tuned values are given in Appendix. For the PYTHIA CP5 setup, the parameter SpaceShower:pT0Ref is set to 1 GeV (orange dashed) or its default value of 2 GeV (blue solid). For the HERWIG CH3 setup, the parameter SudakovCommon:pTMin is set to 0.7 GeV (green dotted) or its default value of 1.22 GeV (purple dash-dotted). The function $b \sqrt{s}^a$ is fitted to the points of each generator setting and shown as a line, allowing free-floating slopes $a$ and offsets $\log_{10}(b)$ . The uncertainty in each fit is shown as a colored band and corresponds to the up and down variations of the fit parameters, propagated from the tune uncertainties.

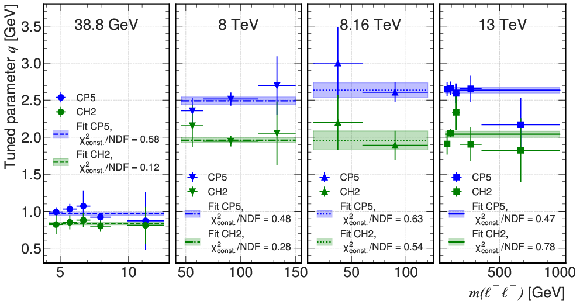

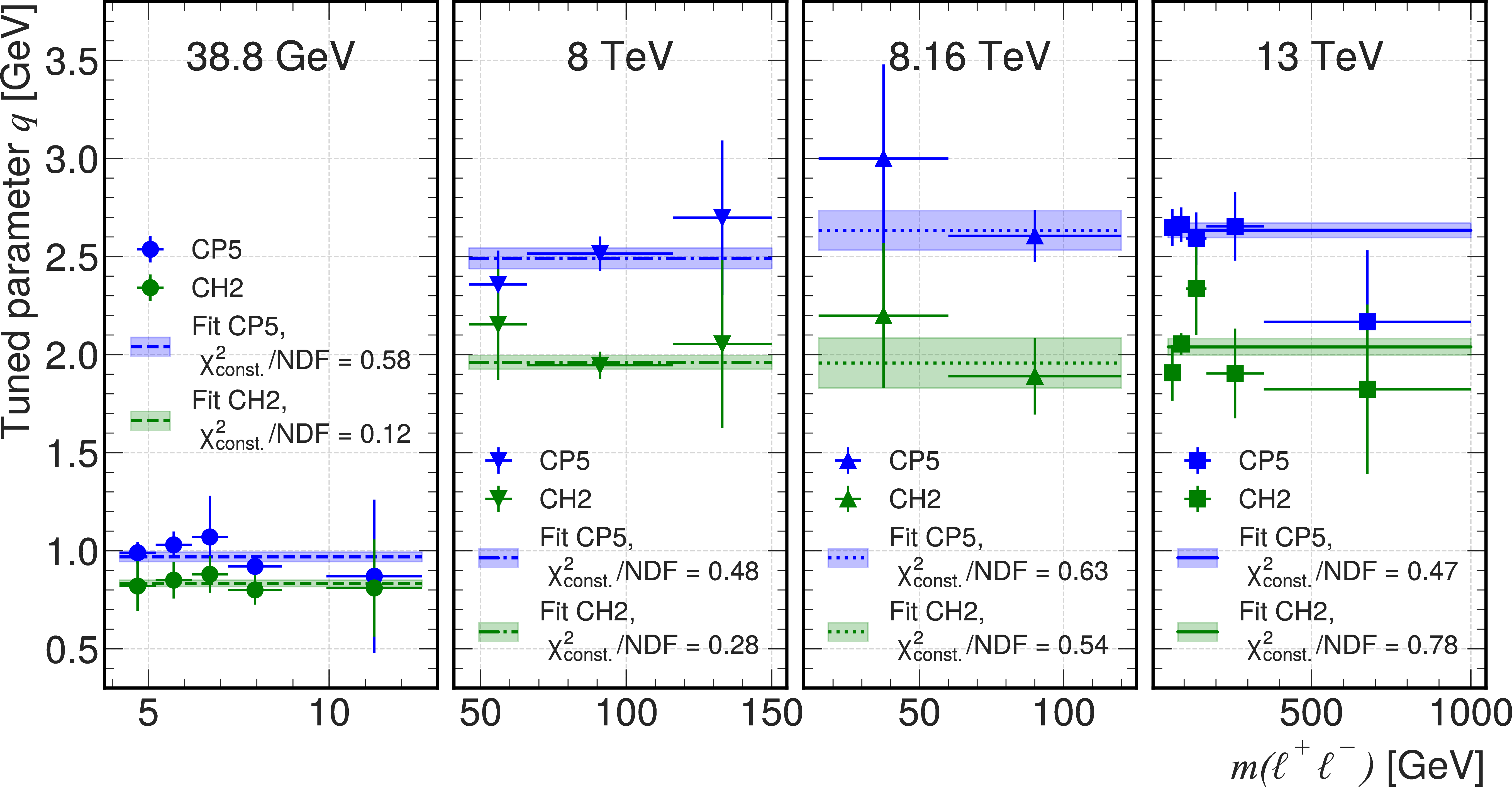

png pdf	Figure 4: Tuned parameter values (points) for DY measurements at four different center-of-mass energies $\sqrt{s} =$ 38.8 GeV [11,12], and 8 [20], 8.16 [21], and 13 TeV [22], for the PYTHIA CP5 (blue dark) and HERWIG CH2 (green light) setups. The error bars on the points represent the tuning uncertainties. The tuned values are given in Appendix. For each generator setup, a constant is fitted to the points and shown as a line. The uncertainty in each fit, propagated from the tune uncertainties, is shown as a colored band.

Tables
png pdf	Table 1: Measurements of the DY differential cross section as a function of $p_{\mathrm{T}}(\ell^+\ell^-)$ at various center-of-mass energies $\sqrt{s}$ from different hadron-collision processes used as inputs for the intrinsic $k_{\mathrm{T}}$ tunes. The $\sqrt{s}$ in $\mathrm{p}\mathrm{Pb}$ collisions represents the nucleon-nucleon center-of-mass energy. The variable $Q$ represents the energy scale of the hard scattering, approximated by the dilepton invariant mass. The Z boson mass is denoted as $m(\mathrm{Z})$ .
png pdf	Table A1: Tune results for the BeamRemnants:PrimordialkTHard parameter in PYTHIA 8 and the ShowerHandler:intrinsicpTGaussian parameter in HERWIG 7, taking into account the statistical uncertainty of simulations (MC stat.), the measurement uncertainty in data (data unc.), the uncertainty from choices of tune ranges (range) and the uncerainty from choises of the functions for interpolation (int.).

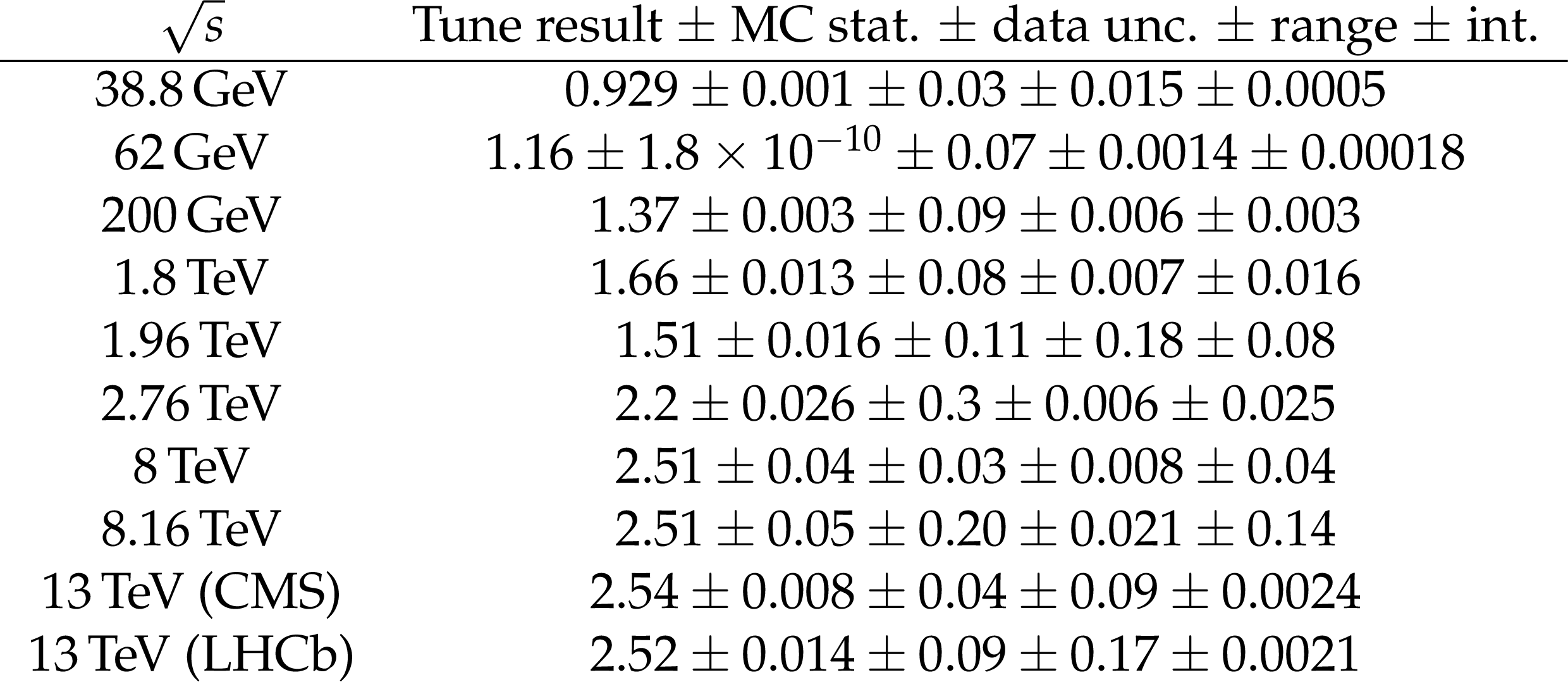

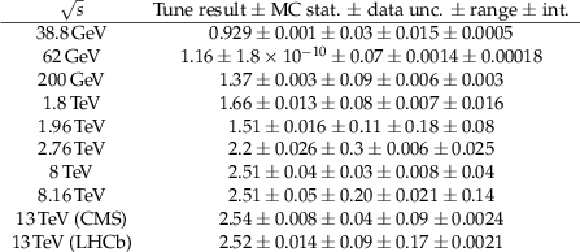

png pdf	Table A2: Tune results for the BeamRemnants:PrimordialkTHard parameter in PYTHIA8 with the CP5 tune setup, taking into account the statistical uncertainty of simulations (MC stat.), the measurement uncertainty in data (data unc.), the uncertainty from choices of tune ranges (range) and the uncerainty from choises of the functions for interpolation (int.). The parameter SpaceShower:pT0Ref was set to 1 GeV.

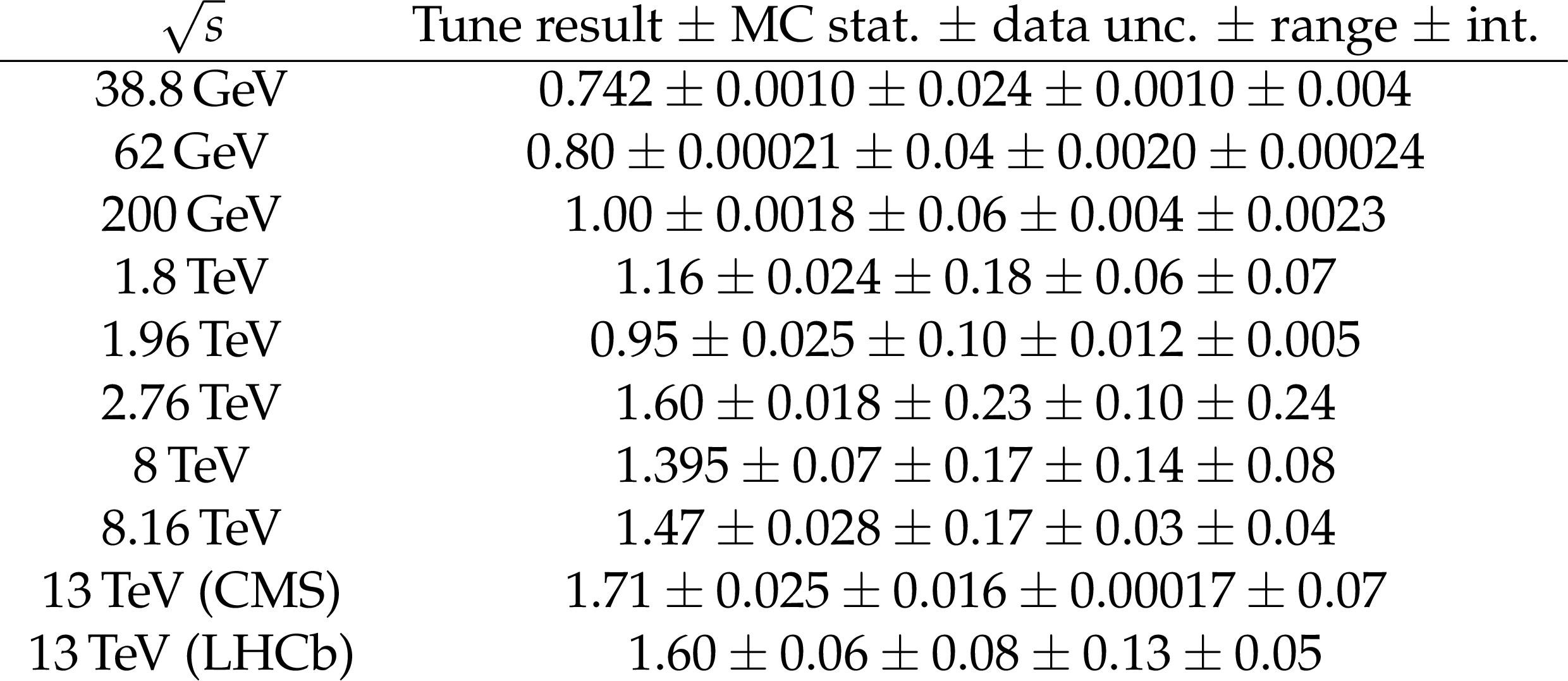

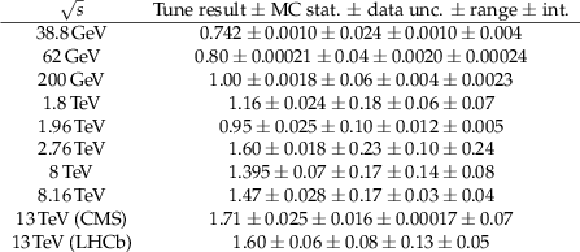

png pdf	Table A3: Tune results for the ShowerHandler:intrinsicpTGaussian parameter in HERWIG 7 with the CH3 tune setup, taking into account the statistical uncertainty of simulations (MC stat.), the measurement uncertainty in data (data unc.), the uncertainty from choices of tune ranges (range) and the uncerainty from choises of the functions for interpolation (int.). The parameter SudakovCommon:pTMin was set to 0.7 GeV.

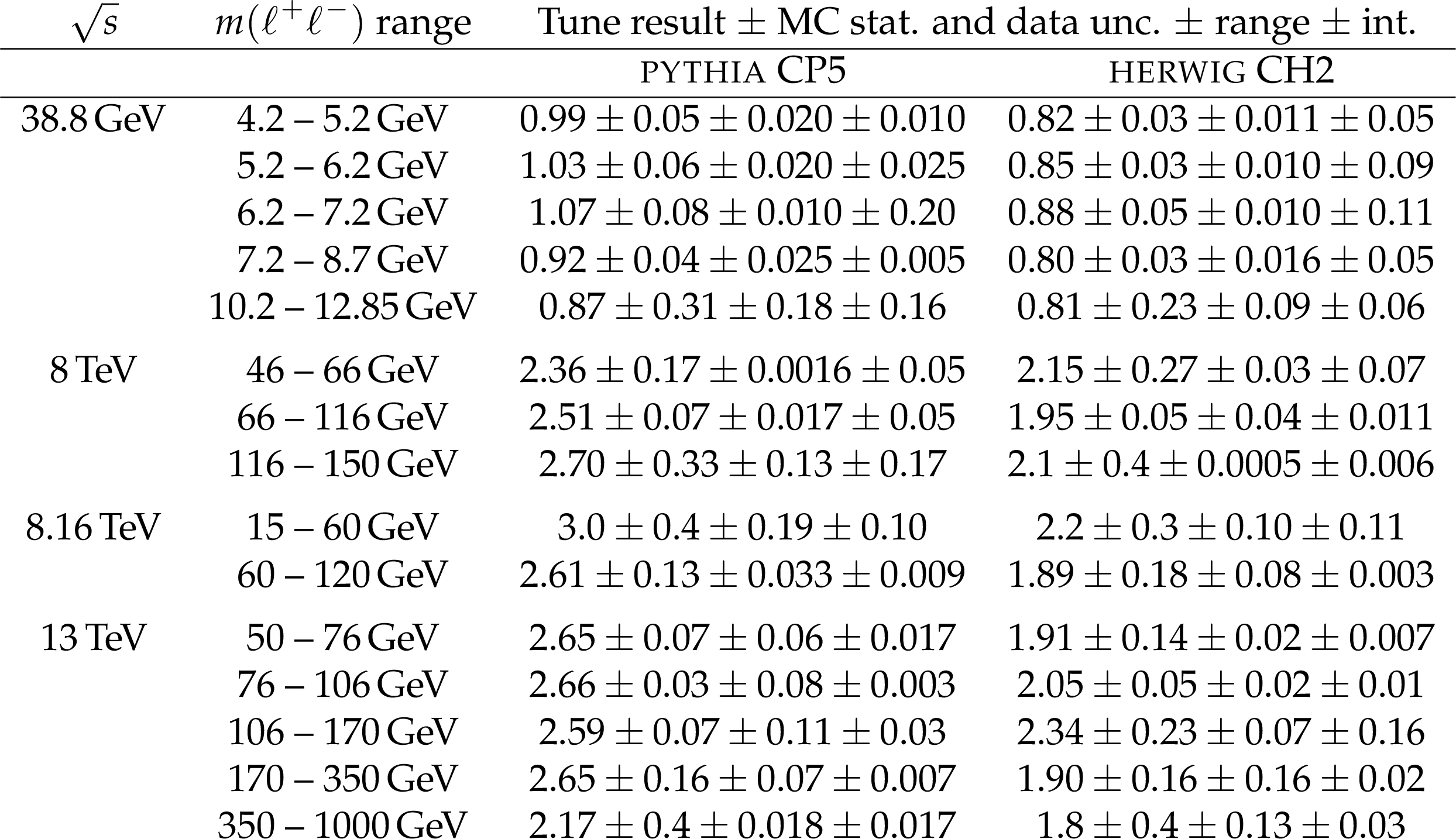

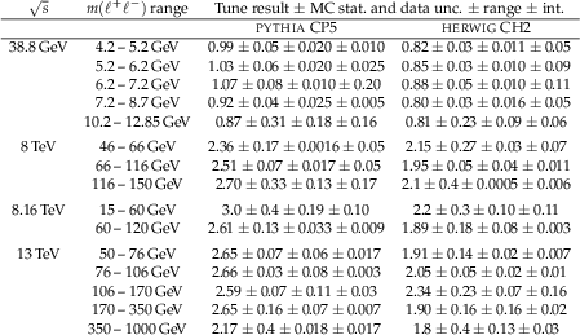

png pdf	Table A4: Results of the tune to various ranges of the $m(\ell^+\ell^-)$ for values of $\sqrt{s}$ of 38.8 GeV and 8, 8.16, and 13 TeV, taking into account the statistical uncertainty of simulations (MC stat.), the measurement uncertainty in data (data unc.), the uncertainty from choices of tune ranges (range) and the uncerainty from choises of the functions for interpolation (int.).

Summary

In summary, generator tunes of the intrinsic transverse momentum

$k_{\mathrm{T}}$ were used to explore model-independent features of nonperturbative quantum chromodynamics (QCD). The tunes were performed for various underlying-event (UE) setups in the generators PYTHIA and HERWIG using the Drell--Yan differential cross section as a function of the dilepton transverse momentum measured in multiple types of hadron collision experiments with

$\sqrt{s}$ ranging from 38.8 GeV to 13 TeV. The results show a linear relation between the logarithm of the intrinsic

$k_{\mathrm{T}}$ parameter and

$\log_{10}(\sqrt{s})$ for all generator tunes, with the intercepts altered by generator-dependent perturbative-QCD models such as choices of parton distribution functions or parton shower parameters. The slope is 0.162

$\pm$ 0.005, independent of the UE tune or generator, and related to nonperturbative-QCD effects such as nonresolvable low-energy gluon emissions in parton showers. The tunes were also performed using experiments that probe different regions of dilepton invariant mass and rapidity, and demonstrate the independence of the intrinsic

$k_{\mathrm{T}}$ parameter with respect to these variables at each

$\sqrt{s}$ . This indicates the independence of the intrinsic

$k_{\mathrm{T}}$ on the longitudinal momentum fractions of the quarks within colliding hadrons in Drell--Yan processes.

References
1	A. Bermudez Martinez et al.	The transverse momentum spectrum of low mass Drell-Yan production at next-to-leading order in the parton branching method	EPJC 80 (2020) 598	2001.06488
2	I. Bubanja et al.	The small $k_{\textrm{T}}$ region in Drell-Yan production at next-to-leading order with the parton branching method	EPJC 84 (2024) 154	2312.08655
3	M. Mendizabal, F. Guzman, H. Jung, and S. Taheri Monfared	On the role of soft gluons in collinear parton densities and parton shower event generators		2309.11802
4	P. Hägler, B. U. Musch, J. W. Negele, and A. Schäfer	Intrinsic quark transverse momentum in the nucleon from lattice QCD	Euro. Phys. Lett. 88 (2009) 61001	0908.1283
5	B. U. Musch et al.	Transverse-momentum distribution of quarks in the nucleon from lattice QCD	in Proceedings of LIGHT CONE 2008 Relativistic Nuclear and Particle Physics, 2008 link
6	B. U. Musch, P. Hägler, J. W. Negele, and A. Schäfer	Exploring quark transverse momentum distributions with lattice QCD	PRD 83 (2011) 094507	1011.1213
7	C. Bierlich et al.	A comprehensive guide to the physics and usage of PYTHIA 8.3	SciPost Phys. Codeb. 2022 (2022) 8	2203.11601
8	T. Sjöstrand and P. Z. Skands	Multiple interactions and the structure of beam remnants	JHEP 03 (2004) 053	hep-ph/0402078
9	J. Bellm et al.	Herwig 7.0/Herwig++ 3.0 release note	EPJC 76 (2016) 196	1512.01178
10	Sherpa Collaboration	Event generation with Sherpa 2.2	SciPost Phys. 7 (2019) 034	1905.09127
11	NuSea Collaboration	Absolute Drell-Yan dimuon cross-sections in 800 GeV/ $c$ pp and pd collisions		hep-ex/0302019
12	J. C. Webb	Measurement of continuum dimuon production in 800-GeV/ $c$ proton nucleon collisions	PhD thesis, New Mexico State U, 2003 link	hep-ex/0301031
13	D. Antreasyan et al.	Dimuon scaling comparison at 44 GeV and 62 GeV	PRL 48 (1982) 302
14	PHENIX Collaboration	Measurements of $\mu\mu$ pairs from open heavy flavor and Drell-Yan in $\text{p}+\text{p}$ collisions at $\sqrt{s}=$ 200 GeV	PRD 99 (2019) 072003	1805.02448
15	D0 Collaboration	Measurement of the inclusive differential cross section for Z bosons as a function of transverse momentum in $\overline{\text{p}}\text{p}$ collisions at $\sqrt{s}=$ 1.8 TeV	PRD 61 (2000) 032004	hep-ex/9907009
16	CDF Collaboration	The transverse momentum and total cross section of $\text{e}^+\text{e}^-$ pairs in the Z boson region from $\text{p}\overline{\text{p}}$ collisions at $\sqrt{s}=$ 1.8 TeV	PRL 84 (2000) 845	hep-ex/0001021
17	D0 Collaboration	Measurement of the normalized Z/ $\gamma^* \rightarrow \mu^+\mu^-$ transverse momentum distribution in $\text{p}\overline{\text{p}}$ collisions at $\sqrt{s}=$ 1.96 TeV	PLB 693 (2010) 522	1006.0618
18	CDF Collaboration	Transverse momentum cross section of $\text{e}^+\text{e}^-$ pairs in the Z-boson region from $\text{p}\overline{\text{p}}$ collisions at $\sqrt{s}=$ 1.96 TeV	PRD 86 (2012) 052010	1207.7138
19	CMS Collaboration	Study of Z production in PbPb and pp collisions at $\sqrt{s_{\mathrm{NN}}}=$ 2.76 TeV in the dimuon and dielectron decay channels	JHEP 03 (2015) 022	CMS-HIN-13-004 1410.4825
20	ATLAS Collaboration	Measurement of the transverse momentum and $\phi^*_{\eta}$ distributions of Drell-Yan lepton pairs in proton-proton collisions at $\sqrt{s}=$ 8 TeV with the ATLAS detector	EPJC 76 (2016) 291	1512.02192
21	CMS Collaboration	Study of Drell-Yan dimuon production in proton-lead collisions at $\sqrt {\smash [b]{s_{_{\mathrm {NN}}}}} =$ 8.16 TeV	JHEP 05 (2021) 182	CMS-HIN-18-003 2102.13648
22	CMS Collaboration	Measurement of the mass dependence of the transverse momentum of lepton pairs in Drell-Yan production in proton-proton collisions at $\sqrt{s}=$ 13 TeV	EPJC 83 (2023) 628	CMS-SMP-20-003 2205.04897
23	LHCb Collaboration	Precision measurement of forward Z boson production in proton-proton collisions at $\sqrt{s}=$ 13 TeV	JHEP 07 (2022) 026	2112.07458
24	C. T. H. Davies, B. R. Webber, and W. J. Stirling	Drell-Yan cross-sections at small transverse momentum	NPB 256 (1985) 413
25	M. Guzzi, P. M. Nadolsky, and B. Wang	Nonperturbative contributions to a resummed leptonic angular distribution in inclusive neutral vector boson production	PRD 90 (2014) 014030	1309.1393
26	S.-Y. Wei	Exploring the non-perturbative Sudakov factor via $\text{Z}^0$ -boson production in pp collisions	PLB 817 (2021) 136356	2009.06514
27	A. Bacchetta et al.	Extraction of partonic transverse momentum distributions from semi-inclusive deep-inelastic scattering, Drell--Yan and Z-boson production	[Erratum: JHEP 06, 051 ()], 2017 JHEP 06 (2017) 081	1703.10157
28	I. Scimemi and A. Vladimirov	Analysis of vector boson production within TMD factorization	EPJC 78 (2018) 89	1706.01473
29	V. Bertone, I. Scimemi, and A. Vladimirov	Extraction of unpolarized quark transverse momentum dependent parton distributions from Drell--Yan/Z-boson production	JHEP 06 (2019) 028	1902.08474
30	I. Scimemi and A. Vladimirov	Non-perturbative structure of semi-inclusive deep-inelastic and Drell--Yan scattering at small transverse momentum	JHEP 06 (2020) 137	1912.06532
31	A. Bacchetta et al.	Transverse-momentum-dependent parton distributions up to N $^{3}$ LL from Drell--Yan data	JHEP 07 (2020) 117	1912.07550
32	M. Bury et al.	PDF bias and flavor dependence in TMD distributions	JHEP 10 (2022) 118	2201.07114
33	MAP (Multi-dimensional Analyses of Partonic distributions) Collaboration	Unpolarized transverse momentum distributions from a global fit of Drell--Yan and semi-inclusive deep-inelastic scattering data	JHEP 10 (2022) 127	2206.07598
34	V. Moos, I. Scimemi, A. Vladimirov, and P. Zurita	Extraction of unpolarized transverse momentum distributions from the fit of Drell--Yan data at N $^{4}$ LL	JHEP 05 (2024) 036	2305.07473
35	MAP Collaboration	Flavor dependence of unpolarized quark transverse momentum distributions from a global fit	JHEP 08 (2024) 232	2405.13833
36	A. Bacchetta et al.	Effect of flavor-dependent partonic transverse momentum on the determination of the W boson mass in hadronic collisions	PLB 788 (2019) 542	1807.02101
37	S. Baranov et al.	CASCADE3 a Monte Carlo event generator based on TMDs	EPJC 81 (2021) 425	2101.10221
38	CMS Collaboration	Underlying event measurements with leading particles and jets in pp collisions at $\sqrt{s}=$ 13 TeV	CMS Physics Analysis Summary, 2015 link	CMS-PAS-FSQ-15-007
39	CMS Collaboration	Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements	EPJC 80 (2020) 4	CMS-GEN-17-001 1903.12179
40	CMS Collaboration	Development and validation of HERWIG 7 tunes from CMS underlying-event measurements	EPJC 81 (2021) 312	CMS-GEN-19-001 2011.03422
41	CMS Collaboration	HEPData record for this analysis	link
42	J. Alwall et al.	The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations	JHEP 07 (2014) 079	1405.0301
43	A. Buckley et al.	Systematic event generator tuning for the LHC	EPJC 65 (2010) 331	0907.2973
44	E. Gross and O. Vitells	Trial factors for the look elsewhere effect in high energy physics	EPJC 70 (2010) 525	1005.1891
45	C. Balázs and C.-P. Yuan	Soft gluon effects on lepton pairs at hadron colliders	PRD 56 (1997) 5558	hep-ph/9704258
