| CMS-EXO-24-005 ; CERN-EP-2026-206 | ||
| Search for scalar leptoquarks produced via muon-quark scattering in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | ||
| CMS Collaboration | ||
| 28 August 2026 | ||
| Submitted to the Journal of High Energy Physics | ||
| Abstract: The first search for TeV-scale scalar leptoquarks (LQs) produced in muon-quark ($ \mu\mathrm{q} $) interactions is presented. It is based on proton-proton collision data recorded at a center-of-mass energy of 13 TeV with the CMS detector at the LHC, corresponding to an integrated luminosity of 138 fb$ ^{-1} $. Quantum fluctuations inside the proton generate charged-lepton components, enabling the study of lepton-induced processes. In particular, the interaction of a muon from one colliding proton with a quark from the other proton enables the study of resonant production of a single LQ and its subsequent decay. The final state includes one or two muons and a jet that can come from the hadronization of either a light quark (u) or a b quark. The primary observable is the invariant mass of the muon-jet system, whose distribution peaks at the LQ mass. The data are found to be in agreement with the background predictions. Upper limits are set on the product of the LQ production cross section and its decay branching fraction to the $ \mu\mathrm{q} $ final state. The results exclude broad regions in the parameter plane of the LQ mass and the LQ-$ \mu\mathrm{q} $ coupling, improving upon previous CMS searches by extending the coverage for LQs with masses between 1.5 and 3.6 TeV, and couplings between 0.2 and 0.6 for the $ \mathrm{LQ}(\mathrm{u}\mu) $ scenario; and masses above 1.8 TeV, and couplings above 1 for the $ \mathrm{LQ}(\mathrm{b}\mu) $ scenario. | ||
| Links: e-print arXiv:2608.28377 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

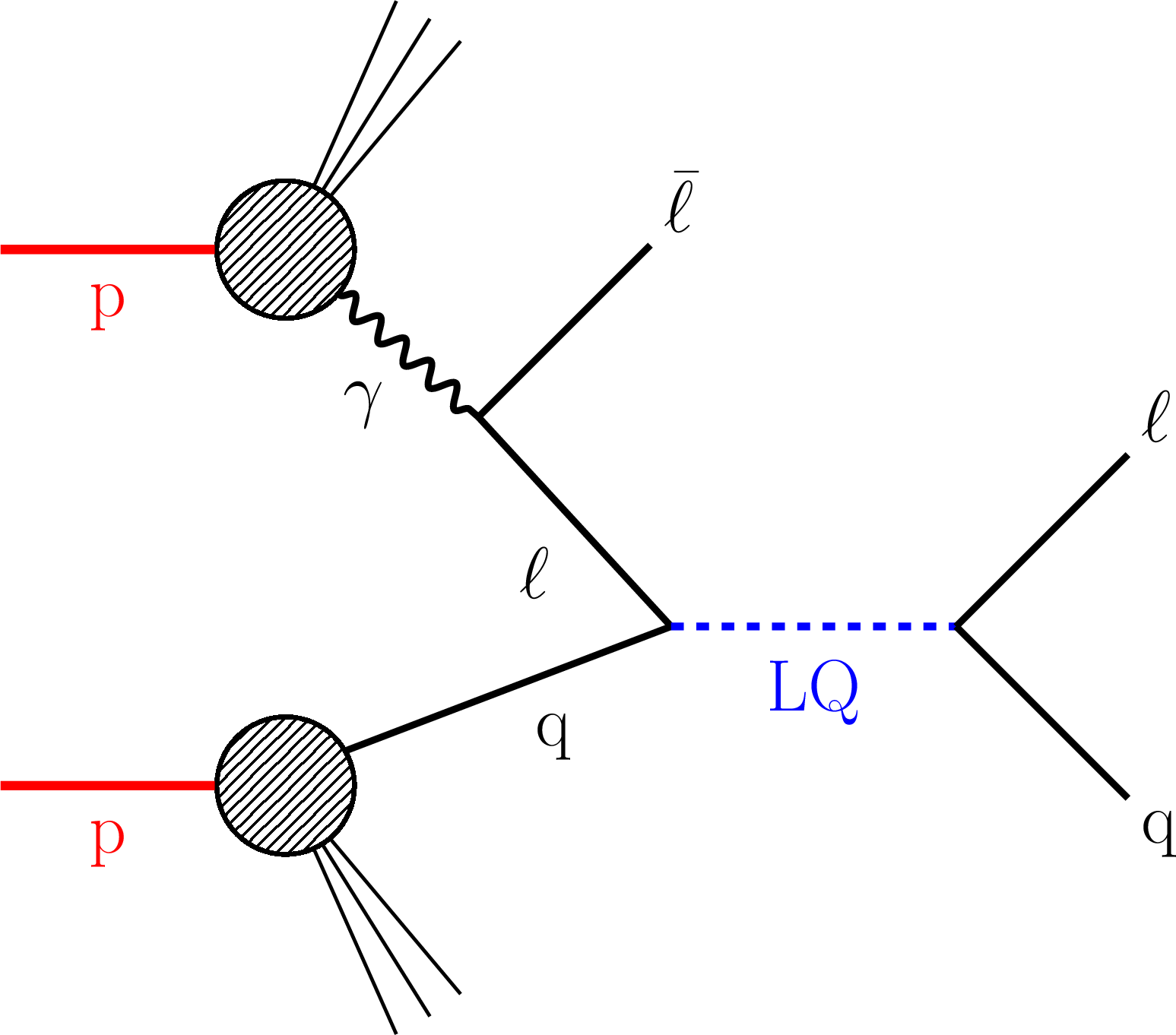

Figure 1:
An LO Feynman diagram of the lepton-induced LQ production at the LHC. |
png pdf |

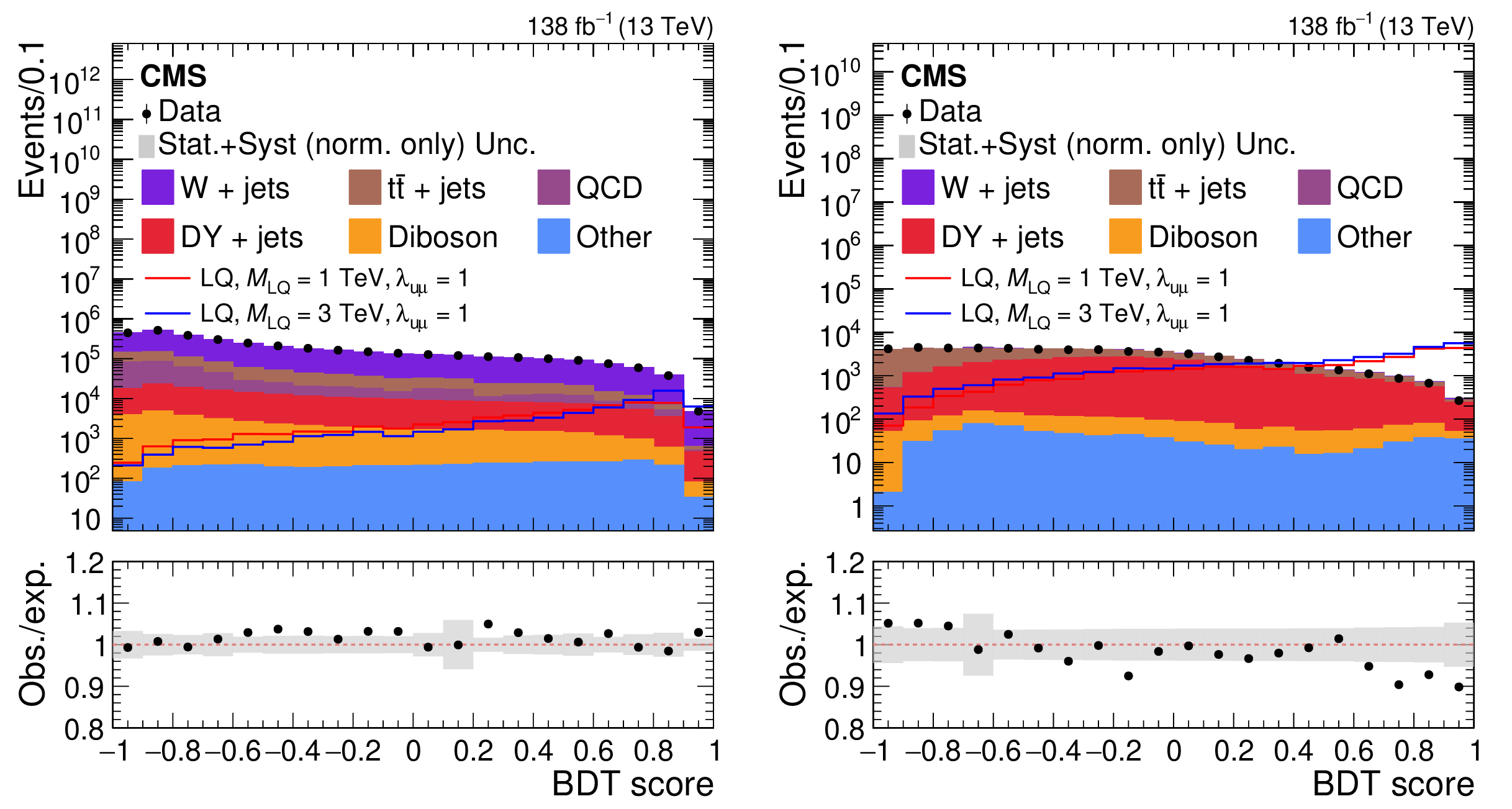

Figure 2:
Comparison of data and background BDT discriminant distributions at the preselection level for the one-muon (left) and two-muon (right) SRs, shown for illustration purposes only. The colored histograms show the simulated background prediction. The error bars are the data statistical uncertainties. The shaded band indicates an uncertainty of one standard deviation in the simulated background, obtained by combining the statistical and normalization-only systematic contributions. The distributions of two simulated signal samples are also shown, corresponding to $ M_{\text{LQ}} = $ 1 or 3 TeV and $ \lambda_{\mathrm{u}\mu} = $ 1. The signal cross section is set to 1\unitpb for visibility. The lower panels show the ratio of the data to the background prediction, with the shaded band indicating the same uncertainty as in the upper panels. |
png pdf |

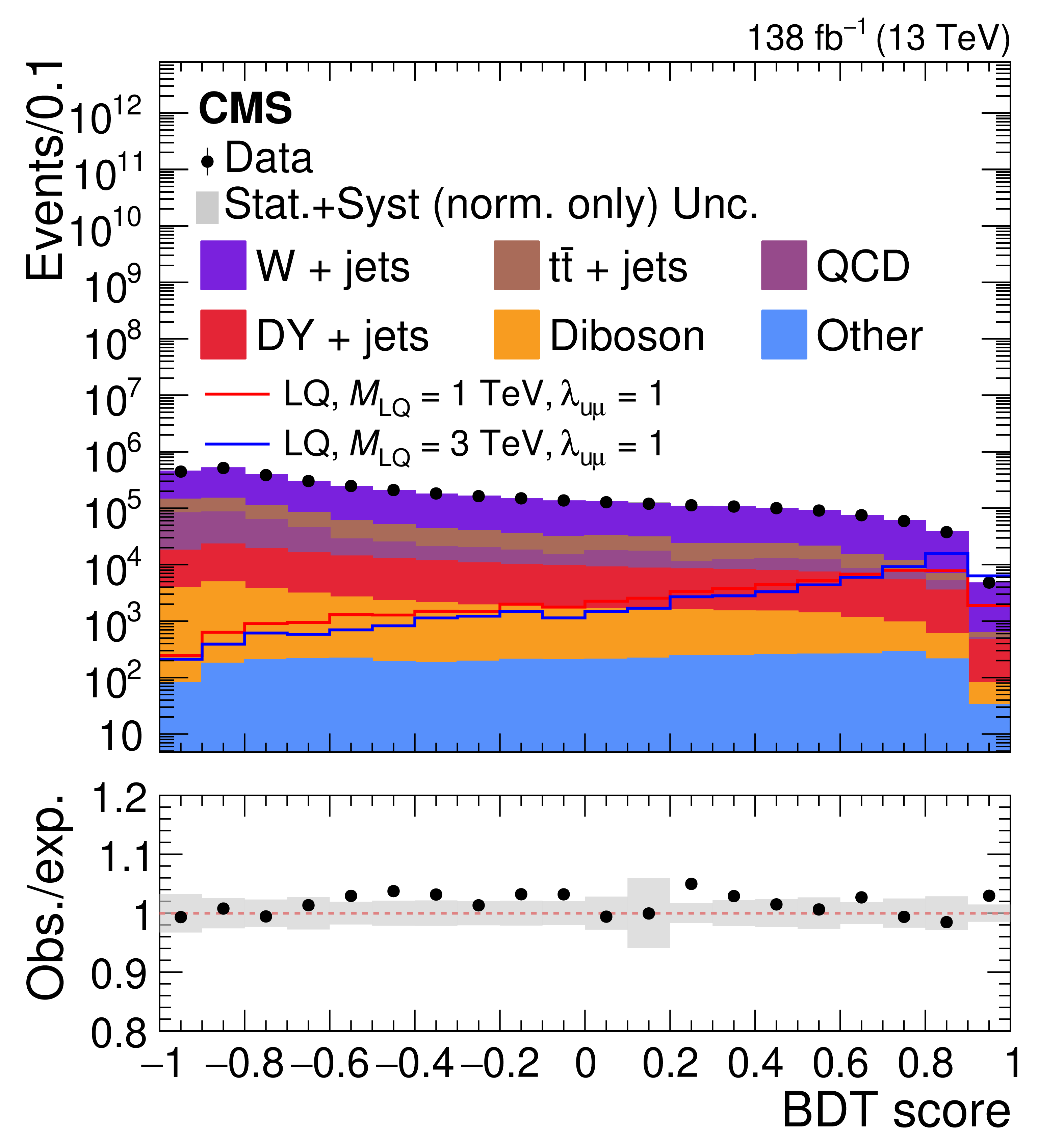

Figure 2-a:
Comparison of data and background BDT discriminant distributions at the preselection level for the one-muon (left) and two-muon (right) SRs, shown for illustration purposes only. The colored histograms show the simulated background prediction. The error bars are the data statistical uncertainties. The shaded band indicates an uncertainty of one standard deviation in the simulated background, obtained by combining the statistical and normalization-only systematic contributions. The distributions of two simulated signal samples are also shown, corresponding to $ M_{\text{LQ}} = $ 1 or 3 TeV and $ \lambda_{\mathrm{u}\mu} = $ 1. The signal cross section is set to 1\unitpb for visibility. The lower panels show the ratio of the data to the background prediction, with the shaded band indicating the same uncertainty as in the upper panels. |
png pdf |

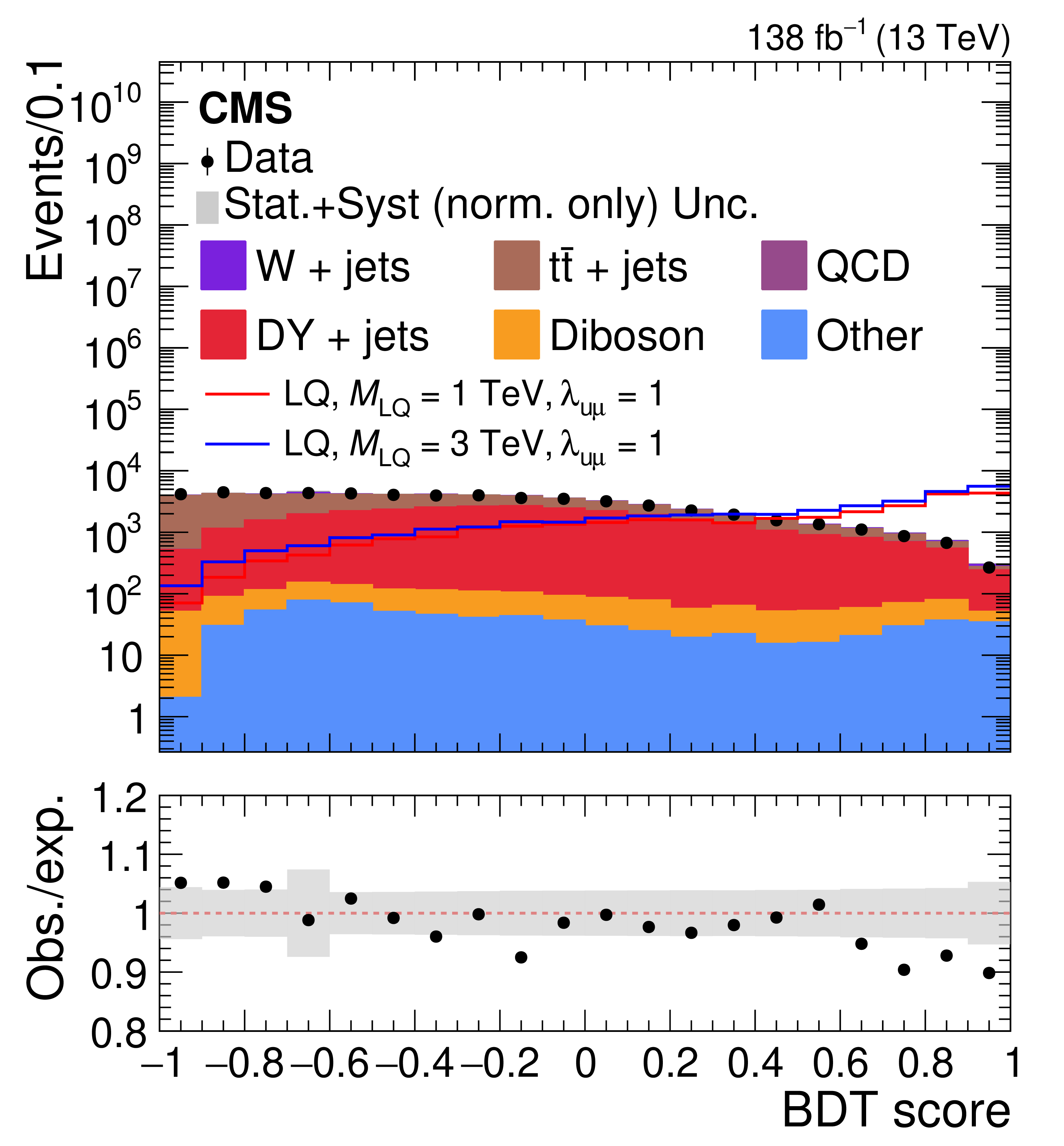

Figure 2-b:
Comparison of data and background BDT discriminant distributions at the preselection level for the one-muon (left) and two-muon (right) SRs, shown for illustration purposes only. The colored histograms show the simulated background prediction. The error bars are the data statistical uncertainties. The shaded band indicates an uncertainty of one standard deviation in the simulated background, obtained by combining the statistical and normalization-only systematic contributions. The distributions of two simulated signal samples are also shown, corresponding to $ M_{\text{LQ}} = $ 1 or 3 TeV and $ \lambda_{\mathrm{u}\mu} = $ 1. The signal cross section is set to 1\unitpb for visibility. The lower panels show the ratio of the data to the background prediction, with the shaded band indicating the same uncertainty as in the upper panels. |
png pdf |

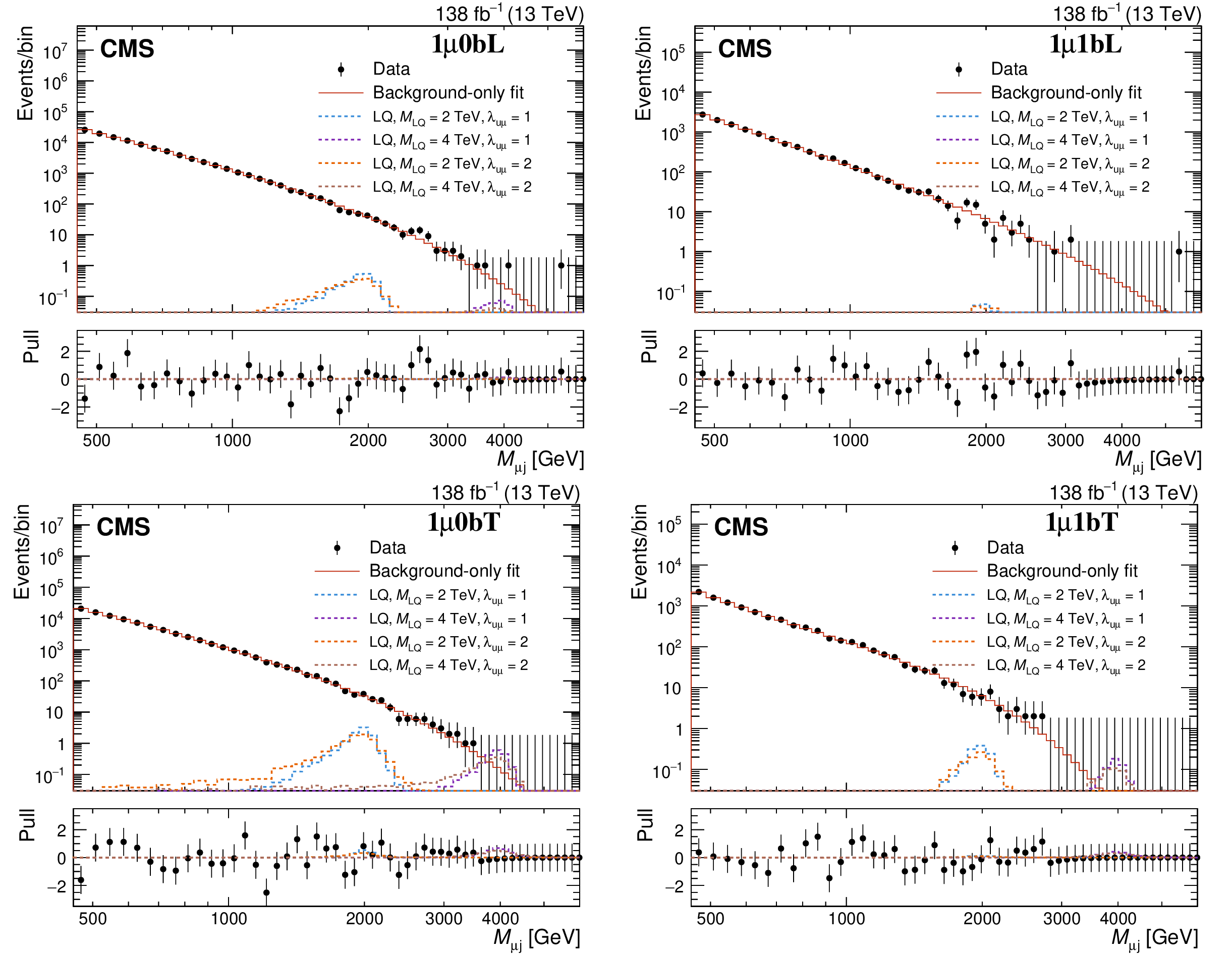

Figure 3:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the one-muon SR: 1$ \mu $0bL (upper left), 1$ \mu $1bL (upper right), 1$ \mu $0bT (lower left), 1$ \mu $1bT (lower right). The upper panel in each frame shows the data distribution and the background component (red line) of the fit obtained using the empirical function. The data are shown as black points, with vertical bars representing the statistical uncertainties computed as Poisson (Garwood) 68% confidence intervals; in bins with no observed events only the upward interval is shown. The light blue (violet) line represents a signal hypothesis with $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 1, while the orange (brown) line represents $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 2. All signals are normalized to the expected upper limit cross section. The horizontal axis shows the $ M_{\mu\mathrm{j}} $ value, while the vertical axis shows the number of events per bin. The lower panel in each plot shows the pulls for each bin, defined as $ (N_{\text{data}} - N_{\text{fit}})/\sqrt{\smash[b]{N_{\text{data}} - \sigma_{\text{fit}}^2}} $, where $ N_{\text{data}} $ denotes the number of observed events, $ N_{\text{fit}} $ the expected number of background events from the fit, and $ \sigma_{\text{fit}} $ the uncertainty in $ N_{\text{fit}} $. |
png pdf |

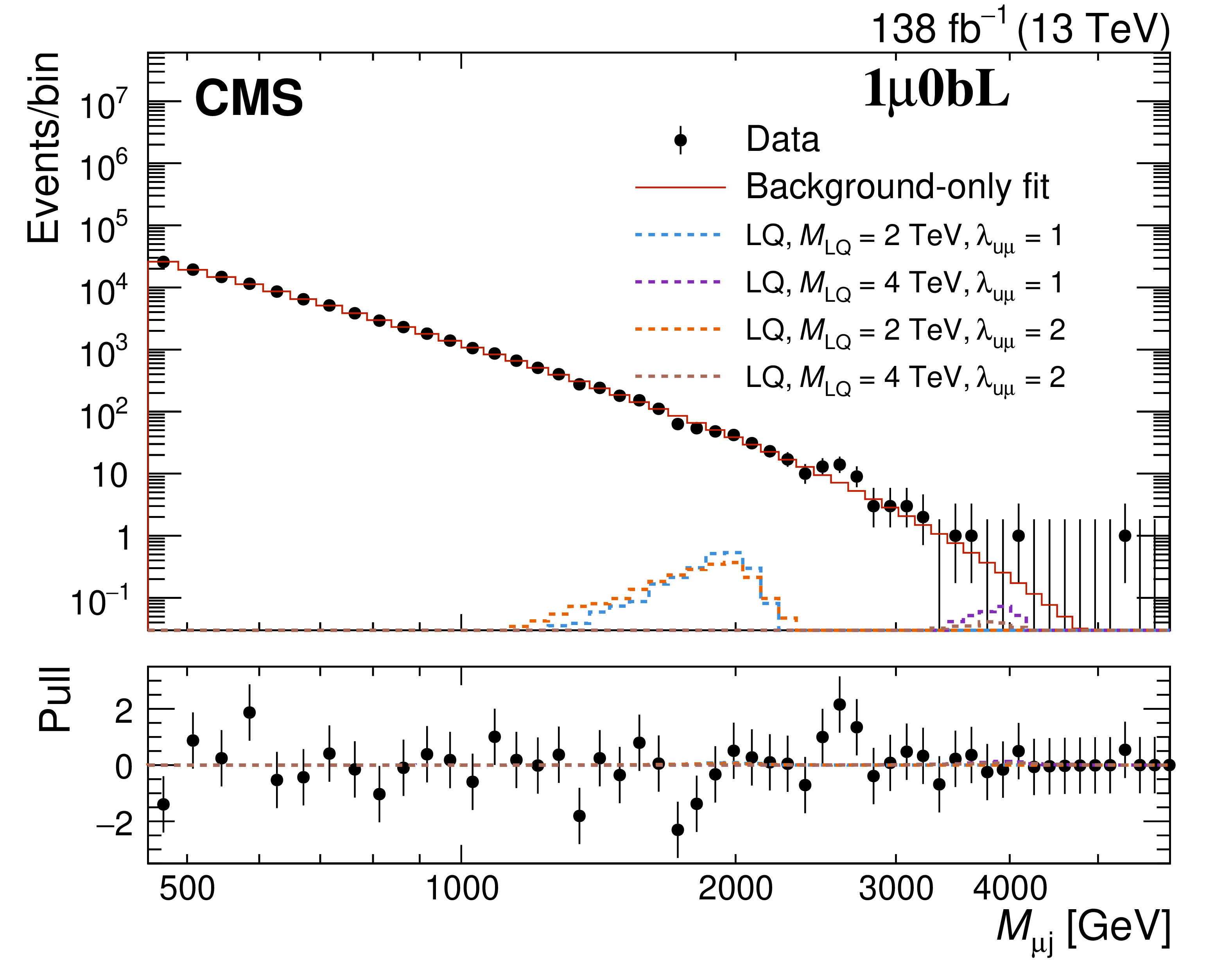

Figure 3-a:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the one-muon SR: 1$ \mu $0bL (upper left), 1$ \mu $1bL (upper right), 1$ \mu $0bT (lower left), 1$ \mu $1bT (lower right). The upper panel in each frame shows the data distribution and the background component (red line) of the fit obtained using the empirical function. The data are shown as black points, with vertical bars representing the statistical uncertainties computed as Poisson (Garwood) 68% confidence intervals; in bins with no observed events only the upward interval is shown. The light blue (violet) line represents a signal hypothesis with $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 1, while the orange (brown) line represents $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 2. All signals are normalized to the expected upper limit cross section. The horizontal axis shows the $ M_{\mu\mathrm{j}} $ value, while the vertical axis shows the number of events per bin. The lower panel in each plot shows the pulls for each bin, defined as $ (N_{\text{data}} - N_{\text{fit}})/\sqrt{\smash[b]{N_{\text{data}} - \sigma_{\text{fit}}^2}} $, where $ N_{\text{data}} $ denotes the number of observed events, $ N_{\text{fit}} $ the expected number of background events from the fit, and $ \sigma_{\text{fit}} $ the uncertainty in $ N_{\text{fit}} $. |
png pdf |

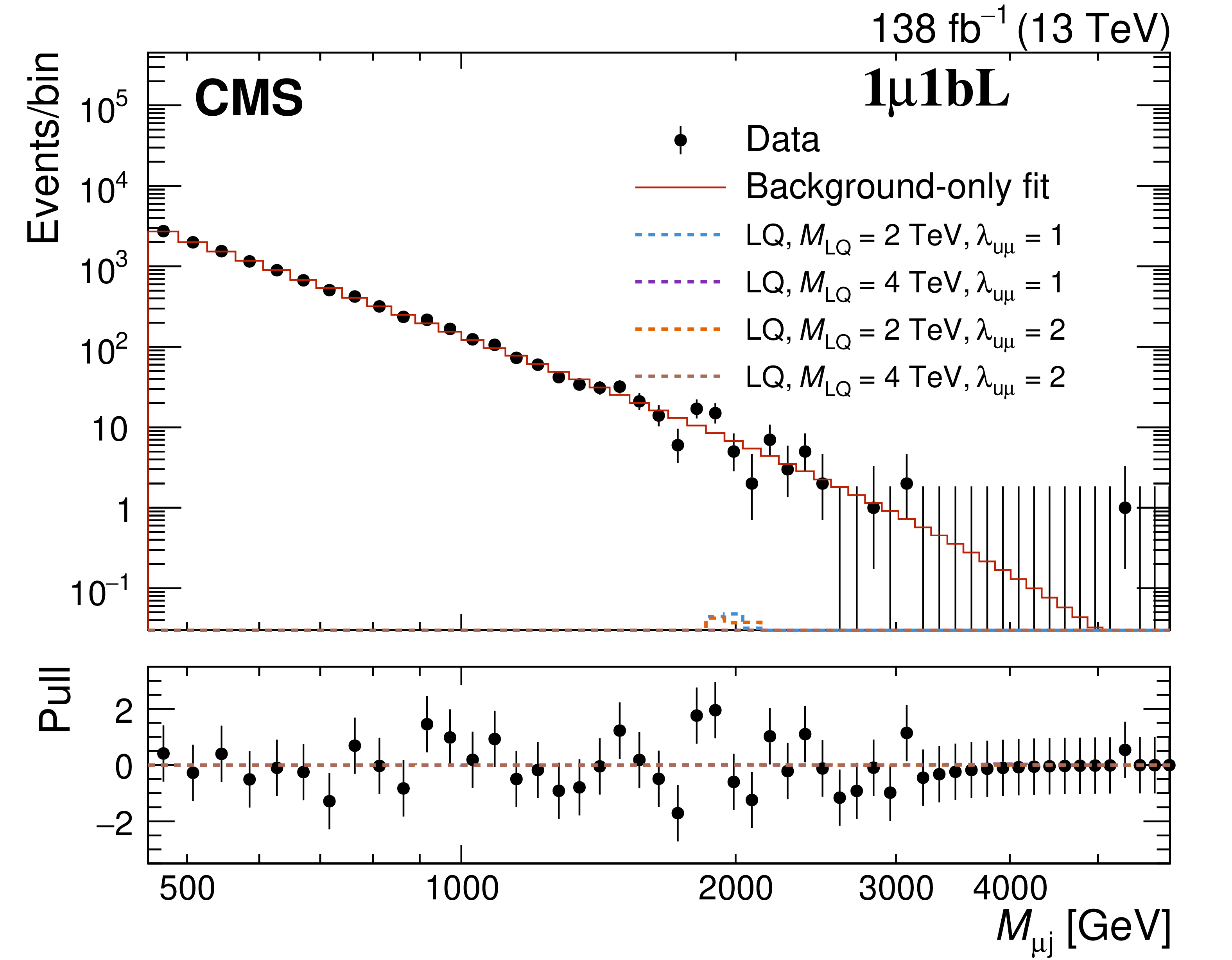

Figure 3-b:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the one-muon SR: 1$ \mu $0bL (upper left), 1$ \mu $1bL (upper right), 1$ \mu $0bT (lower left), 1$ \mu $1bT (lower right). The upper panel in each frame shows the data distribution and the background component (red line) of the fit obtained using the empirical function. The data are shown as black points, with vertical bars representing the statistical uncertainties computed as Poisson (Garwood) 68% confidence intervals; in bins with no observed events only the upward interval is shown. The light blue (violet) line represents a signal hypothesis with $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 1, while the orange (brown) line represents $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 2. All signals are normalized to the expected upper limit cross section. The horizontal axis shows the $ M_{\mu\mathrm{j}} $ value, while the vertical axis shows the number of events per bin. The lower panel in each plot shows the pulls for each bin, defined as $ (N_{\text{data}} - N_{\text{fit}})/\sqrt{\smash[b]{N_{\text{data}} - \sigma_{\text{fit}}^2}} $, where $ N_{\text{data}} $ denotes the number of observed events, $ N_{\text{fit}} $ the expected number of background events from the fit, and $ \sigma_{\text{fit}} $ the uncertainty in $ N_{\text{fit}} $. |
png pdf |

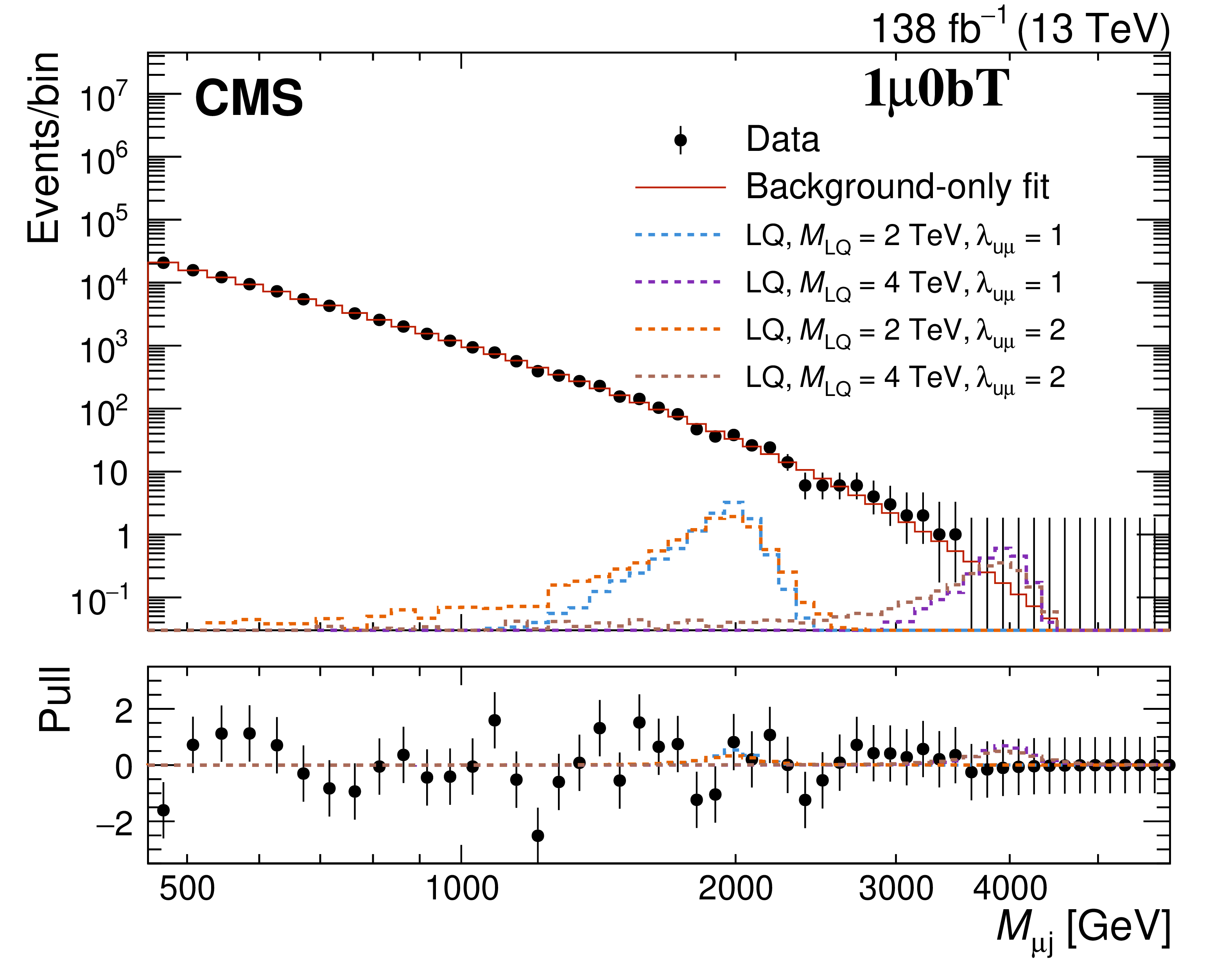

Figure 3-c:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the one-muon SR: 1$ \mu $0bL (upper left), 1$ \mu $1bL (upper right), 1$ \mu $0bT (lower left), 1$ \mu $1bT (lower right). The upper panel in each frame shows the data distribution and the background component (red line) of the fit obtained using the empirical function. The data are shown as black points, with vertical bars representing the statistical uncertainties computed as Poisson (Garwood) 68% confidence intervals; in bins with no observed events only the upward interval is shown. The light blue (violet) line represents a signal hypothesis with $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 1, while the orange (brown) line represents $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 2. All signals are normalized to the expected upper limit cross section. The horizontal axis shows the $ M_{\mu\mathrm{j}} $ value, while the vertical axis shows the number of events per bin. The lower panel in each plot shows the pulls for each bin, defined as $ (N_{\text{data}} - N_{\text{fit}})/\sqrt{\smash[b]{N_{\text{data}} - \sigma_{\text{fit}}^2}} $, where $ N_{\text{data}} $ denotes the number of observed events, $ N_{\text{fit}} $ the expected number of background events from the fit, and $ \sigma_{\text{fit}} $ the uncertainty in $ N_{\text{fit}} $. |
png pdf |

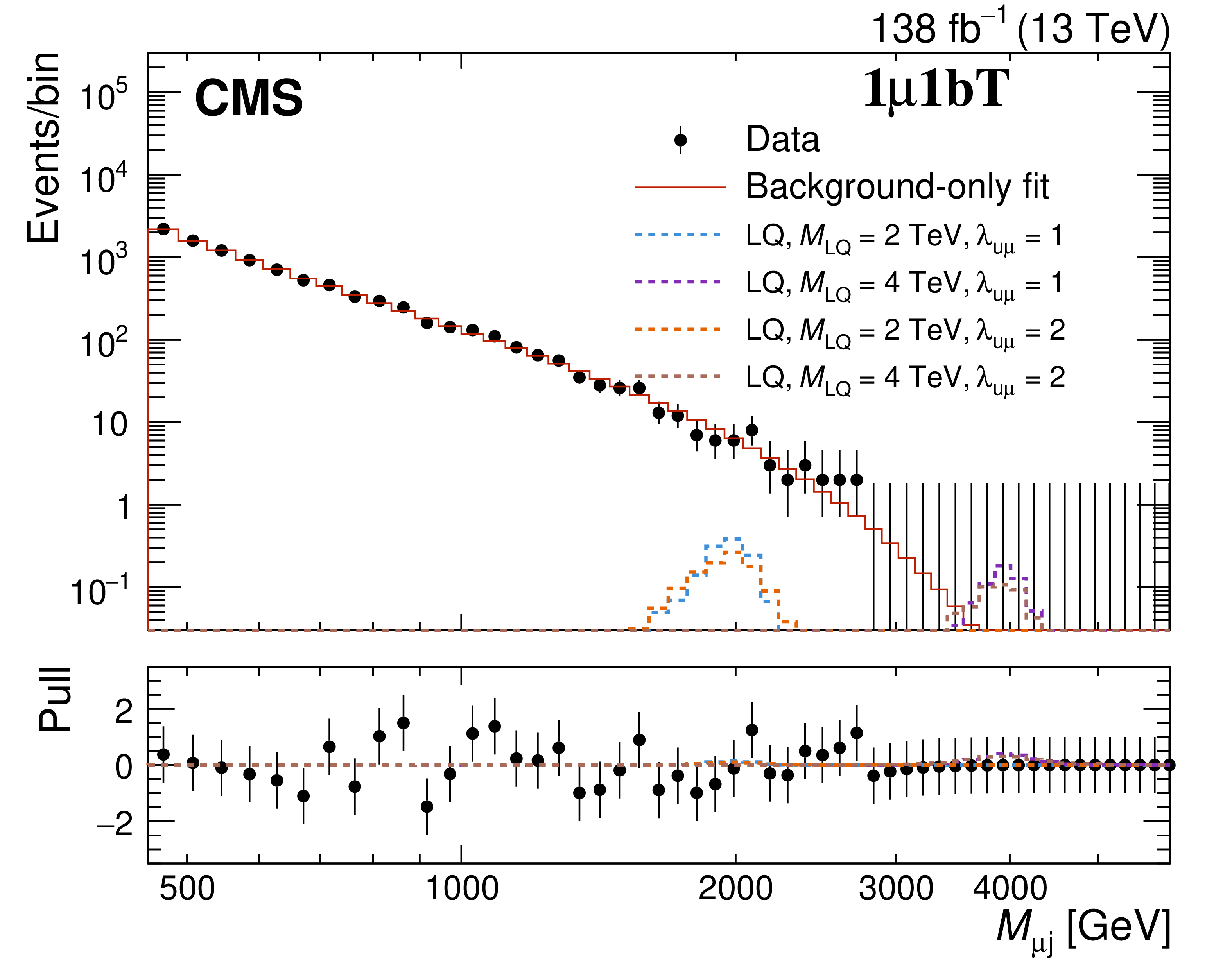

Figure 3-d:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the one-muon SR: 1$ \mu $0bL (upper left), 1$ \mu $1bL (upper right), 1$ \mu $0bT (lower left), 1$ \mu $1bT (lower right). The upper panel in each frame shows the data distribution and the background component (red line) of the fit obtained using the empirical function. The data are shown as black points, with vertical bars representing the statistical uncertainties computed as Poisson (Garwood) 68% confidence intervals; in bins with no observed events only the upward interval is shown. The light blue (violet) line represents a signal hypothesis with $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 1, while the orange (brown) line represents $ M_{\text{LQ}} = $ 2 (4) TeV and $ \lambda_{\mathrm{u}\mu} = $ 2. All signals are normalized to the expected upper limit cross section. The horizontal axis shows the $ M_{\mu\mathrm{j}} $ value, while the vertical axis shows the number of events per bin. The lower panel in each plot shows the pulls for each bin, defined as $ (N_{\text{data}} - N_{\text{fit}})/\sqrt{\smash[b]{N_{\text{data}} - \sigma_{\text{fit}}^2}} $, where $ N_{\text{data}} $ denotes the number of observed events, $ N_{\text{fit}} $ the expected number of background events from the fit, and $ \sigma_{\text{fit}} $ the uncertainty in $ N_{\text{fit}} $. |
png pdf |

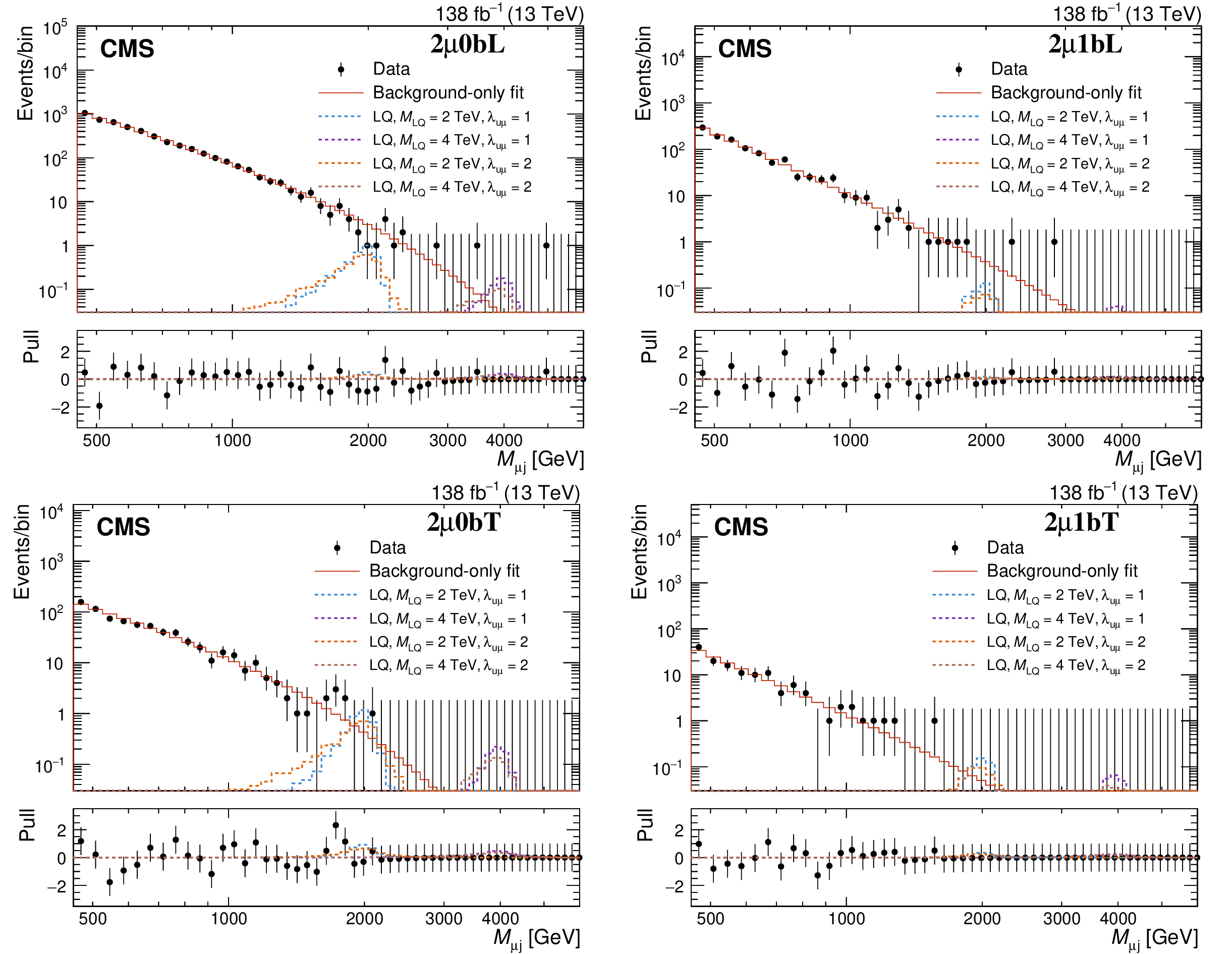

Figure 4:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the two-muon SR: 2$ \mu $0bL (upper left), 2$ \mu $1bL (upper right), 2$ \mu $0bT (lower left), 2$ \mu $1bT (lower right). The notations are as in Fig. 3. |
png pdf |

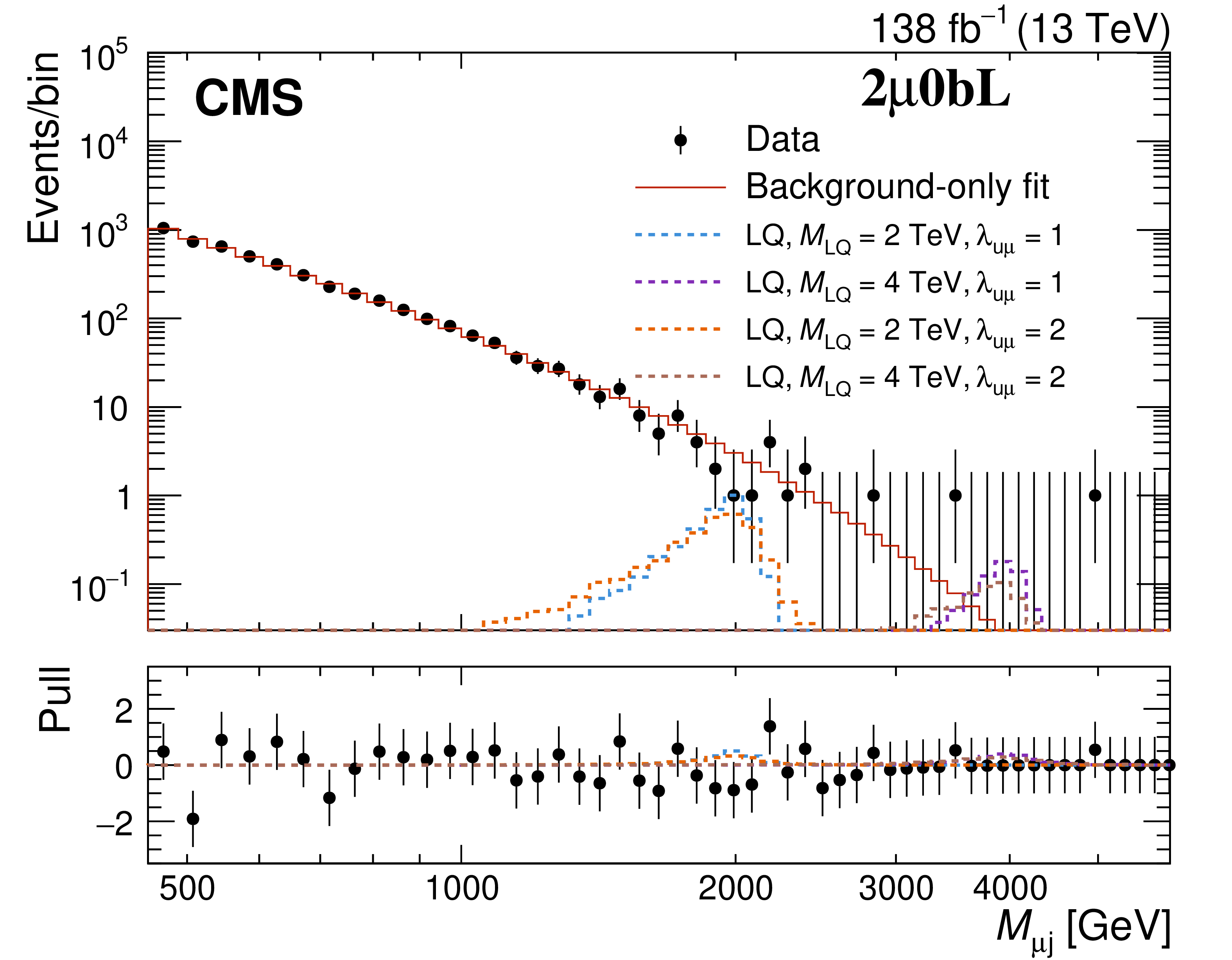

Figure 4-a:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the two-muon SR: 2$ \mu $0bL (upper left), 2$ \mu $1bL (upper right), 2$ \mu $0bT (lower left), 2$ \mu $1bT (lower right). The notations are as in Fig. 3. |
png pdf |

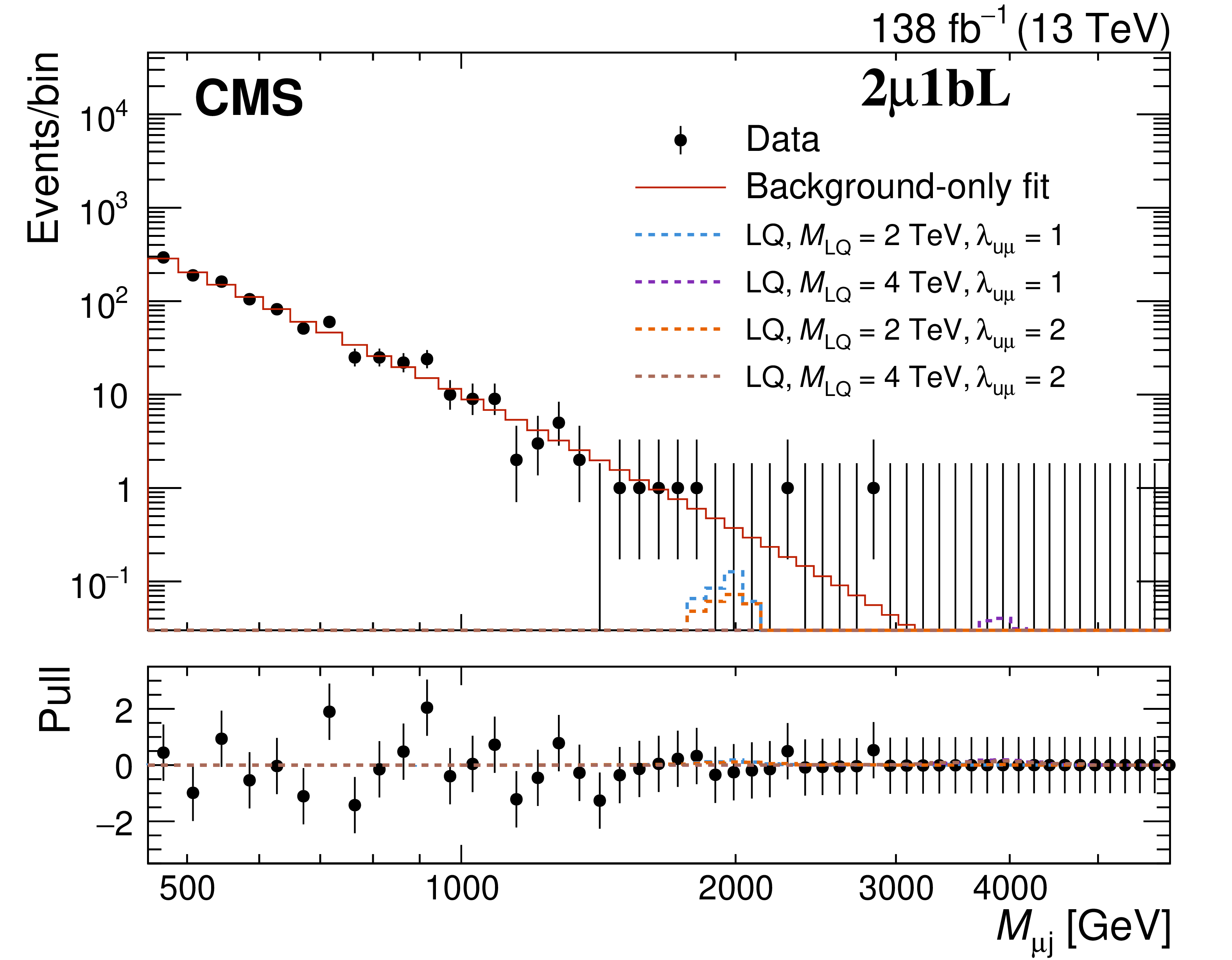

Figure 4-b:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the two-muon SR: 2$ \mu $0bL (upper left), 2$ \mu $1bL (upper right), 2$ \mu $0bT (lower left), 2$ \mu $1bT (lower right). The notations are as in Fig. 3. |
png pdf |

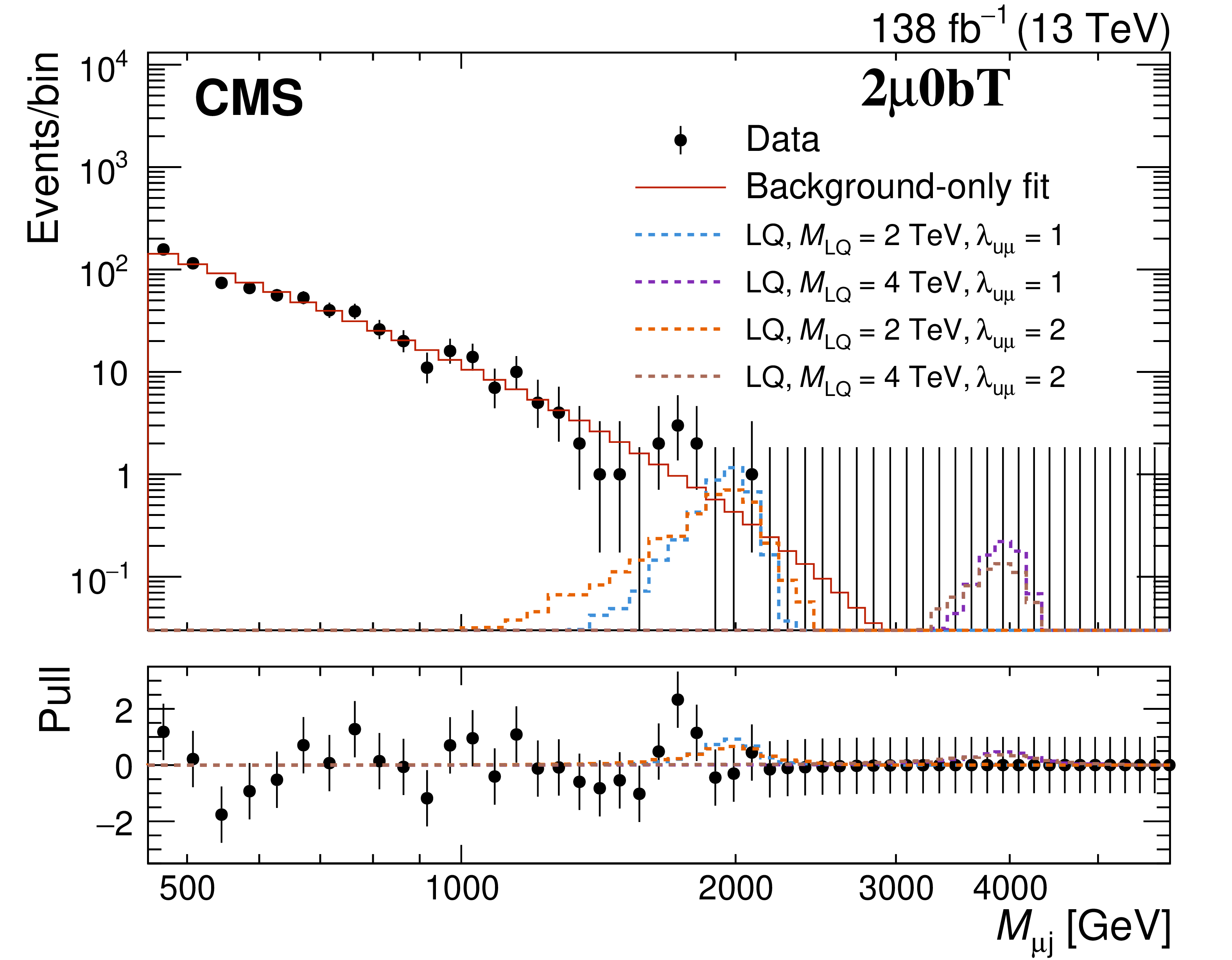

Figure 4-c:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the two-muon SR: 2$ \mu $0bL (upper left), 2$ \mu $1bL (upper right), 2$ \mu $0bT (lower left), 2$ \mu $1bT (lower right). The notations are as in Fig. 3. |
png pdf |

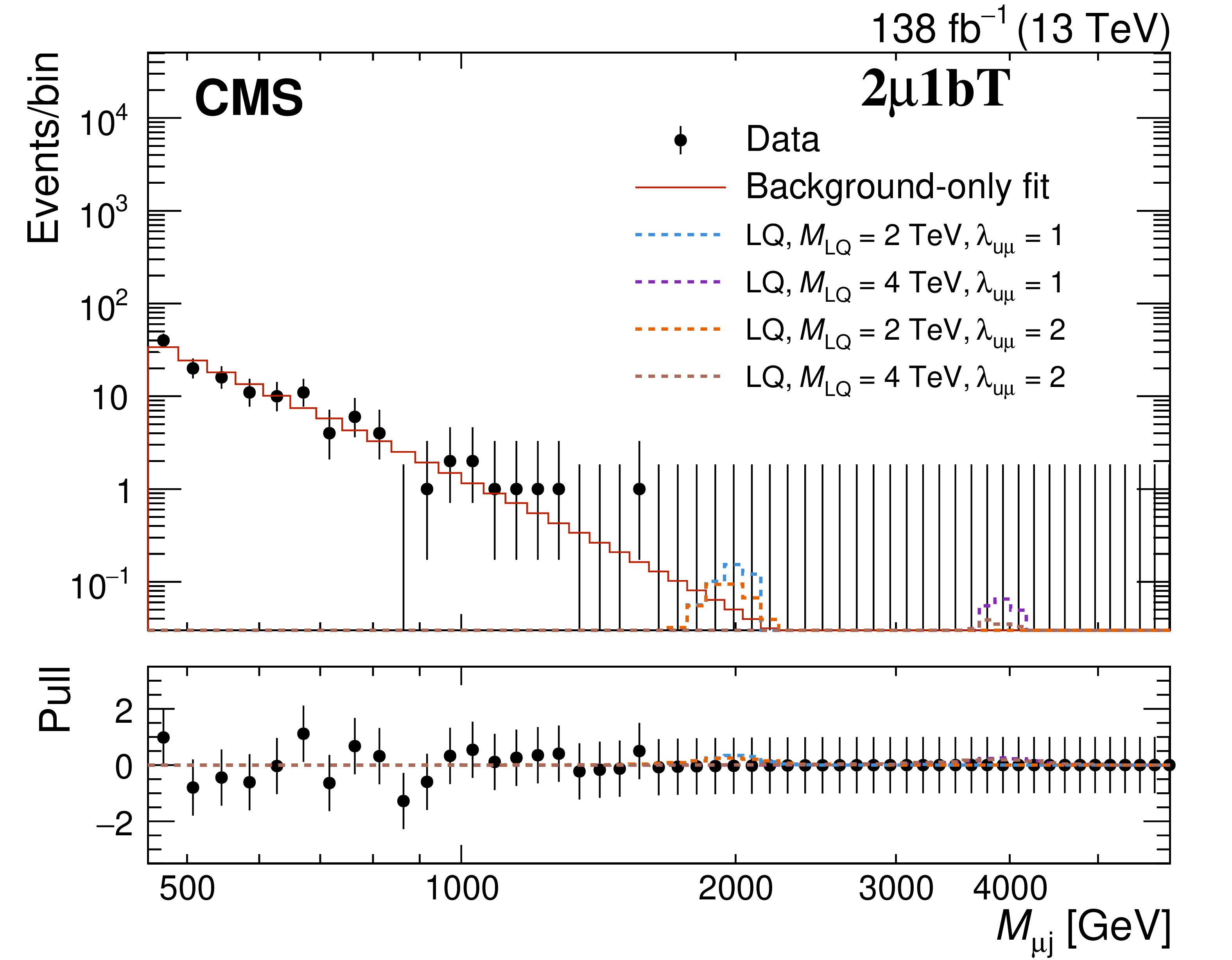

Figure 4-d:
Empirical background function fits to the $ M_{\mu\mathrm{j}} $ invariant mass distributions for all analysis categories within the two-muon SR: 2$ \mu $0bL (upper left), 2$ \mu $1bL (upper right), 2$ \mu $0bT (lower left), 2$ \mu $1bT (lower right). The notations are as in Fig. 3. |
png pdf |

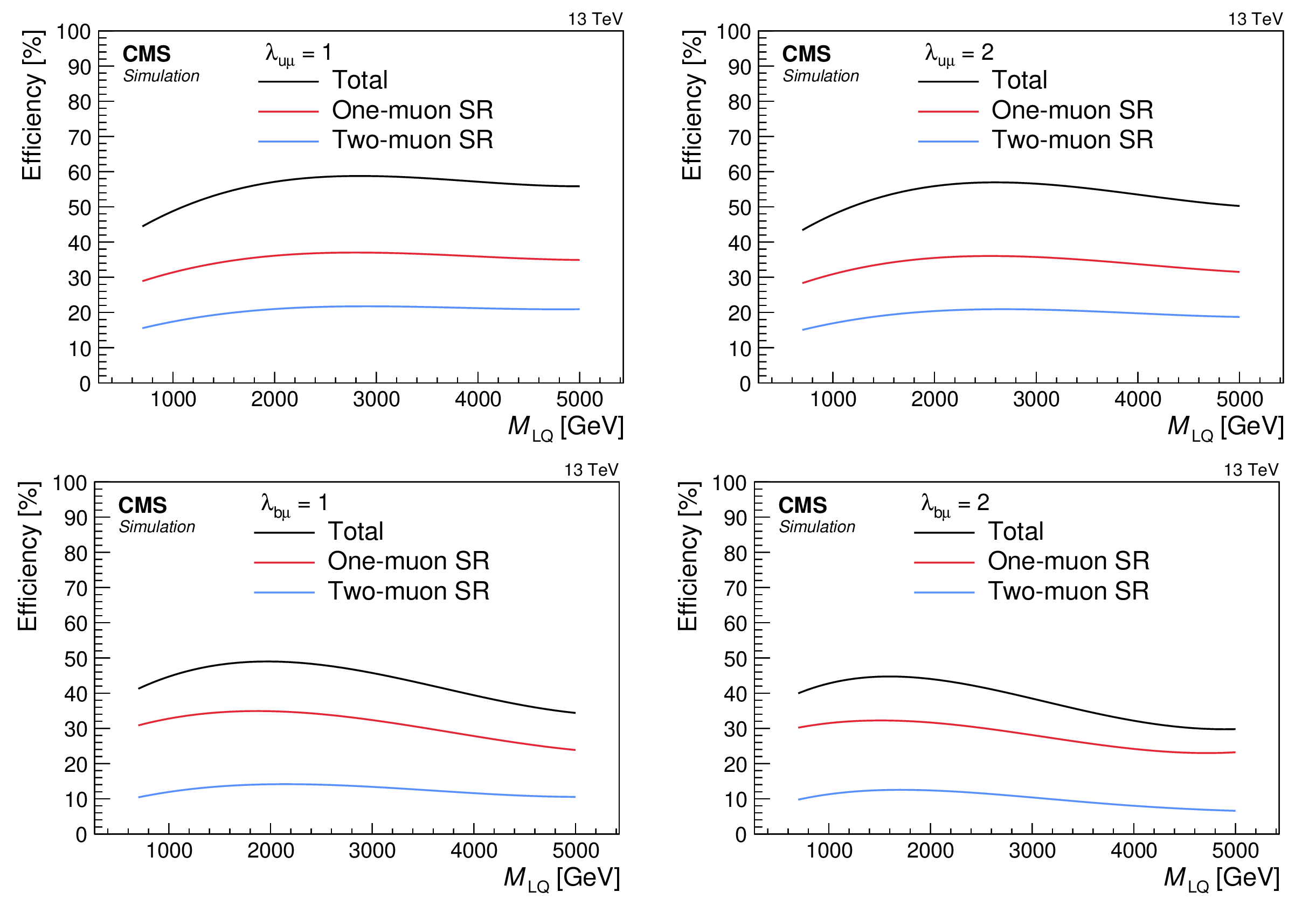

Figure 5:
Signal efficiency as a function of $ M_{\text{LQ}} $ for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). The black curves are the total efficiency, defined as the sum of the efficiencies of the two SRs. The red and blue curves are the efficiency for the one- and two-muon SRs, respectively. |
png pdf |

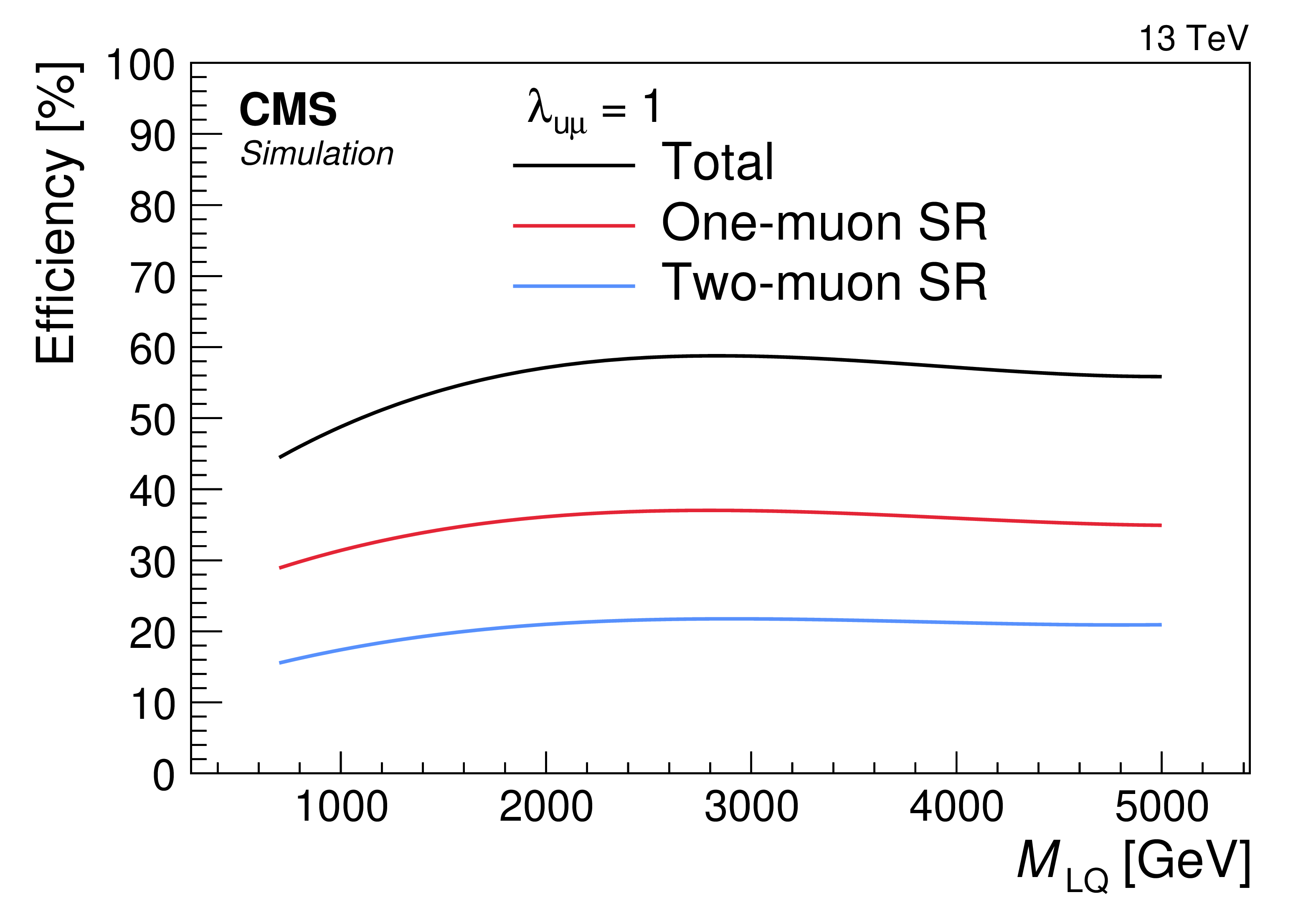

Figure 5-a:
Signal efficiency as a function of $ M_{\text{LQ}} $ for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). The black curves are the total efficiency, defined as the sum of the efficiencies of the two SRs. The red and blue curves are the efficiency for the one- and two-muon SRs, respectively. |
png pdf |

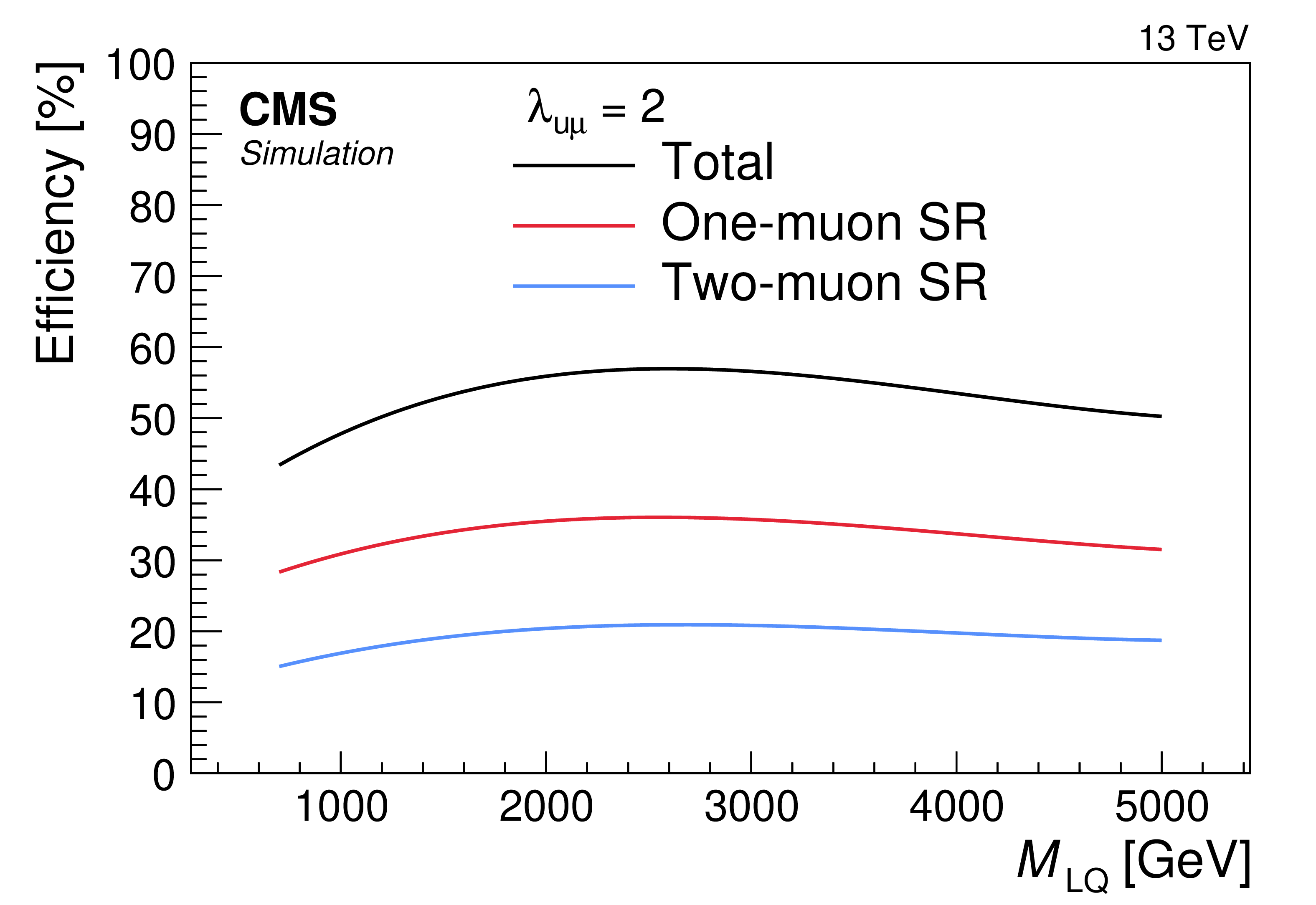

Figure 5-b:
Signal efficiency as a function of $ M_{\text{LQ}} $ for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). The black curves are the total efficiency, defined as the sum of the efficiencies of the two SRs. The red and blue curves are the efficiency for the one- and two-muon SRs, respectively. |
png pdf |
Figure 5-c:
Signal efficiency as a function of $ M_{\text{LQ}} $ for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). The black curves are the total efficiency, defined as the sum of the efficiencies of the two SRs. The red and blue curves are the efficiency for the one- and two-muon SRs, respectively. |
png pdf |

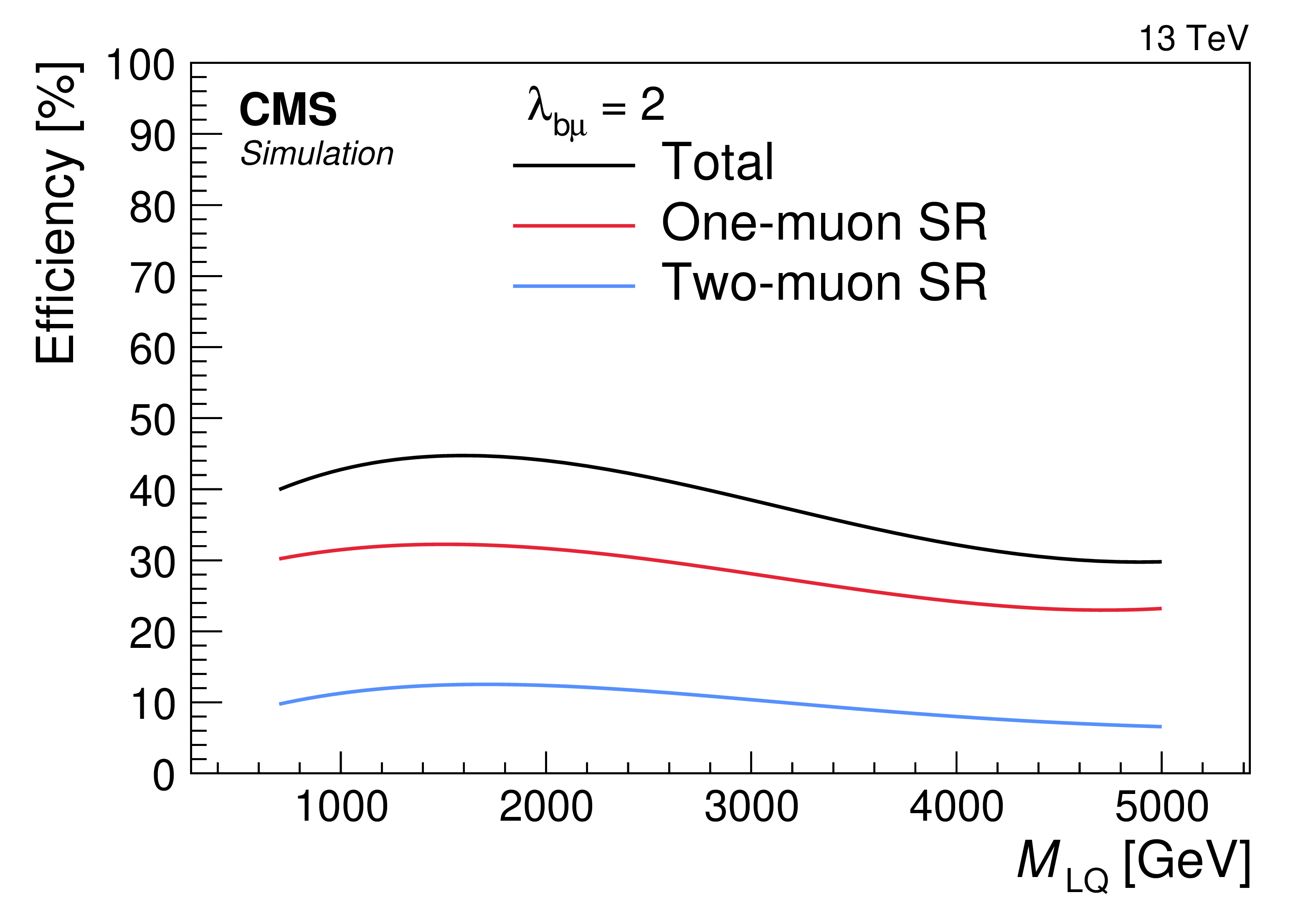

Figure 5-d:
Signal efficiency as a function of $ M_{\text{LQ}} $ for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). The black curves are the total efficiency, defined as the sum of the efficiencies of the two SRs. The red and blue curves are the efficiency for the one- and two-muon SRs, respectively. |
png pdf |

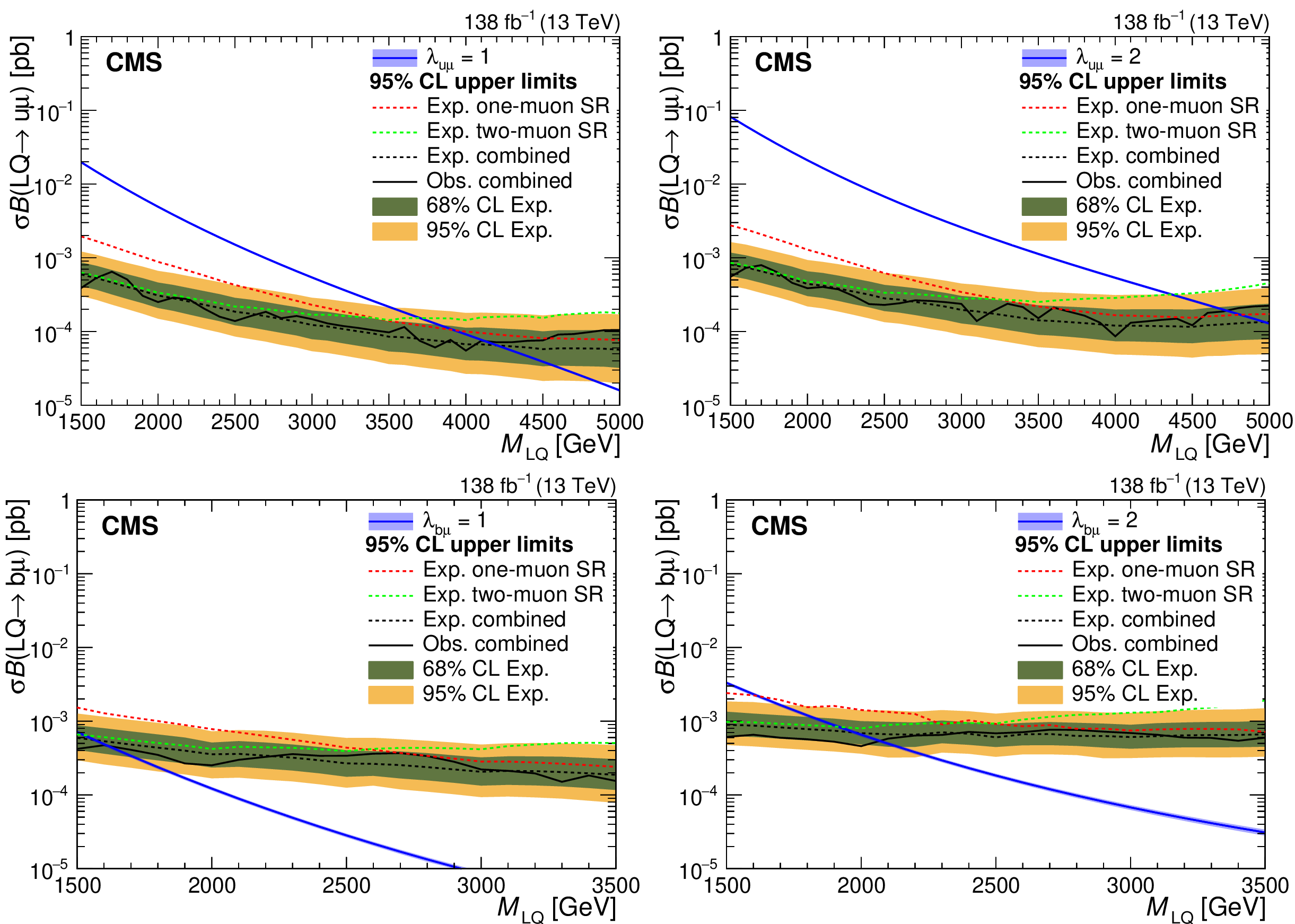

Figure 6:
Expected (dashed black line) and observed (solid black line) 95% CL upper limits on $ \sigma\mathcal{B} $, as a function of $ M_{\text{LQ}} $, for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). Uncertainty bands (68% and 95% CL) around the expected limits, as well as the expected limits for the one-muon (red dashed line) and two-muon (green dashed line) SRs, are also shown. The blue lines show the NLO predictions, with the bands around them representing the scale and PDF uncertainties [21]. |
png pdf |

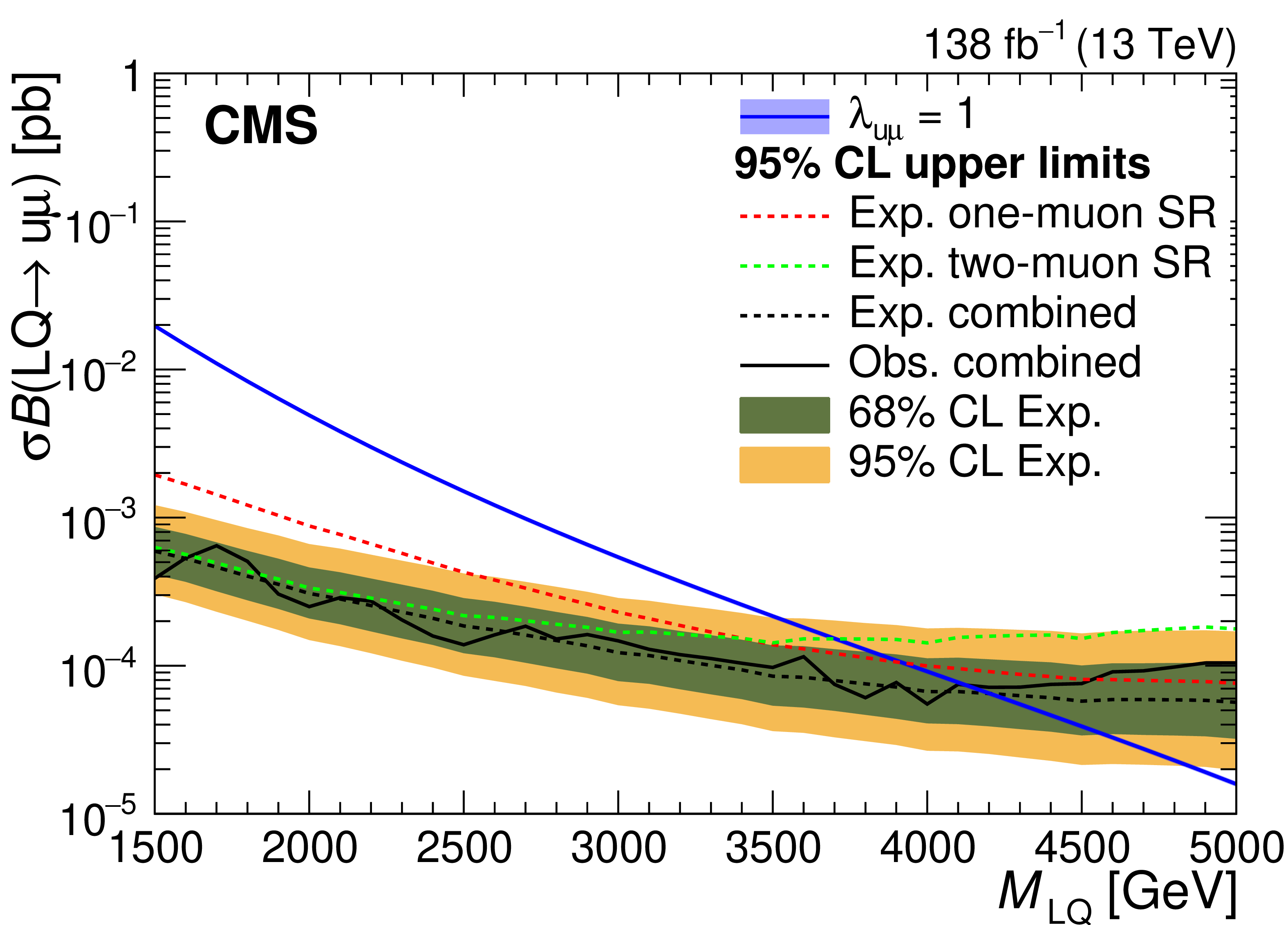

Figure 6-a:
Expected (dashed black line) and observed (solid black line) 95% CL upper limits on $ \sigma\mathcal{B} $, as a function of $ M_{\text{LQ}} $, for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). Uncertainty bands (68% and 95% CL) around the expected limits, as well as the expected limits for the one-muon (red dashed line) and two-muon (green dashed line) SRs, are also shown. The blue lines show the NLO predictions, with the bands around them representing the scale and PDF uncertainties [21]. |
png pdf |

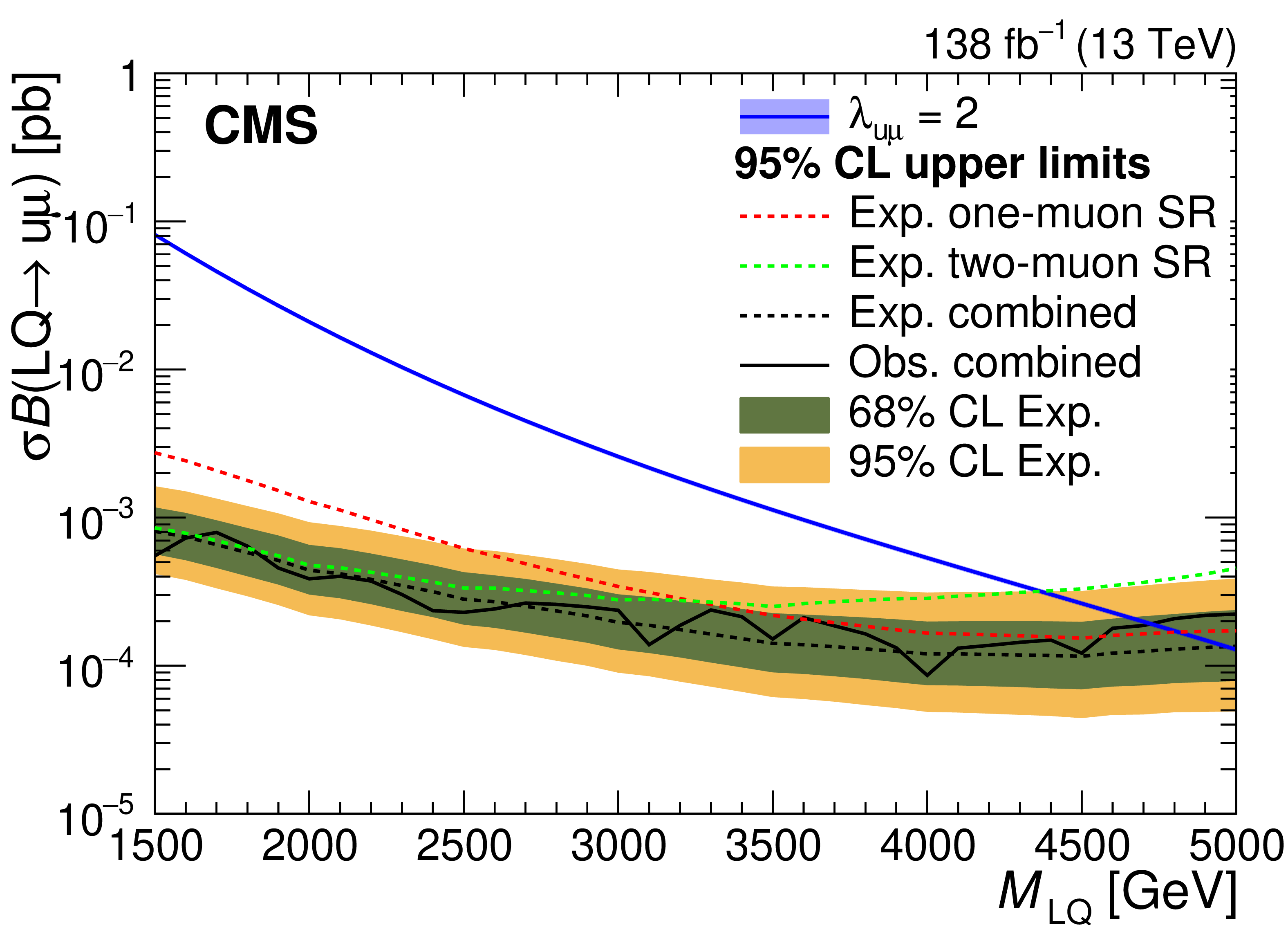

Figure 6-b:
Expected (dashed black line) and observed (solid black line) 95% CL upper limits on $ \sigma\mathcal{B} $, as a function of $ M_{\text{LQ}} $, for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). Uncertainty bands (68% and 95% CL) around the expected limits, as well as the expected limits for the one-muon (red dashed line) and two-muon (green dashed line) SRs, are also shown. The blue lines show the NLO predictions, with the bands around them representing the scale and PDF uncertainties [21]. |
png pdf |

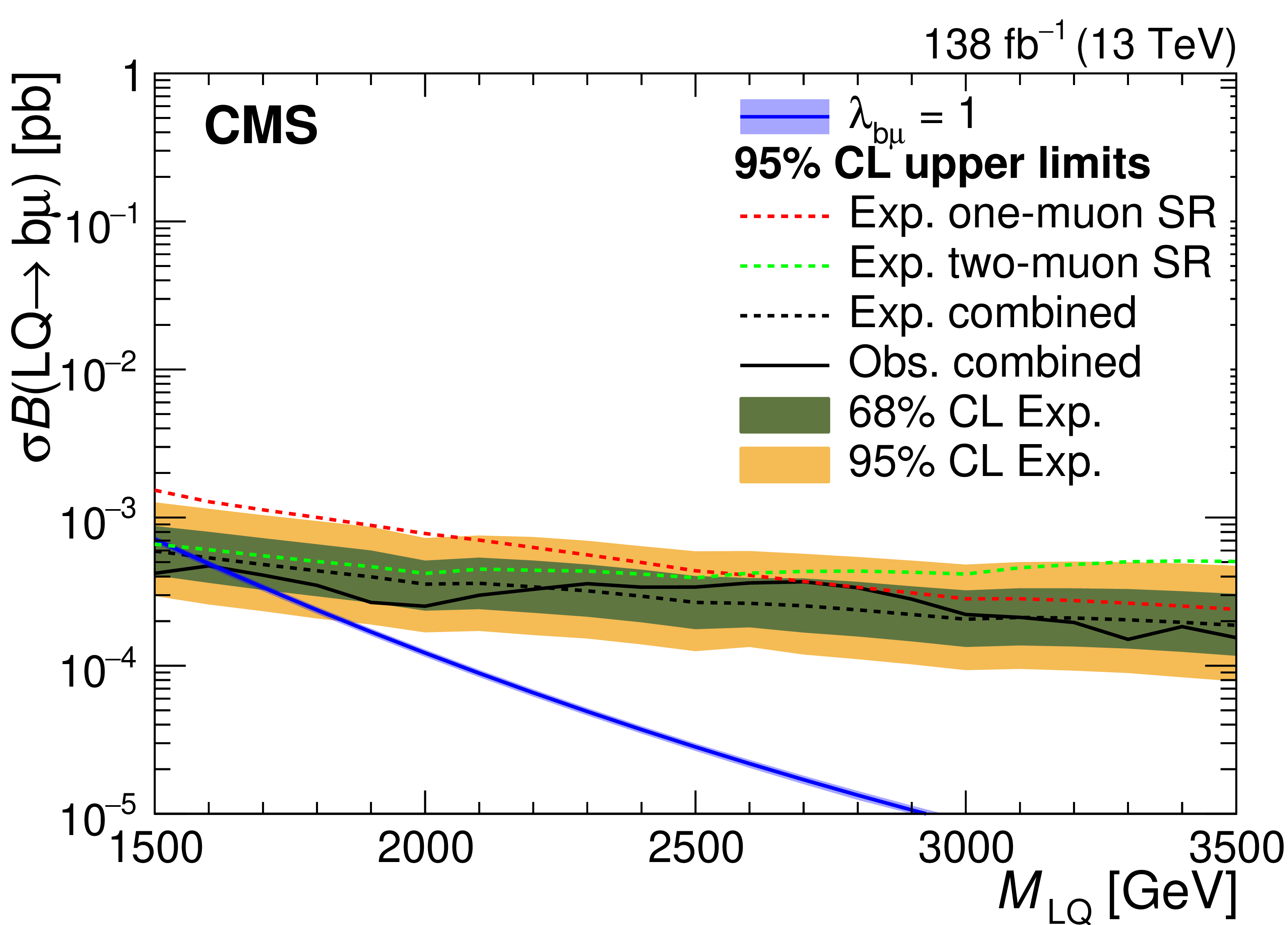

Figure 6-c:
Expected (dashed black line) and observed (solid black line) 95% CL upper limits on $ \sigma\mathcal{B} $, as a function of $ M_{\text{LQ}} $, for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). Uncertainty bands (68% and 95% CL) around the expected limits, as well as the expected limits for the one-muon (red dashed line) and two-muon (green dashed line) SRs, are also shown. The blue lines show the NLO predictions, with the bands around them representing the scale and PDF uncertainties [21]. |
png pdf |

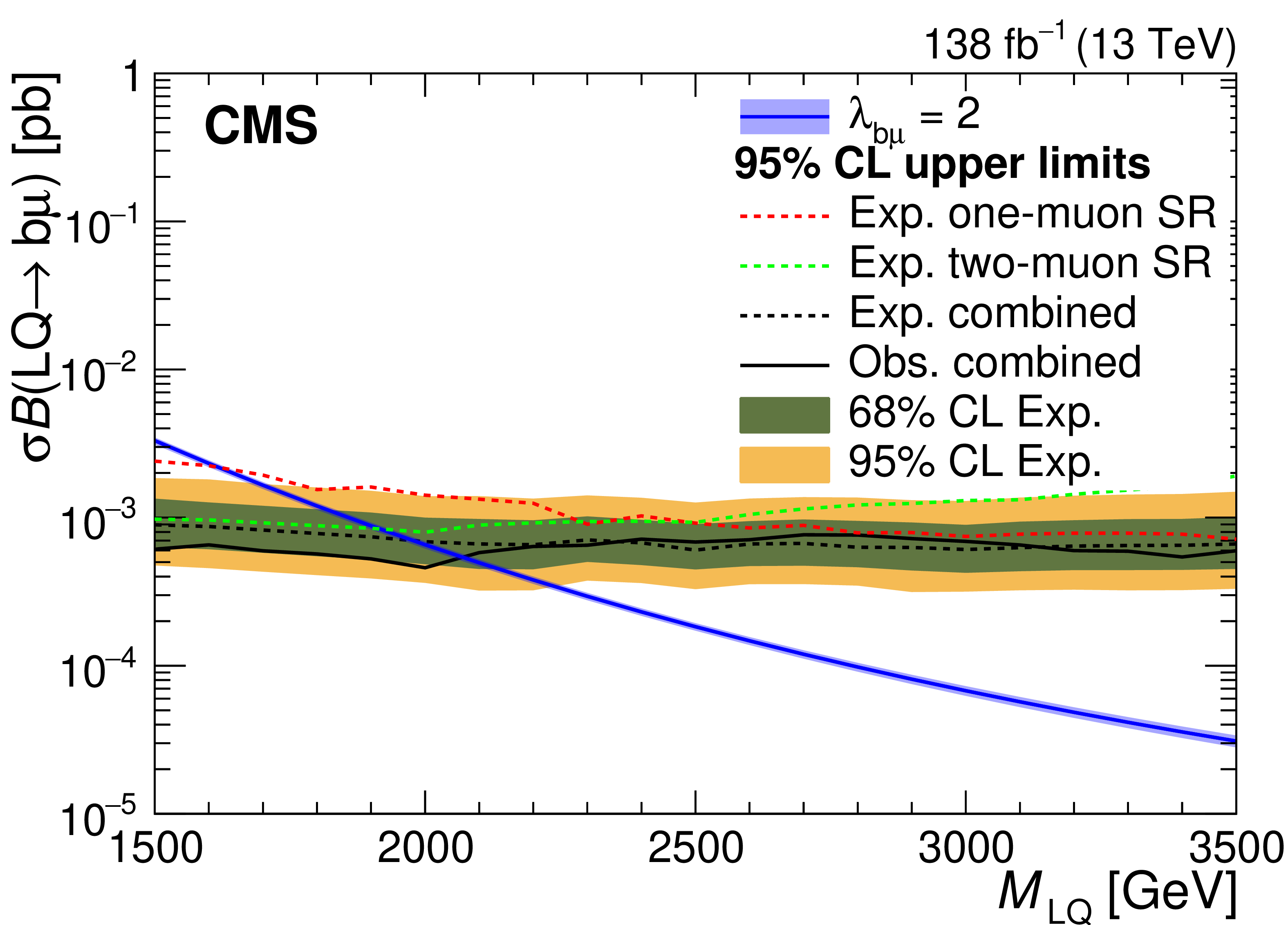

Figure 6-d:
Expected (dashed black line) and observed (solid black line) 95% CL upper limits on $ \sigma\mathcal{B} $, as a function of $ M_{\text{LQ}} $, for $ \lambda_{\mathrm{u}\mu} = $ 1 (upper left), $ \lambda_{\mathrm{u}\mu} = $ 2 (upper right), $ \lambda_{\mathrm{b}\mu} = $ 1 (lower left), and $ \lambda_{\mathrm{b}\mu} = $ 2 (lower right). Uncertainty bands (68% and 95% CL) around the expected limits, as well as the expected limits for the one-muon (red dashed line) and two-muon (green dashed line) SRs, are also shown. The blue lines show the NLO predictions, with the bands around them representing the scale and PDF uncertainties [21]. |
png pdf |

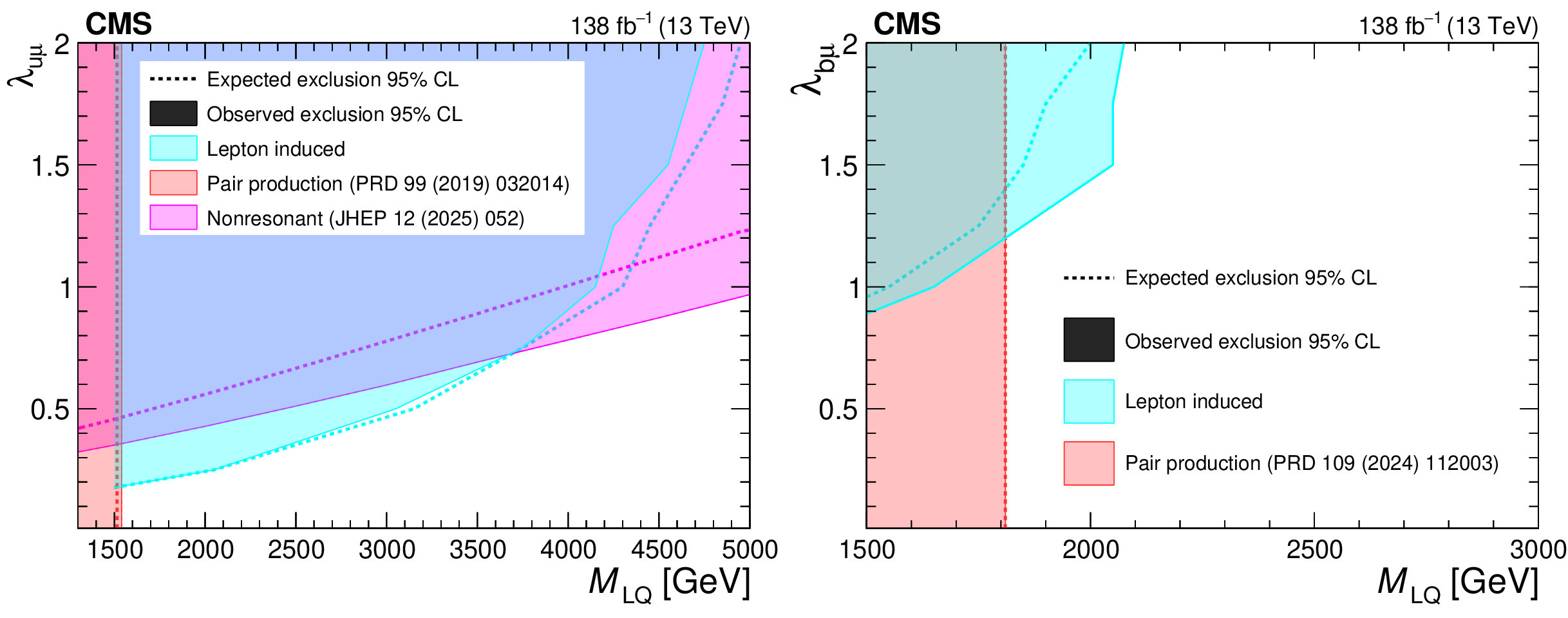

Figure 7:
95% CL exclusion regions in the ($ M_{\text{LQ}} $, $ \lambda $) plane, for the $ \mathrm{LQ}(\mathrm{u}\mu) $ (left) and $ \mathrm{LQ}(\mathrm{b}\mu) $ (right) scenarios. For each production mode, shown in a different color, the dashed contour indicates the expected exclusion and the shaded area the observed one, as illustrated by the black keys in the legend. The cyan area shows the region excluded by the lepton-induced single LQ production considered in this analysis. The red and magenta areas show the regions excluded by previous CMS searches targeting the pair production [23,24] and the nonresonant production [25] modes, respectively. The nonresonant production constraint is available only for the $ \mathrm{LQ}(\mathrm{u}\mu) $ scenario. |
png pdf |

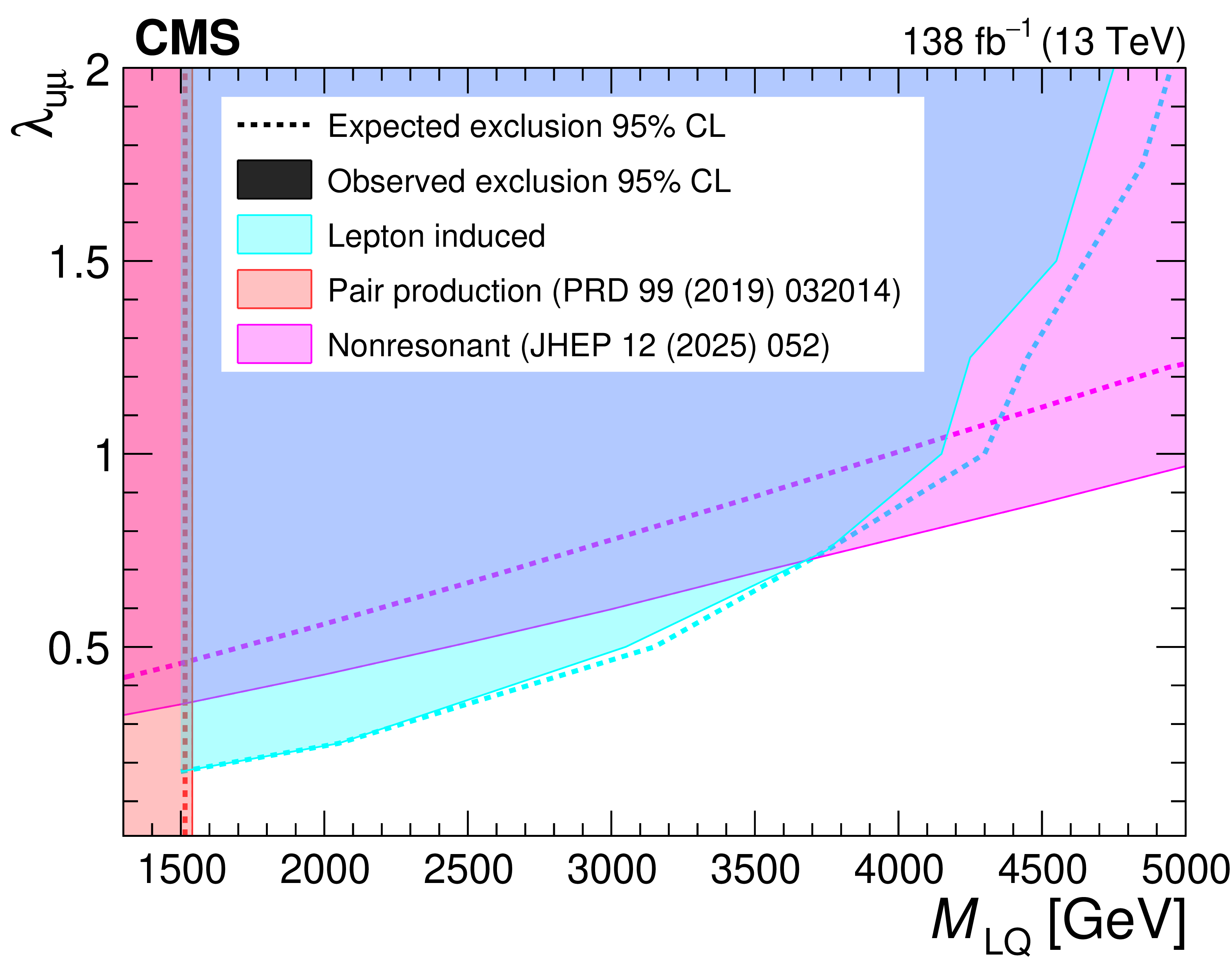

Figure 7-a:
95% CL exclusion regions in the ($ M_{\text{LQ}} $, $ \lambda $) plane, for the $ \mathrm{LQ}(\mathrm{u}\mu) $ (left) and $ \mathrm{LQ}(\mathrm{b}\mu) $ (right) scenarios. For each production mode, shown in a different color, the dashed contour indicates the expected exclusion and the shaded area the observed one, as illustrated by the black keys in the legend. The cyan area shows the region excluded by the lepton-induced single LQ production considered in this analysis. The red and magenta areas show the regions excluded by previous CMS searches targeting the pair production [23,24] and the nonresonant production [25] modes, respectively. The nonresonant production constraint is available only for the $ \mathrm{LQ}(\mathrm{u}\mu) $ scenario. |
png pdf |

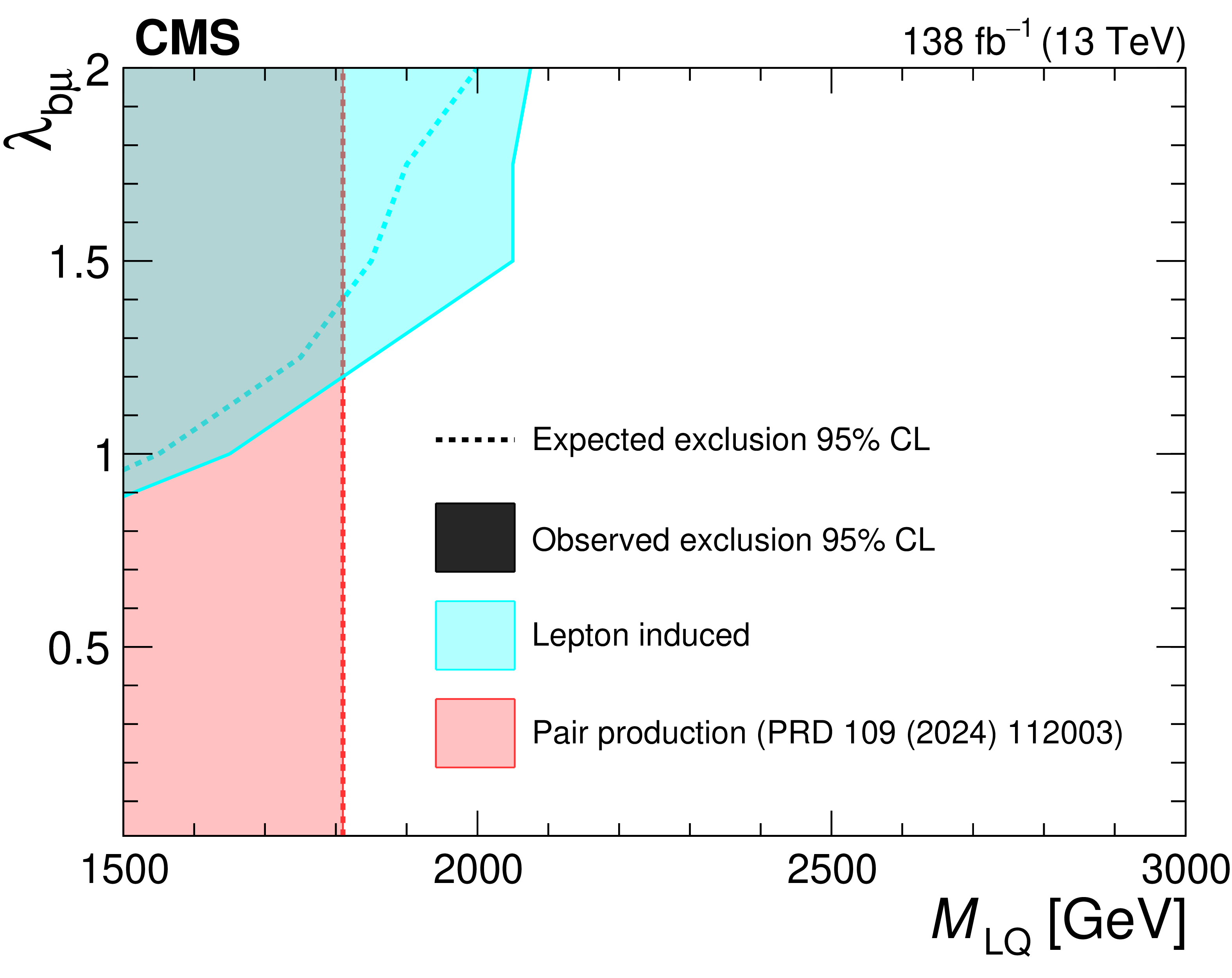

Figure 7-b:
95% CL exclusion regions in the ($ M_{\text{LQ}} $, $ \lambda $) plane, for the $ \mathrm{LQ}(\mathrm{u}\mu) $ (left) and $ \mathrm{LQ}(\mathrm{b}\mu) $ (right) scenarios. For each production mode, shown in a different color, the dashed contour indicates the expected exclusion and the shaded area the observed one, as illustrated by the black keys in the legend. The cyan area shows the region excluded by the lepton-induced single LQ production considered in this analysis. The red and magenta areas show the regions excluded by previous CMS searches targeting the pair production [23,24] and the nonresonant production [25] modes, respectively. The nonresonant production constraint is available only for the $ \mathrm{LQ}(\mathrm{u}\mu) $ scenario. |
| Tables | |
png pdf |

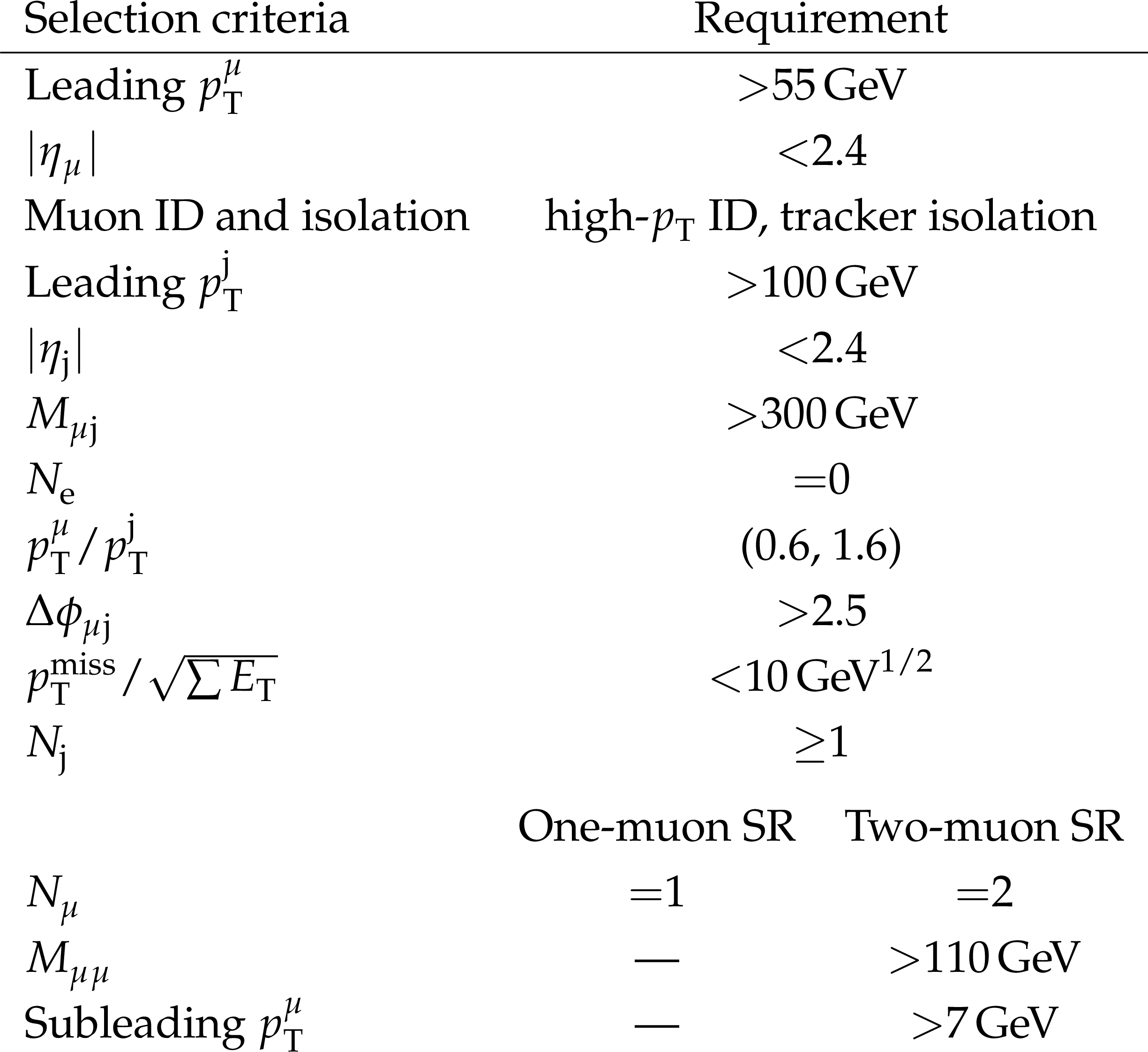

Table 1:
Preselections for the one- and two-muon SRs. |
png pdf |

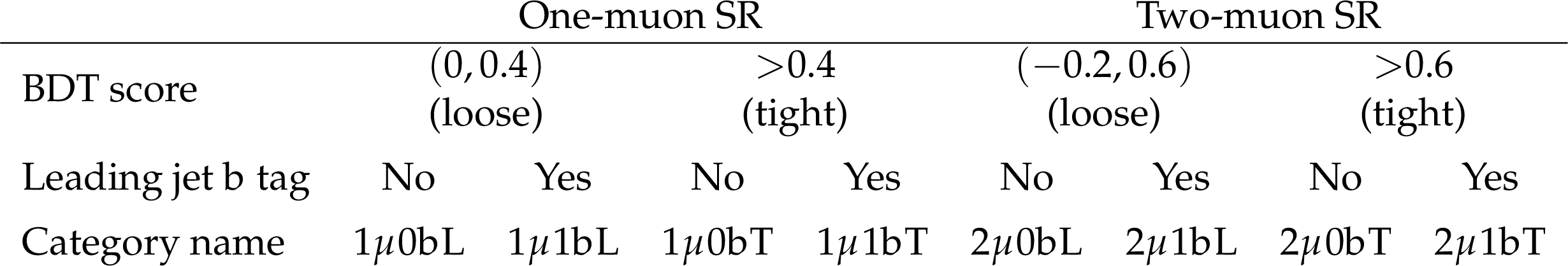

Table 2:
Final category selection for the SRs. The preselection requirements of Table \reftab:Signal Region are applied in all categories. |
| Summary |
| A search for scalar leptoquarks (LQs) coupled to muons, using proton-proton collision data at $ \sqrt{s} = $ 13 TeV collected by the CMS experiment at the LHC and corresponding to an integrated luminosity of 138 fb$ ^{-1} $, has been presented. The final state includes one or two muons ($ \mu $) and a jet that can come from the hadronization of either a light quark (u) or a b quark. The analysis extends the search for LQs coupled to muons by exploiting a new production mechanism that leverages the charged-lepton content of protons arising from quantum fluctuations. This mechanism enables the study of lepton-induced processes and resonant single LQ production and decay at the LHC. The data are found to be in agreement with the background predictions. Upper limits on the product of the LQ production cross section and branching fraction to the muon-quark final state are derived. These limits exclude LQs with masses between 1.5 and 3.6 TeV, and couplings between 0.2 and 0.6 for the $ \mathrm{LQ}(\mathrm{u}\mu) $ scenario; and masses above 1.8 TeV, and couplings above 1 for the $ \mathrm{LQ}(\mathrm{b}\mu) $ scenario. These results extend the mass and coupling ranges probed by previous searches in other production modes. |
| References | ||||
| 1 | J. C. Pati and A. Salam | Lepton number as the fourth color | PRD 10 (1974) 275 | |
| 2 | H. Georgi and S. L. Glashow | Unity of all elementary-particle forces | PRL 32 (1974) 438 | |
| 3 | H. Fritzsch and P. Minkowski | Unified interactions of leptons and hadrons | Ann. Phys. 93 (1975) 193 | |
| 4 | J. C. Pati and A. Salam | Lepton-hadron symmetry and a gauge theory of the basic interactions | PRD 8 (1973) 1240 | |
| 5 | G. Senjanovic and A. Sokorac | Light leptoquarks in SO(10) | Z. Phys. C 20 (1983) 255 | |
| 6 | P. H. Frampton and B.-H. Lee | SU(15) grand unification | PRL 64 (1990) 619 | |
| 7 | P. H. Frampton and T. W. Kephart | Higgs sector and proton decay in SU(15) grand unification | PRD 42 (1990) 3892 | |
| 8 | H. Murayama and T. Yanagida | A viable SU(5) GUT with light leptoquark bosons | Mod. Phys. Lett. A 7 (1992) 147 | |
| 9 | B. Schrempp and F. Schrempp | Light leptoquarks | PLB 153 (1985) 101 | |
| 10 | S. Dimopoulos and L. Susskind | Mass generation by non-strong interactions | NPB 191 (1981) 370 | |
| 11 | S. Dimopoulos | Technicoloured signatures | NPB 168 (1980) 69 | |
| 12 | J. L. Hewett and T. G. Rizzo | Low-energy phenomenology of superstring-inspired E6 models | Phys. Rept. 183 (1989) 193 | |
| 13 | G. R. Farrar and P. Fayet | Phenomenology of the production, decay, and detection of new hadronic states associated with supersymmetry | PLB 76 (1978) 575 | |
| 14 | H. P. Nilles | Supersymmetry, supergravity and particle physics | Phys. Rept. 110 (1984) 1 | |
| 15 | R. Barbier et al. | R-parity-violating supersymmetry | Phys. Rept. 420 (2005) 1 | hep-ph/0406039 |
| 16 | H. M. Lee | Leptoquark option for $ {\mathrm{B}} $-meson anomalies and leptonic signatures | PRD 104 (2021) 015007 | 2104.02982 |
| 17 | I. Dor \v s ner et al. | Physics of leptoquarks in precision experiments and at particle colliders | Phys. Rept. 641 (2016) 1 | 1603.04993 |
| 18 | M. Bauer and M. Neubert | Minimal leptoquark explanation for the $ R_{\mathrm{D}^{*}} $, $ R_{\mathrm{K}} $, and $ (g-2)_{\mu} $ anomalies | PRL 116 (2016) 141802 | 1511.01900 |
| 19 | M. Du, J. Liang, Z. Liu, and V. Q. Tran | A vector leptoquark interpretation of the muon $ g- $ 2 and $ {\mathrm{B}} $ anomalies | 2104.05685 | |
| 20 | L. Buonocore et al. | Lepton-quark collisions at the Large Hadron Collider | PRL 125 (2020) 231804 | 2005.06475 |
| 21 | A. Greljo and N. Selimovi \'c | Lepton-quark fusion at hadron colliders, precisely | JHEP 03 (2021) 279 | 2012.02092 |
| 22 | L. Buonocore et al. | Resonant leptoquark at NLO with POWHEG | JHEP 11 (2022) 129 | 2209.02599 |
| 23 | CMS Collaboration | Search for pair production of scalar and vector leptoquarks decaying to muons and bottom quarks in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | PRD 109 (2024) 112003 | CMS-EXO-21-019 2402.08668 |
| 24 | CMS Collaboration | Search for pair production of second-generation leptoquarks at $ \sqrt{s} = $ 13 TeV | PRD 99 (2019) 032014 | CMS-EXO-17-003 1808.05082 |
| 25 | CMS Collaboration | Search for $ t $-channel scalar and vector leptoquark exchange in the high-mass dimuon and dielectron spectra in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 12 (2025) 052 | CMS-EXO-22-013 2503.20023 |
| 26 | CMS Collaboration | Search for scalar leptoquarks produced via $ \tau $-lepton--quark scattering in pp collisions at $ \sqrt{s} = $ 13 TeV | PRL 132 (2024) 061801 | CMS-EXO-22-018 2308.06143 |
| 27 | L. Buonocore, P. Nason, F. Tramontano, and G. Zanderighi | Leptons in the proton | JHEP 08 (2020) 019 | 2005.06477 |
| 28 | A. Manohar, P. Nason, G. P. Salam, and G. Zanderighi | How bright is the proton? A precise determination of the photon parton distribution function | PRL 117 (2016) 242002 | 1607.04266 |
| 29 | A. V. Manohar, P. Nason, G. P. Salam, and G. Zanderighi | The photon content of the proton | JHEP 12 (2017) 046 | 1708.01256 |
| 30 | CMS Collaboration | HEPData record for this analysis | link | |
| 31 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 32 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 33 | CMS Collaboration | Performance of the CMS level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 34 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 35 | CMS Collaboration | Performance of the CMS high-level trigger during LHC Run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 36 | CMS Collaboration | Technical proposal for the Phase-II upgrade of the Compact Muon Solenoid | CMS Technical Proposal CERN-LHCC-2015-010, CMS-TDR-15-02, 2015 CDS |
|
| 37 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 38 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 39 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 40 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 41 | D. Bertolini, P. Harris, M. Low, and N. Tran | Pileup per particle identification | JHEP 10 (2014) 059 | 1407.6013 |
| 42 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 43 | E. Bols et al. | Jet flavour classification using DeepJet | JINST 15 (2020) P12012 | 2008.10519 |
| 44 | CMS Collaboration | Performance of the DeepJet b tagging algorithm using 41.9/fb of data from proton-proton collisions at 13 TeV with Phase 1 CMS detector | CMS Detector Performance Summary CMS-DP-2018-058, 2018 CDS |
|
| 45 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 46 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 47 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 48 | CMS Collaboration | CMS luminosity measurement for the 2017 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2018 link |
CMS-PAS-LUM-17-004 |
| 49 | CMS Collaboration | CMS luminosity measurement for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2019 link |
CMS-PAS-LUM-18-002 |
| 50 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 51 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: the POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 52 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: the POWHEG BOX | JHEP 06 (2010) 043 | 1002.2581 |
| 53 | T. Je \v z o and P. Nason | On the treatment of resonances in next-to-leading-order calculations matched to a parton shower | JHEP 12 (2015) 065 | 1509.09071 |
| 54 | M. B ä hr et al. | Herwig++ physics and manual | EPJC 58 (2008) 639 | 0803.0883 |
| 55 | J. Bellm et al. | Herwig 7.0/Herwig++ 3.0 release note | EPJC 76 (2016) 196 | 1512.01178 |
| 56 | J. Bellm et al. | Herwig 7.2 release note | EPJC 80 (2020) 452 | 1912.06509 |
| 57 | NNPDF Collaboration | Illuminating the photon content of the proton within a global PDF analysis | SciPost Phys. 5 (2018) 008 | 1712.07053 |
| 58 | J. Alwall et al. | The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations | JHEP 07 (2014) 079 | 1405.0301 |
| 59 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 60 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 61 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 62 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 63 | CMS Collaboration | Search for supersymmetry in pp collisions at $ \sqrt{s} = $ 7 TeV in events with a single lepton, jets, and missing transverse momentum | EPJC 73 (2013) 156 | CMS-SUS-10-006 1107.1870 |
| 64 | Y. Freund and R. E. Schapire | A decision-theoretic generalization of on-line learning and an application to boosting | J. Comput. Syst. Sci. 55 (1997) 119 | |
| 65 | H. Voss, A. Höcker, J. Stelzer, and F. Tegenfeldt | TMVA, the toolkit for multivariate data analysis with ROOT | in XIth International Workshop on Advanced Computing and Analysis Techniques in Physics Research (ACAT),.. [PoS(ACAT)040], 2007 link |
physics/0703039 |
| 66 | G. Punzi | Sensitivity of searches for new signals and its optimization | p. MODT002... econf C030908, 2003 | physics/0308063 |
| 67 | CMS Collaboration | Search for high mass dijet resonances with a new background prediction method in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JHEP 05 (2020) 033 | CMS-EXO-19-012 1911.03947 |
| 68 | CMS Collaboration | Search for narrow and broad dijet resonances in proton-proton collisions at $ \sqrt{s}= $ 13 TeV and constraints on dark matter mediators and other new particles | JHEP 08 (2018) 130 | CMS-EXO-16-056 1806.00843 |
| 69 | CMS Collaboration | Search for narrow resonances and quantum black holes in inclusive and b-tagged dijet mass spectra from pp collisions at $ \sqrt{s}= $ 7 TeV | JHEP 01 (2013) 013 | CMS-EXO-11-094 1210.2387 |
| 70 | R. A. Fisher | On the mathematical foundations of theoretical statistics | Phil. Trans. R. Soc. Lond. A 222 (1922) 309 | |
| 71 | S. S. Wilks | The large-sample distribution of the likelihood ratio for testing composite hypotheses | Annals Math. Statist. 9 (1938) 60 | |
| 72 | A. L. Read | Linear interpolation of histograms | NIM A 425 (1999) 357 | |
| 73 | T. Junk | Confidence level computation for combining searches with small statistics | NIM A 434 (1999) 435 | hep-ex/9902006 |
| 74 | A. L. Read | Presentation of search results: the CLs technique | JPG 28 (2002) 2693 | |
| 75 | CMS Collaboration | The CMS statistical analysis and combination tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 76 | G. Cowan, K. Cranmer, E. Gross, and O. Vitells | Asymptotic formulae for likelihood-based tests of new physics | EPJC 71 (2011) 1554 | 1007.1727 |
|
|
