| CMS-BPH-21-007 ; CERN-EP-2025-176 | ||
| Measurement of $ {\mathrm{B}} $ meson production fraction ratios in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using open-charm and charmonium decays | ||
| CMS Collaboration | ||
| 10 February 2026 | ||
| Submitted to Physical Review D | ||
| Abstract: Production fraction ratios of $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ mesons are measured in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using a special data set recorded in 2018 with high-rate triggers designed to collect an unbiased sample of $ 10^{10} \mathrm{b} $ hadrons with the CMS experiment at the LHC\@. These data allow the use of the open-charm decays of $ {\mathrm{B}} $ mesons ($ {\mathrm{B}}_{(\mathrm{s})} \!\to\! \pi\mathrm{D}_{(\mathrm{s})} $) where the $ \mathrm{D} $ meson decays into fully hadronic final states. Production fraction ratios as functions of $ {\mathrm{B}} $ meson transverse momentum ($ p_{\mathrm{T}} $) and rapidity ($ y $) are measured using the open-charm decays in the kinematic range of 8 $ < p_{\mathrm{T}} < $ 60 GeV and $ |y| < $ 2.25. In addition, the same data are used to measure the relative production fraction ratios with the charmonium decay channels ($ {\mathrm{B}}_{(\mathrm{s})} \!\to\! \mathrm{X}{\mathrm{J}/\psi} $ with $ \mathrm{X} $ indicating a $ \mathrm{K^+} $, $ \mathrm{K^*}(892)^0 $, or $ \phi(1020) $ meson) with the $ {\mathrm{J}/\psi} $ meson decaying into a pair of muons. By utilizing known branching fractions, precision theoretical calculations, and the open-charm results, the production fraction ratios in the charmonium samples are determined with an absolute normalization for the first time. These results also improve several world-average values of the ratios of branching fractions of $ {\mathrm{B}} $ meson decays to charmonium and open-charm states. Finally, we test isospin invariance in $ {\mathrm{B}} $ meson production in proton-proton collisions and observe that it holds within the experimental precision. | ||
| Links: e-print arXiv:2602.1027 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

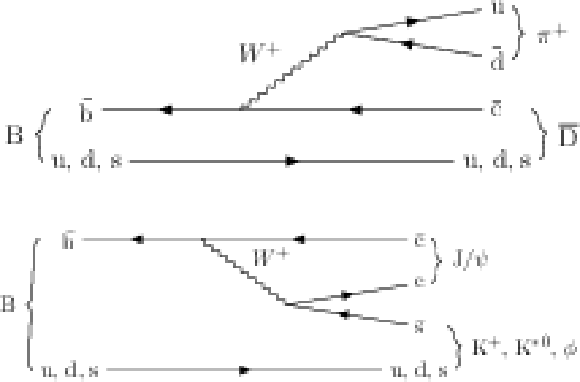

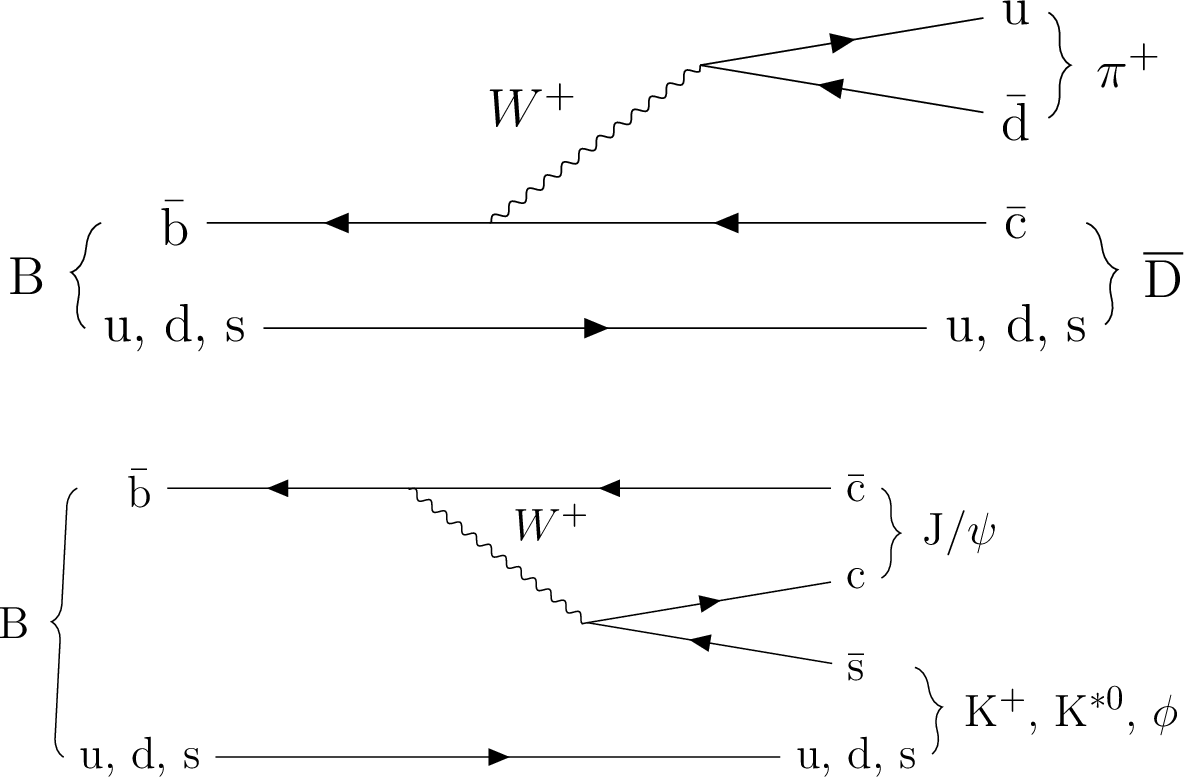

Figure 1:
Representative Feynman diagrams for the open-charm (upper) and charmonium (lower) decays of the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ mesons. |
png pdf |

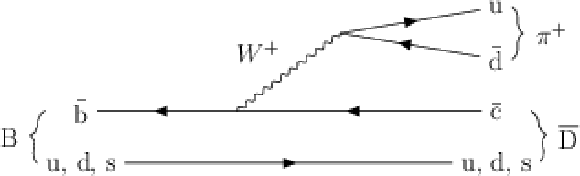

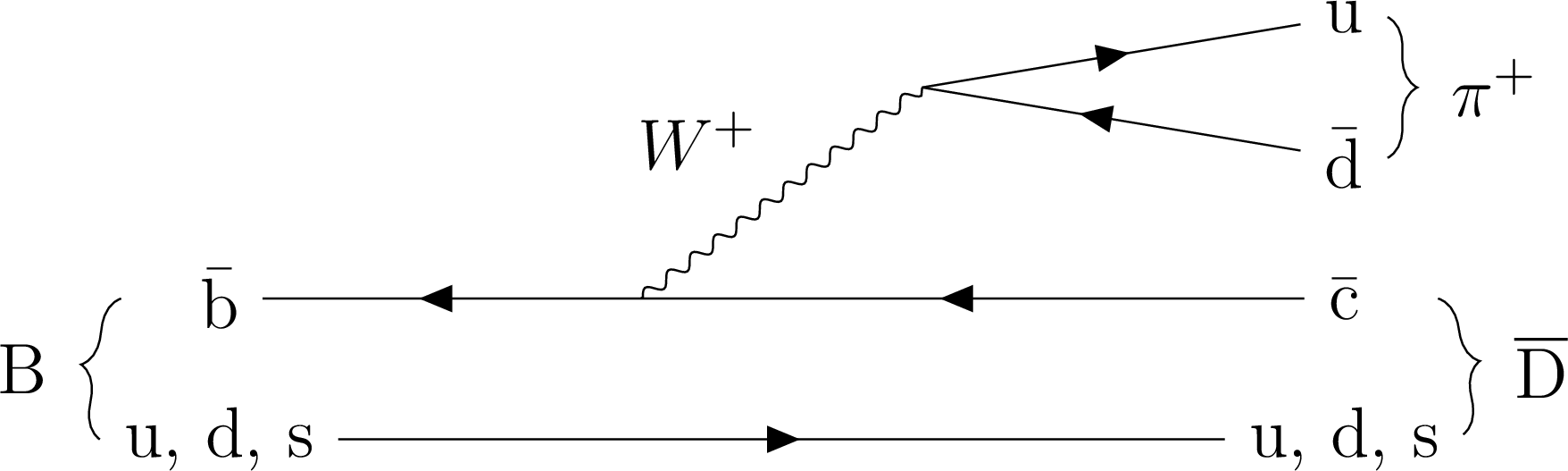

Figure 1-a:
Representative Feynman diagrams for the open-charm (upper) and charmonium (lower) decays of the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ mesons. |
png pdf |

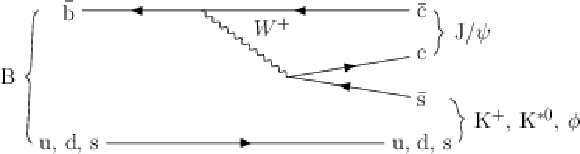

Figure 1-b:
Representative Feynman diagrams for the open-charm (upper) and charmonium (lower) decays of the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ mesons. |
png pdf |

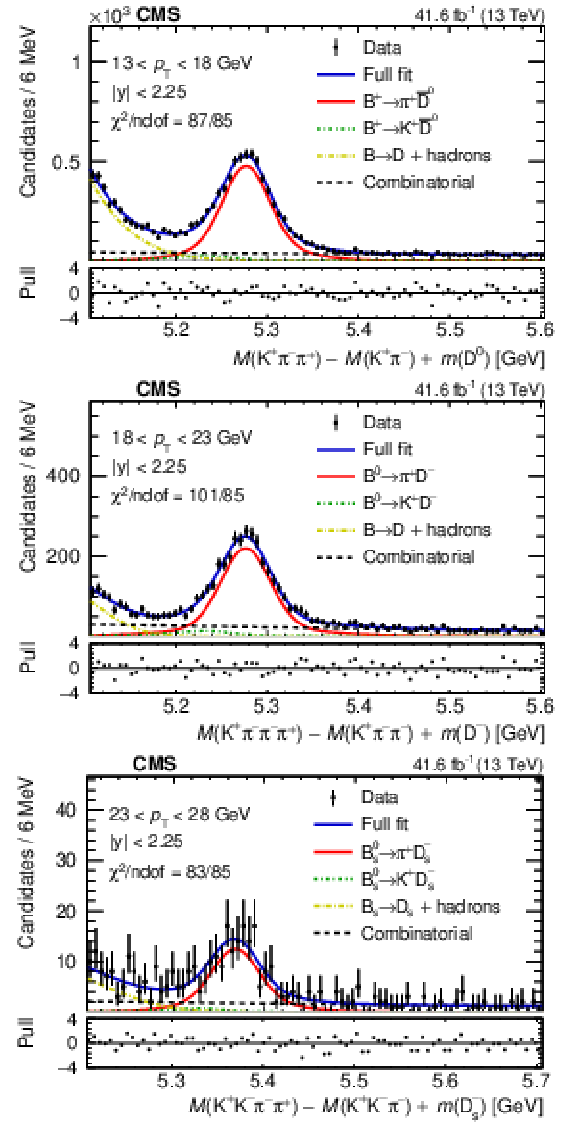

Figure 2:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution (corrected by the $ \mathrm{D} $ meson mass) used to extract the signal in the open-charm channels. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

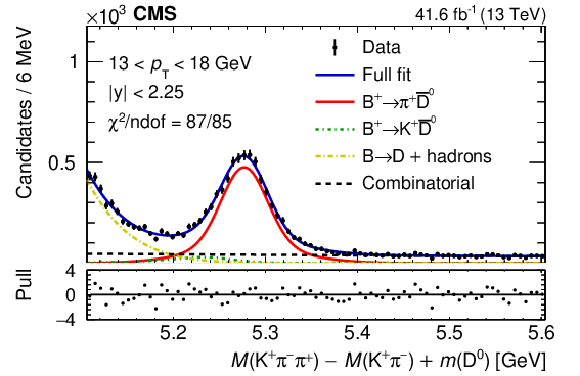

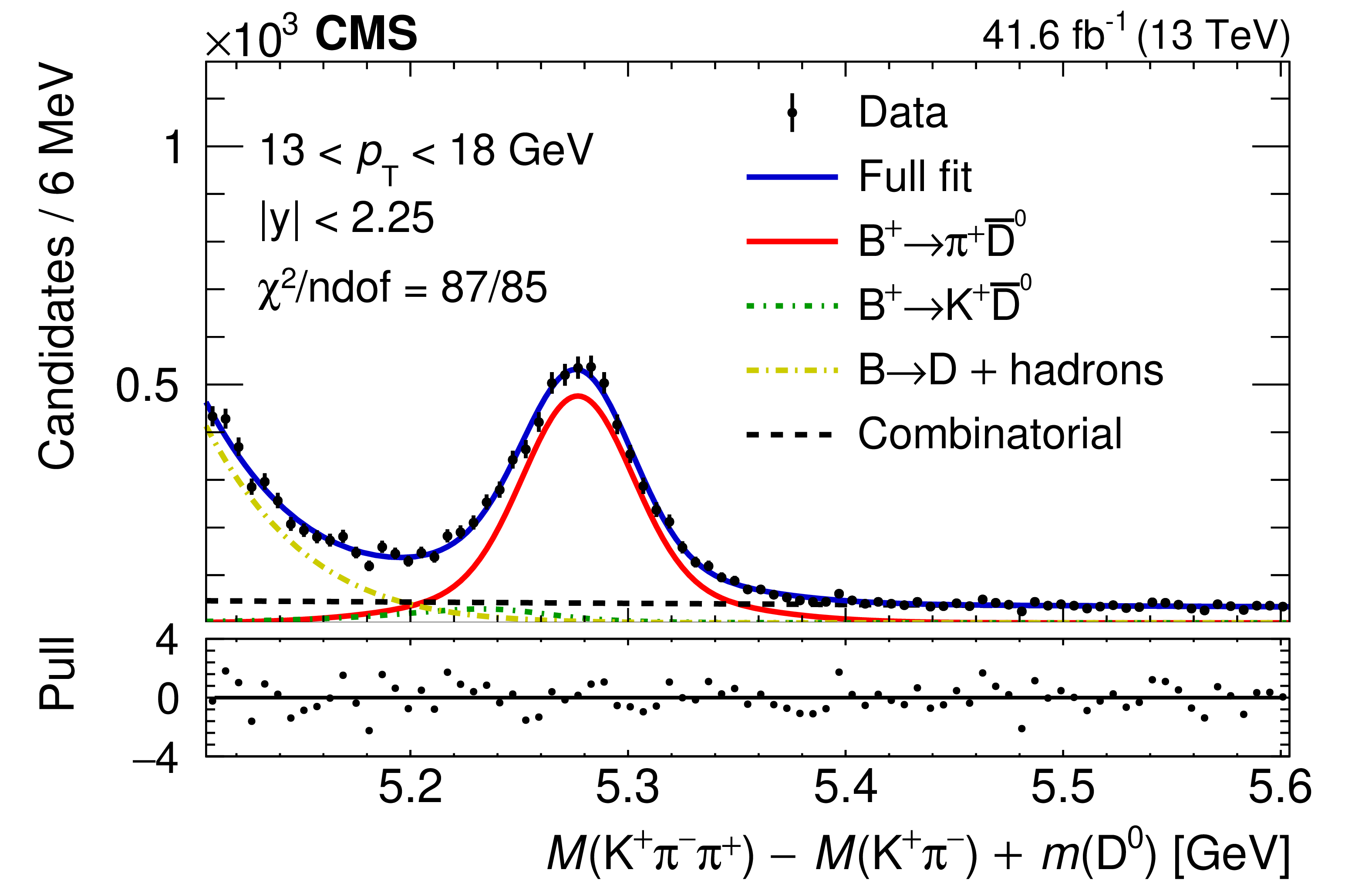

Figure 2-a:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution (corrected by the $ \mathrm{D} $ meson mass) used to extract the signal in the open-charm channels. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

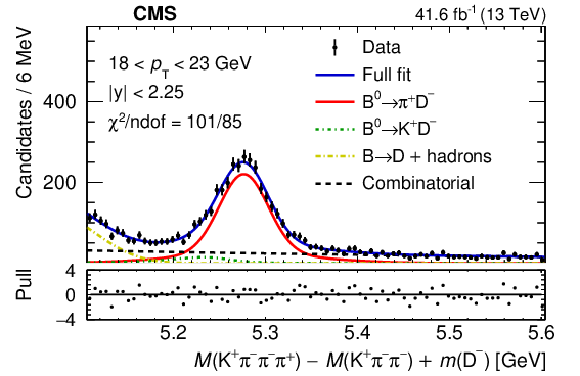

Figure 2-b:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution (corrected by the $ \mathrm{D} $ meson mass) used to extract the signal in the open-charm channels. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

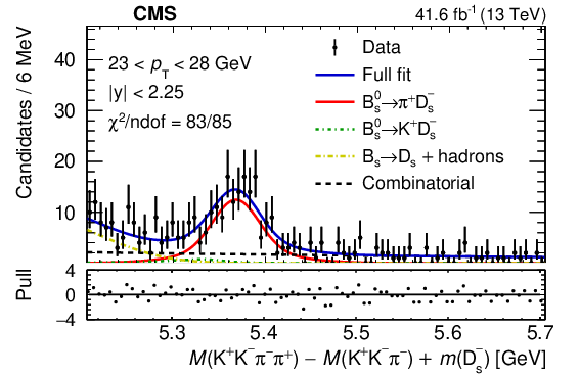

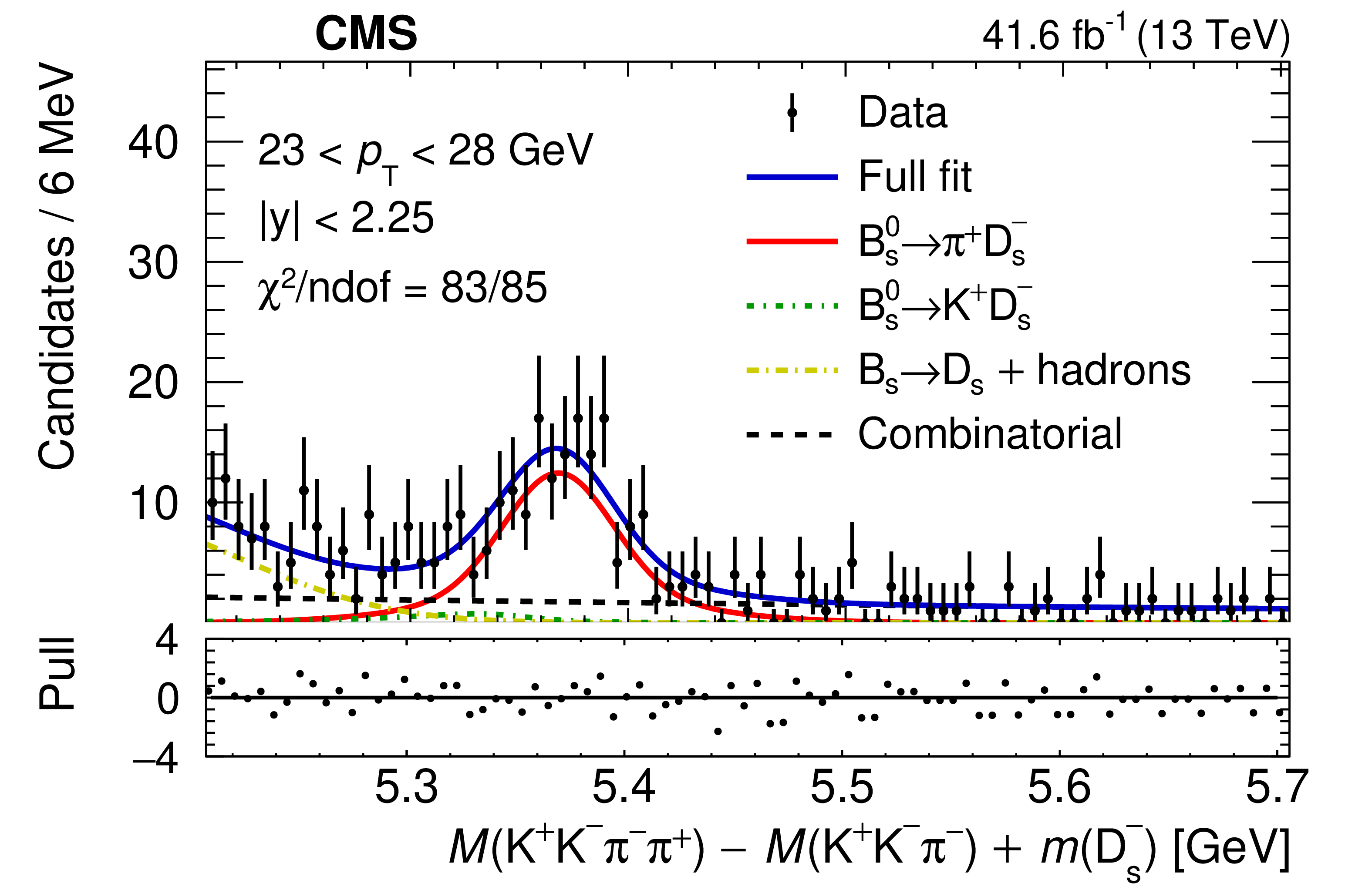

Figure 2-c:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution (corrected by the $ \mathrm{D} $ meson mass) used to extract the signal in the open-charm channels. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

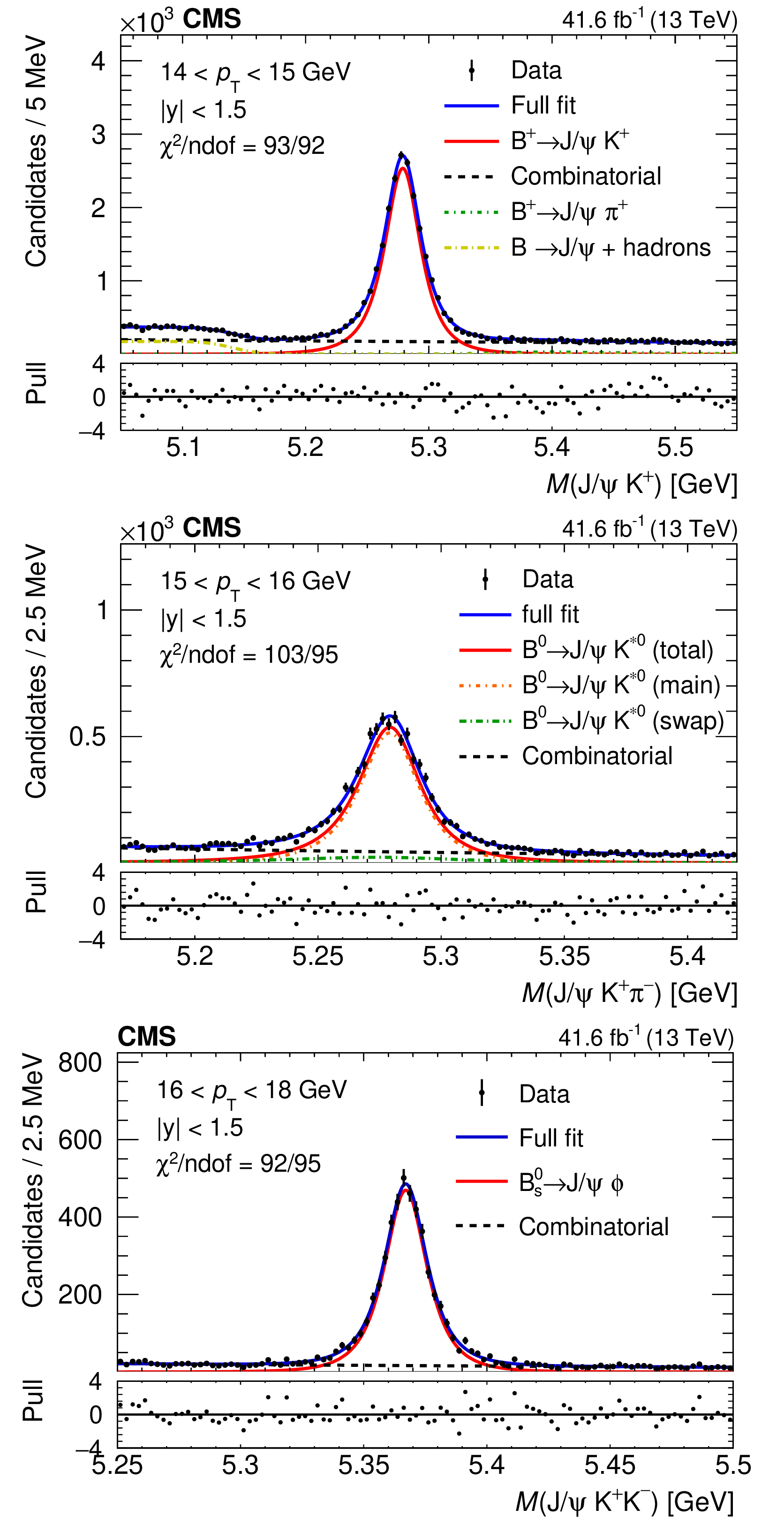

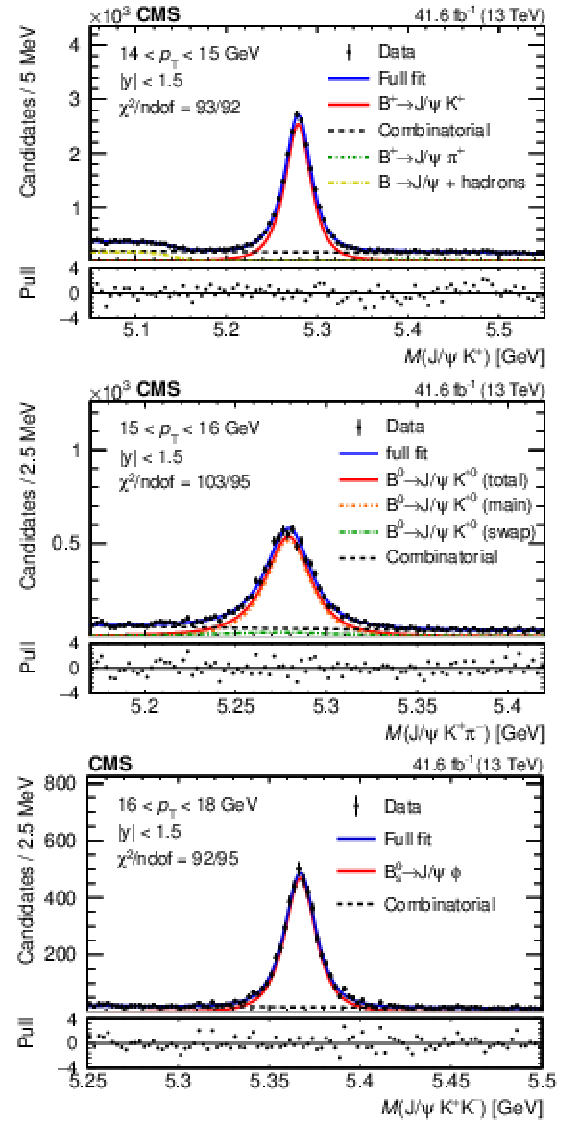

Figure 3:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the tag-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

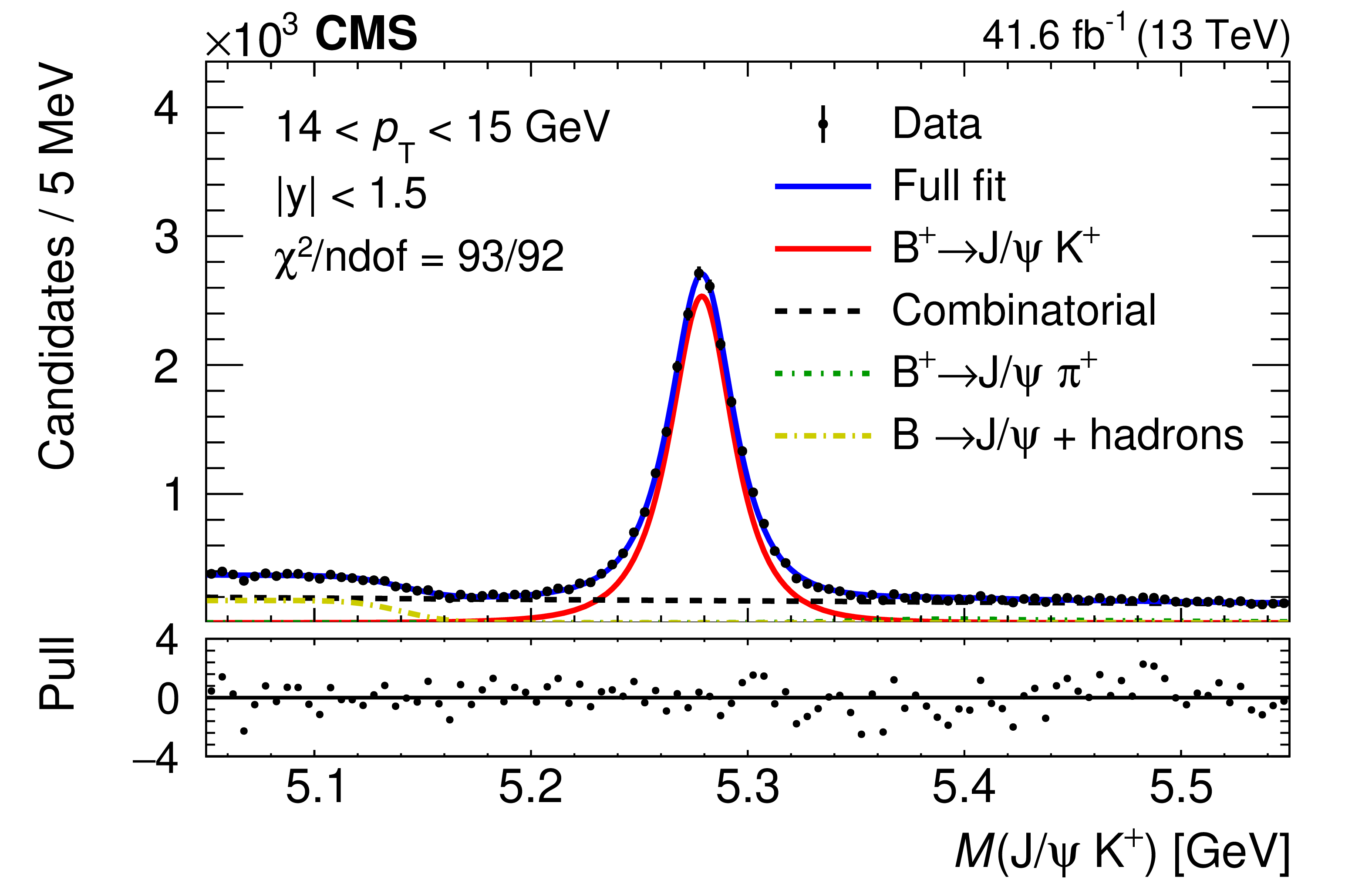

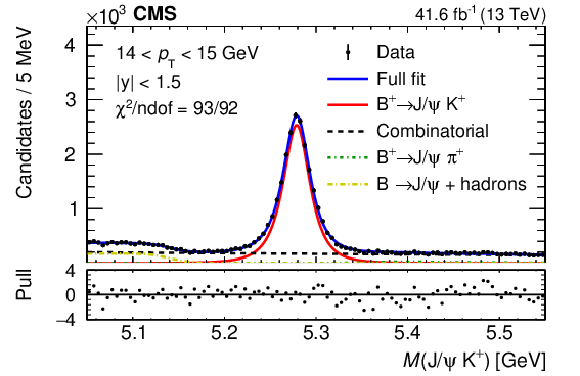

Figure 3-a:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the tag-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

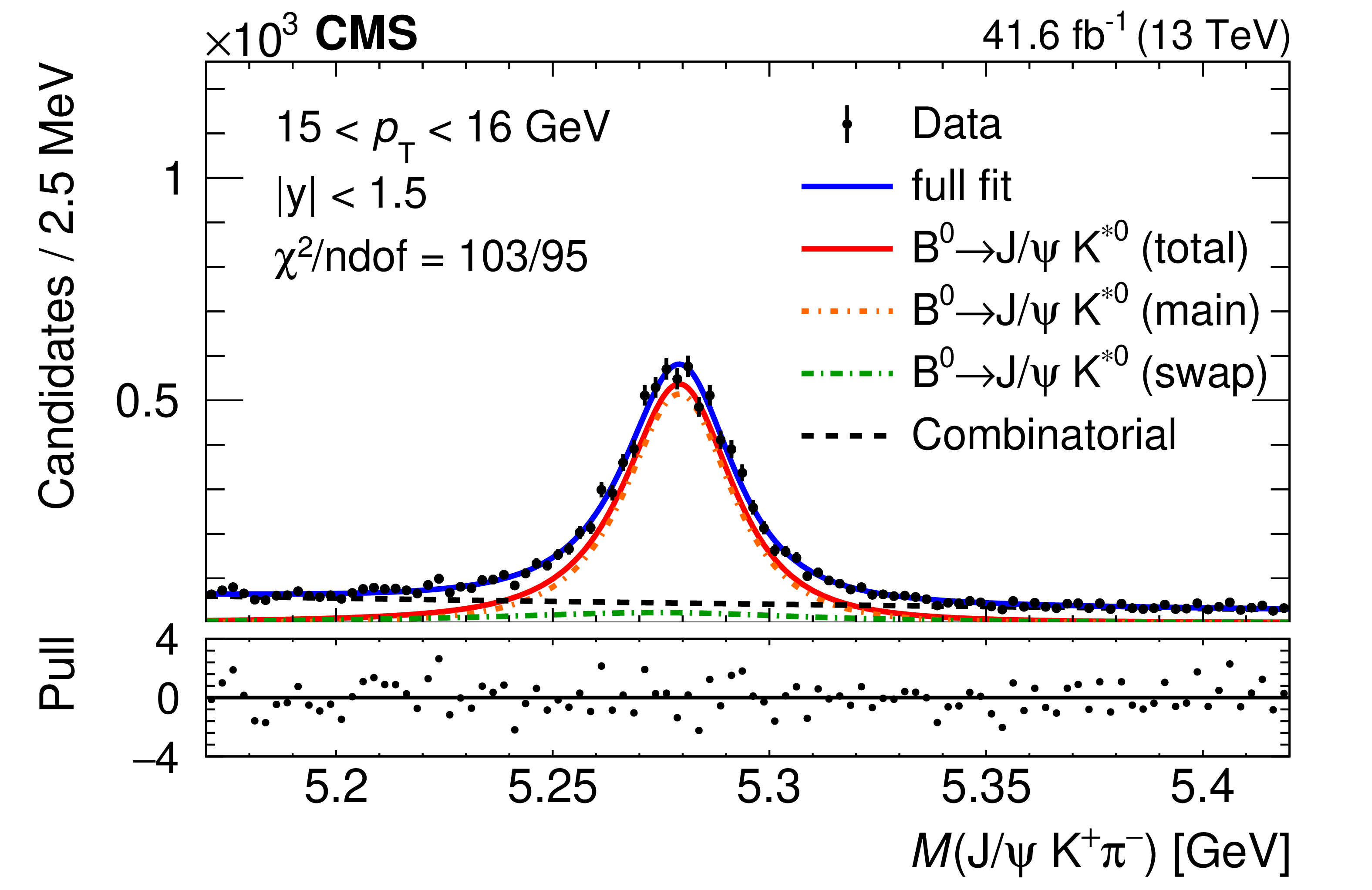

Figure 3-b:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the tag-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

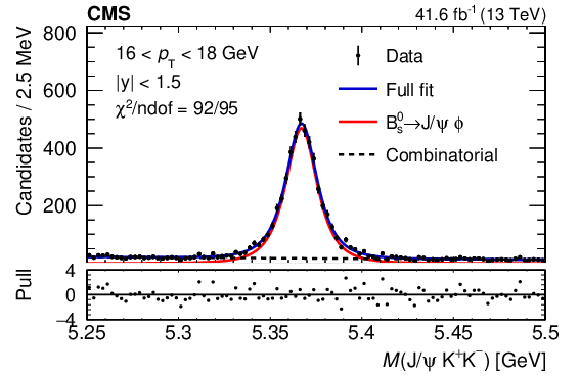

Figure 3-c:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the tag-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

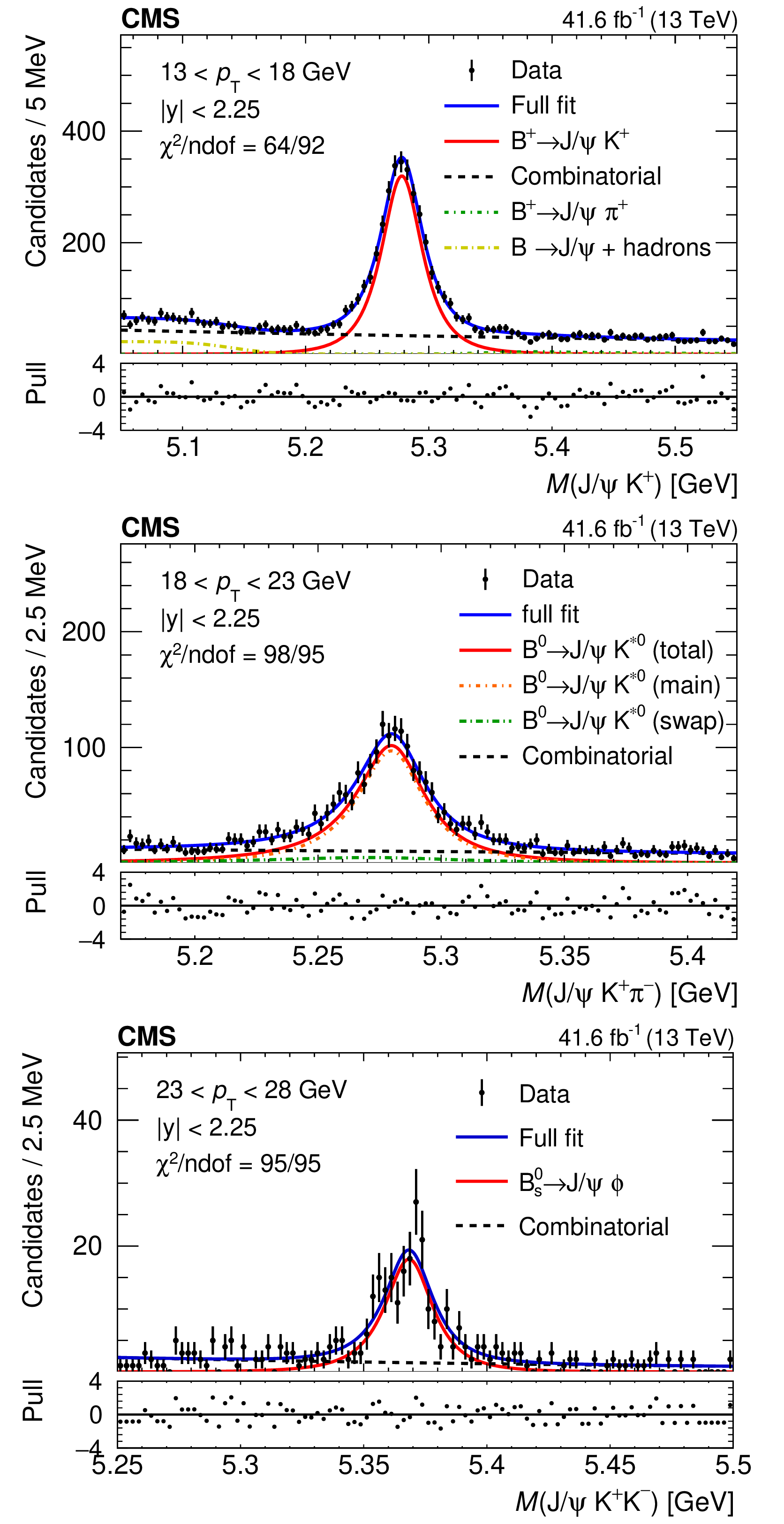

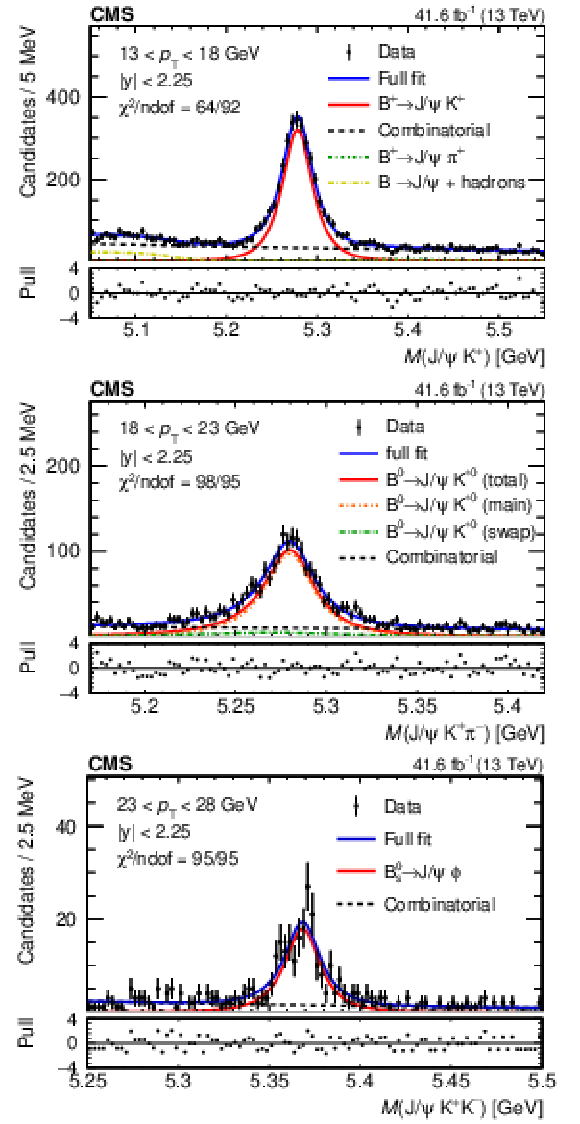

Figure 4:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the probe-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

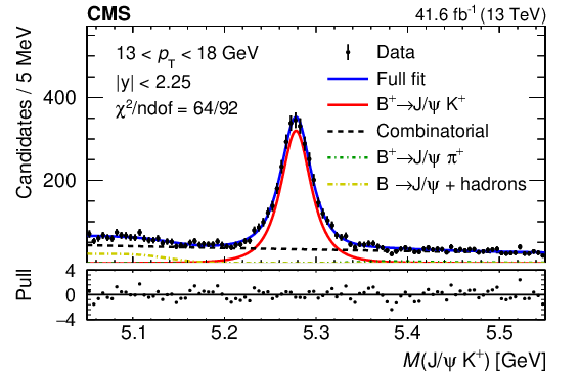

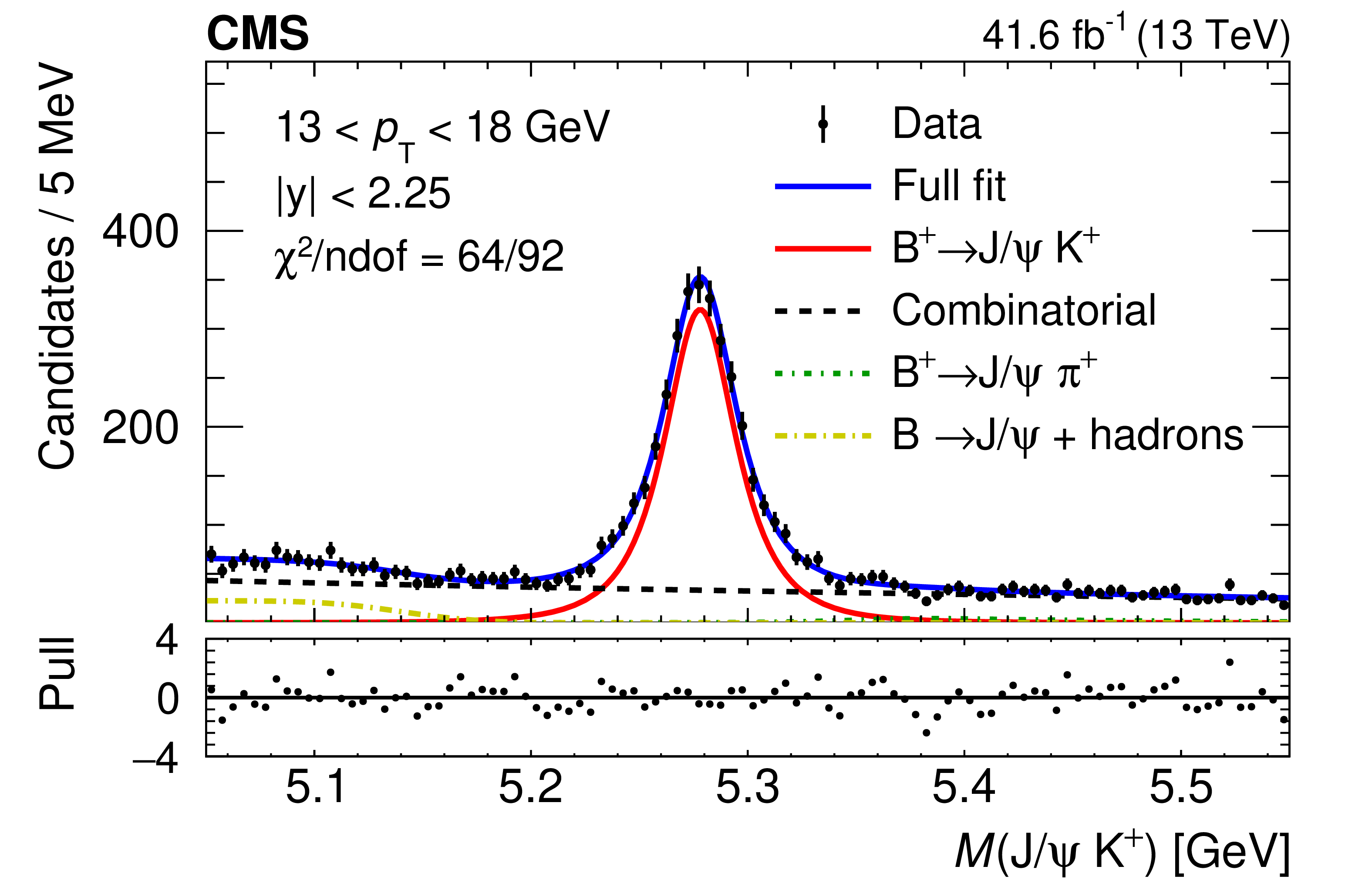

Figure 4-a:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the probe-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

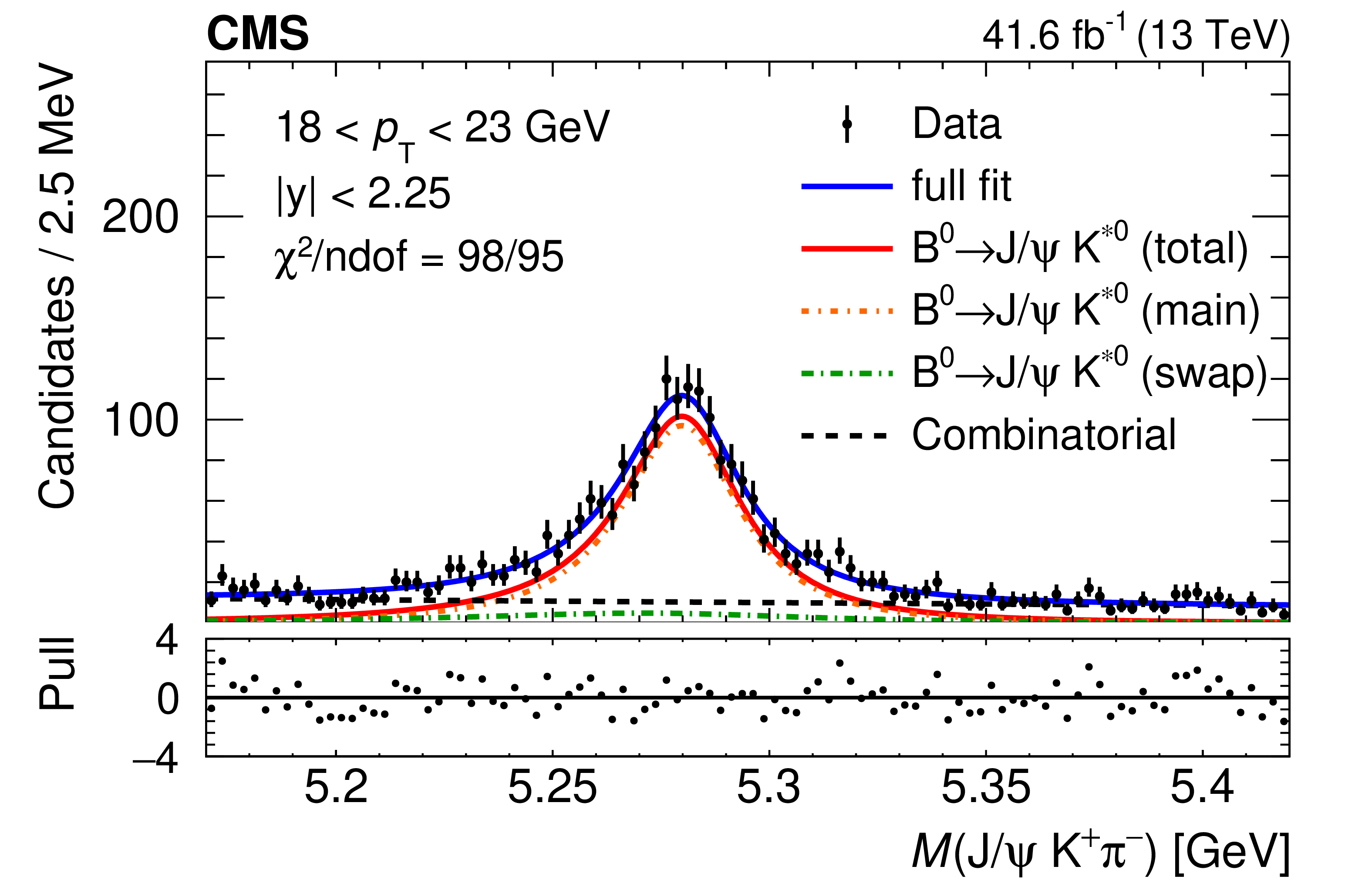

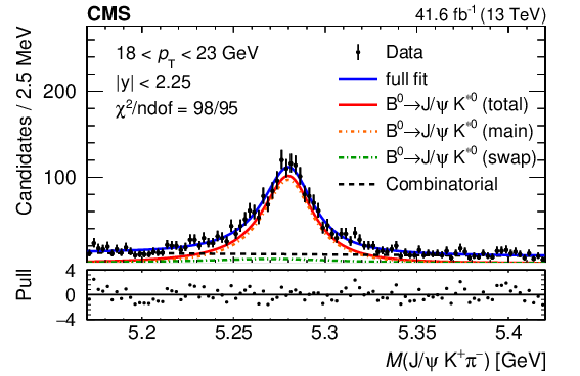

Figure 4-b:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the probe-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

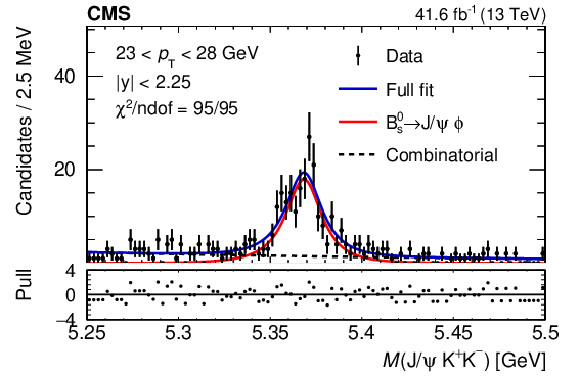

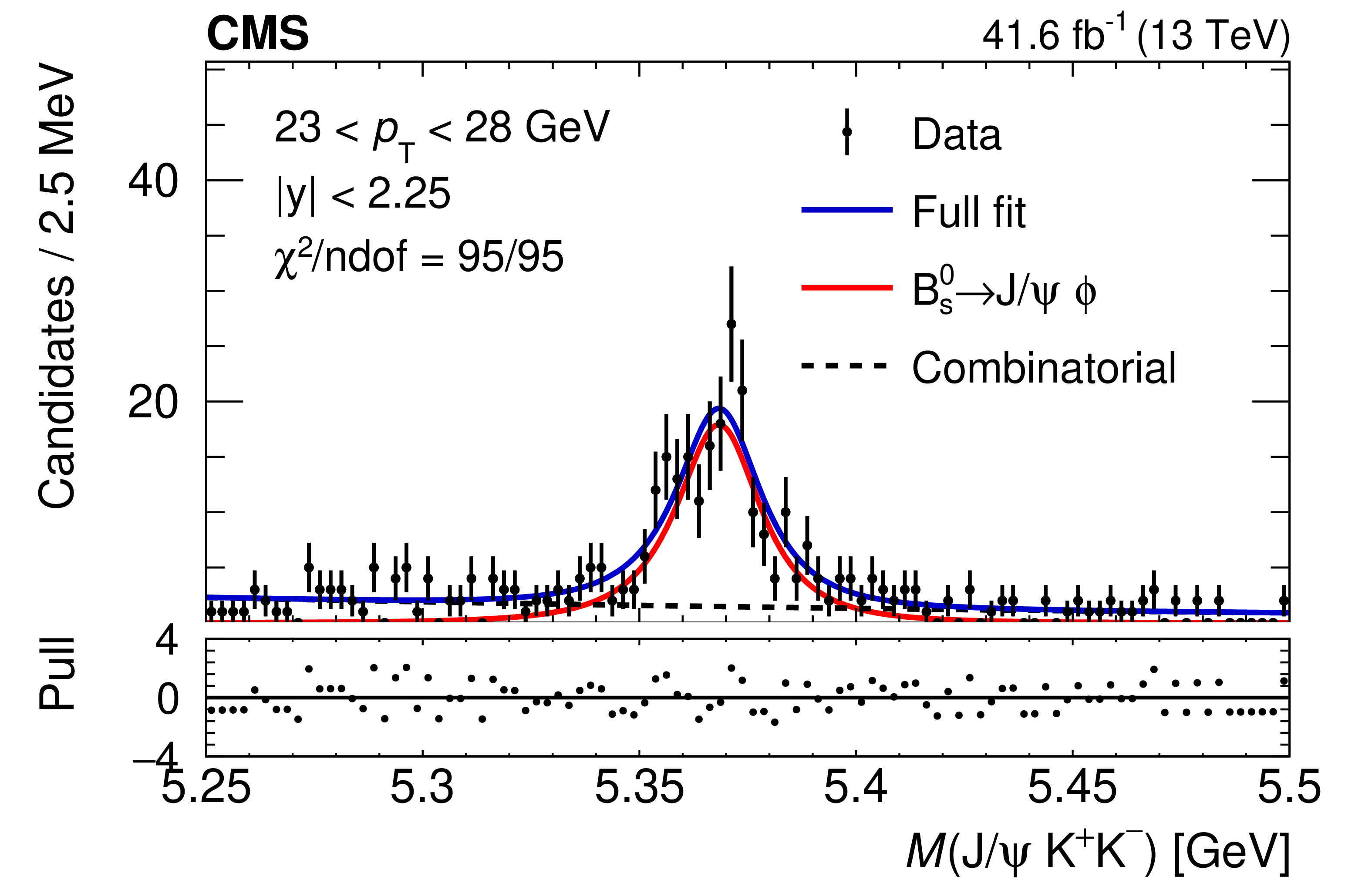

Figure 4-c:
Examples of fits to the $ {\mathrm{B}} $ candidate mass distribution used to extract the signal in the charmonium channels of the probe-side analysis. The upper, middle, and lower plots correspond to the $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ decays, respectively. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) of the fit is shown in each plot. The lower panels illustrate the pull, defined as the deviation of data from the fit function, normalized by the statistical uncertainty in each bin. |
png pdf |

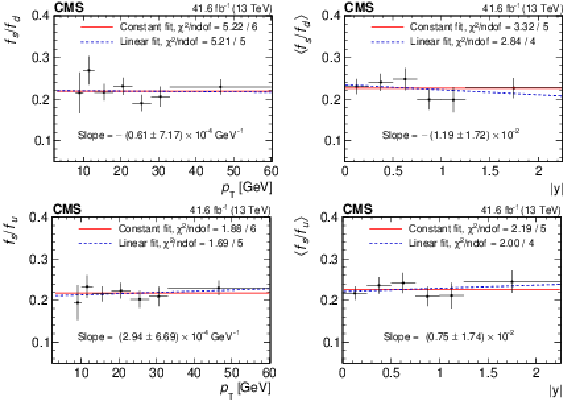

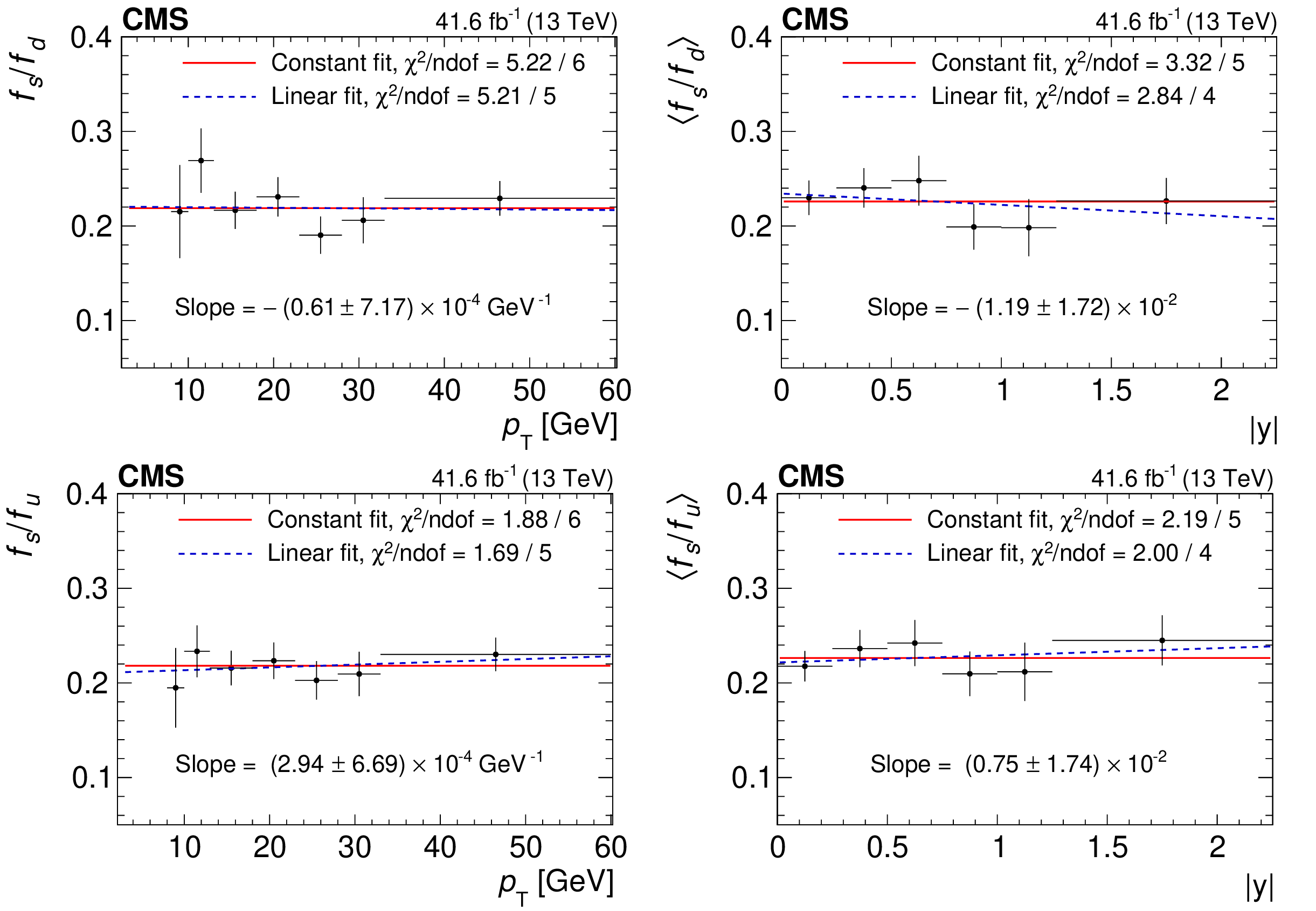

Figure 5:
The production fraction ratios $ f_\mathrm{s}/f_\mathrm{d} $ (upper row) and $ f_\mathrm{s}/f_\mathrm{u} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (right column), measured using open-charm decays. The vertical error bars show the combined statistical and bin-to-bin uncorrelated systematic uncertainty. The global uncertainties are not included. The red line is the average over the full reconstructed kinematic range, and the blue dashed line is the linear fit result. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) values for the constant fit and linear fit are given. Parameters inside angle brackets are averages over $ p_{\mathrm{T}} $ where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

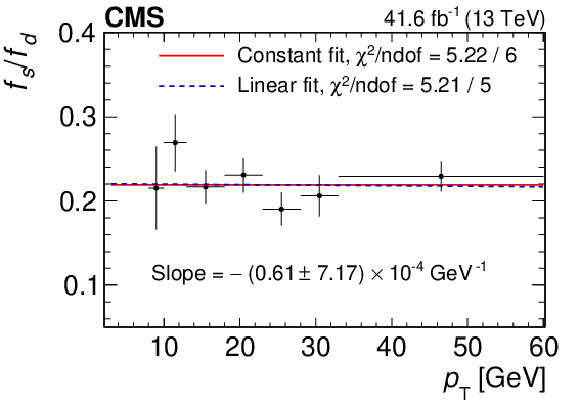

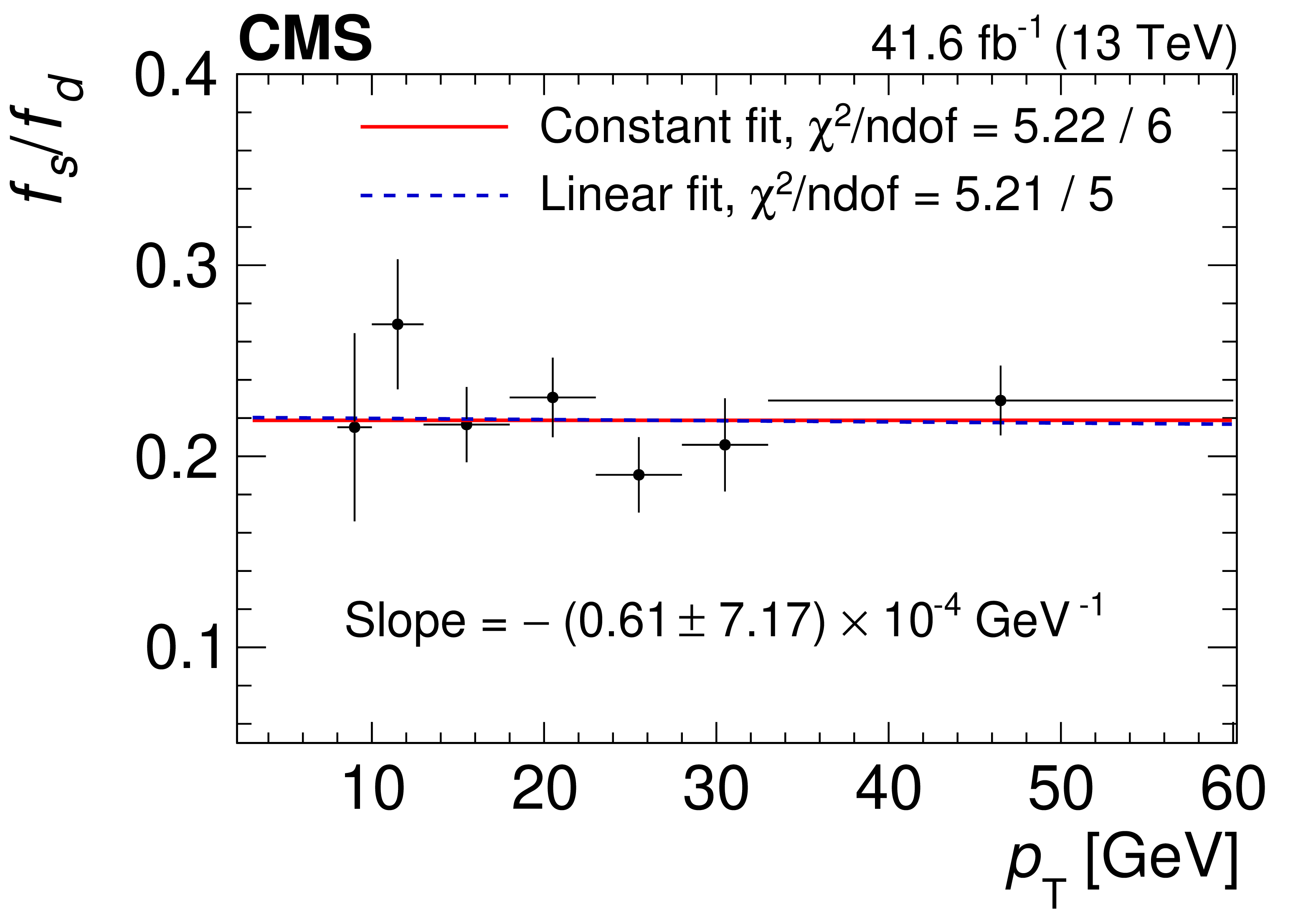

Figure 5-a:
The production fraction ratios $ f_\mathrm{s}/f_\mathrm{d} $ (upper row) and $ f_\mathrm{s}/f_\mathrm{u} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (right column), measured using open-charm decays. The vertical error bars show the combined statistical and bin-to-bin uncorrelated systematic uncertainty. The global uncertainties are not included. The red line is the average over the full reconstructed kinematic range, and the blue dashed line is the linear fit result. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) values for the constant fit and linear fit are given. Parameters inside angle brackets are averages over $ p_{\mathrm{T}} $ where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

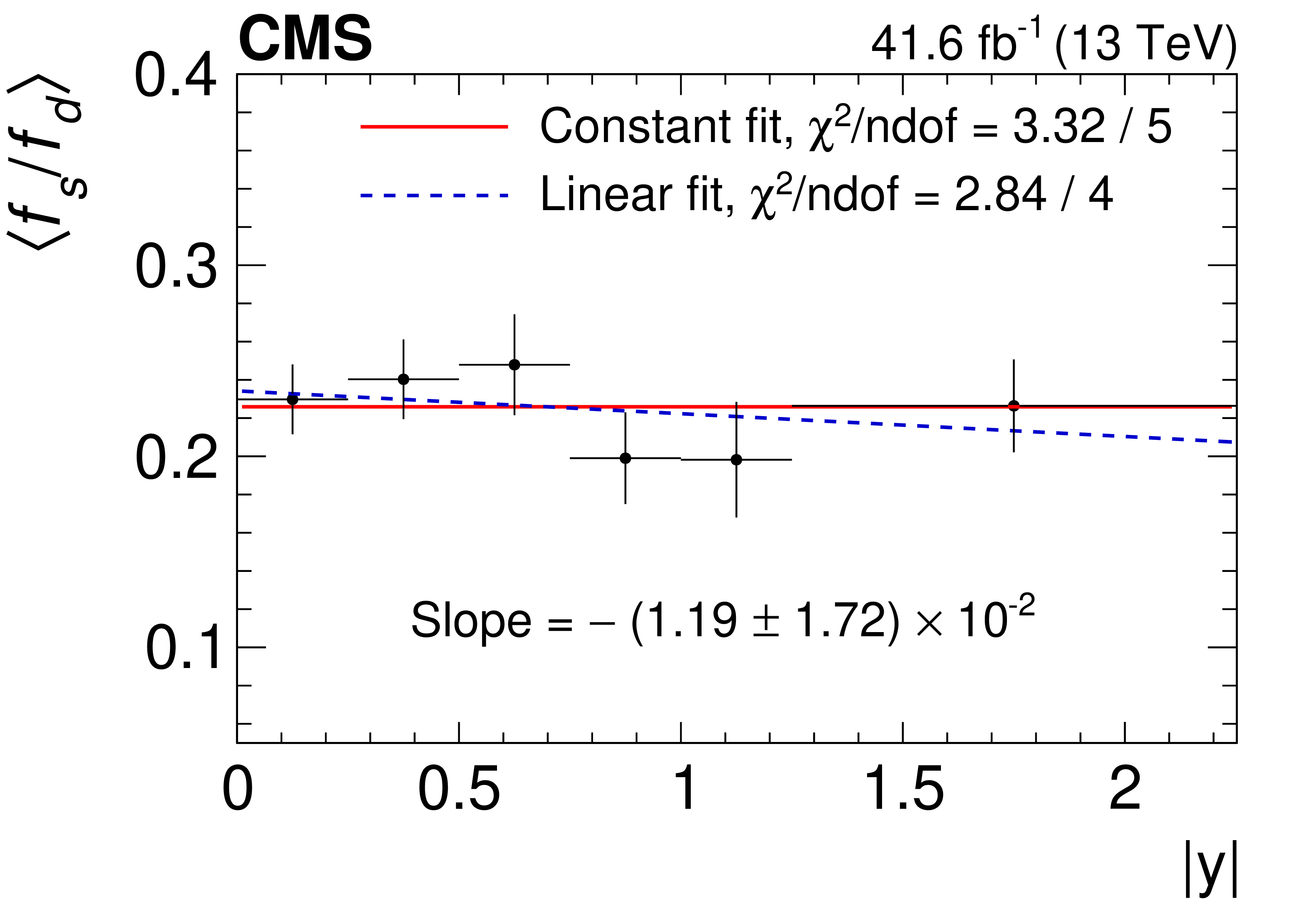

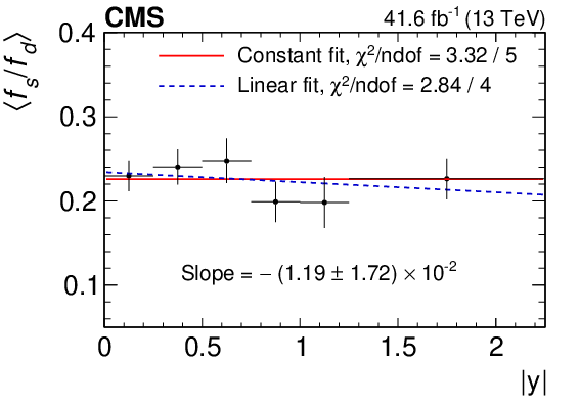

Figure 5-b:
The production fraction ratios $ f_\mathrm{s}/f_\mathrm{d} $ (upper row) and $ f_\mathrm{s}/f_\mathrm{u} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (right column), measured using open-charm decays. The vertical error bars show the combined statistical and bin-to-bin uncorrelated systematic uncertainty. The global uncertainties are not included. The red line is the average over the full reconstructed kinematic range, and the blue dashed line is the linear fit result. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) values for the constant fit and linear fit are given. Parameters inside angle brackets are averages over $ p_{\mathrm{T}} $ where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

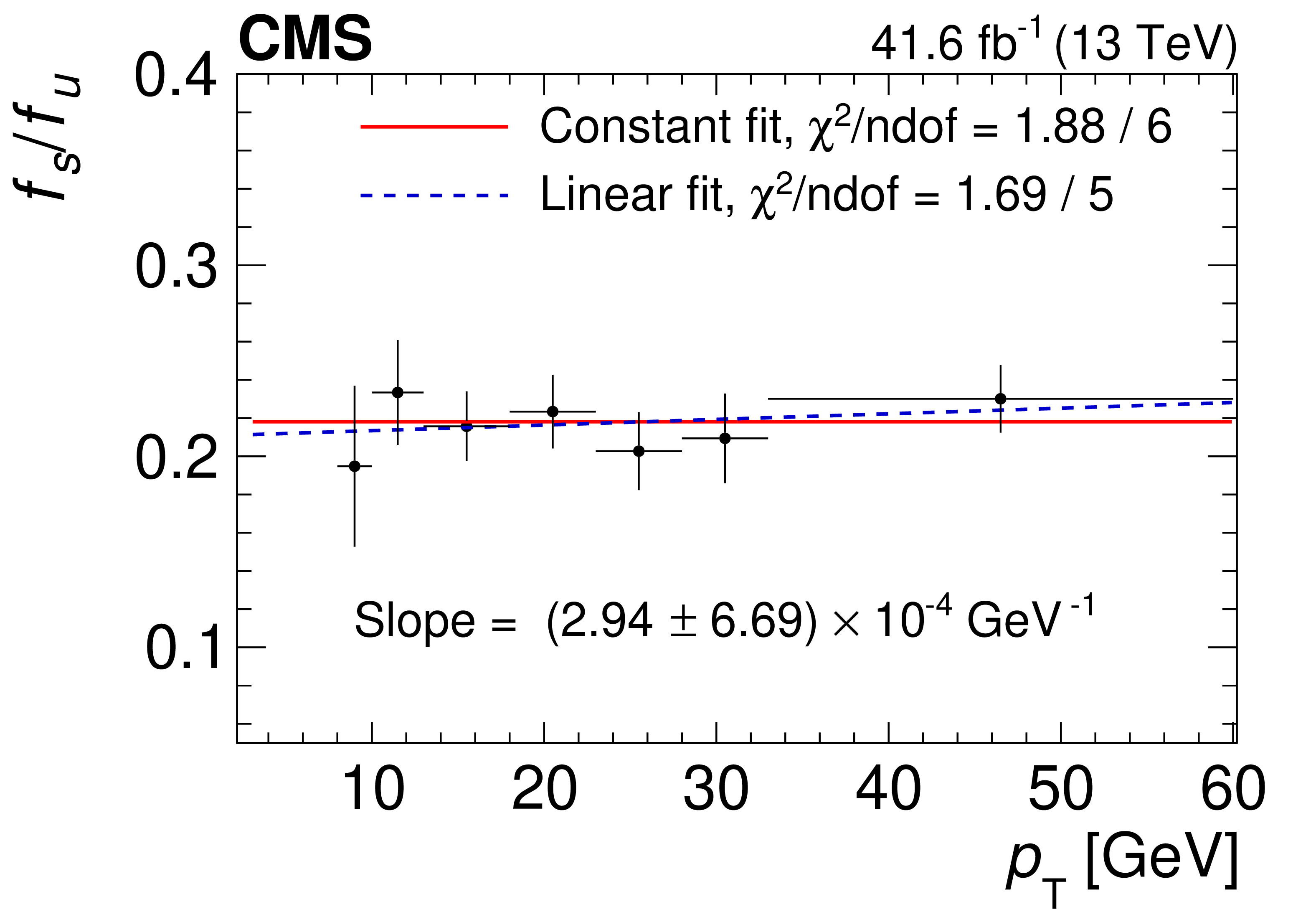

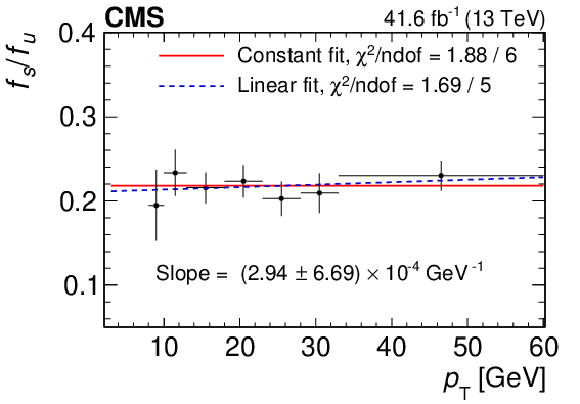

Figure 5-c:
The production fraction ratios $ f_\mathrm{s}/f_\mathrm{d} $ (upper row) and $ f_\mathrm{s}/f_\mathrm{u} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (right column), measured using open-charm decays. The vertical error bars show the combined statistical and bin-to-bin uncorrelated systematic uncertainty. The global uncertainties are not included. The red line is the average over the full reconstructed kinematic range, and the blue dashed line is the linear fit result. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) values for the constant fit and linear fit are given. Parameters inside angle brackets are averages over $ p_{\mathrm{T}} $ where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

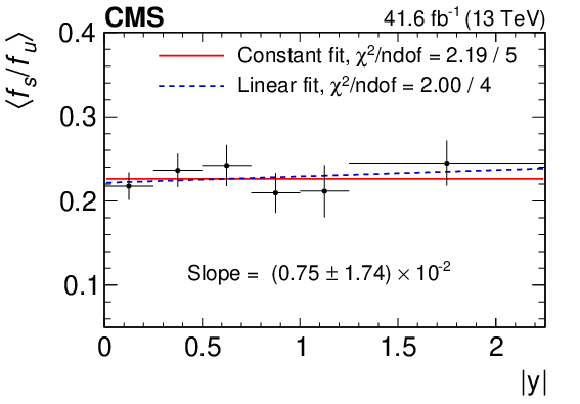

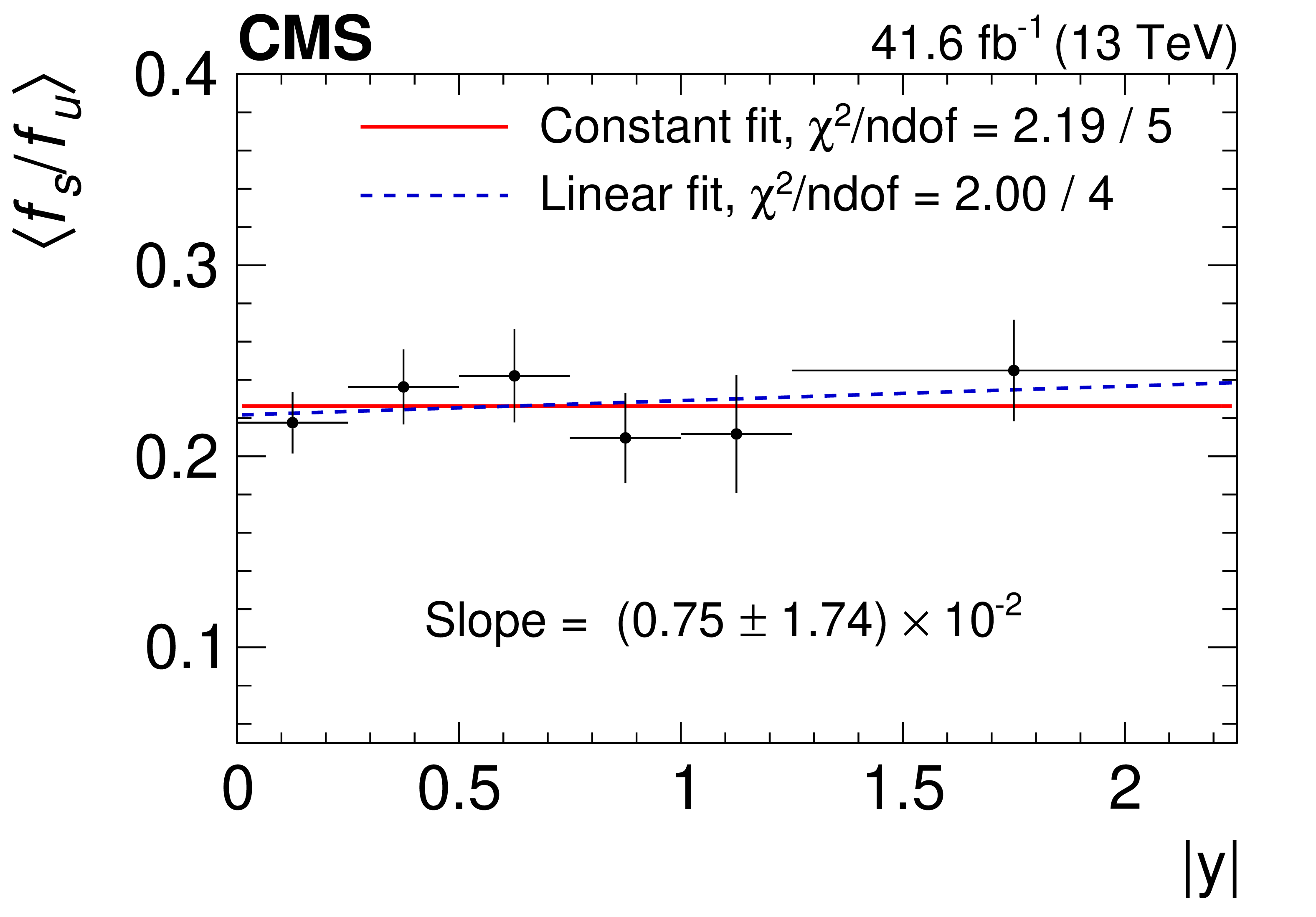

Figure 5-d:
The production fraction ratios $ f_\mathrm{s}/f_\mathrm{d} $ (upper row) and $ f_\mathrm{s}/f_\mathrm{u} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (right column), measured using open-charm decays. The vertical error bars show the combined statistical and bin-to-bin uncorrelated systematic uncertainty. The global uncertainties are not included. The red line is the average over the full reconstructed kinematic range, and the blue dashed line is the linear fit result. The $ \chi^2 $ per degree of freedom ($ \chi^2/\mathrm{ndof} $) values for the constant fit and linear fit are given. Parameters inside angle brackets are averages over $ p_{\mathrm{T}} $ where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

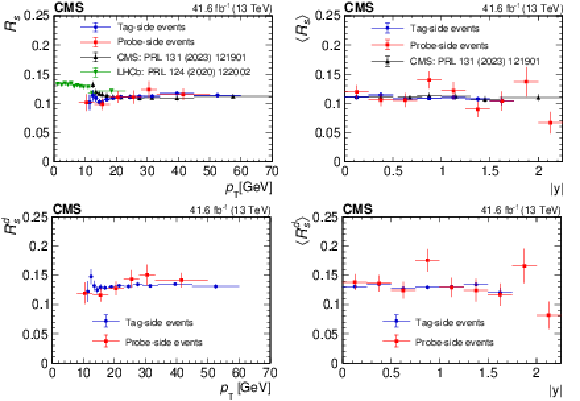

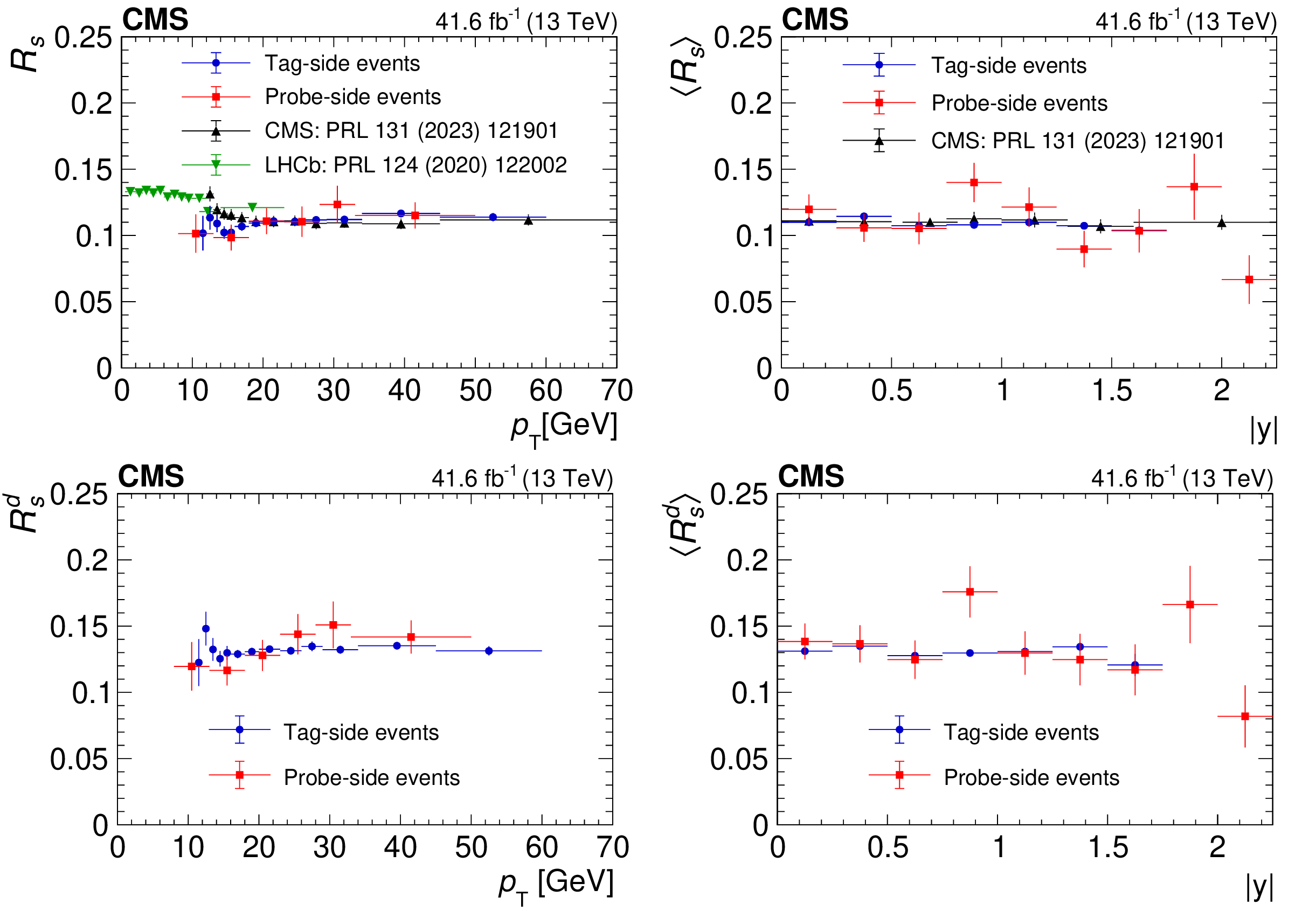

Figure 6:
The relative production fraction ratios $ \mathcal{R}_\mathrm{s} $ (upper row) and $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (rigtht column), measured using charmonium decays. For comparison, the recent CMS [7] and LHCb [4] measurements are also presented. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. Values enclosed in angle brackets represent averages over $ p_{\mathrm{T}} $, where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

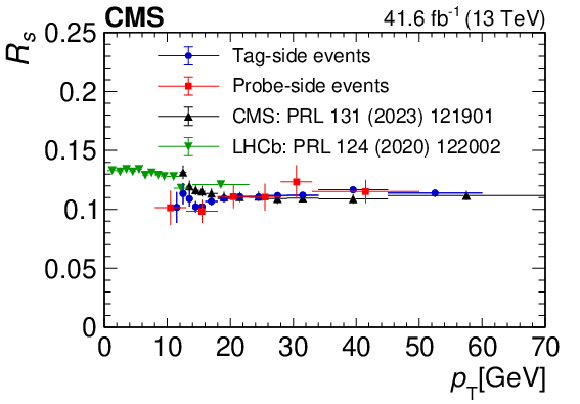

Figure 6-a:
The relative production fraction ratios $ \mathcal{R}_\mathrm{s} $ (upper row) and $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (rigtht column), measured using charmonium decays. For comparison, the recent CMS [7] and LHCb [4] measurements are also presented. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. Values enclosed in angle brackets represent averages over $ p_{\mathrm{T}} $, where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

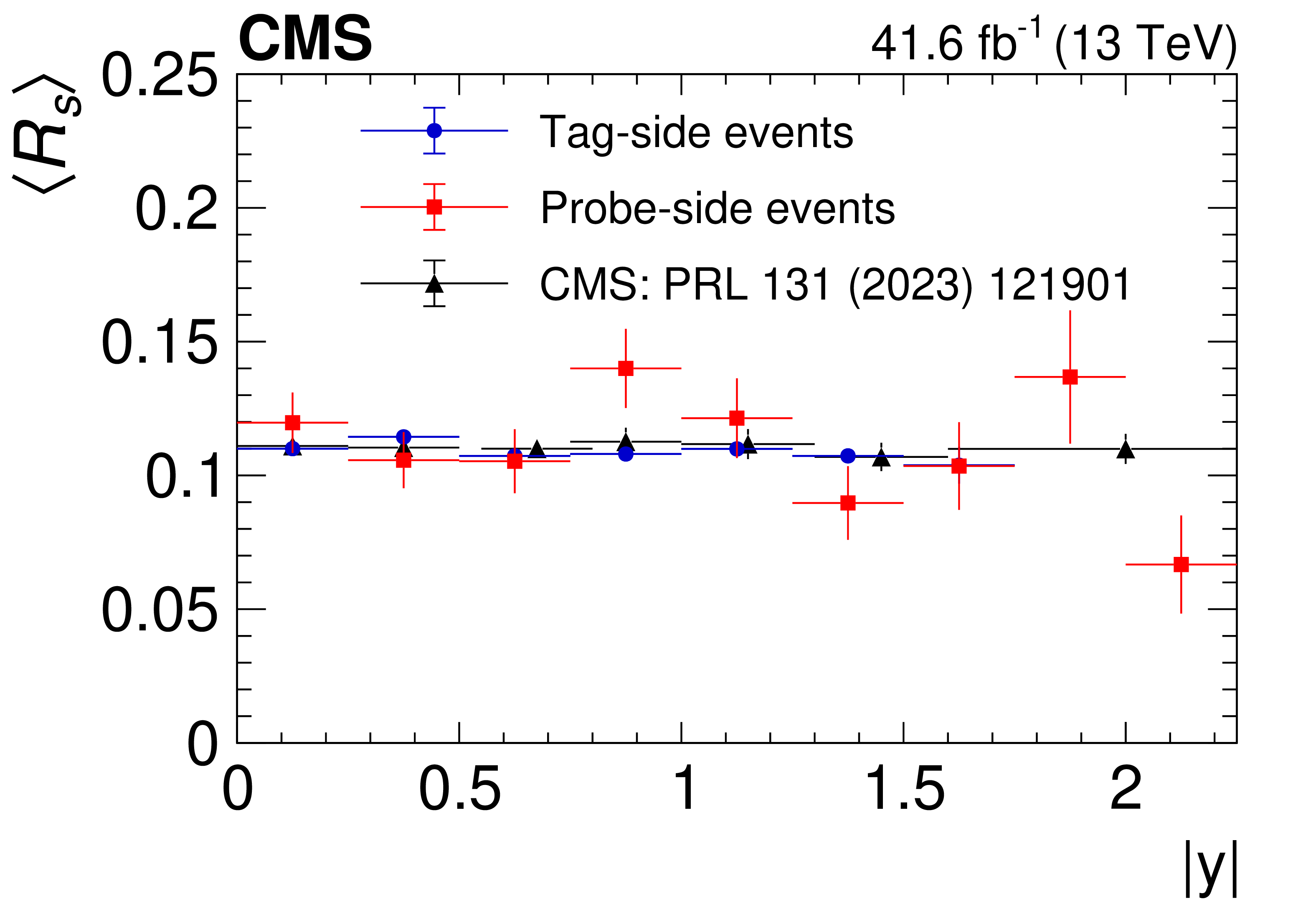

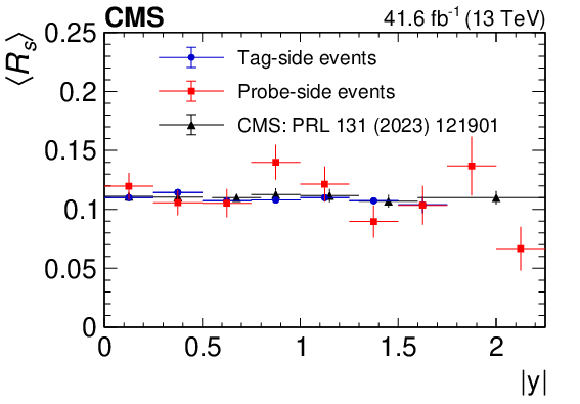

Figure 6-b:
The relative production fraction ratios $ \mathcal{R}_\mathrm{s} $ (upper row) and $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (rigtht column), measured using charmonium decays. For comparison, the recent CMS [7] and LHCb [4] measurements are also presented. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. Values enclosed in angle brackets represent averages over $ p_{\mathrm{T}} $, where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

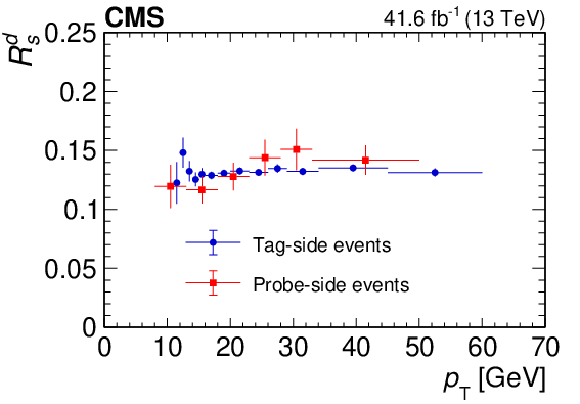

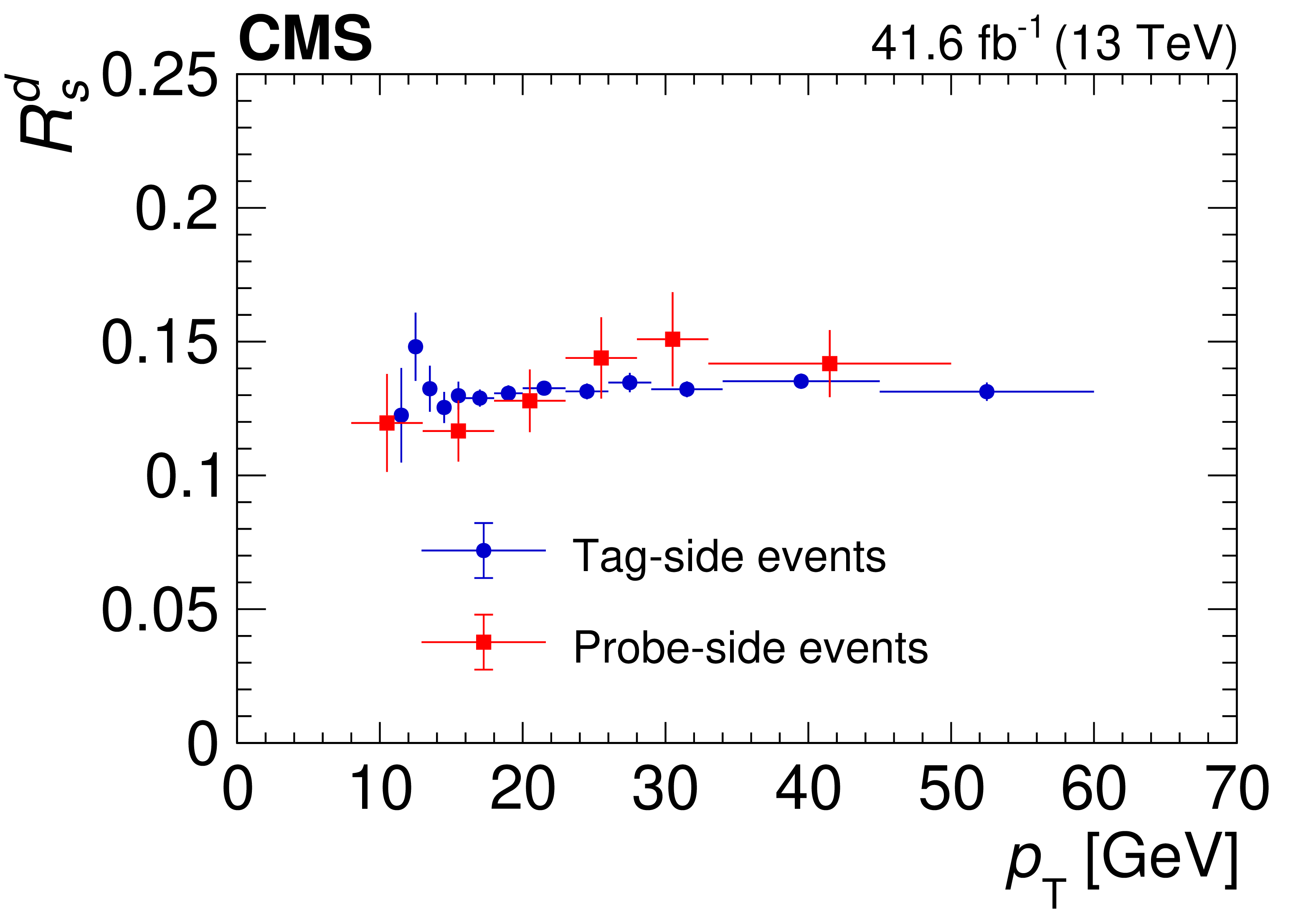

Figure 6-c:
The relative production fraction ratios $ \mathcal{R}_\mathrm{s} $ (upper row) and $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (rigtht column), measured using charmonium decays. For comparison, the recent CMS [7] and LHCb [4] measurements are also presented. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. Values enclosed in angle brackets represent averages over $ p_{\mathrm{T}} $, where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

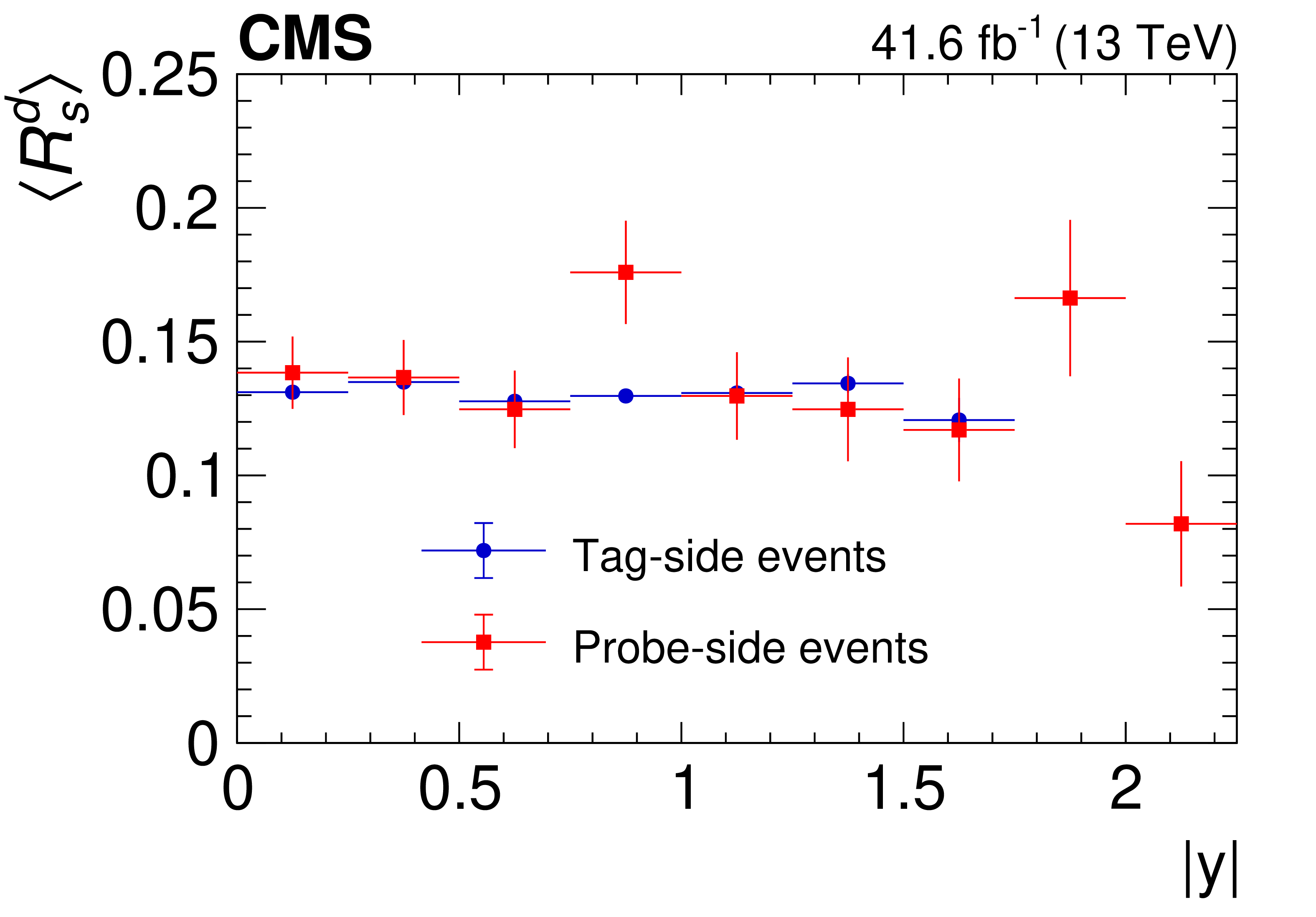

Figure 6-d:
The relative production fraction ratios $ \mathcal{R}_\mathrm{s} $ (upper row) and $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ (lower row) as functions of $ p_{\mathrm{T}} $ (left column) and $ |y| $ (rigtht column), measured using charmonium decays. For comparison, the recent CMS [7] and LHCb [4] measurements are also presented. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. Values enclosed in angle brackets represent averages over $ p_{\mathrm{T}} $, where the absolute normalization may be affected by the $ p_{\mathrm{T}} $ dependence. |
png pdf |

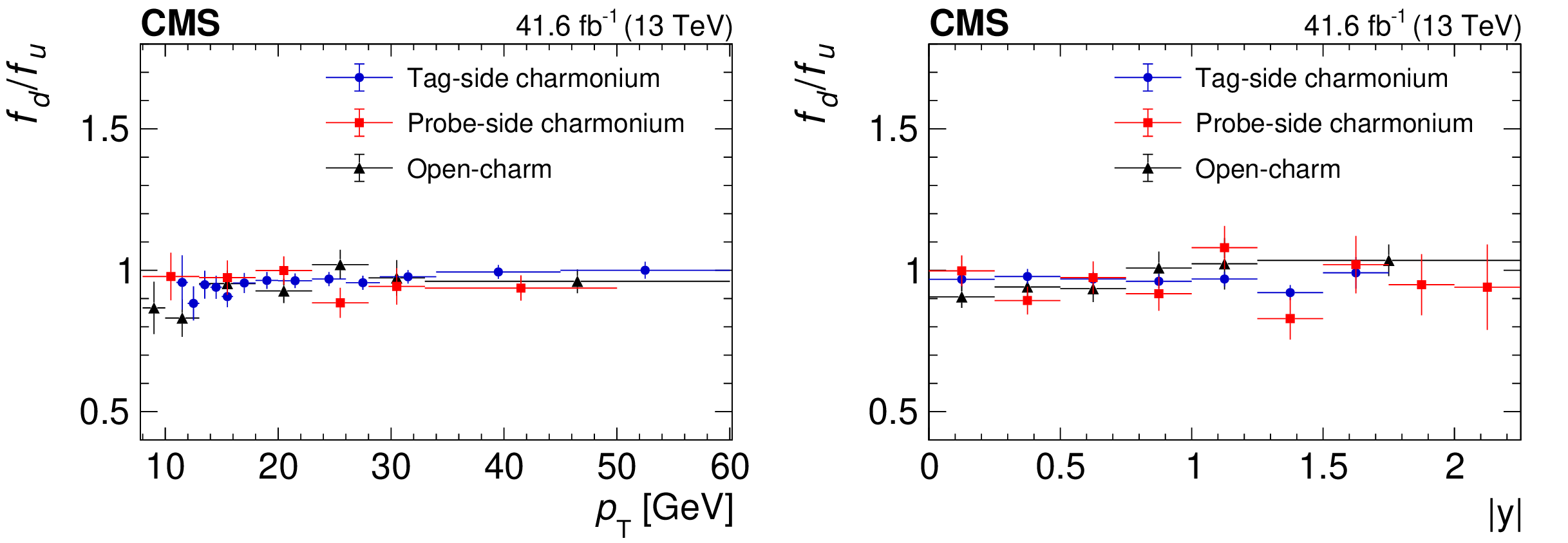

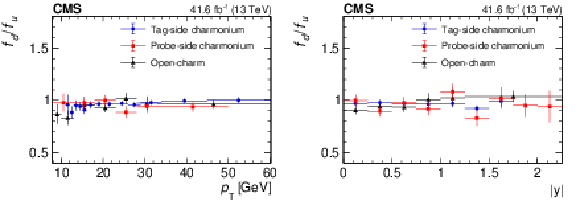

Figure 7:
The production fraction ratios $ f_\mathrm{d}/f_\mathrm{u} $ as functions of $ p_{\mathrm{T}} $ (left) and $ |y| $ (right) measured using both the open-charm and charmonium decays, without an assumption of isospin invariance. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. The global uncertainties of 5.7% for the open-charm analysis 4.8% for both charmonium analyses are not shown. |
png pdf |

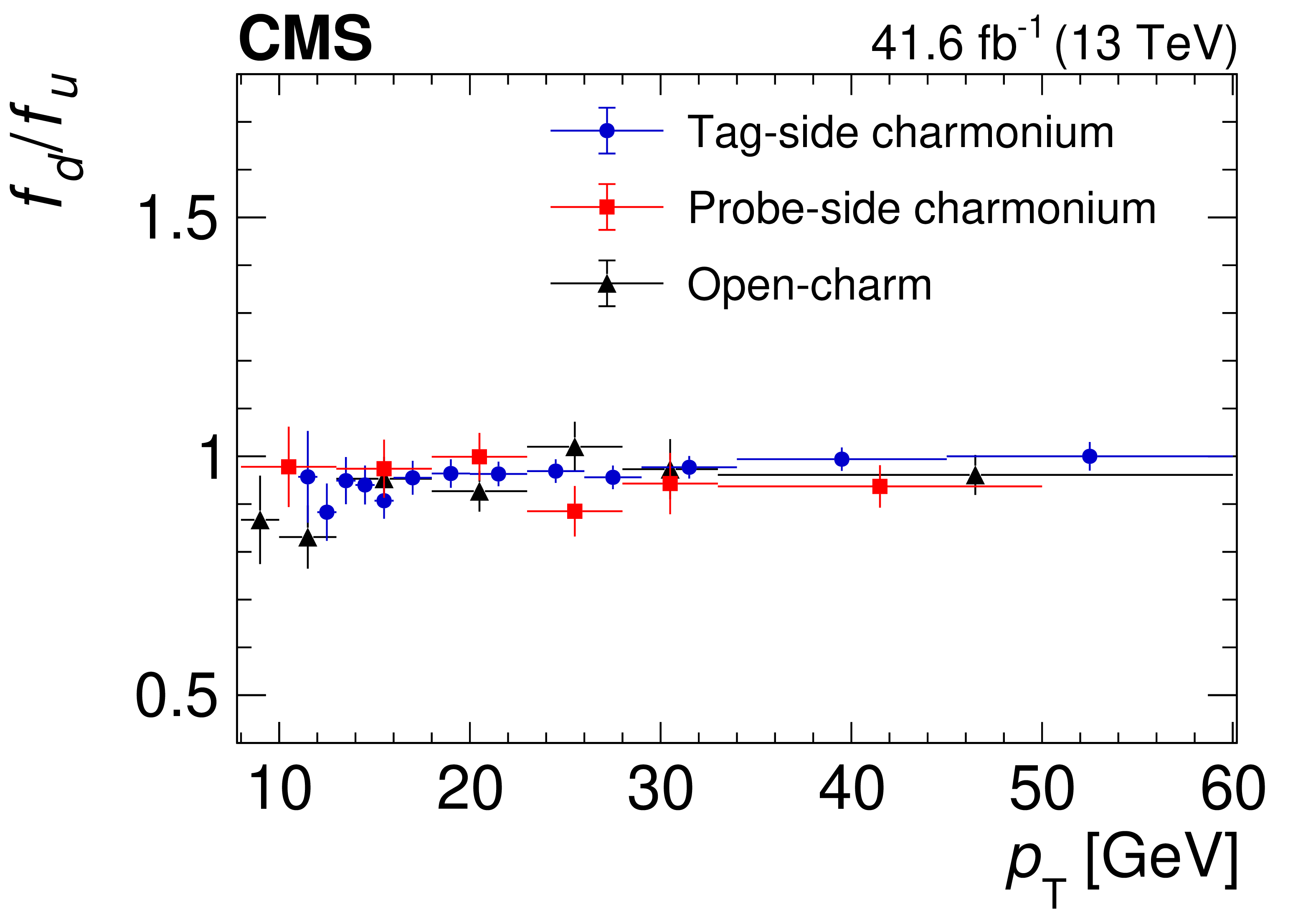

Figure 7-a:
The production fraction ratios $ f_\mathrm{d}/f_\mathrm{u} $ as functions of $ p_{\mathrm{T}} $ (left) and $ |y| $ (right) measured using both the open-charm and charmonium decays, without an assumption of isospin invariance. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. The global uncertainties of 5.7% for the open-charm analysis 4.8% for both charmonium analyses are not shown. |
png pdf |

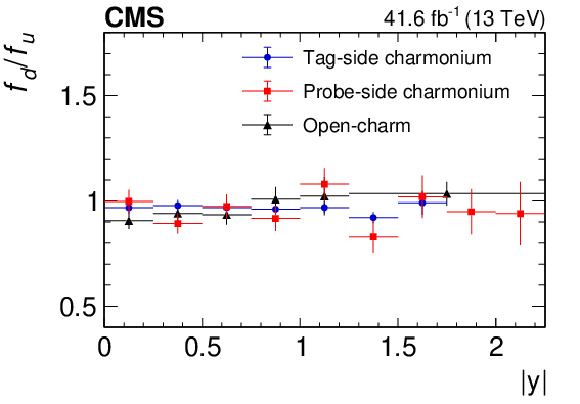

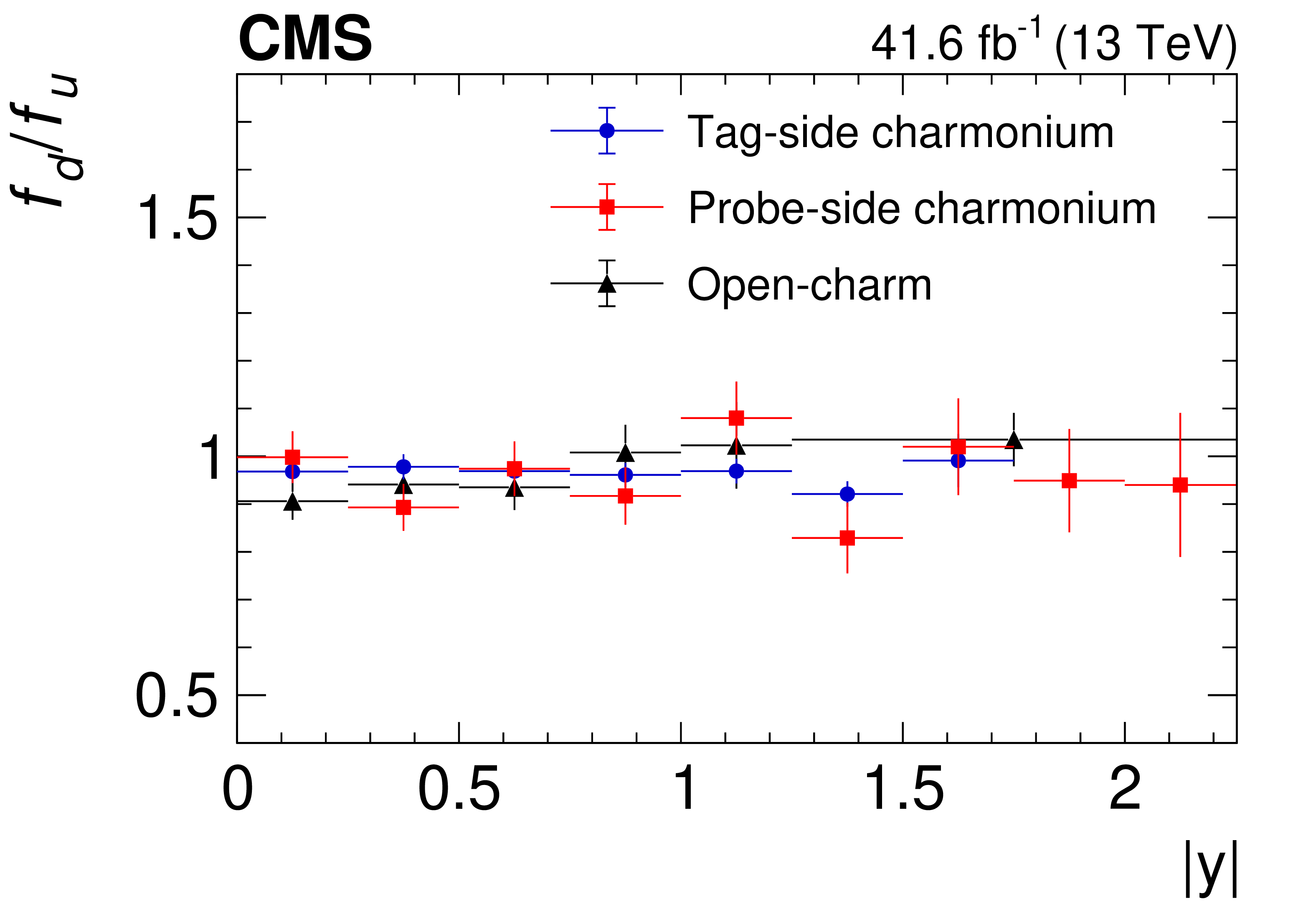

Figure 7-b:
The production fraction ratios $ f_\mathrm{d}/f_\mathrm{u} $ as functions of $ p_{\mathrm{T}} $ (left) and $ |y| $ (right) measured using both the open-charm and charmonium decays, without an assumption of isospin invariance. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. The global uncertainties of 5.7% for the open-charm analysis 4.8% for both charmonium analyses are not shown. |
png pdf |

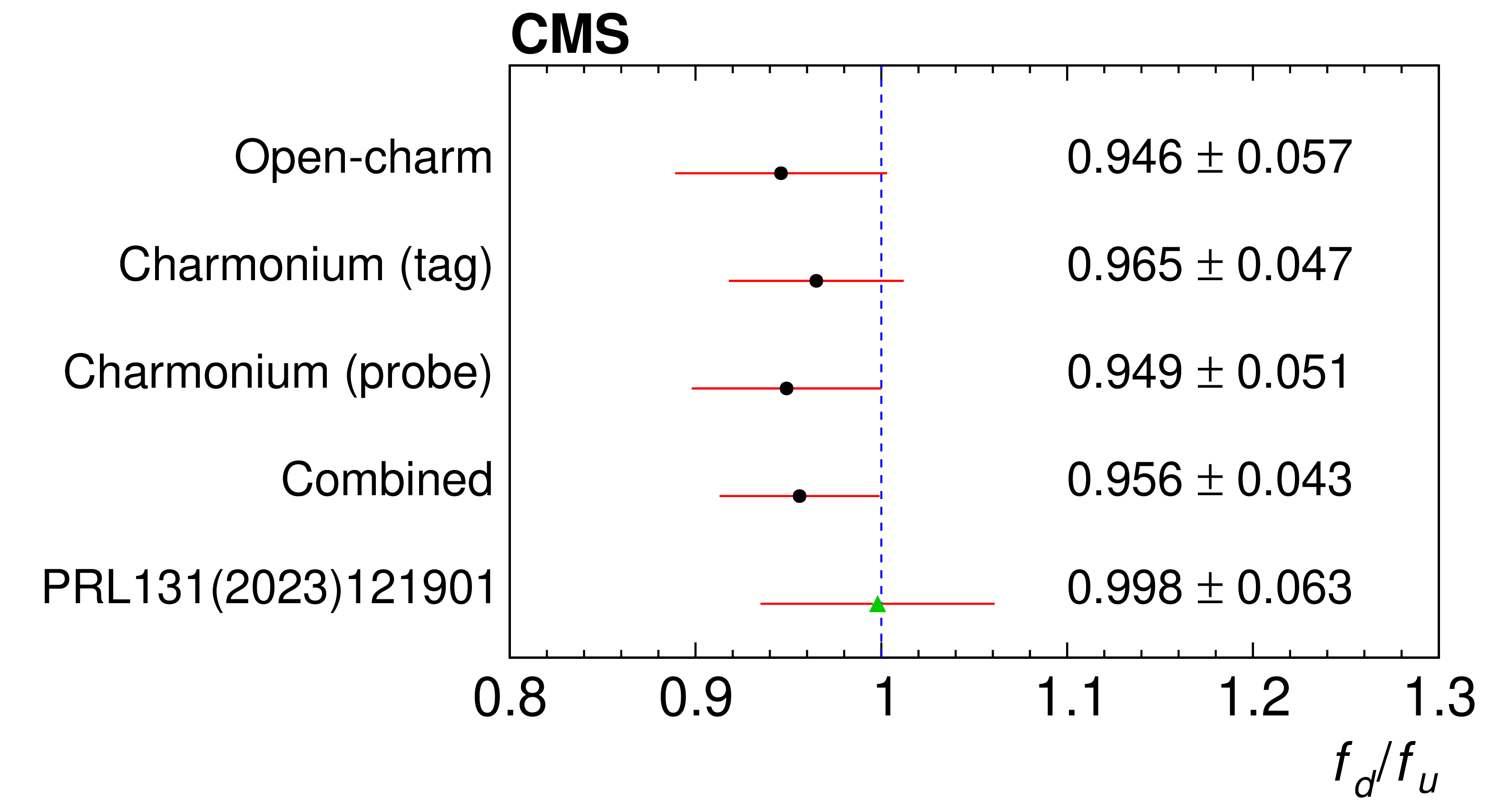

Figure 8:
Comparison of the $ f_\mathrm{d}/f_\mathrm{u} $ measurements across different channels. The ``Combined'' value, shown above the black dashed line, is obtained from a combined $ \chi^{2} $ fit of the measurements from two statistically independent channels: the open-charm and tag-side charmonium. Additionally, the plot presents the previous CMS result [7] for comparison. The blue dashed line at unity corresponds to $ f_{\mathrm{d}} = f_{\mathrm{u}} $. |
png pdf |

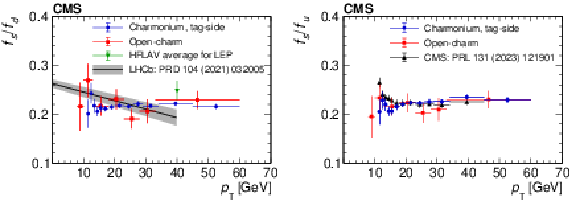

Figure 9:
The $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ and $ \mathcal{R}_\mathrm{s} $ values measured in the charmonium analysis, converted to $ f_\mathrm{s}/f_\mathrm{d} $ (left) and $ f_\mathrm{s}/f_\mathrm{u} $ (right) using the absolute normalizations $ c_{\mathrm{s}\mathrm{d}} $ and $ c_{\mathrm{s}\mathrm{u}} $, respectively. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. For comparison, PFR measurements from the open-charm analysis, LEP [47], and CMS [7] (converted to $ f_\mathrm{s}/f_\mathrm{u} $ using $ c_{\mathrm{s}\mathrm{u}} $) are overlaid, along with the $ p_{\mathrm{T}} $ trend of $ f_\mathrm{s}/f_\mathrm{d} $ observed by LHCb [5] with its uncertainties displayed as the gray band. The $ f_\mathrm{s}/f_\mathrm{d} $ ($ f_\mathrm{s}/f_\mathrm{u} $) global uncertainties are 6.3% (7.4%) for the open-charm channel and 8.4% (8.9%) for both the charmonium channel and the previous CMS result. |
png pdf |

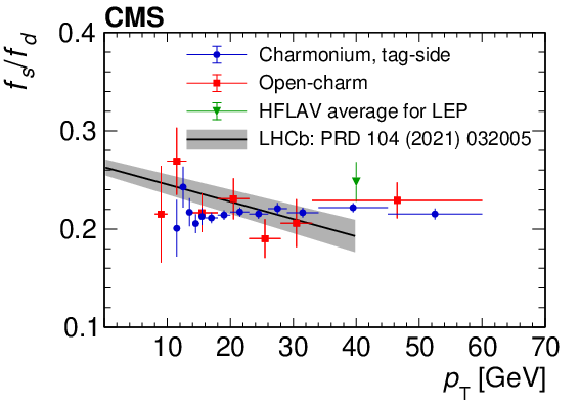

Figure 9-a:
The $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ and $ \mathcal{R}_\mathrm{s} $ values measured in the charmonium analysis, converted to $ f_\mathrm{s}/f_\mathrm{d} $ (left) and $ f_\mathrm{s}/f_\mathrm{u} $ (right) using the absolute normalizations $ c_{\mathrm{s}\mathrm{d}} $ and $ c_{\mathrm{s}\mathrm{u}} $, respectively. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. For comparison, PFR measurements from the open-charm analysis, LEP [47], and CMS [7] (converted to $ f_\mathrm{s}/f_\mathrm{u} $ using $ c_{\mathrm{s}\mathrm{u}} $) are overlaid, along with the $ p_{\mathrm{T}} $ trend of $ f_\mathrm{s}/f_\mathrm{d} $ observed by LHCb [5] with its uncertainties displayed as the gray band. The $ f_\mathrm{s}/f_\mathrm{d} $ ($ f_\mathrm{s}/f_\mathrm{u} $) global uncertainties are 6.3% (7.4%) for the open-charm channel and 8.4% (8.9%) for both the charmonium channel and the previous CMS result. |
png pdf |

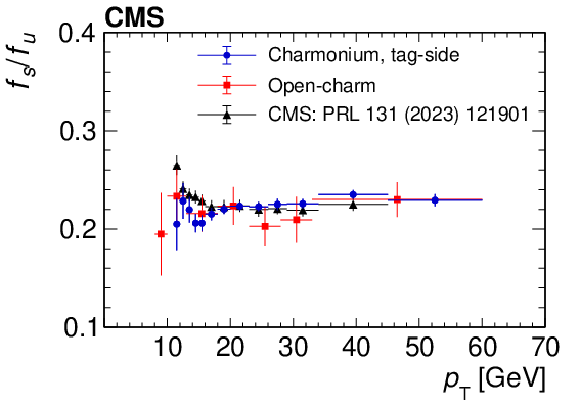

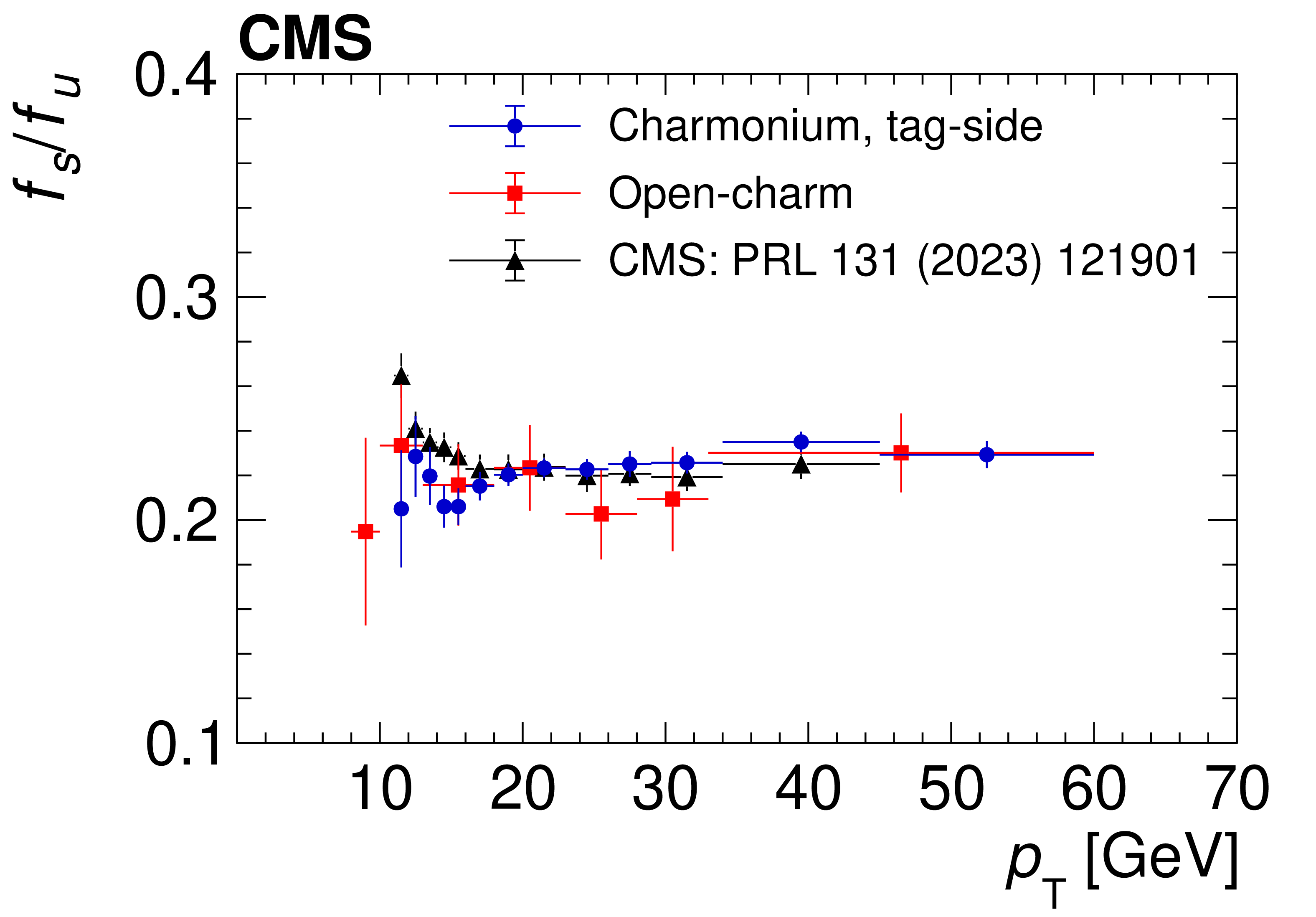

Figure 9-b:
The $ \mathcal{R}_\mathrm{s}^\mathrm{d} $ and $ \mathcal{R}_\mathrm{s} $ values measured in the charmonium analysis, converted to $ f_\mathrm{s}/f_\mathrm{d} $ (left) and $ f_\mathrm{s}/f_\mathrm{u} $ (right) using the absolute normalizations $ c_{\mathrm{s}\mathrm{d}} $ and $ c_{\mathrm{s}\mathrm{u}} $, respectively. The error bars include both statistical and bin-to-bin uncorrelated systematic uncertainties. For comparison, PFR measurements from the open-charm analysis, LEP [47], and CMS [7] (converted to $ f_\mathrm{s}/f_\mathrm{u} $ using $ c_{\mathrm{s}\mathrm{u}} $) are overlaid, along with the $ p_{\mathrm{T}} $ trend of $ f_\mathrm{s}/f_\mathrm{d} $ observed by LHCb [5] with its uncertainties displayed as the gray band. The $ f_\mathrm{s}/f_\mathrm{d} $ ($ f_\mathrm{s}/f_\mathrm{u} $) global uncertainties are 6.3% (7.4%) for the open-charm channel and 8.4% (8.9%) for both the charmonium channel and the previous CMS result. |
png pdf |

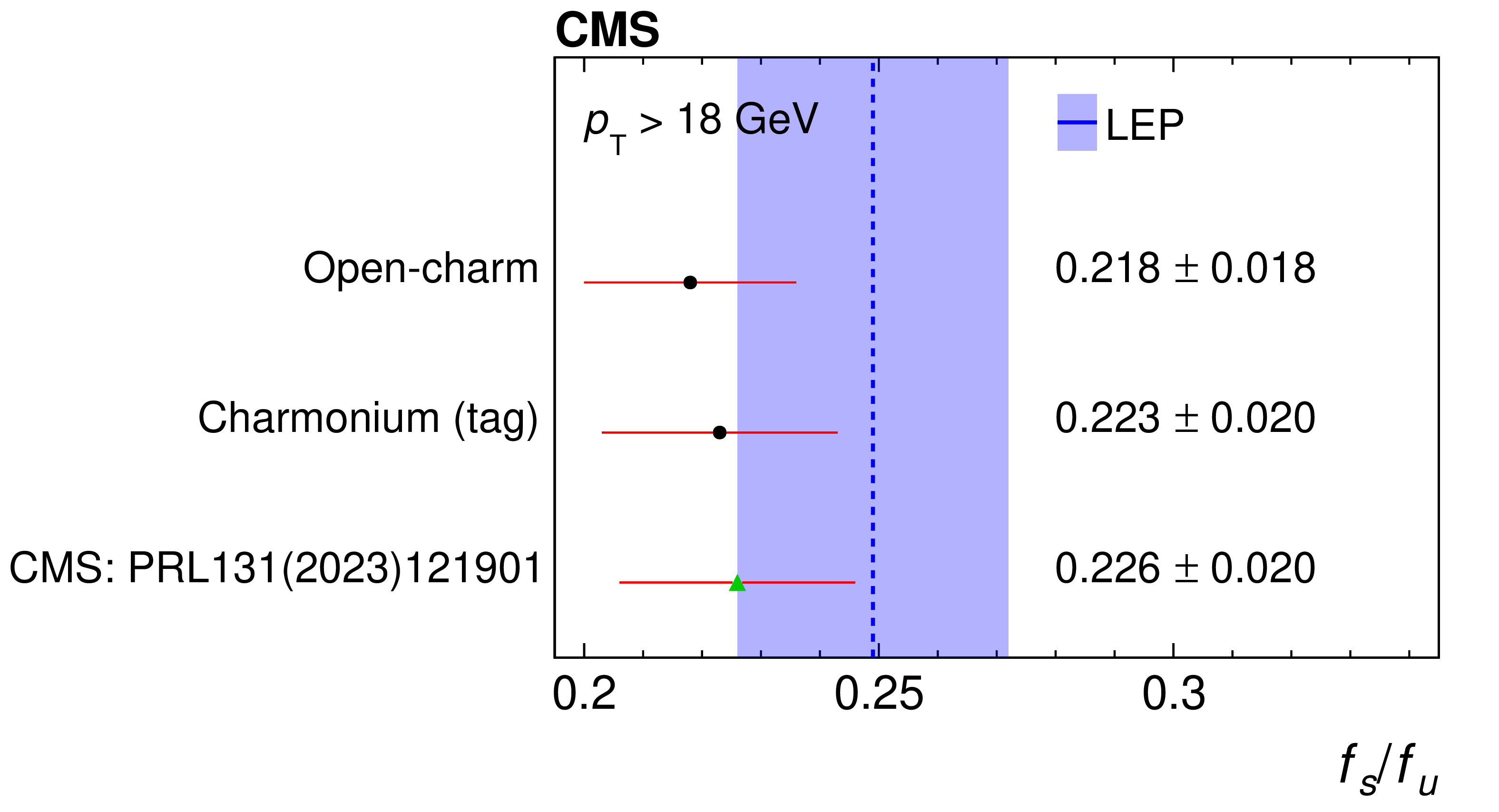

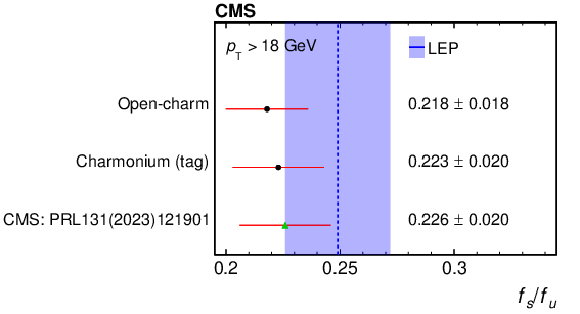

Figure 10:
Comparison of the $ f_\mathrm{s}/f_\mathrm{u} $ measurements at high $ p_{\mathrm{T}} $ ($ p_{\mathrm{T}} > $ 18 GeV) across different channels. The blue dashed line and shaded band represent the LEP measurement and its uncertainty [47], respectively, included for comparison. The $ \mathcal{R}_\mathrm{s} $ values obtained in the charmonium analysis in the tag-side category and the previous CMS measurement [7] are converted to $ f_\mathrm{s}/f_\mathrm{u} $ using the absolute normalization factor $ c_{\mathrm{s}\mathrm{u}} $. |
| Tables | |
png pdf |
Table 1:
Summary of the single-muon $ {\mathrm{B}} $ parking triggers used in this analysis. |
png pdf |

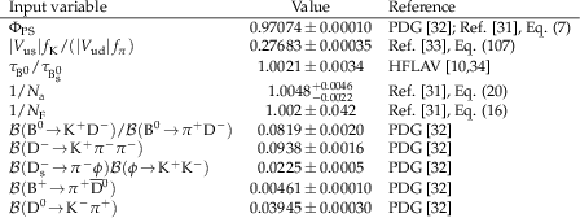

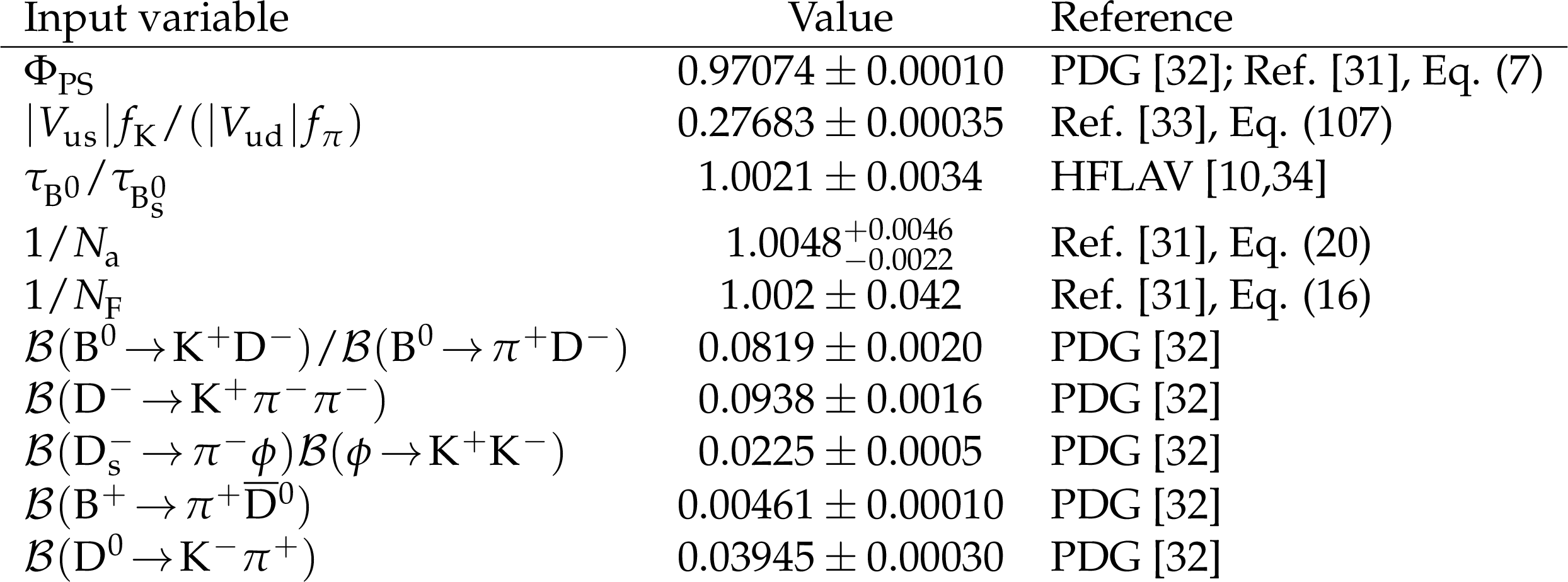

Table 2:
Inputs for the open-charm PFR measurements. |
png pdf |

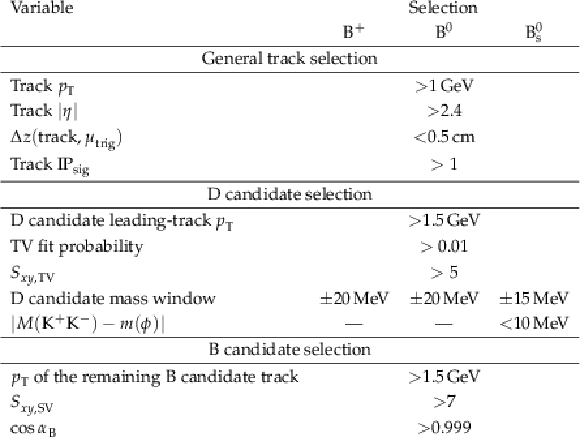

Table 3:
Summary of the preselection requirements for $ {\mathrm{B}} $ candidates in the open-charm analysis. The $ \text{---} $ entries indicate that the selection does not apply to this channel. |
png pdf |

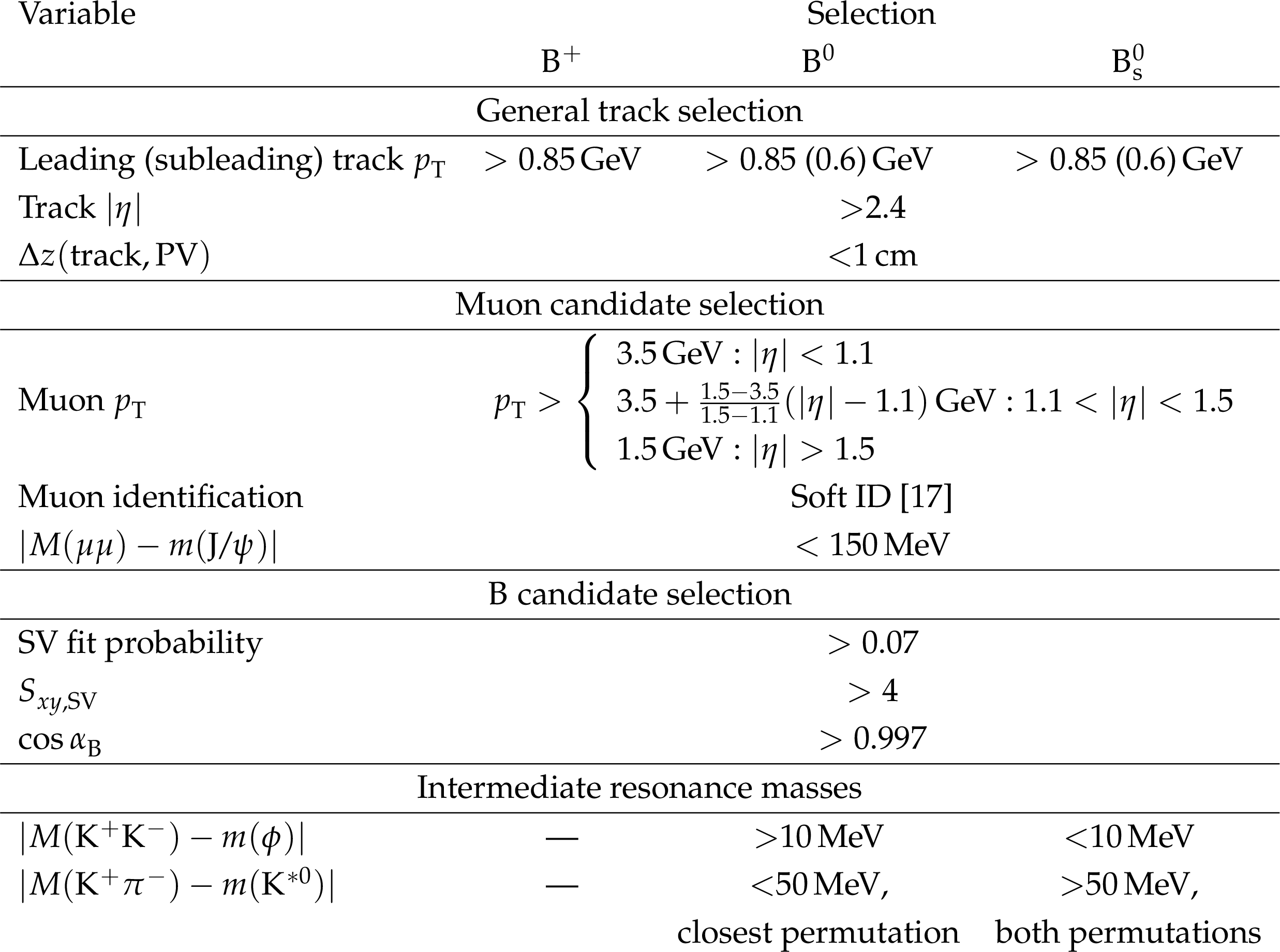

Table 4:
Summary of the selection requirements for $ {\mathrm{B}} $ candidates in the charmonium analysis. The $ \text{---} $ entries indicate that the selection does not apply to this channel. |
png pdf |

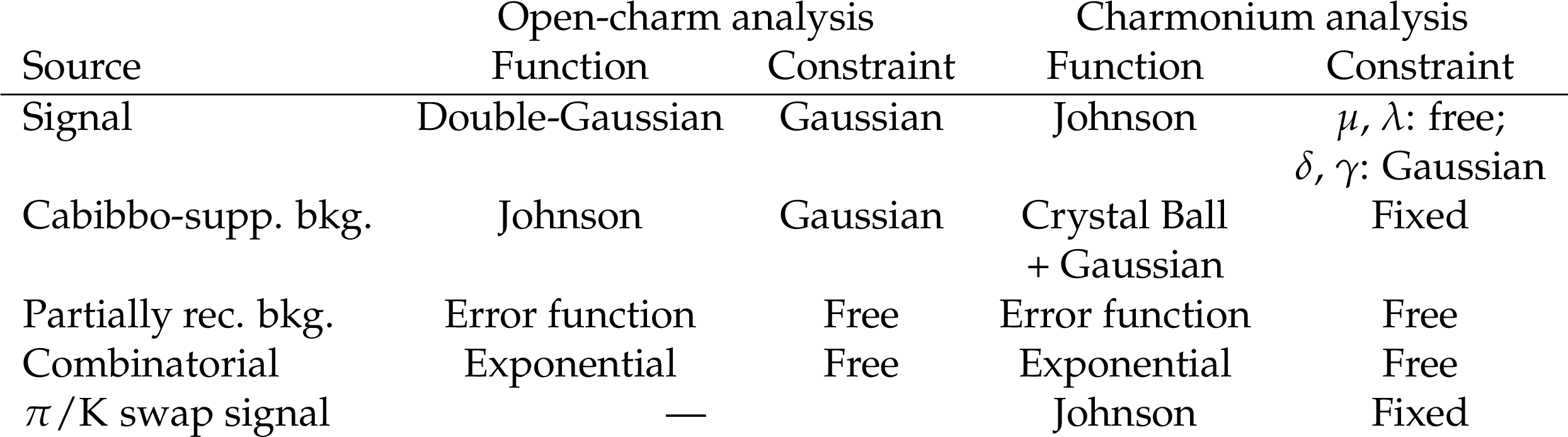

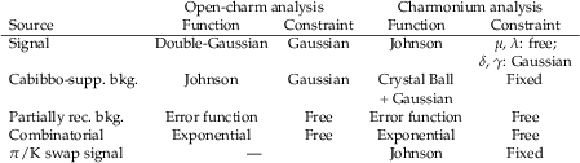

Table 5:
Fit functions used in the open-charm and charmonium analyses. The $ \text{---} $ entries indicate that the background does not apply to this channel. |
png pdf |

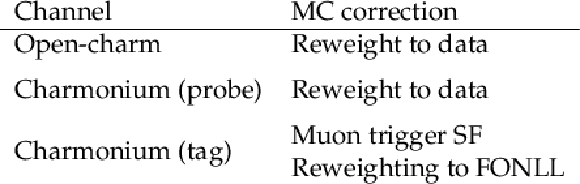

Table 6:
Summary of MC corrections for the open-charm and charmonium channels. |
png pdf |

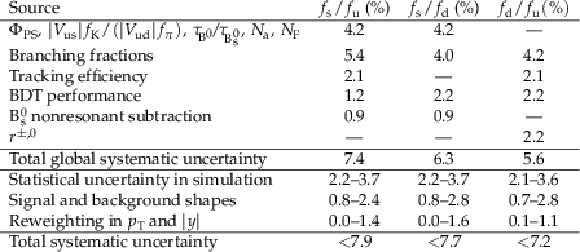

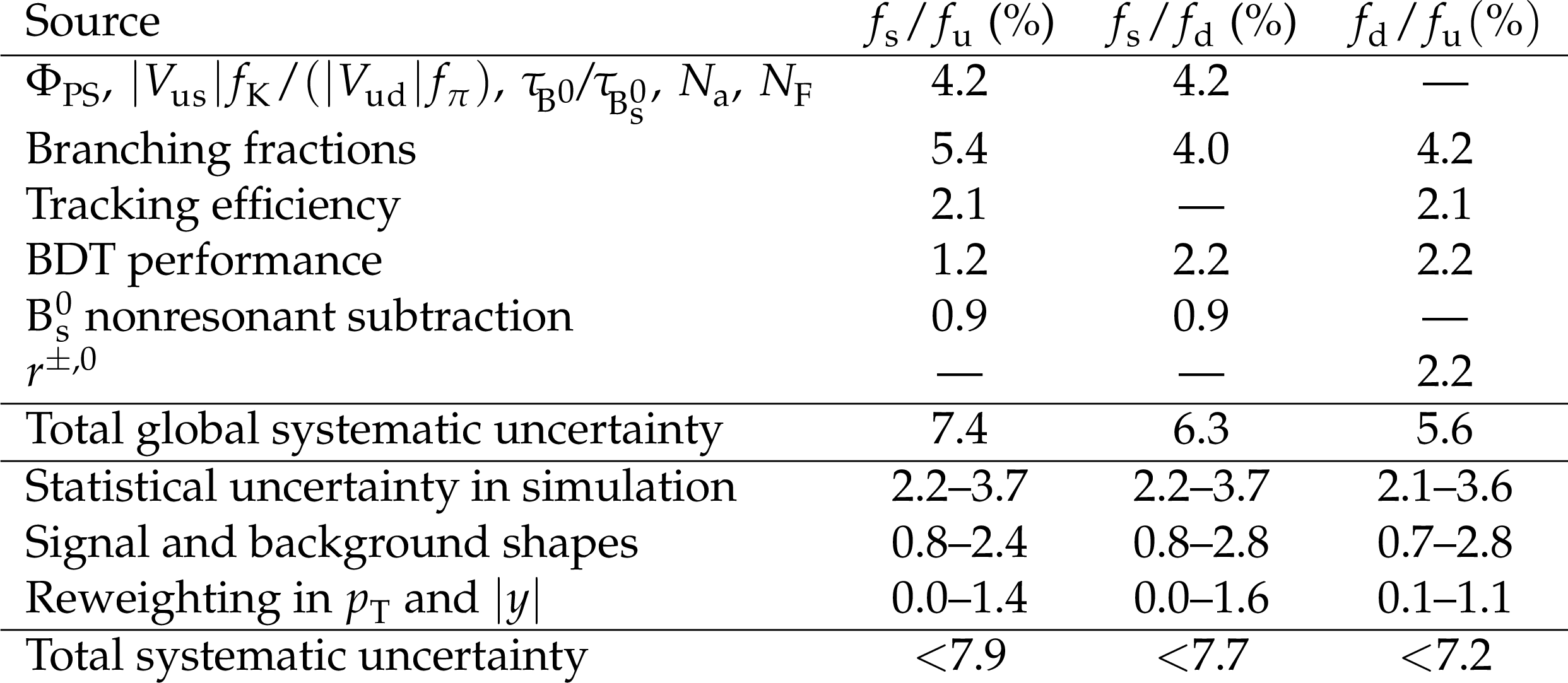

Table 7:
Sources and values of the systematic uncertainties affecting the measured PFRs in the open-charm analysis. The bin-to-bin-uncorrelated uncertainties are presented as ranges, which indicate the range of uncertainties across different $ p_{\mathrm{T}} $ and $ |y| $ bins. The $ \text{---} $ entries indicate that the uncertainty does not apply. The reported values are the relative systematic uncertainties in percent. |
png pdf |

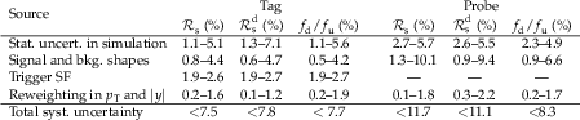

Table 8:
Sources of bin-to-bin uncorrelated systematic uncertainty affecting the measured $ \mathcal{R}_\mathrm{s} $, $ \mathcal{R}_\mathrm{s}^\mathrm{d} $, and $ f_\mathrm{d}/f_\mathrm{u} $ values for the tag-side and probe-side categories in the charmonium analysis. The uncertainties are presented as ranges, which indicate the range of the uncertainties across different $ p_{\mathrm{T}} $ and $ |y| $ bins. The $ \text{---} $ entries indicate that the uncertainty does not apply. The reported values are the relative systematic uncertainty in percent. |
png pdf |

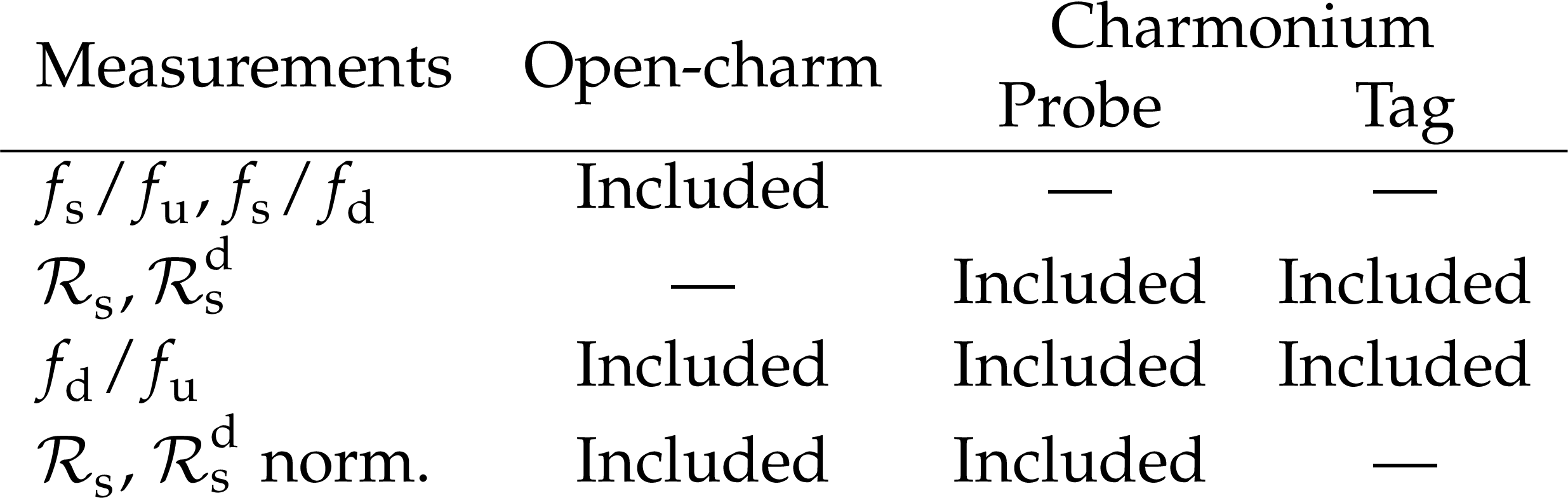

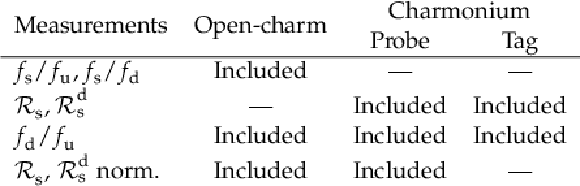

Table 9:
Summary of the channels employed in each measurement of $ f_\mathrm{s}/f_\mathrm{u} $, $ f_\mathrm{s}/f_\mathrm{d} $, $ \mathcal{R}_\mathrm{s} $, $ \mathcal{R}_\mathrm{s}^\mathrm{d} $, $ f_\mathrm{d}/f_\mathrm{u} $, and in determining the absolute normalizations for $ \mathcal{R}_\mathrm{s} $ and $ \mathcal{R}_\mathrm{s}^\mathrm{d} $. The $ \text{---} $ entries indicate the channel is not included. |
| Summary |
| In summary, the relative production fractions of $ {\mathrm{B}^{+}} $, $ {\mathrm{B}^0} $, and $ \mathrm{B}_{s}^{0} $ mesons have been measured in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using a special data set recorded in 2018 with the CMS experiment at the LHC, corresponding to an integrated luminosity of 41.6 fb$^{-1}$. This data set, collected with high-rate triggers, provided an unprecedented unbiased sample of $ 10^{10} \mathrm{b} $ hadrons. Production fraction ratios as functions of $ {\mathrm{B}} $ meson transverse momentum and absolute rapidity were measured using open-charm decays in the range of 8 $ < p_{\mathrm{T}} < $ 60 GeV and $ |y| < $ 2.25. The same data set was also used to measure these ratios in the charmonium decay channels, with the $ {\mathrm{J}/\psi} $ meson decaying into a pair of muons, to determine the dependence of these ratios on $ {\mathrm{B}} $ meson kinematics. We also reported PFR values averaged over $ p_{\mathrm{T}} $. The absolute normalization from the charmonium to open-charm channels is determined using known branching fractions, precision theoretical calculations, and the corresponding charmonium and open-charm results. This normalization is constructed as a double ratio of the two analyses, thereby canceling any potential $ p_{\mathrm{T}} $ dependence of the production fraction ratios. This makes these quantities universal constants that can be applied to any charmonium analysis and allows, for the first time, the extraction of production fraction ratios in the charmonium channels with an absolute normalization, rather than just as a shape measurement. The measurements are also used to extract $ {\mathrm{B}^{+}} $, $ \mathrm{B}_{s}^{0} $, and $ {\mathrm{B}^0} $ branching fraction ratios of open-charm decays to charmonium decays, improving by $ \approx 40% $ upon the precision of the world-average value for the $ \mathrm{B}_{s}^{0} $ decays. |
| References | ||||
| 1 | LHCb Collaboration | Measurement of b-hadron production fractions in 7 TeV pp collisions | PRD 85 (2012) 032008 | 1111.2357 |
| 2 | LHCb Collaboration | Measurement of the fragmentation fraction ratio $ f_s/f_d $ and its dependence on $ {\mathrm{B}} $ meson kinematics | JHEP 04 (2013) 001 | 1301.5286 |
| 3 | LHCb Collaboration | Measurement of b hadron fractions in 13 TeV pp collisions | PRD 100 (2019) 031102 | 1902.06794 |
| 4 | LHCb Collaboration | Measurement of $ f_s/f_u $ variation with proton-proton collision energy and $ {\mathrm{B}} $-meson kinematics | PRL 124 (2020) 122002 | 1910.09934 |
| 5 | LHCb Collaboration | Precise measurement of the $ f_s/f_d $ ratio of fragmentation fractions and of $ \mathrm{B}_{s}^{0} $ decay branching fractions | PRD 104 (2021) 032005 | 2103.06810 |
| 6 | ATLAS Collaboration | Determination of the ratio of b-quark fragmentation fractions $ f_s/f_d $ in pp collisions at $ \sqrt{s}= $ 7 TeV with the ATLAS detector | PRL 115 (2015) 262001 | 1507.08925 |
| 7 | CMS Collaboration | Measurement of the dependence of the hadron production fraction ratio $ f_s / f_u $ and $ f_d / f_u $ on $ {\mathrm{B}} $ meson kinematic variables in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | PRL 131 (2023) 121901 | CMS-BPH-21-001 2212.02309 |
| 8 | Belle Collaboration | Precise measurement of the branching fractions for $ \mathrm{B}_{s}^{0}\to \mathrm{D}_{s}^{(*)+} \mathrm{D}_{s}^{(*)-} $ and first measurement of the $ \mathrm{D}_{s}^{*+} \mathrm{D}_{s}^{*-} $ polarization using $ \mathrm{e}^+\mathrm{e}^- $ collisions | PRD 87 (2013) 031101 | 1208.0323 |
| 9 | CMS Collaboration | Measurement of the $ \mathrm{B}_{s}^{0} \to \mu^{+}\mu^{-} $ decay properties and search for the $ {\mathrm{B}^0} \to \mu^{+}\mu^{-} $ decay in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | PLB 842 (2023) 137955 | CMS-BPH-21-006 2212.10311 |
| 10 | HFLAV Collaboration | Averages of b-hadron, c-hadron, and $ \tau $-lepton properties as of 2023 | 11, 2024 | 2411.18639 |
| 11 | F. Bernlochner et al. | Novel approaches to determine $ {\mathrm{B}^{\pm}} $ and $ {\mathrm{B}^0} $ meson production fractions | PRD 110 (2024) 014007 | 2306.04686 |
| 12 | CMS Collaboration | Enriching the physics program of the CMS experiment via data scouting and data parking | Phys. Rep. 1115 678, 2025 link |
CMS-EXO-23-007 2403.16134 |
| 13 | CMS Collaboration | CMS luminosity measurements for the 2018 data-taking period at $ \sqrt{s} = $ 13 TeV | CMS Physics Analysis Summary, 2018 CMS-PAS-LUM-18-001 |
CMS-PAS-LUM-18-001 |
| 14 | CMS Collaboration | HEPData record for this analysis | link | |
| 15 | W. Adam et al. | The CMS Phase-1 pixel detector upgrade | JINST 16 (2021) P02027 | 2012.14304 |
| 16 | CMS Collaboration | Track impact parameter resolution for the full pseudo rapidity coverage in the 2017 dataset with the CMS phase-1 pixel detector | CMS Detector Performance Note CMS-DP-2020-049, 2020 CDS |
|
| 17 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 18 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 19 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 20 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | 1003.4038 |
| 21 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 22 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 23 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 24 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 25 | D. J. Lange | The EvtGen particle decay simulation package | NIM A 462 (2001) 152 | |
| 26 | E. Barberio and Z. Was | PHOTOS: a universal Monte Carlo for QED radiative corrections. Version 2.0 | Comput. Phys. Commun. 79 (1994) 291 | |
| 27 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 28 | M. Beneke, G. Buchalla, M. Neubert, and C. T. Sachrajda | QCD factorization for exclusive, nonleptonic $ {\mathrm{B}} $ meson decays: General arguments and the case of heavy light final states | NPB 591 (2000) 313 | hep-ph/0006124 |
| 29 | R. Fleischer, N. Serra, and N. Tuning | Tests of factorization and SU(3) relations in $ {\mathrm{B}} $ decays into heavy-light final states | PRD 83 (2011) 014017 | 1012.2784 |
| 30 | T. Huber, S. Kr ä nkl, and X.-Q. Li | Two-body non-leptonic heavy-to-heavy decays at NNLO in QCD factorization | JHEP 09 (2016) 112 | 1606.02888 |
| 31 | M. Bordone et al. | A puzzle in $ \bar{B}_{(s)}^0 \to D_{(s)}^{(*)+} \lbrace \pi^-, K^-\rbrace $ decays and extraction of the $ f_s/f_d $ fragmentation fraction | EPJC 80 (2020) 951 | 2007.10338 |
| 32 | Particle Data Group Collaboration | Review of particle physics | PRD 110 (2024) 030001 | |
| 33 | M. Di Carlo et al. | Light-meson leptonic decay rates in lattice QCD+QED | PRD 100 (2019) 034514 | 1904.08731 |
| 34 | PDG | Heavy Flavor Averaging Group, “PDG 2025 averages” | PDG 2025 averages | |
| 35 | CMS Collaboration | CMS tracking performance results from early LHC operation | EPJC 70 (2010) 1165 | CMS-TRK-10-001 1007.1988 |
| 36 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 37 | BaBar Collaboration | Dalitz plot analysis of $ D_s^+ \to K^+ K^- \pi^+ $ | PRD 83 (2011) 052001 | 1011.4190 |
| 38 | M. Pivk and F. R. Le Diberder | $ \mathit{_sPlot} $: A Statistical tool to unfold data distributions | NIM A 555 (2005) 356 | physics/0402083 |
| 39 | T. Chen and C. Guestrin | XGBoost: a scalable tree boosting system | in Proc. 22nd ACM SIGKDD Int. Conf. on Knowledge Discovery and Data Mining, 2016 Proc. 2 (2016) 2 |
1603.02754 |
| 40 | F. Pedregosa et al. | Scikit-learn: Machine learning in Python | J. Machine Learning Res. 12 (2011) 2825 | 1201.0490 |
| 41 | N. L. Johnson | Systems of frequency curves generated by methods of translation | Biometrika 36 (1949) 149 | |
| 42 | M. J. Oreglia | A study of the reactions $ \psi^\prime \to \gamma \gamma \psi $ | PhD thesis, Stanford University, SLAC Report SLAC-R-236, 1980 link |
|
| 43 | CMS Collaboration | Measurements of inclusive W and Z cross sections in pp collisions at $ \sqrt{s}= $ 7 TeV | JHEP 01 (2011) 080 | CMS-EWK-10-002 1012.2466 |
| 44 | M. Cacciari, M. Greco, and P. Nason | The $ p_{\mathrm{T}} $ spectrum in heavy-flavour hadroproduction | JHEP 05 (1998) 007 | hep-ph/9803400 |
| 45 | CMS Collaboration | Tracking performances for charged pions with Run2 legacy data | CMS Detector Performance Note CMS-DP-2022-012, 2022 CDS |
|
| 46 | S. Jackman | Bayesian Analysis for the Social Sciences | John Wiley and Sons, New Jersey, USA, 2009 link |
|
| 47 | HFLAV Collaboration | Averages of b-hadron, c-hadron, and $ \tau $-lepton properties as of 2018 | EPJC 81 (2021) 226 | 1909.12524 |
|
|
