| CMS-B2G-22-001 ; CERN-EP-2026-047 | ||
| Search for a new heavy resonance decaying to a top quark and a neutral scalar boson in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | ||
| CMS Collaboration | ||
| 12 April 2026 | ||
| Submitted to Physics Letters B | ||
| Abstract: A first search at the LHC for a new heavy resonance decaying to a top quark and a neutral scalar boson $ \phi $ in the fully hadronic final state is presented, where the $ \phi $ boson is identified by its decay into a bottom quark-antiquark pair. The search is focused on final states in which the decay products of the highly Lorentz boosted top quark and $ \phi $ boson are each reconstructed as a single, large-radius jet with distinct substructure. The analysis is performed using proton-proton collision data at a center-of-mass energy of 13 TeV, corresponding to an integrated luminosity of 138 fb$ ^{-1} $, recorded with the CMS detector at the LHC in 2016--2018. The single production of a vector-like top quark, T', is used as a benchmark model for the signal process. The results of this search are combined with those of a previous CMS search in which semileptonic decays of the top quark were used. No significant excess of data is observed with respect to the background prediction. For the case where the neutral scalar is a standard model Higgs boson and the T' quark width is 5% of its mass, T' quark masses between 0.85 and 1.3 TeV are excluded at 95% confidence level and the most stringent limits to date are set for masses above 2 TeV. For other $ \phi $ boson masses, upper limits as low as 0.1 fb are set on the product of the T' quark production cross section and branching fraction for its decay to a top quark and a $ \phi $ boson. | ||
| Links: e-print arXiv:2604.10729 [hep-ex] (PDF) ; CDS record ; inSPIRE record ; HepData record ; CADI line (restricted) ; | ||
| Figures | |
png pdf |

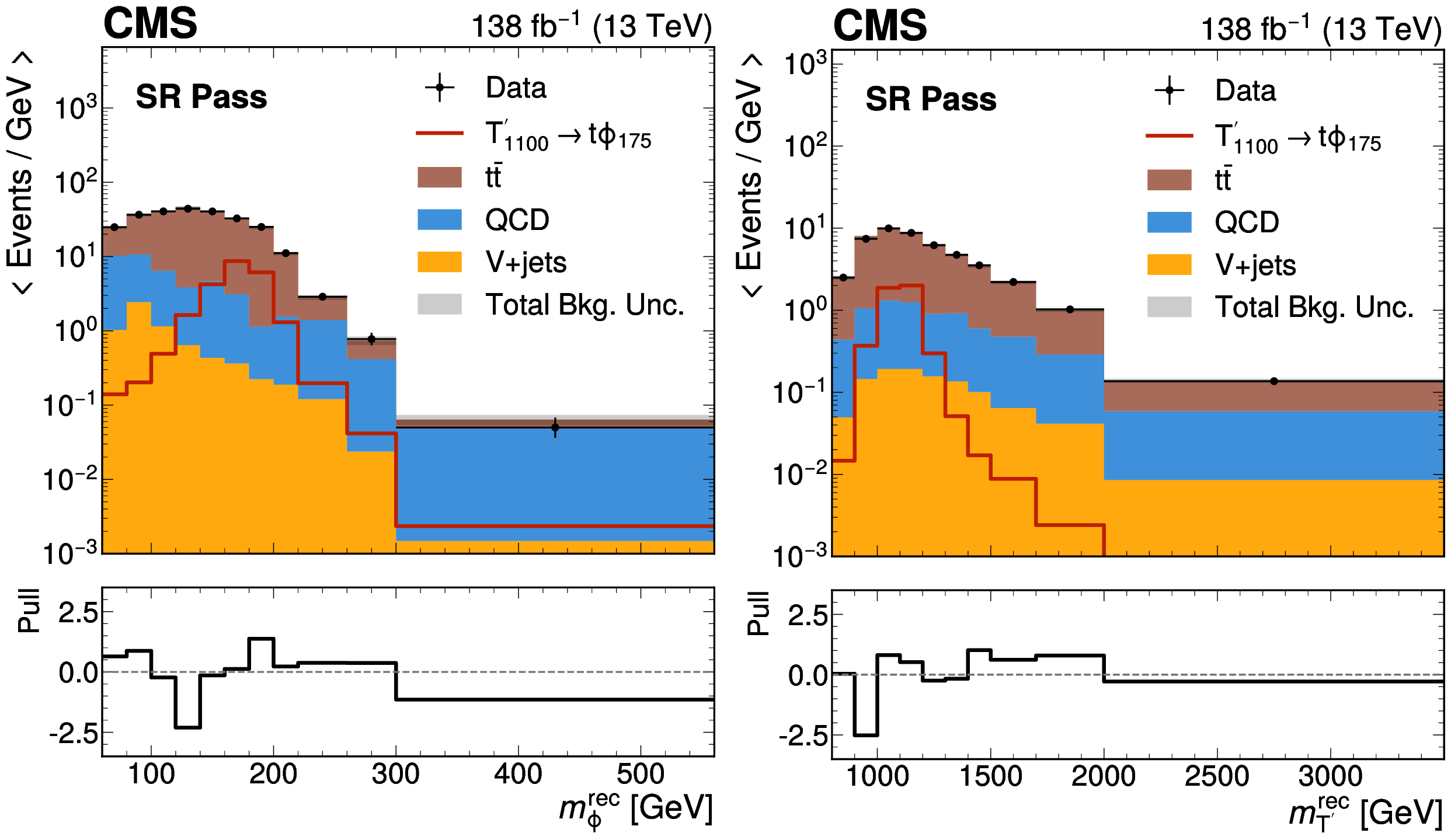

Figure 1:
Postfit distributions of data and predicted background in the $ \mathrm{SR} $ under the background-only hypothesis, projected onto the $ m_{\phi}^{\text{rec}} $ (left) and $ m_{T'}^{\text{rec}} $ (right) axes in the $ \mathrm{T}_\text{Xbb} $ Pass tagging region, $ \mathrm{SR}_{\mathrm{P}} $. A $ m_{\phi}=175 \text{GeV}, m_{T'}= $ 1100 GeV signal sample normalized to a cross section of 220 $ $ fb is overlaid for visualization. The $ y $ axes of the top panels have been rescaled to display the number of events per bin, divided by the width of each bin. The lower panels show the pull distributions, defined for each bin as the difference between the observed data and the postfit background prediction divided by the square root of the difference between the squared Poisson uncertainty in the data and the squared postfit uncertainty in the total background estimate in that particular bin. |
png pdf |

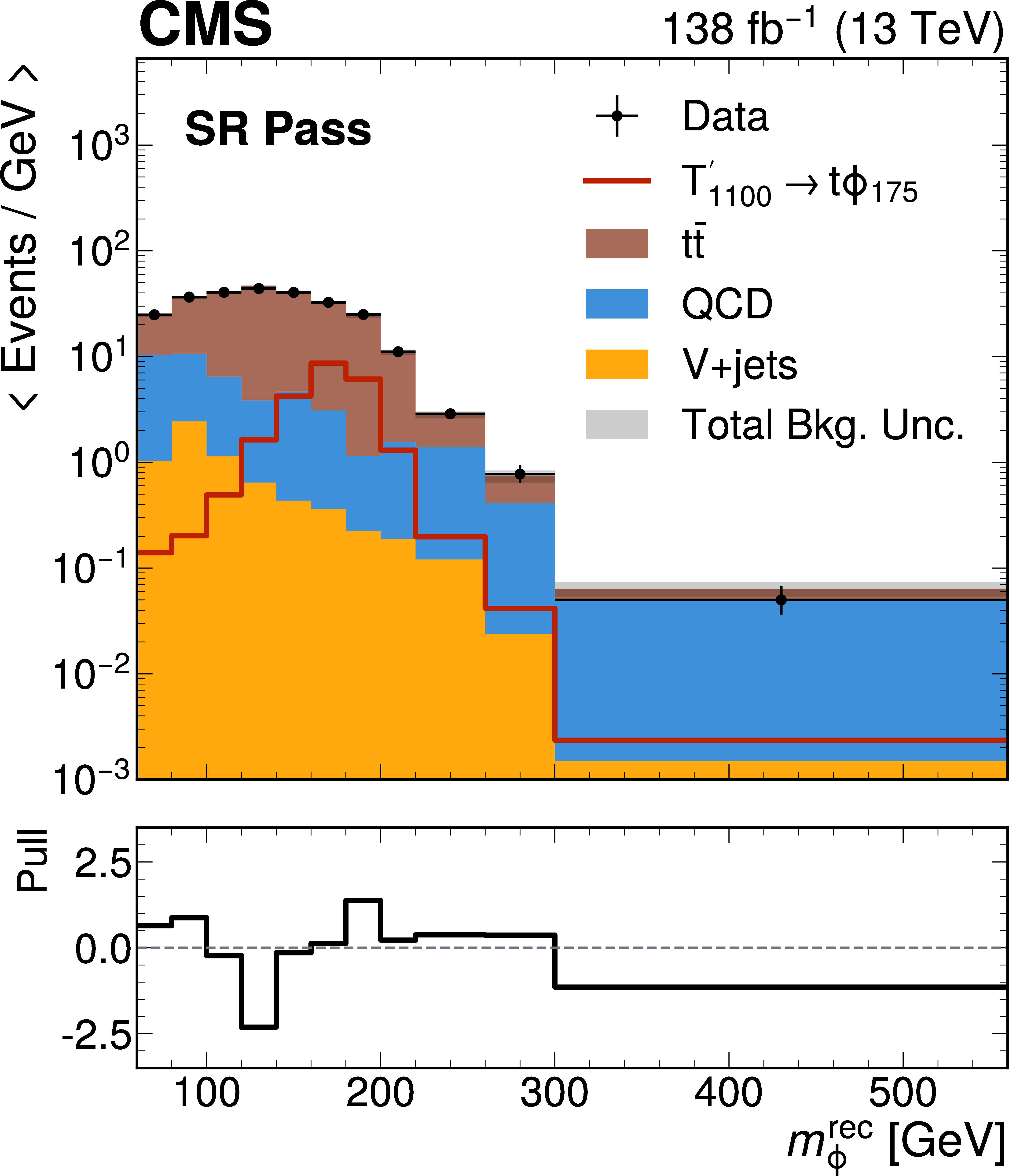

Figure 1-a:
Postfit distributions of data and predicted background in the $ \mathrm{SR} $ under the background-only hypothesis, projected onto the $ m_{\phi}^{\text{rec}} $ (left) and $ m_{T'}^{\text{rec}} $ (right) axes in the $ \mathrm{T}_\text{Xbb} $ Pass tagging region, $ \mathrm{SR}_{\mathrm{P}} $. A $ m_{\phi}=175 \text{GeV}, m_{T'}= $ 1100 GeV signal sample normalized to a cross section of 220 $ $ fb is overlaid for visualization. The $ y $ axes of the top panels have been rescaled to display the number of events per bin, divided by the width of each bin. The lower panels show the pull distributions, defined for each bin as the difference between the observed data and the postfit background prediction divided by the square root of the difference between the squared Poisson uncertainty in the data and the squared postfit uncertainty in the total background estimate in that particular bin. |
png pdf |

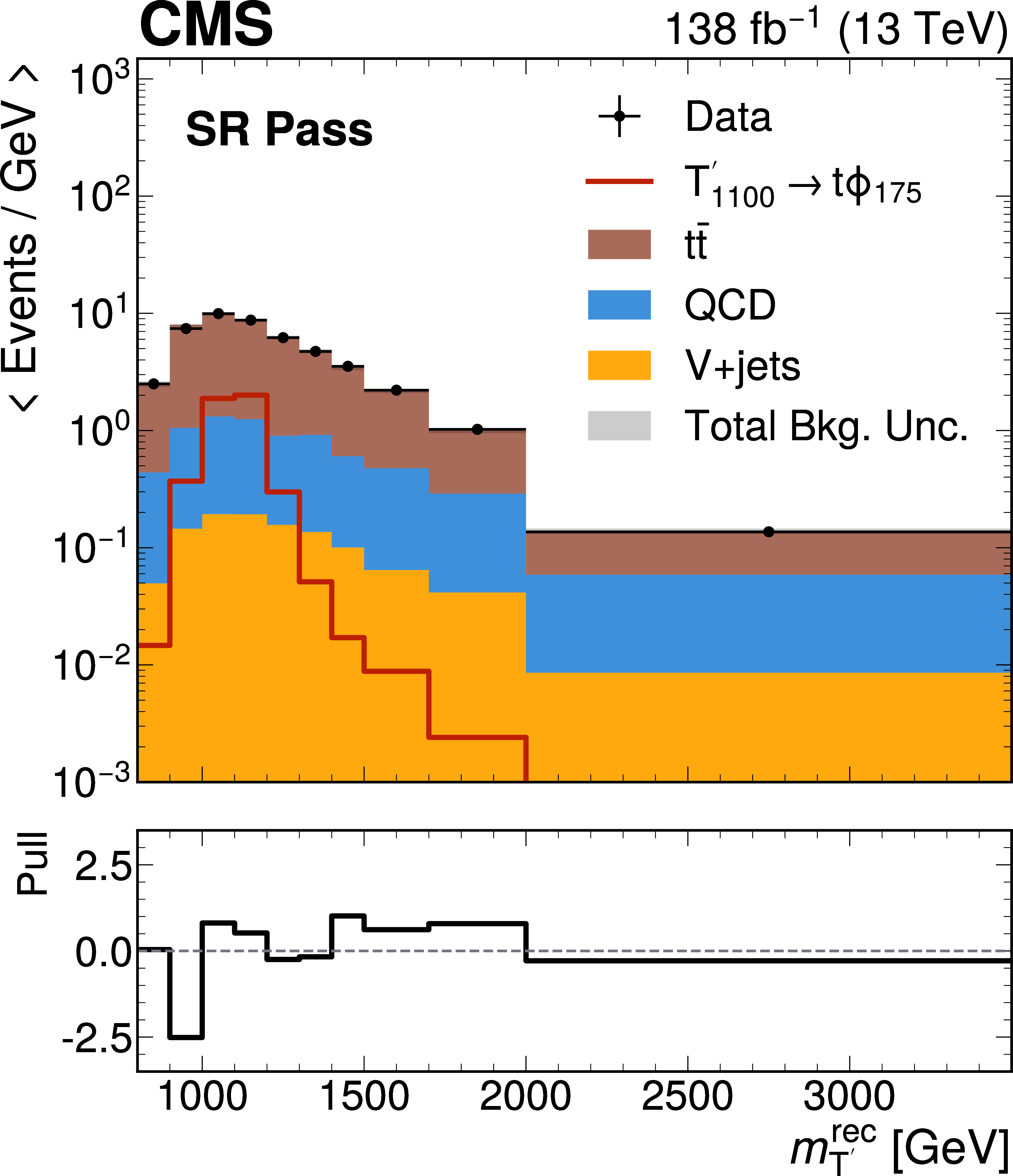

Figure 1-b:
Postfit distributions of data and predicted background in the $ \mathrm{SR} $ under the background-only hypothesis, projected onto the $ m_{\phi}^{\text{rec}} $ (left) and $ m_{T'}^{\text{rec}} $ (right) axes in the $ \mathrm{T}_\text{Xbb} $ Pass tagging region, $ \mathrm{SR}_{\mathrm{P}} $. A $ m_{\phi}=175 \text{GeV}, m_{T'}= $ 1100 GeV signal sample normalized to a cross section of 220 $ $ fb is overlaid for visualization. The $ y $ axes of the top panels have been rescaled to display the number of events per bin, divided by the width of each bin. The lower panels show the pull distributions, defined for each bin as the difference between the observed data and the postfit background prediction divided by the square root of the difference between the squared Poisson uncertainty in the data and the squared postfit uncertainty in the total background estimate in that particular bin. |
png pdf |

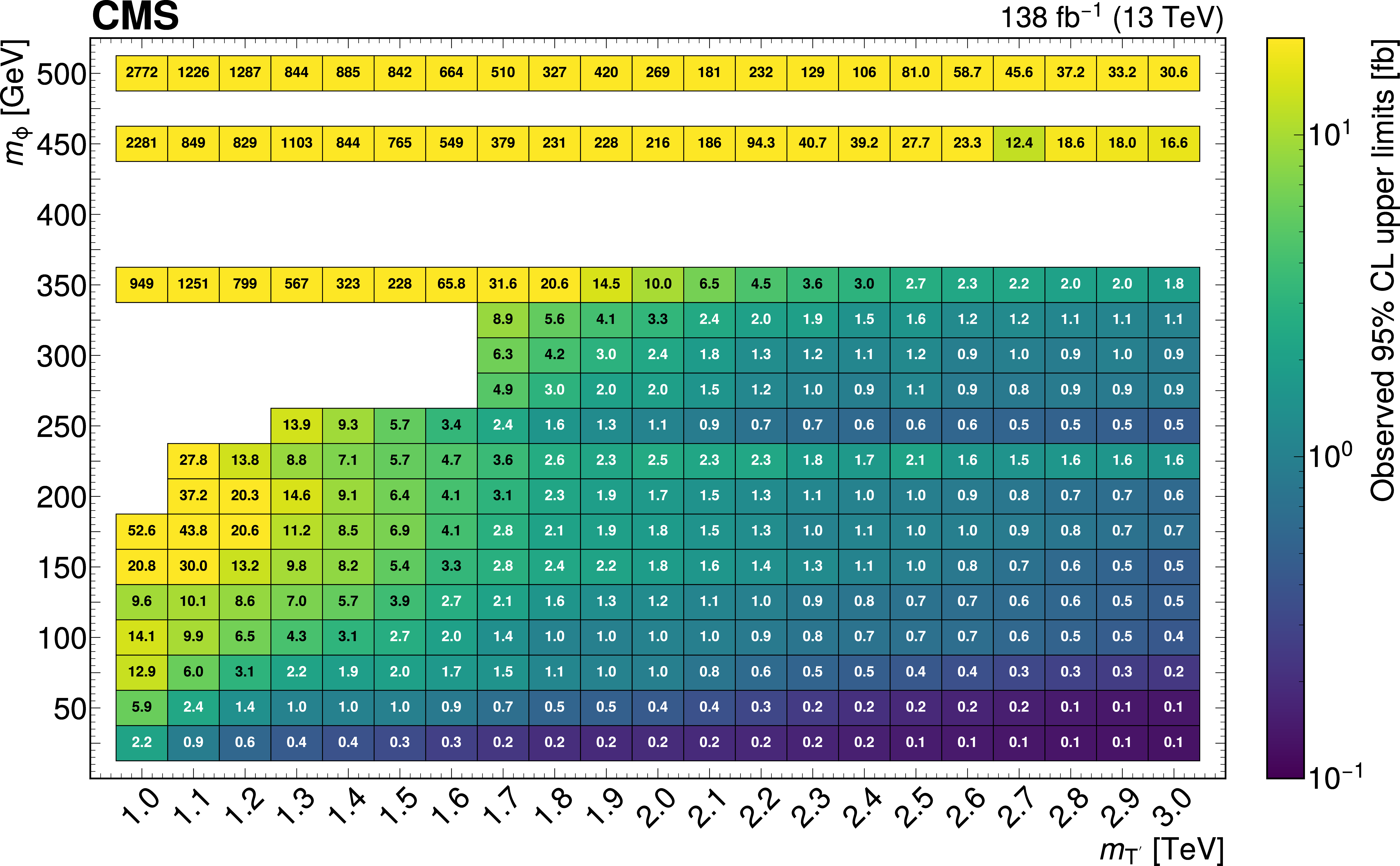

Figure 2:
The upper limit at 95% CL on the product of cross section for the $ T' \to \mathrm{t}\phi $ process and branching fraction $ \mathcal{B}(\mathrm{t}\to \mathrm{b}\mathrm{q}\overline{\mathrm{q}}^\prime) $ as a function of $ (m_{T' },m_{\phi}) $, assuming $ \mathcal{B}(\phi\to\mathrm{b}\overline{\mathrm{b}})=100% $. Masses of the $ \phi $ boson below 75 GeV are exclusive to the semileptonic channel, while $ m_{\phi} > $ 250 GeV are exclusive to the fully hadronic channel. Besides $ m_{\phi}= $ 225 GeV, also exclusive to the fully hadronic channel, upper limits for 75 $ < m_{\phi} < $ 250 GeV are obtained from the combination of the two channels. Gaps in $ m_{\phi} $ above 250 GeV are due to the limitations in the signal interpolation scheme in the hadronic channel, while gaps in $ m_{\phi} < $ 250 GeV correspond to signals not considered by the semileptonic channel due to poor signal efficiency. |
png pdf |

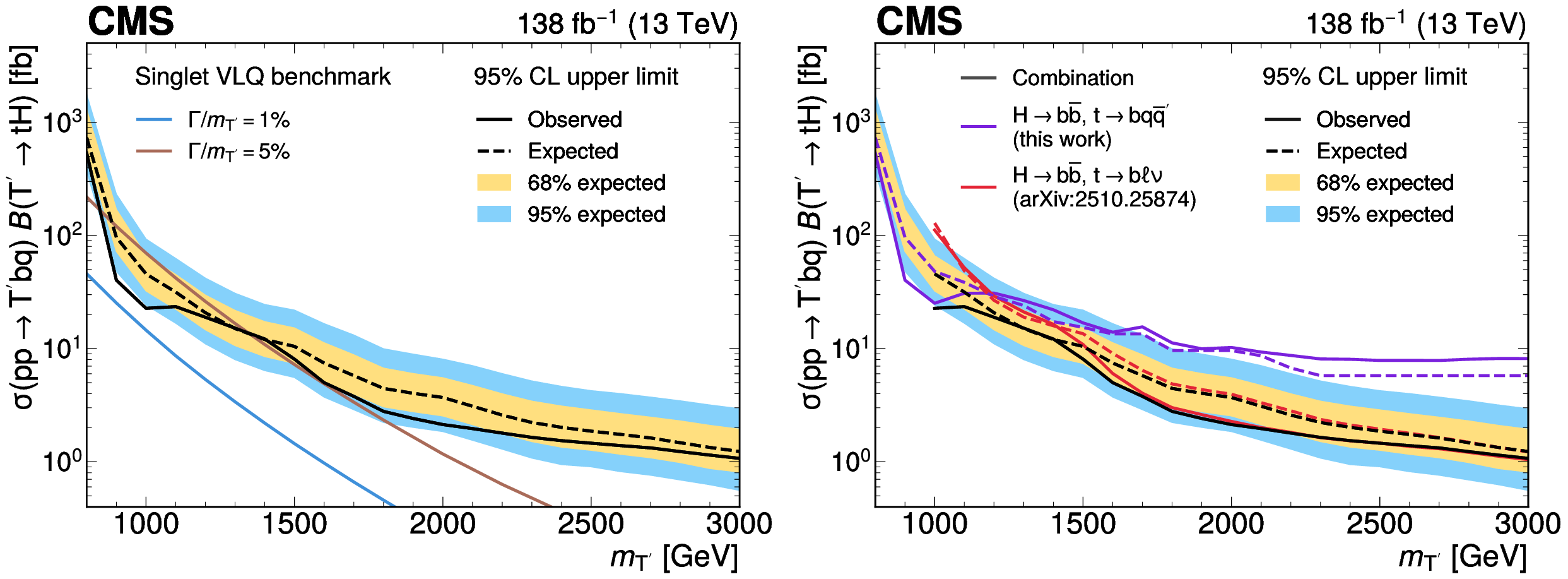

Figure 3:
Upper limits at 95% CL on the product of the cross section and branching fraction for $ \mathrm{p}\mathrm{p}\to T' \to\mathrm{t}\mathrm{H} $ as functions of the T' quark mass for fixed $ m_{\phi}=m_{\mathrm{H}}= $ 125 GeV. In the left panel, the solid blue (brown) curves indicate the theoretical cross sections for the singlet T' quark model assuming its width is 1% (5%) of its mass [34,33]. The contributions to the combination from the semileptonic (red) and fully hadronic (purple) channels are detailed in the right panel, where it is shown that upper limits for T' quark masses below 1 TeV are obtained from the fully hadronic channel only, while limits for all other mass points are obtained from the combination of the semileptonic and fully hadronic channels. The same holds for the shaded 68% and 95% expected upper limits in the right panel. In both panels, the median expected and the observed limits are depicted using dashed and solid lines, respectively. |
png pdf |

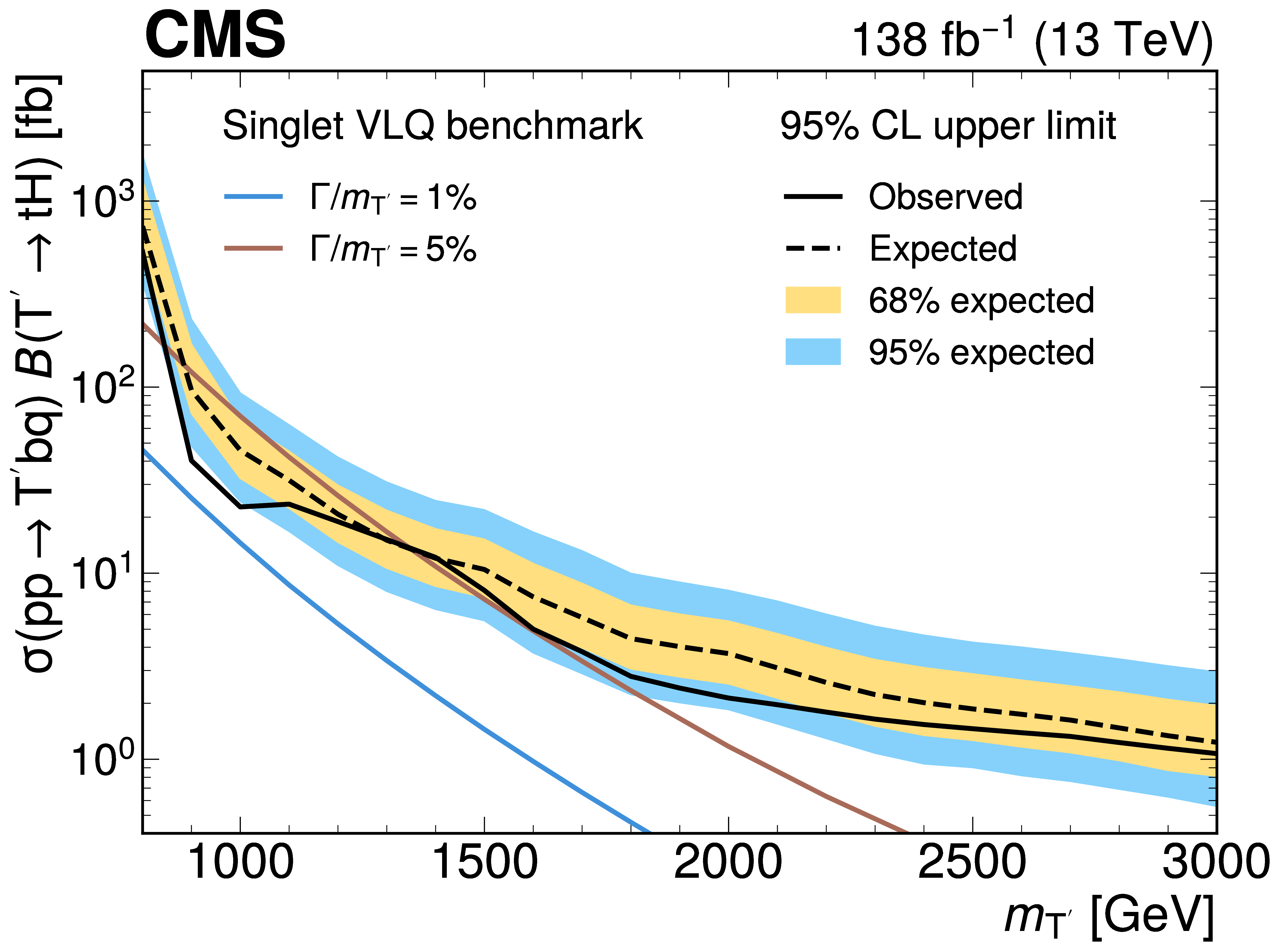

Figure 3-a:
Upper limits at 95% CL on the product of the cross section and branching fraction for $ \mathrm{p}\mathrm{p}\to T' \to\mathrm{t}\mathrm{H} $ as functions of the T' quark mass for fixed $ m_{\phi}=m_{\mathrm{H}}= $ 125 GeV. In the left panel, the solid blue (brown) curves indicate the theoretical cross sections for the singlet T' quark model assuming its width is 1% (5%) of its mass [34,33]. The contributions to the combination from the semileptonic (red) and fully hadronic (purple) channels are detailed in the right panel, where it is shown that upper limits for T' quark masses below 1 TeV are obtained from the fully hadronic channel only, while limits for all other mass points are obtained from the combination of the semileptonic and fully hadronic channels. The same holds for the shaded 68% and 95% expected upper limits in the right panel. In both panels, the median expected and the observed limits are depicted using dashed and solid lines, respectively. |
png pdf |

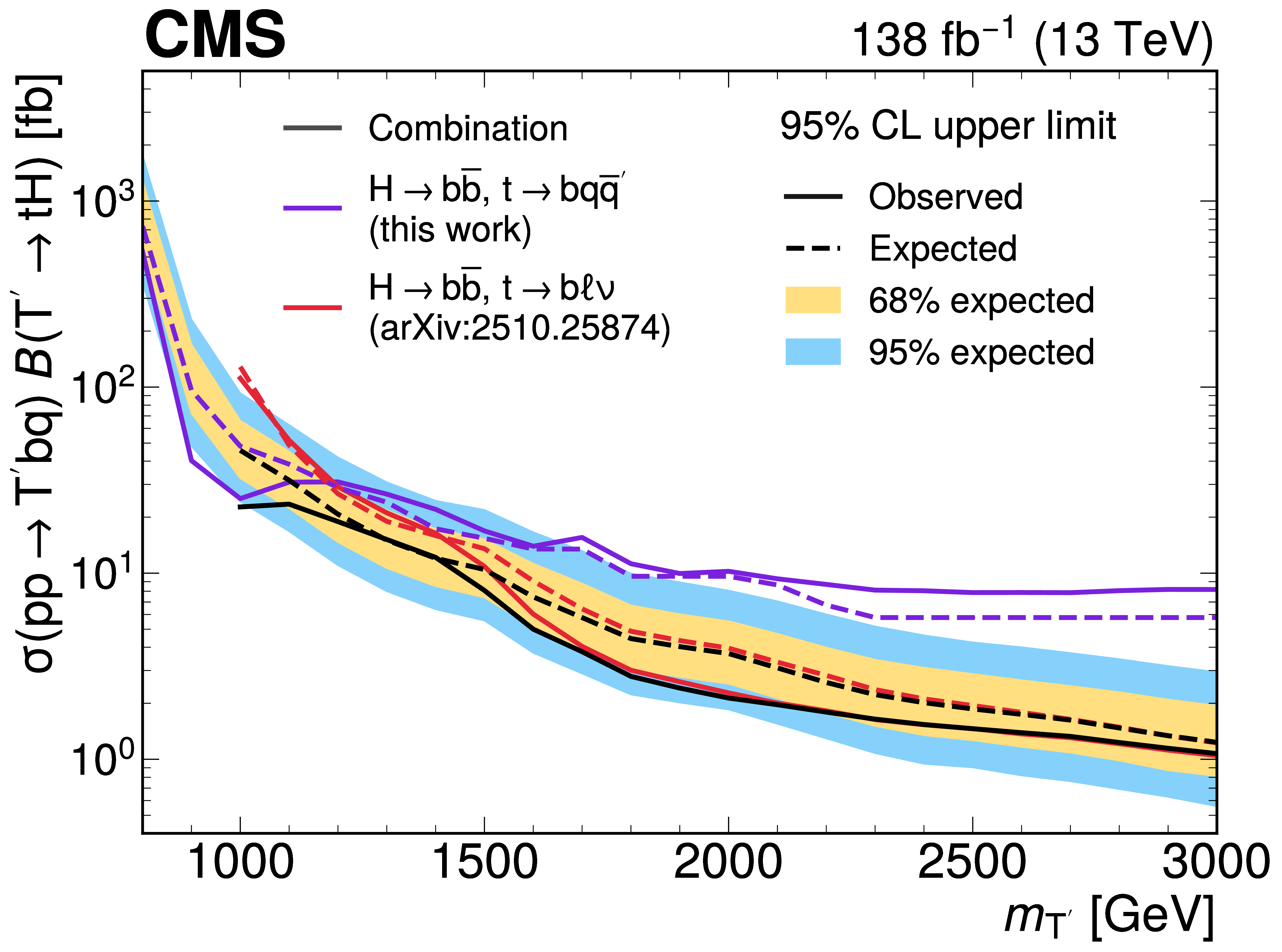

Figure 3-b:
Upper limits at 95% CL on the product of the cross section and branching fraction for $ \mathrm{p}\mathrm{p}\to T' \to\mathrm{t}\mathrm{H} $ as functions of the T' quark mass for fixed $ m_{\phi}=m_{\mathrm{H}}= $ 125 GeV. In the left panel, the solid blue (brown) curves indicate the theoretical cross sections for the singlet T' quark model assuming its width is 1% (5%) of its mass [34,33]. The contributions to the combination from the semileptonic (red) and fully hadronic (purple) channels are detailed in the right panel, where it is shown that upper limits for T' quark masses below 1 TeV are obtained from the fully hadronic channel only, while limits for all other mass points are obtained from the combination of the semileptonic and fully hadronic channels. The same holds for the shaded 68% and 95% expected upper limits in the right panel. In both panels, the median expected and the observed limits are depicted using dashed and solid lines, respectively. |
| Summary |
| A search for single production of a vector-like top quark partner T' decaying to a top quark (t) and a neutral scalar boson $ \phi $ in the fully hadronic final state is presented, using proton-proton collision data recorded by the CMS experiment at $ \sqrt{s}= $ 13 TeV in 2016--2018 and corresponding to a total integrated luminosity of 138 fb$ ^{-1} $. The hadronic decay products of the top quark and $ \phi $ boson are expected to be highly Lorentz boosted from the decay of the massive T' resonance, resulting in two large-radius jets in the final state. The results of this hadronic search are combined with those from a previous search in the semileptonic channels in a simultaneous maximum likelihood fit. No significant excess of data with respect to the background prediction is observed. Upper limits at 95% confidence level (CL) are set on the product of the production cross section and branching fraction for the decay $ T' \to \mathrm{t}\phi $, representing the first results for the decay $ T' \to \mathrm{t} ( \mathrm{b}\mathrm{q}\overline{\mathrm{q}}' )\phi ( \mathrm{b}\overline{\mathrm{b}} ) $ at the LHC. For the case where the neutral scalar is the standard model Higgs boson (H), upper limits are set on the product of the production cross section and the $ T' \to \mathrm{t}\mathrm{H} $ branching fraction between 10 and 0.4$ $ fb at 95% CL for T' quark masses between 1 and 3 TeV. They exclude T' quark masses of 0.85--1.3 TeV assuming the T' quark is a weak-isospin singlet with a resonance width 5% of its mass, improving on all previous searches by the CMS Collaboration [6] by up to a factor of three and representing the most stringent limits to date for masses above 2 TeV. For other $ \phi $ boson masses, upper limits as low as 0.1 fb are set at 95% CL on the product of the T' production cross section and branching fraction to $ \mathrm{t}\phi $. |
| References | ||||
| 1 | N. Arkani-Hamed, S. Dimopoulos, and G. R. Dvali | The Hierarchy problem and new dimensions at a millimeter | PLB 429 (1998) 263 | hep-ph/9803315 |
| 2 | Y. Okada and L. Panizzi | LHC signatures of vector-like quarks | Adv. High Energy Phys. 2013 (2013) 364936 | 1207.5607 |
| 3 | O. Eberhardt et al. | Joint analysis of Higgs boson decays and electroweak precision observables in the standard model with a sequential fourth generation | PRD 86 (2012) 013011 | 1204.3872 |
| 4 | J.-A. Aguilar-Saavedra, R. Benbrik, S. Heinemeyer, and M. P é rez-Victoria | A handbook of vector-like quarks: mixing and single production | PRD 88 (2013) 094010 | 1306.0572 |
| 5 | ATLAS Collaboration | Exploration at the high-energy frontier: ATLAS Run 2 searches investigating the exotic jungle beyond the Standard Model | Phys. Rept. 1116 (2025) 301 | 2403.09292 |
| 6 | CMS Collaboration | Review of searches for vector-like quarks, vector-like leptons, and heavy neutral leptons in proton-proton collisions at $ \sqrt{s} = $ 13 TeV at the CMS experiment | Phys. Rept. 1115 (2025) 570 | CMS-EXO-23-006 2405.17605 |
| 7 | S. Fajfer, A. Greljo, J. F. Kamenik, and I. Mustac | Light Higgs and vector-like quarks without prejudice | JHEP 07 (2013) 155 | 1304.4219 |
| 8 | G. Cacciapaglia, T. Flacke, M. Park, and M. Zhang | Exotic decays of top partners: mind the search gap | PLB 798 (2019) 135015 | 1908.07524 |
| 9 | R. Benbrik et al. | Signatures of vector-like top partners decaying into new neutral scalar or pseudoscalar bosons | JHEP 05 (2020) 028 | 1907.05929 |
| 10 | J. A. Aguilar-Saavedra, J. Alonso-Gonz \'a lez, L. Merlo, and J. M. No | Exotic vectorlike quark phenomenology in the minimal linear \ensuremath\sigma model | PRD 101 (2020) 035015 | 1911.10202 |
| 11 | A. Bhardwaj, T. Mandal, S. Mitra, and C. Neeraj | Roadmap to explore vectorlike quarks decaying to a new scalar or pseudoscalar | PRD 106 (2022) 095014 | 2203.13753 |
| 12 | G. C. Branco et al. | Theory and phenomenology of two-Higgs-doublet models | Phys. Rept. 516 (2012) 1 | 1106.0034 |
| 13 | CMS Collaboration | Search for single production of a vector-like T quark decaying to a top quark and a neutral scalar boson in the lepton+jets final state in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | Submitted to JHEP | 2510.25874 |
| 14 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV in 2015 and 2016 at CMS | EPJC 81 (2021) 800 | CMS-LUM-17-003 2104.01927 |
| 15 | CMS Collaboration | Precision luminosity measurement in proton-proton collisions at $ \sqrt{s} = $ 13 TeV with the CMS detector | CMS Physics Analysis Summary, 2025 CMS-PAS-LUM-20-001 |
CMS-PAS-LUM-20-001 |
| 16 | CMS Collaboration | HEPData record for this analysis | link | |
| 17 | CMS Collaboration | The CMS experiment at the CERN LHC | JINST 3 (2008) S08004 | |
| 18 | CMS Collaboration | Development of the CMS detector for the CERN LHC Run 3 | JINST 19 (2024) P05064 | CMS-PRF-21-001 2309.05466 |
| 19 | CMS Collaboration | Performance of the CMS Level-1 trigger in proton-proton collisions at $ \sqrt{s} = $ 13 TeV | JINST 15 (2020) P10017 | CMS-TRG-17-001 2006.10165 |
| 20 | CMS Collaboration | The CMS trigger system | JINST 12 (2017) P01020 | CMS-TRG-12-001 1609.02366 |
| 21 | CMS Collaboration | Performance of the CMS high-level trigger during LHC Run 2 | JINST 19 (2024) P11021 | CMS-TRG-19-001 2410.17038 |
| 22 | CMS Collaboration | Particle-flow reconstruction and global event description with the CMS detector | JINST 12 (2017) P10003 | CMS-PRF-14-001 1706.04965 |
| 23 | M. Cacciari, G. P. Salam, and G. Soyez | The anti-$ k_{\mathrm{T}} $ jet clustering algorithm | JHEP 04 (2008) 063 | 0802.1189 |
| 24 | M. Cacciari, G. P. Salam, and G. Soyez | FastJet user manual | EPJC 72 (2012) 1896 | 1111.6097 |
| 25 | D. Bertolini, P. Harris, M. Low, and N. Tran | Pileup per particle identification | JHEP 10 (2014) 059 | 1407.6013 |
| 26 | CMS Collaboration | Pileup mitigation at CMS in 13 TeV data | JINST 15 (2020) P09018 | CMS-JME-18-001 2003.00503 |
| 27 | CMS Collaboration | Jet energy scale and resolution in the CMS experiment in pp collisions at 8 TeV | JINST 12 (2017) P02014 | CMS-JME-13-004 1607.03663 |
| 28 | CMS Collaboration | Performance of missing transverse momentum reconstruction in proton-proton collisions at $ \sqrt{s} = $ 13 TeV using the CMS detector | JINST 14 (2019) P07004 | CMS-JME-17-001 1903.06078 |
| 29 | J. M. Butterworth, A. R. Davison, M. Rubin, and G. P. Salam | Jet substructure as a new Higgs search channel at the LHC | PRL 100 (2008) 242001 | 0802.2470 |
| 30 | M. Dasgupta, A. Fregoso, S. Marzani, and G. P. Salam | Towards an understanding of jet substructure | JHEP 09 (2013) 029 | 1307.0007 |
| 31 | A. J. Larkoski, S. Marzani, G. Soyez, and J. Thaler | Soft drop | JHEP 05 (2014) 146 | 1402.2657 |
| 32 | J. Alwall et al. | The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations | JHEP 07 (2014) 079 | 1405.0301 |
| 33 | M. Buchkremer, G. Cacciapaglia, A. Deandrea, and L. Panizzi | Model independent framework for searches of top partners | NPB 876 (2013) 376 | 1305.4172 |
| 34 | A. Carvalho et al. | Single production of vectorlike quarks with large width at the Large Hadron Collider | PRD 98 (2018) | 1805.06402 |
| 35 | A. Roy, N. Nikiforou, N. Castro, and T. Andeen | Novel interpretation strategy for searches of singly produced vectorlike quarks at the LHC | PRD 101 (2020) 115027 | 2003.00640 |
| 36 | M. J. Oreglia | A study of the reactions $ \psi^\prime \to \gamma \gamma \psi $ | Stanford University, SLAC Report SLAC-R-236, 1980 | |
| 37 | J. E. Gaiser | Charmonium Spectroscopy From Radiative Decays of the $ J/\psi $ and $ \psi^\prime $ | Stanford University, SLAC Report SLAC-R-255, 1982 | |
| 38 | A. L. Read | Linear interpolation of histograms | NIM A 425 (1999) 357 | |
| 39 | P. Nason | A new method for combining NLO QCD with shower Monte Carlo algorithms | JHEP 11 (2004) 040 | hep-ph/0409146 |
| 40 | S. Frixione, P. Nason, and C. Oleari | Matching NLO QCD computations with parton shower simulations: The POWHEG method | JHEP 11 (2007) 070 | 0709.2092 |
| 41 | S. Frixione , G. Ridolfi , and P. Nason | A positive-weight next-to-leading-order Monte Carlo for heavy flavour hadroproduction | JHEP 09 (2007) 126 | 0707.3088 |
| 42 | S. Alioli, P. Nason, C. Oleari, and E. Re | A general framework for implementing NLO calculations in shower Monte Carlo programs: The POWHEG BOX | JHEP 06 (2010) 043 | 1002.2581 |
| 43 | E. Re | Single-top Wt-channel production matched with parton showers using the POWHEG method | EPJC 71 (2011) 1547 | 1009.2450 |
| 44 | T. Sjöstrand et al. | An introduction to PYTHIA 8.2 | Comput. Phys. Commun. 191 (2015) 159 | 1410.3012 |
| 45 | NNPDF Collaboration | Parton distributions from high-precision collider data | EPJC 77 (2017) 663 | 1706.00428 |
| 46 | CMS Collaboration | Extraction and validation of a new set of CMS PYTHIA8 tunes from underlying-event measurements | EPJC 80 (2020) 4 | CMS-GEN-17-001 1903.12179 |
| 47 | GEANT4 Collaboration | GEANT 4---a simulation toolkit | NIM A 506 (2003) 250 | |
| 48 | ATLAS Collaboration | Measurement of the inelastic proton-proton cross section at $ \sqrt{s} = $ 13 TeV with the ATLAS Detector at the LHC | PRL 117 (2016) 182002 | 1606.02625 |
| 49 | CMS Collaboration | Measurement of the inelastic proton-proton cross section at $ \sqrt{s}= $ 13 TeV | JHEP 07 (2018) 161 | CMS-FSQ-15-005 1802.02613 |
| 50 | D. Krohn, J. Thaler, and L.-T. Wang | Jet trimming | JHEP 02 (2010) 084 | 0912.1342 |
| 51 | CMS Collaboration | Electron and photon reconstruction and identification with the CMS experiment at the CERN LHC | JINST 16 (2021) P05014 | CMS-EGM-17-001 2012.06888 |
| 52 | CMS Collaboration | Performance of the CMS muon detector and muon reconstruction with proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 13 (2018) P06015 | CMS-MUO-16-001 1804.04528 |
| 53 | H. Qu and L. Gouskos | Jet tagging via particle clouds | PRD 101 (2020) 056019 | 1902.08570 |
| 54 | CMS Collaboration | Performance of heavy-flavour jet identification in Lorentz-boosted topologies in proton-proton collisions at $ \sqrt{s}= $ 13 TeV | JINST 20 (2025) P11006 | CMS-BTV-22-001 2510.10228 |
| 55 | CMS Collaboration | Identification of heavy, energetic, hadronically decaying particles using machine-learning techniques | JINST 15 (2020) no. 06, P06005 | CMS-JME-18-002 2004.08262 |
| 56 | R. A. Fisher | On the Interpretation of $ \chi^2 $ from Contingency Tables, and the Calculation of P | J. Royal Stat. Soc. 85 (1922) 87 | |
| 57 | M. Czakon et al. | Top-pair production at the LHC through NNLO QCD and NLO EW | JHEP 10 (2017) 186 | 1705.04105 |
| 58 | CMS Collaboration | Measurement of the inclusive W and Z production cross sections in pp collisions at $ \sqrt{s}= $ 7 TeV | JHEP 10 (2011) 132 | CMS-EWK-10-005 1107.4789 |
| 59 | CMS Collaboration | The CMS statistical analysis and combination tool: Combine | Comput. Softw. Big Sci. 8 (2024) 19 | CMS-CAT-23-001 2404.06614 |
| 60 | W. Verkerke and D. Kirkby | The RooFit toolkit for data modeling | in the Int. Conf. on Computing in High Energy and Nuclear Physics (CHEP ): La Jolla CA, United States, March 24--28,, 2003 Proc. 1 (2003) 3 |
physics/0306116 |
| 61 | L. Moneta et al. | The RooStats project | in the Int. Workshop on Advanced Computing and Analysis Techniques in Physics Research (ACAT ): Jaipur, India, February 22--27,, 2010 Proc. 1 (2010) 3 |
1009.1003 |
| 62 | T. Junk | Confidence level computation for combining searches with small statistics | NIM A 434 (1999) 435 | hep-ex/9902006 |
| 63 | A. L. Read | Presentation of search results: The $ \text{CL}_\text{s} $ technique | JPG 28 (2002) 2693 | |
| 64 | ATLAS and CMS Collaborations, and LHC Higgs Combination Group | Procedure for the LHC Higgs boson search combination in Summer 2011 | Technical Report CMS-NOTE-2011-005, ATL-PHYS-PUB-2011-11, 2011 | |
| 65 | G. Cowan, K. Cranmer, E. Gross, and O. Vitells | Asymptotic formulae for likelihood-based tests of new physics | EPJC 71 (2011) 1554 | 1007.1727 |
|
|
